HID Global 607X 6071A, 6072A, 6073A FlexSmart Keypad Reader Series User Manual Flexpass Reader Installation Guide
HID Global Corporation 6071A, 6072A, 6073A FlexSmart Keypad Reader Series Flexpass Reader Installation Guide
Users Manual
9292 Jeronimo Road
Irvine, CA 92618-1905
HID® FlexSmart™
607X Series Readers
INSTALLATION GUIDE
© 2007 HID Global Corporation. All rights reserved.
February 5, 2006
Document Number 6075-900
Document Version B.2
6075-900, B.2 – FlexSmart™ 607X Series Installation Guide
Contents
1 Overview ............................................................................................................................................... 3
2 Mounting ............................................................................................................................................... 4
3 Wiring ................................................................................................................................................... 5
Regulatory ................................................................................................................................................... 7
Models ................................................................................................................................................... 7
Contact ................................................................................................................................................... 8
List of Figures
Figure 1 Reader Dimensions and Mounting........................................................................................................ 4
Figure 2 Keypad Reader Dimensions and Mounting .......................................................................................... 5
Page 2 of 8 February 5, 2007
© 2007 HID Global Corporation. All rights reserved.
FlexSmart™ 607X Series Installation Guide – 6075-900, B.2
1 Overview
1.1 Introduction
The HID® FlexSmart™ readers can easily be configured at the site because the readers’ bezel can be
interchangeably snapped onto the common reader module (only standard reader).
The FlexSmart readers mount on any North American standard electrical gang box or on any flat surface,
with snap-on bezels.
1.2 Parts Included
First, unpack the contents and become familiar with the components.
The following items will be included with FlexSmart readers:
1. Installation Guide
2. MIFARE reader module for Slim or Wall switch
3. Cover Bezel (reader only)
1.3 Specifications
Supply Voltage 9VDC to 16VDC
Supply Current 15 / 75mA Keypad 25 / 100mA
Input 1-line LED (red/green), 1-line buzzer
Output formats Wiegand/ABA, Application dependant
Operating Frequency 13.56MHz, 106kBaud
Data Transmission Contactless
Operating Temperature -25oC to +55oC
Non-Operating Temperature -40oC to +70oC
Operating Humidity 5% to 95% condensing
Finish Black (Standard)
Dimensions 4.30” x 1.5” x .72” (10.9 x 3.8 x 1.8 cm)
4.70” x 2.9” x 1.1” (11.9 x 7.4 x 2.8 cm)
Weight 4 oz (113g) keypad 12 oz (340g)
February 5, 2007 Page 3 of 8
© 2007 HID Global Corporation. All rights reserved.
6075-900, B.2 – FlexSmart™ 607X Series Installation Guide

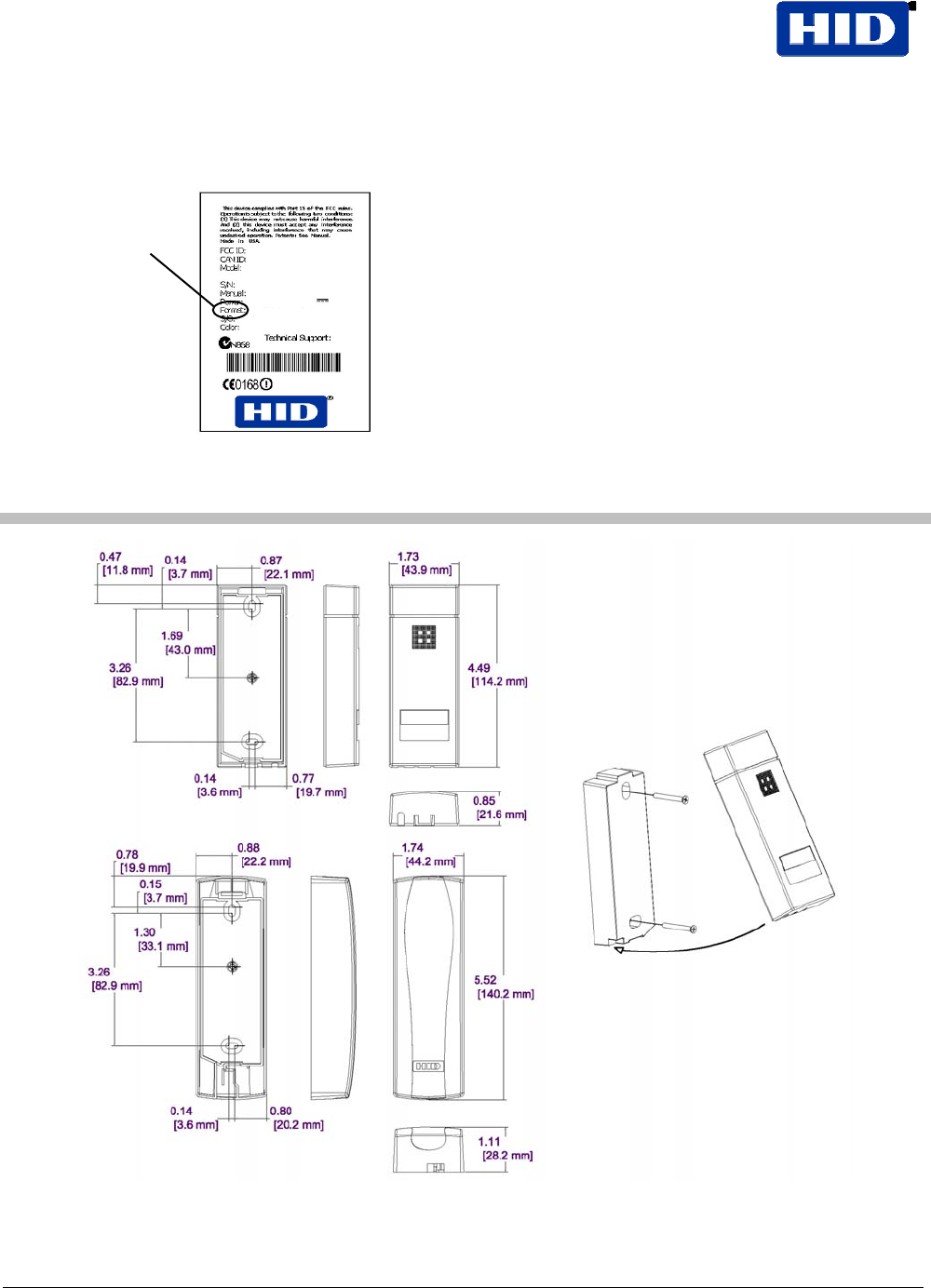

1.4 Identifying the Reader Format
The reader format is found on the ID label (see below), which is located on the reader electronics module.
Reader
Format
2 Mounting
Figure 1 Reader Dimensions and Mounting
Page 4 of 8 February 5, 2007
© 2007 HID Global Corporation. All rights reserved.
FlexSmart™ 607X Series Installation Guide – 6075-900, B.2

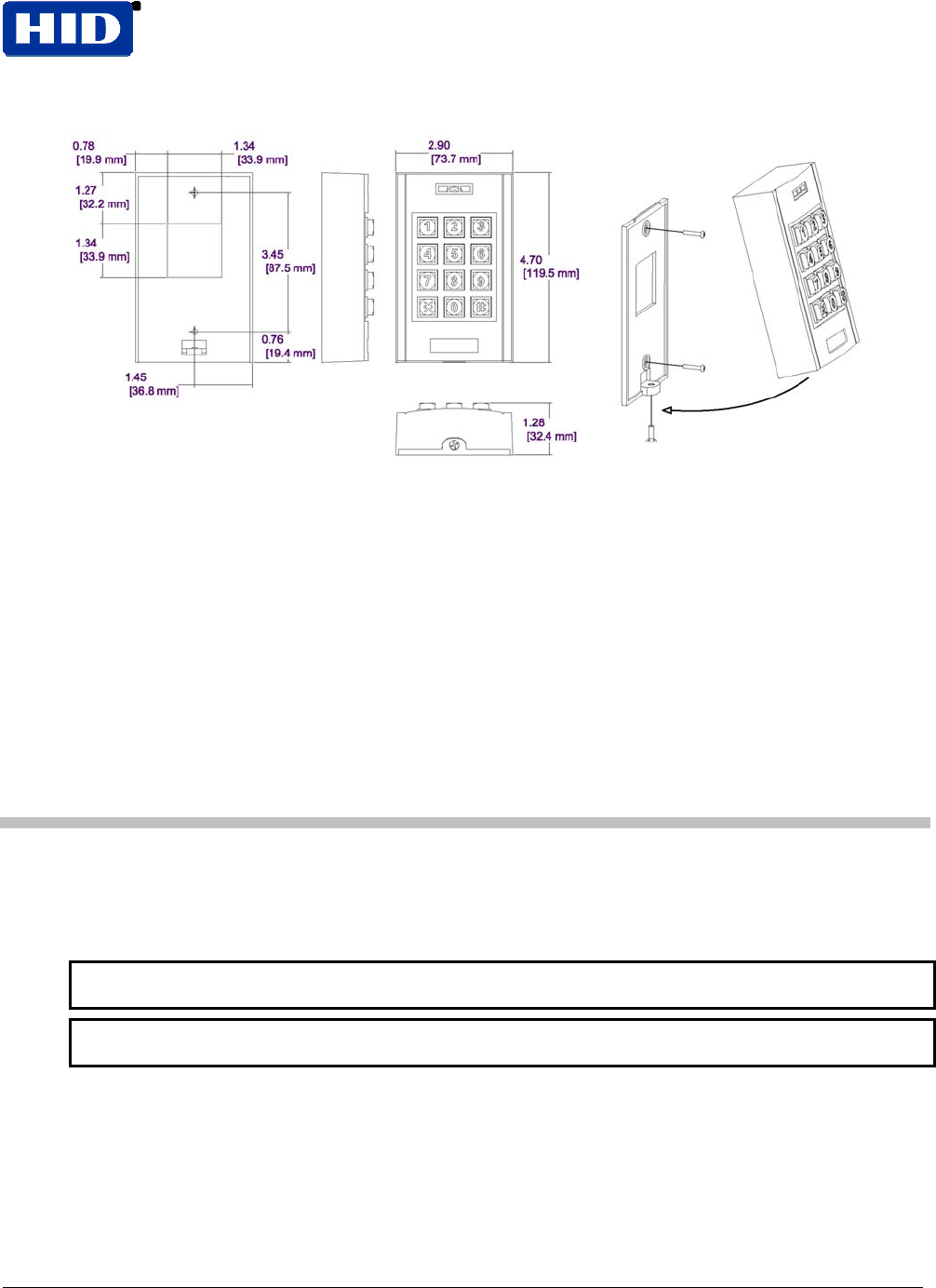

Figure 2 Keypad Reader Dimensions and Mounting
2.1 Mullion Mounting
The following describes how the readers mount to a mullion.
1. Drill two holes 6-32 or M-3 sheet metal or thread forming screws 3.3” (8.38 cm) apart.
2. Locate and drill a 0.375” (0.95 cm) hole for the reader cable.
3. Route the cable through the center hole to the controller.
4. Using the two 6-32 or M-3 screws, attach the reader to the first two mounting holes.
5. Once the reader module is screwed in place, snap on the bezel.
3 Wiring
3.1 Cable Types and Maximum Lengths
The MIFARE readers require a minimum voltage of 9.0 VDC. Voltage drops, caused by the cable
resistance, can be made by increasing the power supply voltage.
CAUTION: DO NOT SET THE POWER SUPPLY VOLTAGE TO HIGHER THAN 16 VDC.
CAUTION: DO NOT USE CABLES WITH GAUGES SMALLER THAN 24 AWG:
February 5, 2007 Page 5 of 8
© 2007 HID Global Corporation. All rights reserved.
6075-900, B.2 – FlexSmart™ 607X Series Installation Guide
The following are recommended cable types and maximum cable lengths for a cable connecting the power supply
to the reader.
Cable Type Maximum Cable Length
24 AWG (0.60mm), three conductors, with an overall foil shield, 9533 or
equivalent. 200’ (61 m)
22 AWG (0.80mm), two conductors, with an overall foil shield, Alpha 5192
or equivalent. 300’ (91 m)
18 AWG (1.20mm), two conductors, with an overall foil shield, 5836 or
equivalent. 500’ (152 m)
The following are recommended wiring types at various maximum distances. Variations in distances
require different wire gauges, because of system data termination differences. Contact your system
manufacturer for its exact requirements. Installation should be in accordance with National Electric Code
ANSI/NFPA 70.
Cable Type Maximum Cable Length
22 AWG (0.80mm), six or eight conductor, with an overall foil shield, Alpha
5196, 5198 or equivalent. 500’(152 m)
18 AWG (1.20mm), six or eight conductor, with an overall foil shield, Alpha
5386, 5388 or equivalent. 500’ (152m)
3.2 Grounding
Connect the reader directly to an earth ground (an earth ground can be established by driving a copper
clad ground rod into the earth). Make certain the DC resistance between your established earth ground
and the system ground is 50 Ohms or less. If a direct connection to a ground rod is not possible, connect
the reader to an earth grounded cold water metal pipe (do not connect to a copper fire sprinkler system
because it may have non-conductive couplings) or steel frames (building beams) that connect to earth.
Connection of the shield/drain to an earth ground will provide greater ESD protection of the reader.
Prevent ground loops by connecting both the cable shield and the negative line of the power supply to one
common earth ground point. Connecting different points to separate earth grounds may result in a ground
loop.
Note: For the heavy duty keypad readers, the Shield/drain wire should be floating at the power supply.
Note: Ground loops may cause poor read range and communication line interference, resulting in no code
or improper code seen by the controller.
Reader Defaults Reader Wiring
Card read (LED, beep & backlight) Red +12Vdc
One-line control (bi-colour LED) Black 0Vdc
Keypad Defaults Green Data 0/Strobe
Key-press (LED, beep & backlight) White Data 1/Data
1 0001 2 0010 3 0011 Brown LED Control
4 0100 5 0101 6 0110 Blue Beeper Control
7 0111 8 1000 9 1001 Orange Not Used
Θ1010 0 0000 # 1011 Shield/drain Door controller earth ground
Page 6 of 8 February 5, 2007
© 2007 HID Global Corporation. All rights reserved.
FlexSmart™ 607X Series Installation Guide – 6075-900, B.2
Notes:
• Keypad outputs only available
• The system must have a single earth ground point.
• As shown, do not connect shield (screen) wire at reader cable splice.
• For open collector (non-terminated output), consult your system manufacturer for correct cable length
and type.
Regulatory
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
UL
This reader is intended to be used with UL294 Listed Control Equipment.
CE
Hereby, HID declares that this proximity reader is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Models
Readers
6075 HID Format MIFARE Reader
6076 Custom MIFARE Reader
6077 Custom DESFire Reader
Keypad Readers
6071 HID Format MIFARE Reader
6072 Custom MIFARE Reader
6073 Custom DESFire Reader
