ACCESS flexibility.
Ultra High Frequency
iCLASS SE®
INSTALLATION GUIDE
U90 (U90.915 & U90.865)
Reader
PLT-01545, A.0
iCLASS SE
INSTALLATION GUIDE
2
PLT-01545, A.0
U90 (U90.915 & U90.865)
© 2014 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
Specifications
Parts List
Parts
1 - iCLASS Reader
1 - Installation Guide
2 - #6-32 x .375” Phillips machine screws
2 - #6-32 x .375” Spanner security screw, anti-tamper
2 - 7-pin Terminal connectors
1 - 10-pin Terminal connector
1 - Mounting Gasket
1 - Back Box
recommended
• Cable, 5-9 conductor (Wiegand or clock-and-data)
• Linear DC Power supply
• Metal or plastic junction box
• Security Tool (for anti-tamper screw) HID 04-0001-03
• Drill with various bits for mounting hardware
• Mounting Hardware
UL Reference Number Deciphering
x1 Reader Colors: K = Black
x2 Wiring: T = Terminal
x3 Communications: N = No Module
PRODUCT BASE PART
NUMBER
INPUT
VOLTAGE (VDC)
CURRENT OPERATING
TEMPERATURE CABLE LENGTH UL REF
NUMBER
Standby
AVG1
Max
AVG2PEAK3
U90 960N
12 VDC 320mA 400mA 1.0 A
-30° to 150° F
(-35° to 65° C)
Power Supply Lines
40 ft (12 m) - 22 AWG
100 ft (30 m) - 18 AWG
Communication Lines
Wiegand / Clock-and-Data
500 ft (152 m) - 22 AWG
RS-485
4,000 ft (1,219 m) - 24 AWG
U90Ax1x2x3
24 VDC 160mA 200mA 0.5 A
1 Standby AVG - RMS current draw without a card in the RF eld.
2 Maximum AVG - RMS current draw during continuous card reads. Not evaluated by UL.
3 Peak - highest instantaneous current draw during RF communication.
Relays
Three (3) each dry relays for operating external audio and visual indicators. Not to be used for Access Control. Rated 30VDC, 2A
resistive.
INSTALLATION GUIDE 3
PLT-01545, A.0 iCLASS SE
U90 (U90.915 & U90.865)
© 2014 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
Mounting
1There are many options for mounting surfaces (pole, concrete, metal,
wall bracket, etc.). See the iCLASS SE U90 Reader User Guide for
detailed information.
100 75
VESA
CONDUIT
US
JBOX
EU
JBOX
EU
JBOX
EU
JBOX
EU
JBOX
US
JBOX
75 100
75
100
75
100
200
200 200
200

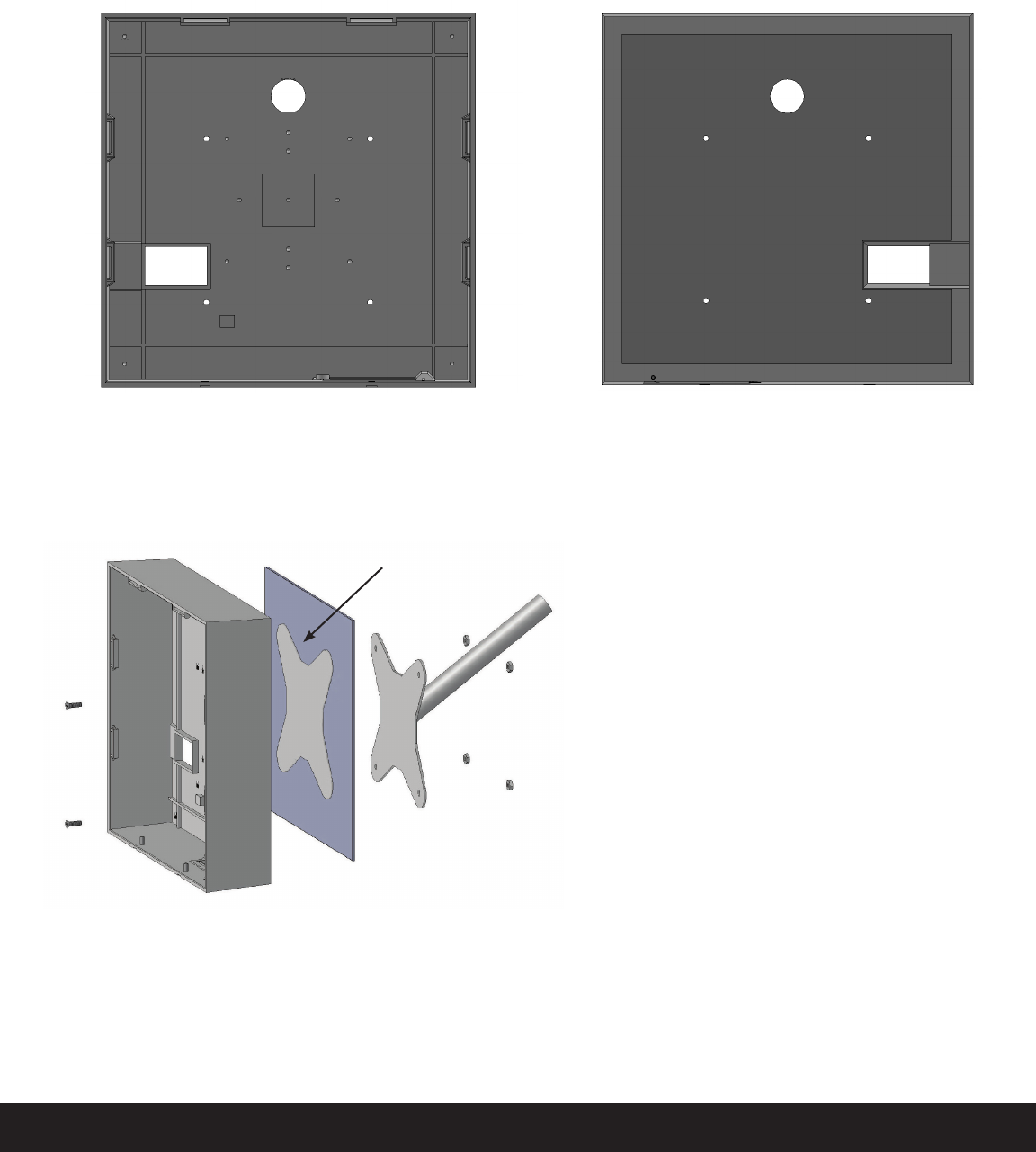

Mounting holes need to be drilled to mate with the mount
selected for the site.
Modify the gasket to the match the large holes on the
mounting plate and to match the area between the mount
and the box, to create a seal against the elements (see
below).
Attach the box with the gasket to the mount
Trim Gasket to match the contact area
iCLASS SE
INSTALLATION GUIDE
4
PLT-01545, A.0
U90 (U90.915 & U90.865)
© 2014 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES

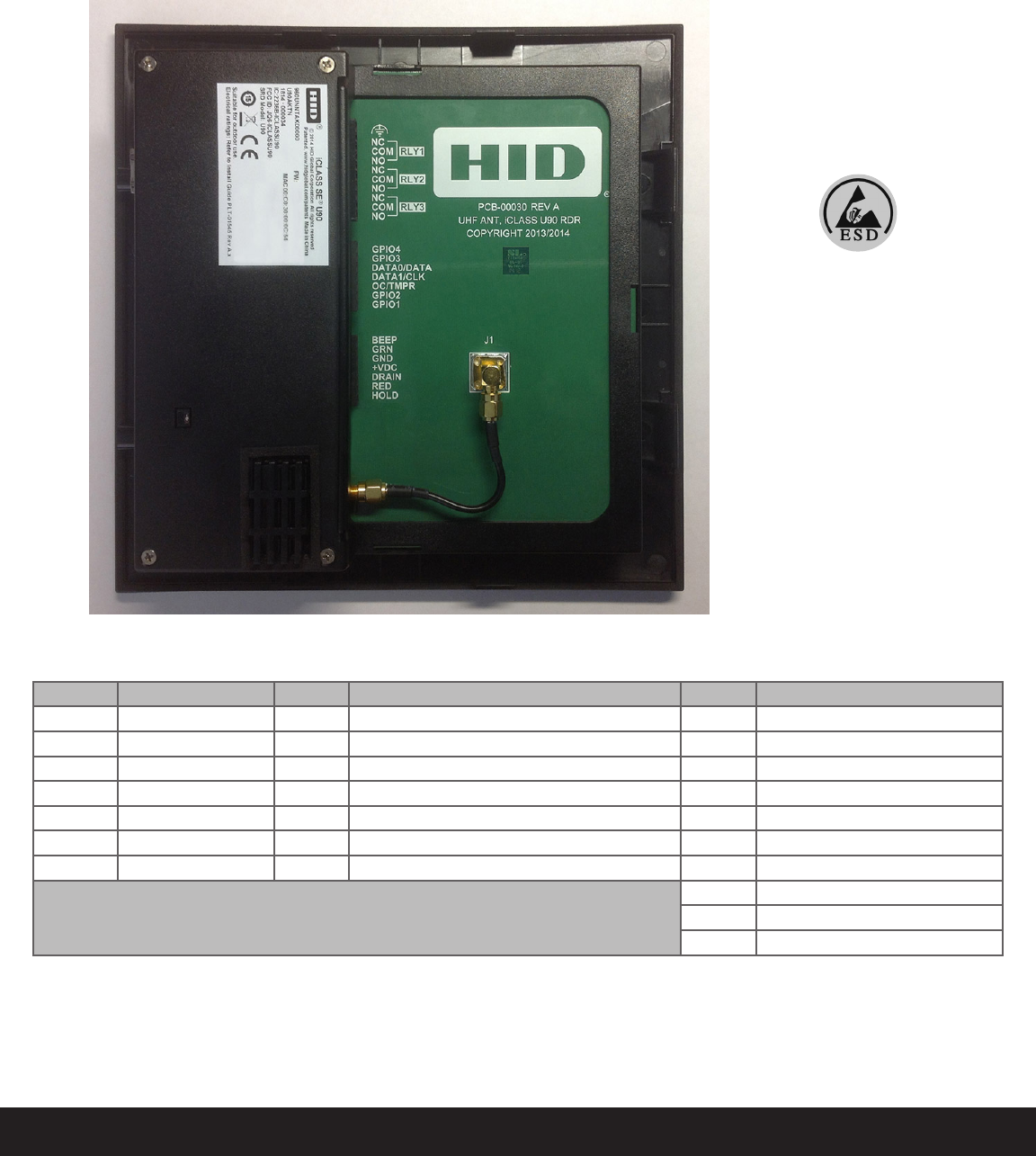

Wiring
2
* Tamper Output - When activated, output synchronizes to ground (default).
** Dependent upon reader conguration. See the HTOG for Wiegand and Clock-in-Data congurations.
Terminal Description Terminal Description Terminal Description
P1-1 Beeper Input (BEEP) P2-1 GPIO4 (RS485-Y / TXA) P3-1 Earth Ground
P1-2 LED Input (GRN) P2-2 GPIO3 (RS485-Z / TXB) P3-2 Normally Closed (NC) - Relay 1
P1-3 Ground (GND) P2-3 ** Wiegand Data 0 / Data (DATA0/DATA) P3-3 Common (COM) - Relay 1
P1-4 +VDC P2-4 ** Wiegand Data 1 / Clock (DATA1/CLK) P3-4 Normally Open (NO) - Relay 1
P1-5 Unused (DRAIN) P2-5 * Open Collector Output / Tamper (OC/TMPR) P3-5 Normally Closed (NC) - Relay 2
P1-6 LED Input (RED) P2-6 GPIO2 (RS232-R / RS485-RXB) P3-6 Common (COM) - Relay 2
P1-7 Hold Input (HOLD) P2-7 GPIO1 (RS232-T / RS485-RXA) P3-7 Normally Open (NO) - Relay 2
P3-8 Normally Closed (NC) - Relay 3
P3-9 Common (COM) - Relay 3
P3-10 Normally Open (NO) - Relay 3
INSTALLATION GUIDE 5
PLT-01545, A.0 iCLASS SE
U90 (U90.915 & U90.865)
© 2014 HID Global Corporation/ASSA ABLOY AB. All rights reserved.

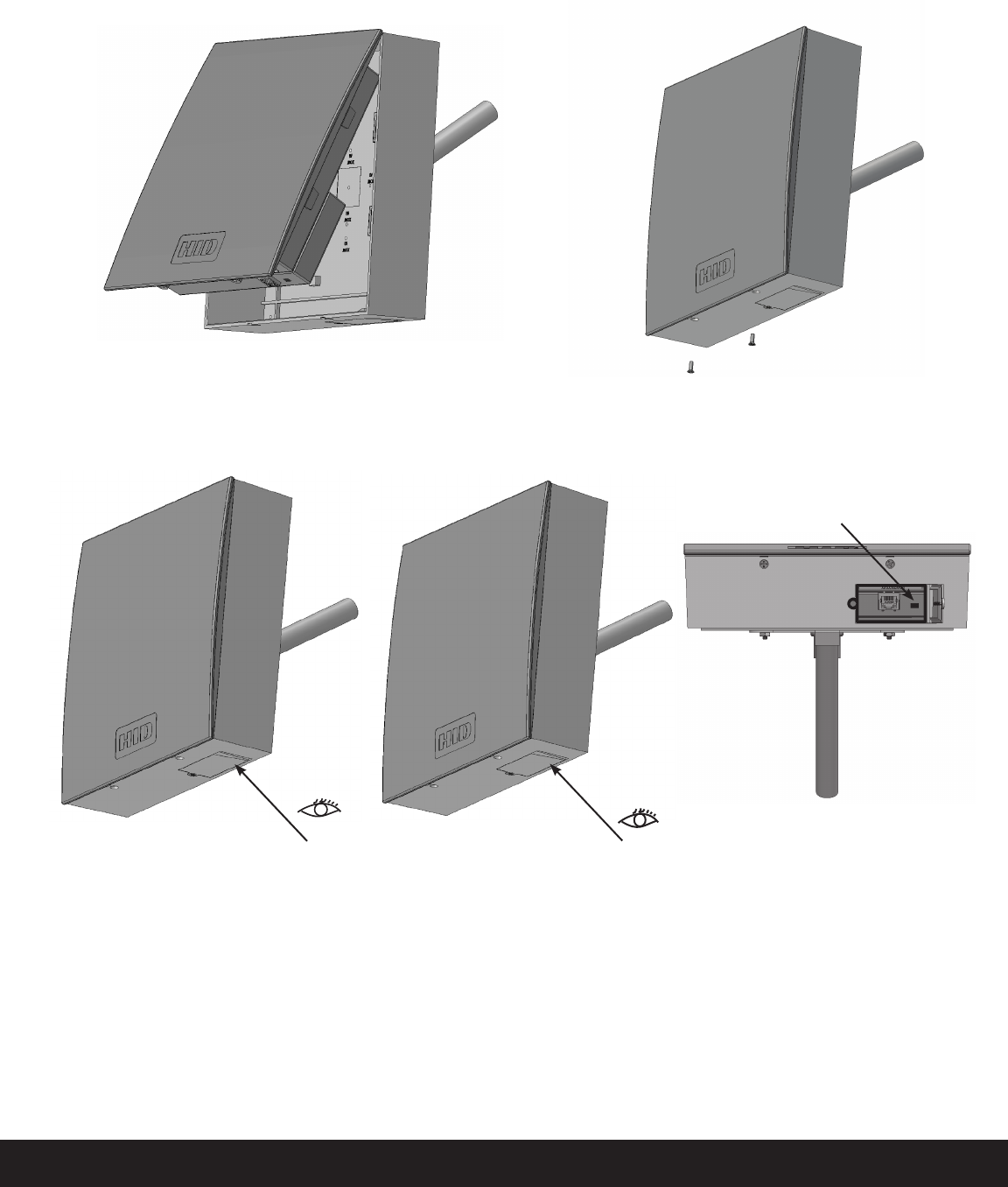

Install Reader to Backbox
3
Power & Testing
4
Basic test of a card
Turn power on
LED is under the trap door
LED will be Green
Note: This is tested with a
card mounted in a vehicle and
driven by the reader.
LED will be red
(under the trap door)
Configurable Features
• Open Collector Output - Controls an external device (16 VDC Max) operating in Host Mode only. Sink - 40mA / Source - 1mA. See the iCLASS Application Note for details.
• Optical Tamper - Reader is configurable for Optical Tamper. Once activated, and when the reader is removed from the mounting box, the Optical Tamper is activated. Contact HID Technical Support
for Optical Tamper options. See iCLASS SE U90 User Guide.
• Hold Input - when asserted, this line either buffers a card or disables a card read until released, as configured.
hidglobal.com
ACCESS experience.
Americas & Corporate
611 Center Ridge Drive
Austin, TX 78753
USA
Support: 866 607 7339
Fax: 949 732 2120
For additional oces around the world, see www.hidglobal.com corporate oces.
HID Global Customer Support: support.hidglobal.com
Asia Pacific
19/F 625 King’s Road
NorthPoint, Island East
Hong Kong
Support: 852 3160 9833
Fax: 852 3160 4809
Europe, Middle East & Africa
Phoenix Road
Haverhill, Suolk CB9 7AE
England
Support: +44 1440 711 822
Fax: +44 1440 714 840
HID Global
Brazil
Condomínio Business Center
St. Ermano Marchetti, 1435
Galpão A2 CEP 05038-001
Lapa - São Paulo/SP
Brazil
Support: 55 11 5514-7100
US Patents: See www.hidglobal.com/patents
Check reader label for current regulatory
approvals.
UL
Connect only to a Listed Access Control / Burglary power-limited power supply. These readers are intended to be used with listed (UL294) control equipment.
Only Wiegand and RS-485 communications have been evaluated by UL.
CAUTION: Any changes or modifcations to this devise not explicitly approved by the manufacturer could void your authority to operate this equipment.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
FCC RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the
radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna
Canada Radio Certification
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
CE Marking
HID Global hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Por el presente, HID Global declara que estos lectores de proximidad cumplen con los requisitos esenciales y otras disposiciones relevantes de la Directiva 1999/5/EC.
HID Global déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE.
A HID Global, por meio deste, declara que estes leitores de proximidade estão em conformidade com as exigências essenciais e outras condições da diretiva 1999/5/EC.
HID Global bestätigt hiermit, dass die Leser die wesentlichen Anforderungen und anderen relevanten Bestimmungen der Richtlinie 1999/5/EG erfüllen.
HID Global dichiara che i lettori di prossimità sono conformi ai requisiti essenziali e ad altre misure rilevanti come previsto dalla Direttiva europea 1999/5/EC.
Download copies of the R&TTE Declaration of Conformity (DoC) at http://www.hidglobal.com/certifications.
