1
THANK YOU!
We are grateful for your purchase of HYT product. We believe this easy–to-use
radio will provide you with dependable and reliable communications. This HYT
portable two-way radio is a precision device. Treat it with care, and you will enjoy
years of reliable operation.
MODELS COVERED IN THIS MANUAL
TC3000 VHF Radio
TC3000 UHF Radio
2
Contents
User Safety, Training, and General Information
Compliance with RF Energy Exposure Standards
FCC Compliance
Precautions
Product Inspection
Battery Information
Accessory Installation
Battery
Antenna
Belt Clip
Earplug Cover
External Earphone/Microphone (optional)
Getting Started
Features and Operation
Turn on/off the radio
Adjust the Volume
Select Channel
Transmit
Receive
Monitor
Repeater/Talk Around
Repeater/ Reverse Frequency
Selectable Power
Scan
Call
Selective Call
Emergency Siren
VOX Feature
Built-in Modem
Patrol Record
Low Battery Alert
Troubleshooting Guide
Care and Cleaning
Optional Accessories
Frequency Chart
3
User Safety, Training, and General Information
READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION
BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO.
Compliance with RF Energy Exposure Standards
Your HYT two-way radio is designed and tested to comply with a number of national and
international standards and guidelines (listed below) regarding human exposure to radio
frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP
exposure limits for occupational/controlled RF exposure environment at duty cycles of
up to 50% talk-50% listen and should be used for occupational use only. In terms of
measuring RF energy for compliance with the FCC exposure guidelines, your radio
radiates measurable RF energy only while it is transmitting (during talking), not when it
is receiving (listening) or in standby mode.
Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle
(5% talk-5% listen-90% standby), even though this radio complies with the FCC
occupational RF exposure limits at duty cycles of up to 50% talk.
Your HYT two-way radio complies with the following of RF energy exposure
standards and guidelines:
United States Federal Communications Commission, Code of Federal Regulations;
47CFR part 2 sub-part J (Body 0.00975 mW/g; Head 0.01135 mW/g)
American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled
environment RF energy exposure limits in the above standards and guidelines, users
should transmit no more than 50% of the time and always adhere to the following
procedures:
Transmit and Receive
To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT
button.
Hand-held radio operation
Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm)
away from the lips.
Body-worn operation
Always place the radio in an HYT approved clip, holder, holster, case, or body
harness for this product. Use of non-HYT-approved accessories may exceed
FCC RF exposure guidelines.
If you do not use an HYT approved body-worn accessory and are not using the
radio in the intended use position in front of the face, then ensure the antenna
and the radio are kept one inch (2.5 cm) from the body when transmitting.
4
Antennas & Batteries
Use only HYT approved, supplied antenna or HYT approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and
may violate FCC regulations.
Use only HYT approved, supplied batteries or HYT approved replacement batteries.
Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines.
Approved Accessories
For a list of HYT approved accessories, see the accessories page of this user manual or
visit the following website which lists approved accessories: http://www.HYT.com.cn
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved in writing may cause harmful
interference and void the user’s authority to operate this equipment.
FCC Requirements
Your radio must be properly licensed Federal Communications Commission prior to use.
Your HYT Wireless dealer can assist you in meeting these requirements. Your dealer will
program each radio with your authorized frequencies, signaling codes, etc., and will be
there to meet your communications needs as your system expands.
Precautions
• Only qualified technicians are allowed to maintain this product.
• Do not use the radio or charge a battery in explosive areas such as coal gas, dust,
steam, etc.
• Switch OFF the radio while refueling or parking at gas station.
• Do not modify or adjust this radio without permission.
• Do not expose the radio to direct sunlight over a long time, nor place it close to
5
heating source.
• Do not place the radio in excessively dusty, humid areas, nor on unstable surfaces.
Safety: It is important that the operator is aware of and understands hazards common
to the operation of any radio.
6
Product Inspection
Thank you for your use of HYT portable two-way radio TC3000. Before use, you are
recommended to inspect the product as follows.
First check the shipping carton for any signs of damage. If any damage has occurred,
please contact your dealer immediately. Confirm the supplied product against the
packing slip to assure accuracy.
Available Accessories
Item Qty. (pcs)
Antenna * 1
Belt Clip 1
Strap 1
Battery 1
Desktop Charger 1
AC Adapter 1
Owner’s Manual 1
*Antenna Mark:
TC3000-U(1)（400-430MHz）: Dark red
TC3000-U(2)（440-470MHz）:Milk White
TC3000-V(1)（130-150MHz）: Sky Blue
TC3000-V(2)（145-175MHz）: Grass Green
TC3000-U(5)（350-370MHz）: Saffron
TC3000-U(6)（370-390MHz）: Background Color
Battery Information
Battery Charging Information
The battery is not charged by the manufactory. Charge the newly purchased battery or
out of use for more than 2 months battery before use. The battery capacity will be
optimum only after being charged/discharged for two or three times. When the battery
power is lower, please charge it or replace it with a new one.
Notices:
Do not short out the battery terminals or dispose of the battery by fire.
Turn off the radio when charging the battery inside the radio.
Remove the radio and the battery from the charger when charging cycle is over.
Overcharging will shorten the battery life.
Do not continue charging the battery if it is already fully charged. Or the battery life
7
will be shortened.
Store the battery in a place about 25℃. Charging the battery in less than 10℃
temperature will cause the electrolyte leakage and damage the battery.
Charging the battery in over 35℃ temperature will affect the battery capacity.

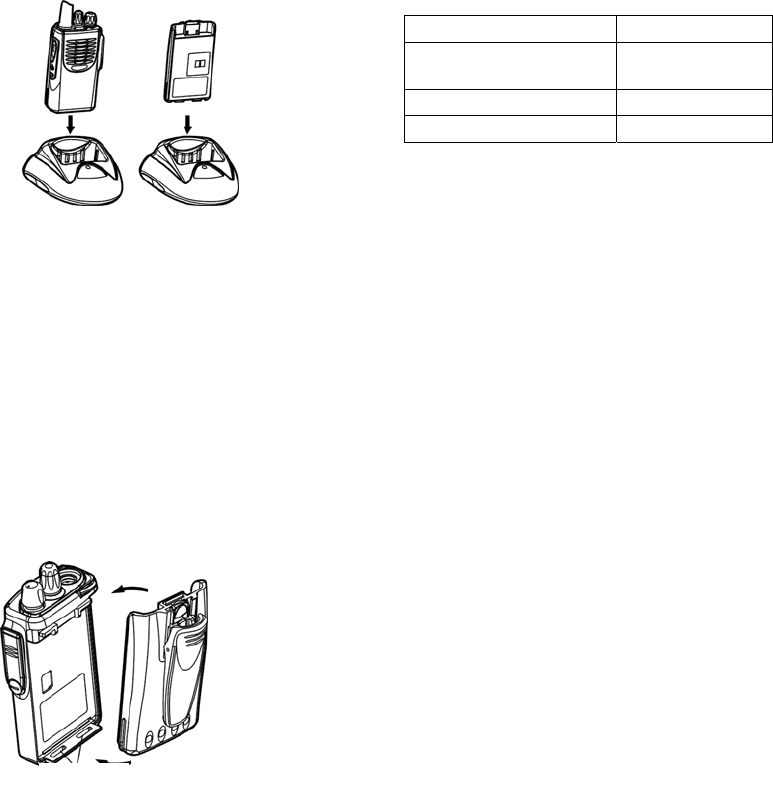

Charging the Battery
You are recommended to use HYT authorized
charger. Charger LED will indicate the
charging status.
Accessory Installation
Battery
Attach the battery
Insert the two tabs on bottom of the battery into the slots at the bottom of the radio. Push
top of the battery towards the radio until a click is heard. (See figure 1)
Fig.1

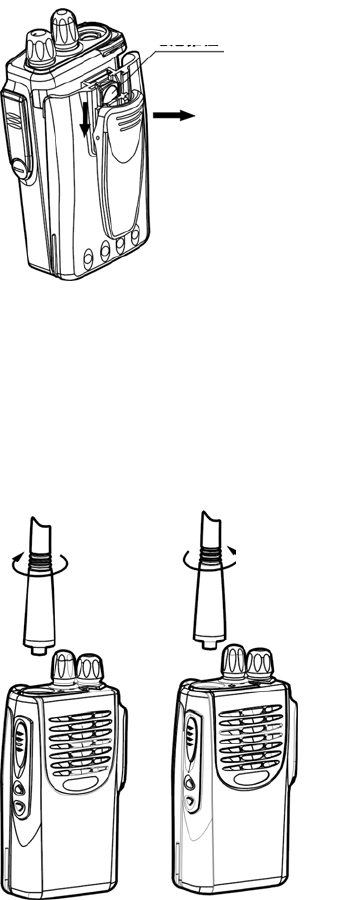

Remove the battery
Turn off the radio. Push the battery latch on the middle of the radio to remove the upper
side of the battery away from the radio. And then remove the battery. (See figure2)
LED Meaning
Red LED flashes Power voltage
too low
Red LED glows Charging
Green LED glows Done
Slot
8
Fig.2
Antenna
Insert the threaded end of the antenna into the connector on top of the radio. Rotate the
antenna clockwise to fasten it.
Rotate the antenna counterclockwise to remove it. (See the following figure)
Belt Clip
Attach Belt Clip
Align the slot of the belt clip with the T-slot at the battery cover and press the belt clip
downwards until it is locked. (See figure 3)
Battery Latch
Remove
Install
9
Fig.3
Remove the belt clip
Press the disassembly release upwards with a key until it releases and then push the
belt clip upwards with your thumb to remove it. (See figure 4)
拆卸擎
Fig.4
Earplug Cover
Rotate the screw at the bottom of the cover counter clockwise by a screwdriver until it is
out of the nut to remove the Earphone/Microphone jack cover. (See figure 5)
Disassembly Release
10
Fig.5
External Earphone/Microphone (Optional)
Insert the tab at the bottom of the earphone/microphone into the slot on top of the radio.
(See figure 6). Align the nuts at top of the earphone/microphone with the holes on the
radio and then turn them clockwise to fasten.
Fig.6
11

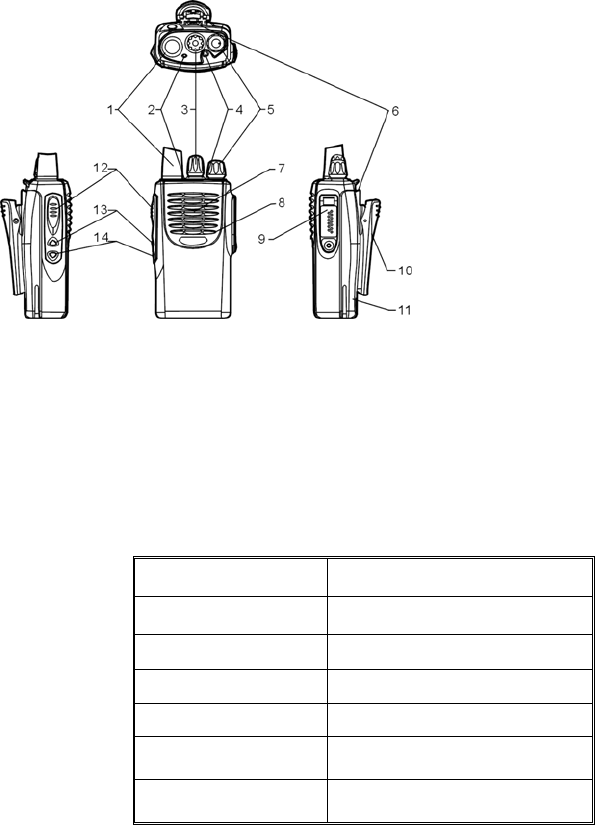

Getting Started
(1) Antenna
Used to transmit/receive signals.
(2) LED
Following table indicates LED indication and corresponding radio status.
LED Status
No display Standby
Green Receive
Red Transmit
Flashing green Scan
Flashing red Low battery voltage
Flashing orange Call waiting
(3) Channel Selector
Used to select wanted channel.
(4) Programmable key [A]
(5) Power/Volume Control Knob
Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on,
fully counter clockwise to turn the radio off. When the radio is on, turn the knob to
adjust volume.
(6) Battery Latch
Used to fasten the battery.
(7) Speaker
Used to output sounds.
(8) Microphone
Used to input sounds.
(9) External Jack
12
Used to connect with external earphone or programming cable.
(10) Belt Clip
Used to clip the radio on your belt.
(11) Battery Pack
(12) PTT key
Press and hold PTT, radio operates in transmit mode. Release PTT, radio returns to
receive mode.
(13) Programmable Key [B]
(14) Programmable Key [C]
The following table shows the key function when
1. Briefly press;
2. Press and hold (more than one second);
3. Hold down and monitor.
Key function
Key Function Briefly Press Press and Hold Hold Down
Emergency Siren Enable emergency siren Disable emergency siren －
Monitor － － Monitor
Scan Enable/Disable scan Enable/Disable scan －
Nuisance Delete Delete nuisance channel
in scan
Delete nuisance channel in
scan －
Select High/Low
Power Select High/Low Power Select High/Low Power －
Repeater/Talk Around Select Repeater or Talk
Around Mode
Select Repeater or Talk
Around Mode －
Repeater/Reverse
Frequency
Select Repeater or
Reverse Frequency Mode
Select Repeater or
Reverse Frequency Mode －
Call Transmit a Call Transmit a Call －
Please contact your dealer for more details about programmable key.
13
Features and Operation
Note:
TC3000 provides a series of audible alert tones. A series of tones may be sounded with
the following conditions:
Alt Bourdon
Operation Description Audible Tone
Turn on the radio Power on-Ready
Turn on the radio Power on-Failure
Repeater/Talk Around Repeater
Repeater/Talk Around Talk Around
Repeater/Reverse
Frequency
Repeater
Repeater/Reverse
Frequency
Reverse Frequency
Select Power High Power
Select Power Low Power
Low Battery Alert Tone
Idle Channel Tone
PLL Unlock Tone
Turn On/Off the Radio
Rotate “Power/Volume” knob clockwise. An alert tone indicates that the self-test of the
radio has been completed satisfactorily. LED glows green at the same time. If self-test
fails and/or the selected channel is not set, you will also hear an alert tone.
Rotate “Power/Volume” knob counterclockwise until a click is heard to turn the radio off.
Adjust the Volume
Rotate “Power/Volume” knob to adjust the volume.
Select Channel
TC3000 provides 16 conventional channels. Some of the channels may be not
programmed and can’t be used. Please contact your dealer for more details.
Rotate “Channel Selector” knob to select wanted channel.
Transmit
1. Turn on the radio.
2. Rotate “Channel Selector” knob to select wanted channel.
3. Press PTT and speak into the microphone with your mouth 2.5-5 centimeters away
from the radio. LED glows red during transmission.
4. Release PTT key to finish speaking.
Receive
1. Turn on the radio.
2. Rotate “Channel Selector” knob to select wanted channel.
3. Adjust the volume.
14
4. Then you can receive a valid call. LED glows green during receiving.
5. If CTCSS/CDCSS or squelch tail elimination feature is set by your dealer:
1) Noise will be removed by the end of a conversation if roger tone is disabled.
2) Beep tone sounds by the end of a conversation if roger tone is enabled;
Please contact your dealer for more details.
Monitor
1. Press MONI key to monitor the current channel.
2. Release MONI key to exit.
Repeater/Talk Around
When the repeater doesn’t work or you are out of the communication range of the
repeater and within the communication range of your group member, you can bypass
the repeater and talk directly to your group member.
Press programmed “Repeater/Talk Around” key to select between repeater and talk
around mode. An alert tone indicates that radio operates in talk around mode. A different
alert tone indicates that you are talking via a repeater.
Repeater/Reverse Frequency
When you are out of the communication range of the repeater and within the
communication range of your group member, you can talk with your group member by
reverse frequency if your group member is within the communication range of the
repeater.
Press programmed “Repeater/Reverse Frequency” key to select between repeater and
reverse frequency. An alert tone indicates that radio operates in reverse frequency mode.
A different alert tone indicates that you are talking via a repeater.
Note: “Repeater/Talk Around” and “Repeater/Reverse Frequency” can’t be set
simultaneously in one radio.
Selectable Power
Each channel of the radio is set as different power levels that are user selectable. (High
power is forbidden in certain channels).
1. High power allows your talk to be heard from further distance.
2. Low power helps to save battery power.
Press programmed “power select” key to select high/low power. An alert tone indicates
that the radio operates at high power and another alert tone indicates low power.
Scan
Scan feature allows you to monitor all channels.
When scan feature is enabled, the radio will detect all channels. If an active channel is
detected, the radio will remain on that channel and you will be able to hear the
conversation.
Disable/Enable Scan Feature
1. Press scan key, scanning begins.
2. Press scan key again, scanning ends.
LED flashes green in scan mode.
Callback
Pressing PTT during scanning can callback on the callback channel. Please contact
your dealer for more details about callback channel.
15
Nuisance Delete
Nuisance delete feature allows you to temporarily delete an unwanted channel from the
scan list.
When the radio stops on the nuisance channel, press the programmed “nuisance delete”
key until an alert tone is sounded to delete this channel.
When scan feature is enabled again. The deleted channel will return to the scan list.
Note: Priority channel can’t be deleted.
Priority Channel Scan
This feature allows you to scan important channels. The dealer can program a channel
as priority channel through the programming software. Please contact your dealer for
more details.
Channel Scan: Ch1Ch2Ch3Ch4…Ch1
Priority Channel Scan （Ch2 is priority channel ）：
Ch2Ch1Ch2Ch3Ch2Ch4Ch2…Ch1
Note: The radio will constantly monitor the priority channel when it stops on a
non-priority channel. If an activity is detected on the priority channel, the radio will move
to and remain on the priority channel.
Call
Press the programmed call key, the radio will sound a series of rings to call and wake
the radio that has the same channel and signaling to draw the user’s attention.
Selective Call
The radio can call selected radios if selective call feature is set. It includes selective call
and group call. Selective call is used to call a selected radio and group call will call a
group of radios.
Transmit
1. Hold down PTT key and then press programmable key [B], the radio will transmit a
series of programmed selective call signaling code.
2. Hold down PTT and then press programmable key [C], the radio will transmit a series
of programmed group call signaling code.
3. When transmission ends, the radio enters call waiting mode. When the called radio
receives the signaling, it will send a confirmation tone to your radio.
4. Then press PTT to talk.
5. When the call waiting reset time elapses, MONI key is pressed or channel selector
knob is rotated, the radio will exit from the call waiting mode.
Receive
1. When your radio receives a selective call signaling code or group call signaling code
that is the same as your preset one, it will send a confirmation tone.
2. After transmitting the confirmation tone, the radio enters call waiting mode.
3. Then pressing PTT can talk.
4. When the call waiting reset time elapses, MONI key is pressed or channel selector
knob is rotated, the radio will exit from the call waiting mode.
Note: LED flashes orange in call waiting mode.
Emergency Siren
The radio can be programmed to send emergency siren. When the emergency siren is
16
enabled, the radio will sound continuously at highest volume.
1. Press Emergency Siren key to activate Emergency Siren feature.
2. Press and hold Emergency Siren key to disable Emergency Siren feature.
3. Press Emergency Siren key again to activate Emergency Siren feature.
VOX Feature
Plug an earphone with VOX feature into the radio to enable VOX feature.
1. VOX feature enables you to transmit automatically by speaking into the microphone.
2. Transmission stops automatically when you stop speaking.
3. Press PTT to disable VOX feature.
4. Turn the radio on again, VOX feature will be activated.
Built-in Modem
MSK modulator with speed of 1200/2400bit/s inside the radio supports data
transmission. Please contact your dealer for details.
Patrol Record
An accessory is added to the radio to automatically record the identity, place, time and
times of beat officer such as watchman. Please contact your dealer for details.
Low Battery Alert
When the battery voltage becomes low, the red LED will flash and beeps sound. You
need to replace or recharge the battery.
Troubleshooting Guide
Trouble Solution
No power
Battery may be used up. Please replace or
recharge the battery.
Battery may not be attached properly. Remove
the battery and attach again.
Power doesn’t last long even if fully
charged.
Battery life cycle is over. Please replace it with a
new one.
Can’t talk to or hear other users in
your group.
Make sure you are using the same frequency
and CTCSS tone as other users in your group.
Other users may be too far away. Make sure
you are within the communication range.
Voice of other users (non-group
user) appears on the channel. Please change your CTCSS tone. Be sure to
change the tone on all the other radios in your
group.
17
Care and Cleaning
Do not carry your radio by the antenna or remote microphone;
Wipe the battery with a lint-free cloth to remove dirt, grease, or other material that
may prevent good electrical connection;
When not in use, keep the accessory jacks covered with the protective caps;
Clean the shell, controls and keys of your radio with neutral detergent and warm
water after a long period of usage. Avoid using strong chemicals.
Optional Accessories
Strap
Earholder style ear microphone158Z-G
Earbud style ear microphone 158Z-S
Horizontal Leather case PT-23
Handhold Microphone SM-05
Handhold Microphone SM-06
Vertical Leather Case PT-20
Antenna UHF-VHF
18
Frequency Chart
Model:
Serial Number:
Chan
nel
Transmit
Frequency
Transmit
CTCSS
Transmit
CDCSS
Transmit
2-Tone
Transmit
5-Tone
Transmit
ANI DTMF
Receive
Frequency
Receive
CTCSS
Receive
CDCSS
Receive
2-Tone
Receive
5-Tone
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
HYT endeavor to achieve the accuracy and completeness of this manual, but cannot
guarantee its accuracy at all times. All the above specifications and design are subject to
change by HYT without notice.
All the reproduction and translation of this manual without authorization of HYT is not
allowed.
