UVO SYSTEM USER'S MANUAL
Congratulations on the Purchase of
your new UVO system!
Your new UVO system allows you to enjoy
various audio and multimedia features through
the main audio system.
For the latest information about this product or
other KIA products and accessories, visit http:
www.KIA.com
Please read this manual to get the full benefit of
the system.
These operating instructions are designed to
ensure that you can operate the UVO system in
a safe and convenient way.
We recommend that this manual be kept in the
car so that it will be easier for you to find
information in case of an emergency.
If you cannot find the information you need in
this manual or in the “Troubleshooting” section,
your local authorized retailer will be pleased to
clarify any inquiries you may have with the
system or operations.
KIA Motors recommends the use of only parts
and accessories that have been tested and
approved by KIA Motors in terms of function,
safety and suitability.
iPod
Ⓡ
iPodⓇ is a registered trademark of Apple, Inc.
Bluetooth
Ⓡ
The BluetoothⓇ word mark and logos are
registered trademarks owned by BluetoothⓇ SIG,
Inc. and any use of such marks by Kia is under
license. A BluetoothⓇ enabled cell phone is
required to use BluetoothⓇ wireless technology.
Microsoft is a registered trademark of Microsoft
Corporation in the United States and/or other
countries.
zune
Ⓡ
zuneⓇ is a registered trademark of Microsoft
Corporation in the United States and or other
countries.
Copyright(c) 2011 KIA Motors. All Rights Reserved.
The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of
copyrights and constitute a criminal offense. This equipment should not be used for such purposes.
Preface
PART 1. Table of contents 9
contents
PART 1 GETTING STARTED
Controls and Features
Control Panel
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
10
Steering Wheel
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
12
Basic Features
System Power
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
14
1. Turning System Power On
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
14
2. Turning System Power Off
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
14
Select Display Language
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
15
Resetting and Initializing UVO system
 󲚖󲚖󲚖
15
1. Resetting the system
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
15
2. Initializing the system
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
16
Sound and Display Settings
Sound Settings
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
17
1. FADER/BALANCE
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
17
2. TONE
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
18
3. Touch Screen Beep
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
18
4. Speed Dependent Volume Control
 󲚖󲚖󲚖
18
5. Power Bass (Optional)
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
19
Display Settings
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
20
1. Setting Brightness
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
20
󲛌
Automatic Brightness Control
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖
20
󲛌
Manual Brightness Control
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
20
Turning Display On and Off
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
21
Turn Text Scroll On and Off
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
22
Setting the Clock
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
23
1. Time Setting
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
23
2. Clock Type
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
23
3. Clock Display
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
23
󲛌
Analog Clock
󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
23
󲛌
Digital Clock
 󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖󲚖
23
PART 1 Table of contents
GETTING STARTED
10 PART 1. GETTING STARTED
PART 1 GETTING STARTED
1
2
3
4
5
6 7
8
9
10
11
14
12
1
DISCEJECT
Ejects the inserted disc.
2
FM/AM
Turns on FM/AM mode. Each press of the
FM
/
AM key will change the band in the
order of FM → AM → FM.
3SIRIUS
Turns on SIRIUS mode.
4MEDIA
Turns on MEDIA mode. Each press of the
MEDIA key will change the mode in the
order of CD → USB/iPod/zune → AUX →
BT Audio → CD.
5
POWER/VOLUME
Push : Turns Power On/Off.
Dial : Turns Volume Up/Down.
6
∨ SEEK/TRACK∧
Short(under0.8seconds) 
In FM/AM mode, automatically searches
and plays the previous or next frequency.

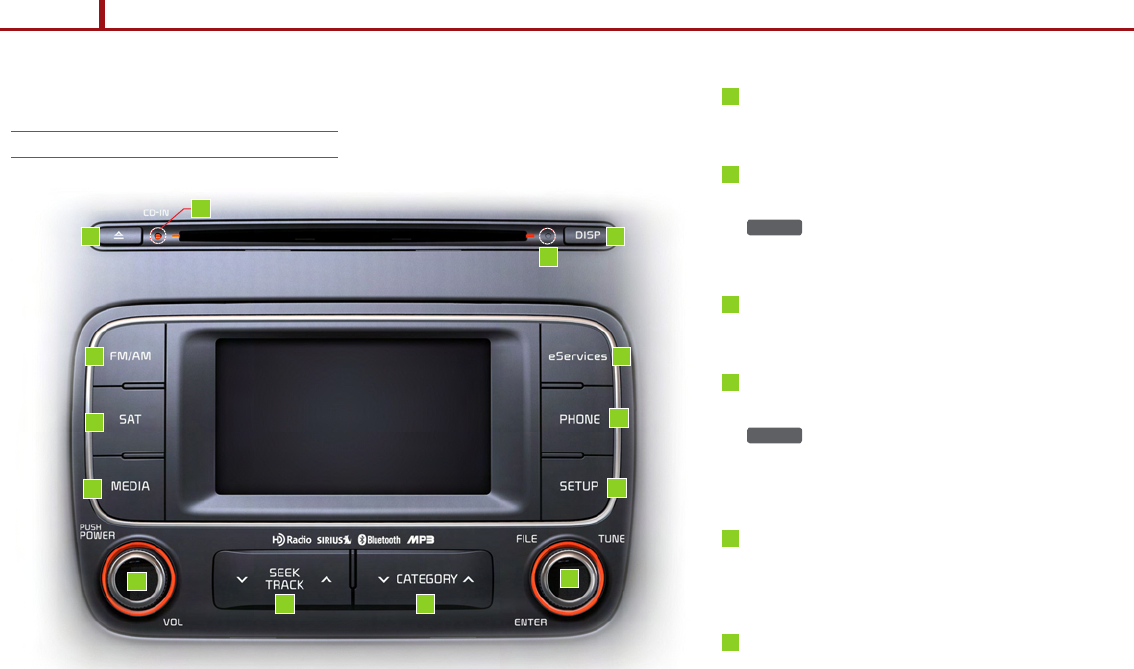

Control Panel
Controls and Features
FM/AM
13
PART 1. GETTING STARTED 11
PART
1
GETTING STARTED
In SIRIUS mode, automatically searches
and plays the previous or next channel.
In MEDIA mode (CD, MP3, USB, iPod,
zune, BT AUDIO), plays the previous or
next track, song, or file.
In JUKEBOX mode, plays the previous or
next track.
 Long(over0.8seconds)
In FM/AM mode, quickly moves through
the frequencies when the button is pressed
and held. Once released, automatically
searches and plays the previous or next
frequency.
In SIRIUS mode, quickly moves to the
previous or next channel.
In MEDIA mode (CD, MP3, USB, iPod,
zune, BT AUDIO), REW/FF the current
track, song, or file.
In JUKEBOX mode, REW/FF the current
track.
7
∨ CATEGORY∧
In SIRIUS mode, moves to the previous or
next SIRIUS category.
8
TUNE
In FM/AM mode, turn the knob to manually
search for frequencies.
In SIRIUS mode, turn the knob to manually
search for channels. Press the knob to
receive the selected channel.
In MEDIA mode (CD, MP3, USB, iPod,
zune), turn the knob to manually search for
the previous or next track, song, or file.
Press the knob to receive the selected
track, song, or file.
In JUKEBOX mode, turn the knob to
manually search for the previous or next
track. Press the knob to receive the
selected track.
9
SETUP
Displays SETUP mode.
10
PHONE
Displays Bluetooth
Ⓡ
wireless technology
Phone mode.
11
eServices
Displays eServices mode.
12
RESET
Reset the system to be used if system is
acting abnormally.
13
DISCindicatorLED
Displays that a DISC has been inserted.
14
DISP
Displays the clock setting screen.
12 PART 1. GETTING STARTED
PART 1 GETTING STARTED

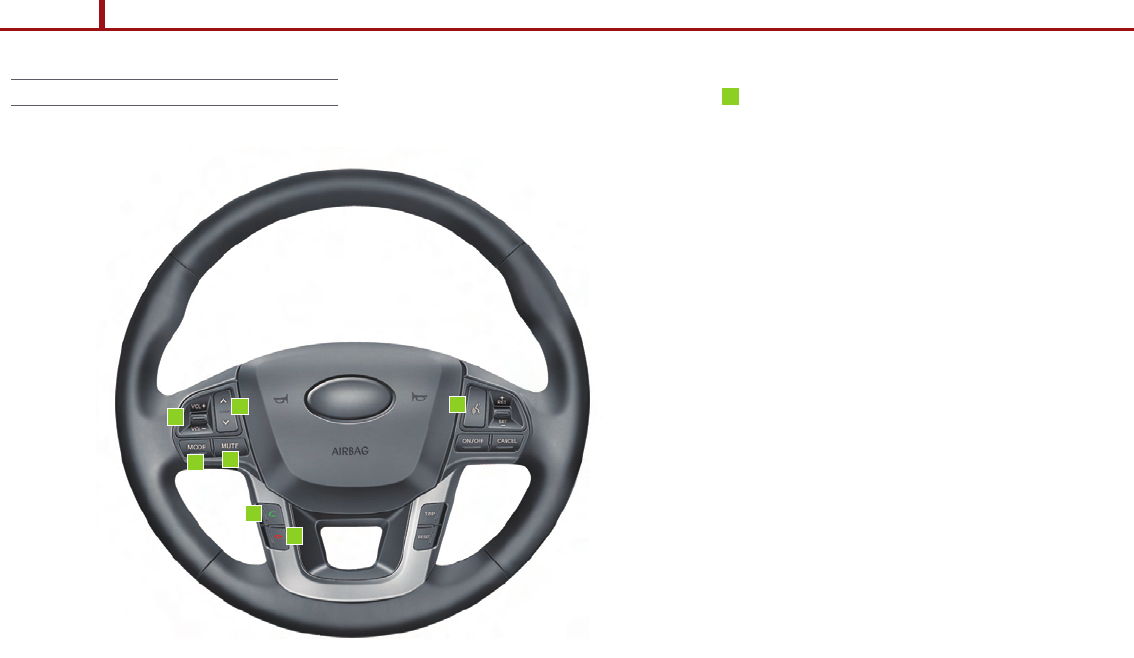

Steering Wheel
1
∨ SEEK/TRACK∧
Short(under0.8seconds)
In FM/AM mode, automatically searches
and plays the previous or next preset
frequency.
In SIRIUS mode, automatically searches
and plays the previous or next preset
channel.
In MEDIA mode (CD, MP3, USB, iPod,
zune, BT AUDIO), plays the previous or
next track, song, or file.
In JUKEBOX mode, plays the previous or
next track.
Long(over0.8seconds)
In FM/AM mode, quickly moves through
the frequencies when the button is pressed
and held. Once released, automatically
searches and plays the previous or next
frequency.
In SIRIUS mode, quickly moves to the
previous or next channel.
In MEDIA mode (CD, MP3, USB, iPod,
zune, BT AUDIO), REW/FF the current
track, song, or file.
1
2
34
5
6
7
PART 1. GETTING STARTED 13
PART
1
GETTING STARTED
In JUKEBOX mode, REW/FF the current
track.
2
+VOLUME-
Turns Volume Up/Down.
3
MODE
Changes the mode. Each press will change
modes in the order of FM → AM → SIRIUS
→ CD → USB/iPod/zune → AUX → BT
Audio → JUEKBOX → FM.
4
MUTE
Mutes the sound.
5
VoiceCommand
Short(under0.8seconds)
If Voice recognition is off, turns on Voice
recognition.
If system is speaking, interrupts speaking
and enters listening mode.
Long(over0.8seconds)
If Voice recognition is on, turns off Voice
recognition.
6
BluetoothⓇwirelesstechnologyPhone
Pressing this key will receive an incoming
call. If the Audio is on, the Bluetooth
Ⓡ
wireless technology phone screen will be
displayed.
When a SMS message is received, reads
back message.
7
EndBluetoothⓇwirelesstechnology
Phone
Pressing this key will reject an incoming
call. If pressed during a call, the current call
will be ended.
When a SMS message is received, ignores
message.
14 PART 1. GETTING STARTED
PART 1 GETTING STARTED
Basic Features
System Power
1.TurningSystemPowerOn
1. Turn on the ignition.
2. W hi le t he sy ste m is off, p ress t he
POWER/VOL
knob to turn the system on.
3. The system will automatically restore the
most recently played mode. For example,
pressing the
POWER/VOL
knob will turn on
the system and display FM radio mode if
FM mode had been the last operated
mode prior to turning off the system.
4. You can also turn the system on by
pressing the FM
/
AM , SIRIUS , MEDIA and
JUKEBOX
keys.
Note
󲛌
Pressing any one of the FM
/
AM , SIRIUS ,
MEDIA and
JUKEBOX
keys will turn on the
system and display the last mode
corresponding to each key. For example,
pressing the MEDIA key will turn on the
system and display CD mode if the last
operated MEDIA mode prior to turning off the
system had been CD mode.
2.TurningSystemPowerOff
1. Whil e t he s y ste m i s o n , pres s t he
POWER/VOL
knob to turn off the system.
Note
󲛌
If the system power was on when the ignition
was turned off, the system will turn back on
automatically. Conversely, if the system
power was off when the ignition was turned
off, the system will remain off.
󲛌
If the battery voltage is low, the audio may
take a prolonged time to boot upon turning
on the vehicle.
PART 1. GETTING STARTED 15
PART
1
GETTING STARTED
Select Display Language
The UVO system allows you to select the
preferred display language for maximum
convenience and system usability. The system
provides you with options of three languages -
English, French (Canadian) and Spanish. The
default language is English.

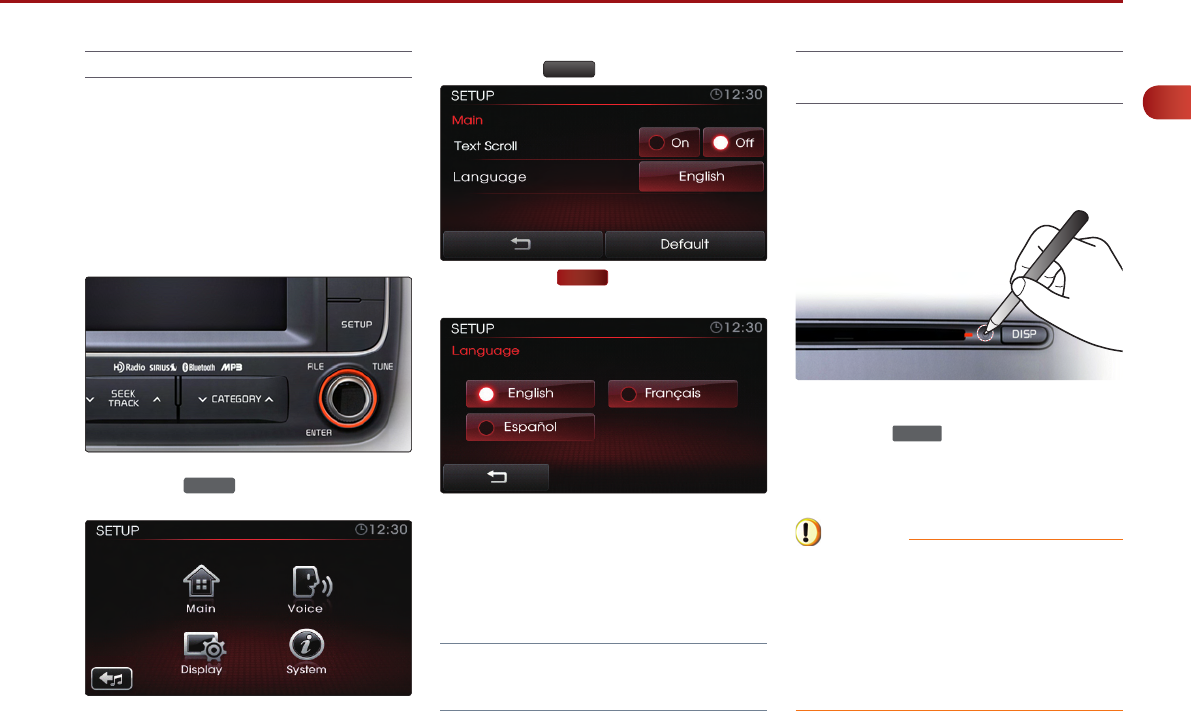

1. Press the SETUP key on the control panel.
2. Press the Main button.
3. Press the English button next to the
Language menu.
4. Select the desired language.
5. The system will reboot and automatically
restore the most recent mode in the new
language.
Note
󲛌
Changing language will delete all paired
phones.
Resetting and Initializing
UVO system
1.Resettingthesystem
If the system is behaving abnormally, press the
reset button to reset the system.
1. Use a ball-point pen or similar object to
press the RESET key.
2. The system will reboot and automatically
restore the most recent mode.
Caution
󲛌 
The reset button should only be used in case
of system malfunction. Never use the reset
key while the system is operating normally.
󲛌 
If you wish to reset while the system is
operating normally, turn the power off first
then reset.
16 PART 1. GETTING STARTED
PART 1 GETTING STARTED
2.Initializingthesystem

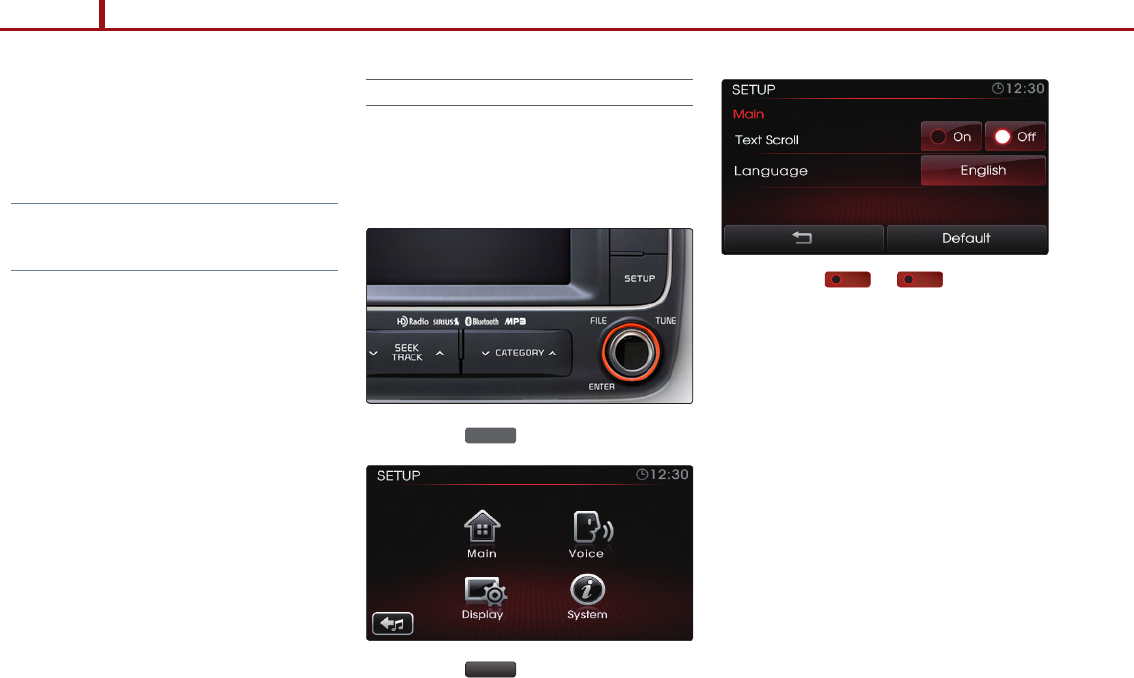

1. Press the SETUP key on the control panel.
2. Press the System button.
3. Press the Factory defaults button.
Note
󲛌
Initializing the system will erase all Phone
settings, and other changes which you have
made to the system.
󲛌
Some songs in the USB or CD may be
misrecognized during the indexing process.
If such problems persist, reset the device
using the Factory Default button in
SETUP>System.
󲛌
For updating the system, visit http: www.KIA.
com
PART 1. GETTING STARTED 17
PART
1
GETTING STARTED
Sound and Display Settings
Sound Settings
Sound settings can be adjusted from any audio
mode. The system allows you to optimize
various sound settings to add convenience
when listening to the system.

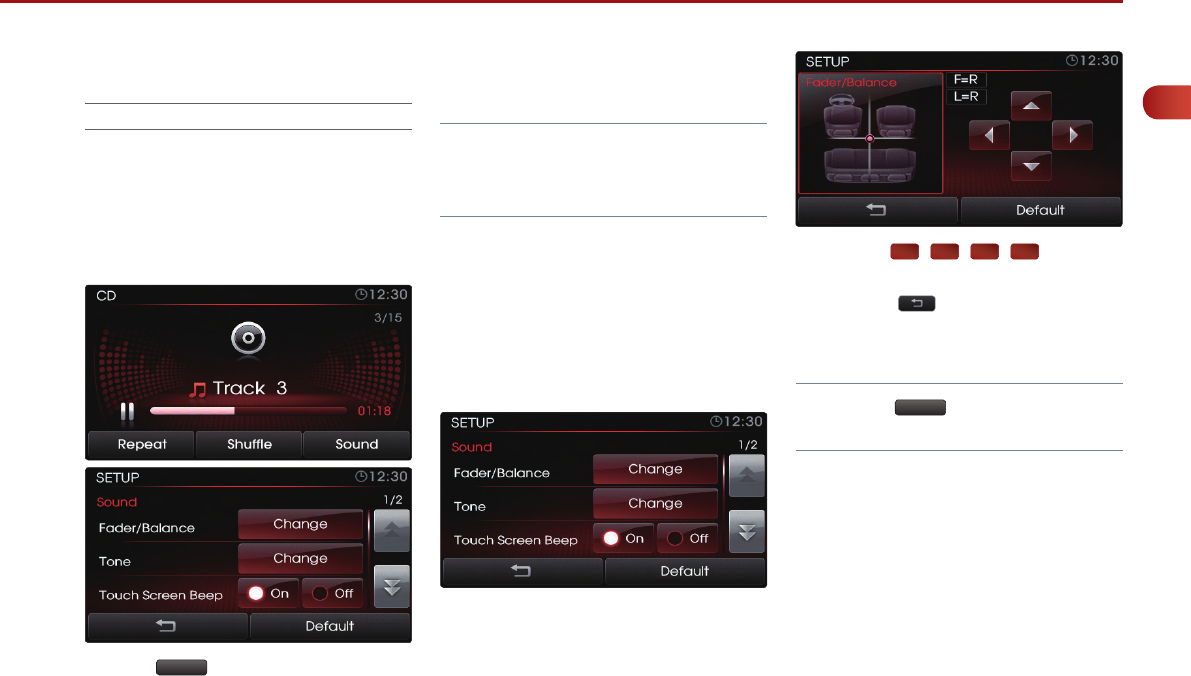

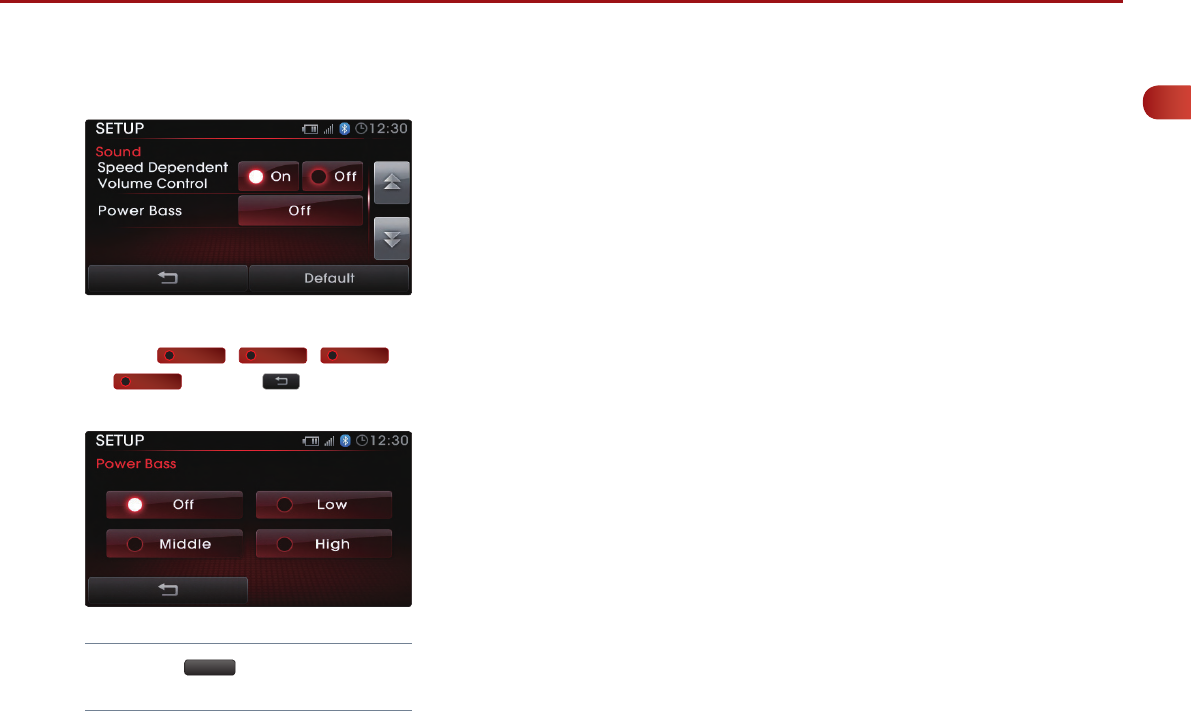

Press the Sound button on the main screen of
each audio mode (FM/AM, SIRIUS, MEDIA,
JUKEBOX) to enter Sound Setup.
Note
󲛌 
Changes are saved as they are made. In
other words, once you change a setting, the
new setting will become saved.

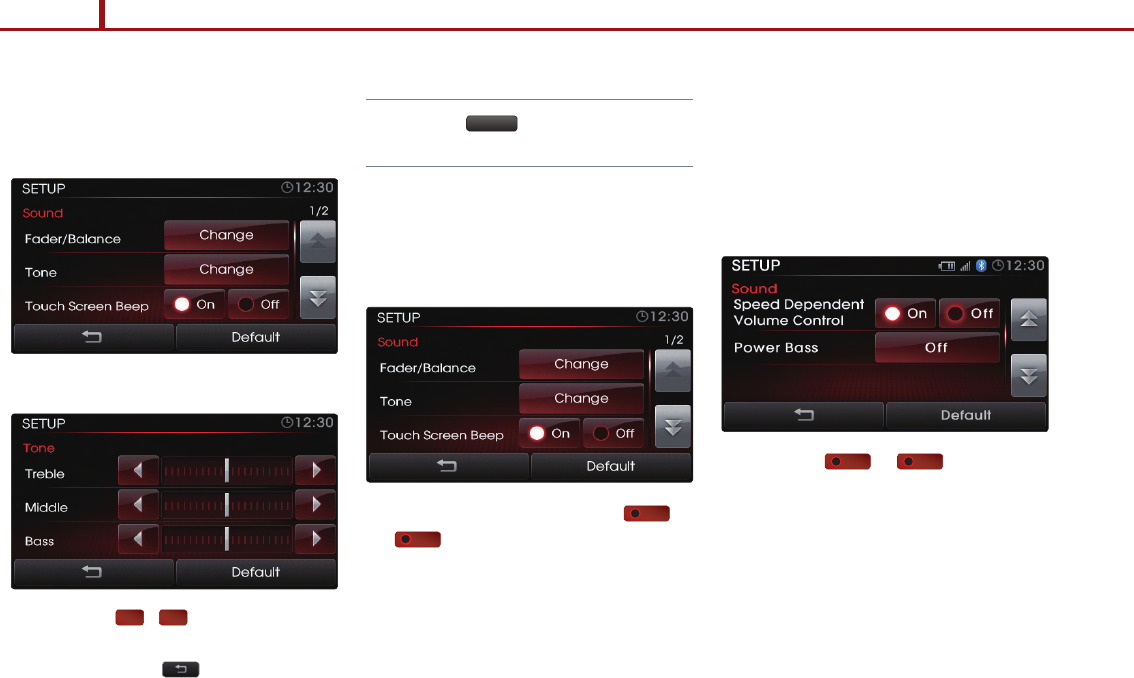

1.FADER/BALANCE
Fader/Balance allows you to adjust the position
of sound within the vehicle. For instance,
adjusting the sound so that it is closer to the
driver-side seat will proportionally lower the
volume in the passenger-side and rear seats.
1. Press the Fader/Balance setting button.
2. Use the
▲
,
▼
,
◀
,
▶
buttons to
make adjustments to the sound position.
3. Press the button to return to Sound
Setup.
Note
󲛌
Press the Default button to restore the
default setting.
18 PART 1. GETTING STARTED
PART 1 GETTING STARTED
2.TONE
Tone allows you to make changes to the
Treble, Middle and Bass settings.
1. Press the Tone setting button.
2. U se t h e
◀
,
▶
buttons to make
adjustments to the Treble, Middle and
Bass. Press the button to return to
Sound Setup.
Note
󲛌 
Press the Default button to restore the
default setting.
3.TouchScreenBeep
Touch Screen Beep allows you to turn on/off
the beep that sounds when you touch the
screen.
1. In Sound Setup, press the On or
Off button next to the Touch Screen
Beep menu to turn the feature on or off.
4.SpeedDependentVolumeControl
Speed Dependent Volume Control allows you
to automatically control the volume according
to the speed of the vehicle. This feature will
gradually increase the volume as speed
increases to offset outside noise.
1. Press the On or Off button next to
the Speed Dependent Volume Control
menu to turn the feature on or off.
PART 1. GETTING STARTED 19
PART
1
GETTING STARTED
5.PowerBass(Optional)
1. Press the Power Bass setting button.
2. Select the desired Power Bass setting
from Off , Low , Middle or
High . Press the button to return
to Sound Setup.
Note
󲛌
Press the Default button to restore the
default setting.
20 PART 1. GETTING STARTED
PART 1 GETTING STARTED
Display Settings
The various Display setup options offered
within the UVO system allow you to change
display settings according to your personal
preference.

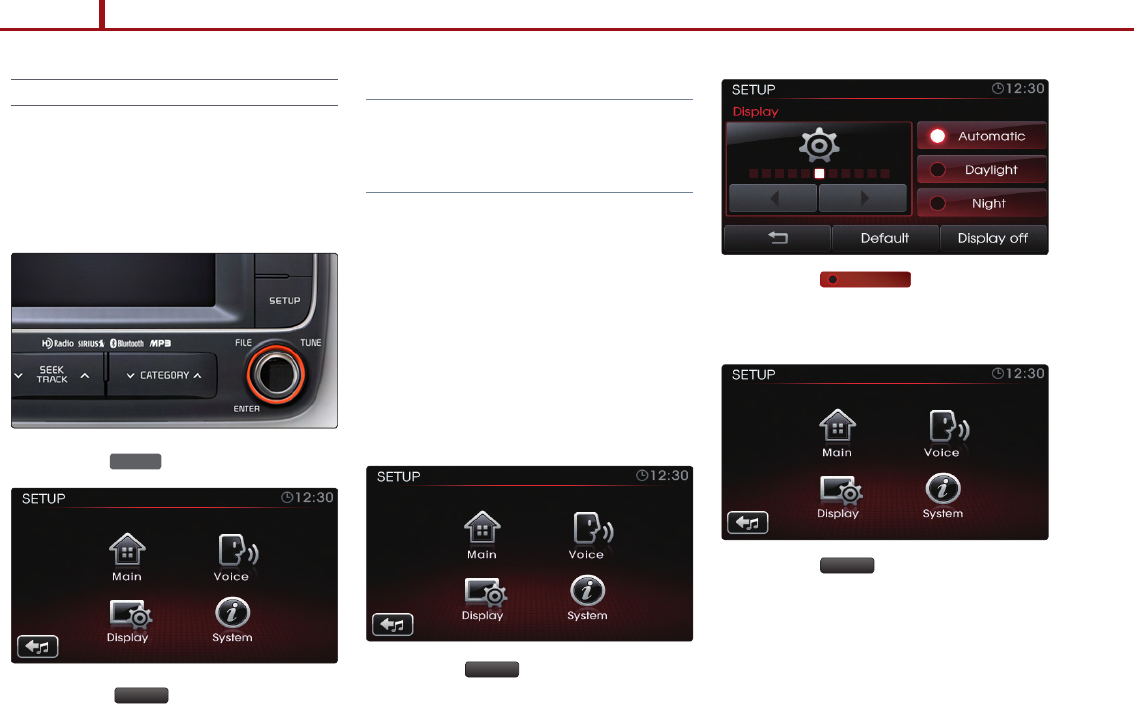

1. Press the SETUP key on the control panel.
2. Press the Display button to enter Display
Setup mode.
Note
󲛌 
Changes are saved as they are made. In
other words, once you change a setting, the
new setting will become saved.
1.SettingBrightness
The UVO system allows you to control the
screen brightness automatically and manually.
󲛌
AutomaticBrightnessControl
When the Display brightness is set to
automatic, the brightness will be controlled
automatically by assessing the amount of
ambient light.
1. Press the Display button.
2. Press the Automatic button.
󲛌
ManualBrightnessControl
1. Press the Display button.
PART 1. GETTING STARTED 21
PART
1
GETTING STARTED
2. Press the Daylight or Night
buttons.
3. U se th e
◀
,
▶
buttons to make
adjustments to the display brightness.
Note
󲛌 
When Brightness control is set to
Automatic
, the manual
◀
,
▶
buttons are not active.
󲛌 
Press the Default button to restore the
default setting.
Turning Display On and Off
This feature turns off the display, allowing you
to listen only to the audio. It is a useful feature
when you are driving at night and wish to
eliminate glare from the display. Even when
the display is off, audio will still be played.
1. Press the Display button.
2. Press the Display off button.
22 PART 1. GETTING STARTED
PART 1 GETTING STARTED
22 PART 1. GETTING STARTED
3. Press any key on the control panel or
steering wheel controller to turn the display
back on.
Note
󲛌
Touching any place on the screen will also
turn on the display.
Turn Text Scroll On and Off
Text shown on the screen can be scrolled.
Turning on this feature is helpful when viewing
long lines of text on the screen.
1. Press the SETUP key on the control panel.
2. Press the Main button.
3. Press the On or Off button next to
the Text Scroll menu to turn the feature on
or off.
PART 1. GETTING STARTED 23
PART
1
GETTING STARTED
Setting the Clock
Press the CLOCK on the front panel to display
the Clock setting screen.
1. TimeSetting
The time can be set by pressing the hour, min
up/down buttons.
2. ClockType
Selects the clock type shown as the entire
screen when the system power is turned off.
3. ClockDisplay
When set to “On”, the clock will be displayed
when the Power is Off.
󲛌
AnalogClock
󲛌
DigitalClock
Note
󲛌
Press the OFF on the Clock Screen to turn
off the screen.
24 PART2. Table of contents
PART 2 Table of contents
PART 2 AUDIO FEATURES
FM/AM MODE
FM/AM Mode Screens and Features
 󲬚󲬚󲬚
26
Listening to the FM/AM radio
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
27
1. Selecting a broadcast frequency
󲬚󲬚󲬚󲬚
27
●
Selecting through SEEK
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
27
●
Selecting through manual search
 󲬚󲬚
28
●
Selecting through preset
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
28
2. Storing presets
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
28
3.
Scanning FM/AM broadcast frequencies
 󲬚
29
4. Preset Scan
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
29
SIRIUS MODE
SIRIUS Mode Screen and Features
󲬚󲬚󲬚󲬚
30
Listening to the SIRIUS radio
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
30
1. Selecting a SIRIUS channel
󲬚󲬚󲬚󲬚󲬚󲬚󲬚
30
●
Selecting through SEEK
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
30
●
Selecting through manual search
 󲬚󲬚
31
●
Selecting through preset
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
31
●
Selecting through channel search
 󲬚󲬚
31
●
Selecting through SIRIUS category list
󲬚
32
2. Using Skip
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
32
3. Storing preset
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
33
4. Viewing SIRIUS channel information
󲬚
33
MEDIA MODE
Common Features
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
34
●
Play/Pause
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
34
●
REW/FF
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
34
●
Jump
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
35
●
Using Repeat
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
35
●
Using Shuffle
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
35
AUDIO CD MODE
Cautions upon handling Audio CDs
 󲬚󲬚󲬚󲬚
36
AUDIO CD Mode Screen and Features
 󲬚
38
Inserting/Ejecting a Disc
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
38
1. Inserting a Disc
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
38
2. Ejecting a Disc
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
38
Listening to an Audio CD
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
39
Selecting a CD track
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
39
1. Selecting through Track Up/Down
󲬚󲬚󲬚
39
2. Selecting through manual search
 󲬚󲬚󲬚
39
MP3 CD MODE
Cautions upon handling MP3 CD
󲬚󲬚󲬚󲬚󲬚󲬚
40
MP3 CD Mode Screen and Features
 󲬚󲬚󲬚
41
Listening to an MP3 CD
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
41
Selecting an MP3 CD song
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
42
1. Selecting through song Up/Down
󲬚󲬚󲬚
42
2. Selecting through manual search
󲬚󲬚󲬚
42
3. Selecting from MP3 list
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
42
4. by Artists, Albums, Genres, Songs
Composers
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
42
Explore CD
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
43
Viewing song information
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
43
Copying songs into JUKEBOX
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚
43
1. Copying the current song
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
43
2. Copying songs from list
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
44

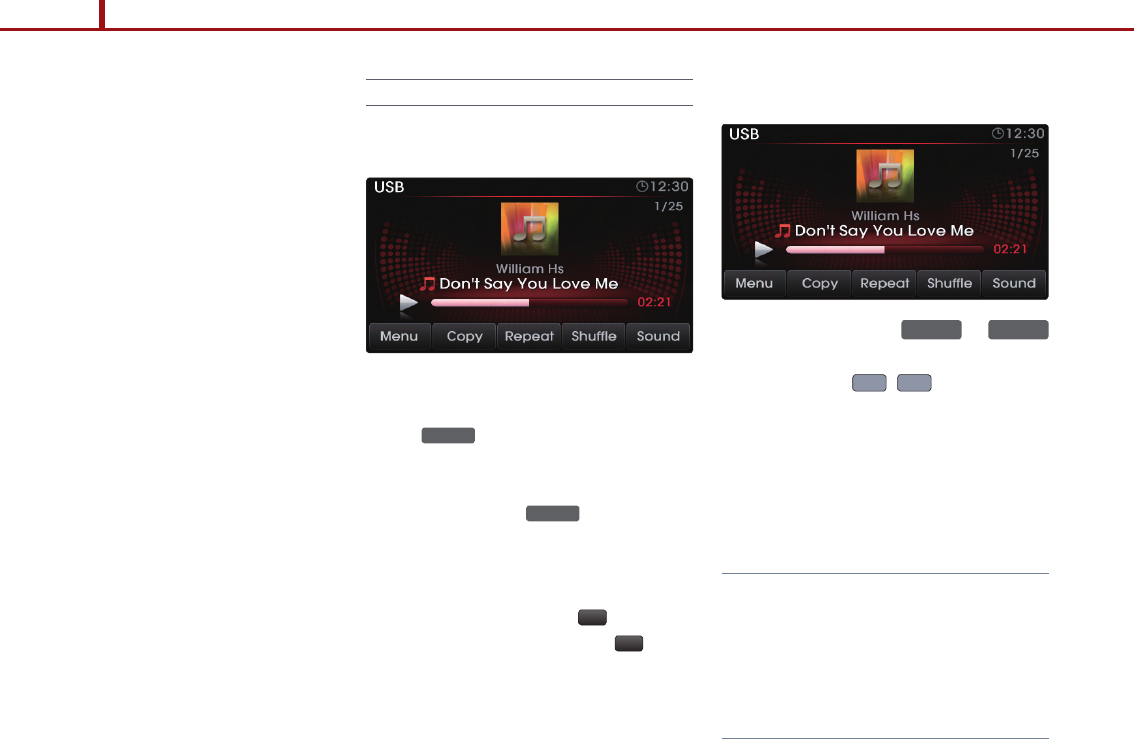

USB MODE
Cautions upon handling USB MP3
󲬚󲬚󲬚󲬚󲬚
45
Precautions upon handling USB
 󲬚󲬚󲬚󲬚󲬚󲬚
46
Connecting your USB device
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
47
USB Mode Screen and Features
󲬚󲬚󲬚󲬚󲬚󲬚
47
Listening to USB music
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
48
Selecting USB music
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
48
1. Selecting through song Up/Down
 󲬚󲬚󲬚
48
2. Selecting through manual search
 󲬚󲬚󲬚
48
3. Selecting from the playlist
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
49
4. by Folders, Artists, Albums, Genres
Songs, Composers
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
49
Explore USB
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
49
Viewing song information
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
50
Copying songs into JUKEBOX
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚
50
1. Copying the current song
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
50
2. Copying songs from list
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
51
PART2. Table of contents 25
contents
iPod MODE
About iPod
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
52
1. Trademark
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
52
2. Connecting your iPod device
 󲬚󲬚󲬚󲬚󲬚󲬚
52
iPod Mode Screen and Features
󲬚󲬚󲬚󲬚󲬚󲬚
53
Listening to your iPod
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
53
Selecting iPod music
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
54
1. Selecting through song Up/Down
 󲬚󲬚󲬚
54
2. Selecting through manual search
 󲬚󲬚󲬚
54
3. Selecting from the playlist
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
54
4. By Artists, Albums, Genres, Songs,
Podcasts, Composers, Audiobooks
󲬚󲬚
54
Viewing song information
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
55
zune MODE
About zune
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
56
1. Trademark
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
56
2. Connecting your zune device
󲬚󲬚󲬚󲬚󲬚󲬚
56
zune Mode Screen and Features
󲬚󲬚󲬚󲬚󲬚󲬚
56
Listening to your zune
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
57
Selecting zune music
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
57
1. Selecting through song Up/Down
 󲬚󲬚󲬚
57
2. Selecting through manual search
 󲬚󲬚󲬚
57
3. Selecting from the playlist
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
57
4. By Songs, Genres, Albums, Artists,
Playlists
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
58
Viewing song information
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
58
AUX MODE
AUX Mode Screen
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
59
Connecting an AUX media device
 󲬚󲬚󲬚󲬚󲬚
59
Listening to AUX media
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
59
BT AUDIO MODE
BT Mode Screen and Features
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚
60
Listening to music from your Bluetooth
Ⓡ
wireless technology enabled device
󲬚󲬚󲬚󲬚
61
Selecting a song
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
61
REW/FF a song
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
61
JUKEBOX MODE
JUKEBOX Mode Screen and Features
󲬚󲬚
62
Listening to JUKEBOX
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
63
Selecting a JUKEBOX song
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
63
1. Selecting through song Up/Down
 󲬚󲬚󲬚
63
2. Selecting through manual search
 󲬚󲬚󲬚
63
3. Selecting from the playlist
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
63
4. by Artists, Albums, Genres, Songs,
Composers
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
64
Adding Favorites
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
64
Playing Favorites
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
65
Memory Management
Checking System Information
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
66
Deleting JUKEBOX
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
66
1. Deleting JUKEBOX
󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
66
2. Deleting all files
 󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚󲬚
67
AUDIO FEATURES
26 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
FM/AM MODE

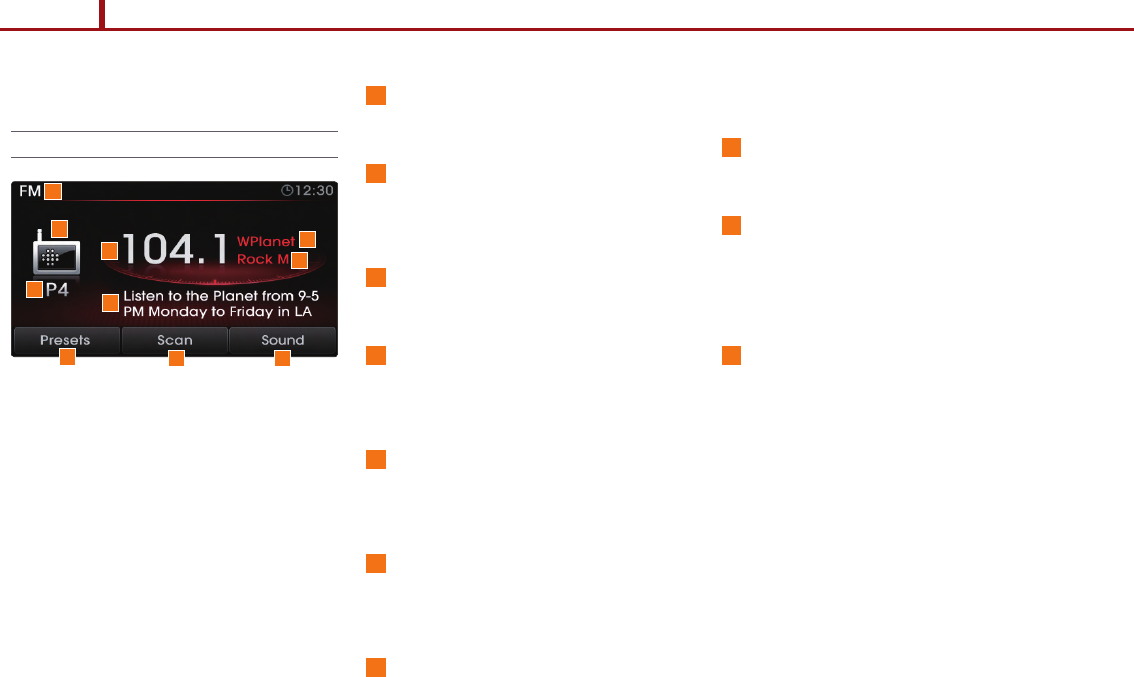

FM/AM Mode Screens and Features
1
Mode display
Displays the FM /AM mode.
2
PRESET indicator
If listening to a preset, displays the preset
number.
3
Frequency
Displays the current frequency.
4
Program Type
If data is being transmitted, displays the
program type.
5
Program Service Name
If data is being transmitted, displays the
program service name.
6
Radio text
If data is being transmitted, displays radio
text information.
7
Radio Icon
When pressed while listening to RDS
Radio
stations, displays information about the cur-
rent station.
8
Presets
Enters Preset list screen.
9
Scan
Scans all frequencies and plays only fre-
quencies with high quality reception for 5
seconds each.
10
Sound
Enters Sound Setup.
1
7
2
89
3
10
5
4
6
PART 2. AUDIO FEATURES 27
PART
2
AUDIO FEATURES
Listening to the FM/AM radio
1. Press the FM
/
AM key on the control
panel. The most recently played FM/AM
radio band will automatically begin
playing.
2. Press the FM
/
AM key to switch to the
desired radio band.
Note
● 
Each press of the FM
/
AM key will change
the band in the order of FM → AM → FM.
● 
Even when the system power is off, press
the FM
/
AM key to turn on the most recently
played FM/AM mode.
● 
The RDS (Radio Data System) operates in
areas with FM stations broadcasting RDS
signals.
1. Selecting a broadcast frequency
The UVO system provides you with various
ways to search for radio broadcasts. There are
3 ways to select radio broadcasts- selecting
through SEEK, selecting through manual
search, and selecting through presets.
●
Selecting through SEEK
Press the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys on the
control panel for under 0.8 seconds or
∧
or
∨
keys on the steering wheel control-
ler for over 0.8 seconds. As SEEK operates,
the previous or next radio broadcasts with
high quality reception will automatically be
searched and played.
Note
● 
While SEEK is operating, pressing the same
SEEK
∨
TRACK
∧
key will terminate SEEK. Pressing
the opposite key will operate SEEK in the
reverse direction.
● 
Press and hold the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys
(over 0.8 seconds) to quickly move through
the frequencies while the button is pressed
and held. Once released, the system will
automatically search and play the previous
or next frequency.
●
Selecting through manual search
1. Turn the TUNE knob on the control panel
in clockwise or counter-clockwise direc-
tion. Each click will increase or decrease
the frequency by 1 step (FM: 0.2MHz,
AM: 10kHz).
2. When you find the desired radio broad-
cast, stop turning the TUNE knob to lis-
ten to the selected frequency.
●
Selecting through preset

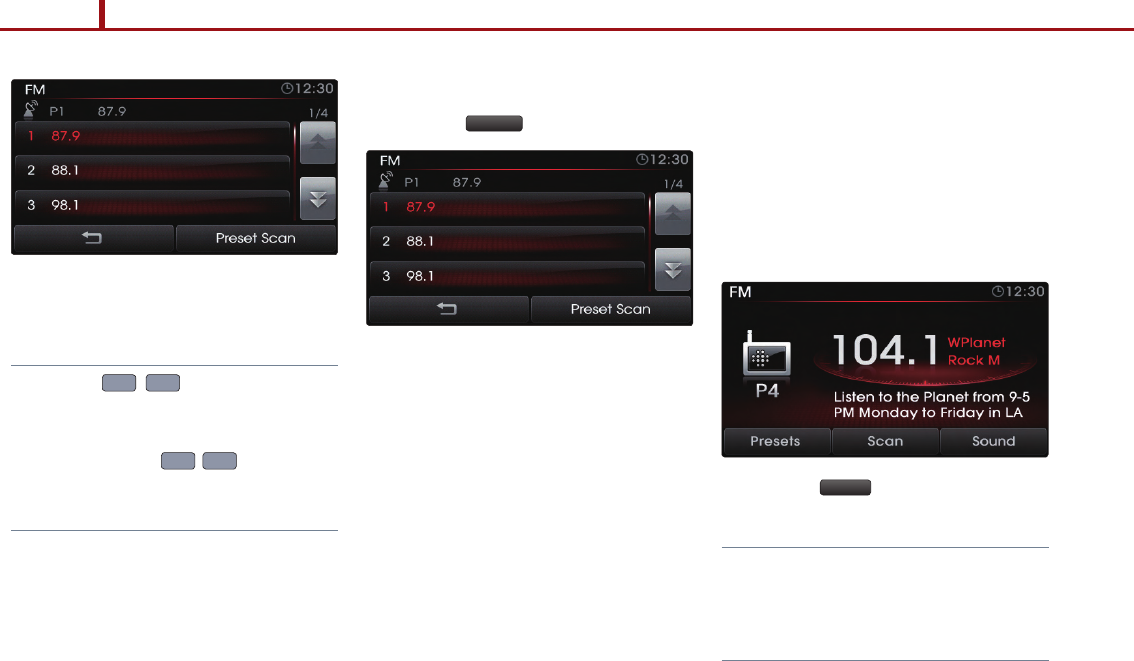

1. Press the Presets button.
28 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
2. Select the desired preset and press the
button to start listening.
Note
● 
Press the
∧
,
∨
keys (under 0.8 sec-
onds) on the steering wheel controller to flip
through the presets sequentially.
●
Press and hold the
∧
,
∨
keys (over 0.8
seconds) on the steering wheel controller to
operate SEEK.
2. Storing presets
Presets are a way for you to save your favorite
radio broadcasts. Up to 12 presets can be
saved in FM mode while up to 6 frequencies
can be saved in AM mode.
1. Select the desired radio broadcast.
2. Press the Presets button.
3. From the preset list, press and hold (over
0.8 seconds) the preset number button to
which you wish to save.
4. The current radio broadcast will automati-
cally be saved to the preset number. A
beep will signify that the preset has been
saved if the beep is set to ON in the sound
settings.
3. Scanning FM/AM broadcast
frequencies
Radio broadcasts can be scanned to conve-
niently find radio broadcasts with high quality
reception. Each radio broadcast will be played
for 5 seconds. This feature is particularly use-
ful when traveling in new areas.
1. Press the Scan button.
Note
● 
When scanning has completed an entire
revolution, the scan function will terminate
automatically and the previously played fre-
quency will be restored.
PART 2. AUDIO FEATURES 29
PART
2
AUDIO FEATURES
4. Preset Scan
Preset scan will scan presets in the current
band (FM -12 pres ets, AM-6 presets)in
sequential order. Each preset will be played for
5 seconds.
30 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
SIRIUS MODE

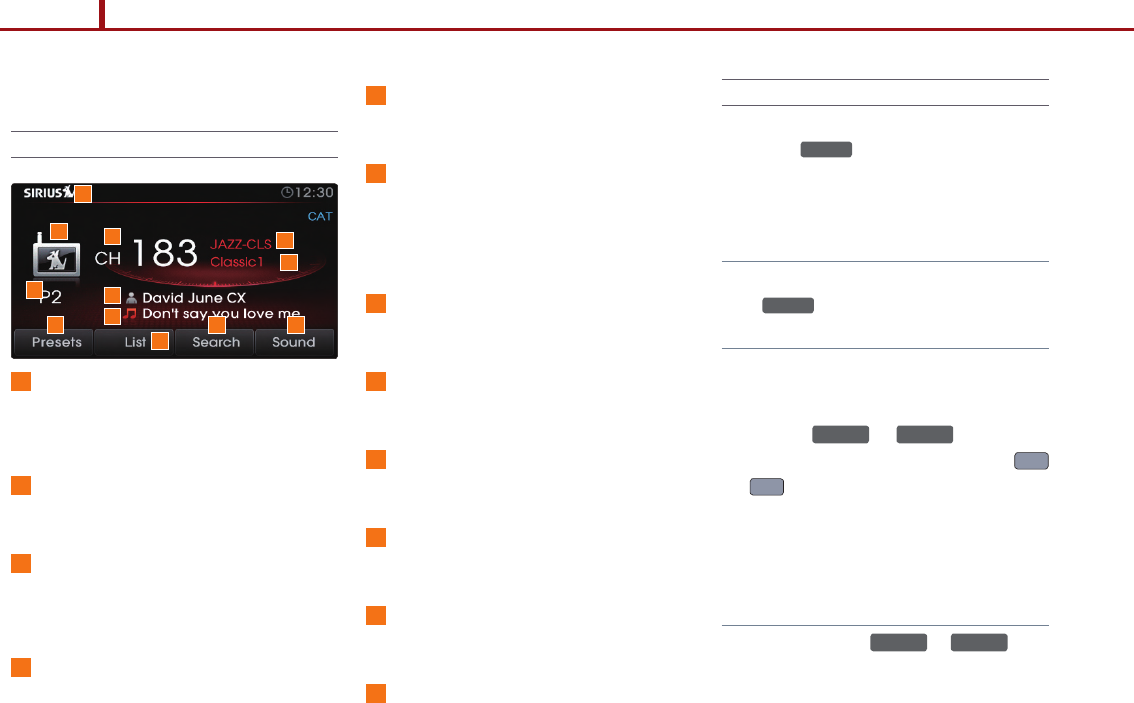

SIRIUS Mode Screen and Features
1
Mode display
Displays the current mode as SIRIUS
mode.
2
Channel number
Displays the current channel number.
3
PRESET indicator
If listening to a preset, displays the preset
number.
4
Category name
Displays the category name.
5
Channel name
Displays the channel name.
6
SIRIUS Icon
When pressed, displays information about
the current channel (artist, title, composer
and other information).
7
Presets
Enters Preset list screen.
8
List
Displays the channel or category list.
9
Search
Displays the channel search screen.
10
Sound
Enters Sound Setup.
11
Artist
Displays the artist name.
12
Title
Displays the title.
Listening to the SIRIUS radio
Press the SIRIUS key on the control panel.
The most recently played SIRIUS channel will
automatically begin playing.
Note
● 
Even when the system power is off, pressing
the SIRIUS key will turn on the most recently
played SIRIUS channel.
1. Selecting a SIRIUS channel
●
Selecting through SEEK
Press the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys on the
control panel for under 0.8 seconds or
∧
or
∨
keys on the steering wheel controller
for over 0.8 seconds. As SEEK operates, the
previous or next SIRIUS channel will auto-
matically be searched and played.
Note
●
Press and hold the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys
(over 0.8 seconds) to quickly move through
the channels while the button is pressed and
hel d. O n ce rel eas ed, t he sys te m wil l
1
6
3
7
8
9 10
11
24
5
12
PART 2. AUDIO FEATURES 31
PART
2
AUDIO FEATURES
automatically search and play the previous or
next channel.
●
Selecting through manual search
1. Turn the TUNE knob on the control panel
in clockwise or counter-clockwise direc-
tion. Each click will display the corre-
sponding channel information.
2. When you find the desired SIRIUS chan-
nel, press the TUNE knob to listen to the
selected channel.
●
Selecting through preset
1. Press the Presets button.
2. Select the desired preset and press the
button to start listening.
Note
●
Press the
∧
,
∨
keys (under 0.8 sec-
onds) on the steering wheel controller to flip
through the presets sequentially.
●
Selecting through channel search
1. Press the Search button. The channel
search screen will be displayed.
2. Input the desired channel number and
press the Done button. To delete entries,
press the Delete button.
Note
●
If you input a number where there is no
channel, the Done button will become
inactive.
32 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
●
Selecting through SIRIUS category list
1. Press the List button.
2. Select the desired channel to start listen-
ing or press the Category List button to
display the channels in the selected
category.

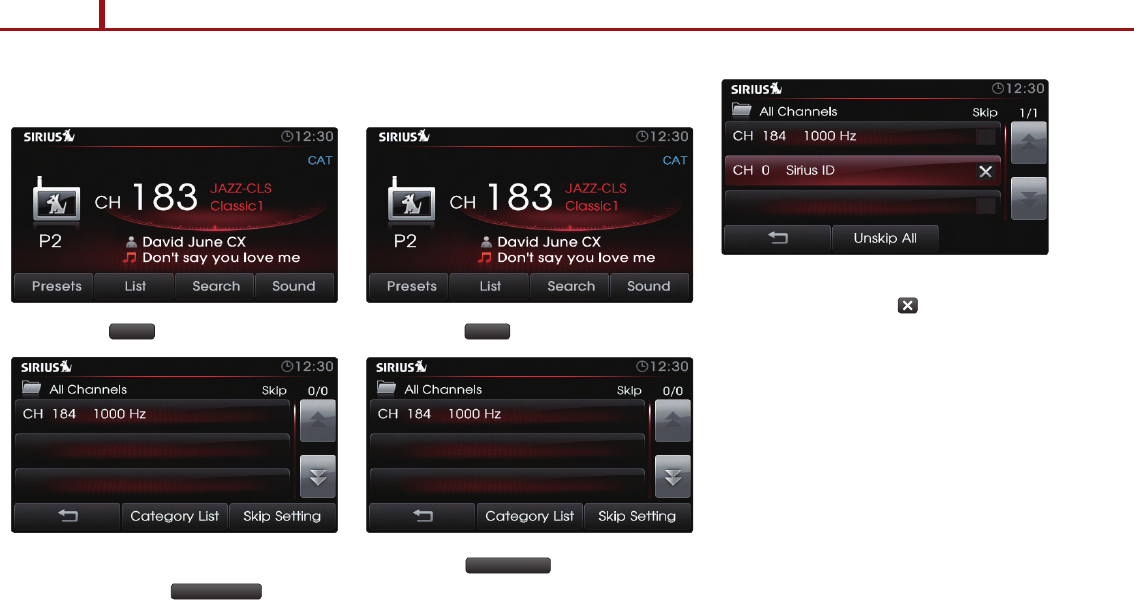

2. Using Skip
1. Press the List button.
2. Press the Skip Setting button.
3. Select the channels you wish to skip.
When selected, an will be displayed
next to the selected channel.
PART 2. AUDIO FEATURES 33
PART
2
AUDIO FEATURES
3. Storing presets
Presets are a way for you to save your favorite
SIRIUS channels. Up to 18 presets can be
saved in SIRIUS mode.
1. Select the desired SIRIUS channel.
2. Press the Presets button.
3. From the preset list, press and hold (over
0.8 seconds) the preset number button to
which you wish to save.
4. The current radio broadcast will automati-
cally be saved to the present number. A
beep will signify that the preset has been
saved if the beep is set to ON in the sound
settings.
4. Viewing SIRIUS channel information
1. Press the SIRIUS icon.
2. Information about the current channel
(channel, category, artist, title) will be
displayed.
34 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
MEDIA MODE
The MEDIA mode within your UVO system
offers a variety of media modes which allow
you convenience and ease in operating your
system. Media mode includes a variety of
modes, such as audio CD, MP3 CD, USB,
iPod, zune, BT audio, and Aux. The features
listed below describe common features which
you will encounter when operating Audio CD,
MP3 CD, USB, iPod, zune, and JUKEBOX
modes.
Common Features
●
Play/Pause
1. Insert or connect the desired media (Audio
CD, MP3 CD, USB, iPod, zune) or press
the MEDIA key on the control panel if the
desired media has already been inserted
or connected.
2. Each press of the MEDIA key will change
the mode in the order of CD → USB/iPod/
zune → AUX → BT AUDIO → CD.
3. When a desired media is playing and you
wish to pause, press the ll button next
to the progress bar. Press the ▶ button
to restart the song.
●
REW/FF
1. Press and hold the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys (over 0.8 seconds) on the control
panel or the
∧
,
∨
keys (over 0.8
seconds) on the steering wheel controller.
2. The song will rewind or fast-forward at a
rate 20 times faster than normal while the
key is being held.
3. Release the key to play from the current
position.
Note
●
If you rewind to the beginning of the current
song, the current song will automatically
begin playing.
●
If you fast-forward to the end of the current
song, the next song will automatically begin
playing.
PART 2. AUDIO FEATURES 35
PART
2
AUDIO FEATURES
●
Jump
1. You can jump to different points in a song
by touching the position on the progress
bar.
Note
●
The Jump feature is not supported in iPod or
iPhone devices.
●
Using Repeat
The repeat setting can be used to repeat
the currently playing song.
1. Press the Repeat button. The 'Repeat'
icon will be displayed.
2. Press once to turn on the Repeat setting
and again to turn off.
●
Using Shuffle
The Shuffle setting can be used to play all
song in the current mode randomly.
1. Press the Shuffle button. The 'Shuffle' icon
will be displayed.
2. Press once to turn on the Shuffle setting
and again to turn off.
36 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
AUDIO CD MODE
Cautions upon handling Audio CDs
1. Precautions upon handling discs
●
Store discs within their intended cases to
prevent scratches.
●
Never use hear t-shaped, o ctagon-
shaped or any other abnormally shaped
discs.
●
Never expose discs to direct sunlight for
prolonged periods of time. Such expo-
sure may lead to disc deformation.
●
Never clean with solvents, such as anti-
static sprays, cleaners, benzene, or
thinners.
●
Dust, scratch, and other foreign sub-
stances may cause popping sounds as
well as sound deterioration.
●
Never place paper on either side of the
disc or write on disc surfaces.
●
Clean fingerprints and dust off the signal
surface (coated side) of the disc with a
soft cloth.
●
Copy-protected CDs, such as S-type
CDs may not operate properly in the
system.
●
DATA CDs are not supported by the
system.
2. For safe and efficient operation
●
Never disassemble the CD Player(CDP)
for repair purposes. Contact your place of
purchase in case of malfunction. (Full
service assistance will not be provided if
the user disassembles the device.)
●
Never use water to clean the system.
●
Heed caution not to introduce foreign
substances into the disc slot.
●
The system may not operate in extremely
hot or cold temperatures. (The opera-
tional temperature range is: -10C° ~
65C°).
●
Steam may condense on the fiber optic
lens due to rain, wet conditions, or heat
caused by system operation.
●
Never clean the system with chemical
solvents. Always use a clean and dry
cloth.
3. Supported disc format
●
The disc types supported by this device
are as shown below.
Disc format Disc media Format
CD CD CD-DA
CD-R MP3
CD-RW WMA
CD-ROM
CD-TEXT
Disc Size 5inch (12.7cm)
Disc Format Audio Format
CD LPCM
MP3 MPEG1, Layer3
MPEG2, Layer3
MPEG2.5
WMA Ver. 9
PART 2. AUDIO FEATURES 37
PART
2
AUDIO FEATURES
 ●
CD-R or CD-RW DISC burned with a
bulk CD without quality guarantees may
not be recognized by the device.
● 
Inserting an abnormal disc may result in
faulty operation.
4. Disc/content format and compatibility
Ordinarydisccompatibility
● 
This system has been designed to be
compatible with software bearing the fol-
lowing logo marks.
● 
CD-R/RW discs (Audio CD and MP3 CD)
created with CD-writing devices or per-
so nal c om pu ters m ay not o pe rate
properly.
Specialformatsorspecialfeatures
regardingsoftware
CD-R/RW Compatibility
● 
This system operates as a CD-ROM and
supports CD-R and CD-RW discs in CD
audio or MP3 CD format.
● 
CD-R/RW discs burned as audio CDs
which have not been finalized are not
supported by the device. However, some
information, such as play time, may still
be displayed.
PC-created DISC compatibility
● 
When burning a disc with a personal
computer, even discs compatible with the
formats described above may not oper-
ate properly due to software settings
within the burning application. In such
cases, contact the software developer.
● 
Additional information regarding compatibil-
ity can be found on the CD-R/RW software
disc box. DVD-R/RW discs are not sup-
ported by the device.
Compressed audio compatibility
This system plays audio files compressed
by MPEG-1 audio stream layer 3(MP3)
using 32, 44.1 and 48kHz fixed bit rates.
Incompatible files are not supported.
● 
Variable bit rate files may operate, but the
play time information may not be properly
displayed.
● 
Physical formats of CD: Model 1, Model 2
XA format 1.
● 
This system only supports tracks with file
extension of ".MP3" or ".WMA".
● 
This system does not support multises-
sion discs.
● 
This system supports a maximum of 256
folders and maximum 512 files. Folders
and files which exceed this limit will not
be supported.
● 
There are various bit rates which can be
encoded onto MP3 files. This system has
been designed to be compatible with vari-
ous bit rates. Audio which has been
encoded at 128kbps will sound similar to
CD audio sound quality. Although this
device supports low bit rate MP3 files, such
files may result in a low quality sound.
● 
For stable operation, the use of files in
95kbps~192kbps bit rate range and 44.1kHz
sampling frequency is recommended.
 ●
For Mixed CDs (MP3+CD-DA), only
CD -DA files will be recognized and
supported.
38 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES

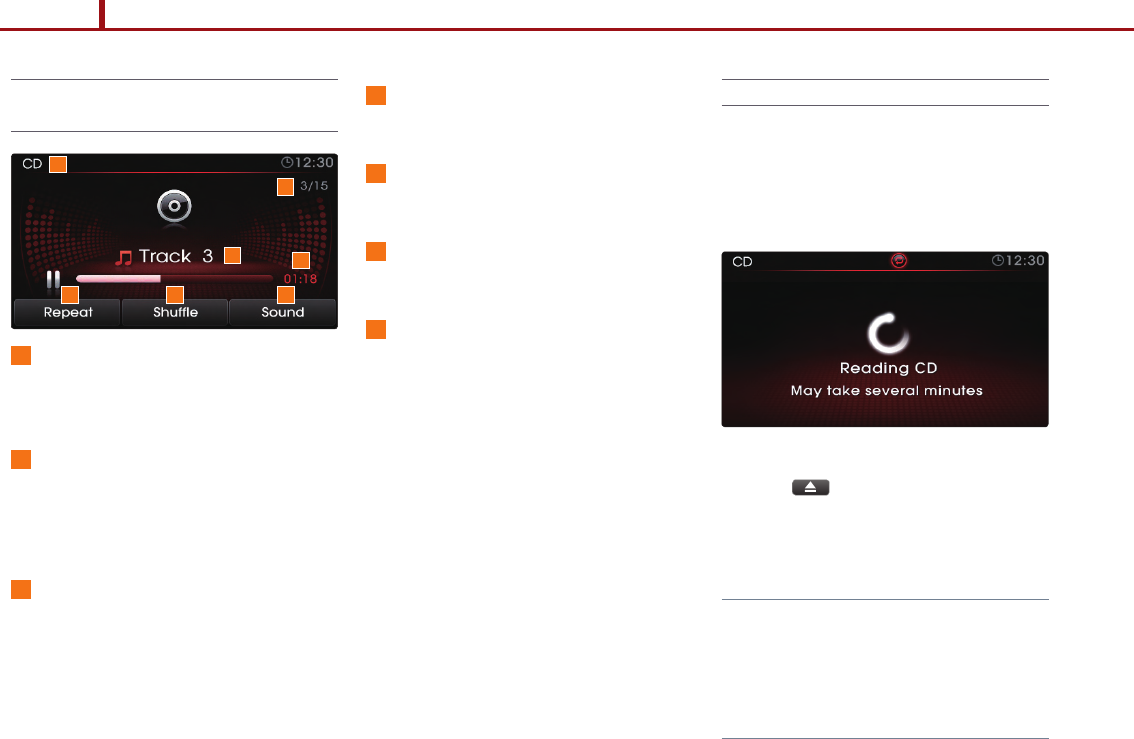

AUDIO CD Mode Screen and
Features
1
Mode Display
Displays that the current mode is CD
mode.
2
Repeat
If Repeat is operating, the current track will
be repeated and the corresponding icon
will be displayed.
3
Shuffle
If Shuffle is operating, the tracks will be
played in random order and the
corresponding icon will be displayed.
4
Sound
Enters Sound Setup.
5
Track Number
Displays the track number
6
Play Time
Displays the play time.
7
Current/Total Track Number
Displays the current track number and total
number of tracks on CD.
Inserting/Ejecting a Disc
1. Inserting a Disc
Insert the disc into the slot. The disc will begin
playing automaticall y af ter it has been
inserted.
2. Ejecting a Disc
Press the button.
The disc will immediately be stopped and
ejected.
Note
●
If the disc is straddled on the slot without
removing for approximately 10 seconds, the
disc will be re-inserted automatically into the
disc player. In such cases, the disc will not
begin playing automatically.
1
2 3 4
5
7
6
PART 2. AUDIO FEATURES 39
PART
2
AUDIO FEATURES
Listening to an Audio CD
1. Insert a CD or press the MEDIA key on
the control panel if the CD has already
been inserted.
2. When a track is playing and you wish to
pause, press the l l button next to the
progress bar. Press the
▶
button to
restart the track.
Note
●
When playing a CD-TEXT, the title and artist
will also be displayed.
Selecting a CD track
1. Selecting through Track Up/Down
1. Press the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys on the
control panel or the
∧
or
∨
keys on
the steering wheel controller to play the
desired track.
2. The previous or next track will begin
playing.
Note
●
If the
SEEK
∨
TRACK
key on the Control panel or
∨
key on the steering wheel controller are
pressed and released after the track has
played for more than 3 seconds, the start of
the current track will begin playing. If the
track has been playing for less than 3 sec-
onds, the start of the previous track will
begin playing.
2. Selecting through manual search
1. Turn the TUNE knob on the control
panel in clockwise or counter-clockwise
direction. Each click will display informa-
tion about the selected track.
2. Pre ss the TUNE k nob to play t he
selected track.
Note
●
The current track will continue playing even as
you search tracks through the
TUNE
knob.
40 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
MP3 CD MODE
Cautions upon handling MP3 CD
1. Precautions upon handling discs
● 
Acceptable standard: MPEG1 AUDIO
LAYER 3
● 
Acceptable sampling frequency: 32, 44.1,
48 (KHz)
● 
Acceptable bit rate: 32, 40, 48, 56, 64,
80, 96, 112, 128, 160, 192, 224, 256, 320
(kbps)
● 
Recommended bit rate & reference sam-
pling frequency: 96,128, 192 kbps fixed
bit rate /44.1KHz
2. ID3 tag
● 
This device supports ID3v1.0, ID3v1.1,
ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.
3. Supported media
● 
The MP3 media supported by the device
are CD-ROM and USB.
4. Supported media formats
● 
This device supports ISO9660 LEVEL1
and LEVEL2. Detailed specification is as
below.
● 
Maximum directory layers: 8 layers
● 
Maximum folder length: 64 Bytes, file
name length: 64 Bytes
● 
Maximum number of folders which can
be stored onto one disc: 256 folders
(including ROOT directory)
● 
Maximum number of files which can be
stored onto one disc: 512 files
5. Precautions upon burning MP3 files
● 
The use of ISO 9660 LEVEL 2 JULIET
format is recommended when burning
MP3 files. Burning in other formats may
abnormally display the file names.
● 
It is possible to display up to 32 charac-
ters for file and folder names in case of
UNICODE, and up to 64 characters in
case of ASCII.
The full length of the artist name and the
song title can be displayed by using the
scroll function.
6. Precaution
● 
Use an MP3 bit rate which is less than
128 kbps. The sound quality cannot be
g u a r a n t e e d f o r M P 3 s e x c e e d i n g
128kbps.
PART 2. AUDIO FEATURES 41
PART
2
AUDIO FEATURES

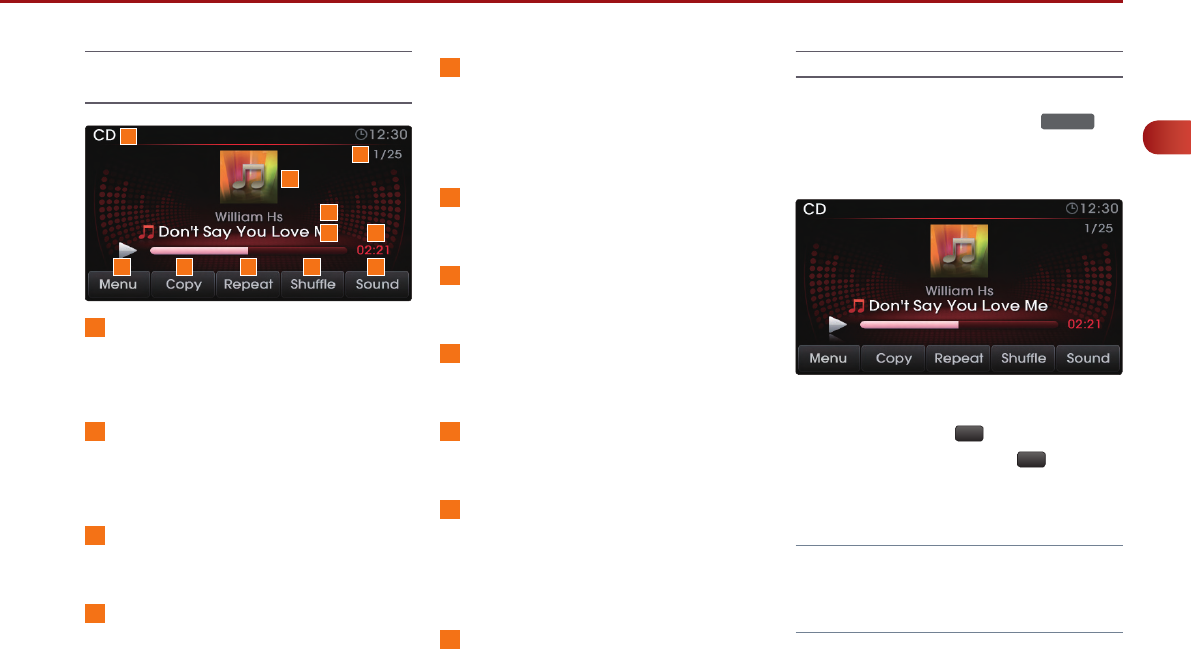

MP3 CD Mode Screen and
Features
1
Mode Display
Displays that the current mode is MP3 CD
mode.
2
Menu
Displays the categories and song lists for
the MP3 CD.
3
Copy
Copies current song into JUKEBOX.
4
Repeat
If Repeat is operating, the current song will
be repeated and the corresponding icon
will be displayed.
5
Shuffle
If Shuffle is operating, the songs will be
played in random order and the corre-
sponding icon will be displayed.
6
Sound
Enters Sound Setup.
7
Play Time
Displays the play time.
8
Artist name
Displays the artist name.
9
Song Title
Displays the song title.
10
Album Art Icon
When pressed, displays information about
the current song (artist, title, album and
other information).
11
Current/Total Track Number
Displays the current track number and total
number of tracks on the current playing list.
Listening to an MP3 CD
1. Insert an MP3 CD or press the MEDIA key
on the control panel if the CD has already
been inserted.
2. When a song is playing and you wish to
pause, press the l l button next to the
progress bar. Press the
▶
button to
restart the song.
Note
●
For some media formats, the system requires
time for media indexing. In the case of MP3
CDs, the system will take 1.5sec / song.
1
2 3 4 5 6
79
10
11
8
42 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES
Selecting an MP3 CD song
1. Selecting through song Up/Down
1. Press the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys on the
control panel or the
∧
or
∨
keys on
the steering wheel controller to play the
desired track or song.
Note
●
If the
SEEK
∨
TRACK
key on the Control panel or
∨
key on the steering wheel controller is
pressed and released after the song has
played for more than 3 seconds, the start of
the current song will begin playing. If the song
has been playing for less than 3 seconds, the
start of the previous song will begin playing.
2. Selecting through manual search
1. Turn the TUNE knob on the control
panel in clockwise or counter-clockwise
direction. Each click will display informa-
tion about the selected song.
2. Pre ss the TUNE k nob to play t he
selected song.
3. Selecting from MP3 list
1. Press the Menu button.
2. Press the Now Playing button.
3. Press the name of the song from the list.
The song will automatically start playing.
Note
●
In the MP3 list screen, the
TUNE
knob can
also be used to select songs.
4. By Artists, Albums, Genres, Songs,
Composers
1. Press the Menu button.
2. Choose the category through which you
PART 2. AUDIO FEATURES 43
PART
2
AUDIO FEATURES
wish to select the song. MP3 CD mode
allows you to select by Playlists, Artists,
Albums, Genres, Songs, and Composers.

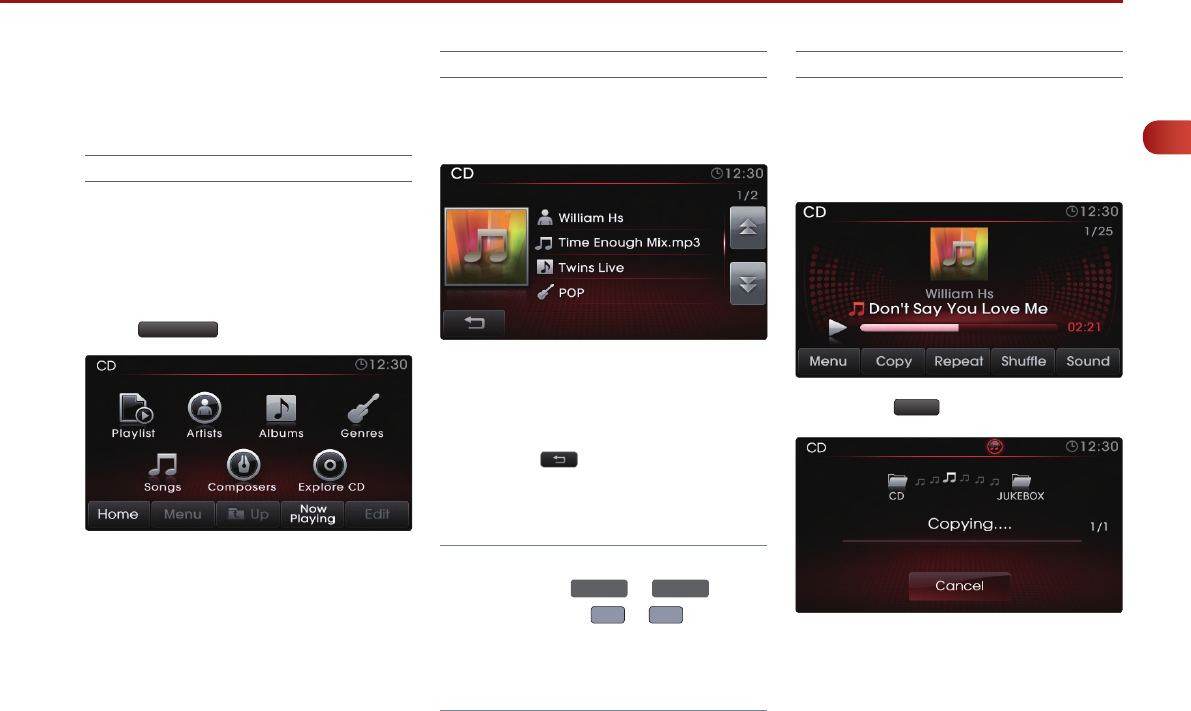

Explore CD
Explore CD is a feature which allows you to
browse files and folders of the CD by the
names of categories.
1. While in the MP3 CD Menu screen, press
the Explore CD button.
2. Search the corresponding files and folders
to select the desired song.
Viewing song information
When listening to an MP3 CD song, you can
browse through song details and information.
1. Press the Album art icon.
2. The song information (Artist, Title, Album,
Genre) for the current MP3 song will be
displayed.
3. Press the button to return to the pre-
vious screen.
Note
● 
Even as you browse through song information,
you can use the
SEEK
TRACK
∧
or
SEEK
∨
TRACK
keys on
the control panel or
∧
or
∨
keys on the
steering wheel controller to select different MP3
songs. For more information, refer to the
'Selecting an MP3 CD song' section.
Copying songs into JUKEBOX
1. Copying the current song
The UVO system allows you to copy songs
from an MP3 CD into JUKEBOX.
1. Press the Copy button.
2. Once copying is complete, you can listen
to copied music in JUKEBOX mode.
44 PART 2. AUDIO FEATURES
PART 2 AUDIO FEATURES

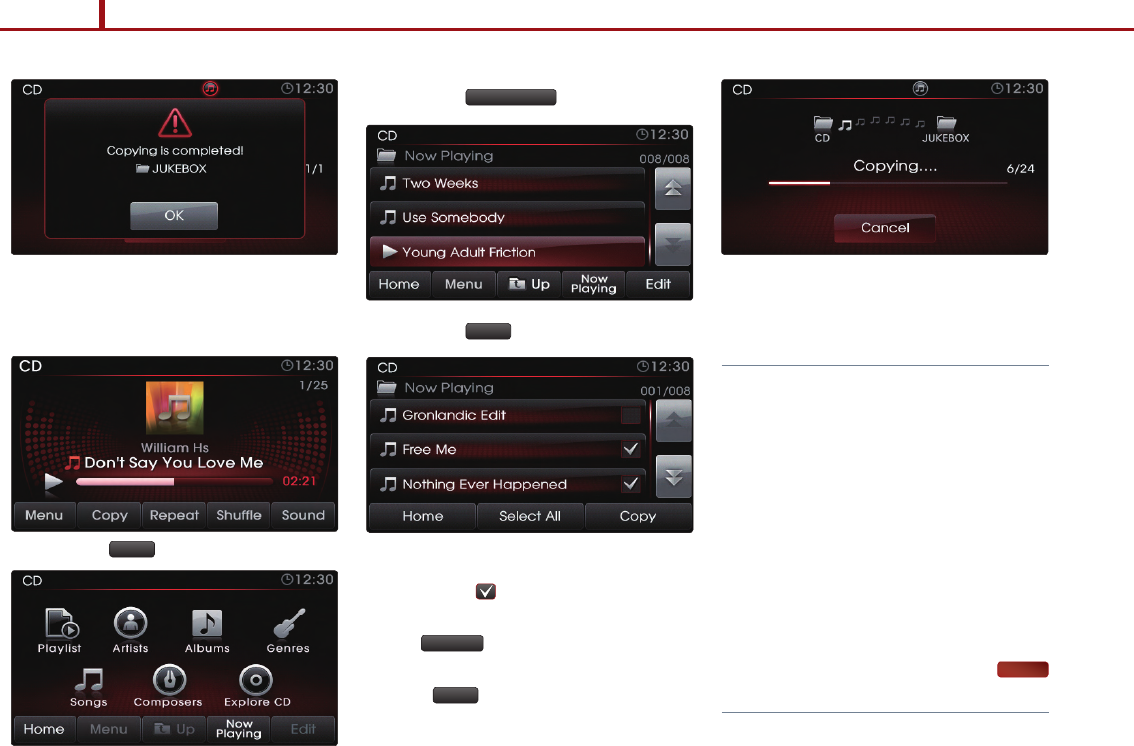

2. Copying songs from list
Copying MP3 songs from lists allows you to simulta-
neously select several songs to copy into JUKEBOX.
1. Press the Menu button.
2. Press the Now Playing button.
3. Press the Edit button.
4. Select the songs you wish to copy. When
selected, a will be displayed next to the
song. To select all songs in the list, press
the Select All button.
5. After selecting the desired songs, press
the Copy button.
6. Once copying is complete, you can listen
to copied music in JUKEBOX mode.
Note
●
If memory is already full and songs can no lon-
ger be copied, the “Memory full! Please delete
music from your JUKEBOX” message will be
displayed and you must delete songs from
JUKEBOX
. For more information on deleting
JUKEBOX
songs, refer to the ‘Deleting
JUKEBOX
’ section.
● 
When copying MP3 CD songs, you can lis-
ten to all modes except CD mode and
JUKEBOX mode.
● 
Copying can be canceled at anytime. While
copying is in progress, press the Cancel
button.
PART 2. AUDIO FEATURES 45
PART
2
AUDIO FEATURES
USB MODE
Cautions upon handling USB MP3
1. The MP3 file standards supported by
the device are as follows.
● 
Acceptable standard: MPEG1 AUDIO
LAYER 3
● 
Acceptable sampling frequency: 32, 44.1,
48 (kHz)
● 
Acceptable bit rate: 32, 40, 48, 56, 64,
80, 96, 112, 128, 160, 192, 224, 256, and
320 (kbps)
● 
Recommended bit rate & reference sam-
pling frequency: 96,128, 192 kbps fixed
bit rate /44.1kHz
2. ID3 tag
● 
This device supports ID3v1.0, ID3v1.1,
ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.
3. Supported media
● 
The MP3 media supported by the device
are CD-ROM and USB.
4. Supported media formats
● 
This device supports ISO9660 LEVEL1
and LEVEL2. Detailed specification is as
below.
 ●
Maximum directory layers: 16 layers
5. Precautions upon formatting USB &
downloading MP3 files
● 
The device only supports FAT type USB
file system. The device will not play USB
media content if the USB is NTFS type.
6. Precautions
● 
Use an MP3 bit rate which is less than
192kbps and a fixed bit rate. The sound
quality cannot be guaranteed for MP3s
exceeding 192Kbps. Certain features
may operate abnormally when playing
MP3 formats with variable bit rates, such
as being limited to FF/REW.

Navigation menu
