Chapter 1 Introduction
1.1 Overview
DS-PK00/PK00M/-LCD/LED series LCD/LED alarm keypad are used for connecting
to the security control panel. It implements operations on the security control
panel through programming and prompts alarm with the indicators and audio
alert.

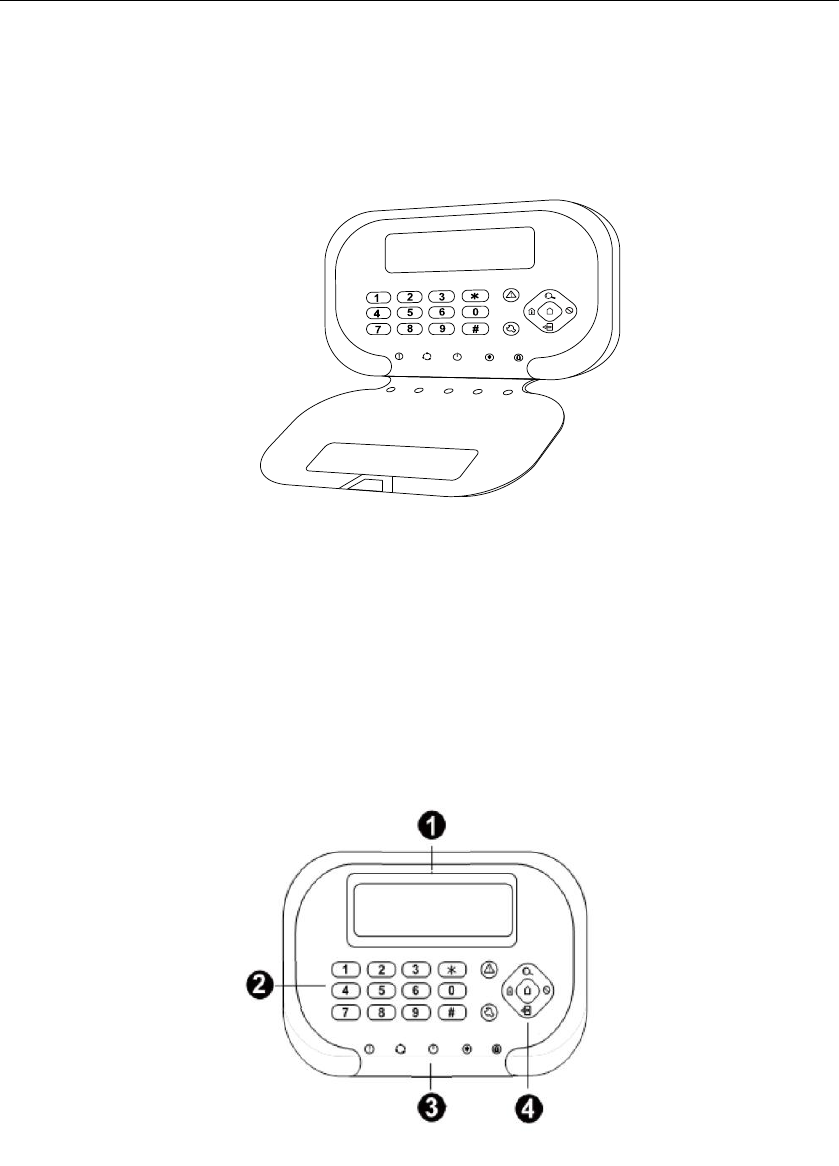

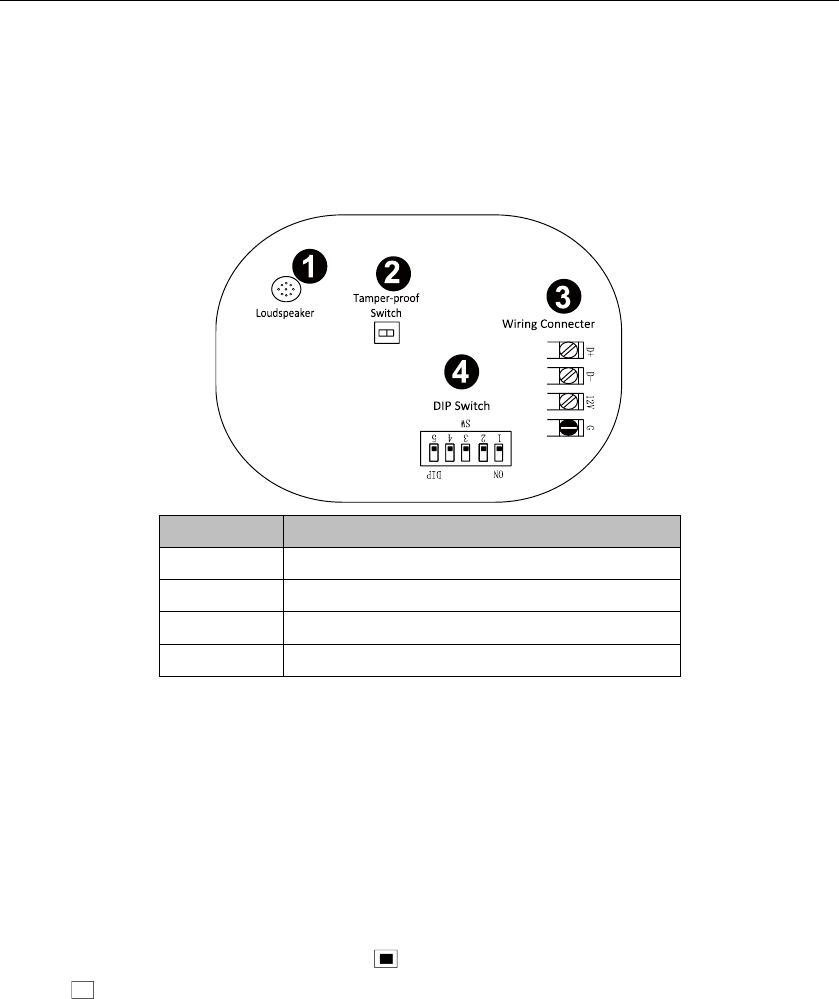

1.2 Appearance Description
Keypad User Manual
9

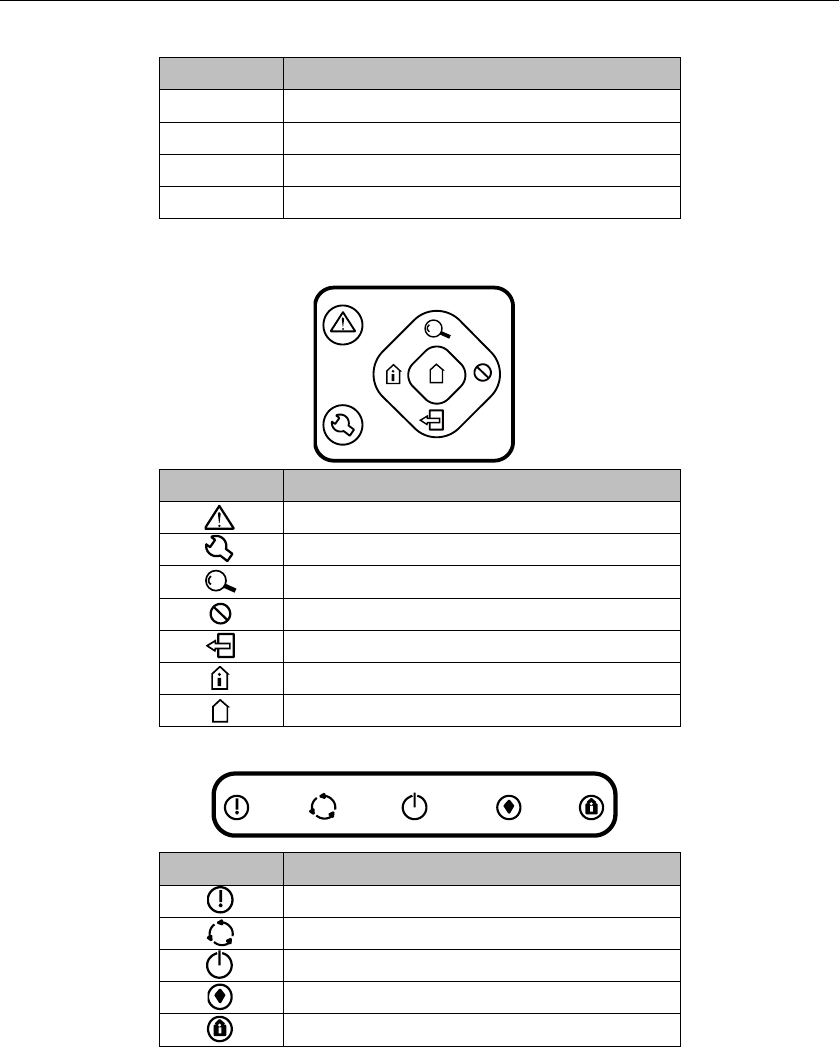

No.
1
2
3
4
Control Panel
Button
Indicator Bar
Button
Keypad User Manual
10
1.3 Keypad Beeper and Indicator
Beeper Description
No.
Sound Prompt
Description
1
One Beep
Pressing keys prompt; The command is timed
out or the command is too long.
2
Two Beeps
Valid command. Uploading the report
completed.
3
Five Beeps
Invalid command. Failed to upload the report
in 60s.
4
Continuous Beeping
For Two Seconds
Fault Prompt
5
Slowly Continuous
Beeps
Entry/Exit Delay
6
Rapidly Continuous
Beeps
Entry/Exit Delay, less than 10s.
7
Rapid Beeps
Zone Alarm; The keyboard is not registered.
8
Three Long Beeps
and Two Short Beeps
The tampering prevention of the keyboard is
turned on.
9
Three Beeps
Registering the keyboard completed.
10
One Beep In Two
Seconds
Two minutes before auto arming/disarming;
One minute before arming for temporary
password.
11
Three Beeps In One
Second
One minute before auto arming/disarming; 15s
before arming for temporary password.
Keypad User Manual
11
Indicator Description
Status
Working Status
Indicator
Working Status
Indicator
Normal
Solid Green
System Fault
Solid Red
Power
Working Status
Indicator
Power On
Solid Green
Stay
Working Status
Indicator
Working Status
Indicator
Partition Perimeter
Disarmed
OFF
Partition System
Perimeter Armed
Orange
Arm
Working Status
Indicator
Working Status
Indicator
Partition Armed
Solid Red
Partition System
Disarmed
Solid Green
Password Modifying
Flicking Green
Fob Code Matching
Flicking Green
Testing Mode
Solid Red
Programming
Flicking Green
OPERATING
Working Status
Indicator
Working Status
Indicator
Normal
Solid Green
Programming
Flicking Green
Password Modifying
Flicking Green
Fob Code Matching
Flicking Green
Engineering Mode
Solid Red
System Fault
Flicking Orange
Keypad User Manual
12
LED Zone Indicator
Zone
Working Status
Indicator
Working Status
Indicator
Normal
OFF
Fault
Solid Red
Alarm
Flicking Red
Bypass
Solid Green
Zone Indicator under Engineering Mode (The corresponding zone indicator light
will turn orange when operating):
No.
Description
No.
Description
1
Off Hook
5
Sending CID Report
2
Dialing
6
Receiving Confirmation
3
Alarm Receiver Off
Hook
7
Control Panel On Hook
4
Receiving Handshake
8
Alarm Receiver On Hook
Zone Indicator under Status Mode (The corresponding indicator light will be solid
red if there is any fault):
No.
Description
No.
Description
1
AC Current Interrupted
5
RS-485 Device
Disconnected
2
Low Voltage of Storage
Battery
6
Wired Network Exception
3
Movement Prevention of
Control Panel Turning On
7
Wireless Network
Exception
4
Telephone Line
Disconnected
8
Reserved
Keypad User Manual
13
Chapter 2 Installation and Wiring
2.1 Wiring Connector Description
No.
1
2
3
4
2.2 Keypad Address Settings
An address is required for each alarm keypad in the system. These addresses
cannot be repeated. Once exchanging the alarm keypad, the address of the new
keypad must be the same as the replaced one. You should configure the address
via DIP switch of the keypad before powering on the system. The address should
be in the range of 1~31.
When it is black on the end of ON as , indicated 1; when it is black on the other
end as , indicated 0.
Keypad User Manual
14
1 2 3 4 5
00
01 ■
02 ■
03 ■ ■
04 ■
05 ■ ■
06 ■ ■
07 ■ ■ ■
1 2 3 4 5
08 ■
09 ■ ■
10 ■ ■
11 ■ ■ ■
12 ■ ■
13 ■ ■ ■
14 ■ ■ ■
15 ■ ■ ■ ■
12345
16 ■
17 ■ ■
18 ■ ■
19 ■ ■ ■
20 ■ ■
21 ■ ■ ■
22 ■ ■ ■
23 ■ ■ ■ ■
12345
24 ■ ■
25 ■ ■ ■
26 ■ ■ ■
27 ■ ■ ■ ■
28 ■ ■ ■
29 ■ ■ ■ ■
30 ■ ■ ■ ■
31 ■ ■ ■ ■ ■
Keyboard
Address ON DIP
Keyboard
Address
Keyboard
Address
Keyboard
Address
ON DIPON DIPON DIP
2.3 Keypad Installation
Before You Start:
Make sure that the device in the package is in good condition and all the
assembly parts are included.
Make sure that the wall is strong enough to withstand three times the weight
of the keypad.
Set the keypad address before installation.
Steps:

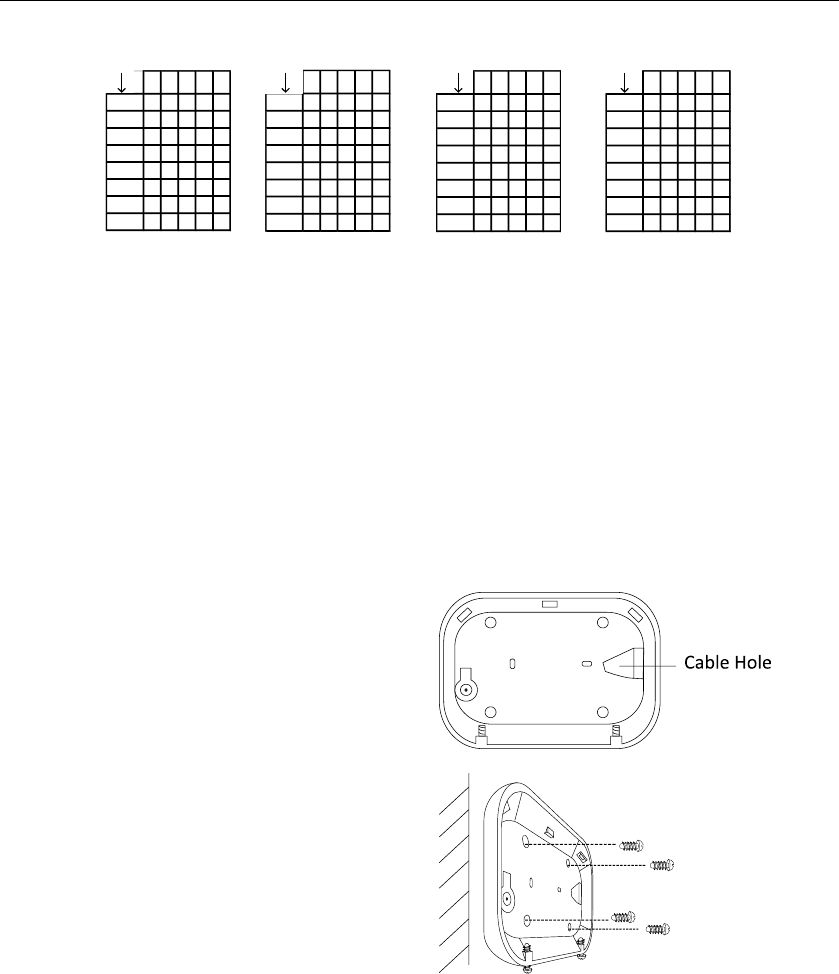

1. Route the cables through the cable
hole of the mounting plate.
2. Secure the mounting plate on the
wall with 4 supplied screws.
Keypad User Manual
15

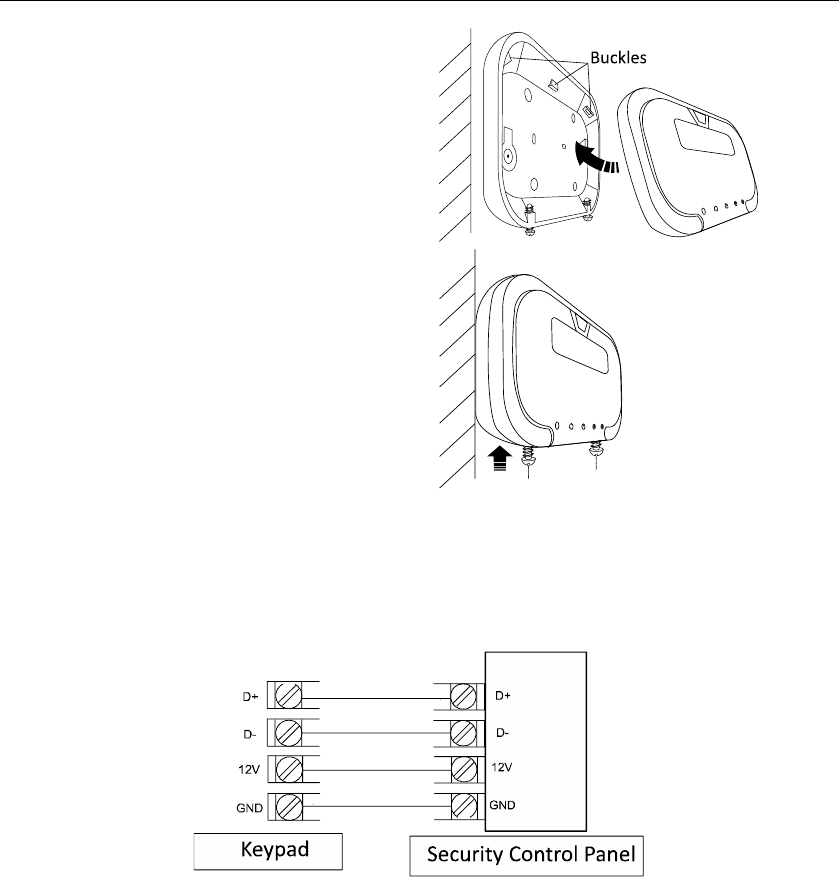

3. Connect the corresponding cables.
4. Push the keypad body in the
mounting plate from bottom up.
5. Fasten the keypad body with the
three buckles on the plate.
6. Align the screw holes with the
screws on the bottom of both
keypad and mounting plate.
7. Tighten the screws to fix the keypad
on the mounting plate and complete
the installation.
2.4 Keypad Wiring
The keypad wiring is shown as follows.
Chapter 3 Keypad Operation (Local
Operation）
3.1 Keypad Alarm Operation Code
Keypad User Manual
16
Function
Description
Command
Arming/Disarming
Normal(Away)Arming/Disarming
【Password】【 #】
Instant Arming
【Password】【 *】【 7】【 #】
Stay Arming
【Password】【 *】【 4】【 #】
Normal (Away)Arming/Disarming
【Password】【 Bypass】【 #】
Mandatory
【Password】【 *】【 7】【 Bypass】【 #】
Mandatory Instant Arming
【Password】【 *】【 4】【 Bypass】【 #】
Bypass
Bypass Zone（n）
【Password】【 Bypass】【 n】【 n】【 n】【 #】
【Bypass】【 n】【 n】【 n】【 #】
nnn is the zone No.
Group Bypass
【Password】【 *】【 4】【 1】【 #】
Group Bypass
【Password】【 *】【 4】【 2】【 #】
Programming/
Editing Password
Control Panel Programming
【Installer Password】【 *】【 0】【 #】
Exit Operation
【*】【 #】
Operator Password
【Operator Password】【 *】【 0】【 #】
【User No. (3digits)】【 #】
【New Password】【 #】
【New Password】【 #】
Clearing Alarm
Clearing Under arming status
Clearing under disarming status
【*】【 1】【 #】
【Password】 【*】【 1】【 #】
Keypad Settings
Enabling/Disabling Keypad Tone
【*】【 5】【 1】【 #】
Enabling/Disabling Fault Prompt
【*】【 5】【 6】【 #】
LCD Backlight Control
【*】【 5】【 2】【 n】【 n】【 n】【 #】
LCD Backlight Disabling
【*】【 8】【 #】
Testing
Testing
【Password】【 *】【 6】【 0】【 #】
Alarm Center Testing
【Password】【 *】【 6】【 1】【 #】
Project Mode
【Password】【 Project】【 9】【 0】【 n】【 #】
Exiting Project Mode
【Project】 or 【*】【 #】
Display/Output
Enabling Alarm Output
【Password】【 *】【 8】【 5】【 n】【 n】【 #】
Disabling Alarm Output
【Password】【 *】【 8】【 6】【 n】【 n】【 #】
System Settings
Control Panel Soft Resetting
【Operator Password】【 *】【 6】【 8】【 #】
Initialization
【Installer Password】【 *】【 8】【 9】【 #】
Panic Alarm
Panic Alarm
【Panic】
Keypad User Manual
17
Device Status Query
System Fault Status
【Status】
Wireless User
Settings
Pairing Wireless Device and
Control Panel
【Password】【 *】【 91】【 No.】【 #】
Deleting the Specified Connected
Wireless Device
【Password】【 *】【 90】【 No.】【 #】
Deleting all the Connected
Wireless Device
【Password】【 *】【 92】【 #】
Card User Settings
Pairing Card No. and Control
Panel
【Operator】 【Project】【 10】【User No.】 【#】
Deleting the Specified Card
【Operator】【 Project】【 11】【 Card No.】【 #】
【Operator】【 Project】【 12】【 #】
Deleting All Card Of a Specified
User
【Operator】【 Project】【 15】【 #】
Exiting Card Pairing Mode
【*】【 #】
Schedule
Resetting Current Schedule
【Installer Password】【 *】【 8】【 1】【 #】
Clearing Weekly Schedule
【Installer Password】【 *】【 8】【 2】【 #】
Clearing Prioritized Schedule
【Installer Password】【 *】【 8】【 3】【 #】
Single Zone
Operation
Arming/Disarming
【Password】【 Project】【 n】【 n】【 n】【 #】
Clearing Alarm
【Password】【 Project】【 n】【 n】【 n】【 #】
Language Settings
Displaying English
【*】【 9】【1】【 1】【 #】
Displaying Chinese
【*】【 9】【 1】【 0】【 #】

Navigation menu
