Contents

user manual annex

read/write head
TNSLR-Q350-H1147
Edition • 2015-08-27T10:30:40+02:00
1 / 3 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Type code TNSLR-Q350-H1147
Ident no. 7030454
Mounting conditions non-flush
Ambient temperature -25…+70 °C
Operating voltage 19.2…28.8VDC
DC rated operational current ð 150 mA
Data transfer inductive coupling
Operating frequency 13.56 MHz
Radio communication and protocol standards ISO 15693
Read/write distance max. 794 mm
Output function 4-wire, read/write
Construction rectangular, Q350
Dimensions 370x 350x 20mm
Housing material plastic, PBT, black
Material active area plastic, Black
Connection male, M12 x 1
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
IP Rating IP67
MTTF 121 years acc. to SN 29500 (Ed. 99) 40 °C
Power-on indication LED green
Diagnostic display Functional description of yellow range-restrict-
ed LED: If the read/write head is supplied
with voltage, it briefly checks to see whether
its resonance frequency is affected by sur-
rounding metal. If this is the case, the reso-
nant circuit off-tunes its frequency to reach
again the (optimum) resonance frequency.
However, this is only possible within a cer-
tain range. If too much metal is in the envi-
ronment, the read/write head cannot re-tune
or the surrounding metal takes too much en-
ergy from the field and due to the reduced
range the communication between the read/
write head and the data carrier is cut off (the
orange range-restricted-LED lights up). If the
LED is off, this does not mean conversely,
that no reduction in range occurs. The lit LED
is rather an indication of too much metal in
the environment and a greatly reduced range
(about 50% less).

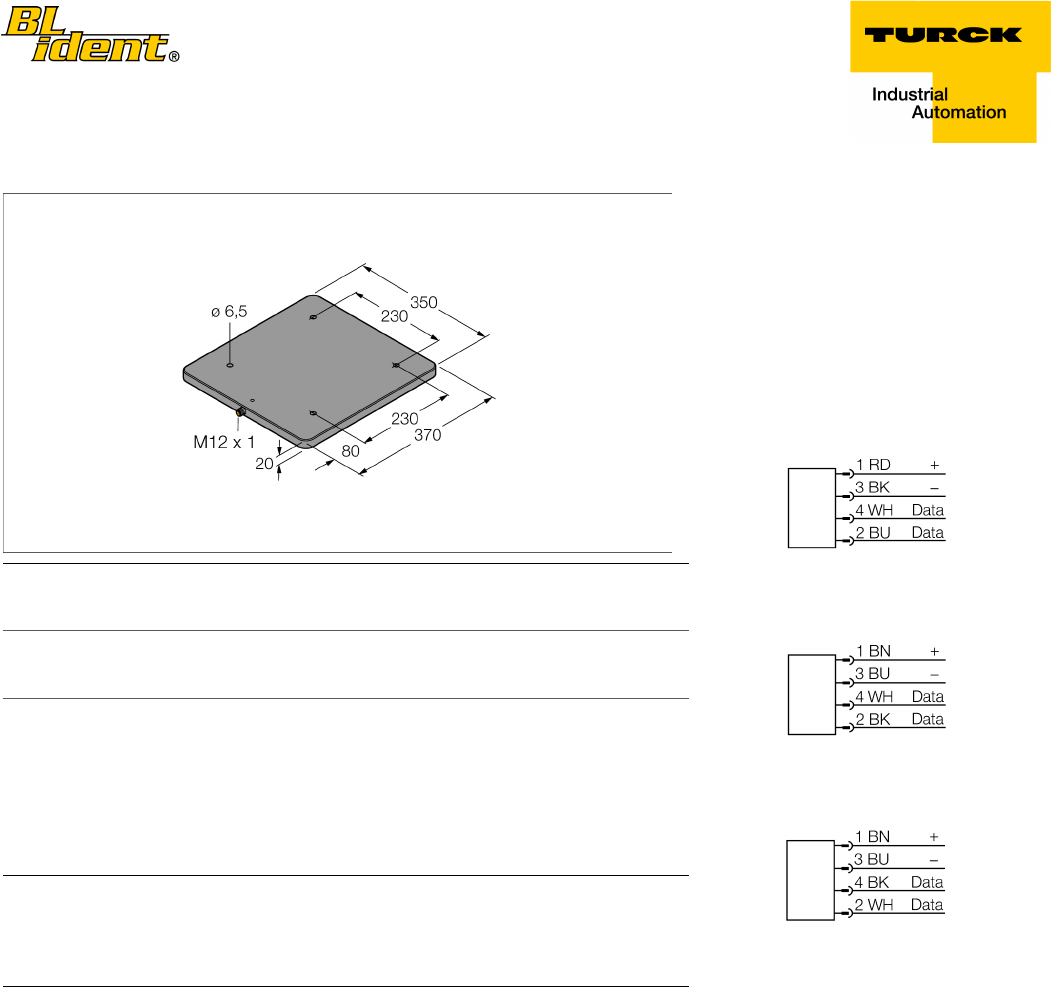

■Rectangular, 370x350 mm, height 20
mm
■Active face on top
■Plastic, PBT-GF30-VO
■Powered and operated only via BL ident
interface module
■Male M12 x 1, only for use with BL ident
extension cable
Connectors …/S2503
Connectors …/S2500
Connectors …/S2501
Functional principle
The HF read/write heads operating at a fre-
quency of 13.56 MHz form a transmission
zone the size of which (0…500 mm) varies,
depending on the combination of read/write
head and data carrier.
The read/write distances mentioned here on-
ly represent standard values measured under
laboratory conditions.
The read/write distances of the data carriers
for mounting in metal TW-R**-M(MF) were de-
termined in metal.
Attainable distances may vary by up to 30 %
due to component tolerances, mounting con-
ditions, ambient conditions and material quali-
ties (especially when mounted in metal)
Testing of the application under real operat-
ing conditions is therefore essential, especial-
ly with read/write on-the-fly!
read/write head
TNSLR-Q350-H1147
Edition • 2015-08-27T10:30:40+02:00
2 / 3 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Packaged quantity 1
Special features Very long ranges
read/write head
TNSLR-Q350-H1147
Edition • 2015-08-27T10:30:40+02:00
3 / 3 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-R50-B128
6900504
280 560 600 300 1110
TW-R50-K2
6900507
210 400 480 240 1110
TW-L86-54-C-B128
6900479
432 794 792 396 1110
Type
Ident-No.
7030454
Qty
1
TNSLR-Q350-H1147
1615H
Warning:Hazardous voltage can cause electrical shock and burns.
Disconnect power before proceeding with any work on this equipment.
Made in Germany
Hans Turck GmbH & Co. KG · Witzlebenstraße 7 · 45472 Mülheim/Ruhr · Germany
Phone +49 208 49 52-0 · Fax +49 208 49 52-264 · more@turck.com · www.turck.com
24 VDC
IP67
