Hansol LCD B15AC 15" CCTV MONITOR User Manual USERS MANUAL

Hansol LCD Inc. 15" CCTV MONITOR USERS MANUAL

USERS MANUAL

Parts 3
Connection to Signal Source 4
the range of control Angle 5
Installing Monitor Driver 6
Name and Function of Front 8
Power Management Feature 9
Adjusting OSD 11
Standard Signal Table 22
Specification 24
Troubleshooting 25
Warning 27
Table of Contents
INFORMATION TO USER :
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.This equipment generates, uses and can
radiate radio frequency energy and,if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by determined by turning the
equipment off and on, the user is encouraged to try to crrent the interference by
one or more of the fllowing measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference
from that to which the recerver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user's
authority to operate the equipment
ENERGY STAR
As an ENERGY STAR partner, Hansol Electronics Inc.
has determined that this product meets energy Star guidelines
for energy efficiency.
English - 32 - English
Parts
Place the monitor to face the user and then adjust the monitor angle.
Take a break (for about 10 minutes) at every hour during the work with monitor.
Refer to the following figure to take the correct posture.
about 50cm
Look down the monitor
below the horizon.
Relax shoulders and arms,
and sit back on the chair.
Adjust the monitor to
prevent reflection.
Adjust the monitor stand
to acquire required angle.
Keep feet flat on the ground.
Maintain the arms horizontally
and place hands softly on
the keyboard.
Good Posture Guide
User's Manual /
Warranty Card
Signal Cable AC Power Cable
LCD Monitor
English - 54 - English

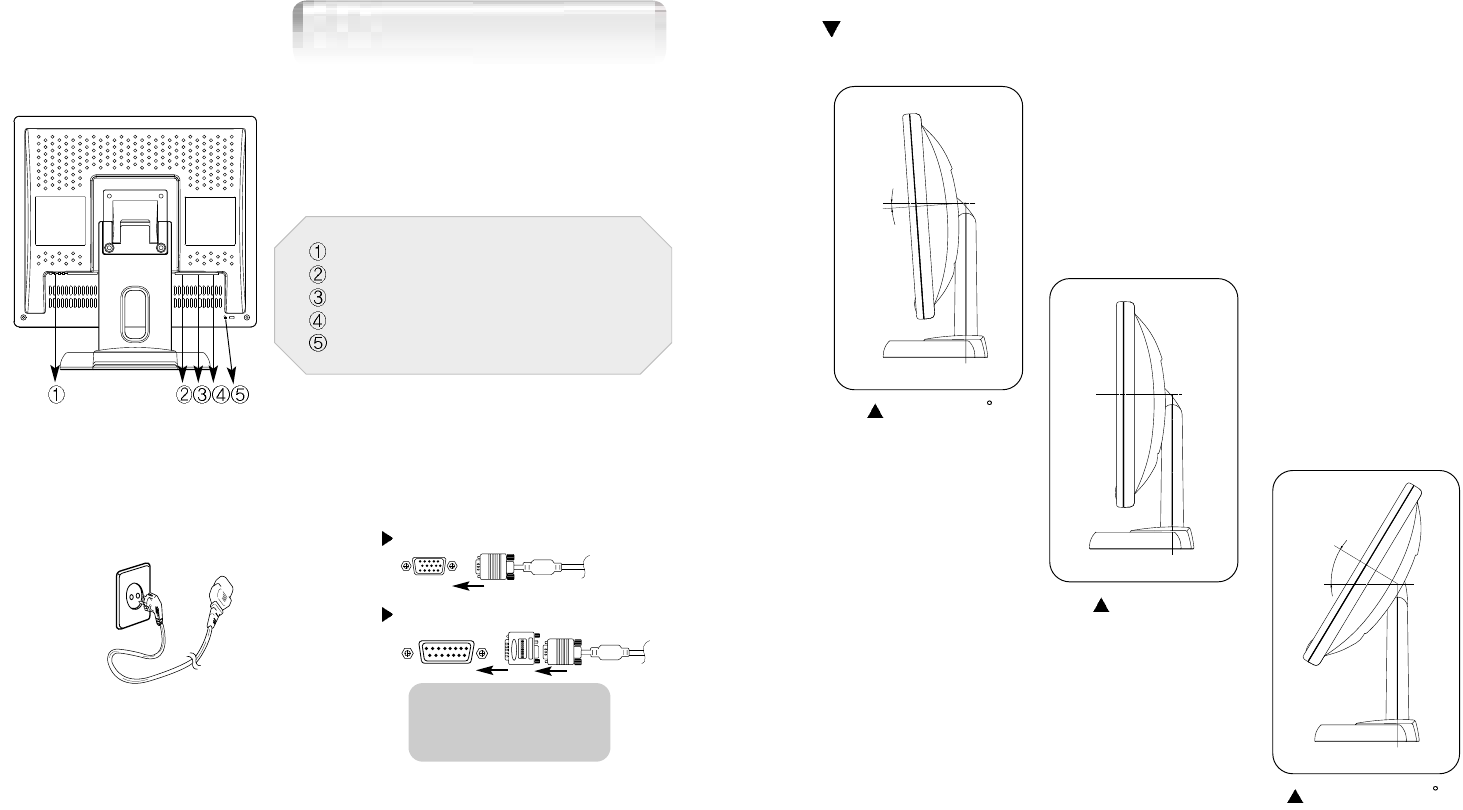

Connection to Signal Source
1. Use 220 V or 110 V. (Free Voltage)
2. Connect monitor and Signal Source via Signal cable
3. Power on the monitor and computer.
4. Connection is finished.
General
For Macintosh
Adapter for Macintosh (Optional)
Refer to the table on the rear side of
the optional Macintosh adapter and
adjust DIP switch by the resolution.
T he range of control Angle
< Power source connection > < Signal cable connection>
Basic Connection
Port for AC power cable.
Port for BNC input
Port for S-VHS input
Port for signal cable from signal source.
Kensington Lock
How to Adjust the Stand
Forward 4
Default
Backward 31
+/ -/
English - 76 - English
Power button
Power button is located in the lower center of the Front Bezel.
You can push the button to turn on/off the power.
Power Indicating LED
Dark : Power off
Green : Normal mode
Green blinking : DPMS mode or Check Signal Cable mode.
On-Screen Display (OSD) Function Button
OSD buttons on the front of bezel perform the following functions.
SOURCE
: Monitor displays source of the signal in order ( PC CVBS S-VHS )
MENU/EXIT : Press this button to display menus. If you press this button when
OSD is displayed, you can switch display to the previous menu and
exit menu.
SELECT : When OSD is displayed, You can select icons.
POWER : Power button.
: By pressing these buttons when OSD is displayed, you can move
cursor into the menus which you want.
After pressing the SELECT button, you can change gauge level or
select submenus.
When OSD is not displayed, you can adjust brightness or contrast.
AUTO : Press this button, when OSD is not displayed, to perform
automatic setting. (only PC Mode.)

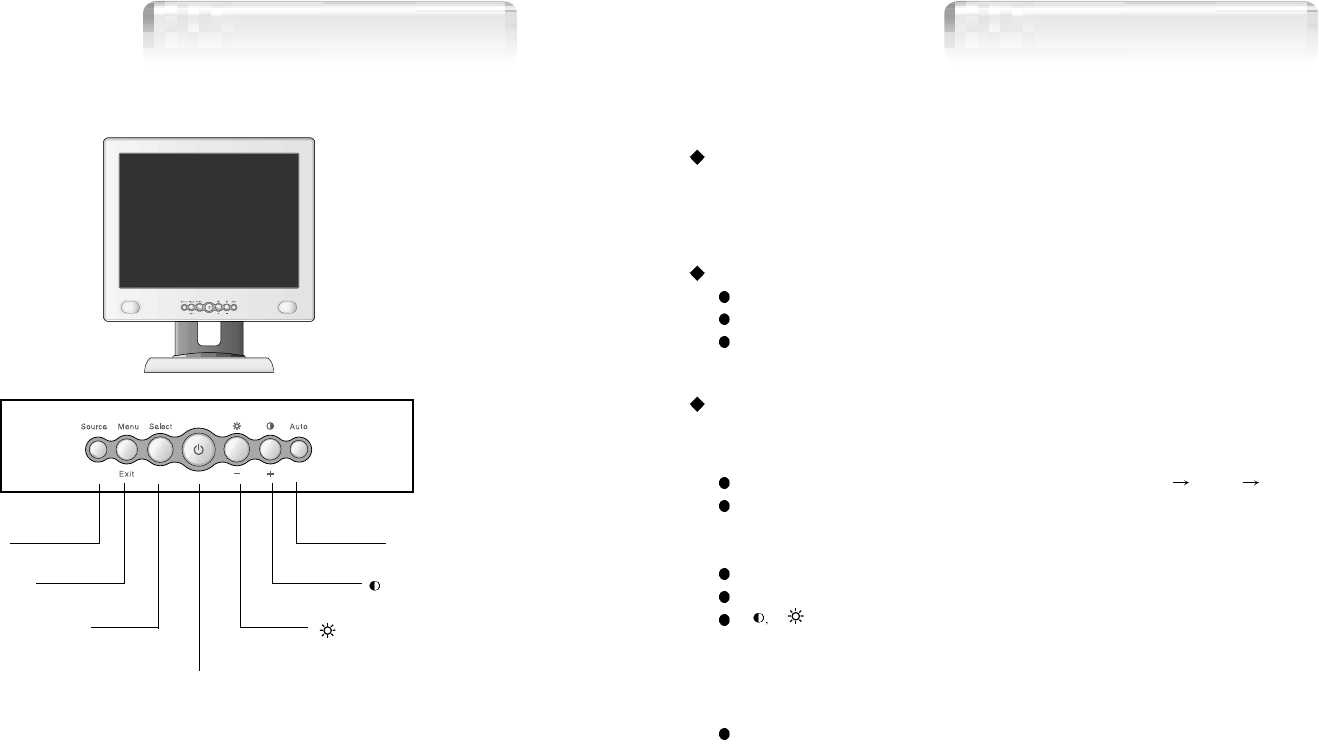

Name and Function of Front
Front panel Functions
AUTO
BUTTON
/ +
BUTTON
POWER BUTTON
(Power indicating LED)
/ -
BUTTON
SELECT
BUTTON
MENU/EXIT BUTTON
SOURCE BUTTON
English - 98 - English

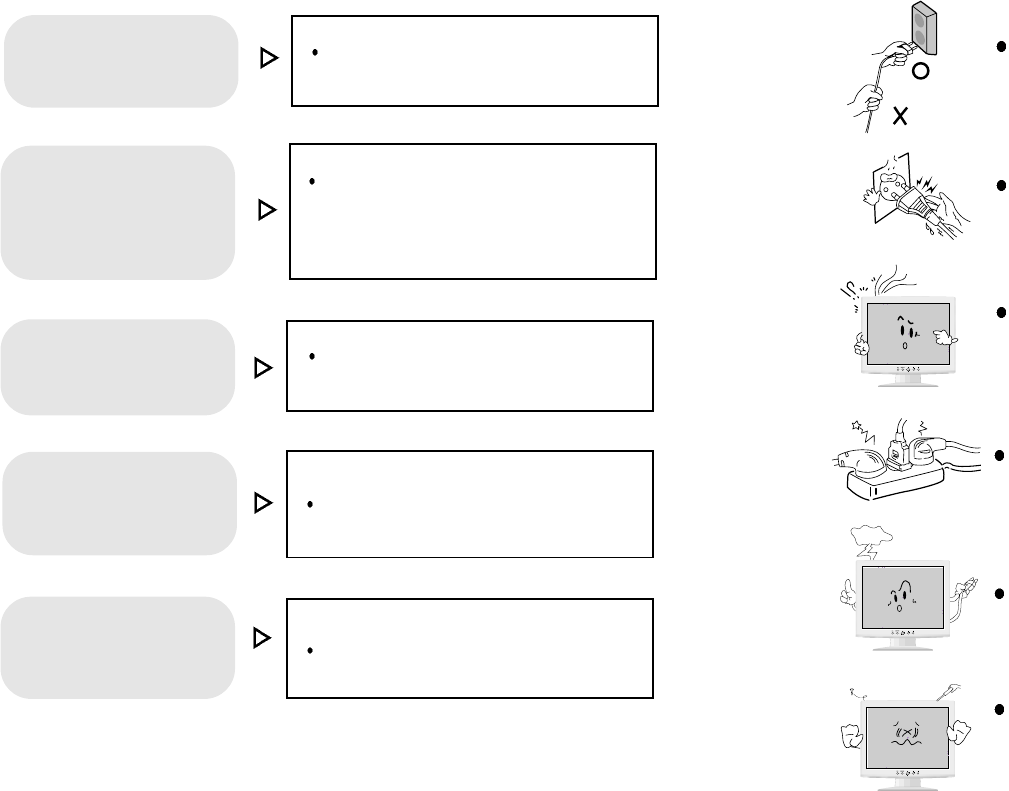

No image is displayed with Green blinking.
Monitor is in power saving mode.
Use mouse or keyboard to release power saving mode.
No image is displayed without LED on.
Power cable plug must be pulled out.
Check the power plug on monitor and on the wall.
"Out of range" displayed on the screen.
This message is displayed when the signal from video card exceeds the
maximum frequency of the monitor. Readjust resolution and frequency in
accordance with the monitor capacity. (Refer to Standard Signal Table)
Power Management Feature
The monitor is equipped with a power saving circuit that
confirms to the world-standard Display Power Manager Signalling
(DPMS) mode of Video Electronics Standard Association (VESA).
The power management feature requires that the video card of the
computer should support DPMS function.
Adjusting OSD
-PC MODE

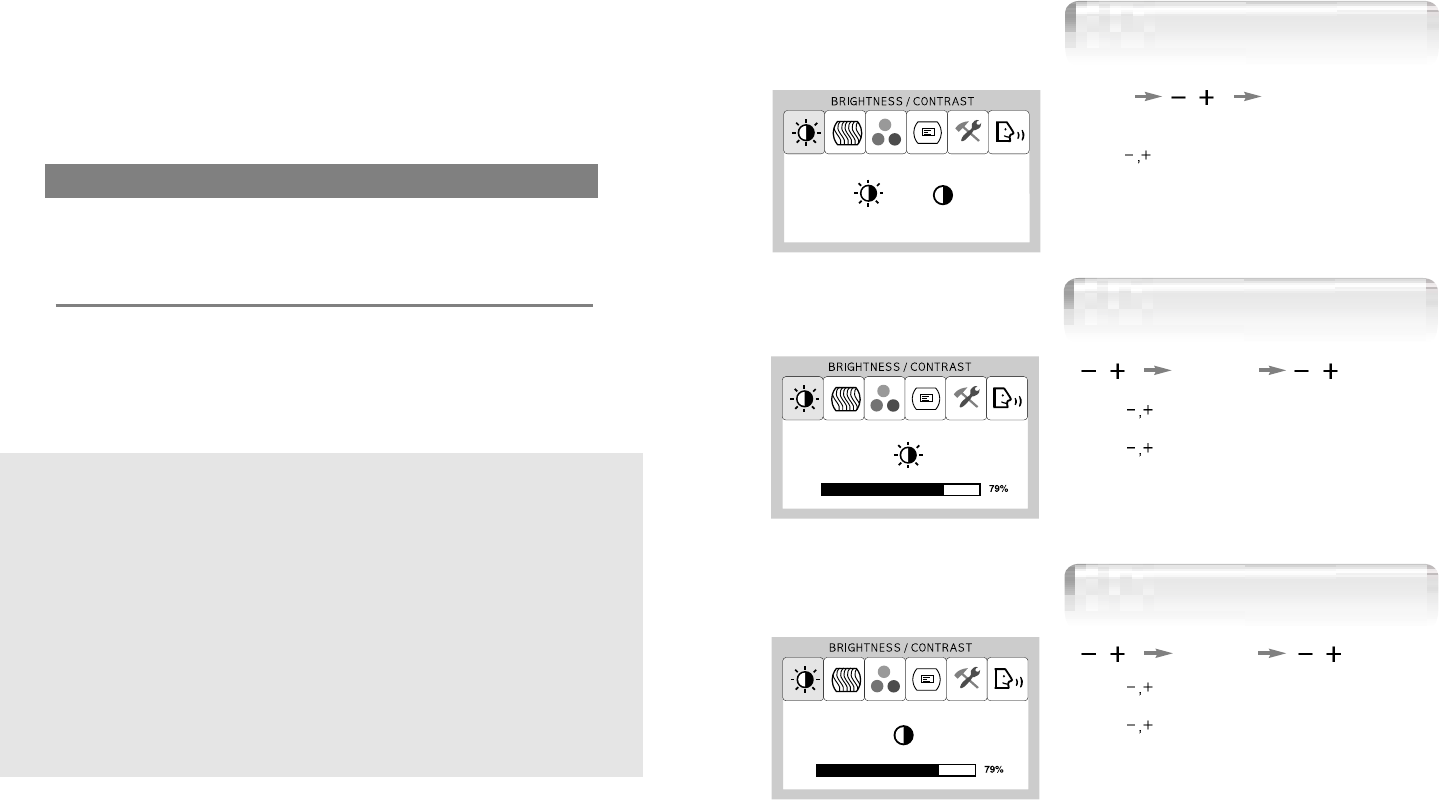

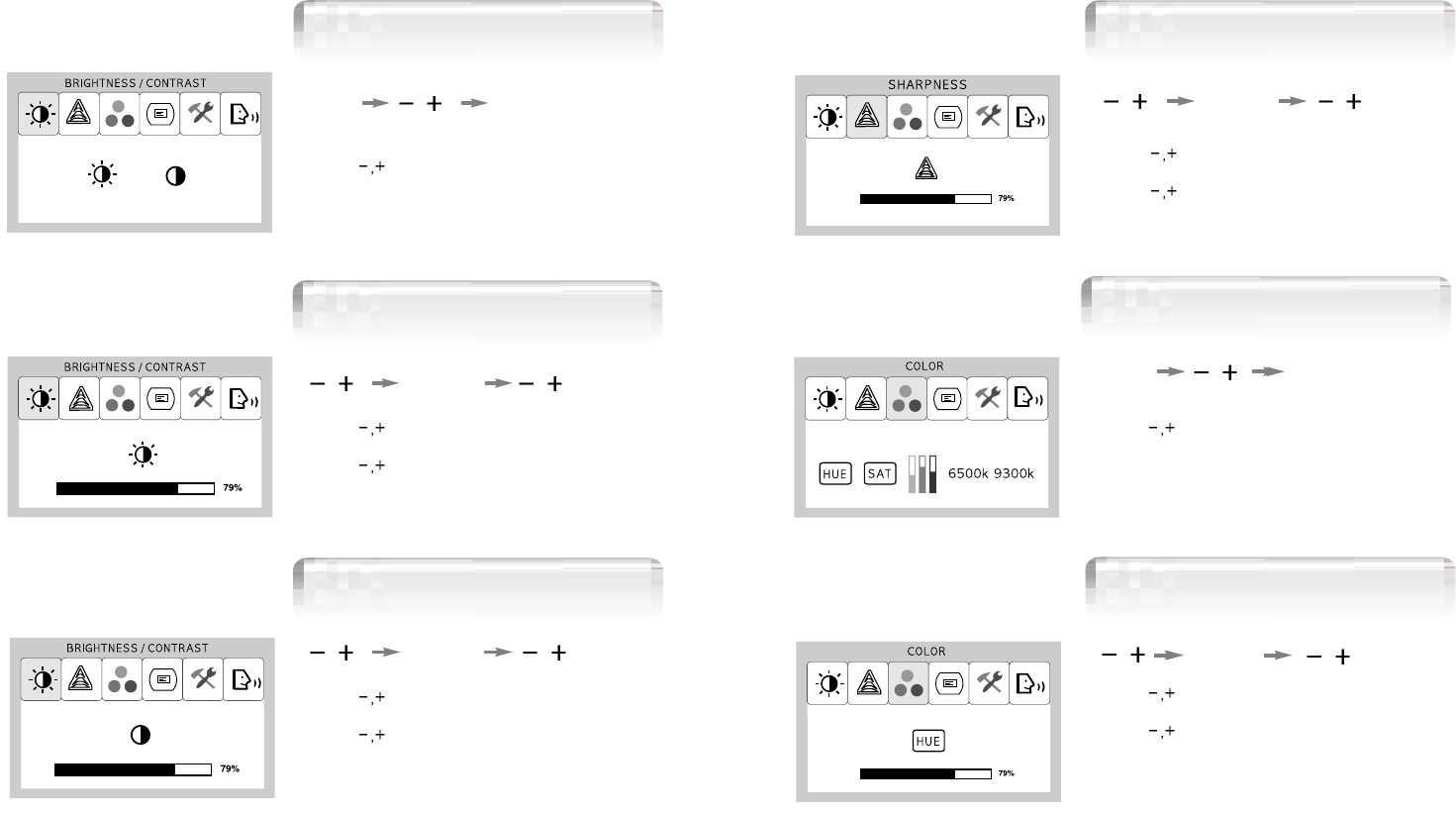

Brightness
Contrast
1. Use to move Brightness ICON.
2. Press SELECT button to select it.
3. Use to adjust the brightness of the screen.
SELECT
Brightness / Contrast
MENU
1. Press the MENU button to access main menu.
2. Use to move Brightness / Contrast ICON.
3. Press SELECT button into the submenu.
SELECT
SELECT
1. Use to move Contrast ICON.
2. Press SELECT button to select it.
3. Use to adjust the contrast of the screen.
Status LED Sign Power Consumption
Normal mode Green ON Normal Power
DPMS mode Green Blinking 3W or Below
English - 1110 - English

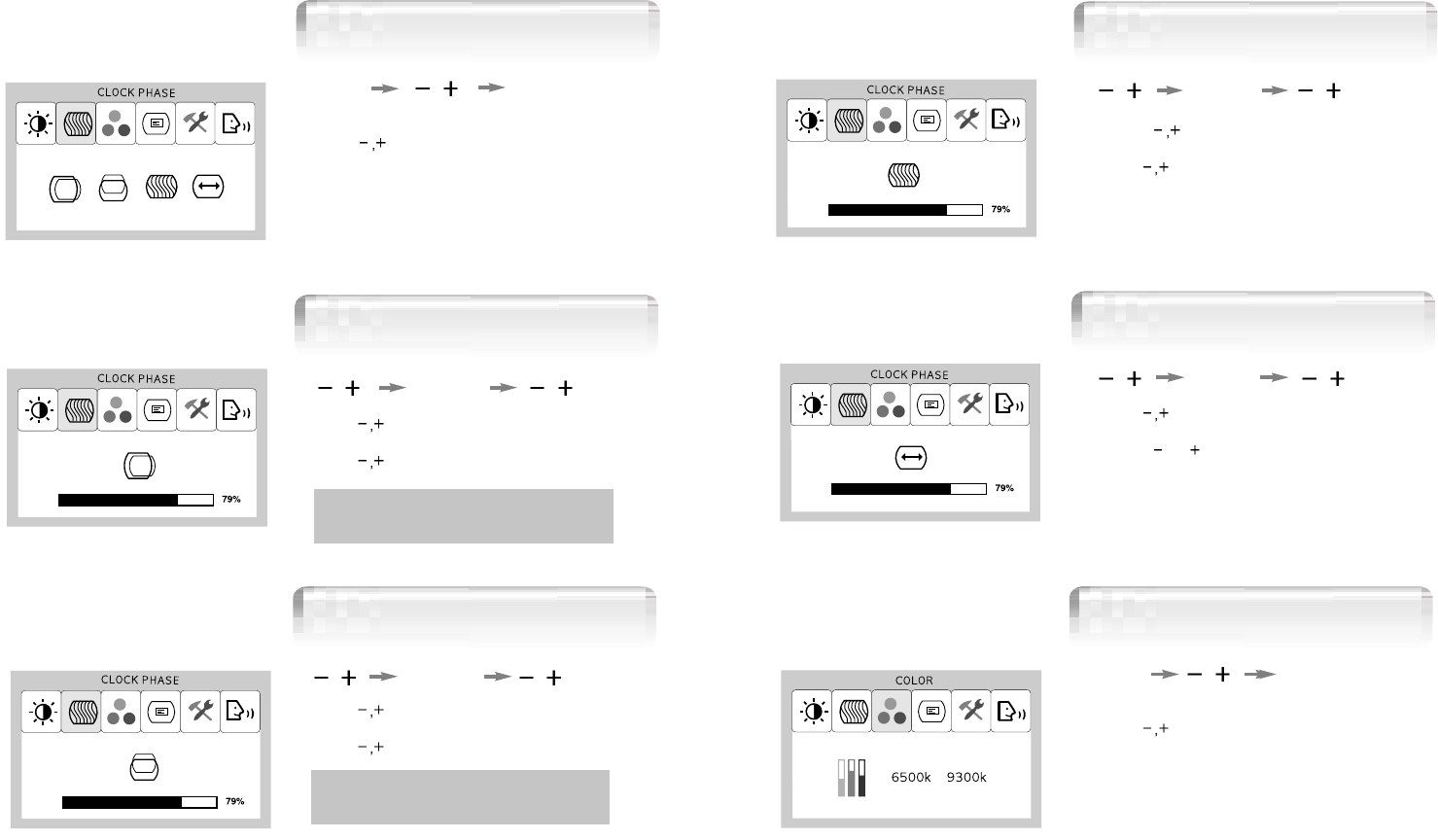

Horizontal Position
SELECT
1. Use to move H-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust display left or right.
Clock Phase
MENU SELECT
1. Press the MENU button to access main menu.
2. Use to move CLOCK PHASE ICON.
3. Press SELECT button into the submenu.
According to the characteristic of video card,
control range can be changed.
1. Use to move V-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust display upward or downward.
1. Press to move Phase ICON.
2. Use SELECT button to select it.
3. Use to correct fine trembling or Video noise.
1. Use to move Clock ICON.
2. Press SELECT button to select it.
3. Press or
to remove vertical noise.
( Adjusting clock phase is required after the
adjustment of clock.)
SELECT
SELECT
SELECT
Vertical Position
Clock
Phase
According to the characteristic of video card,
control range can be changed.
1. Press MENU button to access main menu.
2. Use to move Color ICON.
3. Press SELECT button into the submenu.
MENU SELECT

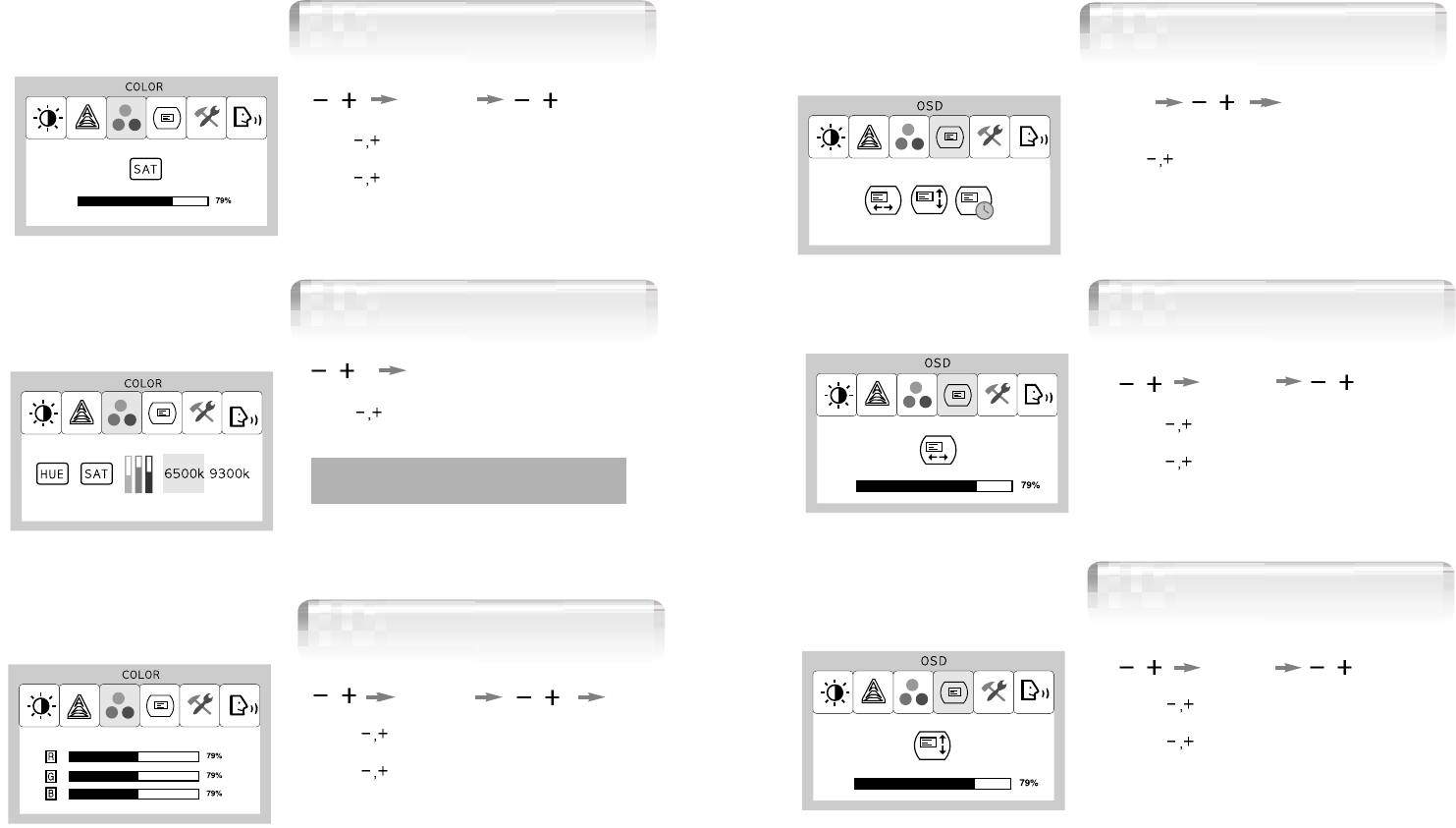

Color
English - 1312 - English
User Color
1. Use to move User color ICON.
2. Press SELECT button to select it.
3. Use to increase or decrease each color.
1. Use to select the Mode 1, and Mode 2.
2. Press the Menu button to return previous state.
9300K : Slightly Bluish white.
6500K : Slightly Reddish white.
MENU
MENU
SELECT
Preset Color

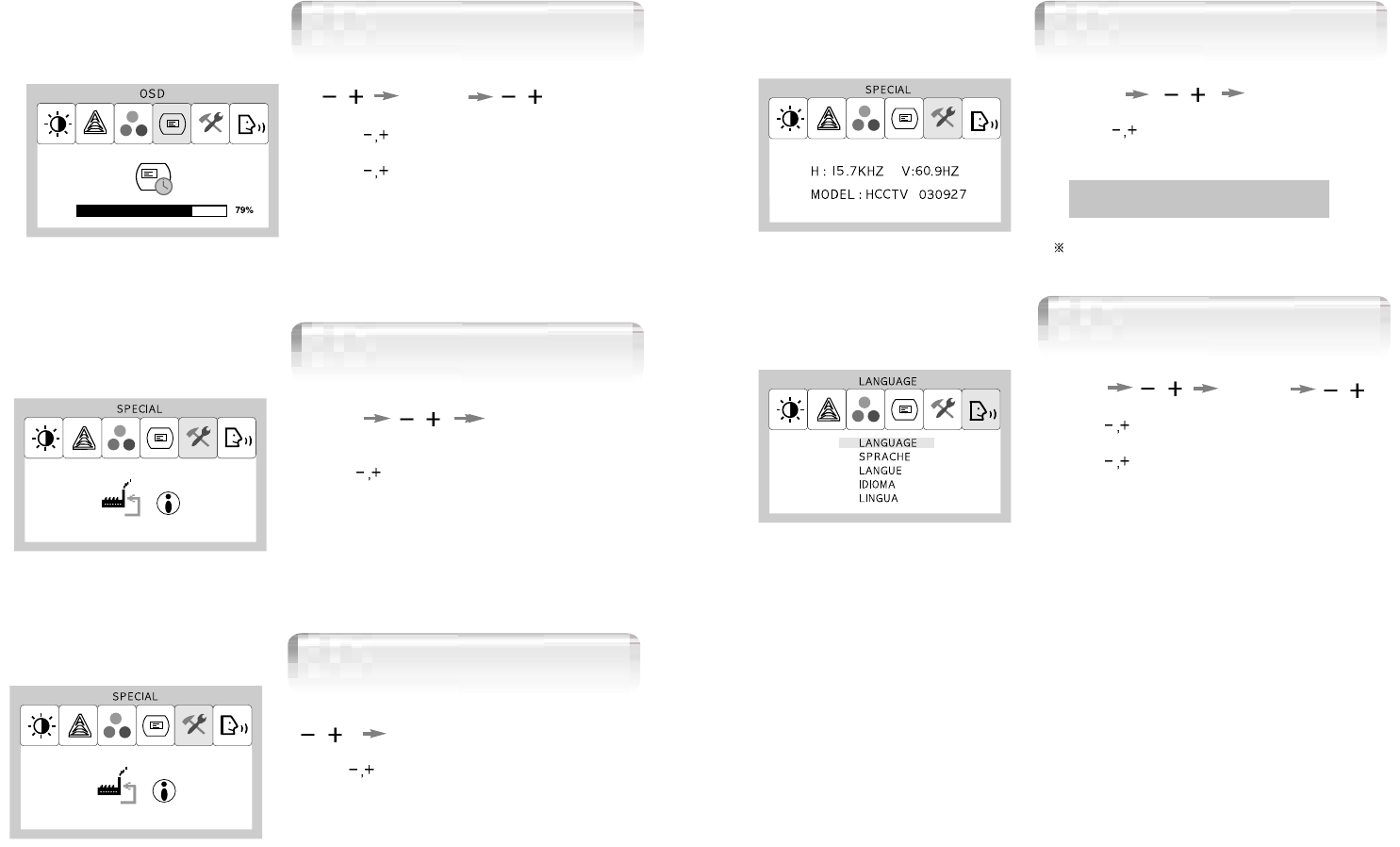

1. Use to move OSD V-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD upward or downward.
1. Use to move OSD Time ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD display time.
4. Press Menu button to return main menu.
SELECT
OSD Time
OSD V-Position
1. Use to move OSD H-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD left or right.
SELECT
OSD H-Position
SELECT
1. Press MENU button to access main menu.
2. Use to move OSD ICON.
3. Press SELECT button into the submenu.
MENU SELECT
OSD
English - 15
1. Use to move Language ICON.
2. Press SELECT button to select it.
3. Use to select language.
MENU SELECT
Language
14 - English
1. Use to move the Information ICON.
2. Press SELECT button to select it.
MENU
Information
1. Use to move the Factory Reset ICON.
2. Press SELECT button to return to default setting.
Factory Reset
SELECT
SELECT
You can know display information
1. Press the MENU button to access main menu.
2. Use to move Special ICON.
3. Press SELECT button into the submenu.
MENU SELECT

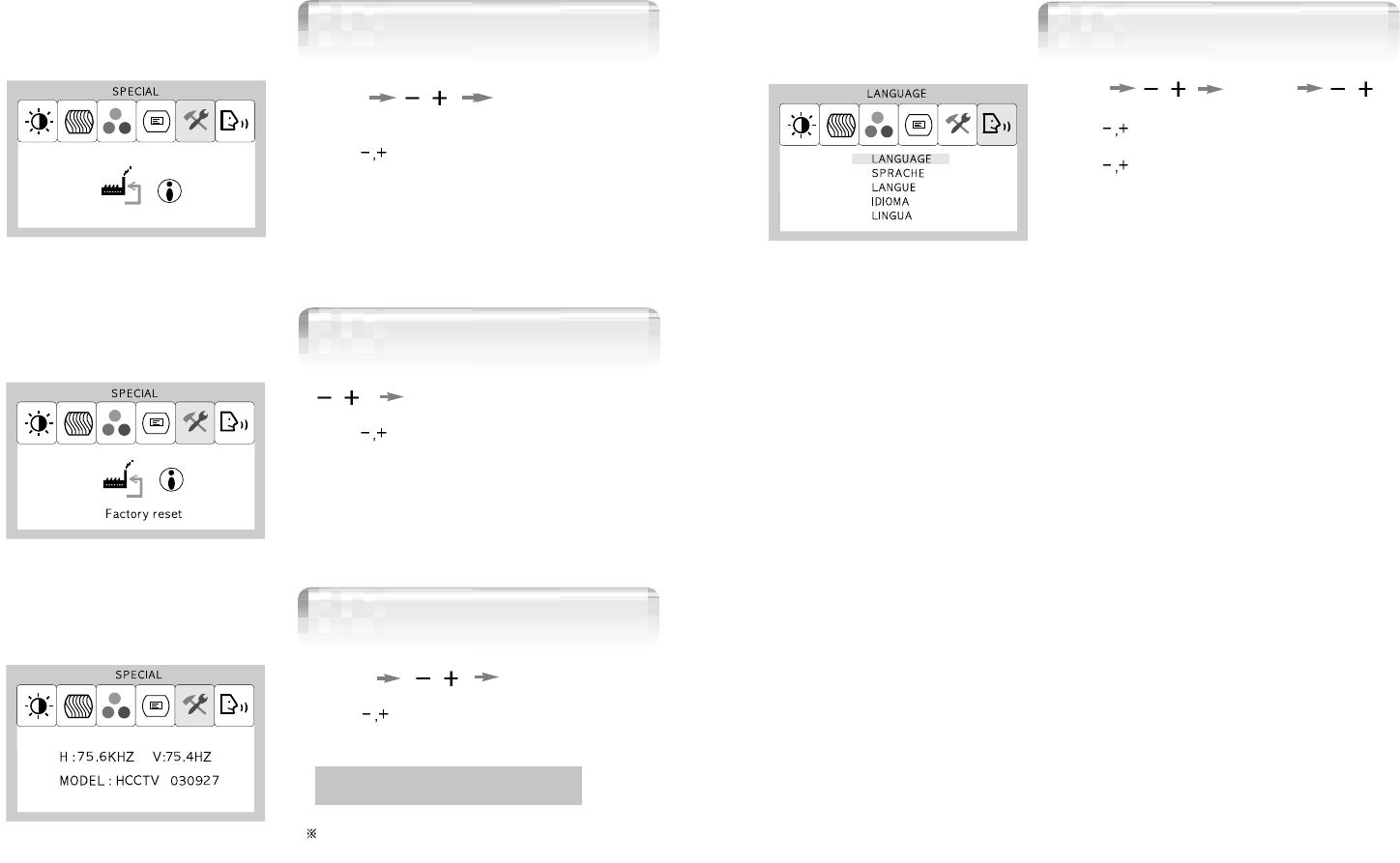

Special
According to the characteristic of video card,
display information can be incorrect
English - 1716 - English
Adjusting OSD
-CVBS, S-VIDEO MODE
Brightness
Contrast
1. Use to move Brightness ICON.
2. Press SELECT button to select it.
3. Use to adjust the brightness of the screen.
SELECT
Brightness / Contrast
MENU
1. Press the MENU button to access main menu.
2. Use to move Brightness / Contrast ICON.
3. Press SELECT button into the submenu.
SELECT
SELECT
1. Use to move Contrast ICON.
2. Press SELECT button to select it.
3. Use to adjust the contrast of the screen.
Sharpness
(CVBS,S-VIDEO Mode)
1. Press the MENU button to access main menu.
2. Use to move Sharpness ICON.
3. Press SELECT button to select it.
4. Use to adjust the sharpness.
(Adjust the clearness of the screen)
HUE
(CVBS,S-VIDEO Mode)
1. Use to select the HUE ICON.
2. Press SELECT button to select it.
3. Use to adjust the HUE.
SELECT
1. Press MENU button to access main menu.
2. Use to move Color ICON.
3. Press SELECT button into the submenu.
MENU SELECT
Color
SELECT
English - 19
1. Use to move OSD V-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD upward or downward.
SELECT
OSD V-Position
1. Use to move OSD H-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD left or right.
SELECT
OSD H-Position
1. Press MENU button to access main menu.
2. Use to move OSD ICON.
3. Press SELECT button into the submenu.
MENU SELECT
OSD
18 - English
1. Use to select the Saturation ICON.
2. Press SELECT button to select it.
3. Use to adjust the saturation.
SELECT
Saturation
(CVBS,S-VIDEO Mode)
1. Use to select the Mode 1, and Mode 2.
2. Press the Menu button to return to the previous state.
9300K : Slightly Bluish white.
6500K : Slightly Reddish white.
MENU
Preset Color
User Color
1. Use to move User color ICON.
2. Press SELECT button to select it.
3. Use to increase or decrease each color.
MENU
SELECT
English - 2120 - English
1. Use to move the Information ICON.
2. Press SELECT button to select it.
MENU
Information
SELECT
You can know display information
According to the characteristic of video card,
display information can be incorrect
1. Use to move the Factory Reset ICON.
2. Press SELECT button to return to default setting.
Factory Reset
SELECT
1. Press the MENU button to access main menu.
2. Use to move Special ICON.
3. Press SELECT button into the submenu.
MENU SELECT
Special
1. Use to move Language ICON.
2. Press SELECT button to select it.
3. Use to select language.
MENU SELECT
Language
1. Use to move OSD Time ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD display time.
4. Press Menu button to return main menu.
OSD Time
SELECT
English - 2322 - English
Standard Signal Table
NTSC 1 (616 X 452)
NTSC 2 (680 X 452)
PAL 1 (736 X 544)
PAL 2 (680 X 544)
31.469
31.469
31.250
31.250
59.940
59.940
50.000
50.000
24.5454
27.000
29.500
27.000
Resolution
Horizontal Frequency
(KHz)
Vertical Frequency
(Hz) Clock Frequency
(MHz)
PC Supported Mode
DVR Supported Mode
Pin assignment table D-Sub
Mini 15pin connector
15
11 15
610
15pin D-Sub
Pin No. Assignment Pin No. Assignment
1 Red Video 9 5V Input
2 Green Video 10 Ground
3 Blue Video 11 Ground
4 N.C 12 SDA
5 Ground 13 H.Sync
6 Red Video Ground 14 V.Sync
7 Green Video Ground 15 SCL
8 Blue Video Ground
VGA (720 X 400)
VGA (640 X 480)
VGA (640 X 480)
SVGA (800 X 600)
SVGA (800 X 600)
XGA (1024 X 768)
XGA (1024 X 768)
MAC (640 X 480)
MAC (832 X 624)
31.469
31.469
37.500
37.900
46.875
48.363
60.023
35.000
49.726
70.087
59.940
75.000
60.320
75.000
60.004
75.029
66.667
74.551
28.322
25.175
31.500
40.000
49.500
65.000
78.750
30.240
57.284
Resolution
Horizontal Frequency
(KHz)
Vertical Frequency
(Hz) Clock Frequency
(MHz)
English - 25
Troubleshooting
Check the power connection.
(Refer to page 4)
Power LED is dark.
No picture.
Perform Auto_config.
OSD, "check RGB
( CVBS, SVIDEO)"
is displayed on the
screen.
Check the signal cable or signal Source.
(Refer to page 4)
Screen looks to be run
down.
Screen is not clear.
Check the resolution and frequency of
computer and video card, and set up
again refer to the current monitor
mode and standard signal mode table.
Display is unstable and
trembling.
Remove attaches to the signal line
(Video extension cable and others)
and switch on.
Perform Auto-config.
Adjust clock and PHASE.
24 - English
Specification
Type Amorphous active matrix super TFT LCD
Screen Size 38.1cm (Diagonal)
Maximum Resolution
1024 X 768 @ 75 Hz
Pixel Range
0.297 mm X 0.297 mm
Display Colors 16.2M Color
Contrast Ratio 300 : 1
Viewing Angle 70° / 70° / 55° / 60° (Left / Right / Up / Down)
Response Time 25 msec
Luminance 250 cd/m
Horizontal Frequency 60kHz (Max.)
Vertical Frequency 75 Hz (Max.)
Maximum 40W
Power Saving Mode Under 3W
SOURCE, MENU/ EXIT, SELECT, POWER,
, AUTO
Input Video : Analog RGB(0.714Vpp)75ohm,
Composite in (BNC),S-VHS in
Connector 15-pin Mini D-sub, Stereo, S-VHS, BNC *1
IBM VGA,SVGA,XGA
Normal&Ergonomic Modes
Video NTSC/PAL standard
Input : 100-240Vac (50/60 Hz), 0.45A
VESA Standard
Safety Standard UL / C-UL
EMI FCC
Size and Weight
352 156 369/ 4.1kg
LCD
Panel
Synchro
nization
Model H550V(B15AC
Input
Signal
Compati
bility
Power
Consumption
Control key
Front Part
Safety
Standard
& EMI
Dimension
Power Supply
Wall Mount
,
+/
-/
English - 2726 - English
Warning
To prevent damage or loss, please read this warning carefully.
When connecting/disconnecting the plug, pull out
the plug itself, and never pull the cord to prevent fire
caused by short.
To prevent electric shock, do not connect/dis-
connect the plug with wet hand.
To prevent fire, do not connect a large number of
equipments in a single line.
To prevent fire and electric shock, pull out the plug in
case of thunder and lightening.
To prevent fire and electric shock, do not try to take
the monitor apart or repair it yourself. Contact your
local service station or customer service center for
inspection, modification or repair.
If you see smoke or smell something burning, stop
using the unit, switch off the power, pull out the plug,
and then contact your local service station.
Check the resolution and frequency of
computer and video card, and set up
again in reference to the current monitor
mode and standard signal mode table.
Double images or
'ghosts'.
Perform Auto-Config.
Adjust COLOR at User Mode in OSD Color
Menu.
Picture is dark.
Picture is biased or cut
or too wide.
Monitor is in DPMS mode.
Power LED turns into
Green blinking.
Adjust COLOR at User Mode in OSD Color
Menu.
Color is irregular.

Navigation menu
