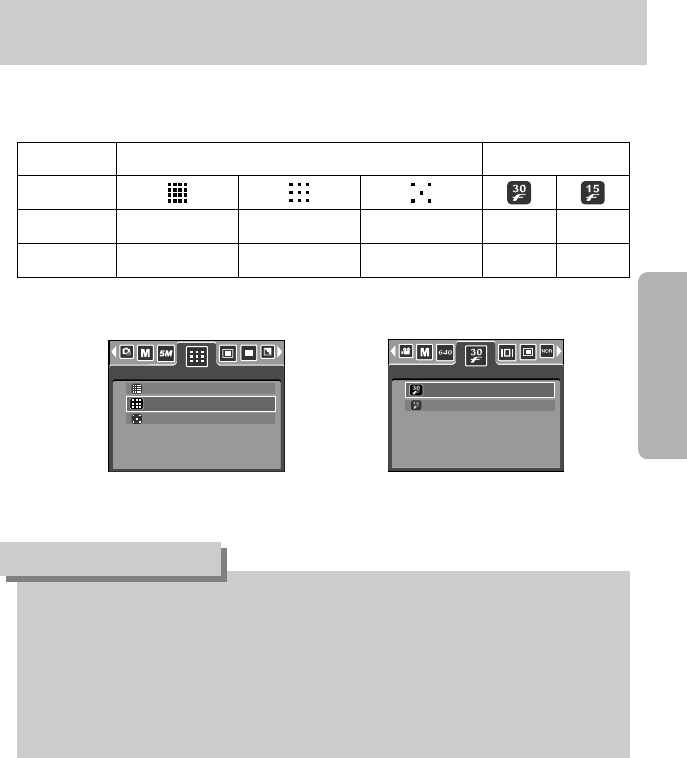

Quality/ Frame rate
ƈYou can select the compression ratio appropriate for your application of the captured images.
The higher the compression ratio, the lower the picture quality.
Mode
Icon
Sub menu S. Fine Fine Normal 30FPS 15FPS
File Format jpeg jpeg jpeg avi avi
STILL IMAGE mode MOVIE CLIP mode
ƃS. Fine is the highest quality and Normal is the lowest setting.
Choose the setting appropriate for your needs.
ƃThis file format complies with the DCF(Design rule for Camera File system).
ƃJPEG (Joint Photographic Experts Group) :
JPEG is the image compression standard developed by the Joint Photographic Experts
Group. This type of compression is most commonly used for compressing photos and
graphics because it can compress the files efficiently without damaging the data.
INFORMATION
[ STILL IMAGE mode ] [ MOVIE CLIP mode ]
30 FPS
15 FPS
Frame Rate
S.Fine
Fine
Normal
Quality
ŝ52Ş

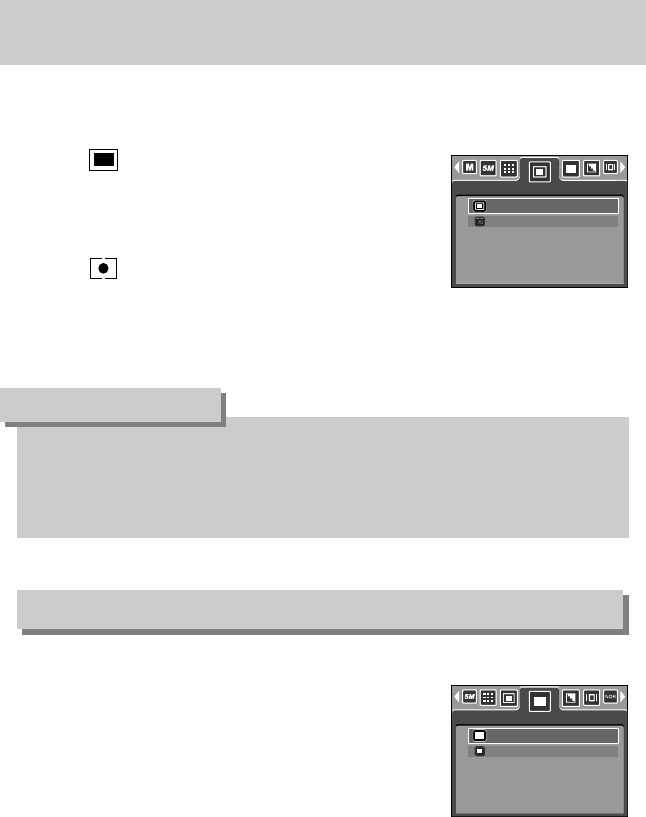

Metering
ƈSelect the number of pictures in continuous shooting.
[Single] : Take one picture only
[Continuous] : Images will be taken continuously until the
shutter button is released. The shooting
capacity depends on the memory.
ſHigh resolution and picture quality increases file saving
time, which increases stand-by time.
ſIf the [Continuous] sub menu is selected, the flash will
be off automatically.
[MANUAL mode]
ƈIf you cannot obtain suitable exposure conditions, you can change the metering method to
take brighter pictures.
[Multi] ( ) : Exposure will be calculated based on an
average of the available light in the image
area. However, the calculation will be
biased towards the centre of the image
area. This is suitable for general use.
[Spot] ( ) : Only the rectangular area in the centre
of the LCD monitor will be metered for
light. This is suitable when the subject in
the centre is exposed correctly, regardless of the back lighting.
ƃThe default metering mode is Multi pattern metering.
ƃIf the subject is not the centre of the focus area, do not use the spot metering as this may
result in an exposure error. In this circumstance, It is better to use exposure
compensation.
INFORMATION
Continuous shot
[STILL IMAGE mode]
Multi
Spot
Metering
Single
Continuous
Shooting
ŝ53Ş

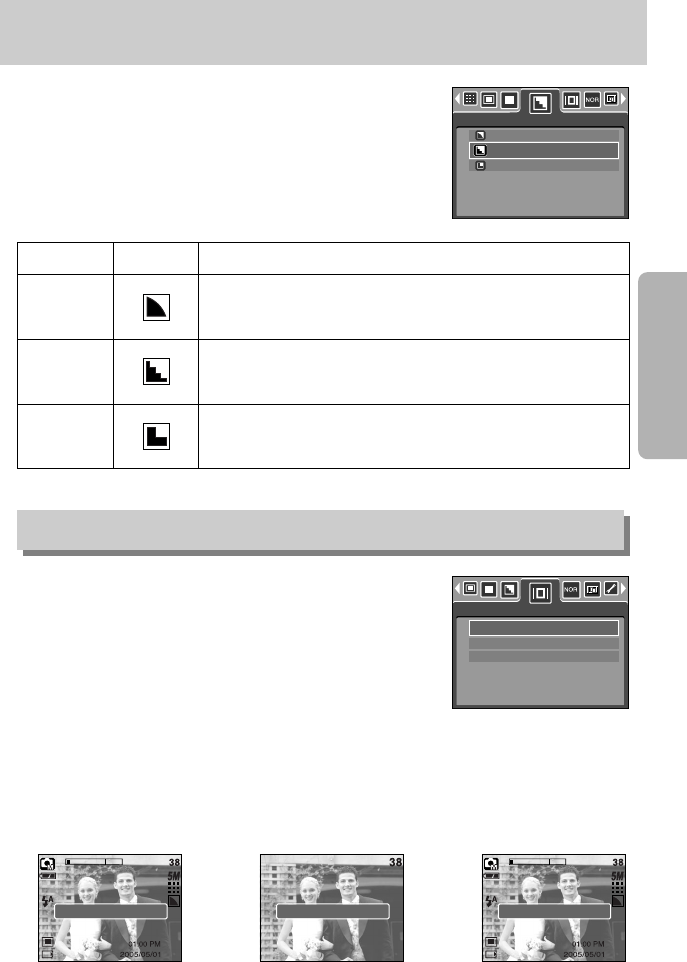

Sharpness
OSD(On Screen Display) information
ƈYou can adjust the sharpness of the picture you want to take.
You cannot check the sharpness effect on the LCD monitor
before you take a picture, because this function is applied
only when the captured image is stored on the memory.
Sub menu Icon Description
The edges of the image are softened.
This effect is suitable for editing images on your PC.
The edges of the image are sharp.
This is suitable for printing.
The edges of the image are emphasized. The edges will appear
sharp, but noise may occur in the recorded image.
Vivid
Normal
Soft

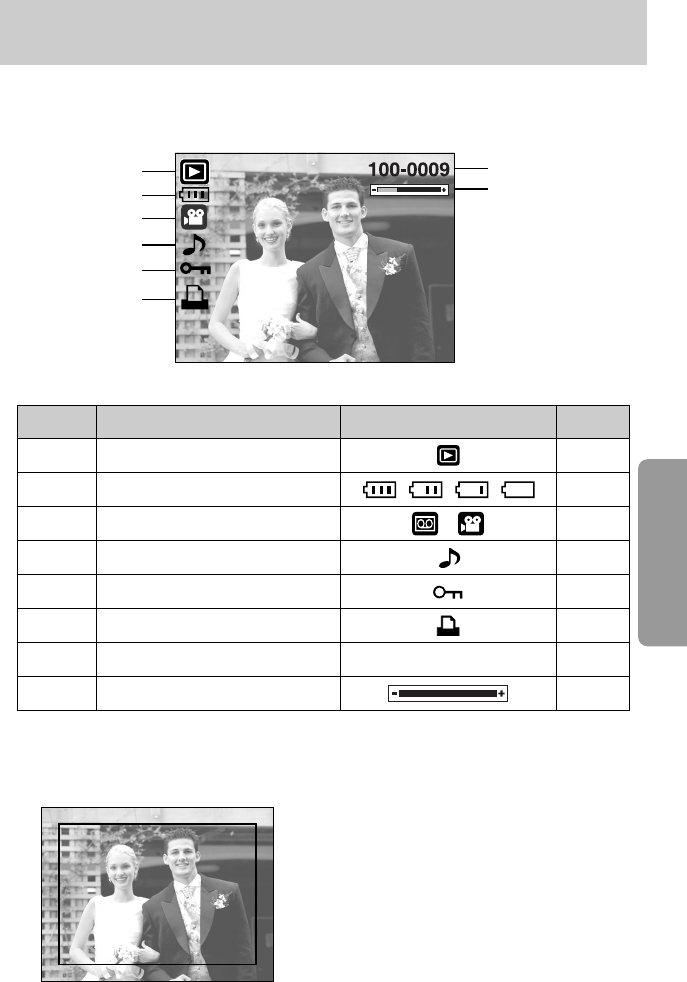

ƈIn any mode with the exception of VOICE RECORDING
mode, you can check the recording status in the LCD monitor.
ƈIdle mode : If you select the [Save Mode] and the camera isn't
operated during the specified time(about 30
SEC.), the camera power will be idle (LCD
monitor : OFF, Camera status lamp : Blinking)
automatically.
- To use the camera again, press any of the camera buttons except the power button.
- If there is no operation during the specified time, the camera power will be turned off
automatically to save battery life. Refer to page 96 for more information about the auto
power off function.
Full OSD
Basic OSD
Save Mode
OSD Infomation
[Full information mode] [Basic information mode] [Power save mode]
Full Inf. Mode Basic Inf. Mode Save Mode
Soft
Normal
Vivid
Sharpness
ŝ54Ş

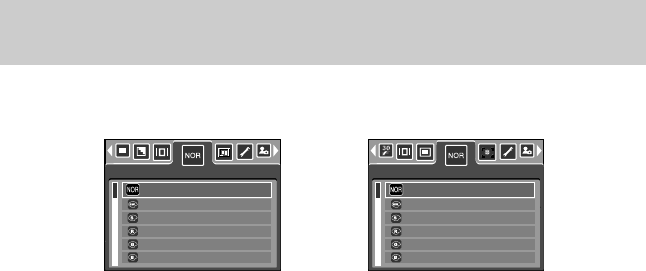

Effect
ƈBy using the camera’s digital processor, it is possible to add special effects to your images.
[Normal] : No effect is added to the image.
[B & W] : Captured images will be stored in black and white.
[Sepia] : Captured images will be stored in a sepia tone
(a gradient of yellowish brown colours).
[Red] : Captured images will be stored in a red tone.
[Green] : Captured images will be stored in a green tone.
[Blue] : Captured images will be stored in a blue tone.
[Negative] : Save the image in negative mode.
[MANUAL mode] [ MOVIE CLIP mode]
Normal
B & W
Sepia
Red
Green
Blue
Effect
Normal
B & W
Sepia
Red
Green
Blue
Effect
ŝ55Ş

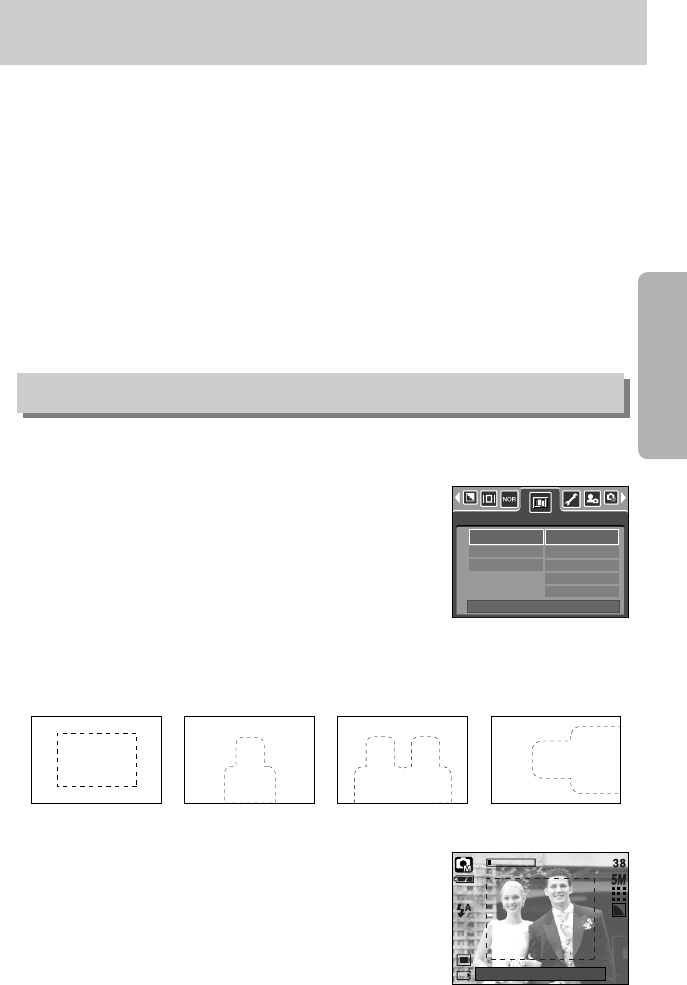

Special Effect
ƈYou can make the subject stand out from its surroundings.
The subject will be sharp and in focus while making the rest out of focus.
1. Select the MANUAL mode, and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[Special Effect] menu tab.
3. Select the [HighLight] menu by pressing the UP/ DOWN
button and press the Right button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [Off] : The preset focus frame will not be added.
ƈBy using the camera’s digital processor, it is possible to add special effects to your images.
You can select this menu only in the MANUAL mode.
ƈYou can select the preset focus frame, Composite shooting and Photo frame function. If a
special effect is selected, the rest special functions set before are cancelled automatically.
ƈEven if the camera is turned off, the special effect setting will be preserved. To cancel the
special effect, select the [Off] sub menu of each menu.
ƈThe digital zoom function will not activate in the special effect menu.
ƈDate & Time information will not be displayed on the LCD monitor in the special effect menu.
Special Effect : Preset focus frames
5. Press the menu button twice and the menu will disappear.
If you select the [Range 1 ~ 4] menu, the preset focus
frame area will appear.
[Range 1] [Range 2] [Range 3] [Range 4]
HighLight
Composite
Photo Frame
Off
Range 1
Range 2
Range 3
Range 4
Special Effect
Back:ȜSet:OK
Capture:SH Edit:+/-
ŝ56Ş
Special Effect : Preset focus frames

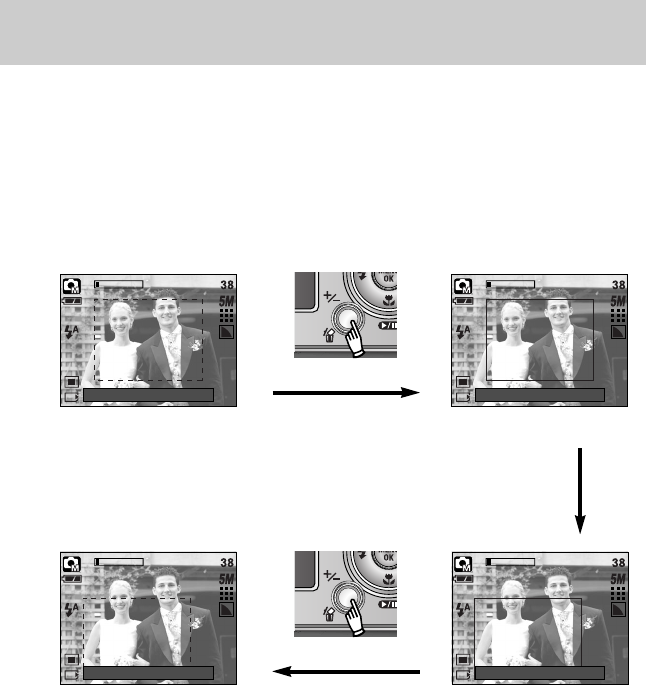

ƃMoving and changing the focus frame
You can change the focus frame after selecting a Range menu.
1. Point the camera towards the subject and compose the image by using the LCD monitor.
2. Press the +/- button.
3. The colour of focus frame turns white. Press the Up/Down/Left/Right button to moves the
focus frame position.
4. To select the focus frame position, press the +/- button again and you can take a picture.
Pressing the +/- button
[The frame is activated]
[After changing the frame
position]
Pressing the +/- button
Pressing the
Up/Down/Left/Right
button
Capture:SH Edit:+/- Capture:SH Move:
Capture:SH Move:
Capture:SH Edit:+/-
ŝ57Ş

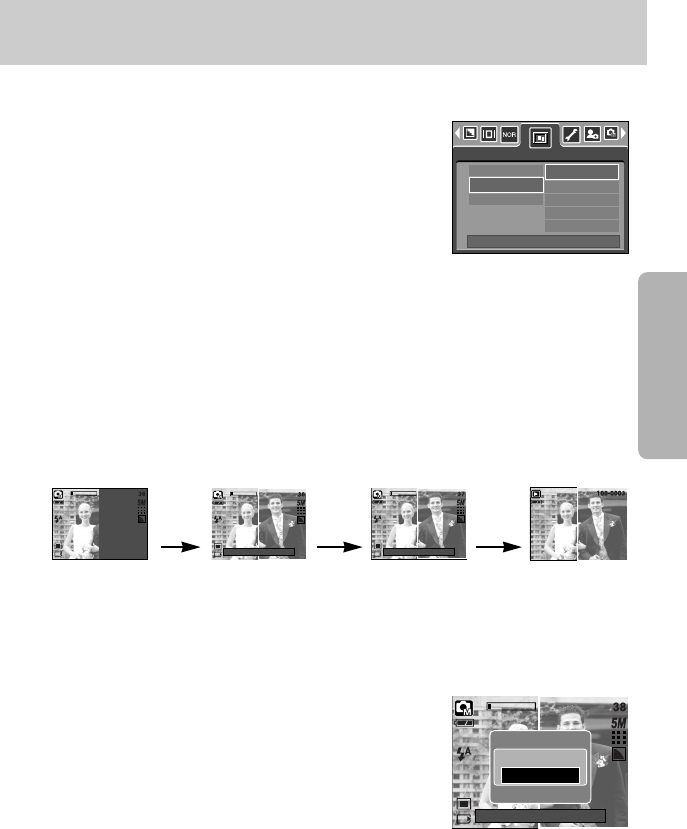

Special Effect : Composite shooting
ƈYou can combine 2 ~ 4 different shots in a still image.
ſYou can use the flash button, self-timer button, macro button, voice memo button and the
Zoom W/T button during the composite shooting.
ſIf you press the camera buttons (SF button, Play mode button
and M button) during the composite shots, each mode of the
camera buttons is executed. The images captured before will
be deleted.
ſIf you press the Menu button during the composite shots, a
window will display. Select the submenu value by pressing the
Up/Down button and then press the OK button.
[Menu] : A menu will display. After confirming a menu,
a camera mode used before will be executed.
[Cancel] : Turns to the previous capture mode.
ſThe voice memo will start after taking the last composite shooting.
ſYou canŖt select the Voice recording mode during the composite shots.
ſSelecting 2 composite shooting
7. To save the composite shots, press the OK button after taking the last shot.
1. Select the MANUAL mode, and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[Special Effect] menu tab.
3. Select the [Composite] menu by pressing the UP/ DOWN
button and press the Right button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [Off] : cancels the composite shooting
- [2 Parts] : 2 different shots are combined in a still image.
- [3 Parts] : 3 different shots are combined in a still image.
- [4 Parts] : 4 different shots are combined in a still image.
- [Pano. 2 Parts] : 2 different panorama shots are combined in a still image.
5. Press the menu button twice and the menu will disappear.
6. The number of frames you selected in step 4 is displayed on the LCD monitor.
Press the shutter button to start the composite shooting
HighLight
Composite
Photo Frame
Off
2 Parts
3 Parts
4 Parts
PANO.2 Part
Special Effect
Back:ȜSet:OK
[Ready for taking]
Pressing
the shutter
button
[First shot]
Pressing
the shutter
button
[Second shot]
Pressing
the OK
button
[The final picture]
Menu?
Menu
Cancel
Confirm:OK
Save:OK Del:+/-Capture:SH Del:+/-
Capture:SH Del:+/-
ŝ58Ş
Special Effect : Composite shooting

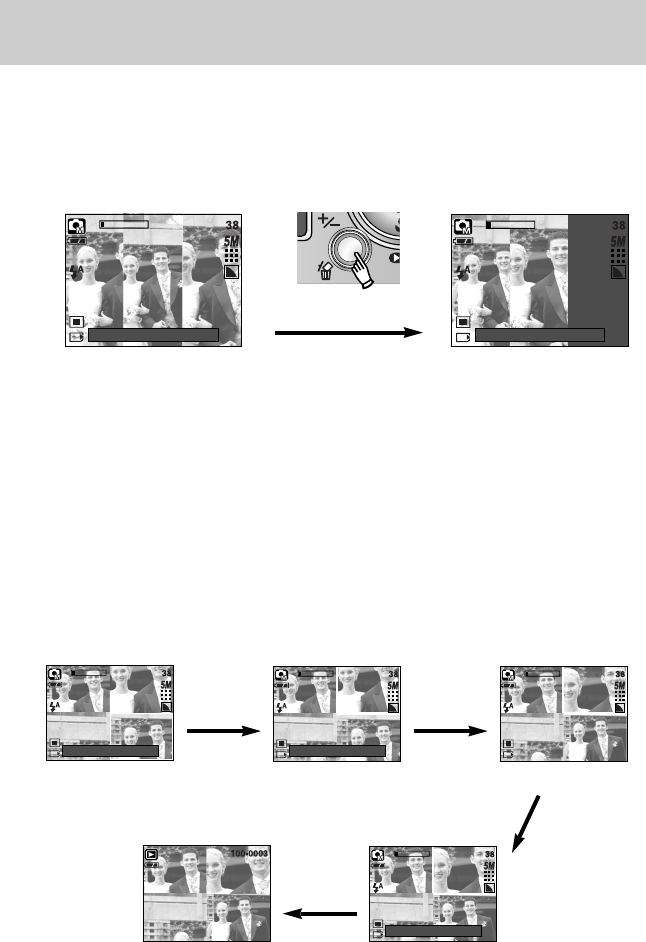

ƃChanging a part of composite shot before taking the last shot
Before taking the last composite shot, you can change a part of composite shot.
1. During the composite shots, press the +/- button.
2. A previous image will be deleted and new frame will display. If there is an image taken
before, press the +/- button again and a previous image will be deleted again.
3. Press the shutter button to capture a new image.
ƃChanging a part of composite shot after taking the last shot
After taking the last composite shot, you can change a part of composite shot.
1. After taking the last shot , a cursor to select a frame will display. Press the
Up/Down/Left/Right button to select the frame.
2. Press the +/- button and an image will be deleted. Composite frame will be activated.
3. Press the Shutter button. You can take another images again by using the
Up/Down/Left/Right button and +/- button.
4. Press the OK button again to save the captured image.
[After taking the 4th shot]
Pressing the
Up button
[Moving backward to the 2nd shot]
[Deleting the 2nd shot]
[The final picture]
Pressing the
OK button
[After taking the 2nd shot again]
Pressing the
Shutter button.
Pressing the
+/- button
Pressing the +/- button
[Before taking the 3rd shot]
[Moving backward to the 2nd shot]
Save:OK Del:+/- Save:OK Del:+/-
Save:OK Del:+/-
Capture:SH Del:+/- Capture:SH Del:+/-
ŝ59Ş
Special Effect : Photo Frame

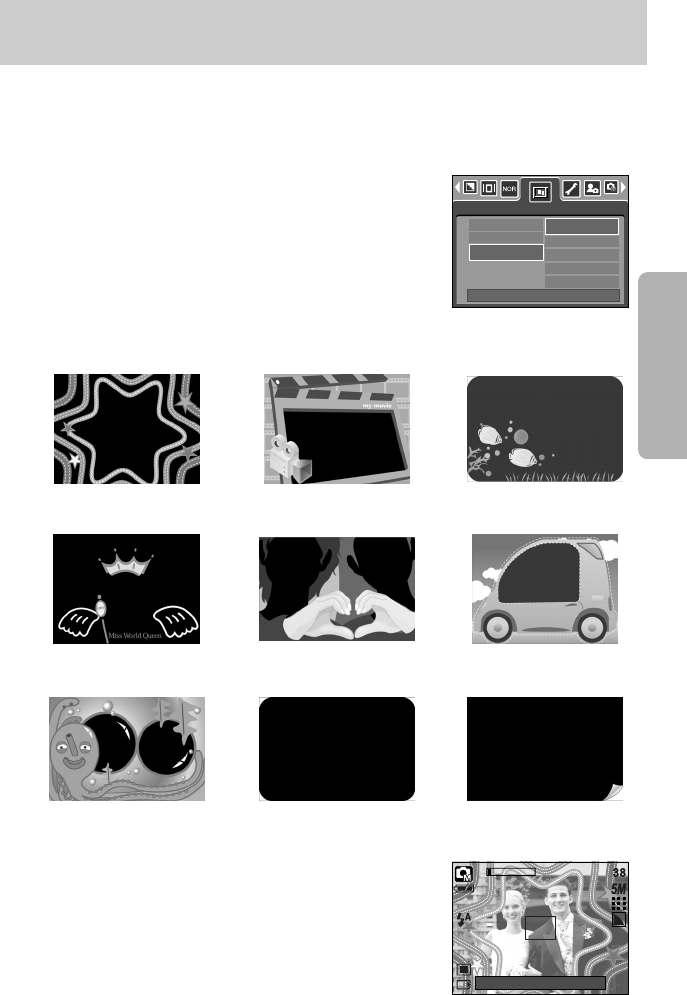

ƈYou can add 9 types of frame-like borders to a still image you want to capture.
ƈDate & Time information will not be printed on the stored image taken with [Photo Frame]
menu.
1. Select the MANUAL mode, and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[Special Effect] menu tab.
3. Select the [Photo Frame] menu by pressing the UP/ DOWN
button and press the Right button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [Off] : The photo frame will not be added.
5. Press the menu button twice and the menu will disappear.
If you select the [Frame 1 ~ 9] menu, the selected photo
frame will appear.
ſBefore taking a picture, you can change the frame type by
pressing the +/- button. Change the frame type by
pressing the Up/Down/Left/Right button.
[Frame 1] [Frame 2] [Frame 3]
[Frame 4] [Frame 5] [Frame 6]
[Frame 7] [Frame 8] [Frame 9]
HighLight
Composite
Photo Frame
Off
Frame1
Frame2
Frame3
Frame4
Special Effect
Back:ȜSet:OK
Capture:SH Frame:+/-
ŝ60Ş

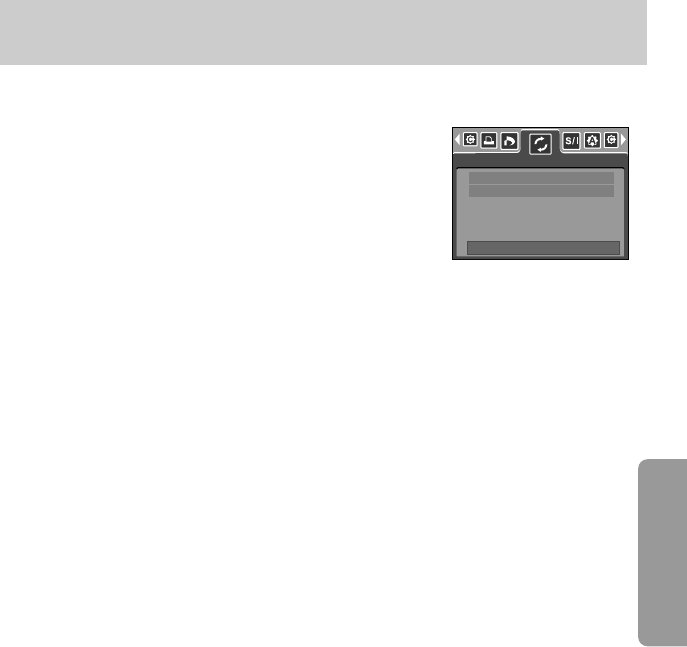

Movie Clip frame stabiliser
ƈThis function helps stabilize images captured during movie recording.
You can select this menu only in the MOVIE CLIP mode. If the memory card is not inserted,
this function will not operate.
ƃHow to use this function
1. Select the MOVIE CLIP mode by pressing the M (Mode)
button and press the menu button. Press the Left/Right
button to select the [Stabilizer] menu.
2. Select a desired sub menu by pressing the Up/Down
button and press the OK button.
- [Off] : Movie clip frame stabilizer function becomes
disabled.
- [On] : Prevents camera shake during movie recording. The recording frame range will
become narrower than when you select the [Off] menu. Pre-view frames may not
display smoothly on the LCD monitor.
ƃWhen you select the [On] sub menu, the movie clip frame range will be narrow depending
on the movie clip size.
INFORMATION
Off
On
Stabilizer
ŝ61Ş
Starting play mode

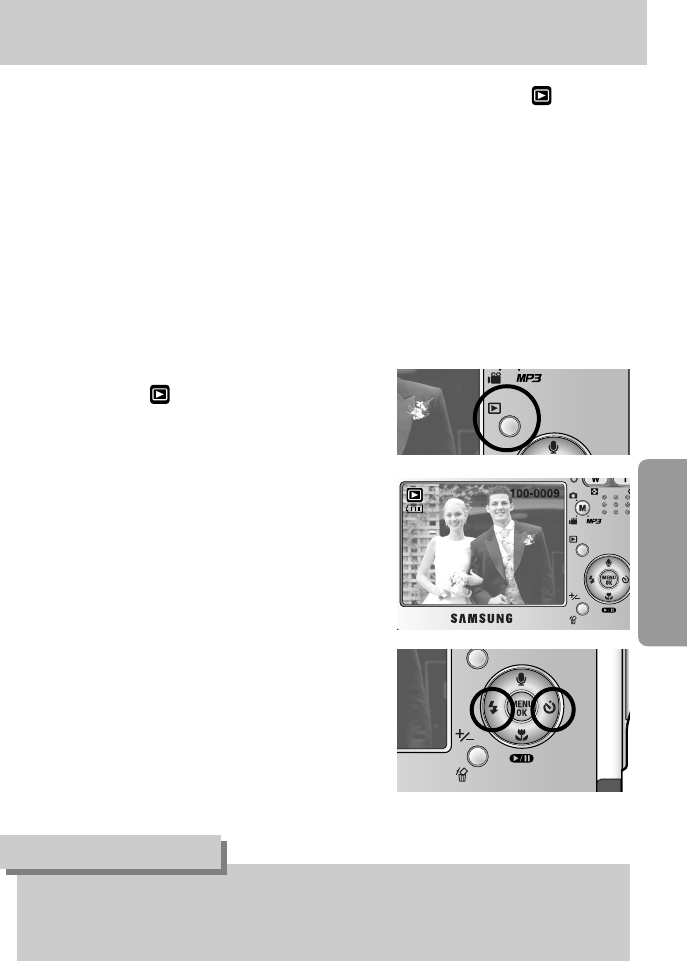

ƈTurn the camera on and select Play mode by pressing the play mode button ( ).
The camera can now play back the images stored in the memory.
ƈYou can set up the PLAY mode function by using the camera buttons and LCD monitor.
ƈIf the memory card is inserted in the camera, all the camera functions apply only to the
memory card.
ƈIf the memory card is not inserted in the camera, all the camera functions apply only to the
internal memory.
3. Select an image that you want to view by
pressing the LEFT / RIGHT button.
ſPress and hold the LEFT or RIGHT button to
play back the images quickly.
2. The last image stored on the memory is
displayed on the LCD monitor.
ƃPlaying back a still image
1. Select the PLAY mode by pressing the play
mode button ( ).
ƃManner mode : Pressing the power button for more than 3 seconds changes the buzzer
and start-up sound setting to OFF, even though you may have set these
to ON.
INFORMATION
ŝ62Ş
Starting play mode

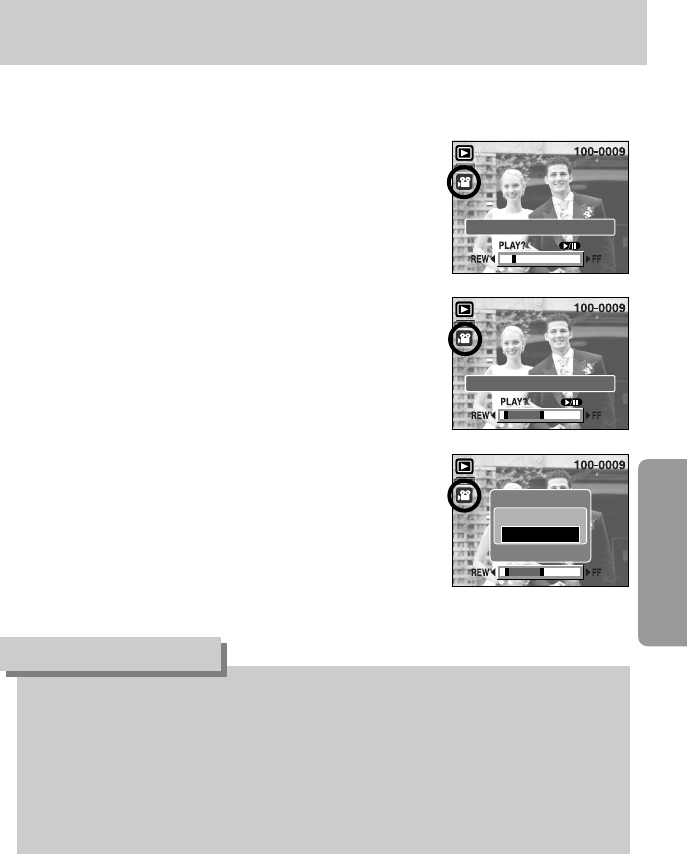

ƃPlaying back a movie clip
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded movie clip that you want to play back
by using the LEFT/RIGHT button. If you select a movie
clip, the movie clip indicator ( ) will be displayed on
the LCD monitor.

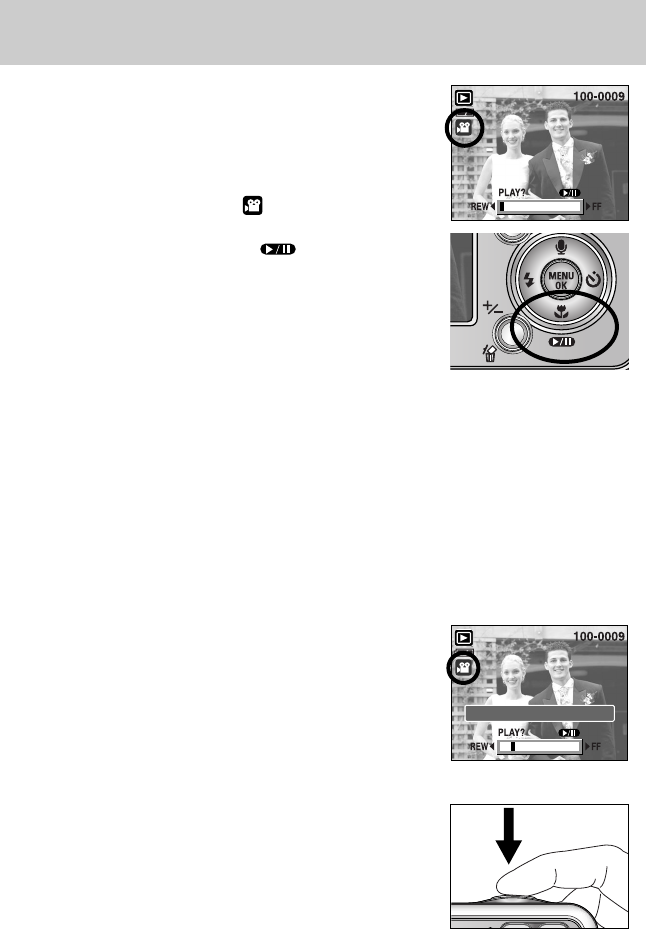

4. Press the play & pause button ( ) to play back a
movie clip file.
- To pause a movie clip file while playing it back, press
the play & pause button again.
- Pressing the play & pause button again will cause the
movie clip file will restart.
- To rewind the movie clip while it is playing, press the
LEFT button. To fast forward the movie clip, press the RIGHT button.
- To stop playback of the movie clip, press the play & pause button, and then press the
LEFT or RIGHT button.
ƃHow to capture the movie clip
Steps 1-2 are the same as those for playing back a still
image.
3. Select the recorded movie clip that you want to play
back by using the LEFT/RIGHT button.
4. Press the Play/Pause button to play the movie clip
5. Press the Play/Pause button while playing the movie
clip. Then press the Shutter button.
6. The paused movie clip is saved in a new file name.
ſThe captured movie clip file has same size as the
original movie clip (640X480, 320X240, 160X128).
ƈMovie clip capture function : capture still images from the movie clip.
[Paused]
[Press the shutter button]
Trim:T Capture:SH
ŝ63Ş
Starting play mode
ƈOn camera movie trimming : You can extract desired frames of movie clip during the movie
clip play back.
ƃIf the running time is under 10 seconds, the movie clip can’t
be trimmed.
1. Select a desired movie clip in the play mode.
2. Play back the movie clip by pressing the Play & Pause
button.
3. Press the Pause button at the point of the movie clip that
you want to start extracting.
4. Press the T button. (The start point doesn't display on the
status bar, but the start point will be marked.)
5. Press the Play & Pause button and the extracted range will
be displayed on the status bar.
6. Press the Play & Pause button once more at the point
where you wish the extracted file to stop.
7. Press the T button and a confirmation window will display.
8. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Trimming] : The extracted frames are saved as a new file
name.
[Cancel] : The movie trimming will cancel.
ƃIf you want to extract the movie clip at the beginning of the frame, press the Zoom T
button before starting the movie clip. (The start point doesn’t display on the status bar, but
the start point is selected.)
ƃIf the time line bar passes by the start point by pressing the REW(Left) button, the first
frame of the movie clip will display.
ƃIf you doesn’t specify the ending point of the movie clip, the trimming confirmation window
will display at the point of the last frame.
INFORMATION
Trim:T Capture:SH
Trim:T
Trimming?
Trimming
Cancel
Confirm:OK
ŝ64Ş
Starting play mode

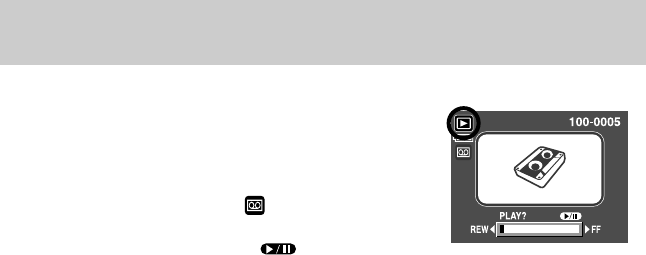

ƃPlaying back a recorded voice
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded voice that you want to play back by
using the LEFT/RIGHT button. If you select a recorded
voice file, the voice indicator ( ) will be displayed on
the LCD monitor.
4. Press the play & pause button ( ) to play back a
recorded voice file.
- To pause a recorded voice file, while playing it back, press the play & pause button again.
- To resume playback of the voice file, press the play & pause button.
- To rewind the voice file while it is playing, press the LEFT button.
To fast forward the voice file, press the RIGHT button.
- To stop playback of the voice file, press the play & pause button, and then press the
LEFT or RIGHT button.
ŝ65Ş
ƈShooting information is as following.
LCD monitor indicator
ƈThe LCD monitor displays shooting information about the displayed image.
Size : 2592X1944 Size
Av : F3.5 Aperture value
Tv : 1/60 Shutter speed
ISO : 100 ISO sensitivity
Flash : Off Whether or not the
flash is used
Date : 2005/05/01 Recording date
Size : 2592X1944
Av : F3.5
Tv : 1/60
ISO : 100
Flash : Off
Date : 2005/05/01
ڿ
ۀ
ں
ڹ
ڻ
ڼ
ڽ
ھ
No. Description Icon Page
1 Play mode -
2 Battery
p.17
3 File Type
-
4 Voice memo
p.68
5 Protect indicator
p.80
6DPOF indicator
p.84
7
Folder name and Stored image number 100-0009 -
8 Volume display
p.XX
ŝ66Ş

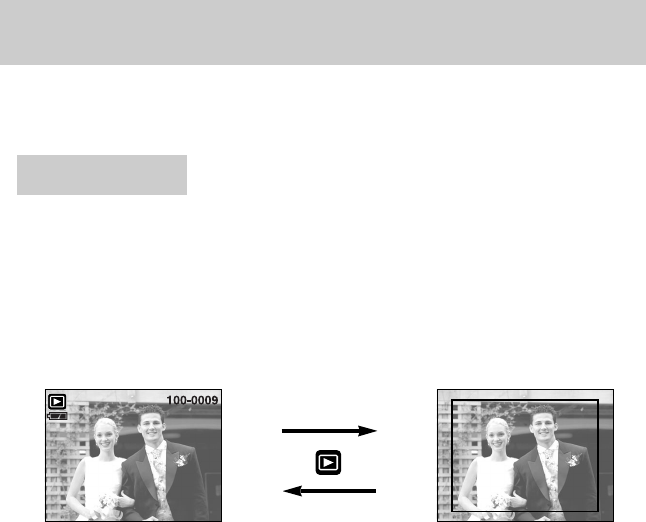

Using the camera buttons to adjust the camera
ƈIn Play mode, you can use the buttons on the camera to conveniently set up the Play mode
functions.
ƈIf you have turned on the camera by pressing the POWER button, you can press the PLAY
MODE button once to switch to Play mode and press it (Under 1 Sec.) again to switch to
Recording mode.
ƈYou can turn the power on with the play mode button. The camera is turned on in play mode.
Press the play mode button (Under 1 Sec.) again to turn off the camera.
ƈPressing the Play mode button for over 1 Sec., you can check the recording information.
Play mode button
[Play mode display] [Recording information]
Pressing for over 1 Sec.
Pressing under 1 Sec.
Size : 2592X1944
Av : F3.5
Tv : 1/60
ISO : 100
Flash : Off
Date : 2005/05/01
ŝ67Ş

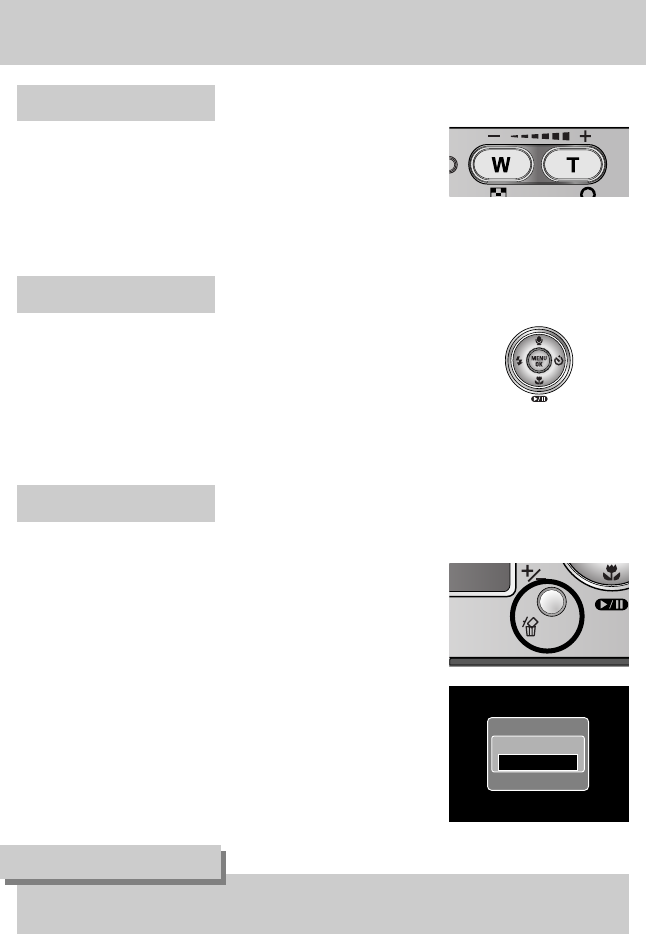

Thumbnail( )/ Enlargement( ) button/ Volume button( )
ƃImage enlargement
1. Select an image that you want to enlarge and press the enlargement button.
2. Different parts of the image can be viewed by pressing
the 5 function button.
3. Pressing the thumbnail button will zoom back to the
original full sized image.
- You can tell whether the image displayed is an enlarged
view by checking the image enlargement indicator
shown at the bottom left of the LCD monitor.
(If the image is not an enlarged view, the indicator will
not be displayed.) You can also check the area of
enlargement.
- Movie clips and WAV files can’t be enlarged.
- If an image is enlarged, a loss of quality may occur.
ƈYou can view multiple pictures, enlarge a selected picture, and crop and save a selected area
of an image.
ƈWhen a movie clip, voice memo or voice recording files is playing back, you can control
volume of those files by this button.
ƃThumbnail display
1. While an image is displayed full screen, press the thumbnail
button.
2. The thumbnail display will highlight the image that had been
showing at the time the thumbnail mode was selected.
3. Press the 5 function button to move to a desired image.
4. To view an image separately, press the enlargement button.

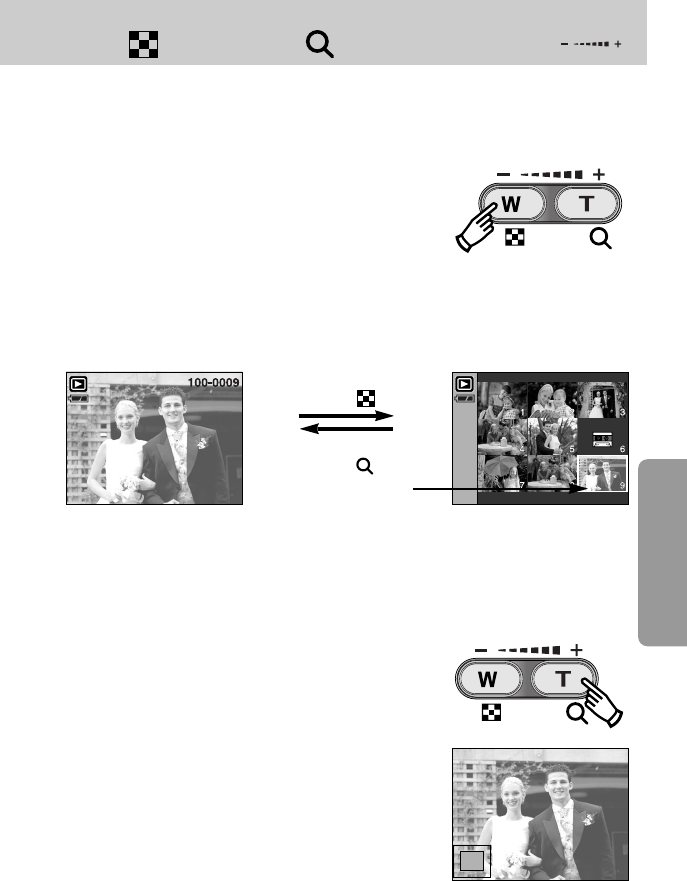

[Normal display mode] [Thumbnail display mode]
Pressing the thumbnail
button ( )
Pressing the enlargement
button ( )
Highlighted image
X1.5
ŝ68Ş
Thumbnail( )/ Enlargement( ) button/ Volume button( )
ƃThe maximum enlargement rate in proportion to the image size.
ƃTrimming : You can extract part of the image that you want and save it separately.
1. Select an image that you want to enlarge and press the
enlargement button.
2. Different parts of the image can be viewed by pressing
the 5 function button.
3. Press the MENU button and a message will be
displayed as shown alongside.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Trimming] : The trimmed image will save as a new file name, and display on the LCD
monitor.
[Cancel] : The trimming menu will disappear.
ſIf there is little memory space to save the trimmed image, the image can’t be trimmed.
ſTo delete the enlarged image during the trimming function, press the delete button.
Image size 2592 2272 2048 1600 1024 640
Maximum enlargement rate X10.1 X8.8 X8.0 X6.2 X4.0 X2.5
X1.5
Trimming?
Trimming
Cancel
Confirm:OK

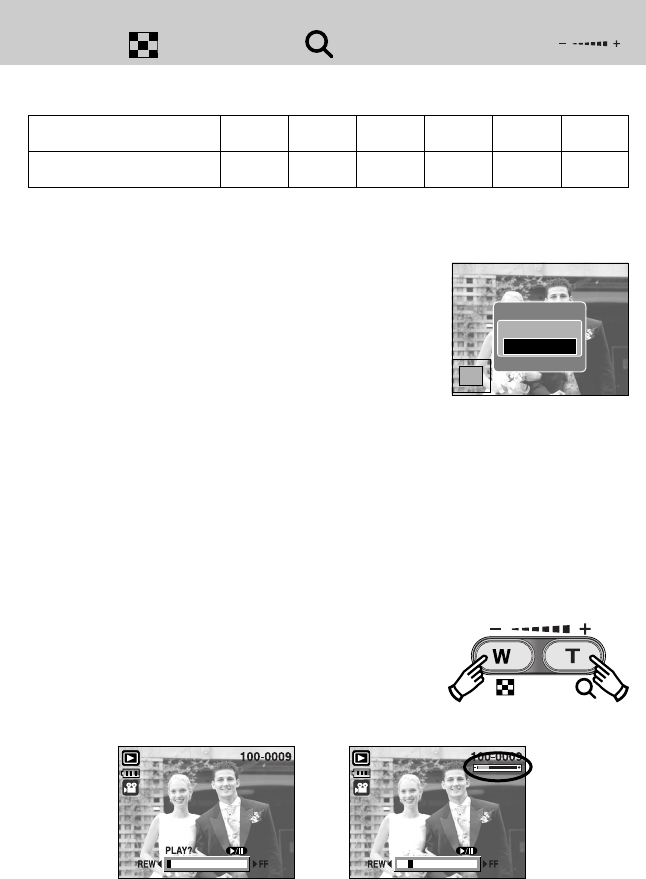

ƃVolume control : When a movie clip, voice memo or voice
recording files is playing back, you can
control volume of those files by this button.
PAUSE?
[Movie Clip : Playing back]
[Movie Clip : Stop]
ŝ69Ş
Voice ( ) memo/ Up button

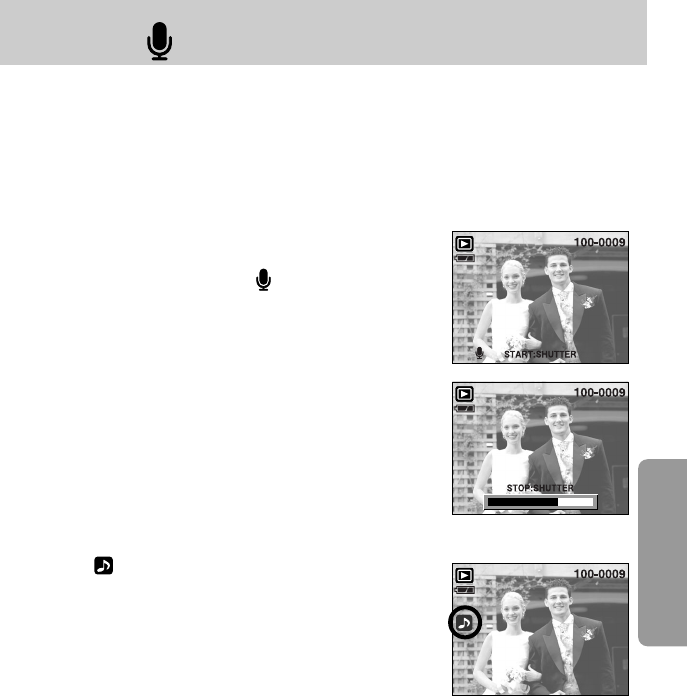

3. Press the shutter button to start recording and voice will
be recorded to the still image for 10 seconds.
While the voice is recording, the recording status window
will be displayed as shown alongside.
4. The recording can be stopped by pressing the shutter
button again.
5. The ( ) icon will be displayed on the LCD monitor
after voice memo recording has finished.
- Voice memos can’t be recorded onto movie clip files.
- A distance of 40cm between you and the camera
(microphone) is the best distance to record sound.
- The voice memo will be saved in ҭ.wav format, but has
the same file name as the still image to which it
corresponds.
- If you add a new voice memo to the still image that already has a voice memo, the
existing voice memo will be erased.
ƈWhen the menu is displayed on the LCD monitor, pressing the UP button makes the menu
cursor move up.
ƈWhen the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo button. You can add your voice to a stored still image.
ƃAdding a Voice Memo to a Still Image
1. Press the LEFT/ RIGHT button to select an image that
you wish to add sound to.
2. Press the voice memo button ( ) and the voice memo
indicator will display. The camera is now ready to record
a voice memo.
ŝ70Ş

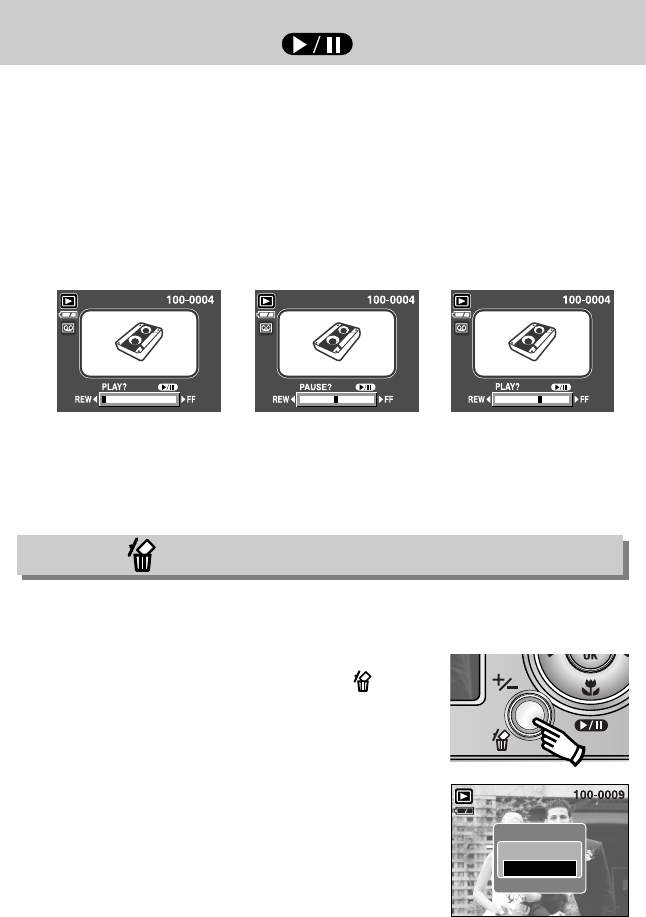

Play & Pause ( )/ Down button

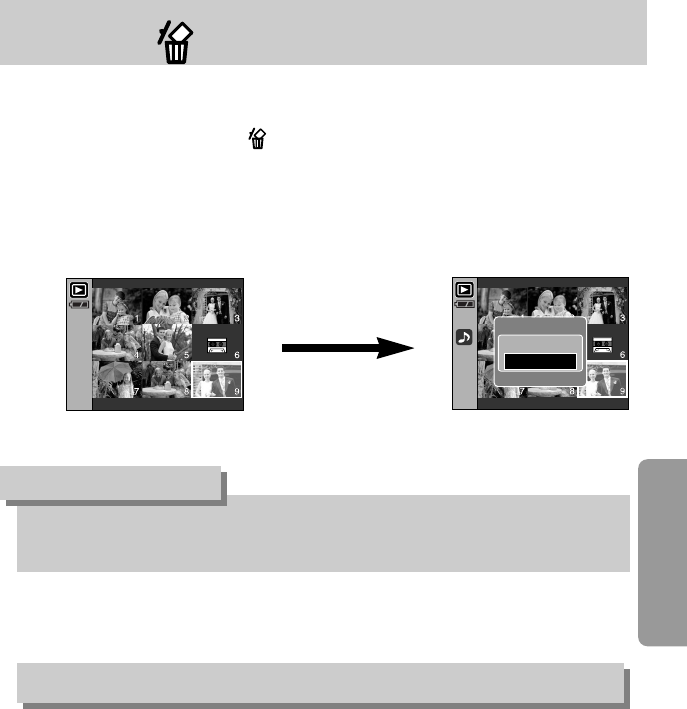

ƈThis deletes images stored on the memory card.
ƃDeleting Images in Play Mode
1. Select an image that you want to delete by pressing the
LEFT / RIGHT button and press the DELETE( )
button.
2. A message will display as shown alongside on the LCD
monitor.
3. Select the submenu values by pressing the UP/DOWN
button and then press the OK button.
If [Delete] is selected : deletes the selected images.
If [Cancel] is selected : cancels "Delete Image".
Delete ( ) button
ƈIn Play mode, the play & pause/ down button works as follows:
- If the menu is displayed
Press the DOWN button to move from the main menu to a sub menu, or to move down the
sub menu cursor.
- If a still image with a voice memo, a voice file, or a movie clip is playing
In Stop mode : Plays a still image with a voice memo, a voice file, or a movie clip.

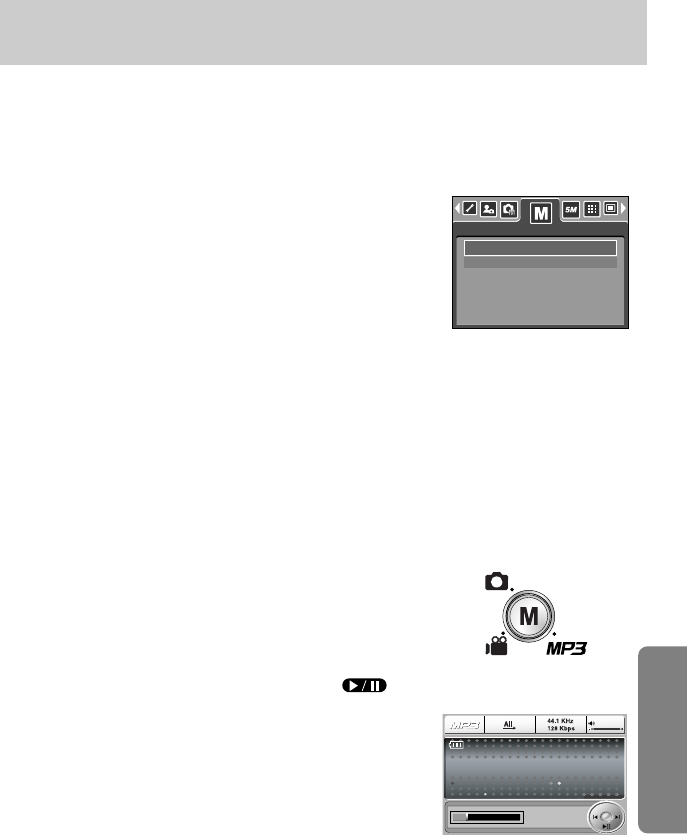

During playback : Temporarily stops playback.
In Pause mode : Resumes playback
[Voice recording is stopped] [Voice recording is paused][Voice recording is playing]
Delete?
Delete
Cancel
Confirm:OK
ŝ71Ş
Delete ( ) button
ƈLEFT / RIGHT/ MENU/ OK buttons activate the following.
- LEFT button : While the menu is showing, press the LEFT button to select the menu tab
to the left of the cursor.
- RIGHT button : While the menu is showing, press the RIGHT button to select the menu
tab to the right of the cursor, or to move an secondary menu.
- MENU button : When you press the MENU button, the play mode menu will be displayed
on the LCD monitor. Pressing it again will return the LCD to the initial
display.
- OK button : When the menu is displayed on the LCD monitor, the OK button is used
for confirming data that is changed by using the 5 function button.
ƃBefore deleting images from the camera, you should protect or download images to your
computer that you wish to keep.
INFORMATION
ƃDeleting Images in Thumbnail Display Mode
1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete,
and then press the DELETE ( ) button.
2. The following message will be displayed on the LCD monitor.
3. Select the submenu values by pressing the UP/DOWN button and then press the OK
button.
If [Delete] is selected : deletes the selected images.
If [Cancel] is selected : cancels "Delete Image".
Press the
DELETE button. Delete?
Delete
Cancel
Confirm:OK
Left/ Right/ Menu/ OK button
ŝ72Ş
Album button
Select
Slide
Add
Remove
ƈYou can organise the captured still images into albums by
using the Album button.
ƈThis camera has 8 albums and each album can take up to
100 images.
ƈThe album menu loading time depends on the memory
card type.
ƃInserting still images into the album

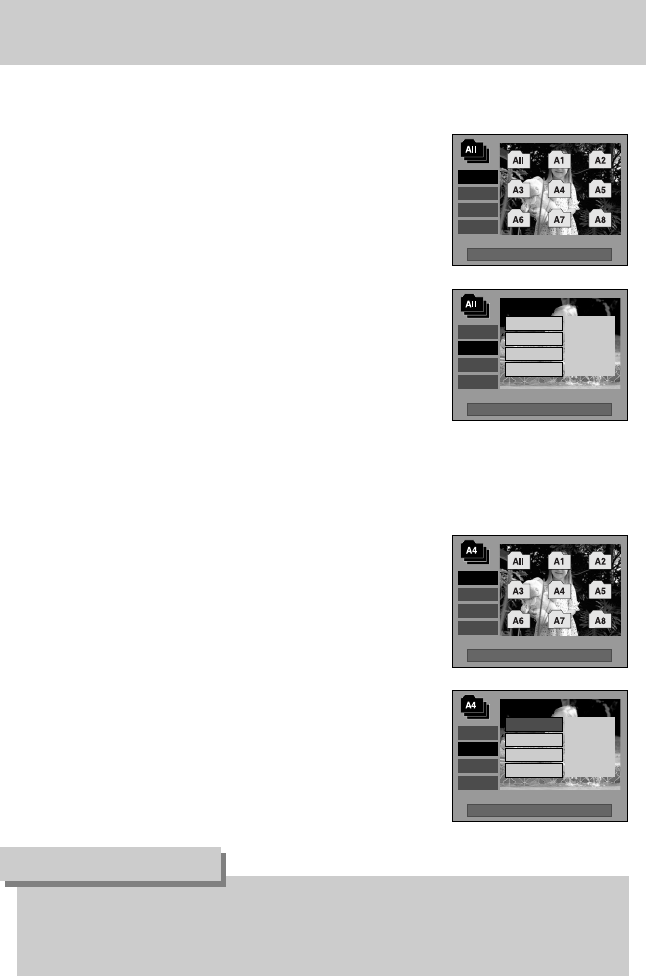

1. Select an album.
2. Select the [Add] menu by pressing the Up/Down button
and press the Right button.
ƈHow to use the album
ƃSelecting the album

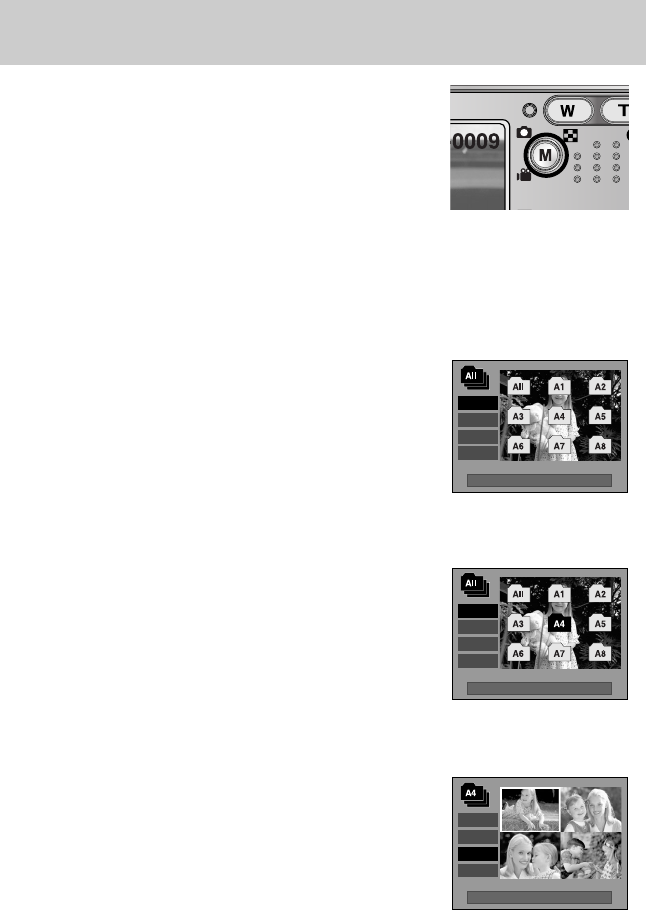

1. In the play mode, press the Album button.
2. Select the [Select] menu by pressing the Up/Down
button and press the Right button.
3. Select a desired album by pressing the
Up/Down/Left/Right buttons and press the OK button.
Exit:MENU Move:
Select
Slide
Add
Remove
Set:OK
Select
Slide
Add
Remove
Select:T Set:OK
ŝ73Ş
Select:T Set:OK
Select
Slide
Add
Remove
Select:T Set:OK
Select
Slide
Add
Remove
Set:OK
Album button
Select
All Pics

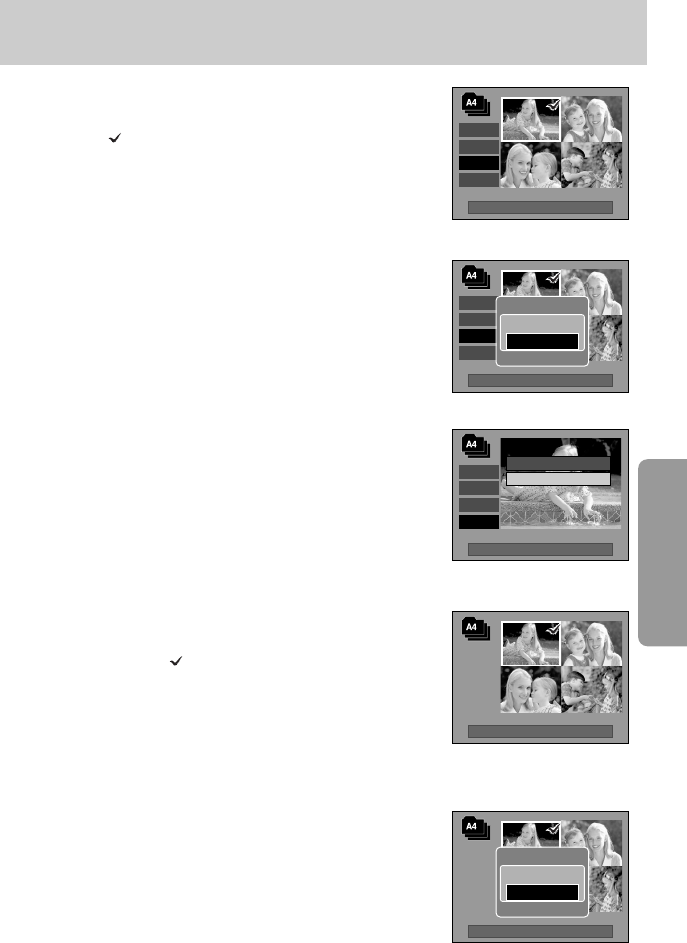

3. Select the still images you wish to add by pressing the
Up/Down/Left/Right buttons and press the Zoom T
button. marks are displayed on the selected images.
ſTo cancel the selection, press the Zoom T button again.
4. Press the OK button and a confirmation window will
display. Select a desired sub menu by pressing the UP/
DOWN button and press the OK button.
- [Add] : Inserts the selected images into the album.
- [Cancel] : Cancels the inserting images.
ƃRemoving still images from the album
1. Select an album.
2. Select [Remove] menu by pressing the Up/Down button
and press the Right button.
3. Select a desired sub menu and press the OK button.
- [All] : All of the still images in the album will be
removed.
- [Select] : Specific still images in the album can be
removed.
ſIf [Select] is selected
- Select images that you want to remove by pressing the
Up/Down/Left/Right buttons and press the
Zoom T button. marks are displayed on the
selected images.
4. Press the OK button and a confirmation window will
display. Select a desired sub menu by pressing the UP/
DOWN button and press the OK button.
- [Remove] : Removes the selected images from the
album.
- [Cancel] : Cancels the removing images.
ſThe removed images are not deleted from the memory,
but just removed from the album.
Add?
Add
Cancel
Confirm:OK
Select:T Set:OK
Remove?
Remove
Cancel
Confirm:OK
Select
Slide
Add
Remove
Select:T Set:OK
ŝ74Ş
Album button
ƃIf an image is deleted from the memory, the image doesn’t display on an album.
ƃAn image can’t be added twice into the same album.
ƃAn image can be added into the different albums.
INFORMATION
ƃPlaying back the albums
ƄPlaying back all of the albums
1. Select [All] menu and press the OK button.
All of the albums will be selected.
2. Select [Slide] menu by pressing the Up/Down button and
press the Right button.
ſYou can select [Start], [Interval], [Repeat] and [Effect]
menus.
- [Start] : Start the slide show
- [Interval] : Set the slide show play interval
- [Repeat] : Choose to repeat the slide show after
finishing the first cycle.
- [Effect] : Unique screen effects can be used for the
slide show.
3. Select [Start] menu by pressing the Up/Down button and
press the OK button to start the slide show.
4. Press the MENU/OK button and the slide show will stop.
ƄPlaying a desired album
1. Select a desired album and press the OK button.
2. Select [Slide] menu by pressing the Up/Down button and
press the Right button.
ſYou can select [Start], [Interval], [Repeat] and [Effect]
menu.
3. Select the [Start] menu and press the OK button to start
the slide show.
4. Press the MENU/OK button and the slide show will stop.
Select
Slide
Add
Remove
Exit:MENU Move:
Start
Interval 1 sec
Off
Cancel
Repeat
Effect
Select
Slide
Add
Remove
Exit:MENU Move:
Select
Slide
Add
Remove
Move: Set:OK
Start
Interval 1 sec
Off
Cancel
Repeat
Effect
Select
Slide
Add
Remove
Exit:MENU Move:
ŝ75Ş

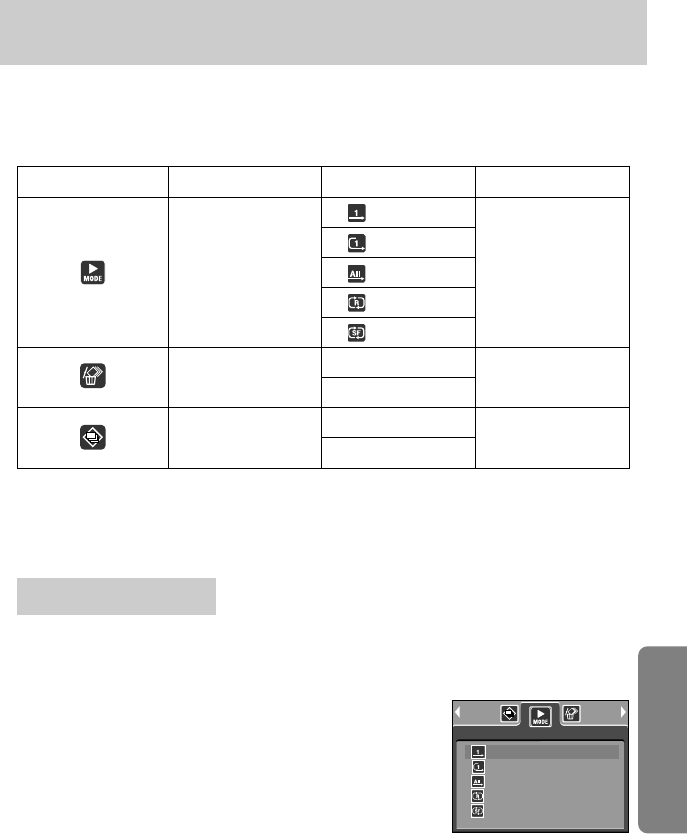

Setting up the play back function using the LCD monitor
Menu tab Main menu Sub menu Secondary menu Page
Start -
Interval 1, 3, 5, 10sec
Slide Repeat Off / On p.79
Cancel
Effect 1 ~ 4, Random
Select
All Pics
Select -
All Pics -
2272X1704 -
2048X1536 -
1600X1200 -
1024X768 -
640X480 -
User Image -
B&W Red
Effect Sepia Green p.84
Negative Blue
Right 90˚-
Left 90˚-
Rotate 180˚-p.85
Horizontal -
Vertical -
Standard Select/ All Pics/ Cancel
DPOF Index No/ Yes p.85
Size Select/ All Pics/ Cancel
ƈPLAY mode functions can be changed by using the LCD monitor. In the PLAY mode,
pressing the MENU button displays the menu on the LCD monitor. The menus you can set
up in Play mode are as follows. To capture an image after setting up the play menu, press
the PLAY mode button or shutter button.
p.81
p.82
p.83
Protect Unlock / Lock
Delete
Resize
Effect
ŝ76Ş
Setting up the play back function using the LCD monitor
Menu tab Main menu Sub menu Secondary menu Page
One Pic -
All Pics -
No -
Yes -
Auto
Postcard
Card
4X6
L
2L
Letter
A4
A3 p.91
Auto
Full
1
2
4
8
9
16
Auto Set
Custom Set
Images
Layout
Size
Menu tab Main menu Sub menu Secondary menu Page
No -
Yes -
Full OSD -
None -
p.88
p.XX
p.90
p.91
ƈThis menu is available while the camera is connected to a PictBridge supporting printer
(direct connection to the camera, sold separately) with a USB cable.
Copy to Card
OSD Information
ŝ77Ş
Setting up the play back function using the LCD monitor
Menu tab Main menu Sub menu Secondary menu Page
Auto
Plain
Fastphoto
Auto
Draft
Normal
Fine
Auto
Date
Off
On
Auto
File Name
Off
On
Standard
-
Index
-
No
-
Yes
-
No
-
Yes
-
Print
Custom Set
p.92
p.92
p.93
p.91
DPOF Print
Reset
ſMenus are subject to change without prior notice.
Quality
Type
ŝ78Ş
Starting the slide show
ƃThe loading time depends on the image size and quality.
ƃWhile the slide show is playing, only the first frame of a MOVIE file is displayed.
ƃWhile the slide show is playing, the voice recording file will not display.
INFORMATION
ƃStart the slide show : The slide show can start only in the [Start] menu.
1. Use the Up/Down buttons to select the [Start] menu.
2. Press the OK button to start the slide show.
- Press the Pause button to pause the slide show.
-Press the Pause button ( ) again to resume the
slide show.
- To stop the slide show, press the play & pause button,
and then press the LEFT or RIGHT button.
ƈImages can be displayed continuously at pre-set intervals.
You can view the slide show by connecting the camera to an external monitor.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [Slide] menu tab.
ƃSetting play interval: Set the slide show play interval.
1. Select the [Interval] sub menu by pressing the UP/DOWN
button and press the RIGHT button.
2. Use the Up/Down buttons to select the desired interval.
3. Press the OK button to save the configuration.
ƃRepeat setting : Setting the slide show to repeat after the first cycle.
1. Use the Up/Down buttons to select the [Repeat] menu and
press the Right button.
2. Use the Up/Down buttons to select the desired sub menu.
[On] selected : The slide show is repeated until cancelled.
[Off] selected : The slide show is closed after one cycle.
3. Press the OK button to save the configuration.
Start
Interval
Repeat
Effect
Slide
Move: Set:OK
1 sec
Off
Cancel
Start
Interval
Repeat
Effect
Slide
Back:ȜSet:OK
1 sec
3 sec
5 sec
10 sec
Start
Interval
Repeat
Effect
Off
On
Slide
Back:ȜSet:OK
ŝ79Ş
Starting the slide show
ƃConfigure slide show effects: Unique screen effects can be used for the slide show.
1. Select the [Effect] sub menu by pressing the UP/ DOWN
button and press the RIGHT button.
2. Use the Up/Down Button to select the type of effect.
[Cancel] : Normal display.
[Effect 1] : Image is displayed slowly.
[Effect 2] : Image is displayed slowly from the centre
outwards.
[Effect 3] : Image moves from the top left.
[Effect 4] : The image slides diagonally from top left to bottom right.
[Random] : The image slides irregularly.

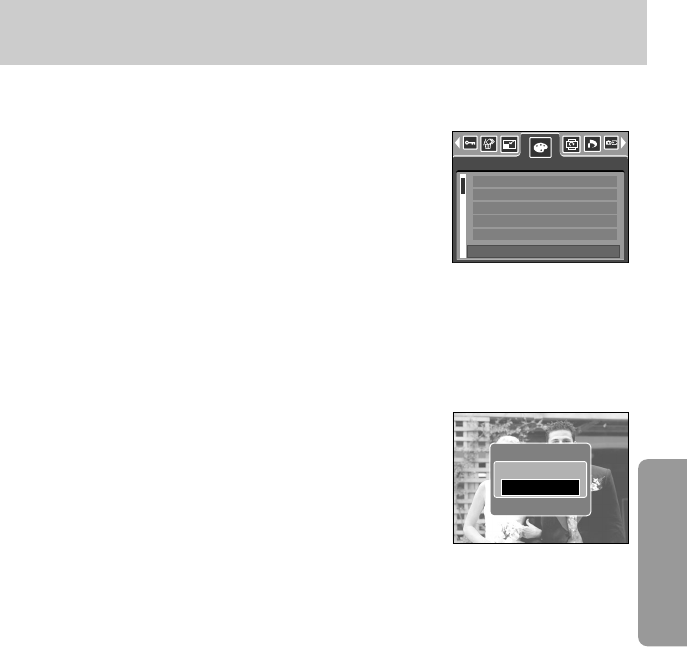

3. Press the OK button to confirm the setting.
Start
Interval
Repeat
Effect
Cancel
Effect 1
Effect 2
Effect 3
Effect 4
Slide
Back:ȜSet:OK
ŝ80Ş
Protecting images
ƈThis is used to protect specific shots from being accidentally erased (Lock).
It also unprotects images that have been previously protected (Unlock).
ƃProtecting Images

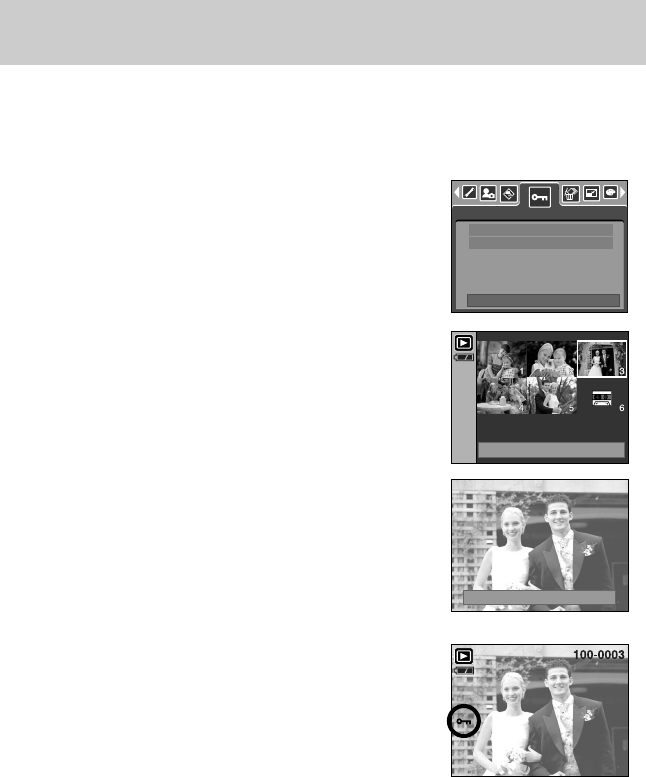

1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [Protect]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Select ] : Selection window for an image to be
protected/released is displayed.
- Up/Down/Left/Right : Select an image
- Zoom W/T Button : Protect/release the image
- Menu Button : Your changes will be saved and
the menu will disappear.
[All Pics] : Protect/release all saved images
- Zoom W/T Button : Protect/release the images
- Menu Button : Your changes will be saved and the
menu will disappear.
- If you protect an image, the protect icon will be displayed
on the LCD monitor. (An unprotected image has no
indicator)
- An image in LOCK mode will be protected from the
delete function or [Delete] functions, but will NOT be
protected from the [Format] function.
Protect
Exit:MENU Move:
Select
All Pics
Set:OK
WȜUnlock ȞT
WȜUnlock ȞT
Set:OK
ŝ81Ş
Deleting images
ƈOf all the files stored in the memory card, the unprotected files in the DCIM subfolder will be
deleted. Remember that this will permanently delete unprotected images.
Important shots should be stored on a computer before deletion takes place.
The startup image is stored in the camera's internal memory (i.e., not on the memory card)
and it will not be deleted even if you delete all files on the memory card.
ƃDeleting images

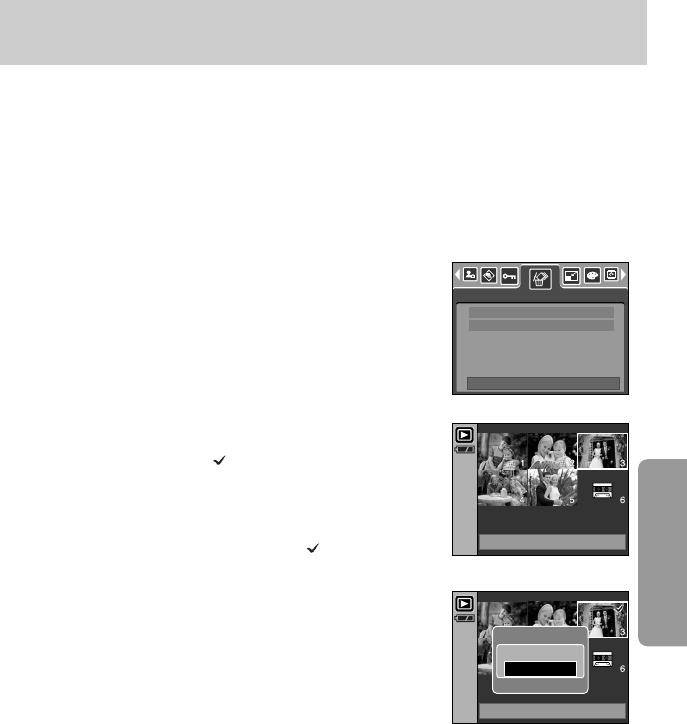

1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [Delete]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Select] : Selection window for an image to delete is
displayed.
- Up/Down/Left/Right : Select an image
- Zoom T Button : Select the image for deletion.
( mark)
- OK Button : Press the OK Button to display the
confirmation message. Select the
[Delete] menu and press the OK
button to delete marked
images.
[All Pics] : Displays confirmation window. Select the
[Delete] menu and press the OK button to
delete all unprotected images. If there aren’t
protected images, all the images are deleted
and a [No Image!] message will display.
4. After deletion, the screen will be changed to the play
mode screen.
Select:T
Del:OK
Del:OK
Delete?
Delete
Cancel
Confirm:OK
Delete
Exit:MENU Move:
Select
All Pics
ŝ82Ş
Resize
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [Resize]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.

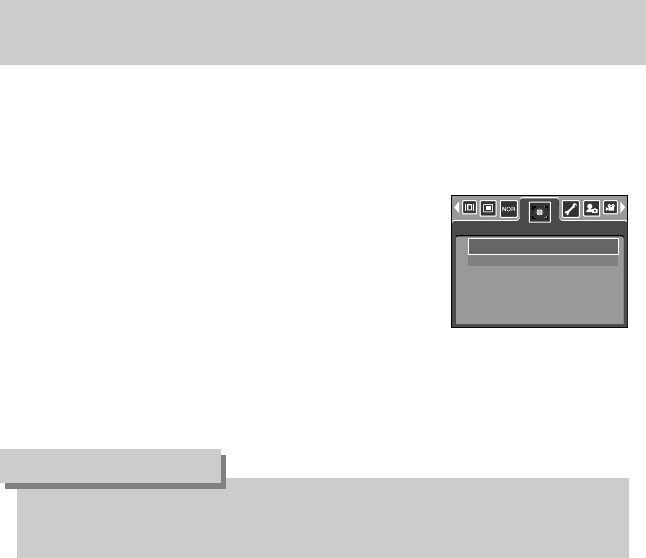

ƈChange the resolution (size) of pictures taken. Select [User image] to save an image to be
the start-up image. The resized image will have a new file name.
ƃA large sized image can be resized to a smaller sized image, but not vice versa.
ƃOnly JPEG images can be resized. Movie clip(AVI) and Voice recording(WAV) files can’t
be resized.
ƃYou can change the resolution of only those files compressed in the JPEG 4:2:2 format.
ƃThe resized image will have a new file name. The [User Image] image is stored not on the
memory card but on the internal memory.
ƃOnly two [User Image] images can be saved. If you save a new [User Image] image, the
existing startup image will be deleted in order.
ƃIf the memory capacity is insufficient to store the resized image, a [Card Full!] message
will display on the LCD monitor and the resized image will not be stored.
INFORMATION
Resize

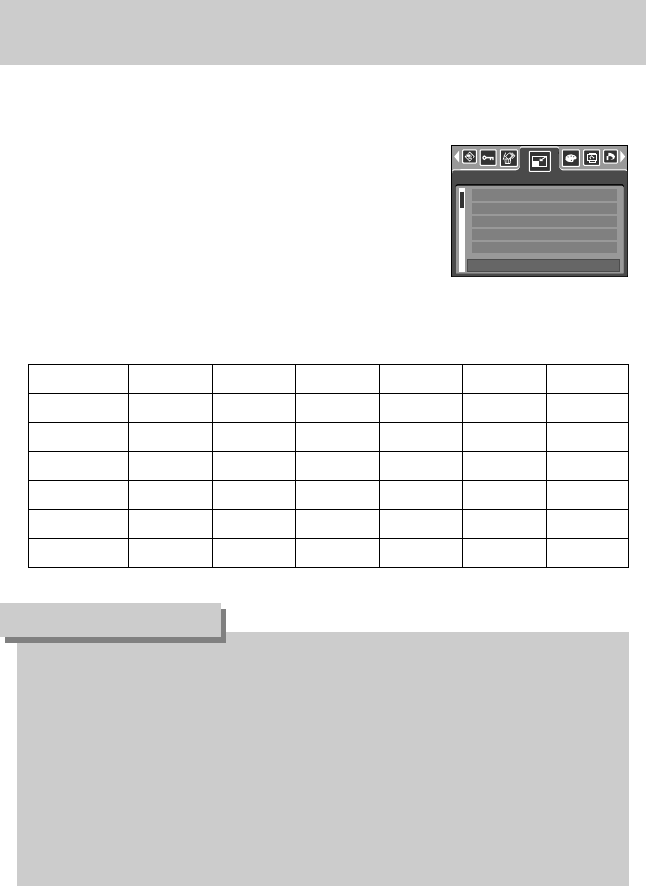

2272X1704 2048X1536 1600X1200 1024X768 640X480 User image
5M O O O O O O
4M X O O O O O
3M X X O O O O
2M X X X O O O
1M X X XXOO
VGA X X X X X O
ƃImage Resize Types
Resize
Exit:MENU Move:
2272 X 1704
2048 X 1538
1600 X 1200
1024 X 768
640 X 480
ŝ83Ş
ƈBy using the camera’s digital processor, it is possible to add special effects to your images.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [Effect] menu
tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button.
[B & W] : Captured images will be stored in black and
white
[Sepia] : Captured images will be stored in a sepia tone
(a gradient of yellowish brown colours).
[Red] : Captured images will be stored in a red tone.
[Green] : Captured images will be stored in a green tone.
[Blue] : Captured images will be stored in a blue tone.
[Negative] : Save the image in negative mode.
4. Press the OK button and then a confirmation window will
display.
[Save] :
Effect added image will be saved as a new file name.
[Cancel] : cancels the effect.
Effect
Effect
Exit:MENU Move:
B & W
Sepia
Red
Green
Blue
Save?
Save
Cancel
Confirm : OK
ŝ84Ş
Rotating an image
ƈDPOF(Digital Print Order Format) allows you to embed printing information on your memory
card’s MISC folder. Select the pictures to be printed and how many prints to make.
ƈThe DPOF indicator will display on the LCD monitor when an image that has DPOF
information plays back. Images can then be printed on DPOF printers, or at an increasing
number of photo labs.
ƈThis function is not available for Movie clips and Voice recording files.
DPOF

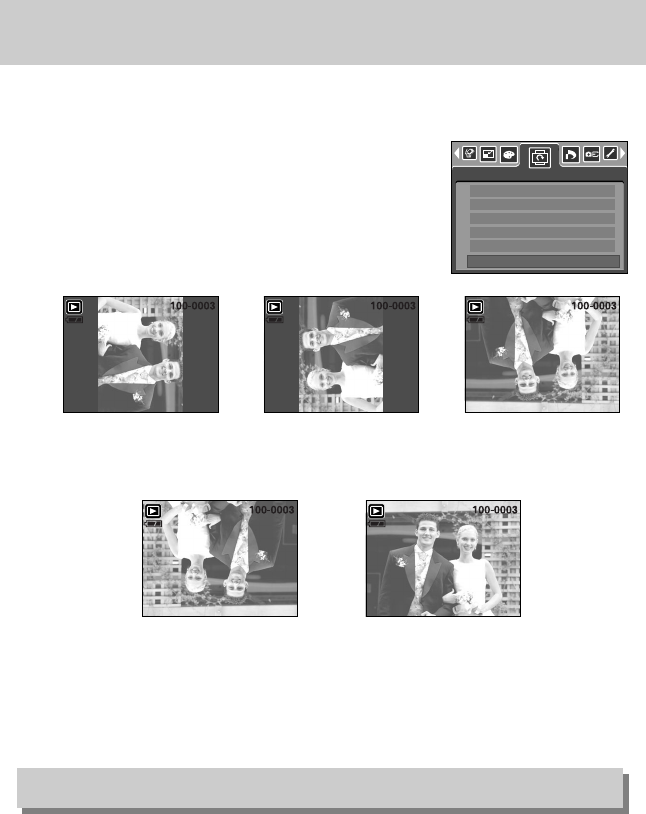

ƈYou can rotate the stored images by various degrees. Once the playback of the rotated
picture is finished, it will switch back to the original state.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [Rotate]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button.
4. Press the OK button and the rotated image will be displayed.
If you display the rotated image on the LCD monitor, empty spaces may appear to the left
and right of the image.
Rotate
Exit:MENU Move:
Right 90ŭ
Left 90ŭ
180ŭ
Horizontal
Vertical
[Horizontal] :
Rotate picture horizontally
[Vertical] :
Rotate picture vertically
[Right 90˚] :
Rotate picture in a clock-
wise direction
[Left 90˚] :
Rotate picture in a counter-
clock-wise direction
[180˚] :
Rotate picture 180
degrees
ŝ85Ş

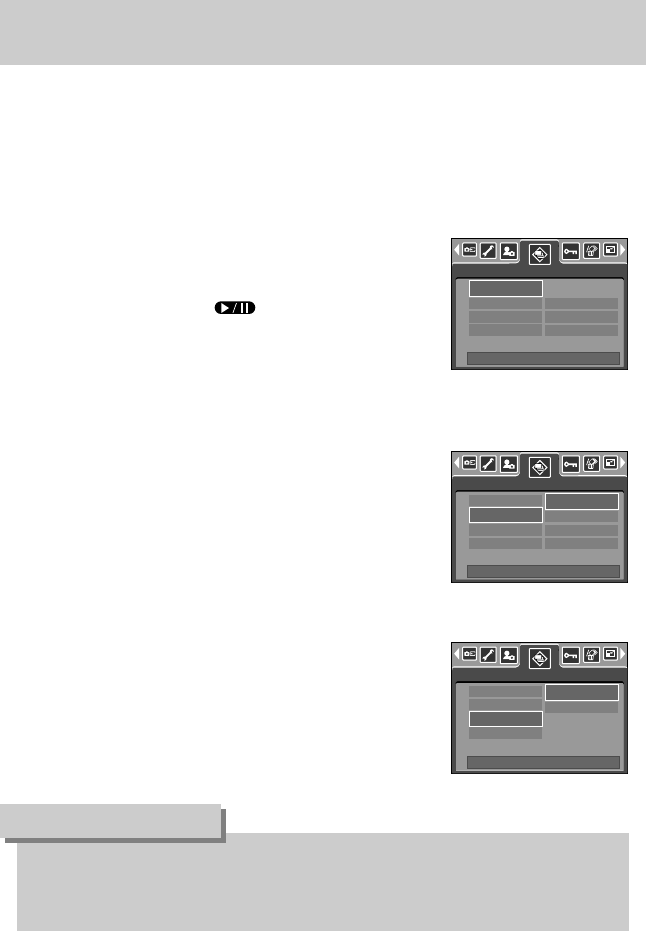

DPOF : Standard
ƈThis function allows you to embed print quantity information on a stored image.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [Standard] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Select] : Selection window for an image to print is
displayed.
- Up/Down/Left/Right : Select an image to print.
- Zoom W/T Button : Select the number of prints.
[All Pics] : Configure number of prints for all pictures
except movie and voice files.
- W/T button : Select a number of prints
[Cancel] : Cancel the print setup.
5. Press the OK button to confirm the setting.
If an image carries DPOF instructions, the DPOF indicator
( ) will show.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [Index] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button.
If [No] is selected : Cancel the index print setting.
If [Yes] is selected : The image will be printed in index format.
5. Press the OK button to confirm the setting.
DPOF : Index
ƈImages (except for movie clips and voice file) are printed as index type.
Standard
Index
Size
Select
All Pics
Cancel
DPOF
Back:ȜSet:OK
Set:OK
WȜ0 Prints ȞT
WȜ0 Prints ȞT
Set:OK
Standard
Index
Size
No
Yes
DPOF
Back:ȜSet:OK
ŝ86Ş
DPOF : Print size
ƃSetting the Print Size
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [Size] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Select] : Selection window for an image to be changed
printed size is displayed.
- Up/Down/Left/Right : Select an image.
- Zoom W/T Button : Change the print size.
- OK button : Your changes will be saved and the
menu will disappear.
[All Pics] : Change print size of all saved images.
- W/ T button : Select a print size
- OK button : Confirm the changed setting.
[Cancel] : Cancel all of the print size settings.
ſDPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7,
8X10
ƈYou can specify the print size when printing images stored on the memory card.
The [Size] menu is available only for DPOF 1.1 compatible printers.
Standard
Index
Size
Select
All Pics
Cancel
DPOF
Back:ȜSet:OK
Set:OK
WȜCancel ȞT
WȜCancel ȞT
Set:OK
ŝ87Ş
Copy To Card
ƈThis enables you to copy image files to the memory card.
ƃCopying to the Memory Card
1. Press the play mode button and press the menu button.
2. Select the [Copy to Card] menu tab by pressing the LEFT/
RIGHT button.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [No] : Cancels "Copy to Card".
- [Yes] : All images saved in the internal memory are
copied to the memory card after the [Processing!] message is displayed.
After copying has been completed, the screen will return to play mode.
ƃWhen this menu is selected without inserting a memory card, you can select the
[Copy to Card] menu but the menu can’t be run.
ƃIf there is not enough space available in the memory card to copy saved images in the
internal memory (50MB), the [Copy to Card] command will copy only some of the images
and display [Card Full!] message. Then the system will return to the playback mode.
Please be sure to delete any unnecessary images to free up space before inserting the
memory card into the camera.
ƃWhen you move the images that are stored in the internal memory by doing
[Copy to Card] to the card, the next number of file names will be created in the card to
avoid duplication of the file name. If the last file in the memory card is SSM10010.jpg,
the copied file names start from SSM10011.jpg. After completing [Copy to Card], the last
stored image of the last copied folder is displayed on the LCD monitor.
INFORMATION
Copy To Card
Exit:MENU Move:
No
Yes
ŝ88Ş

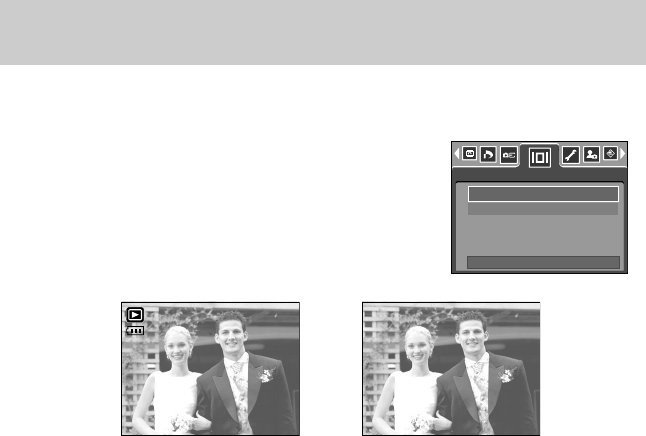

OSD Information
ƈYou can check shooting information about the displayed image.
ƃHow to select a type of OSD information
1. Press the play mode button and press the menu button.
2. Select the [OSD Information] menu tab by pressing the
LEFT/ RIGHT button.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Full OSD
No OSD
OSD Information

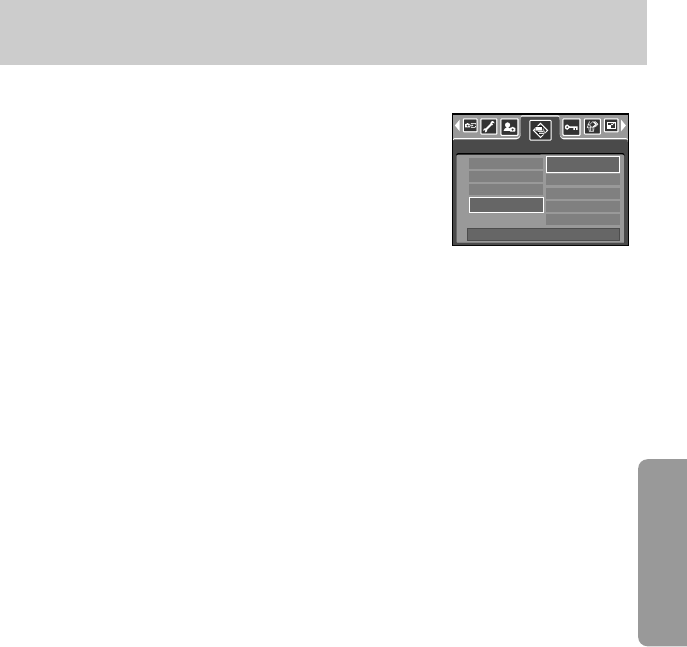

Exit:MENU Move:
[No OSD][Full OSD]
100-0004
ŝ89Ş
PictBridge
[Using the USB cable with Cradle]
[Using the USB cable with Camera]

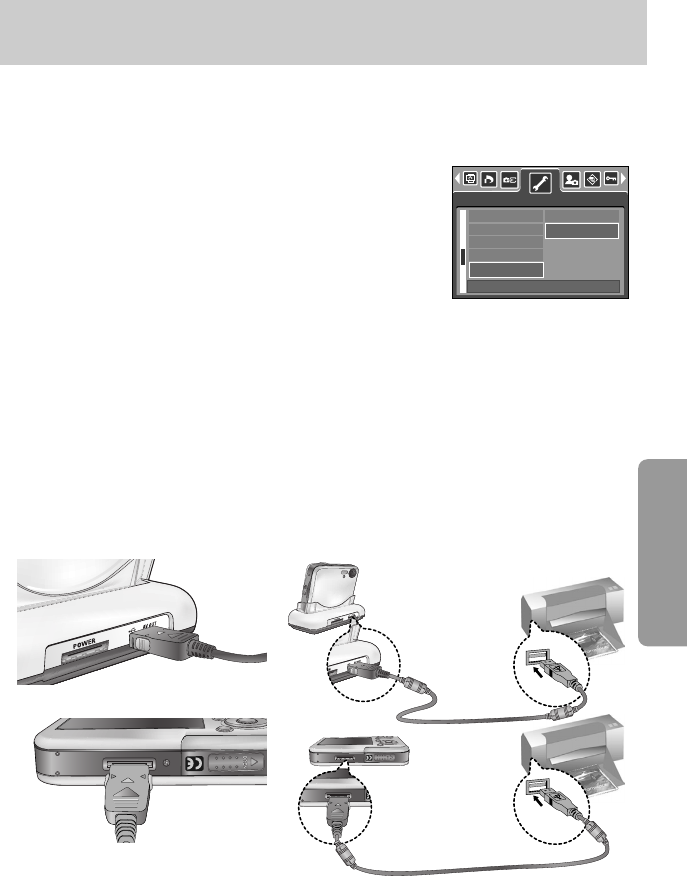

ƈConnecting the Camera to a Printer
ƃUsing the USB cable with Cradle :
Connect the camera and the cradle. Connect the cradle to a printer’s USB port with the
supplied USB cable.
ƃUsing the USB cable with Camera :
Connect the camera to a printer’s USB port with the supplied USB cable.

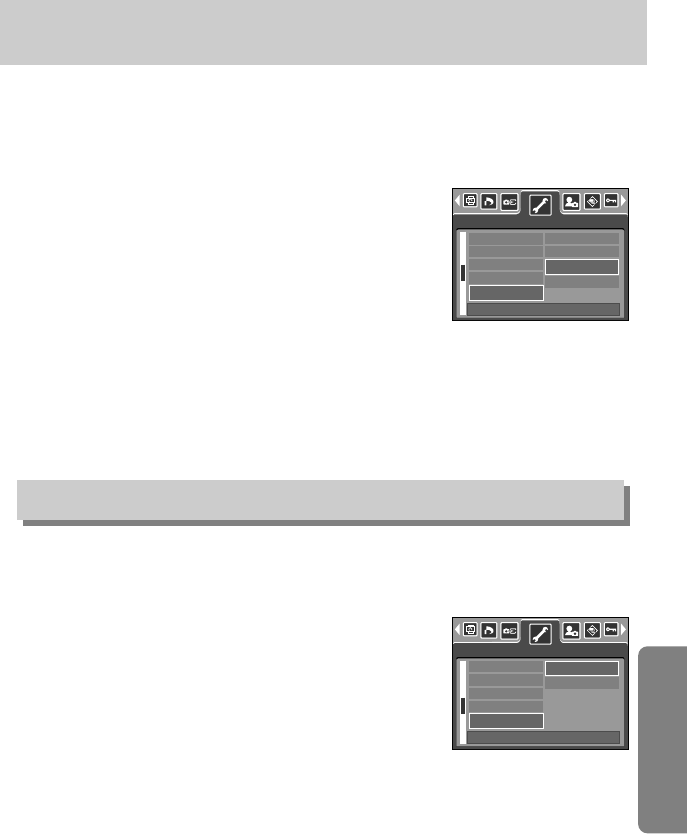

ƃSetting up the camera for connection with the printer
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select [Setup] menu
tab.
3. Select [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select [Printer] menu by pressing the UP/ DOWN button
and press the OK button.
ſIf you selected [Computer] in Step 4, when you connect the camera to your printer, the
[Connecting Computer] message will display and the connection will not be established.
In this case, disconnect the USB cable, and then follow the procedure from Step 2 and
onward.

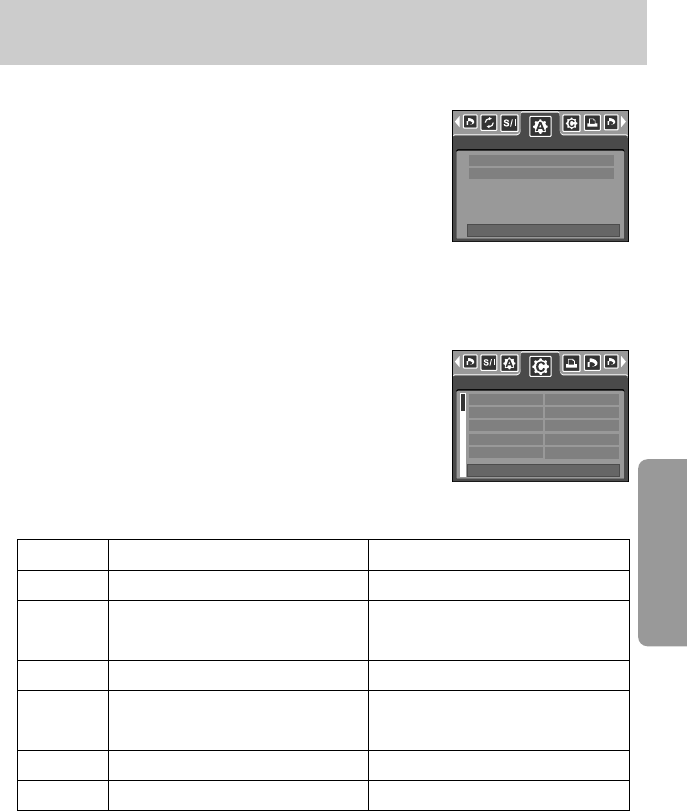

ƈYou can use the USB cable to connect this camera to a printer that supports PictBridge (sold
separately) and print the stored images directly. Movie clips and voice files cannot be printed.
Format
Date&Time
Imprint
Sound
USB
Computer
Printer
Setup
Back:ȜSet:OK
ŝ90Ş

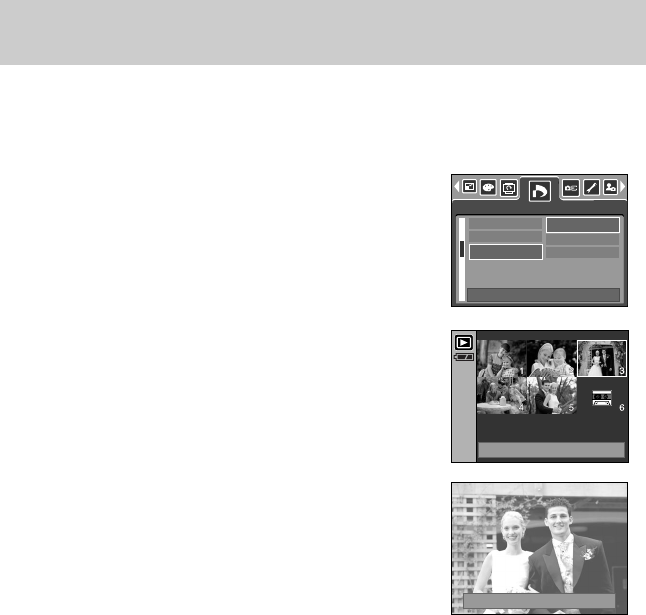

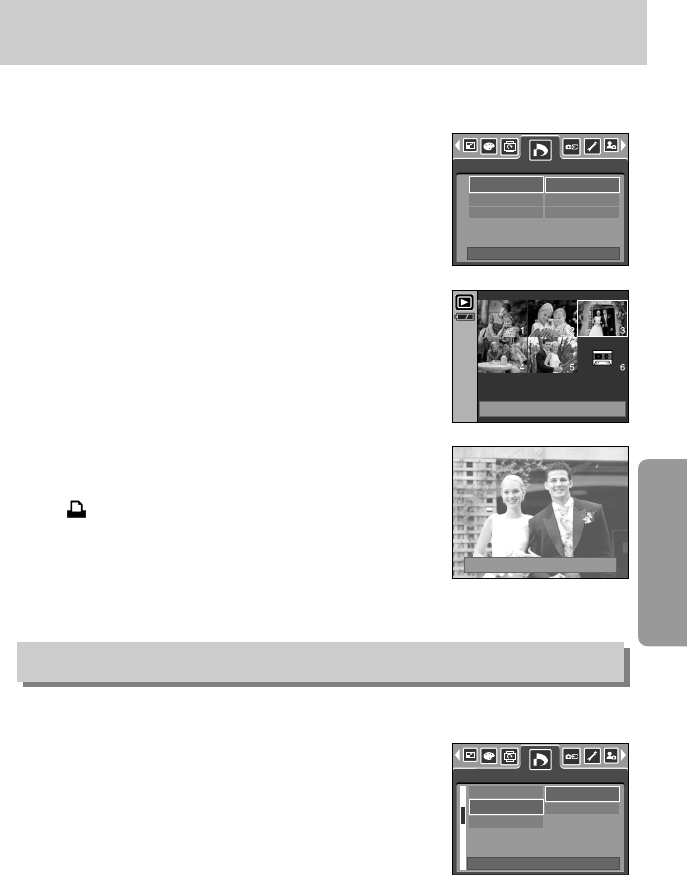

PictBridge : Picture Selection
ƈEasy printing
When you connect the camera to printer in the Play back
mode, you can print a picture easily.
- Pressing the shutter button : Currently displayed image will
be printed with the printer’s
default setting.
- Pressing the Left / Right button : Selects a previous / next
image.
[When [One Pic] is selected] [When [All Pics] is selected]
- Press the Up/Down button to select the number of prints.
- Use the Left/Right button to select another picture and select the number of prints for
another picture.
- After setting the number of prints, press the OK button to save.
- Press the Shutter button to return to the menu without setting the number of prints.
0
10
ƃSetting the Number of Copies to Print
-Select [One Pic] or [All Pics]. A screen where you can set the number of copies to print will
appear as shown below.
Prev ȜȞNext
Ɗ
ƌ
ƈSelect pictures to print
1. The [Images] menu will appear.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
When [One Pic] is selected : The PictBridge function will
be applied only to the
picture currently displayed.
When [All Pics] is selected : The PictBridge function will
be applied to all pictures,
excluding movie clips and voice files.
Exit:Shutter Set:OK
0
Ɗ
ƌ
Exit:Shutter Set:OK
Images
Move:
One Pic
All Pics
141-0001
Print:Shutter Menu:OK
ȜȞ
ŝ91Ş
PictBridge : Print Setting
Menu
Size Setting the size of the printing paper
Auto, Postcard, Card, 4X6, L, 2L, Letter, A4, A3
Setting the number of pictures to be
printed on a sheet of paper
Type Setting the quality of the printing paper Auto, Plain, Photo, Fastphoto
Setting the quality of the picture to be
printed
Date Setting whether to print the date Auto, Off, On
File Name Setting whether to print the file name Auto, Off, On
ƈAUTO SET
1. Use the LEFT and RIGHT buttons to select the
[Auto Set] menu tab.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[No] : [Custom Set] values are kept.
[Yes] : All values in the [Custom Set] are automatically
changed.
ſSome menu options are not supported in all manufacturer and printer models.
If not supported, the menus are still displayed in the LCD, but are not selectable.
ſIf the setting values are not changed in the automatic/manual setting, the setting values are
automatically kept.
1. Use the LEFT and RIGHT buttons to select the
[Custom Set] menu tab.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the RIGHT button.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
ƈCustom Set : You can select the Paper Size, Print Format, Paper Type, Print Quality, Date
Print, and File Name Print menus for printed pictures.
Function
Auto, Draft, Normal, Fine
Auto, Full, 1, 2, 4, 8, 9, 16
Sub menu
Layout
Quality
ƃThe menus you can set up are as follows:
Auto Set
Move:
No
Yes
Size
Layout
Type
Quality
Date
Auto
Auto
Auto
Auto
Auto
Custom Set
Move:
ŝ92Ş
1/1
Cancel:OK
PictBridge : Printing
ƈPrinting Pictures
1. Use the LEFT and RIGHT buttons to select the [Print]
menu tab.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[Standard] : Print the pictures stored in the memory card
in set numbers. One picture is printed on
one piece of paper.
[Index] : Print multiple images on one sheet of paper.
3. The screen shown on the right will appear and the picture
will be printed. If no picture is selected, the [No image!]
message will be displayed. Press the Menu/OK button
while printing to cancel the printing and the [Print] menu
is displayed.
ſNumber of pictures in an index print varies depends on the
printer used.
1. Use the LEFT and RIGHT buttons to select the
[DPOF Print] menu tab.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[No] : Cancel the printing
[Yes] : Directly print the file with the DPOF information
ſDepending on the manufacturer and printer model, some
menus may not be available. With a printer without supporting the DPOF, the menu is still
displayed but not available.
ƈDPOF Print : This allows you to directly print the files with DPOF information.
Now Printing
Print
Move:
Standard
Index
DPOF Print
Move:
No
Yes
ŝ93Ş
PictBridge : RESET
1. Use the LEFT and RIGHT buttons to select the [Reset]
menu tab.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
If [No] is selected : Settings will not be reset.
If [Yes] is selected : All print and image settings will be
reset.
ſDefault print setting varies depending on the printer manufacturer.
For your printer’s default setting, refer to the user’s guide that came with your printer.
ƈInitialises user-changed configurations.
Reset
Move:
No
Yes
ŝ94Ş
Setup menu
Menu tab Main menu Sub menu Secondary menu Page
Series -
Reset -
Power Save 1, 3, 5, 10 min - p.96
ENGLISH ጥૹ࿴ FRANÇAIS
DEUTSCH ESPAÑOL ITALIANO
⁹᪎ᷘ
Language
P”CCK»…
PORTUGUÊS
DUTCH p.97
DANSK SVENSKA SUOMI
BAHASA
POLSKI Magyar
No -
Yes -
05/01/01 13:00 Off
yy/mm/dd -
dd/mm/yy -
mm/dd/yy -
Off -
Imprint Date - p.98
Date&Time -
Off -
Low -
Medium -
High -
Computer -
Printer -
File
Format
Sound
Date&Time
p.95
p.97
p.99
p.98
USB p.99
ƈIn this mode, you can set up basic settings. You can use the setup menu in all camera
modes, except Voice Recording mode.
The items indicated by are default settings.
ŝ95Ş
Setup menu
ſMenus are subject to change without prior notice.
Menu tab Main menu Sub menu Secondary menu Page
Off -
On -
Dark -
LCD Normal - p.100
Bright -
NTSC -
PAL -
Quick View Off, 0.5, 1, 3 sec - p.103
No -
Yes -
Video Out
AF Lamp
Reset
p.100
p.101
p.103
ƈThis function allows the user to select the file naming format.
ƃAssigning File Names
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [File] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Series] : New files are named using numbers that follow the previous sequence, even
when a new memory card is used, or after formatting, or after deleting all
pictures.
[Reset] : After using the reset function, the next file name will be set from 0001 even after
formatting, deleting all or inserting a new memory card.
5. Press the menu button twice and the menu will disappear.
File name
File
Power Save
Language
Format
Date&Time
Series
Reset
Setup
Back:ȜSet:OK
ŝ96Ş
File name
ƃThe first stored folder name is 100SSCAM, and the first file name is SSM10001.
ƃFile names are assigned sequentially from SSM10001 ƍSSM10002 ƍ~ ƍSSM10099.
ƃThe folder number is assigned sequentially from 100 to 999 as follows:
100SSCAM ƍ101SSCAM ƍ~ ƍ999SSCAM.
ƃThe files used with the memory card conform to the DCF(Design rule for Camera File
systems) format.
INFORMATION
ƃEven if the battery and AC charger are removed and inserted again, the power off setting
will be preserved.
ƃNote that the automatic power off function will not operate if the camera is in PC mode,
slide show, playing back a voice recording, playing back a movie clip and the [Composite]
shooting.
INFORMATION
Auto power off
ƃSetting Power Off
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Power Save] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[1, 3, 5, 10min] : The power will turn off automatically if not used for the period of time
specified.
5. Press the menu button twice and the menu will disappear.
ƈThis function switches the camera off after a set amount of time in order to prevent
unnecessary battery drainage.
File
Power Save
Language
Format
Date&Time
1 min
3 min
5 min
10 min
Setup
Back:ȜSet:OK
ŝ97Ş
Language
ƃSetting Language
1. In any mode with the exception of Voice Recording and MP3
mode, press the MENU button.
2.
Press the LEFT/ RIGHT button and select the [Setup] menu tab.
3. Select the [Language] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
LANGUAGE sub menu : English, Korean, French, German, Spanish, Italian, S.Chinese,
T.Chinese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai,
BAHASA(MALAY/ INDONESIAN), Arabic, Hungarian, Czech and Polish.
5. Press the menu button twice and the menu will disappear.
ƃFormatting a Memory Card
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Format] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [No] is selected : The memory card will not be formatted.
Press the menu button twice and the menu display will disappear.
If [Yes] is selected : A [Processing!] message appears and the memory card will be
formatted. If you ran FORMAT in Play mode, a [No Image!] message
will appear.
ƈThere is a choice of languages that can be displayed on the LCD monitor. Even if the battery
and AC charger are removed and inserted again, the language setting will be preserved.
Formatting a memory card
ƈThis is used for formatting the memory card. If you run [Format] on the memory card, all
images, including the protected images, will be deleted. Be sure to download important
images to your PC before formatting the memory card.
ƃBe sure to run [Format] on the following types of memory card.
- A new memory card, or an unformatted memory card.
- A memory card that has a file this camera can't recognise or one that has been taken
from another camera.
ƃAlways format the memory card using this camera. If you insert a memory card that has
been formatted using other cameras, memory card readers, or PCs, you will get a
[Card Error!] message.
INFORMATION
File
Power Save
Language
Format
Date&Time
ENGLISH
ጥૹ࿴
FRANÇAIS
DEUTSCH
ESPAÑOL
Setup
Back:ȜSet:OK
File
Power Save
Language
Format
Date&Time
No
Yes
Setup
Back:ȜSet:OK
ŝ98Ş
Setting up the Date/ Time/ Date type
ƈYou can change the date and time that will be displayed on the captured images and set up
the date type.
ƃSetting Date/Time & Selecting Date Format
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Date&Time] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Use the UP, DOWN, LEFT, and RIGHT buttons to select
the desired submenu value, and then press the OK button.
RIGHT button : Selects the year/month / day/hour / minute date type.
LEFT button : Moves the cursor to the [Date&Time] main menu if the cursor is
at the first item of the date and time setup. In all other cases, the
cursor will be shifted to the left of its current position.
UP and DOWN buttons : Changes the setting value.
5. Press the menu button twice and the menu will disappear.
ƈThere is an option to include DATE/TIME on still images.
ƃDate Imprinting
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Imprint] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired date
imprint type, and then press the OK button.
[Off] : The DATE & TIME will not be imprinted on the image file.
[Date] : Only the DATE will be imprinted on the image file.
[Date&Time] : The DATE & TIME will be imprinted on the image file.
5. Press the menu button twice and the menu will disappear.
ſThe Date & Time are imprinted at the bottom right side of the still image.
ſThe date will be imprinted as a DATE TYPE setting.
ſ
TIME is imprinted in the following way : [Hour : Minute] and hours are shown using the 24 hour clock.
ſThe imprint function is applied only to still images except for the images taken in the [Text]
scene mode.
Imprinting the recording date
File
Power Save
Language
Format
Date&Time
Ɗ
05/ 05/ 01 13:01
ƌyy/mm/dd
Setup
Back:ȜSet:OK
Power Save
Language
Format
Date&Time
Imprint
Off
Date
Date&Time
Setup
Back:ȜSet:OK
ŝ99Ş

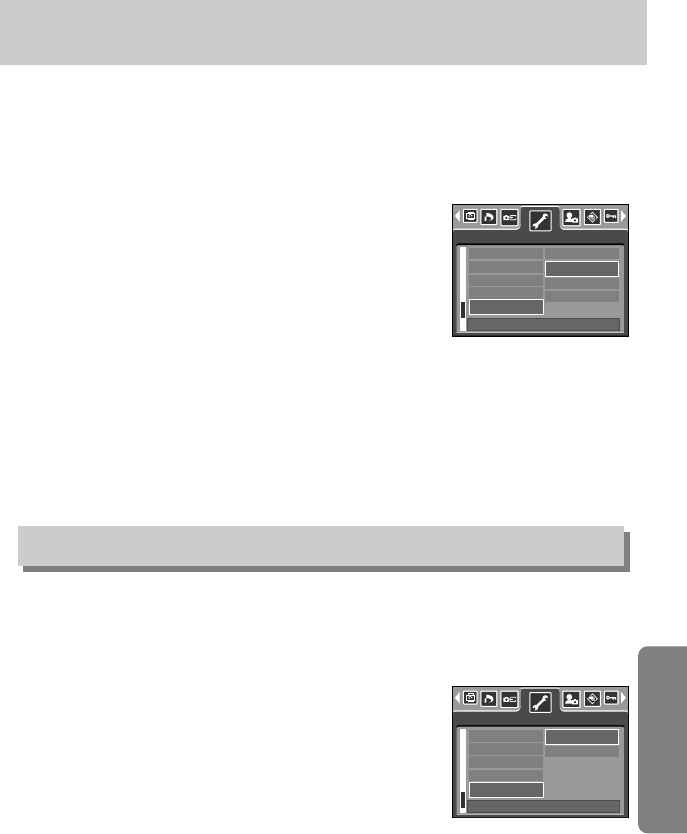

Sound
Connecting an External Device (USB)
ƈIf you set the operation sound to ON, various sounds will be activated for camera startup,
when button are pressed, and if there is a card error, so that you can be aware of the camera
operation status.
ƃSetting Operation Sounds
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Sound] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Sound] sub menu : Off/ Low/ Medium/ High
5. Press the menu button twice and the menu will disappear.
ƈYou can select an external device to which you want to connect the camera using the USB
cable.
ƃSelecting an External Device
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Computer] : Select this if you want to connect the camera to your PC.
Refer to page 127 for instructions on how to connect the camera to your PC.
[Printer] : Select this if you want to connect the camera to your printer.
Refer to page 89 for instructions on how to connect the camera to your
printer.
5. Press the menu button twice and the menu will disappear.
Language
Format
Date&Time
Imprint
Sound
Off
Low
Medium
High
Setup
Back:ȜSet:OK
Format
Date&Time
Imprint
Sound
USB
Computer
Printer
Setup
Back:ȜSet:OK
ŝ100Ş
Auto Focus lamp
LCD brightness
ƃAdjusting LCD Brightness
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [LCD] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[LCD] sub menu : Dark, Normal, Bright
5. Press the menu button twice and the menu will disappear.
ƈYou can adjust the LCD brightness.
ƃHow to set up the lamp
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [AF Lamp] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [Off] is selected : The AF lamp will not light up.
If [On] is selected : The AF lamp will light up.
ſIf you select [Off] menu and take an image in poorly lit conditions or select the [Night]
scene mode, the camera may not take exact focus.
ſThe Auto Focus lamp will function while using the self-timer even if the configuration is set
to off the lamp.
ƈYou can turn on and off the Auto Focus lamp
Date&Time
Imprint
Sound
USB
AF Lamp
Off
On
Setup
Back:ȜSet:OK
Imprint
Sound
USB
AF Lamp
LCD
Dark
Normal
Bright
Setup
Back:ȜSet:OK
ŝ101Ş

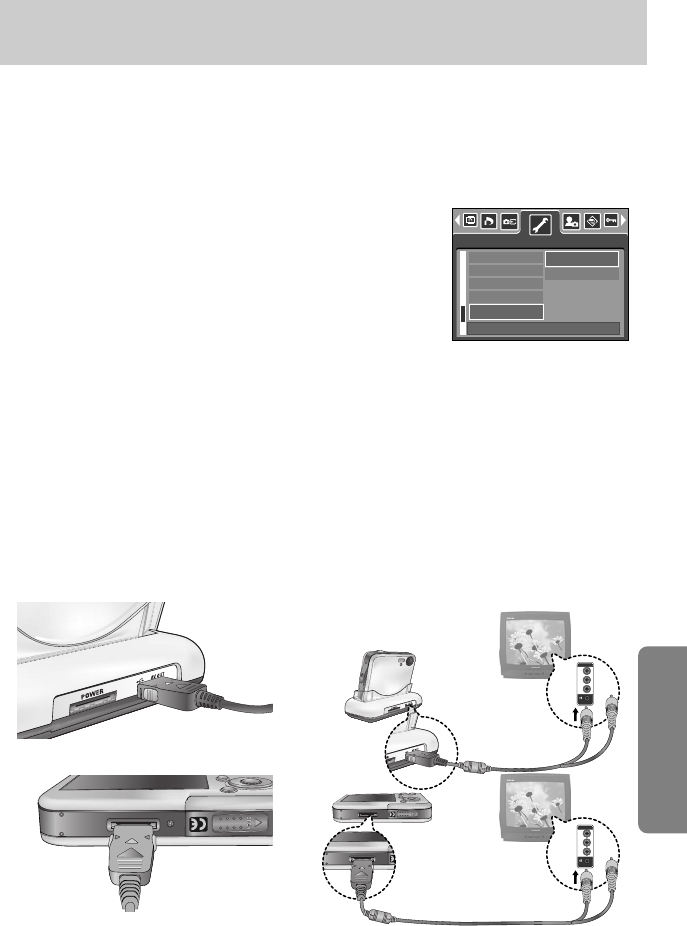

Selecting Video out type
ƈThe Movie output signal from the camera can be NTSC or PAL.
Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the
camera is connected. PAL mode can support only BDGHI.
ƃSetting the Video Out Type
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Video Out] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [Video Out] sub menu : NTSC, PAL
5. Press the menu button twice and the menu will disappear.
ƈConnecting to an external monitor
ƃUsing the AV cable with Cradle : Connect the camera and the cradle.
Connect the cradle to an external monitor with the
supplied AV cable.
ƃUsing the AV cable with Camera : Connect the camera to an external monitor with the
supplied AV cable.
Yellow - Video
White - sound
[Using the AV cable with Cradle]
[Using the AV cable with Camera]
Sound
USB
AF Lamp
LCD
Video Out
NTSC
PAL
Setup
Back:ȜSet:OK
ŝ102Ş
Selecting Video out type
ƃNTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.
ƃPAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland,
Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland,
Thailand, Norway.
ƃWhen using a TV as an external monitor, you will need to select the external or AV
channel of the TV.
ƃThere will be a digital noise on the external monitor, but it is not a malfunction.
ƃIf the image is not in the centre of the screen, use the TV controls to centre it.
ƃWhen the camera is connected to an external monitor, the menu will be visible on the
external monitor and the menu functions are the same as those indicated on the LCD
monitor.
INFORMATION
ŝ103Ş
Quick view
ƈIf you enable Quick View before capturing an image, you can view the image you just
captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is
possible only with still images.
ƃSetting Quick View
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Quick View] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[Off] : The quick view function can’t be activated.
[0.5, 1, 3sec] : The captured image is briefly displayed during the selected time.
5. Press the menu button twice and the menu will disappear.
Initialisation
ƈAll camera menu and function settings will be restored to their default values.
However, values for DATE/TIME, LANGUAGE, and VIDEO OUT will not be changed.
ƃInitialising the Camera
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Setup]
menu tab.
3. Select the [Reset] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [No] is selected : Settings will not be restored to their defaults.
If [Yes] is selected : All settings will be restored to their defaults.
USB
AF Lamp
LCD
Video Out
Quick View
Off
0.5 sec
1 sec
3 sec
Setup
Back:ȜSet:OK
AF Lamp
LCD
Video Out
Quick View
Reset
No
Yes
Setup
Back:ȜSet:OK
ŝ104Ş
Setting up the Mycam menu
ƈYou can set up a start up image, start up sound and shutter sound. Every camera working
mode (with the exception of Voice recording mode) has the MyCAM menu.
The items indicated by are default settings.
Menu tab Main menu Sub menu Page
Off LOGO
User Image 1 User Image 2
Off Sound 1
Sound 2 Sound 3
Off Sound 1
Sound 2 Sound 3
S.Image
S.Sound
SH.Sound
p.104
p.105
p.105
ƈYou can select the image that is first displayed on the LCD monitor whenever the camera is
turned on.
ƃSetting a Startup Image
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Mycam]
menu tab.
3. Select the [S.Image] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Start up image
ƃUse a saved image for the start-up image with the [User Image] in the [Resize] menu in
the play mode.
ƃThe start-up image will not be deleted by deleting all images or [Format] menu.
ƃThe User images will be deleted by [Reset] menu.
INFORMATION
ſMenus are subject to change without prior notice.
S.Image
S.Sound
SH.Sound
Mycam
Back:ȜSet:OK
ŝ105Ş

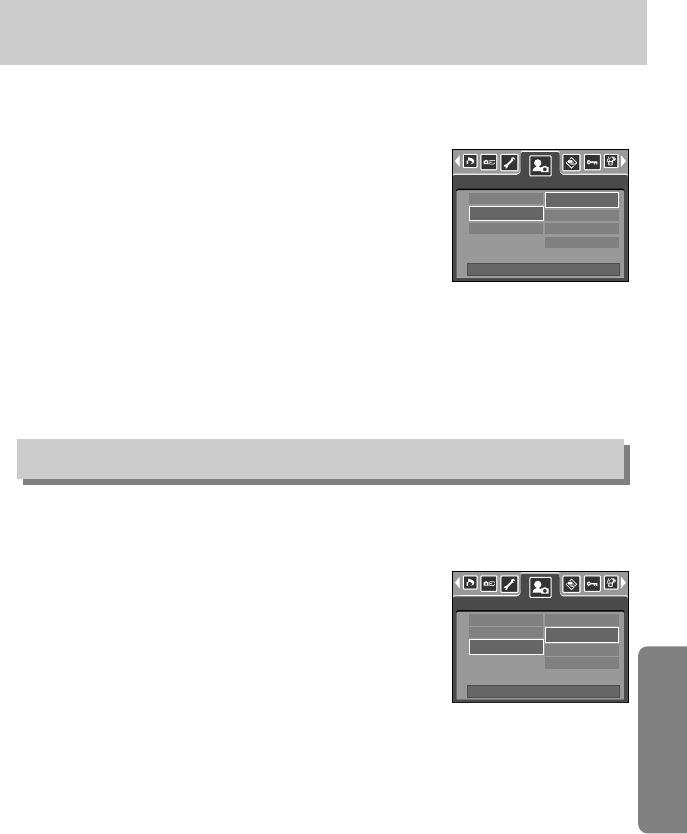

Start up sound
Shutter sound
ƃSetting the Startup Sound
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Mycam]
menu tab.
3. Select the [S.Sound] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
ƈYou can select the sound that is activated whenever the camera is turned on.
ƃSelecting the Shutter Sound
1. In any mode with the exception of Voice Recording and
MP3 mode, press the MENU button.
2. Press the LEFT/ RIGHT button and select the [Mycam]
menu tab.
3. Select the [SH.Sound] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
ƈYou can select the shutter sound.
S.Image
S.Sound
SH.Sound
Off
Sound1
Sound2
Sound3
Mycam
Back:ȜSet:OK
S.Image
S.Sound
SH.Sound
Off
Sound1
Sound2
Sound3
Mycam
Back:ȜSet:OK
ŝ106Ş

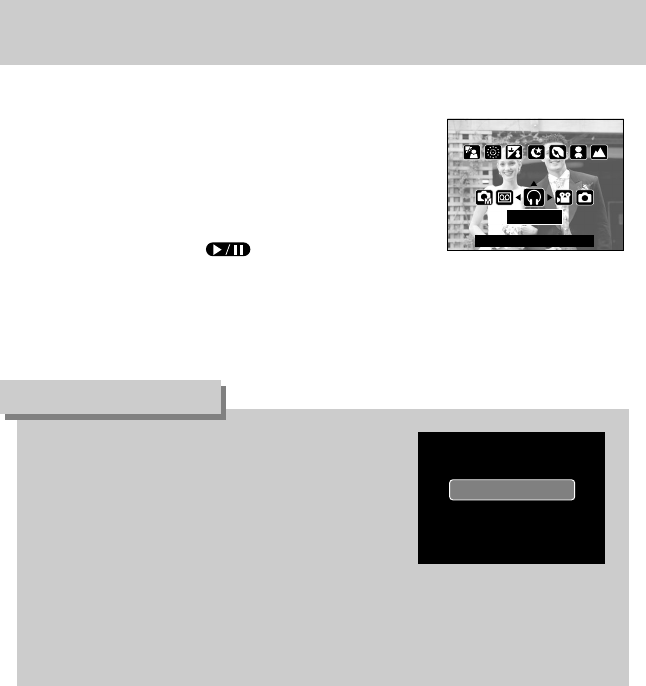

Downloading MP3 files
ƈDigimax i50 MP3 player
This camera has embedded MP3 player program.
You can save the MP3 files on this camera and listen to the MP3 files that is near enough to
compact disk quality.
ƈTo use MP3 files, ther must be saved in the internal memory or memory card of this camera.
1. Save the desired files on your PC.
2. Connect the camera to your PC with the USB cable and
turn on the camera.
3. Open Window's EXPLORER and search for
[Removable Disk].
4. Make MP3 folder under the Removable Disk.
5. Select MP3 files that you want to save and copy them to the MP3 folder.
ƃTake care of the illegal duplication of MP3 files. It violates the copyright law.
ƃThis camera can only play back MP3 files.
ƃYou can make up to 100 subfolder under the MP3 folder. You can't make subdirectory
under the subfolder.
ƃYou can save up to 200 MP3 files under 1 folder.
INFORMATION
1VKWZZMK\LQZMK\WZaC+WZZMK\LQZMK\WZaE
MP3 mode
ŝ107Ş
Starting the MP3 mode
ƃChanging the MP3 mode : If the [Still/Movie/MP3] menu was
selected Steps from 1~4 are the same as those for selecting
the [Mode] menu
5. A mode used just before will display.
6. Press the M (Mode) button located on the back of the
camera and the MP3 mode will be selected.
7. Inser the earphones. Press the Play button ( )
and an MP3 file will play back.
8. Press the M (Mode) button or the Shutter button and the
camera mode will change to another recording mode.
00:33/ 04:07
<ZIKSUX
ƈYou can select the MP3 mode by the M (Mode) button located on the back of the camera
and [Mode] menu.
ƃSelecting the [Mode] menu
1. Insert the battery (p.17).
2. Insert the memory card that holds MP3 files (p.21). As this
camera has a 43MB internal memory, you can save MP3
files on the internal memory.
3. Close the battery chamber cover.
4. Press the power button to turn on the camera.
5. Press the menu button and a menu will display. (Except for
the MP3 and Voice recording mode)
6. Select [Mode] menu by pressing the Left/Right button.
7. Select [Still/Movie/MP2] or [Full] menu by pressing the Up/ Down button.
- [Still/ Movie/ MP3] : MP3, Still image and Movie clip modes can be selected.
- [Full] : MP3, Voice recording and All recording modes can be selected.
8. Press the Menu button and the menu will disappear.
Still/ Movie/ MP3
Full
[Pressing the M (Mode) button]
Mode
ŝ108Ş
Starting the MP3 mode
ƃChanging the MP3 mode : If the [Full] menu was selected
Steps from 1-4 are the same as those for selecting the [Mode]
menu.
5. A recording mode used just before will display.
6. Press the M (Mode) button located on the back of the
camera and the mode selection menu will display.
7. To select the MP3 mode, press the Left/Right button.
8. Press the Play button ( ) and an MP3 file will play
back. To use an earphones, insert it to the Earphones jack.
9. Press the M (Mode) button or the Shutter button and the camera mode will change to
another recording mode.
58
;M\"735
ƃIn the MP3 mode, if there isn't MP3 file, [No file]
message will display.
ƃIf there is no operation during the specified time (About
30 sec.) the LCD monitor is turned off automaticall and
the camera status lamp is blinking. To use the camera,
press the camera buttons except for the Power button.
ƃThe automatic power off function will not operate if the
MP3 file is playing back.
ƃThe included earphones plug is 3.5mm through. To buy an earphones, contact your
nearest Samsung dealer or Samsung service centre.Before buying the earphones, check
the dimensiion of the earphones.
INFORMATION
No file!
ŝ109Ş

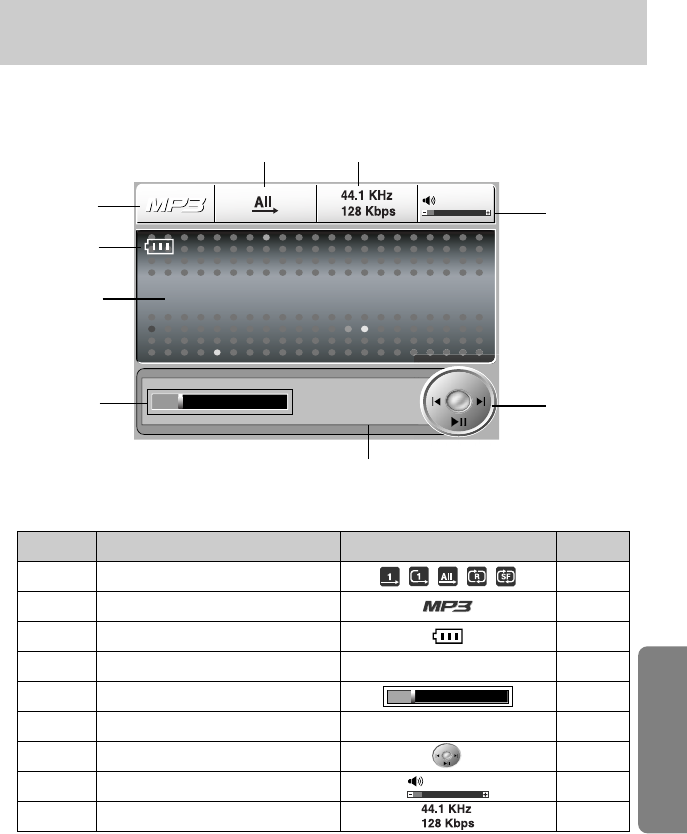

LCD monitor indicator of the MP3 mode
ƈThe LCD monitor displays information about the MP3 file.
00:33/ 04:07
<ZIKSUX
ڹ
ڻ
ں
ڼ
ڽ
ھ
ڿ
ۀ
ہ
No. Description Icons Page
1 Type of playing back p.113
2 MP3 mode -
3 Battery status p.17
4 Title of MP3 Track01.mp3 p.110
5 Time line -
6Playing time 00:33/ 04:07 -
7 Control button p.112
8Volume p.112
9Sampling rate, Bit rate -
ŝ110Ş

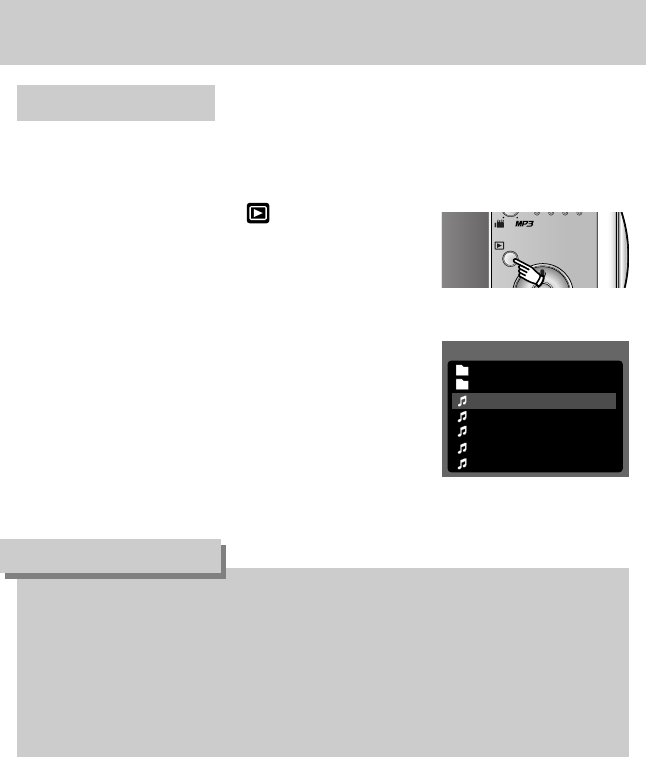

Using the camera buttons to adjust the camera
ƃMP3 lists and playing back order is the same as those for order of saving in the memory
card.
ƃOnly English and Korean title can be displayed. The other language title is displayed as
"------------".
ƃThis camera doesn't have Resume function. If you turn off the camera or change the
camera mode while a file is playing back , the file may start from the first segment of the
file when the file is played back again.
INFORMATION
ƈYou can see the MP3 files list and select a file.
ƃSelecting MP3 files
1. In the MP3 mode, press the ( ) button.
The cursor will lighlight a file that had been played back
at the time the list button was pressed.
2. You can select a file by pressing the Up/Down button.
Pressing the Left/ Right button scrolls the previous/next
page of the lists.
List button
*ITTILM
,IVKM
<<MMKKPP__QQVVUUXX
<ZIKSUX
<ZIKSUX
<ZIKSUX
<ZIKSUX
ŝ111Ş

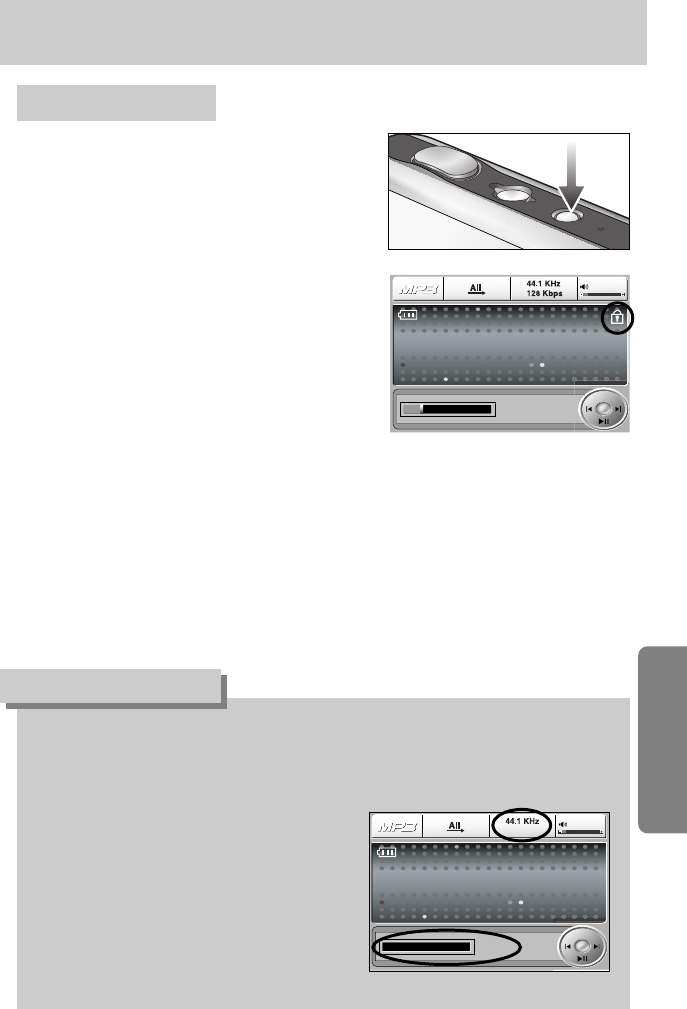

Using the camera buttons to adjust the camera
ƃPlaying back the VBR (Variable Bit Rate) file
VBR file varies the amount of output date in each time segment based on the complexity
of the input data in that segment.
When the VBR encoded files are played back, the LCD will display as shown.
- VBR icon will display instead of Bit rate.
- The time line isn't displayed.
- Playing time will display but the whole running
time doesn't display
INFORMATION
00:28/
<ZIKSUX
VBR
00:33/ 04:07
<ZIKSUX
ƃIf the camera buttons are locked, the buttons can't be operated while playing it back except
for the Powe off, Video out, USB connection and LCD on funciton can be operated.
ƃIf you press the Lock button again or turn off the camera, the camera is released.
ƃIf you press the Lock button over 1 second, the
camera buttons are locked.
ƃWhen the camera buttons are locked, a icon as
shown will display.
Lock button
ŝ112Ş
Using the camera buttons to adjust the camera
ƃBefore deleting MP3 files from the camera, you should download files to your computer.
INFORMATION
Volume button
ƈYou can control the volume with this button.
ƈThere are 0~30 steps. If you press it shortly, the volume will
increase or decrease with 1 step and if you press and hold it,
the volume will increase/decrease continuously.
Control button
ƈWhen a file is playing back, press the Down button to pause
the file. Pressing it again will resume playback.
ƈYou can search the MP3 files by pressing the Left/Right button.
Delete button
ƈThis deletes MP3 files stored on the memory.
1. Press the List button and MP3 lists are displayed.
2. Select a desired file by pressing the Up/Down/Left/Right
button and press the Delete button.
3. A message will display as shown
4. Select a desired menu by pressing the Up/Down button and
press the OK button.
[Delete] : deletes the selected file.
[Cancel] : cancels "Delete files" Delete?
Delete
Cancel
Confirm : OK
ŝ113Ş
Setting up the play back function using the LCD monitor
Play mode
ƈYou can set various repeat and shuffle options.
This function is adopted only the selected folder.
1. In the MP3 mode, press the Menu button.
2. Select the [Playlist] menu tab by pressing the Left/ Right
button.
3. Select a desired option by pressing the Up/Down button.
- [Play One] : plays a single track once.
- [Repeat One] : plays a single track repeatedly.
- [Play All] : plays all tracks in the folder and stop.
- [Repeat All] : plays all tracks in the folder repeatedly.
- [Shuffle] : randomly play all tracks in the folder.
4. Press the OK button to set the setting and the menu will disappear.
ƈMP3 mode functions can be changed by using the LCD monitor.
In the MP3 mode, pressing the MENU button displays the menu on the LCD monitor.
The menus you can set up in MP3 mode are as follows.
Menu tab Main menu Sub menu Page
Play One
Repeat One
Play All
Repeat All
Shuffle
No
All
Off
On
Play mode
p.113
p.114
p.114
Delete all
Slide show
ſMenus are subject to change without prior notice.
Play Mode
Play One
Repeat One
Play All
Repeat All
Shuffle
ŝ114Ş

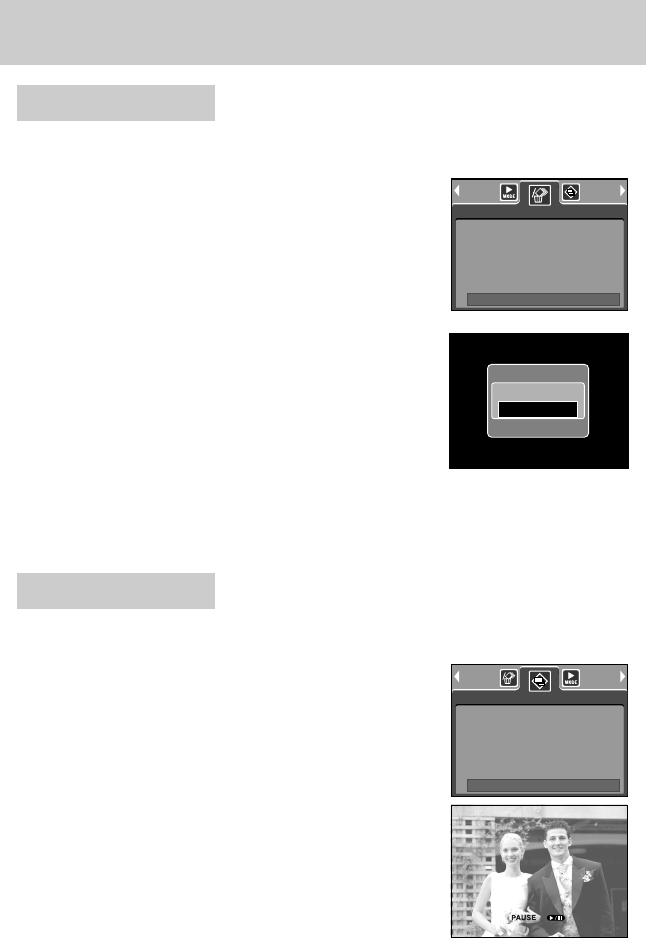

Setting up the play back function using the LCD monitor
Slide Show
ƈWhile the MP3 file is playing back, captured images are displaying on the LCD monitor
continuously.
1. In the MP3 mode, press the Menu button.
2. Select the [Slide Show] menu tab by pressing the Left/
Right button.
3. Select a desired menu by pressing the Up/Down button and
press the OK button.
[Off] : cancels the slide show. The menu will disappear.
[On] : Captured images are displaying continuously.
ſ
When the playing back is complete, the slide show will stop.
- Press the Pause button to pause the slide show.
- Press the Pause button again to resume the slide show.
- To stop the slide show, press the Pause button and then
press the Menu button.
Delete all
ƈHow to delete the files
1. In the MP3 mode, press the Menu button.
2. Select the [Delete All] menu tab by pressing the Left/Right
button.
3. Select a desired menu by pressing the Up/ Down button
and press the OK button.
[No] : Cancel the "Delete files"
[All] : a confirmation window will display.
Select [Delete] menu and press the OK button.
All MP3 files are deleted and [No Music!] message
will display.
No
All
Delete All
Exit:MENU Move:
OFF
ON
Slide Show
EXIT:MENU MOVE:
Delete?
Delete
Cancel
Confirm:OK
ŝ115Ş
Important notes
Be sure to observe the following precautions!
ƈThis unit contains precision electronic components. Do not use or store this unit in the
following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
ƈDo not leave this camera in places subject to dust, chemicals (like naphthalene and
mothball), high temperature and high humidity.
Keep this camera with silica gel in a hermetically sealed box when not planning to use the
camera for a long period of time
ƈSand can be particularly troublesome to cameras.
- Do not let sand get inside the unit when using it on beaches, coastal dunes, or other areas
where there is lots of sand.
- Doing so may result in failure or may permanently render the unit unusable.
ƈHandling the camera
- Never drop the camera or subject it to severe shocks or vibrations.
- Prevent the large size LCD monitor from an impact. When this camera is not used, keep
this camera in the camera case.
- Avoid obstructing the lens or the flash when you capture an image.
- This camera is not waterproof.
To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.
- If you use this camera in wet places, such as beach or pool, do not let water or sand get
inside the camera. Doing so may result in failure or may permanently damage the unit.
ƈExtremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid environment, condensation
can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at
least 1 hour until all moisture is dispersed. Moisture build up can also occur in the memory
card. If this happens, turn off the camera and remove the memory card. Wait until the
moisture has dispersed.
ŝ116Ş
Important notes
ƈCaution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of
the image sensor.
- Pay attention not to get fingerprints or foreign substances on the surface of the lens.
ƈIf the digital camera is not used for a long period, an electric discharge can occur.
It is a good idea to remove the batteries and the memory card if you do not intend using the
camera for an extended period of time.
ƈIf the camera is exposed to an electronic interference, it will turn itself off to protect the
memory card.
ƈCamera Maintenance
- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies.
If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera to come into contact with
solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell
of the camera and also affect its performance. Rough handling can damage the LCD
monitor. Take care to avoid damage and keep the camera in its protective carry case at all
times when not in use.
ƈDo not attempt to disassemble or modify the camera.
ƈUnder certain conditions, static electricity can cause the flash unit to fire. This is not harmful to
the camera and is not a malfunction.
ƈWhen images are uploaded or downloaded(when the charger and USB cable are inserted
into the cradle at the same time), the data transfer may be affected by static electricity.
In this case, disconnect and re-connect the USB cable before trying the transfer again.
ƈBefore an important event or going on a trip, you should check the camera condition.
- Take a picture for testing the camera condition and prepare extra battery.
- Samsung cannot be held responsible for camera malfunctions.
ŝ117Ş
Warning indicator
ƈThere are several warnings that may appear on the LCD display
Card Error!
ϛMemory card error
ƍTurn off the camera power and turn it on again
ƍInsert the memory card again
ƍInsert the memory card and format the memory card (p.97)
Memory Error!
ϛInternal memory error
ƍTurn off the camera power and turn it on again
ƍFormat the memory with the memory card removed. (p.97)
No Card!
ϛA memory card is not inserted
ƍInsert a memory card
ϛThe camera can’t recognise the memory card
ƍInsert the memory card again
ƍTurn off the camera power and turn it on again
Card Locked!
ϛThe memory card is locked
ƍSD memory card : Slide the write protect switch to the top of the memory card
Card Full !/ Memory Full!
ϛThere is insufficient memory capacity to take an image
ƍInsert a new memory card
ƍDelete unnecessary image files to free up some memory
No Image!
ϛThere are no images stored on the memory
ƍTake images
ƍInsert a memory card that is holding some images
File Error!
ϛFile error
ƍFormat the memory card
ϛMemory card error
ƍContact a camera service centre
Low Battery!
ϛThere is low battery capacity
ƍInsert charged battery
ŝ118Ş
Warning indicator
Low Light!
ϛWhen taking pictures in dark places
ƍTake pictures in Flash Photography mode.
Out Of Number
ϛWhen selecting too many printing pages in the PictBridge menu.
ƍSelect printing page within the limitation.
ƈPlease check the following
Before contacting a service centre
The camera doesn’t switch on
ϛThere is low battery capacity
ƍInsert charged battery (p.14 ~ 18)
ϛBattery are inserted incorrectly with the reverse polarities
ƍInsert the battery according to the polarity marks (+, -)
ϛThe rechargeable battery is not inserted
ƍInsert the battery and turn on the camera
The camera power ceases while in use
ϛThe battery are exhausted
ƍInsert charged battery
ϛThe Camera is turned off automatically
ƍTurn on the camera power again.
Battery drain quickly
ϛThe Camera is being used in low temperatures
ƍKeep the camera in warm conditions (i.e. inside a coat or jacket) and only remove it in
order to take images
ŝ119Ş
Before contacting a service centre
Camera does not take images when pressing the Shutter button
ϛThere is insufficient memory capacity
ƍDelete unnecessary image files
ϛThe memory card has not been formatted
ƍFormat the memory card (p.97)
ϛThe memory card is exhausted
ƍInsert a new memory card
ϛThe memory card is locked
ƍRefer to [Card Locked!] error message (p.108)
ϛThe camera’s power is off
ƍTurn the camera power on
ϛThe battery are exhausted
ƍInsert charged battery (p.14 ~ 18).
ϛBattery is inserted incorrectly with the reverse polarities
ƍInsert the battery according to the polarity marks (+, -)
The camera suddenly stops working while in use
ϛThe camera was stopped due to a malfunction
ƍRemove /re-insert battery and switch the camera on
The images are unclear
ϛA picture was taken within 0.5m from the subject without setting an appropriate macro mode
ƍIf the subject is closer than 0.5m, select macro shot mode
ϛTaking a picture beyond the flash range
ƍTake a picture within the flash range
ϛThe lens is smudged or dirty
ƍClean the lens
The flash does not fire
ϛFlash off mode has been selected
ƍDis-engage flash off mode
ϛThe camera mode can’t use the flash
ƍRefer to the FLASH instruction (p.37)
Incorrect date and time is displayed
ϛThe date and time have been set incorrectly or the camera has adopted the default settings
ƍReset the date and time correctly
ŝ120Ş
Before contacting a service centre
The camera buttons do not operate
ϛCamera malfunction
ƍRemove /re-insert battery and switch the camera on
A card error has occurred while the memory card is in the camera.
ϛIncorrect memory card format
ƍRe-format the memory card
The images don't play back
ϛIncorrect file name (Violation of DCF format)
ƍDo not change the image file name
Colour of image is different to the original scene
ϛWhite balance setting is incorrect
ƍSelect appropriate White balance
Images are too bright
ϛExposure is excessive
ƍReset exposure compensation
No image on external monitor
ϛThe external monitor has not been connected properly with the camera
ƍCheck the connection cables
ϛThere are incorrect files in the memory card
ƍInsert a memory card that has correct files
When using the PC’s explorer, the [Removable Disk] file does not show
ϛCable connection is incorrect
ƍCheck the connection
ϛThe camera is off
ƍTurn the camera on
ϛThe operating system is not Windows 98, 98SE, 2000, ME, XP/ Mac OS 9.2 ~ 10.3.
Alternatively the PC does not support USB
ƍInstall Windows 98, 98SE, 2000, ME, XP/ Mac OS 9.2 ~ 10.3 to PC that supports USB
ϛThe camera driver is not installed
ƍInstall a [USB Storage Driver]
ŝ121Ş
Specifications
Type 1/2.5" CCD
Effective Pixel Approx. 5.0 Mega-pixel
Total Pixel Approx. 5.1 Mega-pixel
Focal Length
SHD Lens f = 6.6 ~ 19.8mm (35mm film equivalent : 39 ~ 117mm)
F No. F 3.5 ~ F 4.5
Still Image mode : 1.0X ~ 5.0X
Play mode : 1.0X ~ 10.1X (depends on image size)
LCD Monitor 2.5" color TFT LCD (230,000 pixels)
Type TTL auto focus
Normal : 50cm ~ infinity
Macro : 5cm ~ 50cm (Wide), 25cm ~ 50cm (Tele)
Super Macro : 1cm ~ 5cm (Wide)
Auto : 5cm ~ Infinity (Wide), 50cm ~ Infinity (Tele)
Type Mechanical and Electronic shutter
Speed 1 ~ 1/2,000 sec. (Night : 16 ~ 1/2,000 sec.)
Control Program AE Metering : Multi, Spot
Compensation ť2EV (0.5EV steps)
ISO Equivalent Auto, 100, 200, 400
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync,
Flash off
Range Wide : 0.2m ~ 2.4m, Tele : 0.3m ~ 1.9m (ISO AUTO)
Recharging Time Approx. 4 sec.
Sharpness Soft, Normal, Vivid
Effect Normal, B&W, Sepia, Negative, Red, Green, Blue, RGB
Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L,
Tungsten, Custom
Voice Recording (max. 1 hour)
Voice Memo in Still Image (max. 10 sec.)
Date Imprinting Off, Date, Date&Time (user selectable)
Modes : Auto, Manual, Scene, SF
* Scene : Night, Portrait, Children, Landscape, Text, Close-up,
Sunset, Dawn, Backlight, Fireworks, Beach & Snow
Continuous : Single, Continuous
Self-timer : 2 sec., 10 sec., Double(10 sec., 2 sec.)
With Audio or without Audio (user selectable, recording time :
memory capacity dependent)
Size : 640x480, 320x240, 160x128 (3X Optical Zoom, Mute during Zoom Operation)
Frame rate : 30 fps, 15 fps
Movie Stabilizer (User Selectable)
Movie Editing (Embeded) : Pause during recording, Still Image
Capture, Time Trimming
Lens
Range
Digital Zoom
Focusing
Image Sensor
Shutter
Exposure
White Balance
Flash
Modes
Voice Recording
Shooting
Still Image
Movie Clip
ŝ122Ş
Specifications
Internal memory : Approx. 50MB flash memory
External memory : SD card /MMC (Up to 1GB Guaranteed)
Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
Movie Clip : AVI (MPEG-4) Audio : WAV
5M : 2592x1944 4M : 2272x1704
3M : 2048x1536 2M : 1600x1200
1M : 1024x768 VGA : 640x480
5M : Super Fine 11, Fine 21, Normal 32
4M : Super Fine 14, Fine 27, Normal 40
3M : Super Fine 17, Fine 33, Normal 49
2M : Super Fine 28, Fine 52, Normal 75
1M : Super Fine 66, Fine 111, Normal 151
VGA : Super Fine 149, Fine 217, Normal 275
* These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Type Single image, Thumbnails, Slide show, Movie Clip, Album
Editing Trimming, Resizing, Rotate, Effect
Digital output connector : USB 2.0 Audio : Mono
Video output : NTSC, PAL (user selectable)
DC power input connector : 4.2V
Rechargeable battery : 3.7V Li-ion battery (SLB-0737)
AC Charger : DC 4.2V, 450mA/ 750mA (SAC-41)
* Included battery may vary depending on sales region.
89.6 x 59.8 x 17.3 mm
(excluding the projecting parts of the camera)
Weight Approx. 133g (without battery and card)
Operating Temperature 0 ~ 40 ˚C
Operating Humidity 5 ~ 85 %
Storage Driver (Windows98/98SE/2000/ME/XP,
Mac OS 9.2 ~ 10.3)
Application Digimax Master, Digimax Reader
SF (Safety Flash)
3X Optical Zoom for Still & Movie.
New Charging System (Cradle (Optional))
MPEG-4 VGA 30fps Movie Clip (supporting Edit on DSC)
Powerful Effect (Colour, Highlight, Composite, Frame)
Quick Mode Change (M button, SF Button)
Capacity
(32MB)
Image Size
Storage
Interface
Image Play
Dimensions (WxHxD)
Power Source
Software
Special Features
Camera Driver
File Format
Media
ŝ123Ş
Specifications
ſSpecifications are subject to change without prior notice.
ſAll trademarks are the property of their respective owners.
Frequency 20Hz~20KHz
Earphone Port 3.5mm Port (Stereo Type)
Output Maximum Volume Left 15mW + Right 15mW(16ѳ)
Noise Ratio 85 dB with 20 KHz LPF
File Format MP3 (MPEG-1/2/2.5 Layer 3),
Bit Rate 8 ~ 320kbps (Including VBR)
One, All, Repeat One, Repeat All, Random, Slide Show On/Off
(User Selectable)
File
Play Mode
Audio
ſMP3 player
6806-2652
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWONGU,
SUNGNAM-CITY, KYUNGKI-DO, KOREA
462-121
TEL : (82) 31-740-8086,8088, 8090, 8092, 8099
FAX : (82) 31-740-8398, 8111
www.samsungcamera.com
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : (1) 201-902-0347
FAX : (1) 201-902-9342
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : (1) 310-900-5263/5264
FAX : (1) 310-537-1566
www.samsungcamerausa.com
SAMSUNG OPTO-ELECTRONICS UK LIMITED
SAMSUNG HOUSE
1000 HILLSWOOD DRIVE
HILLSWOOD BUSINESS PARK
CHERTSEY KT16 OPS U.K.
TEL : 00800 12263727
(free for calls from UK only)
UK Service Hotline : 01932455320
www.samsungcamera.co.uk
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : (49) 6196 66 53 03
FAX : (49) 6196 66 53 66
www.samsungcameras.de
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE :
00 800 22 26 37 27(Numéro Vert-Appel Gratuit)
TEL : (33) 1-4279-2200
FAX : (33) 1-4538-6858
www.samsungphoto.fr
SAMSUNG TECHWIN MOSCOW OFFICE
RUSSIA, 125167, MOSCOW LENNINGRADSKY,
PR-KT, 37-A, KORP14
TEL : (7) 095-258-9299/96/98
FAX : (7) 095-258-9297
http://www.samsungcamera.ru
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : (86) 22-2761-8867
FAX : (86) 22-2761-8864
www.samsungcamera.com.cn
ҧInternet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
2008. 4. 24

Navigation menu
