User manual
SAMSUNG SMARTCAM
User Manual SNH-1011N
SPECIFY SERVICE INSTRUCTIONS AND WARRANTY TERMS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
Instructions & Warranty
The manufacturer is not responsible for any loss or radio/TV interference caused by
unauthorized modification of the product.
Such modification will void the warranty of the product as well as the user’s right of use.
WARNING
• The product must be assembled and installed by an adult.
• Before using, read all instructions on this manual thoroughly and follow operational
instructions, warnings on this manual and printed on the product.
• To avoid entangled power cord, do not place it around the baby bed or other infant
furniture. Keep this product and its power cord out of children’s reach.
• Especially, the power cord should be installed carefully while keeping it out of
children’s reach.
• Never use the product near bath tub, sink, washing machine and in wet basement to
avoid moisture.
• The product is designed for indoor use.
• The product is not designed for medical monitoring, and requires a grown-up’s
protective supervision on its use.
• To avoid overheating of the product, do not expose the product to direct sunlight; do
not install or use near a heat source such as heater, radiator, cooking devices (ex:
electric stove or oven) and other warming devices (ex: audio amplifier, TV, etc.).
• Make sure to keep ventilated while using the product.
Avoid pillar or furniture that may block ventilation, when installing the product.
Copyright
©2012 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their
respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no
circumstances, this document shall be reproduced, distributed or changed, partially or
wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents
in this document, but no formal guarantee shall be provided. Use of this document
and the subsequent results shall be entirely on the user’s own responsibility. Samsung
Techwin reserves the right to change the contents of this document without prior notice.
Samsung SmartCam
User Manual
• Make sure to use the power adaptor provided. If used with unidentified adaptor, it
may damage the product. The power adaptor must be used with regular household
electric supply.
• Avoid sharp, pointed objects around the adaptor’s cable, not to damage the cable.
• Be warned and never hold the cable’s stripped part when connecting / disconnecting
the adaptor to/from the wall outlet.
• To avoid entangled cable lines, avoid using cable extension for adaptor’s power cord.
• The product’s servicing is allowed only to authorized Samsung Techwin’s service
personnel.
• When using the product for children’s care, be careful to keep the product out of
children’s reach.
• The product partially contains component which might cause respiration difficulty.
Accessories and small parts of the product should be stored keeping out of children’s
reach.
• The product is not designed to replace responsibility of human supervision on
children.
• The product is not equipped with device of immediate notification to adult with
accidental/sudden children‘s move; it requires periodic checks and human
supervision.
Contents
GETTING STARTED
Features ……………………………………………………… 4
Getting to know your Monitoring system …………………… 6
INSTALLATION & NETWORK CONNECTION
Installation …………………………………………………… 8
Network Connection and Settings …………………………… 10
MONITORING
Settings ……………………………………………………… 13
Live Video Setup …………………………………………… 23
Admin ………………………………………………………… 25
APPENDIX
Specifications ………………………………………………… 27
Troubleshooting
4
· English
Features 4
What’s Included 5
Getting to know your Monitoring
system 6
Power Supply 7
Network connection 7
01
GettinG Started
• Easy to install
-With the help of WPS (Wi-Fi Protected Setup), wireless sharing and easy
connection are enabled.
-Simply visit the home page (www.samsungsmartcam.com) and download and
install the program without a separate installer program.
• Remote monitoring
-Whenever and wherever if you are in the Internet enabled environment, remote
monitoring is ready for you.
-PC, laptop or smart phone can be used for monitoring.
• Real-time alarm
-Detect motion and sound before outputting the alarm in real time via Google Talk
Messenger or with smart phone.
• Cloud Storage
-Upload the event video and images to the user’s YouTube (video) or Picasa
(images) account automatically.
-Anytime anywhere you can enjoy the video and images stored in the cloud
storage.
• Two-way Audio
-With the built-in speakers and microphone, you can make Two-way
communications.
However, it is available only with the smart phone. (Not applicable to the PC or
laptop computer.)
• SNS (Social Networking Service) Alarm supported
-Provide the event alarm (message, video, image) via YouTube, Picasa or Twitter.
-Share special video footage and images with your friends.
• IR Flash
-In a low contrast scene, you can use IR Flash for the monitoring purpose.
Features
5
01
Getting Started

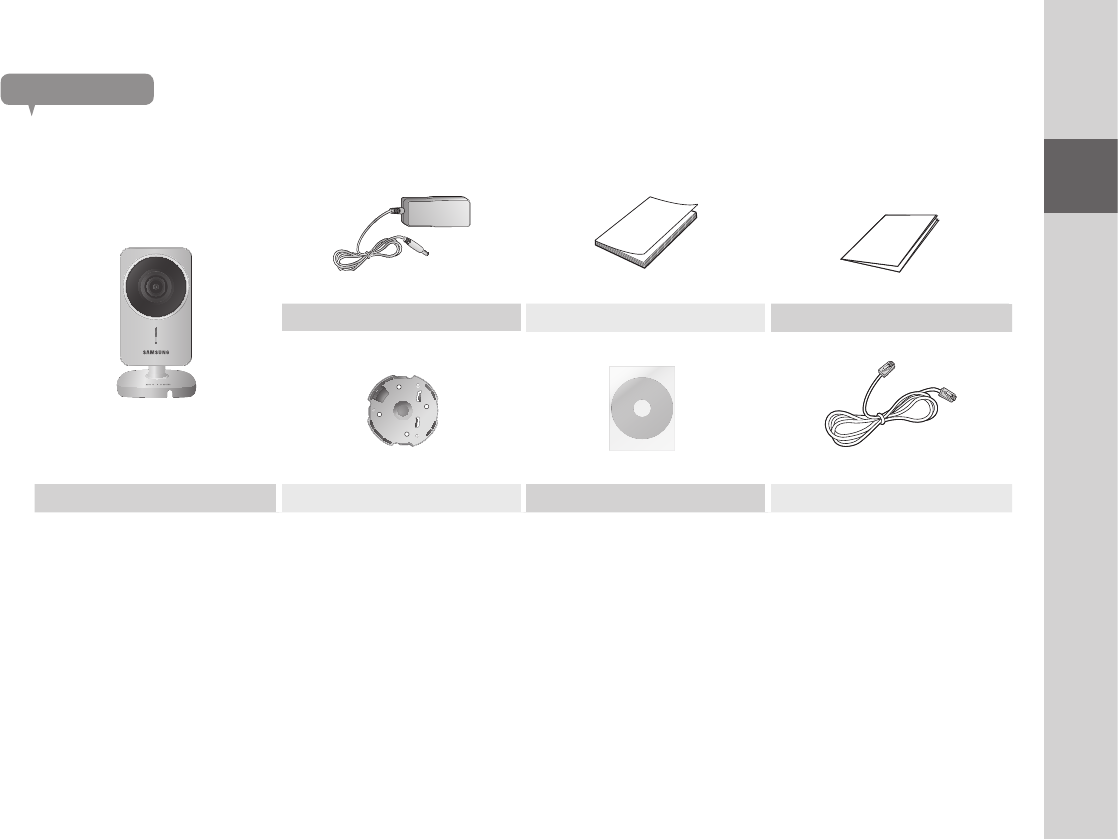

What’s Included
The system comes with the following components:
Power Adaptor Quick Guide Warranty Card
Camera & Bracket body Bracket wall Tape wall hanging Network Cable
Check for above components when opening the product package.
6
· English
Getting to know your Monitoring system
High quality camera lens
Built-in IR LEDs for night vision
Power / Wi-Fi status LED
Built-in Mic
DC IN 5V
SAMSUNG SMARTCAM
NETWORK
DC 5V Power Input
Press to access the receiver menu.
Press the button again to exit.
Network port
Used if WPS is not supported on the Wireless Access
Point or if you do not have a Wireless Access Point
Built-in speaker
스마트폰에서 전달되는 음성을 출력합니다.
Privacy button
Press once to stop transmitting video/audio
Press and hold for 5sec to reset the camera to default
settings
WPS button
Used to pairing the camera with the Wireless Access
Point
7
01
Getting Started
Power Supply

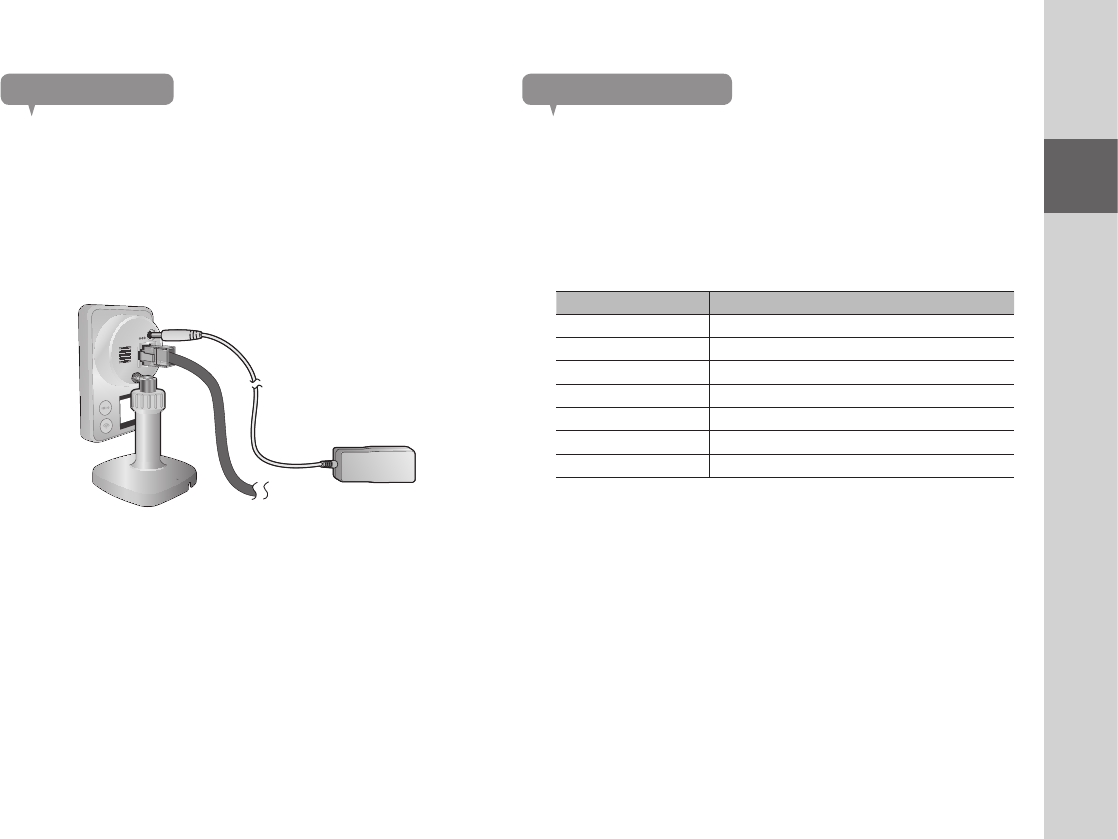

Plug-in the camera power adapter to the wall outlet and connect the camera as
shown.
n `Make sure to use the provided power adaptor. Otherwise, the product may not operate
properly.
`It will take about 1min for the camera to boot-up completely.
`When the boot-up is complete, the power LED color will change from red to blue.
Network connection
제공된 Network Cable 과 카메라 뒷면의 NETWORK 단자를 연결하세요.
자세한 네트워크 설정 방법은 "Network Connection and Settings"을
참고하세요. (10쪽)
LED status
LED 색상은 동작 상태에 따라 달라집니다.
다음 표를 참고하세요.
색상 상태
Red Booting 중
Red Blinking Booting 완료 / Alarm 발생
Green Server 연결 완료 / 정상 동작 중
Blue Blinking WPS Pairing 중(0.5초) / Network Setting 중(1초)
Blue Network 연결 완료
Yellow Privacy로 설정되어 있는 중
Magenta Firmware 업데이트 중
DC IN 5V
NETWORK
SAMSUNG SMARTCAM
UNLOCK◀▶ LOCK
8
· English
Installation 8
Precautions 8
Wall mounting 9
Stand mounting 10
Network Connection and Settings 11
Precautions 11

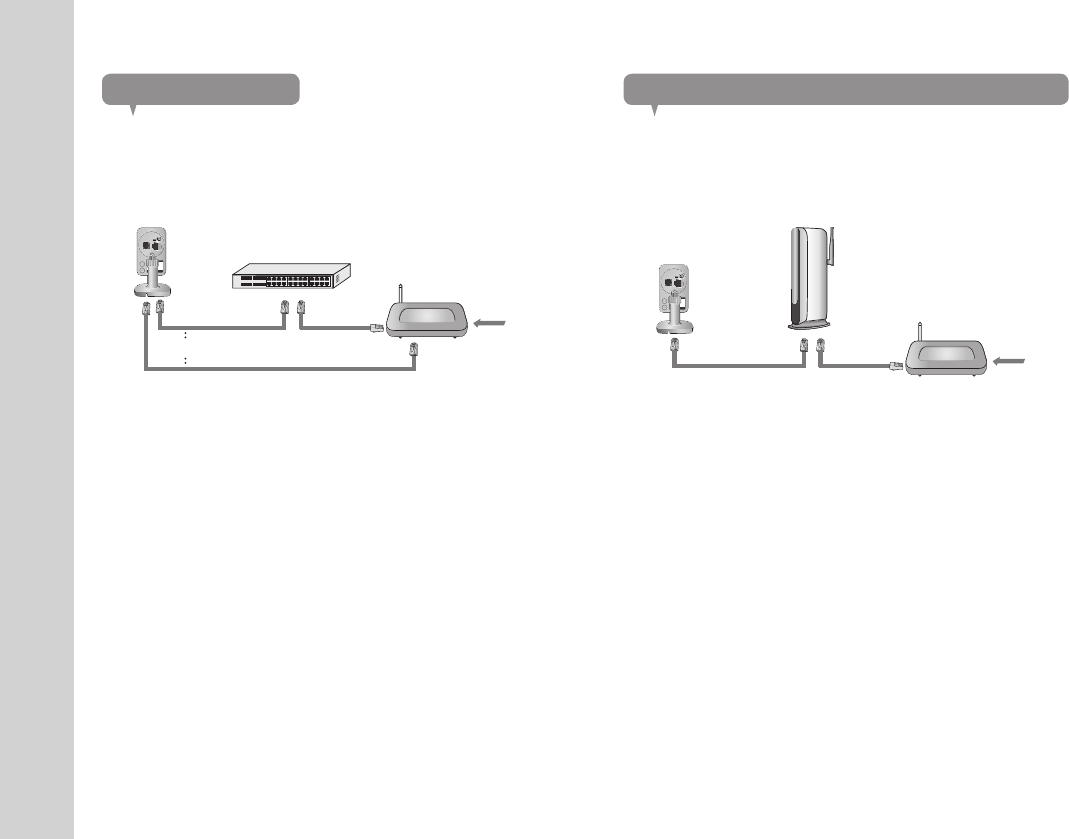

If using a cable router 12
If using a Wireless Access Point not equipping WPS 12
To connect to a wireless network with WPS 13
02
inStallation &
network ConneCtion
Precautions
1. Install the camera in a place where it can receive the video signal with no
interference.
2. Keep it away from humidity such as around the humidifier.
3. Keep it away from the direct sunlight, strong light or dust; install it in a place
of clear view.
4. Do not install it in a place interrupted by an obstacle.
5. Keep the lens clean at all times.
Wipe it off of dust with a soft cloth.
Installation
9
02
Installation & Network Connection
Wall mounting

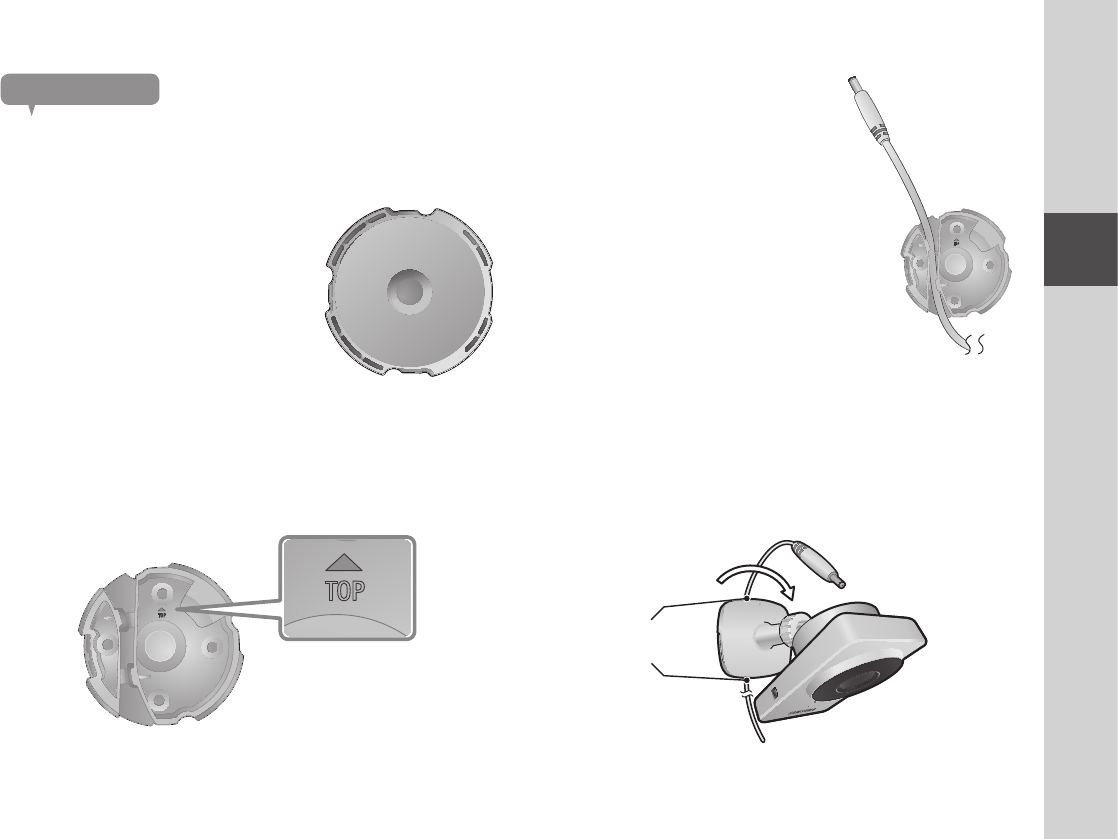

조립하기
1. Zipper bag에서 Tape wall hanging 및 Bracket wall을 꺼내세요.
2. Tape wall hanging의 사각형 바닥면
필름을 제거한 후, Bracket wall의
바닥면에 위치를 맞춰 부착하세요.
3. Tape wall hanging의 손잡이를 잡고 이형지를 제거한 후, 부착하고자
하는 면의 [▲ Top] 표시가 12시 방향을 향하게 하여 부착하세요.
n `
The Tape wall hanging cannot be reused after being used
once.
`
부착면에 먼지 / 물기 / 기름기를 사전에 닦아낸 후 부착해야
접착력이 좋습니다.
4. 동봉된 Adaptor의 선을 Bracket wall의
홈에 끼우세요.
n `
Adaptor 플러그 부분이 12시
방향을 향하도록 하세요.
5. Bracket body의 두 개의 홈에 맞춰 선을 정리하세요.
n `
Bracket body의 [UNLOCK LOCK] 표시와 Bracket wall의
[
▲
Top] 각인 방향이 동일한 방향을 향하게 하세요.
6. Bracket body를 시계 방향으로 ‘딸깍’ 소리가 들릴 때까지 회전시켜
고정하세요.
TOPTOP
TOP
TOP
UNLOCK ◀▶ LOCK
UNLOCK ◀▶ LOCK
UNLOCK ◀▶ LOCK
Bracket
body의홈
10
· English
7. Adaptor의 플러그와 카메라 뒷면의 전원
단자와 연결하세요
n `When done, remove the protective film from
the lens.
8. Adjust the camera’s shooting angle as
appropriate.
n `Do not put excessive force. Otherwise, it may
cause damage to the camera.
분리하기
1. 카메라 뒷면의 전원 단자에서 Adaptor의 플러그를 빼세요.
2. Bracket body의 왼쪽에 있는 [PUSHI TO RELEASE] 를 누른 상태에서
시계 반대방향으로 돌리면, Bracket wall이 분리됩니다.
n `
[PUSHI TO RELEASE] 를 누르지 않고 Bracket body를 시계
반대방향으로 돌려도 됩니다.
Stand mounting
조립하기
1. Bracket body와 Bracket wall의 [▼], [▲] 각인 방향에 맞춰 조립하세요.
DC IN 5V
NETWORK
SAMSUNG SMARTCAM
UNLOCK ◀ ▶LOCK
UNLOCK ◀▶ LOCK
11
02
Installation & Network Connection
2. Bracket wall의 홈을 이용하여 시계 방향으로 ‘딸깍’ 소리가 들릴 때까지
회전시키세요.
3. 분리 시, Bracket body 측면의 [PUSHI TO RELEASE] 를 누른 상태에서
홈을 이용하여 시계 반대방향으로 회전시키세요.
n `
조립 및 분리 시, 손톱이 부러지지 않도록 주의하세요.

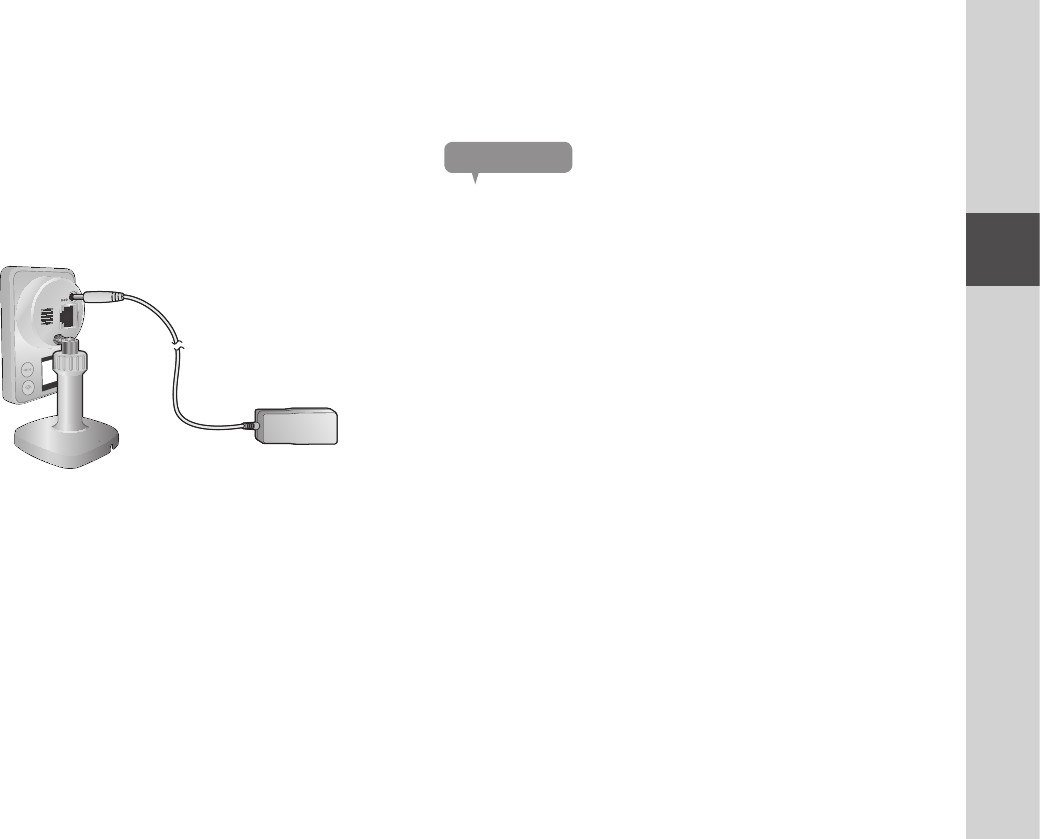

4. Adaptor의 플러그와 카메라 뒷면의 전원 단자와 연결하세요.
Precautions
• The wireless network access may fail, depending on the communications
environment.
• For details about the network settings and password, contact your network
administrator or service provider.
• For a specific Internet service requiring user authentication, you may not access
the service. If this is the case, contact the service provider.
• Do not access the unauthorized network.
• The farther the distance from the Wireless Access Point, the longer time the
network connection may take.
• If you fail to access the selected wireless network, try a different Wireless
Access Point to make access.
• For more information about the router or the wireless connection, refer to the
documentation of the router or contact the router manufacturer.
• If the camera is connected to a multiple-Wireless Access Point network
environment, some video packets may be lost, depending on the network traffic
load.
• According to the network policy (blocking UDP) of the service provider, the video
transmission can be limited to one minute.
• In addition to the above two situations, you may encounter a network delay or
interruption due to the network conditions.
• This product has gone through the compatibility test with worldwide top ranking
routers in the market but you may still have a problem in compatibility with some
conventional routers or other routers manufactured by other than the industry
leading companies.
Network Connection and Settings
DC IN 5V
NETWORK
SAMSUNG SMARTCAM
UNLOCK◀▶ LOCK
12
· English
If using a cable router
If you do not have a Wireless Access Point, you must connect the camera using
LAN cable directly to your home router.
1. Connect the network cable to the camera and to the home router as shown
below . Please refer to <Wired Network> on page 24.
DC IN 5V
SAMSUNG SMARTCAM
NETWORK
Internet Service
<Modem>
<Hub>
OR
If using a Wireless Access Point not equipping WPS
If you want to connect the camera using a non-WPS Wireless Access Point,
change the network setting to Wire and try the wireless network.
1. Use the network cable (LAN cable) to connect the LAN port of the unit to the
LAN port of the Wireless Access Point.
2. Register and select the camera according to guide of 03. Monitoring.
3. Set your wireless network environment using the guideline <Wireless
Network> on page 24.
n `When the wireless network settings are completed, remove the LAN cable.
`If you fail to connect to the Internet service, contact the service provider for details.
DC IN 5V
SAMSUNG SMARTCAM
NETWORK
Internet Service
<Modem>
<Wireless Access Point>
13
02
Installation & Network Connection
To connect to a wireless network with WPS
What is WPS?
WPS enables to make connection between the camera and the Wireless Access
Point with a simple click of the button.

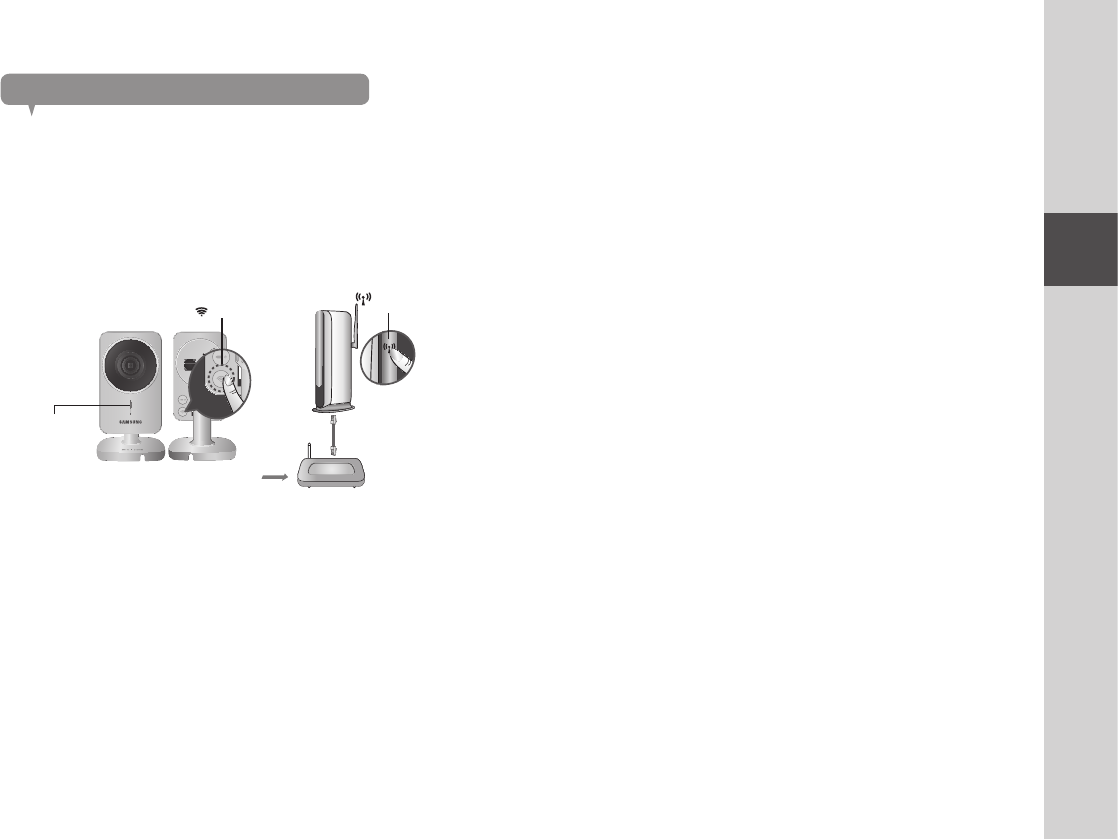

1. When you apply the power, the power status LED is lit red, and it will change
to red blinking when the booting is completed.
2. Press the WPS button on the camera.
Press the WPS button on the Wireless Access Point within 2min.
3. The WiFi status LED will become steady blue once the camera is connected
to the Wireless Access Point. (may take up to 30sec).
If the Wi-Fi status LED (blue) is not lit, repeat steps 2 through the end and
check it again.
4. The Wi-Fi status LED will became steady green once the camera is
connected to server.
n `If the Wireless Access Point do not support WPS or you do not have wirelss router,
please go to Wired Connection.
`If no WPS button is displayed or visible on the display, see the Wireless Access Point’s
manual or contact the manufacturer of your Wireless Access Point for technical
assistance.
`On some routers, you may need to log in to the web interface and click on an
on-screen button to activate the WPS feature.
`If you fail to connect to the Internet service, contact the service provider for details.
DC IN 5V
SAMSUNG SMARTCAM
NETWORK
SAMSUNG SMARTCAM
NETWORK
WPS Button WPS Button
<Modem>
<Wireless Access Point>
Internet Service
Wi-Fi
Indicator LED
14
· English
Settings 14
Account Setup and Registering the Camera 14
Live Video 20
Alarm Settings 21
Live Video Setup 24
Video Setting 24
Network Setting 25
Time Setting 26
Admin 26
Private Key 26
Update Firmware 27
My Account 27
03
MonitorinG
Account Setup and Registering the Camera
Once you register the product with the site, you can monitor the camera video on
the PC or laptop computer.
Web browser requirements
Windows Mac
- Windows 7, XP supported
- Internet Explorer 7 or 8
(The 64-bit Internet Explorer 8 is not
supported.)
- Firefox
- Chrome
- Safari
- Firefox
- Chrome
n `If you fail to make network connection with MAC Safari, follow the instructions below:
1) Click to run the Finder.
2) Click the application, and double-click the Utilities icon.
3) Double-click on the Java Preferences icon.
4) When the Java installer screen appears, click Install.
5) When the installation is completed, check the option of “Enable Web Start and
applet plug-in applications” from the Java preference window.
Settings
15
03
Monitoring
1. Enter www.samsungsmartcam.com on the web browser’s address field.
n `If you do not have Java installed on your computer, you will be asked to click on the
link to download the Java plug-in and install. This process may take up to 10 minutes
depending on your internet connection speed.
n `This product is designed to automatically install JAVA but, in many situations, if it is not
installed automatically, visit by www.java.com and follow the onscreen instructions to
install the product.

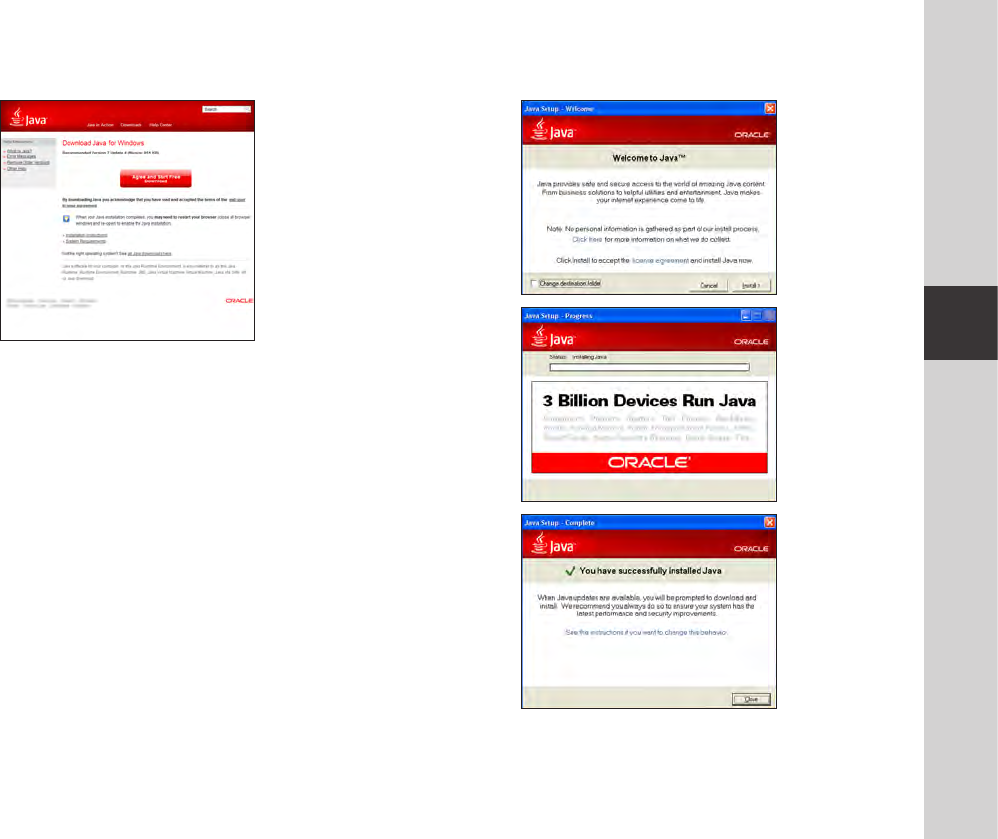

Java-uninstalled PC
1) Verify the Java version
• In the SmartCam Web service access page, make search for JAVA
Runtime Environment (hereinafter “JRE”) and check if your PC has installed
the recommended version of JRE 1.6.10 or later. If not, install the latest
version of JRE as recommended by the Company.
2) Move to the Verify Java page
• If you agree to upgrade the current Java version for a PC installing JRE
version 1.6.10 or earlier or a PC not installing JRE yet, you will move to the
Java Verify page.
• If you have not installed Java yet, you will be prompted to install JRE with
a message.
3) Start installing Java
16
· English

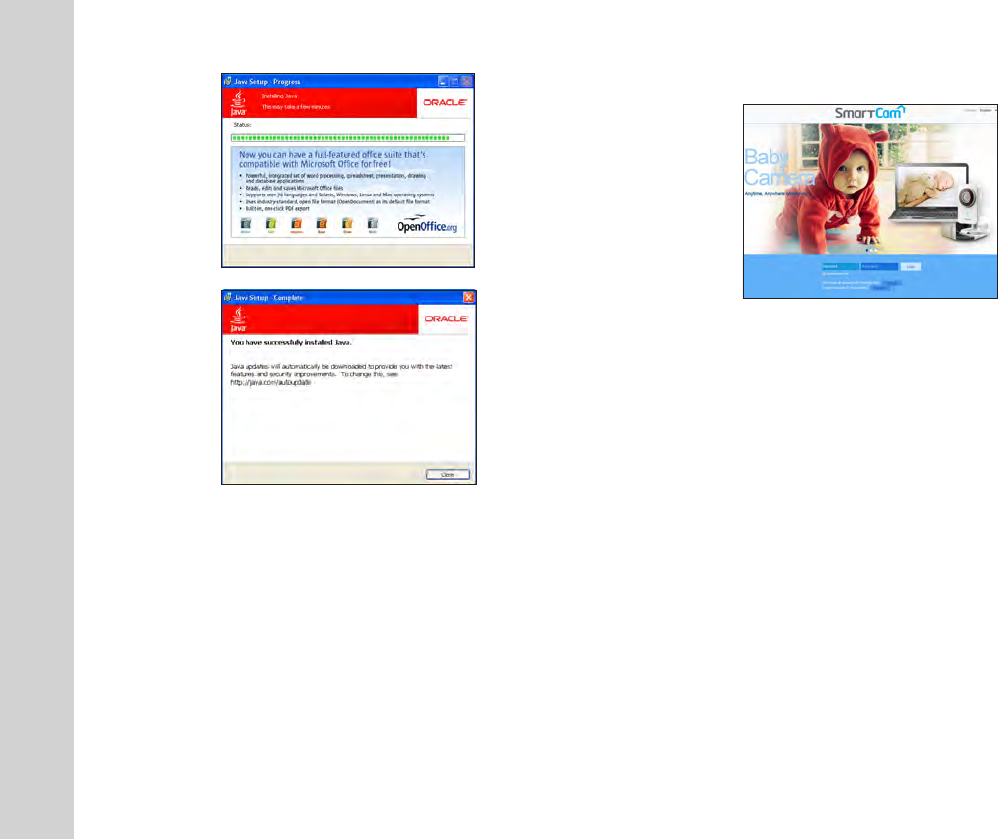

• If you accept the installation of JRE, the installation process will start.
4) Verify Certificate
• When JRE is installed completely, you will move to the SmartCam Web
page. And, you will be prompted to agree to run the application published
by Samsung Techwin Co., Ltd.
5) Start the SmartCam Web service
PC having JRE 1.6 or earlier installed
1) Verify the Java version
• In the SmartCam Web service access page, make search for JAVA
Runtime Environment (hereinafter “JRE”) and check if your PC has installed
the recommended version of JRE 1.6.10 or later. If not, install the latest
version of JRE as recommended by the Company.
• From the Verify Java page, click on the given button to check the Java
version.
2) Verifying the Java version
•
Search for
the
current version of JRE on the PC
3) Check the JRE version of the current PC
•
Check the current JRE version and download the latest version if necessary
( version 7 Update 4 as of 2012/05)
17
03
Monitoring
4) Agree to install JRE
•
Agree to install the latest version of JRE
5) Move to the Verify Java page
• If you agree to upgrade the current Java version for a PC installing JRE
version 1.6.10 or earlier or a PC not installing JRE, you will move to the
Java Verify page.
•
If you have not installed Java yet, you will be prompted to install JRE with a
message.
6) Start installing Java
• If you accept the installation of JRE, the installation process will start.
18
· English

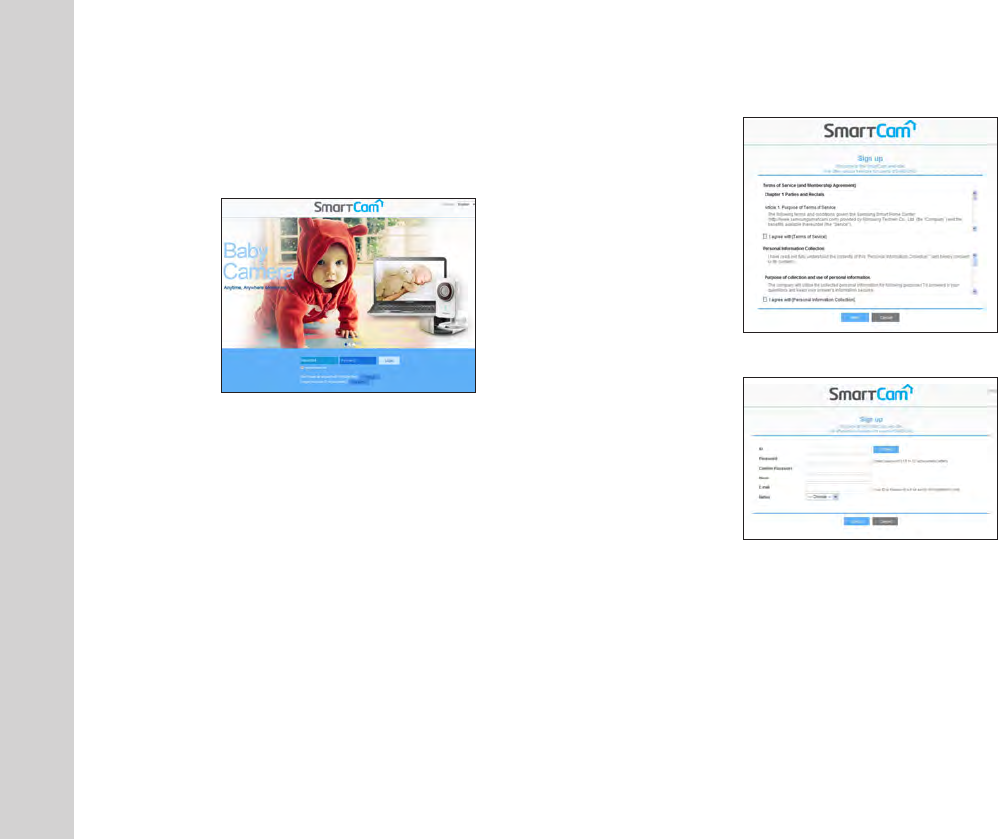

2. Select <Sign Up> to register.
After reading the terms of use, check on “I agree with”, and click <Next>.
3. Provide the requested information, and click <Sign Up>.
• ID : Enter the user ID and perform the duplicate check.
Fill in the user ID in 8 ~ 12 alphanumeric characters.
• Password : For security reason, provide the user password in 8 ~ 12
alphanumeric characters.
• Confirm Password : Please enter the password again for confirmation.
• Name : Enter the user name.
• E-mail : Enter the correct email address as it is used for reference in case
you forgot the user ID or password.
• Nation : Please select your country.
7) Verify Certificate
• Move to the SmartCam Web page (www.samsungsmartcam.com), and
you will be prompted to agree to run the application published by
Samsung Techwin Co., Ltd.
8) Start the SmartCam Web service
19
03
Monitoring

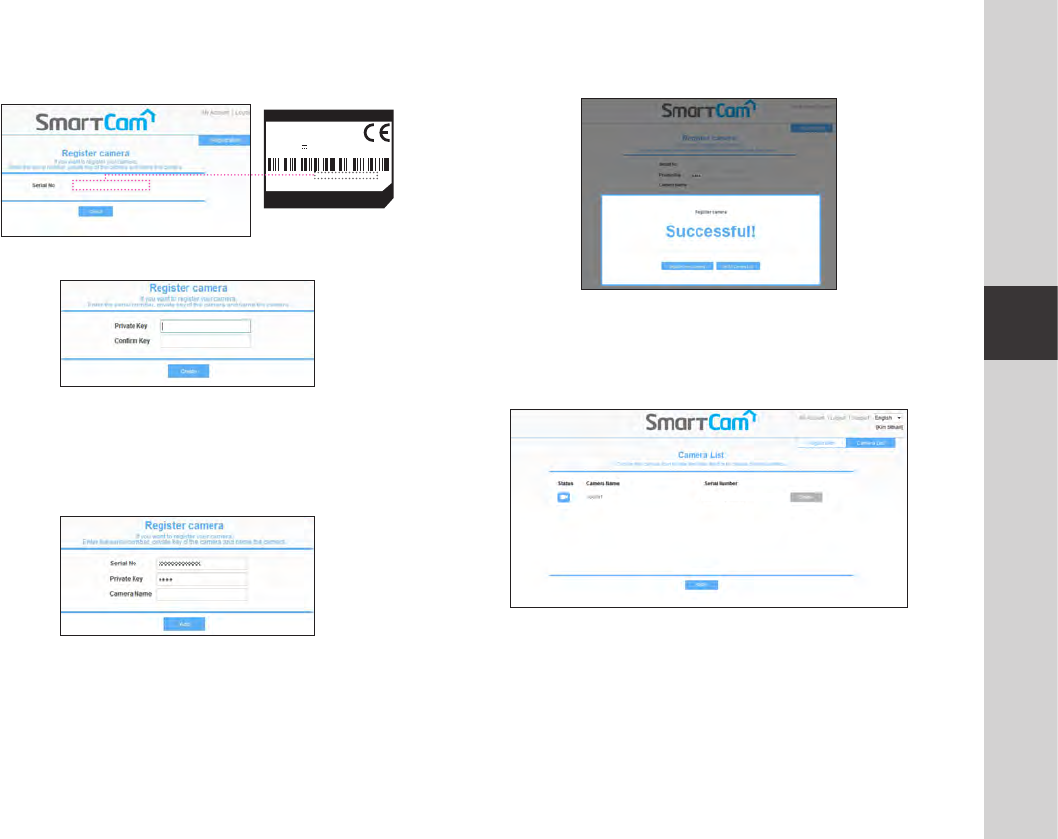

4. Enter the <Serial No> and click the check.
5. Create a <Private key>.
n `Private key is required to prevent unauthorized access to the camera.
`You can use one to eight length strings of letters, numbers, and characters except ‘-’
and ‘,’.
6. Create a <Camera Name>.
• Camera Name : You can provide the camera name to your preference for
identification in the multi-camera network. (ex: Living room, Kitchen...)
n `You can use one to fifteen length string of letters, numbers, and characters
‘~`!@#$%^&*()_-|{}[];’,./?’.
7. When done, click <Registration>.
n `If you want to change the private Key, please refer to <Admin> on page 25.
8. Once the camera is successfully registered, you can check the camera in the
<Camera List>.
SAMSUNG SMARTCAM
MODEL : SNH-1011N
DC 5. OV 2. 2A
M/C : SNH-1011N/US PV
Apr 2012 S/N : XXXXXXXXXXXXXXX
MAC ADDRESS. : XX-XX-XX-XX-XX-XX
SAMSUNG TECHWIN CO., LTD.
MADE BY SAMSUNG IN CHINA
<Rear Label of the Product>
XXXXXXXXXXXXXXX
20
· English
Live Video
1.

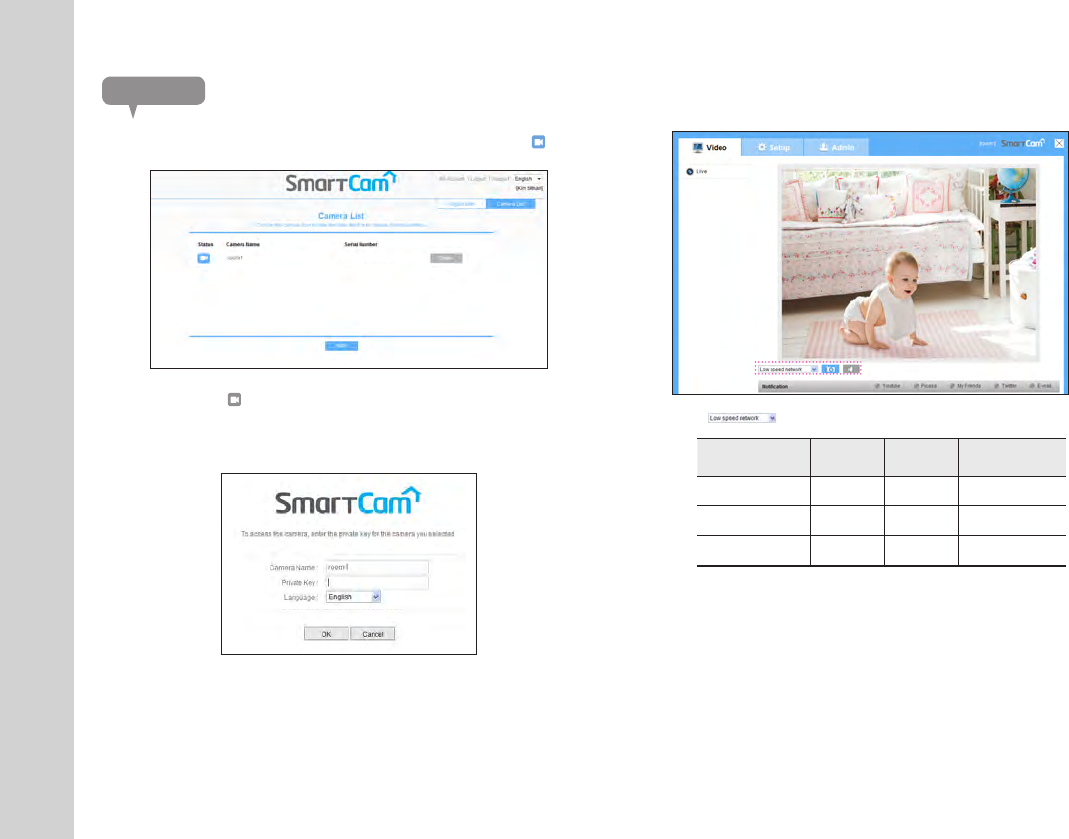

From the <Camera List>, select the camera to monitor and click < >.
n `The < > icon indicates the camera is inactive so you cannot monitor it right now.
2. Enter the Private Key and select preferred language.
3. When done, click <OK>.
4. Select <Video> <Live> to display the live feed from the selected camera.
• <> : Select frame rate based on your network speed.
Profile Name Resolution Frame rate Recommended
bandwidth
Low Speed Network VGA 5 fps 768Kbps
Mid Speed Network VGA 10 fps 1Mbps
High Speed Network VGA 30 fps 1.5Mbps
n `If the bandwidth provided by the cable service provider is lower than recommended,
you may encounter a blurry image or a temporary loss of video signal.
XXXXXXXXXXXXXXX
21
03
Monitoring
• <> : Takes a picture of current live image you are viewing.
• <> : When enabled, you can hear what’s happening around the
camera.
n `Depending on the policy of the Internet service provider, the sound output may not be
supported. (in either 3G UDP or Relay mode)
`Depending on your internet provider, When the camera can’t connect your phone or
PC directly, Relay mode show on display screen and the live video viewing may
time-out after 1 minute.

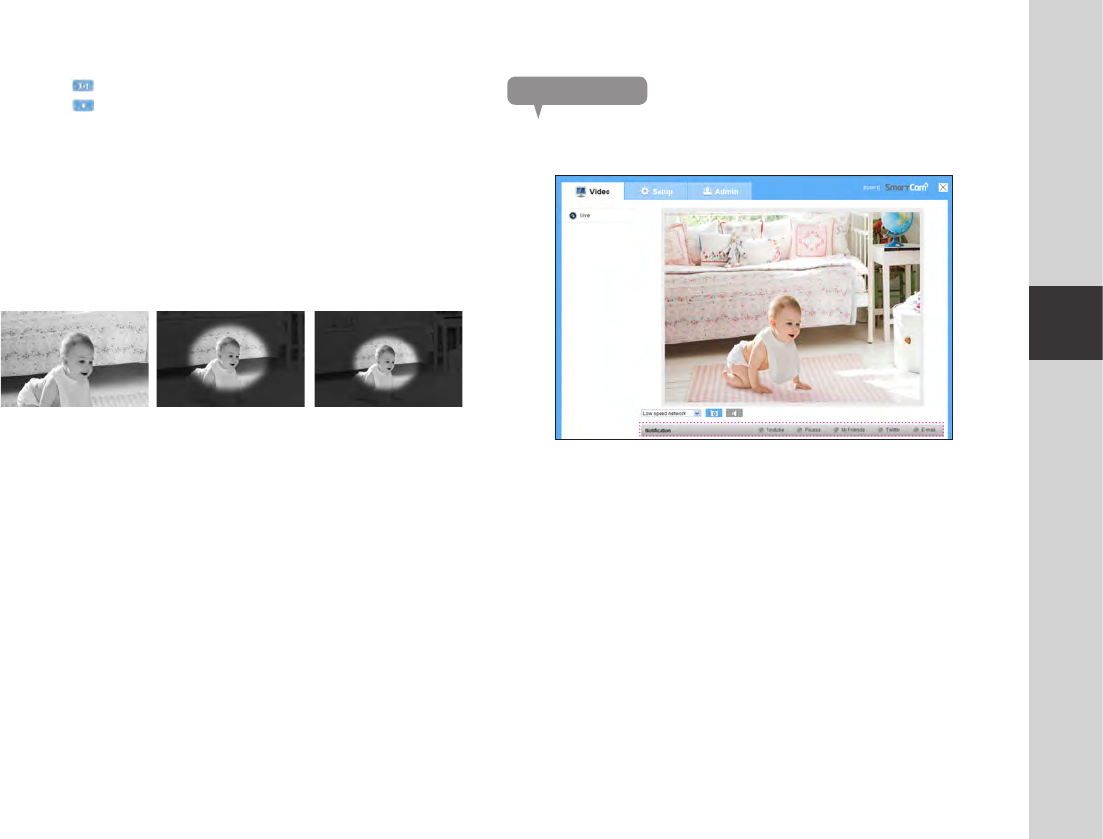

`The Night Vision video produces a different visibility according to the distance between
camera and subject. (See the picture below)
Alarm Settings

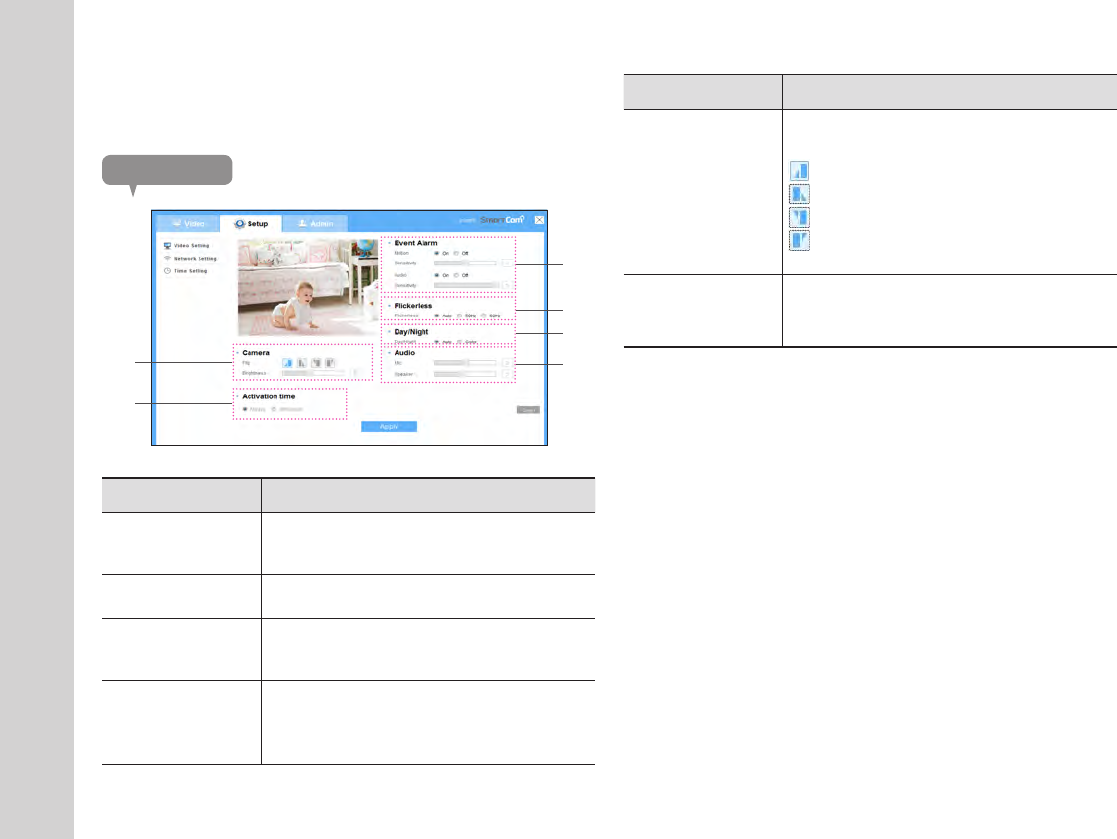

Camera has ability to send event notifications when motion or audio is detected.
See the notification bar below the live view.
1. From the bottom menu bar of the live screen, select to click one of SNS,
Messenger, and Email. The context menu should appear.
n `
Provide the user ID and password that you have created and set in the previous site.
`If you fail to synchronize time, no event alarm will occur.
`In order to synchronize time, the device should be connected to the Internet.
1m distant (1.0 field) 2m distant (0.65 field) 3m distant (0.5 field)
22
· English
<YouTube> Notification
When enabled, you can record up to 30 seconds of video to your private YouTube
account.
1. Select Enable.
2. Enter your YouTube user ID and password.
3. Select public or private folder to save. By default, it’s set to private folder.
4. Click [Apply].
n `You can check the recorded video at the YouTube homepage “Video Manager”
“Uploaded”.
`Note that depending on the policies of YouTube, the video may not be uploaded.
`If setting to “public”, the video may be exposed to the public.
`It is advisable to create and use one YouTube account for each camera.
`Even when you have set the YouTube alarm, the video will not be transferred if the
event alarm is not set to Enabled (see page 23).
`
If a continuous motion is detected or the audio alarm occurs, the camera can
recognize the next event only after the uploading to YouTube is completed.
(In other words, it does not recognize any event until the YouTube upload is finished.)
<Picasa> Notification
When enabled, camera will send a picture of the event to your Picasa account.
1. Enter your Picasa user ID and password.
2. Select either public or private folder to save. By default, it’s set to private
folder.
3. Click [Apply].
n `
If you have set the private setting of the video image, no image will be found in portal sites.
`Refer to the policy of Picasa for the maximum number of uploaded images.
`YouTube and Picasa must be enabled to receive notifications.
<My Friends> Notification
When enabled, camera will send event notifications to listed user IDs.
Notifications can be viewed in Smartcam App or Google Talk.
•
If this is set to <Enabled>, the video and image link recorded in YouTube and
Picasa will be transferred to the listed friends in real time in the event of an alarm.
• The video/image alarm will be transferred only if you have set the Youtube and
Picasa enabled. Otherwise, no alarm will be triggered.
• You will have no video displayed if you don’t have any Youtube ID and access a
private content.
•
Even when you access the Youtube site, no video will be played automatically.
Be sure to click the Play icon to play a video.
If you fail to play the video, log into the Youtube site and install Flash Player and try again.
• The Friend list will have user IDs registered at the Web site (www.
samsungsmartcam.com). When an alarm occurs, the PUSH alarm will be
notified to the respective smart phones via the Web site.
• If you want to receive the notification with Google Talk, follow the instructions
below to configure the Google Talk settings.
1. xxxxxxxx@xmpp.samsungsmartcam
23
03
Monitoring
❖<Google Talk> Notification
1) In the friend’s list, it shows the IDs that camera is registered to and Google
Talk friends that receives real-time notification from the camera.
2) When enabled, you can receive real-time event notification through Google
Talk messenger and Smartphone push service.
3) To receive instant event notification, add the camera as a friend to your
Google Talk messenger account. You have to add the following user ID.
(camera serial number@xmpp.samsungsmartcam.com) (i.e., XXXXXXXX@
xmpp.samsungsmartcam.com)
4)
Once camera is invited, you will receive an instant message to enter the private
key for authentication. Enter the private key of the camera you are adding.
5) Once completed, you can see the Google Talk messenger ID in the camera
My Friends list.
6) Click [Apply].

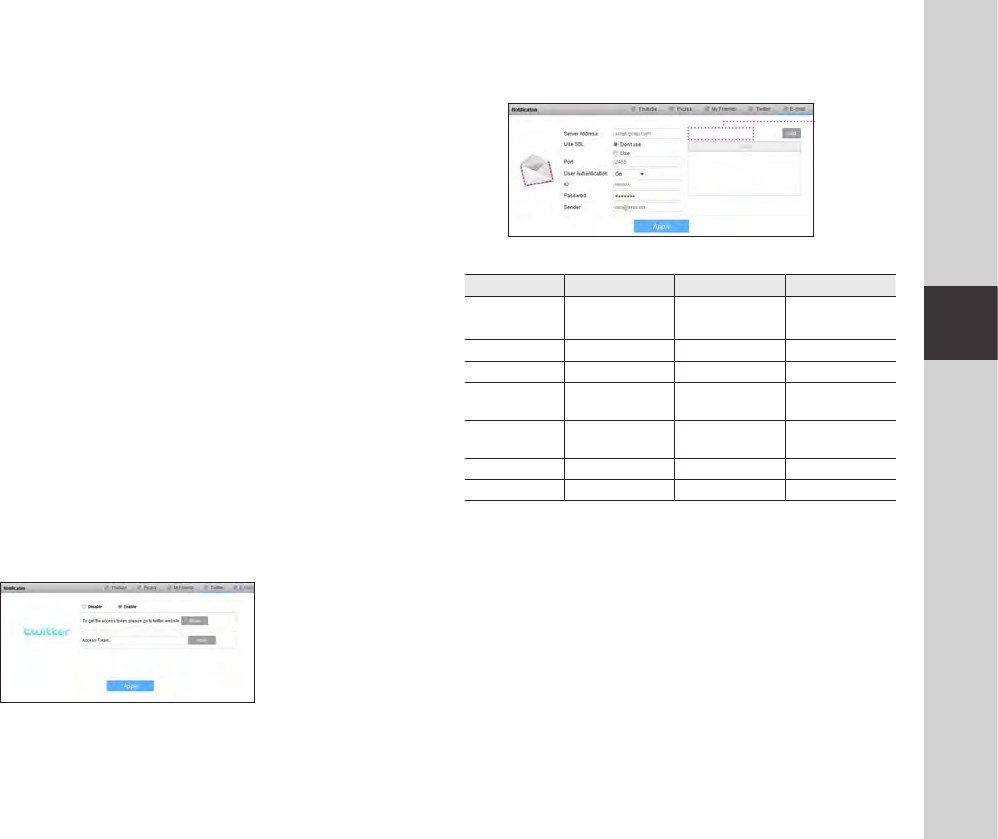

<Twitter> Notification
When enabled, camera will send a notification as a message to your twitter account.
1. Click on “Request URL”.
2. Click on Get Token.
3. Twitter web page will pop-up for authorization.
4. Enter your Twitter user ID and password and click on “Authorize app” to get
the Access Token.
5. You will see the pin number generated. Copy the pin numbers and go back
to the camera page and paste the pin number in the Access Token section.
6. Click [Apply].
n `The alarm notification will be sent to the specified user account via Twitter.
<E-mail> Notification
1. Please see the below table for the popular email server information.
Gmail Yahoo Yahoo Plus
Server Address smtp.gmail.com smtp.mail.yahoo.
com
plus.smtp.mail.
yahoo.com
Port 465 25 465
Use SSL. Use Don’t Use Use
User
Authentication on on on
ID Full email address Only ID without
“@yahoo.com”
Only ID without
“@yahoo.com”
Password Email password Email password Email password
Sender Full email address Full email address Full email address
2. If your email provider is not listed, you need to get the email server
information from your email provider.
3. Add above information and receiver full email address and then click Add
button.
<Receiver email
address>
24
· English
Live Video Setup
Video Setting
No. Description
a
Event Alarm
Specify whether to trigger the alarm or not, and specify the sensitivity.
The higher the sensitivity is, the subtler motion/sound events will be
detected.
b
Flickerless This will prevent possible screen distortion due to a mismatch between
the vertical sync frequency and the blinking frequency of the lighting.
c
Day/Night
Set the IR lighting.
If you set it to <Color>, the camera will not switch to the Day/Night
mode.
d
Audio
Adjust the volume of the built-in microphone and speaker of the
camera as appropriate.
Note that the Two-way audio transfer function is available only with the
smart phone application.
No. Description
e
Camera
You can configure the camera-related settings.
Flip: You can flip over the video image.
: Disable the screen rotation.
: Horizontally mirrors the video image against the vertical axis.
: Vertically flips over the video image against the horizontal axis.
: Rotate the screen by 180°
Brightness: You can adjust the brightness of the screen image.
f
Activation Time
You can activate the motion and audio detection at a desired time.
Always: It will work at all times.
Scheduled: You can select the time of activation.
n `If you display more than one live video with the Web browser, they can be overlapped
in some portion. It is recommended to use one browser at one time.
`If camera is capturing a close object, the video analysis capability may degrade. In the
following cases, the video analysis function may not produce a proper result on the
default event and motion detections.
- The object color or brightness is similar to the background.
-
Multiple movements continue occurring at random due to a scene change or other reasons.
- A fixed object continues moving in the same position.
- An object hides other objects behind.
- Two or more objects overlap or one object divides in multiple portions.
- Too fast object (for a proper detection, one object should be found overlapping
between contiguous frames).
-
Reflection / blur / shadow due to a strong light such as direct sunlight, illumination, or headlamp.
- In severe snow, rain, wind or in dawn / dusk.
- A moving object comes close to the camera.
a
b
c
ed
f
25
03
Monitoring
Network Setting
No. Description
a

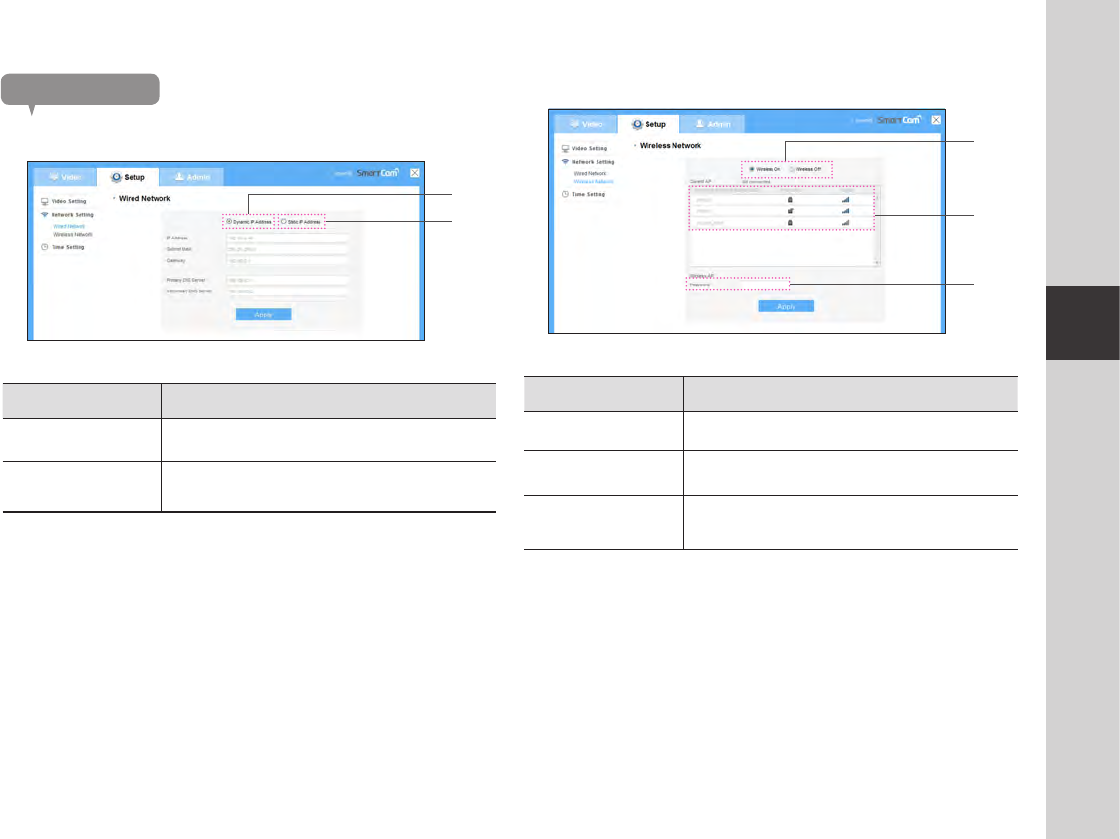

Dynamic IP Address If you select “Dynamic IP Address”, the IP address will be obtained
automatically.
b
Static IP Address You must manually provide the information of: IP address, subnet
mask, gateway, DNS server address.
n `If any of the manual settings is wrong, the network settings will not be applied.
`If you have both cable and wireless network connections simultaneously, the cable
network connection is prioritized.
`Press WPS to set the network connection to Wireless regardless of the current network
settings. When the system reboots, it will switch to Cable if the cable network
connection is already established.
`If you switch from the current wireless connection to the cable connection, the network
will switch to cable connection accordingly.
`For more information about the router or the wireless connection, refer to the
documentation of the router or contact the router manufacturer.
No. Description
a
Wireless On/
Wireless Off
You can select to activate or deactivate the wireless network
connection.
b
AP (Access Point) list You will see a list of APs (Access Point) available. Select a desired one
from the list of APs (Access Point).
c
AP (Access Point)
password
If you select a secured AP (Access Point), you must enter the
password before you can access the network.
For the password, contact your network administrator.
n `If you select a non-secured AP (Access Point), you just can access the network without
providing a specific password.
`If you entered a wrong password, you cannot access the network whatsoever.
`When the wireless network settings are completed, remove the LAN cable. If you do
not remove the LAN cable, the wireless network will not be available.
<Wireless Network>
a
b
c
<Wired Network>
a
b
26
· English
Time Setting
No. Description
a
Time Zone Select your region.
b
Summer Time Check this option if you live in a country or region where DST(Daylight
Saving Time) is applied.
n `The time will synchronize with the NTP(Network Time Protocol) server automatically.
`For this, Internet connection is required.
`You need to set the timezone correctly to obtain the exact time setting.
`The time displayed without Internet connection may not be accurate.
No. Description
a
Change the private Key
You can change the private Key.
Enter the current private Key, and type a new private Key.
n `If you change the private key, you will be logged out and return to the private key input
page.
`The private key can be changed only in admin mode.
`Keep the private key in a safe place as it is used for viewing the live screen of the
camera or for changing the display settings.
a
a
b
Admin
Private Key
27
03
Monitoring
No. Description
a

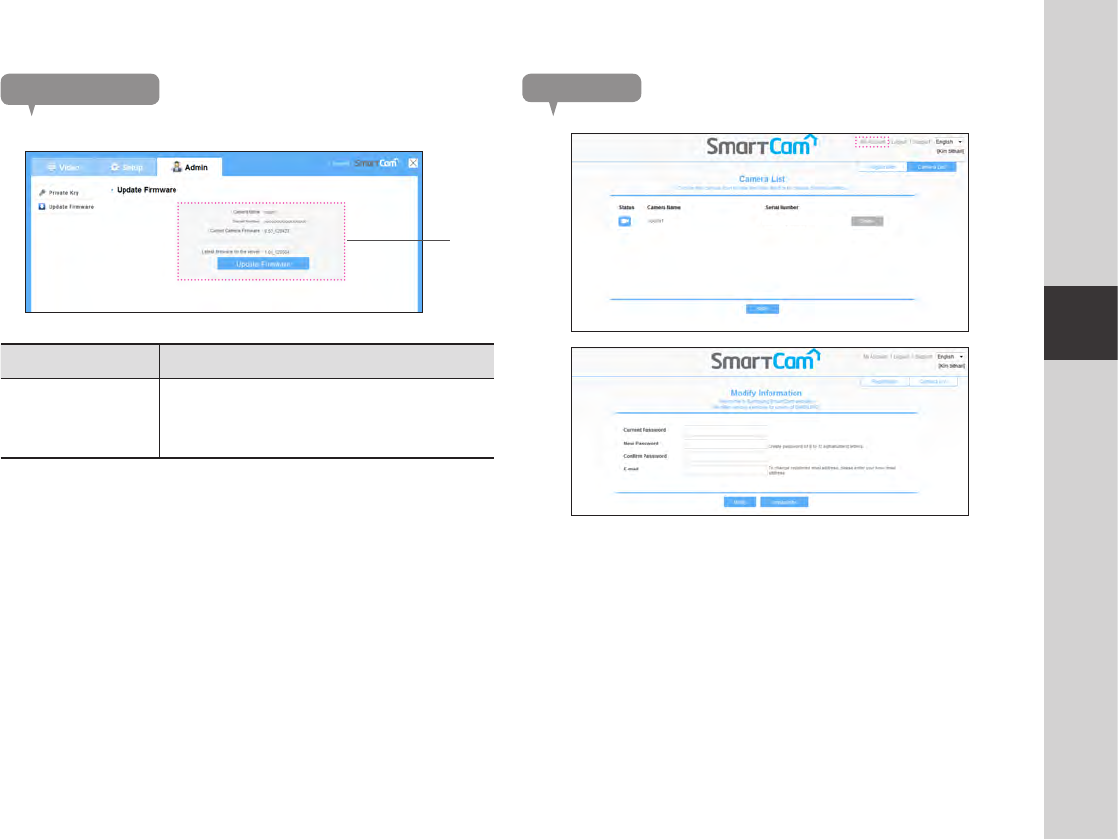

Update Firmware
Please update your current software version if it is lower than the
final version.
If the final version is the same as or lower than the current version, the
“Update Firmware” button will not be active. No update will proceed.
n `Use the cable network if possible to update the firmware.
`If the power is off during the update, it will cause a fatal damage to the product.
`The duration of the firmware update depends on the size of the firmware file and the
network connection speed.
My Account
n `If you want to change your information, move to “My account” page and select an
item (password and/or email address) and make changes as necessary.
a
XXXXXXXXXXXXXXX
Update Firmware
28
· English
Specifications 28
Specifications 28
Product Appearance 30
Troubleshooting 31
04
appendix
Item Description
Video
Imaging Device 1/5" 3M CMOS
Effective Pixels 2,048(H) x 1,536(V)
Scanning System Progressive
Synchronization Internal
Frequency 120MHz(MAX)
Lens
Focal Length (Zoom Ratio) 2.87mm
Angular Field of View (D/V/H) 65.1°/ 42.9°/ 54.1°
Min. Object Distance 300mm ~ ∽
Focus Cotrol Fixed
Zoom Movement Speed Not Support
Lens Type 3 Plastic lens
Pan / Tilt / Rotate
Pan Range -15°~15° (Manual)
Tilt Range 0°~120° (Manual)
Specications
Specifications
29
04
Appendix
Item Description
Operational
On Screen Display (Web Browser,
Local page) English, French, Germany, Spanish, Italian, Chinese, Korean
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto(Infra-red Cut Removable), Color, B./W (850nm), 5m
OS Linux
Audio Detection Support
Motion Detection Video Motion Detection
Privacy Masking Off / On
Privacy button
White Balance Auto
Digital Zoom Not Support
Flip / Mirror Yes
Network
Ethernet RJ-45 (10/100BASE-T)
Wireless Wi-Fi 802.11 b/g/n
WPS (Wi-Fi Protected Setup) Support WPS Button
Video Compression Format H.264, MJPEG
Resolution 640x480, 320x240
Max. Framerate 30fps (640x480)
Video Quality Adjustment H.264: Compression Level
MJPEG : Quality Level Control
Streaming Capability Multiple Streaming (Up to 4 Profiles)
Item Description
Audio Compression Format G.711
Audio Communication 2-Way (Built-in Microphone, Speaker)
Protocol TCP/IP, DHCP, SMTP, DNS, RTSP, RTCP, RTP, HTTP, TCP, UDP,
STUN, XMPP, SIP, uPNP, ICE, SNTP, IPv4/v6, ICMP
Streaming Method Unicast
Max. User Access 5 users at Unicast Mode
Web Viewer Supported Browser :
Internet Explore (7,8), Safari, Firefox, Chrome (Silverlight prefered)
Mobile application support iPhone, Android (Not all android phones are compatible)
Environmental
Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F)/ 20% ~ 80% RH
Electrical
Input Voltage / Current 5V DC / 2.2A
Power Consumption Max. 7W
Indication 1 LED (Power, Status, Link)
CPU & Memory TI DM365 (216Mhz), SDRAM : 128MB, NAND : 128MB
Mechanical
Color / Material White/Plastic
Dimension (WxHxD) 54 x 90 x 30.07 mm (w/o Bracket )
Weight TBD
30
· English
Product Appearance
31
04
Appendix
If you encounter a problem with your system, see the table below to solve the problem
as quickly and easily as possible. Please follow the instruction below:
Troubleshooting
Problem Action
I forgot my user ID/
password.
- Move to “Log-in page Find ID/PW”, and enter the registered e-mail
address to which we will send you the user ID and/or a new password.
It can be spammed out depending on the policy of the email server.
After logged in, it is advisable to change the temporary password provided.
I failed to connect
wirelessly with the
camera.
- If you encounter a frequent turn off of the wireless Internet LED, this may be
caused by an improper place for the wireless Internet network. Come closer
to the AP and try again.
- If the wireless network is unstable, you can still make connection via the
cable network.
After logged in, I
failed to register the
camera.
- Check if the entered serial number matches with the label on the bottom of
the camera.
- Please re-enter the valid private key and try again.
- If the problem persists, reset the camera to the factory default and start all
over again.
(To reset the camera to the factory default, press and hold the Privacy button
on the side of the camera. The camera will reboot when the factory reset is
completed.)
The camera is
registered, but is not
ready for network
connection.
- Check if the front LED on the camera turns on.
- If the wireless LAN LED turns off, follow the applicable instructions to make
the wireless LAN connection using WPS.
- If the problem persists even if the wireless LAN LED turns off, move the
camera near the wireless AP and try again.
- If you use the cable LAN network, the wireless LAN LED should turn off.
If the cable LAN is connected, the product will be connected to the server
automatically by the AP.
Problem Action
The camera video
is not uploaded to
YouTube.
- Move to Setup Video Setting Motion/Audio and adjust the sensitivity
as necessary.
- From the Notification settings page on the bottom of the live screen,
configure the YouTube notification settings. (See page 21 of the manual)
- YouTube has different service policies according to the country. The policy
for your country may prohibit uploading to YouTube. Please first check the
YouTube policy for your country.
- According to the YouTube policy, it may limit the uploading size. Check the
allowable free space of your YouTube account, and if insufficient, delete the
exiting video clips or increase the upper limit.
The capture images in
the camera will not be
uploaded to Picasa.
- Move to Setup Video Setting Motion/Audio and adjust the sensitivity
as necessary.
- From the Notification settings page on the bottom of the live screen,
configure the Picasa notification settings. (See page 21 of the manual)
- Picasa has different service policies according to the country. The policy for
your country may prohibit uploading to Picasa. Please first check the Picasa
policy for your country.
- According to the Picasa policy, it may limit the uploading size. Check the
allowable free space of your Picasa account, and if insufficient, delete the
exiting images or increase the upper limit.
Notification from
the camera is not
transferred to Twitter.
- Move to Setup Video Setting Motion/Audio and adjust the sensitivity
as necessary.
- From the Notification settings page on the bottom of the live screen,
configure the Twitter notification settings. (See page 22 of the manual)
The message of
Privacy mode appears
and no video is
displayed.
- The Company supports the privacy policy or mode for protecting your
privacy. The Privacy mode can be set using the button on the rear of the
product. (See page 6 of the manual)
- In Privacy mode, neither camera video will be displayed nor is it transferred
outside.
- To release the Privacy mode, press the same button again.
The video from the
camera is temporarily
lost.
- The video from the camera will be affected by the illumination of the
installation site of the camera. This is why the video from the camera looks
lost if the camera is installed in a low illumination environment.
- The video from the camera can be delayed according to a network delay.
Please check if the camera is installed in a place of proper wireless Internet
communications.
32
· English
Problem Action
No sound is output
from the video.
- Adjust the volume of the microphone or audio sound in the Setup page of
the camera.
- Click the Voice icon in the video playback page, or check if the voice is
turned On in your smart phone app.
- Depending on the policy of the Internet service provider, the sound output
may not be supported. (in either 3G UDP or Relay mode)
I forgot my Private
key.
- You must create a new private key.
- Press and hold the Privacy button in the rear of the product for at least 5
seconds to reset to the factory default.
- After the factory reset, access the camera and set the Private key again.
I want to change my
password and/or
email address.
- After logging in, move to the “My account” page, select an item (password
and/or email address) and make changes as necessary.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed
of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
Samsung Techwin cares for the environment at all product manufacturing stages, and
is taking measures to provide customers with more environmentally friendly products.
The Eco mark represents Samsung Techwin’s devotion to creating environmentally
friendly products, and indicates that the product satisfies the EU RoHS Directive.
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
www.samsungsv.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey,
Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325

Navigation menu
