Harman BE2829 Automotive Infotainment Unit with Bluetooth/WLAN User Manual 00 Infotainment System en US 1 71

Harman International Industries, Inc. Automotive Infotainment Unit with Bluetooth/WLAN 00 Infotainment System en US 1 71

Contents

User manual_Harman_INFO3 CSM MY19_User Manual_Infotainment_English_R2.pdf

Model: INFO3 CSM MY19 MID
INFO3 CSM MY19 HIGH
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Contents Introduction . . . . . . . . . . . . . . . . . . . . . 2
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Audio Players . . . . . . . . . . . . . . . . . 14
OnStar System . . . . . . . . . . . . . . . . 19
Navigation ..................... 21
Voice Recognition . . . . . . . . . . . . . 37
Phone . . . . . . . . . . . . . . . . . . . . . . . . . 44
Settings ....................... 51
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . 62
Index .................... 72
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
2 Introduction
Introduction
The names, logos, emblems,
slogans, and vehicle body designs
appearing in this manual including,
but not limited to, GM, the GM logo,
GMC, the GMC Emblem, TERRAIN,
and TERRAIN DENALI are
registered trademarks of General
Motors LLC, its subsidiaries,
affiliates, or licensors.
For vehicles first sold in Canada,
substitute the name General Motors
of Canada Company for GMC Motor
Division whenever it appears in this
manual.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country
specifications, features/applications
that may not be available in your
region, or changes subsequent to
the printing of this manual.
Keep this manual with the owner’s
manual in the vehicle, so it will be
there if it is needed. If the vehicle is
sold, leave this manual in the
vehicle.
Overview
Read the following pages to
become familiar with the
infotainment system features.
{Warning
Taking your eyes off the road for
too long or too often while using
any infotainment feature can
(Continued)
Warning (Continued)
cause a crash. You or others
could be injured or killed. Do not
give extended attention to
infotainment tasks while driving.
Limit your glances at the vehicle
displays and focus your attention
on driving. Use voice commands
whenever possible.
The infotainment system has built-in
features intended to help avoid
distraction by disabling some
functions when driving. These
functions may gray out when they
are unavailable. Many infotainment
features are also available through
the instrument cluster and steering
wheel controls.
Before driving:
.Become familiar with the system
operation, controls on the center
stack, and infotainment display.
Litho in U.S.A.
Part No. 23465188 A First Printing ©2017 General Motors LLC. All Rights Reserved.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Introduction 3
.Set up the audio by presetting
favorite stations, setting the
tone, and adjusting the
speakers.
.Set up cell phone and mobile
device numbers in advance so
they can be called easily by
pressing a single control or by
using a single voice command.
See “Defensive Driving”in the
owner’s manual.
Infotainment System
The infotainment system is
controlled by using the infotainment
display, the controls on the center
stack, steering wheel controls, and
voice recognition.

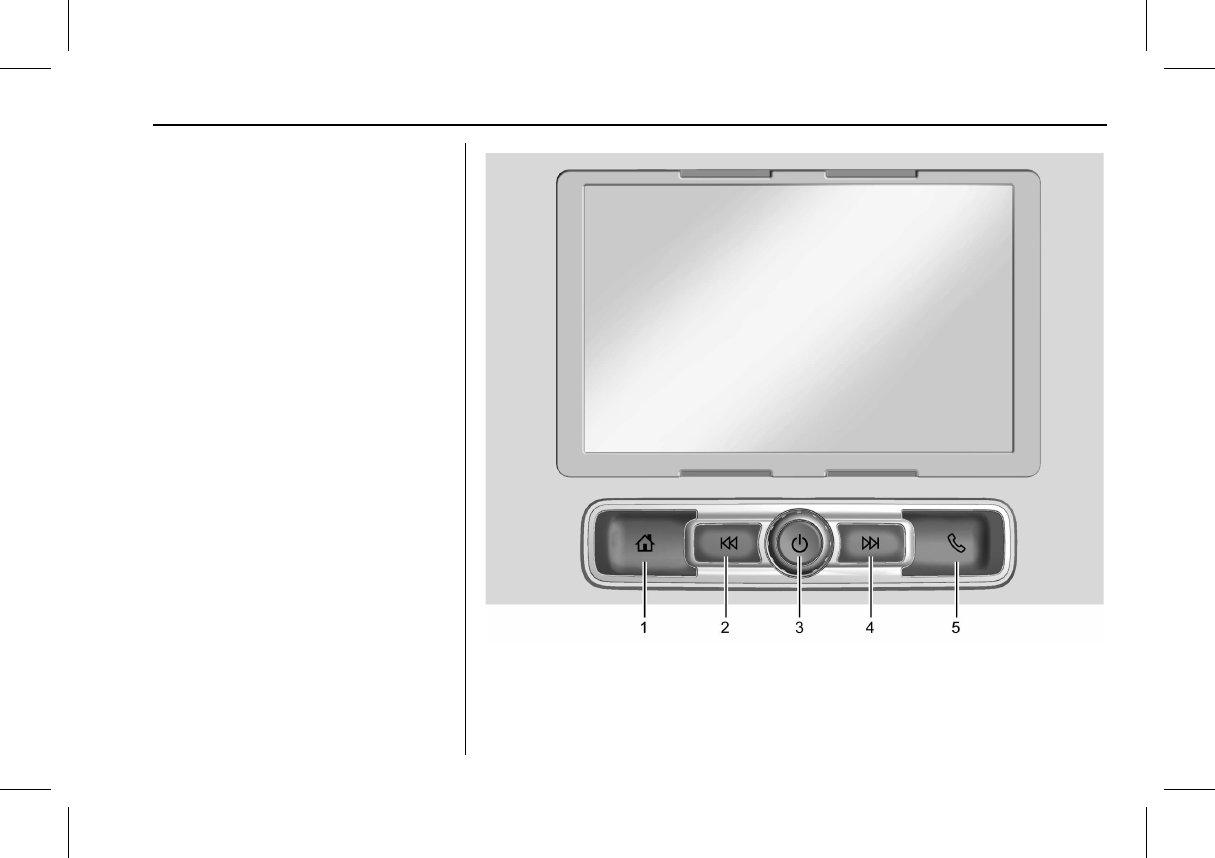

Base Radio
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
4 Introduction
1. {
.Press to go to the Home
Page. See “Home Page”
later in this section.
2. 7
.Radio: Press and release to
go to the previous station or
channel. Press and hold to
fast seek the next strongest
previous station or channel.
.USB/BT Music/Pictures:
Press and hold to go to the
previous content. Press and
hold to fast rewind.
3. O
.Press to turn the power on.
.Press and hold to turn the
power off.
.Press to mute the system
when on.
.Turn to decrease or
increase the volume.
4. 6
.Radio: Press and release to
go to the next station or
channel. Press and hold to
fast seek the next strongest
station or channel.
.USB/BT Music/Pictures:
Press and hold to go to the
next content. Press and
hold to fast forward.
5. #
.Press and release to
access the phone screen,
answer an incoming call,
or access the device home
screen. Press and hold to
access Press to Talk.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Introduction 5

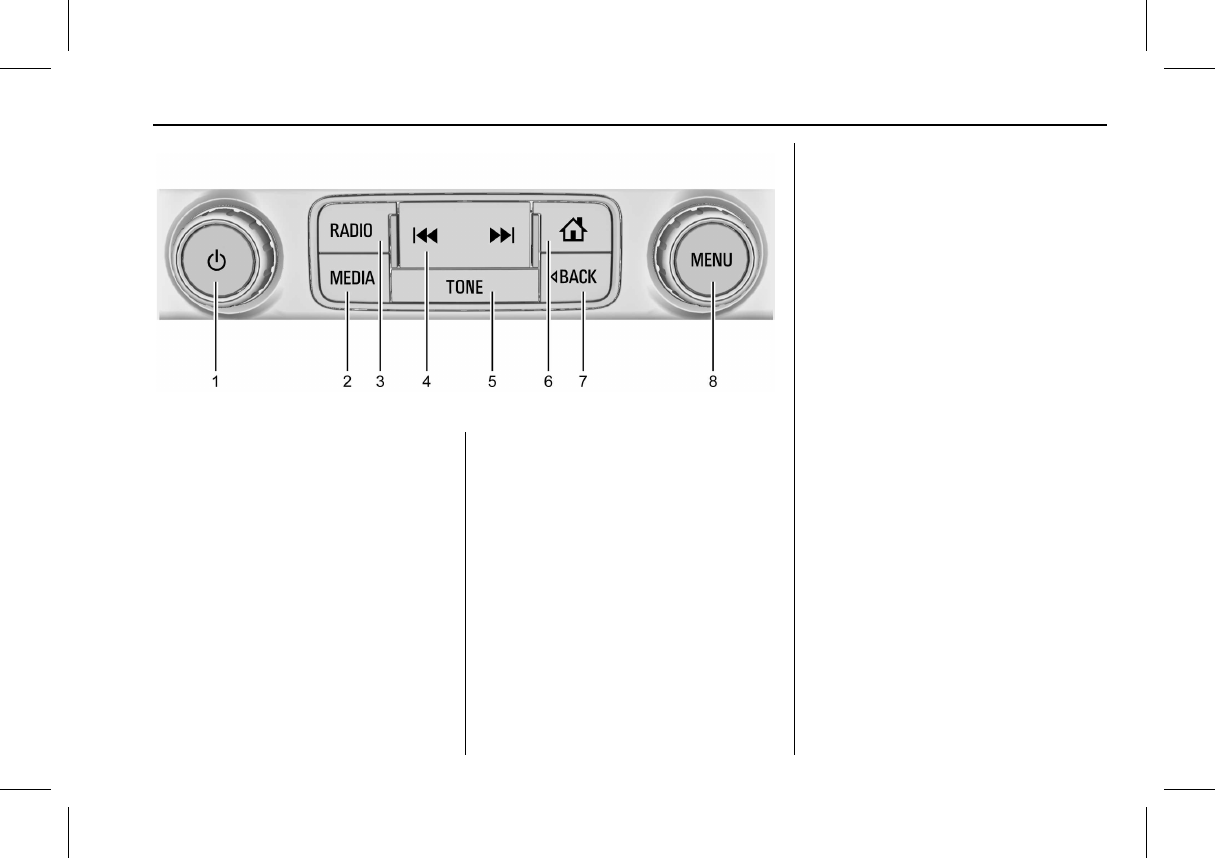

Uplevel Radios
1. O(Power)
.When off, press Oto turn
the system on. Press and
hold to turn off.
.When on, press Oto mute
the system. Press Oagain
to unmute the system.
.Turn Oto increase or
decrease the volume.
2. MEDIA
.Press to change the media
source to USB, Bluetooth,
or AUX.
3. RADIO
.Press to change the audio
source to AM, FM, or SXM,
if equipped.
4. gor d
.AM, FM, or SXM,
if equipped: Press gto
seek to the previous strong
station. Press dto seek
the next strong station. See
AM-FM Radio 010.
.USB, AUX, or Bluetooth
Audio: Press gto seek the
beginning of the current or
previous track. Press and
hold to quickly reverse
through a track. Release to
return to playing speed.
Press dto seek the next
track. Press and hold to fast
forward through a track.
Release to return to playing
speed. See USB Port 014,
Auxiliary Jack 017,
or Bluetooth Audio 017.
5. TONE
.If equipped, press to adjust
the Bass, Midrange, Treble,
or Surround, if equipped.
See AM-FM Radio 010.
6. {(Home Page)
.Press to go to the Home
Page. See “Home Page”
later in this section.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
6 Introduction
7. oBACK
.Press to return to the
previous display in a menu.
8. MENU
.Turn to highlight a feature.
Press to activate the
highlighted feature.
Home Page
The Home Page is where vehicle
application icons are accessed.
Some features are disabled when
the vehicle is moving.
Slide a finger left/right across the
screen to access the pages of
icons.
Managing Home Page Icons
1. Touch and hold any of the
Home Page icons to edit
that icon.
2. Drag the icon to a new location
on the Home Page.
Steering Wheel Controls
If equipped, some audio controls
can be adjusted at the steering
wheel.
g:Press to answer an incoming
call or start voice recognition.
See Bluetooth (Overview) 044 or
Bluetooth (Pairing and Using the
Phone) 045 or “OnStar Overview”
in the owner's manual. Press and
hold to activate Bluetooth voice
pass-thru. See Voice Recognition
037.
i:Press to decline an incoming
call or end a current call. Press to
mute or unmute the infotainment
system when not on a call.
oor p:Press the five-way control
to go to the previous or next area of
a display in the instrument cluster.
wor x:Press the five-way
control to go up or down in a list on
the instrument cluster.
@:Press to select a highlighted
menu option.
The favorites and volume switches
are on the back of the steering
wheel.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Introduction 7
1. Favorite: When on a radio
source, press to select the next
or previous audio broadcast
favorite. When listening to a
media device, press to select
the next or previous track.
2. Volume: Press to increase or
decrease the volume.
Using the System
Audio
Touch the Audio icon to display the
active audio source page. Examples
of available sources are AM, FM,
SXM (if equipped), MyMedia, USB,
and AUX.
Phone
Touch the Phone icon to display the
Phone main page.
See Bluetooth (Overview) 044 or
Bluetooth (Pairing and Using the
Phone) 045.

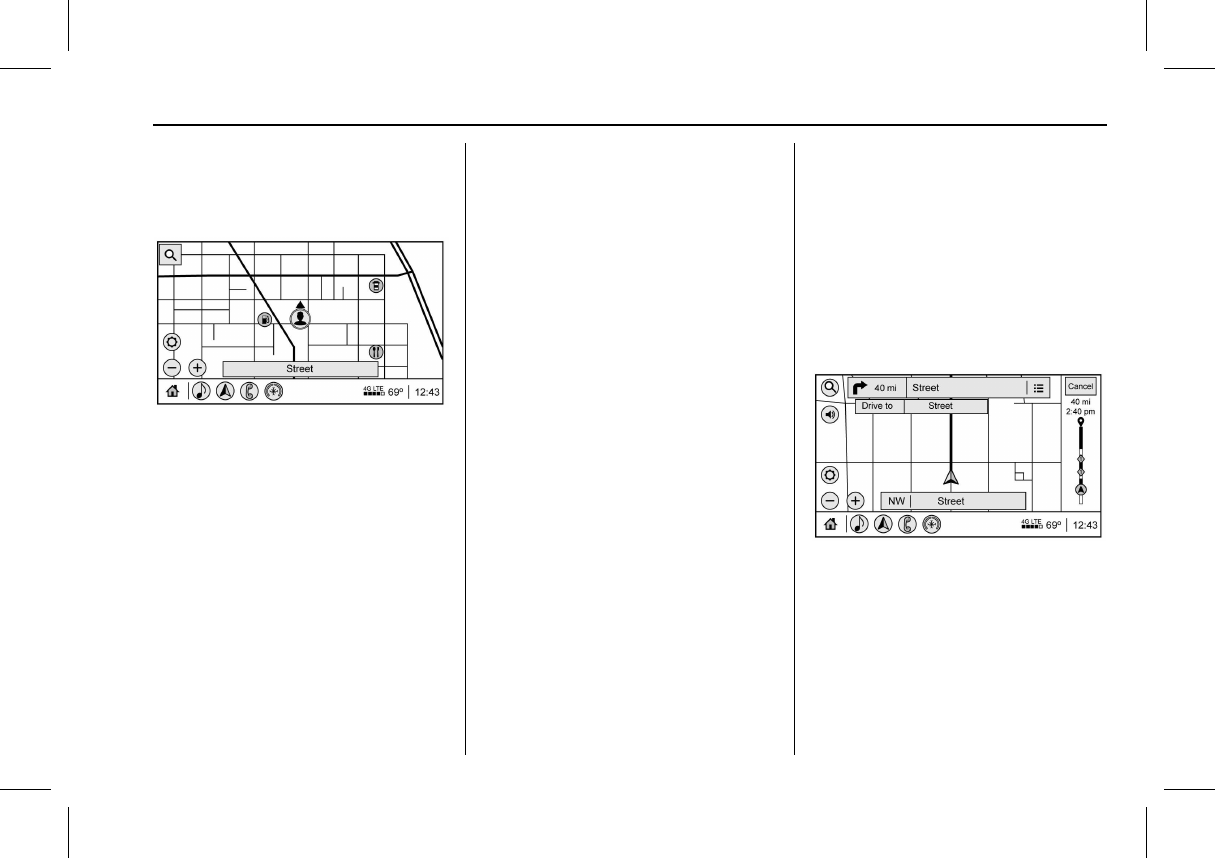

Nav/OnStar Nav
Touch the Nav icon to display the
navigation map or OnStar
Turn-by-Turn Navigation. See Using
the Navigation System 021 or
“OnStar Overview”in the owner’s
manual.
Climate
Touch the Climate icon to display
the Climate main page. See “Dual
Automatic Climate Control System”
in the owner’s manual.
Users
Touch the Users icon to sign in or
create a new user profile and follow
the on-screen instructions.
Only four user profiles can be active
at one time in the vehicle. It may be
necessary to remove a profile from
the menu before creating or signing
into an existing profile. The removed
profile can be logged into at a
later time.
Settings
Touch the Settings icon to display
the Settings menu. See Settings
051.
Apple CarPlay
Touch the Apple CarPlay icon to
activate Apple CarPlay (if equipped)
after a supported device is
connected. See Apple CarPlay and
Android Auto 049.
Android Auto
Touch the Android Auto icon to
activate Android Auto (if equipped)
after a supported device is
connected. See Apple CarPlay and
Android Auto 049.
Shop
If equipped, in-vehicle apps are
available for download. Touch the
Shop icon on the Home Page to
begin.
Downloading and using apps
requires Internet connectivity and a
data plan, which can be accessed
through the vehicle’s built-in 4G LTE
Wi-Fi hotspot, if equipped, or a
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
8 Introduction
compatible mobile device hotspot.
On most mobile devices, activation
of the Wi-Fi hotspot is in the
device’s Settings menu under
Mobile Network Sharing, Personal
Hotspot, Mobile Hotspot, or similar.
To purchase data for the in-vehicle
Wi-Fi hotspot, if equipped, touch
Shop on the Home Page or contact
an OnStar Advisor. The vehicle
must have active OnStar service
and a payment method on file.
Availability of apps and connectivity
varies by vehicle, conditions, and
location. Data plan rates apply. For
more information, see my.gmc.com/
learn.

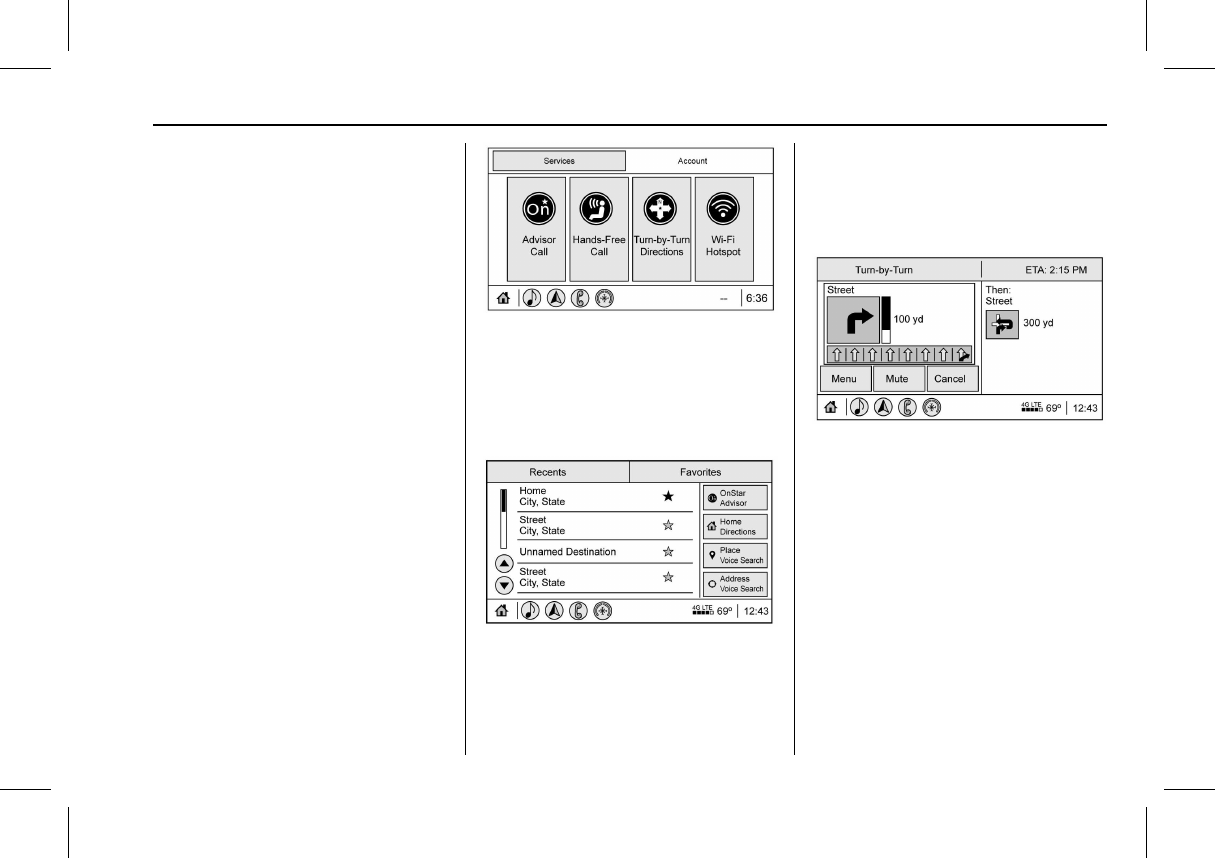

OnStar Services
If equipped, touch the OnStar
Services icon to display the OnStar
Services and Account pages. See
“OnStar Overview”in the owner’s
manual and OnStar System 019.
Rear Climate
If equipped, touch the Rear Climate
icon to display the Rear Climate
main page. See “Rear Climate
Control System”in the owner’s
manual.
Camera
If equipped, touch the Camera icon
to access the camera application.
See “Assistance Systems for
Parking or Backing”in the owner’s
manual.
Shortcut Tray
The shortcut tray is near the bottom
of the screen. It displays up to four
applications.
Infotainment Display Features
Infotainment display features show
on the display when available.
When a feature is unavailable, it
may gray out. When a feature is
selected, it may highlight.

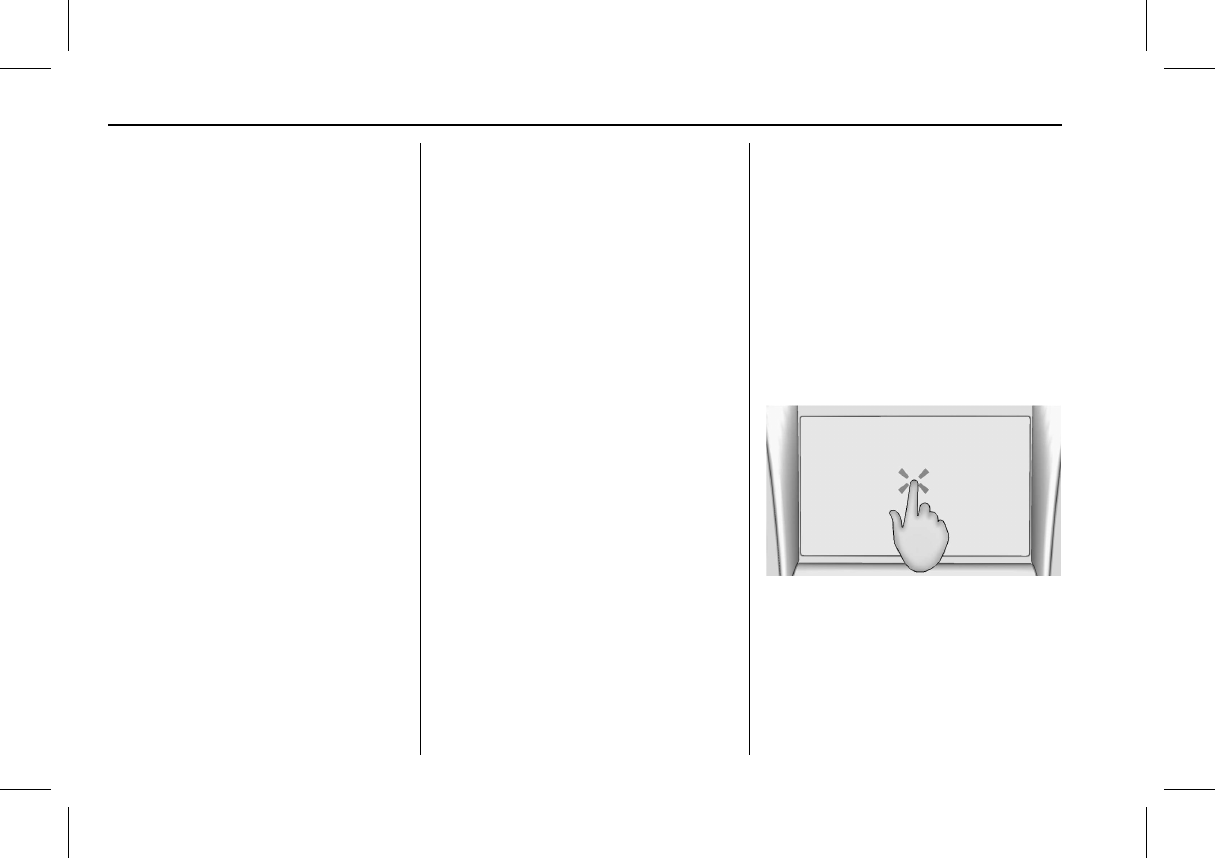

Haptic Feedback
Haptic feedback is a pulse that
occurs when an option is touched
on the infotainment display or when
controls on the center stack are
pressed.
Infotainment Gestures
Use the following finger gestures to
control the infotainment system.
Touch/Tap
Touch/Tap is used to select an
option, activate an application,
or change the location inside a map.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Introduction 9
Touch and Hold
Touch and hold can be used to start
another gesture, or to move or
delete an application.
Drag
Drag is used to move applications
on the Home Page, or to pan the
map. To drag the item, it must be
held and moved along the display to
the new location. This can be done
up, down, right, or left.
Nudge
Nudge is used to move items a
short distance on a list or a map. To
nudge, hold and move the selected
item up or down to a new location.
Fling or Swipe
Fling or swipe is used to scroll
through a list, pan the map,
or change page views. Do this by
placing a finger on the display then
moving it rapidly up and down or
right and left.
Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays
For vehicles with high gloss
surfaces or vehicle displays, use a
microfiber cloth to wipe surfaces.
Before wiping the surface with the
microfiber cloth, use a soft bristle
brush to remove dirt that could
scratch the surface. Then use the
microfiber cloth by gently rubbing to
clean. Never use window cleaners
or solvents. Periodically hand wash
the microfiber cloth separately,
using mild soap. Do not use bleach
or fabric softener. Rinse thoroughly
and air dry before next use.
Software Updates
Over-the-Air Software Updates
See “Updates”under Settings 051
for details on software updates.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
10 Radio
Radio
AM-FM Radio
Playing the Radio
From the Home Page, touch Audio
to display the active audio source
page. Choose from the three most
recently used sources listed at the
left side of the display or touch More
to display a list of available
resources. Examples of available
sources are: AM, FM, SXM (if
equipped), MyMedia, USB, AUX,
and Bluetooth.
Infotainment System
Sound Menu
From any of the audio source main
pages, touch Sound to display the
following:
Equalizer : Touch to adjust Bass,
Midrange, Treble, and Surround (if
equipped) using the controls on the
infotainment display.
Fade/Balance : Touch to adjust by
using the controls on the
infotainment display or by tapping/
dragging the crosshair.
Finding a Station
Seeking a Station
From the AM, FM, or SXM (if
equipped) option, touch 7or 6on
the infotainment display to search
for the previous or next strong
station.
Browsing Stations
From the AM, FM, or SXM (if
equipped) display, touch Browse to
list all available stations. Navigate
up and down through all stations by
scrolling the list. Touch the station
you want to listen to. Touch Hto
save the station as a favorite.
If equipped, touch Update Station
List to update the active stations in
your area.
Direct Tune
Access Direct Tune by touching
Tune on the infotainment display to
source AM, FM, or SXM (if
equipped) and bring up the keypad.
Navigate up and down through all
frequencies using ©or ¨. Directly
enter a station or channel using the
keypad. When a new station or
channel is entered, the information
about that station or channel
displays on the right side. This
information will update with each
new valid frequency tuned.
The keypad will gray out entries that
do not contribute to a valid
frequency and will automatically
place a decimal point within the
frequency number.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Radio 11
Touch (X) to delete one number at a
time. Touch and hold (X) to delete
all numbers.
A valid AM-FM station will
automatically tune to the new
frequency but not close the Direct
Tune display. When listening to
SXM (if equipped), touch Go after
entering the channel. Touch the
Back icon on the infotainment
display or zto exit out of the Direct
Tune display.
The tune arrows on the right side of
the Direct Tune display tune through
the complete station list one station
step at a time per touch. A touch
and hold advances through stations
quickly.
HD Radio multicast stations cannot
be tuned directly through the Direct
Tune feature. Only the analog or
HD1 station can use that feature.
Use ©or ¨to adjust to the multicast
stations.
AM, FM, and SXM Categories
From the AM, FM, or SXM (if
equipped) display, touch Categories
at the top of the Browse menu to
access the categories list. The list
contains names associated with the
AM or FM stations, or SXM
channels. Touch a category name to
display a list of stations or channels
for that category. Selecting a station
or channel from the list tunes the
radio to that station or channel.
Storing Radio Station
Favorites
Favorites are displayed in the area
at the top of the display.
AM, FM, SXM, and HD Radio
Stations : Touch and hold a preset
to store the current station or
channel as a favorite. Touch a
saved favorite to recall a favorite
station.
Favorites can also be stored by
touching Hin a station or channel
list. This will highlight indicating that
it is now stored as a favorite.
The number of favorites displayed is
automatically adjusted by default,
but can be manually adjusted in
Settings in the System tab under
Favorites and then Set Number of
Audio Favorites it can also be
adjusted in Settings in the Apps tab
under Audio and then Set Number
of Audio Favorites.
HD Radio Technology
If equipped, HD Radio Technology
is a free service with features such
as digital quality sound, more
stations available on a single
frequency such as HD2 and HD3,
and display information such as
artist and song title.
From the AM or FM display, touch
HD Radio to turn HD Radio
reception on or off.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
12 Radio
Station Access
To access HD Radio stations:
1. Tune the radio to the station.
If the HD Radio reception is
turned on and the station is
broadcasting with HD Radio
technology, the radio will
display the HD2/HD3 channels
available and will automatically
switch to digital audio indicated
with the HD logo.
2. Touch 7or 6on the
infotainment display to tune to
the previous or next HD Radio
station.
There may be a delay before the
station starts playing.
The HD Radio station number is
indicated next to the HD logo.
HD Radio stations can be saved as
favorites.
For a list of all stations, see
www.hdradio.com.
HD Radio Troubleshooting
Digital Audio Delay : Wait for the
signal to process. This can take
several seconds.
Volume Change, Audio Skip,
Echo, Digital Audio Lost : Station
signal strength may be weak, the
station is out of range, or the station
may be out alignment. Verify proper
reception on another station.
If the HD Radio signal loses
reception while listening to HD1, the
radio will go back to the analog
version of the radio station.
If the HD Radio signal loses
reception while listening to stations
HD2 to HD8, the radio mutes until
the signal can be recovered or until
the station is changed.
HD Radio reception can be disabled
if driving in a weak signal area.
Touch HD Radio On/Off to toggle
HD Radio reception on and off.
Satellite Radio
If equipped, vehicles with a valid
SiriusXM satellite radio subscription
can receive SXM programming.
SiriusXM satellite radio has a wide
variety of programming and
commercial-free music, coast to
coast, and in digital-quality sound.
In the U.S. see www.siriusxm.com
or call 1-888-601-6296. In Canada
see www.siriusxm.ca or call
1-877-438-9677.
When SXM is active, the channel
name, number, song title, and artist
appear on the display.
Radio Reception
Unplug electronic devices from the
accessory power outlets if there is
interference or static in the radio.
FM
FM signals only reach about 16 to
65 km (10 to 40 mi). Although the
radio has a built-in electronic circuit
that automatically works to reduce
interference, some static can occur,
especially around tall buildings or
hills, causing the sound to fade in
and out.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Radio 13
AM
The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere with
each other. Static can also occur
when things like storms and power
lines interfere with radio reception.
When this happens, try reducing the
treble on the radio.
SiriusXM Satellite Radio
Service
If equipped, SiriusXM Satellite
Radio Service provides digital radio
reception. Tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and
out. In addition, traveling or standing
under heavy foliage, bridges,
garages, or tunnels may cause loss
of the SiriusXM signal for a period
of time.
Mobile Device Usage
Mobile device usage, such as
making or receiving calls, charging,
or just having the mobile device on
may cause static interference in the
radio. Unplug the mobile device or
turn it off if this happens.
Multi-Band Antenna
The roof antenna is for OnStar,
SiriusXM Satellite Radio,
if equipped, and GPS (Global
Positioning System). Keep clear of
obstructions for clear reception.
If the vehicle has a sunroof, and it is
open, reception can also be
affected.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
14 Audio Players
Audio Players
Avoiding Untrusted Media
Devices
When using media devices such as
CDs, DVDs, Blu-ray Discs, SD
cards, USB devices, and mobile
devices, consider the source.
Untrusted media devices could
contain files that affect system
operation or performance. Avoid use
if the content or origin cannot be
trusted.
USB Port
Audio stored on a USB device may
be listened to.
This vehicle has an A-type and a
C-type USB port in the center stack.
These ports are for data and
charging. There may be two A-type
USB ports in the center console
under the armrest for data and
charging. There are two A-type USB
ports behind the center console for
charging only.
Playing from a USB
A USB mass storage device can be
connected to the USB port.
Audio extensions supported by the
USB are:
.FLAC
.MP3
.WMA
.AAC
.OGG
.3GPP
Gracenote
When plugging in a USB device,
Gracenote service builds voice tags
for music. Voice tags allow artists,
albums with hard to pronounce
names, and nicknames to be used
to play music through voice
recognition.
While indexing, infotainment
features are available.
My Media Library
My Media is only available when
more than one indexed device is
connected. It allows access to
content from all indexed media
sources. My Media will show as an
available source in the
Source page.
USB MP3 Player and USB Devices
The USB MP3 players and USB
devices connected must comply
with the USB Mass Storage Class
specification (USB MSC).
To play a USB device:
1. Connect the USB.
2. Touch Audio from the
Home Page.
3. Touch More and then touch the
USB device.
Use the following when playing an
active USB source:
p:Touch to play the current media
source.
j:Touch to pause playback of the
current media source.
7:
.Touch to seek to the beginning
of the current or previous track.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Audio Players 15
.Touch and hold to reverse
quickly through playback.
Release to return to playing
speed. Elapsed time displays.
6:
.Touch to seek to the next track.
.Touch and hold to advance
quickly through playback.
Release to return to playing
speed. Elapsed time displays.
Shuffle : Touch the shuffle icon to
play music in random order.
USB Sound Menu
See “Infotainment System Sound
Menu”under AM-FM Radio 010.
USB Browse Menu
When a list of songs, albums,
artists, or other types of media
displays, the icons w,x, and A-Z
appear on the left side. Select A-Z
to view a display that will show all
letters of the alphabet and select the
letter to go to.
Touch wor xto move the list up
and down.
Touch Browse and the following
may display:
Playlists:
Supported Playlist extensions are
m3u, pls, and wpl.
1. Touch to view the playlists
stored on the USB.
2. Touch a playlist to view the list
of All Songs in that playlist.
3. Touch a song from the list to
begin playback.
Artists:
1. Touch to view the list of artists
stored on the USB.
2. Touch an artist name to view a
list of all albums by the artist.
3. To select a song, touch All
Songs or touch an album and
then touch a song from the list.
Songs:
1. Touch to display a list of All
Songs on the USB.
2. To begin playback, touch a
song from the list.
Albums:
1. Touch to view the albums on
the USB.
2. Touch the album to view a list
of All Songs on the album.
3. Touch a song from the list to
begin playback.
Genres:
1. Touch to view the genres on
the USB.
2. Touch a genre to view a list of
artists.
3. Touch an artist to view albums
by that artist.
4. Touch an album to view songs
on the album.
5. Touch a song to start playback.
iTunes Radio : Touch to view
iTunes Radio on the iPhone to get a
list of stations.
Compilations : Touch to view the
Compilations on the USB.
Composers:
1. Touch to view the composers
on the USB.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
16 Audio Players
2. Touch a Composer to view a
list of albums by that
composer.
3. Touch an album or All Songs to
view a list of songs.
4. Touch a song from the list to
begin playback.
Folders:
1. Touch to view the directories
on the USB.
2. Touch a folder to view a list of
all files.
3. Touch a file from the list to
begin playback.
Podcasts : Touch to view the
podcasts on the USB and get a list
of podcast episodes.
Audiobooks:
1. Touch to view the audiobooks
stored on the USB.
2. Touch an audiobook to get a
list of chapters.
3. Touch the chapter from the list
to begin playback.
File System and Naming
File systems supported by the
USB are:
.FAT32
.NTFS
.HFS+
The songs, artists, albums, and
genres are taken from the file’s
song information and are only
displayed if present. The radio
displays the file name as the track
name if the song information is not
available.
Supported Apple Devices
To view supported devices, see
my.gmc.com/learn.
Storing and Recalling Media
Favorites
To store media favorites, touch
Browse to display a list of media
types.
Select from one of the following
Browse options to save a favorite:
Playlists : Touch Hnext to any
playlist to store the playlist as a
favorite. Touch a saved favorite to
recall a favorite playlist. The first
song in the playlist begins to play.
Artists : Touch Hnext to any artist
to store the artist as a favorite.
Touch a saved favorite to recall a
favorite artist. The first song in the
artist list begins to play.
Songs : Touch Hnext to any song
to store the song as a favorite.
Touch a saved favorite to recall a
favorite song.
Albums : Touch Hnext to any
album to store the album as a
favorite. Touch a saved favorite to
recall a favorite album. The first
song in the album list begins to play.
Genres : Touch Hnext to any
genre to store the genre as a
favorite. Touch a saved favorite to
recall a favorite genre. The first
song of the genre begins to play.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Audio Players 17
Podcasts : Touch Hnext to any
podcast to store the podcast as a
favorite. Touch a saved favorite to
recall a favorite podcast. The
podcast begins to play.
Audiobooks : Touch Hnext to
any audiobook to store the
audiobook as a favorite. Touch a
saved favorite to recall a favorite
audiobook. The first chapter in the
audiobook begins to play.
Media Playback and Mute
USB playback will be paused if the
system is muted. If the steering
wheel mute control is pressed
again, playback will resume.
If the source is changed while in
mute, playback resumes and audio
will unmute.
Auxiliary Jack
This vehicle has an auxiliary input
jack in the center stack. Possible
auxiliary audio sources include:
.Laptop computer
.Audio music player
This jack is not an audio output. Do
not plug headphones into the
auxiliary input jack. Set up an
auxiliary device while the vehicle is
in P (Park).
Connect a 3.5 mm (1/8 in) cable
from the auxiliary device to the
auxiliary input jack. When a device
is connected, the system can play
audio from the device over the
vehicle speakers.
If an auxiliary device has already
been connected, but a different
source is currently active, touch
More and then touch AUX to make
the source active.
Shuffle and Browse are not
available in the AUX source menu.
Bluetooth Audio
Music may be played from a paired
Bluetooth device.
See Bluetooth (Overview) 044 or
Bluetooth (Pairing and Using the
Phone) 045 for help pairing a
device.
Volume and song selection may be
controlled by using the infotainment
controls or the mobile device.
If Bluetooth is selected and no
volume is present, check the
volume setting on both your mobile
device and the infotainment system.
Music can be launched by touching
Bluetooth from the recent sources
list on the left of the display or by
touching More and selecting the
Bluetooth device.
To play music via Bluetooth:
1. Power on the device, and pair
to connect the device.
2. Once paired, touch Audio from
the Home Page, then touch
Bluetooth from the recent
sources list on the left of the
display.
Bluetooth Sound Menu
See “Infotainment System Sound
Menu”under AM-FM Radio 010.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
18 Audio Players
Manage Bluetooth Devices
From the Home Page:
1. Touch Audio.
2. Touch More.
3. Touch Bluetooth.
4. Touch Devices to add or delete
devices.
When selecting Bluetooth, the radio
may not be able to launch the audio
player on the connected device to
start playing. When the vehicle is
not moving, use the mobile device
to begin playback.
All devices launch audio differently.
When selecting Bluetooth as a
source, the radio may show as
paused on the display. Press play
on the device or touch pon the
display to begin playback.
Browse functionality will be provided
where supported by the Bluetooth
device. This media content will not
be part of the MyMedia
source mode.
Some smartphones support sending
Bluetooth music information to
display on the radio. When the radio
receives this information, it will
check to see if any is available and
display it. For more information
about supported Bluetooth features,
see my.gmc.com/learn.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
OnStar System 19
OnStar System
OnStar 4G LTE
If equipped with OnStar 4G LTE, up
to seven devices, such as
smartphones, tablets, and laptops,
can be connected to high-speed
Internet through the vehicle’s built-in
Wi-Fi hotspot.
Call 1-888-4ONSTAR
(1-888-083-7827) to connect to an
OnStar Advisor for assistance. See
www.onstar.com for vehicle
availability, details, and system
limitations. Service and connectivity
may vary by make, model, year,
carrier, availability, and conditions.
4G LTE service is available in select
markets. 4G LTE performance is
based on industry averages and
vehicle systems design. Some
services require a data plan.
The OnStar App
If equipped, the infotainment system
has OnStar controls in the
embedded OnStar app on the Home
Page. All OnStar functions that can
be performed with the buttons can
be done using the app. To open the
app, touch the OnStar icon on the
Home Page. Features vary by
region and model.
Services
The Services tab displays the
default view for the app. Use this
page to launch the available OnStar
services. Touch a service to open its
display. Touch Hands-Free Calling
(HFC) to launch the phone app.
Touch Wi-Fi to launch the
connections manager.
Account
The Account tab displays a
snapshot of the account linked with
the vehicle. If there is no such
account, this tab will show all values
as ——. The #will be active even if
there is no active account.
Advisor Call
Selecting Advisor Call is the same
as pressing Qor calling
1-888-466-7827. The X icon in the
upper right corner of the display
does not end the call, but returns to
the previous screen.
Turn-by-Turn Directions
With an OnStar subscription to the
Guidance Plan, an OnStar Advisor
can download a destination to the
vehicle or its embedded navigation
system, if equipped. Select
Turn-by-Turn Directions from the
main page of the OnStar app and
follow the display prompts.
A destination transfer from OnStar
will show the detail view of the
destination when it is transferred
from OnStar to the Navigation
application. Touch OK to go back to
the previous menu. An ABS and
Guidance or Navigation Add-On
Plan is required. See
www.onstar.com for a coverage
map. Services vary by model. Map
coverage is available in the United
States, Puerto Rico, and Canada.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
20 OnStar System
Wi-Fi Hotspot
Touch to display the Settings page,
which shows the configurations for
the vehicle hotspot and allows them
to be changed.
For more information, see
www.onstar.com.
OnStar Smart Driver
OnStar Smart Driver provides
information about driving behavior to
help maximize overall vehicle
performance, reduce wear and tear,
and enhance fuel efficiency. An
Insurance Discounts Eligibility
feature is also offered within OnStar
Smart Driver. See www.onstar.com
for details regarding vehicle
eligibility and system limitations.
OnStar, General Motors, and their
affiliates are not insurance
providers. Obtain insurance only
from licensed insurance providers.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 21
Navigation
Using the Navigation
System
Touch Nav on the Home Page or
the Nav icon in the shortcut tray
near the bottom of the infotainment
display to access the navigation
application. The initial view when
navigation opens is the full map
view screen with the top search field
bar open.
While the vehicle is stopped, the
search bar will stay open until
manually closed by touching z.
When the vehicle starts moving, the
search bar will minimize to a search
icon so that the map is maximized
while in an inactive guidance view.
If the vehicle is not signed into a
customized profile, the current
location icon uses a generic symbol.
Once signed into a customized
profile, the current location symbol
will show a customized icon. See
Navigation Symbols 024.
While the vehicle is running without
a route, a drive To Home and To
Work pop-up will display on top of
the current location icon. The drive
To Home and To Work icon will
disappear after 15 seconds or tap
the current location icon and click
the drive To Home pop-up to start a
route.
If Home and Work are not set,
touch 8(Settings) on the map to
access the Map and Navigation
Settings menu. Touch the Set Up
My Places option to display Show
My Places on Map. This option can
be enabled or disabled. If this option
is enabled, enter a Home address.
Below the Home address, enter a
work address or select a place
name if not work and enter address.
Touch Done when finished.
Predictive Navigation
Predictive Navigation is a feature
that will display an Enable
Predictive Navigation prompt the
first time navigation is launched.
Touch to Confirm or Decline.
If enabled, this feature learns the
preferences by remembering where
the vehicle has been. It uses the
locations and navigation history to
personalize routes and results. The
feature is disabled by default.
Predictive Navigation will learn
elements such as:
.Home and important address
detection.
.Personalized route.
.Smart POI icon display.
.Predictive traffic.
Predictive Navigation can also be
enabled or disabled in Settings
051.
Navigation Preferences
Touch 8while in the map view to
display a list of the Map and
Navigation Settings options.
Features displayed in the Map and
Navigation Settings menu can be
selected to adjust navigation
preferences.
To exit out of a list, touch zin the
top right corner to return to the main
map view.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
22 Navigation
It is advised to set up preferences
before setting a destination.
Additional navigation preferences
that will display are:
.Routing Options
.Map Configuration
.Set Up My Places
.Navigation Voice Control
.Map Colors
.Alert Preferences
.History
.About
Routing Options
Touch to access the Route Option
preferences. The choices are:
.Route Type –This feature has
two selections to choose from
when starting navigation: Fastest
or Eco-Friendly.
.Avoid on Route –This feature
allows setting preferred ways of
driving along the route by
avoiding special characteristics
such as:
‐Highways
‐Unpaved Roads
‐Ferries
‐Carpool Lanes
‐Toll Roads
‐Tunnels
‐Country Borders
Map Configurations
Touch to choose between basic
map feature configurations:
3D Landmark (Default is On) :
This setting can be turned On or
Off. When turned on, the system will
display all 3D Landmarks on the
map when zoomed in from level five
and beyond.
3D Building (Default is Off) : This
setting can be turned On or Off.
When turned on, the system will
display all of the possible 3D
building shapes on the map when
zoomed in from level three and
beyond.
3D Terrain (Default is Off) : When
turned on, the system will display
terrain information on the map in
3D view.
Auto-Zoom (Default is On) : When
turned on, the system will
automatically adjust the map zoom
to level two when the vehicle is
approaching a turn. After the turn is
completed, the system automatically
brings the zoom level back to the
originally set level. If the vehicle is
approaching a turn with the next
turn occurring shortly after, the
Auto-Zoom will remain on until both
turns are completed.
Set Up My Places
Touch to manage the Home and
Work settings. Options for Set Up
My Places are:
.Show My Places on Map –
Touch to enable or disable from
showing the estimated time to
Home and Work.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 23
The options can be enabled or
to disabled.
.Home –Enter the address
information into the system
for Home.
.Work –Enter the address or
keyword information into the
system for Work or any other
frequently used destination.
Navigation Voice Control
Touch Navigation Voice Control to
access the voice control setting
display.
.Navigation Volume
‐To adjust the volume level,
touch the up and down arrows.
.Navigation Voice Prompt Level
during a Call. Options
available are:
‐Full Prompt (Selected by
default)
‐Tone Only
‐None
Map Colors
.Auto –Select Auto to
automatically change modes
based on lighting conditions.
.Day (Light)
.Night (Dark)
Alert Preferences
Alert Preferences will allow the
following group of alerts to be set
On or Off mode for both inactive
and active guidance view:
.Congestion Alerts
‐This alert displays congestion
ahead.
.Road Safety Alerts
‐This alerts School Zone and
Traffic Camera Alerts ahead.
History
Touch History to access the History
options. These options are:
.Clear Recent Destinations –
Touch \to clear the recent
destinations.
.Clear Search History –Touch \
to clear the search history.
About
Touch to display software
information, such as:
.Terms and Conditions
.Privacy Statement
.Navigation Version
Maps
The map database is stored on an
SD card that is inserted into an SD
port connected to the Infotainment
system. If an error message for SD
card missing is displayed, the
infotainment system will not have
the map database available for the
navigation app to work.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
24 Navigation

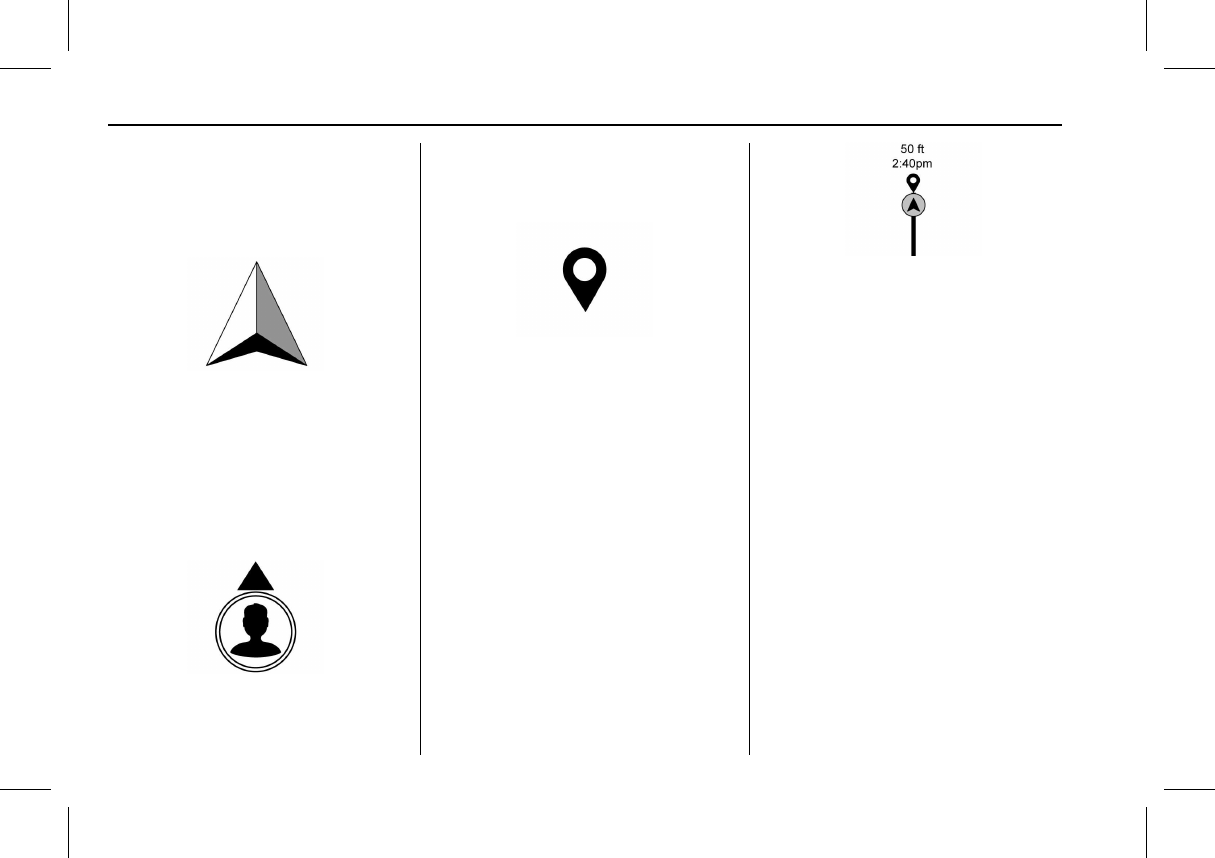

Navigation Symbols
Following are the most common
symbols that appear on a map
display.
The symbol indicates the current
position and heading direction of the
vehicle on the map.
The current location icon uses a
generic avatar while guidance is
non-active.
or
Once a profile is created and
guidance is active, an avatar that
can be customized will show to
indicate the current position and
heading direction of the vehicle on
the map.
The destination pin marks the final
destination after a route has been
planned. If touched, the address
bubble along with Hwill appear.
Touch the left side of the bubble to
go to the details page or touch the
right H(Favorite) within the bubble
to toggle between “Save to
Favorites”or “Remove from
Favorites.”The bubble will time out
if not used. Touch the destination
pin again to hide it.
The waypoint symbol is the same
type of symbol that marks one or
more set waypoints and is indicated
by a number within the pin icon.
A waypoint is a stopover destination
point added to the planned route.
An overview of the route displays on
a bar. This bar indicates progress
along the route and any traffic that
is present. Tap the route bar to
zoom out on the map and view the
entire route. Tap the bar again to
return the map view to the previous
view. The duration of the destination
will display if the estimated time of
arrival (ETA) is touched.
The Traffic Indicator displays the trip
showing traffic by color and any
icons showing incidents along the
route. As the route proceeds, the
vehicle icon moves up the display
along the bar visually, indicating
vehicle progression.
Current Location
When the vehicle is parked and not
in a Navigation session, the current
profiled icon is centered on the map
view, highlighting the current
location.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 25
Destination
Touch Nav on the Home Page to
access the map view.
Touch the Search icon from the map
view to access the Search menu.
Receiving Destination Directions
from Different Sources
Destinations can be received or
transferred from different sources
for the system’s navigation apps to
use for route guidance.
Some of these sources are:
.Navigation from search results.
.OnStar Advisor destination
download.
.An address from the
Contacts list.
.An application on the
smartphone such as myGMC
that can send destinations to the
vehicle.
.An application downloaded to
the vehicle such as OnStar
AtYourService that can send
destinations to the navigation
system.
Waypoints
Up to five waypoints can be added
to a route. Touch Go to add a POI
as a waypoint or set it as a new
destination to replace the current
destination. Route options are not
available for waypoints.
A pop-up menu displays with the
options to do the following:
.z–Return to the previous
screen.
.Add to Trip –Add the destination
along the route.
.New Destination –Replace the
current destination with the POI
as a new destination.
Arriving at a Waypoint
When approaching a waypoint stop,
the system will display a Destination
Arrival view. When the vehicle
arrives at the destination, if the
vehicle keeps moving, the
navigation view will be kept with the
next waypoint or destination
guidance. A pop-up will appear,
showing Drive to <next destination>.
If the vehicle comes within one mile
of the waypoint and then passes the
waypoint or gets out of the current
route, the system will automatically
reroute back to this waypoint. At the
same time, it will show a Drive to
icon along with the next waypoint
address so the current waypoint can
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
26 Navigation
be skipped and guidance can
resume to the next waypoint or
destination.
Editing a Waypoint
When a waypoint is added during
active guidance, the system allows
a waypoint to be deleted or to be
moved into a different order.
To edit a waypoint:
1. Touch the list icon on the upper
right side of the infotainment
display to show the Route List.
2. Touch the Edit option.
3. Touch Destinations to switch to
the destinations display.
.Touch the arrow until it
highlights, then drag to
move the waypoint order up
or down the list.
.Touch the trash icon to
delete the waypoint.
A pop-up will display asking
for confirmation. Once the
request is confirmed, the
system will remove the
address from the
destinations list. Touch z
on the top right corner so
the system can recalculate
the route.
If there is only one address
in the destinations list, the
system will disable the
move and delete functions.
The system will not allow
the final destination be
deleted.
Map Information
Road network attributes are
contained in the map database for
map information. Attributes include
information such as street names,
street addresses, and turn
restrictions. A detailed area includes
all major highways, service roads,
and residential roads. The detailed
areas include Places of Interest
(POIs) such as restaurants, airports,
banks, hospitals, police stations,
gas stations, tourist attractions, and
historical monuments. The map
database may not include data for
newly constructed areas or map
database corrections that are
completed after production. The
navigation system provides full
route guidance in the detailed map
areas.
Zoom Control
The zoom control display is shown
on the map view. A few ways to
zoom in or out are:
.Touch + or –to zoom in or out
on the map.
.Double tap with one finger to
zoom in or single tap with two
fingers to zoom out on the map.
.Use the index finger and thumb
to zoom out by pinching and
then zoom in by spreading those
two fingers on the map.
Map Gestures and Map Scale
Gestures can be used to easily
control the map. Some of these are:
.Pinch to zoom in or out.
.One finger double tap for zoom
in and two finger double tap for
zoom out.
.Panning the map.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 27
.Two finger tilt down for changing
from 2D to 3D and tilting up to
change back.
.Map rotating.
See Using the System 07earlier in
this section.
Mute
When under Active Guidance, the
audio prompts while using
navigation can be muted. Touch the
speaker icon on the left side of the
map. A slash will appear on the
speaker to indicate voice guidance
is muted.
Route Guidance View
When a destination is chosen and
navigation session is active, the
navigation system enters into a
Route Guidance View.
When under Active Guidance, the
entire route can be viewed in 2D
North Up by touching the traffic bar.
The map will zoom out and readjust
to display the full route. When in 2D
North Up Route View, the Recenter
Position icon will appear in the
middle of the display. Touch either
the Recenter Position icon or the
traffic bar again to return to the
previous view (2D or 3D).
Map Orientation
Touch Settings icon on the map to
access map orientation settings.
Map orientation is 3D Heading Up
by default.
Available settings are:
.3D Heading Up (Default)
.2D Heading Up
.2D North Up
With each touch on the icon, the
map type changes to the next one.
At the same time, the icon and label
also changes to indicate to the user
of the current map type.
In Heading maps (both 3D and 2D),
if the user increases the zoom level
to level nine and beyond, the
system automatically switches to
the 2D North Up map.
Lane Guidance
Depending on lane information,
when approaching a maneuver, the
map view may show the next
maneuver with the road lane
information under the next turn
maneuver.
Junction View
When a vehicle is on the highway
and approaching the exit, an image
displays the lane in which the
vehicle must stay to complete the
next maneuver.
Quick-Turn View
When the vehicle is approaching a
turn with the next following in quick
succession, a quick-turn menu
shows below the primary turn menu.
An audio prompt will announce the
quick turn.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
28 Navigation
Auto-Zoom
When approaching a maneuver, the
map will automatically zoom in to
show both the vehicle icon and the
upcoming maneuver to give a better
view of the maneuver. Once the
maneuver is complete, the system
will zoom back to the previous zoom
level. Touch 8on the map to
access Map Configuration, then
touch Auto-Zoom. This feature can
be enabled or disabled.
If the vehicle has been stopped or
turned off during route guidance, the
route guidance will auto-resume.
Route List
Touch the menu option next to the
next turn street name to display the
Route List.
The Route List displays the turns
and instructions from the current
point to the end of the route
guidance.
If there is traffic along a route
segment, a horizontal bar indicator
with incident icons displays.
Editing Route List
The Route List can be edited by
choosing Edit, which expands the
list to fill the full display and enters
the Edit Mode. While in Edit Mode,
an unwanted route segment can be
removed from the route by touching
Ynext to the segment. A pop-up
confirmation appears to confirm
segment removal.
When the segment of route has
been removed, that segment and all
segments after are replaced by an
activity indicator while the new route
is recalculated. When the
recalculation is complete, the
activity indicator is replaced with the
new route segments.
Highway Exit Lists
The Exit List is opened by touching
c. This icon displays next to the
current street name near the bottom
of the display. The icon only
appears when on a highway with
defined exits.
While traveling on roads with
designated exits, an Exit List may
be available. The Exit List displays
the exit number, distance to exit
from the current vehicle position,
and convenience stops that may be
available, such as gas stations,
coffee, restaurants, and lodging.
Traffic Information
Traffic Indicator
The Traffic Indicator displays traffic
conditions within the route. The total
traffic information will display a
maximum of 100 km (60 mi) ahead
of the vehicle. The color-coded
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 29
traffic bar is based on the traffic
condition, yellow and red. The
vehicle is moving from near the
bottom to the top destination.
A traffic icon will show when there is
traffic.
Next Maneuver Menu
When in Route Guidance, the Next
Maneuver Turn Arrow, Street Name,
and Maneuver Distance are
displayed in the Next Maneuver
menu at the top of the display
overlaying the map. ETA, Distance
to Destination, and Traffic Indicator
are displayed in a panel pinned to
the right of the display.
Navigation Next Turn Maneuver
Alert
If the navigation is not open when a
near maneuver prompt is given, it is
shown as an alert. Touch the alert to
go to the main navigation view or
touch zto dismiss the alert.
Repeat Voice Guidance
This symbol indicates the next
guidance maneuver. Touch it to
repeat the last spoken guidance
instruction.
Adaptive Routing Alert
During active guidance, the system
will continue looking for a better
route than the one that was initially
calculated by the system.
When a Better Route is Available
A better route is an improved ETA to
avoid current traffic congestion or
road closures around the vehicle’s
position.
If a route is found, the system will
automatically reroute the driver to
the better route if Auto Reroute is
set. If Auto Reroute is not set, it will
offer the option take the better
route.
When No Better Route is Available
During active guidance, if the
system determines that there is an
incident ahead but there is not a
better route, the system will play a
tone and show a Quick Notice. This
will only show once per incident.
Incident Reports
Incident report icons, along with
traffic flow data, display on the map
during both active and inactive
guidance.
Traffic Info
While in map view, touch the
Settings icon to access Traffic Info.
When turned on, the Traffic Info
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
30 Navigation
feature provides an overview of the
traffic flow using different coded
colors. The following options are
available for rerouting:
.Auto Reroute to Better Route –
The system will automatically
reroute if the system detects
there is a traffic issue ahead.
.Ask Before Rerouting (Default) –
If the system detects there is a
traffic issue ahead, it will display
a pop-up with details about the
issue. The driver can choose to
reroute or cancel the alert.
.Never Check for Better Route –
The system will not check for
any better route until the user
chooses any of the above
options.
End Route
Touch Cancel at the top right corner
to end active guidance and return to
inactive guidance. If active guidance
is canceled before the destination
has been reached, a pop-up option
to Resume Trip will appear.
Resume Trip
The trip can be resumed if it was
canceled by displaying the Resume
Trip pop-up option.
If the system has determined that
the destination has been reached,
either because the arrival view
displayed or the destination has
been passed, the Resume Trip
option will not appear.
Touch a convenience icon such as
food or fuel to display a list of only
those POIs near that exit. Not all
POIs will show.
Favorites
The navigation favorites can have
contacts, addresses, or POIs that
have been saved through the
favorite icon on the Detail map view.
Accessing Favorites
To manage favorites, touch Settings
from the Home Page to access the
Setting main page. Touch the
System tab. Scroll down to
Favorites and touch to access the
Manage Favorites option.
While in the Nav app, touch Hnext
to the search bar near the top of the
display. After selecting the search
option, touch Hto view the saved
favorites.
Saving Favorites
Favorites can be added from a
number of the system’s applications.
While in Detail map view, touch H
Favorite to save content for
navigation as a favorite.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 31
Renaming Navigation Favorites
1. Touch Settings from the Home
Page and then touch the
System tab.
2. Touch Favorites on the
infotainment display to access
the Manage Favorites option.
3. Touch a saved Navigation
favorite to access the edit icon.
Touch the edit icon to rename
the favorite.
4. Touch Save to store the
renamed favorite.
Recents
Touch Gto access a list of recent
destinations.
Recenter Position Icon
Touch the Recenter Position arrow
in the middle of the map view to
reset the map back to the current
location.
Last Parked Location
The Last Parked Location is the last
location the vehicle engine was
turned off. That location is displayed
in the first row of the Recents list.
Touching the last Parked Location
shows the Address Details view to
either save the address or drive to
it. The Last Parked Location can be
deleted by entering the Edit display.
Once the Last Parked Location is
deleted, it no longer appears in the
Recents list, unless the vehicle is
started at that location again.
Show POI Icons
There are two rows of POI
categories that can be displayed.
These POI categories are stored
under 8on the map. While in the
Navigation Settings application, up
to eight categories of icons can be
selected.
Smart POI Icons on Map
The smart POI icons such as fuel
stations and parking are
programmed to appear in context to
the situation based on time,
location, driver search behavior,
driving conditions, and vehicle
conditions.
If the vehicle is running low on fuel,
fuel station icons would appear,
showing real-time prices.
Touching an icon on the map opens
the corresponding Detail map view
for the icon that contains:
.Left side: Name and address of
the POI.
.Right side: Car icon + ETE
(Estimated Time of Enroute.)
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
32 Navigation
Smart Fuel Station Icons
Fuel station prices are shown for
regular unleaded fuel for nearby
stations when the vehicle is low
on fuel.
Smart Parking Icons
When reaching a densely populated
destination and the system
determines that parking may be
limited, the infotainment system will
attempt to display nearby parking
destinations with pricing information,
if available.
Report an Issue Using POI Details
In the POI details page a POI issue
can be reported if the data is not
accurate or something is wrong with
the address. Touch the Report an
Issue option near the bottom of the
display to access the issue
selection page. Touch one of the
predefined issues on the selection
page, then touch Send. The system
will send the information for
analysis.
Avoid on Route
While in active guidance, touch the
Settings icon on the Home Page to
access the Avoid on Route menu.
Touch the Avoid on Route menu to
view avoidance options for the
active route. Touch on of the
avoidance options to temporarily
avoid the following types of roads
on the current route:
.Highway
.Toll Roads
.Unpaved Roads (Default)
.Tunnels
.Ferries
.Country Borders
.Carpool Lanes (Default)
Touch the Remember This Setting
option to save a selected
configuration for future active
routes. This option can be turned
On or Off. The default is On.
If it is set to On, the system will
save the configuration for future
navigation routes.
Search
Touch Search to open the search
display. It has a search field entry
box, quick category icon shortcuts,
recents icon, favorites icon and key.
Auto Complete
Enter a partial location in the entry
field box on the search display. Auto
complete will attempt to complete
the destination based on what is
being entered. Touch the suggested
item to search.
Search While in Motion with No
Front Seat Passenger Present
The Search display will not allow
changes or input of text through the
keyboard when the vehicle is in
motion. Because of this, a display
showing three rows of icons of the
most commonly used categories is
shown. Touching the search box will
activate speech recognition.
Search While in Motion with
Front-Seat Passenger Present
If the system detects that the front
seat passenger is present with both
driver and passenger seat belts
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 33
buckled, touching the search icon
will display an alert message that
allows the passenger to use the
search display as if the vehicle were
stopped.
OnStar Connected Navigation
Subscription
OnStar Connected Navigation is a
subscription service that enables
certain capabilities within the
navigation system, such as map
updates, Traffic, Smart Search/
Routing, and Predictive Navigation
capabilities. The system will show
an alert when the subscription is
expiring and will ask to renew
the plan.
OnStar System
With an OnStar subscription to the
Guidance Plan, an OnStar Advisor
can download a destination to the
vehicle or into the built-in navigation
system.
Touch OnStar on the Home Page to
access the OnStar menu. Touch the
Turn-by-Turn option while on the
OnStar menu.
Turn-by-Turn Navigation
Touch the Turn-by-Turn Directions
feature to select between Favorites
and Recent Destinations. To find
new locations, touch OnStar
Advisor, Home Directions, Place
Voice Search, or Address Voice
Search.
Lane Guidance
When available, the system will
show the proper lane(s) that would
be the best position to be in for the
next maneuver.
Cancel a Route
If a route is in progress using either
the vehicle navigation system or the
OnStar Turn-by-Turn route, and a
new route is requested, the current
route in progress will be canceled.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
34 Navigation
Global Positioning
System (GPS)
The position of the vehicle is
determined by using satellite
signals, various vehicle signals, and
map data.
At times, other interference such as
the satellite condition, road
configuration, condition of the
vehicle, and/or other circumstances
can affect the navigation system's
ability to determine the accurate
position of the vehicle.
The GPS shows the current position
of the vehicle using signals sent by
GPS satellites. When the vehicle is
not receiving signals from the
satellites, a symbol appears in the
status bar.
This system might not be available
or interference can occur if any of
the following are true:
.Signals are obstructed by tall
buildings, trees, large trucks,
or a tunnel.
.Satellites are being repaired or
improved.
For more information if the GPS is
not functioning properly, see
Problems with Route Guidance 035
and If the System Needs Service
035.
Vehicle Positioning
At times, the position of the vehicle
on the map could be inaccurate due
to one or more of the following
reasons:
.The road system has changed.
.The vehicle is driving on slippery
road surfaces such as sand,
gravel, or snow.
.The vehicle is traveling on
winding roads or long, straight
roads.
.The vehicle is approaching a tall
building or a large vehicle.
.The surface streets run parallel
to a freeway.
.The vehicle has been transferred
by a vehicle carrier or a ferry.
.The current position calibration
is set incorrectly.
.The vehicle is traveling at high
speed.
.The vehicle changes directions
more than once, or the vehicle is
turning on a turn table in a
parking lot.
.The vehicle is entering and/or
exiting a parking lot, garage, or a
lot with a roof.
.The GPS signal is not received.
.A roof carrier is installed on the
vehicle.
.Tire chains have been installed.
.The tires are replaced or worn.
.The tire pressure for the tires is
incorrect.
.This is the first navigation use
after the map data is updated.
.The 12-volt battery has been
disconnected for several days.
.The vehicle is driving in heavy
traffic where driving is at low
speeds, and the vehicle is
stopped and started repeatedly.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Navigation 35
Problems with Route
Guidance
Inappropriate route guidance can
occur under one or more of the
following conditions:
.The turn was not made on the
road indicated.
.Route guidance might not be
available when using automatic
rerouting for the next right or
left turn.
.The route might not be changed
when using automatic rerouting.
.There is no route guidance when
turning at an intersection.
.Plural names of places might be
announced occasionally.
.It could take a long time to
operate automatic rerouting
during high-speed driving.
.Automatic rerouting might
display a route returning to the
set waypoint if heading for a
destination without passing
through a set waypoint.
.The route prohibits the entry of a
vehicle due to a regulation by
time or season or any other
regulation which may be given.
.Some routes might not be
searched.
.The route to the destination
might not be shown if there are
new roads, if roads have
recently changed, or if certain
roads are not listed in the map
data. See Maps 023.
To recalibrate the vehicle's position
on the map, park with the vehicle
running for two to five minutes, until
the vehicle position updates. Make
sure the vehicle is parked in a
location that is safe and has a clear
view of the sky and away from large
obstructions.
If the System Needs
Service
If the navigation system needs
service and the steps listed here
have been followed but there are
still problems, see Problems with
Route Guidance 035.
Map Data Updates
The map data in the vehicle is the
most up-to-date information
available when the vehicle was
produced. The map data is updated
periodically, provided that the map
information has changed.
For questions about the operation of
the navigation system or the update
process, call the GM Nav Disc
Center at 1-877-NAV-DISC
(1-877-628-3472) or see
www.gmnavdisc.com. If updates are
needed, call the GM Nav Disc
Center or order online.
Over-the-Air Vehicle Map
Updates
If equipped, the infotainment system
can receive map updates over the
air. Map updates occur within a
161 km (100-mi) radius around the
home address on file. This
boundary will adjust over time
based on driving patterns. The
vehicle uses a Cloud-connected
service to receive the data and
downloads it to the system’s
onboard SD card, if equipped.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
36 Navigation
A data plan or compatible mobile
device hotspot is required. The SD
card is required for navigation
system function.
When a map update is available, a
prompt will appear on the
infotainment display. Once the
update is accepted, it will download
and run in the background without
interrupting any infotainment
functions. The download will carry
over ignition cycles, stopping and
starting where it left off. The
updates can be set to download
automatically.
See www.gmnavdisc.com for
information on ordering, purchasing,
and installing a new or replacement
SD card.
Database Coverage
Explanations
Coverage areas vary with respect to
the level of map detail available for
any given area. Some areas feature
greater levels of detail than others.
If this happens, it does not mean
there is a problem with the system.
As the map data is updated, more
detail can become available for
areas that previously had limited
detail. See Map Data Updates 035.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Voice Recognition 37
Voice Recognition
Voice recognition allows for
hands-free operation within the
navigation, audio, and mobile
device applications. This feature
can be started by pressing gon the
steering wheel or by touching gon
the infotainment display with the
navigation application.
However, not all features within
these areas are supported by voice
commands. Generally, only complex
tasks that require multiple manual
interactions to complete are
supported by voice commands.
For example, tasks that take more
than one or two touches, such as a
song or artist to play from a media
device, would be supported by voice
commands. Other tasks, like
adjusting the volume or seeking up
or down, are audio features that are
easily performed by touching one or
two options, and are not supported
by voice commands.
In general there are flexible ways to
speak commands for completing the
tasks.
If your language supports it, try
stating a One-Shot command, such
as “Directions to address <number,
street, city, state>.”Do not include
the ZIP code while stating the
address during the command. This
type of destination entry command
is supported in some languages.
Another example of a One-Shot
Destination Entry command is,
“Directions to place of interest at
<hotel>.”If these commands do not
work, try saying, “Take me to Place
of Interest”or “Find address”and
the system will walk you though by
asking additional questions.
Hybrid Speech Recognition
If equipped, this feature helps
distinguish words by using
Internet-based information along
with the system’s voice recognition
database. This allows you to speak
more naturally when using voice
recognition.
Using Voice Recognition
Voice recognition becomes available
once the system has been
initialized. This begins when the
ignition is turned on. Initialization
may take a few moments.
1. Press gon the steering wheel
controls to activate voice
recognition.
2. The audio system mutes and
the system plays a prompt
followed by a beep.
3. Wait until after the beep
completes, then clearly speak
one of the commands
described in this section.
A voice recognition system
prompt can be interrupted while
it is playing by pressing g
again.
For example, if the prompt
seems to be taking too long to
finish, to speak the command
without waiting for the prompt
to complete, press gagain and
wait for the beep.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
38 Voice Recognition
Once voice recognition is started,
both the infotainment display and
instrument cluster show the
selections and visual dialog content.
These displays can be turned On or
Off in the Tutorial Mode under
Settings 051.
There are three voice prompt modes
supported:
.Informative verbal prompts: This
type of prompt will provide more
information regarding the
supported actions.
.Short prompts: This type of
prompt will provide simple
instructions about what can be
stated.
.Auto informative prompts: This
type of prompt plays during the
first few speech sessions, then
automatically switches to the
short prompt after some
experience has been gained
through using the system.
If a command is not spoken, the
voice recognition system says a
help prompt.
Prompts and Infotainment
Displays
While a voice recognition session is
active, there may be corresponding
options showing on the displays.
A selection can be made by
manually selecting the item, or by
speaking the line number for the
item to select. Manual interaction in
the voice recognition session is
permitted. Interaction during a voice
session may be completed entirely
using voice commands while some
manual commands may expedite a
task. If a selection is made using a
manual control, the voice
recognition dialog will progress in
the same way as if the selection
was made using a voice command.
Once the system completes the
task, or the session is terminated,
the voice recognition dialog stops.
An example of this type of manual
intervention is touching an entry of a
displayed number list instead of
speaking the number associated
with the entry desired.
Canceling Voice Recognition
.Touch or say “Cancel”or “Exit”
to terminate the voice
recognition session and show
the display where voice
recognition was initiated.
.Press ion the steering wheel
controls to terminate the voice
recognition session and show
the display where voice
recognition was initiated.
Natural Language Commands
Most languages do not support
natural language commands in
sentence form. For those
languages, use direct commands
like the examples shown on the
display.
Helpful Hints for Speaking
Commands
Voice recognition can understand
commands that are naturally stated
in sentence form or direct
commands that state the application
and the task.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Voice Recognition 39
For best results:
.Listen for the prompt and wait
for the beep before saying a
command or reply.
.Say “Help”or look at the
infotainment display for example
commands.
.Speak the command naturally,
not too fast, not too slow.
.Use direct commands without a
lot of extra words. For example,
“Call <name> at work,” “Play”
followed by the artist or song
name, or “Tune”followed by the
radio station number.
.Navigation destinations can be
made in a single command
using keywords. A few examples
are: “I want directions to an
address,” “I need to find a place
of interest or (POI),”or “Find
contact.”
The system responds with
requesting more details. After
saying “Place of Interest,”only
major chains are available by
name. Chains are businesses
with at least 20 locations. For
other POIs, say the name of a
category like “Restaurants,”
“Shopping Malls,”or “Hospitals.”
.Navigating to a destination
outside of the current country
takes more than one command.
The first command is to tell the
system where the navigation will
take place, such as an Address,
Intersection, POI, or Contact.
If Address or Intersection is
selected, the second command
is to say, “Change Country.”
Once the system responds, say
the country before saying the
rest of the address and/or
intersection.
If POI is asked for, say “Change
Location,”then “Change
Country.”
Direct commands might be more
clearly understood by the system.
An example of a direct command
would be “Call <number>.”
Examples of these direct commands
are displayed on most of the
screens while a voice session is
active. If “Phone”or “Phone
Commands,”is spoken, the system
understands that a phone call is
requested and will respond with
questions until enough details are
gathered to make a call.
If a cell phone number has been
saved with a name and a place, the
direct command should include
both, for example “Call <name>
at work.”
Using Voice Recognition for
List Options
When a list is displayed, a voice
prompt will ask to confirm or select
an option from that list.
When a display contains a list, there
may be options that are available
but not displayed. The list on a
voice recognition screen functions
the same as a list on other displays.
Scrolling or flinging can be used to
help display other entries from
the list.
Manually scrolling or paging the list
on a display during a voice
recognition session suspends the
current voice recognition event and
plays the prompt “Please select
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
40 Voice Recognition
manually or touch the Back icon on
the infotainment display to try
again.”
If manual selection takes more than
15 seconds, the session terminates
and prompts that it has timed out.
The display returns to the display
where voice recognition was
initiated.
The Back Command
Say “Back”or touch the Back icon
on the infotainment display to go to
the previous display.
If in voice recognition, and “Back”is
spoken all the way back to the
starting display, and then “Back”is
spoken one more time, the voice
recognition session will cancel.
Help
Say “Help”on any voice recognition
display and the help prompt for the
display is played. Additionally, a
pop-up may display a text version of
the help prompt. If available, the text
version of the help prompt will
display on both the infotainment
display and instrument cluster.
Touching gwhile the help prompt is
playing will terminate the prompt
and a beep will be heard. Doing this
will stop the help prompt so that a
voice command can be used.
Voice Recognition for the
Radio
If browsing the audio sources when
voice is touched, the voice
recognition commands for AM, FM,
and SiriusXM (if equipped) are
available.
“Switch to AM”:Switch bands to
AM and tune to the last AM radio
station.
“Switch to FM”:Switch bands to
FM and tune to the last FM radio
station.
“Switch to SXM”:Switch bands to
SiriusXM and tune to the last
SiriusXM channel.
“Tune to <AM frequency> AM”:
Tune to the radio station whose
frequency is identified in the
command (like “nine fifty”).
“Tune to <FM frequency> FM”:
Tune to the radio station whose
frequency is identified in the
command (like “one oh one
point one”).
“Tune to <AM frequency> AM
HD”:Tune to the HD Radio station
whose frequency is identified in the
command.
“Tune to <FM frequency> FM
HD”:Tune to the HD Radio station
whose frequency is identified in the
command.
“Tune to <FM frequency> FM HD
<HD channel number>”:Tune to
the HD Radio station whose
frequency and HD channel are
identified in the command.
“Tune to SXM <SXM channel
number>”:Tune to the SiriusXM
radio station whose channel number
is identified in the command.
“Tune to SXM <SXM channel
name>”:Tune to the SiriusXM
radio station whose channel name
is identified in the command.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Voice Recognition 41
Voice Recognition for Audio
My Media
The available voice recognition
commands for [browsing] My
Media are:
“Play Artist”:Begin a dialog to
enter a specific artist name.
“Play Artist <artist name>”:
Begin playback of a specific artist.
“Play Album”:Begin a dialog to
enter a specific album name.
“Play Album <album name>”:
Begin playback of a specific album.
“Play Song”:Begin a dialog to
enter a specific song name.
“Play Song <song name>”:Begin
playback of a specific song,
if available.
“Play Genre”:Begin a dialog to
enter a specific genre.
“Play Genre <genre name>”:
Begin playback of a specific genre.
“Play Playlist”:Begin a dialog to
enter a specific playlist name.
“Play Playlist <playlist name>”:
Begin playback of a specific playlist.
“Play <device name>”:Play
music from a specific device
identified by name. The device
name is the name displayed on the
display when the device is first
selected as an audio source.
“Play Chapter”:Begin a dialog to
enter a specific name.
“Play Chapter <chapter name>”:
Begin playback of a specific
chapter.
“Play Audiobook”:Begin a dialog
to enter a specific audiobook.
“Play Audiobook <audiobook
name>”:Begin playback of a
specific audiobook.
“Play Episode”:Begin a dialog to
enter a specific name.
“Play Episode <episode
name>”:Begin playback of a
specific episode.
“Play Podcast”:Begin a dialog to
enter a specific podcast.
“Play Podcast <podcast
name>”:Begin playback of a
specific podcast.
“Play Video”:Begin a dialog to
enter a specific name.
“Play Video <video name>”:
Begin playback of a specific video.
“My Media”:Begin a dialog to
enter the desired media content.
Handling Large Amounts of Media
Content
It is expected that large amounts of
media content will be brought into
the vehicle. It may be necessary to
handle large amounts of media
content in a different way than
smaller amounts of media. The
system may limit the options of
voice recognition by not allowing
selection of files by voice at the
highest level if the number of files
exceed the maximum limit.
Changes to voice commands due to
media content limits are:
.Files including other individual
files of all media types such as
songs, audiobook chapters,
podcast episodes, and videos.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
42 Voice Recognition
.Album type folders including
types such as albums and
audiobooks.
There are no restrictions if the
number of files and albums is less
than 12,000. When the number of
files connected to the system is
between 12,000 and 24,000, the
content cannot be accessed directly
with one command like “Play
<song name>.”
The restriction is that the command
“Play Song”must be spoken first;
the system will then ask for the song
name. The reply command would be
to say the name of the song to play.
Similar limits exist for album
content. If there are more than
12,000 albums, but less than
24,000, the content cannot be
accessed directly with one
command like, “Play <album
name>.”The command “Play
Album”must first be spoken; the
system will then ask for the album
name. The reply would be to say the
name of the album to play.
Once the number of files has
exceeded approximately 24,000,
there is no support for accessing the
songs directly through voice
commands. There will still be
access to the media content by
using commands for playlists,
artists, and genres.
The access commands for playlists,
artists, and genres are prohibited
after the number of this type of
media exceeds 12,000.
The system will provide feedback
the first time voice recognition is
initiated if it has become apparent
that any of these limits are reached
during a device initializing process.
Voice recognition performance will
degrade to some extent based on
many factors when adding large
amounts of data to recognize. If this
is the case, perhaps accessing
songs through playlists or artist
name would work better.
Voice Recognition for
Navigation
“Navigation”:Begin a dialog to
enter specific destination
information.
“Navigation Commands”:Begin a
dialog to enter specific destination
information.
“Address”:Begin a dialog to enter
a specific destination address,
which includes the entire address
consisting of the house number,
street name, and city and state/
province. Do not include the
ZIP code.
“Place of Interest”:Begin a dialog
to enter a destination Place of
Interest category or major
brand name.
The name must be precisely
spoken. Nicknames or short names
for the businesses will not likely be
found. Lesser known businesses
might have to be located by
category, such as fast food, hotels,
or banks.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Voice Recognition 43
“Navigate to Contact”:Begin a
dialog to enter a specific destination
contact name.
“Cancel Route”:End route
guidance.
“Take Me Home”:Create a route
to a stored home location.
Voice Recognition for the
Phone
“Call <contact name>”:Initiate a
call to a stored contact. The
command may include location if
the contact has location numbers
stored.
“Call <contact> At Home,” “At
Work,” “On Mobile,”or “On
Other”:Initiate a call to a stored
contact and location at home, at
work, on mobile device, or on
another phone.
“Call <cell phone number>”:
Initiate a call to a standard phone
number seven or 10 digits in length,
and also three digit emergency
numbers.
“Pair Phone”:Begin the Bluetooth
pairing process. Follow the
instructions on the radio display.
“Redial”:Initiate a call to the last
dialed number.
“Switch Phone”:Select a different
connected cell phone for outgoing
calls.
“Voice Keypad”:Begin a dialog to
enter special numbers like
international numbers. The numbers
can be entered in groups of digits
with each group of digits being
repeated back by the system. If the
group of digits is not correct, the
command “Delete”will remove the
last group of digits and allow them
to be re-entered. Once the entire
number has been entered, the
command “Call”will start dialing the
number.
Bluetooth Speech Recognition
Bluetooth Speech Recognition/Siri
Eyes Free allows access to voice
based text messages, calendar, and
audio sources.”Press and hold g
on the steering wheel controls for
longer than one second to access.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
44 Phone
Phone
Bluetooth (Overview)
The Bluetooth-capable system can
interact with many mobile devices,
allowing:
.Placement and receipt of calls in
a hands-free mode.
.Sharing of the device’s address
book or contact list with the
vehicle.
To minimize driver distraction,
before driving, and with the vehicle
parked:
.Become familiar with the
features of the mobile device.
Organize the phone book and
contact lists clearly and delete
duplicate or rarely used entries.
If possible, program speed dial
or other shortcuts.
.Review the controls and
operation of the infotainment
system.
.Pair mobile device(s) to the
vehicle. The system may not
work with all mobile devices.
See “Pairing”later in this
section.
Vehicles with a Bluetooth system
can use a Bluetooth-capable mobile
device with a Hands-Free Profile to
make and receive phone calls. The
infotainment system and voice
recognition are used to control the
system. The system can be used
while the ignition is on or in ACC/
ACCESSORY. The range of the
Bluetooth system can be up to 9.1 m
(30 ft). Not all mobile devices
support all functions and not all
mobile devices work with the
Bluetooth system. See
www.my.gmc.com for more
information about compatible mobile
devices.
Controls
Use the controls on the center stack
and the steering wheel to operate
the Bluetooth system.
Steering Wheel Controls
g:Press to answer incoming calls
and start voice recognition on your
connected Bluetooth mobile device.
i:Press to end a call, decline a
call, or cancel an operation. Press
to mute or unmute the infotainment
system when not on a call.
Infotainment System Controls
For information about how to
navigate the menu system using the
infotainment controls, see Overview
02.
Audio System
When using the Bluetooth mobile
device system, sound comes
through the vehicle's front audio
system speakers and overrides the
audio system. The volume level
while on a mobile device call can be
adjusted by pressing the steering
wheel controls or the volume control
on the center stack. The adjusted
volume level remains in memory for
later calls. The volume cannot be
lowered beyond a certain level.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Phone 45
Bluetooth (Pairing and
Using the Phone)
Pairing
A Bluetooth-enabled mobile device
must be paired to the Bluetooth
system and then connected to the
vehicle before it can be used. See
the mobile device manufacturer's
user guide for Bluetooth functions
before pairing the device.
Pairing Information
.If no mobile device has been
connected, the Phone main
page on the infotainment display
will show the Connect Phone
option. Touch this option to
connect. Another way to connect
is to touch the Phones tab at the
top right of the display and then
touch Add Phone.
.A Bluetooth smartphone with
music capability can be paired to
the vehicle as a smartphone and
a music player at the same time.
.Up to 10 devices can be paired
to the Bluetooth system.
.The pairing process is disabled
when the vehicle is moving.
.Pairing only needs to be
completed once, unless the
pairing information on the cell
phone changes or the cell phone
is deleted from the system.
.If multiple paired cell phones are
within range of the system, the
system connects to the paired
cell phone that is set to First to
Connect. If there is no cell
phone set to First to Connect, it
will link to the cell phone which
was used last. To link to a
different paired cell phone, see
“Linking to a Different Phone”
later in this section.
Pairing a Phone
1. Make sure Bluetooth has been
enabled on the cell phone
before the pairing process is
started.
2. Touch Phone on the Home
Page or the phone shortcut
tray near the bottom of the
display.
3. Touch Phones at the top of the
infotainment display. There is
also a Connect Phones option
in the middle of the Phone
screen which will shortcut to
the Phone List menu.
4. Touch Add Phone.
5. Select the vehicle name shown
on the infotainment display
from your cell phone’s
Bluetooth Settings list.
6. Follow the instructions on the
cell phone to confirm the
six-digit code showing on the
infotainment display and touch
Pair. The code on the cell
phone and infotainment display
will need to be acknowledged
for a successful pair.
7. Start the pairing process on the
cell phone to be paired to the
vehicle. See the cell phone
manufacturer's user guide for
information on this process.
Once the cell phone is paired,
it will show under Connected.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
46 Phone
8. If the vehicle does not appear
on your cell phone, there are a
few ways to start the pairing
process over.
.Turn the cell phone off and
then back on.
.Go back to the beginning of
the Phone menus on the
infotainment display and
restart the pairing process.
.Reset the cell phone, but
this step should be done as
a last-effort.
9. If the cell phone prompts to
accept connection or allow
phone book download, touch
Always Accept and Allow. The
phone book may not be
available if not accepted.
10. Repeat Steps 1−8 to pair
additional cell phones.
First to Connect Paired Phones
If multiple paired cell phones are
within the range of the system, the
system connects to the paired cell
phone that is set as First to
Connect. To enable a paired cell
phone as the First to Connect
phone:
1. Make sure the cell phone is
turned on.
2. Touch Settings, then touch
System.
3. Touch Phones to access all
paired and all connected cell
phones and mobile devices.
4. Touch the information icon to
the right of the cell phone to
open the cell phone’s
settings menu.
5. Touch the First to Connect
option, to enable the setting for
that device.
Cell phones and mobile devices can
be added, removed, connected, and
disconnected. A sub-menu will
display whenever a request is made
to add or manage cell phones and
mobile devices.
Secondary Phone
A cell phone can be enabled as a
Secondary Phone by touching the
information icon to the right of the
paired cell phone name to open the
phone settings menu. If a cell phone
is enabled as a Secondary Phone, it
can connect simultaneously
alongside another Bluetooth mobile
device. In doing so, the Secondary
Phone will be labeled as Incoming
Calls. This means the mobile device
can only receive calls. The Address
Book of a Secondary Phone will not
be available and hands-free
outgoing calls cannot be placed
using this cell phone.
If needed, touch the Secondary
Phone while in the Phones list to
swap it into the Outgoing and
Incoming role. This role makes it
possible to place outgoing calls from
the Contacts and Recents list.
Listing All Paired and Connected
Phones
1. Touch Phone on the Home
Page or the phone shortcut
tray near the bottom of the
display.
2. Touch Phones.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Phone 47
Disconnecting a Connected Phone
1. Touch Phone on the
Home Page.
2. Touch Phones.
3. Touch the information icon next
to the connected cell phone or
mobile device to display the
cell phone’s or mobile device’s
information display.
4. Touch Disconnect.
Deleting a Paired Phone
1. Touch Phone on the Home
Page or the phone shortcut
tray near the bottom of the
display.
2. Touch Phones.
3. Touch the information icon next
to the connected cell phone to
display the cell phone’s or
mobile device’s information
display.
4. Touch Forget Device.
Linking to a Different Phone
To link to a different cell phone, the
new cell phone must be in the
vehicle and paired to the Bluetooth
system.
1. Touch Phone on the Home
Page or the phone shortcut
tray near the bottom of the
display.
2. Touch Phones.
3. Touch the new cell phone to
link to from the not connected
phone list. See Settings 051
for more information about
setting the device as the First
to Connect or as a Secondary
Phone.
Switching to Handset or
Handsfree Mode
To switch between handset or
handsfree mode:
.While the active call is
hands-free, touch the Handset
display option to switch to the
handset mode.
The mute icon will not be
available nor functional while
Handset mode is active.
.While the active call is on the
handset, touch the Handset
display icon to switch to the
hands-free mode.
Making a Call Using Contacts
and Recent Calls
Calls can be made through the
Bluetooth system using personal
cell phone contact information for all
cell phones that support the Phone
Book feature. Become familiar with
the cell phone settings and
operation. Verify the cell phone
supports this feature.
The Contacts menu accesses the
phone book stored in the cell phone.
The Recents menu accesses the
recents call list from your cell
phone.
To make a call using the
Contacts menu:
1. Touch Phone on the
Home Page.
2. Touch Contacts.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
48 Phone
3. The Contacts list can be
searched by using the first
character. Touch A-Z on the
infotainment display to scroll
through the list of names.
Touch the name to call.
4. Touch the desired contact
number to call.
To make a call using the
Recents menu:
1. Touch Phone on the
Home Page.
2. Touch Recents.
3. Touch the name or number
to call.
Making a Call Using the
Keypad
To make a call by dialing the
numbers:
1. Touch Phone on the
Home Page.
2. Touch Keypad and enter a cell
phone number.
3. Touch #on the infotainment
display to start dialing the
number.
Searching Contacts Using the
Keypad
To search for contacts using the
keypad:
1. Touch Phone on the
Home Page.
2. Touch Keypad and enter partial
cell phone numbers or contact
names using the digits on the
keypad to search.
Results will show on the right
side of the display. Touch one
to place a call.
Accepting or Declining a Call
When an incoming call is received,
the infotainment system mutes and
a ring tone is heard in the vehicle.
Accepting a Call
There are two ways to accept a call:
.Press gon the steering wheel
controls.
.Touch Answer on the
infotainment display.
Declining a Call
There are two ways to decline
a call:
.Press ion the steering wheel
controls.
.Touch Ignore on the infotainment
display.
Call Waiting
Call waiting must be supported on
the Bluetooth cell phone and
enabled by the wireless service
carrier to work.
Accepting a Call
There are two ways to accept a
call-waiting call:
.Press gon the steering wheel
controls.
.Touch Switch on the
infotainment display.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Phone 49
Declining a Call
There are two ways to decline a
call-waiting call:
.Press ion the steering wheel
controls.
.Touch Ignore on the infotainment
display.
Switching Between Calls (Call
Waiting Calls Only)
To switch between calls, touch
Phone on the Home Page to display
Call View. While in Call View, touch
the call information of the call on
hold to change calls.
Three-Way Calling
Three-way calling must be
supported on the Bluetooth cell
phone and enabled by the wireless
service carrier to work.
To start a three-way call while in a
current call:
1. In the Call View, select Add
Call to add another call.
2. Initiate the second call by
selecting from Recents,
Contacts, or Keypad.
3. When the second call is active,
touch the merge icon to
conference the three-way call
together.
Ending a Call
.Press ion the steering wheel
controls.
.Touch #next to a call to end
only that call.
Dual Tone Multi-Frequency
(DTMF) Tones
The in-vehicle Bluetooth system can
send numbers during a call. This is
used when calling a menu-driven
phone system. Use the Keypad to
enter the number.
Apple CarPlay and
Android Auto
If equipped, Android Auto and/or
Apple CarPlay capability may be
available through a compatible
smartphone. If available, the
Android Auto and Apple CarPlay
icons will appear on the Home Page
of the infotainment display.
To use Android Auto and/or Apple
CarPlay:
1. Download the Android Auto
app to your smartphone from
the Google Play store. There is
no app required for Apple
CarPlay.
2. Connect your Android phone or
Apple iPhone by using the
compatible smartphone USB
cable and plugging into a USB
data port. For best
performance, use the device’s
factory-provided USB cable.
Aftermarket or third-party
cables may not work.
3. When the phone is first
connected to activate Apple
CarPlay or Android Auto, the
message “Device Projection
Privacy Consent”will appear.
.Touch Continue to launch
Apple CarPlay or
Android Auto.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
50 Phone
.Touch Disable to remove
Apple CarPlay and Android
Auto capability from the
vehicle Settings menu.
Other functions may
still work.
The Android Auto and Apple
CarPlay icons on the Home Page
will illuminate depending on the
smartphone. Android Auto and/or
Apple CarPlay may automatically
launch upon USB connection. If not,
touch the Android Auto or Apple
Carplay icon on the Home Page to
launch.
Press {on the center stack to
return to the Home Page.
For further information on how to set
up Android Auto and Apple CarPlay
in the vehicle, see my.gmc.com or
see “Customer Assistance”in the
owner’s manual.
Android Auto is provided by Google
and is subject to Google’s terms
and privacy policy. Apple CarPlay is
provided by Apple and is subject to
Apple’s terms and privacy policy.
Data plan rates apply. For Android
Auto support see https://
support.google.com/androidauto.
For Apple CarPlay support see
www.apple.com/ios/carplay/. Apple
or Google may change or suspend
availability at any time. Android
Auto, Android, Google, Google Play,
and other marks are trademarks of
Google Inc.; Apple CarPlay is a
trademark of Apple Inc.
Press {on the center stack to exit
Android Auto or Apple CarPlay. To
enter back into Android Auto or
Apple CarPlay, press and hold {on
the center stack.
Apple CarPlay and Android Auto
can be disabled from the
infotainment system. To do this,
touch Home, Settings, and then
touch the Apps tab along the top of
the display. Use the On/Off toggled
to turn off Apple CarPlay or
Android Auto.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Settings 51
Settings
Certain settings can be managed in
the Owner Center sites when an
account is established, and may be
modified if other users have
accessed the vehicle or created
accounts. This may result in
changes to the security or
functionality of the infotainment
system. Some settings may also be
transferred to a new vehicle,
if equipped. For instructions, in the
U.S. see my.gmc.com or in Canada
see mygmc.ca or mongmc.ca.
Refer to the User Terms and Privacy
Statement for important details. To
view, touch the Settings icon on the
Home Page of the infotainment
display.
The settings menu may be
organized into four categories.
Select the desired category by
touching System, Apps, Vehicle,
or Personal.
To access the personalization
menus:
1. Touch Settings on the Home
Page on the infotainment
display.
2. Touch the desired category to
display a list of available
options.
3. Touch to select the desired
feature setting.
4. Touch the options on the
infotainment display to disable
or enable a feature.
5. Touch zto take you to the top
level of the Settings menu.
System
The menu may contain the
following:
Time / Date
Use the following features to set the
clock:
.Automatic Time and Date: Touch
Off or On to enable or disable
the time automatic time set.
When this feature is on, the time
and date cannot be
manually set.
.Set Time: Touch to manually set
the time using the controls on
the infotainment display.
.Set Date: Touch to manually set
the date using the controls on
the infotainment display.
.Automatic Time Zone: Touch Off
or On to disable or enable to
automatically update the time
zone based on vehicle location.
When this feature is on, the time
zone cannot be manually set.
.Select Time Zone: Touch to
manually set the time zone.
Touch a time zone from the list.
.Use 24-hour Format: Touch to
specify the clock format shown.
Touch Off or On to disable or
enable.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
52 Settings
Language
This will set the display language
used on the infotainment display.
It may also use the selected
language for voice recognition and
audio feedback. Touch Language
and touch the appropriate language.
Phones
Touch to connect to a different cell
phone or mobile device source,
disconnect a cell phone or media
device, or delete a cell phone or
media device.
Wi-Fi Networks
This will show connected and
available Wi-Fi networks.
If a 4G LTE data package is not
active on the vehicle, the
infotainment system can be
connected to an external protected
Wi-Fi network, such as a mobile
device or home hotspot, to utilize
connected services.
Wi-Fi Hotspot
Touch and the following may
display:
.Wi-Fi Services: This allows
devices to use the vehicle
hotspot.
Touch the controls on the
infotainment display to disable or
enable.
.Wi-Fi Name: Touch to change
the vehicle Wi-Fi name.
.Wi-Fi Password: Touch to
change the vehicle Wi-Fi
password.
.Connected Devices: Touch to
show connected devices.
.Share Hotspot Data: Touch
Enable to allow devices to use
the vehicle hotspot and its data
or Touch Disable to allow
devices to only use the vehicle
hotspot.
Privacy
Touch and the following may
display:
.Data Services: This setting
determines if data sharing can
be used by features including
Wi-Fi, OnStar Hotspot, and
applications. Touch Off to
disable data services.
Emergency services and phone
calls, such as calls with OnStar
advisors or others, will not be
affected when Off is selected.
.Voice Recognition Sharing: This
setting determines if voice
commands can be shared with a
cloud-based voice recognition
system. Touch Off to prevent the
sharing and possible recording
of your voice commands with
this system. This may limit the
system’s ability to understand
your voice commands and may
disable some features.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Settings 53
Display
Touch and the following may
display:
.Mode: This adjusts the
appearance of the navigation
map view and any downloaded
apps optimized for day or night
time conditions. Set to Auto for
the display to automatically
adjust based on bright/dark
conditions.
Touch Auto, Day, or Night to
adjust the display.
.Calibrate Touchscreen: Touch to
calibrate the infotainment display
and follow the prompts.
.Turn Display Off: Touch to turn
the display off. Touch anywhere
on the infotainment display or
press any control on the radio
center stack again to turn the
display on.
Sounds
Touch and the following may
display:
.Maximum Startup Volume: This
feature adjusts the maximum
volume of the infotainment
system when you start your
vehicle. To set the maximum
startup volume, touch the
controls on the infotainment
display to increase or decrease.
.Audio Cues: This feature
determines if sounds play when
the infotainment system starts
up and shuts down. This feature
can be turned off or on.
.Set Audio Cue Volume: This
setting controls the volume of
Audio Cues played on startup
and shut down. Touch the
controls on the infotainment
display to increase or decrease.
.Audible Touch Feedback: This
setting determines if a sound
plays when touching the
infotainment display or radio
controls. This feature can be
turned off or on.
Voice
Touch and the following may
display:
.Confirm More/Less: This setting
specifies how often the Voice
Recognition system confirms
commands. Touch Confirm More
to have the system check with
you more often before acting on
your commands.
.Prompt Length: This setting
specifies the amount of detail
the Voice Recognition system
provides when giving you
feedback. Touch Auto to have
the system automatically adjust
to your speech habits. Touch
Informative, Short or Auto.
.Audio Feedback Speed: Touch
Slow, Medium, or Fast to adjust
how quickly the voice
recognition system speaks.
.Friendly Prompts: This setting
adjusts the formality of voice
prompts. Touch Off for shorter
prompts. Touch On to hear
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
54 Settings
prompts with more personality.
Touch Auto to have the prompt
match your command style.
.Tutorial Mode: Touch Off or On
to provide tutorial feedback on
the display.
Favorites
Touch and the following may
display:
.Manage Favorites: Touch to
display a list of Audio, Mobile
Devices, and Navigation
favorites.
Favorites can be moved,
renamed, or deleted.
To move, touch and hold on the
favorite, and then drag up or
down to rearrange the position.
.Set Number of Audio Favorites:
Touch to select how many
favorites pages can be viewed
from the audio application. The
auto setting will automatically
adjust this number based on the
number of favorites you have
saved. Touch Auto, 5, 10, 15,
20, 25, 30, 35, or 40.
Updates
If equipped, the infotainment system
can download and install select
software updates over a wireless
connection. The system will prompt
for certain updates to be
downloaded and installed. There is
also an option to check for updates
manually.
To manually check for updates,
touch Settings on the Home Page,
followed by Software Information,
and then System Update. Follow the
on-screen prompts. The steps to
check for, download, and install
updates may vary by vehicle.
Downloading Over-the-Air vehicle
software updates requires internet
connectivity, which can be accessed
through the vehicle’s built-in OnStar
4G LTE connection, if equipped and
active. If required, data plans are
provided by a third party. Optionally,
a secure Wi-Fi hotspot such as a
compatible mobile device hotspot,
home hotspot or public hotspot can
be used. Applicable data rates may
apply.
To connect the infotainment system
to a secured mobile device hotspot,
home hotspot, or a public hotspot,
touch Settings on the Home Page,
select the System tab, followed by
Wi-Fi Networks. Select the
appropriate Wi-Fi network, and
follow the on-screen prompts.
Download speeds may vary.
On most compatible mobile devices,
activation of the Wi-Fi hotspot is in
the Settings menu under Mobile
Network Sharing, Personal Hotspot,
Mobile Hotspot or similar.
Availability of Over-the-Air software
updates varies by vehicle and
country. For more information on
this feature, see my.gmc.com/learn.
Preferences
Touch the controls on the
infotainment display to disable or
enable the download of new
updates in the background.
About
Touch to view the infotainment
system software information.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Settings 55
Running Applications
Touch to see a complete list of
applications that are currently
running on the infotainment system.
Return to Factory Settings
Touch and the following may
display:
.Reset Vehicle Settings: Resets
all vehicle settings for the
current user.
Touch Reset or Cancel.
.Erase Settings and Personal
Data: Erases app data settings,
user profiles, and personal data
including navigation and mobile
device data.
Touch Erase or Cancel.
.Clear Default Applications:
Resets preferred applications
that have been set to open when
selecting a function. No
application data will be lost.
Touch Clear or Cancel.
Apps
The menu may contain the
following:
Android Auto
This feature allows you to interact
directly with your mobile device on
the infotainment display. See Apple
CarPlay and Android Auto 049
Touch the controls on the
infotainment display to disable or
enable.
Apple CarPlay
This feature allows you to interact
directly with your mobile device on
the infotainment display. See Apple
CarPlay and Android Auto 049
Touch the controls on the
infotainment display to disable or
enable.
Audio
Depending on the current audio
source, different options will be
available.
Touch and the following may
display:
.Tone Settings: Touch to adjust
Equalizer, Fade/Balance,
or Sound Mode. See
“Infotainment System Sound
Menu”in AM-FM Radio 010
.Auto Volume: This feature
adjusts the volume based on the
vehicle speed.
Touch Off, Low, Medium-Low,
Medium, Medium-High, or High.
.Manage Favorites: Touch to
display a list of Audio, Mobile
Devices, and Navigation
favorites.
Favorites can be moved,
renamed, or deleted.
To move, touch and hold on the
favorite, and then drag up or
down to rearrange the position.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
56 Settings
.Set Number of Audio Favorites:
Touch to select how many
favorites pages can be viewed
from the audio application. The
auto setting will automatically
adjust this number based on the
number of favorites you have
saved. Touch Auto, 5, 10, 15,
20, 25, 30, 35, or 40.
.RDS: This allows RDS to be
turned on or off.
Touch the controls on the
infotainment display to disable or
enable.
.HD Radio: This allows HD Radio
reception to be turned on or off.
Touch the controls on the
infotainment display to disable or
enable.
.Explicit Content Filter: This
setting prevents access to
explicit content Sirius XM
channels.
Touch Off or On.
.Manage Phones: Select to
connect to a different phone
source, disconnect a phone,
or delete a phone.
.Reset Music Index: This allows
the music index to be reset if
you are having difficulty
accessing all of the media
content on your device.
Touch Yes or No.
Climate
Touch and the following may
display:
.Auto Fan Speed: This setting
specifies the amount of airflow
when the climate control fan
setting is Auto Fan.
Touch Low, Medium, or High.
.Air Quality Sensor: This setting
switches the system into
Recirculation Mode based on the
quality of the outside air.
Touch Off, Low Sensitivity,
or High Sensitivity.
.Auto Cooled Seats: This setting
automatically turns on and
regulates the cooled seats when
the cabin temperature is warm.
Touch the controls on the
infotainment display to disable or
enable.
.Auto Heated Seats: This setting
automatically turns on and
regulates the heated seats when
the cabin temperature is cool.
The auto heated seats can be
turned off by using the heated
seat controls on the center
stack.
Touch the controls on the
infotainment display to disable or
enable.
.Auto Defog: This setting
automatically turns the front
defogger on when the vehicle
engine is started.
Touch the controls on the
infotainment display to disable or
enable.
.Auto Rear Defog: This setting
automatically turns the rear
defogger on when the vehicle
engine is started.
Touch the controls on the
infotainment display to disable or
enable.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Settings 57
Nav
Touch and the following may
display:
.Routing Options
.Map Configuration
.Set Up My Places
.Navigation Voice Control
.Map Colors
.Alert Preferences
.History
.About
See Using the Navigation System
021.
Phone
Touch and the following may
display:
.My Number: Displays the cell
phone number of the Bluetooth
connected device.
.Active Call View: Shows active
call display when answering
a call.
Touch the controls on the
infotainment display to disable or
enable.
.Sort Contacts: Touch to sort by
first or last name.
.Re-sync Device Contacts:
This allows the device contacts
to re-sync if you are having
difficulty accessing all of the
contacts on your cell phone.
.Delete All Vehicle Contacts:
Touch to delete all vehicle stored
contacts.
.OnStar Phone TTY Mode: This
enables OnStar cell phone
TTY mode.
Touch Disable or Enable.
Shop
Touch and the following may
display:
.Update Apps Automatically: This
allows downloaded applications
to be updated automatically.
Touch the controls on the
infotainment display to disable or
enable.
.About Shop: Touch to view the
versions of the shop software.
See Using the System 07.
Vehicle
This menu allows adjustment of
different vehicle features. See
“Vehicle Personalization”in the
owner’s manual.
Personal
This menu allows adjustment of
different user profile settings. See
“Users”in Using the System 07for
information on setting up user
profiles.
The menu may contain the
following:
Name
Touch to edit your user name that
will be displayed in the vehicle.
Vehicle Account Information
Touch to view the vehicle account
information and to change account
password.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
58 Settings
An “unverified user account”pop-up
will display until the account
information verification process has
been completed on the internet.
Check your registered email
account for an activation email to
complete the verification process.
Profile Picture
Touch to choose or change your
profile picture.
Profile Identifiers
Touch to have the vehicle recognize
the identifier you choose.
Touch Vehicle Key 1 and/or Vehicle
Key 2.
If the Remote Keyless Entry (RKE)
transmitter is lost or stolen, see your
dealership.
Security
Touch to have your profile secured
with a PIN.
Touch No or Yes.
Vehicle Name
Touch to edit your vehicle name.
Vehicle Account
Touch to view the vehicle account
information and to change account
password.
Delete Profile
Touch to remove the profile from the
vehicle.
Touch Remove or Cancel.
Teen Driver
If equipped, this allows multiple
keys to be registered for beginner
drivers to encourage safe driving
habits. When the vehicle is started
with a Teen Driver key, it will
automatically activate certain safety
systems, allow setting of some
features, and limit the use of others.
The Report Card will record vehicle
data about driving behavior that can
be viewed later. When the vehicle is
started with a registered key, the
Driver Information Center (DIC)
displays a message that Teen Driver
is active.
To access:
1. Touch Settings on the Home
Page, then touch Vehicle, and
then Teen Driver.
2. Create a Personal Identification
Number (PIN) by choosing a
four-digit PIN. Re-enter the PIN
to confirm. To change the PIN,
touch Change PIN.
The PIN is required to:
.Register or unregister keys.
.Change Teen Driver settings.
.Change or clear the Teen
Driver PIN.
.Access or delete Report
Card data.
Register keys to activate Teen
Driver and assign restrictions to
the key:
Any vehicle key can be registered,
up to a maximum of eight keys.
Label the key to tell it apart from the
other keys.
1. Start the engine.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Settings 59
2. For automatic transmissions,
the vehicle must be in P (Park).
For manual transmissions, the
vehicle must be stopped with
the parking brake set.
3. From the Settings menu, touch
Vehicle and then Teen Driver.
4. Enter the PIN.
5. Place the Remote Keyless
Entry (RKE) transmitter key
you wish to register in the
transmitter pocket. The key
does not need to be the one
that started the vehicle. See
“Remote Keyless Entry (RKE)
System Operation”in the
owner's manual for transmitter
pocket location.
6. From the Teen Driver Menu,
touch Setup Keys.
.If the transmitter key has
not previously been
registered, the option to
add the key displays. Touch
Setup and a confirmation
message displays. Teen
Driver restrictions will be
applied whenever this key
is used to operate the
vehicle.
.If the transmitter key has
already been registered, the
option to remove the key
displays. If Remove is
touched, the transmitter key
is no longer registered.
A confirmation message
displays, and Teen Driver
restrictions will not be
applied if this transmitter
key is used to operate the
vehicle.
In vehicles with a pushbutton start
system, if a Teen Driver and a
non-Teen Driver key are both
present at start up, the vehicle will
recognize the non-Teen Driver key
to start the vehicle. The Teen Driver
settings will not be active.
Manage Settings
Use the PIN to change the following
settings:
Audio Volume Limit : Allows the
audio volume limit to be turned on
or off. Touch Set Audio Volume Limit
to choose the maximum allowable
audio volume level.
Set Audio Volume Limit : Allows a
maximum radio volume to be set.
Use the arrows to choose the
maximum allowable level for the
audio volume.
Teen Driver Speed Limiter (If
Equipped) : Limits the maximum
speed of the vehicle to 136 km/h
(85 mph). When the speed limiter is
turned on and the vehicle is started
with a Teen Driver key, the DIC
displays a message that the top
speed is limited.
Teen Driver Speed Warning :
Allows the speed warning to be
turned on or off. Touch Set Teen
Driver Speed Warning to set the
warning speed.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
60 Settings
Set Teen Driver Speed Warning :
This setting displays a warning in
the DIC when exceeding a
selectable speed. Choose the
desired speed warning level from
64 km/h (40 mph) to 121 km/h
(75 mph). The speed warning does
not limit the speed of the vehicle.
When Teen Driver is Active:
.The radio will mute when the
driver safety belt is not fastened,
and in some vehicles, when the
front passenger safety belt is not
fastened. The audio from any
device paired to the vehicle will
also be muted.
.Certain devices placed on the
front passenger seat could
cause the passenger sensing
system to falsely sense an
unbuckled front passenger and
mute the radio. See “Passenger
Sensing System”in the owner's
manual.
.Some safety systems, such as
Forward Automatic Braking,
if equipped and supported,
cannot be turned off.
.The gap setting for the Forward
Collision Alert and Adaptive
Cruise Control, if equipped,
cannot be changed.
Report Card
The vehicle owner must secure the
driver’s consent to record certain
vehicle data when the vehicle is
driven with a registered Teen Driver
key. There is one Report Card per
vehicle. Data is only recorded when
a registered teen driver key is used
to operate the vehicle.
The Report Card data is collected
from the time Teen Driver is
activated or the last time the Report
Card was reset. The following items
may be recorded:
.Distance Driven –the total
distance driven.
.Maximum Speed –the maximum
vehicle speed detected.
.Overspeed Warning –the
number of times the speed
warning setting was exceeded.
.Wide Open Throttle –the
number of times the accelerator
pedal was pressed nearly all the
way down.
.Forward Collision Alert –the
number of times the driver was
notified when approaching a
vehicle ahead too quickly and at
potential risk for a crash.
.Forward Collision Avoidance
Braking –also referred to as
Forward Automatic Braking, the
number of times the vehicle
detected that a forward collision
was imminent and applied the
brakes.
.Traction Control –the number of
times the Traction Control
System activated to reduce
wheel spin or loss of traction.
.Stability Control –the number of
events which required the use of
electronic stability control.
.ABS Active –the number of
Antilock Brake System
activations.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Settings 61
.Tailgating Alerts –the number of
times the driver was alerted for
following a vehicle ahead too
closely.
Report Card Data
Cumulative Data is saved for all
trips until the Report Card is reset or
until the maximum count is
exceeded. If the maximum count is
exceeded for a Report Card line
item, that item will no longer be
updated in the Report Card until it is
reset. Each item will report a
maximum of 1,000 counts. The
distance driven will report a
maximum of 64,374 km (40,000 mi).
To delete Report Card data, do one
of the following:
.From the Report Card display,
touch Reset.
.Touch Clear All Teen Keys and
PIN from the Teen Driver menu.
This will also unregister any
Teen Driver keys and delete
the PIN.
Forgotten PIN
See your dealer to reset the PIN.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
62 Trademarks and License Agreements
Trademarks and
License Agreements
FCC Information
See “Radio Frequency Statement”
in the owner’s manual.
"Made for iPod," and "Made for
iPhone," mean that an electronic
accessory has been designed to
connect specifically to iPod or
iPhone, respectively, and has been
certified by the developer to meet
Apple performance standards.
Apple is not responsible for the
operation of this device or its
compliance with safety and
regulatory standards. Please note
that the use of this accessory with
iPod or iPhone may affect wireless
performance. iPhone, iPod, iPod
classic, iPod nano, iPod shuffle, and
iPod touch are trademarks of Apple
Inc., registered in the U.S. and other
countries.
Fees and Taxes: Subscription fee,
taxes, one time activation fee, and
other fees may apply. Subscription
fee is consumer only. All fees and
programming subject to change.
Subscriptions subject to Customer
Agreement available at
www.siriusxm.com. SiriusXM
service only available in the
48 contiguous United States and
Canada.
In Canada: Some deterioration of
service may occur in extreme
northern latitudes. This is beyond
the control of SiriusXM Satellite
Radio.
Explicit Language Notice: Channels
with frequent explicit language are
indicated with an “XL”preceding the
channel name. Channel blocking is
available for SiriusXM Satellite
Radio receivers by notifying
SiriusXM:
.USA Customers —See
www.siriusxm.com or call
1-888-601–6296.
.Canada Customers —See
www.siriusxm.ca or call
1-877-438-9677.
It is prohibited to copy, decompile,
disassemble, reverse engineer,
hack, manipulate, or otherwise
make available any technology or
software incorporated in receivers
compatible with the SiriusXM
Satellite Radio System or that
support the SiriusXM website, the
Online Service or any of its content.
Furthermore, the AMBER voice
compression software included in
this product is protected by
intellectual property rights including
patent rights, copyrights, and trade
secrets of Digital Voice
Systems, Inc.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Trademarks and License Agreements 63
General Requirements:
1. A License Agreement from
SiriusXM is required for any
product that incorporates
SiriusXM Technology and/or for
use of any of the SiriusXM
marks to be manufactured,
distributed, or marketed in the
SiriusXM Service Area.
2. For products to be distributed,
marketed, and/or sold in
Canada, a separate agreement
is required with Canadian
Satellite Radio Inc. (operating
as SiriusXM Canada).
TouchSense Technology and
TouchSense System 1000 Series
Licensed from Immersion
Corporation. TouchSense System
1000 protected under one or more
of the U.S. Patents at the following
address www.immersion.com/
patent-marking.html and other
patents pending.
Bose
Bose AudioPilot and Bose
Centerpoint surround are registered
trademarks of Bose Corporation in
the U.S. and other countries.
HD Radio Technology
HD Radio Technology manufactured
under license from iBiquity Digital
Corporation. U.S. and Foreign
patents. HD Radio and the HD, HD
Radio, and “Arc”logos are
proprietary trademarks of iBiquity
Digital Corp.
Java
Java is a registered trademark of
Oracle and/or its affiliates.
RMVB
Portions of this software are
included under license from
RealNetworks, Inc. Copyright ©
1995-2011, RealNetworks, Inc. All
rights reserved.
Bluetooth
The Bluetooth word mark and logos
are owned by the Bluetooth SIG,
Inc. and any use of such marks by
General Motors is under license.
Other trademarks and trade names
are those of their respective owners.
Schedule I: Gracenote EULA
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
64 Trademarks and License Agreements
Music recognition technology and
related data are provided by
Gracenote. Gracenote is the
industry standard in music
recognition technology and related
content delivery. For more
information visit
www.gracenote.com.
Music-related data from Gracenote,
Inc., copyright © 2000 to present
Gracenote. Gracenote Software,
copyright © 2000 to present
Gracenote. One or more patents
owned by Gracenote may apply to
this product and service. See the
Gracenote website for a
non-exhaustive list of applicable
Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS, the
Gracenote logo and logotype, and
the "Powered by Gracenote" logo
are either registered trademarks or
trademarks of Gracenote in the
United States and/or other
countries.
Gracenote Terms of Use
This application or device contains
software from Gracenote, Inc. of
Emeryville, California ("Gracenote").
The software from Gracenote (the
"Gracenote Software") enables this
application to do disc or file
identification and obtain
music-related information, including
name, artist, track, and title
information ("Gracenote Data") from
online servers or embedded
databases (collectively, "Gracenote
Servers") and to perform other
functions. You may use Gracenote
Data only by means of the intended
End-User functions of this
application or device.
This application or device may
contain content belonging to
Gracenote’s providers. If so, all of
the restrictions set forth herein with
respect to Gracenote Data shall
also apply to such content and such
content providers shall be entitled to
all of the benefits and protections
set forth herein that are available to
Gracenote.
You agree that you will use
Gracenote Data, the Gracenote
Software, and Gracenote Servers
for your own personal
non-commercial use only. You agree
not to assign, copy, transfer or
transmit the Gracenote Software or
any Gracenote Data to any third
party. YOU AGREE NOT TO USE
OR EXPLOIT GRACENOTE DATA,
THE GRACENOTE SOFTWARE,
OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY
PERMITTED HEREIN.
You agree that your non-exclusive
license to use the Gracenote Data,
the Gracenote Software, and
Gracenote Servers will terminate if
you violate these restrictions. If your
license terminates, you agree to
cease any and all use of the
Gracenote Data, the Gracenote
Software, and Gracenote Servers.
Gracenote reserves all rights in
Gracenote Data, the Gracenote
Software, and the Gracenote
Servers, including all ownership
rights. Under no circumstances will
Gracenote become liable for any
payment to you for any information
that you provide. You agree that
Gracenote may enforce its rights
under this Agreement against you
directly in its own name.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Trademarks and License Agreements 65
The Gracenote service uses a
unique identifier to track queries for
statistical purposes. The purpose of
a randomly assigned numeric
identifier is to allow the Gracenote
service to count queries without
knowing anything about who you
are. For more information, see the
web page for the Gracenote Privacy
Policy for the Gracenote service.
The Gracenote Software and each
item of Gracenote Data are licensed
to you "AS IS." Gracenote makes no
representations or warranties,
express or implied, regarding the
accuracy of any Gracenote Data.
Gracenote reserves the right to
delete data from the Gracenote
Servers or to change data
categories for any cause that
Gracenote deems sufficient. No
warranty is made that the Gracenote
Software or Gracenote Servers are
error-free or that functioning of
Gracenote Software or Gracenote
Servers will be uninterrupted.
Gracenote is not obligated to
provide you with new enhanced or
additional data types or categories
that Gracenote may provide in the
future and is free to discontinue its
services at any time.
GRACENOTE DISCLAIMS ALL
WARRANTIES EXPRESS OR
IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED
WARRANTIES OF
MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE,
TITLE, AND NON-INFRINGEMENT.
GRACENOTE DOES NOT
WARRANT THE RESULTS THAT
WILL BE OBTAINED BY YOUR
USE OF THE GRACENOTE
SOFTWARE OR ANY
GRACENOTE SERVER. IN NO
CASE WILL GRACENOTE BE
LIABLE FOR ANY
CONSEQUENTIAL OR
INCIDENTAL DAMAGES OR FOR
ANY LOST PROFITS OR LOST
REVENUES.
© 2014. Gracenote, Inc. All Rights
Reserved.
MPEG4–AVC (H.264)
THIS PRODUCT IS LICENSED
UNDER THE AVC PATENT
PORTFOLIO LICENSE FOR THE
PERSONAL AND
NON-COMMERCIAL USE OF A
CONSUMER TO (i) ENCODE
VIDEO IN COMPLIANCE WITH
THE AVC STANDARD (“AVC
VIDEO”) AND/OR (ii) DECODE AVC
VIDEO THAT WAS ENCODED BY
A CONSUMER ENGAGED IN A
PERSONAL AND
NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO
PROVIDE AVC VIDEO. NO
LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION
MAY BE OBTAINED FROM MPEG
LA, LLC. SEE HTTP://
WWW.MPEGLA.COM.
VC-1
THIS PRODUCT IS LICENSED
UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE
PERSONAL AND
NON-COMMERCIAL USE OF A
CONSUMER TO (i) ENCODE
VIDEO IN COMPLIANCE WITH
THE VC-1 STANDARD (“VC-1
VIDEO”) AND/OR (ii) DECODE
VC-1 VIDEO THAT WAS
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
66 Trademarks and License Agreements
ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO
PROVIDE VC-1 VIDEO. NO
LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION
MAY BE OBTAINED FROM MPEG
LA, LLC. SEE HTTP://
WWW.MPEGLA.COM.
MPEG4–Visual
USE OF THIS PRODUCT IN ANY
MANNER THAT COMPLIES WITH
THE MPEG-4 VISUAL STANDARD
IS PROHIBITED, EXCEPT FOR
USE BY A CONSUMER
ENGAGING IN PERSONAL AND
NON-COMMERCIAL ACTIVITIES.
MP3
MPEG Layer-3 audio coding
technology licensed from
Fraunhofer IIS and Thomson.
WMV/WMA
This product includes technology
owned by Microsoft Corporation and
under a license from Microsoft
Licensing, GP. Use or distribution of
such technology outside of this
product is prohibited without a
license from Microsoft Corporation
and/or Microsoft Licensing, GP as
applicable.
Map End User License
Agreement
END USER TERMS
The Map Data SD card (“Data”) is
provided for your personal, internal
use only and not for resale. It is
protected by copyright, and is
subject to the following terms (this
“End User License Agreement”) and
conditions which are agreed to by
you, on the one hand, and HERE
North America, LLC (“HERE”) and
its licensors (including their
licensors and suppliers) on the
other hand.
The Data for areas of Canada
includes information taken with
permission from Canadian
authorities, including: © Her Majesty
the Queen in Right of Canada,
© Queen's Printer for Ontario,
© Canada Post Corporation,
GeoBase
®
.
HERE holds a nonexclusive license
from the United States Postal
Service
®
to publish and sell ZIP+4
®
information.
© United States Postal Service
2013. Prices are not established,
controlled, or approved by the
United States Postal Service. The
following trademarks and
registrations are owned by the
USPS: United States Postal
Service, USPS, and ZIP+4.
TERMS AND CONDITIONS
Personal Use Only: You agree to
use this Data for the solely
personal, noncommercial purposes
for which you were licensed, and
not for service bureau, timesharing
or other similar purposes. Except as
otherwise set forth herein, you
agree not to otherwise reproduce,
copy, modify, decompile,
disassemble or reverse engineer
any portion of this Data, and may
not transfer or distribute it in any
form, for any purpose, except to the
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Trademarks and License Agreements 67
extent permitted by mandatory laws.
You may transfer the Data and all
accompanying materials on a
permanent basis if you retain no
copies and the recipient agrees to
the terms of this End User License
Agreement. Multi-disc sets may only
be transferred or sold as a complete
set as provided to you and not as a
subset thereof.
Restrictions
Except where you have been
specifically licensed to do so by
HERE and without limiting the
preceding paragraph, you may not
(a) use this Data with any products,
systems, or applications installed or
otherwise connected to or in
communication with vehicles
capable of vehicle navigation,
positioning, dispatch, real time route
guidance, fleet management or
similar applications; or (b) with, or in
communication with, including
without limitation, cellular phones,
palmtop and handheld computers,
pagers, and personal digital
assistants or PDAs.
Warning
This Data may contain inaccurate or
incomplete information due to the
passage of time, changing
circumstances, sources used, and
the nature of collecting
comprehensive geographic data,
any of which may lead to incorrect
results.
No Warranty
This Data is provided to you “as is,”
and you agree to use it at your own
risk. HERE and its licensors (and
their licensors and suppliers) make
no guarantees, representations,
or warranties of any kind, express or
implied, arising by law or otherwise,
including but not limited to, content,
quality, accuracy, completeness,
effectiveness, reliability, fitness for a
particular purpose, usefulness, use
or results to be obtained from this
Data, or that the Data or server will
be uninterrupted or error free.
Disclaimer of Warranty
THE DATABASE IS PROVIDED ON
AN “AS IS”AND “WITH ALL
FAULTS BASIS”AND HARMAN
(AND THEIR LICENSORS AND
SUPPLIERS) EXPRESSLY
DISCLAIM ALL OTHER
WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED
WARRANTIES OF
NON-INFRINGEMENT,
MERCHANTABILITY,
SATISFACTORY QUALITY,
ACCURACY, TITLE AND FITNESS
FOR A PARTICULAR PURPOSE.
NO ORAL OR WRITTEN ADVICE
OR INFORMATION PROVIDED BY
HARMAN (OR ANY OF THEIR
LICENSORS, AGENTS,
EMPLOYEES, OR THIRD PARTY
PROVIDERS) SHALL CREATE A
WARRANTY, AND YOU ARE NOT
ENTITLED TO RELY ON ANY
SUCH ADVICE OR INFORMATION.
THIS DISCLAIMER OF
WARRANTIES IS AN ESSENTIAL
CONDITION OF THIS
AGREEMENT.
Disclaimer of Liability
HERE AND ITS LICENSORS
(INCLUDING THEIR LICENSORS
AND SUPPLIERS) SHALL NOT BE
LIABLE TO YOU IN RESPECT OF
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
68 Trademarks and License Agreements
ANY CLAIM, DEMAND OR
ACTION, IRRESPECTIVE OF THE
NATURE OF THE CAUSE OF THE
CLAIM, DEMAND OR ACTION
ALLEGING ANY LOSS, INJURY
OR DAMAGES, DIRECT OR
INDIRECT, WHICH MAY RESULT
FROM THE USE OR POSSESSION
OF THIS DATA; OR FOR ANY
LOSS OF PROFIT, REVENUE,
CONTRACTS OR SAVINGS, OR
ANY OTHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES
ARISING OUT OF YOUR USE OF
OR INABILITY TO USE THIS DATA,
ANY DEFECT IN THIS DATA, OR
THE BREACH OF THESE TERMS
OR CONDITIONS, WHETHER IN
AN ACTION IN CONTRACT OR
TORT OR BASED ON A
WARRANTY, EVEN IF HERE OR
ITS LICENSORS HAVE BEEN
ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. Some
States, Territories, and Countries do
not allow certain liability exclusions
or damages limitations, so to that
extent the above may not apply
to you.
Export Control
You agree not to export from
anywhere any part of the Data
provided to you or any direct
product thereof except in
compliance with, and with all
licenses and approvals required
under, applicable export laws, rules
and regulations. Entire Agreement:
These terms and conditions
constitute the entire agreement
between HERE (and its licensors,
including their licensors and
suppliers) and you pertaining to the
subject matter hereof, and
supersedes in their entirety any and
all written or oral agreements
previously existing between us with
respect to such subject matter.
Governing Law
The above terms and conditions
shall be governed by the laws of the
State of Illinois, without giving effect
to (i) its conflict of laws provisions,
or (ii) the United Nations Convention
for Contracts for the International
Sale of Goods, which is explicitly
excluded. You agree to submit to
the jurisdiction of the State of Illinois
for any and all disputes, claims, and
actions arising from or in connection
with the Data provided to you
hereunder.
Government End Users
If the Data is being acquired by or
on behalf of the United States
government or any other entity
seeking or applying rights similar to
those customarily claimed by the
United States government, this Data
is a “commercial item”as that term
is defined at 48 C.F.R. (“FAR”)
2.101, is licensed in accordance
with this End User License
Agreement, and each copy of Data
delivered or otherwise furnished
shall be marked and embedded as
appropriate with the following
“Notice of Use,”and be treated in
accordance with such Notice:
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Trademarks and License Agreements 69
NOTICE OF USE
CONTRACTOR (MANUFACTURER/
SUPPLIER)
NAME:
HERE North America, LLC
CONTRACTOR (MANUFACTURER/
SUPPLIER)
ADDRESS:
425 West Randolph Street,
Chicago, IL 60606.
This Data is a commercial item as
defined in FAR 2.101 and is subject
to the End User License Agreement
under which this Data was provided.
© 2014 HERE North America, LLC.
All rights reserved.
If the Contracting Officer, federal
government agency, or any federal
official refuses to use the legend
provided herein, the Contracting
Officer, federal government agency,
or any federal official must notify
HERE prior to seeking additional or
alternative rights in the Data.
Unicode
Copyright © 1991-2010 Unicode,
Inc. All rights reserved. Distributed
under the Terms of Use in http://
www.unicode.org/copyright.html.
Free Type Project
Portions of this software are
copyright © 2010 The FreeType
Project (http://www.freetype.org). All
rights reserved.
Open Source SW
The open source code used in this
device can be downloaded at the
webpage shown in the information
at the infotainment display. Further
information concerning the OSS
licenses is shown in the
infotainment display.
QNX
Portions of this software are
copyright © 2008-2011, QNX
Software Systems. All rights
reserved.
Part C –EULA
Copyright © 2011, Software
Systems GmbH & Co. KG. All
Rights Reserved.
The product you have purchased
("Product") contains Software
(Runtime Configuration No. 505962;
"Software") which is distributed by
or on behalf of the Product
manufacturer "Manufacturer") under
license from Software Systems Co.
("QSSC"). You may only use the
Software in the Product and in
compliance with the license terms
below.
Subject to the terms and conditions
of this License, QSSC hereby
grants you a limited, non-exclusive,
non-transferable license to use the
Software in the Product for the
purpose intended by the
Manufacturer. If permitted by the
Manufacturer, or by applicable law,
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
70 Trademarks and License Agreements
you may make one backup copy of
the Software as part of the Product
software. QSSC and its licensors
reserve all license+C31 rights not
expressly granted herein, and retain
all right, title and interest in and to
all copies of the Software, including
all intellectual property rights
therein. Unless required by
applicable law you may not
reproduce, distribute or transfer,
or de-compile, disassemble or
otherwise attempt to unbundle,
reverse engineer, modify or create
derivative works of, the Software.
You agree: (1) not to remove, cover
or alter any proprietary notices,
labels or marks in or on the
Software, and to ensure that all
copies bear any notice contained on
the original; and (2) not to export the
Product or the Software in
contravention of applicable export
control laws.
EXCEPT TO THE EXTENT
OTHERWISE REQUIRED BY
APPLICABLE LAW, QSSC AND ITS
LICENSORS PROVIDE THE
SOFTWARE ON AN "AS IS" BASIS,
WITHOUT WARRANTIES OR
CONDITIONS OF ANY KIND,
EITHER EXPRESS OR IMPLIED
INCLUDING, WITHOUT
LIMITATION, ANY WARRANTIES
OR CONDITIONS OF TITLE,
NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
ANY WARRANTIES OR OTHER
PROVISIONS OFFERED BY THE
MANUFACTURER OR ITS
DISTRIBUTOR(S) THAT DIFFER
FROM THIS LICENSE ARE
OFFERED BY THE
MANUFACTURER OR ITS
DISTRIBUTOR(S) ALONE AND
NOT BY QSSC, ITS AFFILIATES
OR THEIR LICENSORS. YOU
ASSUME ANY RISKS
ASSOCIATED WITH YOUR USE
OF THE SOFTWARE UNDER THIS
LICENSE.
EXCEPT TO THE EXTENT
OTHERWISE REQUIRED BY
APPLICABLE LAW (SUCH AS IN
THE CASE OF DELIBERATE OR
GROSSLY NEGLIGENT ACTS), IN
NO EVENT SHALL QSSC, ITS
AFFILIATES OR THEIR
LICENSORS BE LIABLE TO YOU
UNDER ANY LEGAL THEORY,
WHETHER IN TORT (INCLUDING
NEGLIGENCE), CONTRACT OR
OTHERWISE, FOR DAMAGES,
INCLUDING ANY DIRECT,
INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES
OF ANY CHARACTER ARISING AS
A RESULT OF THIS LICENSE OR
OUT OF THE USE OR INABILITY
TO USE THE PRODUCT
(INCLUDING BUT NOT LIMITED
TO DAMAGES FOR LOSS OF
GOODWILL, WORK STOPPAGE,
PRODUCT FAILURE OR
MALFUNCTION, OR ANY AND ALL
OTHER COMMERCIAL DAMAGES
OR LOSSES), EVEN IF QSSC, ITS
AFFILIATES OR THEIR
LICENSORS HAVE BEEN
ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
WMA
This product is protected by certain
intellectual property rights of
Microsoft. Use or distribution of
such technology outside of this
product is prohibited without a
license from Microsoft.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Trademarks and License Agreements 71
For more information on the
Software, including any open source
software license terms (and
available source code) as well as
copyright attributions applicable to
the Runtime Configuration indicated
above, please contact the
Manufacturer or contact QSSC at
175 Terence Matthews Crescent,
Kanata, Ontario, Canada K2M 1W8
(licensing@qnx.com).
Linotype
Helvetica is a trademark of Linotype
Corp. registered in the U.S. Patent
and Trademark Office and may be
registered in certain other
jurisdictions in the name of Linotype
Corp. or its licensee
Linotype GmbH.
Usage in text form of each of the
Licensed Trademarks is:
The trademark attribution
requirements for the Licensed
Trademarks may be viewed at http://
www.linotype.com/2061-19414/
trademarks.html.
END USER NOTICE
The marks of companies displayed
by this product to indicate business
locations are the marks of their
respective owners. The use of such
marks in this product does not imply
any sponsorship, approval,
or endorsement by such companies
of this product.
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
72 Index
Index A
Accepting or Declining a Call . . . . 48
Agreements
Trademarks and License . . . . . . . .62
AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
AM-FM Radio . . . . . . . . . . . . . . . . . . . . 10
AM, FM, and SXM Categories . . . 11
Android Auto . . . . . . . . . . . . . . . . . . . . . 7
Antenna
Multi-band. . . . . . . . . . . . . . . . . . . . . . .13
Apple CarPlay . . . . . . . . . . . . . . . . . . . . 7
Apple CarPlay and
Android Auto . . . . . . . . . . . . . . . . . . . 49
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Bluetooth. . . . . . . . . . . . . . . . . . . . . . . .17
Audio System . . . . . . . . . . . . . . . . . . . . 44
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . 17
Avoiding Untrusted Media
Devices . . . . . . . . . . . . . . . . . . . . . . . . 14
B
Bluetooth
Overview. . . . . . . . . . . . . . . . . . . . 44, 45
Bluetooth Audio . . . . . . . . . . . . . . . . . 17
Bluetooth Speech Recognition . . . 43
C
Call Waiting . . . . . . . . . . . . . . . . . . . . . . 48
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Canceling Voice Recognition . . . . 38
Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays . . . . . . . . . . . . . . . . . . 9
Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Controls . . . . . . . . . . . . . . . . . . . . . . . . . 44
Steering Wheel. . . . . . . . . . . . . . . . . . . 6
Coverage Explanations . . . . . . . . . . 36
D
Database Coverage
Explanations . . . . . . . . . . . . . . . . . . . 36
Destination . . . . . . . . . . . . . . . . . . . . . . 25
Driver
Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Dual Tone Multi-Frequency
(DTMF) Tones . . . . . . . . . . . . . . . . . . 49
E
Ending a Call . . . . . . . . . . . . . . . . . . . . 49
F
Favorites . . . . . . . . . . . . . . . . . . . . . . . . 30
Finding a Station . . . . . . . . . . . . . . . . 10
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
Index 73
G
Global Positioning
System (GPS) . . . . . . . . . . . . . . . . . . 34
Guidance
Problems with the Route . . . . . . . .35
H
Haptic Feedback . . . . . . . . . . . . . . . . . 8
HD Radio Technology . . . . . . . . . . . 11
Helpful Hints for Speaking
Commands . . . . . . . . . . . . . . . . . . . . . 38
Hybrid Speech Recognition . . . . . . 37
I
If the System Needs Service . . . . . 35
Infotainment Display Features . . . . 8
Infotainment Gestures . . . . . . . . . . . . 8
Infotainment System . . . . . . . . . . . . . . 3
Infotainment System
Sound Menu . . . . . . . . . . . . . . . . . . . 10
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jack
Auxiliary. . . . . . . . . . . . . . . . . . . . . . . . .17
M
Making a Call Using Contacts
and Recent Calls . . . . . . . . . . . . . . . 47
Making a Call Using the
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . 48
Map Data Updates . . . . . . . . . . . . . . . 35
Map End User License
Agreement . . . . . . . . . . . . . . . . . . . . . 66
Map Gestures and Map Scale . . . 26
Map Information . . . . . . . . . . . . . . . . . 26
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Media
Avoiding Untrusted Devices . . . . .14
Media Playback and Mute . . . . . . . 17
Mobile Device Usage . . . . . . . . . . . . 13
Multi-band Antenna . . . . . . . . . . . . . . 13
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
N
Nav/OnStar Nav . . . . . . . . . . . . . . . . . . 7
Navigation
Destination. . . . . . . . . . . . . . . . . . . . . .25
Using the System . . . . . . . . . . . . . . .21
Navigation Symbols . . . . . . . . . . . . . 24
O
OnStar 4G LTE . . . . . . . . . . . . . . . . . . 19
OnStar Connected Navigation
Subscription . . . . . . . . . . . . . . . . . . . . 33
OnStar Services . . . . . . . . . . . . . . . . . . 8
OnStar Smart Driver . . . . . . . . . . . . . 20
OnStar System . . . . . . . . . . . . . . 19, 33
Over-the-Air Software Updates . . . 9
Over-the-Air Vehicle Map
Updates . . . . . . . . . . . . . . . . . . . . . . . . 35
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 2
P
Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Personal . . . . . . . . . . . . . . . . . . . . . . . . . 57
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Apple CarPlay and
Android Auto. . . . . . . . . . . . . . . . . . .49
Bluetooth. . . . . . . . . . . . . . . . . . . . 44, 45
Playing from a USB . . . . . . . . . . . . . . 14
Playing the Radio . . . . . . . . . . . . . . . . 10
Port
USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Positioning
Vehicle. . . . . . . . . . . . . . . . . . . . . . . . . .34
Problems with Route
Guidance . . . . . . . . . . . . . . . . . . . . . . 35
GMC Terrain/Terrain Denali Infotainment System (GMNA-Localizing-NG U.S./
Canada-11434554) - 2018 - crc - 3/31/17
74 Index
R
Radio
HD Radio Technology. . . . . . . . . . . 11
Radio Reception . . . . . . . . . . . . . . . . . 12
Radios
AM-FM Radio . . . . . . . . . . . . . . . . . . .10
Satellite . . . . . . . . . . . . . . . . . . . . . . . . .12
Rear Climate . . . . . . . . . . . . . . . . . . . . . 8
Recents . . . . . . . . . . . . . . . . . . . . . . . . . 31
Recognition
Voice. . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Route Guidance View . . . . . . . . . . . 27
S
Satellite Radio . . . . . . . . . . . . . . . . . . . 12
Schedule I: Gracenote EULA . . . . 63
Searching Contacts Using the
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . 48
Servicing System . . . . . . . . . . . . . . . . 35
Settings . . . . . . . . . . . . . . . . . . . . . . .51, 7
Shop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Shortcut Tray . . . . . . . . . . . . . . . . . . . . . 8
Show POI Icons . . . . . . . . . . . . . . . . . 31
SiriusXM Satellite Radio
Service . . . . . . . . . . . . . . . . . . . . . . . . . 13
Software Updates . . . . . . . . . . . . . . . . 9
Steering Wheel Controls . . . . . . . . . . 6
Storing and Recalling Media
Favorites . . . . . . . . . . . . . . . . . . . . . . . 16
Storing Radio Station
Favorites . . . . . . . . . . . . . . . . . . . . . . . 11
Switching to Handset or
Handsfree Mode . . . . . . . . . . . . . . . 47
Symbols
Navigation. . . . . . . . . . . . . . . . . . . . . . .24
System . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Global Positioning. . . . . . . . . . . . . . . 34
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . .33
T
Teen Driver . . . . . . . . . . . . . . . . . . . . . . 58
The OnStar App . . . . . . . . . . . . . . . . . 19
Three-Way Calling . . . . . . . . . . . . . . . 49
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . . . 62
Traffic Information . . . . . . . . . . . . . . . 28
U
Updates
Map Data . . . . . . . . . . . . . . . . . . . . . . .35
Software . . . . . . . . . . . . . . . . . . . . . . . . . 9
USB Port . . . . . . . . . . . . . . . . . . . . . . . . 14
Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the Navigation System . . . . 21
Using the System . . . . . . . . . . . . . . . . . 7
Using Voice Recognition . . . . . . . . . 37
Using Voice Recognition for
List Options . . . . . . . . . . . . . . . . . . . . 39
V
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Vehicle Positioning . . . . . . . . . . . . . . 34
Voice Recognition . . . . . . . . . . . . . . . 37
Voice Recognition for Audio
My Media . . . . . . . . . . . . . . . . . . . . . . 41
Voice Recognition for
Navigation . . . . . . . . . . . . . . . . . . . . . 42
Voice Recognition for the
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Voice Recognition for the
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 40
W
Waypoints . . . . . . . . . . . . . . . . . . . . . . . 25
Z
Zoom Control . . . . . . . . . . . . . . . . . . . . 26
Operating Frequencies: 2400-2483.5 MHz
5725-5875 MHz
Radiated Power: Bluetooth: 9dBm,
Wi-Fi: 19 dBm/13.9dBm
This device complies with FCC and IC radiation
exposure limits set forth for an uncontrolled
environment. The device should be installed and
operated with a minimum distance of 20cm between
the radiator and your body. This device must not be
collocated or operating in conjunction with any other
antenna or transmitter.”
The users manual or instruction manual for an intentional
or unintentional radiator shall caution the user that changes
or modifications not expressly approved by the party
responsible for compliance could void the user's authority
to operate the equipment. In cases where the manual is
provided only in a form other than paper, such as on a
computer disk or over the Internet, the information
required by this section may be included in the manual in
that alternative form, provided the user can reasonably be
expected to have the capability to access information in
that form.
[54 FR 17714, Apr. 25, 1989, as amended at 68 FR 68545,
Dec. 9, 2003]

Navigation menu
