4.
Select the desired shortcut function.
●Depending on the function, select other items and
enter necessary information.
5.
Check that the shortcut icon is displayed on the home
screen.
NOTE
lThe home screen has 3 pages, and shortcut icons can be added
to each page. The page can be changed by swiping.
MOVING AND DELETING SHORTCUT ICONS
Users can rearrange the home screen buttons when the
home screen shortcut function is turned on. (→P.62)
1.
Select and hold the shortcut icon.
XWhen moving shortcut icons
2.
Drag the button to the desired position.
●User can move buttons to another page by dragging
them to the corresponding end of the screen if the
number of buttons allows for multiple pages.
XWhen deleting shortcut icons
2.
Drag the button to the bottom of the screen.
BASIC INFORMATION BEFORE OPERATION
43
BASIC FUNCTION
2
Bluetooth® SETTINGS
44
Bluetooth® SETTINGS
REGISTERING A Bluetooth PHONE/
DEVICE FOR THE FIRST TIME
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc.
To use the hands-free system or the Bluetooth audio
system, it is necessary to register a Bluetooth phone/device
with the system.
Once the Bluetooth phone/device has been registered, it is
possible to use the hands-free system and the Bluetooth
audio system.
This operation cannot be performed while driving.
For details on registering a Bluetooth phone/device:
→P.48
1.
Turn the Bluetooth connection setting of your Bluetooth
phone/device on.
●This function is not available when the Bluetooth
connection setting of your Bluetooth phone/device is
set to off.
2.
Display the phone screen (→P.78) or the Bluetooth
audio operation screen (→P.63).
3.

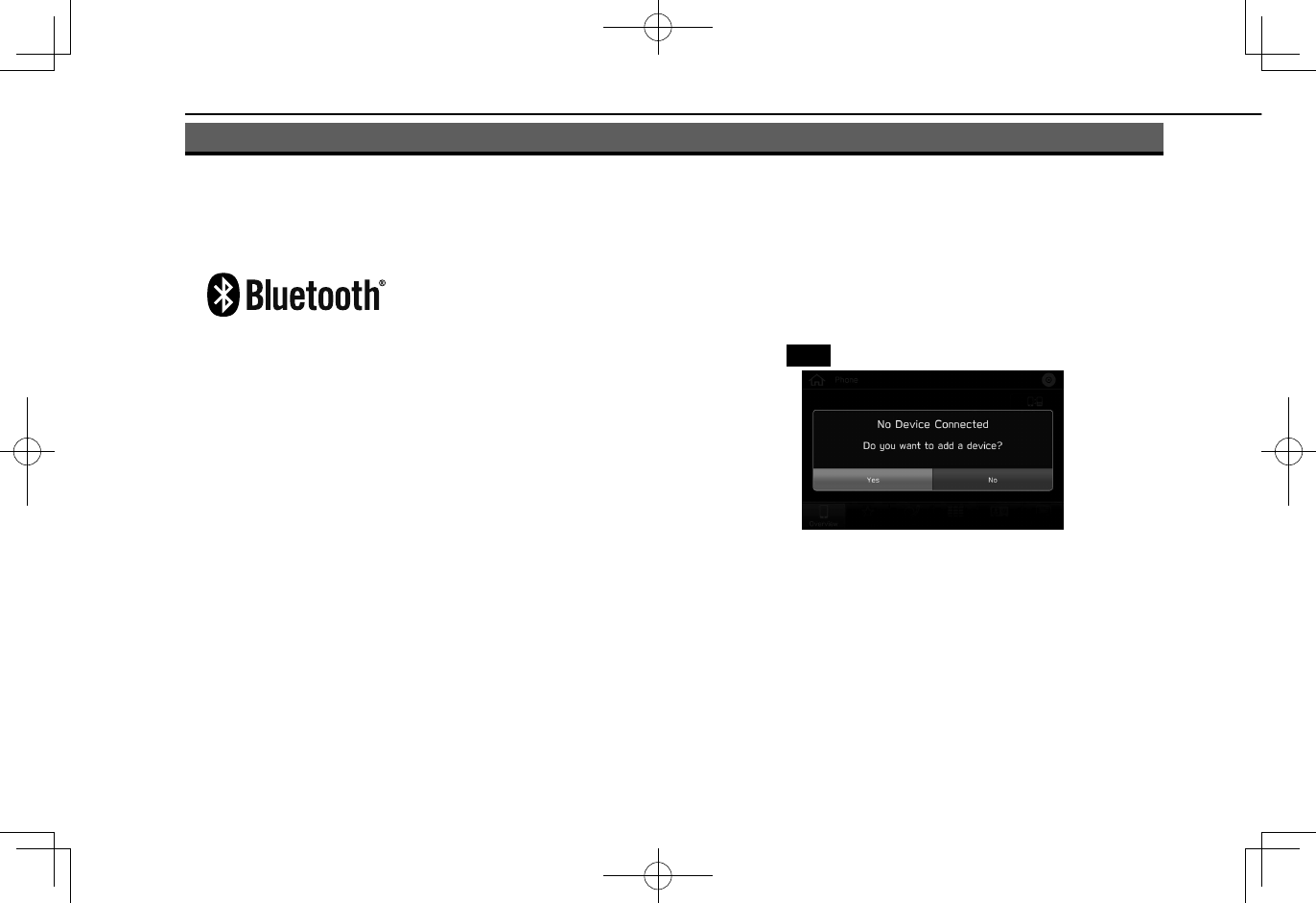

Select
Yes
(Yes) to register a Bluetooth phone/device.
4.
Follow the steps in “REGISTERING A Bluetooth
PHONE/DEVICE” from “STEP 3” to “STEP 7” .
(→P.48)
PROFILES
This system supports the following services.
Bluetooth Device Spec. Function Requirements Recommendations
Bluetooth Phone/Device Bluetooth Specication Registering a Bluetooth
phone/device Ver. 1.1 Ver. 3.0 +EDR
Bluetooth Device Prole Function Requirements Recommendations
Bluetooth Phone
HFP (Hands-Free Prole) Hands-free system Ver. 1.0 Ver. 1.6
PBAP (Phone Book
Access Prole) Transferring the contacts Ver. 1.0 Ver. 1.1.1
MAP (Message Access
Prole) Bluetooth phone message - Ver. 1.0
PAN (Personal Area
Networking Prole) APPS function - PAN 1.0
DUN (Dial-Up Network
Prole) APPS function - DUN 1.1
SPP (Serial Port Prole) APPS function - Ver. 1.1
3
Bluetooth® SETTINGS
45
SETTINGS
3
Bluetooth Device Prole Function Requirements Recommendations
Bluetooth Device
A2DP (Advanced Audio
Distribution Prole)
Bluetooth audio system
Ver. 1.0 Ver. 1.2
AVRCP (Audio/Video
Remote Control Prole) Ver. 1.0 Ver. 1.4
NOTE
lIf your cellular phone does not support HFP, registering the Bluetooth phone or using PBAP, MAP or SPP proles individually will not be
possible.
lIf the connected Bluetooth phone/device version is older than recommended or incompatible, the Bluetooth phone/device function may not
work properly.
Bluetooth® SETTINGS
46
Bluetooth SETTINGS
1.

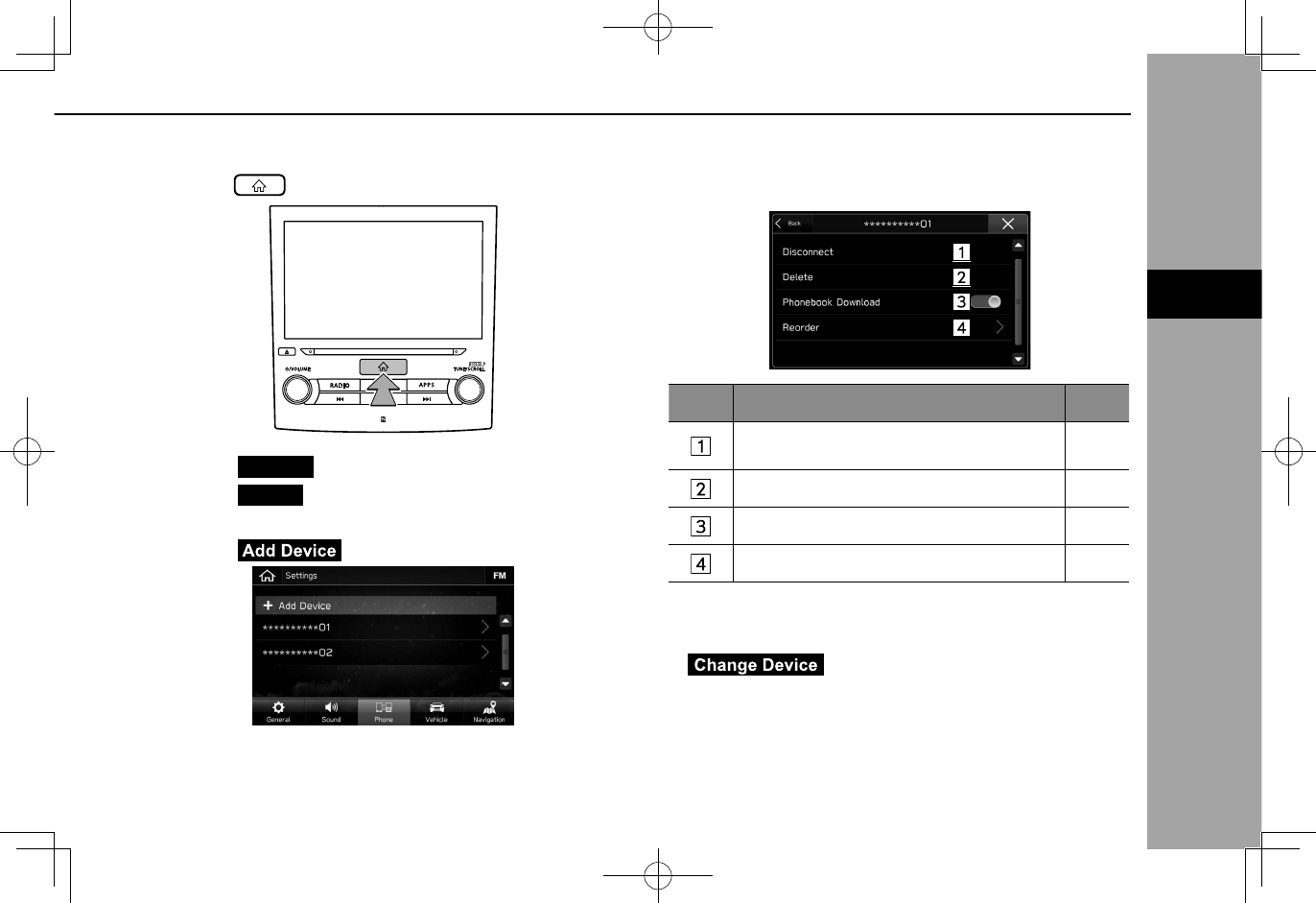

Press .
2.
Select
Settings
(Settings).
3.
Select
Phone
(Phone).
XWhen registering a Bluetooth phone/device
4.
Select (Add Device).
●For details on registering a Bluetooth phone/device:
→P.48
XWhen setting the Bluetooth phone/device
4.
Select the desired Bluetooth phone/device.
5.

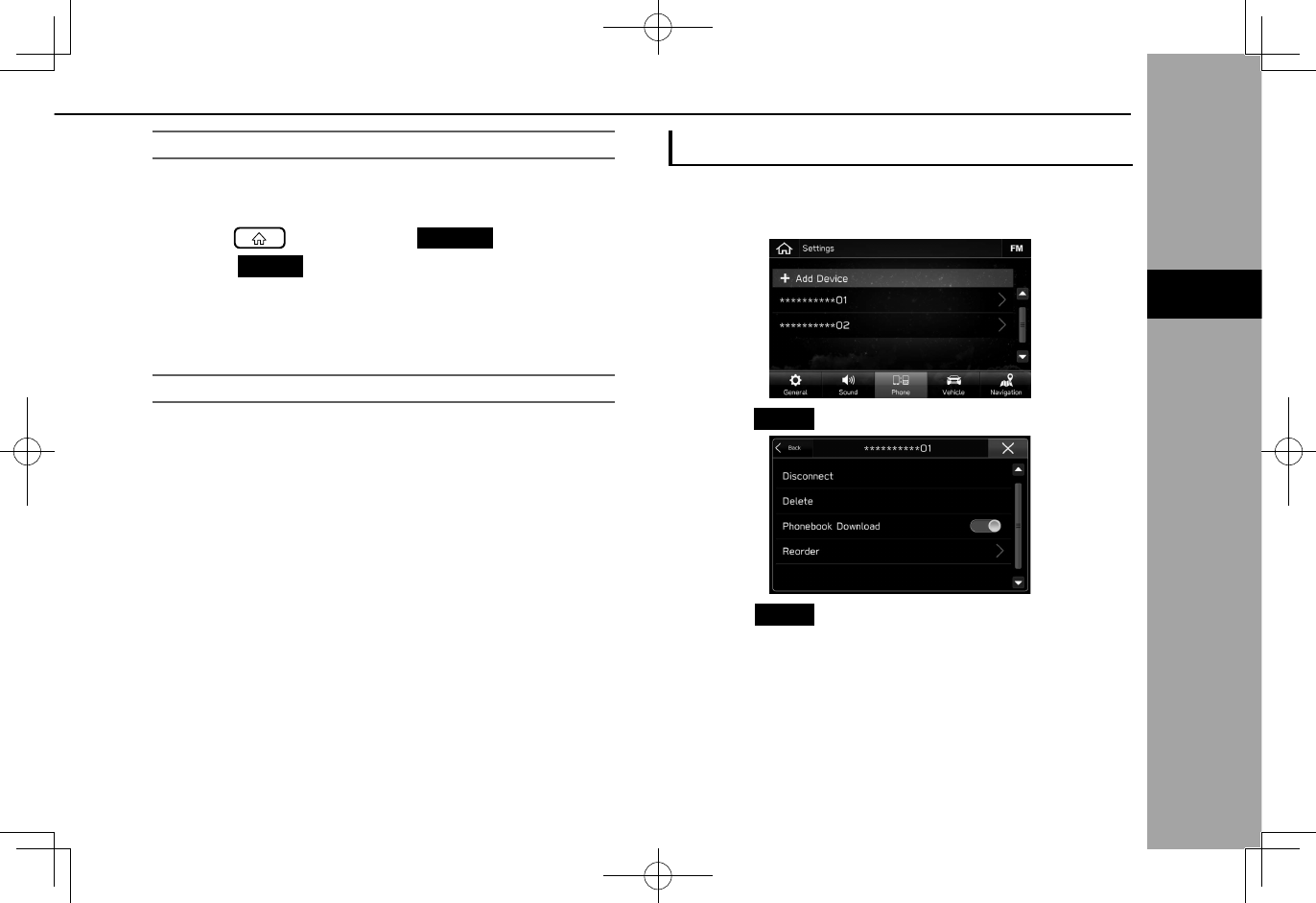

Select the item to be set.
No. Function Page
Connecting or disconnecting Bluetooth
phones/devices 49
Deleting Bluetooth phones/devices 51
Setting phonebook download 52
Setting the automatic connection priority 52
NOTE
lThe phone settings screen can also be displayed by selecting
(Change Device) on the phone overview
screen (→P.78) or Bluetooth audio operation screen
(→P.63).
3
Bluetooth® SETTINGS
47
SETTINGS
3
REGISTERING A Bluetooth PHONE/DEVICE
Up to 5 Bluetooth phones/devices can be registered.
Bluetooth compatible phones (HFP) and devices (AVP) can
be registered simultaneously.
This operation cannot be performed while driving.
1.
Display the phone settings screen. (→P.47)
2.
Select (Add Device).
●If a message appears, follow the guidance on the
screen.
3.

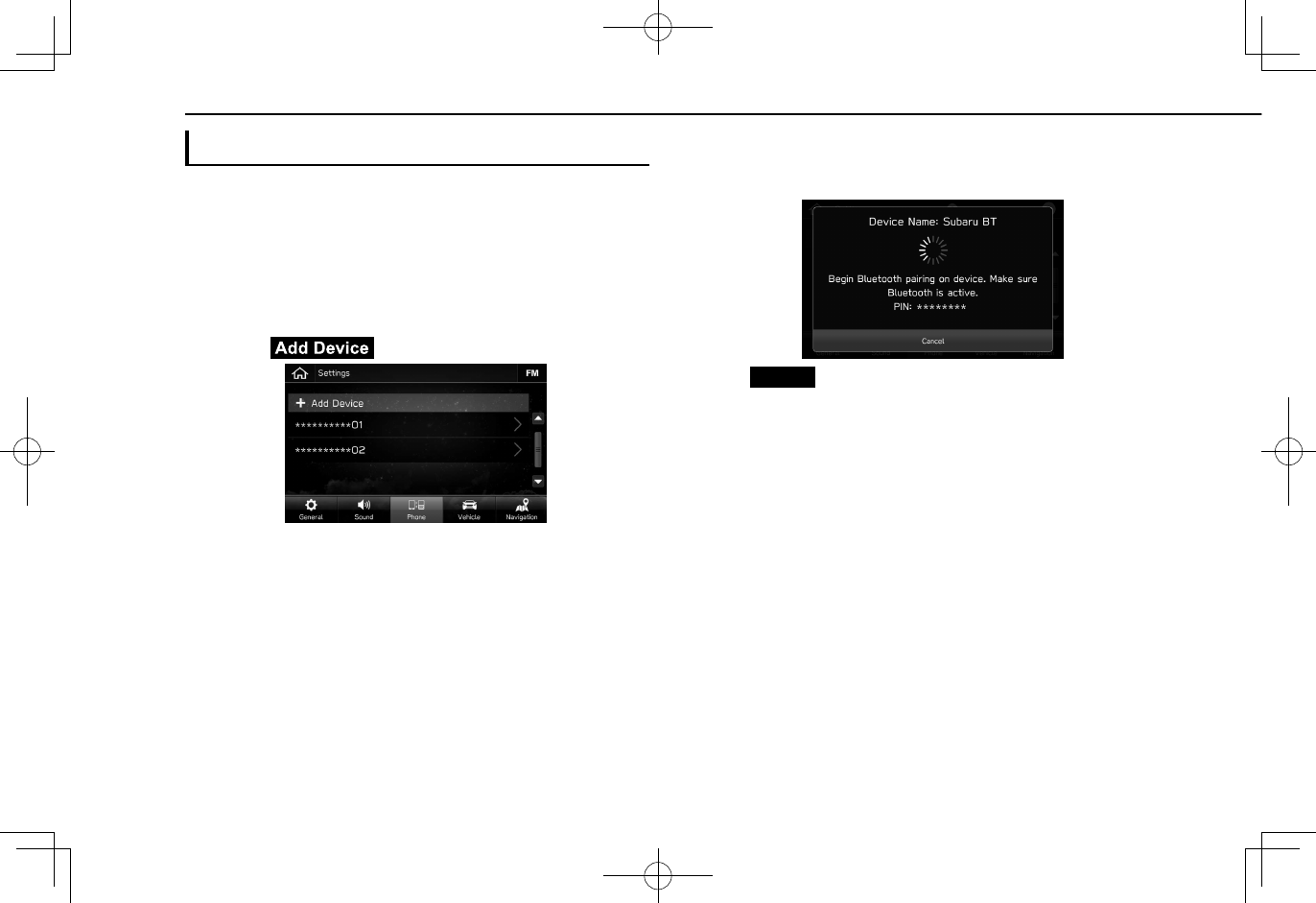

When this screen is displayed, search for the device
name displayed on this screen on the screen of your
Bluetooth phone/device.
●
Cancel
(Cancel): Select to cancel the registration.
●For details on operating the Bluetooth phone/device,
see the manual that comes with it.
4.
Register using your Bluetooth phone/device.
●A PIN-code is not required for SSP (Secure Simple
Pairing) compatible Bluetooth phones/devices.
Depending on the type of Bluetooth phone/device
being connected, a message conrming registration
may be displayed on the Bluetooth phone’s/device’s
screen. Respond and operate the Bluetooth phone/
device according to the conrmation message.
●8-inch with Navi system/8-inch system only:
Registration of NFC compatible devices is completed
when they are held near the audio system.
Bluetooth® SETTINGS
48
5.

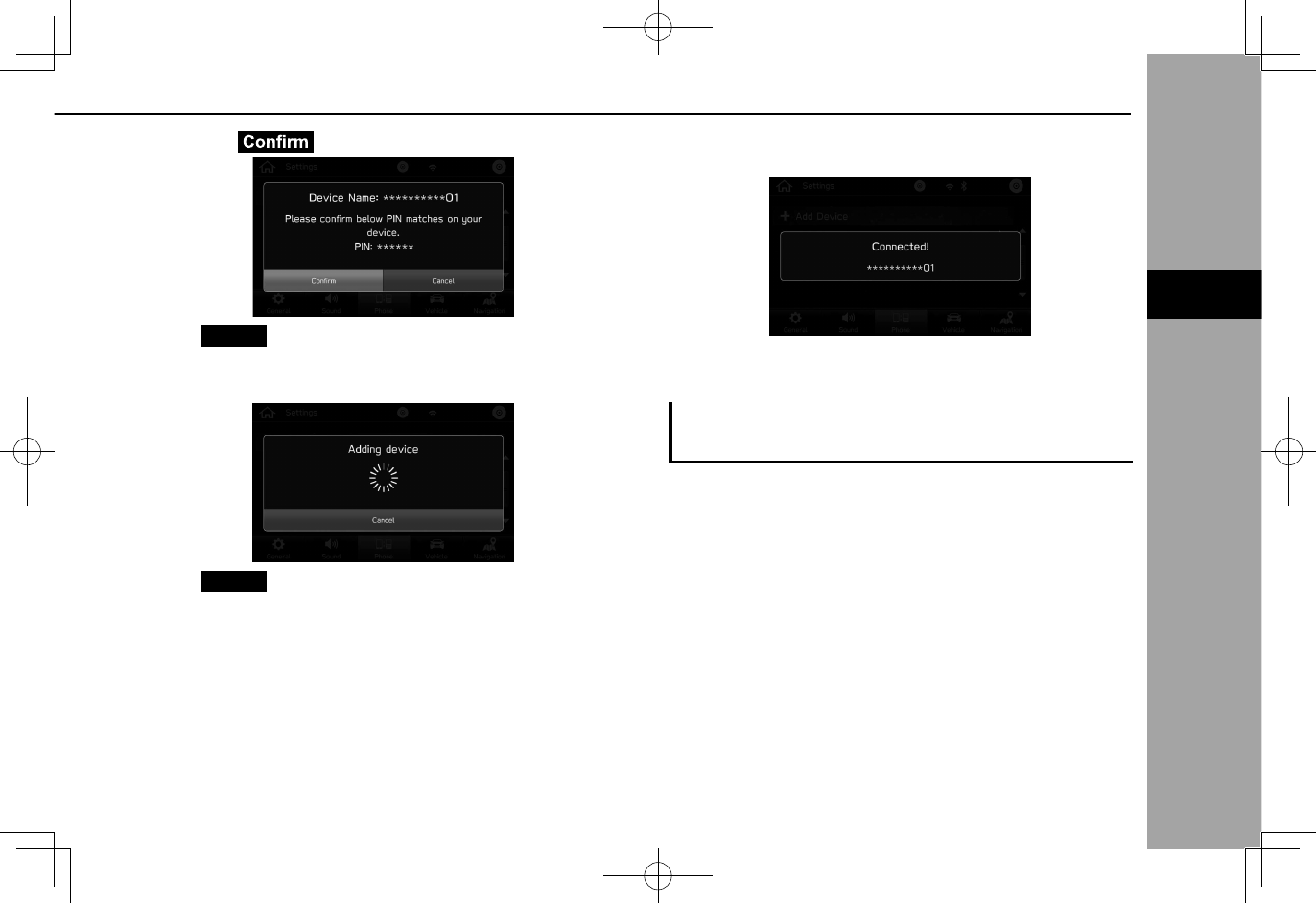

Select (Conrm).
●
Cancel
(Cancel): Select to cancel the registration.
6.
Check that the following pop-up screen may be
displayed.
●
Cancel
(Cancel): Select to cancel the registration.
● If a conrmation message appears asking whether
to transfer the phone’s contact data to the system,
select the appropriate button.
7.
Check that the following pop-up screen is displayed
when the connection is complete.
●If an error message appears, follow the guidance on
the screen to try again.
CONNECTING OR DISCONNECTING
Bluetooth PHONE/DEVICE
Up to 5 Bluetooth phones/devices (Phones (HFP) and
devices (AVP)) can be registered.
If more than 1 Bluetooth phone/device has been registered,
select which Bluetooth phone/device to connect to.
1.
Display the phone settings screen. (→P.47)
3
Bluetooth® SETTINGS
49
SETTINGS
3
2.

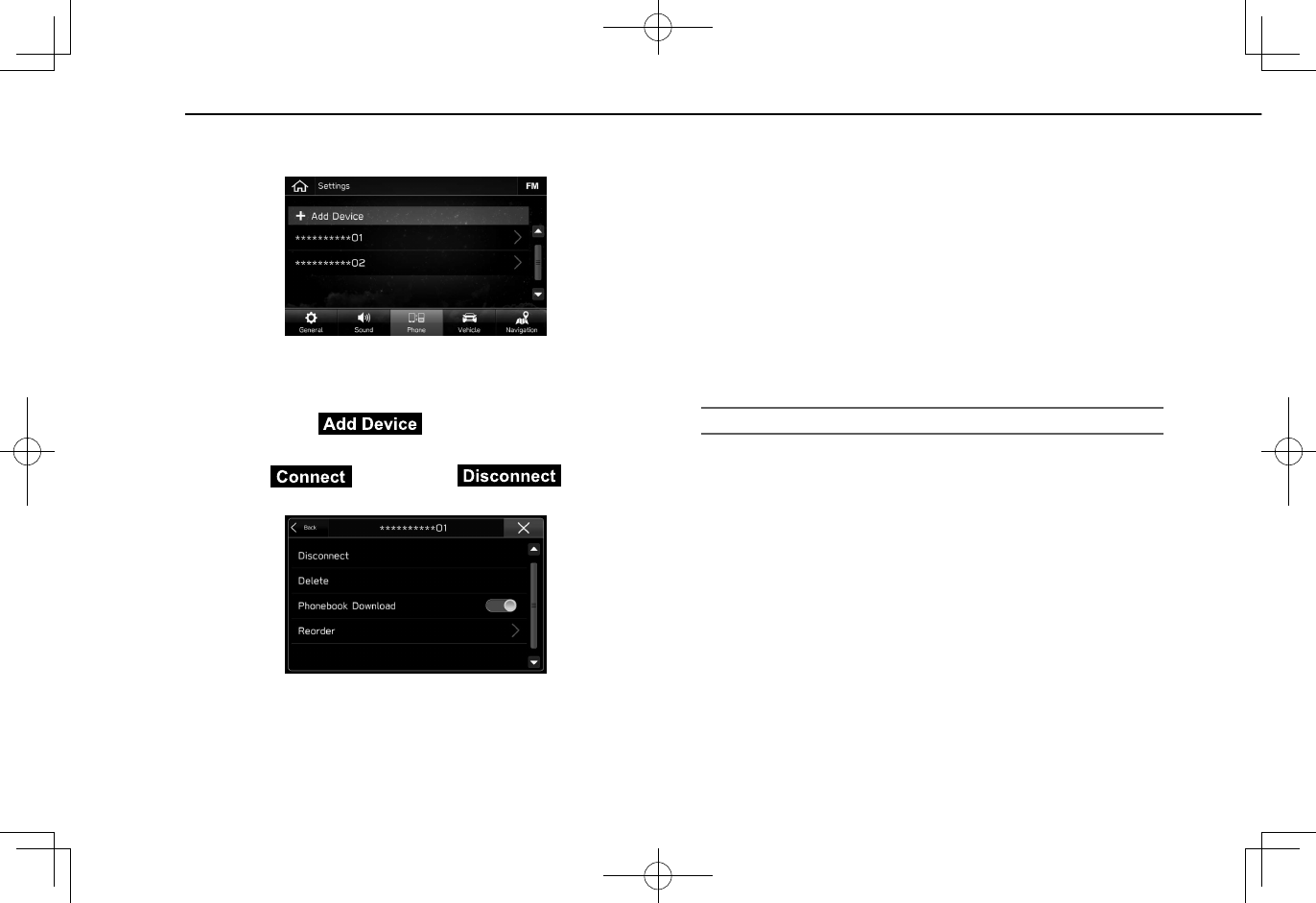

Select the Bluetooth phone/device to be connected or
disconnected.
●“Connected (Connected)” is displayed next to the
currently connected Bluetooth phone/device.
●If the desired Bluetooth phone/device is not on the
list, select (Add Device) to register the
Bluetooth phone/device. (→P.48)
3.
Select (Connect) or
(Disconnect).
4.
Check that “Connected (Connected)” is displayed next
to the Bluetooth phone/device when the connection is
complete.
●If an error message appears, follow the guidance on
the screen to try again.
NOTE
lIt may take time if the Bluetooth phone/device connection is
carried out during Bluetooth audio playback.
lDepending on the type of Bluetooth phone/device being
connected, it may be necessary to perform additional steps on
the Bluetooth phone/device.
AUTO CONNECTION MODE
Leave the Bluetooth phone/device in a location where the
connection can be established.
●When the ignition switch is in the “ACC” or “ON”
position, the system searches for a nearby registered
Bluetooth phone/device.
●The system will connect with the registered Bluetooth
phone/device that was last connected, if it is nearby.
Bluetooth® SETTINGS
50
CONNECTING MANUALLY
When the auto connection has failed, it is necessary to
connect Bluetooth phones/devices manually.
1.
Press , and then select
Settings
(Settings).
2.
Select
Phone
(Phone).
3.
Follow the steps in “CONNECTING OR
DISCONNECTING Bluetooth PHONE/DEVICE” from
“STEP 2”. (→P.49)
RECONNECTING THE Bluetooth PHONE/DEVICE
If a Bluetooth phone/device is disconnected due to poor
reception from the Bluetooth network when the ignition
switch is turned to the “ACC” or “ON” position, the system
automatically reconnect the Bluetooth phone/device.
●If a Bluetooth phone/device is disconnected on
purpose, such as turning it off, this does not happen.
Reconnect the Bluetooth phone/device manually.
DELETING Bluetooth PHONES/DEVICES
1.
Display the phone settings screen. (→P.47)
2.
Select the desired Bluetooth phone/device.
3.
Select
Delete
(Delete).
4.
Select
(Delete) when the conrmation message
appears.
3
Bluetooth® SETTINGS
51
SETTINGS
3
SETTING PHONEBOOK DOWNLOAD
When this function is activated, the phonebook data of the
connected phone will be downloaded automatically.
1.
Display the phone settings screen. (→P.47)
2.
Select the Bluetooth phone to be set.
3.

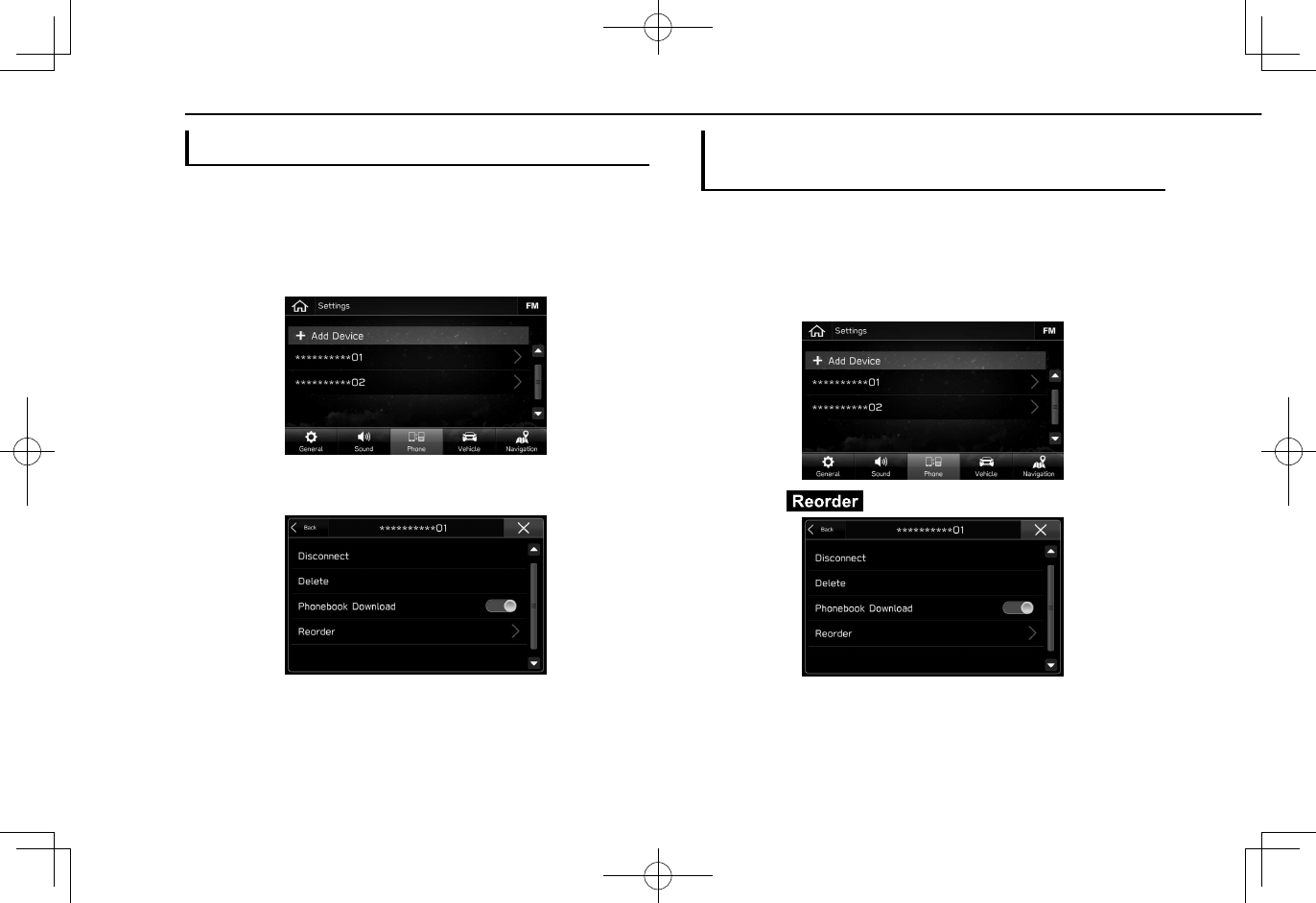

Select to turn “Phonebook Download (Phonebook
Download)” on/off.
NOTE
lThe prole version of the connected Bluetooth phone may not be
compatible with transferring phonebook data. For details, contact
your SUBARU dealer.
SETTING THE AUTOMATIC CONNECTION
PRIORITY
The automatic connection priority of the registered Bluetooth
phones/devices can be changed.
1.
Display the phone settings screen. (→P.47)
2.
Select the Bluetooth phone/device to be set.
3.
Select (Reorder).
Bluetooth® SETTINGS
52
4.

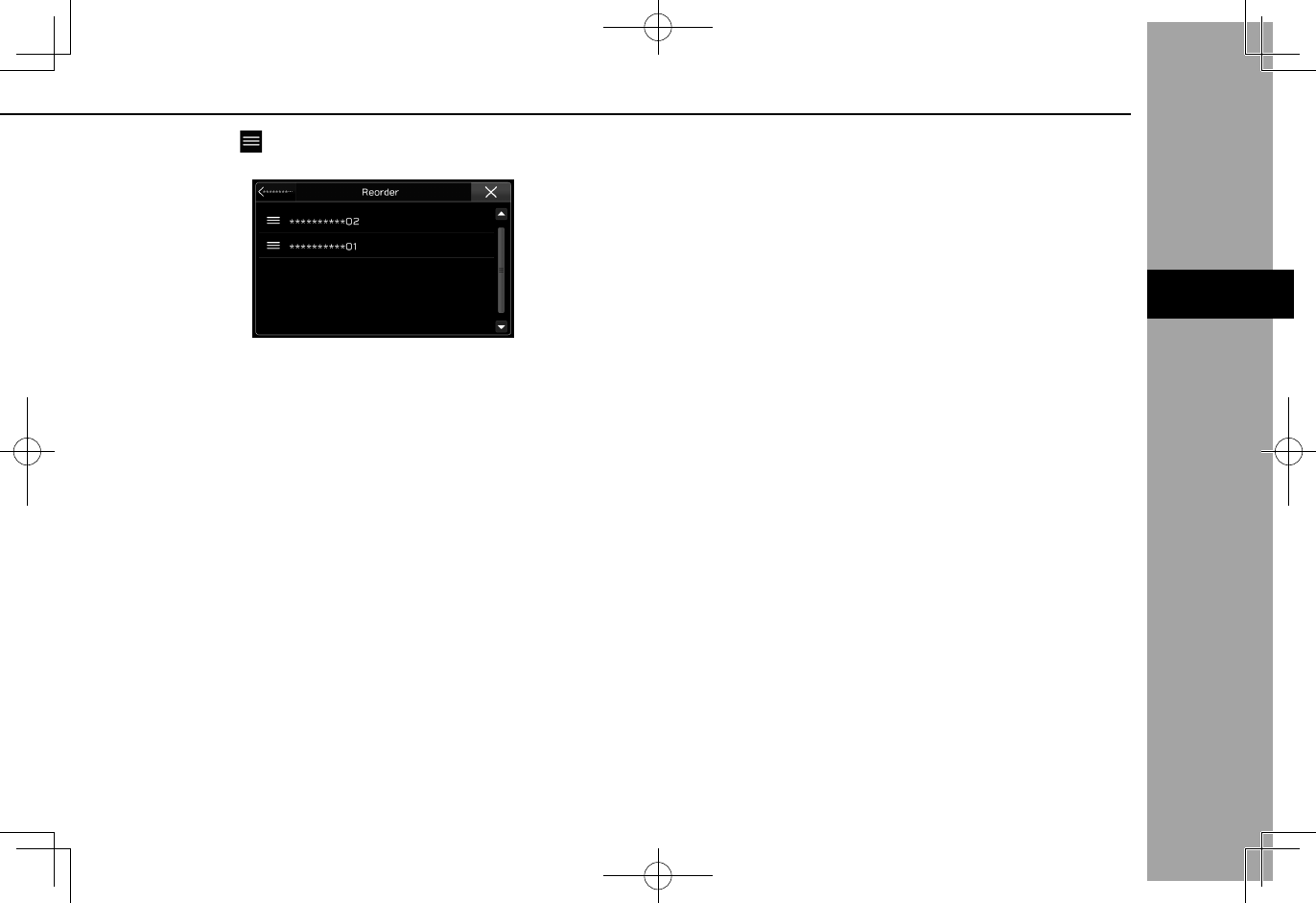

Select next to the desired Bluetooth phone/device,
and then drag it to the desired position.
3
Bluetooth® SETTINGS
53
SETTINGS
3
SETTING Wi-Fi® CONNECTION (8-inch with
Navi system/8-inch system only)
CONNECTING OR DISCONNECTING A Wi-Fi®
NETWORK
1.
Display the general settings screen. (→P.62)
2.
Select (Wi-Fi Settings).
3.
Select the desired network.
● (Add New Network): Select to
add a Wi-Fi® network (→P.55)
●When a network with is selected and the
password entry screen is displayed, enter the
password, and then select (Join).
4.
Select (Connect) or
(Disconnect).
● (Forget This Network): Select
to delete the item.
5.
Check that a conrmation message appears when the
connection is complete.
●If an error message appears, follow the guidance on
the screen to try again.
54
OTHER SETTINGS
ADDING A Wi-Fi® NETWORK
Available networks which are not displayed by searching
can be added.
1.
Display the general settings screen. (→P.62)
2.
Select (Wi-Fi Settings).
3.
Select (Add New Network).
4.
Enter the network name, and then select (Join).
5.
Select the security type.
6.
Enter the password, and then select (Join).
7.
Check that a conrmation message appears when the
connection is complete.
WARNING
lUse Wi-Fi® devices only when safe and legal to do so.
lThis system is tted with Wi-Fi® antennas. People with
implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter debrillators
should maintain a reasonable distance between themselves
and the Wi-Fi® antennas. The radio waves may affect the
operation of such devices.
lBefore using Wi-Fi® devices, users of any electrical medical
device other than implantable cardiac pacemakers, cardiac
resynchronization therapy-pacemakers or implantable
cardioverter debrillators should consult the manufacturer
of the device for information about its operation under the
inuence of radio waves.
Radio waves could have unexpected effects on the operation
of such medical devices.
NOTE
lCommunication standards:
• 802.11b
• 802.11g
• 802.11n (2.4GHz)
lSecurity:
• WPATM
• WPA2TM
lWPA and WPA2 are registered mark of the Wi-Fi Alliance®.
55
SETTINGS
3
OTHER SETTINGS
●Communication standards:
・802.11b
・802.11g
・802.11n (2.4GHz/5GHz*)
・802.11a*
・802.11ac*
*: Depending on the country, this specification may not be available.
●Security:
・WPA
・WPA2
●WPA and WPA2 are registered mark of the Wi-Fi Alliance®.
TM
TM
MEDIA OPERATION
56
MEDIA OPERATION
CD

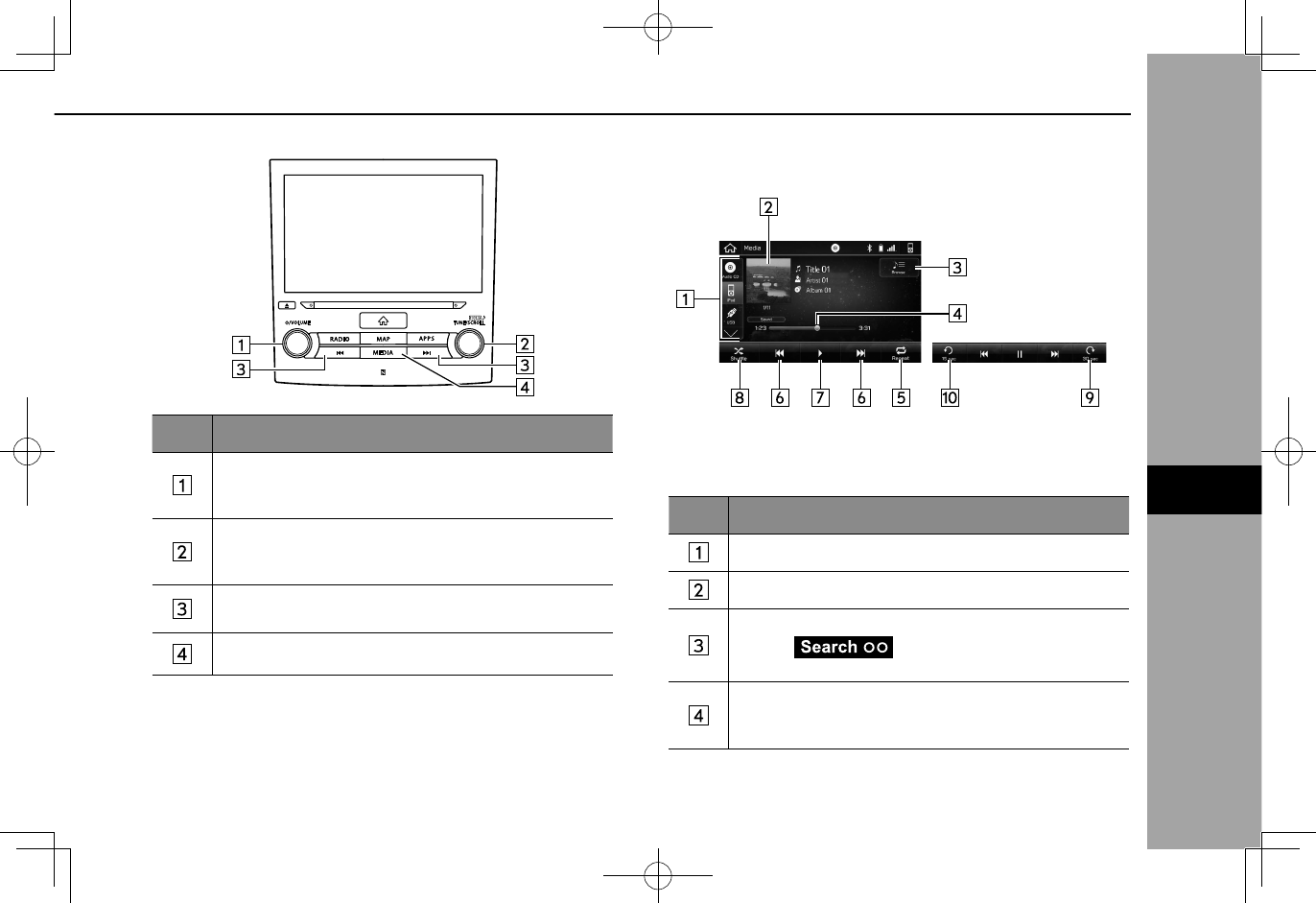

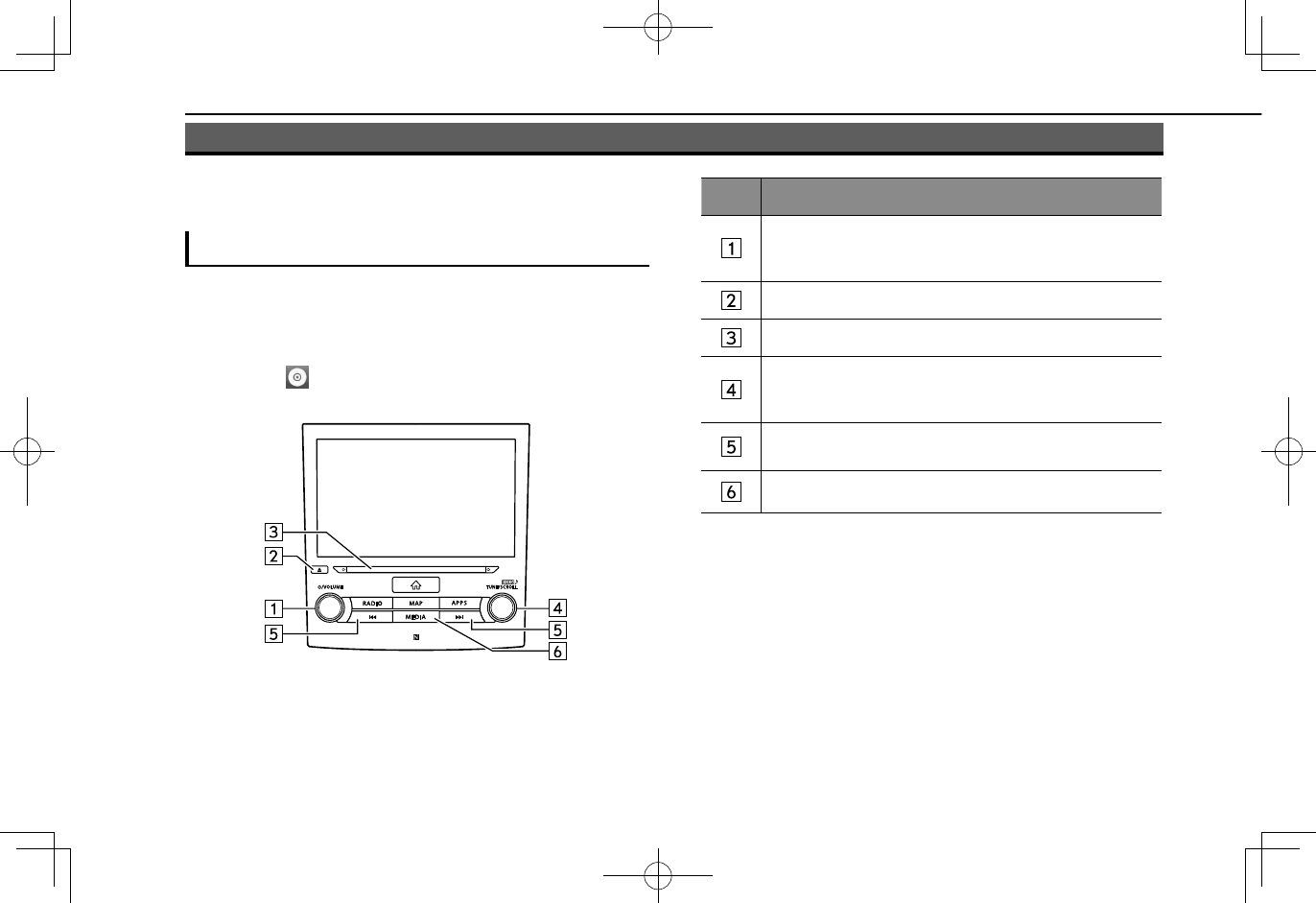

OVERVIEW
The CD operation screen can be accessed with the
following methods:
● Insert a disc. (→P.35)
●Select on the “Media (Media)” screen. (→P.79)
XControl panel
No. Function
Turn to adjust volume.
Press to mute the audio system.
Press and hold to turn the audio system on/off.
Press to eject a disc.
Disc slot
Turn to change a track.
Press and hold to display the sound settings screen.
(→P.72)
Press to change a track.
Press and hold to fast forward/rewind.
Press to switch between media sources.

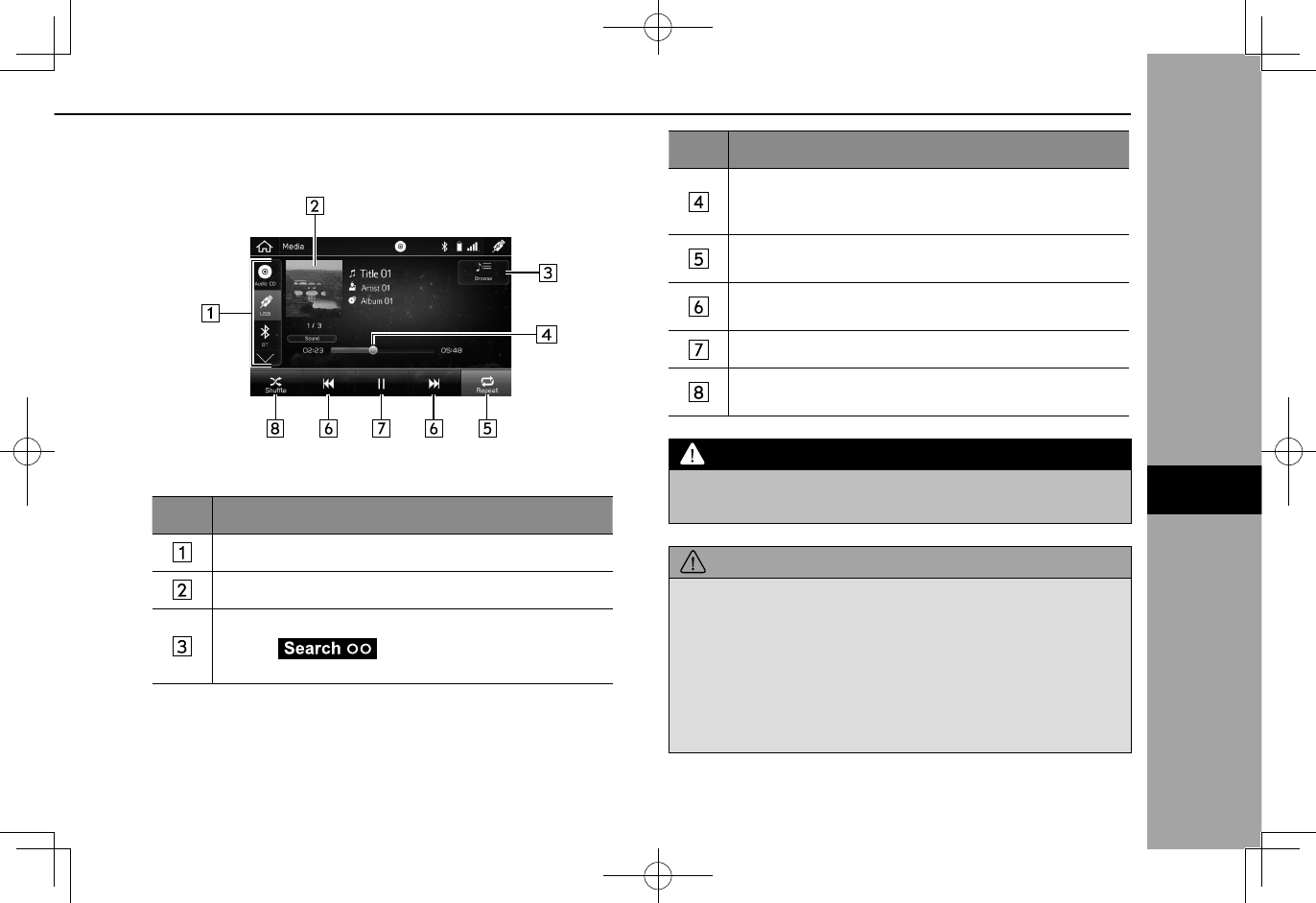

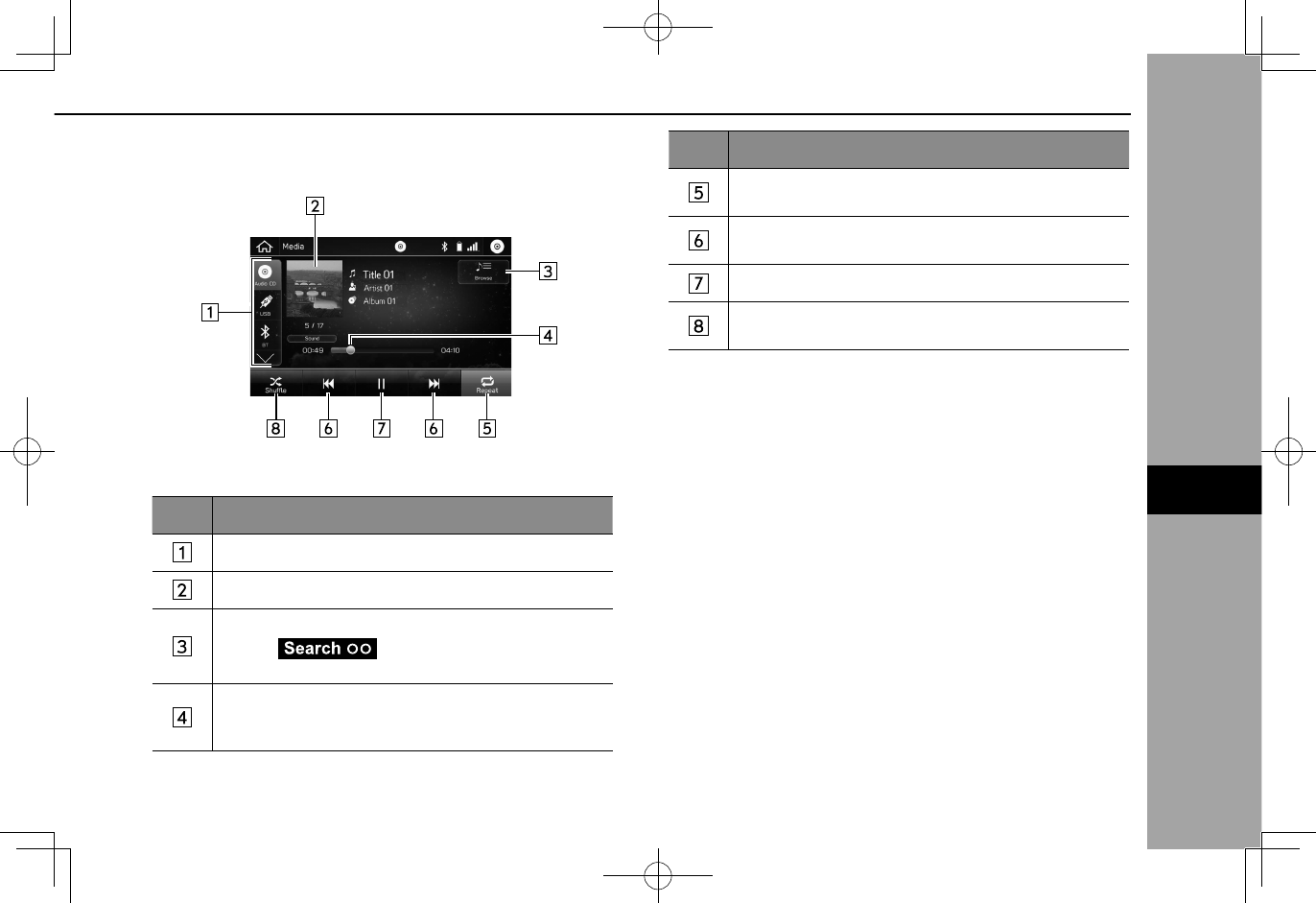

XControl screen
No. Function
Select to switch between other media sources.
Displays cover art.
Select to display the play mode selection screen.
• Select (Search OO) to narrow down the
search for tracks in each play mode.
Shows progress.
The playback location can be changed by dragging the
sliders.
No. Function
Select to enable/disable repeat playback of the track
currently playing.
Select to change a track.
Select and hold to fast forward/rewind.
Select to pause/play.
Select to enable/disable random playback for the tracks
currently playing on the CD.
NOTE
lIf a disc contains CD-DA les and MP3/WMA/AAC les, only the
CD-DA les can be played back.
lIf a CD-TEXT disc is inserted, the title of the disc and track will
be displayed.
lDepending on the disc or music le being played, the cover art
may not be displayed.
MEDIA OPERATION
57
AUDIO
6
*
*: 8-inch with Navi system/8-inch system only
USB MEMORY
Audio les on the USB memory device can be played back.
OVERVIEW
The USB Audio playback screen can be accessed with the
following methods:
● Connect a USB memory device. (→P.36)
●Select on the “Media (Media)” screen. (→P.79)
XControl panel
No. Function
Turn to adjust volume.
Press to mute the audio system.
Press and hold to turn the audio system on/off.
Turn to change a track.
Press and hold to display the sound settings screen.
(→P.72)
Press to change a track.
Press and hold to fast forward/rewind.
Press to switch between media sources.
MEDIA OPERATION
58
XControl screen
No. Function
Select to switch between other media sources.
Displays cover art.
Select to display the play mode selection screen.
• Select (Search OO) to narrow down the
search for tracks in each play mode.
No. Function
Shows progress.
The playback location can be changed by dragging the
sliders.
Select to enable/disable repeat playback of the track
currently playing.
Select to change a track.
Select and hold to fast forward/rewind.
Select to pause/play.
Select to enable/disable random playback for the tracks
currently playing from the USB memory device.
WARNING
lDo not operate the player’s controls or connect the USB
memory device while driving.
CAUTION
lDo not leave your portable player in the vehicle. In particular,
high temperatures inside the vehicle may damage the portable
player.
lDo not push down on or apply unnecessary pressure to the
portable player while it is connected as this may damage the
portable player or its terminal.
lDo not insert foreign objects into the port as this may damage
the portable player or its terminal.
MEDIA OPERATION
59
AUDIO
6
*
*: 8-inch with Navi system/8-inch system only
NOTE
lDepending on the device or music le being played, the cover art
may not be displayed.
iPod
When an iPod is connected, you can play iPod music les.
On this unit, you can perform operations such as selecting
a le from a list or changing to the random playback mode.
At devices which support Apple CarPlay, turn Apple CarPlay
off in the device side Restrictions settings.

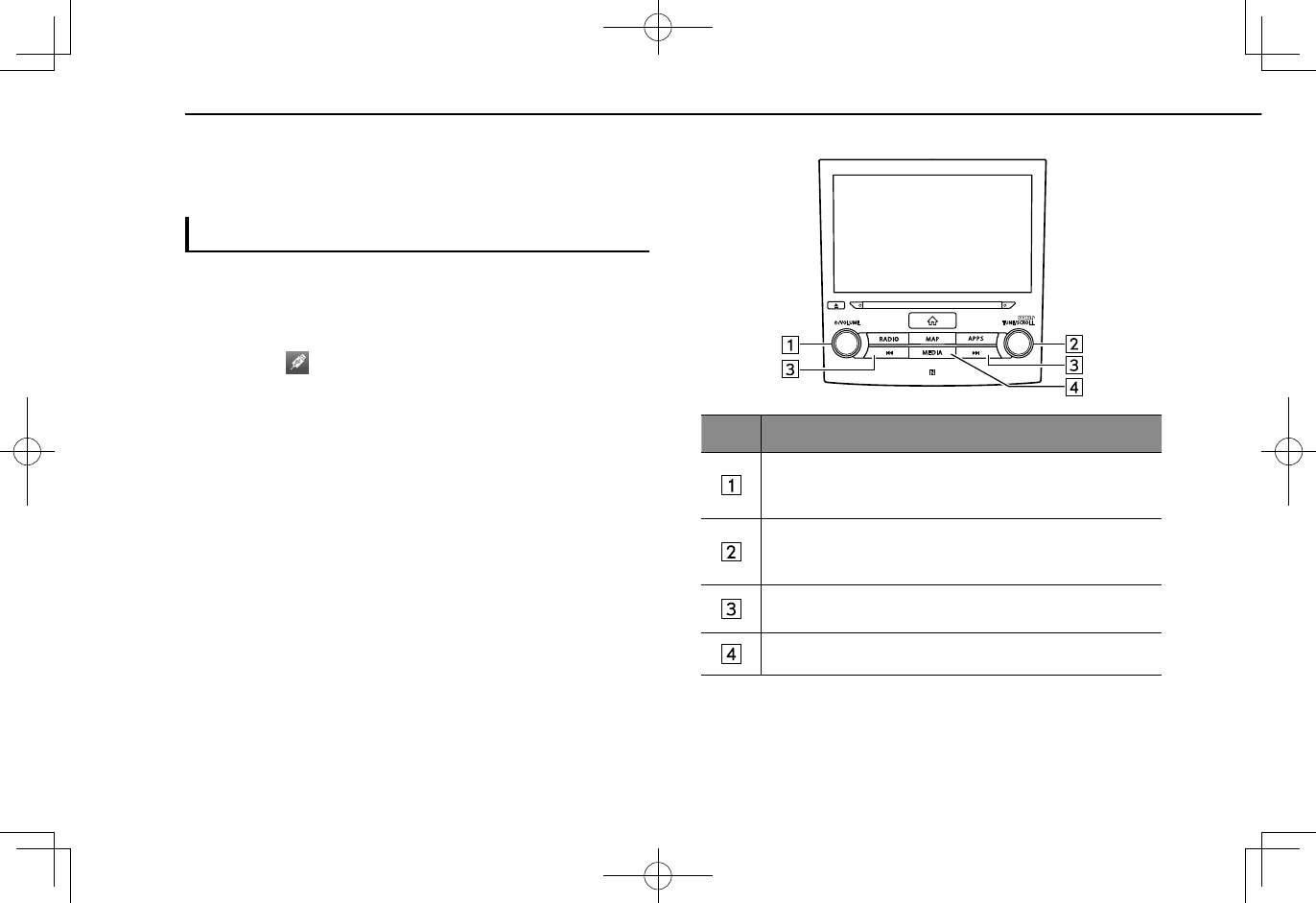

OVERVIEW
The iPod operation screen can be accessed with the
following methods:
● Connect an iPod. (→P.36)
●Select on the “Media (Media)” screen. (→P.79)
MEDIA OPERATION
60
XControl panel
No. Function
Turn to adjust volume.
Press to mute the audio system.
Press and hold to turn the audio system on/off.
Turn to change a track.
Press and hold to display the sound settings screen.
(→P.72)
Press to change a track.
Press and hold to fast forward/rewind.
Press to switch between media sources.
XControl screen
No. Function
Select to switch between other media sources.
Displays cover art.
Select to display the play mode selection screen.
• Select (Search OO) to narrow down the
search for tracks in each play mode.
Shows progress.
The playback location can be changed by dragging the
sliders.
MEDIA OPERATION
61
AUDIO
6
*
*: 8-inch with Navi system/8-inch system only
*
No. Function
Select to enable/disable repeat playback of the track
currently playing.
Select to change a track.
Select and hold to fast forward/rewind.
Select to pause/play.
Select to enable/disable random playback for the tracks
currently playing on the iPod.
*
Select to fast forward the current content item in xed
intervals.
*
Select to rewind the current content item in xed
intervals.
*: Display when playing Audiobooks or Podcasts
WARNING
lDo not operate the player’s controls or connect the iPod while
driving.
CAUTION
lDo not leave your portable player in the vehicle. In particular,
high temperatures inside the vehicle may damage the portable
player.
lDo not push down on or apply unnecessary pressure to the
portable player while it is connected as this may damage the
portable player or its terminal.
lDo not insert foreign objects into the port as this may damage
the portable player or its terminal.
NOTE
lWhen an iPod is connected using a genuine iPod cable, the iPod
starts charging its battery.
lIf playing iPod music, perform operation at the system. Certain
functions may not be available if played directly from the
iPod. Furthermore, depending on the connected iPod, certain
functions may not be available.
lDepending on the iPod or music le being played, the cover art
may not be displayed.
lWhen an iPod is connected and the audio source is changed to
iPod mode, the iPod will resume playing from the same point it
was last used.
lTracks selected by operating a connected iPod may not be
recognized or displayed properly.
MEDIA OPERATION
62

Navigation menu
