THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this wireless
doorbell extender kit. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
DRAFT COPY
USE AND CARE GUIDE
WIRELESS DOORBELL EXTENDER KIT
Questions, problems, missing parts?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 5 p.m., CST, Monday - Friday
1-844-760-3644
HAMPTONBAY.COM
Illustrations may vary from actual unit.
Item #0000000000
Model #HB-7902-02
2
Table of Contents
Table of Contents ......................................2
Safety Information ....................................2
Warranty ...................................................2
3-Year Limited Warranty ........................2
Pre-Installation .........................................3
Planning Installation ..............................3
Specications ........................................3
Tools Required .......................................3
Hardware Included .................................3
Package Contents ..................................4
Installation ................................................4
Operation...................................................6
Care and Cleaning ....................................7
Troubleshooting ........................................8
Safety Information
PRECAUTIONS
ƑPlease read and understand this entire manual
before attempting to assemble, install, or operate
this doorbell.
ƑAll electrical work must be in accordance with
national and local electrical codes. If in doubt,
consult a qualied electrician.
WARNING: To prevent possible SERIOUS INJURY or
DEATH never allow small children near batteries. If battery
is swallowed, immediately notify a doctor.
WARNING: Risk of re. Do not plug the doorbell into a
power inverter.
NOTE: The doorbell extender and doorbell come synced
from the factory. The range of the wireless doorbell can
vary with location, temperature, and battery condition.
This device complies with Part 15 of the FCC Rules and
RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
The user is cautioned that changes or modications
not expressly approved by the party responsible for
regulatory compliance could void the user’s authority to
operate the equipment.
Warranty
3-YEAR LIMITED WARRANTY
WHAT IS COVERED
This product is guaranteed to be free of factory defective parts and workmanship for a period of 3 years from date
of purchase. Purchase receipt is required for all warranty claims.
WHAT IS NOT COVERED
This warranty does not include expendable items (such as light bulbs, batteries, etc.), repair service, adjustment
and calibration due to misuse, abuse or negligence. Unauthorized service or modication of the product or of any
furnished component will void this warranty in its entirety. This warranty does not include reimbursement for
inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges. This warranty
is not extended to other equipment and components that a customer uses in conjunction with this product.
Contact the Customer Service Team at 1-844-760-3644 or visit www.hamptonbay.com.
3 HAMPTONBAY.com
Please contact 1-844-760-3644 for further assistance.
Pre-Installation
PLANNING INSTALLATION
Before installing the wireless doorbell extender kit, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble,
install, or operate this wireless doorbell extender kit.
Estimated installation time: 30 minutes
SPECIFICATIONS
Doorbell Doorbell extender
Power requirements 120 VAC, 60 Hz 4x - “AAA” batteries (not included)

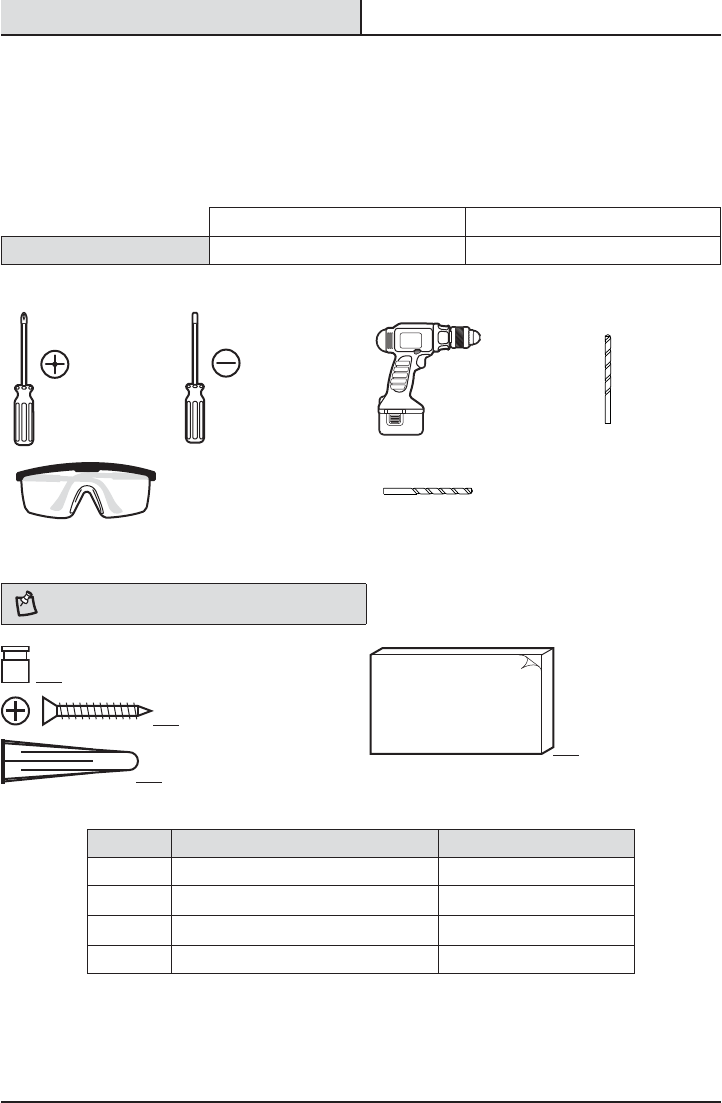

TOOLS REQUIRED
Phillips
screwdriver
Small athead
screwdriver Drill
1/16"
(1.5 mm)
Drill bit
Safety goggles
7/32"
(5.5 mm)
Drill bit
HARDWARE INCLUDED
NOTE: Hardware shown to actual size.
AA
BB
CC
Part Description Quantity
AA Jumper 1
BB Screw 2
CC Wall anchor 2
DD Double-sided tape 2
DD
4
Pre-Installation (continued)

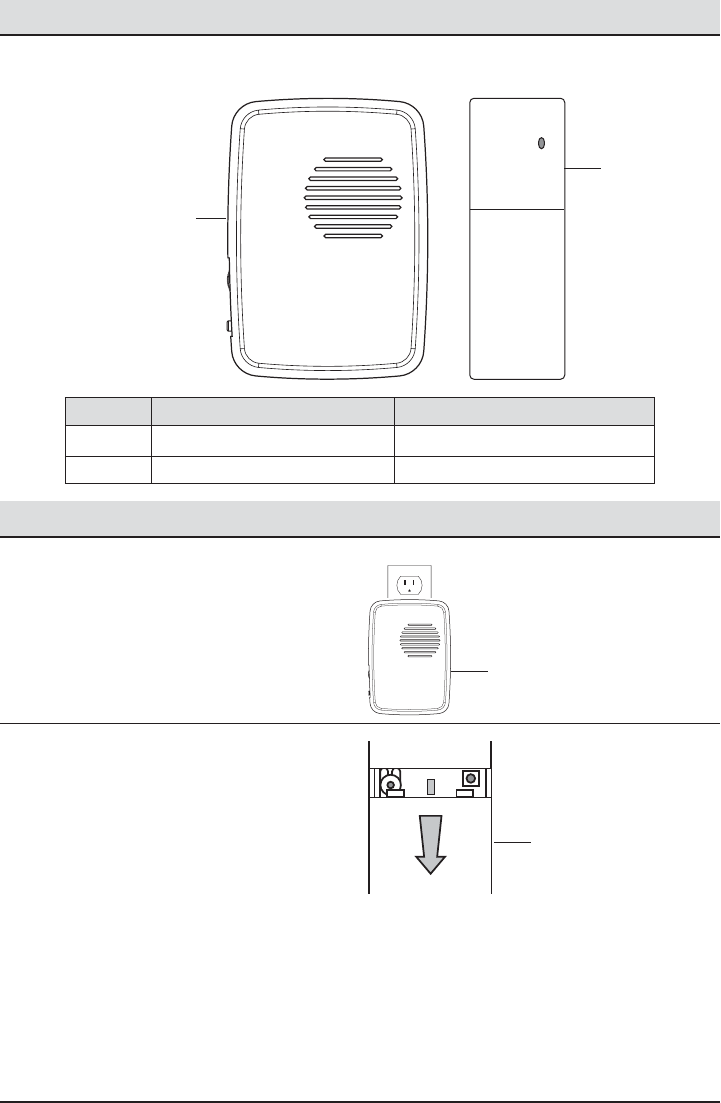

PACKAGE CONTENTS
Part Description Quantity
A Doorbell 1
B Doorbell extender 1
Installation
1 Installing the doorbell
ƑPlug in the doorbell (A) at the desired location.
2 Installing the batteries into the
doorbell extender
ƑOpen the doorbell extender (B) by pressing
on the cover with your thumb and sliding the
cover off.
ƑInstall four alkaline “AAA” batteries (not
included) into the doorbell extender (B). Ensure
the batteries are oriented properly.
A
B
B
A
5 HAMPTONBAY.com
Please contact 1-844-760-3644 for further assistance.
Installation (continued)

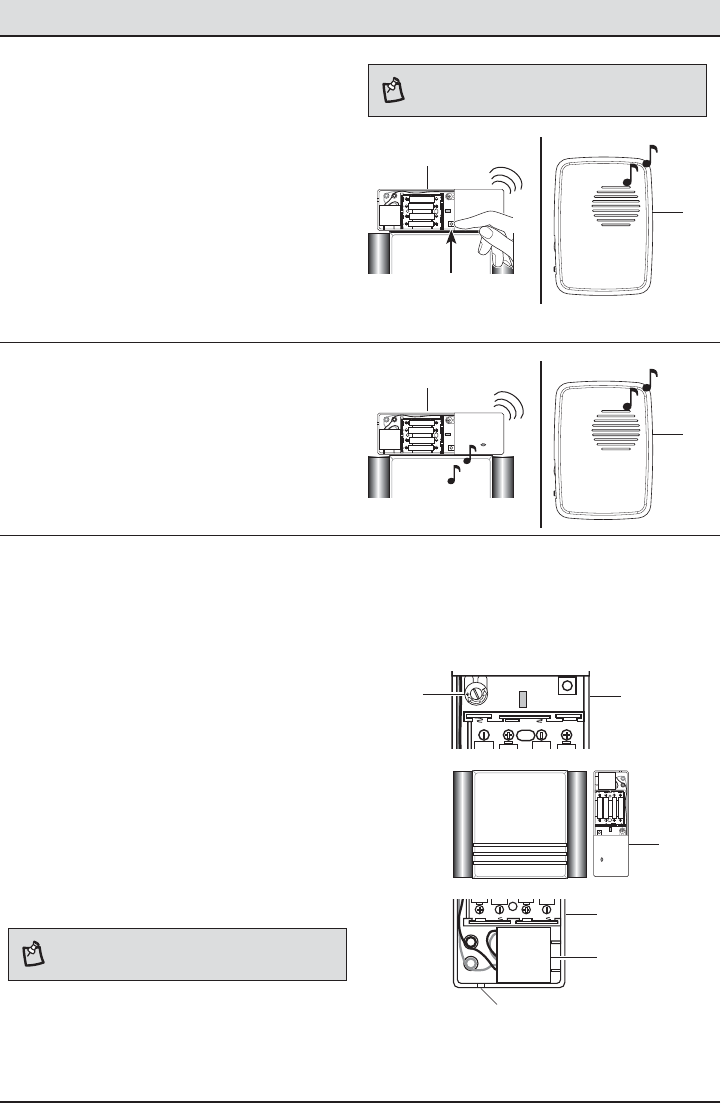

3 Testing the doorbell extender
and doorbell range
ƑTest the range by temporarily positioning
the doorbell extender (B) next to the existing
doorbell.
ƑPress the “TEST” button inside the doorbell
extender (B).
ƑVerify the red LED on the doorbell extender
(B) ashes momentarily and the doorbell (A)
sounds.
ƑIf the doorbell does not sound, move the
doorbell closer to the doorbell extender and test
again.
NOTE: Do not permanently mount the doorbell extender
until the doorbell and doorbell extender are working
properly.
4 Testing the doorbell extender
function
ƑTo test the function, keep the doorbell extender
(B) next to the existing doorbell and activate
the existing doorbell. If the doorbell (A) sounds,
the system is working correctly.
5 Making adjustments to the
doorbell extender
ƑIf the doorbell does not sound, try one or more
of the following steps:
ƑTurn the microphone sensitivity knob (1)
inside the doorbell extender (B) clockwise
to increase microphone sensitivity.
ƑMove the doorbell extender (B) to different
positions around the existing doorbell.
ƑRemove the microphone (2) from the
doorbell extender (B) by gently prying
the microphone (2) out of the doorbell
extender (B) and routing the wires through
the small slot (3) in the doorbell extender
(B). Attach the microphone (2) to the
existing doorbell using double-sided
tape(CC).
NOTE: Do not mount the microphone (2) to doorbell bars
and make sure the small hole in the microphone (2) is not
covered with double-sided tape (DD).
ƑOnce the doorbell (A) and doorbell extender (B)
are working correctly, reduce the microphone
sensitivity (1) to the least sensitive position
that allows for reliable activation to minimize
false activation from other household noises.
A
A
B
B
B
2
1
3
B
B
6
Installation (continued)

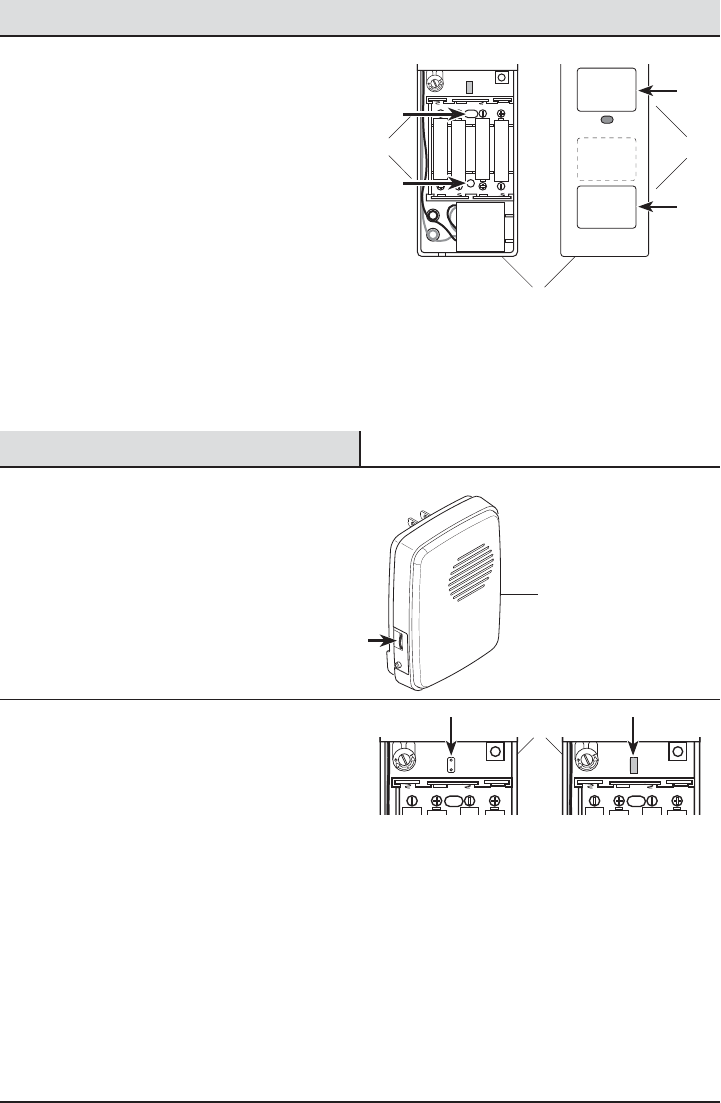

6 Mounting the doorbell extender
Use either the screws (BB) or double-sided tape (DD)
to mount the doorbell extender (B).
ƑTo mount with screws (AA), temporarily remove
the batteries and place the doorbell extender
(B) against the mounting surface and mark the
two screw holes.
ƑDrill two 7/32 in. pilot holes and insert wall
anchors (CC). Align the holes in the doorbell
extender (B) with the wall anchors (CC) and
insert two screws (BB). Tighten securely and
replace the batteries and cover.
ƑWhen attaching the doorbell extender (B) with
double-sided tape (DD), remove the paper from
both sides of the double-sided tape (DD) and
apply to a clean surface. Install the cover.
Operation
1 Adjusting the doorbell volume
The doorbell (A) has an adjustable volume control
located on the side. Rotate the thumbwheel up or
down to adjust the volume.
2 Setting the doorbell extender
The wireless doorbell extender (B) has two options
for tune selection: Play the selected “FRONT” door
musical tune or play the “REAR” door designated tune
(Ding).
ƑRemove the single jumper inside the doorbell
extender (B) to play the selected musical tune.
ƑAdd the single jumper inside the doorbell
extender(B) to play only the Ding tune.
Remove jumper to Add jumper to set
set as the “FRONT” door as the “REAR” door
B
DDBB
A
B
7 HAMPTONBAY.com
Please contact 1-844-760-3644 for further assistance.

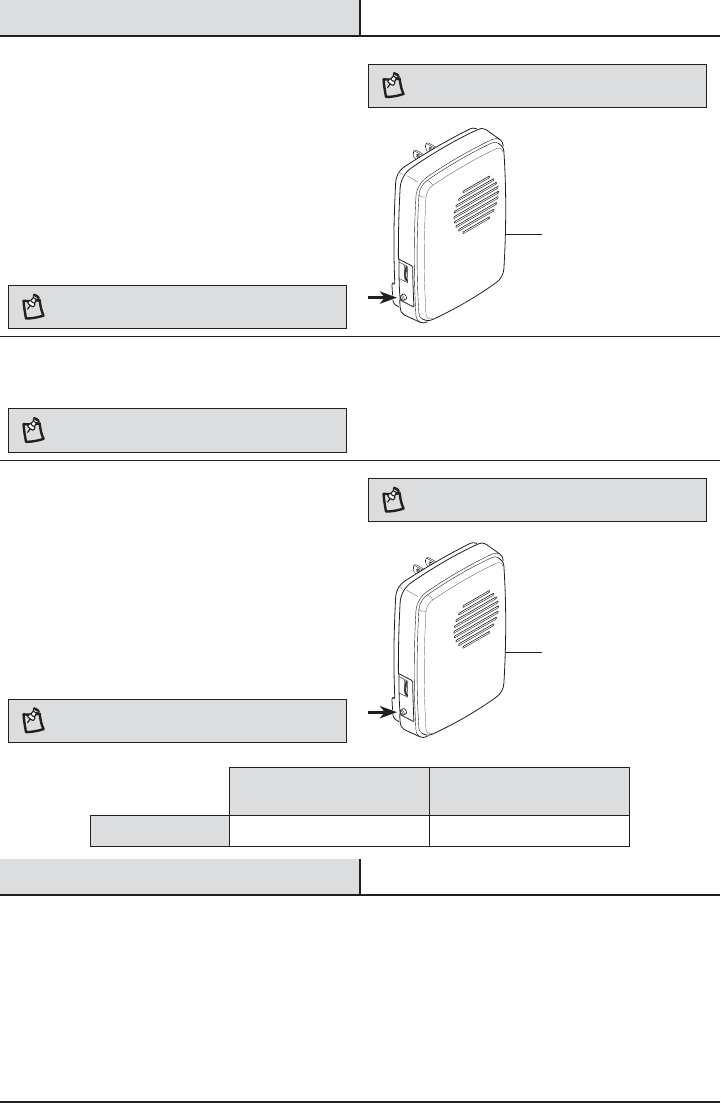

Operation (continued)
3 Selecting the doorbell extender
tune
The doorbell (A) has different selectable tunes. If the
doorbell extender (B) is set to the “REAR” tune it will
only play the Ding (one note) tune. If the doorbell
extender (B) is set to the “FRONT” tune it will play
either the Ding-Dong (two note) tune or Westminster
(eight note) tune.
ƑPress and release the “TUNE” button on the
doorbell (A) until the desired tune is heard.
NOTE: All doorbell models are designed to work with up
to 10 wireless push buttons (sold separately).
NOTE: All doorbells are designed to play only two
different tunes no matter how many push buttons are used.
4 Adding wireless push buttons
NOTE: Wireless push buttons can be added to this
doorbell. The push buttons are sold separately.
See the owner’s manual of the push button accessory
for instructions to sync with this doorbell.
5 Selecting a push button tune
The doorbell (A) has different selectable tunes for
push buttons (sold separately). The push button set
as the “REAR” push button will only play Ding (one
note tune). The push button set as the “FRONT” push
button will play either the Ding-Dong (two note tune)
or Westminster (eight note tune) tune.
ƑPress and release the “TUNE” button on the
doorbell (A) until the desired tune is heard.
NOTE: All doorbell models are designed to work with up
to 10 wireless push buttons (sold separately).
NOTE: All doorbells are designed to play only two
different tunes no matter how many push buttons are used.
Front door push button
(sold separately)
Rear door push button
(sold separately)
Doorbell tune Ding-Dong or Westminster Ding
Care and Cleaning
ƑUse a dry cloth to clean the doorbell and doorbell extender.
ƑDo not use cleaners or polishes.
ƑDo not use any uids on the doorbell or doorbell extender.
A
A
8
Troubleshooting
Problem Possible Cause Solution
The doorbell does
not sound.
ƑThe batteries are not
installed correctly.
ƑMake sure the batteries are installed according to the
diagram inside the doorbell extender.
ƑThe batteries are dead. ƑCheck the charge of the doorbell extender batteries and
replace if necessary.
ƑThe doorbell is not
receiving power.
ƑMake sure the plug-in doorbell has power.
ƑThe doorbell extender
and doorbell are not
synced.
ƑSync the doorbell extender and doorbell:
ƑRemove the doorbell extender cover.
ƑPress and hold the button on the doorbell until the
doorbell sounds “Beep-Beep”.
ƑPress the button on the inside of the doorbell ex-
tender within 30 seconds. The doorbell will sound a
“Beep-Beep” tone to indicate the doorbell extender
is synced.
ƑPress the button inside the doorbell extender again
to activate the doorbell and ensure the doorbell
extender and doorbell are synced.
9 HAMPTONBAY.com
Please contact 1-844-760-3644 for further assistance.
Troubleshooting (continued)
Problem Possible Cause Solution
The batteries
seem okay, but
the doorbell does
not work after
installation.
ƑThe doorbell or doorbell
extender is mounted
on metal or near metal
studs.
ƑMetal reduces transmission range. Use 1/4 in. to 1/2
in. (6 to 13 mm) wood shims to move the doorbell or
doorbell extender away from the metal surface.
ƑThe doorbell is mounted
near a concrete oor
or wall.
ƑConcrete may reduce range. Move the doorbell away
from the concrete surface.
ƑThe doorbell and
doorbell extender are
installed too far apart.
ƑLocate the doorbell closer to the doorbell extender.
The doorbell
sounds when not
intended (false
triggers).
ƑThe doorbell is receiv-
ing interference from
another wireless device.
ƑReset the doorbell extender and doorbell:
ƑRemove the doorbell extender cover.
ƑRemove doorbell extender battery. Wait 30 seconds.
ƑPress and hold the button inside the doorbell ex-
tender for 10 to 15 seconds within 60 seconds after
installing battery into the doorbell extender.
ƑPress and hold the button on the doorbell until the
doorbell sounds a “Beep-Beep-Beep-Beep”.
ƑRe-sync the doorbell extender and doorbell:
ƑPress and hold the button on the doorbell until the
doorbell sounds “Beep-Beep”.
ƑPress the button on the inside of the doorbell ex-
tender within 30 seconds. The doorbell will sound a
“Beep-Beep” tone to indicate the doorbell extender
is synced.
ƑPress the button inside the doorbell extender again
to activate the doorbell and ensure the doorbell
extender and doorbell are synced.
ƑDoorbell extender is
detecting loud, continu-
ous noise levels.
ƑTurn the microphone sensitivity dial counterclockwise
to reduce sensitivity or attach the doorbell extender
microphone directly to the existing doorbell case near
the ringing part (but not on it).
Questions, problems, missing parts?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 5 p.m., CST, Monday - Friday
1-844-760-3644
HAMPTONBAY.COM
Retain this manual for future use.
208196-01A
