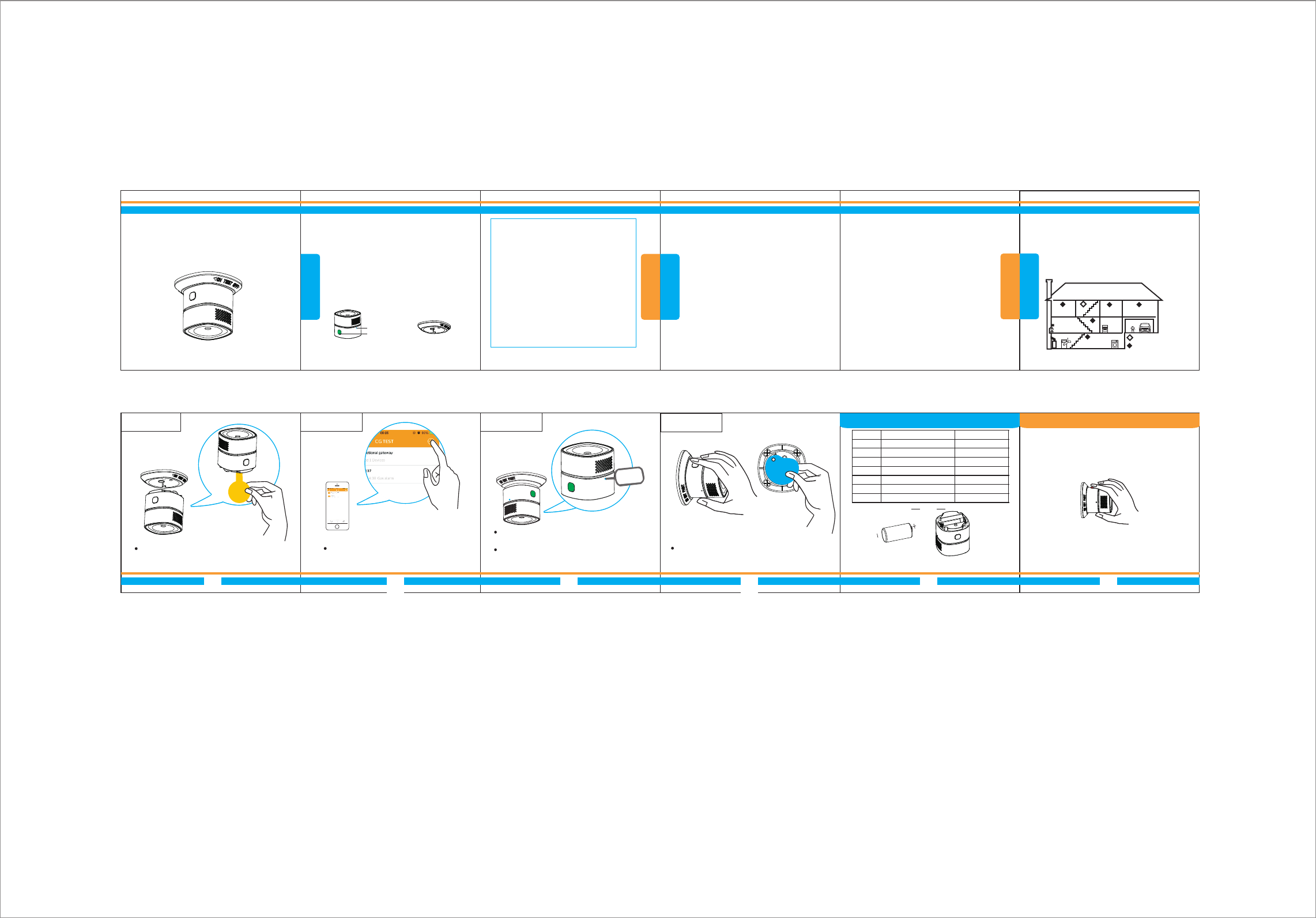

Click “Add Device” on the APP interface, and
enter the networking mode.
Technical Data
Tips
Installation Instruction
Installation Drawing
Product Introduction
*Please read the user manual carefully before operation.
The guide picture is for reference only. please in kind prevail
1.Install the sensor in bedroom and living area or
anywhere CO may leak, make sure each sleeping
ar ea ca n hea r sound a larm wh en ch o o se
installation position.
2.Avoid suppressing or falling down sensors, keep
sensors away from humid, high voltage, strong
magnetic and children.
3.Do not suggest install sensors in garage, kitchen,
boiler and places where sensor may false alarm.
Do not install in dirty, dusty or greasy places, oily,
dust or household chemicals may damage internal
sensor, and make sensor can not work normally.
4.Sensors can support wall mounted or placing on
the table, household and travel essential.
Screw the sensor into bracket, please remove the
double - sided adhesive membrane on the
installation base, and stick on the wall.
Sensor Installation Base
Anticlockwise rotating the bracket out from the installation
base, then remove the battery insulating strip to make
detector on power.
*Please replace battery correctly, following the battery posi
negative electrode.
tive and
Green- flash alternatively oncered-yellow-green LED
Green,red and yellow LED flash alternatively once
Red LED flash
Yellow LED flash twice every 10 seconds
Green LED flash every 53 seconds
Red LED flash every 53 seconds
Yellow LED flash twice
4 beeps
1 beep
4 beeps
2 beeps every 10 seconds
1 beep every 53 seconds
\
4 beeps every 10 seconds
Status LED Indicator Alarm Please take following advices for reference if sensors can not work normally:
1.Replace battery in time, if voltage too low and reach effective life span.
(Check table 1 for state reference)
2.Please clean sensor if the fault resulted from dust or oil stain ( Check table
1for state reference).
3.Make sure sensors screw into the base correctly.
Press test button on the product for 3 seconds, shows in above
picture, till alarm happens ( check table 1 for state reference).
Suggest test sensor at least once a week. Please pay attention once
alarm happens.
Installation Step1
Installation Step2
Installation Step3
Installation Step4
Chart1
CR123A
1, This product can not be used for detecting natural
gas(methane), propane, butane and other
combustible gas.
2, Clean once a month, users may use household
vacuum cleaner and soft brush when cleaning.
3, Do not use cleanser or solvent wipe sensors,
please avoid spraying air freshener, hair spray, oil
paint or other aerosol near sensors.
4, Effective working life span is 5 years, suggest
replace every 5 years no matter there is fault or
not. (Battery life span is 3 years).
5, Please be attention when alarm happens. Shut-off
valves immediately, opening the window, make
sure indoor airiness. Besides using sensors
correctly, users should strengthen the
consciousness of fire protection.
Test
Preheating
Alarm
Malfunction
Low battery
Normal working
Expired sensor
Status and battery replacement Troubleshooting and test
Minimum recommended installation
Additional recommended installation
Bedroom Bedroon Bedroom
Livingroom
Kitchen
Basement
Gagrage
Aisle
To increase safety factors in single-layer house,
suggest to install at least a sensor in each bedroom and
install a sensor at 6m from chimney and gas fixture.
To increase safety factors in multi-layer house, suggest
to install at least a sensor in each bedroom, install at
least one sensor in basement. Please install a sensor at
6m from chimney and gas fixture.
Networking Hole
LED Indicator
According to APP prompt, press the networking button 3 times in
1.5 seconds until green light flash, (the longest networking time
is 30 seconds) APP interface p rompted, networking success.
Select device, click "delete" on APP, then press the
networking button 3 times in 1.5 seconds until the green light
flashes slowly for 6 times, which indicates network is
disconnected successfully
This product is a smart carbon monoxide
sensor, adopts super low power consumption Z-
wave wireless networking technology, used for
detecting carbon monoxide. Sensor adopts high
performance electrochemical sensor, support
sound and flash alarm, It has high stability, super
low power consumption, little sensitivity drift and
many other features. Free installation design,
support instant bonding.
1.Working Voltage：DC3V(CR123A Lithium Battery)
2. St atic Current：≤20uA
3.Alarm Current：≤60mA
4.Alarm Sound：85 dB/ 1m
5.Alarm Sensitivity：30ppm 120mins alarm
50ppm 60-90mins alarm
100ppm 10-40mins alarm
300ppm 3mins alarm
6.Networking：Z-wave Ad-Hoc Networking
7.Wireless Networking Distance：≥70m(open area)
8.Working Temperature：-10℃ ～ +5 0℃
9.Environment Humidity：≤ 95%RH
10.Dimension：60* 60*49.2mm
7
6 8 9 10 11
1 2 345
HS1CA-Z
