Contents

Users Manual Part Two

MOTOR REPLACEMENT
1. Remove the four screws from
the black motor cover and lift
it off the frame (if installed, the
prop guard will also need to
be removed before the motor
cover can be removed).
2. Dis c on n e c t t h e m o t o r
connector. Grasp the motor
by the gear with your
fingertips and slide the
motor out of the cover.
3. Slide the rubber banding off
of the old motor and onto your
replacement motor.
4. Reinstall the parts in the same
order in which they were
removed.
NOTE: There are clockwise and
counter-clockwise rotating motors.
Be sure that you are replacing a
damaged motor with the correct
part by confirming the wire colors
of the replacement motor match the motor wires you are removing.
FLIGHT CONTROL BOARD REPLACEMENT
Replacing the flight control board is not a difficult procedure, but there are many
screws that need to be taken out to remove the flight control board from the
quad. Have a clean work space prepared and we recommend using a container
to hold all the screws.
1. If equipped, remove the
camera by pushing down on
the camera retainer tab and
sliding the camera forward.
Disconnect the camera wire
from the quad.
2. Remove the three camera
mount screws and lift the
camera mount off the frame.
3. Remove the six screws
securing the canopy and lift
the canopy off the frame.
4. There are four screws holding
each motor cover to the frame.
Remove all four motor covers
from the frame. The motors
should come out with the
covers. Disconnect the motors
and set the covers aside. We
recommend labelling each
cover so they are installed
back in the correct locations.
5. Remove the three lens covers
from the underside of the
frame. Notice that there are
three different screw sizes so
far in this procedure. Make
a note of the sizes used in
the different holes to make
reassembly easier.
6. Unscrew the camera connector
and the battery connector from
the frame.
NOTE: Before moving on to step 7,
take a close look at how the wires
and LEDs are positioned in the
frame. Take a photo if possible for
future reference. The wires should
be reinstalled with the new board
as they are currently placed.
7. There are four screws that secure the flight control board to the frame. These
screws are different than the other screws removed so far. Make sure you
use them in the correct location during reassembly. Lift the board off the
frame and start feeding the wires out through the holes in the frame. If the
foam sleeves came off, slide them back on to the screw bosses as shown
in the picture.
8. Reassembly is the reverse of steps 1-7. Take care when installing the covers
to not pinch or sever the wires with screws. If a part does not feel like it is
fitting back into place properly, do not force it. Check that the part is properly
aligned and that the wires and LEDs are not interfering with the installation.
9. Before attempting to fly your Dromida XL, recalibrate the sensors.
7
FCC IC PRECAUTIONS
antenna or
ting in conjunction with any other
lisé avec un minimum de 20cm de distance
nd operated with minimum distance 20cm
8
BATTERY PRECAUTIONS
The Dromida XL uses a lithium polymer (LiPo) battery. Follow these
precautions to ensure safe and trouble-free operation.
• ALWAYS disconnect the battery from the quadcopter when not in use.
• Do not attempt to use this charger with NiCd or NiMH battery packs.
• Do not attempt to use a damaged battery.
• This product contains a LiPo battery that must be recycled or disposed
of properly.
• Do not leave the charger unattended while charging. Disconnect the
battery and unplug the charger immediately if either becomes hot!
However, it is normal for the charger to get warm.
• Disconnect the battery from the charger and carefully move the
battery to a  reproof location if the battery begins to swell or smoke!
• Never allow the battery temperature to exceed 140° F [60° C].
• Do not attempt to charge a battery if it is swollen or hot.
• Do not place the charger or any battery on a  ammable surface or
near combustible materials while in use.
• Never disassemble or modify pack wiring in any way or puncture cells.
• Never charge inside a vehicle.
• Always disconnect the battery and unplug the charger when not in use.
• Land your model immediately when the LEDs  ash to indicate that the
battery power is low. Recharge the battery before attempting another
ight. A dangerous situation can occur when attempting to recharge
an over-discharged battery!
• ALWAYS keep a supply of sand accessible when charging. Dumping
sand on the battery will extinguish a LiPo chemical  re.
• ALWAYS KEEP OUT OF REACH OF CHILDREN
SAFETY PRECAUTIONS
Follow these safety precautions when operating this or any model
quadcopter.
• Adult supervision required.
• Before  ying, go to www.knowbeforeyou y.org.
• Do not touch the spinning blades or  y over another person’s head.
• Keep your face and body as well as all spectators away from the
rotors whenever the battery is connected.
• Stay clear of buildings, trees and power lines. AVOID ying in or near
crowded areas. DO NOT y close to people, children or pets.
• Maintain a safe pilot-to-quadcopter distance while  ying.
• Your Dromida XL quadcopter should not be considered a toy, but rather
a small, working model. If not operated correctly, the model could
possibly cause injury to you or spectators and damage to property.
• You must check the operation of the model before every  ight to
ensure that the model has remained structurally sound.
• Do not alter or modify the model, as doing so may result in an unsafe
or un yable model.
• Do your part in preserving the integrity of the FPV hobby. Know
the boundaries of your flying area and ALWAYS respect the
privacy of others.
90-DAY LIMITED WARRANTY
PLEASE DO NOT RETURN YOUR PRODUCT TO THE STORE. Dromida will
repair or replace factory defects for 90 days from the date of purchase. This
warranty speci cally does not cover crash damage, misuse or abuse. To make
a warranty claim, please contact our product support team at 1-217-398-
8970 option 6 or e-mail us at helihotline@greatplanes.com. If requested
by Product Support, please send defective product to:
Hobby Services
3002 N Apollo Dr., Suite #1
Champaign, IL 61822
In the European Union, send it postpaid and insured to:
Service Abteilung Revell GmbH Tel: 01805-110111
Henschelstrasse 20-30 (nur für Deutschland)
32257 Bünde Germany
E-mail: Hobbico-Service@Revell.de
Please include a note about the problem, your contact information, and a
copy of the receipt.
This warranty applies only if the product is operated in compliance with the
instructions and warnings provided with each model. Dromida assumes no
liability except for the exclusive remedy or repair of parts as speci ed above.
Dromida shall not be liable for consequential or incidental damages. Some
states do not allow the exclusion of consequential or incidental damages so
the above exclusion may not apply to you. This warranty gives you speci c
legal rights and you may also have other rights which vary from state to state.
This device complies with Industry Canada licence-exempt RSS standard (s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference,including interference
that may cause undesired operation of the device.
LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesaux
appareilsradioexemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,même
silebrouillageestsusceptibled'encompromettrelefonctionnement.
IC Radiation Exposure Statement:
This equipment complies with IC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
IC exposition aux radiations:
Cet équipement est conforme avec IC les limites d'exposition aux
rayonnements définies pour un contrôlé environnement.
Cet émetteur ne doit pas être co-localisés ou fonctionner en conjonction avec
une autre antenne ou émetteur.
This equipment should be installed a
between the radiator & your body.
Cet équipement doit être installé et uti
entre le radiateur et votre corps.
FCC Radiation Exposure Statement:
IC RSS warning
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or opera
transmitter.
9

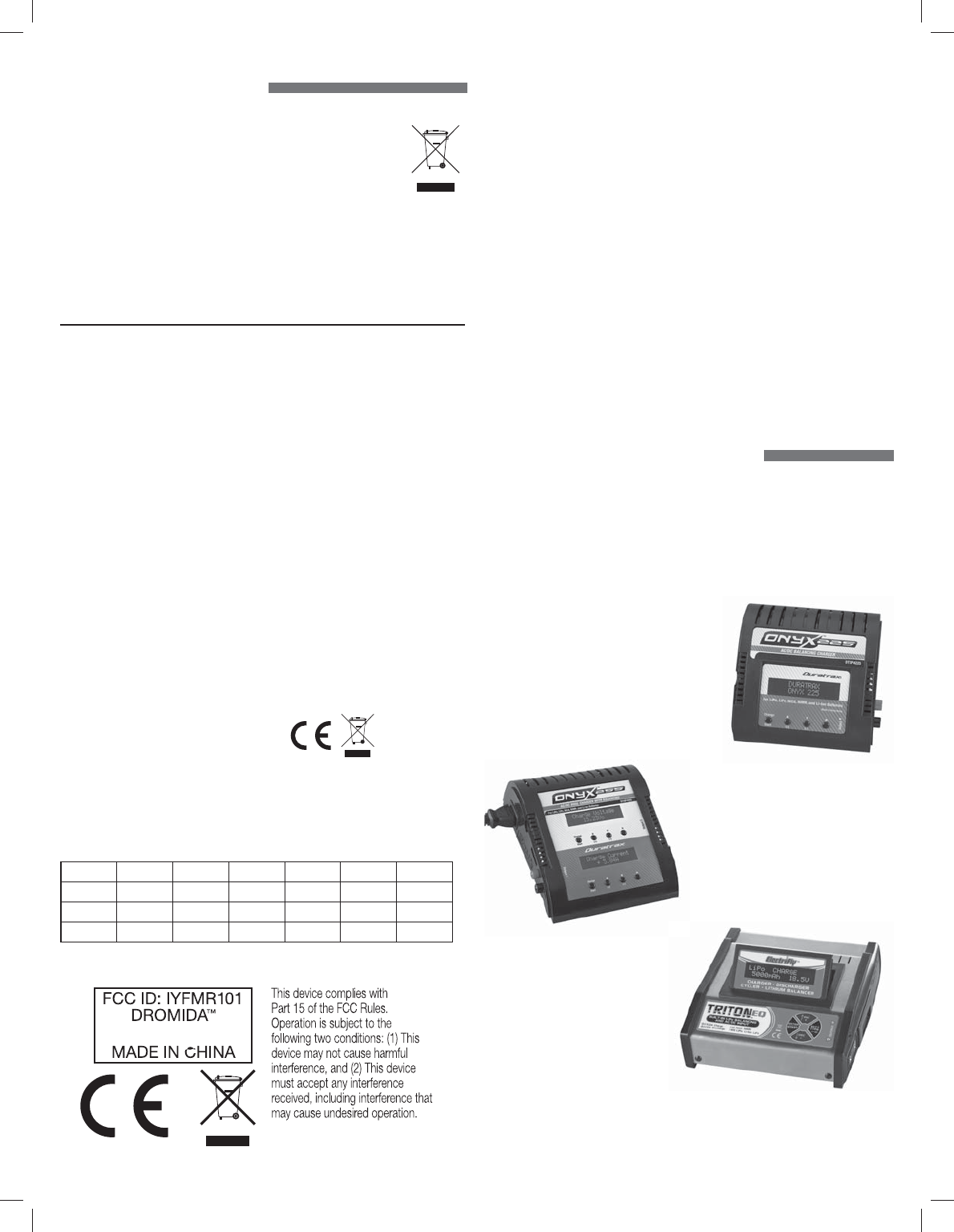

CE COMPLIANCE INFORMATION
FOR THE EUROPEAN UNION
INSTRUCTIONS FOR DISPOSAL OF WASTE EQUIPMENT BY PRIVATE USERS
IN THE EUROPEAN UNION:
This symbol on the product or its packaging indicates this product
must not be disposed of with other household waste. Instead, it is
the user’s responsibility to dispose of their waste equipment by
handing it over to a designated collection point for the recycling
of waste electrical and electronic equipment. The separate collection and
recycling of your waste equipment at the time of disposal will help to conserve
natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you
can drop off your waste equipment for recycling, please contact your local
city of ce, your household waste disposal service or location where you
purchased the product.
DECLARATION OF CONFORMITY:
Product: Dromida 2.4GHz 4-Channel Tx Rx FCC ID: IYFMR101
Item number: DIDJ1106 MR101
Equipment class: 1
MR101 transmitter: The objects of the declaration described here are
in conformity with the requirements of the speci cations listed below,
following the provisions of the European 2006/95/EC Low Voltage
Directive:
EN 60950-1:2013 Safety
The objects of the declaration described here are in conformity with the
requirements of the speci cations listed below, following the provisions
of the European R&TTE drectve 1999/5/EC:
EN300 328 V1.9.1.
Technical requirements for radio equipment
ETSI EN 301 489-1 V1.9.1, 301 489-17 V2.2.1 General EMC
requirements for radio equipment
Hobbico, Inc.
2904 Research Road
Champaign, IL USA 61826
Distributed in Europe by Revell GmbH
D-32257 Bünde Germany
The associated regulatory agencies of the following countries recognize
the noted certi cations to this product as authorized for sale and use.
UK DE DK BG SE FI GR
EE LV LT PL CZ SK HU
RO SI AT IT ES PT IE
NL LU MT CY
IC: 11104 A-DRONEVIEW
STATEMENTS: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired changes or modi cations not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
OPTIONAL BATTERY AND CHARGERS
The battery included with the Dromida XL is a standard sized 2200mAh 7.4V LiPo.
The Flight Power FP30 7.4V 2200mAh 30C would be an acceptable substitute.
FPWP 3222 FlightPower LiPo FP30 2S 7.4V 2200mAh 30C Star Plug
There are many chargers on the market that are capable of charging the LiPo
included with the Dromida XL as well as other battery sizes and chemistries.
Here are a few chargers that we recommend as upgrades to the charger included
with the Dromida XL:
DTXP4225 Duratrax Onyx 225 AC/DC
Advanced Charger
DTXP4255 Duratrax Onyx 255 AC/DC
Dual Balancing Charger
GPMM3155 Great Planes
ElectriFly Triton
EQ AC/DC Charger
10
1 DIDE1240 Prop Guard Set
2 DIDE1241 Prop Set Blue
DIDE1242 Prop Set Green
DIDE1243 Prop Set Orange
DIDE1244 Prop Set Red
3 DIDE1245 Canopy Green
DIDE1246 Canopy Blue
DIDE1247 Canopy Orange
DIDE1248 Canopy Red
4 DIDE1249 Canopy Air Damper
5 DIDE1250 Bearing Set
6 DIDE1251 Main Frame Green
DIDE1252 Main Frame Blue
DIDE1253 Main Frame Orange
DIDE1254 Main Frame Red
7 DIDE1255 Spur Gear Set
8 DIDE1256 Prop Shaft
9 DIDE1257 Motor Cover
10 DIDE1258 LED Arm Covers Orange
DIDE1259 LED Arm Covers Blue
DIDE1260 LED Arm Covers Green
DIDE1261 LED Arm Covers Red
11 DIDE1262 E-Board with Barometer Orange
DIDE1270 E-Board with Barometer Green
DIDE1271 E-Board with Barometer Blue
DIDE1272 E-Board with Barometer Red
12 DIDE1263 E-Board Dampers
13 DIDE1264 Camera Mount Assembly XL FPV Only
14 DIDE1265 Landing Pads
15 TACZ1020 DroneView 1080P Wi-Fi Camera FPV Only
15 TACZ1005 Camera Power Wire
16 DIDE1235 2S, 2200mAh 7.4V LiPo Battery
17 DIDE1266 Main Motors CW Left Front, Right Rear
18 DIDE1267 Main Motors CCW Right Front, Left Rear
19 DIDE1268 Screw Set
20 DIDE1269 Camera Mount Dampers FPV Only
DIDJ1106 MR101 Transmitter
DIDE1236 2S/3S Balance Charger
DIDE1237 A/C Adaptor 2S/3S Balance Charger
DIDE1215 TX Mobile Phone Holder
TACZ1010 4GB Class 10 Memory card FPV Only
REPLACEMENT PARTS
TO CONVERT XL UAV TO FPV
13 DIDE1264 Camera Mount Assembly
15 TACZ1020 DroneView 1080P Wi-Fi Camera
TACZ1010 Tactic 4GB C10 Micro Memory Card
(or equivalent up to 32GB)
11
1
2
3
17
2
18
16
4
10
5
12
11
6
8
7
9
14
19
10
Bold = FPV parts
only
13
20
15

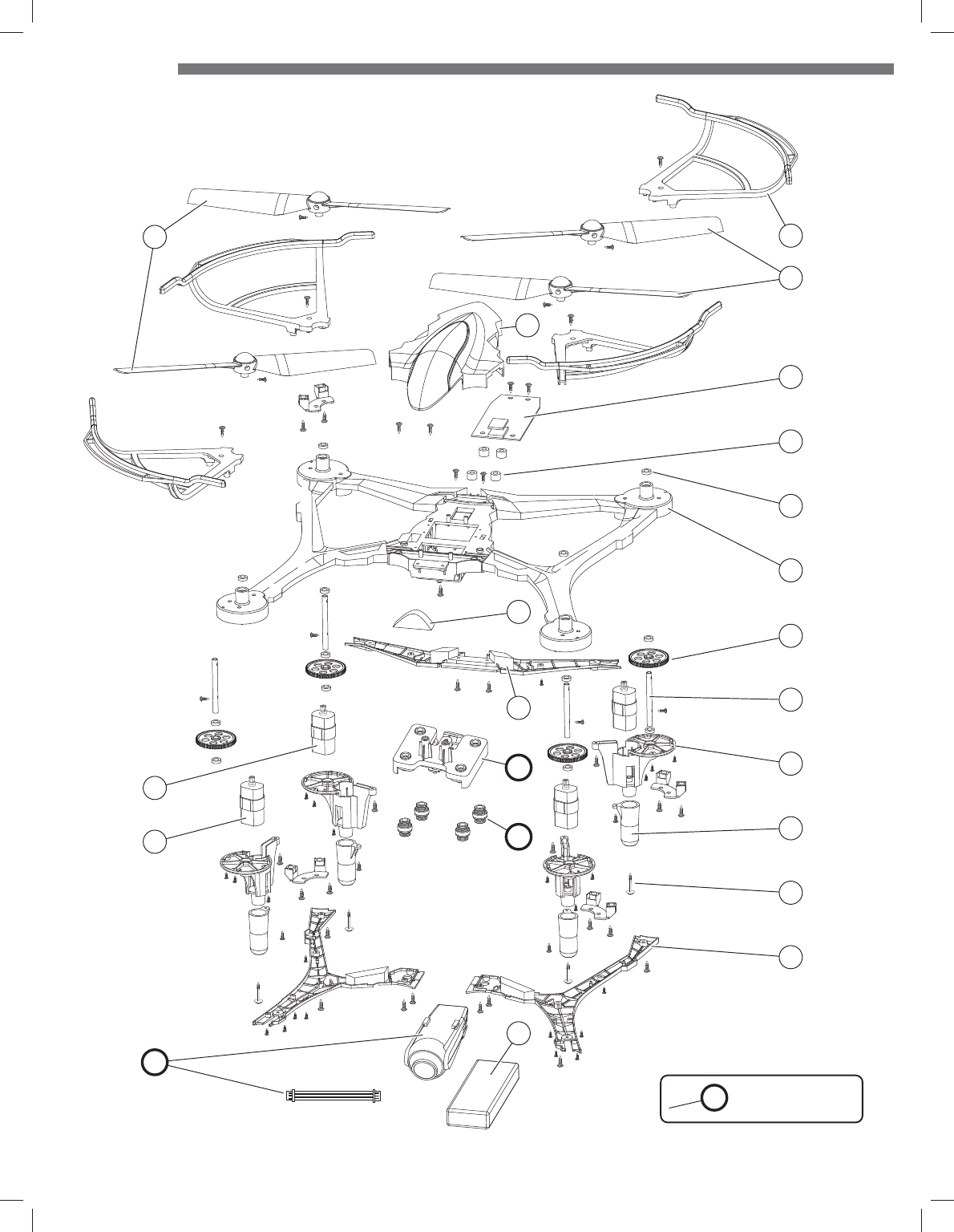

EXPLODE VIEW
dromida.com
© 2016 Dromida, a Hobbico® company DIDE05xx DIDE06xx

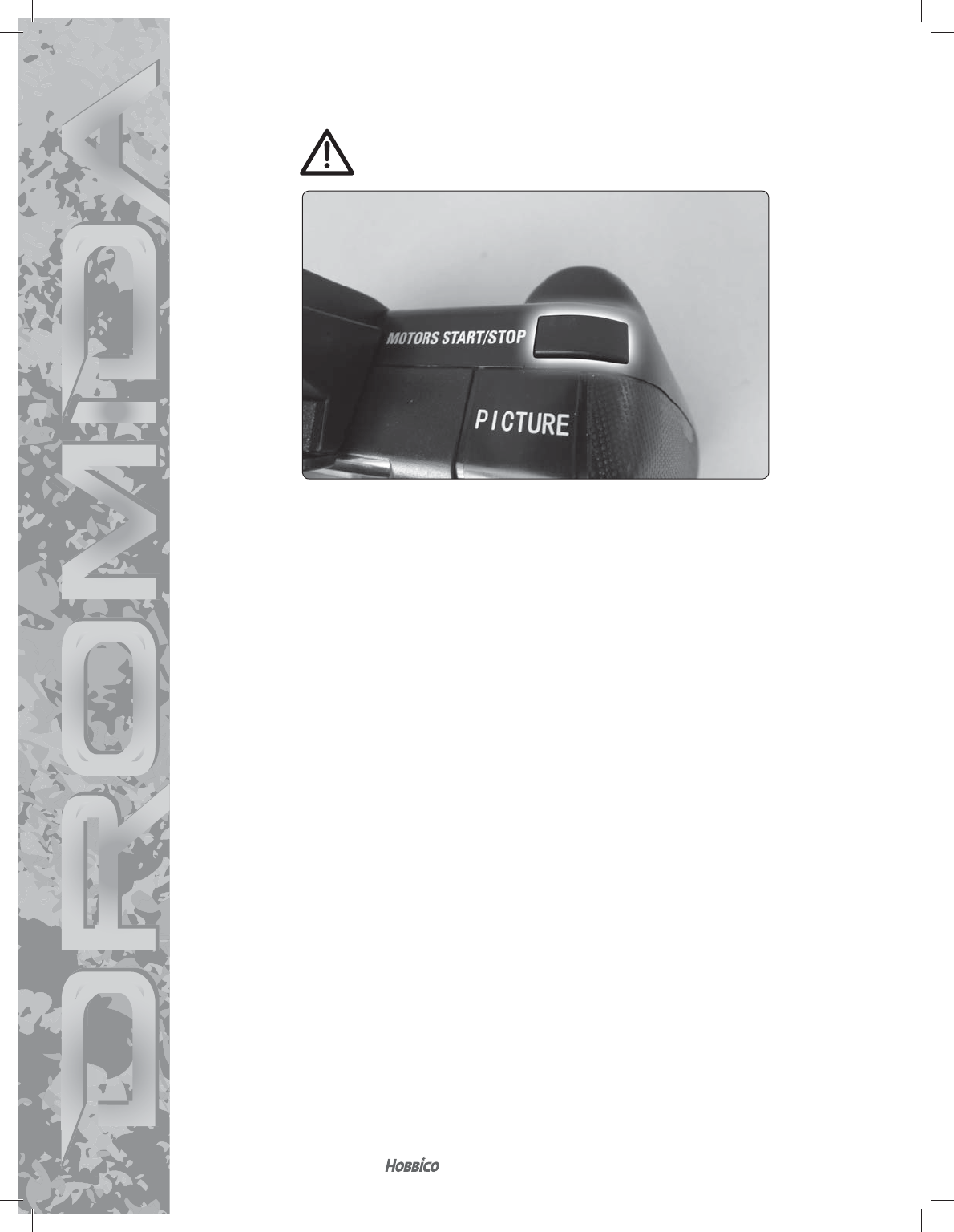

TO PREVENT MOTOR DAMAGE ALWAYS BE SURE THE THROTTLE IS
OFF WHEN THE BLADES ARE OBSTRUCTED OR CONTROL IS LOST.
PRESS AND HOLD THE MOTOR OFF PANIC BUTTON!

Navigation menu
