Honey Bee HB-1131 Vita Sound Personal Audio Enhancer User Manual PAE 200 Manual ENG V01 1B
Honey Bee (Hong Kong) Ltd. Vita Sound Personal Audio Enhancer PAE 200 Manual ENG V01 1B
user manual
English
VitaSound TV™
PAE-200
User Manual
Personal Audio Enhancer
Headset
2PAE-200 TV
Base unit Transmitter 5USB cable
4AC/DC USB adaptor
5V 1A
1PAE-200 TV handset
7Headset case
6Analog (RCA)
AV cable 9Ear tips
(large/regular/small)
8Hanging Neck strap

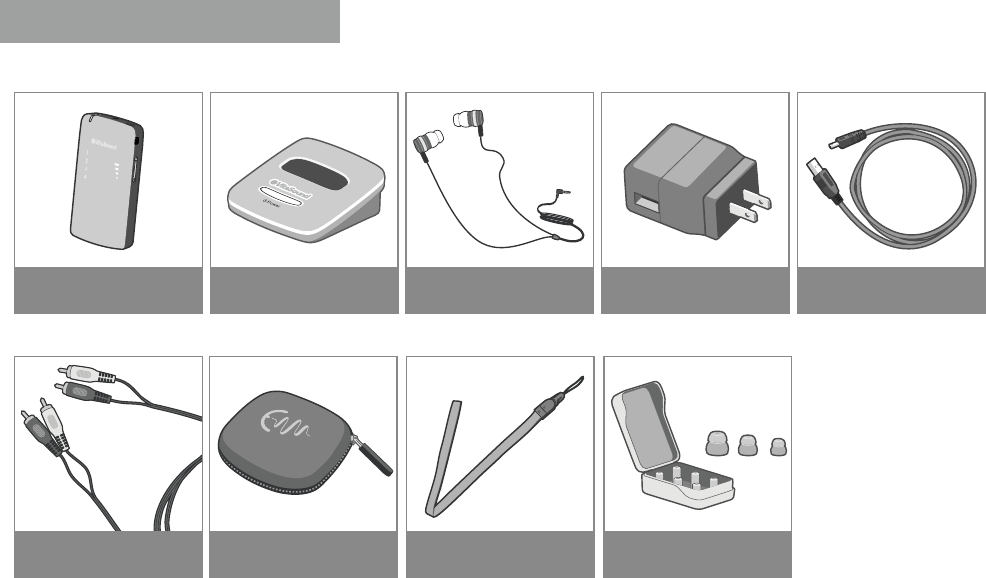

PAE-200 TV In the Box
3

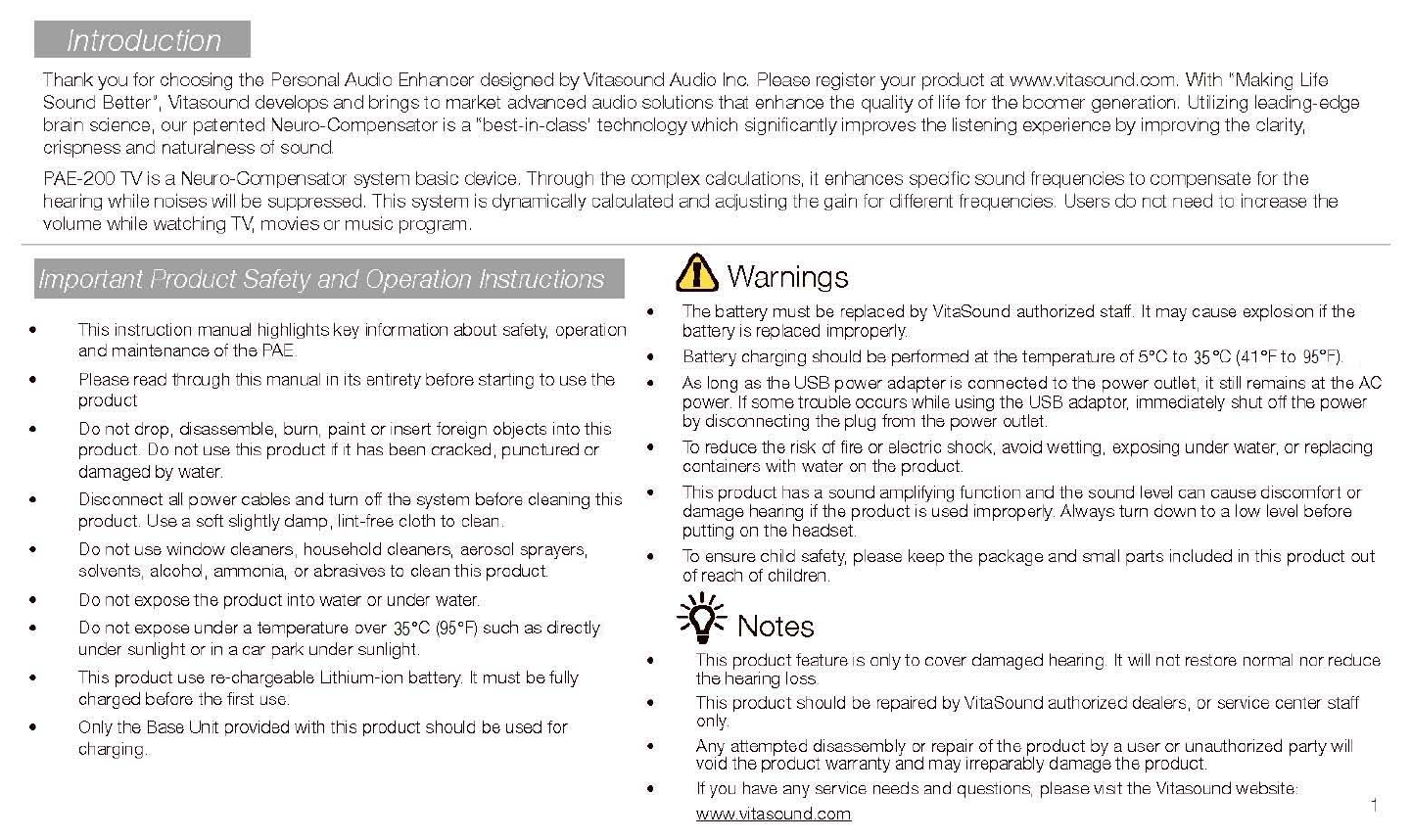

Introduction 1
Safety and Operation Instruction 1
PAE-200 Handset Identifying Parts 2
PAE-200 Base Unit Indentifying Parts 3
Getting Started 4
Base Unit Installation and Operation 5-6
Handset Charging 6
PAE-200 Handset Operation
Power On 7
Adjust Volume 7
Select Volume Booster 7
Select EQ Sound Mode 8
Power Off 8
Reset PAE-200 Handset 9
Handset and Base Unit auto-connection 10
Color Pairing 11
FAQ 12-13
Technical Specification 14
Application 15

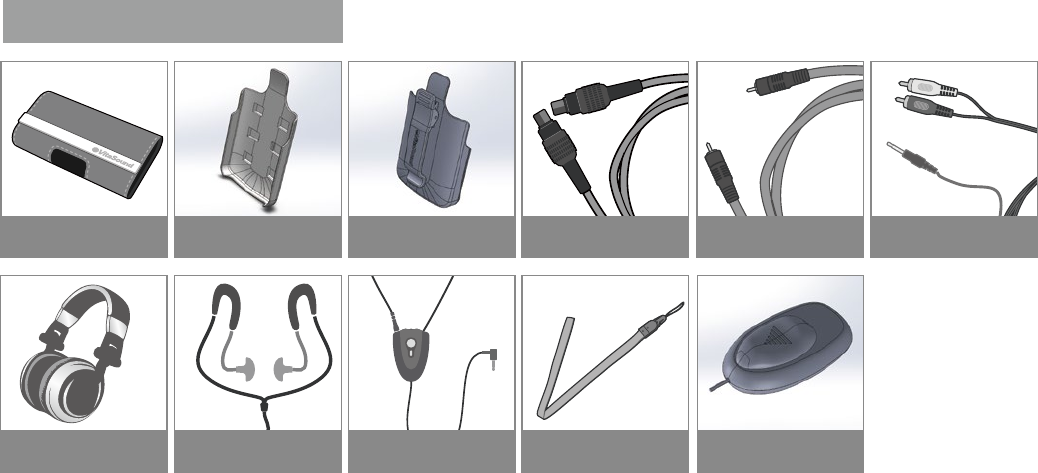

Other Optional Accessories 16
Certification and Compliance 17
Contents

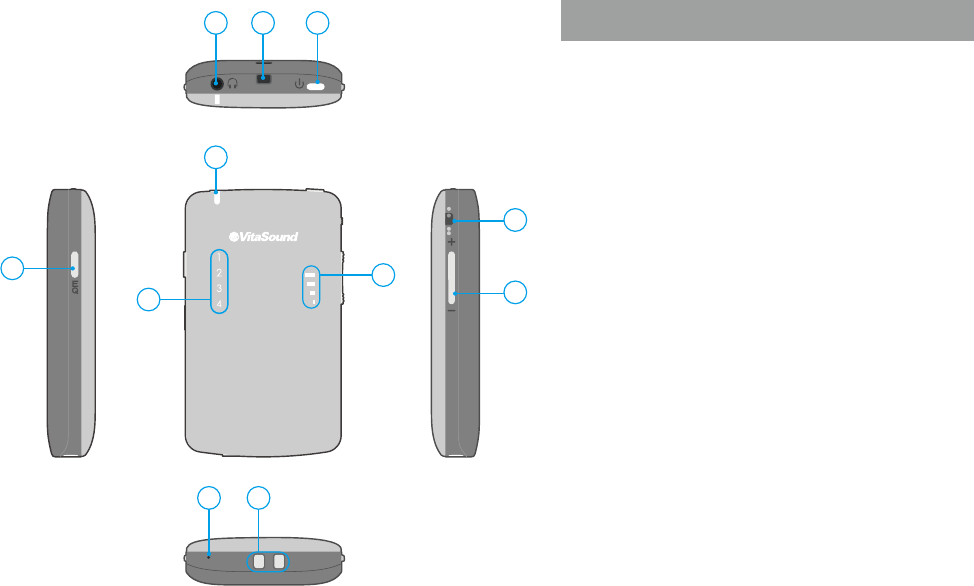

PAE-200 Handset Indentifying Parts
1 2 3
6
5
4
10
79
8
11
1 Headset port (connect to headset)
2 Hook for neck strap
3 Power button
4 EQ mode button
5 EQ mode indicator (1-4)
6 Power indicator
7 Volume level indicator
8 Volume booster switch
9 Volume adjust buttons
10 Reset button
11 Charging port for Base Unit
Front
Top
RightLeft
Bottom 2

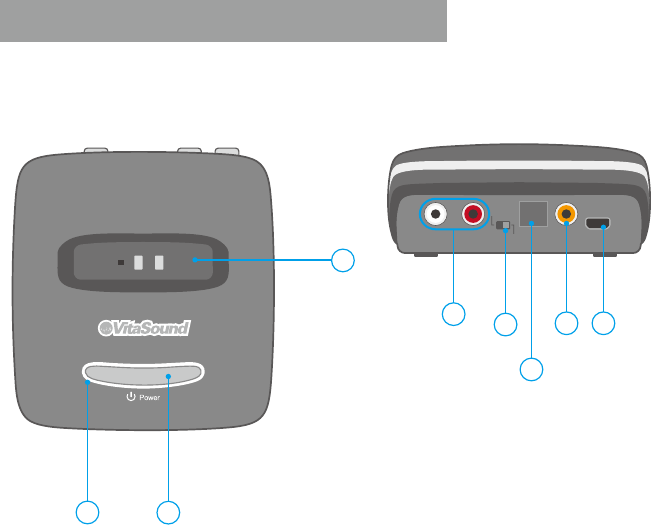

PAE-200 Base Unit Indentifying Parts
L R
OPTICAL
COAXIAL OPTICAL COAXIAL
DIGITAL AUDIO IN
14
12 13
16
17
18 19
15
12 Power indicator
13 Power button (transmitting)
14 Charging dock for PAE Handset
15 Analog (RCA) audio-in port
16 Audio input mode switch
(Optical/Coaxial)
17 Optical audio-in port
18 Coaxial audio-in port
19 USB power adaptor port
3
Getting Started
4
1. Connect the RCA audio cable from the Analog audio-in port of the Base Unit to the RCA audio-out port of the TV box
2. Connect the USB power adaptor to the Base Unit power port
3. Put the Handset to the Base unit charging dock for battery charging. It is recommended to charge 5 hours for the first use
4. After charging, put on the neck strap
5. Plug the headset to the headset port on the Handset
6. Power on the TV and the TV box
7. Press the power button to power on the Base Unit, power indicator will be lit up in red color
8. Press the power button to power on the Handset, the power indicator will be flashing
9. When the Handset connects to the Base unit, the power indicator will turn to solid green. TV sound will be played through the headset.
10. Press the volume button to adjust the volume level. Press the button for increasing the volume level and press the button for
lowering the volume level. Volume level indicator will be lit to present the volume level.
11. Severely hearing-impaired persons can turn the volume booster switch on and increase the volume output level.
Except in special circumstances, please keep using the normal volume output
12. Press the EQ mode button to select different preset compensated EQ modes. EQ indicator will show which mode (1, 2, 3 & 4) has
been selected. EQ compensation for each person is different, select one of the modes according to the personal preferences.
13. Indicators & will be lit during any operation. The Handset will enter to sleep mode (to save power) if no more operation in process after
40 seconds. All indicators will be turned off automatically.
14. Press and hold the power button will turn off the Handset. Power indicator will be lit out. Press and hold the power button will turn
off the Base Unit. Power indicator will be lit out
15. For detailed instructions, please refer to the following manual
15
19
14
1
13 12
36
6
9
7
45
5 6
36
13
12
8
Base Unit Installation and Operation
5

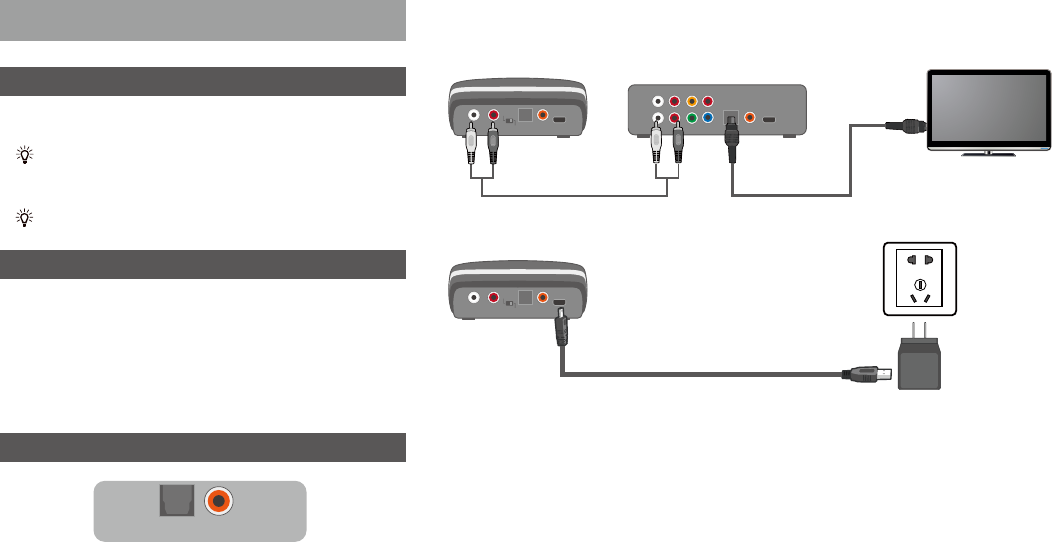

Installation of Base Unit to TV
L R
OPTICAL
COAXIAL OPTICAL COAXIAL
DIGITAL AUDIO IN
1. Connect the Base Unit with one end of the analog (RCA)
audio cable
Red connector to Red port, White connector to white port
2. Connect the other end of the analog (RCA) audio cable to
the analog (RCA) audio-out port of the TV box
Red connector to Red port, White connector to white port
Analog (RCA) audio cable TV box HD TV
Optical audio cable
Analog (RCA) audio cable
Connect the USB Power Adaptor
1. Connect the USB cable (USB type A end) with the USB
power adaptor
2. Plug the adaptor into the wall outlet
3. Connect the other end (USB micro B) of the USB cable into
the USB adaptor port on the Base Unit
L R
OPTICAL
COAXIAL OPTICAL COAXIAL
DIGITAL AUDIO IN
Base unit – Optical and Coaxial ports
Base Unit allows it to connect to other Smart TVs or advanced video/audio players through
the Optical or Coaxial port. Optical and Coaxial cables are optional accessories. Please
refer to the instruction manual in the box with the optional parts.
OPTICAL COAXIAL
DIGITAL AUDIO IN

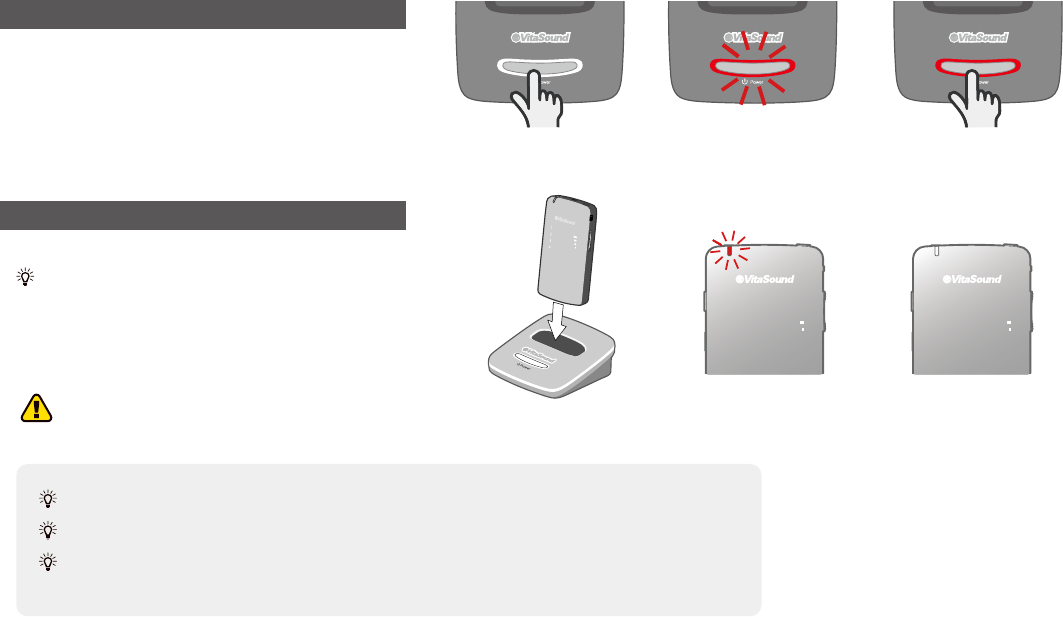

Base Unit Power ON/OFF and Indicator
1. Press the power button until the Red power indicator is ON
2. It is ready to connect to the Handset when the red light is ON
3. Press and hold the power button until the power indicator is OFF
1. Put the Handset into the Base Unit charging dock
No need to turn on the Base Unit and Handset during battery
charging
2. The power indicator of the Handset will turn on during battery
charging
3. When charging is completed, the indicator will be turned off
Charging PAE Handset
1 2 3
This product must be used VitaSound supplied
accessory or specified chargers to charge
Complete charging time: approximately 4 to 5 hours
Battery operation time: approximately 6 to 8 hours
The Handset power button will be flashing in orange and a double Beep sound will be generated through
the headset while battery power level is low.
6
1 2 3
Press Press and Hold
In some cases, user can turn on the volume booster to increase the volume output
Normal output volume leve
Amplified output volume level

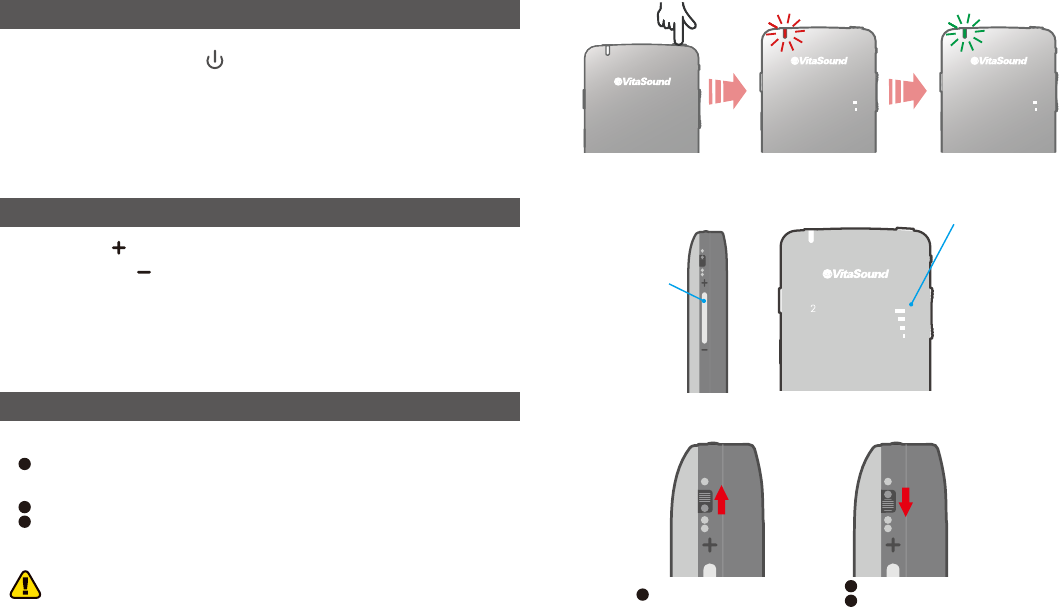

Power on the Handset
Press and hold the power button until the Red power indicator is on and flashing.
It will search and connect to the Base Unit automatically. The indicator will stop
flashing and turn to green color when the Handset is paired to the Base Unit.
Adjust Volume
7
Press and release button to increase the volume level.
Press and release the button to lower the volume level.
There are 8 volume levels to control and each adjustment is 4dB. Volume indicator
will show the volume level while adjusting.
Volume level indicator
Volume adjust button
Select Volume Booster
Except under special circumstances, it is not recommended to
turn on the volume booster Normal output volume level Amplified output volume level
Press and hold
To turn off the PAE Handset, press and hold the power button until the power
indicator is off.

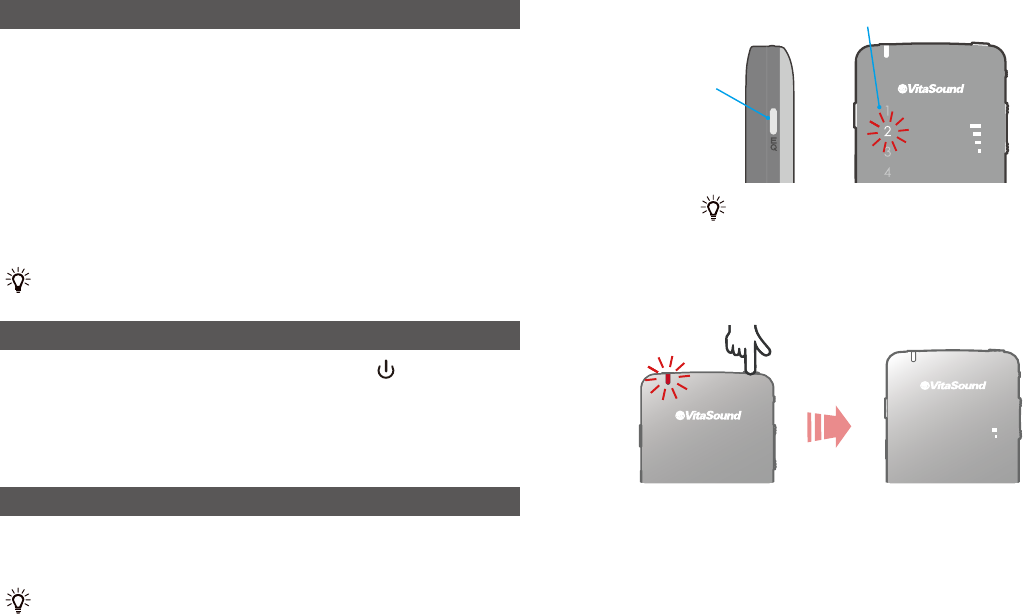

Select EQ Sound Mode
The PAE-200 is equipped with 4 different EQ sound modes. User can select the
sound mode according to the personal preferences
EQ mode 1 : overall optimized
EQ mode 2 : Low frequency boost
EQ mode 3 : Medium frequency boost
EQ mode 4 : High frequency boost
8
EQ mode button
EQ mode indicator
Power Off the Handset
The corresponding indicator will be lit up after
sound mode is selected.
EQ mode cycle selection: Press the EQ mode button to switch the EQ mode once; from
Mode 1 to Mode 2, from Mode 2 to Mode 3; from Mode 3 to Mode 4; from Mode 4 to
Mode 1 and so on.
It is recommended that new users try each EQ mode for 1 minute to find the
most personal suitable EQ mode.
Press and hold
To save power, PAE will go to sleep mode if the device is not operated in 40 seconds. All
EQ and volume LED indicators will be off.
To wake up the PAE, press any button on the device will resume all indicators.
Any operation is only effective while the PAE is at wake up mode (indicators are on).
Sleep & Wake up modes
To achieve the best sound performance, please use the headset provided by
VitaSound. After uses, please unplug the headset from the PAE and put it into the
headset case.

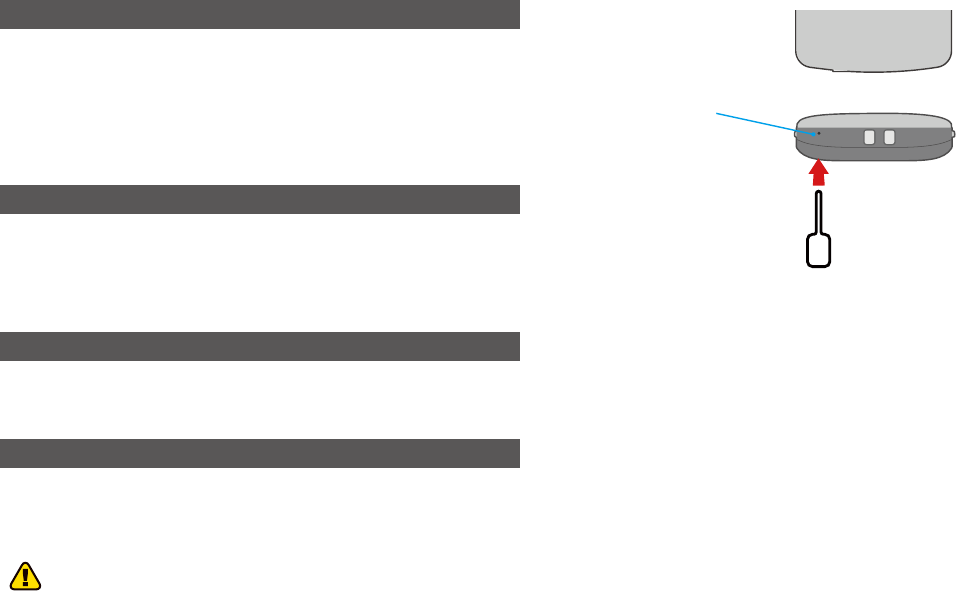

Reset the PAE-200
When the PAE-200 cannot be operated in any situation, press the rest button by a
small pin object to reset the PAE-200 Handset.
9
Reset button
Headset
Pairs of large, regular & small ear tips are also provided. User can choose the one to fit.
Ear tips
Only use the AC/DC USB power adaptor provided by VitaSound.
The rating of the adaptor is shown on the back of the USB adaptor.
AC/DC USB Power Adaptor
Attempt other power adaptor not provided by VitaSound
will cause safety problem

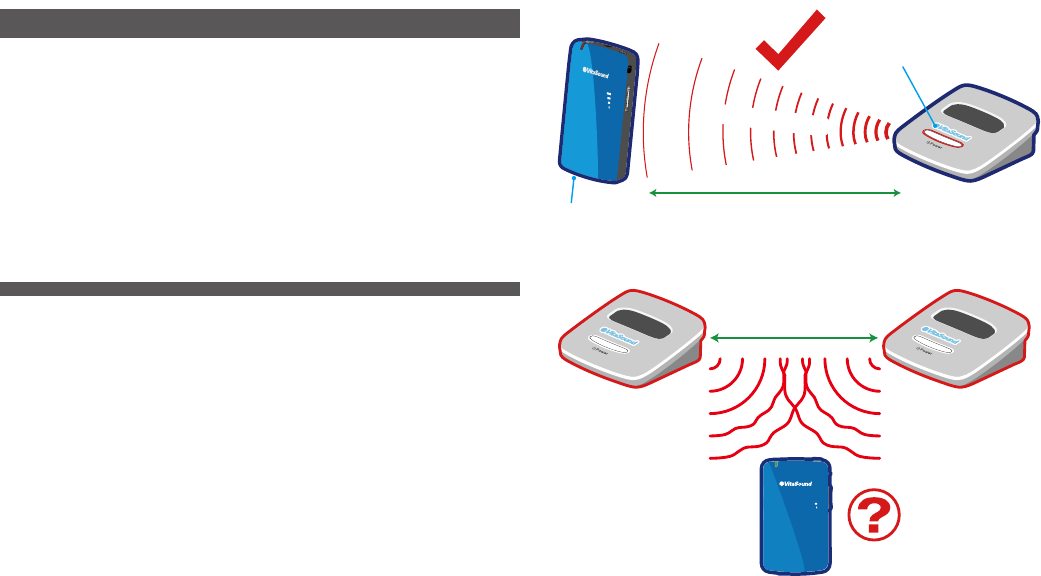

If two Base Units are installed within 5 meters, transmitting signal will be interfered.
Power off either one of them according usage situation to prevent signal interference.
Auto-connection between PAE-200 and Base Unit
If the Handset color of the PAE-200 TV and the “VitaSound” trademark color on the
Base Unit Transmitter are the same, they will be connected automatically within a
range of 10 meters. No pairing progress is required.
10
10 meters
Auto-connection
5 meters
Cannot recognize the connection
blue color
blue trademark

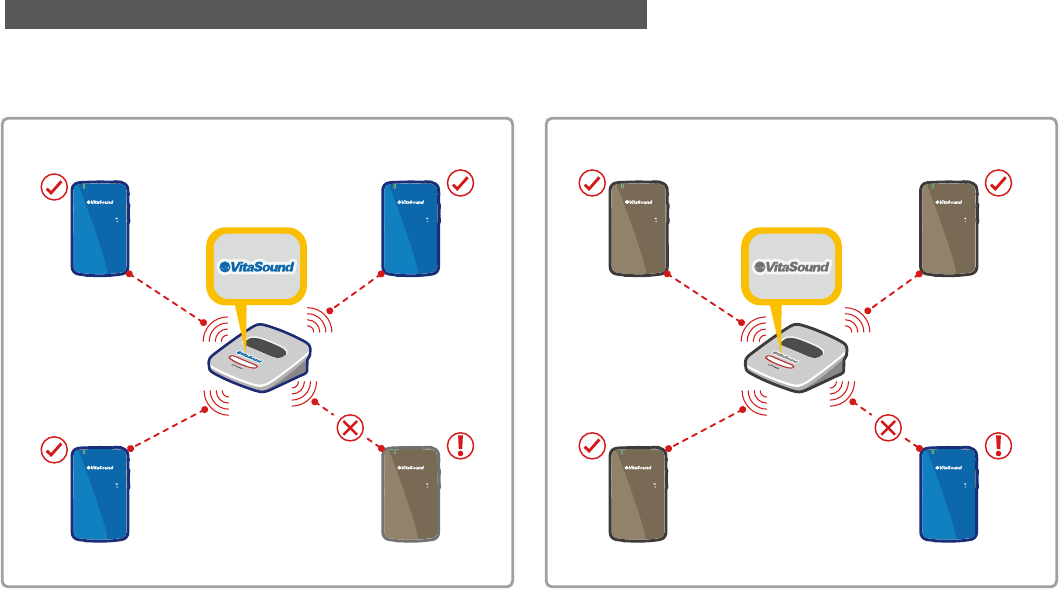

Color Pairing and Connection
If the Handset color of PAE-200 and the “VitaSound” trademark color on the Base Unit are not matched,
the Handset and Base Unit will not be paired. Please be aware of the PAE-200 Handset color and the
“VitaSound” trademark color of the Base Unit before use.
11
Blue color
Blue color Gray color
Blue color Gray color
Gray color Blue color
Gray color
Gray colorBlue color
Symptom Possible Cause Possible Corrective Action Page
Frequently Asked Questions
The PAE-200 Handset is not
working
All indicators of the PAE-200
Handset turn off themselves,
except the power indicator.
Red LED of Power indicator of
the PAE-200 Handset is flashing
The PAE-200 Handset is off.
The PAE-200 Handset is out of battery
The PAE-200 Handset is hang off.
No sound is produced from the
headset while the Red indicator
of the PAE-200 Handset is
solid on and the wireless
connection is normal.
Turn on the PAE-200 Handset.
Charge the PAE-200 Handset immediately.
Press the Rest Button with a small pin object to reset the PAE-200 Handset.
The behavior is normal. The indicators will be off
automatically for power saving when no operation is
performed for 40 seconds.
N/A
The volume level of the PAE-200 is too low
The headset is not plugged into the PAE-200 Handset
properly.
No audio signal from the Base Unit or TV.
Increase the PAE-200 Handset volume output level.
Make sure the headset is firmly plugged into the PAE-200 Handset.
Make sure the TV is turned on. (Please read your TV manual for detail)
Make sure the volume of the TV is on. (Please read your TV manual for detail)
Make sure the mute mode of your TV is not activated. (Please read your TV manual
for detail)
7
6
9
6
6
7
7
10
The Handset battery is running low.
The Base Unit is power off.
The PAE-200 Handset exceeds 10 meters of the
operation range from the Base unit.
The PAE-200 Handset cannot connect to the Base
Unit within the 10 meters operation range.
Turn off the PAE-200 and start charging.
Turn on the Base Unit.
Make sure The PAE-200 Handset is in the operation range.
Please contact VitaSound service.
When using the analog (RCA) audio cable to connect the Base Unit and TV
box, make sure the optical and coaxial cables are disconnected with the
Base Unit and TV box.
When using the analog (RCA) audio cable to connect the Base Unit and TV
box, make sure the optical and coaxial cables are disconnected with the
Base Unit and TV box.
(Please read your TV box manual for detail)
When using the optical cable to connect the Base Unit and TV box, make
sure
1) the optical cable is connected with the Base Unit and TV box properly
2) the Audio input mode switch on the Base Unit is switched into “ Optical
audio input”.
5
5
5
12
5
When using the coaxial cable to connect the Base Unit and TV box, make
sure
1) the coaxial cable is connected with the Base Unit and TV box properly
2) the Audio input mode switch on the Base Unit is switched into “ Coaxial
audio input”.
No sound is produced from the
headset while the Red indicator
of the PAE-200 Handset is solid
on and the wireless connection
is normal.
No audio signal from the Base Unit or TV
The PAE-200 Handset and the Base Unit are out of
the 10 meters operation range.
The auto-connection dose NOT work when the
PAE-200 Handset color and the “VitaSound”
trademark color on the Base Unit are different.
Auto-connection between the
PAE-200 Handset and the Base
Unit is not working
Make sure the PAE-200 is within a range of 10 meters from the Base Unit.
Make sure the PAE-200 Handset color and the “VitaSound” trademark
color on the Base Unit are the same before use. 11
1) Turn off one Base Unit is not in use, or
2) Keep the distance between each Unit more than 5 meters
Signal interference occurs
More than 1 Base Unit are installed in 5 meters 10
13
Symptom Possible Cause Possible Corrective Action Page
Technical specification
Dimensions: 100.2mm x 60mm x 19.1mm
Weight: 88 gram
Battery: Built-in rechargeable lithium-ion, 2000 mAh
Operation time: 6 – 8 hours (fully charged)
Charging time: 4 – 5 hours
Headset Socket: 3.5mm stereo jack plug
Output signal frequency range: 200 – 16,000 Hz
EQ sound mode: 4 modes
Volume control: 8 steps (4dB/step)
Output power: 60 mW (16Ω load)
Digital signal processing: 32 kHz sampling frequency
16 bit resolution in stereo
Radio communication frequency: 2.4 GHz, ISM band
Radio communication range: 10m indoor, clear line or straight
Radio communication characteristics: Automatic channel searching
Coexists with other radio transmitters
operating on the 2.4GHz frequency band
Topology: Point-to-point
Antenna Type: Internal SMD antenna
Dimension: 101.5mm x 94.1mm x 40.1mm
Wieght: 97 gram
Power: 5V 1A (5W)
Audio source input: Analog (RCA) Jack (Red/White)
Optical Jack 44.1kHz PCM / 48kHz PCM
Coaxial Jack 44.1kHz PCM / 48kHz PCM
Digital radio transmission: 2.4 GHz, ISM band
Coexists with other radio transmitters
operating on the 2.4GHz ISM band
Radio communication range: 10m indoor, clear line or straight
Radio communication characteristics: Automatic channel searching
Radio communication range: 10m indoor, clear line or straight
Topology: Point-to-point
Transmitter output: 8dBmW
For the digital (Optical or Coaxial) connection, the Base Unit dose NOT support Dolby
Digital 2.1 / 5.1 / 7.1 audio coding.
Operating temperature: 0 °C to 35 °C (32 °F to 95 °F)
Relative humidity: 5 % to 95 %
Complies with the following requirements: CE, FCC, RoHS and C-Tick
PAE-200 TV Handset Base Unit Transmitter
Environmental Requirements
Regulatory requirements
14
Base Unit
Transmitter
PAE-200
Handset
Charging
Headset In Ear headset
Over the Ears
Headphone T-coil neck loop
Optical audio cable
3.5mm phone jack to RCA cable
Analog (RCA) audio cable
Disc player
HiFi Audio player
TV
TV
USB cable
Power adaptor
Wall plug power adaptor MP3 playerSmart phone Laptop/PC Tablet
Tv box
15
Application
Disc player
HiFi Audio player
TV
TV
Tv box
Leather Case
Optional Accessories
Neck Strap Clip Case Belt Clip Case Optical Cable Coaxial Cable
Over the Ears
Headphone In Ear Headset T-coil Neck Loop Hanging Neck Strap Reset Pin
3.5mm Phone Jack
to RCA Cable
16
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
- - - - -
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
FCC statement
17
PAE-200 Eng Version 1.1
www.vitasound.com
info@vitasound.com
1-877-967-0742
