1 Overview
RMBLE-M5 is a highly-integrated Bluetooth low-energy (BLE) module, which offers a complete solu-
tion containing all hardware features necessary for development of wireless application.
Key Features:
Ultra compact size (18.8 X 13.5 mm)
Embedded 512 Kb EEPROM
I2C, SPI, and UART interfaces
Low power consumption
Embedded antenna design
RoHS compliant, certified lead-and halogen-free
BT4.1 Compliant
RMBLE-M5 uses a radio technology called frequency-hopping spread spectrum (FHSS). The trans-
mitted data are divided into packets and each packet is transmitted on one of the 40 channels, chan-
nel spacing 2 MHz. The first channel starts at 2402 MHz and continues up to 2480 MHz. RMBLE-M5
can coexist with DSSS based Wi-Fi very well due to different transmit protocol.
RMBLE-M5 offers superios radio performance, based on Broadcom BCM20737S.
RMBLE-M5 Manual Revision 0

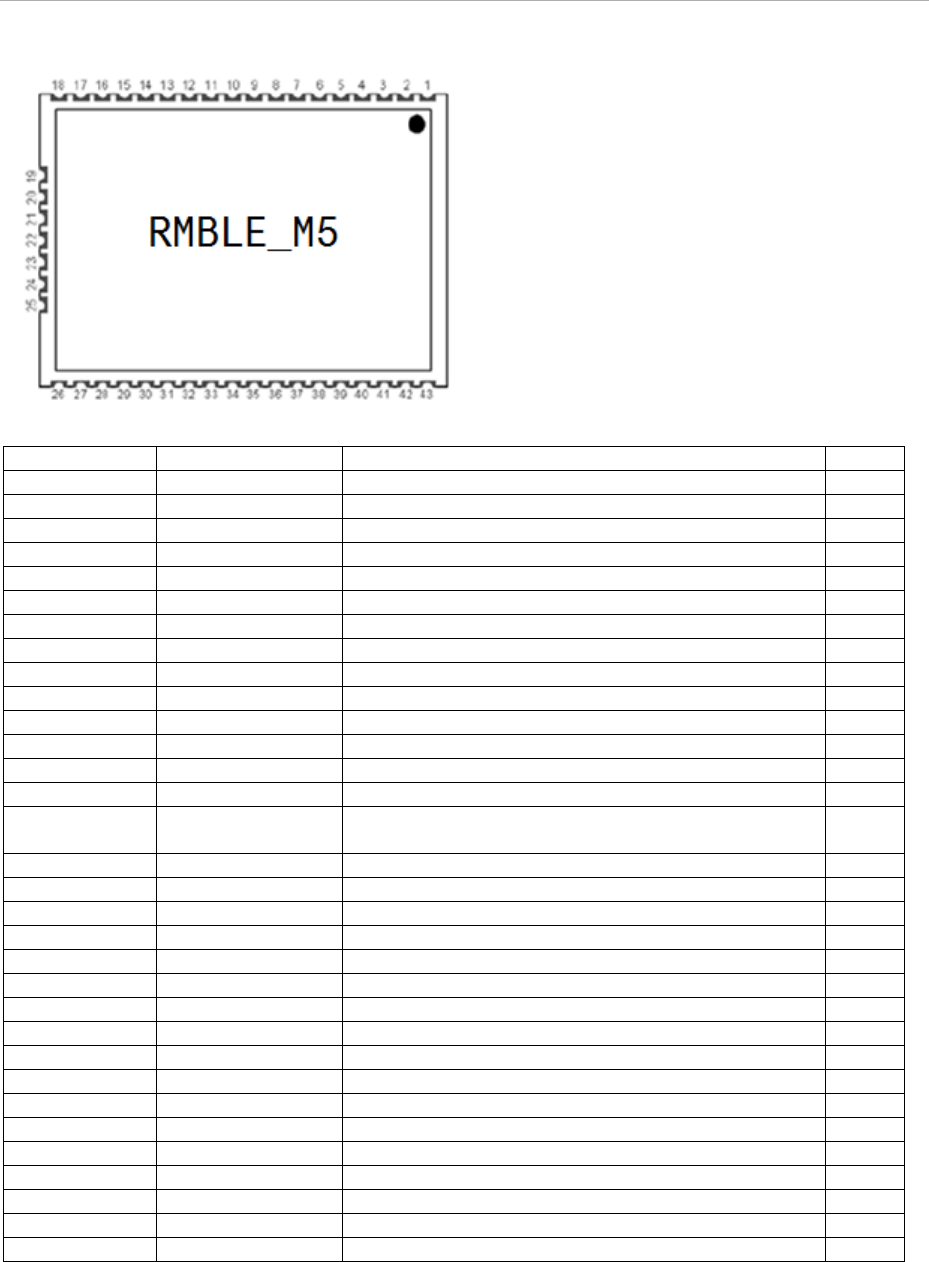

2 Pin Definition
Connector Pin
Pin Name
Description
I/O
1
SPI_CLK
Master SPI clock line, reserved
O
2
SPI_MISO
Master SPI master slave out line, reserved
I
3
SPI_MOSI
Master SPI master out slave in line, reserved
O
4-7
NA
No connection
8
RESET
Active-low system reset
I/O
9
GND
Ground
10
NA
No connection
11
I2C_CLK
PU clock signal for an external I2C device
I/O
12
I2C_DATA
PU data signal for an external I2C device
I/O
13
BL_UART_RX
Peripheral UART RX
I
14
BL_UART_TX
Peripheral UART TX
O
15, 16
NA
No connection
17
GPIO
General Purpose Digital Input/Output
18, 19
NA
No connection
20
GPIO/LED
Status indicate: output continuous 0/1 signal when
not sleep. Output 0 when in sleep
O
21
SPI_CS
Master SPI chip select line, reserved
22
GND
Ground
23
GND
Ground
24
VCC
Digital supply voltage
I
25
VCC
Digital supply voltage
I
26-30
NA
No connection
31, 32
ADC
ADC Input, reserved
33
NA
No connection
34
VCC
Digital supply voltage or no connection
35
GND
Ground
36
GPIO
General Purpose Digital Input/Output
37
NA
No Connection
38
PRGM_UART_RX
HCI, PRGM_UART RX
I
39
PRGM_UART_TX
HCI, PRGM_UART TX
O
40
NA
No connection
41-42
GPIO
General Purpose Digital Input/Output
43
WakeUp
WakeUp the Module, Active low
I
RMBLE-M5 Manual Revision 0
3 Specification
3.1. Voltage
Power supply for the RMBLE-M5 module is provided by the host power pins:
Symbol
Min
Typ
Max
Unit
VCC
1.62
3.3
3.63
V
3.2. Digital Levels
Power supply for the RMBLE-M5 module is provided by the host power pins:
Symbol
Min
Typ
Max
Unit
VIH
0.75
VCC
V
VIL
0
0.4
V
VOH
VCC-0.4
VCC
V
VOL
0
0.4
V
3.3. Current Consumption
Condition: 25 °C, the default voltage is 3.3 V
Item
Condition
Min
Nom
Max
Unit
Receive
Receiver and baseband are both
operating, 100 %
25
mA
Transmit
Transmitter and baseband are
both operating, 100 %, Tx power
setting: 3 dBm
26
mA
Normal
Normal current (Average)
5
mA
Sleep
300
uA
3.4. RF Specification
The RF performance of RMBLE-M5 is given as follows. The default voltage is 3.3 V
Item
Condition
Min
Nom
Max
Unit
Frequency
2402
2480
MHz
Channel space
2
MHz
Rx sensitivity
Packet: 200, Payload, PRBS9
Length: 37 Bytes, Dirty Trans-
mitter: off PER 30.8 %
-94(1)
dBm
Max input
-10
dBm
Tx Power
(BCM20737S)
-20
4
dBm
Tx Power
(RMBLE-M5)
-14
dBm
Distance
Communicate with Iphone5,
LOS, 1.5 m height
20
m
Note (1): Rx sensitivity and Tx power is specification of BCM20737S chip
RMBLE-M5 Manual Revision 0

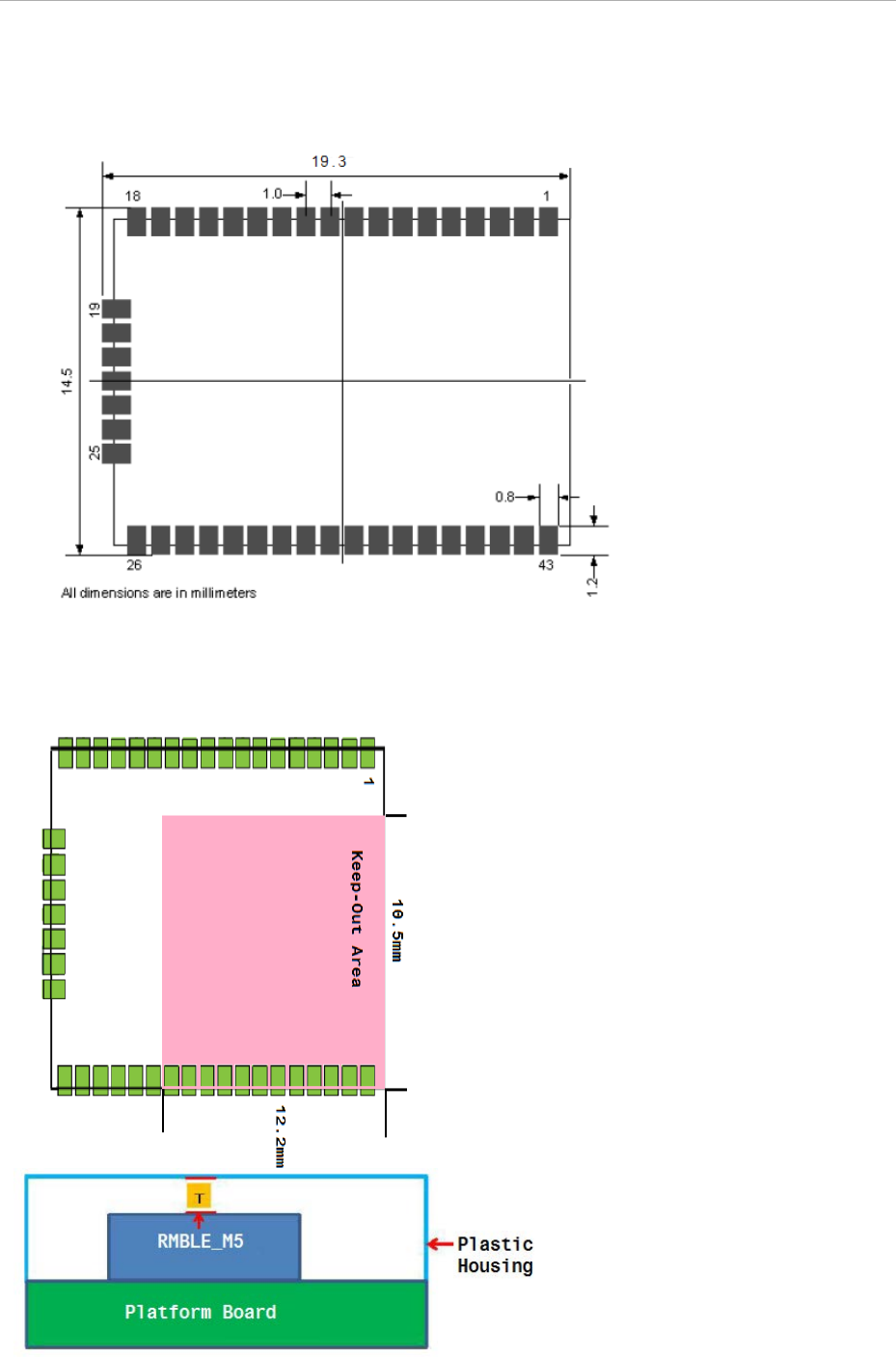

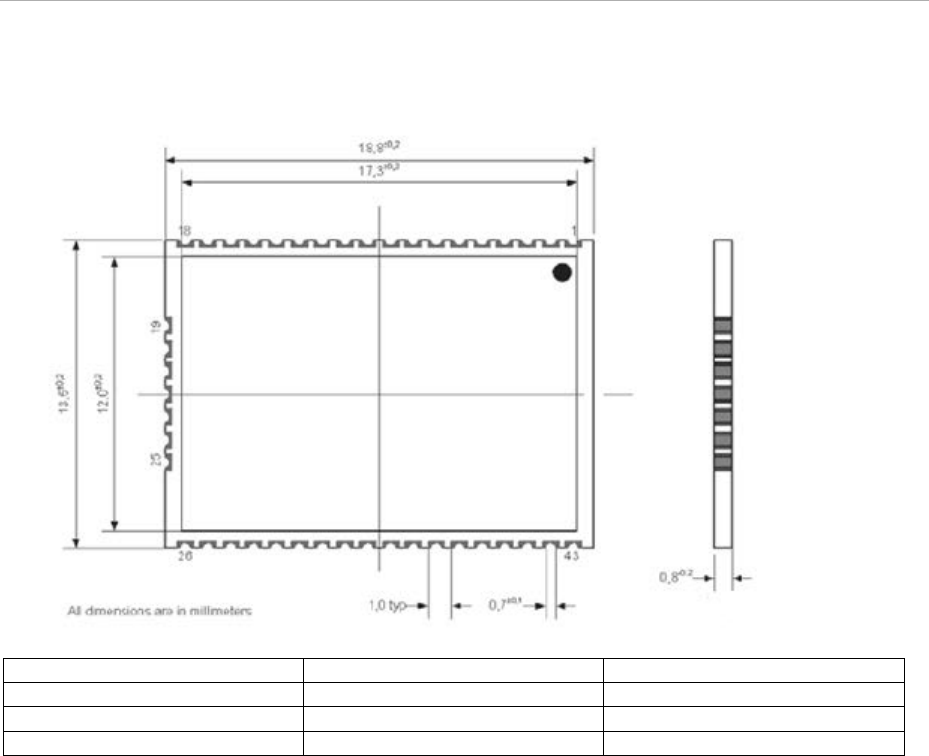

3.5. PCB layout footprint
The below diagram shows the PCB layout recommended for RMBLE-M5 module:
Please don’t place GND plane in the keep-out area, and minimize the area metal traces oc-
cupied in the area. It is recommended to have a 0.4 mm gap (T) between the module’s up-
per surface and the plastic housing.
RMBLE-M5 Manual Revision 0
3.6. Physical/Environmental Specification
Parameters
Value
Comments
Size
18.8 X 13.6 X 2.0 mm
Operating Temperature
-40 ~ +60 °C
Operating Humidity
No more than 80%
RMBLE-M5 Manual Revision 0
4 Wireless Certification Information
CE0984
FCC ID: 2AISERMBLEM5
IC ID: 21613-RMBLEM5
Model: RMBLE-M5
Manufacturer: Honeywell Analytics Asia Pacific, Co., Ltd. 7F SangAm IT Tower, 434
Worldcup Buk-ro, Seoul 03922, Korea
Frequency range: 2402 – 2480 MHz
Maximum Tx Power: -14 dBm
Note: The host units Tx power can be lower or host units maximum Tx power can be varied
per host units PCB, enclosure and etc. It is host manufacturer’s responsibility to ensure Tx
power is close to the maximum
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must ac-
cept any interference received, including interference that may cause undesired operation
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
RF exposure information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled en-
vironment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment
has very low levels of RF energy that it deemed to comply without maximum permissive ex-
posure evaluation (MPE). But it is desirable that it should be installed and operated keeping
the radiator at least 20cm or more away from person’s body.
RMBLE-M5 Manual Revision 0
5 Regulatory Statements
- OEM integrators must ensure that its product is electrically identical to RMBLE-M5’s reference de-
signs. Any modifications to RMBLE-M5’s reference designs may invalidate regulatory approvals in
relation to the product, or may necessitate notifications to the relevant regulatory authorities.
- OEM integrators are responsible for regression testing to accommodate changes to designs, new
antennas, and host and submit for C2PC filings.
Colocation with other transmitter modules will be addressed through filings for those co-located
transmitters when necessary or that colocation of other transmitters will be according to applicable
KDB guidelines including those for RF exposure
-The final system integrator must ensure there is no instruction provided in the user manual or cus-
tomer documentation indicating how to install or remove the transmitter
- Appropriate labels must be affixed to the product that complies with applicable regulations in all re-
spects. The regulatory label on the final system must include the statement: “Contains FCC ID:
2AISERMBLEM5 and/or IC: 21613-RMBLEM5”.
- A user’s manual or instruction manual must be included with the product that contains the text as
required by applicable law shall be provided to OEM integrators.
- RF Exposure or EMC test might need to be evaluated against the host again.
5.1 USA—Federal Communications Commission (FCC)
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi-
tions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy. If not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by tuning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the distance between the equipment and the receiver.
-Connect the equipment to outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
RMBLE-M5 Manual Revision 0
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm
must be maintained between the antenna of this device and all persons. This device must not be col-
located or operating in conjunction with any other antenna or transmitter.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for com-
pliance could void the user's authority to operate this equipment.
The final host manual shall include the following regulatory statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy. If not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by tuning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the distance between the equipment and the receiver.
-Connect the equipment to outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter-
ference received, including interference that may cause undesired operation.
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm
must be maintained between the antenna of this device and all persons. This device must not be col-
located or operating in conjunction with any other antenna or transmitter.
5.2. Canada - Industry Canada (IC)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must ac-
cept any interference, including interference that may cause undesired operation of the device.
RMBLE-M5 Manual Revision 0
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). L‘utilisation
de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouil-
lage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Caution:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce poten-
tial radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful com-
munication.
En vertu de la réglementation de l'industrie du Canada, cet émetteur de radio ne peuvent fonctionner
en utilisant une antenne d'un type et maximum (ou moins) Gain approuvé pour l'émetteur par Indus-
trie Canada. pour réduire risque d'interférence aux autres utilisateurs, le type d'antenne et son gain
doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas
ce qui est nécessaire pour la réussite de communication.
RMBLE-M5 Manual Revision 0
Find out more at www.honeywellanalytics.com
Contact Honeywell Analytics:
Europe, Middle East, Africa, India
Life Safety Distribution AG
Javastrasse 2
8604 Hegnau
Switzerland
Tel: +41 (0)44 943 4300
Fax: +41 (0)44 943 4398
gasdetection@honeywell.com
Customer Service
Tel: +800 333 222 44 (Freephone number)
Tel: +41 44 943 4380 (Alternative number)
Fax: +800 333 222 55
Middle East Tel: +971 4 450 5800 (Fixed Gas Detection)
Middle East Tel: +971 4 450 5852 (Portable Gas Detection)
India Tel: +91 124 4752700
Americas
Honeywell Analytics Inc.
405 Barclay Blvd.
Lincolnshire, IL 60069
USA
Tel: +1 847 955 8200
Toll free: +1 800 538 0363
Fax: +1 847 955 8210
detectgas@honeywell.com
www.honeywell.com
Asia Pacific
Honeywell Analytics Asia Pacific
#701 Kolon Science Valley (1)
43 Digital–Ro 34–Gil, Guro–Gu
Seoul 152–729
Korea
Tel: +82 (0)2 6909 0300
Fax: +82 (0)2 2025 0328
analytics.ap@honeywell.com
Technical Services
EMEAI: HAexpert@honeywell.comUS
US: ha.us.service@honeywell.com
AP: ha.ap.service@honeywell.com
Please Note:
While every effort has been made to ensure
accuracy in this publication, no responsibility can be
accepted for errors or omissions. Data may change,
as well as legislation and you are strongly advised
to obtain copies of the most recently issued
regulations, standards and guidelines. This
publication is not intended to form the basis of a
contract
