1. Manual
2. Users Manual

Manual

Models Supported:

DR4200K

DR4201

DR4203

DR4205 (K, E, GM)

DR4208S

DR4220

DigiReader

™

Series

P/N 6600025 Rev. D

PHONE (510) 360-7800

FAX (510) 360-7820

an ISO 9001 certified company

INSTALLATION

and

OPERATION

47102 Mission Falls Court

Fremont, CA 94539-7818

ii P/N 6600025, Rev. D

DigiReader Series

NexSentry™, QuadraKey™, NexKey™, KeyMate™, 2Smart™, and DigiReader™ are trademarks of

WSE.

ProProx™, ISOProx™, DuoProx™, and Corporate 1000™ are trademarks of HID Corporation.

Teflon™ is a trademark of the DuPont Corporation.

Printed in the U. S. A.

P/N 6600025, Rev. D iii

DigiReader Series WSE

LIMITED WARRANTY

WSE warrants to the original user the equipment manufactured by WSE as described herein to be free

from defects in material and workmanship for a period of one year from the date of purchase by such user

or fifteen (15) months from the date of shipment from the factory, whichever is sooner (command key/

magnetic stripe card warranties differ, see below*), provided:

I WSE has been notified within such period by return of any alleged defective equipment, free and

clear of any liens and encumbrances to WSE or its authorized dealer at the address specified,

transportation prepaid;

II the equipment has not been abused, misused or improperly maintained and/or repaired during

such period;

III such defect has not been caused by ordinary wear and tear;

IV such defect is not a result of voltage surges/brownouts, lightning, water damage/flooding, fire,

explosion, earthquakes, tornadoes, acts of aggression/war, or similar phenomena;

V accessories used as integral to WSE systems have been approved by WSE (e.g., coaxial

cables, batteries, etc.);

VI the equipment has been installed, the installation supervised or installation tested by an

authorized WSE dealer.

WSE shall, at its option, either repair or replace, free of charge, the equipment found, upon WSE’s

inspection to be so defective, or if agreed upon, to refund the purchase price, less a reasonable allowance

for depreciation, in exchange for the equipment.

WSE MAKES NO OTHER WARRANTY, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE

DURATION OF THE EXPRESSED WARRANTY AS SET FORTH ABOVE.

WSE’S MAXIMUM LIABILITY HEREUNDER IS LIMITED TO THE PURCHASE PRICE OF THE EQUIPMENT.

IN NO EVENT SHALL WSE BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, INCIDENTAL OR

SPECIAL DAMAGES OF ANY NATURE ARISING FROM THE SALE OR USE OF THE EQUIPMENT.

Some states do not allow limitations on incidental or consequential damages or on how long an implied

warranty lasts, so the above limitations may not apply. This warranty gives specific legal rights; however,

other rights which vary from state to state, may pertain.

Digital command key and magnetic stripe card warranties vary, according to the particular card used. See

the product literature.

The information in this manual is believed to be accurate and reliable. However, WSE assumes no

responsibility for any errors that may appear. Possession of this manual does not imply the granting of

licenses to make or sell equipment or software constructed according to descriptions provided.

iv P/N 6600025, Rev. D

DigiReader Series

FEDERAL COMMUNICATIONS COMMISSION RADIO

FREQUENCY INTERFERENCE STATEMENT

This device complies with part 15, sub-part C of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference; and

2. This device must accept any interference received, including interference that may cause

undesired operation.

NOTE:

Regulatory labels are not attached at the factory. They are included in the ship-kit with

the PC-board and must be applied visibly to the enclosure (if purchased), or (if not)

to the back of the PC-board.

P/N 6600025, Rev. D v

DigiReader Series WSE

Table of Contents

COPYRIGHT AND TRADEMARK INFORMATION .............................................................................................. ii

LIMITED WARRANTY ........................................................................................................................... iii

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ................................. iv

INTRODUCTION ....................................................................................................................................1

GENERAL SPECIFICATIONS ....................................................................................................................2

DR 4205 SERIES SPECIFICATIONS .........................................................................................................3

BASIC OPERATION ...............................................................................................................................4

LED (AND BEEPER) OPERATION ..................................................................................................4

LED (AND BEEPER) (S-NET OPERATION) ...........................................................................................4

LED (WIEGAND OPERATION) ...........................................................................................................6

120-OHM TERMINATION JUMPER (INTERNAL/EXTERNAL) ..............................................................................7

INTERNAL INTERFACE CABLE FOR DR4200K, DR4201, DR4203, DR4205 (ALL MODELS), DR4208S

AND DR4220 ...............................................................................................................................7

RECOMMENDED S-NET CABLE ...............................................................................................................8

DIGIREADER ADDRESS SWITCHES ..........................................................................................................8

ROTARY ADDRESS SWITCHES FOR DR4200K, DR4203, AND DR4205 (ALL MODELS) ..............................8

DIP ADDRESS SWITCH FOR DR4201, DR4208S, AND DR4220 ........................................................9

SPECIAL FEATURES OF THE DR4201 AND DR4208S DIGIREADERS ........................................................... 11

READER OPERATION (S-NET MODE) ................................................................................................ 11

READER OPERATION (26-BIT AND 34-BIT WIEGAND MODE) .................................................................12

DR4205K SPECIAL OPERATING FEATURE ..............................................................................................13

NORMAL MODE ...........................................................................................................................13

KP-CREDENTIAL MODE ................................................................................................................14

TAMPER SIGNAL (S-NET ONLY) ............................................................................................................15

S-NET CONNECTIONS ........................................................................................................................15

WIEGAND CONNECTIONS ....................................................................................................................16

MOUNTING LOCATION .........................................................................................................................17

SPECIAL MOUNTING LOCATION: DR4201 READER .............................................................................18

TESTING THE DIGIREADER LOCATION ....................................................................................................20

GENERAL INSTALLATION ......................................................................................................................21

CABLE PREPARATION ....................................................................................................................21

DR4200K, DR4203, DR4205 SERIES, DR4208S AND DR4220 INSTALLATION ..................................21

WALL MOUNTING WITH SCREWS .........................................................................................................23

DR4203, DR4205 SERIES, DR4208S, AND DR4220.....................................................................23

WINDOW MOUNTING THE GLASS-MOUNTED UNITS .................................................................................. 24

TROUBLESHOOTING ...........................................................................................................................26

TUNE COMMAND (FOR THE NEXSENTRY STAR AND 4100-SERIES CONTROLLERS) ...................................26

CONTACTING WSE TECHNICAL SERVICE ...............................................................................................27

POSTAGE-PAID CUSTOMER COMMENT .............................................................................................. 29, 30

vi P/N 6600025, Rev. D

DigiReader Series

Tables

1DIGITAL READER SPECIFICATIONS ..............................................................................................2

1A DR4205 SERIES SPECIFICATION ..............................................................................................3

2 DR4205K/DR4200K SYSTEM LED/BEEPER BEHAVIOR, (BOTH DIGITAL READER AND

KEYPAD CAPABILITY ENABLED) .............................................................................................5

2A DIGIREADER SYSTEM LED/BEEPER BEHAVIOR, (ONLY READER CAPABILITY ENABLED) .........................6

2B DR4205K/DR4200K DYSTEM LED/BEEPER BEHAVIOR, WITH ONLY DIGITAL KEYPAD

ENABLED ........................................................................................................................6

3TERMINATION JUMPERS ...........................................................................................................7

4INTERNAL INTERFACE CABLE FOR DR4200K, DR4201, DR4203, ALL MODELS OF DR4205,

DR4208S, AND DR4220 .................................................................................................7

5RECOMMENDED S-NET CABLE ..................................................................................................8

6VALID SWITCH SETTINGS FOR SWITCHES 1 AND 2.......................................................................9

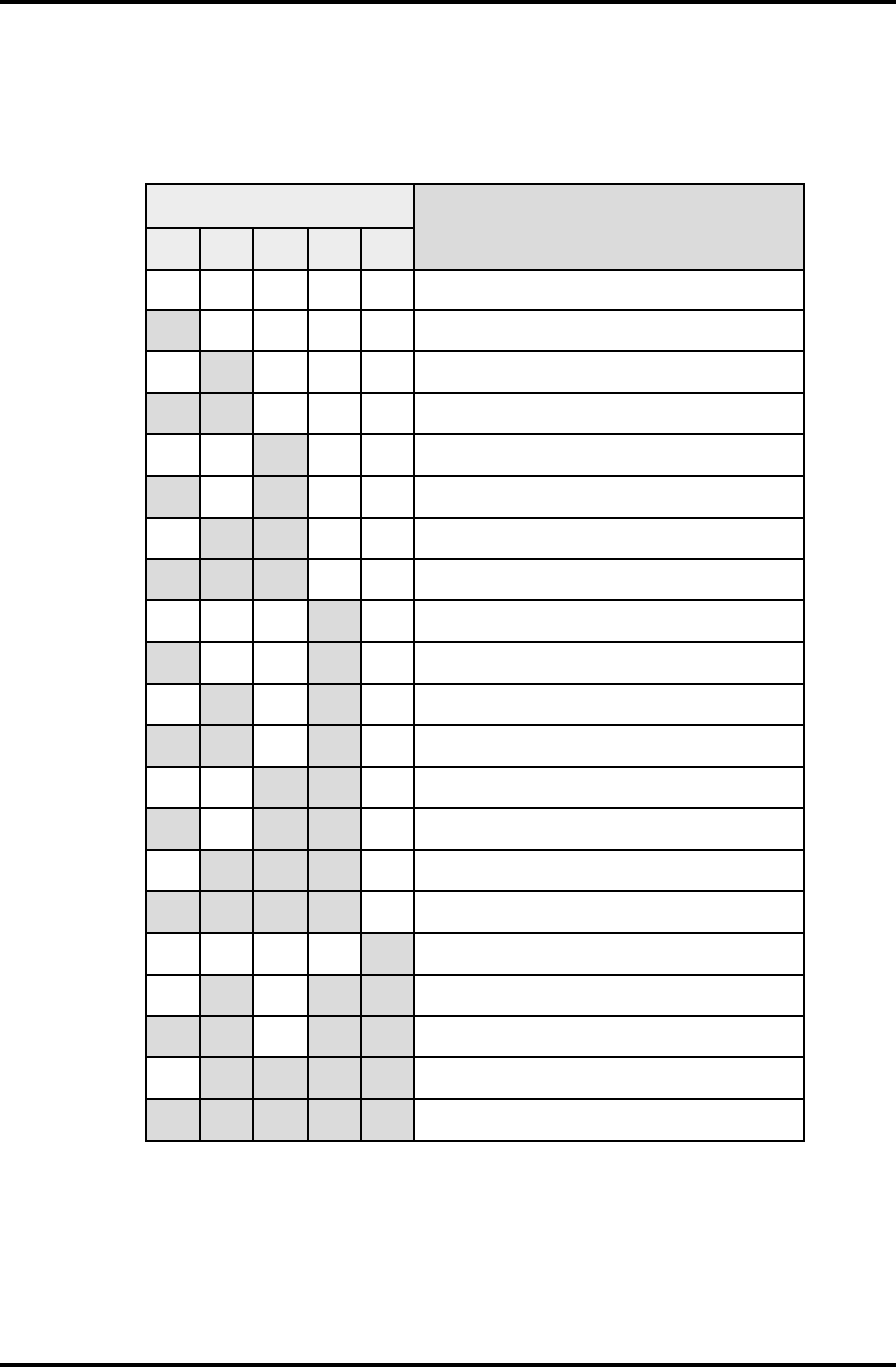

7 DR4201, DR4208S, AND DR4220 ADDRESS DIP-SWITCH SELECTIONS ....................................10

8 DR4205K NORMAL MODE SWITCH SETTINGS, SWITCHES SW1 AND SW2 ..................................13

9 DR4205K KP-CREDENTIAL MODE SWITCH SETTINGS, SWITCHES SW1 AND SW2 .......................14

10 TAMPER SWITCH(ES) ............................................................................................................15

11 RECOMMENDED WIEGAND CABLE GAUGE .................................................................................16

Figures

1THE DIFFERENT DIGIREADER MODELS (NOT TO SCALE) ...............................................................1

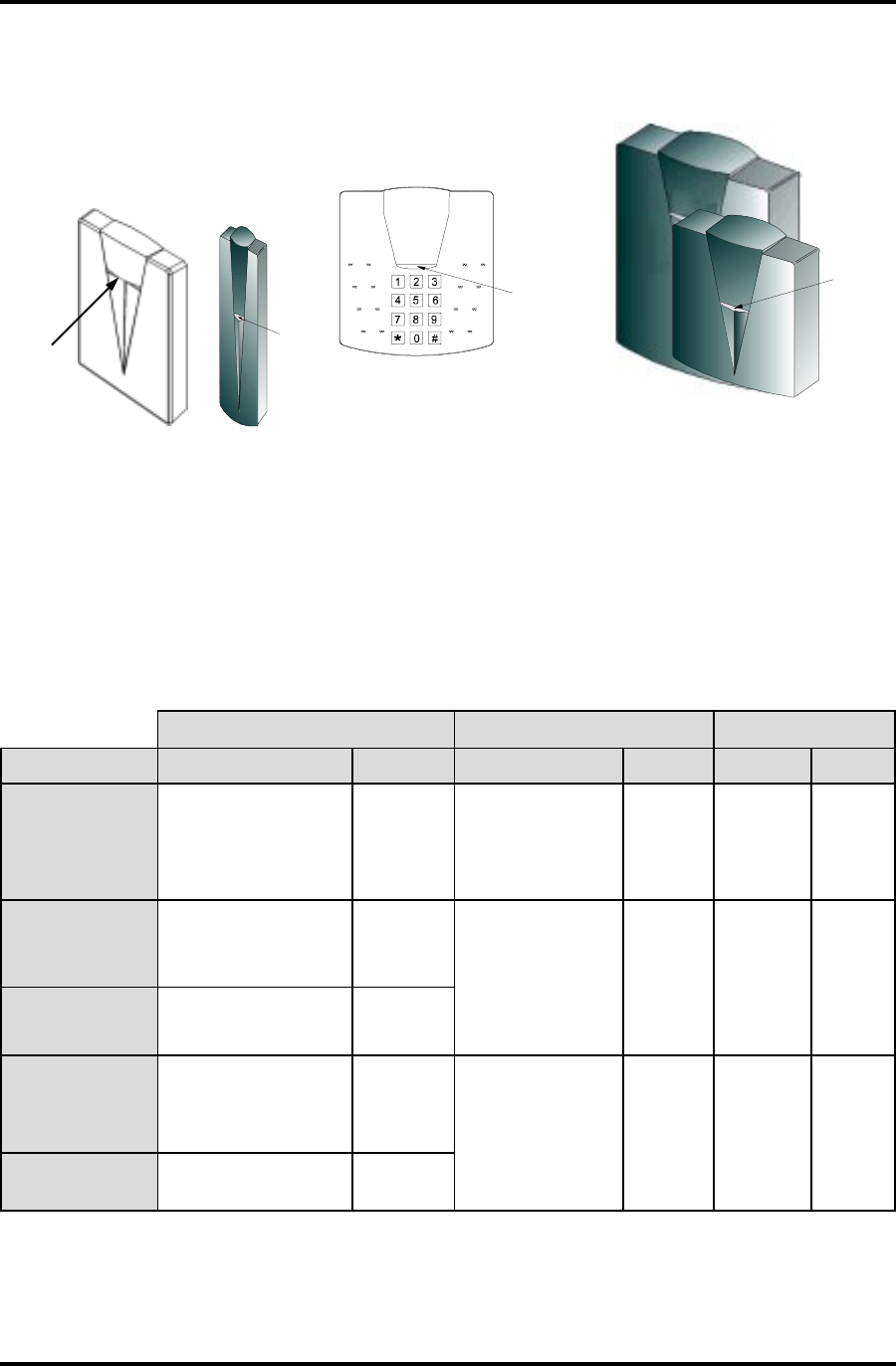

2 LED LOCATIONS FOR THE DIFFERENT DIGIREADER MODELS .........................................................5

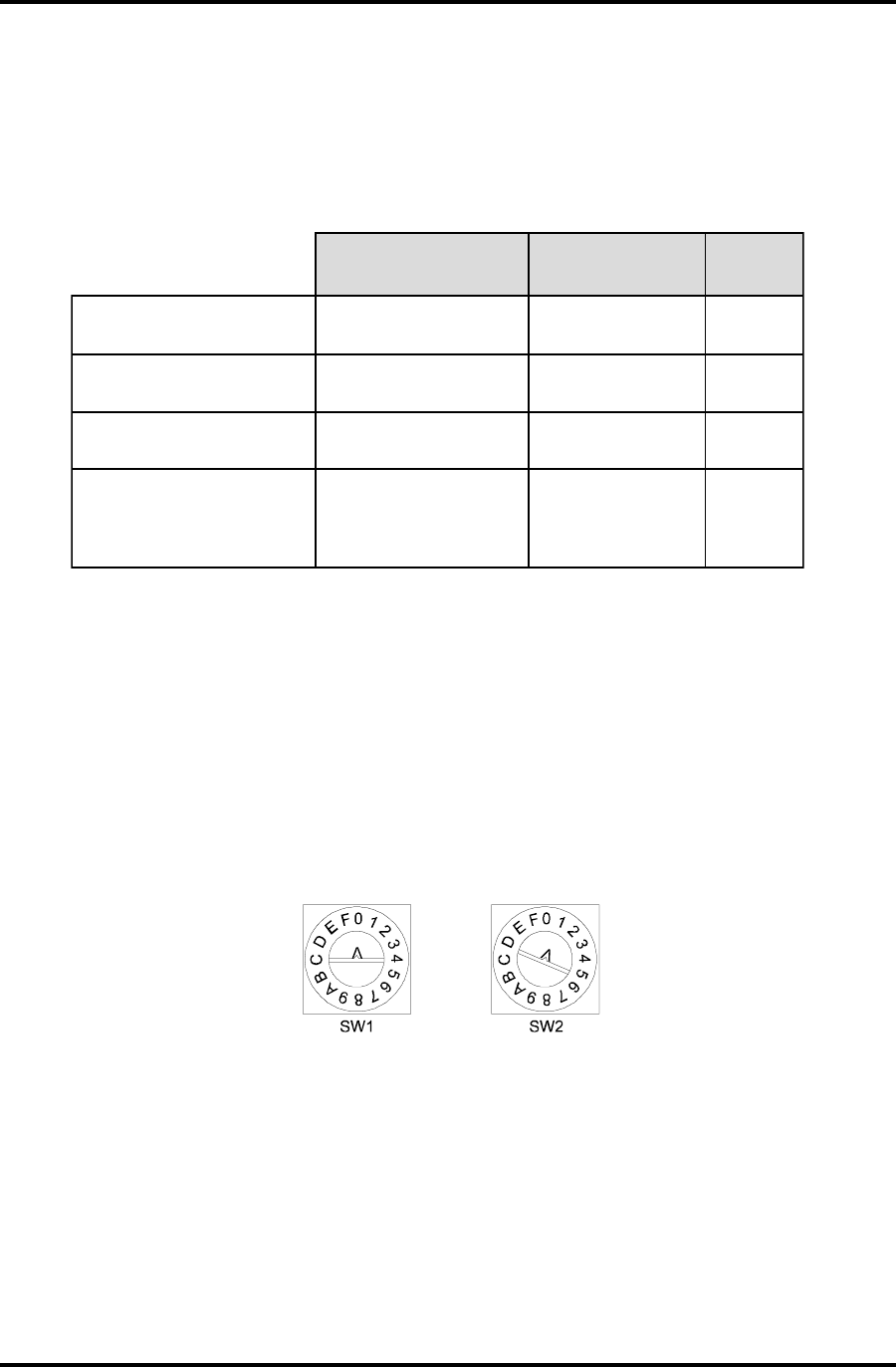

3ADDRESS SWITCHES FOR DR4200K, DR4203, AND DR4205 (ALL MODELS) .................................8

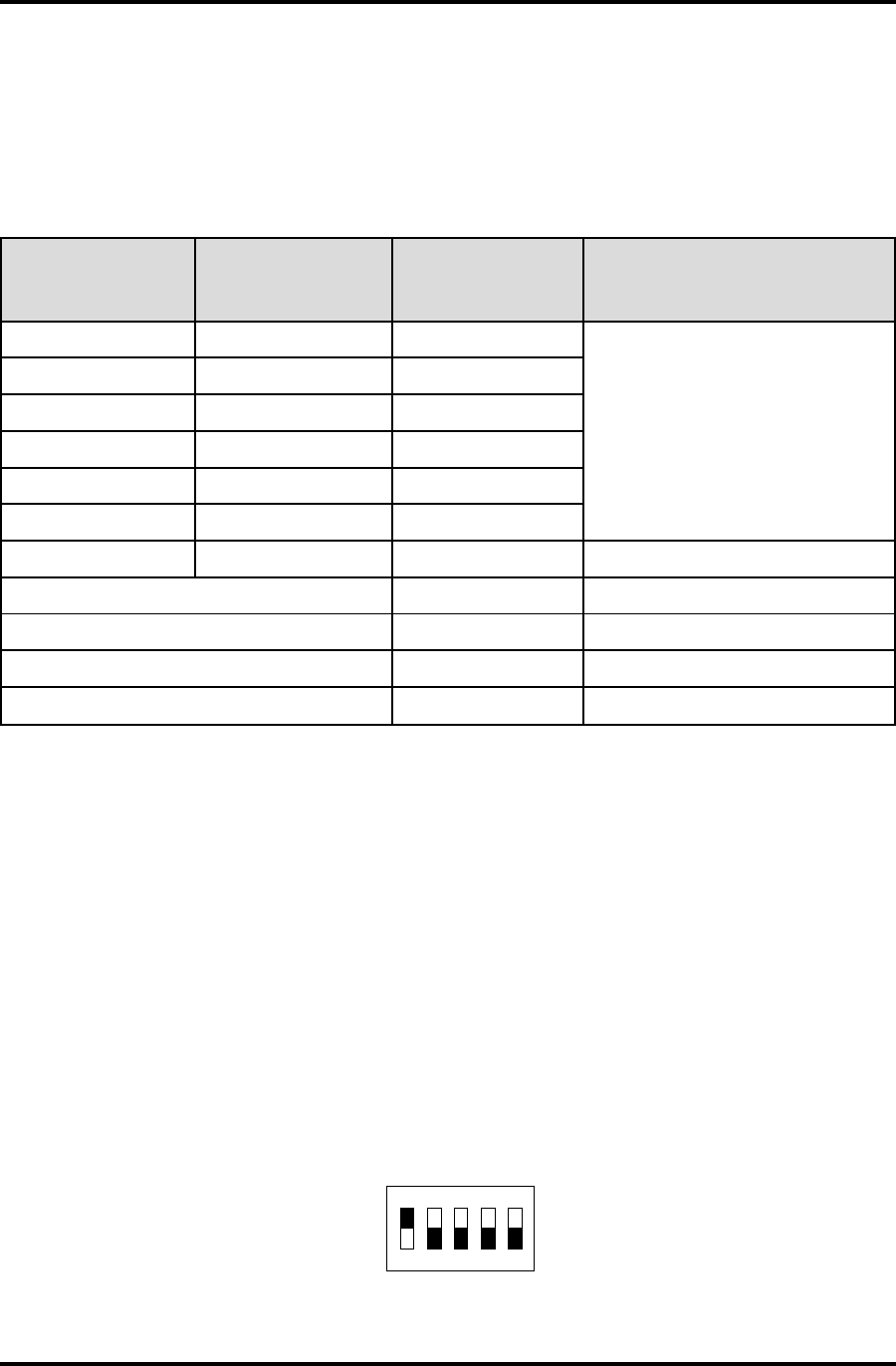

4ADDRESS (DIP) SWITCH FOR DR4201/4208S/4220 SHOWING READER ADDRESS 1 SELECTED .......9

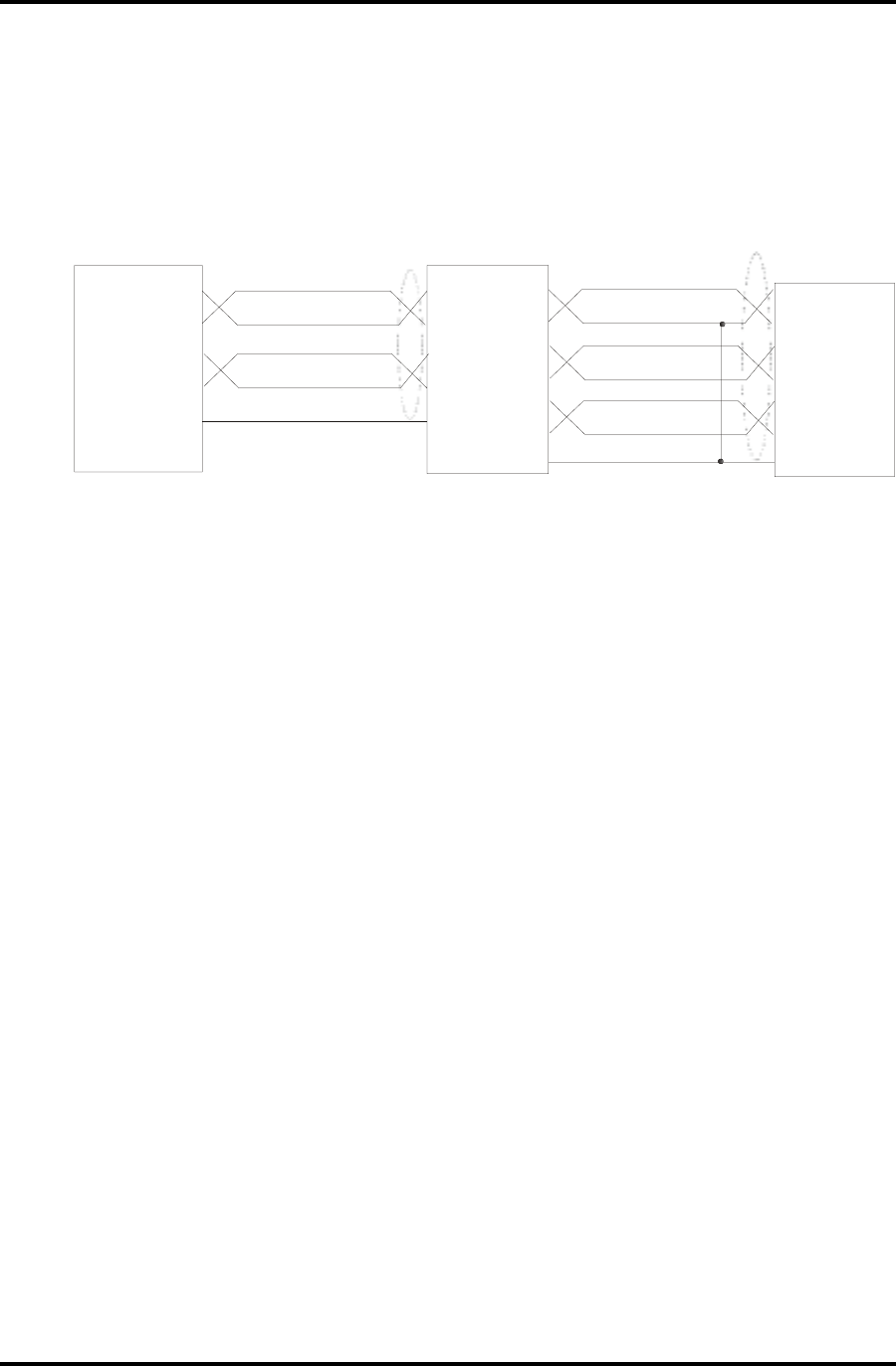

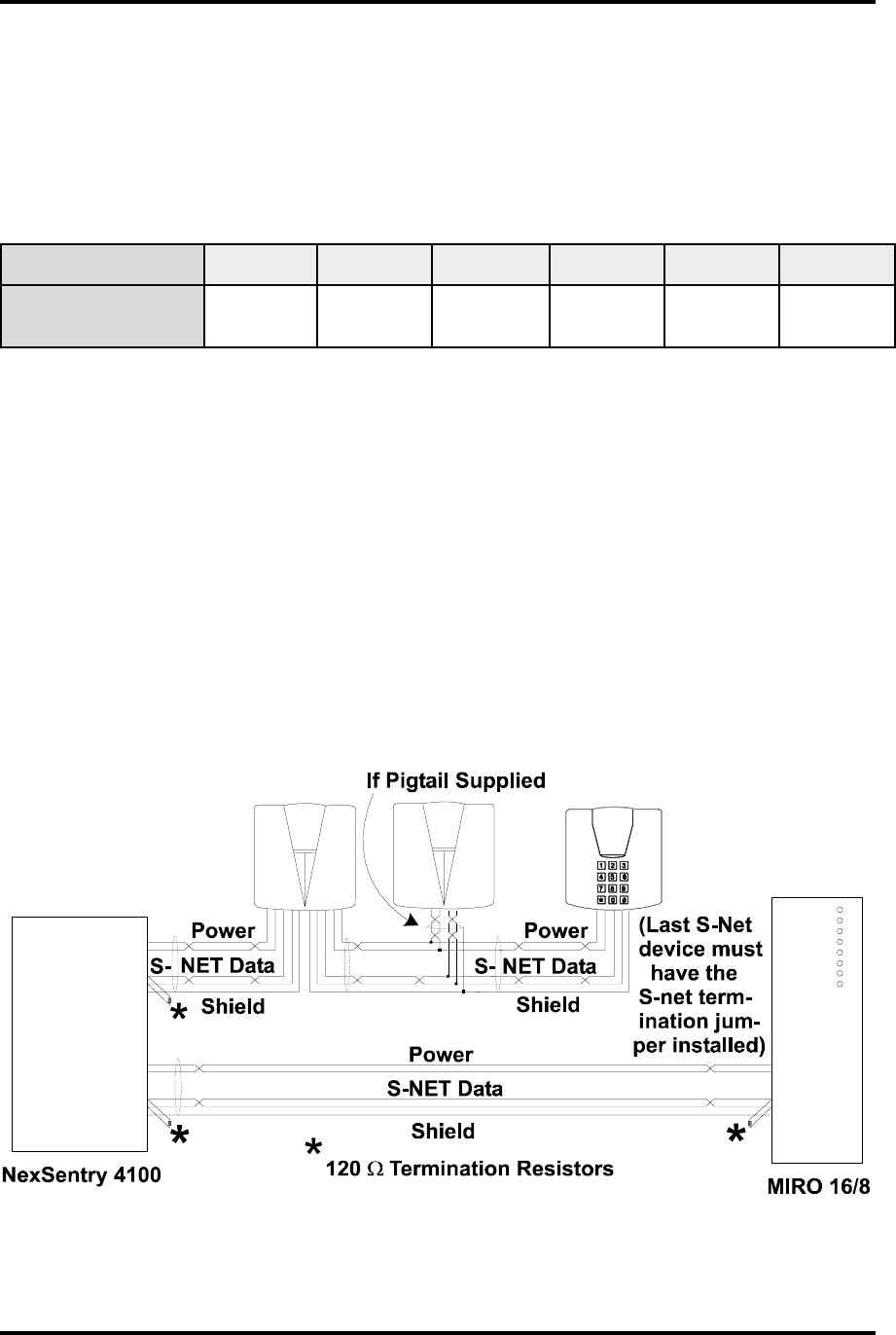

5 S-NET WIRING ...................................................................................................................15

6TYPICAL WIEGAND CONNECTION .............................................................................................17

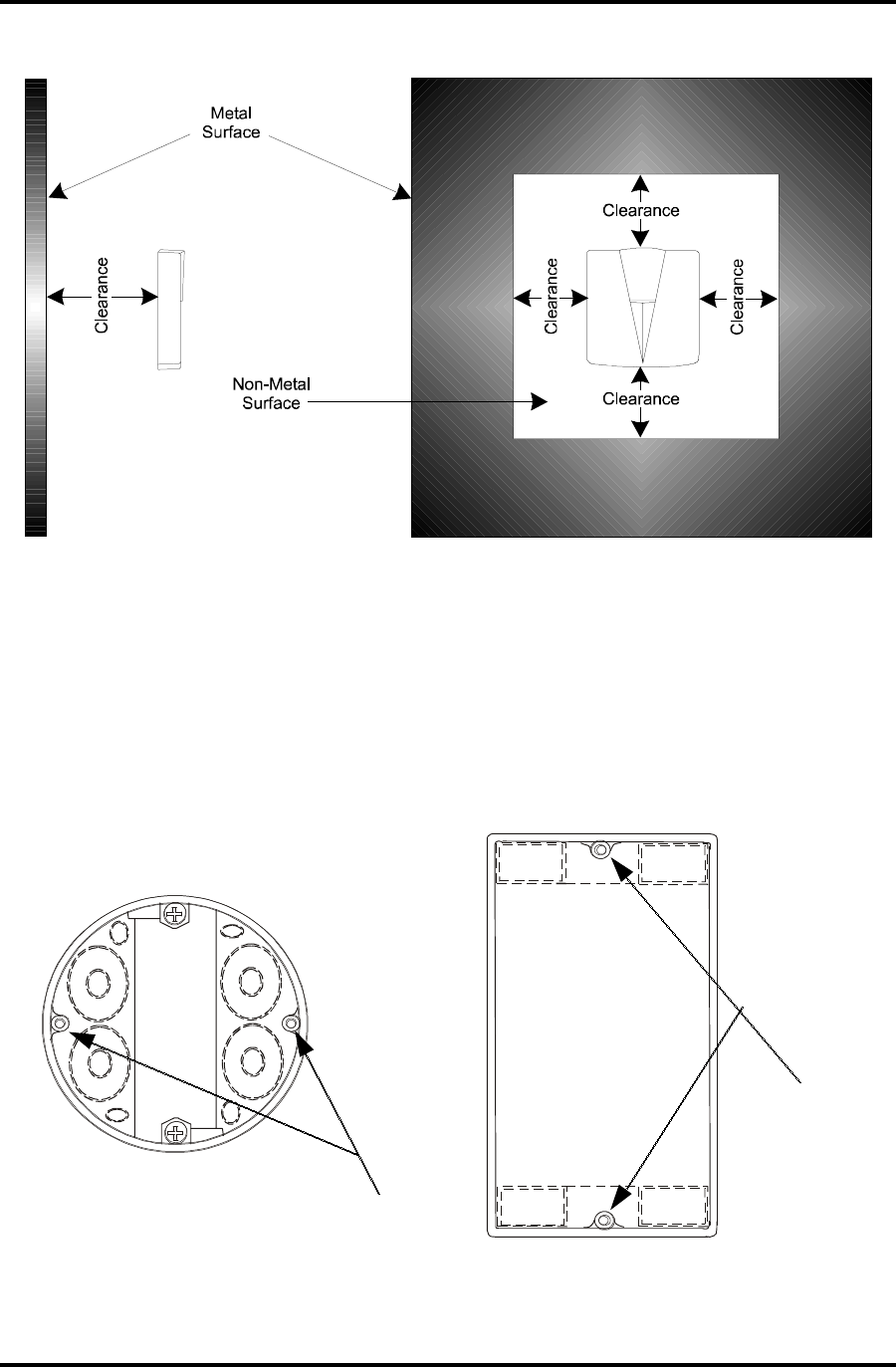

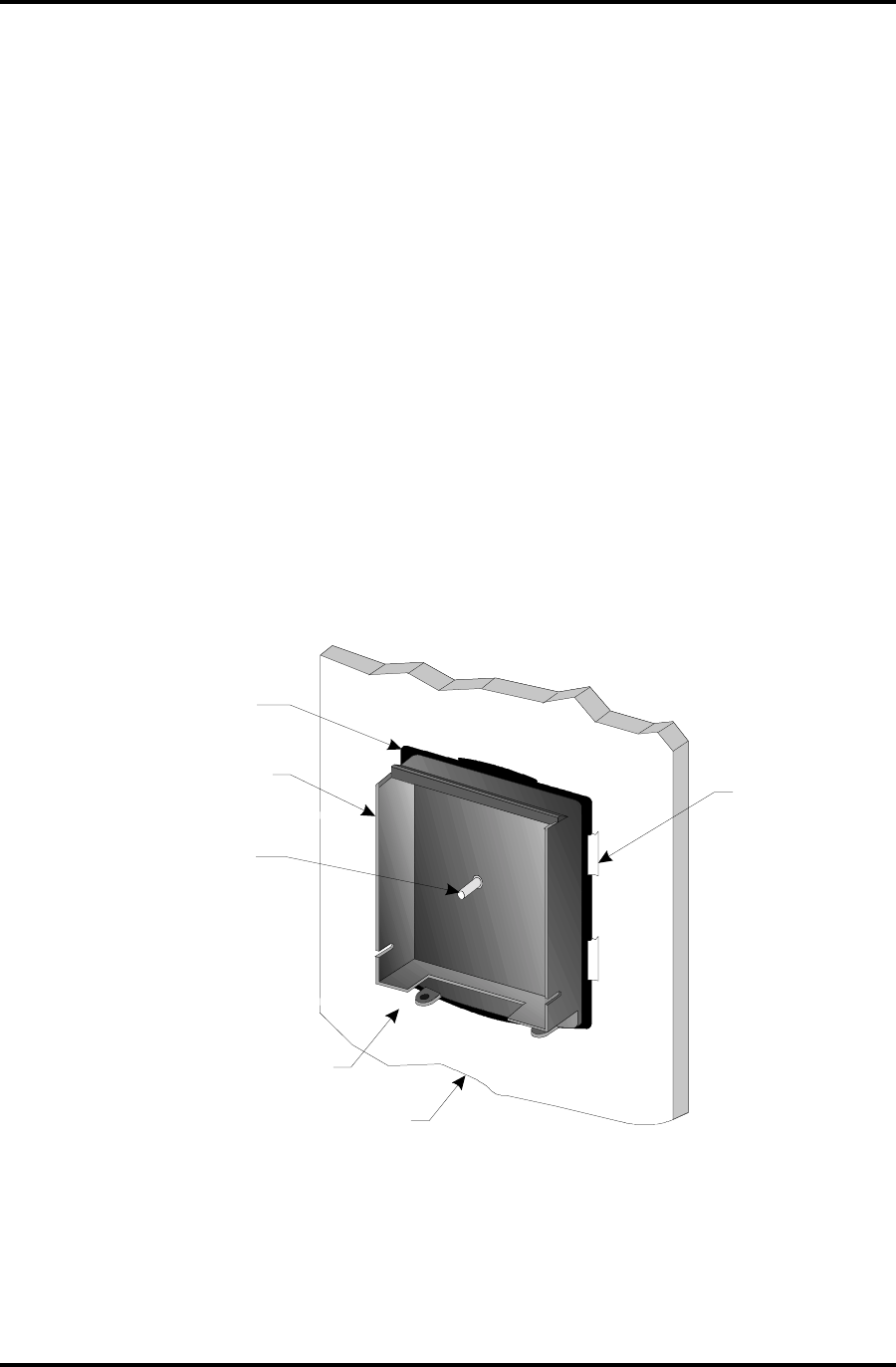

7MOUNTING (DR4205 AND DR4208S) FOR OPTIMUM READ RANGE WITH METAL IN THE VICINITY ....18

8EUROPEAN AND US GANG BOX MOUNTING HOLES INDICATED ......................................................18

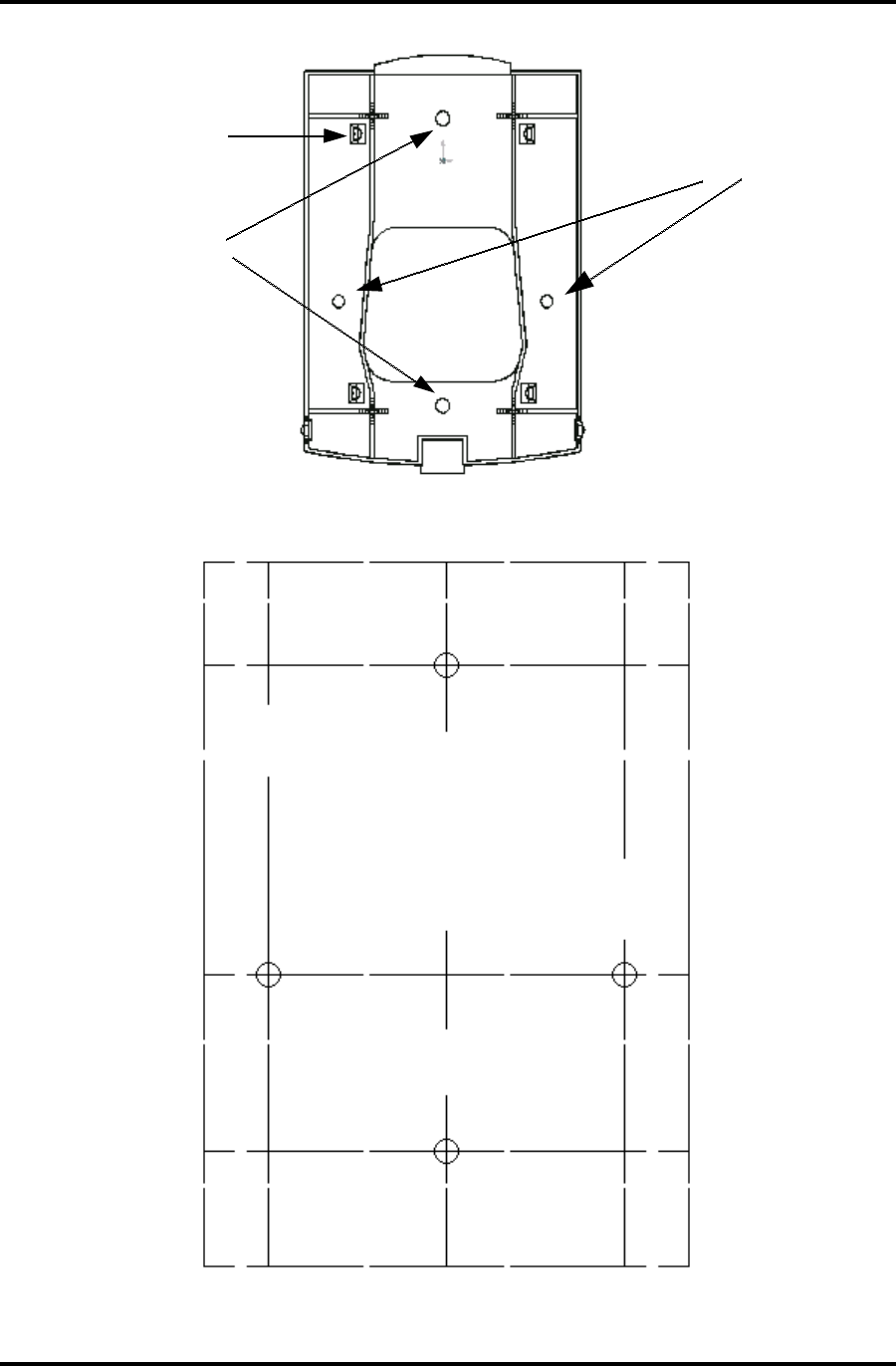

9 DR4201 MOUNTING HOLES INDICATED ...................................................................................19

10 DR4201 MOUNTING TEMPLATE (TO SCALE .PDF FILE ONLY)........................................................19

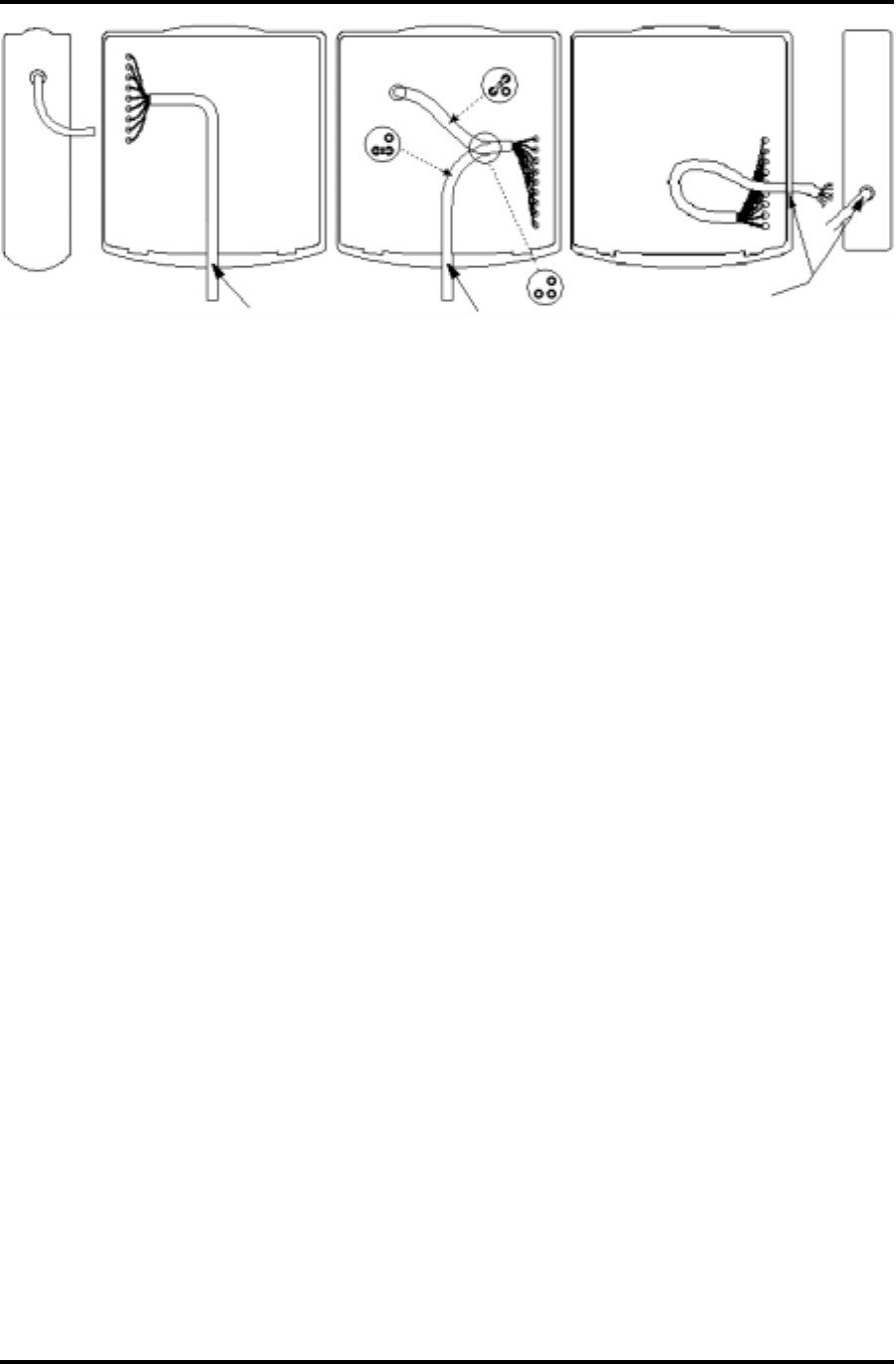

11 CABLE ROUTING CONFIGURATIONS ..........................................................................................22

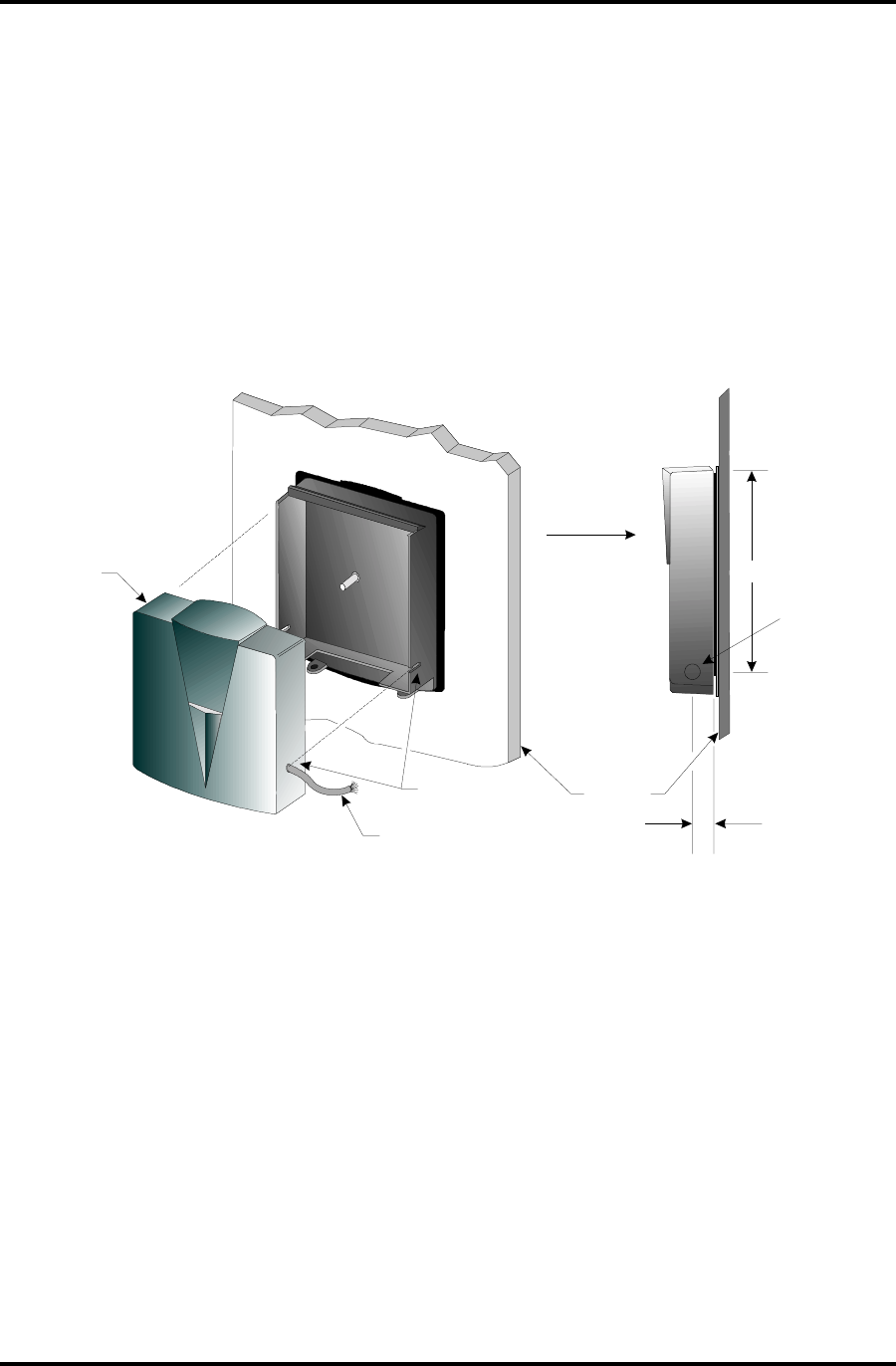

12 SECURING THE DR4203, DR4205 SERIES, DR4208S AND DR4220 COVERS ............................23

13 DR4205GM: PLACEMENT OF DECAL AND READER ONTO GLASS ..................................................24

14 DR4205GM: ROUTING THE CABLE AND ATTACHING THE FACIA ....................................................25

DigiReader Series

P/N 6600025, REV. D 1

INTRODUCTION

The DigiReader Series is a family of Digital Proximity Readers (DigiReaders). (Graphic represen-

tations of the DigiReader Series —not to scale— are shown in figure 1, below, and figure 2, on page

5.) DigiReaders are bi-directional security devices that read digital credentials, (from either side of

the sensor), at ranges from 1 to 20 inches (2½ to 51 cm), depending upon the model and the

environmental conditions. DigiReaders are used with the NexSentry 4100, 4102, 4104, Star I and

Star II (4100 Series), SE818SC and SE422 Access Control Units (ACUs), with the ACUs either

operating as stand-alone devices or operating in conjunction with a StarGaze, a NexSentry Manager

(NSM), a NexSentry Command Center (NSCC), (an SE6000), or an SE5850, WSE Access Control

Host System. Connection between a DigiReader and an ACU is over the WSE proprietary S-Net

interface or over a Wiegand interface to a Wiegand ACU. (The Wiegand data can be either 26- or

34-bit Wiegand standard.) (Also included in the DigiReader Series is a keypad-only reader, the

DR4200K, which is the only family member available with the analog 818SX ACU.)

CAUTION 1. Read this manual carefully before attempting to wire in place a DigiReader.

The warranty is void if damage occurs to the unit as a result of incorrect

wiring.

CAUTION 2. The information in this manual is not intended to conflict with the building codes,

electrical codes, fire codes, or safety codes required for any given installation.

In all cases, the prevailing building codes must take precedence.

DR4201 DR4203 DR4205/DR4208S

DR4205K/DR4200K

DR4220

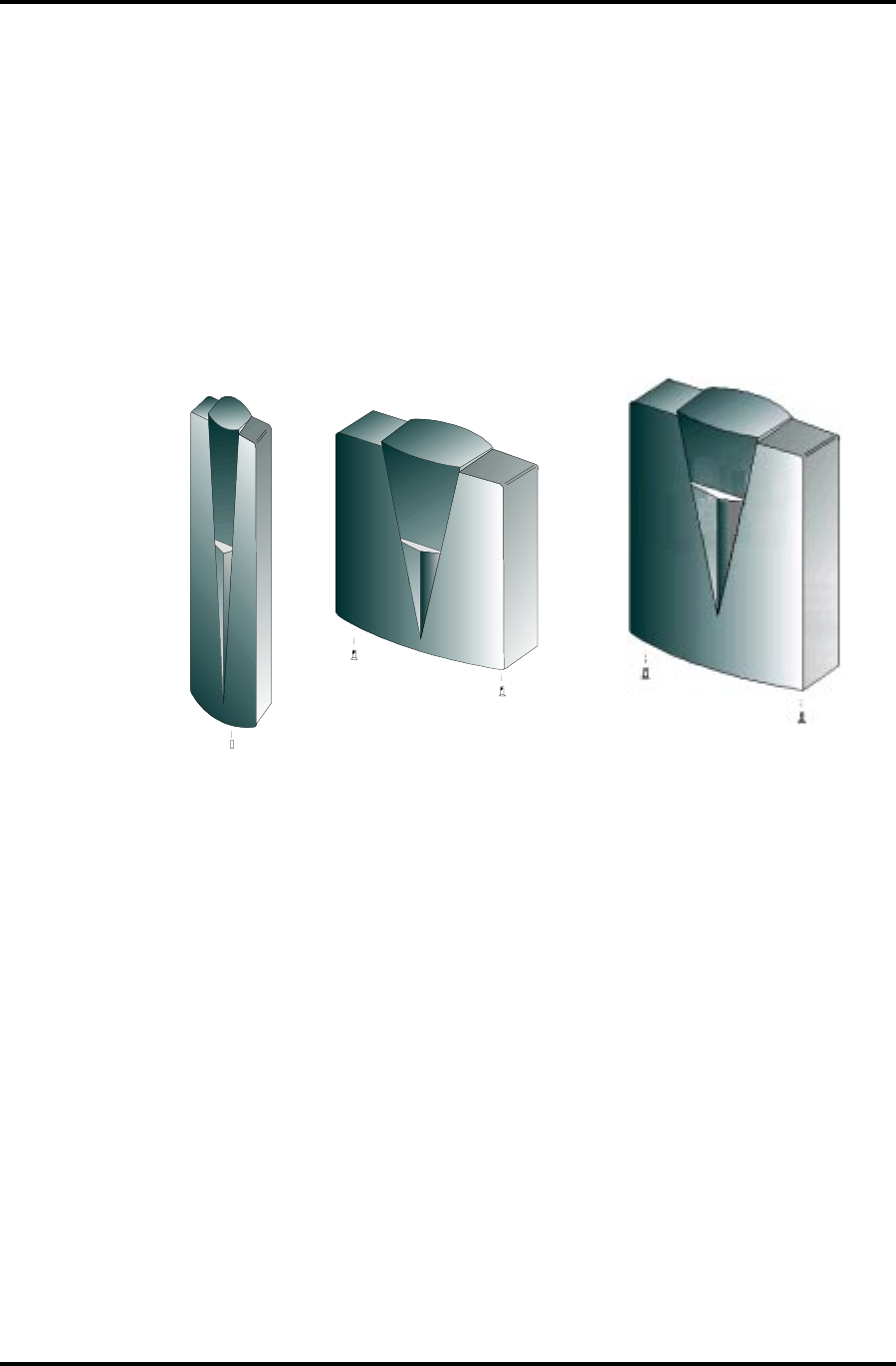

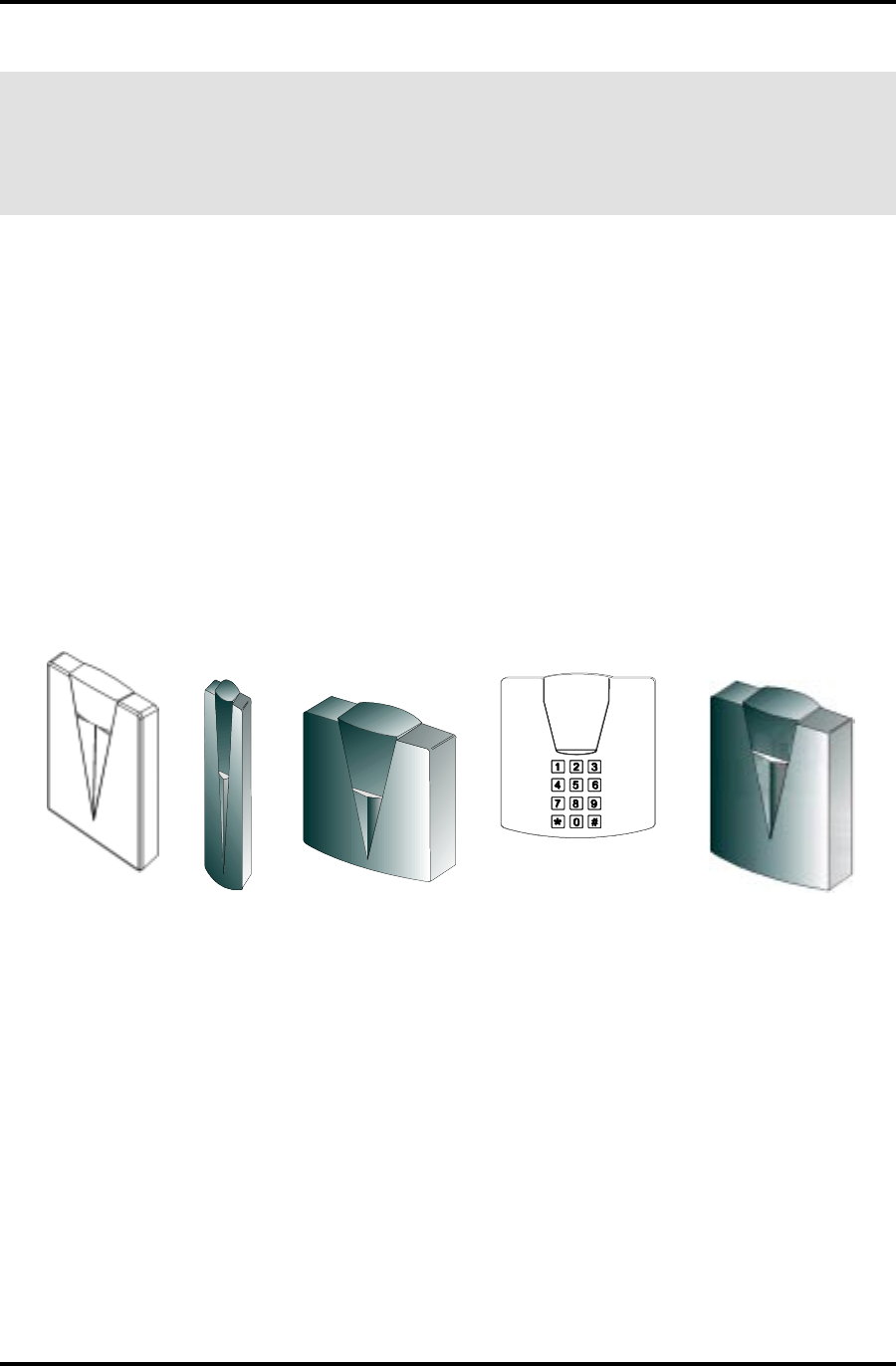

Figure 1: The Different DigiReader Models (Not to Scale)

DigiReader Series

2 P/N 6600025, REV. D

GENERAL SPECIFICATIONS

Table 1: Digital Reader Specifications

*See Table 1A for details on DR4205 Readers

K0024RD 1024RD 3024RD 5024RD *seireS S8024RD 0224RD

noitpircseD K5024RD ,ekilA-kooL ylnOdraobyeK

/tsoctsewoL redaertsellams 'hctiwsthgil'rof sgnitnuomepyt

latigiD ytimixorp roodrofredaer snoillum

tnereffiD dnasngised sgnitnuom seiresnihtiw *

ytimixorplatigiD htiwredaer daerdesaercni egnar

ytimixorplatigiD htiwredaer daermumixam egnar

).hcnI(snoisnemiD3.1x0.5x0.57.0x8.4x3.32.1x5.7x8.1* 72.1x47.5x3.50.1x4.21x3.41

).mC(snoisnemiD2.3x7.21x7.218.1x2.21x4.80.3x0.91x5.4* 2.3x6.41x5.315.2x5.13x3.63

ycneuqerFtimsnarTANnoitarepoxelpudlluf,zHk231

ycneuqerFrevieceRANzHk66

revieceR noitaludomeD ANlangis)KSP(yeKtfihS-esahP

elcyCdaeRdraCANcesm001

:ecruoSrewoP teN-S Am08nahtssel,CDV82+ot61+ 82+ot21+ Am051<,CDV ,CDV82+ot31+ lanimonpmA6.0

:ecruoSrewoP dnageiW Am08nahtssel,CDV82+ot61+ 82+ot21+ Am051<,CDV

liatgiPdnageiW rotcennoC seY*

seY-S8024RD )oN-8024RD( seY-0224RD

UCAotecafretnI )ytilibapaceriw9( ,RO,dnageiWeriw-5tib-43/62+)mmocteN-S,584-SRrofdleihs+GWA22(riapdetsiwtlaud=liatgiperiw-9 tinUF/IdnageiWSNhtiw,seireS0014SNrof-dnageiWeriw-5etarapes+584-SReriw-4,)noitangisedW(

UCAotecafretnI )ytilibapaceriw4( /CS818/XX14( )sUCA224/XS818 -S,584-SRrofdedleihs,GWA22(riapdetsiwtlauD 224ESroCS818otlAroXX14SNrof-)mmocteN

noitapissiDrewoPsttaw2nahtsseL w71nahtsseL

srellortnoC .XS818-ylnoK0024RD:ETON.224ES,CS818otlA,seireS0014dnaIratSyrtneSxeN

srotacidnIelbammargorp,)der-wolley-neerg(roloc-irtelgniS

noitcetorPrepmaTseY

ytidimuH %09ot%01 gnisnednoc-non %09ot%01 gnisnednoc-non %09ot%01 gnisnednoc-non *%09ot%5 gnisnednoc-non %09ot%01 gnisnednoc-non

(erutarepmeT)F°051ot13-*051ot13-

(erutarepmeT)C°66ot53-*66ot53-

tnemnorivnEroodtuO/roodnIroodtuO/roodnIroodtuO/roodnI* esuroodtuOdnaroodnI

).sbL(thgieW57.03.01<* 57.3<

)smargK(thgieW43.211.054.0<*86.3.2<

tnailpmocADA :edulcnisseccadelbasidgnisaerofserutaeflaicepS;seY sutatssseccaetacidniotsrotacidnilausivdnaelbidua,sseccaeerf-sdnah

egnaRdaeR.xaM K0024RD 1024RD 3024RD 5024RD S8024RD 0224RD

)stinU(-).nI().mC().nI().mC().nI().mC().nI().mC().nI().mC(

yeKardauQAN5.1ot8.3ot3ot6.7ot4ot01ot6ot51ot61ot04ot

tramS2AN5.1ot8.3ot3ot6.7ot4ot01ot6ot51ot61ot04ot

yeKxeNAN5.1ot8.3ot3ot6.7ot4ot01ot6ot51ot61ot04ot

etaMyeKAN1ot5.2ot1ot5.2ot2ot5ot3ot8ot41ot53ot

.noitallatsnifotnemnorivnelacisyhpnognidnepedyravyamegnardaermumixaM

DigiReader Series

P/N 6600025, REV. D 3

DR 4205 SERIES SPECIFICATIONS

Table 1A: DR4205 Series Specifications

5024RD E5024RD MG5024RD K5024RD

noitpircseDredaerytimixorplatigiD redaerytimixorplatigiD rofdetaocyllamrofnoc esulanretxe

redaerytimixorplatigiD gniebfoytilibapachtiw detnuomssalg

redaerytimixorplatigiD detargetnihtiw rofdapyekfoorpretaw esuroodtuodnaroodni

ytilibapaCdnageiW :Wahtiwdetangisedsiroliatgiperiw-9sahledomfI MGW5024RDEW5024RDW5024RD

rellortnocotecafretnI )ytilibapaceriw9(

dna)noitacinummocteN-S,584-SRrofdedleihs,GWA22(riapdetsiwtlaudgniniatnocliatgiperiw-9 dnageiWeriw-5etarapes+584-SReriw-4,)noitangisedW(,RO,dnageiWeriw-5tib-43ro-62 tinUecafretnIdnageiWyrtneSxeNhtiw,seireS0014yrtneSxeNrof-

rellortnocotecafretnI )ytilibapaceriw4( )noitacinummocteN-S,584-SRrofdedleihs,GWA22(riapdetsiwtlauD 224ESroCS818otlAro,seireS0014yrtneSxeNrof-

snoisnemiD )mc2.3x6.41x5.31("72.1x"47.5x"3.5

ycneuqerFtimsnarTnoitarepoxelpudlluf,zhK041

ycneuqerFrevieceRzHk07

noitaludomeDrevieceRlangis)KSP(yeKtfihS-esahP

elcyCdaeRdraCcesm001

teN-S:ecruoSrewoP Am08nahtssel,CDV82+ot61+

dnageiW:ecruoSrewoP

noitapissiDrewoPsttaw2nahtsseL

srotacidnIelbammargorp,roloc-irtelgniS

noitcetorPrepmaTseY

ytidimuH %09ot%01 gnisnednoc %001ot%5 gnisnednoc %09ot%01 gnisnednoc %001ot%5 gnisnednoc

(erutarepmeT)F°021ot23051ot13-021ot23051ot13-

erutarepmeT)C°(94ot066ot53-94ot066ot53-

tnemnorivnEylnoesuroodnI dnadezirehtaeW roffoorp-hsalps esuroodtuo ylnoesuroodnI dnadezirehtaeW roffoorp-hsalps esuroodtuo

)secnuO(thgieW51429151

)smarG(thgieW024276235024

tnailpmocADA :edulcnisseccadelbasidgnisaerofserutaeflaicepS;seY sutatssseccaetacidniotsrotacidnilausivdnaelbidua,sseccaeerf-sdnah

egnaRdaeRmumixaM sledoM5024RDllA

)stinU()sehcnI()sretemitneC(

yeKardauQ4otpu01otpu

tramS24otpu01otpu

yeKxeN4otpu01otpu

etaMyeK2otpu5otpu

DigiReader Series

4 P/N 6600025, REV. D

BASIC OPERATION

DigiReaders emit a low-level 140-kHz field. When a digital credential (card, KeyMate™, DuraTag™,

etc.) is placed in this field, a digital chip embedded in the credential uses the field’s energy for

activation. Once activated, the credential responds by broadcasting a 70-kHz signal, modulated

with a credential-specific code sequence, back to the reader. The reader receives this signal and

converts it to a digital code which is then sent to the ACU, (the Controller). The Controller identifies

the digital credential according to its code and makes either an access granted or an access denied

decision, based on credential information stored in the Controller's database or the host system's

database.

The DR4205K has a keypad on the face of the DigiReader. The keypad is used to enter the user’s

Personal Identification Number (PIN). The DR4205K keypad version can be configured for credential-

only use, or keypad-only use, or both, from the ACU DOOR Command. If the S-Net Reader Type

entry is set to DKR, the credential use will be activated for that door; set to NONE, the credential

use for that door will be de-activated; (– this is true for all DigiReaders except the DR4200K). For

the same door/reader combination, if the VIP Enable is set to Yes or No, the keypad portion will be

activated or de-activated, respectively.

The DR4200K is a keypad-only reader look-alike of the DR4205K, activated from the ACU DOOR

Command by setting VIP Enable (for that door) to Yes.

LED (AND BEEPER) OPERATION

LED (AND BEEPER) (S-NET OPERATION)

All DigiReaders have a single three-color (red-amber-green) LED controlled by the Access Control

Unit (ACU) to which the DigiReader is attached. Figure 2 shows the location of the LED on each

of the DigiReader models.

With the DigiReader on line to an ACU and with power applied, (the ready state), the DigiReader's

LED will be a constant red. When a DigiReader is configured to read digital credentials only (with

no keypad part of the DR4205K or VIP2 or DR4200K activated for the same door), a valid credential

will produce a momentary amber LED, followed by a green LED for the door unlock time or until the

door is closed following the credential-holder's access; (the LED will then return to the constant red).

With a keypad also activated, the amber LED will continue until either both the valid digital credential

and valid PIN, in either order, have been read/entered, producing the green unlock time LED, or until

the PIN grace period has been exceeded, producing the red LED. With only the keypad activated,

a valid PIN will produce the momentary amber, the unlock green and the return to the constant red.

DigiReader Series

P/N 6600025, REV. D 5

Figure 2: LED Locations for the Different DigiReader Models

NOTE: In each WSE security management system, the TUNE command (or its equivalent) is used

to specify LED and beeper behavior when a valid key is presented.

eniL-nO eniL-ffO omeD

sutatS DEL repeeB DEL repeeB DEL repeeB

laitnederCoN ottneSataD K0024oN,UCA yeKK5024ro desserP

derydaetSffO

derhsalF:elcyC ydaets,.ces4rof ,.ces4rofrebma .ces25rofffo

ffO ydaetS der ffO

laitnederCdilaV daeR

litnu,rebmaydaetS ecargroyrtneNIP dnedoirep

elgniS peeb rebmahsalF ylsuounitnoc sdnoces2.0~ dracelihw tneserp

peeB -nitnoc ylsuou ces8.0~ elihw drac tneserp

ydaetS &rebma 01~rof retfaces gnivomer drac

peeB yreve ces2~ elihw drac tneserp

dilavnI laitnederC rofffoydaetS emitelbasidredaer elgniS peeb

NIPdilaV deretnE

NIPlitnuderydaetS ydaets,deretne daerdraclitnurebma dnedoirepecargro

rofpeeB NIPhcae tigid deretne

derhsalF:elcyC ydaets,.ces4rof ,.ces4rofrebma .ces25rofffo morfdegnahcnu( rodesserpyekon )detneserpdrac

peeB rofecno yreve yek desserp

litnudeR syek6 ,desserp neht rofrebma 01~ sdnoces

peeB rofecno yreve yek desserp otpu( )6

NIPdilavnI litnurebmaydaetS dnedoirepecarg peeB tigidhcae

-yekdnaredaerlatigidhtob(,roivaheBrepeeB/DELmetsySK0024RD/K5024RD )roodemasnooslaredaeRigiDhtiw,K0024RDfi.....()delbaneytilibapacdap

)gnimmargorpUCAybdenimreted,lortnocUCArednuroivahebDEL(

Table 2:

The complete operational characteristics (LED and beeper behavior) for a DigiReader with or without

keypad, or with the keypad only used, are shown, (respectively), in Tables 2, 2A and 2B, below.

DR4201

LED

DR4203

LED

DR4205K/DR4200K

DR4205/4208S/4220

LED

DigiReader Series

6 P/N 6600025, REV. D

eniL-nO eniL-ffO omeD

sutatS DEL repeeB DEL repeeB DEL repeeB

roK0024oN yeKK5024 desserP

derydaetSffO

derhsalF:elcyC ydaets,.ces4rof ,.ces4rofrebma .ces25rofffo

ffO ydaetS der ffO

NIPdilaV deretnE

NIPlitnuderydaetS yratnemom,deretne neergydaets,rebma /elbasidredaerrof emitneporood

rofpeeB NIPhcae tigid deretne

derhsalF:elcyC ydaets,.ces4rof ,.ces4rofrebma .ces25rofffo morfdegnahcnu( rodesserpyekon )detneserpdrac

peeB hcaerof tigidNIP deretne

litnudeR syek6 ,desserp neht rofrebma 01~ sdnoces

peeB rofecno yekyreve desserp )6otpu(

NIPdilavnI rebmaydaetS hcaepeeB tigid

delbanedapyeklatigidylnohtiw,roivaheBrepeeB/DELmetsySK0024RD/K5024RD

)gnimmargorpUCAybdenimreted,lortnocUCArednuroivahebDEL(

eniL-nO eniL-ffO omeD

sutatS DEL -peeB re DEL repeeB DEL repeeB

laitnederCoN ottneSataD UCA derydaetSffO

derhsalF:elcyC ydaets,.ces4rof ,.ces4rofrebma .ces25rofffo

ffO ydaetS der ffO

dilaV laitnederC daeR

neergydaetS skcolnuroodsa

peeB 5~ ces

rebmahsalF ylsuounitnoc sdnoces2.0~ dracelihw tneserp

peeB ylsuounitnoc ces8.0~ dracelihw tneserp

ydaetS &rebma 01~rof retfaces gnivomer drac

peeB yreve ces2~ elihw drac tneserp

dilavnI laitnederC rofffoydaetS emitelbasidredaer peeB ecno

)delbaneytilibapacredaerylno(,roivaheBrepeeB/DELmetsySredaeRigiD

)gnimmargorpUCAybdenimreted,lortnocUCArednuroivahebDEL(

Table 2A:

Table 2B:

LED (WIEGAND OPERATION)

The LED is controlled to be red or green by the level of the Wiegand LED control input. This is a

function of the particular Wiegand unit.

DigiReader Series

P/N 6600025, REV. D 7

120-OHM TERMINATION JUMPER (INTERNAL/EXTERNAL)

The jumper places 120 ohms of resistance between Data A and Data B for proper end-of-line

termination. Install the jumper only if the DR4200 Series DigiReader is the last device on the cable.

Table 3: Termination Jumpers

INTERNAL INTERFACE CABLE (FOR DR4200K, DR4201,

DR4203, DR4205--ALL MODELS, DR4208S * & DR4220)

An attached pigtail cable assembly provides the connection from the printed-circuit assembly and

keypad to the access control unit wiring on all of the following DigiReader models: DR4200K,

DR4201, DR4203, DR4205, DR4205E, GM, K and W, DR4208S ( - note the wider voltage range)

and DR4220. The cable is color coded as follows:

Table 4: Internal Interface Cable for DR4200K, DR4201, DR4203,

all models of DR4205, DR4208S, and DR4220

redaeR repmuJnoitanimreT redaeR repmuJnoitanimreT

*lanretnI noitacoL *lanretnI noitacoL

K0024RDseY1W**5024RDseY1W

1024RDseY1WS8024RDseY1W

3024RDseY3W0224RDseY1W

*sledom)TMS(ygolonhcettnuomecafrusnoelbaliavaylnorepmuJ W5024RDdnaK5024RD,MG5024RD,E5024RD,5024RD:sledomllA**

ROLOC NOITCNUF )esUteN-S( )esUdnageiW(

deR CDV82+ot61+ lanimoNteN-SlanimoNdnageiW

*CDV82+ot21+

neerGAteN-S ESWhtiwesuroF sseccateN-S slenaplortnoc AN

etihWBteN-S

kcalBnruteRCDnruteRCDteN-SnruteRCDdnageiW

dleihSdleihSlangiSdleihSteN-SnruteRCDdnageiWotdeiT:dleihSdnageiW

eulB)0tuO(0ataD

slenaplortnocsseccadnageiWhtiwesuroF

egnarO)1tuO(1ataD

wolleY0DEL)deR( dellortnocUCAerasDELhtoB hgih/FFOrowol/NOeradna

nworB1DEL)neerG(

DigiReader Series

8 P/N 6600025, REV. D

RECOMMENDED S-NET CABLE

The type of cable used for the S-Net will depend on the total length and the number of devices

connected. Table 5 lists WSE-recommended cables:

Table 5: Recommended S-Net Cable

DIGIREADER ADDRESS SWITCHES

Rotary Address Switches for DR4200K, DR4203, and DR4205 (all models)

Each DigiReader must have a unique address. The DR4200K, DR4203, and DR4205 (all models)

DigiReaders use two address switches S1 and S2, (as shown in Figure 3):

Figure 3: Address Switches for DR4200K, DR4203, and DR4205 (all models)

• Switch SW1 is used to select the special reader modes of operation, (as shown in Table 6).

SW1 is set to 0 (factory default setting) for S-Net operation and F for Wiegand operation.

• Switch SW2 is used to set the Reader/Door address, and, with SW1 set to F, for additional

options, including (SW2 = A or B) the Wiegand number of bits. SW2 has a factory default

setting of 1, but it may be set to any address from 1 to F (15). A 16th DigiReader address is

provided by setting switch SW2 to 0 and switch SW1 to 8 (for Normal Mode), or C, D or E (for

DR4205K PIN/Credential Mode - see below).

ERUTCAFUNAM LACISYHP NOITPIRCSED EGUAG

.tF0004<rewoPdnaataD elbaC&eriWtsewhtuoS yarG/971WS ataD:rotcudnoC2 rewoP:rotcudnoC2 GWA22 GWA61

.tF005<rewoPdnaataD 2559nedleB 9601nedleB dedleihSriaP-2 GWA81 GWA61

.tF005>ylnOataD1489nedleBdedleihSriaP-1GWA42

.tF005>ylnOrewoP 1439nedleB 2431nedleB 3439nedleB rotcudnoC2 GWA81 GWA61 GWA41

DigiReader Series

P/N 6600025, REV. D 9

Valid addresses may be limited by the controller; (see the appropriate controller manual).

When used with an SE422, addresses 01 and 02 should be assigned to nodes 13 (VIP2/DR4200K)

and 15 (DKR), and 14 (VIP2/DR4200K) and 16 (DKR), respectively, see section 6 of the SE422

Installation Manual (p/n 66108328001), under Entry (Door) programming, questions 14 and 15.

Table 6: Valid Switch Settings for Switches 1 and 2

(* See DR4205K SPECIAL OPERATING FEATURE, page 11)

(** See NORMAL MODE, page 11 or PIN/CREDENTIAL MODE, page 12,

respectively, for S-Net address 16, Normal or PIN/Credential explanations)

(*** See TESTING THE DIGIREADER LOCATION, page 18)

DIP Address Switch for DR4201, DR4208S, and DR4220

The DR4201, the DR4208S, and the DR4220 readers each have a 5-position DIP-switch S1, (as

shown in Figure 4, with S-Net address 1 selected), which combines the functions of the rotary

address switches S1 and S2 used by the other DR4200 Series DigiReaders.

Figure 4: Address (DIP) Switch for DR4201/4208S/4220 Showing Reader Address 1 Selected

*1WS )edoMlamroN(

*1WS

(NIP/ laitnederC edoM) 2WS NOITCNUF

06ro5,41

sesserddarooD/redaeR lamicedaxehF-1 )lamiced51-1(

06ro5,42

...

06ro5,4E

06ro5,4F

**8**EroD,C**0lamiced61sserddarooD/redaeR

FA tib-62dnageiW

FB tib-43dnageiW

FE edoMomeD

FF ***edoMtseTFR

12345

FFO

DigiReader Series

10 P/N 6600025, REV. D

Table 7, below, shows the possible selections for S-Net address selection and Wiegand, DEMO mode

and TEST mode selections.

Table 7: DR4201, DR4208S, and DR4220 Address DIP-Switch Selections

)sgnitteS(1ShctiwS noitcnuF/sserddArooD/redaeR

1 2 3 4 5

ffOffOffOffOffO0enil-ffO

nO ffOffOffOffO1

ffO nO ffOffOffO2

nO nO ffOffOffO3

ffOffO nO ffOffO4

nO ffO nO ffOffO5

ffO nO nO ffOffO6

nO nO nO ffOffO7

ffOffOffO nO ffO8

nO ffOffO nO ffO9

ffO nO ffO nO ffO01

nO nO ffO nO ffO11

ffOffO nO nO ffO21

nO ffO nO nO ffO31

ffO nO nO nO ffO41

nO nO nO nO ffO51

ffOffOffOffO nO 61

ffO nO ffO nO nO )tib-62(ecafretnIdnageiW

nO nO ffO nO nO )tib-43(ecafretnIdnageiW

ffO nO nO nO nO edoMOMED

nO nO nO nO nO edoMTSET

DigiReader Series

P/N 6600025, REV. D 11

SPECIAL FEATURES OF THE DR4201 AND DR4208S

DIGIREADERS:

READER OPERATION (SNET MODE)

•The reader responds as both a DKR-type and an MSR-type device. The assigned address

message determines the reporting method for this reader.

•The RF field is powered at all times.

•The microcontroller uses a synchronous technique to sample the incoming data bits and shift

them into a 48-byte data buffer. The data collection and reporting techniques are key-type

dependent. The reader alternates between the two key types as follows:

•Key type 1 (WSE QuadraKey™, NexKey™, 2Smart™, and KeyMate™):

For 50 msec the key message data is serially shifted into a buffer while searching for an

88-bit PSK key message signal in WSE format. The received key data is validated if it

contains:

•the proper 8-bit preamble,

•a 32-bit reserved field,

•a 32-bit keycode field,

•a valid mode character,

•a valid parity character,

•a valid checksum byte, and

•the receive buffer contains two identical 88-bit key messages.

Reporting as an SNET DKR-type, only the key ID is reported to the ACU.

Reporting as an SNET MSR-type, the WSE key is reported to the ACU in an SNET MSR-

type log response with:

•key data in message characters 2-10,

•site code (always 9999) in message characters 11-14, and

•company code (always 9999) in message characters 19-22.

DigiReader Series

12 P/N 6600025, REV. D

•Key type 2 (HID ProxPro™, ISOProx™, DuoProx™, and Corporate 1000™):

For 120 msec the key message data is serially shifted into a buffer while searching for a

48-bit FSK-modulated Manchester-encoded signal. The received key data is valid if it

contains:

•a start character with 2 Manchester code violations,

•no other Manchester coding violations, and

•the receive buffer contains two identical 48-bit key messages.

Reporting as an SNET DKR-type, only the key ID is reported to the ACU.

Reporting as an SNET MSR-type, this key is reported to the ACU in an SNET MSR-type

log response. The MSR data sent depends on the key type recognized:

•26-bit key:

•key data in message characters 7-10,

•site code in message characters 11-14,

•company code (always 9999) in message characters 19-22.

•35-bit key:

•key data in message characters 6-10,

•site code in message characters 11-14,

•company code (always 9999) in message characters 19-22.

•37-bit key:

•key data in message characters 6-10,

•site code in message characters 11-14,

•company code (always 9999) in message characters 19-22.

•Only one keycode is received and reported at a time. A 1-second timer is started

when a key is read to prevent the same key from being repeated too quickly.

READER OPERATION (26-BIT AND 34-BIT WIEGAND MODE)

•The RF field is powered at all times.

•A digital key is received in the same fashion as for the SNET operation. (See above).

•If the key is in 88-bit WSE format, then either the 32-bit (or 26-bit) keycode is immediately

transmitted via the data 0 and data 1 lines, most-significant-bit first.

•If the key is a 48-bit type then the key content is checked to determine if 26-bit, 35-bit or

37-bit data is to be sent. If the content cannot be determined then no message is sent.

•Only one keycode is received and reported at a time. A 1-second timer is started when a

key is read to prevent the same key from being repeated too quickly.

DigiReader Series

P/N 6600025, REV. D 13

DR4205K SPECIAL OPERATING FEATURE

For the NexSentry 4100 Series ACUs, the DR4205K reader has two modes of operation, the Normal

Mode and the KeyPad-Credential (or KP-Credential Mode). Address switch SW1, ( the upper byte

of the address), determines mode selection. If SW1 is set to 0 or 8, the Normal Mode is selected.

If SW1 is set to 4, 5 or 6, (or C, D or E), the KP-Credential Mode is selected.

NORMAL MODE

With address switch SW1 set to 0, the DR4205K operates in its normal mode. Address switch SW2

is then set to the physical Reader/Door address of the DR4205K: 1 through 9 and A through F, (for

DigiReader addresses 1 through 15).

Since there are 16 possible reader addresses, a special provision is made to address the 16th

reader in the normal mode. For the 16th address, set switch SW1 to 8 and switch SW2 to 0.

(With both address switches SW1 and SW2 set to 0, a DigiReader is off-line.)

Table 8: DR4205K Normal Mode Switch Settings, Switches SW1 and SW2

Operation in Normal Mode:

DKR portion only enabled: the credential is sent as a credential, and no PIN is expected.

VIP portion only enabled: the PIN is sent as a PIN, with the number of PIN digits to be

entered set in the SYSTEM command. No credential is expected.

Both DKR and VIP portions enabled: the credential is sent as a credential, the PIN is

sent as a PIN. Both the credential and the PIN are expected (in either order). The number

of PIN digits to be entered is set in the PIN DIGITS entry of the SYSTEM command.

NOTE: Deselecting either the DKR or VIP portion requires powering off and on (or issuing

a RESET command in the terminal mode) to establish the deselected state.

edoMlamroN

sserddAredaeR )eniL-ffO( 123456789 01112131415161

1WS 0 0000000000000008

2WS 0 123456789A BC D E F 0

DigiReader Series

14 P/N 6600025, REV. D

KP-CREDENTIAL MODE

With address switch SW1 set to 4, 5 or 6, the DR4205K operates in its 'KP-Credential' mode. In

the KP-Credential Mode the DigiReader operates in a special manner if only the DKR portion or the

VIP portion of the DigiReader is enabled: see Operation in KP-Credential Mode, below. The number

of digits in the KP-Credential is determined by the 4, 5 or 6 of address switch SW1. Address switch

SW2 determines the physical Reader/Door address of the DR4205K for nodes 1 to 15.

For the physical S-Net addresses 1 through 9, set switch SW1 to the S-Net values and switch SW2

to the number of KP-Credential digits, 4, 5 or 6. For Reader/Door addresses 10 through 15, set

switch SW1 to A through F and switch SW2 to the number of KP-Credential digits 4, 5 or 6.

For the 16th address, for a number of KP-Credential digits equal to 4, 5

or 6, set switch SW1 to C, D or E, respectively, and switch SW2 to 0.

(With both address switches SW1 and SW2 set to 0, a DigiReader is off-line.)

Table 9: DR4205K KP-Credential Mode Switch Settings, Switches SW1 and SW2

Operation in KP-Credential Mode:

NOTE: Enabling only either the DKR or VIP portion, as described below, i.e.deselecting

either the VIP or DKR portion, requires powering off and on (or issuing a RESET

command in the terminal mode) to establish the DKR-only or VIP-only state.

SW1 set to 4, 5, or 6 (or C, D or E): determines the number of KP-Credential digits, 4, 5

or 6, (which must match the number of digits set in the PIN DIGITS entry of the SYSTEM

command).

DKR portion only enabled: a credential presented (or a KP-Credential entered) is sent

as a credential.

VIP portion only enabled: a KP-Credential entered (or a credential presented) is sent as

a PIN.

Both DKR and VIP portions enabled: the operation is the same as for the normal mode.

edoMlaitnederC-PK

sserddAredaeR )eniL-ffO( 123456789 01112131415161

1WS

stigiDNIP4

444444444444444C

stigiDNIP5 555555555555555D

stigiDNIP6 666666666666666E

2WS 0 123456789A BC D E F 0

DigiReader Series

P/N 6600025, REV. D 15

TAMPER SIGNAL (S-NET ONLY)

DR4200 Series DigiReaders send a tamper signal to an S-Net-based Controller each time an

address switch (SW1 or SW2, described above) is changed. (The DR4201, DR4208S, and DR4220

have separate physical tamper switches.)

Table 10: Tamper Switch(es)

S-NET CONNECTIONS

The S-Net is an RS485 serial network for communication between the Controller and node devices.

Typically, the cable used is two twisted pairs with an overall shield; one pair is for data, the other

pair is for DC power. Terminate the last S-Net device with a 120-ohm, ¼ watt resistor or termination

jumper as shown in Figure 5. The maximum S-Net length is 4000 feet (1200 meters).

Figure 5: S-Net Wiring

:ledoMredaeRigiD K0024RD 1024RD 3024RD *5024RD S8024RD 0224RD

:)se(hctiwSrepmaT 1WSaiv 2WSro repmaTaiv 1WSro 1WSaiv 2WSro 1WSaiv 2WSro repmaTaiv hctiwS repmaTaiv hctiwS

MGW5024RDdnaMG5024RD,EW5024RD,W5024RD,K5024RD,5024RD:sledom5024lla*

DigiReader Series

16 P/N 6600025, REV. D

S-Net cable should only be installed in a daisy-chained fashion. WSE strongly recommends

replacing all crimp lug/soldered splices by daisy-chained connections in and out of each device.

(Note that up to two AD4305 NexStar RS485 Multiplexers may be used to simplify wiring and extend

a network.)

Where a pigtail cable is provided with the reader, a splice is required and the installer should, if

possible, keep the splice within 3 feet of the reader, to allow splice inspection at the reader location.

The type of cable used for the S-Net should be separate twisted-pair (data and power). See Table

5, above, for WSE recommended S-Net cables.

WIEGAND CONNECTIONS

Refer to Table 11 for the proper wire size for a particular cable length to use in a DigiReader Wiegand

application. Figure 6, below, illustrates a typical Wiegand connection.

Table 11: Recommended Wiegand Cable Gauge

DLEIHSHTIWELBACDNAGEIWROTCUDNOC-6

eziSeriWmuminiMhtgneLmumixaM

GWA22teeF002

GWA02teeF003

GWA81teeF005

DigiReader Series

P/N 6600025, REV. D 17

Figure 6: Typical Wiegand Connection

MOUNTING LOCATION

Use care when choosing the installation site. To avoid possible external sources of RF interference,

do not locate the unit near motors, pumps, generators, DC-AC converters, AC switching relays, light

dimmers, or any other devices that emit an electronic radar frequency. Do not locate the unit within

10 feet (3 m) of a computer terminal.

For the mounting of the DR4201 reader, see SPECIAL MOUNTING LOCATION: DR4201 READER,

on page 16.

The DR4203, which is designed to be mounted on a metal door mullion, is the only reader that is

specifically designed to be mounted on metal. Metal in the vicinity of any of the other devices can

reduce the read range. In general, as the amount of metal in close proximity to the device increases,

the reliable maximum read range decreases. For optimum operation, ensure that a DigiReader has

a minimum of 6 inches (15 cm) clearance at the rear and surrounding sides, as shown in Figure

7. Never cover the front of the DigiReader with any type of metal.

Use the method appropriate to the mounting surface material; if required, use sealing compound to

maintain water-resistance.

+16 to +28 VDC

Common

Data A (+)

Data B (-)

Shield

NexSentry

Star I, Star II,

4100

Shield

+VDC

DC Return

Data 0

Data 1

LED 0

LED 1

Universal

Wiegand

Interface

Unit

(UWIU)

DR4205K

Third Party

Wiegand

Device

Return

tied to ground

(Shield)

DigiReader Series

18 P/N 6600025, REV. D

Figure 7: Mounting (DR4205 and DR4208S) For Optimum Read Range With Metal In The Vicinity

SPECIAL MOUNTING LOCATION: DR4201 READER

The DR 4201 reader is designed to be mounted in a single-gang wiring box, (European or US), as

shown in figures 8 and 9, below, although it can be otherwise mounted. (Especially when mounted

outdoors, we recommend using a caulking compound around the edges of the unit after mounting.)

Figure 8: European and US Gang Box Mounting Holes Indicated

European

Mounting Holes

US Mounting

Holes

DigiReader Series

P/N 6600025, REV. D 19

Figure 9: DR4201 Mounting Holes Indicated

Figure 10: DR4201 Mounting Template

(To Scale: .pdf file only)

Mounting Holes for

US Gang Boxes

Mounting Holes for

European Gang Boxes

Snap Fasteners x 4

CAUTIONARY NOTE:

Since the .pdf format slightly

shrinks all images, the original

.p65 image has been expanded so

that this .pdf image IS to scale.

(The distances between hole centers

are provided as an added safeguard.)

Hole A

Hole B

Hole C Hole D

A to B = 3.25 in. = 8.25 cm.

C to D = 2.36 in. = 6.00 cm.

DigiReader Series

20 P/N 6600025, REV. D

TESTING THE DIGIREADER LOCATION

If you suspect the presence of RF interference at a location where you plan to install a DigiReader,

you should check the site prior to mounting the DigiReader unit. The presence of RF interference

may affect a DigiReader in two different ways:

• If RF interference is present, the DigiReader unit may exhibit false reads (or 'ghost' reads),

i.e., the unit may beep and the LED illuminate, with no access credential present.

• Alternatively, with RF interference present, the DigiReader unit may read an access

credential inaccurately, slowly, or even may be prevented from reading the credential.

The following procedures will make it easier for you to identify a suitable location and to position the

DigiReader to minimize any RF interference:

1. The DigiReader models DR4200, DR4203, and DR4205 (all models) have two address switches,

SW1 and SW2. Set the switches on the DR4203 and DR4205 to FF for the test mode. The

DigiReader models DR4201, DR4208S, and DR4220 have a five-position dip-switch for the

address. Set all five dip-switch positions to ON for the test mode. Then perform the following

steps:

• Connect only the S-Net wires which provide power, (DC positive power and the DC return,

and the grounding shield), between the DigiReader and the controller.

• Hold the DigiReader against the installation surface.

• Verify that there are no cards or other credentials in the area capable of being detected

by the reader. (A credential in your pocket, or somewhere-else where it can be detected,

could be the source of any beeping, so you must be sure this is not the case.)

• If you are sure no credentials are present and the reader beeps, then there is RF

interference present, causing the beeping. (The number of beeps is an indication of the

degree of noisiness: more beeping indicates a more noisy environment than less beeping.)

• Keep testing locations until you find one where no false or 'ghost' reads occur.

2. With no false or 'ghost' reads occurring, and with the reader still in test mode, present a

credential to the reader . The reader should now beep, indicating that the card has been read.

(If the reader does not beep when the card is presented, there may be a source of RF present

blocking the reading of the card. In this case also, keep trying new locations,)

• With the credential reading correctly, verify the read time and the maximum read distance.

Using the charts on pages 2 and 3 (Tables 1 and 1A), you can determine the reader’s

capability with your chosen credential type(s). This same performance is what you would

expect once the system is completely installed.

3. When a suitably quiet location has been identified, (relatively free from RF noise), connect the

DATA A and DATA B wires between the DigiReader and the Access Control Unit.

• Set switches SW1 and SW2, for the DR4203 and DR4205 models (or, for the DR4201, the

DR4208S,or the DR4220, the 5-position dip-switch) to the correct address. With the

DigiReader Series

P/N 6600025, REV. D 21

GENERAL INSTALLATION

See the procedures for the reader model and installation type below for additional instructions.

CABLE PREPARATION:

1. Route the data and power cable to the DigiReader location and prepare the cable for attachment

to the DigiReader.

2. Remove two inches of the plastic jacket and the shielding foil from the cable.

3. Strip each wire back 1/4" for connecting to the DigiReader.

DR4200K, DR4203, DR4205 SERIES, DR4208S, AND DR4220 INSTALLATION:

1. The S-Net cable on the DigiReader may be routed from the back, bottom or the side of the

DigiReader. The reader is pre-configured for cable installation through the back mounting plate.

Note: S-Net cable is routed directly through the back on the DR4203, DR4208S, and DR4220,

and, from the back, on the side on the DR4205GM DigiReader only. (See Figures 11 and 16,

below), and on the back, through the gap made by removing the plastic notch on the DR4200K,

DR4205, DR4205E, and DR4205K DigiReaders.

2. For the DR4200K, DR4205, DR4205E, and DR4205K DigiReaders, remove the plastic notch

from the bottom of the cover. A rattail file may be used to enlarge the opening (Figure 11).

3. The DR4208S DigiReader cable is designed to be routed in two ways. The unit comes from

the factory with the cable, secured by a 'SW-NE' strap, routed through the hole in the middle

of the upper left quadrant (looking at the back of the unit). Alternately you can re-route the cable

through the bottom notch, (removed as in paragraph 2, above) by opening the case, carefully

removing the PCB (four screws), snipping the 'SW-NE' strap, securing the cable with a 'W-E'

strap, (via the holes provided for this purpose in the PCB), and re-assembling the unit.

controller now physically connected to the S-Net, and the address switch(es) set, set up

the controller to read credentials.

• Present a valid credential to the unit.

• Verify that the credential can be read from the expected distance.

4The read-range on the DigiReader should now be optimal, but,

• If trouble persists, verify the S-Net wiring and grounding, and / or

• Repeat steps 1, 2, 3, as necessary, to assure the best (most optimal) installed location.

DigiReader Series

22 P/N 6600025, REV. D

• Connect the DigiReader interface cable to the controller wiring run according to Table 4. If the

DigiReader is the last S-Net device on the S-Net cable run, install the termination jumper as

directed on page 7, 120 OHM TERMINATION JUMPER (INTERNAL/EXTERNAL), (Table 3).

• Set the address switch, as required.

and as an alternative for the DR4208S,

open the notch for routing the cable

through the bottom of the DigiReader

The DR4203

cable is routed

through the

back only

For the DR4200K

W-E

strap

Strapping holes

on DR4208S

SW-NE strap

and the DR4205 and

DR4220 DigiReaders,

Drill a 1/4" diameter

hole in the appropri-

ate side of the facia

for the DR4205GM

only (See Figure 15,

for the location)

Figure 11: Cable Routing Configurations

DigiReader Series

P/N 6600025, REV. D 23

DR4203

DR4205 Series and DR4208S

Figure 12: Securing The DR4203, DR4205 Series, DR4208S, and DR4220 Covers

WALL MOUNTING WITH SCREWS

DR4203, DR4205 SERIES, DR4208S, AND DR4220

• Mount the reader base to the wall. Use the WSE-supplied, 1 1/4" Flathead, #6-32 thread or

other means appropriate to the wall composition.

• Put the DigiReader cover in place and secure the cover with the supplied screw(s) from the

bottom.

DR4220

DigiReader Series

24 P/N 6600025, REV. D

WINDOW MOUNTING THE GLASS-MOUNTED UNITS

This type of mounting is necessary for DR4205GM units.

1. Clean the window with glass cleaner or isopropyl alcohol and dry thoroughly.

2. Spray or wipe the window with slightly soapy water.

3. While the window is still wet, peel off the paper backing of the decal and press against the wet

section of the window and move around to release any air bubbles to assure maximum contact

with the window. Wipe dry any extra water coming out from the sides. See Figure 15.

4. Once the reader and decal are in place, it may be necessary to temporarily tape the reader to

the window while the adhesive sets. It should take approximately 10 minutes.

Figure 13: DR4205GM: Placement of Decal and Reader onto Glass

Decal (facing out)

Back Panel of DR4205GM

Reader

Light Pipe

(Aligns with the

LED in the Facia)

Wet Surface

Window Pane

Tape

Temporarily

DigiReader Series

P/N 6600025, REV. D 25

5. While the adhesive is setting, follow the general installation instructions on routing the cable

through the side channel and addressing the unit. After determining on which side the cable will

be routed through, drill a hole in that side of the front facia to match the pre-drilled slots in the

back panel of the reader.

Note: Reference page 20 for cabling instructions. Also see Figure 16 below.

6. Secure the cover as shown in Figure 13.

Figure 14: DR4205GM: Routing the Cable and Attaching the Facia

7. After the reader is securely set to the window, remove any masking tape used and clean the

window surrounding the reader.

DR4205GM

Reader Facia

S-Net Cable

Drill Hole to

Match Slot

Window

Pane

4.72" (12 cm.)

0.40" (1 cm.)

0.25" (0.63 cm.)

diameter

DigiReader Series

26 P/N 6600025, REV. D

gnitoohselbuorT

noitacinummocdna,srorrenoitacinummoc,rewop:seirogetaceerhtotnillafsdohtemgnitoohselbuortdleiF snoitcadetseggussedivorpdnasnoitidnocesehtfosmotpmysnommoctsomehtstsilwolebelbatehT.seruliaf .melborpehtydemerdnayfitnediot

motpmySnoitcAgnitoohselbuorT

nitiltonDEL edomydaer rewopkcehC

ylppusrewopkcehC

rotcennocxineohPkcehC

sesufkcehC

sCIdetekcoskcehC

eruliaFmmoC

edomydaernitilDELkcehCevobaees,tonfI

teN-SkcehC snoitcennocelbackcehC

gnidnuorgylppusrewopkcehC

daeRoN daeRwolS egnaRdaeRtrohS )srorrEmmoC(

sMORPEkcehC

teN-SkcehC

noitanimrettcerrocyfireV

?ratSxeNdeen-htgnelkrowteN

sgnidnuorgnommocyfireV

snoitcennocdleihskcehC

*dnammocENUTmrofreP

)sdaertsohG(sdaer-siMT:evobanoitcesehteeS ESTING THE DIGIREADER LOCATION

:woleb,dnammocENUTfonoissucsideeS*

TUNE Command (for the NexSentry Star and 4100-Series controllers)

YOUR COMMAND? TUNE

DOOR (1-16) ? 1 (door with a DKR reader)

1. DIGITAL KEY READER RANGE (0-255): 253 ? (power control)

2. SEND TO ACU ONCE (Y/N): Y ? (no. of times the DKR sends key to ACU)

3. NUMBER OF VERIFICATION KEY READS (0-255): 0 ?(no, of retries, for high RF environment)

4. VERIFICATION TIME WINDOWS (0000-FFFF): 20 ? (hex 20 = decimal 32)

5. BEEPER BEHAVIOR WITH A VALID KEY

ON DURATION (0000-FFFF): A ? (hex A = decimal 10)

OFF DURATION (0000-FFFF): A ?

ON-OFF TOOTAL DURATION (0000-FFFF): 14 ? (hex 14 = decimal 20)

NOTE: DR4201, DR4208S, and DR4220 readers use only question 5, for the beeper.

DigiReader Series

P/N 6600025, REV. D 27

CONTACTING WSE TECHNICAL SERVICE

Telephone:

United States:

1-800-227-1667 (voice: toll free)

1-510-360-7996 (voice)

6:00am —to— 6:00pm

(Pacific Time Zone = GMT - 8 hours)

Monday through Friday

1-510-360-7823 (fax)

Europe (Germany):

+49 (0) 70 31 637 782 (voice)

8:30am —to— 12:00noon & 1:00pm —to— 4:15pm

(Central European Time Zone = GMT + 1 hour)

Monday through Friday

+49 (0) 70 31 637 769 (fax)

NOTE: The German telephone numbers should be used for

technical service for the whole of Europe.

The United States telephone numbers should be used for

technical service for the rest of the world.

E-mail:

wsehelp@wse.com

Web Site:

http://www.wse.com

DigiReader Series

28 P/N 6600025, REV. D

This Page Intentionally Left Blank

DigiReader Series

P/N 6600025, REV. D 29

Name of Manual: DigiReader Series: Installation and Operation Manual

Part Number: P/N 6600025 Revision: D

Organization: ________________________________________________________________

________________________________________________________________

Address: ________________________________________________________________

________________________________________________________________

OtherEquipment Ordered

With Your

DigiReader(s):

Evaluation of Manual:

POOR FAIR ADEQUATE GOOD EXCELLENT

Organization: 12345NA

Content: 12345NA

Style: 12345NA

Thoroughness: 12345NA

Clarity (Words): 12345NA

Clarity (Figures): 12345NA

Clarity (Tables): 12345NA

Were you able / was your integrator able to set

up your DigiReader(s) by using this manual? Y N NA

and/or Did you have to call Customer Service for help on one

or more issues? Y N NA

What additional aid(s) did you use to bring up your equipment?

________________________________________________________________

Other Comments

(Positive): ________________________________________________________________

________________________________________________________________

Other Comments

(Negative): ________________________________________________________________

________________________________________________________________

Please tear off this sheet, fill it out, and return it within 3 months of system installation.

DigiReader Series

30 P/N 6600025, REV. D

Honeywell orporated DR4220 Proximity Reader User Manual Frontmtr

Honeywell International Incorporated Proximity Reader Frontmtr

Contents

Manual

Navigation menu

Namespaces

Views

Navigation
