User Manual E

OneWireless

XYR 6000 HLAI Transmitter

User's Manual

34-XY-25-17

Revision 3

6/10/08

ii OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Notices and Trademarks

Revision 3 June 24, 2008

While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied

warranties of merchantability and fitness for a particular purpose and makes no express warranties except as may

be stated in its written agreement with and for its customers.

In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information and

specifications in this document are subject to change without notice.

Honeywell, PlantScape, Experion PKS, and TotalPlant are registered trademarks of Honeywell International Inc.

Other brand or product names are trademarks of their respective owners.

Honeywell International

Process Solutions

2500 West Union Hills

Phoenix, AZ 85027

1-800 343-0228

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual iii

6/24/08

About This Document

This document describes preparation, operation and maintenance of the XYR 6000 Wireless HLAI Transmitters.

Mounting, installation and wiring are covered in other documents.

Honeywell does not recommend using devices for critical control where there is a single point of failure or where

single points of failure result in unsafe conditions. OneWireless is targeted at open loop control, supervisory

control, and controls that do not have environmental or safety consequences. As with any process control solution,

the end-user must weigh the risks and benefits to determine if the products used are the right match for the

application based on security, safety, and performance. Additionally, it is up to the end-user to ensure that the

control strategy sheds to a safe operating condition if any crucial segment of the control solution fails.

Revision Information

Document Name Document ID Revision

Number Publication

Date

XYR 6000 HLAI Transmitter User's Manual 34-XY-25-17 1 6/7/07

2 8/7/07

3 6/24/08

References

The following list identifies all documents that may be sources of reference for material discussed in this

publication.

Document Title

XYR 6000 Transmitters Quick Start Guide

Getting Started with Honeywell OneWireless Solutions

OneWireless Wireless Builder User’s Guide

OneWireless Builder Parameter Reference

Support and contact info

United States and Canada

Contact: Honeywell Solution Support Center

Phone: 1-800 822-7673. In Arizona: 602- 313-5558

Calls are answered by dispatcher between 6:00 am and 4:00 pm Mountain Standard Time.

Emergency calls outside normal working hours are received by an answering service and

returned within one hour.

Facsimile: (602) 313-3293

Mail: Honeywell TAC, MS P13

2500 West Union Hills Drive

Phoenix, AZ, 85027

iv OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Europe

Contact: Honeywell TAC-EMEA

Phone: +32-2-728-2732

Facsimile: +32-2-728-2696

Mail: TAC-BE02

Hermes Plaza

Hermeslaan, 1H

B-1831 Diegem, Belgium

Pacific

Contact: Honeywell Global TAC – Pacific

Phone: 1300-300-4822 (toll free within Australia)

+61-8-9362-9559 (outside Australia)

Facsimile: +61-8-9362-9564

Mail: Honeywell Limited Australia

5 Kitchener Way

Burswood 6100, Western Australia

Email: GTAC@honeywell.com

India

Contact: Honeywell Global TAC – India

Phone: +91-20- 6603-9400

Facsimile: +91-20- 6603-9800

Mail: Honeywell Automation India Ltd.

56 and 57, Hadapsar Industrial Estate

Hadapsar, Pune –411 013, India

Email: Global-TAC-India@honeywell.com

Korea

Contact: Honeywell Global TAC – Korea

Phone: +82-2-799-6317

+82-11-9227-6324

Facsimile: +82-2-792-9015

Mail: Honeywell Co., Ltd

17F, Kikje Center B/D,

191, Hangangro-2Ga

Yongsan-gu, Seoul, 140-702, Korea

Email: Global-TAC-Korea@honeywell.com

People’s Republic of China

Contact: Honeywell Global TAC – China

Phone: +86- 21-5257-4568

Mail: Honeywell (China) Co., Ltd

33/F, Tower A, City Center, 100 Zunyi Rd.

Shanghai 200051, People’s Republic of China

Email: Global-TAC-China@honeywell.com

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual v

6/24/08

Singapore

Contact: Honeywell Global TAC – South East Asia

Phone: +65-6580-3500

Facsimile: +65-6580-3501

+65-6445-3033

Mail: Honeywell Private Limited

Honeywell Building

17, Changi Business Park Central 1

Singapore 486073

Email: GTAC-SEA@honeywell.com

Taiwan

Contact: Honeywell Global TAC – Taiwan

Phone: +886- 7- 536-2567

Facsimile: +886-7-536-2039

Mail: Honeywell Taiwan Ltd.

17F-1, No. 260, Jhongshan 2nd Road.

Cianjhen District

Kaohsiung, Taiwan, ROC

Email: Global-TAC-Taiwan@honeywell.com

Japan

Contact: Honeywell Global TAC – Japan

Phone: +81-3-6730-7160

Facsimile: +81-3-6730-7228

Mail: Honeywell Japan Inc.

New Pier Takeshiba, South Tower Building,

20th Floor, 1-16-1 Kaigan, Minato-ku,

Tokyo 105-0022, Japan

Email: Global-TAC-JapanJA25@honeywell.com

World Wide Web

Honeywell Solution Support Online:

http://www.honeywell.com/ps

Elsewhere

Call your nearest Honeywell office.

Training Classes

Honeywell Automation College:

http://www.automationcollege.com

vi OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Symbol Definitions

The following table lists those symbols used in this document to denote certain conditions.

Symbol Definition

ATTENTION: Identifies information that requires special consideration.

TIP: Identifies advice or hints for the user, often in terms of performing a task.

CAUTION

Indicates a situation which, if not avoided, may result in equipment or work (data) on

the system being damaged or lost, or may result in the inability to properly operate

the process.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury. It may also be used to alert against unsafe

practices.

CAUTION symbol on the equipment refers the user to the product manual for

additional information. The symbol appears next to required information in the

manual.

WARNING: Indicates a potentially hazardous situation, which, if not avoided, could

result in serious injury or death.

WARNING symbol on the equipment refers the user to the product manual for

additional information. The symbol appears next to required information in the

manual.

WARNING, Risk of electrical shock: Potential shock hazard where HAZARDOUS

LIVE voltages greater than 30 Vrms, 42.4 Vpeak, or 60 VDC may be accessible.

ESD HAZARD: Danger of an electro-static discharge to which equipment may be

sensitive. Observe precautions for handling electrostatic sensitive devices.

Protective Earth (PE) terminal: Provided for connection of the protective earth

(green or green/yellow) supply system conductor.

Functional earth terminal: Used for non-safety purposes such as noise immunity

improvement. NOTE: This connection shall be bonded to Protective Earth at the

source of supply in accordance with national local electrical code requirements.

Earth Ground: Functional earth connection. NOTE: This connection shall be

bonded to Protective Earth at the source of supply in accordance with national and

local electrical code requirements.

Chassis Ground: Identifies a connection to the chassis or frame of the equipment

shall be bonded to Protective Earth at the source of supply in accordance with

national and local electrical code requirements.

continued

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual vii

6/24/08

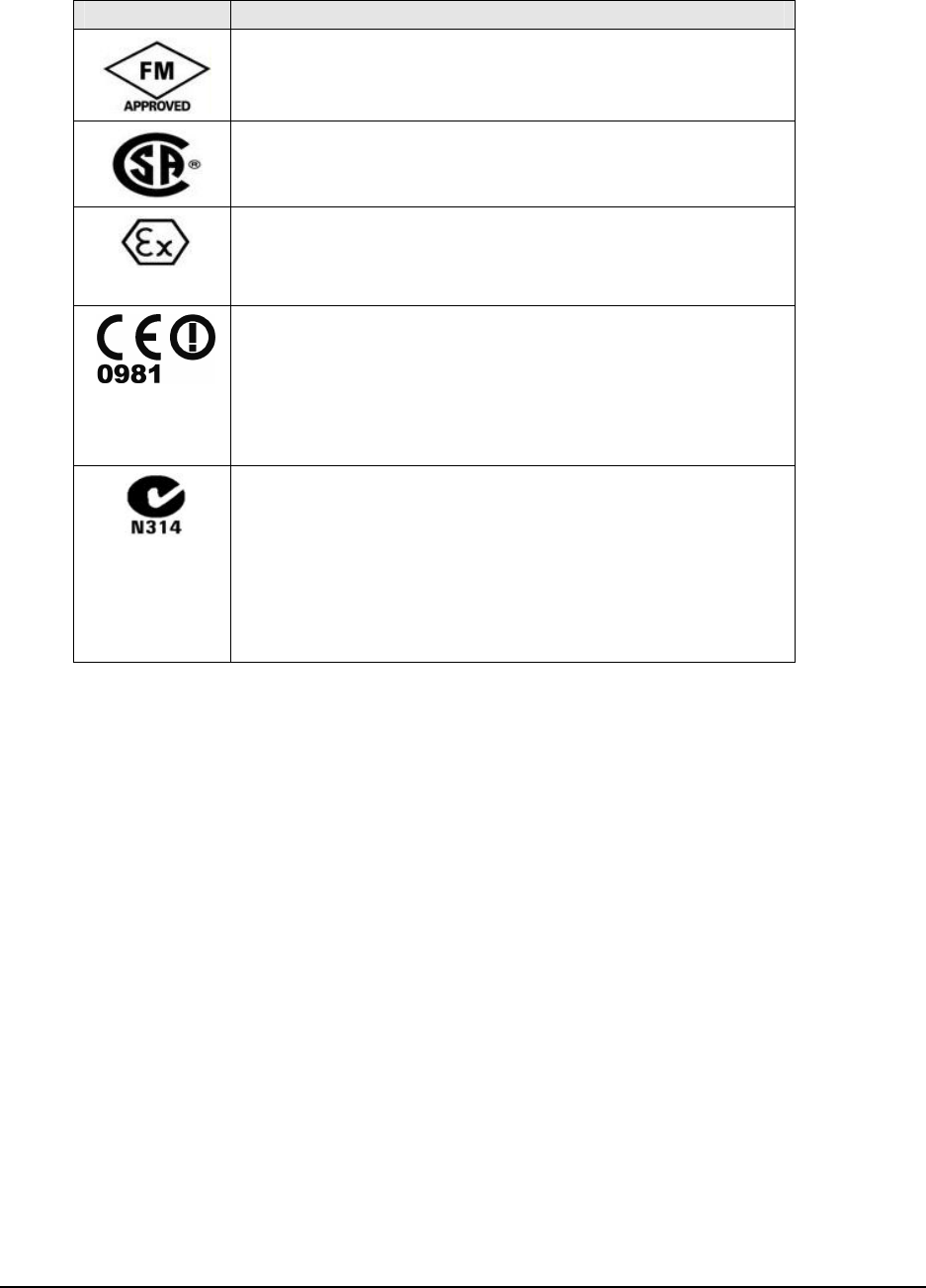

Symbol Description

The Factory Mutual® Approval mark means the equipment has

been rigorously tested and certified to be reliable.

The Canadian Standards mark means the equipment has been

tested and meets applicable standards for safety and/or

performance.

The Ex mark means the equipment complies with the requirements

of the European standards that are harmonised with the 94/9/EC

Directive (ATEX Directive, named after the French "ATmosphere

EXplosible").

For radio equipment used in the European Union in accordance

with the R&TTE Directive the CE Mark and the notified body (NB)

identification number is used when the NB is involved in the

conformity assessment procedure. The alert sign must be used

when a restriction on use (output power limit by a country at certain

frequencies) applies to the equipment and must follow the CE

marking.

The C-Tick mark is a certification trade mark registered to ACMA

(Australian Communications and Media Authority) in Australia under

the Trade Marks Act 1995 and to RSM in New Zealand under

section 47 of the NZ Trade Marks Act. The mark is only to be used

in accordance with conditions laid down by ACMA and RSM. This

mark is equal to the CE Mark used in the European Union.

N314 directly under the logo is Honeywell’s unique supplier

identification number.

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual ix

6/24/08

Contents

1. INTRODUCTION....................................................................................................1

1.1 Purpose..........................................................................................................................................1

1.2 Scope..............................................................................................................................................1

1.3 OneWireless network overview ...................................................................................................1

1.4 About the transmitter....................................................................................................................1

Input .......................................................................................................................................................................1

2. SPECIFICATIONS .................................................................................................3

2.1 European Union Usage.................................................................................................................3

Certifications and approvals...................................................................................................................4

Transmitter .............................................................................................................................................................4

Authentication Device.............................................................................................................................................5

3. PREPARATION ...................................................................................................11

3.1 Installation ...................................................................................................................................11

3.2 Configuration...............................................................................................................................11

3.3 Connecting to network ...............................................................................................................11

3.4 Calibrating the transmitter .........................................................................................................11

Methods................................................................................................................................................................11

Wireless Builder....................................................................................................................................................11

4. FUNCTION BLOCKS...........................................................................................15

4.1 Introduction .................................................................................................................................15

4.2 Block description ........................................................................................................................15

Block types ...........................................................................................................................................................15

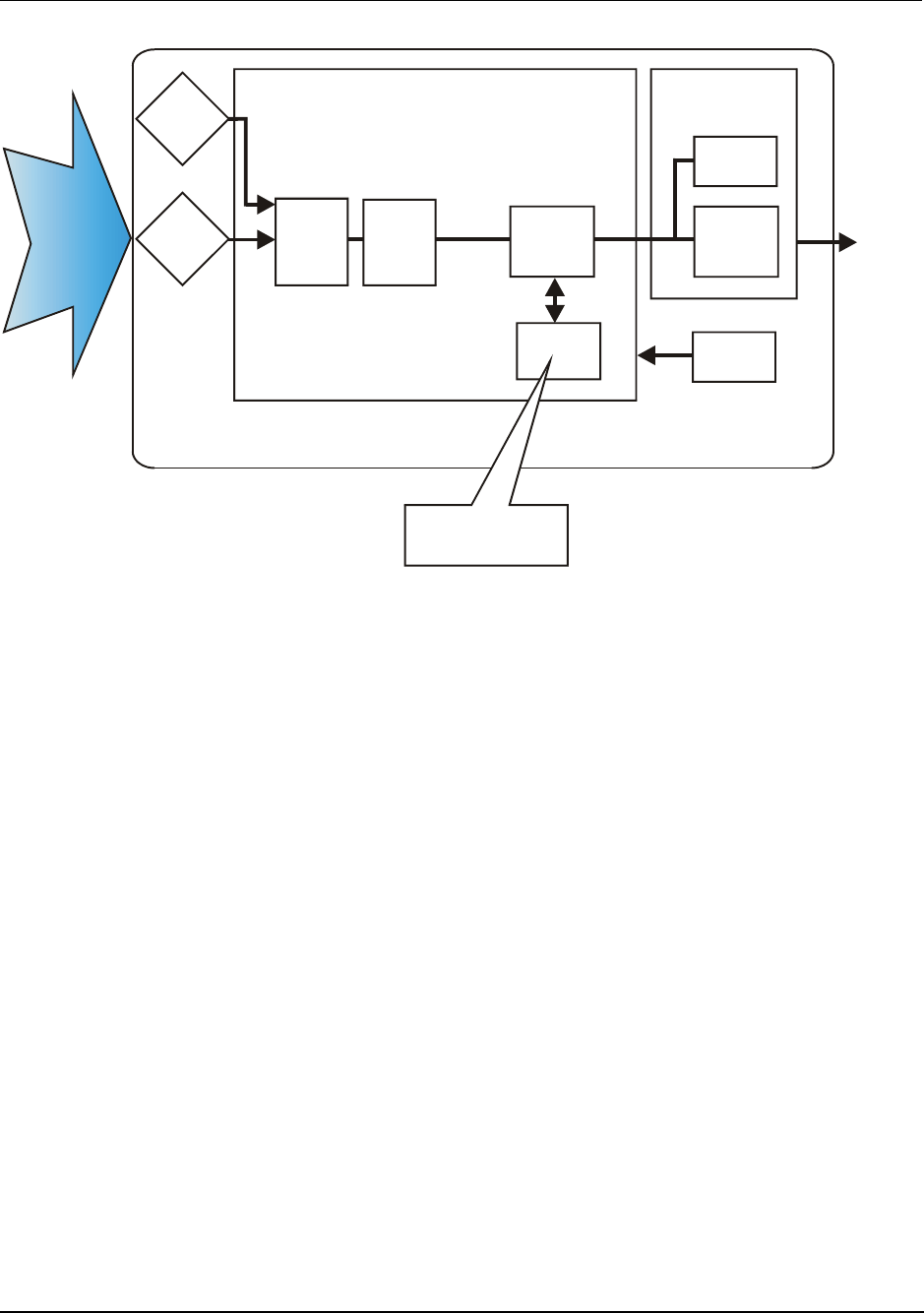

Block diagram.......................................................................................................................................................15

4.3 Parameter details ........................................................................................................................16

5. OPERATION ........................................................................................................17

5.1 Overview ......................................................................................................................................17

Display modes......................................................................................................................................................17

Authentication Device...........................................................................................................................................17

5.2 Transmitter connection status...................................................................................................18

5.3 Transmitter PV display ...............................................................................................................19

5.4 Transmitter quick view of parameters ......................................................................................22

5.5 Transmitter menu........................................................................................................................23

Menu tree .............................................................................................................................................................23

Contents

x OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

5.6 Authentication device menus ....................................................................................................24

Overview..............................................................................................................................................................24

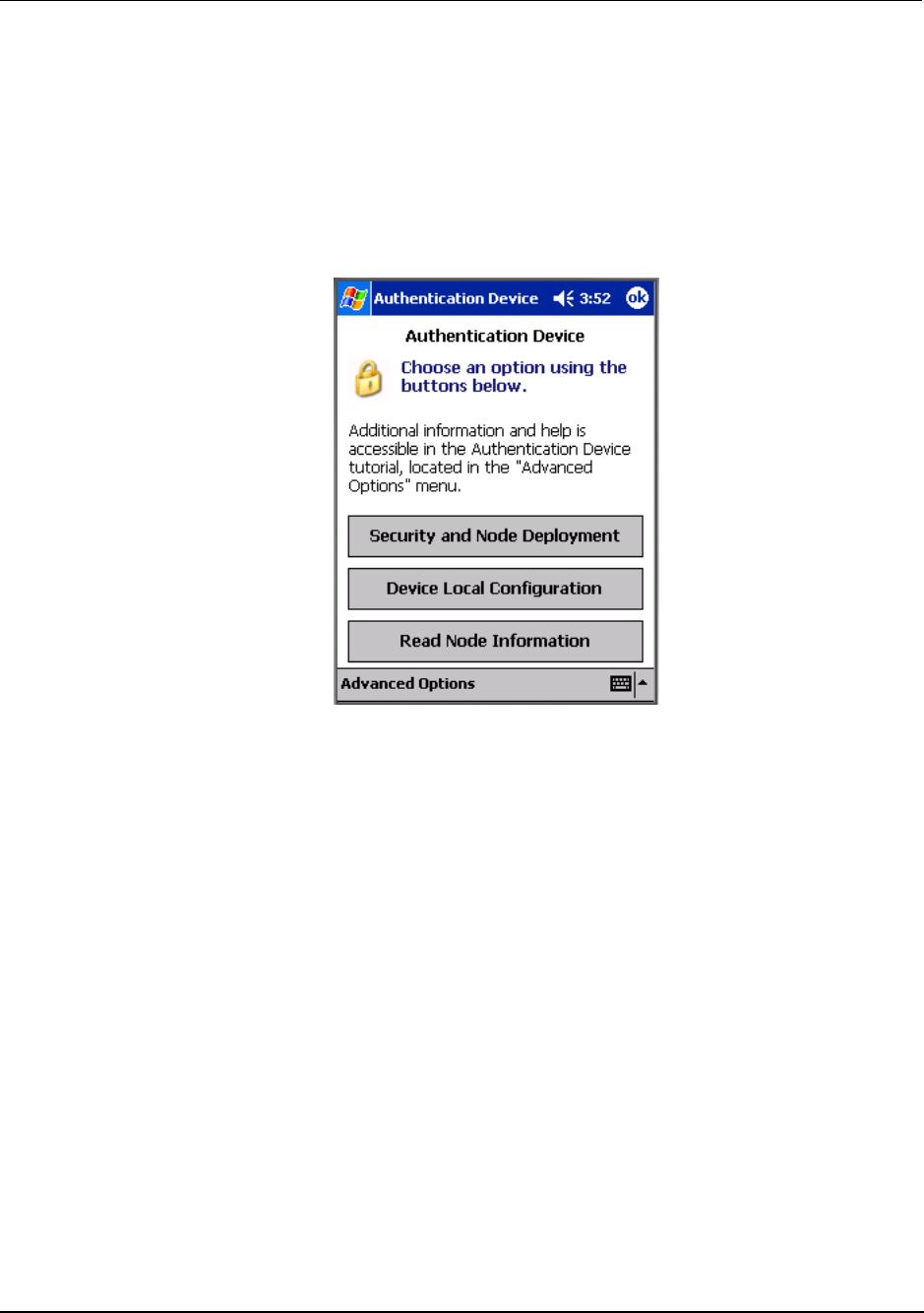

Main menu ...........................................................................................................................................................24

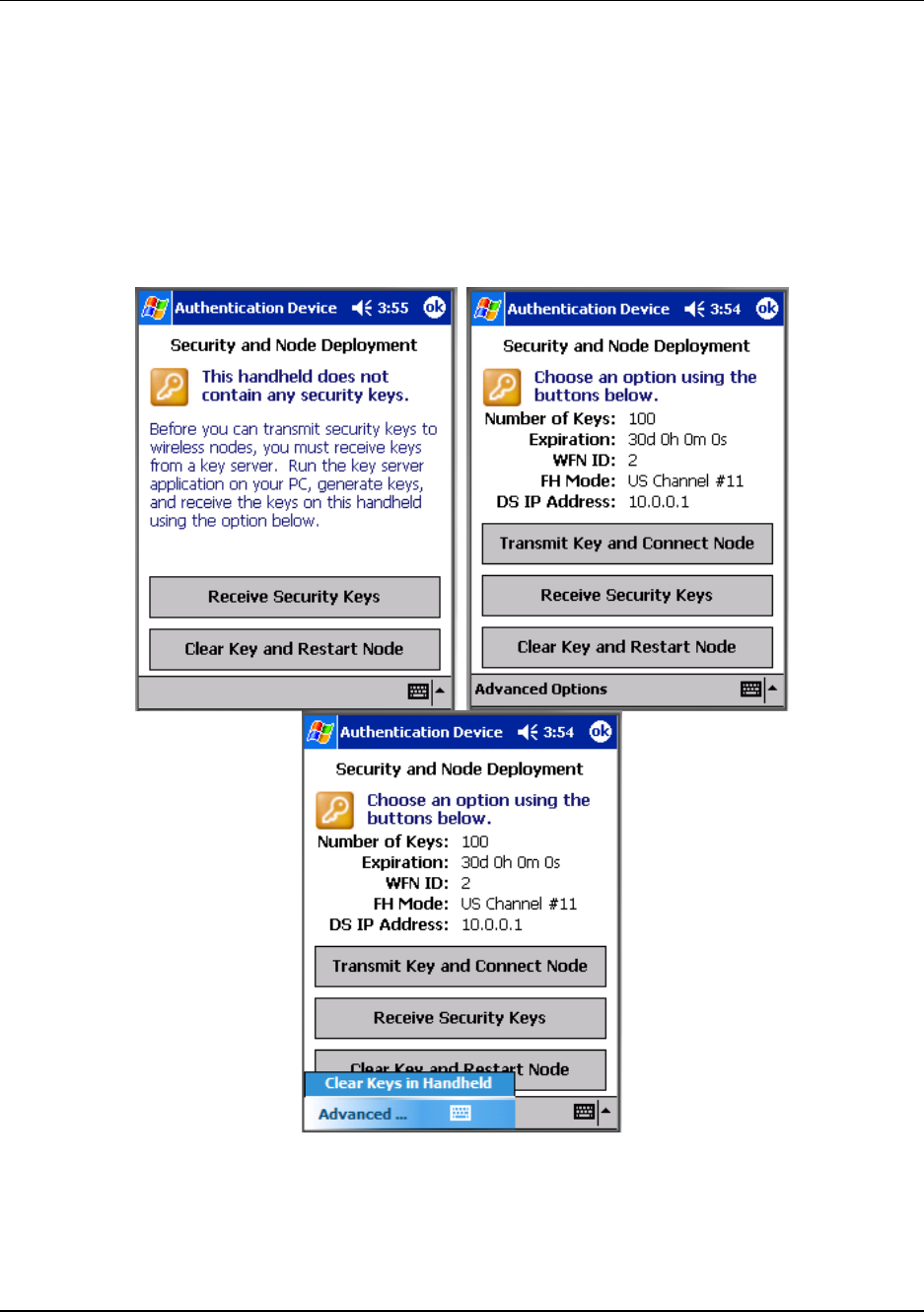

Security and Node Deployment ........................................................................................................................... 25

Device Local Configuration ..................................................................................................................................27

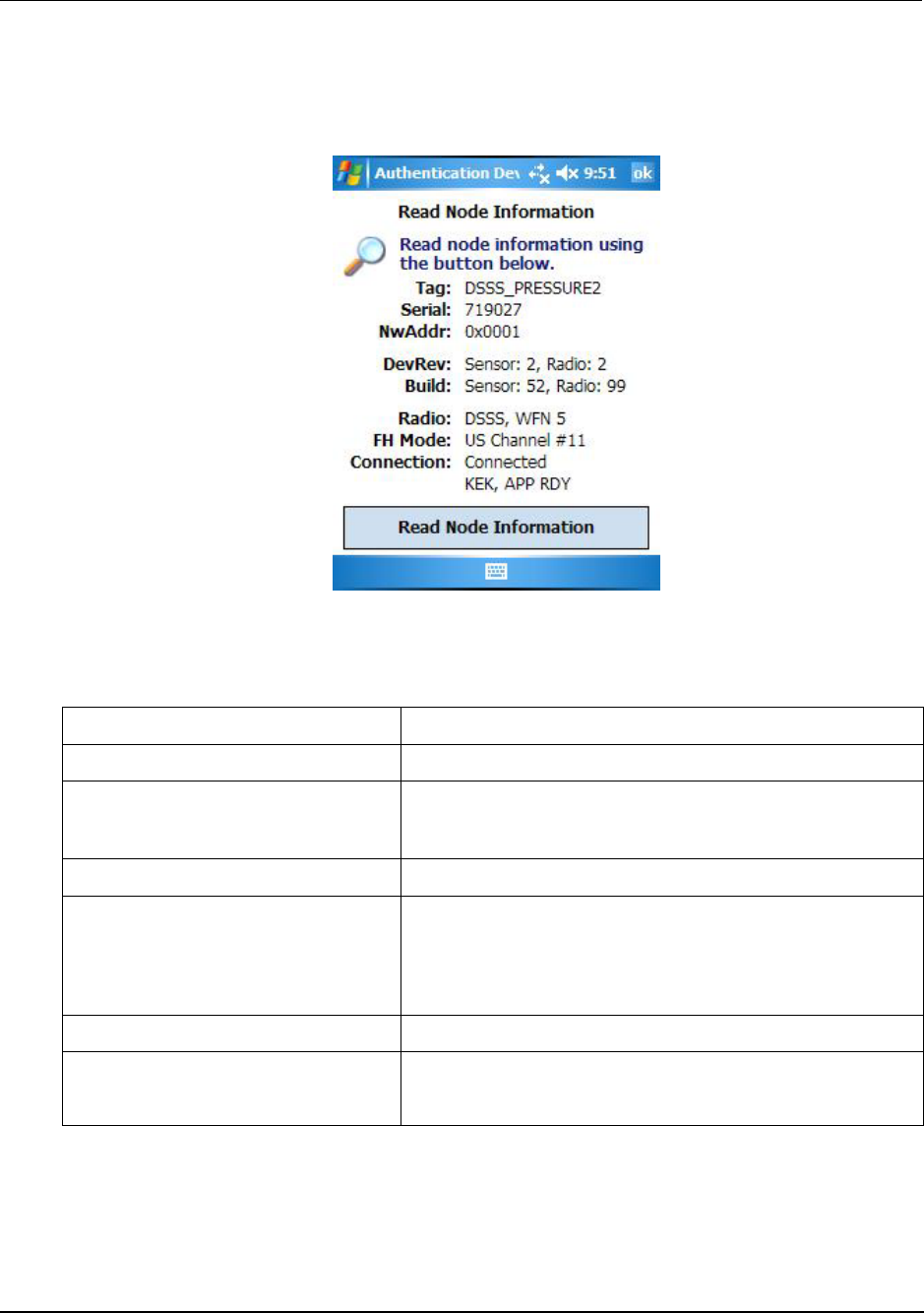

Read Node Information........................................................................................................................................28

Advanced Options................................................................................................................................................30

6. MAINTENANCE/REPAIR .................................................................................... 31

6.1 Parts .............................................................................................................................................31

Replacing sensor module .....................................................................................................................32

Tools required ......................................................................................................................................................32

Procedure ............................................................................................................................................................32

6.2 Replacing batteries .....................................................................................................................34

When to replace...................................................................................................................................................34

Tools required ......................................................................................................................................................34

Procedure ............................................................................................................................................................34

6.3 Replacing antenna ......................................................................................................................36

Tools required ......................................................................................................................................................36

Procedure ............................................................................................................................................................36

6.4 Parts .............................................................................................................................................38

Contents

Tables

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual xi

6/24/08

Tables

Table 1 User calibration...............................................................................................................................12

Table 2 Calibration error messages ............................................................................................................13

Table 3 Restore calibration..........................................................................................................................14

Table 4 Clear calibration..............................................................................................................................14

Table 5 Transmitter connection status ........................................................................................................18

Table 6 PV engineering units ......................................................................................................................19

Table 7 PV status ........................................................................................................................................20

Table 8 Device status ..................................................................................................................................20

Table 9 Menu tree........................................................................................................................................23

Table 10 Buttons for Device Local Configuration ........................................................................................27

Table 11 Advanced Options ........................................................................................................................30

Table 12 Sensor module replacement.........................................................................................................32

Table 13 Battery replacement procedure ....................................................................................................34

Table 14 Antenna replacement procedure ..................................................................................................37

Contents

Figures

xii OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Figures

Figure 1 XYR 6000 Functional Diagram.......................................................................................................2

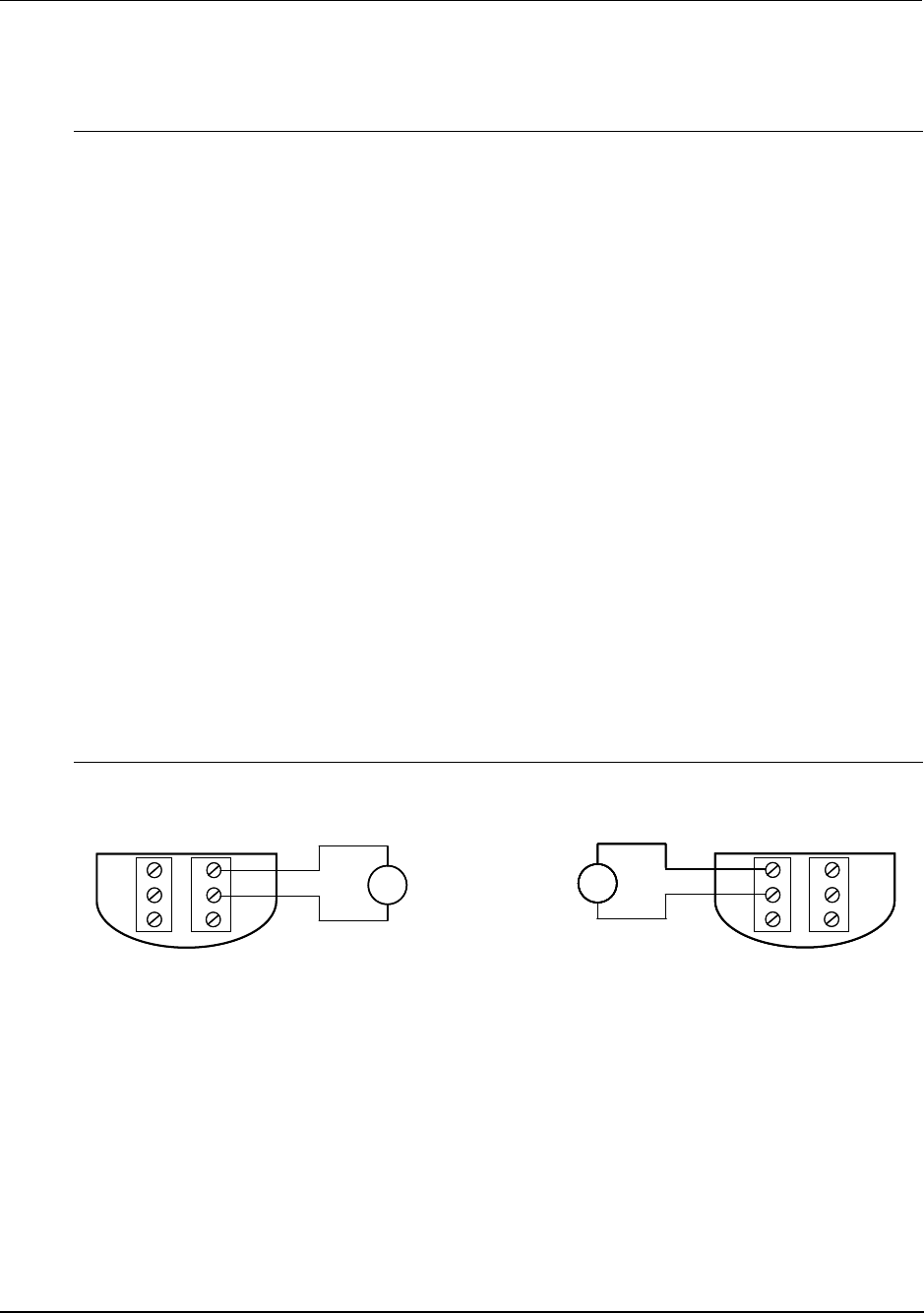

Figure 2 Calibration wiring: voltage (left), current (right) .............................................................................12

Figure 3 Block Diagram ...............................................................................................................................15

Figure 4 Main menu.....................................................................................................................................24

Figure 5 Security and Device Deployment ..................................................................................................25

Figure 6 Device Local Configuration screen................................................................................................27

Figure 7 Read Node Information .................................................................................................................28

Figure 8 Advanced Options .........................................................................................................................30

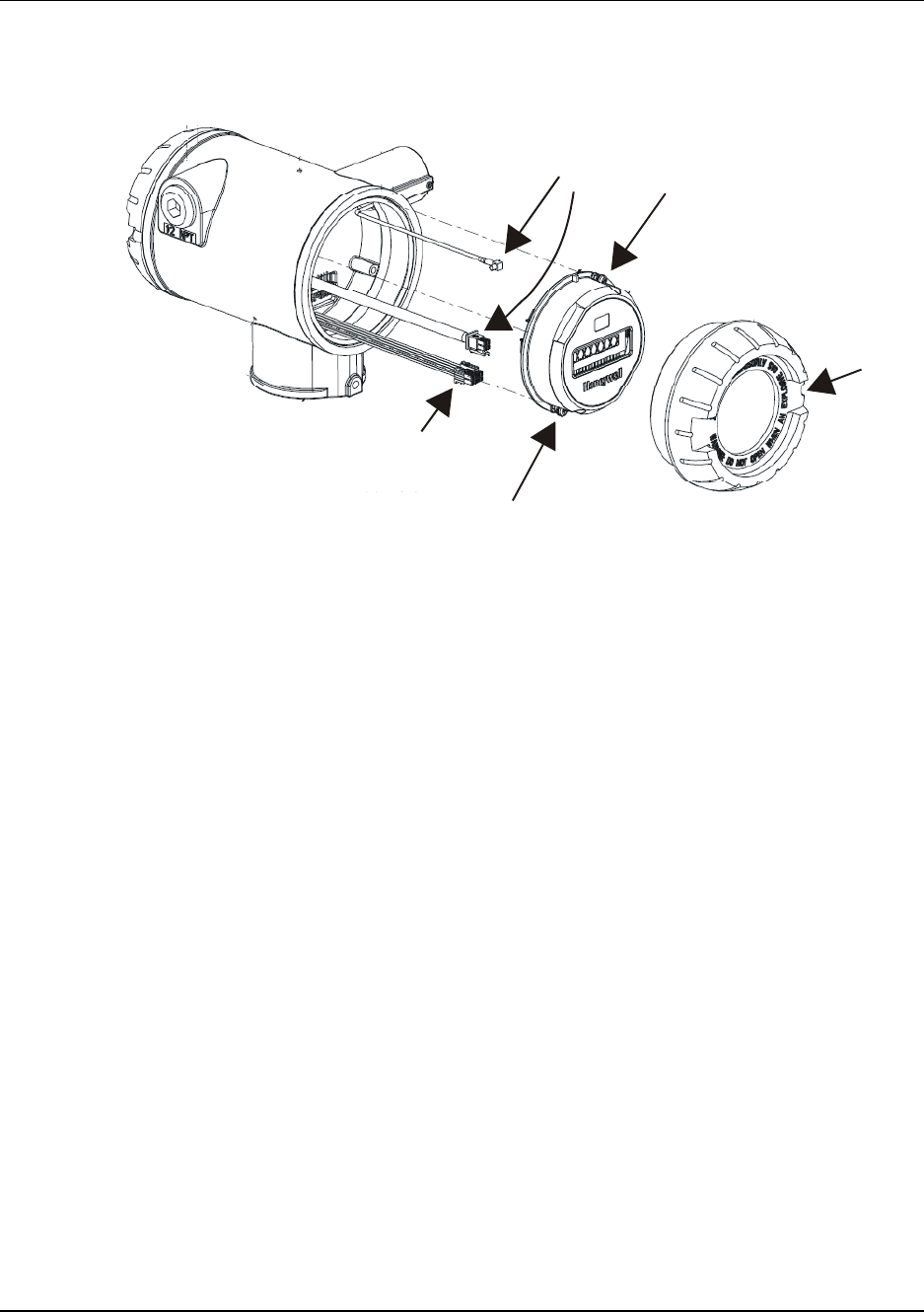

Figure 9 Sensor module removal and replacement ....................................................................................33

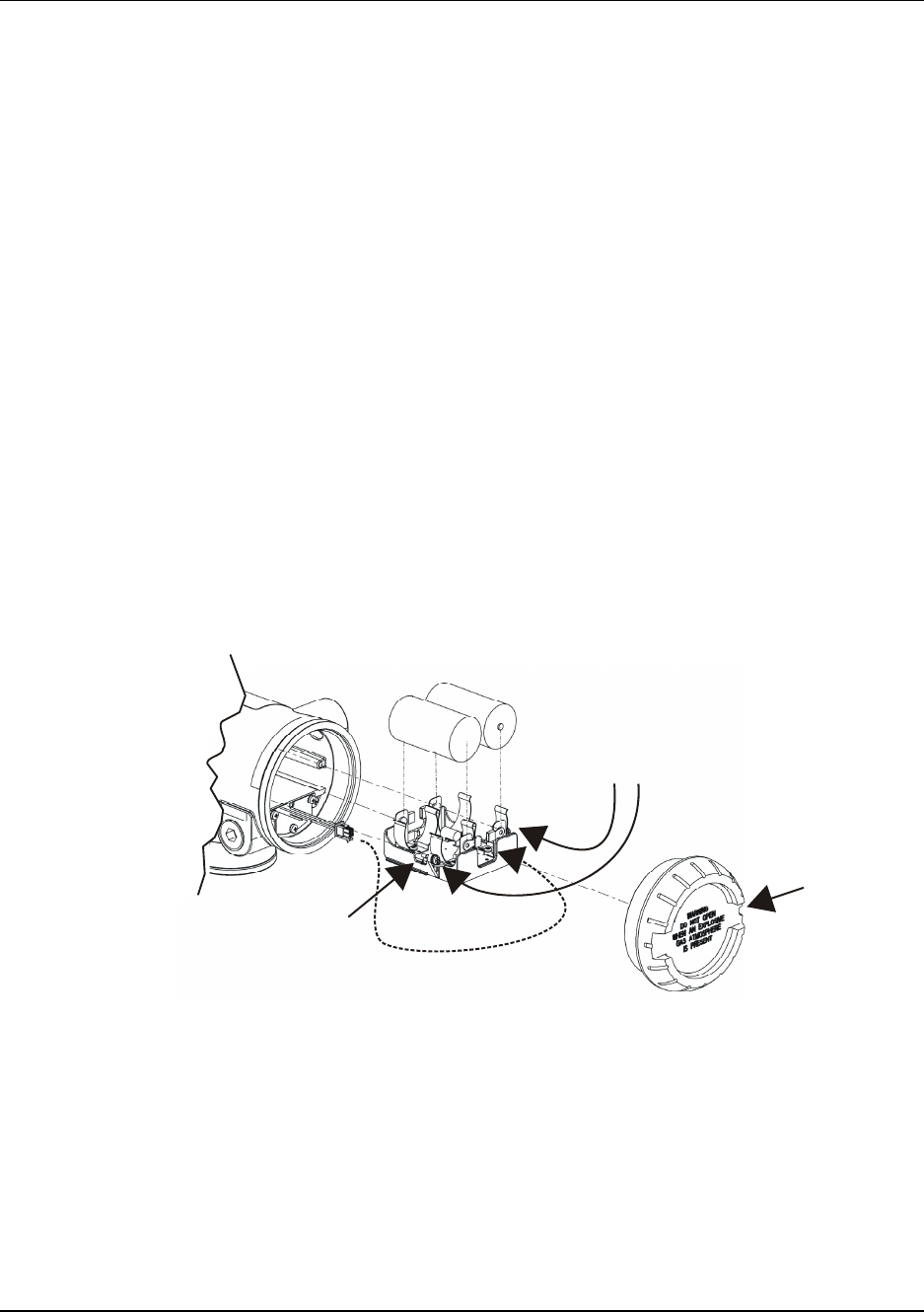

Figure 10 Battery replacement ....................................................................................................................35

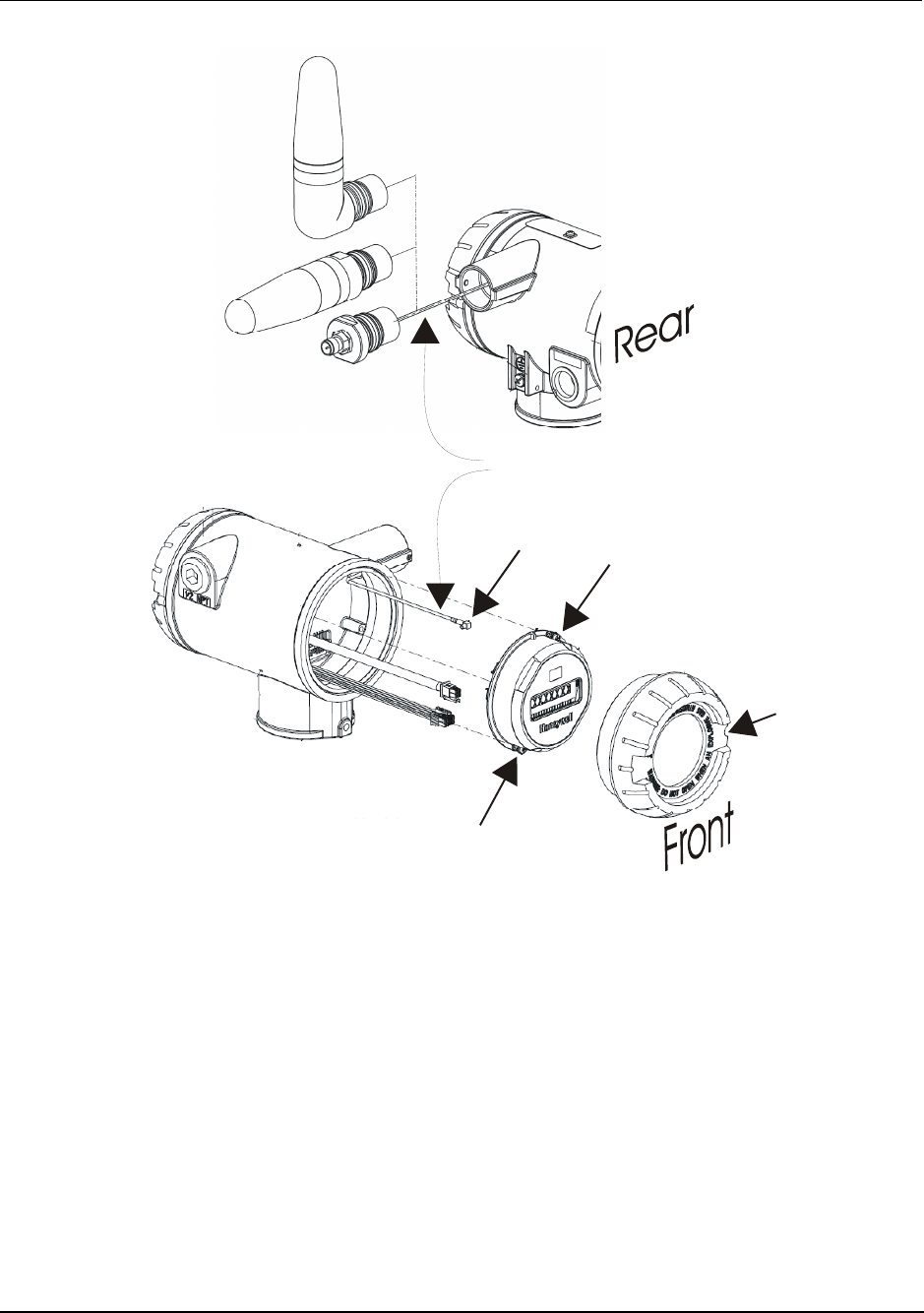

Figure 11 Antenna replacement ..................................................................................................................38

1. Introduction

1.1. Purpose

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 1

6/24/08

1. Introduction

1.1 Purpose

This manual describes the Honeywell OneWireless XYR 6000 HLAI Transmitter function, operation and

maintenance.

1.2 Scope

The manual includes:

• Details of topics that relate uniquely to the Honeywell XYR 6000 HLAI Transmitter,

• This manual does not cover installation, mounting, or wiring. See XYR 6000 Transmitter Quick Start

Guide (document 34-XY-25-21).

1.3 OneWireless network overview

OneWireless is an all digital, serial, two-way communication mesh network that interconnects industrial

field sensors to a central system.

OneWireless has defined standards to which field devices and operator stations communicate with one

another. The communications protocol is built as an "open system" to allow all field devices and

equipment that are built to OneWireless standard to be integrated into a system, regardless of the device

manufacturer. This interoperability of devices using OneWireless technology is to become an industry

standard for automation systems.

1.4 About the transmitter

The XYR 6000 HLAI Transmitter is furnished with OneWireless interface to operate in a compatible

distributed OneWireless system. The transmitter will interoperate with any OneWireless-registered device.

The transmitter includes OneWireless electronics for operating in a 2.4GHz network. It features function

block architecture.

Input

The transmitter supports one input channel. The channel is configurable as follows.

• Voltage (0-5V) & (1-5V)

• Current (0-20mA) & (4-20mA)

The tranamitter measures analog signal and transmits a digital output signal proportional to the measured

value. Figure 1 shows the functional diagram.

1. Introduction

1.4. About the transmitter

2 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

EEPROM

A/D

CH 1

Current

Multi-

plexer

Electronics Housing

Radio

Board

0 - 20 mA

4 - 20 mA

0 - 5 V

1 - 5 V

Micro-

processor

Micro-

processor

EEPROM

Battery

Antenn

Measurement

Board

Configuration

Data

CH 2

Voltage

Figure 1 XYR 6000 Functional Diagram

2. Specifications

2.1. European Union Usage

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 3

6/24/08

2. Specifications

2.1 European Union Usage

This product may be used in any of the following European Union nations.

Country ISO 3166

2 letter code Country ISO 3166

2 letter code

Austria AT Latvia LV

Belgium BE Liechtenstein LI

Bulgaria BG Lithuania LT

Cyprus CY Malta MT

Czech Republic CZ Netherlands NL

Denmark DK Norway NO

Estonia EE Poland PL

Finland FI Portugal PT

France FR Romania RO

Germany DE Slovakia SK

Greece GR Slovenia SI

Hungary HU Spain ES

Iceland IS Sweden SE

Ireland IE Switzerland CH

Italy IT United Kingdom BG

2. Specifications

2.2. Certifications and approvals

4 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

2.2 Certifications and approvals

Transmitter

See the product label for applicable approvals and ratings.

Approval / Item Ratings / Description

CSAcus Intrinsically Safe CL I, Div 1, Groups A, B, C, & D; CL II, Div 1, Groups E, F & G; CL III, T4

CL I, Zone 0: Ex ia IIC, T4; CL I, Zone 0: AEx ia IIC, T4

CSAcus Explosionproof CL I, Div 1, Groups A, B, C, & D; CL II, Div 1, Groups E, F & G; CL III, T4

CL I, Zone 1: Ex d IIC, T4; CL I, Zone 1: AEx d IIC, T4

CSAcus Nonincendive CL I, Div 2, Groups A, B, C & D; CL II, Div 2, Groups F & G; CL III, Div 2, T4

CL I, Zone 2: Ex nA IIC, T4; CL I, Zone 2: AEx nA IIC, T4

FM Approvals

Intrinsically Safe

CL I, Div 1, Groups A, B, C, & D; CL II, Div 1, Groups E, F & G; CL III, T4

CL I, Zone 0: AEx ia IIC, T4

FM Approvals

Explosionproof

CL I, Div 1, Groups A, B, C, & D; CL II, Div 1, Groups E, F & G; CL III, T4

CL I, Zone 1: AEx d IIC, T4

FM Approvals

Nonincendive

CL I, Div 2, Groups A, B, C & D; CL II, Div 2, Groups F & G; CL III, Div 2, T4

CL I, Zone 2: AEx nA IIC, T4

HON – ATEX

Non-Sparking

, Ex nA IIC, T4; Ta = 85°C, Zone 2

Process Connections in

Division 2 / Zone 2

Division 2 / Zone 2 apparatus may only be connected to processes classified

as non-hazardous or Division 2 / Zone 2. Connection to hazardous

(flammable or ignition capable) Division 1 / Zone 0, or 1 process is not

permitted.

Enclosure Type Type 4X, IP 66/67

CRN Canadian Registration Number

Class II and III installations and for Type 4X/IP66 applications require that all cable and unused entires be

sealed with an NRTL listed cable gland or seal fitting. Cable glands and seal fittings are not supplied by

Honeywell.

For detailed transmitter specifications see the following Specification and Model Selection Guide.

• XYR 6000 Wireless Transmitter HLAI (document 34-XY-03-30)

2. Specifications

2.3. Agency compliance information

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 5

6/24/08

2.3 Agency compliance information

This section contains the Federal Communications Commission (FCC), Industry Canada (IC) and Radio

Frequency compliance statements for the OneWireless Multinode device.

ATTENTION

XYR6000 units must be professionally installed in accordance with the requirements specified in the

OneWireless XYR6000 Agency Compliance Professional Installation Guide.

FCC compliance statements

• This device complies with Part 15 of FCC Rules and Regulations. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference and (2) this device must

accept any interference received, including interference that may cause undesired operation.

• This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radiofrequency energy and, if not installed and used in accordance with these instructions, may

cause harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

• Intentional or unintentional changes or modifications must not be made to the Multinode unless under

the express consent of the party responsible for compliance. Any such modifications could void the

user’s authority to operate the equipment and will void the manufacturer’s warranty.

IC compliance statements

• To reduce potential radio interference to other users, the antenna type and its gain should be so chosen

that the equivalent isotropic radiated power (EIRP) is not more than that permitted for successful

communication.

• Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation

of the device.

• This Class A digital apparatus complies with Canadian ICES-003.

• French: Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Radio Frequency (RF) statement

To comply with FCC’s and Industry Canada’s RF exposure requirements, the following antenna

installation and device operating configurations must be satisfied.

• Remote Point-to-Multi-Point antenna(s) for this unit must be fixed and mounted on outdoor permanent

structures with a separation distance between the antenna(s) of greater than 20cm and a separation

distance of at least 20cm from all persons.

• Remote Fixed Point–to-Point antenna(s) for this unit must be fixed and mounted on outdoor

permanent structures with a separation distance between the antenna(s) of greater than 20cm and a

separation distance of at least 100cm from all persons.

2. Specifications

2.3. Agency compliance information

6 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

• Furthermore, when using integral antenna(s) the Multinode unit must not be co-located with any other

antenna or transmitter device and have a separation distance of at least 20cm from all persons.

European Union restriction

France restricts outdoor use to 10mW (10dBm) EIRP in the frequency range of 2,454-2,483.5 MHz.

Installations in France must limit EIRP to 10dBm, for operating modes utilizing frequencies in the range of

2,454 – 2,483.5MHz.

2. Specifications

2.4. Honeywell European (CE) Declaration of Conformity (DoC)

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 7

6/24/08

2.4 Honeywell European (CE) Declaration of Conformity (DoC)

This section contains the European Declaration of Conformity (DoC) statement, for the OneWireless product line.

R&TTE

Directive 1999/5/EC LVD

Directive 73/23/EEC EMC

Directive 2004/108/EC ATEX

Directive 94/9/EC

Harmonized Standards

Emissions Specification and Method: EN 300 328 V1.7.1

Emissions Spec and Method: EN 301 893 V1.4.1

Immunity Specification: EN 301 489-17 V1.2.1

Immunity Method: EN 301 489-1 V1.6.1

Product Standard: IEC61326-1 (1st Edition, 2002-02, Industrial Locations)

EN 50014:1992, "Electrical Apparatus for Potentially Explosive Atmospheres –

General Requirements"

EN 50021:1999, "Electrical Apparatus for Potentially Explosive Atmospheres –

Type of Protection "n"

Manufacturer’s Name and

Address

Honeywell Process Solutions

2500 West Union Hills Drive, Phoenix, AZ 85027, USA

Compliance Statement The product herewith complies with the harmonized standards listed

above. Typical product line systems and configurations have been tested,

for compliance.

2. Specifications

2.4. Honeywell European (CE) Declaration of Conformity (DoC)

8 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

European Declaration of Conformity statements

Language Statement

Česky

(Czech): Honeywell tímto prohlašuje, že tento Multinode je ve shodě se

základními požadavky a dalšími příslušnými ustanoveními směrnice

1999/5/ES.

Dansk

(Danish):

Undertegnede Honeywell erklærer herved, at følgende udstyr

Multinode overholder de væsentlige krav og øvrige relevante krav i

direktiv 1999/5/EF.

Deutsch

(German):

Hiermit erklärt Honeywell, dass sich das Gerät Multinode in

Übereinstimmung mit den grundlegenden Anforderungen und den

übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG

befindet.

Eesti

(Estonian):

Käesolevaga kinnitab Honeywell seadme Multinode vastavust

direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

teistele asjakohastele sätetele.

English Hereby, Honeywell, declares that this Multinode is in compliance with

the essential requirements and other relevant provisions of Directive

1999/5/EC.

Español

(Spanish):

Por medio de la presente Honeywell declara que el Multinode cumple

con los requisitos esenciales y cualesquiera otras disposiciones

aplicables o exigibles de la Directiva 1999/5/CE.

Ελληνική

(Greek):

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Honeywell ∆ΗΛΩΝΕΙ ΟΤΙ Multinode

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.

Français

(French):

Par la présente Honeywell déclare que l'appareil Multinode est

conforme aux exigences essentielles et aux autres dispositions

pertinentes de la directive 1999/5/CE.

Italiano

(Italian):

Con la presente Honeywell dichiara che questo Multinode è conforme

ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla

direttiva 1999/5/CE.

Latviski

(Latvian):

Ar šo Honeywell deklarē, ka Multinode atbilst Direktīvas 1999/5/EK

būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Lietuvių

(Lithuanian):

Šiuo Honeywell deklaruoja, kad šis Multinode atitinka esminius

reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Nederlands

(Dutch):

Hierbij verklaart Honeywell dat het toestel Multinode in

overeenstemming is met de essentiële eisen en de andere relevante

bepalingen van richtlijn 1999/5/EG.

Malti

(Maltese):

Hawnhekk, Honeywell, jiddikjara li dan Multinode jikkonforma mal-

ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-

Dirrettiva 1999/5/EC.

Magyar

(Hungarian):

Alulírott, Honeywell nyilatkozom, hogy a Multinode megfelel a

vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb

elõírásainak.

Polski

(Polish):

Niniejszym Honeywell oświadcza, że Multinode jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi

2. Specifications

2.4. Honeywell European (CE) Declaration of Conformity (DoC)

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 9

6/24/08

Language Statement

postanowieniami Dyrektywy 1999/5/EC.

Português

(Portuguese): Honeywell declara que este Multinode está conforme com os

requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Slovensko

(Slovenian): Honeywell izjavlja, da je ta Multinode v skladu z bistvenimi zahtevami

in ostalimi relevantnimi določili direktive 1999/5/ES.

Slovensky

(Slovak): Honeywell týmto vyhlasuje, že Multinode spĺňa základné požiadavky a

všetky príslušné ustanovenia Smernice 1999/5/ES.

Suomi

(Finnish): Honeywell vakuuttaa täten että Multinode tyyppinen laite on direktiivin

1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden

ehtojen mukainen.

Svenska

(Swedish):

Härmed intygar Honeywell att denna Multinode står I

överensstämmelse med de väsentliga egenskapskrav och övriga

relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Íslenska

(Icelandic):

Hér með lýsir Honeywell yfir því að Multinode er í samræmi við

grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.

Norsk

(Norwegian): Honeywell erklærer herved at utstyret Multinode er i samsvar med de

grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

For more information about the R&TTE Directive

The following website contains additional information about the Radio and Telecommunications Terminal

Equipment (R&TTE) directive:

http://ec.europa.eu/enterprise/rtte/faq.htm

2. Specifications

2.4. Honeywell European (CE) Declaration of Conformity (DoC)

10 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Authentication Device

Install the Authentication Device application on any PDA having

• Windows Mobile version 4.2+

• infrared port.

3. Preparation

3.1. Installation

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 11

6/24/08

3. Preparation

3.1 Installation

Refer to the XYR 6000 Transmitter Quick Start Guide (document 34-XY-25-21) for installation, mounting

and wiring of your XYR 6000 transmitter.

3.2 Configuration

The XYR 6000 Transmitter contains the electronics interface compatible for connecting to the

OneWireless network. An operator uses the Wireless Builder application to configure blocks, to change

operating parameters, and to create linkages between blocks that make up the transmitter’s configuration.

These changes are written to the transmitter when it is authenticated by a security key.

3.3 Connecting to network

Use Authentication Device to connect your transmitter to the OneWireless network. See page 25.

3.4 Calibrating the transmitter

Methods

The following calibration methods are available through the transmitter menu.

• User Calibration - Calibrates the channel to the low and high range values for selected input type.

• Restore Calibration - constants for the channel 1 are restored to factory defaults.

• Clear Calibration - FACTORY or USER Calibration constants for the channel can be cleared.

Wireless Builder

Wireless Builder must be used to unlock and take the channel to be calibrated out of service. Calibration

Point High (CAL_PT_HI), Calibration Point Low (CAL_PT_LO) & Cal Unit (CAL_UNIT) can be set

from Wireless Builder.

PV value is scaled to Engineering Units. For example, for 1-5V input type if EU 0 = 0 and EU 100 = 100

then Input (1-5V) will be scaled to 0 to 100.

Calibration points CAL_LO and CAL_HI are considered in terms of engineering units. For example,

• If channel is to be calibrated for (1-3V) with above settings then set CAL_PT_LO to 0 and

CAL_PT_HI to 50.

• If channel is to be calibrated for (1-4V) with above settings then set CAL_PT_LO to 0 and

CAL_PT_HI to 75. Calibration unit has no significance.

3. Preparation

3.4. Calibrating the transmitter

12 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Table 1 User calibration

Step Action

1 In Wireless Builder, set transmitter’s Write Lock to Unlocked.

2 In Wireless Builder, set the transmitter’s channel to OOS (Out of Service).

3 Loosen the M3 locking set screw on the transmitter’s battery end-cap (opposite end from

display). Unscrew and remove the end cap.

4 See Figure 2 for terminal connections. If your process input is connected to the channel,

disconnect it first, then connect a calibrator source to the channel’s terminals. It is not

necessary to disconnect any jumper wires on the terminals.

5 Select USER CAL by scrolling through menu. Follow displayed instructions.

• Using your calibration source, apply the low calibration value indicated on display.

• Press Enter to accept the value. Display will say BUSY, then CAL LO COMPLETE.

• Press Enter to continue.

• Apply the high calibration input value indicated on display.

• Press Enter to accept the value. Display will say BUSY, then SUCCESS.

• If calibration is unsuccessful at any of steps mentioned above an error message is displayed.

See Table 2.

• Press Enter to return to PV display.

6 Exit the menu.

7 Reverse steps 3 and 4.

8 When ready, in Wireless Builder return the transmitter’s channel to service and set Write Lock

to Locked.

0-5V

1-5V

0-5V

1-5V

0-20 mA

4-20mA

0-20 mA

4-20mA

0-20 mA

4-20mA

Figure 2 Calibration wiring: voltage (left), current (right)

3. Preparation

3.4. Calibrating the transmitter

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 13

6/24/08

Table 2 Calibration error messages

Message Meaning

CALIBRATION_FAIL 1. Calibration gain is greater than 5%.

2. Calibration offset is greater than 5% of sensor span.

BAD_TRIM_POINT CAL_POINT_HI is greater than sensor high range value OR

CAL_POINT_LO is less than greater than sensor low range value.

BAD_USER_CALIBRATION CAL_SOURCE is user and user calibration constants contain invalid

values.

BAD_FACTORY_CALIBRATION 1. CAL_SOURCE is factory and factory calibration constants do not

contain valid values.

2. CAL_RESTORE command was issued but factory calibration

constants do not contain valid values.

BAD_SENSOR Check input connections.

BAD_UNITS Units in CAL UNITS parameter are invalid or not supported by the

sensor type.

INTERNAL_ERROR An error occurred during calibration that prevents calibration from

being completed successfully.

SUCCESS_WITH_EXCESS The calibration succeeded but the calculated calibration values are

greater that 5 percent beyond the normal calibration values. Typically

this indicates that the applied calibration value was significantly

different from the expected value or that the sensor is not within

expected tolerances for the applied characterization.

3. Preparation

3.4. Calibrating the transmitter

14 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Table 3 Restore calibration

Step Action

1 In Wireless Builder, set transmitter’s Write Lock to Unlocked.

2 In Wireless Builder, set the transmitter’s channel to OOS (Out of Service).

3 Use Authentication Device’s Device Local Configuration buttons to navigate to the transmitter’s

CAL menu.

If the transmitter is locked a LOCKED message will be displayed. Go to step 1.

If CAL menu is passcode protected, enter the passcode.

If the channel is not out of service a WRONG MODE message will be displayed. Go to step 2.

4 • Select CAL RSTR by scrolling through menu.

• Press Enter to continue.

• Display will say BUSY, then SUCCESS.

• If calibration is unsuccessful an error message is displayed. See Table 2.

• Press Enter to return to PV display.

5 Exit the menu.

6 When ready, in Wireless Builder return the transmitter’s channel to service and set Write Lock

to Locked.

Table 4 Clear calibration

Step Action

1 In Wireless Builder, set transmitter’s Write Lock to Unlocked.

2 In Wireless Builder, set the transmitter’s channel to OOS (Out of Service).

3 Use Authentication Device’s Device Local Configuration buttons to navigate to the transmitter’s

CAL menu.

If the transmitter is locked a LOCKED message will be displayed. Go to step 1.

If CAL menu is passcode protected, enter the passcode.

If the channel is not out of service a WRONG MODE message will be displayed. Go to step 2.

4 • Select CAL CLR by scrolling through menu.

• Press Enter to continue.

• Display will say BUSY, then SUCCESS.

5 Exit the menu.

4. Function blocks

4.1. Introduction

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 15

6/24/08

4. Function blocks

4.1 Introduction

This section explains the construction and contents of the XYR 6000 HLAI Transmitter Function Blocks.

4.2 Block description

Block types

Blocks are the key elements that make up the transmitter’s configuration. The blocks contain data (block

objects and parameters) which define the application, such as the inputs and outputs, signal processing and

connections to other applications. The XYR 6000 Transmitter contains the following block types.

Block Type Function

Device Contains parameters related to the overall field device rather than a

specific input or output channel within it. A field device has exactly one

device block.

AITB Contains parameters related to a specific process input or output

channel in a measurement or actuation device. An AITB defines a

measurement sensor channel for an analog process variable

represented by a floating-point value. There is one AITB per sensor.

Radio Contains parameters related to radio communication between the

transmitter and the multimode(s).

Block diagram

Figure 3 shows the blocks of the XYR 6000 Transmitter.

Sensor Analog Input Transducer Block

(AITB)

Transmitter

Device Block

Communication Stack

Algorithm OUT

Read/

Write Publish Read/

Write

Sensor Analog Input Transducer Block

(AITB)

Transmitter

Device Block

Communication Stack

Algorithm OUT

Read/

Write Publish Read/

Write

Figure 3 Block Diagram

Each of these blocks contains parameters that are standard OneWireless-transmitter defined parameters.

The AITB and device blocks contain standard parameters common to all XYR 6000 transmitter models

(that is, pressure, temperature, DI, corrosion,) as well as HLAI-specific parameters. The radio block

contains parameters for communication with the wireless network.

4. Function blocks

4.3. Parameter details

16 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

4.3 Parameter details

The transmitter itself displays a few basic parameters, such as tag, serial number, device revision, build,

device address, WFN ID.

For more information on parameters, refer to the following documents.

• OneWireless Wireless Builder User’s Guide

• OneWireless Builder Parameter Reference

5. Operation

5.1. Overview

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 17

6/24/08

5. Operation

5.1 Overview

Display modes

The transmitter has the following display modes.

• Test. Appears briefly after power-up to self-test the display.

• Connection status. Appears when transmitter is not fully connected to the OneWireless network. See

section 5.2.

• PV display. Default mode of the transmitter displays the PV and any status messages. See section 5.3

on page 19.

• Quick view of transmitter identification parameters. Displays read-only parameters then returns to PV

display. See section 5.4 on page 22.

• Menu. See section 5.5 on page 23.

Authentication Device

To navigate the transmitter displays and menus, hold the Authentication Device no more than 6” from the

transmitter and aim the infrared beam at the transmitter display while tapping the Device Local

Configuration buttons (Table 10). You can also use the PDA’s buttons.

Authentication Device menus are described in section 5.6 starting on page 24.

5. Operation

5.2. Transmitter connection status

18 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

5.2 Transmitter connection status

Table 5 Transmitter connection status

Displayed

status Definition What to do

NO KEY Transmitter needs a key from the

Authentication Device and is not transmitting.

Transmit a key to the transmitter. See page

25.

NOT CONN Transmitter is in between discovery attempts. If Transmitter does not make a connection

within five minutes, do the following:

• Check that Key is correct for the network

you are trying to join.

• Check that Multinode(s) in the local area

are turned on and are already a secure

part of the network.

• Check if KeyServer is active.

• Check the KeyServer Event Log to see if

the Transmitter is actively trying to join.

Errors in the Event Log show that the

Transmitter is trying to join but that there

are problems. Consult the OneWireless

Wireless Builder documentation for

troubleshooting errors.

DISCOVER Transmitter has not made a connection to a

Multinode and is in discovery (searching for a

connection to a Multinode). Transmitter will

automatically enter a power saving mode if it

cannot make a connection and will retry later.

Wait for connection. If Transmitter does not

make a connection within five minutes, see

NOT CONN in this table.

SECURING Transmitter has connected with the network

and is validating its key.

Wait for connection. If Transmitter does not

make a connection within five minutes, see

NOT CONN in this table.

CONNECTD For units with radio firmware build* 53 or

higher:

Transmitter has validated the key and has

made a secure connection with at least two

Multinodes. Transmitter should appear in

Wireless Builder as an uncommissioned

device.

For units with radio firmware build* 52:

Transmitter has validated the key and has

made a secure connection with at least one

Multinode. Transmitter should appear in

Wireless Builder as an uncommissioned

device.

For units with radio firmware build* 53 or

higher: No action required.

For units with radio firmware build* 52:

Transmitter will periodically look for a

second Multinode in order to form a

redundant connection to the network. If

connected with only one Multinode Wireless

Builder will display a Secondary Multinode

Address of 0.

NO REDUN Appears only on units with radio firmware

build* 53 or higher. No redundancy, that is,

Transmitter has connected with only one

Multinode.

No action required. The Transmitter will

periodically look for a second Multinode in

order to form a redundant connection to the

network

*Use the PDA to determine your radio firmware build number (page 21).

5. Operation

5.3. Transmitter PV display

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 19

6/24/08

5.3 Transmitter PV display

In PV display, the following information is displayed in sequence.

Item displayed Example Details

Channel number 1 Channel number.

PV value 50.0 Latest PV value.

PV engineering units mV See Table 6.

PV status BAD See Table 7. If PV status is not displayed then

the PV value is good.

Device status LOW BATT See Table 8. If multiple device status messages

are in effect, they are displayed one message

per channel until all messages have been

displayed.

If no device status is displayed then the device

status is normal.

Table 6 PV engineering units

Engineering units Description

Deg C degree Celsius

Deg F degree Fahrenheit

Rev revolution

L liter

Gal US gallon

RPM Revolutions Per Minute

Pa Pascal

Psi Pounds per square inch

Psia Pounds per square inch absolute

Psig Pounds per square inch gauge

inH20 Inches of Water

inH2O (4 deg C) Inches of Water at 4 deg C

mmHg millimeters of mercury

mmHg (0 deg C) millimeters of mercury at 0 deg C

mA Milliampere

V Volt

% Percent (default units)

5. Operation

5.3. Transmitter PV display

20 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Engineering units Description

L/min liters per minute

GPM US gallons per minute

pH pH

no units

Table 7 PV status

PV status Cause - Action

(blank) • PV is normal – no action required

BAD • Possible calibration error – Clear calibration

• AITB can not execute due to internal firmware state – Attempt cold restart of

device.

• AITB can not execute due to hardware fault – Replace sensor board. See

page 31.

• Sensor failure – Check the following.

− connection between sensor board and terminal block

− field wiring terminations on the terminal block

− polarity of connections on the terminal block

− field sensor

UNC • Warning: Input inaccurate due to uncertain input data integrity.

• Warning: Input inaccurate due to input conversion limitations or resolution.

• Warning: Input outside of characterized range. Value is estimated.

Table 8 Device status

Transmitter

display Wireless Builder display Definition What to do

OUT SVC OOS All channels are out of

service.

Restore mode to Auto in Wireless

Builder.

CAL ERR Calibration Error Calibration Data Invalid

or could not be read.

Use Cal Clear, Restore, or User

Calibrate.

CFG ERR Configuration Error Configuration Check

Error.

Database is corrupted. Cold start

and reload configuration.

LOW BAT Low Battery Battery Voltage Critically

Low

Replace batteries as soon as

possible. See page 34.

5. Operation

5.3. Transmitter PV display

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 21

6/24/08

Transmitter

display Wireless Builder display Definition What to do

NO RADIO Radio Interprocessor

Comm Error

Radio Board is not

accessible.

Restart both the radio and sensor.

If condition persists, replace

sensor module. See page 31.

BAD RADIO

SPI

Sensor Radio SPI

Communication Failure

Radio detected loss of

communication with

sensor board over the

inter-processor

communication link.

Restart both the radio and sensor.

If condition persists, replace

sensor module. See page 31.

BAD RADIO

EEPROM

EEPROM SPI

Communication Failure

Radio EEPROM SPI

Communication failure

The radio will not be able to

perform firmware upgrades but will

operate normally using installed

code. Replace sensor module.

See page 31.

RADIO WDT

RESET

WDT Reset Occurred Radio Watch Dog

Timeout detected

Restart both the radio and sensor.

If condition persists, replace

sensor module. See page 31.

BAD RADIO Radio Circuitry Failure Radio circuitry has failed The radio processor detected error

on internal radio circuitry. Replace

sensor module. See page 31.

The following status messages have multiple meanings. Refer to Wireless Builder Device Status for exact cause.

E FAIL A/D Failure Diagnostics detected

defect with Analog to

Digital Converter.

Replace sensor module. See page

31.

E FAIL Electronics Failure Electronic Failure

detected on Sensor

Board. Could be caused

by one of the status

items marked by *.

Restart both the radio and sensor.

If condition persists, replace

sensor module. See page 31.

E FAIL* NVM Fault* Startup diagnostics

detected defect in

Sensor Non-Volatile

Memory

Replace sensor module. See page

31.

E FAIL* Program Memory Fault* Startup diagnostics

detected defect in

Sensor Read Only

Memory

Replace sensor module. See page

31.

E FAIL* RAM Fault* Startup diagnostics

detected defect in

Processor Random

Access Memory

Replace sensor module. See page

31.

INP FAIL Input Failure Input Error Check input connection.

Check input configuration.

Restart the sensor. If condition

persists, replace sensor module.

See page 31.

5. Operation

5.4. Transmitter quick view of parameters

22 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Transmitter

display Wireless Builder display Definition What to do

INP FAIL A/D Failure Diagnostics detected

defect with Analog to

Digital Converter.

Replace sensor module. See page

31.

The following statuses are displayed only in Wireless Builder Device Status.

blank* Device/Firmware

Mismatch*

Sensor Board Firmware

Error. The software did

not pass verification

tests.

Replace sensor module. See page

31.

blank* Heap Memory Not

Available*

Heap Allocation Failure.

Software detected heap

shortage and some

communication packets

may have been dropped.

Clear by warm restart of device. If

condition persists contact

Honeywell service.

blank* Watchdog Timer Error* Sensor Watchdog

Timeout. The processor

was restarted due to

unexpected operation.

Clear by warm restart of device. If

condition persists contact

Honeywell service.

5.4 Transmitter quick view of parameters

If you press the up or down arrow key during the PV display, the following quick view parameters are

shown sequentially, then the PV display resumes.

Parameter Description

Transmitter type HONEYWELL XYR 6000 HLAI

Tag The name given to this transmitter

Serial number Transmitter serial number. This is the

WBSN on the transmitter’s nameplate.

Do not confuse this with the other

nameplate item marked “Serial.”

Device revision This parameter changes whenever

objects and parameters are added,

deleted, or the data type or range

changes. It does not change if the

application firmware changes without

affecting the device description.

Build Sensor firmware number

5. Operation

5.5. Transmitter menu

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 23

6/24/08

5.5 Transmitter menu

Menu tree

At the PV display, press Enter to access the menus. To interact with the menus use the Device Local

Configuration onscreen buttons (page 27) or the buttons on your PDA.

Table 9 Menu tree

Menu item Description

CAL Calibration menu. May be password-protected. See Table 10 on page 27 for

password number entry. See page 11 for calibration details.

CAL RESTR Constants for the channel 1 are restored to factory defaults.

USER CAL Calibrates the channel to the low and high range values for selected input

type.

CAL CLR FACTORY or USER Calibration constants for the channel can be cleared.

RADIO Radio menu

PRI RSSI Primary receive signal strength. Read only. Signal strength 00 is too weak to

connect to the network.

Displayed Value Value dBm Rx Margin dB

00 < -86 < 10

01 -86 to -81 10 to 15

02 -80 to -75 16 to 21

03 -74 to -69 22 to 27

04 -68 to -63 28 to 33

05 -62 to -57 34 to 39

06 -56 to -51 40 to 45

07 -50 to -45 46 to 51

08 -44 to -11 52 to 85

09 ≥ -10 Saturation

SEC RSSI Secondary receive signal strength. Same as PRI RSSI. Read only.

WFN ID Wireless Field Network ID. Read only.

DEV ADD Device address. Read only.

TX POWER Radio transmit power. Read only.

5. Operation

5.6. Authentication device menus

24 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

5.6 Authentication device menus

Overview

Hold the Authentication Device no more than 6” (15 cm) from the transmitter and aim the infrared beam at

the transmitter display while tapping on the screen command or button.

Main menu

The main menu is shown below. Details start on the next page.

Figure 4 Main menu

5. Operation

5.6. Authentication device menus

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 25

6/24/08

Security and Node Deployment

Use this to:

• receive new security keys,

• transmit security keys for connecting the transmitter (or other nodes) to the OneWireless network,

• clear all security keys from the PDA,

• clear the transmitter’s key and reset its configuration to factory default (such as for decommissioning).

Figure 5 Security and Device Deployment

5. Operation

5.6. Authentication device menus

26 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

To connect your transmitter to the OneWireless network perform the following steps.

Step Action

1 If the PDA contains no keys, obtain new security keys from the PC

application Key Server Manager.

To do this, select Receive Security Keys. Keys can be received either

through Infrared (by aiming PDA at the infrared dongle) or through an

ActiveSync/USB connection. See Key Server Communication Method

under Advanced options on page 30 for details.

Important: The Comm Method settings must match in the PC’s Key Server

Manager and in the Authentication Device (both must be set to Infrared or

both to ActiveSync) in order for your PDA to receive security keys. See Key

Server Communication Method under Advanced options on page page 30

for details.

2 When the Authentication Device has valid unexpired keys, aim it at the

transmitter and transmit a key to the transmitter. The transmitter will validate

the key and then use it to make a connection to the OneWireless Network.

The Transmitter may continue to show the diagnostic message “NO KEY” for

a brief time while it validates the key before showing the “DISCOVER”

message.

To verify your transmitter has been authenticated, see the Connection prompt

on the Read Node Info screen (page 28).

To decommission your transmitter from the OneWireless network, select Clear Key and Restart Node.

This clears the transmitter’s key, network and security configurations, and resets the transmitter to its

factory default settings. perform the following steps.

Select Clear Keys from Handheld (under Advanced Options) when:

• The PDA has keys from one system, but you have moved your Authentication Device to another

system, or

• you want to clear all keys so that you cannot deploy any more keys without going to the key server

manager and getting more.

For more details on keys, refer to Getting Started with Honeywell OneWireless Solutions.

5. Operation

5.6. Authentication device menus

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 27

6/24/08

Device Local Configuration

Use Device Local Configuration buttons (Table 10) to navigate the transmitter menus (Table 9) and to

make selections and changes. You can also use the PDA buttons.

Figure 6 Device Local Configuration screen

Table 10 Buttons for Device Local Configuration

Button Function

• Enter the Menu Tree.

• Enter submenu of the menu that is appearing on the screen.

• Execute action.

• Submit the entered number while doing number entry.

• Read value of certain displayed parameters.

• Go to the next menu in the same level.

• View quick view parameters in Normal Display Sequence (PV Display).

• During number entry, increment the digit or change +/- sign.

• Go to the previous menu in the same level.

• View quick view parameters in Normal Display Sequence (PV Display).

• During number entry, decrement the digit or change +/- sign.

• Go to the upper menu level.

• When changing a number value, move cursor to the left/more significant digit, then

wrap around to the least significant digit.

5. Operation

5.6. Authentication device menus

28 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Read Node Information

Use this to read the transmitter’s information shown in Figure 7. Similar to quick view parameters on the

transmitter display. (See page 22.)

Figure 7 Read Node Information

Item Description

Tag The name given to this transmitter

Serial Transmitter serial number. This is the WBSN on the

transmitter’s nameplate. Do not confuse this with the other

nameplate item marked “Serial.”

NwAddr Network Address of the device in hexadecimal.

DevRev Device Revision. This parameter changes whenever objects

and parameters are added, deleted, or their data type or range

changes. It does not change if the application firmware

changes without affecting the device description. Range: 0 to

65535.

Build Sensor firmware and radio firmware build numbers.

Radio Hardware radio type, FHSS or DSSS

WFN ID: Wireless Field Network ID. Range: 0 to 255.

5. Operation

5.6. Authentication device menus

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 29

6/24/08

Item Description

FH Mode Frequency group or frequency channel selection used by the

wireless network of the device. The value must match the

value set in the gateway and interface nodes to allow

communication between the device and the wireless network.

Modes:

US Channel #1

US Channel #6

US Channel #11

US Guard Bands

EU Channel #1

EU Channel #7

EU Channel #13

EU Guard Bands

US/EU Spec Div A

US/EU Spec Div B

US/EU Channel #3

US/EU Channel #10

Complete Spectrum

Connection The first line displays one of the following connection states.

No Security Key – No security key has been deployed to the

device or multinode. The user must give a security key to

the device or multinode before it will join the wireless sensor

network.

No Connection – A security key exists in the device or

multinode, but no connection has been formed. The device

or multinode is waiting to form a connection and will

automatically retry shortly. Users may transmit a new

security key in order to force the device or multinode to

immediately retry to form a connection.

Discovering – The device is attempting to form a connection

to the wireless sensor network. The device is discovering

multinodes and, if a multinode is found, will transition to the

securing state.

Securing – The device is attempting to form a connection to

the wireless sensor network. The device has discovered

one or two multinodes and is attempting to form a secure

session. If successful, the device will transition to the

connected state.

Connected – A secure connection is formed with one or two

multinodes.

The second line contains detailed state information useful for

problem reporting.

5. Operation

5.6. Authentication device menus

30 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Advanced Options

Advanced options are non-typical configuration commands.

Figure 8 Advanced Options

Table 11 Advanced Options

Item Description

Key Server Communication

Method

Determines how the PDA will receive security keys from the PC’s Key Server

Manager application. From the Comm Method menu select one of the

following methods.

ActiveSync – Select this to receive keys over a USB connection, such as

while the PDA battery is being charged in its base.

Infrared – Select this to receive keys over the infrared port.

Important: The Comm Method settings match in the PC’s Key Server

Manager and in the Authentication Device (both must be set to Infrared or both

to ActiveSync) in order for your PDA to receive security keys.

Read Tracelog Flag Not available for transmitters. Used with multinodes. Reads conditional

tracelog flag value. Tracelog flags are used to enable and disable logging

functionality used for field support.

Write Tracelog Flag Not available for transmitters. Used with multinodes. Writes conditional

tracelog flag value. Tracelog flags are used to enable and disable logging

functionality used for field support .

Select Infrared Communication

Port

Overrides the detected infrared communication port detected on your PDA. If

infrared communication is not functioning, you can override the detected

settings using this option.

Read TX Power Level Reads the transmission power level of the transmitter radio.

6. Maintenance/Repair

6.1. Parts

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 31

6/24/08

6. Maintenance/Repair

6.1 Parts

The following replacement parts may be ordered from Honeywell.

Part number Qty. Description

50015866-503 1 ELECTRONICS MODULE ASSEMBLY aka SENSOR MODULE for HLAI

50015866-507 1 ELECTRONICS MODULE ASSEMBLY aka SENSOR MODULE for HLAI-

Instrinsically Safe

50015866-511 1 ELECTRONICS MODULE ASSEMBLY aka SENSOR MODULE for HLAI-DSSS

Intrinsically Safe

50015843-501 1 TERMINAL BOARD

50015623-501 1 CAP ASSEMBLY, BATTERY, ALUMINUM, DARK BEIGE

50016190-501 1 CAP ASSEMBLY, LCD, ALUMINUM, DARK BEIGE

50026009-501 1 CAP ASSEMBLY, BATTERY, STAINLESS STEEL

50026127-501 1 CAP ASSEMBLY, LCD, STAINLESS STEEL

50016229-501 1 ANTENNA ASSEMBLY, 2 dBi INTEGRAL RIGHT-ANGLE, ALUMINUM

50016229-502 1 ANTENNA ASSEMBLY, 2 dBi INTEGRAL RIGHT-ANGLE, STAINLESS STEEL

50020767-501 1 ANTENNA ASSEMBLY, 2 dBi INTEGRAL STRAIGHT, STAINLESS STEEL

50020767-502 1 ANTENNA ASSEMBLY, 2 dBi INTEGRAL STRAIGHT, ALUMINUM

50031714-501 1 ANTENNA ASSEMBLY, 4 dBi INTEGRAL STRAIGHT, STAINLESS STEEL

50031714-502 1 ANTENNA ASSEMBLY, 4 dBi INTEGRAL STRAIGHT, ALUMINUM

50031715-501 1 ANTENNA ASSEMBLY, 4 dBi INTEGRAL RIGHT-ANGLE, ALUMINUM

50031715-502 1 ANTENNA ASSEMBLY, 4 dBi INTEGRAL RIGHT-ANGLE, STAINLESS STEEL

50018414-001 1 REMOTE OMNI-DIRECTIONAL ANTENNA, 8 dBi

50018415-001 1 REMOTE DIRECTIONAL ANTENNA, 14 dBi

50016577-501 1 ANTENNA ADAPTER ASSEMBLY, REMOTE, TYPE TNC, STAINLESS STEEL

50016577-502 1 ANTENNA ADAPTER ASSEMBLY, REMOTE, TYPE TNC, ALUMINUM

50028364-501 1 ANTENNA ADAPTER ASSEMBLY, REMOTE, TYPE N, ALUMINUM

50028364-502 1 ANTENNA ADAPTER ASSEMBLY, REMOTE, TYPE N, STAINLESS STEEL

50018110-001 1 COAX CABLE ASSY, 1.0M ( 3.3 Ft) LONG, RP-TNC - N-MALE

50018110-002 1 COAX CABLE ASSY, 3.0M (10.0 Ft) LONG, RP-TNC - N-MALE

50018110-003 1 COAX CABLE ASSY, 10.0M (33.0 Ft) LONG, RP-TNC - N-MALE

50018278-001 1 COAX CABLE ASSY, 1.0M ( 3.3 Ft) LONG, N-MALE - N-MALE

50018278-002 1 COAX CABLE ASSY, 3.0M (10.0 Ft) LONG, N-MALE - N-MALE

50018278-003 1 COAX CABLE ASSY, 10.0M (33.0 Ft) LONG, N-MALE - N-MALE

50018279-090 1 LIGHTNING SURGE ARRESTOR

50025288-001 1 BATTERY HOLDER, PRESSURE

continued

6. Maintenance/Repair

0. Replacing sensor module

32 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Part number Qty. Description

50025288-002 1 BATTERY HOLDER, TEMPERATURE, HLAI, CORROSION

50026010-001 2 3.6V LITHIUM THIONYL CHLORIDE (Li-SOCI2) BATTERY

50026010-002 4 3.6V LITHIUM THIONYL CHLORIDE (Li-SOCI2) BATTERY

50026010-003 10 3.6V LITHIUM THIONYL CHLORIDE (Li-SOCI2) BATTERY

Replacing sensor module

Tools required

• #1 Phillips Screwdriver or 1/8” Slotted Screwdriver

• Torque Screwdriver

• 1.5 mm hex key

Procedure

WARNING

Risk of death or serious injury by explosion. Do not open transmitter

enclosure when an explosive gas atmosphere is present.

CAUTION

Take precautions against electrostatic discharge to prevent damaging the

sensor module.

Table 12 Sensor module replacement

Step Action

1 Honeywell recommends that the transmitter be removed from service and moved to a clean

area before servicing.

2 Loosen the M3 locking set screw on the display end-cap. See item 1 in Figure 9. Unscrew and

remove the end cap.

3 Loosen the two screws on the sensor module. See items 2 in Figure 9.

4 Disconnect each connector on the sensor module. See items 3 in Figure 9.

5 Install new sensor module. Be sure to orient sensor module in the proper viewing orientation

before tightening two sensor compartment screws.

Reverse steps 1-4.

Torque screws to 0,4 – 0,6 N-M (3.5 – 5.3 Lb-in).

Honeywell recommends lubricating the end cap O-ring with a Silicone Grease such as Dow

Corning #55 or equivalent before replacing the end cap.

Return transmitter to service.

6. Maintenance/Repair

0. Replacing sensor module

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 33

6/24/08

Figure 9 Sensor module removal and replacement

6. Maintenance/Repair

6.2. Replacing batteries

34 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

6.2 Replacing batteries

When to replace

When the transmitter displays a LO BATT message you have 2-4 weeks to replace both batteries before

they expire. When batteries are removed or expired, all transmitter data is retained in the transmitter’s non-

volatile memory.

Tools required

• #1 Phillips Screwdriver or 1/8” Slotted Screwdriver

• Torque Screwdriver

• 1.5 mm hex key

Procedure

ATTENTION

Batteries must be replaced only by a trained service technician.

WARNINGS

• Risk of death or serious injury by explosion. Do not open transmitter

enclosure when an explosive gas atmosphere is present.

• Batteries must not be changed in an explosive gas atmosphere.

• The batteries used in this device may present a risk of fire or chemical

burn if mistreated. Do not recharge, disassemble, heat above 100°C

(212°F), or incinerate.

Table 13 Battery replacement procedure

Step Action

ATTENTION

You must replace both batteries. Both batteries must be the same model from the same

manufacturer. Mixing old and new batteries or different manufacturers is not permitted.

Use only the following 3.6V lithium thionyl chloride (Li-SOCl2) batteries (non-rechargeable),

size D. No other batteries are approved for use in XYR 6000 Wireless Transmitters.

• Xeno Energy XL-205F

• Eagle Picher PT-2300H

• Tadiran TL-5930/s

• Honeywell p/n 50026010-001 (Two 3.6V lithium thionyl chloride batteries) (1 transmitter)

• Honeywell p/n 50026010-002 (Four 3.6V lithium thionyl chloride batteries) (2 transmitters)

• Honeywell p/n 50026010-003 (Ten 3.6V lithium thionyl chloride batteries) (5 transmitters)

1 Loosen the M3 locking set screw on the battery end-cap (opposite end from display). See item

1 in Figure 10. Unscrew and remove the end cap.

6. Maintenance/Repair

6.2. Replacing batteries

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 35

6/24/08

Step Action

2 Using thumb and forefinger, squeeze the battery connector at top and bottom to disengage the

locking mechanism, then pull to disconnect. See item 2 in Figure 10.

3 Loosen the two battery holder retaining screws (closest to the batteries). See item 3 in Figure

10. The screws are captive.

4 Pull the battery holder out of the transmitter.

5 Remove the old batteries from the battery holder. If needed, pry out the batteries by using a

slotted screwdriver as a lever in the holder’s side slots. See item 4 in Figure 10.

6 Insert the new batteries using correct polarity shown on the battery holder.

7 Insert the battery holder into the transmitter. Reattach the screws and tighten to 0,4 – 0,6 N-M

(3.5 – 5.3 Lb-in).

Re-connect battery connector.

Honeywell recommends lubricating the end cap O-ring with a Silicone Grease such as Dow

Corning #55 or equivalent before replacing the end cap.

8 Screw the end cap back on and tighten the M3 locking screw.

9 Dispose of used batteries promptly per local regulations or the battery manufacturer’s

recommendations. Keep away from children. Do not disassemble and do not dispose of in fire.

-3

Figure 10 Battery replacement

6. Maintenance/Repair

6.3. Replacing antenna

36 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

6.3 Replacing antenna

Tools required

• #1 Phillips Screwdriver or 1/8” Slotted Screwdriver

• Torque Screwdriver

• 1.5 mm hex key

Procedure

ATTENTION

You must replace your antenna with the same type, that is, elbow, straight, or

remote. Changing to a different antenna type is not permitted by approval

agencies.

CAUTION

Take precautions against electrostatic discharge to prevent damaging the

sensor module.

WARNING

POTENTIAL ELECTROSTATIC CHARGING HAZARD

The integrally mounted antenna shroud is made of Teflon® and has a surface

resistance greater than 1Gohm per square. When the XYR 6000 transmitter

is installed in potentially hazardous locations care should be taken not to

electrostatically charge the surface of the antenna shroud by rubbing the

surface with a cloth, or cleaning the surface with a solvent. If electrostatically

charged, discharge of the antenna shroud to a person or a tool could possibly

ignite a surrounding hazardous atmosphere.

6. Maintenance/Repair

6.3. Replacing antenna

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 37

6/24/08

Table 14 Antenna replacement procedure

Step Action

1 Honeywell recommends that the transmitter be removed from service and moved to a clean

area before servicing.

2 Loosen the M3 locking set screw on the display end-cap. See item 1 in Figure 11. Unscrew

and remove the front end cap.

3 Loosen the two screws on the sensor module. See items 2 in Figure 11.

4 Remove the sensor module from the transmitter body and disconnect the antenna connector

from CN2 connector on the sensor module. See item 3 in Figure 11.

5 Loosen the locking set screw at the antenna base. Unscrew the antenna from the transmitter.

Remove the antenna and its connector from the transmitter. See Figure 11.

6 Feed the new antenna’s connector through the antenna hole to the front of the transmitter. Do

not connect to sensor module yet. Screw new antenna into transmitter body until finger-tight,

then back off 180 degrees to permit adjustment later.

7 Attach antenna connector to CN2 connector on sensor module. See item 3 in Figure 11.

8 Insert sensor module. Orient in the proper viewing orientation before tightening two sensor

compartment screws. See items 2 in Figure 11. Torque screws to 0,4 – 0,6 N-M (3.5 – 5.3 Lb-

in).

9 Replace the front end cap. Honeywell recommends lubricating the front end cap O-ring with a

Silicone Grease such as Dow Corning #55 or equivalent before replacing the end cap.

10 Adjust antenna for best reception. Don’t rotate antenna more than 180 degrees either direction

or you could twist and break the antenna wiring inside. Tighten the antenna locking set screw.

6. Maintenance/Repair

6.4. Parts

38 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08

Antenna connecto

Figure 11 Antenna replacement

6.4 Parts

For other replacement parts, refer to XYR 6000 Wireless Transmitter HLAI specification (document 34-

XY-03-30).

6. Maintenance/Repair

6.4. Parts

Revision 3 OneWireless XYR 6000 HLAI Transmitter User's Manual 39

6/24/08

6. Maintenance/Repair

6.4. Parts

40 OneWireless XYR 6000 HLAI Transmitter User's Manual Revision 3

6/24/08
