Honeywell LXEMX9GSM2G IPDA User Manual MX9 User Guide Draft

Honeywell International, Inc. IPDA MX9 User Guide Draft

Users Manual_100414

Draft01-For review only - Do not publish or distribute - LXE Confidential
MX9User Guide
E-EQ-MX9OGWW-C
2010 Copyright© by LXE®, Inc, An EMS Technologies Company. All Rights
Reserved.
Notices
LXE Inc. reserves the right to make improvements or changes to published MX9 information at any time without notice. While
reasonable efforts have been made in the preparation of this publication to assure its accuracy, LXE assumes no liability
resulting from any errors or omissions in this publication, or from the use of the information contained herein. Further, LXE
Incorporated, reserves the right to revise this publication and to make changes to it from time to time without any obligation to
notify any person or organization of such revision or changes.
Trademarks
Copyright © 2010 by LXE Inc., An EMS Technologies Company, 125 Technology Parkway, Norcross, GA 30092 U.S.A. (770)
447-4224
LXE® and Spire® are registered trademarks of LXE Inc.
Microsoft®, ActiveSync®, MSN, Outlook®, Windows®, Windows Mobile®, the Windows logo, and Windows Media are
either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Intel and Intel XScale are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and
other countries.
Summit Data Communications, Inc. Summit Data Communications, the Summit logo, and “The Pinnacle of Performance” are
trademarks of Summit Data Communications, Inc.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under
license.
PowerScan is a registered trademark of Datalogic Scanning, Inc., located in Eugene, OR.
Symbol® is a registered trademark of Symbol Technologies. MOTOROLA® and the Stylized M Logo are registered
trademarks of Motorola®, Inc.
Hand Held® is a registered trademark of Hand Held Products, Inc., located in Skaneateles Falls, NY.
RAM® and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA 98108.
When any part of this publication is in PDF format: “Acrobat ® Reader Copyright © 2010 Adobe Systems Incorporated. All
rights reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems Incorporated”
applies.
Other product names mentioned within this publication may be trademarks or registered trademarks of other companies.
Table of Contents
Components 1
Front 1
Top 3
Bottom 4
Back 4
Handstrap 5
Label Locations 6
Laser Warnings and Labels 7
Label Location 7
Label 7
Batteries 8
How To Connect or Remove the Battery Pack 8
Insert/Replace Battery 8
Remove Battery 8
Hotswap the Main Battery 9
Regulatory Notices and Safety Information 10
Class B Digital Device 10
RF Notices 11
Laser Light Safety Statement 12
Index 14
E-EQ-MX9OGWW-C Draft 01 [ i ] MX9 User Guide
Components

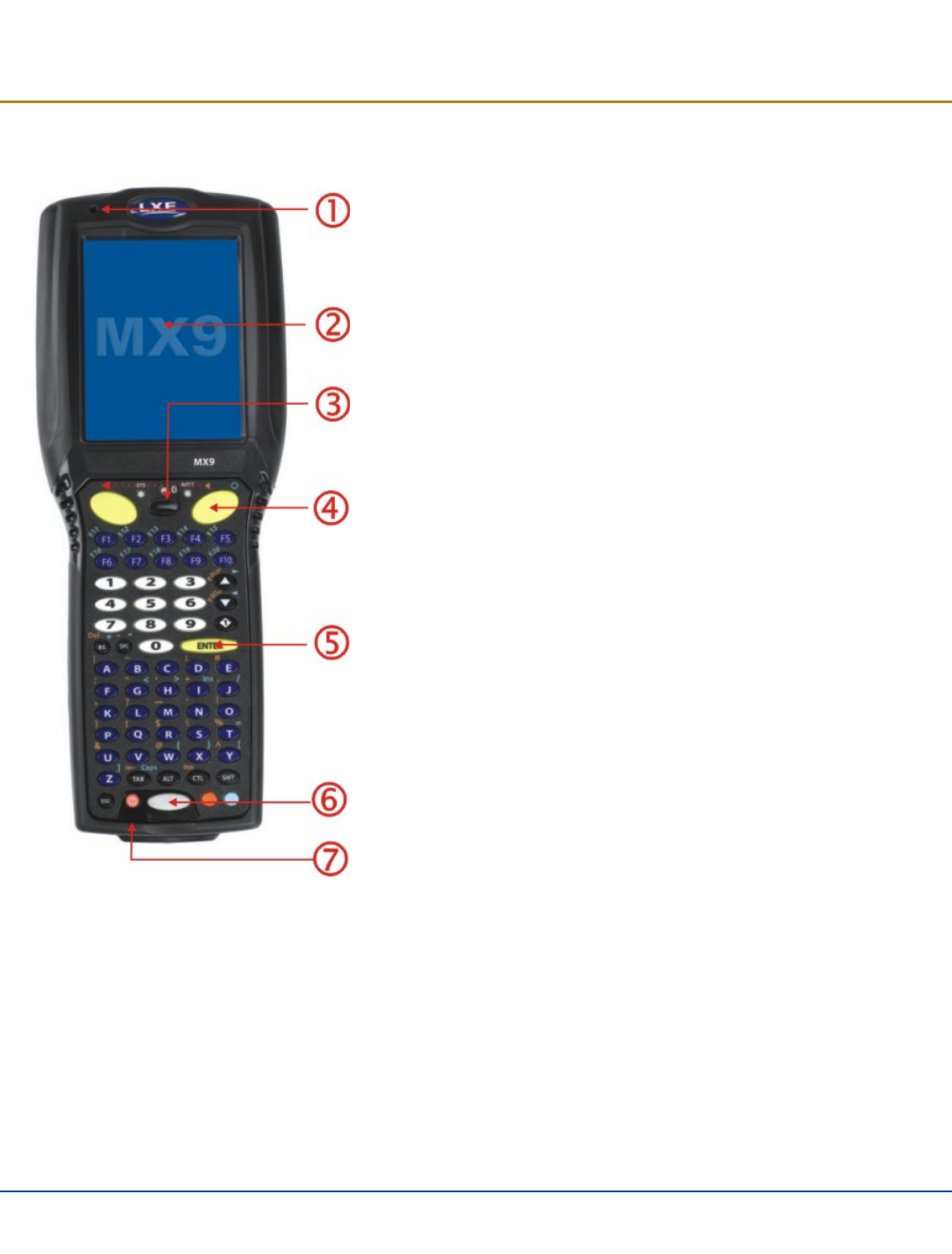

Front
1. Microphone
2. Touch screen
3. Speaker
4. Scan buttons
5. Enter key
6. Scanner status LED
7. Power key
Note: The above list is the same on the 38 key MX9. Special keys are
listed below.
E-EQ-MX9OGWW-C Draft 01 [ 1 ] MX9 User Guide
Front
For review only - Do not publish or distribute - LXE Confidential - Draft 01
Special Purpose Keys
1. Function Keys
2. Cursor up and down Keys
3. Diamond 1 key
4. Backspace [BS] key and Space
[SPC] key
5. Escape [ESC] key
6. Power key
7. Tab key
8. Alt key
9. Control [CTL] key
10. Shift [SHFT] key
11. Blue key
12. Orange key
E-EQ-MX9OGWW-C Draft 01 [ 2 ] MX9 User Guide
Top
For review only - Do not publish or distribute - LXE Confidential - Draft 01

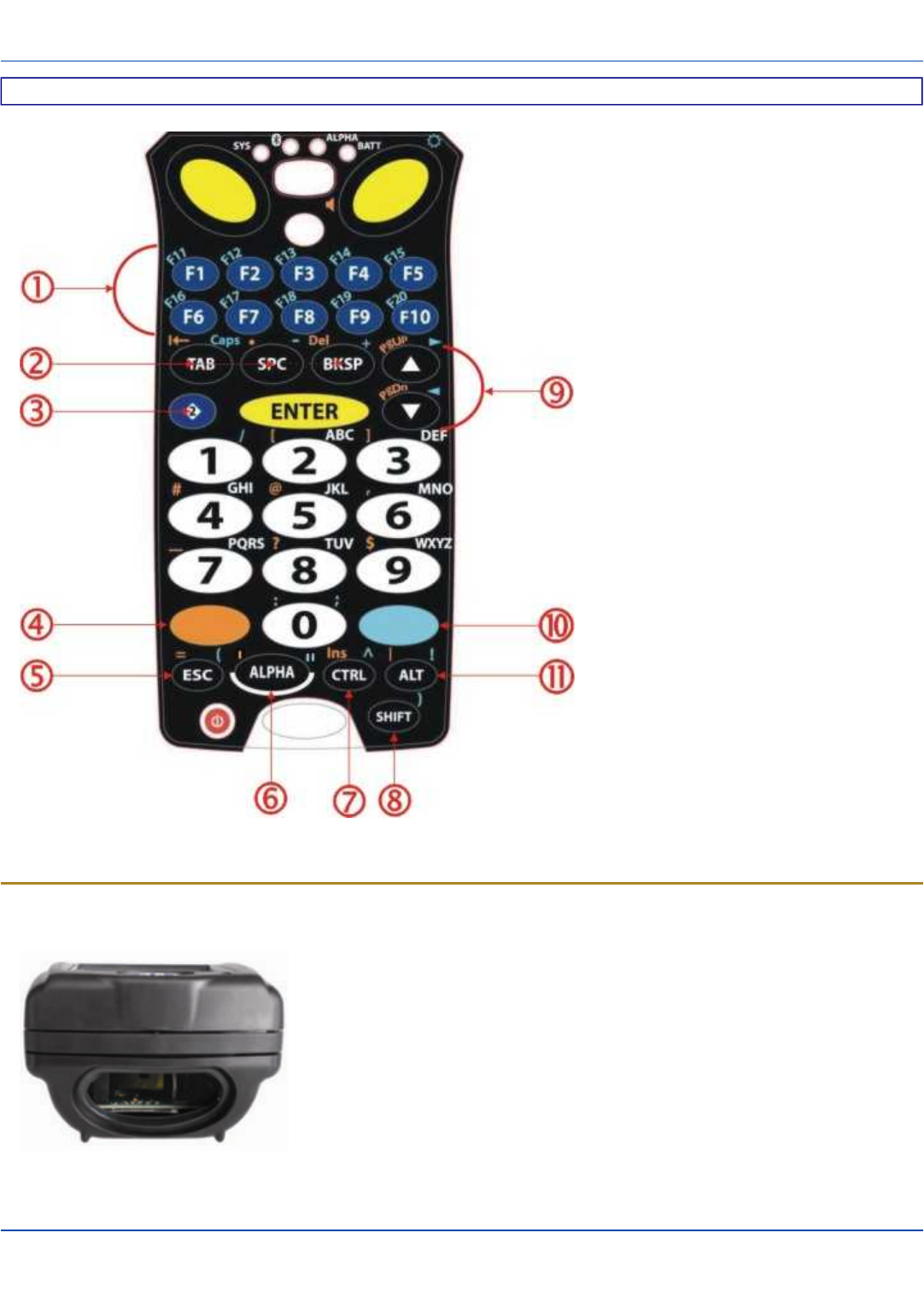

Special Purpose Keys - 38 Key
1. Function keys
2. Tab | Space | Backspace
keys
3. Diamond 2 key
4. Orange key
5. Escape [ESC] key
6. Alpha key
7. Control [CTRL] key
8. Shift [SHIFT] key
9. Cursor up and down keys
10. Blue key
11. Alt key
Top
Barcode reader Scanner aperture
E-EQ-MX9OGWW-C Draft 01 [ 3 ] MX9 User Guide

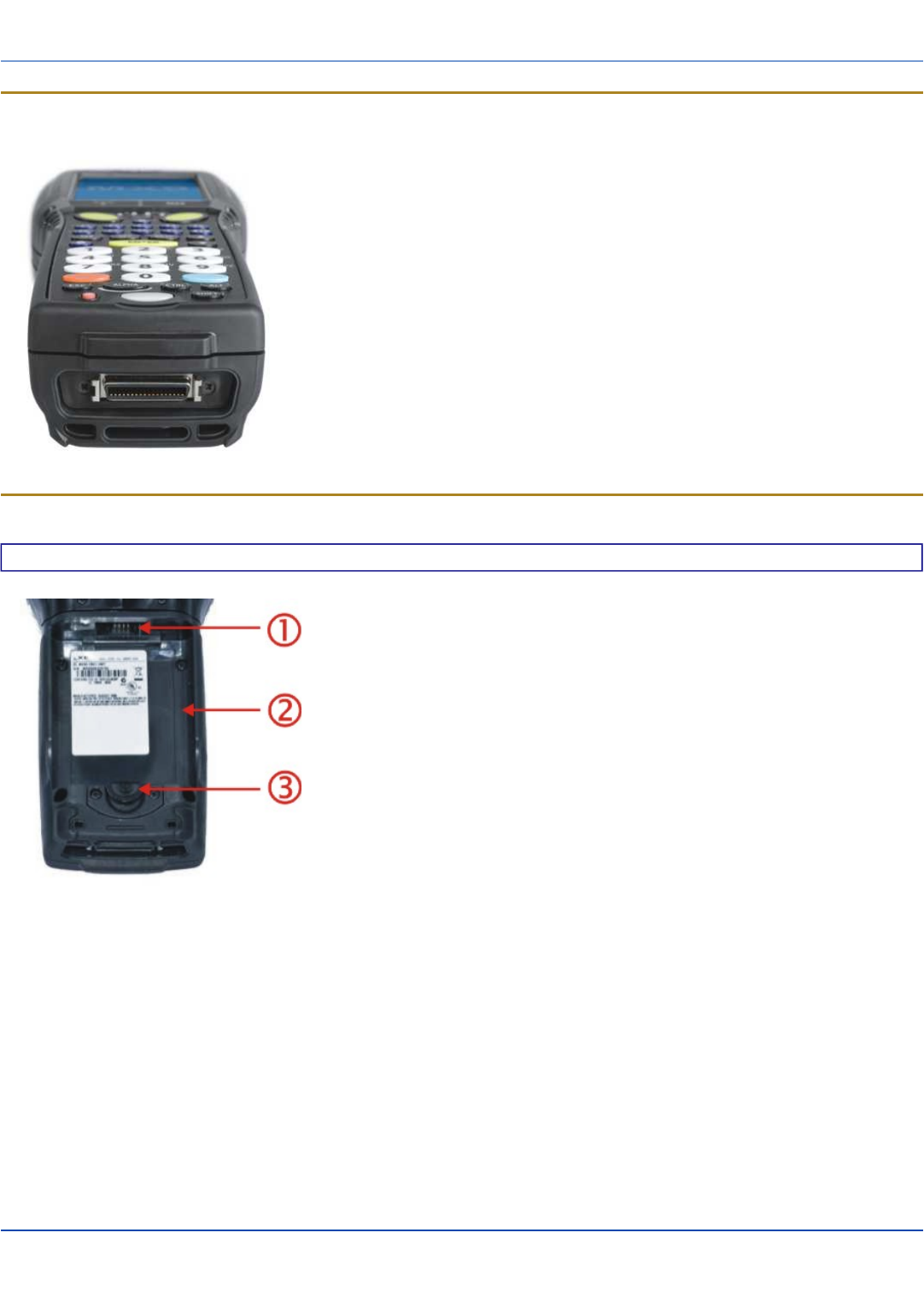

Bottom
For review only - Do not publish or distribute - LXE Confidential - Draft 01
Bottom
Input / Output Connector
Tethered boot cover (covers I/O connector) not shown
Back
Battery Bay
1. Battery Terminals
2. Battery Bay
3. Battery Bay Access Tab
E-EQ-MX9OGWW-C Draft 01 [ 4 ] MX9 User Guide
Handstrap
For review only - Do not publish or distribute - LXE Confidential - Draft 01
Handstrap
1. Handstrap
2. Handstrap Base
3. Stylus
1. Attach - Upper Handstrap Base
2. Attach - Lower Handstrap Base
1. Handstrap connector, upper
2. Stylus holder on Handstrap
3. Handstrap connector, lower
E-EQ-MX9OGWW-C Draft 01 [ 5 ] MX9 User Guide

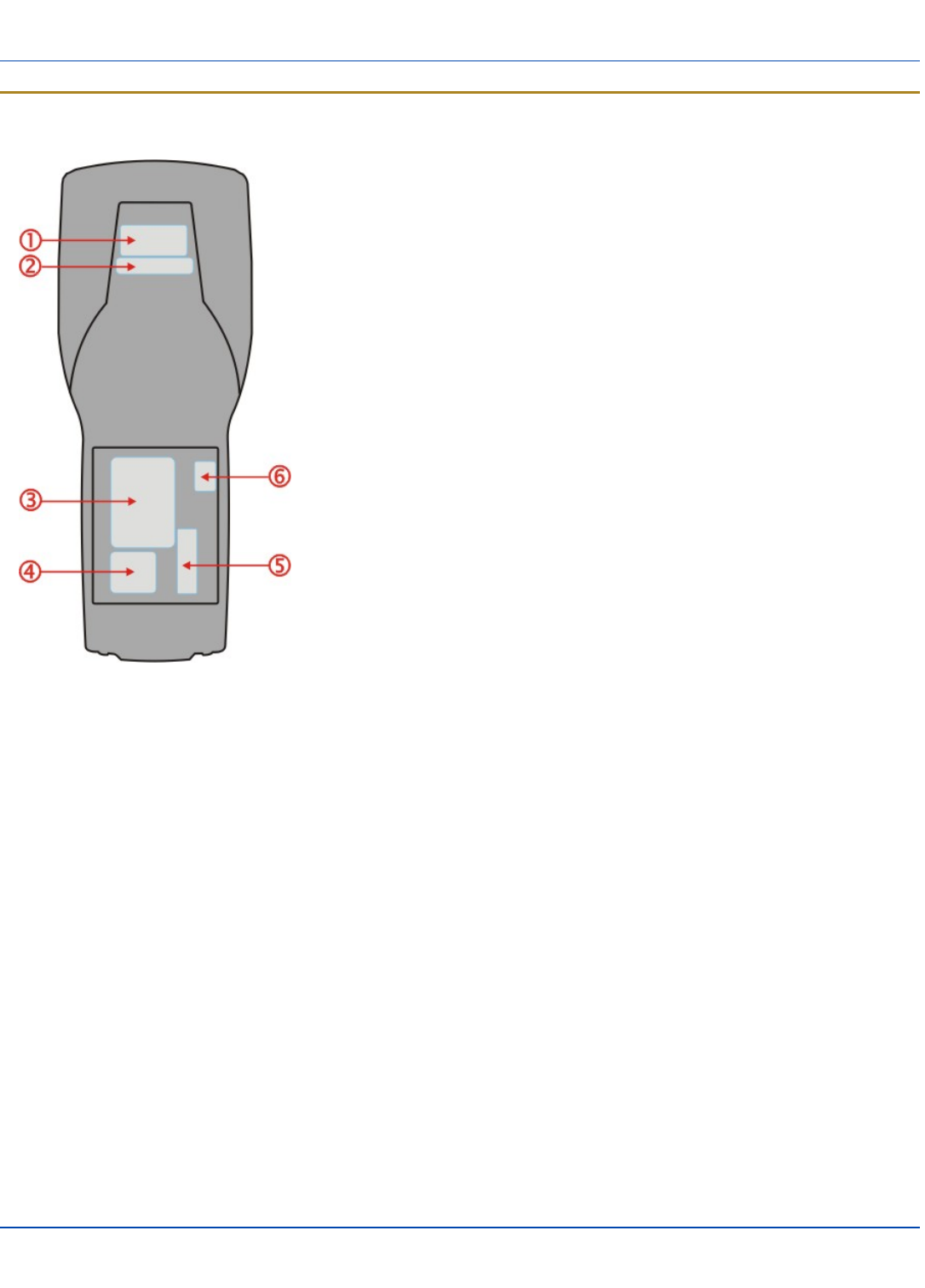

Label Locations
For review only - Do not publish or distribute - LXE Confidential - Draft 01
Label Locations
1. Laser Warning Label
2. Bluetooth Label
3. Product Identification Label
4. Reserved
5. Windows CE License Label
6. Tamper Proof Label
The tamper-proof label covers the top right screw in the battery bay. The label states
"Warranty void if removed or damaged". The battery pack will not deface the label as
the battery pack does not touch the label.
Device with Summit Radio
E-EQ-MX9OGWW-C Draft 01 [ 6 ] MX9 User Guide

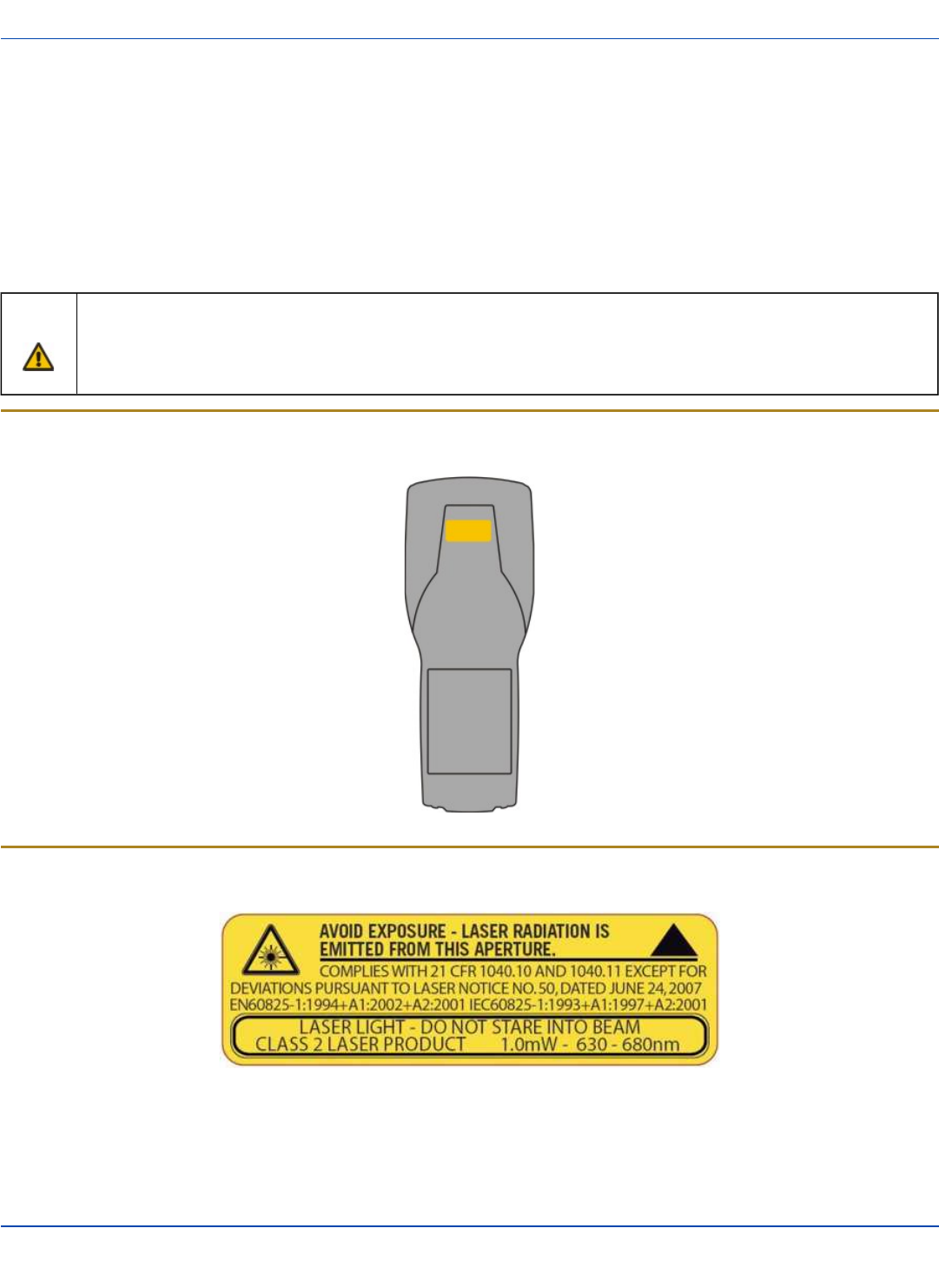

Laser Warnings and Labels
Laser Warnings and Labels
lDo not look into the laser’s lens.
lDo not stare directly into the laser beam.
lDo not remove the laser caution labels from the MX9.
lDo not connect the laser barcode aperture to any other device. The laser barcode aperture is certified for use with the
MX9 only.
Caution:
Laser radiation when open. Please read the caution labels. Use of controls, adjustments or performance of pro-
cedures other than those specified herein may result in hazardous radiation exposure.
Label Location
Label
E-EQ-MX9OGWW-C [ 7 ] MX9 User Guide
Batteries
Batteries
Hotswap the Main Battery
How To Connect or Remove the Battery Pack
Warning: Never remove or replace any battery in a hazardous location.
The MX9 will not function unless the battery pack is in place and securely latched.
Be sure to place the unit in Suspend Mode (by pressing the Power key or tapping Start | Suspend) before removing the battery.
Failing to properly place the device in Suspend mode will result in a loss of all unsaved data.
The main battery is located in a compartment on the back of the unit. The battery case serves as the back cover for the battery
well of the MX9.
An MX9 will retain data, while the main battery is removed and replaced with a fully charged main battery, for 5 minutes.
Important: When the backup battery power is Low or Very Low connect the AC adapter to the MX9 before replacing the main
battery.
Note: The battery should not be replaced in a dirty, harsh or hazardous environment. When the battery is not connected to
the MX9, any dust or moisture that enters the battery well or connector may transfer to the battery/well terminals,
potentially causing damage.
Warning: Only use LXE MX9380BATTERY batteries as replacements.
Insert/Replace Battery
To insert the main battery, complete the following steps:
1. Detach the bottom hook of the handstrap (if installed).
2. Tilt the end (with the terminals) of the fully charged battery pack into the upper end of the battery compartment, and
firmly press the other end until it is fully inserted into the battery compartment.
3. Push down on the battery until the retaining clip clicks into place.
4. Replace the handstrap clip in its holder (if installed).
The MX9 draws power from the battery immediately upon successful connection.
Check battery status by tapping the Start | Settings | Control Panel | Battery icon. Main battery level, status and other
details are displayed.
Remove Battery
To remove the battery, complete the following steps:
1. Place the MX9 in Suspend mode.
2. Detach the bottom hook of the handstrap (if installed).
3. Slide the battery retaining clip down to release the main battery.
4. Pull the battery up and out of the battery well with a hinge motion.
Place the discharged battery pack in a powered battery charger.
E-EQ-MX9OGWW-C [ 8 ] MX9 User Guide
Hotswap the Main Battery
Hotswap the Main Battery
Warning: Never replace (hotswap) the MX9 battery in a hazardous location.
Place the MX9 in Suspend Mode. LXE recommends any work in progress be saved prior to replacing the battery pack.
Simply replace the discharged battery with a fully-charged battery. An MX9, with a fully charged backup battery, will retain data
during a battery hotswap for 5 minutes.
E-EQ-MX9OGWW-C [ 9 ] MX9 User Guide
Regulatory Notices and Safety Information
RF Notices
Waste Electrical and Electronic Equipment (WEEE)
Important:
This symbol is placed on the product to remind users to dispose of Waste Electrical and Electronic Equipment
(WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled, reclaimed and re-
used when properly discarded. Do not discard labeled units with trash. For information about proper disposal,
Contact your LXE representative, or visit www lxe com.
Class B Digital Device
NOTICE
This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada]. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and the receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
NOTICE
Changes or modifications made to this equipment not expressly approved by LXE, Inc., may void the FCC authorization to
operate this equipment.
Industry Canada
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Le
présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques
de Classe B prescrites dans le Règlement sur le brouillage radioélectrique édits par le ministère des Communications du
Canada.
Li-Ion Battery
When disposing of the MX9 main battery, the following precautions should be observed: The battery should be disposed of
properly. The battery should not be disassembled or crushed. The battery should not be heated above 212°F (100°C) or
E-EQ-MX9OGWW-C [ 10 ] MX9 User Guide
RF Notices
incinerated.
NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [*] est conforme á la norme NMB-003 du Canada.
RF Notices
This device can contain transmitter Module(s) FCC ID:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment under 47 CFR 2.1093
paragraph (d)(2).
R&TTE Directive Requirements (Applies only to equipment operated within the EU/EFTA)
Information to User
A label on the exterior of the device should resemble one of the labels shown below (the label contains the LXE part
number of the installed radio card). The labels shown below and affixed to the device, identify where the device may
be used and where its use is restricted. Use of a device is prohibited in countries not listed below or otherwise
identified by the label. (May or may not include the 0560 Notified Body Number. Substitute 4 digit Notified Body
Number may also be applied.)
E-EQ-MX9OGWW-C [ 11 ] MX9 User Guide
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .
End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with
FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual.
For hand-held operation only. This IPDA meets FCC RF exposure guidelines when used in hand-held.

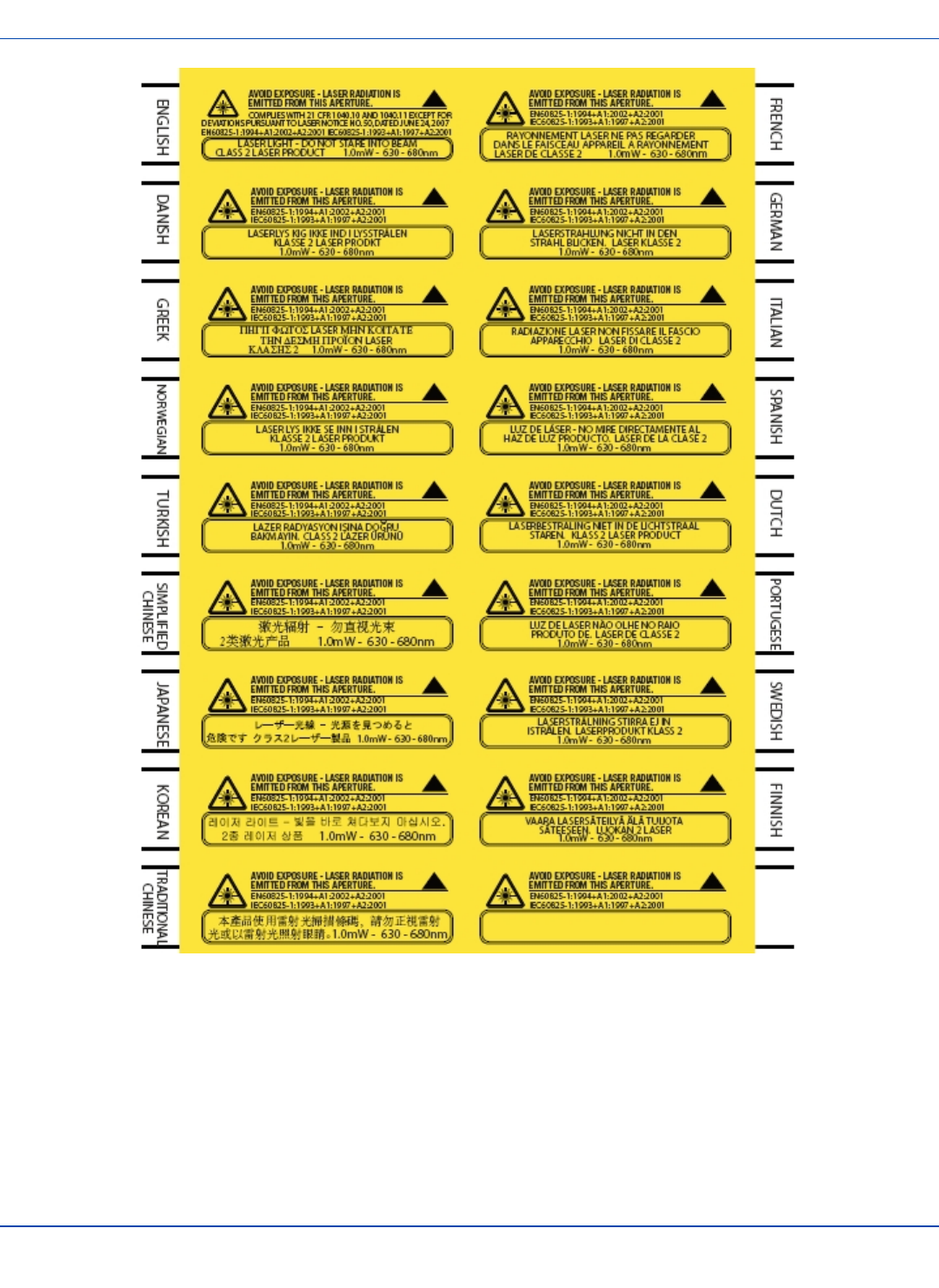

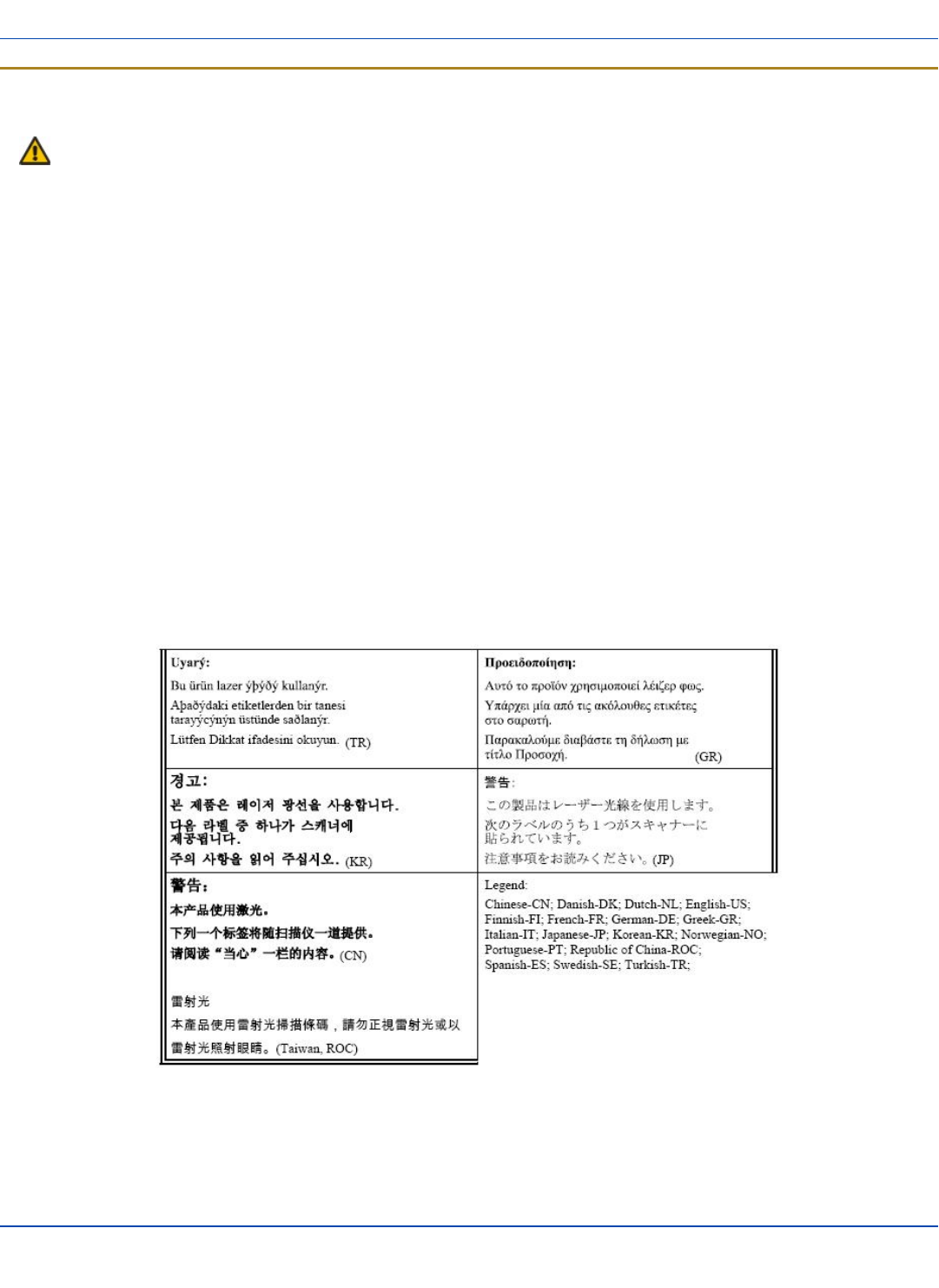

Laser Light Safety Statement
Laser Light Safety Statement
Warning: This product uses laser light. One of the following labels is provided on the scanner. Please read the
Caution statement. (US)
Mise én garde: Ce produit utilise un rayon laser. L’une des étiquettes suivantes est apposée sur le scanneur. Veuillez lire
l’avertissement qu’elle contient. (FR)
Advertência: Este produto usa luz de laser. O scanner contém um dos seguintes avisos. Favor ler o Aviso. (PT)
Varning: Denna produkt använder laserljus. En av de nedanstående etiketterna sitter på scannern. Var god läs varningstexten.
(SE)
Advarsel: Dette produkt anvender laserlys. En af følgende mærkater anvendes på scanneren. Læs venligst
sikkerhedsforanstaltningen. (DK)
Varoitus: Tämä tuote käyttää laservaloa. Skannerissa on jokin seuraavista tarroista. Lue Huomio-kohta. (FI)
Warnung: Dieses Produkt verwendet Laserlicht. Eines der folgenden Etiketten befindet sich auf dem Scanner. Bitte lesen Sie
den Gefahrenhinweis. (DE)
Attenzione: Questo prodotto utilizza luce laser. Una delle etichette seguenti c’ ubicata sullo scanner. Si raccomanda di leggere
con attenzione le avvertenze riportate. (IT)
Advarsel: Dette utstyret bruker laserlys. En av følgende etiketter er plassert på scanneren. Les advarselen på etiketten. (NO)
Advertencia: Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor, lea
detenidamente la explicación para las precauciones. (ES)
Waarschuwing: Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees a.u.b. de
waarschuwing onder Oppassen. (NL)
E-EQ-MX9OGWW-C [ 12 ] MX9 User Guide
Laser Light Safety Statement
E-EQ-MX9OGWW-C [ 13 ] MX9 User Guide
Index
B
Battery
Install 8
Remove 8
Battery insert and remove instruction 8
Bottom 4
C
Class B 10
Component Diagrams 1
Components
Back 4
Labels 6
Connect or Remove the Battery Pack 8
F
Front 1
H
Handstrap 5
Hotswap the Main Battery 9
I
Input / Output Connector 4
L
Laser Light Safety Statement 12
Laser Warnings and Labels 7
R
Regulatory Statements 10
Remove Battery 8
RF Notices 11
S
Scanner aperture 3
Special Purpose Keys - 38 Key 3
Special Purpose Keys - 62 Key 2
T
Top 3
W
WEEE 10
E-EQ-MX9OGWW-C Draft 01 [ 14 ] MX9 User Guide

Navigation menu
