Huawei Technologies Co.,Ltd Outdoor Wireless LAN Access Point Product Description
Contents
User Manual
AP8130DN
Product Description
Issue
02
Date
2014-12-05
HUAWEI TECHNOLOGIES CO., LTD.
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://enterprise.huawei.com
AP8130DN
Product Description
Contents
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
Contents
1 Product Positioning and Characteristics ................................................................................... 1
1.1 Product Positioning .......................................................................................................................................... 1
1.2 Product Characteristics ..................................................................................................................................... 6
2 Hardware Structure....................................................................................................................... 9
2.1 AP8130DN ....................................................................................................................................................... 9
3 Product Features .......................................................................................................................... 14
3.1 WLAN Features ............................................................................................................................................. 14
3.2 Network Features ........................................................................................................................................... 15
3.3 QoS Features .................................................................................................................................................. 15
3.4 Security Features ............................................................................................................................................ 15
3.5 Maintenance Features ..................................................................................................................................... 16
3.6 BYOD ............................................................................................................................................................ 16
3.7 Locating Service ............................................................................................................................................. 17
3.8 Spectrum Analysis .......................................................................................................................................... 17
4 Technical Specifications ........................................................................................................ xviii
4.1 Basic Specifications .................................................................................................................................... xviii
4.2 Radio Specifications ...................................................................................................................................... xix
4.3 Standards Compliance ................................................................................................................................ xxvii
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Product Positioning and Characteristics
1.1 Product Positioning
Table 1-1 Product positioning
Product
Model
Frequency
Band
IEEE
Standard
Compliance
Positioning
Usage
Scenario
AP8130DN
Dual band:
2.4 GHz
5 GHz
The AP8130DN
can provide
services
simultaneously
on the 2.4 GHz
and 5 GHz
frequency
bands to
support more
access users.
It supports
2.4G-to-5G
switchover and
works on dual 5
GHz frequency
bands.
IEEE
802.11a/b/g/n/a
c
Huawei
AP8030DN,
physically
hardened,
supports 3x3
MIMO and
offers enhanced
outdoor
coverage
performance.
The AP can
provide services
simultaneously
on the 2.4 GHz
and 5 GHz
frequency
bands to
support more
access users. It
provides
comprehensive
service support
capabilities and
features high
reliability, high
security, simple
network
deployment,
automatic AC
discovery and
Huawei
AP8130DNs
comply with
IP67 dustproof
and waterproof
protection
standards,
applicable to
coverage
scenarios (for
example,
squares,
pedestrian
streets, and
amusement
parks) and
bridging
scenarios (for
example,
wireless
harbors, data
backhaul, video
surveillance,
and
train-to-ground
backhaul).
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
Product
Model
Frequency
Band
IEEE
Standard
Compliance
Positioning
Usage
Scenario
configuration,
and real-time
management
and
maintenance,
which meets
requirements of
outdoor
deployment.
The AP8130DN can work as a Fat AP or Fit AP and switch flexibly between the two working
modes based on the network plan.
When the wireless network scale is small, customers need to purchase only AP products and
set the APs to work as Fat APs. As the network scale expands, tens of or hundreds of APs
exist on the network. To simplify network management, customers are advised to purchase
ACs to perform centralized management on the APs and set the APs to work as Fit APs.
Typical networking modes are as follows:
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

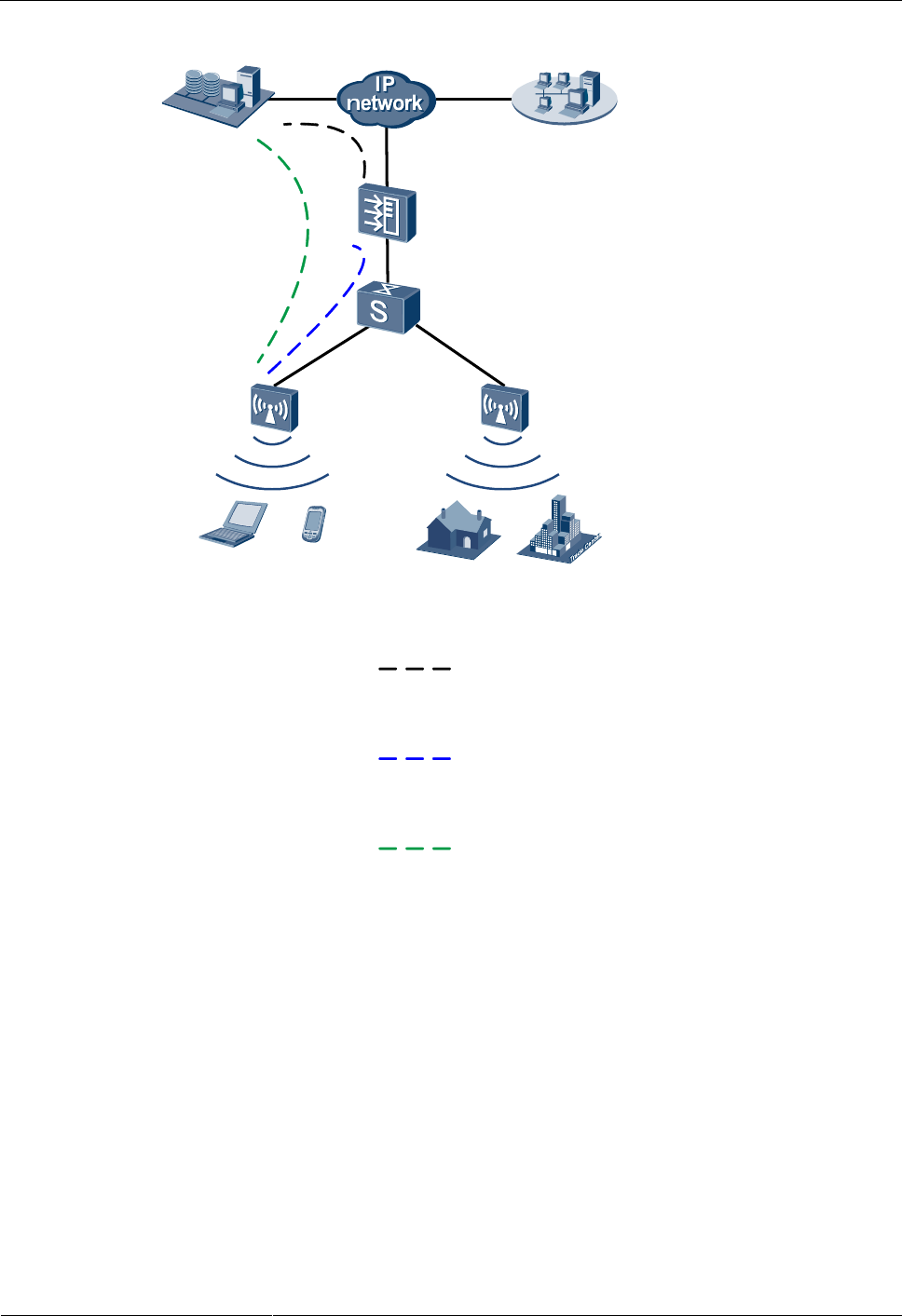

Figure 1-1 Fit AP networking (AP mode)
AP n
AP1
……
NMS
AC
Authentication system
Switch
Management channel between
NMS and AC
Management channel between the
AC and the AP and data channel
Where data flows are
encapsulated with CAPWAP
Channel where data flows are not
encapsulated with CAPWAP
Business
users
Residential
users
STA STA
In this networking, the AP functions as a fit AP and provides only data forwarding functions.
The AC is responsible for user access, AP go-online, AP management, authentication, routing,
security, and QoS.Huawei AC products include the AC6605, AC6005, and Access Controller
Unit (ACU2).
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4

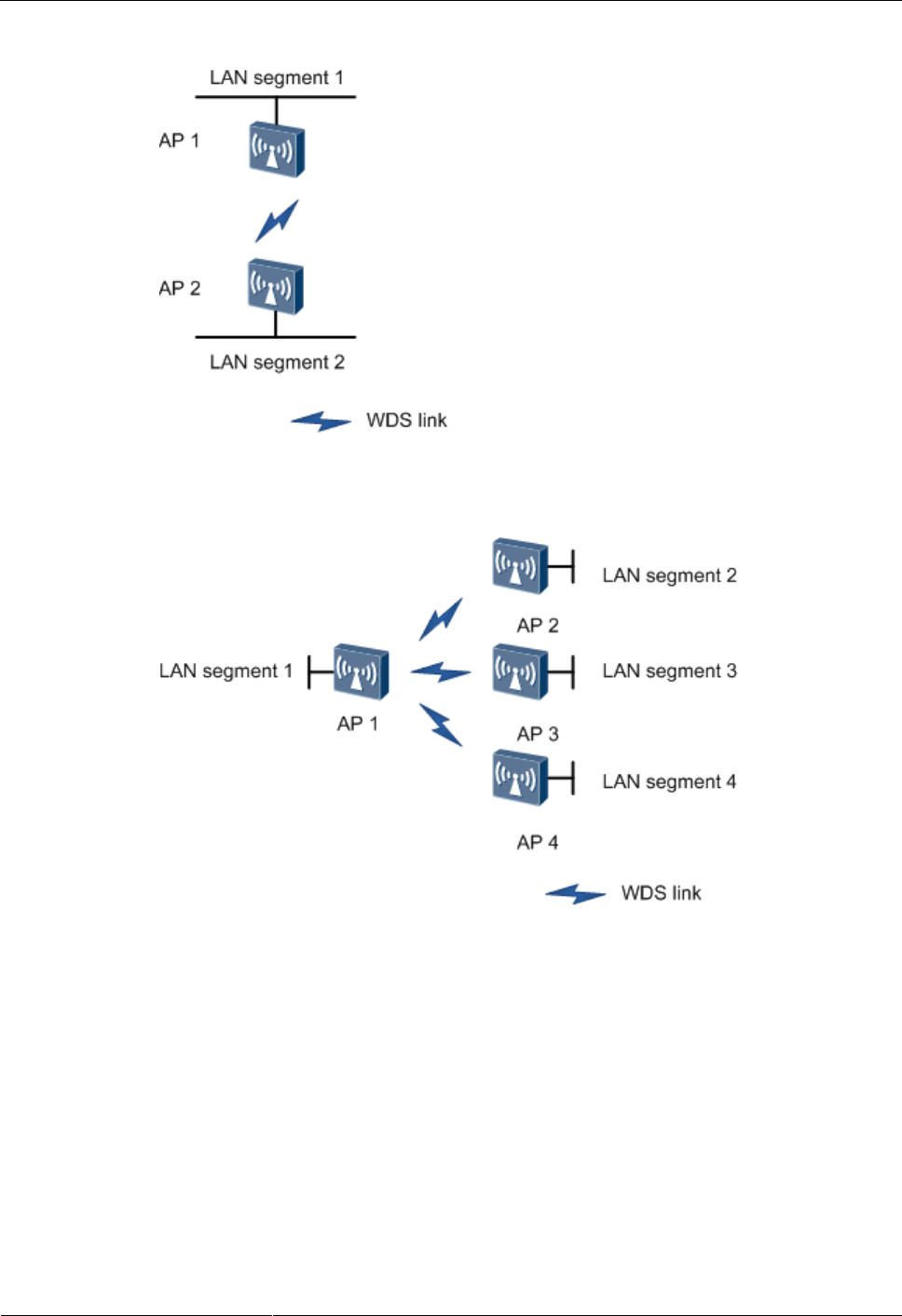

Figure 1-2 Fit AP networking (WDS mode: point-to-point)
Figure 1-3 Fit AP networking (WDS mode: point-to-multipoint)
In this networking, the AP connects two or more independently wired or wireless LANs
through wireless links to construct a network on which users can exchange data. In Wireless
Distribution System (WDS) mode, the AP supports point-to-point (P2P) and
point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands,
the AP can implement wireless bridging and access functions.
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5

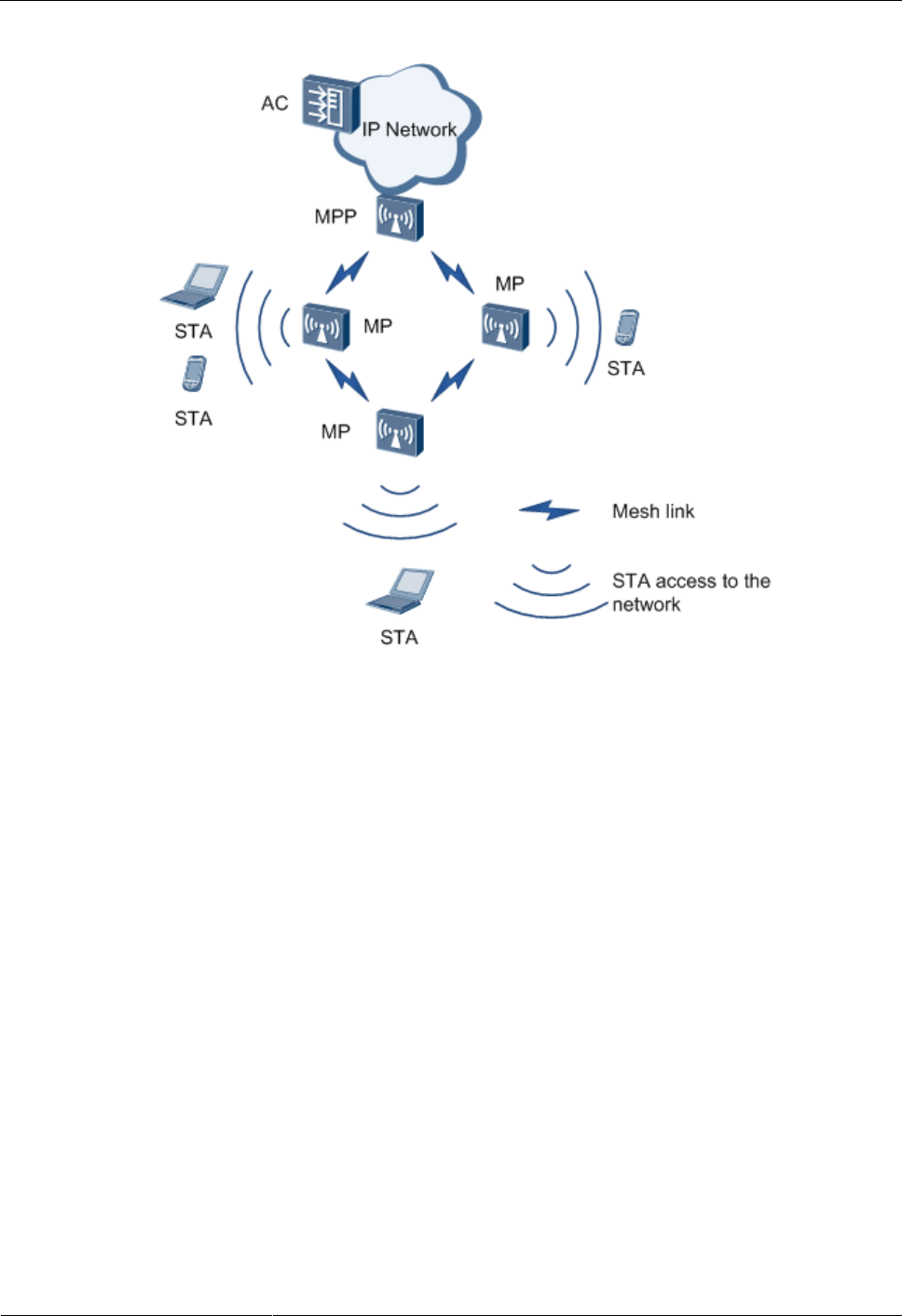

Figure 1-4 Fit AP mesh networking
On the preceding network, APs function as mesh points (MPs) and are fully-meshed to
establish an auto-configured and self-healing wireless mesh network (WMN). APs with the
gateway function can work as the mesh portal points (MPPs) through which the WMN can
provide access to the Internet. Terminals connect to APs to access the WMN. The WMN uses
dedicated mesh routing protocols to guarantee high transmission quality and is more
applicable to scenarios that require high bandwidth and highly stable Internet connections.
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6

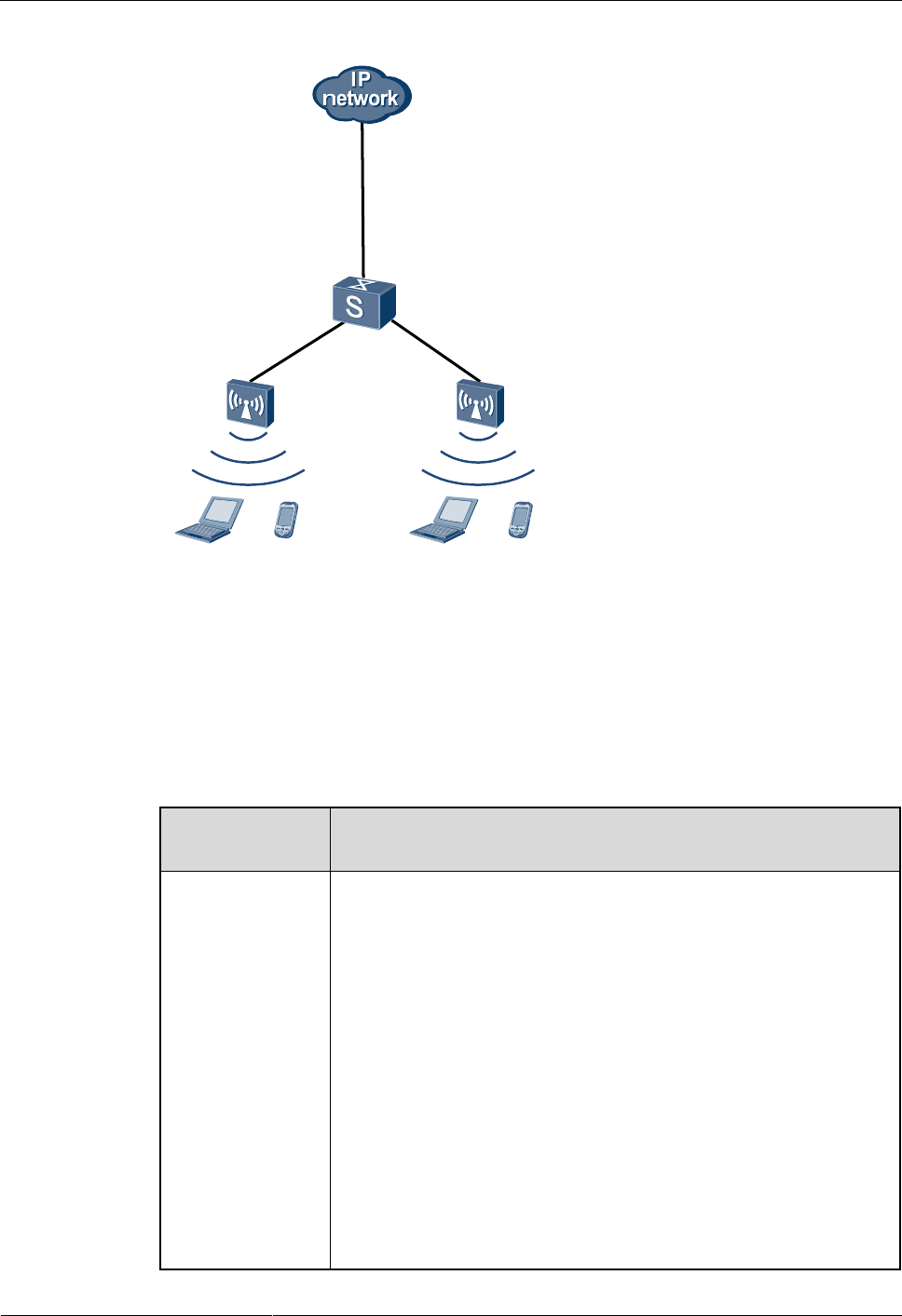

Figure 1-5 Fat AP networking
AP n
AP1
……
Switch
STA STASTA STA
On the preceding network, the device functions as a Fat AP to implement functions such as
user access, authentication, data security, service forwarding, and QoS.
1.2 Product Characteristics
Product
Characteristics
Description
High-speed and
reliable wireless
access
Complies with IEEE 802.11a/b/g/n/ac.
Supports 3×3 MIMO and provides a maximum rate of 1.75 Gbit/s.
Supports Wi-Fi Multimedia (WMM) and priority mapping on the
air interface and wired interface.
Supports wired link integrity check.
Provides two GE auto-sensing uplink electrical ports and supports
PoE power supply.
Supports load balancing.
Supports roaming without service interruption in Fit AP mode.
Supports AC dual-link backup in Fit AP mode.
Uses the latest 802.11ac chip to provide higher performance and
wider coverage.
Uses a metal shell and heat dissipation design to ensure high
reliability.
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
Product
Characteristics
Description
Supports airtime scheduling which ensures fairness in channel
occupation time for all users.
Comprehensive
user access control
capability
Supports access control lists (ACLs) and implements user access
control based on the user group policy.
Provides fine-grained bandwidth management for each user.
Supports user isolation policies.
Supports unified authentication on the AC in Fit AP mode.
Identifies the device type according to the organizationally unique
identifier (OUI) in the MAC address, user agent (UA) information
in an HTTP packet, and DHCP options in Fit AP mode.
The RADIUS server delivers packet forwarding, security, and QoS
policies according to the device type carried in the RADIUS
authentication and accounting packets in Fit AP mode.
High network
security
Open system authentication
WEP authentication/encryption
WPA/WPA2/WPA-WPA2-PSK authentication and encryption
WPA/WPA2/WPA-WPA2-802.1x authentication and encryption
WPA, WPA2, and WPA-WPA2 support TKIP and CCMP
encryption algorithms, where CCMP uses 128-bit advanced
encryption standard (AES) encryption algorithm and has high
security.
WAPI authentication and encryption
Supports wireless intrusion detection system (WIDS) and wireless
intrusion prevention system (WIPS), including rogue device
detection and countermeasure, attack detection and dynamic
blacklist, STA/AP blacklist and whitelist.
Flexible
networking and
environment
adaptability
Provides flexible networking capabilities and applies to various
application scenarios. Mesh and WDS scenarios are supported only
in Fit AP mode.
Has strong environment adaptability. The AP can automatically
select the transmission rates, channels, and transmit power to adapt
to various radio environments and avoid interference in real time.
Adjusts bandwidth allocation based on the user quantity and
environment to improve user experience.
Supports the MIMO antenna system and connects to external
dual-band antennas (2.4 GHz and 5 GHz). The antennas can be
flexibly adjusted.
Identifies interference sources such as baby monitors, Bluetooth
devices, digital cordless phones (at 2.4 GHz frequency band only),
wireless audio transmitters (at both the 2.4 GHz and 5 GHz
frequency bands), wireless game controllers, and microwaves in Fit
AP mode and works with eSight to locate interference sources and
display spectrums.
Easy device
Automatically goes online and loads the configuration, and
AP8130DN
Product Description
1 Product Positioning and Characteristics
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
Product
Characteristics
Description
management and
maintenance
supports plug-and-play (PnP) in Fit AP mode.
Supports batch upgrade.
Manages APs locally on the web platform and supports HTTP or
HTTPS login, configuration, and maintenance in Fat AP mode.
Allows real-time monitoring on the network management system
(NMS) to facilitate remote configuration and fast fault location.
Supports the Link Layer Discovery Protocol (LLDP) to implement
automatic link discovery and obtain the network topology.
High reliability
and protection
level
Provides strong hardware protection capability.
Adapts to a wide temperate range from -40°C to +60°C.
Uses industry-standard components and design methods, improving
industry-level reliability.
Complies with IP65/IP66/IP67 protection standards.
Has a built-in 5 kA feeder surge protector and requires no external
surge protective devices, which simplifies installation and lowers
costs.
Provides 6 kA or 6 kV surge protection capability on an Ethernet
interface.
Complies with international standards and China safety standards
III.
AP8130DN
Product Description
2 Hardware Structure
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
2 Hardware Structure
2.1 AP8130DN
Appearance

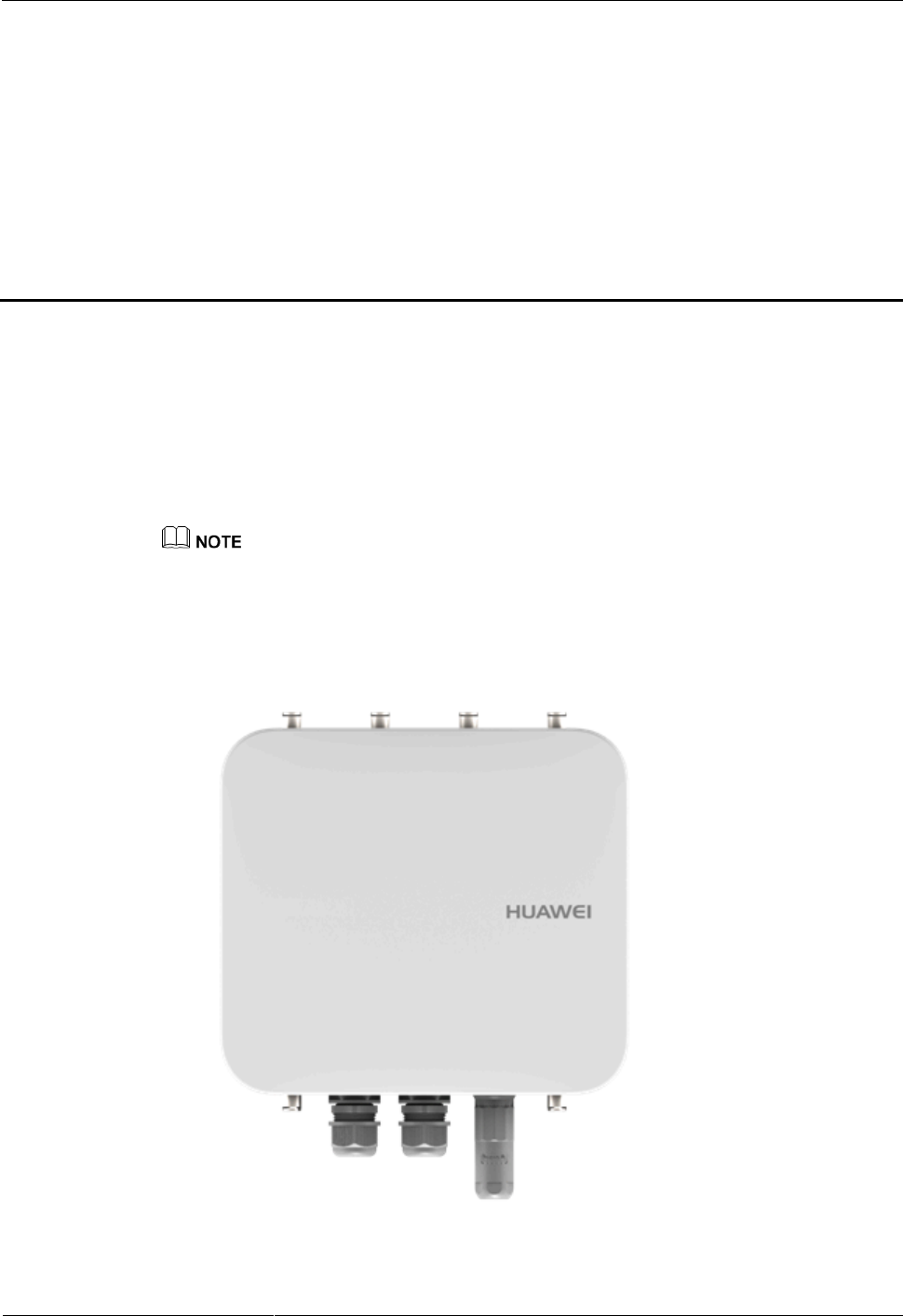

Figure 2-1 shows the appearance of the AP.
The actual device appearance may be different from the following device appearance, but these
differences will not affect device functions.
Figure 2-1 AP appearance
AP8130DN
Product Description
2 Hardware Structure
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
There is a scald warning label attached on the device, warning you not to touch
the device after the device has been operating for a long time.
Interfaces

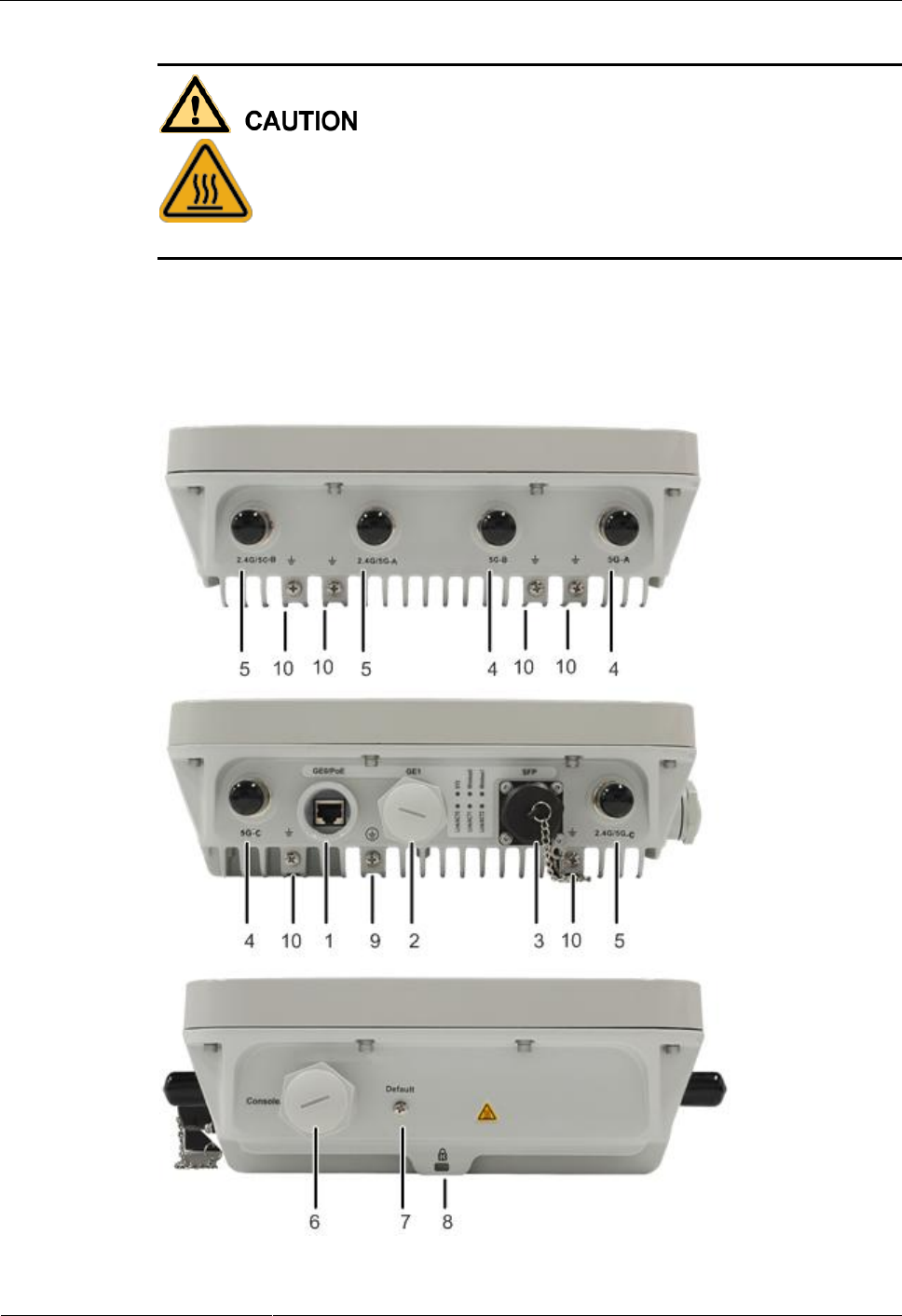

The following figure shows interfaces on the AP.
Figure 2-2 Interfaces on the AP
AP8130DN
Product Description
2 Hardware Structure
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
1. GE0/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and
supports the PoE power supply.
2. GE1 interface: a 10/100/1000M interface, which connects to the wired Ethernet.
3. SFP: an optical interface.
4. 5 GHz antenna interface.
5. 2.4 GHz or 5 GHz antenna interface.
6. Console interface
7. Default button: restores the factory settings if you remove the screw and hold down the
button more than 3s from the hole.
8. Security slot: Connects to a security lock.
9. Device ground screw: Connects a ground cable to the AP.
10. Ground screw for the surge protective device: Connects the AP to the ground point of an
external surge protective device.

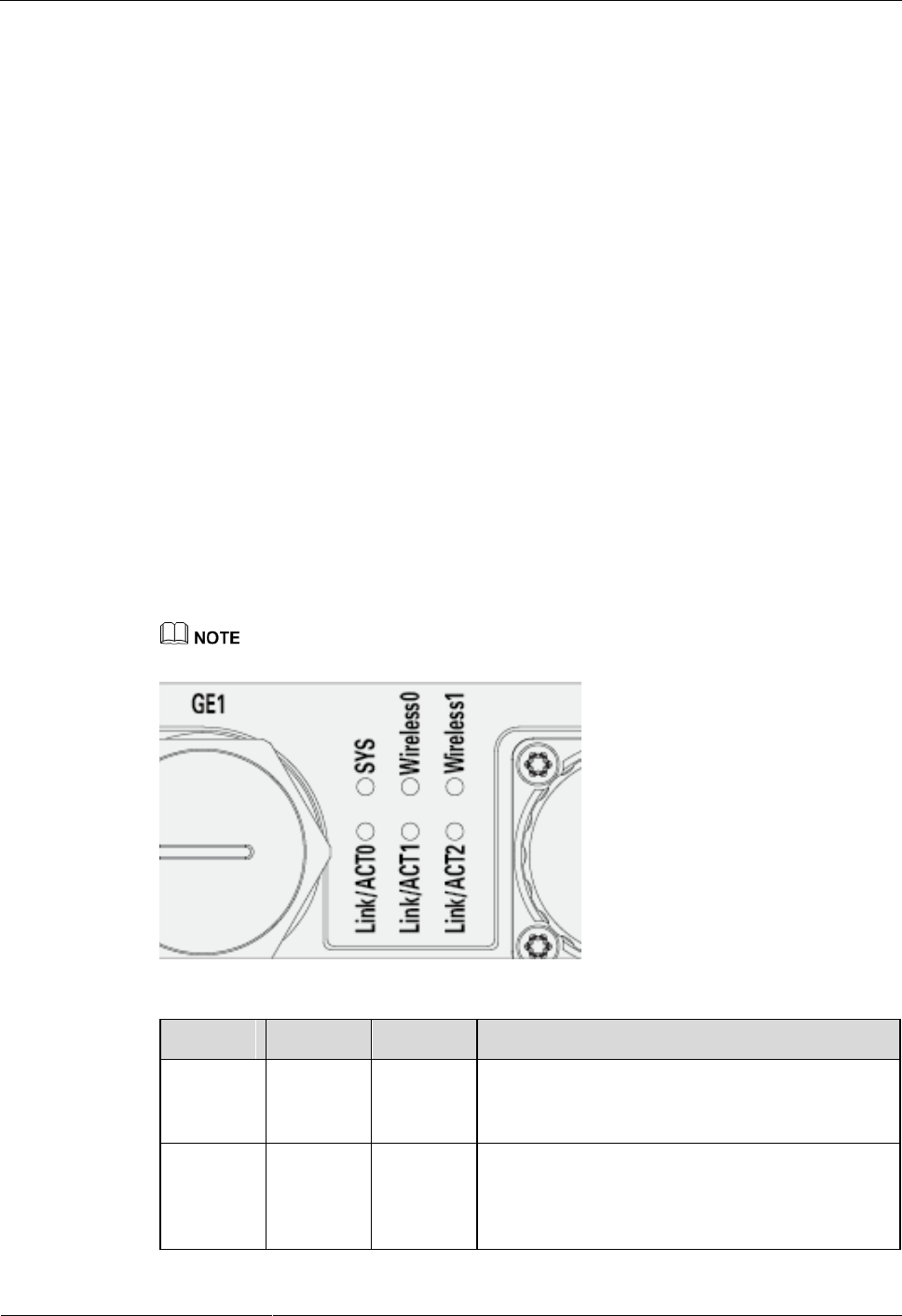

LED Indicators
The AP provides multiple indicators: SYS indicator, Link indicator, and Wireless indicator.
The following table describes indicators on AP.
Indicator colors may vary slightly at different temperature.
Table 2-1 Descriptions about the SYS indicator
Type
Color
Status
Description
Default
status after
power-on
Green
Steady on
The AP is just powered on and the software is not
started yet.
Software
startup
status
Green
Steady on
after
blinking
once
After the system is reset and starts uploading the
software, the indicator blinks green once. Until the
software is uploaded and started, the indicator
remains steady green.
AP8130DN
Product Description
2 Hardware Structure
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
Type
Color
Status
Description
Running
status
Green
Blinking
once every
2s (0.5
Hz)
The system is running properly, the Ethernet
connection is normal, and STAs are associated
with the AP.
The system enters the Uboot CLI.
Blinking
once every
5s (0.2
Hz)
The system is running properly, the Ethernet
connection is normal, and no STA is associated
with the AP. The system is in low power
consumption state.
Alarm
Green
Blinking
once every
0.25s (4
Hz)
The software is being upgraded.
After the software is uploaded and started, the
AP working in Fit AP mode requests to go
online on the AC and maintains this state until it
goes online successfully on the AC (before the
CAPWAP link is established).
The AP working in Fit AP mode fails to go
online on the AC (the CAPWAP link
disconnects).
Fault
Red
Steady on
A fault that affects services has occurred, such as a
DRAM detection failure or system software
loading failure. The fault cannot be automatically
rectified and must be rectified manually.
Table 2-2 Descriptions about the Link indicator
Type
Color
Status
Description
LINK
Green
Steady on
The system is running properly, the Ethernet
connection is normal, and no data is being
transmitted.
ACT
Green
Blinking
The system is running properly, the Ethernet
connection is normal, and the AP is transmitting
data. The indicator blinks more quickly when more
data is being transmitted.
Table 2-3 Description about the Wireless indicator (Traffic volume indicator)
Color
Status
Description
Yellow/green
Off
Radios are disabled, and no STA is
connected to the AP.
Yellow/green
Steady on
The AP has STAs connected to the 2.4 GHz
radio or 5 GHz radio, but no data is being
transmitted.
AP8130DN
Product Description
2 Hardware Structure
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Color
Status
Description
Green
Blinking
The AP has STAs connected to the 2.4 GHz
radio and is transmitting data. The indicator
blinks more quickly when more data is
being transmitted.
Yellow
Blinking
The AP has STAs connected to the 5 GHz
radio and is transmitting data. The indicator
blinks more quickly when more data is
being transmitted.
Yellow/green
Blinking
alternatively
The AP has STAs connected to both the 2.4
GHz radio and 5 GHz radio. The indicator
blinks more quickly when more data is
being transmitted.
Table 2-4 Description about the Wireless indicator (Wireless bridge indicator)
Color
Status
Description
Yellow/green
Off
The AP is not transmitting or receiving data
or the signal strength is extremely low.
Blinking once every
2s (0.5 Hz)
The AP is transmitting or receiving data
normally, and the signal strength is low.
Blinking green once
every 0.25 seconds
(4 Hz)
The AP is transmitting or receiving data
normally, and the signal strength is medium.
Steady on
The AP is transmitting or receiving data
normally, and the signal strength is high.
When the WDS/Mesh function is enabled on an AP, the blinking frequency of its Wireless indicator
indicates the receive signal strength on the WDS/Mesh connection by default. After you connect an AP
to a WDS/Mesh network, you can run the wifi-light { signal-strength | traffic } command on the AC to
make the Wireless indicator blinking frequency indicate receive signal strength or service traffic rate.
wifi-light signal-strength:
If the Mesh function is enabled on the AP, the blinking frequency of the Wireless indicator reflects
the weakest signal strength of all neighboring APs.
If WDS is enabled on an AP, the blinking frequency of the Wireless indicator reflects the strength of
signals received from a WDS AP.
If the AP works in leaf mode, the blinking frequency of the Wireless indicator reflects the strength of
signals received from a middle AP.
If the AP works in middle mode, the blinking frequency of the Wireless indicator reflects the
strength of signals received from a root AP.
If the AP works in root mode, the blinking frequency of the Wireless indicator reflects the weakest
signal strength of middle APs.
wifi-light traffic: allows the Wireless indicator to reflect the service traffic volume on the radio.
When an AP functions as a Fat AP, the Wireless indicator of the AP can not reflect the signal strength.
AP8130DN
Product Description
3 Product Features
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
3 Product Features
3.1 WLAN Features
WLAN features supported by the AP are as follows:
Comply with IEEE 802.11a/b/g/n/ac
The maximum rate of 1.75Gbit/s
Maximum ratio combining (MRC)
Space time block code (STBC)
Beamforming
Low-density parity-check (LDPC)
Maximum-likelihood detection (MLD)
Data unit aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
802.11 dynamic frequency selection (DFS)
Short GI in 20 MHz, 40 MHz and 80 MHz modes
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to
implement priority-based data processing and forwarding
Automatic and manual rate adjustment
WLAN channel management and channel rate adjustment
For details about WLAN channel management, see the Country Code & Channel Compliance Table.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Signal sustain technology (SST)
Unscheduled automatic power save delivery (U-APSD)
Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
Automatic login in Fit AP mode
Extended Service Set (ESS) in Fit AP mode
Wireless distribution system (WDS) in Fit AP mode
Mesh networking in Fit AP mode
Multi-user CAC
AP8130DN
Product Description
3 Product Features
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
3.2 Network Features
Network features supported by the AP are as follows:
Compliance with IEEE 802.3u
Auto-negotiation of the rate and duplex mode and automatic switchover between the
Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
Compliance with IEEE 802.1q
SSID-based VLAN assignment
VLAN trunk on uplink Ethernet ports
AP control channel in tagged and untagged mode
DHCP client, obtaining IP addresses through DHCP
Tunnel data forwarding and direct data forwarding
STA isolation in the same VLAN
Access control lists (ACLs)
Link Layer Discovery Protocol (LLDP)
Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP mode
Unified authentication on the AC in Fit AP mode
AC dual-link backup in Fit AP mode
NAT in Fat AP mode
IPv6 in Fit AP mode
3.3 QoS Features
QoS features supported by the AP are as follows:
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to
implement priority-based data processing and forwarding
WMM parameter management for each radio
WMM power saving
Priority mapping for upstream packets and flow-based mapping for downstream packets
Queue mapping and scheduling
User-based bandwidth limiting
Adaptive bandwidth management (the system dynamically adjusts bandwidth based on
the number of users and radio environment to improve user experience)
Airtime scheduling
3.4 Security Features
Security features supported by the AP are as follows:
Open system authentication
WEP authentication/encryption using a 64-bit, 128-bit, or 152-bit encryption key
WPA/WPA2-PSK authentication and encryption (WPA/WPA2 personal edition)
AP8130DN
Product Description
3 Product Features
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
WPA/WPA2-802.1x authentication and encryption (WPA/WPA2 enterprise edition)
WPA-WPA2 hybrid authentication
WAPI authentication and encryption
Supports wireless intrusion detection system (WIDS) and wireless intrusion prevention
system (WIPS), including rogue device detection and countermeasure, attack detection
and dynamic blacklist, STA/AP blacklist and whitelist.
802.1x authentication, MAC address authentication, and Portal authentication
DHCP Snooping
DAI (Dynamic ARP Inspection)
IPSG (IP Source Guard)
3.5 Maintenance Features
Maintenance features supported by the AP are as follows:
Unified management and maintenance on the AC in Fit AP mode
Automatic login and configuration loading, and plug-and-play (PnP) in Fit AP mode
WDS zero-configuration deployment in Fit AP mode
Mesh network zero-configuration deployment in Fit AP mode
Batch upgrade in Fit AP mode
Telnet
STelnet using SSH v2
SFTP using SSH v2
Web local AP management through HTTP or HTTPS in Fat AP mode
Real-time configuration monitoring and fast fault location using the NMS
SNMP v1/v2/v3 in Fat AP mode
System status alarm
Network Time Protocol (NTP) in Fat AP mode
Dying Gasp
3.6 BYOD
The AP supports bring your own device (BYOD) only in Fit AP mode.
BYOD features supported by the AP are as follows:
Identifies the device type according to the organizationally unique identifier (OUI) in the
MAC address.
Identifies the device type according to the user agent (UA) information in an HTTP
packet.
Identifies the device type according to DHCP options.
The RADIUS server delivers packet forwarding, security, and QoS policies according to
the device type carried in the RADIUS authentication and accounting packets.
AP8130DN
Product Description
3 Product Features
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
3.7 Locating Service
The AP supports the locating service only in Fit AP mode.
Locating service features supported by the AP are as follows:
Locates tags manufactured by AeroScout or Ekahau.
Locates Wi-Fi terminals.
Works with eSight to locate rogue devices.
3.8 Spectrum Analysis
The AP supports spectrum analysis only in Fit AP mode.
Spectrum analysis features supported by the AP are as follows:
Identifies interference sources such as baby monitors, Bluetooth devices, digital cordless
phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4
GHz and 5 GHz frequency bands), wireless game controllers, and microwaves.
Works with eSight to perform spectrum analysis on interference sources.
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xviii
4 Technical Specifications
4.1 Basic Specifications
Table 4-1 Basic Specifications
Item
Description
Technical
specifications
Dimensions (H x W
x D)
100 mm x 290 mm x 260 mm
Weight
4.0 kg
System memory
256 MB DDR3
64 MB Flash
Power specifications
Power input
PoE power supply: in compliance with
IEEE 802.3at
Maximum power
consumption
22.4 W
NOTE
The actual maximum power consumption
depends on local laws and regulations.
Environment
specifications
Operating
temperature
-60 m to +1800 m: -40°C to +60°C
1800 m to 5000 m: Temperature decreases
by 1°C every time the altitude increases 300
m.
Storage temperature
-40°C to +70°C
Operating humidity
0% to 100% (non-condensing)
IP rating
IP67
Atmospheric
pressure
53 kPa to 106 kPa
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xix
4.2 Radio Specifications
Table 4-2 Radio specifications
Item
Description
Antenna
type
Outdoor external antenna
Maximum
number of
concurrent
users
Fit AP mode: ≤ 256
NOTE
The number of concurrent online users on each VAP cannot exceed 128.
The number of concurrent online users on each radio cannot exceed 128.
-
Fat AP mode: ≤ 64
Maximum
number of
VAPs for
each radio
16
Maximum
transmit
power
2.4 GHz: 28 dBm (combined power)
5 GHz: 26 dBm (combined power)
NOTE
The actual transmit power depends on local laws and regulations.
You can adjust the transmit power from the maximum transmit power to 1 dBm, with
a step of 1 dB.
Maximum
number of
non-overlap
ping
channels
2.4 GHz
802.11b/g
20 MHz: 3
802.11n
20 MHz: 3
40 MHz: 1
5 GHz
802.11a
2
0
M
H
z:
1
3
802.11n
2
0
M
H
z:
1
3
4
0
M
H
z:
6
NOTE
The table uses the number of
non-overlapping channels supported by
China as an example. The number of
non-overlapping channels varies in
different countries. For details, see the
Country Code & Channels compliance
status
NOTICE
If the AP is delivered to the USA, pay
attention to the following on channel
and frequency band usage.
T
h
e
c
o
u
n
t
r
y
c
o
d
e
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xx
Item
Description
802.11ac
2
0
M
H
z:
1
3
4
0
M
H
z:
6
8
0
M
H
z:
3
o
f
t
h
e
A
P
i
s
f
i
x
e
d
.
H
i
g
h
p
o
w
e
r
r
a
d
a
r
s
w
o
r
k
i
n
g
a
t
f
r
e
q
u
e
n
c
i
e
s
i
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxi
Item
Description
n
t
h
e
r
a
n
g
e
o
f
5
.
2
5
G
H
z
t
o
5
.
3
5
G
H
z
,
5
.
4
7
G
H
z
t
o
5
.
6
G
H
z
,
a
n
d
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxii
Item
Description
5
.
6
5
G
H
z
t
o
5
.
7
2
5
G
H
z
c
a
n
i
n
t
e
r
f
e
r
e
w
i
t
h
o
r
e
v
e
n
d
a
m
a
g
e
A
P
s
w
o
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxiii
Item
Description
r
k
i
n
g
a
t
t
h
e
s
a
m
e
f
r
e
q
u
e
n
c
y
.
Channel rate
802.11b: 1, 2, 5.5, and 11 Mbit/s
802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11n: 6.5 to 450 Mbit/s
802.11ac: 6.5 to 1300 Mbit/s
Receiver
sensitivity
(Typical
values)
2.4 GHz
802.11b (CCK)
-100 dBm @ 1
Mb/s
-94 dBm @ 2
Mb/s
-94 dBm @
5.5 Mb/s
-90 dBm @ 11
Mb/s
2.4 GHz
802.11g
(non-HT20)
-95 dBm @ 6
Mb/s
-95 dBm @ 9
Mb/s
-94 dBm @ 12
Mb/s
-94 dBm @ 18
Mb/s
-91 dBm @ 24
Mb/s
-87 dBm @ 36
Mb/s
-83 dBm @ 48
Mb/s
-82 dBm @ 54
Mb/s
2.4 GHz
802.11n (HT20)
-95 dBm @
MCS0
-95 dBm @
MCS1
-94 dBm @
MCS2
-89 dBm @
MCS3
-85 dBm @
MCS4
-82 dBm @
MCS5
-80 dBm @
MCS6
-78 dBm @
MCS7
-93 dBm @
2.4 GHz
802.11n(HT40)
-92 dBm @
MCS0
-90 dBm @
MCS1
-90 dBm @
MCS2
-85 dBm @
MCS3
-83 dBm @
MCS4
-79 dBm @
MCS5
-78 dBm @
MCS6
-75 dBm @
MCS7
-90 dBm @
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxiv
Item
Description
MCS8
-93 dBm @
MCS9
-92 dBm @
MCS10
-87 dBm @
MCS11
-83 dBm @
MCS12
-80 dBm @
MCS13
-78 dBm @
MCS14
-76 dBm @
MCS15
-91 dBm @
MCS16
-91 dBm @
MCS17
-90 dBm @
MCS18
-85 dBm @
MCS19
-81 dBm @
MCS20
-78 dBm @
MCS21
-76 dBm @
MCS22
-74 dBm @
MCS23
MCS8
-88 dBm @
MCS9
-88 dBm @
MCS10
-83 dBm @
MCS11
-81 dBm @
MCS12
-77 dBm @
MCS13
-76 dBm @
MCS14
-73 dBm @
MCS15
-88 dBm @
MCS16
-86 dBm @
MCS17
-86 dBm @
MCS18
-81 dBm @
MCS19
-79 dBm @
MCS20
-75 dBm @
MCS21
-74 dBm @
MCS22
-71 dBm @
MCS23
5 GHz
802.11a
(non-HT20)
-96 dBm @ 6
Mb/s
-95 dBm @ 9
Mb/s
-94 dBm @ 12
Mb/s
-93 dBm @ 18
Mb/s
-89 dBm @ 24
Mb/s
-86 dBm @ 36
5 GHz
802.11n (HT20)
-95 dBm @
MCS0
-94 dBm @
MCS1
-93 dBm @
MCS2
-88 dBm @
MCS3
-85 dBm @
MCS4
-80 dBm @
MCS5
5 GHz
802.11n (HT40)
-92 dBm @
MCS0
-91 dBm @
MCS1
-90 dBm @
MCS2
-85 dBm @
MCS3
-82 dBm @
MCS4
-78 dBm @
MCS5
-
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxv
Item
Description
Mb/s
-82 dBm @ 48
Mb/s
-80 dBm @ 54
Mb/s
-79 dBm @
MCS6
-78 dBm @
MCS7
-93 dBm @
MCS8
-92 dBm @
MCS9
-91 dBm @
MCS10
-86 dBm @
MCS11
-83 dBm @
MCS12
-78 dBm @
MCS13
-77 dBm @
MCS14
-76 dBm @
MCS15
-91 dBm @
MCS16
-90 dBm @
MCS17
-89 dBm @
MCS18
-84 dBm @
MCS19
-81 dBm @
MCS20
-76 dBm @
MCS21
-75 dBm @
MCS22
-74 dBm @
MCS23
-76 dBm @
MCS6
-75 dBm @
MCS7
-90 dBm @
MCS8
-89 dBm @
MCS9
-88 dBm @
MCS10
-83 dBm @
MCS11
-80 dBm @
MCS12
-76 dBm @
MCS13
-74 dBm @
MCS14
-73 dBm @
MCS15
-88 dBm @
MCS16
-87 dBm @
MCS17
-86 dBm @
MCS18
-81 dBm @
MCS19
-78 dBm @
MCS20
-74 dBm @
MCS21
-72 dBm @
MCS22
-71 dBm @
MCS23
5 GHz
802.11ac
(VTH20)
-95 dBm @
MCS0NSS1
-94 dBm @
MCS1NSS1
-93 dBm @
MCS2NSS1
5 GHz
802.11ac
(VTH40)
-92 dBm @
MCS0NSS1
-92 dBm @
MCS1NSS1
-89 dBm @
MCS2NSS1
5 GHz
802.11ac
(VTH80)
-90 dBm @
MCS0NSS1
-88 dBm @
MCS1NSS1
-86 dBm @
MCS2NSS1
-
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxvi
Item
Description
-88 dBm @
MCS3NSS1
-85 dBm @
MCS4NSS1
-80 dBm @
MCS5NSS1
-78 dBm @
MCS6NSS1
-77 dBm @
MCS7NSS1
-73 dBm @
MCS8NSS1
-93 dBm @
MCS0NSS2
-92 dBm @
MCS1NSS2
-91 dBm @
MCS2NSS2
-86 dBm @
MCS3NSS2
-83 dBm @
MCS4NSS2
-78 dBm @
MCS5NSS2
-76 dBm @
MCS6NSS2
-75 dBm @
MCS7NSS2
-71 dBm @
MCS8NSS2
-91 dBm @
MCS0NSS3
-90 dBm @
MCS1NSS3
-89 dBm @
MCS2NSS3
-84 dBm @
MCS3NSS3
-81 dBm @
MCS4NSS3
-76 dBm @
MCS5NSS3
-74 dBm @
MCS6NSS3
-73 dBm @
MCS7NSS3
-85 dBm @
MCS3NSS1
-82 dBm @
MCS4NSS1
-78 dBm @
MCS5NSS1
-76 dBm @
MCS6NSS1
-75 dBm @
MCS7NSS1
-70 dBm @
MCS8NSS1
-69 dBm @
MCS9NSS1
-90 dBm @
MCS0NSS2
-90 dBm @
MCS1NSS2
-87 dBm @
MCS2NSS2
-83 dBm @
MCS3NSS2
-80 dBm @
MCS4NSS2
-76 dBm @
MCS5NSS2
-74 dBm @
MCS6NSS2
-73 dBm @
MCS7NSS2
-67 dBm @
MCS8NSS2
-66 dBm @
MCS9NSS2
-88 dBm @
MCS0NSS3
-88 dBm @
MCS1NSS3
-85 dBm @
MCS2NSS3
-81 dBm @
MCS3NSS3
-78 dBm @
MCS4NSS3
-74 dBm @
MCS5NSS3
-82 dBm @
MCS3NSS1
-79 dBm @
MCS4NSS1
-75 dBm @
MCS5NSS1
-73 dBm @
MCS6NSS1
-72 dBm @
MCS7NSS1
-67 dBm @
MCS8NSS1
-65 dBm @
MCS9NSS1
-88 dBm @
MCS0NSS2
-86 dBm @
MCS1NSS2
-84 dBm @
MCS2NSS2
-80 dBm @
MCS3NSS2
-77 dBm @
MCS4NSS2
-73 dBm @
MCS5NSS2
-71 dBm @
MCS6NSS2
-70 dBm @
MCS7NSS2
-64 dBm @
MCS8NSS2
-62 dBm @
MCS9NSS2
-86 dBm @
MCS0NSS3
-84 dBm @
MCS1NSS3
-82 dBm @
MCS2NSS3
-78 dBm @
MCS3NSS3
-75 dBm @
MCS4NSS3
-71 dBm @
MCS5NSS3
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxvii
Item
Description
-69 dBm @
MCS8NSS3
-67 dBm @
MCS9NSS3
-72 dBm @
MCS6NSS3
-71 dBm @
MCS7NSS3
-64 dBm @
MCS8NSS3
-63 dBm @
MCS9NSS3
-68 dBm @
MCS7NSS3
-61 dBm @
MCS8NSS3
-59 dBm @
MCS9NSS3
4.3 Standards Compliance
Safety standards
UL 60950–1
UL 60950–22
CAN/CSA 22.2 No.60950-1
CAN/CSA 22.2 No.60950-22
IEC 60950–1
IEC 60950–22
EN 60950–1
EN 60950–22
GB 4943
Radio standards
ETSI EN 300 328
ETSI EN 301 893
FCC Part 15C: 15.247
FCC Part 15C: 15.407
RSS-210
AS/NZS 4268
EMC standards
ETSI EN 301 489–1
ETSI EN 301 489–17
ETSI EN 60601-1-2
FCC Part 15
ICES-003
YD/T 1312.2-2004
ITU k.21
GB 9254
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxviii
GB 17625.1
AS/NZS CISPR22
EN 55022
EN 55024
CISPR 22
CISPR 24
IEC61000-4-6
IEC61000-4-2
IEEE standards
IEEE 802.11a/b/g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11h
IEEE 802.11d
IEEE 802.11e
Security standards
802.11i, Wi-Fi Protected Access 2(WPA2), WPA
802.1X
Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP)
EAP Type(s)
Environment standards
ETSI 300 019-2-1
ETSI 300 019-2-2
ETSI 300 019-2-4
IEC 60068-2-52
ETSI 300 019-1-1
ETSI 300 019-1-2
ETSI 300 019-1-4
EMF
CENELEC EN 62311
CENELEC EN 50385
OET65
RSS-102
FCC Part1&2
FCC KDB
RoSH
Directive 2002/95/EC & 2011/65/EU
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xxix
Reach
Regulation 1907/2006/EC
WEEE
Directive 2002/96/EC & 2012/19/EU
FCC Statement
AP series products comply with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
This device does not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
If this device is modified without authorization from Huawei, the device may no longer
comply with FCC requirements for Class B digital devices. In that a case, your right to use the
device may be limited by FCC regulations. Moreover, you may be required to correct any
interference to radio or television communications at your own expense.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This device generates, uses and radiates radio frequency energy. If it is not installed and used
in accordance with the instructions, it may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user may take one or more of the following
measures:
Reorient or relocate the receiving antenna.
Reinforce the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or TV technician for assistance.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
AP8130DN
Product Description
4 Technical Specifications
Issue 02 (2014-12-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
30
