Huawei Technologies RTN360R6 Radio Transmission System User Manual Regulatory Compliance Statement
Huawei Technologies Co.,Ltd Radio Transmission System Regulatory Compliance Statement
Contents
- 1. Users Manual
- 2. Compliance and Safety Manual
- 3. Quick Installation Guide
- 4. Regulatory Compliance Statement
Regulatory Compliance Statement
![](/img.php?id=3152200&img=bg1.png)
Regulatory Compliance Statement
Issue
Date
HUAWEI TECHNOLOGIES CO., LTD.
![](/img.php?id=3152200&img=bg2.png)
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. i
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer.
All or part of the products, services and features described in this document may not be within the purchase scope or
the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this
document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or
implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation
of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this
document do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: support@huawei.com
![](/img.php?id=3152200&img=bg3.png)
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. i
Revision Records
Date Version Descriptions Author
2016-06-24 1.0 Frist Version
chenzhong.huangjia
![](/img.php?id=3152200&img=bg4.png)
1 Regulatory Compliance Statement
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 1-1
1 Regulatory Compliance Statement
About This Chapter
1.1 Declaration of Conformity to European Directives

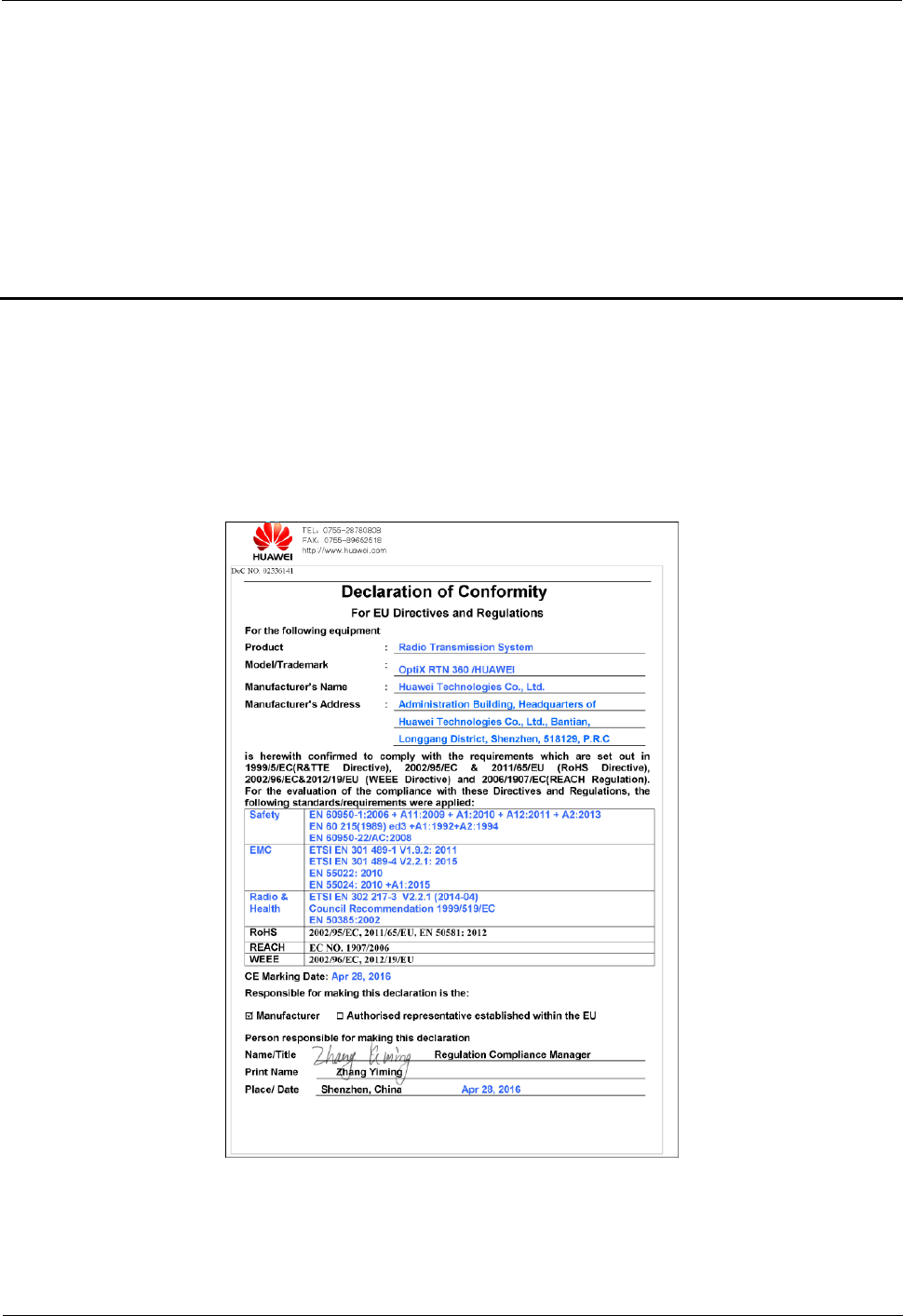

Figure 1-1 Declaration of Conformity to European Directives
![](/img.php?id=3152200&img=bg5.png)
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-1
2 Regulatory Compliance Information
About This Chapter
2.1 Regulatory Compliance Standards
2.2 European Regulatory Compliance
2.3 U.S.A Regulatory Compliance
2.4 CISPR 22 Compliance
2.5 RF Exposure (Health) Information
2.6 Other Markets
2.1 Regulatory Compliance Standards
OptiX RTN 360 complies with the standards listed in Table 2-1.
Table 2-1 Regulatory compliance standards
Discipline Standards
EMC z CISPR22 Class B
z EN 55022 Class B
z AS/NZS CISPR22 Class B
z FCC Part 15 Subpart B Class B
z ICES 003 Class B
z VCCI V-3 Class B
z IEC 61000-3-3
z EN 61000-3-3
z IEC 61000-3-12
z EN 61000-3-12
z CISPR24
z EN 55024
z ETSI EN 301 489-1
![](/img.php?id=3152200&img=bg6.png)
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-2
Discipline Standards
z ETSI EN 301 489-4
Safety z IEC 60950-1
z IEC 60950-22
z EN 60950-1
z EN 60950-21
z EN 60950-22
z UL 60950-1
z UL 60950-22
z
RF z ETSI EN 302 217
z FCC Part15 Subpart C
Health z EN 50385
Grounding z ITU-T K.27
z ETSI EN 300 253
NOTE
EMC: electromagnetic compatibility
RF: radio frequency
CISPR: International Special Committee on Radio Interference
EN: European Standard
ETSI: European Telecommunications Standards Institute
CFR: Code of Federal Regulations
FCC: Federal Communication Commission
IEC: International Electrotechnical Commission
AS/NZS: Australian/New Zealand Standard
VCCI: Voluntary Control Council for Interference
CNS: Chinese National Standard
UL: Underwriters Laboratories
CSA: Canadian Standards Association
BS: British Standard
IS: Indian Standard
GR: General Requirement
WLAN: wireless local area network
ICNIRP: International Commission on Non-Ionizing Radiation Protection
OET: Office of Engineering Technology
IEEE: Institute of Electrical and Electronics Engineers
RoHS: restriction of the use of certain hazardous substances
![](/img.php?id=3152200&img=bg7.png)
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-3
2.2 European Regulatory Compliance
OptiX RTN 360 complies with the following European directives and regulations.
z 1999/5/EC (R&TTE)
z 2011/65/EU (RoHS)
z REGULATION (EC) NO. 1907/2006 (REACH)
z 2012/19/EU (WEEE)
z 2004/12/EC&94/62/EC (Packaging)
OptiX RTN 360 complies with Directive 2012/19/EU on waste electrical and electronic
equipment (WEEE). Huawei is responsible for recycling its end-of-life devices, and please
contact Huawei local service center when recycling is required. Huawei strictly complies with
the EU Waste Electrical and Electronic Equipment Directive (WEEE Directive) and electronic
waste management regulations enacted by different countries worldwide. In addition, Huawei
has established a system for recycling and reuse of electronic wastes, and it can provide
service of dismantling and recycling for WEEE. By Huawei recycling system, the waste can
be handled environmentally and the resource can be recycled and reused fully, which is also
Huawei WEEE stratagem in the word. Most of the materials in product are recyclable, and our
packaging is designed to be recycled and should be handled in accordance with your local
recycling policies.
In accordance with Article 11(2) in Directive 2012/19/EU (WEEE), products were marked
with the following symbol: a cross-out wheeled waste bin with a bar beneath as below:
CE Marking:
The following CE mark identifier and affixed to the equipment and packaging:
![](/img.php?id=3152200&img=bg8.png)
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-4
2.3 U.S.A Regulatory Compliance
2.3.1 FCC Part 15B
OptiX RTN 360 complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
z This device does not cause harmful interference.
z This device must accept any interference received, including interference that may cause
undesired operation.
If this device is modified without authorization from Huawei, the device may no longer
comply with FCC requirements for Class Bdigital devices. In that a case, your right to use the
device may be limited by FCC regulations. Moreover, you may be required to correct any
interference to radio or television communications at your own expense.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This device generates, uses and radiates radio frequency energy. If it is not installed and used
in accordance with the instructions, it may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user may take one or more of the following
measures:
z Reorient or relocate the receiving antenna.
z Reinforce the separation between the device and receiver.
z Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
z Consult the dealer or an experienced radio or TV technician for assistance.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate
the equipment.
2.4 CISPR 22 Compliance
OptiX RTN 360 complies with CISPR 22 for Class B by the ITE.
Class A ITE is a category of all other ITE that satisfies only the Class A ITE regulations, and
not the Class B ITE regulations. Such equipment should not be restricted in its sale but the
following warning shall be included in the instructions for use:
![](/img.php?id=3152200&img=bg9.png)
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-5
2.5 RF Exposure (Health) Information
This equipment complies with relevant RF radiation exposure limits set forth for a
public/uncontrolled environment. This equipment should be installed and/or operated with a
minimum distance as below between the radiator and your body.
z OptiX RTN 360: 0.31 meters.
2.6 Other Markets
For relevant compliance information/documentation for markets not mentioned above, please
contact Huawei representative
