Humax T3 11N Wireless Roaming Router User Manual

Humax Co., Ltd. 11N Wireless Roaming Router

User Manual

Internet
Electrical Outlet
Electrical Outlet
T3 Router
T3 Extender
PC
Gaming Console &
Media Sharing
Printer SharingStorage Sharing
Mobile Phone
Modem
WPS
WPS
WPS
Quick Start Guide
Wireless or Wired, it's smooh and seamless
AC1200 Dual Band Smart Wi-Fi Router
QUANTUM T3

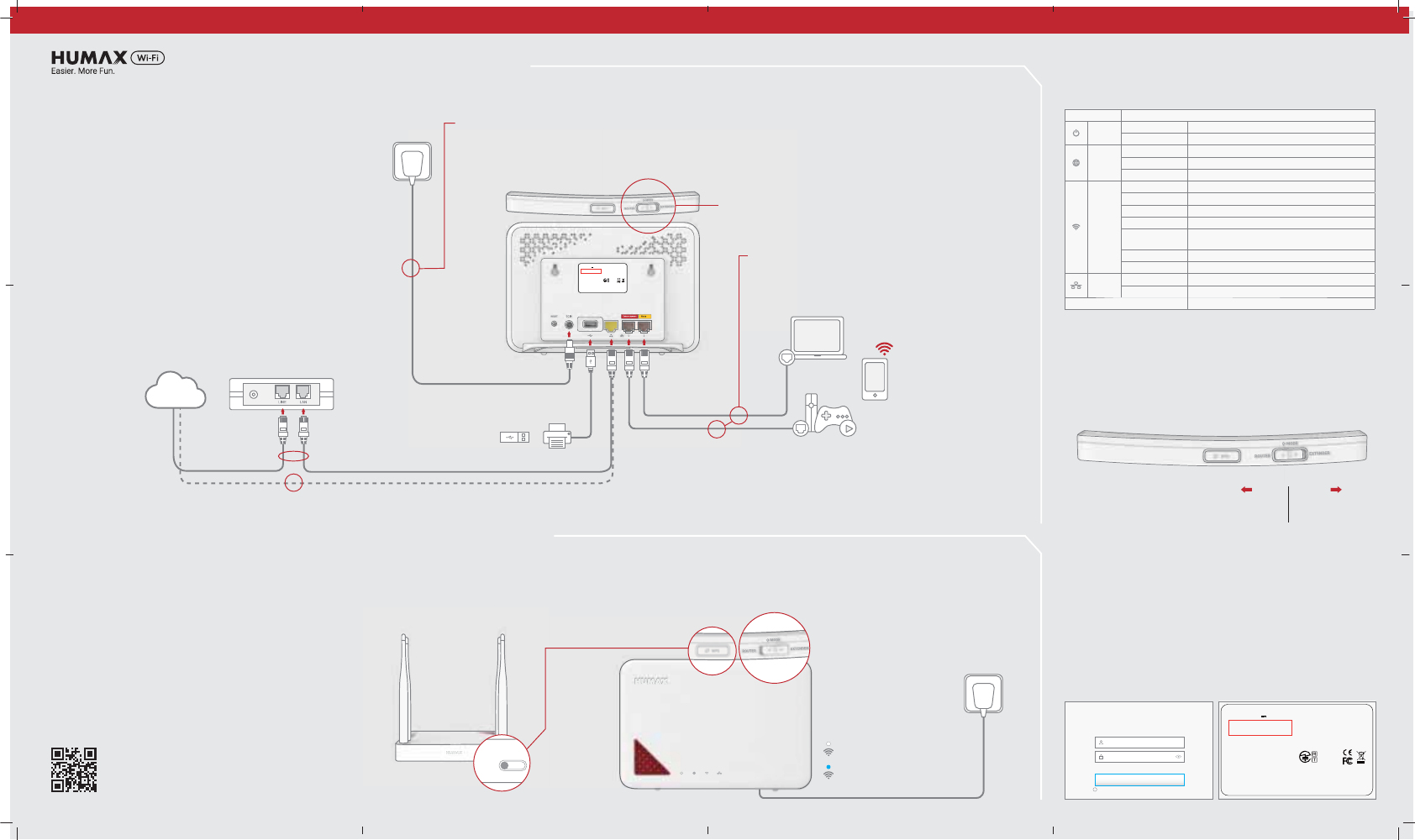

1. Connecting the Internet
You can connect your product to the Internet over a direct WAN or through a modem.
1-1 If you access Internet by the modem such as ADSL, VDSL, cable and FTTH, plug one
end of the Ethernet cable to the Internet port of your product and the other end to the
LAN port of your modem.
1-2 If you access the Internet by WAN broadband, plug the Ethernet cable to the Internet
port of your product.
4. Connecting the Network Devices
You can connect your network devices to the router over wired or wirelessly.
Use Ethernet cables to connect your devices to the router over a wired Ethernet connection.
Note: We recommend you to connect entertainment devices such as OTT, gaming console
and IPTV to the Entertainment ports. The ports have the priority in transmitting
multimedia data without transmission delay or interruption.
LEDs on the Front Panel
After the product is successfully registered on the network, the LEDs illuminate continuously to indicate
that the product is active and fully operational.
LED Operation
Power White On Power is on.
O Power is o.
Internet
White On Internet is connected.
White Blinking Firmware update is in progress.
O Internet is not connected.
Wireless
White On Network is connected wirelessly.
White Slow Blinking WPS is in conguration. It may take 2 minutes.
White Fast Blinking WPS conguration is failed.
Blue On *Roaming & mesh network is congured through the Internet.
Blue Slow Blinking *Roaming & mesh network is in conguration. It may take
2 minutes.
Blue Fast Blinking *Roaming & mesh network conguration is failed.
O Wi-Fi is not available.
Ethernet White On Networking device is connected to the LAN port.
O No device is connected to the LAN port.
Internet, Wireless, Ethernet Blinking Resetting the system is in progress.
Note: Blue light is turned on when the roaming & mesh network is successfully configured over HUMAX
products.
Internet Connection
You can configure the network over a wired Ethernet connection or wirelessly.
Wired
Connect the Ethernet cable between the PC and the LAN port of your product.
Wireless
1. Open the web browser.
2. Enter http://dearmyrouter.net to the address bar, and then press the Enter key.
3. The default ID and password are admin and nnnn. nnnn is the last 4 digits of serial number.
Refer to the serial number at the bottom of your product.
Note: We recommend you to change the ID and password to secure your network.
Go to Management > Change Password to change your password.
Q-MODE
Your product supports Q-MODE that enables operating as a router or an extender.
It’s very simple to change the operation mode. Just slide the Q-MODE switch to ROUTER or EXTENDER.
Then, the mode change is automatically completed.
3. Powering On
1. Plug in the AC power adaptor from the power connector to an electrical outlet.
2. If the power successfully turns on, a white light on the power LED is turned on.
Note: Use only the AC power adaptor provided in this product. Using other
adaptors may damage the product.
3. Conguring WPS
You can configure WPS between the extender and the router.
3-1 Press the WPS buttons on both devices within 2 minutes. When WPS is
successfully configured, the blue light blinks on the Wireless LED.
Note: If you use another router other than HUMAX product, the white light blinks
on the Wireless LED, which means your extender is in repeater mode.
2. Powering On
2. Checking the Mode
Your product has the Q-MODE switch.
Check that the switch is set to ROUTER.
1. Changing the Mode
Your product has the Q-MODE switch.
Slide the switch to EXTENDER.
Warning
1. Connect all devices before you plug any power cords into the electrical outlet.
2. Always turn off the product and network devices before you connect or disconnect any cables.
3. Hazardous electrical voltages can exist on the product and peripheral devices and can be present on
any connected cables.
- With HUMAX QUANTUM Series,
you will experience seamless Wi-Fi network at any moment.
- T1, T2, T3, T3A, X1 and X3 support both roaming & mesh network, and T5, T7 and T9
support roaming network only.
- Roaming & mesh feature is configured over HUMAX products. (*)
BOTH
*Roaming Mode
*Mesh Mode
Scan the QR code
to access @@ on your mobile device.
Use it as Router
Use it as Extender
1-1
1-2
WPS
Extender has wireless connectivity
with a third party router
*Roaming & mesh network is configured
over HUMAX products
Router Mode
WISP Mode
AP Mode
Repeater Mode
Media Bridge Mode
3-2 Check the network when the connection is complete.
If you connect the extender to a HUMAX router, both network names are the same as if they
configure a single network. But, if you use a router other than HUMAX products, the network
name of your extender will copy the router›s name following Ext2G or Ext5G.
(ex. Router_Ext5G)
Welcome to QUANTUM T3!
http://dearmyrouter.net
192.168.1.1
admin
****
Password
! For the default ID and password, see the bottom of the product.
Login
ID
ROUTER EXTENDER
Humax Co.,Ltd.
HUMAX BLDG., 2, Yeongmun-ro,
Cheoin-gu, Yongin-si, Gyeonggi
-do,449-934,South Korea
Trade Name/Mark: xxxxxx
Full Postal Address: xxxxxx
Designed by Humax (Korea) Made in China
Router Login:
http://dearmyrouter.net
ID: admin
Password: nnnn
S/N: QT3YYWWnnnnnn
Mac: DCDC8321000001
FCC ID: O6ZT3
Model: QUANTUM T3 Code: 4-00023
2.4G/5G SSID: We Love You So Much
Password: humax_nnnn
211-170615
D170027211
Barcode
Power Input: 12V 1.5A
※Please change Login Password and Wi-Fi Password for Security.
Humax Co.,Ltd.
HUMAX BLDG., 2, Yeongmun-ro,
Cheoin-gu, Yongin-si, Gyeonggi
-do,449-934,South Korea
Trade Name/Mark: xxxxxx
Full Postal Address: xxxxxx
Designed by Humax (Korea) Made in China
Router Login:
http://dearmyrouter.net
ID: admin
Password: nnnn
S/N: QT3YYWWnnnnnn
Mac: DCDC8321000001
FCC ID: O6ZT3
Model: QUANTUM T3 Code: 4-00023
2.4G/5G SSID: We Love You So Much
Password: humax_nnnn
211-170615
D170027211
Barcode
Power Input: 12V 1.5A
※Please change Login Password and Wi-Fi Password for Security.

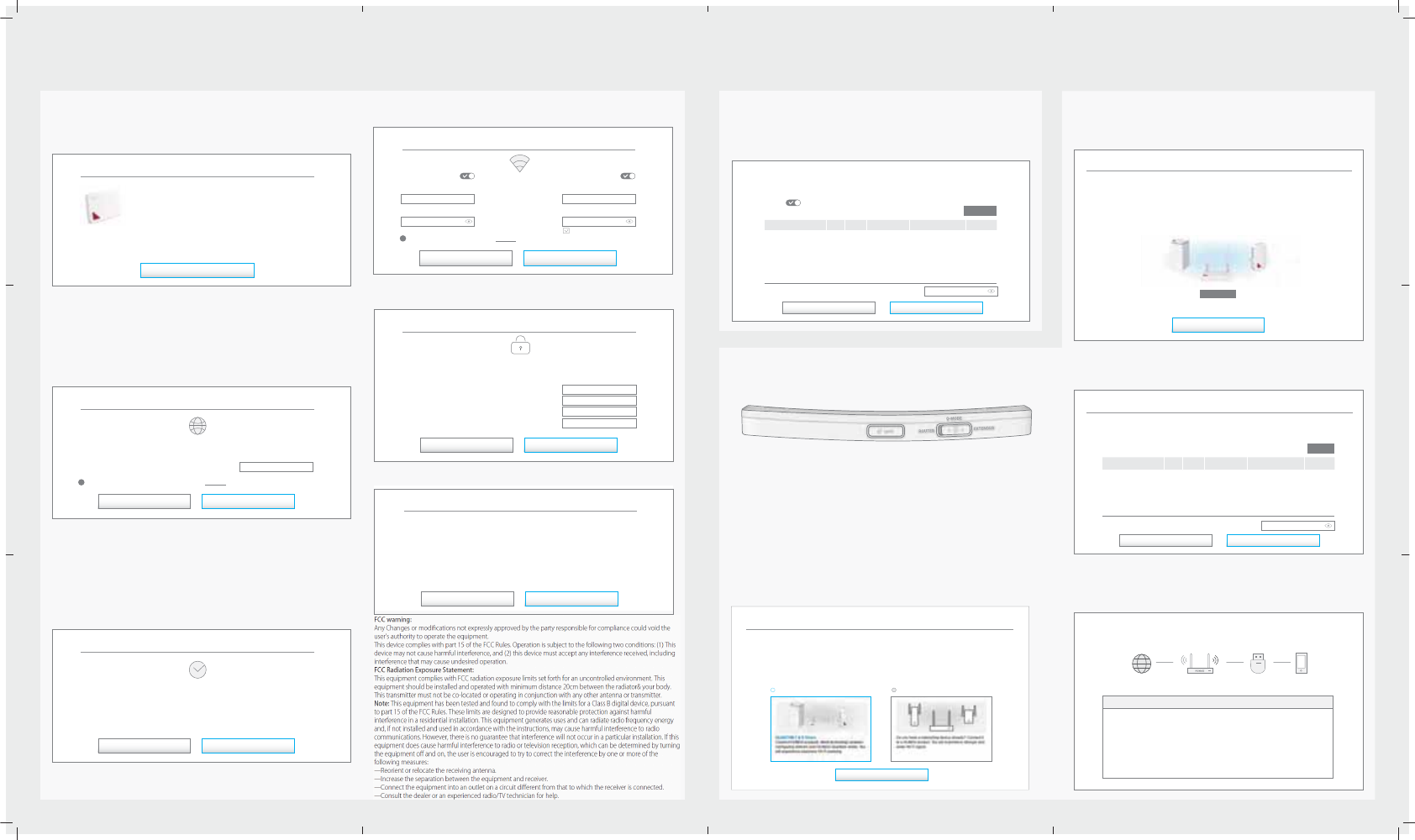

Network Conguration on Web Page
When you log in to the router for the first time, the installation wizard will appear. Then, follow the steps to configure the network.
Router Mode
1. Welcome
Click Start. The system will check automatically if your router is connected to the Internet.
Extender Mode
Slide the Q-MODE switch to EXTENDER.
T3 operates as an extender, and configures the roaming & mesh network with a HUMAX router.
x T3 works automatically in AP mode if you connect it to a router over a wired Ethernet cable and use a
client device wirelessly.
x T3 works automatically in media bridge mode if you connect it to a router wirelessly and use a client
device over a wired Ethernet cable.
x T3 works automatically in repeater mode if you connect it wirelessly to a router other than a HUMAX
router and use a client device wirelessly.
x If T3 works together with a HUMAX router, the roaming & mesh network is configured over the
products.
2. Internet Setting
You can connect the Internet automatically or manually depending on your Internet connection type.
Note: This page appears only when your product is not connected to the Internet.
3. Wireless Network Setting
Enter your own network name and password to change the default settings. You can secure your
wireless network from unauthorized users.
2-1. Roaming & Mesh
Just press the WPS buttons on HUMAX products within 1 second. Then, they are connected each
other automatically, and configure the mesh network. You will experience seamless Wi-Fi roaming
over the mesh network.
2-2. Repeater
If you have a networking device other than HUMAX products, select it from the list and then enter
the password. You will experience stronger and wider Wi-Fi signal.
1. Welcome
If you configure the network with HUMAX
products only, click HUMAX Products and go to
2-1. Roaming & Mesh.
If you use a third party product other than
HUMAX, click Other Products and go to
2-2 Repeater.
Home
After completing the network settings, go to Operation Mode. In this page, you can see the current
status of your product.
4. Password Setting
Enter your ID and password to change the default password. You can enhance the security on your
network environment.
5. Summary
When you complete your network settings, the information on your network will display.
Select the connection type your ISP is using. In most cases, it will be Dynamic IP.
• Dynamic IP: The Internet will be connected automatically.
• Static IP: Enter the IP address, Subnet mask, Gateway and DNS server supplied by the ISP.
• PPPoE: Enter the user name and password supplied by the ISP.
• PPTP or L2TP: Enter the user name, password and VPN server supplied by the ISP.
Note: For more information on the Internet connection, refer to the web manual at
www.humaxdigital.com/QUANTUM.
If your router is successfully connected to the Internet, the information on the internet connection will
display.
Note:
• If you want to skip the installation wizard, click Skip. This button is available always during
installation wizard.
• We recommend you to update the firmware to the latest version when available.
WISP Mode
You can use wireless Internet service in Router mode.
1. Log in to dearmyrouter.net, and then go to Management > WISP Mode.
2. Set the WISP mode to On, and select your Internet service provider.
WPS
Internet Setting
You can manually configure your connection settings.
If you do not know the Internet connection type, please contact your ISP.
Connection Type
? What is the Dynamic IP/Static IP/PPPoE/PPTP/L2TP? view more
Dynamic IP ٕ
Previous Next
Internet Setting
Connection Type
WAN IP Address
Subnet Mask
Gateway
Primary DNS
Secondary DNS
Dynamic IP
100.1.1.1
255.255.255.0
192.168.1.1
0.0.0.0
0.0.0.0
Previous Next
Summary
Internet
Wireless 2.4GHz
Wireless 5GHz
Connection Type
IP Address
Network Name (SSID)
Password
Network Name (SSID)
Password
Dynamic IP
100.1.1.1
We Love You So Much
humax_0000
We Love You So Much
humax_0000
Previous Done
Change Password (Optional)
If you change the password, you can make your network more secure.
For the default ID and password, see the bottom of the product.
The changed password will be applied from the next login.
Login ID
Current Password
New Password
Retype New Password



Previous Next
admin
Home
This page shows the current status and some basic settings of the device.
Operation Mode
Connection Status
IP Address
Subnet Mask
Gateway
DNS Server
MAC Address
Router Mode
Dynamic IP
183.99.19.131
255.255.255.128
183.99.19.129
168.126.63.1/168126.63.2
F4:28:53:35:C3:F9
Internet
Dynamic IP
10.10.10.1
QUANTUM T3
5G2.4G
SanULTRA DUAL_1 4 Devices
Welcone to Quantum T3 !
This is Quantum T3,
x Complies with next generation 11ac Wi-Fi standard.
x Wi-Fi 1200 Mbps - 900 + 300 Mbps speed.
x Provides WEP 64/128-bit, WPA, WPA2 and WPA-Mixed security.
x Supports Guest Network, Media Sharing, QoS, Parental Control, VPN, WPS etc.
x Supports Roaming & Mesh for Mobile Client.
x Supports Power Saving, LED Control, System Restart for energy saving.
You can more easily set various functions through web UI and experience fabulous router.
Do you want to start the wizard for easy setup?
Start
Wireless Setting
2.4GHz 5GHz
Network Name (SSID) Network Name (SSID)
Password Password
Copy 2.4GHz password
? About wireless security and password. view more
We Love You So Much We Love You So Much
 
Previous Next
Repeater Setting
Select a device from the list below and enter the password to connect to the host device.
Using the WPS button on both devices, you can easily connect them.
If you want to configure the network over a wired Ethernet connection, plug the Ethernet cable into the WAN Port
of the host device. In this case, the host operates automatically in Bridge mode.
Network Name (SSID) CH RSSI Security MAC Address Band
IPTime Zone
TIANA_89
ASUS
Wafya
iptime
1
1
1
3
9
-45
-47
-51
-26
-77
WPA2-PSK
WPA2-PSK
WPA2-PSK
None
WPA2-PSK
BC:76:70:7C:5C:74
F8:D1:11:5C:84:BA
70:7C:F8:D1:11:55
11:5C:54:D8:33:98
5C:74:31:AB:C1:D2
2.4GHz
2.4GHz
2.4GHz
2.4GHz
5GHz
Password **********
WPS
NextBack
On/Off
Select the device and enter the password to connect the host device.
Network Name (SSID) CH RSSI Security MAC Address Band
We Love So Much
TIANA_89
ASUS
Wafya
NETGEAR
iptime
1
1
1
3
1
9
-45
-47
-51
-26
-51
-77
WPA2-PSK
WPA2-PSK
WPA2-PSK
None
WPA2-PSK
WEP
BC:76:70:7C:5C:74
F8:D1:11:5C:84:BA
70:7C:F8:D1:11:55
11:5C:54:D8:33:98
70:7C:F8:D1:11:55
5C:74:31:AB:C1:D2
2.4GHz
2.4GHz
2.4GHz
2.4GHz
2.4GHz
2.4GHz
Password **********
ConnectBack
Refresh
WISP Mode
In this mode, all Ethernet ports are bridged together and the wireless client will connect to ISP access
point. The NAT is enabled and PCs in Ethernet ports share the same IP to ISP through wireless LAN.
Roaming & Mesh Setting
HUMAX each other two products that you want to connect to, you can simply Extended Network via the WPS button.
Place the product on where to actual use, press the WPS button on your product.
Tip!
Minimizing the walls, furniture, appliances, etc. to connect between the two products,
and the products work best when operating at up to 12m (40 feet) inside and outside.
If the existing configured, pressing the WPS button on the Mesh Network products
and add new products are the closest connection automatically.
Start WPS Process...
Previous
WPS
Welcome to Extended Network
Your product has changed to Extender mode. In this mode, you can expand Wi-Fi coverage.
If you want to configure the network over a wired Ethernet connection,
plug the Ethernet cable into the WAN port of your product.
In this case, the product operates automatically in Bridge mode.
Select a product you want to connect wirelessly.
Next
HUMAX Products Other Products

Navigation menu
