Hyundai IBT L17C0D080 17 inch LCD Monitor User Manual
Hyundai IBT Corp. 17 inch LCD Monitor Users Manual
Users Manual
ImageQuest L70A
TFT LCD Color Monitor
User's Guide
Click
www.imageQuest.co.kr
NEXT
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT
WE ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / HONG KI, KIM
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY BACK
NEXT
Kind of equipment : COLOR MONITOR
Type-Designation : L17C0D080
Safety : EN 60950 : 1992 + A1, A2, A3, A4, A11
EMC : EN 55022 : 1998, EN 55024 : 1998
EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998
EN 61000-3-3 : 1995
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln
2001
L70A
17" TFT LCD Color Monitor
BACK
NEXT
Contents
4. Adjusting the picture ..................12/22
4-1. Using the On Screen Display ...........14/22
4-2. Direct access buttons .......................14/22
4-3. OSD Adjustments .............................15/22
5. Display power management ......18/22
Reducing power consumption ..............18/22
6. Troubleshooting ..........................19/22
7. Specifications ..............................22/22
1. Introduction ...................................1/22
2. Safety Information ........................1/22
3. Installing the monitor ...................4/22
3-1. Packing List .........................................4/22
3-2. Selecting a suitable location ..............5/22
3-3. Connecting the monitor .....................5/22
USB Hub ..............................................9/22
3-4. Setting the refresh rate ......................8/22
Preset Timing Table ............................9/22
3-5. VESA MOUNTING ..............................10/22
L70A
17" TFT LCD Color Monitor
1. Introduction
2. Safety Information
1/22
BACK
NEXT
This manual contains instructions for installing and operating ImageQuest L70A.
ImageQuest L70A is a highly ergonomic color display unit.
• 17" viewable SXGA LCD
• High quality screen re-scaling capability
• Real ColorTM fleshtone adjustment and digital color control with innovative
color management.
• 100-240V AC input voltage / 12V (3.75A) Power adapter.
• VESA DPMS (Display Power Management Signalling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Digital signal input by DVI-1.0 compatibility
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
• USB (Universal Serial Bus) hub, Bus-Power mode hub
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind
the following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material and never touch them with metallic or
inflammable materials.
L70A
17" TFT LCD Color Monitor
2/22
BACK
NEXT
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the
power cord into the socket. Make sure that the power
cord and the other cords are securely and rightly
connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken
plugs, which may cause electric shock or fire. Call
your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene, to clean the
monitor, as it will damage the LCD surface.
L70A
17" TFT LCD Color Monitor
Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The
unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• If the instructions above do not help in removing stains, contact an authorized
service agent.
3/22
BACK
NEXT
L70A
17" TFT LCD Color Monitor
4/22
BACK
NEXT
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
Other power cord except the cord packed in the product or longer than 3m
may affect EMC of the product in operating condition.
3. Installing the
monitor
3-1. Packing List
!
UK
American/Canada
Japan
Australia
Korea
Europe
South Africa
Power Cord
Signal Cable
DVI-D Cable
(Option)
USB Cable
AC/DC Power adapter Compact Disc
L70A
17" TFT LCD Color Monitor
5/22
BACK
NEXT
3-2. Selecting a suitable
location
3-3. Connecting the
monitor
• Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
• Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
• To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
• Position the monitor so that the top of the screen is no higher than eye level.
• Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)

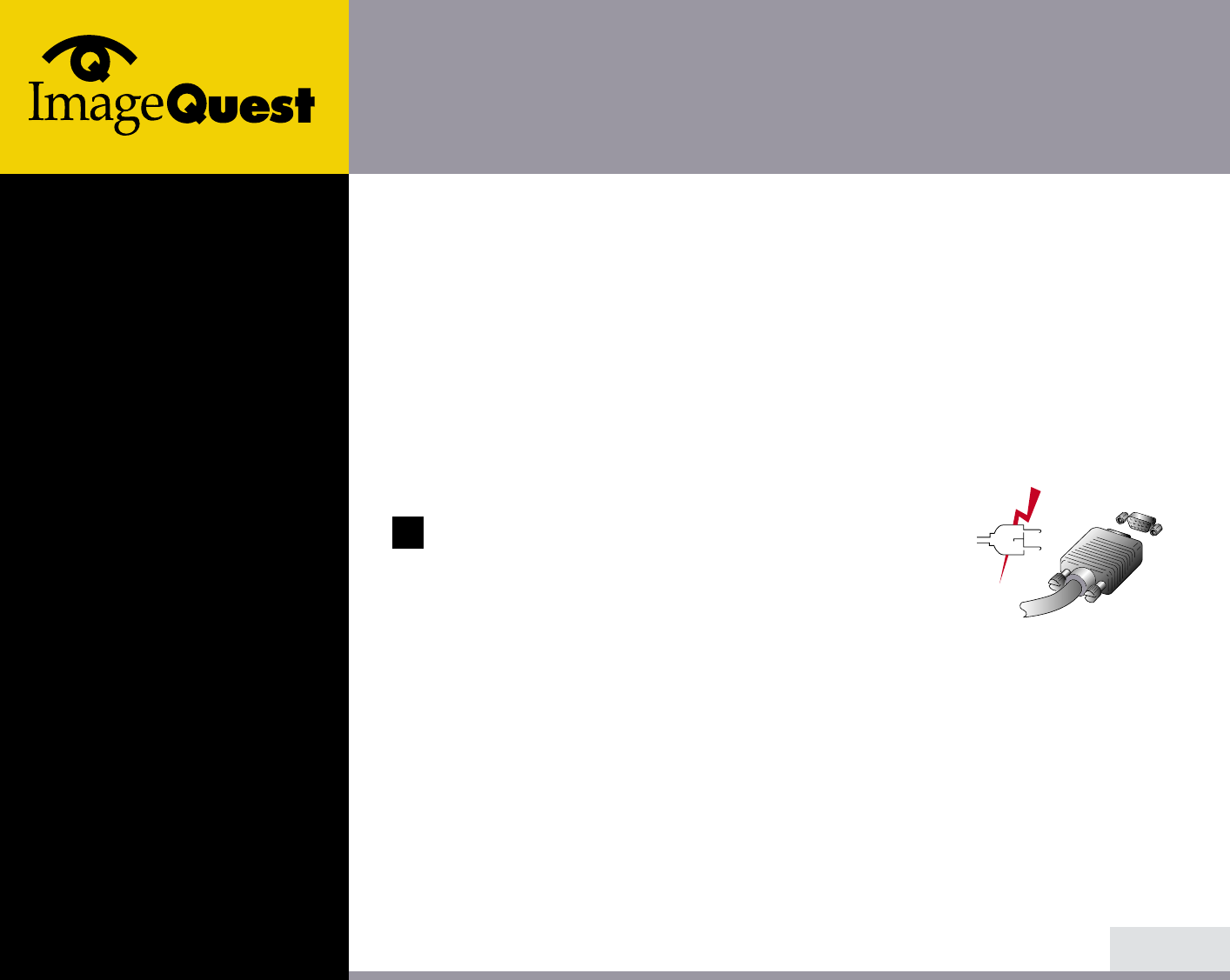

Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.

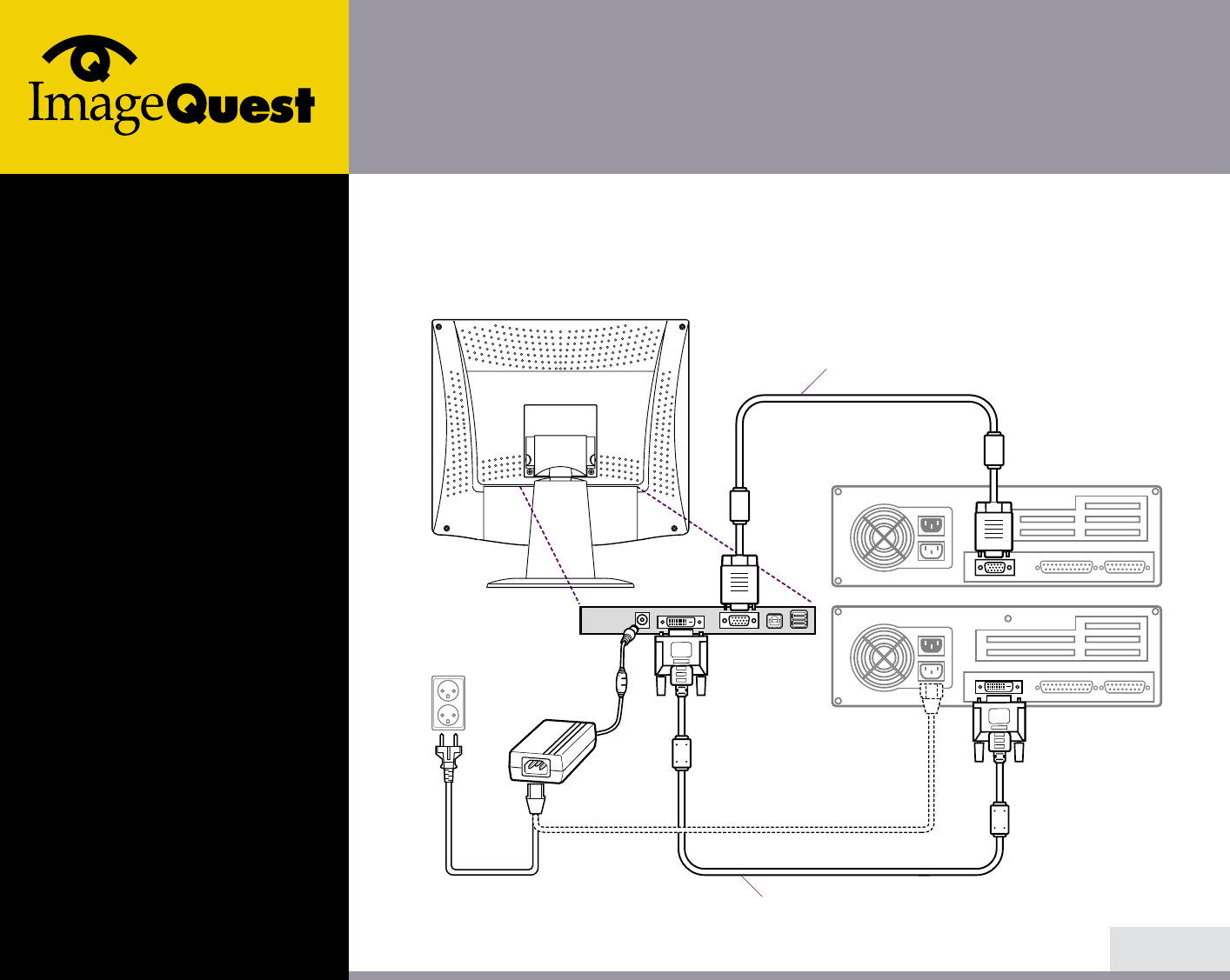

1. Insert the other 15-pin /DVI-D signal cable connector into the 15-pin VGA/DVI-D
connection on your computer and screw it down.
2. Plug the power cord connection to connection on the AC-DC Power adapter.
3. Plug the jack of the AC-DC Power adapter connection to connection on monitor.
4. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
5. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
!!
L70A
17" TFT LCD Color Monitor
6/22
BACK
NEXT
6. Turn on the power to the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.
15 pin D-sub cable (Analog RGB)
DVI-D cable (Digital TMDS)
L70A
17" TFT LCD Color Monitor

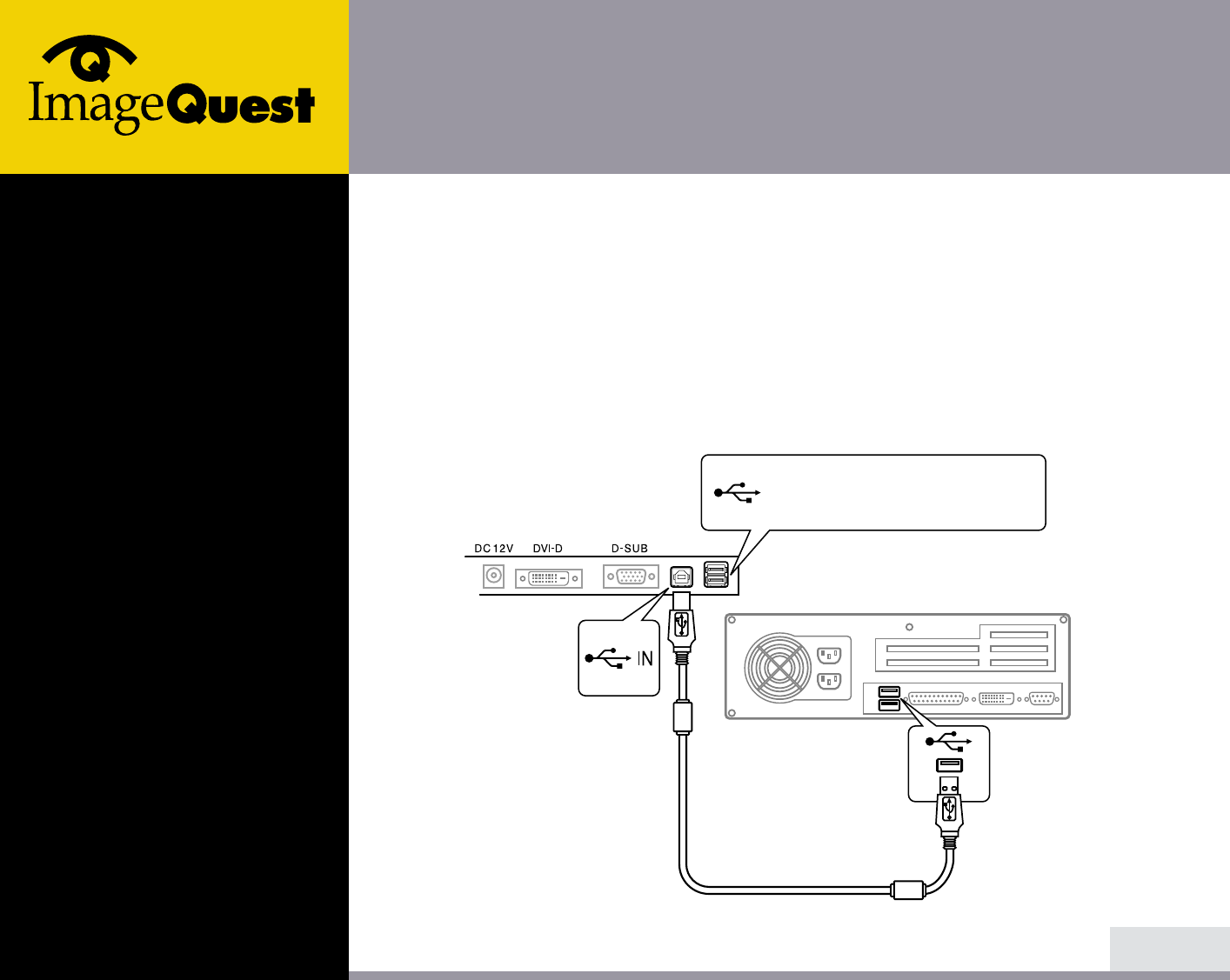

USB hub The USB hub(Bus-powerd mode hub) have 1 upstream port and 2 downstream
ports. The upstream port can be connected to the root hub of host PC or other
downstream port. Two(2) downstream ports allow to connect another USB device
such as USB mouse, joystick, printer etc.
1) The maximum supply current of downstream port is 100mA each when bus-
powered mode hub.
2) To activate the USB hub, your host system should have USB capability.
7/22
BACK
NEXT
USB 2 downstream ports
L70A
17" TFT LCD Color Monitor
8/22
BACK
NEXT
3-4. Setting the refresh
rate Follow the instructions below to set your refresh rate in Windows 98.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’ icon.
3. Click on the ‘Settings’ tab.
4. Click on the ‘Advanced’ button.
5. Click on ‘Adapter’ and select 60Hz from the list.
6. Click on ‘Apply’ to accept the selected value.

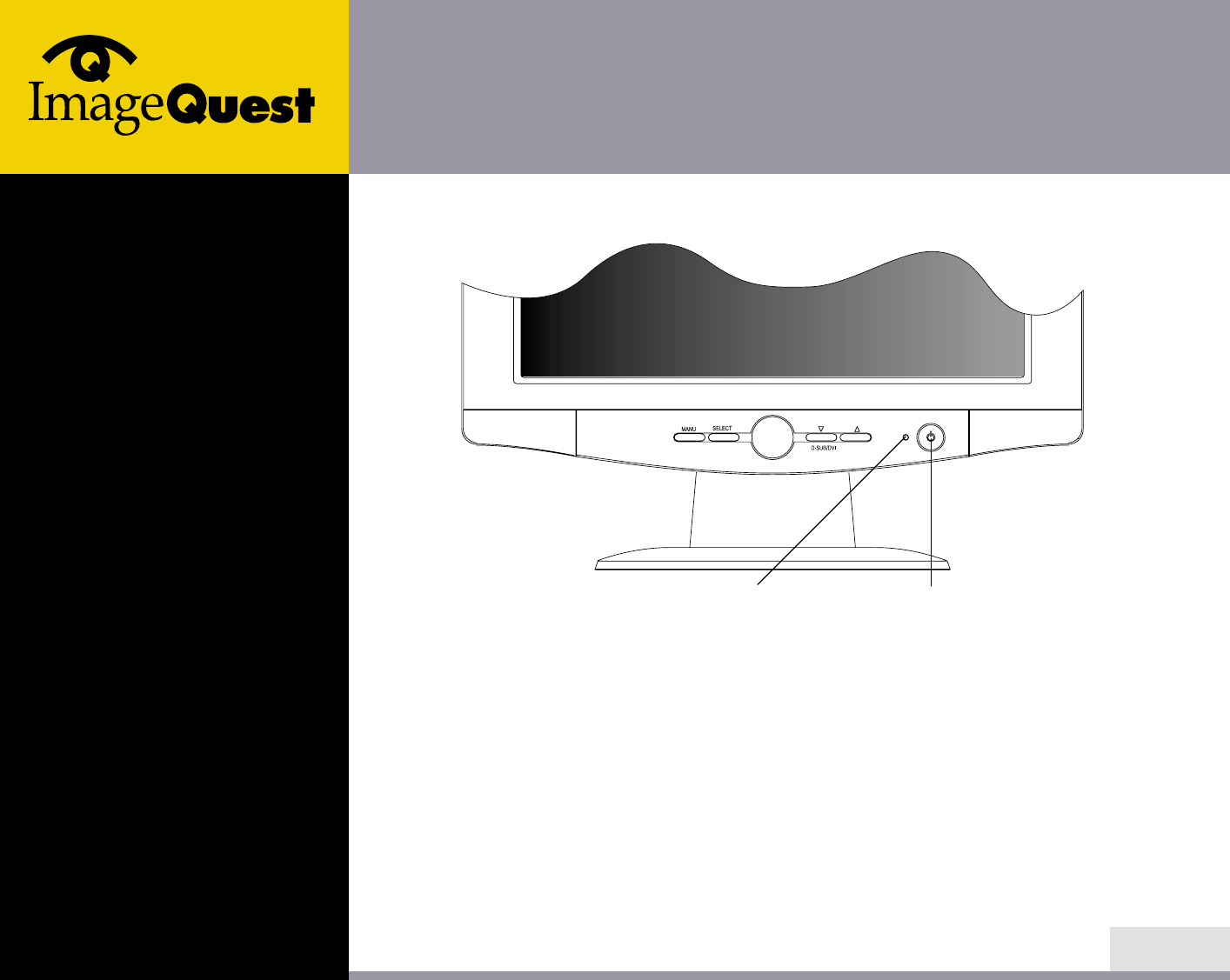

LED Indicator Soft Power Switch
L70A
17" TFT LCD Color Monitor
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Resolution
720
x
400
720
x
480
640
x
480
800
x
600
800
x
600
800
x
600
800
x
600
832
x
624
1024
x
768
1024
x
768
1024
x
768
1152
x
870
1280
x
1024
1280
x
1024
Horizontal Frequency
31.5 KHz
31.5 KHz
37.5 KHz
35.2 KHz
37.9 KHz
48.1 KHz
46.9 KHz
49.7 KHz
48.4 KHz
56.5 KHz
60.0 KHz
68.7 KHz
63.9 KHz
80.0 KHz
Refresh rate
70 Hz
70 Hz
75 Hz
56 Hz
60 Hz
72 Hz
75 Hz
75 Hz
60 Hz
70 Hz
75 Hz
75 Hz
60 Hz
75 Hz
Preset Timing Table If the signal from the system doesn't equal to the preset timing mode, adjust
the mode with reference to the user guide of videocard because the screen
may not be displayed.
The recommended setting is a resolution of 1280x1024 and a refresh rate of 60Hz.
9/21
BACK
NEXT
!
ANALOG R.G.B INPUT
L70A
17" TFT LCD Color Monitor
3-5. VESA MOUNTING • This display unit supports VESA FPMPMI standard for 100mmx100mm screw
mounting by giving 4 screw holes inside the base stand of the unit. The base
stand shall be removed before connecting to Specialty Flat Panel Monitor
Mounting Device.
• For buying VESA Flat Panel Monitor Mounting Devices, please contact
following information.
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : +31 20 696 60 65 · Fax : +31 20 609 04 59 · E-mail : info.eu@ergotron.com
10/22
BACK
NEXT
DIGITAL R.G.B INPUT
No.
1
2
3
4
Resolution
640
x
480
800
x
600
1024
x
768
1280
x
1024
Horizontal Frequency
31.5 KHz
37.9 KHz
48.4 KHz
63.9 KHz
Refresh rate
60 Hz
60 Hz
60 Hz
60 Hz
L70A
17" TFT LCD Color Monitor
11/22
BACK
NEXT

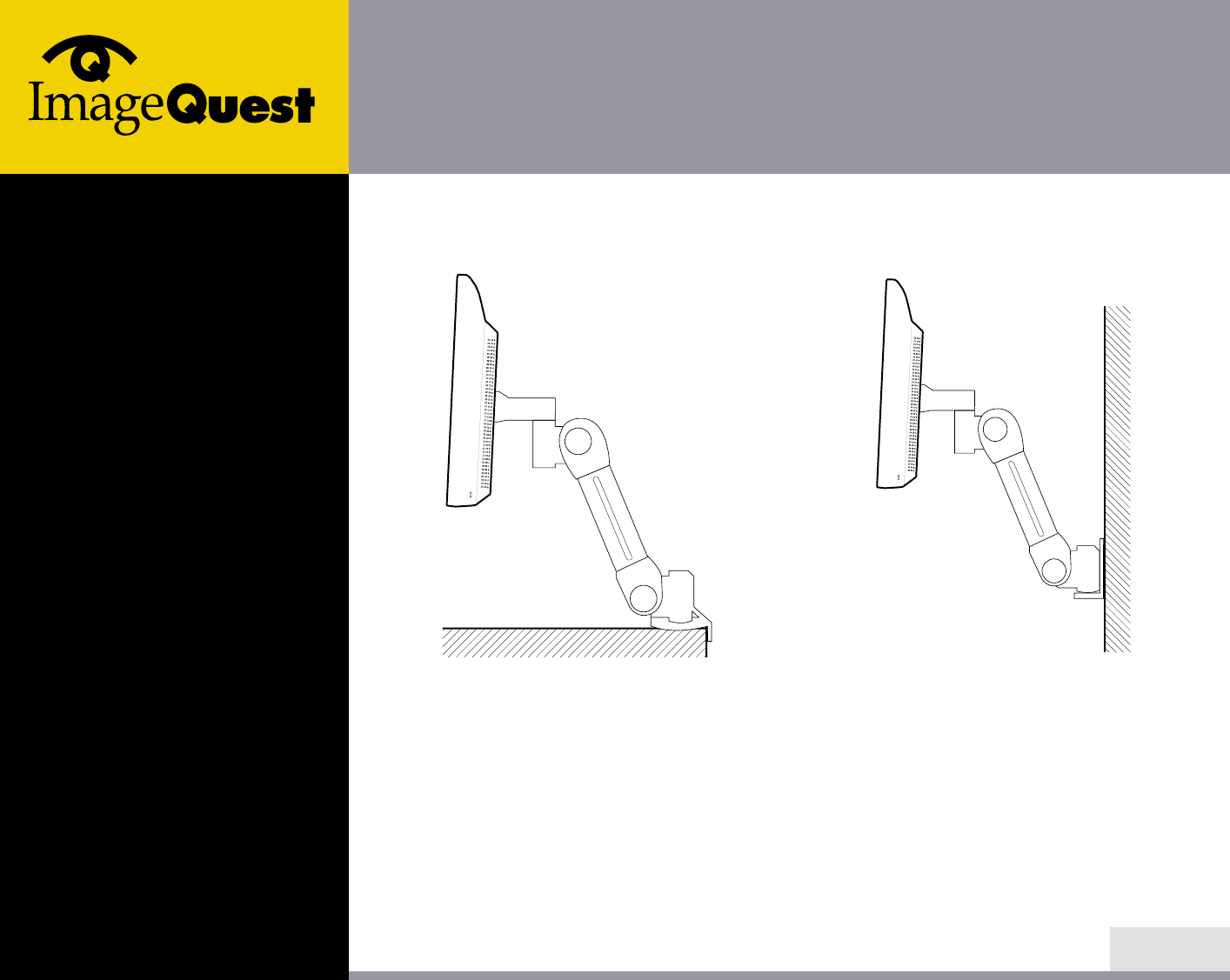

Desk Mount
Wall Mount
L70A
17" TFT LCD Color Monitor

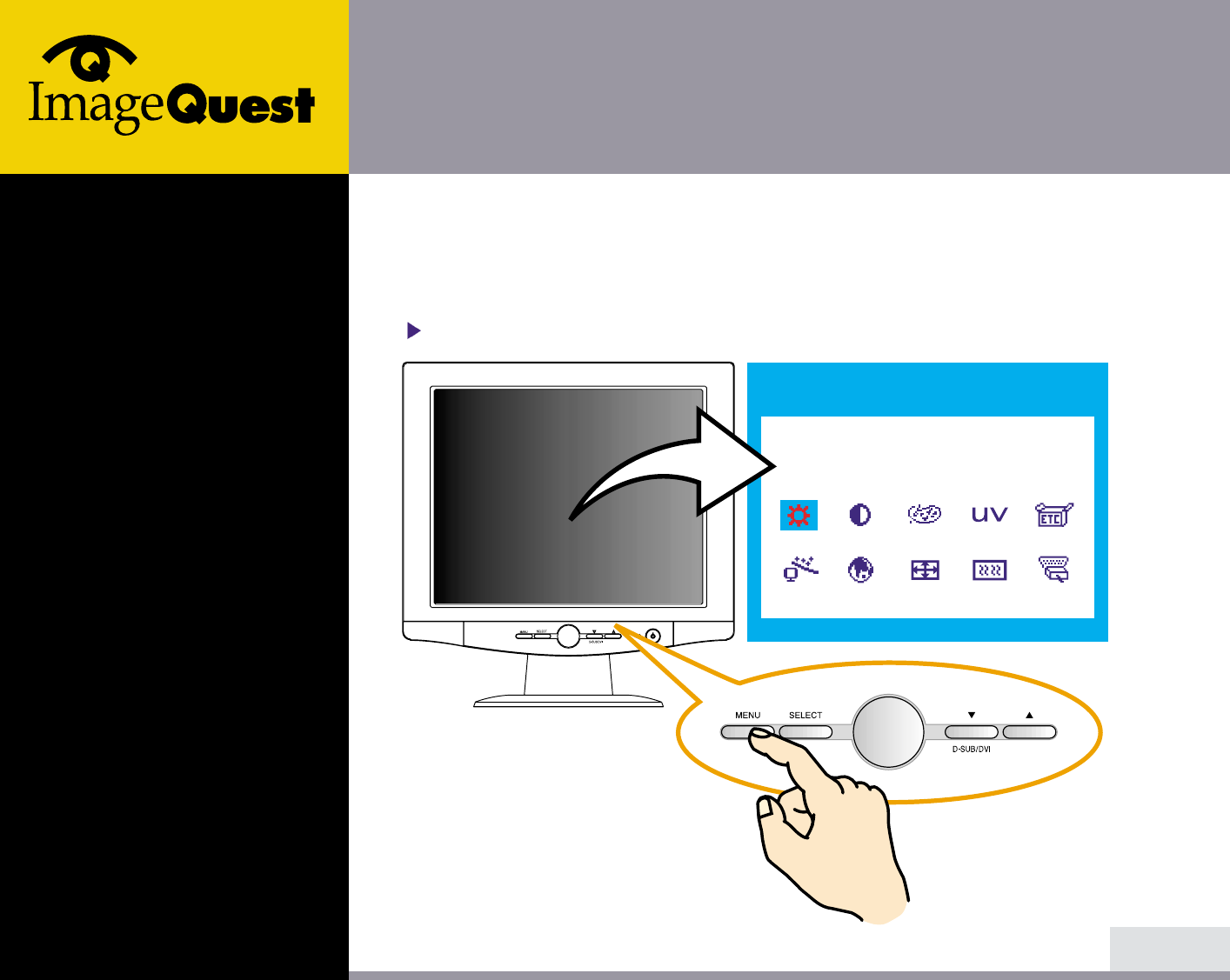

4. Adjusting the picture
12/22
BACK
NEXT

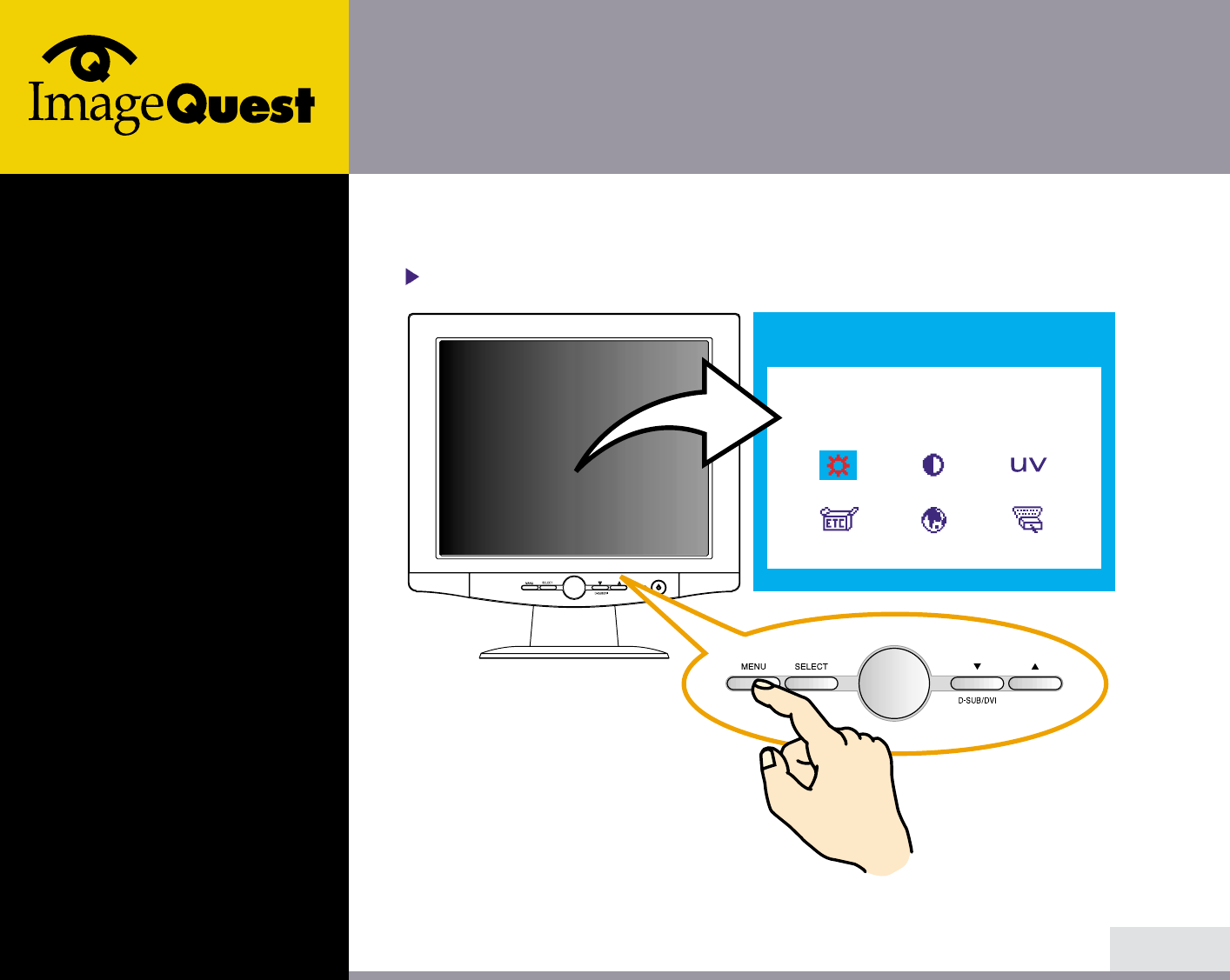

You can adjust the screen display by using the buttons located below the
screen.
1280X1024
V:60.0/H:63.9
BRIGHTNESS
In case of applying
Analog RGB
Input
L70A
17" TFT LCD Color Monitor
13/22
BACK
NEXT
1280X1024
V:60.0/H:63.9
BRIGHTNESS
In case of applying Digital TMDS Input
L70A
17" TFT LCD Color Monitor
14/22
BACK
NEXT
1. Push the MENU button to call the OSD to the screen. The resolution and
frequency are displayed at the top of the menu box for your information.
2. Push the or button to choose the item you want to adjust. The selected
item is highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your
last adjustments and the menu disappears. You can also push the MENU button
to make the menu disappear.
AUTO ADJUST
At first display a full screen such as Window's back ground.
Push the button SELECT(AUTO) to adjust the shape of screen
automatically.
INPUT SELECT
Push the button to choose the input select adjustment after
choosing one of Analog Signal or Digital Signal.
LED Indicator will be displyed with Amber on processing.
4-1. Using the On Screen
Display
4-2. Direct access buttons
L70A
17" TFT LCD Color Monitor
15/22
BACK
NEXT
4-3. OSD Adjustments
You can play the movie
file to see how to adjust
the picture image by
clicking each icon or title
hereunder.
The OSD adjustments available to you are listed below.
BRIGHTNESS
Adjust the brightness of the screen.
CONTRAST
Adjust the contrast of the screen.
COLOR CONTROL
Color temperature affects the tint of the image. With lower color
temperatures the image turns reddish and with higher temperatures
bluish.
There are three color settings available: Mode 1(a cool white), Mode 2(a
warm white) or USER. With the USER setting you can set individual values
for red, green and blue.
YUV COLOR
In particular, color technology allows users to make the following color
adjustment.
HUE
Adjust the hue of the video image.
FLESH TONE
Adjust the flesh Tone of the video image.
L70A
17" TFT LCD Color Monitor
16/22
BACK
NEXT
MISCELLANEOUS
RECALL
Recall the saved color data.
OSD TIMER
You can set the displayed time of OSD Menu window on the screen by
using this adjustment.
OSD POSITION
Adjust the OSD menu's horizontal or vertical position on the screen.
AUTO ADJUST
You can adjust the shape of screen automatically at the full screen
pattern.
LANGUAGE
You can select the language in which adjustment menus are displayed.
The following languages are available: English, French, German,
Italian and Spanish.
H/V POSITION
H-POSITION
Adjusts the horizontal position of the entire screen image.
V-POSITION
Adjusts the vertical position of the entire screen image.
L70A
17" TFT LCD Color Monitor
17/22
BACK
NEXT
CLOCK PHASE
PHASE
Adjust the noise of the screen image.
CLOCK
Adjust the horizontal size of the entire screen image.
INPUT SELECT
This menu used to choose the desired input signal source.
There are two available signal source.
• Analog R.G.B : 15 pin D-sub, Analog Signal
• Digital TMDS : 24 pin DVI-D, Digital Signal
In case of applying Digital TMDS Input, the functions of Color Control, Auto
Adjust, H/V Position, Clock Phase are not supported.
!
L70A
17" TFT LCD Color Monitor
If the power management function of your computer is enabled, your monitor
turns on and off automatically. You can control power management features from
your computer.
Your computer may have power management features which enable the computer
or monitor to enter a power saving mode when the system is idle. You can
reactivate the system by pressing any key or moving the mouse.
The power button does not disconnect the monitor from the mains. The only
way to isolate the monitor completely from the mains supply is to unplug the
mains cable.
18/22
BACK
NEXT
5. Display power
management
Reducing power
consumption
Power consumption
45 W
5 W
0 W
Mode
Normal
off
Unplugged
LED
Green
Orange
Not illuminated
!
L70A
17" TFT LCD Color Monitor
6. Troubleshooting
19/22
BACK
NEXT
Problem
Blank screen
Error message:
Video mode not
supported
The display does
not enter power
management
mode
Possible solution
If the power LED is not lit, push the Soft power switch or check the
AC cord to turn the monitor on. If the display unit is powered
through the computer, check that the computer is switched on.
The display unit might be in standby mode. Push one of the
keyboard keys. Check that the keyboard is properly connected to
the computer.
Check that the signal cable connector is properly connected and that
the connection pins are not bent or damaged. If the connector is
loose, tighten the connector's screws.
Check that the power cable is correctly connected to the display unit
and to the power outlet.
Check the resolution and the frequency on the video port of your
computer.
Compare these values with the data in the Preset Timing Table.
The video signal from the computer does not comply with VESA
DPMS standard. Either the computer or the graphics adapter is not
using the VESA DPMS power management function.
If your monitor is not functioning properly, you may be able to solve the problem
by reading followings.
L70A
17" TFT LCD Color Monitor
20/22
BACK
NEXT
Possible solution
Check that the signal cable connector is properly connected and that
the connection pins are not bent or damaged. Try another color
temperature.
Adjust the picture characteristics as described in the section OSD
Adjustment(4-3).
A problem with your graphics adapter or display unit. Contact your
service representative.
Check that the display resolution and frequency from your PC or
graphic adapter is an available mode for your monitor.
In your PC, you can check through Control panel, Display, Settings.
If the setting is not correct, use your computer utility program to
change the display settings.
Check that the signal cabel connector is properly connected and that
the connection pins are not bent or damaged.
If the connector is loose, tighten the connector’s screws.
Check that the computer is switched on.
To enter a power saving mode. You can reactivate the system by
pressing any key or moving the mouse.
Problem
Color defects
Size, position,
shape or quality
unsatisfactory
Duplicated
images
Image is not
stable
Message :
No signal
The power LED is a
orange color
Possible solution
LED Indicator can be orange color on changing of video mode or
Input Signal(D-sub/DVI).
Check the Resolution and the frequency on the video part of your
computer. Compare these values with the data in the Preset Timing
Table.
Problem
The power LED is a
orange color
L70A
17" TFT LCD Color Monitor
21/22
BACK
NEXT
Contacting service If the above troubleshooting hints do not help you find a solution to the problem,
contact an authorized service agent. If the monitor is sent for service, use the
original package if possible.
Unplug the display unit from the power outlet and contact a service agent when:
• The monitor does not operate normally according to the operating instructions.
• The monitor exhibits a distinct change in performance.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor has been exposed to rain, or water or liquid has been spilled onto
the monitor.
L70A
17" TFT LCD Color Monitor
22/22
BACK
17"viewable, Diagonal, Pixel pitch 0.26 mm, AM-TFT
25msec, 250cd/m2
25msec
337.92 X 270.336 mm
16,2 million colors
R.G.B Analog, Digital TMDS(DVI-D),
Horizontal : 31.0 to 80.0KHz, Vertical : 56 to 75Hz
135 MHz
Analog RGB : 1280X1024@75Hz
Digital TMDS : 1280X1024@60Hz
1280X1024@60Hz
DC 12V 3.75A
45W
VESA DPMS
VESA DDC 1/2B
BRIGHTNESS, CONTRAST, COLOR CONTROL, YUV COLOR,
MISCELLANEOUS, AUTO ADJUST, LANGUAGE,
H./V. POSITION, CLOCK-PHASE, INPUT SELECT
1up X 2down (Bus-Powered Hub)
100 mm X 100 mm screw mounting
TCO, FCC Class B, CE,
cULus, TÜV-GS, SEMKO
5 ~ 35O C
6.7Kg unpacked, 8.7Kg packed
420 X 437 X 220 mm
LCD
Brightness
Response Time
Display area
Number of color
Input signals
Frequency rate
Maximum bandwidth
Maximum resolution
Recommanded resolution
Input voltage
Power consumption
Power management
Plug & Play
OSD menu
USB
VESA FPMPMI
Ergonomics,
Safety and EMC
Operating Temperature
Weight
Dimensions (W X H X D mm)
• Specification is subject to change without notice for performance improvement.
7. Specifications
