- USER’S MANUAL -
Model. HQL260WR/320WR
User's Guide
USA
Hyundai ImageQuest America
(C/O : I Display)
5690 Steward Ave. Fremont, CA 94538, USA
Tel : 510-683-0970
Fax : 510-683-0974
GERMANY
Hyundai ImageQuest Europe GmbH
Hajo-Rüter Str. 19, 65239 Hochheim
Tel : 06146 / 904 444
Fax : 06146 / 904 410
e-mail : service@hyundaiq.de
WWW : www.hyundaiq.com
AUSTRALIA
Thomas Electronics Australia Pty Ltd.
3 Sheridan Close
Milperra NSW 2214, Australia
Tel : +61 2 9773 7400
Fax : 61 2 9773 7177
Attn : Ms. Shiely Poniman
JAPAN
Hyundai ImageQuest JAPAN
Shin-Hibiya Bldg, East 5F 1-3-6
Uchisaiwai-Cho, Chiyoda-ku,
Tokyo, Japan 100-0011
Tel : 03-5157-2286
Fax : 03-5157-2284
e-mail : pjkim@iqt.co.kr
C/S P.J.Kim
HYUNDAI IMAGEQUEST LCD TV
P/N 632 0238 100 Rev.00 * The above image may look different from the real product.
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes the
following warning :
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television receptions, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
HYUNDAI LCD TV HQL260WR/320WR
Kind of equipment : LCD TV
Safety : EN 60950 : 2000
EMC : EN 55022 : 1998+A1 : 2000 Class B
EN 55024 : 1998+A1 : 2001
EN 61000-3-2 : 2000, EN 61000-3-3 : 1995+A1 : 2001
Type-Designation : LT26AW000 / LT32AW000
WE HYUNDAI ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA /MAY. 15, 2004 HONG KI, KIM
Place and date of issue) (Name and signature of
authorized person)
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln
DECLARATION OF CONFORMITY
Important Tips
Image Retention effect(Image Sticking)
1. Cause :
- Image Retention Effect could be come from displaying a still picture in certain period of time with at
a certain area continuously, as the feature of LCD TV panel.
- This is the same matters to other companies' LCD TV panel products, too.
2. Preventation :
- To avoid this matter, use the product after reducing brightness and contrast, especially a still image
is displaying for a long time. (Example : Contrast 50, Brightness 50 - See the page 34)
Once Image retention occurs, change the mode into Video mode which displays more motion
pictures. It will help reduce this matter, but cannot completely eliminate once it occurs.
It makes the screen’s brightness worse as displaying a fixed pattern often.
3. Solution :
- The temporary image sticking would decrease with displaying Full-White pattern after 10 hours.
- The permanent image sticking couldn’t take off under the latest technology even though being in its
manufacturer.
4. Notice :
- It is very important to notify every buyer/customer this information and All Branches/Buyers
/Customers should be fully aware of this.
- Image Sticking in LCD TV panel products couldn’t get the support from a manufacturer, and does not
come under the warranty.
Second Tips
• Pixel Defect :
LCD TV panel is made of a group of refined pixels (cells). The Panel, in which 99.9% of pixels have
approved, is a normal product. Therefore, only a few of abnormal pixels may appear, however, this
has no influence upon LCD TV panel performance.
* Specification on ‘dead pixel’ of LCD panel applies to ISO13406-2 Standard.
HYUNDAI LCD TV HQL260WR/320WR

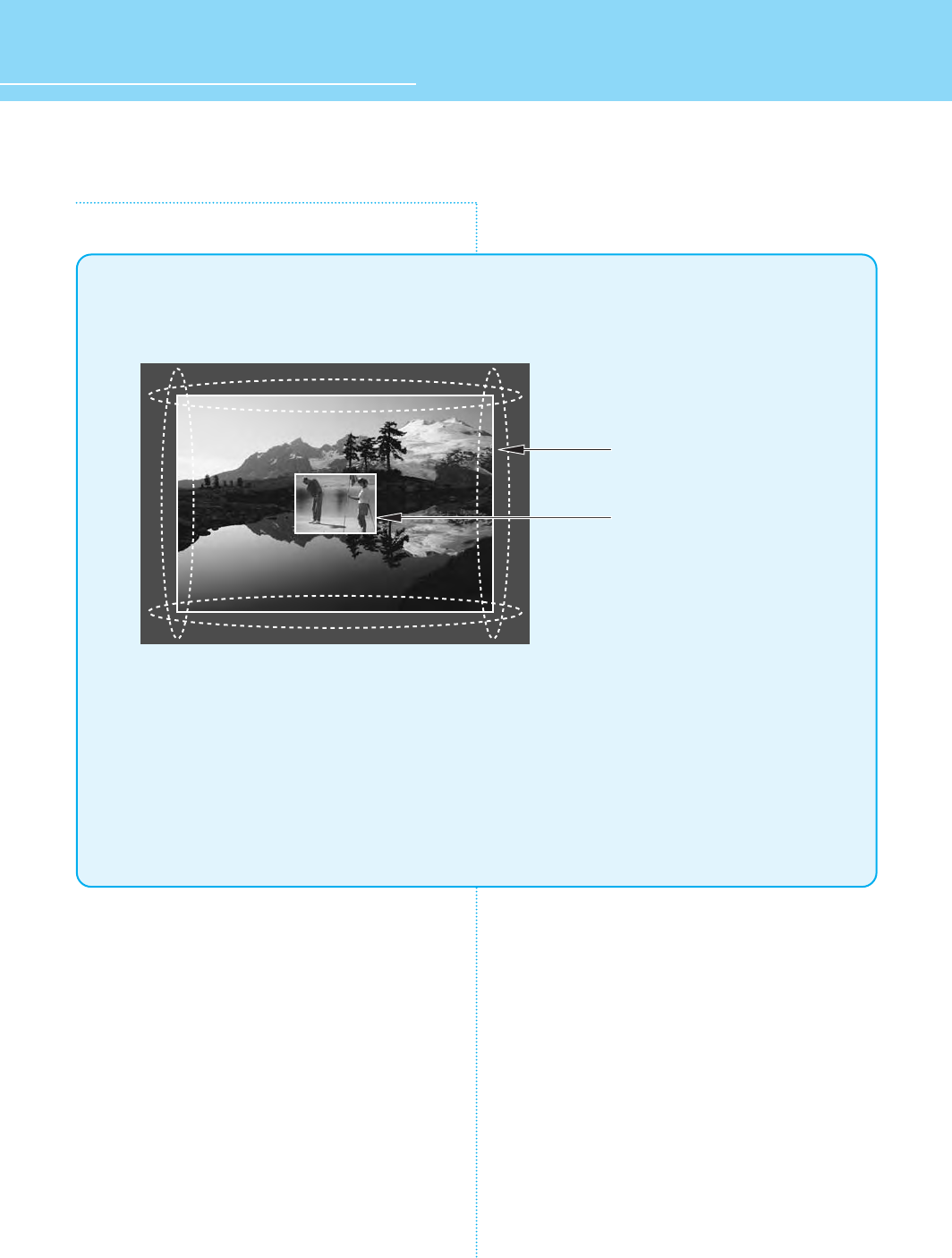

Image Sticking Precaution
Still Image/Panorama/Wide/4:3 in mortion Image
• Precaution :
- Image Sticking could be come from Still Image and Boundary line for a long time display and
Brightness gap in Boundary.
- This Matter(Image Sticking) is same thing under the other LCD's Company.
- Still Image/Letter in watching TV also will be effect to Image sticking.
*This matter(Image Sticking) is out of warranty.
Panorama, Wide, 4:3 aspect ratio
Box or Still image
Features
A Wide Array of Screen Settings
You can choose different screen settings depending on the type of program you are watching
or the surrounding conditions (the lighting or the outside weather conditions).
You can switch among Standard, Sport, Natural and Mild, or you can configure the screen
settings for yourself.
A Wide Array of Sound Settings
You can choose an optimal sound setting for the type of program you are watching.
You can switch among Standard, Music, Film and Speech, or you can configure the settings for
yourself.
Favorite Channel Memory
You can store your favorite channels in the order of preference for easy channel selection.
V-Chip
The V-Chip feature locks out programs that are deemed inappropriate for children.
Closed Captions Function
This is to displays the closed captions that are broadcast with certain TV shows.
SRS WOW(Surround) Audio Function
You can listen to dynamic and surround sound only with ordinary speaker
Various of the Aspect Ratio
You can adjust Aspect Ratio as you want
Auto ON/OFF Function
This function allows you to turn on/off your LCD TV at the preset time.
HYUNDAI LCD TV HQL260WR/320WR
Table of Contents
General Information
Safety Precaution ................................................................ 5

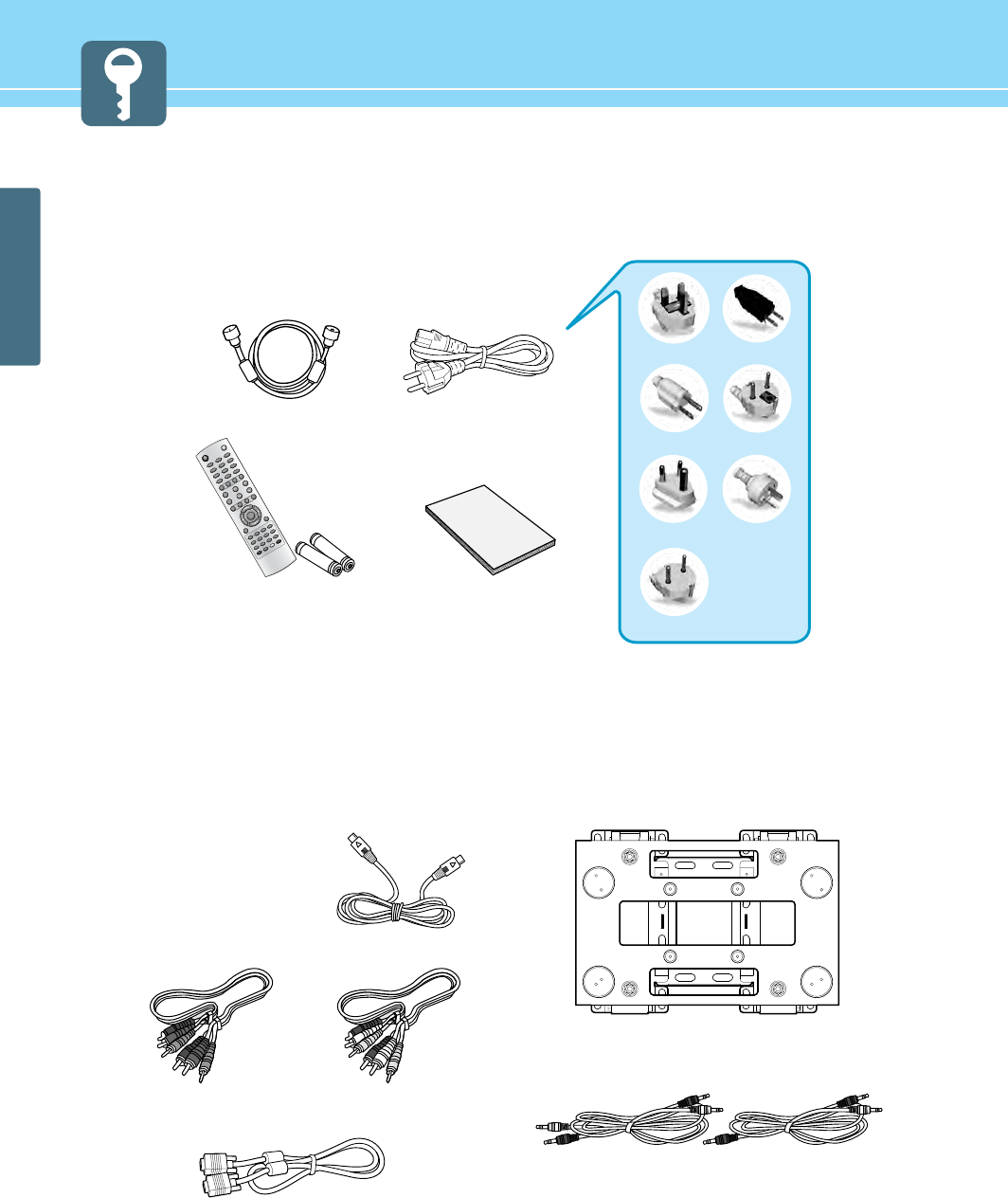

Contents of the Package .................................................... 11
Separately Sold Products .................................................. 11

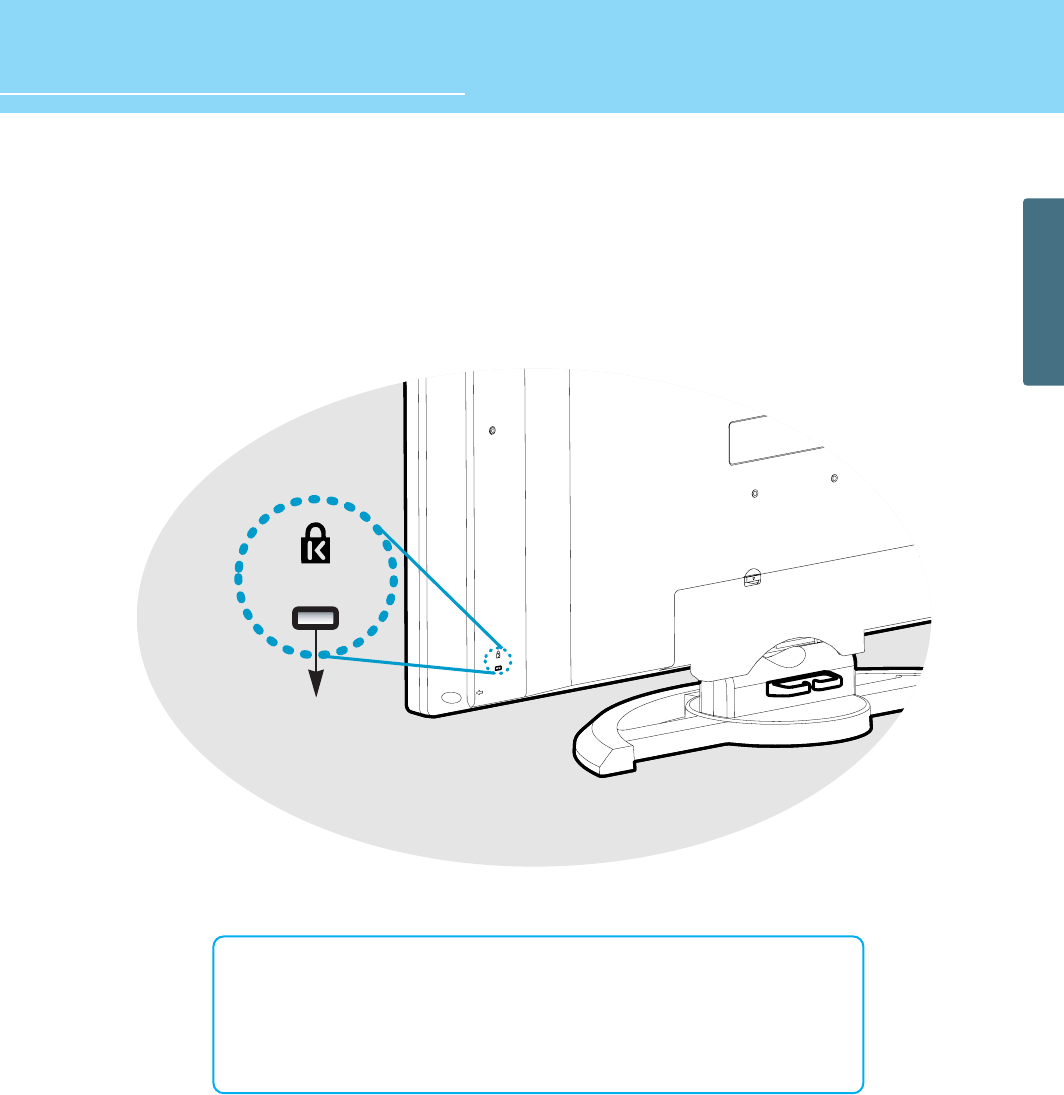

How to Use the Kensington Security Slot ........................... 12

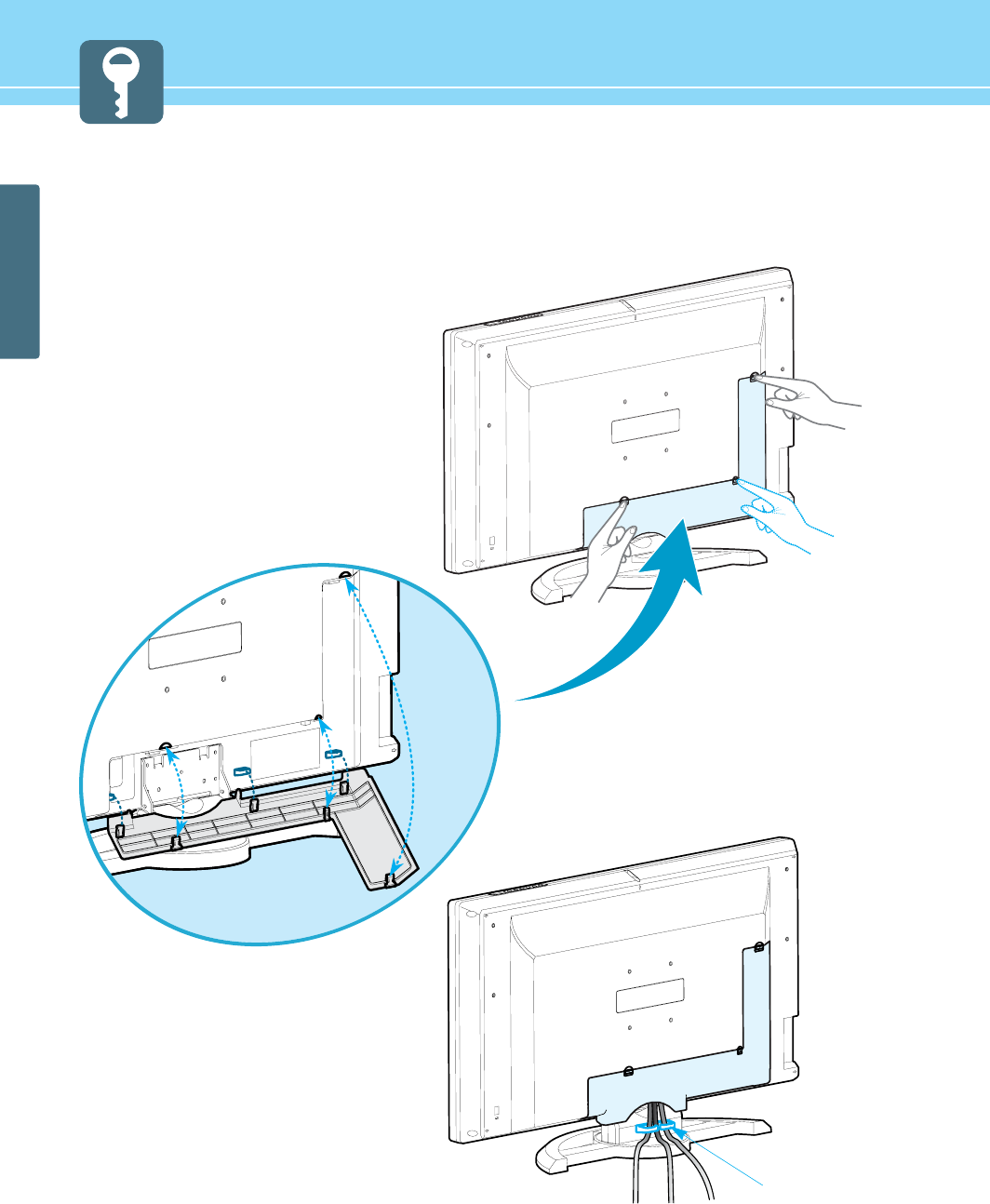

How to Use the Rear Cap and Cable Holder ........................ 13

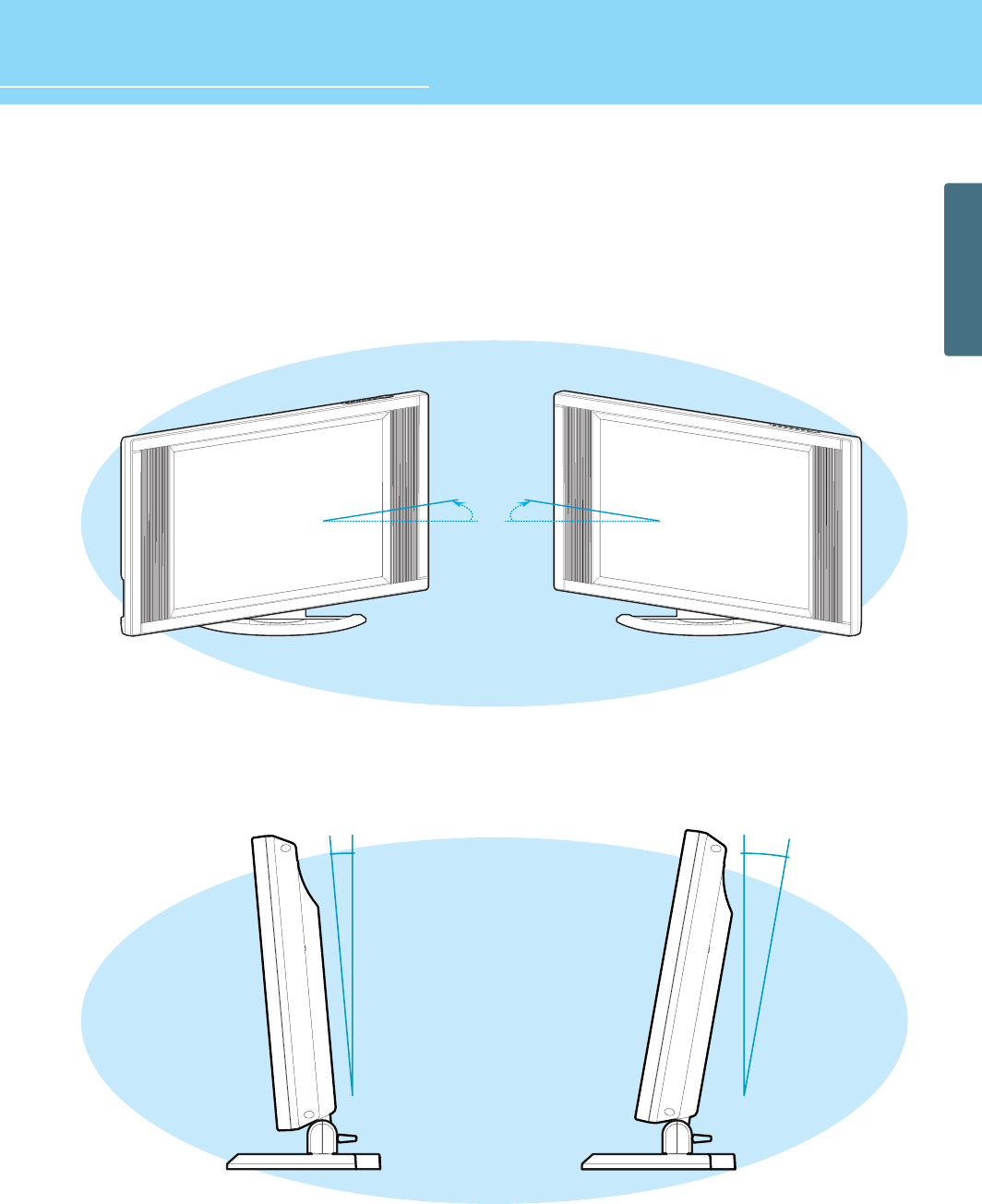

How to Adjust the View Angle ............................................ 14

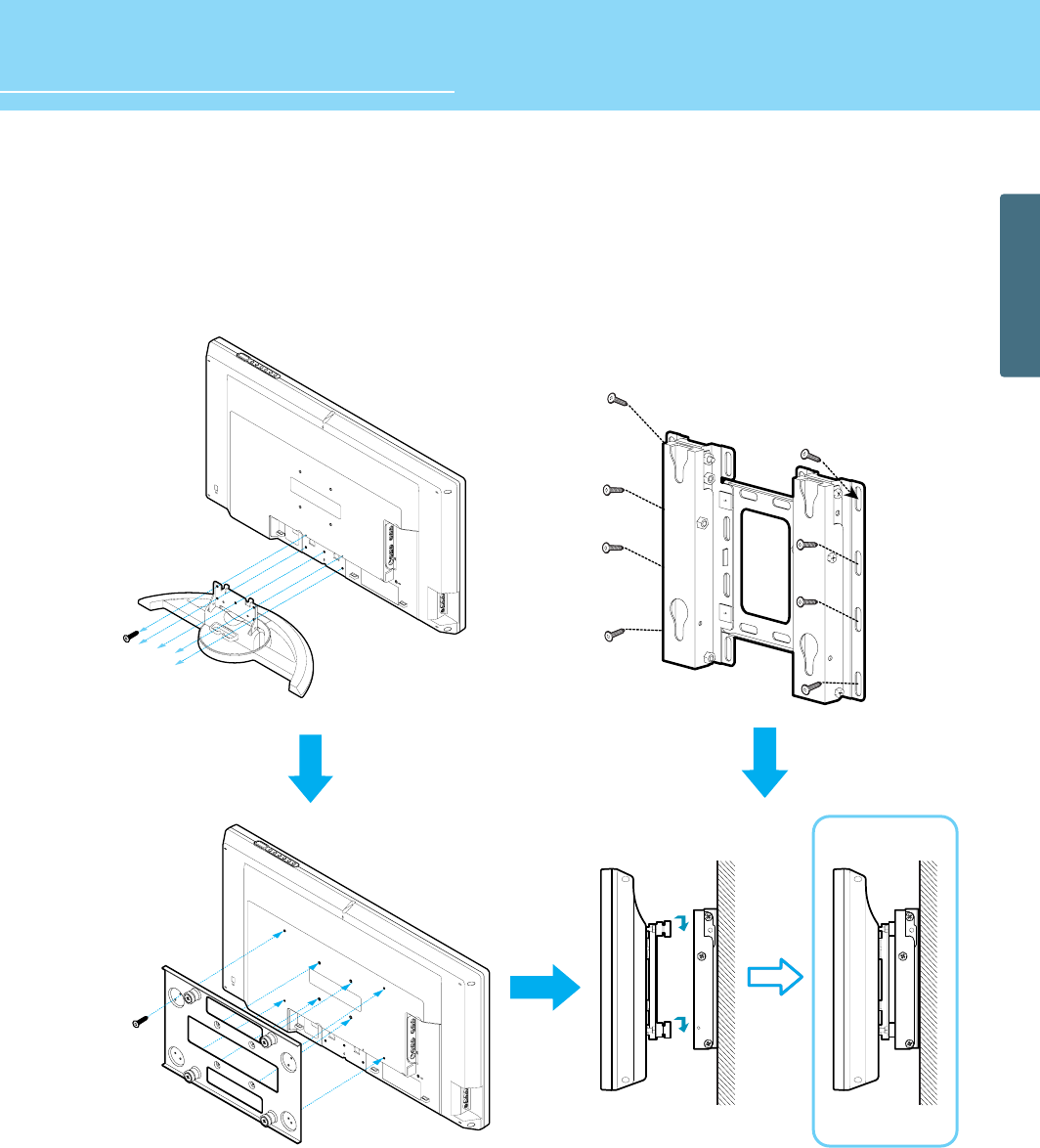

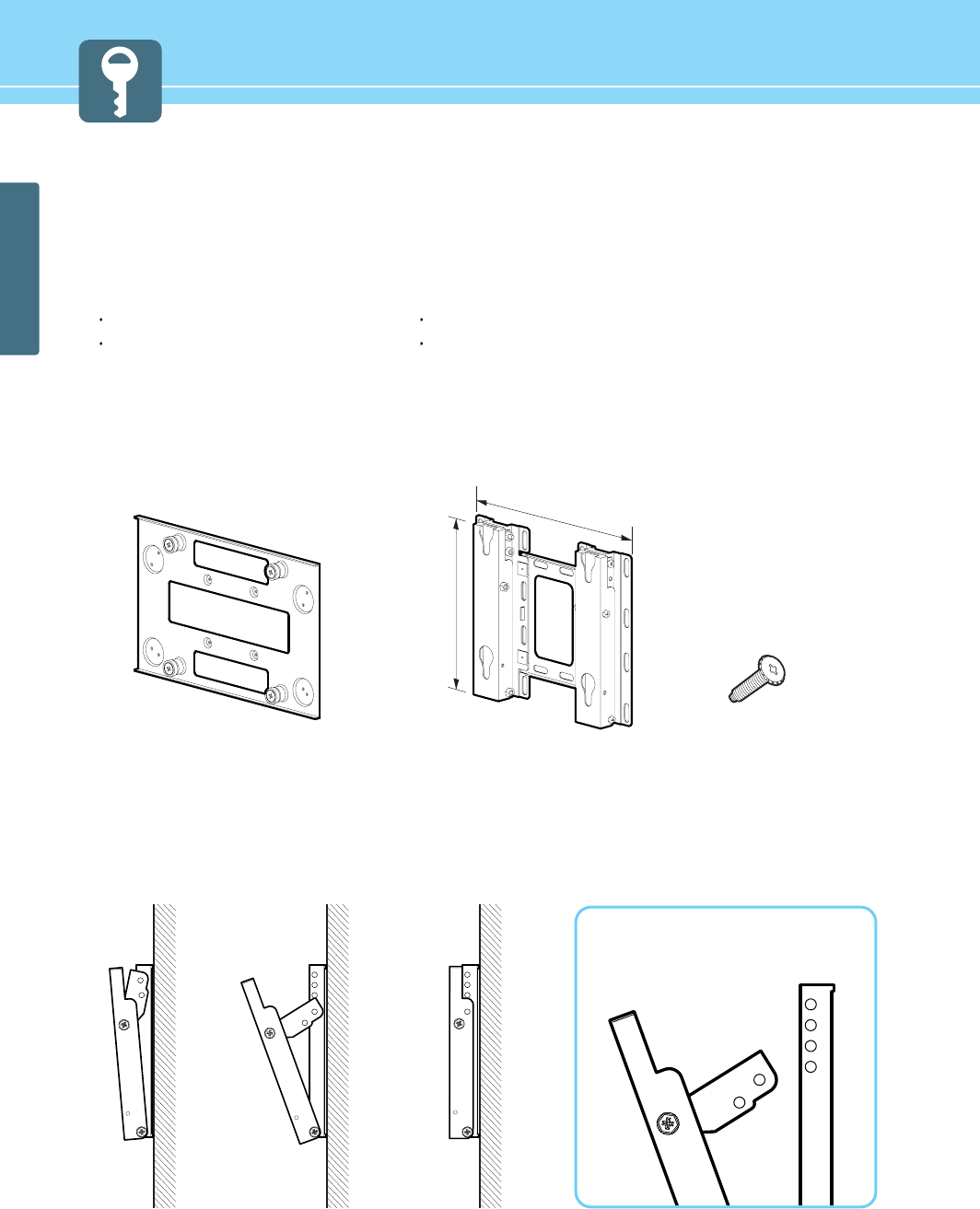

How to Install Wall Mount Support ......................................15
How to Install Wall Mount Frame ........................................16

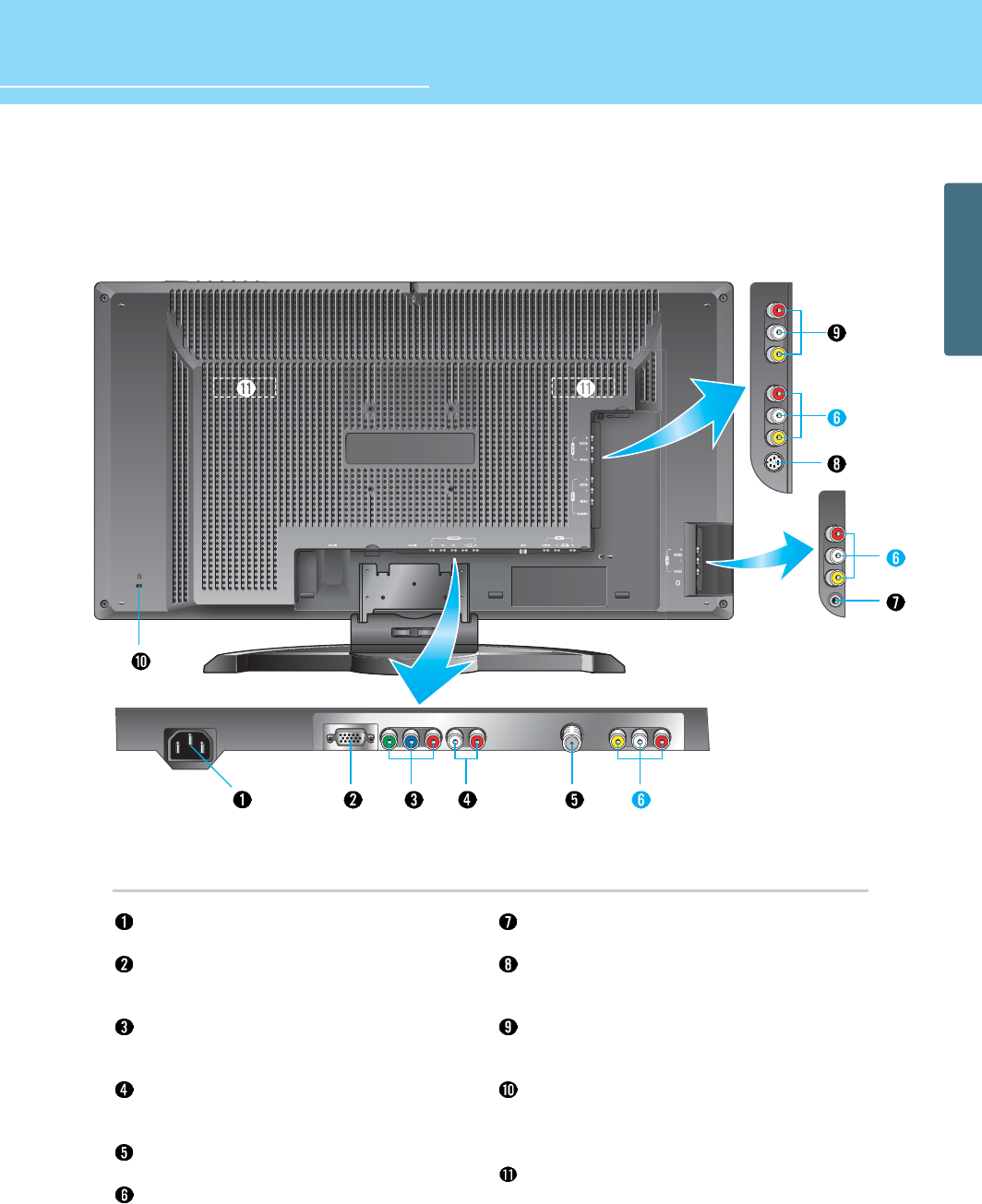

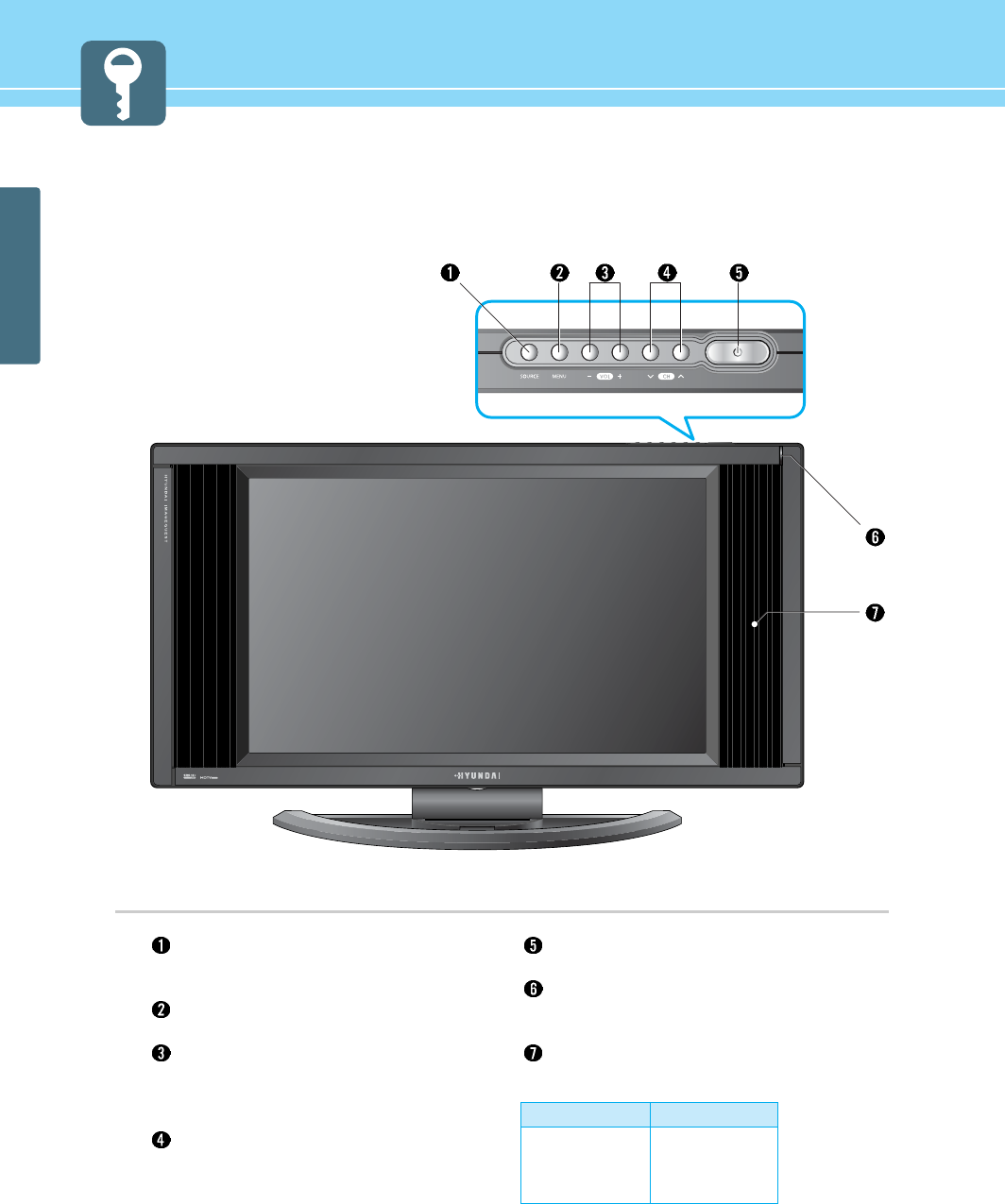

Parts Names and Functions ............................................. 17

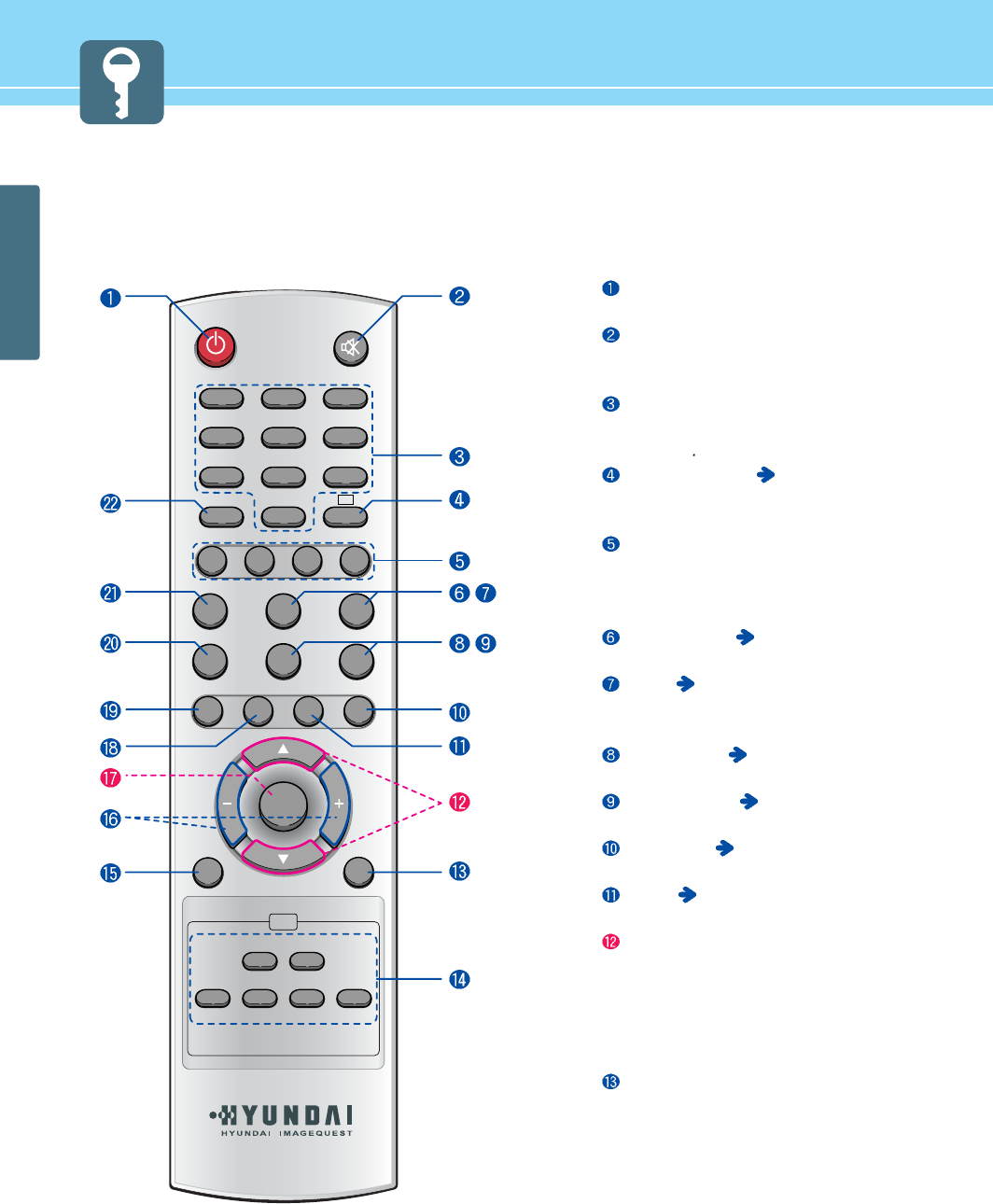

Remote Control ................................................................. 19
Connections
Connecting Indoor/Outdoor TV Antenna (UHF/VHF) ............. 23
Connecting to the antenna input connection
on the external equipment ................................................. 24
Before connecting the video connections to
external devices .................................................................25
Connecting VCR, Cable/Satellite Receiver .......................... 26
Connecting a DTV Receiver or DVD Player .......................... 27
Playing Back a Tape Recorded on a Camcorder ................. 28
Connecting to a PC ............................................................ 29
Resolutions Supported in PC ...............................................30
Picture Setup
How to Select the Picture Mode ........................................ 33
How to Set the Desired Picture .......................................... 34
How to Set PIP [Mode] ...................................................... 35
How to Set the Geometry (In PC mode) ............................. 37
How to Set the Geometry (In DTV mode) ........................... 38
Sound Setup
How to Select the Audio Mode ........................................... 41
How to Select the Desired Mode ........................................ 42
How to Select the Balance, Volume and Sound Source ..... 43
How to Select SRS WOW(Surround) ................................... 44
How to Listen to Stereo Sound / SAP ................................. 45
Channel Setup
How to Store Channel Automatically .................................. 47
How to Set Channel Fine Tuning ........................................ 48
How to Add/Erase Channel ................................................ 49
Using the LNA(Low-Noise-Amplifier) Feature .................... 50
How to Select the Parental Lock Mode .............................. 51
How to Set the Desired Parental Lock ............................... 52
Function Setup
How to Select the Aspect Ratio .......................................... 59
How to Freeze Picture ........................................................ 60
How to view Closed Captions ............................................. 61
How to Set Key-Lock ......................................................... 62
How to Set OSD(On-Screen-Display) Display Time ............ 63
How to Set No Key Operation Auto Power Off...................... 64
How to Set No Signal Timeout ........................................... 65
How to Set Your Favorite Channels .................................... 66
How to Set Noise Reduction and Use Factory Preset .......... 67
Displaying Information and Clock ....................................... 68
Choosing Your Language ................................................... 69
Clock Setup
How to Set Date and Clock ................................................ 71
How to Set On/Off Time ..................................................... 72
How to Set Sleep Time ..................................................... 74
Appendix
Glossary ............................................................................ 77
Troubleshooting ................................................................. 79
Care and Cleaning ............................................................. 81
Product Specifications ....................................................... 82
5
GENERAL INFORMATION
WARNING
WARNING

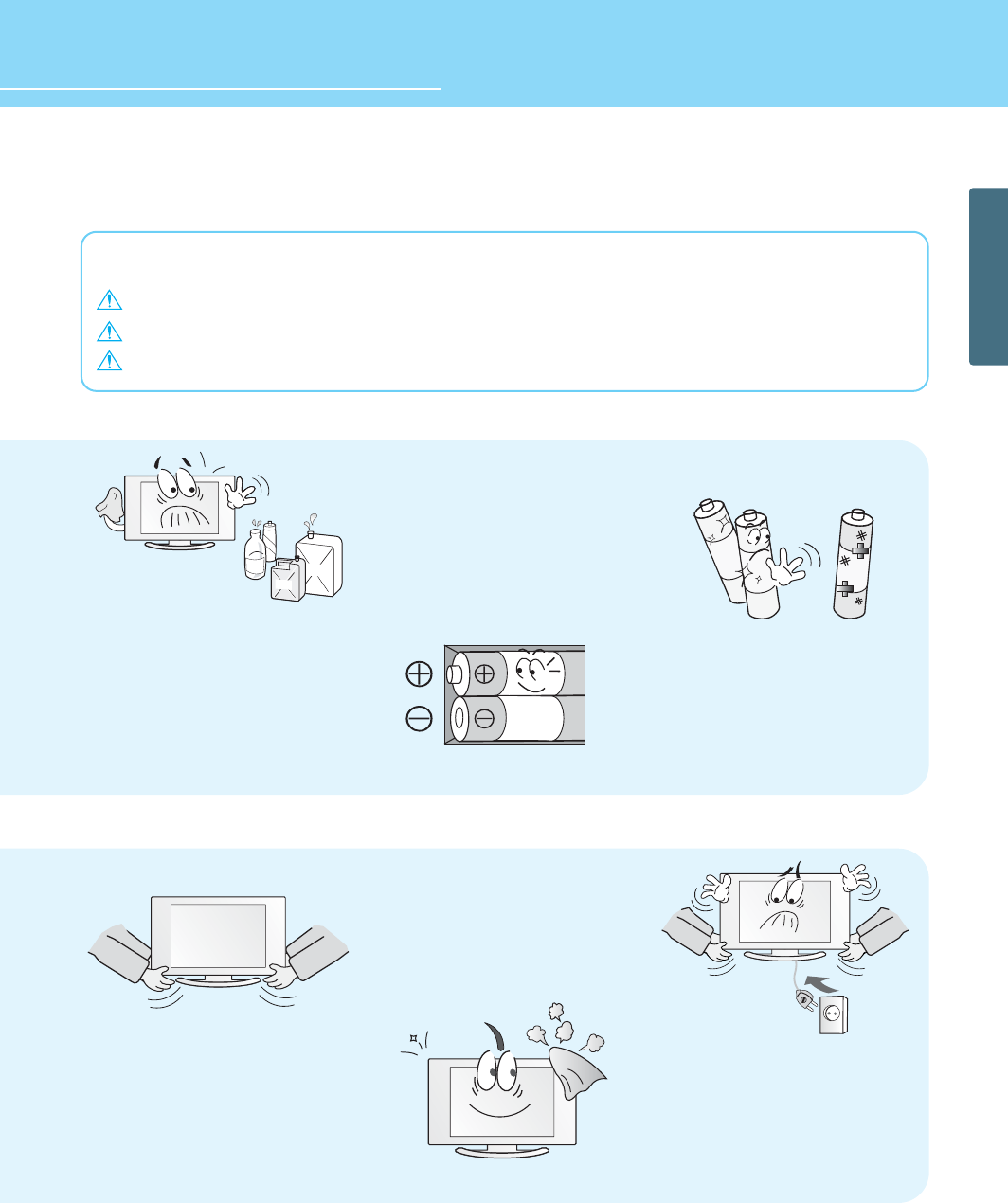

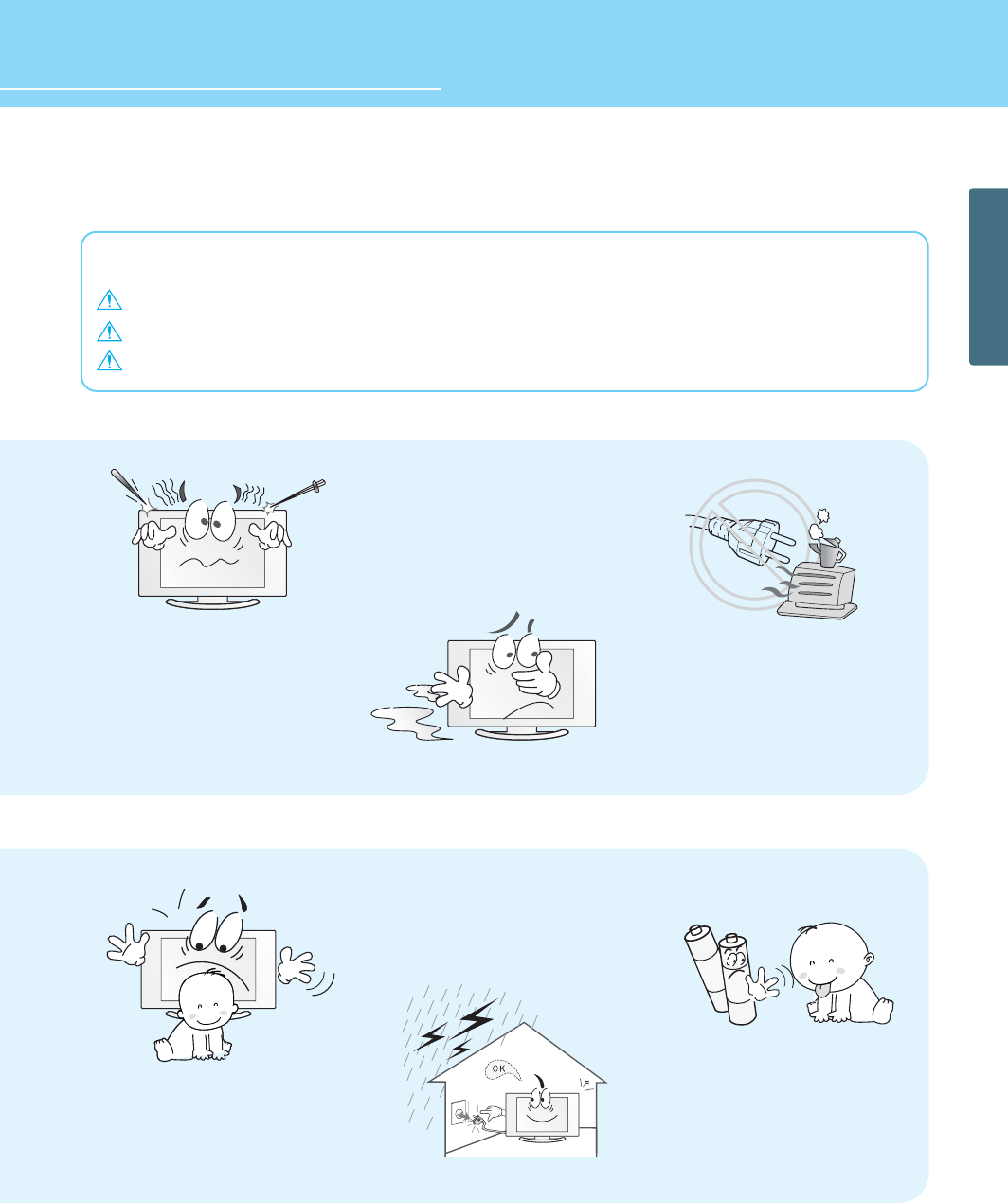

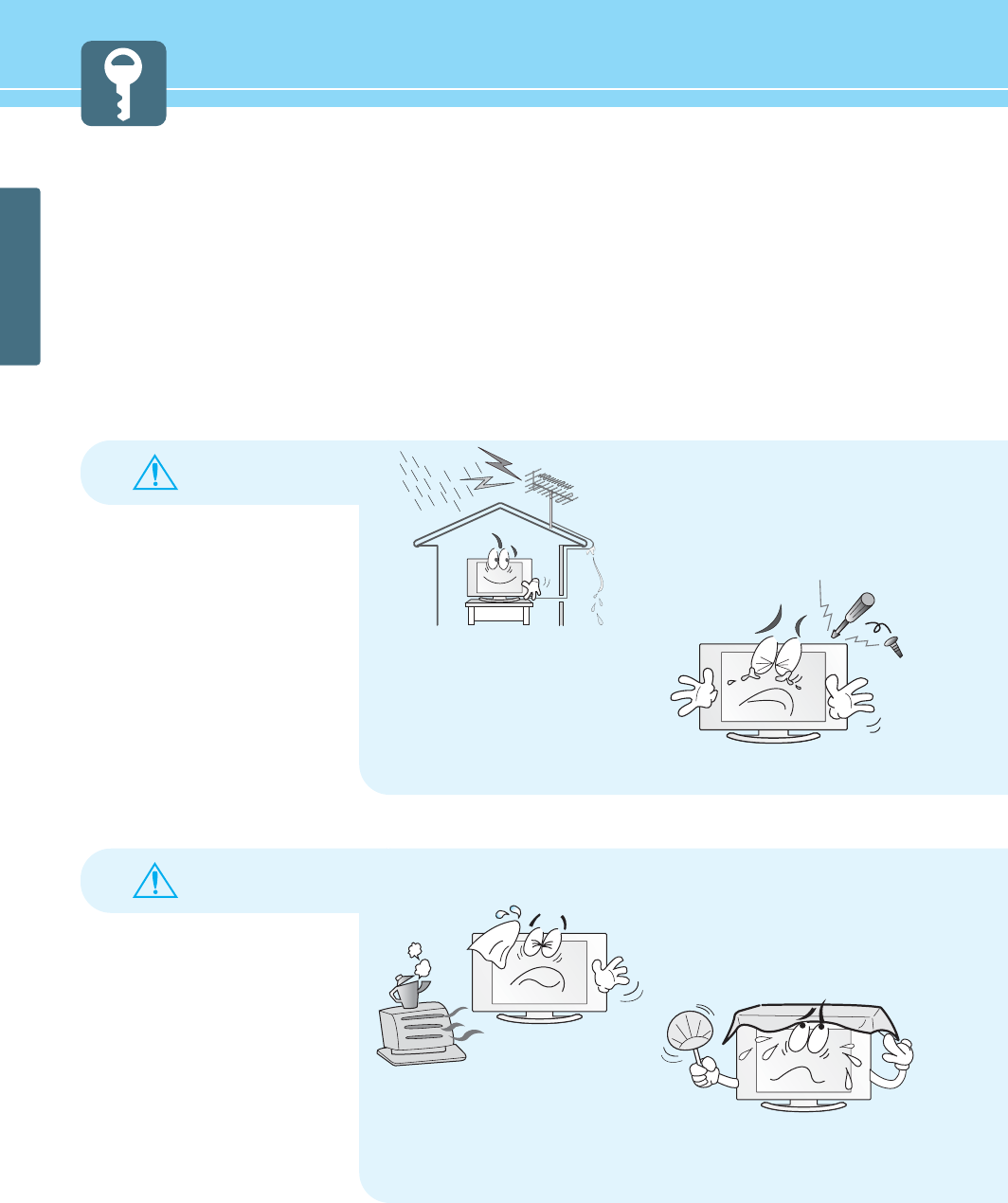

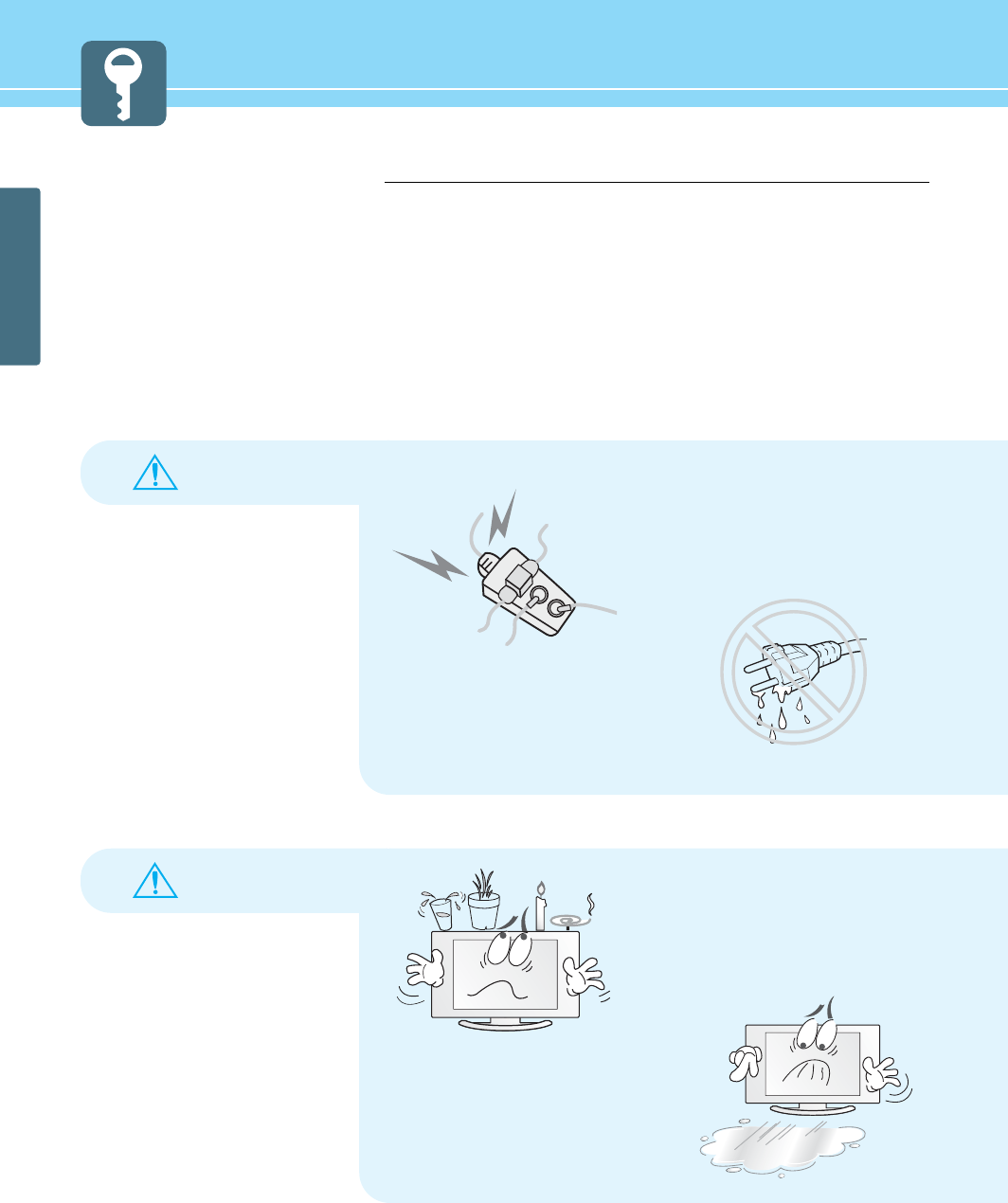

Safety Precaution
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
Do not connect multiple electrical
appliances to a single outlet.
- It may cause a fire due to overheating from the
outlet.
Do not put a water bowl, filled with
liquids such as vases, candle, bug
repellant smoke, cigarette, plants,
or heavy thing on the LCD TV.
- It may cause electric shock or fire and also
heavy things may cause injury when they fall.
If there is a persistent accumulation
of dusts or water on the plug, please
make sure to wipe it off using a dry
cloth.
- It may cause a fire or an electric shock.
Do not install in a place where there
is oil, smoke, excessive humidity, or
where water may be sprinkled,
dripped, splashed on it.
- This may cause electric shock or fire.
6

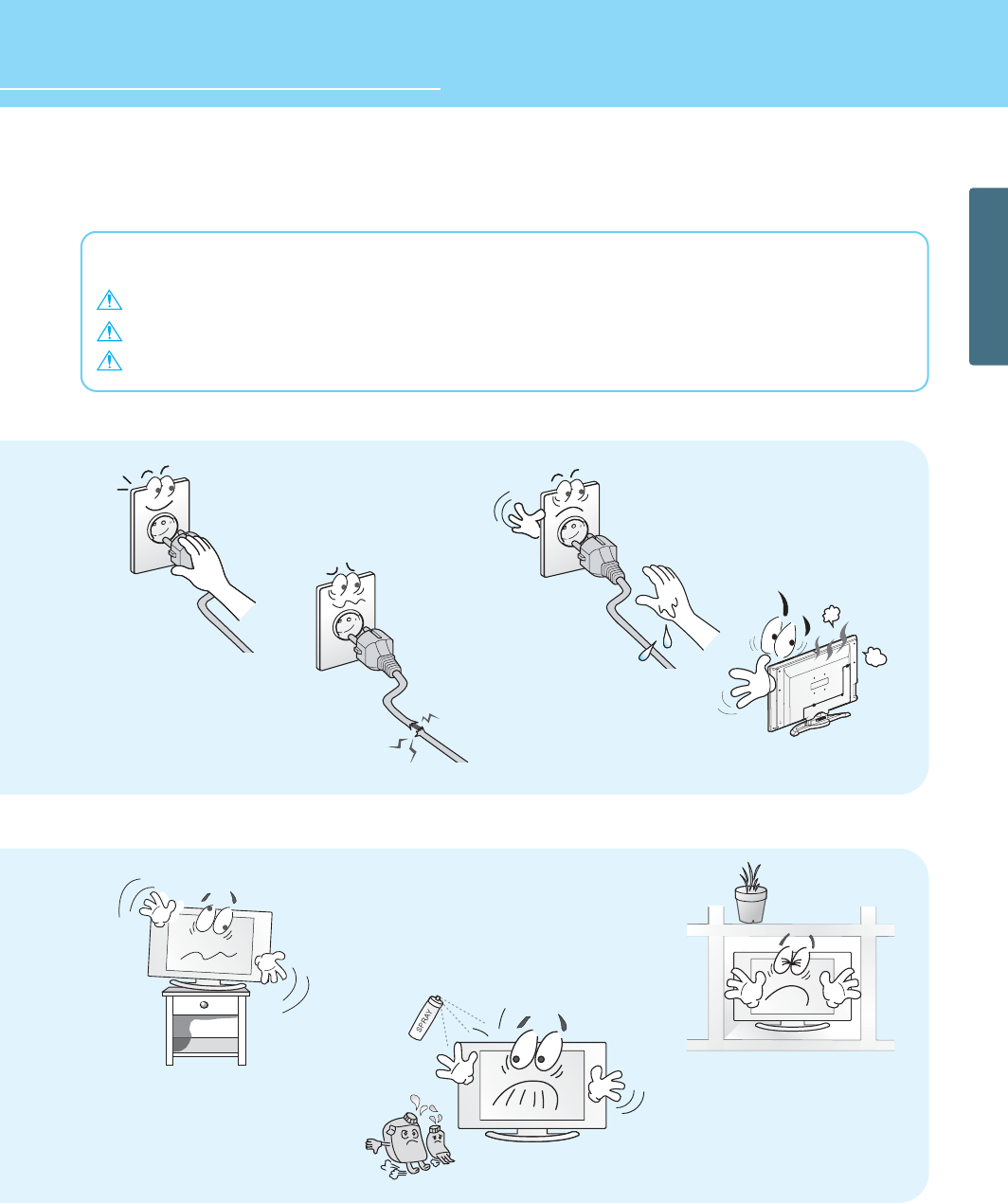

GENERAL INFORMATION
HYUNDAI LCD TV HQL260WR/320WR
Safety instructions are divided into “Warning” and “Alert”. Their meanings are as follows.
This icon is intended to alert the user to the presence of potential danger and important operating instructions.
Warning : When there is a possibility of serious injury or death if not observed.
Alert : When there is a possibility of slight injury or product damage if not observed.
Do not install on an unstable place
or small support.
- This may cause the LCD TV to fall, resulting in
serious injury to a child or adult.
Do not use or store a flammable
spray or inflammable things near the
LCD TV.
- They may cause explosion or fire.
Do not install the LCD TV in a
bookshelf, closet, or a place where
there is poor air circulation.
- Fire may be caused due to the rise of internal
temperature.
Firmly plug in the power
cord so that it does not pull
out.
- An unstable connection may cause
fire.
Do not use a damaged
power cord or plug, or loose
outlet.
- They may cause electric shock or fire.
Please avoid touching the panel
at the rear of LCD TV as it is
producing high temperature.
- Direct contact with the hot surface may
cause physical burns.
Never touch the power plug
or outlet with wet hands.
- This may cause electric shock.
7
GENERAL INFORMATION
Safety Precaution ....................................Continued from previous page
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
WARNING
WARNING
Any heat sources such as radiators
and heat registers, etc. on or near
the LCD TV.
- It may cause a fire.
Do not block ventilating slits.
- Blocking the ventilation slits prevents inner heat
from escaping, which may lead to a fire.
Make the antenna cable loop at the entrance
of the building. Any necessary action such as
making the antenna cable loop at the
entrance of the building should be taken to
prevent rainwater on the outdoor antenna
cable from possibly running into the indoor.
- If raindrop gets into the LCD TV, it may cause a
fire or an electric shock.
Never attempt to open, fix, or modify
the LCD TV.
- When there is a need for fixing, call a service
center. Fire or electric shock may be caused.
8
GENERAL INFORMATION
HYUNDAI LCD TV HQL260WR/320WR
Safety instructions are divided into “Warning” and “Alert”. Their meanings are as follows.
This icon is intended to alert the user to the presence of potential danger and important operating instructions.
Warning : When there is a possibility of serious injury or death if not observed.
Alert : When there is a possibility of slight injury or product damage if not observed.
Do not install the product on the
floor.
- If it falls over, your child may be injured.
Unplug the product during lightning
or thunderstorms and never touch
the antenna cable.
- It may cause a fire or an electric shock.
Keep the remote control batteries
out of sight and out reach of
children.
- If your child swallows a battery, see your doctor
immediately.
Do not put a metallic object like
chopstick, wire, or puncher or
inflammables like paper or a match
in a vent, headphone jack, or AV
jacks of the LCD TV.
- Electric shock or fire may be caused.
When the LCD TV produces abnormal
noise, burning smell, or smoke,
unplug the LCD TV immediately and
call a service center.
- Electric shock or fire may be caused.
Ensure the power cord
doesn’t trail across any hot
objects like a heater.
- This may cause a fire or an electric shock.
9
GENERAL INFORMATION
Safety Precaution ....................................Continued from previous page
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
ALERT
WARNING
Do not allow children to climb or
play on the LCD TV.
- If it falls over on children, it may cause serious
injury.
Do not place toys and cookies, etc.
on the LCD TV, which may attract
children’s attention. Children will
climb on the LCD TV to reach
whatever they have their eyes on.
- If it falls over on children, it may cause serious
injury.
In the event of damaging or
dropping the product, switch off the
power and remove the plug.
- Using a damaged product may cause an electric
shock or a fire.
- Contact your local service center.
Unplug when you do not use your
LCD TV for a long time.
- If dust is stacked on the LCD TV, electric shock
or fire may be caused from heat, fire, or
deterioration of insulation.
HYUNDAI LCD TV HQL260WR/320WR
10
GENERAL INFORMATION
LUBRICANT
Benzene
Alcohol
When cleaning the LCD TV, make sure
to disconnect the power plug and use
a dry, soft cloth for a cleanup.
- Please avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquito spray,
air freshener, lubricant or synthetic
detergent.
When replacing batteries, make
sure to match the batteries to the
(+) and (-) marks in the battery
compartment.
- Mismatching of polarities may result in internal
damage to batteries, fire due to leakage or
contamination.
Always use the standard batteries
and avoid using old batteries
together with new ones.
- Otherwise it may result in internal damage to
batteries, fire due to leakage or contamination.
When moving the LCD TV, 2 or more
people are advised to carry it.
- Injury or damage may be caused when the LCD
TV falls.
Before moving your LCD TV, ensure to
switch off the power and unplug all the
electrical cords and the external
connection cords such as an antenna
cable and other source connections, etc.
- An electrical cord(s) may be damaged resulting
in a fire or an electrical shock.
Consult a service center or customer
service for inside cleaning about
once a year.
- When dust is piled inside the LCD TV for a long
time, fire or malfunction may be caused.
Safety instructions are divided into “Warning” and “Alert”. Their meanings are as follows.
This icon is intended to alert the user to the presence of potential danger and important operating instructions.
Warning : When there is a possibility of serious injury or death if not observed.
Alert : When there is a possibility of slight injury or product damage if not observed.
GENERAL INFORMATION
11
Contents of the Package
To purchase additional parts, consult a distributor or selling agent.
Separately Sold Products
If you want to purchase separately sold products, consult a service center, electronics shops, or parts seller.
12
0
3
4
7
5
8
6
9
PIP
MENU
TV/A
V
INFO
MUTE
PREVIEW
SOUND
MTS
VOLUME
SLEEP
ON/OFF
HIGH/LOWPROTECTIONPC.AUTOCAPTION
TTX/MIXINDEXLIST/FLOFSTORE
HOLDSIZEREVEALSUB PAGE
SOURCESIZE SWAP
CHANNEL
PICTURE ASPECT STILL
POWER
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
Power CordAntenna Cable
User’s GuideRemote Control/2 Batteries
(1.5V AAA)
Scart cable S-video cable
Component
(Y, Pb, Pr) cable
Composite
(Video & Audio) cable
PC signal cable(D-SUB)
Audio cable(PC)Audio cable(DVD/DTV)
Wall mounting frame
HYUNDAI LCD TV HQL260WR/320WR
GENERAL INFORMATION
12
How to Use the Kensington Security Slot
- This display unit supports a Kensington-type security device to secure your LCD TV. Kensington lock is not
included.
- To purchase and install the Kensington locking device, please refer to the following contact information.
* Kensington Technology Group
• Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
• Tel : +1 650 572 2700 • Fax : +1 650 572 9675
• Web-site : www.kensington.com
Kensington
security slot
13
GENERAL INFORMATION
How to Use the Rear Cap and Cable Holder
The Rear Cap and Cable Holder allow you to organize the connection cables on the rear of the product.
1. Pressing and pulling the three hooks
on the rear can detach the Rear Cap.
2. Connect your cables to the terminals
of the rear.
3. Organize the connected cables neatly
using the Cable Holder.
4. Align the rear cover with three guide
holes on the bottom of the TV and
push the cover firmly toward the
front of the TV until the latches click
into the locked position.
Cable Holder
14
GENERAL INFORMATION
HYUNDAI LCD TV HQL260WR/320WR
-5O
How to Adjust the View Angle
You can adjust the angle of the view for the desired view angle.
You can adjust any angle within a range of 30º to the left or right.
You can adjust the tilt of the TV from -5º to 10º after the installation.
10O
30O
30O
15
GENERAL INFORMATION
How To Install Wall Mount Support
1. Caution
1. Install on the vertical wall surface only.
2. Do not install on the following places to protect the performance of LCD TV and to prevent malfunction.
Near sprinkler Detector, Near heating devices,
Places where vibration or shock may be applied , Near high voltage electric power line
3. Install in a proper method with the structural materials of the wall. If the wall is not strong enough to stand weight of TV set, reinforce the
wall surface before installation.
4. Do not install within a wall.
2. Parts configuration chart
3. Angle Adjustment
The angle of LCD TV may be adjusted from 0 degree to 20 degree in 5 steps with 5 degrees.
Use the angle adjustable hole on the side of fixing panel when adjustment is needed.
50angle 200angle No angle
267.5
328.3
Base frame assembly
8 screws
Fixing Panel assembly
a
b
c
d
Angle adjustable hole
0Oangel : A + a
5Oangel : B + c
10Oangel : A + b
15Oangel : A + c
20Oangel : A + d
A
B
16
GENERAL INFORMATION
HYUNDAI LCD TV HQL260WR/320WR
How To Install Wall Mount Frame
4. Installation Method
1. Unscrew screws fasted on 5 spots on the stand of LCD TV.
2. Fasten the Fixing Panel assembly on the back of LCD TV as
shown on the picture. (Numbering step)
3. Fix the Base Frame Assy on the wall with screws or nails.
4. Hang the LCD TV assembled the Fixing Panel Assy on the
Base Frame Assy. (If the LCD TV is lifted too much, the
hanging Plastic may be separated)
1
2
3
4
7
8
5
6
17
GENERAL INFORMATION
- Power Indicator Staus -
Parts Names and Functions
Front View
Source button
Use this button to switch among inputs
connected to the LCD TV.
Menu button
Use this button to display or exit from menus.
Volume buttons
Use these buttons for your desired sound
level. These buttons also serve as the cursor
of Select/Adjust when in Menu mode.
Channel buttons
Use these buttons to change channels. These
buttons also serve as the cursor of Down and
Up buttons when in Menu mode.
Power button
Use this button to turn on or off the LCD TV.
Remote sensor and power LED.
- Point the remote control toward here.
- It displays standby or operation status.
Speaker
Indicator
Red
Green
Green blinking
Status
Stand-by
Power on
Remote control
* The above image may look different from the real product.
HYUNDAI LCD TV HQL260WR/320WR
GENERAL INFORMATION
18
Rear View
Power input terminal
Power cord is connected here.
D-SUB input terminal
Connect to the DTV Receiver with D-Sub terminal or
to RGB output terminal of a PC.
Component input terminal for DVD or DTV
Connect to the Component output terminal of DVD
player/DTV receiver.
Audio input terminal for PC, DVD or DTV
Connect to the audio output terminal of PC/DVD
player/DTV receiver.
ANT. input
This allows you to connect your antenna.
Video and Audio Composite input terminal for VCR
Connect to the Composite Video output terminal of
VCR or DVD player.
Headphone Jack
Connect to the Headphone.
S-video input terminal
Use this for the better video quality than Composite
video input terminal.
Video and Audio Composite output terminal for VCR
This allows you to view and listen the current program
from another external source at the same time.
Kensington security slot
This display unit supports a Kensington-type security
device to secure your LCD TV. Kensington lock is not
included.
Handgrip for carrying(For 32" TV only)
* The above image may look different from the real product.
GENERAL INFORMATION
19
Remote Control
POWER/STANDBY
Use this button to turn the TV set on or off.
MUTE
Use this button to turn the sound off
completely.
NUMERIC KEYS
Use these buttons to select channels and
input digit
CLOSED CAPTION (P. 61)
Use these buttons to select closed caption
channel.
EXTERNAL SOURCE INPUT SELECTION
Use this button to display the available
video sources.
(TV, Video1·2·3, S-Video, DTV/DVD, PC)
ASPECT RATIO (P. 59)
Use this button to change the picture size.
SLEEP (P. 74)
Use this button to allow your TV to turn off
automatically at designated time.
SOUND MODE (P. 41)
Use this button to select Sound Mode.
SOUND EFFECT (P. 44)
Use this button to select SRS WOW.
ADD/ERASE (P. 49)
Use this button to store or erase channels.
CLOCK (P. 68)
Use this button to display clock.
CHANNEL SELECTION
- Use these buttons to select channels.
- Use these buttons to move each item of
menu you want to choose.
- Use these buttons to jump back to TV
mode from other mode.
OK
Use this button to select each item of
menu.
PIP
1 2
0
3
4
7
5
8
6
9
MENU
MUTE
CC PREVIEW
PC
STILL ASPECT SLEEP
S.MODEP.MODE
MTS
PIP INPUT
SIZE
POSITION P.MODE SWAP
DISPLAY CLOCK
ADD/ERASE
FAVORITE
CHANNEL
VOL
OK
S.EFFECT
DTV VIDEO INPUT
POWER
HYUNDAI LCD TV HQL260WR/320WR
20
GENERAL INFORMATION
How to Insert Batteries in Remote Control
*Battery type : 1.5V/BP-2KM(AAA/LR03G)
PIP FUNCTIONS (P. 35 ~ 36)
- PIP : Use this button for PIP On/Off.
- SIZE : Use this button to select Size.
- POSITION : Use this button to select Position.
- P.MODE : Use this button to select Picture Mode.
- SWAP : Use this button to swap between main picture
and sub-picture.
- INPUT : Use this button to select the Input Source.
FAVORITE (P. 66)
Use this button to select the favorite channel.
SELECT/ADJUST
- Use this button to select or adjust each item of menu.
- Use this button to quickly adjust volume.
MENU
Use this button to bring up the OSD on the screen and
jump back to the previous menu.
DISPLAY (P. 68)
Use this button to display resolution or various program
information.
MTS (P. 45)
Use this button to display types of audio signals
currently aired on TV. Or you can use this button to
switch to other Sound Mode available.
PICTURE MODE (P. 33)
Use this button to select Picture Mode.
STILL (P. 60)
Use this button to freeze a picture.
PREVIEW
Use this button to return to the previous channel.
Press and hold ∆part and push to
open cover.
Insert batteries with proper
polarities of + and - .
Use the remote control with cover
closed.
123
21
GENERAL INFORMATION

Navigation menu
