INSTRUCTION MANUAL
iV82
VHF TRANSCEIVER
iU82
UHF TRANSCEIVER
This device complies with Part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
(IC-V82)
FOREWORD
Thank you for purchasing this Icom product. The IC-V82/U82
VHF
/
UHF TRANSCEIVERS
is designed and built with Icom’s supe-
rior technology and craftsmanship. With proper care, this prod-
uct should provide you with years of trouble-free operation.
We want to take a couple of moments of your time to thank
you for making your IC-V82/U82 your radio of choice, and
hope you agree with Icom’s philosophy of “technology first.”
Many hours of research and development went into the de-
sign of your IC-V82/U82.
DD
FEATURES
❍7W* of high transmit output power
(*IC-V82, 5W for IC-U82)
❍CTCSS and DTCS encoder/decoder stan-
dard
❍Optional Digital modulator/demodulator
❍Optional DTMF decoder
❍MIL-STD810 grade durability
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This in-
struction manual contains important operating instructions for
the IC-V82/U82.
EXPLICIT DEFINITIONS
WORD DEFINITION
RWARNING!
CAUTION
NOTE
Personal injury, fire hazard or electric shock
may occur.
Equipment damage may occur.
Recommended for optimum use. No risk of
personal injury, fire or electric shock.
Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United States, the United Kingdom, Ger-
many, France, Spain, Russia and/or other countries.
i
ii
RWARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
(2 to 4 inches) away from the lips and the transceiver is verti-
cal.
RWARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume op-
eration. If you experience a ringing in your ears, reduce the
volume or discontinue use.
NEVER connect the transceiver to a power source that is
DC fused at more than 5 A. Accidental reverse connection will
be protected by this fuse, but higher fuse values will not give
any protection against such accidents and the transceiver will
be ruined.
NEVER attempt to charge alkaline or dry cell batteries. Be
aware that external DC power connections will charge batter-
ies inside the battery case. This will damage not only the bat-
tery case but also the transceiver.
DO NOT push the PTT when not actually desiring to trans-
mit.
Place the unit in a secure place to avoid inadvertent use by
children.
DO NOT operate the transceiver near unshielded electrical
blasting caps or in an explosive atmosphere.
AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below –10°C (+14˚F) or above
+60°C (+140˚F).
The use of non-Icom battery packs/chargers may impair
transceiver performance and invalidate the warranty.
Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or case from
the transceiver when not using it for a long time. Otherwise,
the battery pack or installed rechargeable batteries (Ni-Cd:
BP-222N, BP-209N, Ni-MH: BP-210N, Li-Ion: BP-211N) will
become exhausted.
For USA only:
Caution: Changes or modifications to this transceiver, not ex-
pressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
PRECAUTION
iii

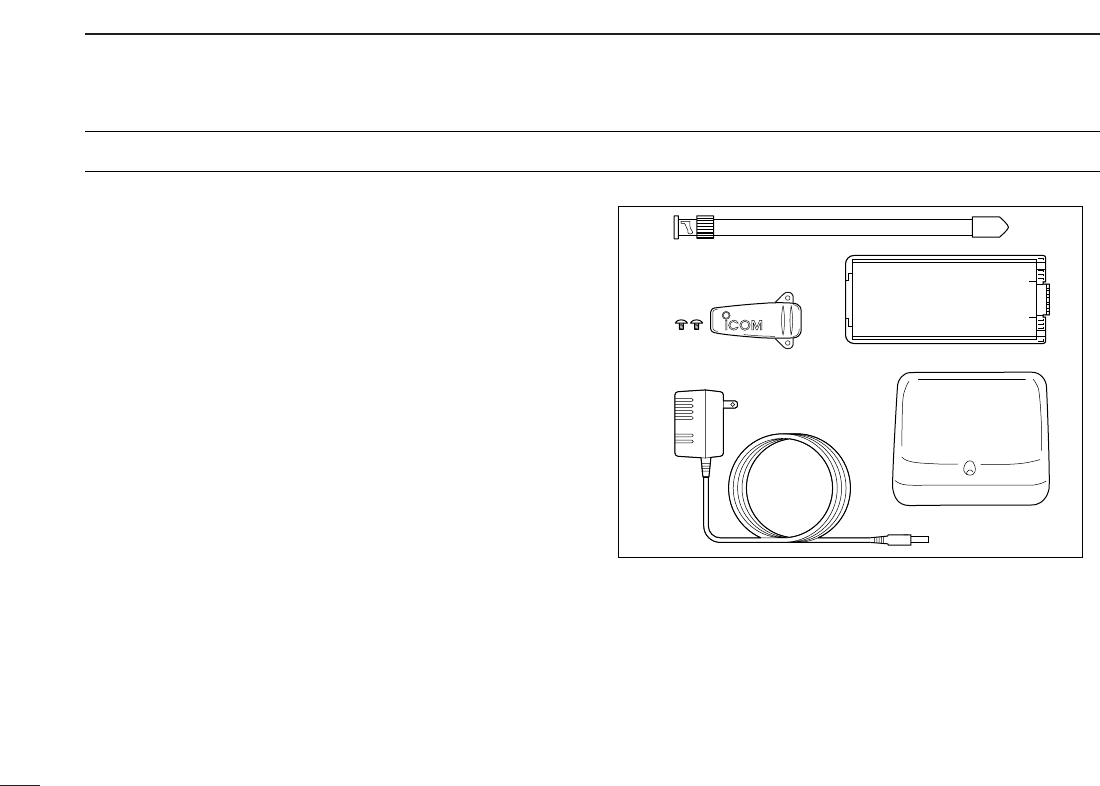

SUPPLIED ACCESSORIES
■Supplied Accessories
qAntenna* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

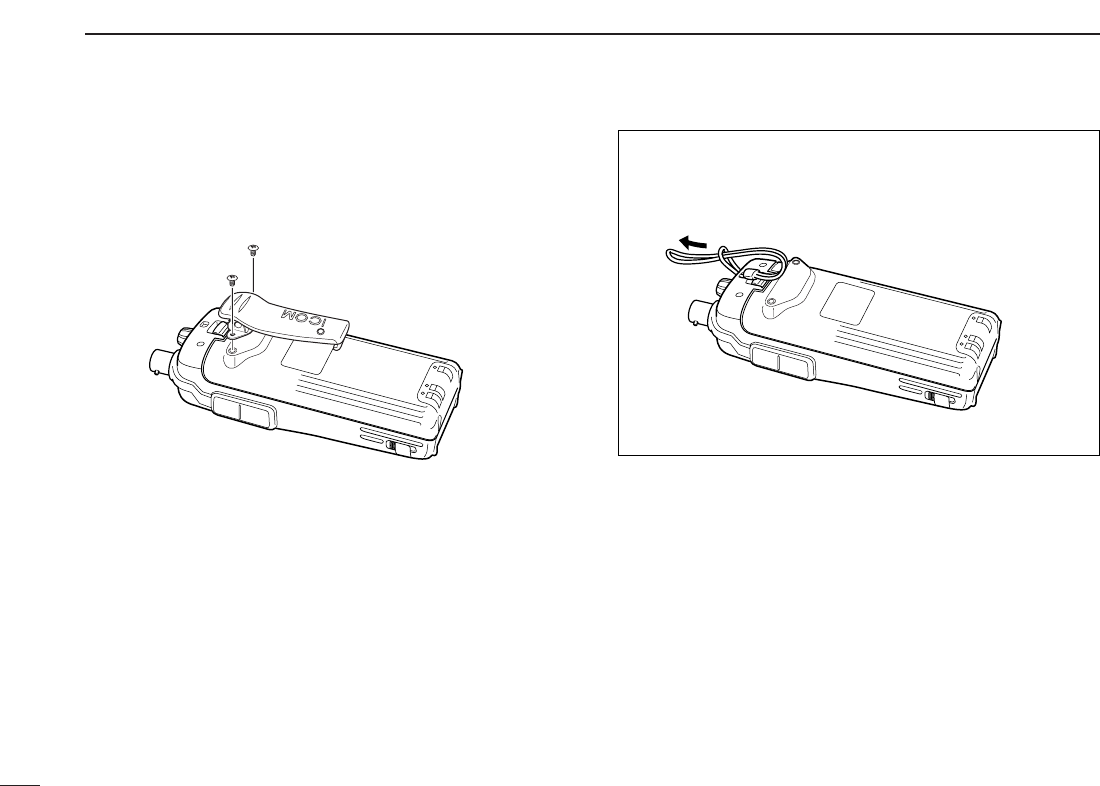

wBelt clip (with screws) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
eAC Adapter* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
rBattery pack*/Battery case* . . . . . . . . . . . . . . . . . . . . . . 1
tBattery charger*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 set
*Not supplied with some versions.
e
q
wr
t
iv
CAUTION
To ensure that your exposure to RF electromagnetic en-
ergy is within the FCC allowable limits, always adhere to
the following guidelines:
• DO NOT operate the radio without a proper antenna at-
tached, as this may damage the radio and may also cause
you to exceed FCC RF exposure limits. A proper antenna is
the antenna supplied with this radio by the manufacturer or
an antenna specifically authorized by the manufacturer for
use with this radio.
• DO NOT transmit for more than 50% of total radio use time
(“50% duty cycle”). Transmitting more than 50% of the time
can cause FCC RF exposure compliance requirements to
be exceeded. The radio is transmitting when the “TX indica-
tor” is lit. You can cause the radio to transmit by pressing
the “PTT” switch.
• ALWAYS use Icom authorized accessories (antennas, bat-
teries, belt clips, speaker/mics, etc.). Use of unauthorized
accessories can cause the FCC RF exposure compliance
requirements to be exceeded.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away
from the body when transmitting, and only use the Icom
belt-clips which are listed in this manual when attaching the
radio to your belt, etc. To provide the recipients of your
transmission the best sound quality, hold the antenna at
least 5 cm (2 inches) from your mouth, and slightly off to one
side.
The information listed above provides the user with the
information needed to make him or her aware of RF ex-
posure, and what to do to assure that this radio operates
within the FCC RF exposure limits of this radio. Electro-
magnetic Interference/Compatibility. During transmis-
sions, your Icom radio generates RF energy that can
possibly cause interference with other devices or sys-
tems. To avoid such interference, turn off the radio in
areas where signs are posted to do so. DO NOT operate
the transmitter in areas that are sensitive to electromag-
netic radiation such as hospitals, aircraft, and blasting
sites.
SAFETY TRAINING INFORMATION
v
TABLE OF CONTENTS
FOREWORD .................................................................................... i
IMPORTANT..................................................................................... i
EXPLICIT DEFINITIONS.................................................................. i
PRECAUTION ................................................................................. ii
SUPPLIED ACCESSORIES ........................................................... iii
SAFETY TRAINING INFORMATION.............................................. iv
TABLE OF CONTENTS .............................................................. v–vi
QUICK REFERENCE................................................................... I–V
■Preparation............................................................................... I
■Your first contact..................................................................... III
■Repeater operation ................................................................ IV
■Programming memory channels............................................. V
1 ACCESSORIES...................................................................... 1–2

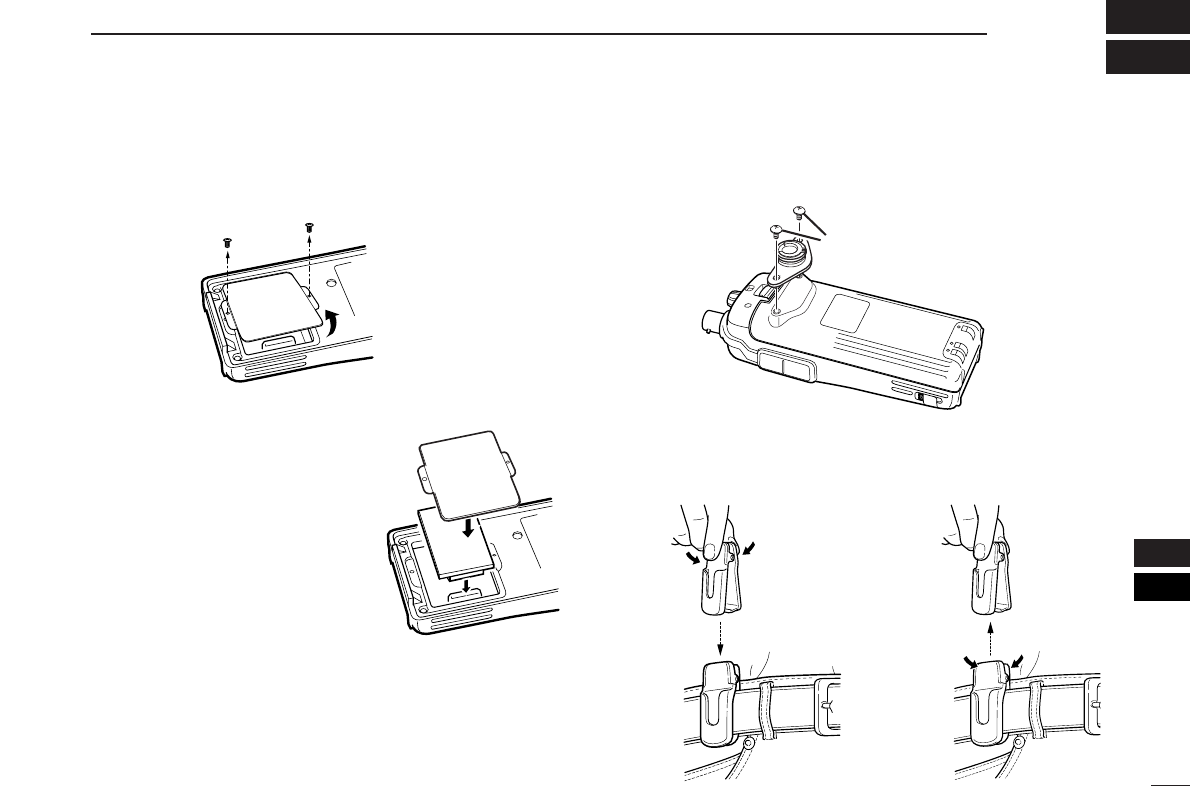

■Accessory attachment............................................................. 1
2PANEL DESCRIPTION .......................................................... 3–7

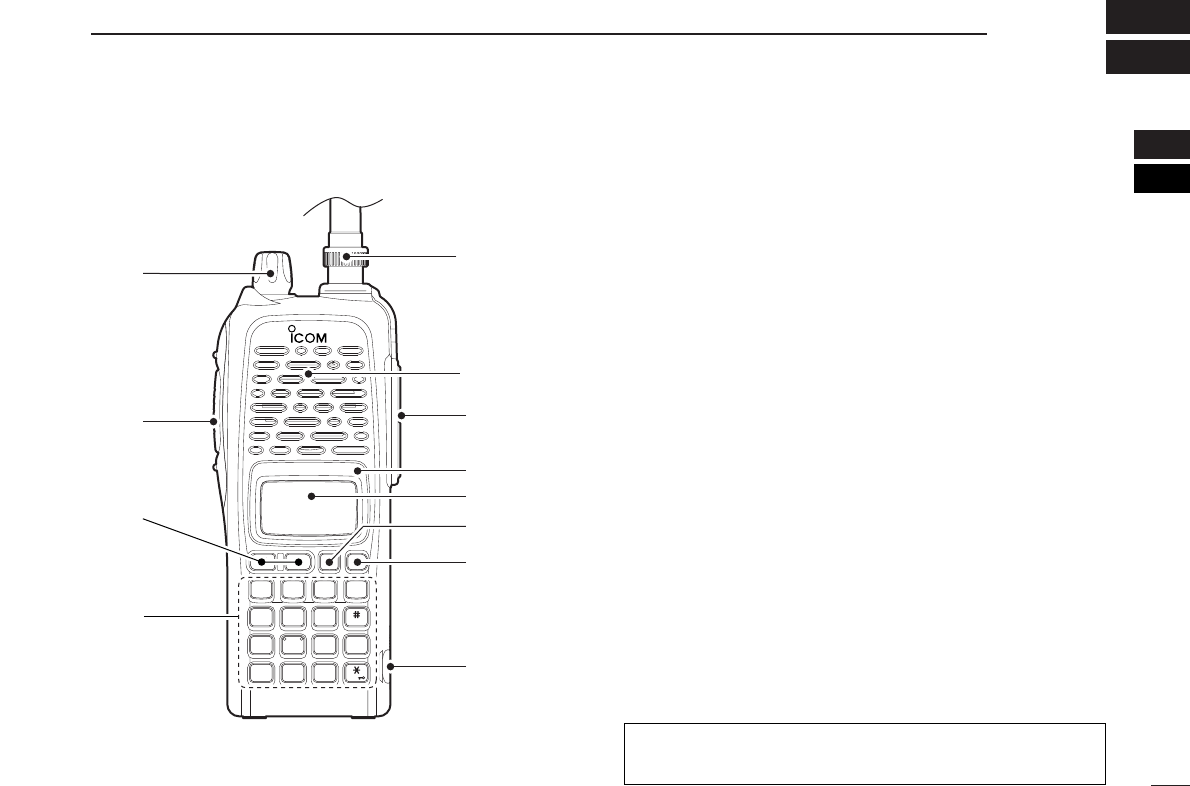

■Switches, controls, keys and connectors ................................ 3

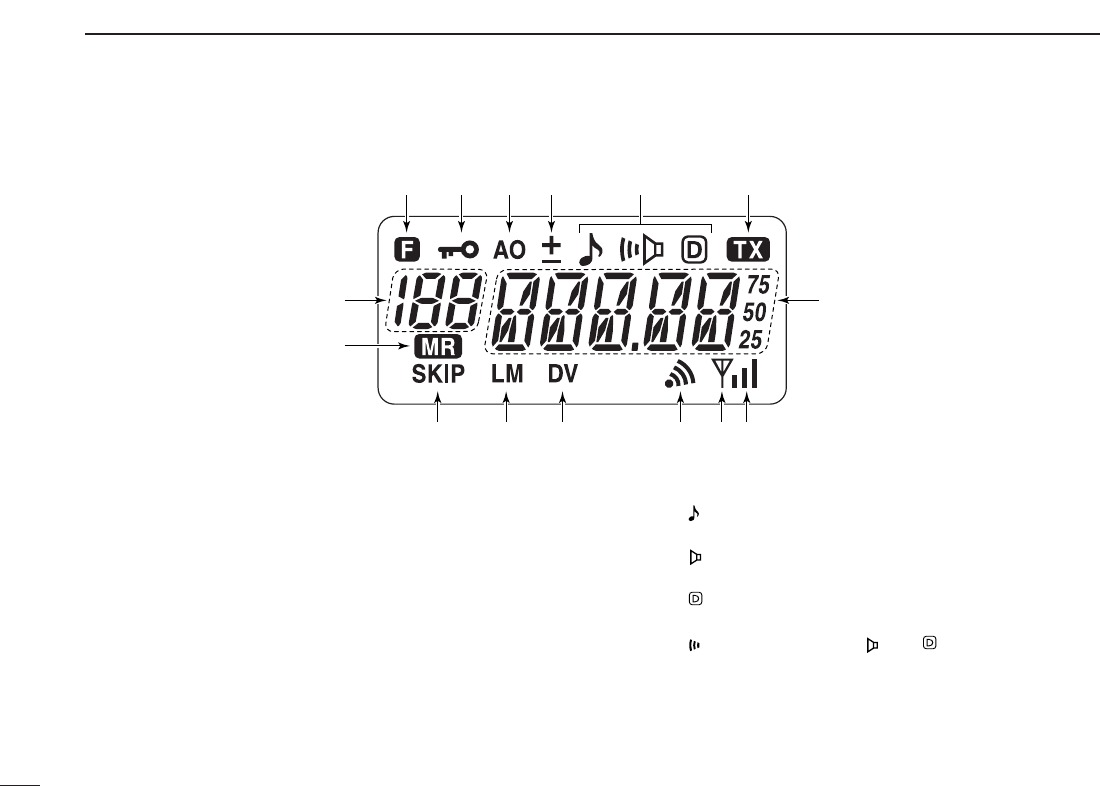

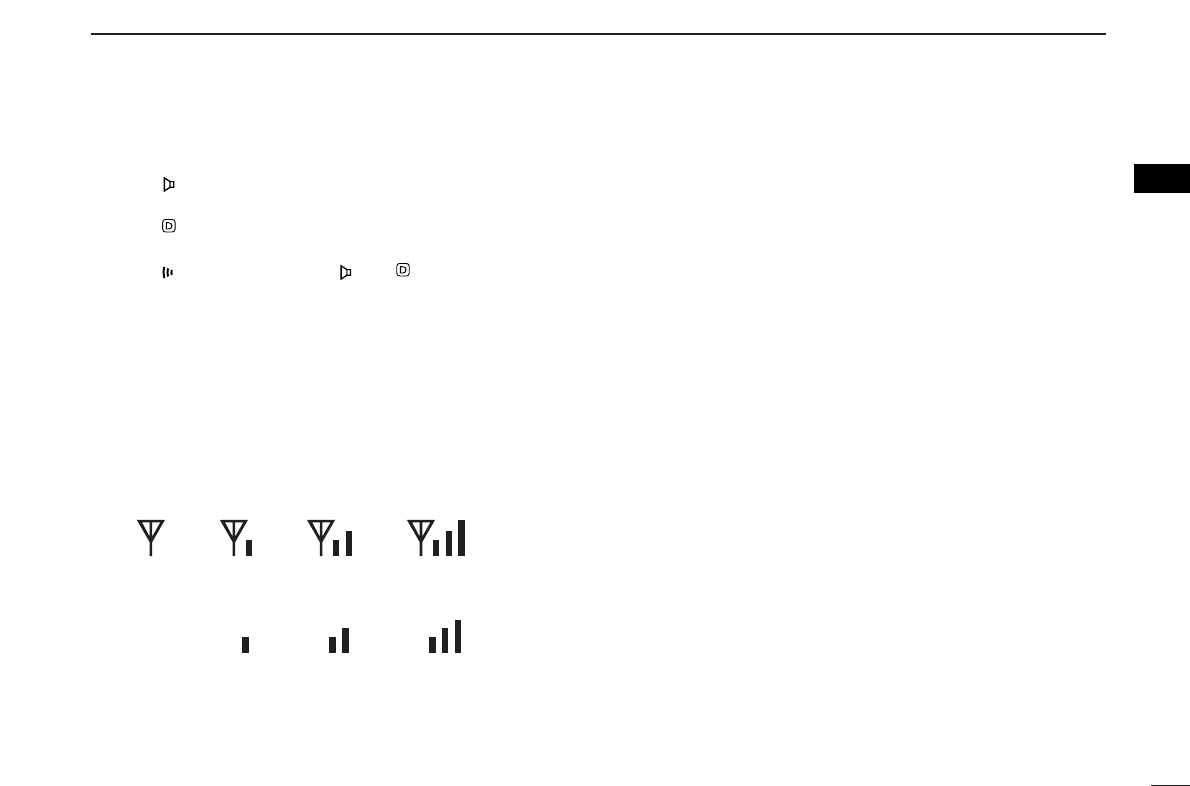

■Function display ...................................................................... 6
3BATTERY PACKS................................................................ 8–12
■Battery pack replacement ....................................................... 8
■Battery caution ........................................................................ 9
■Charging NOTE ...................................................................... 9
■Battery charging .................................................................... 10

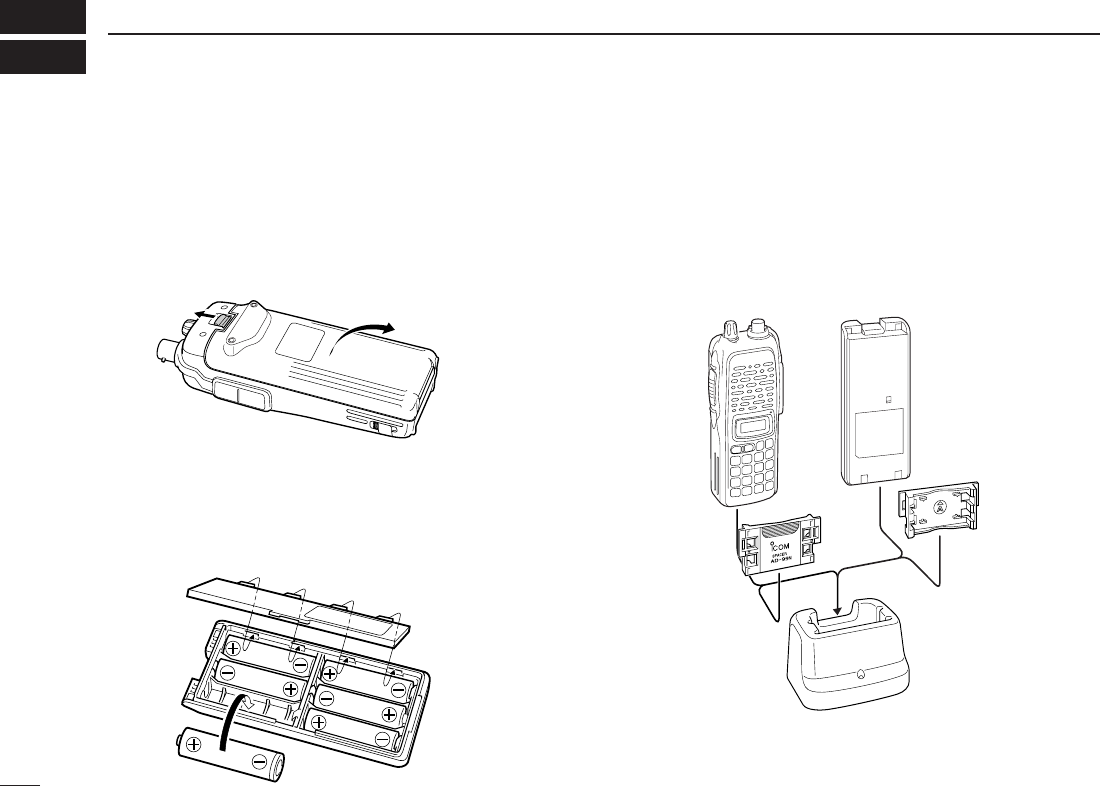

■Battery case (optional for some versions) ............................ 12
4BASIC OPERATION........................................................... 13–16
■Power ON.............................................................................. 13
■VFO mode selection.............................................................. 13

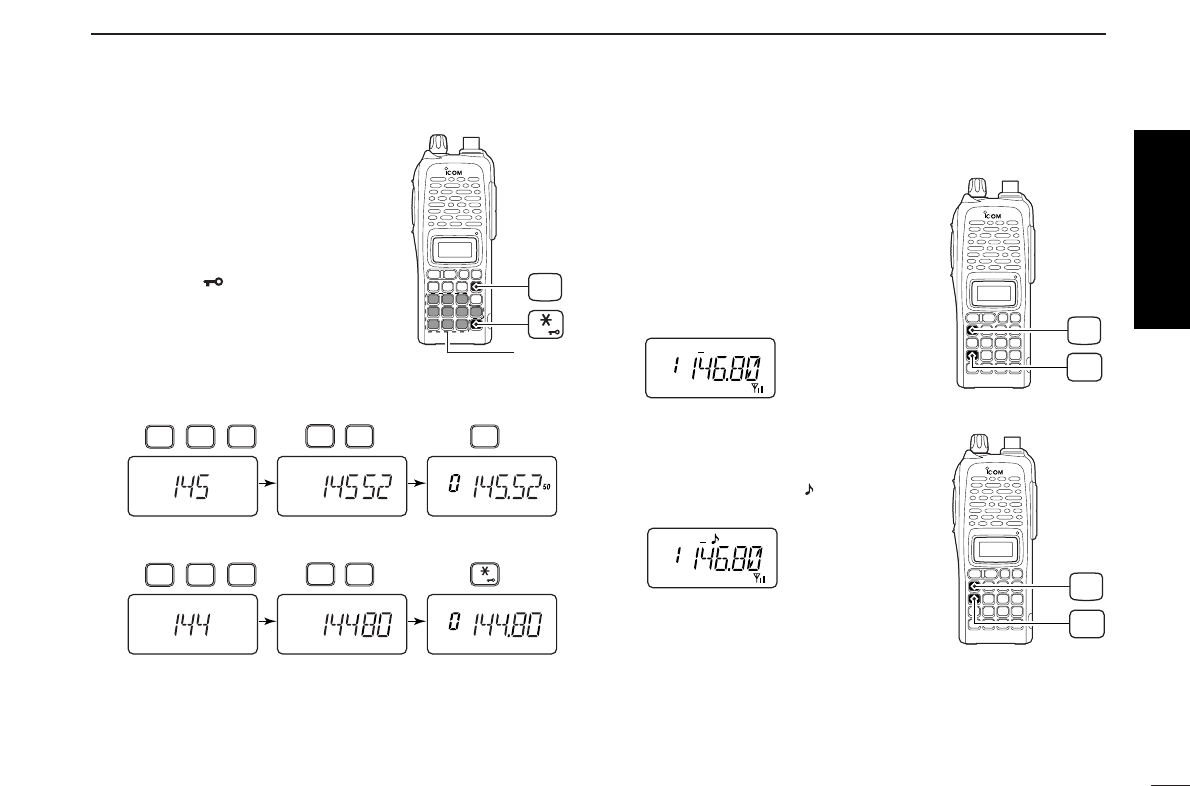

■Setting a frequency ............................................................... 13
■Setting audio/squelch level ................................................... 15
■Receive and transmit ............................................................ 15
■Display type........................................................................... 16
■Key lock function ................................................................... 16
5 REPEATER OPERATION .................................................. 17–19
■General ................................................................................. 17
■Offset frequency.................................................................... 17
■Subaudible tones .................................................................. 18
■Auto repeater function (USA versions only) .......................... 19
■Repeater lockout ................................................................... 19
6MEMORY/CALL OPERATION ........................................... 20–25
■General description ............................................................... 20
■Selecting a memory channel................................................. 20
■Selecting the call channel ..................................................... 20
■Programming the memory/call channels............................... 21

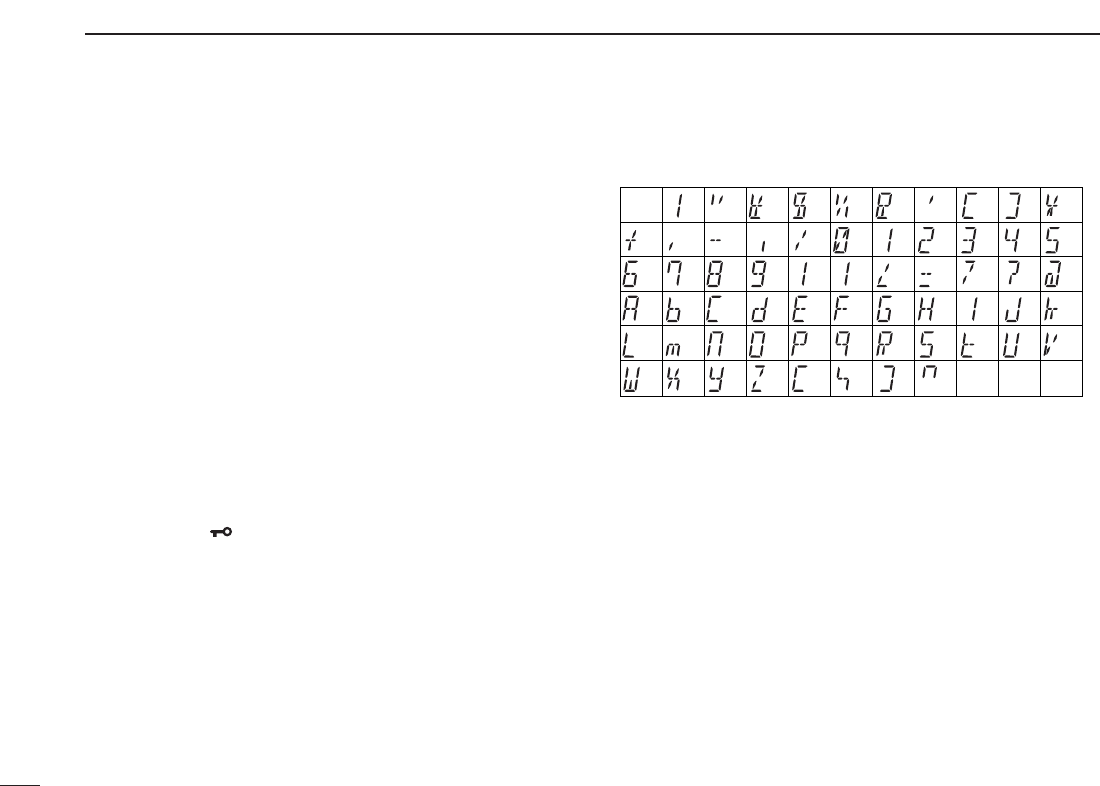

■Channel name programming................................................. 22

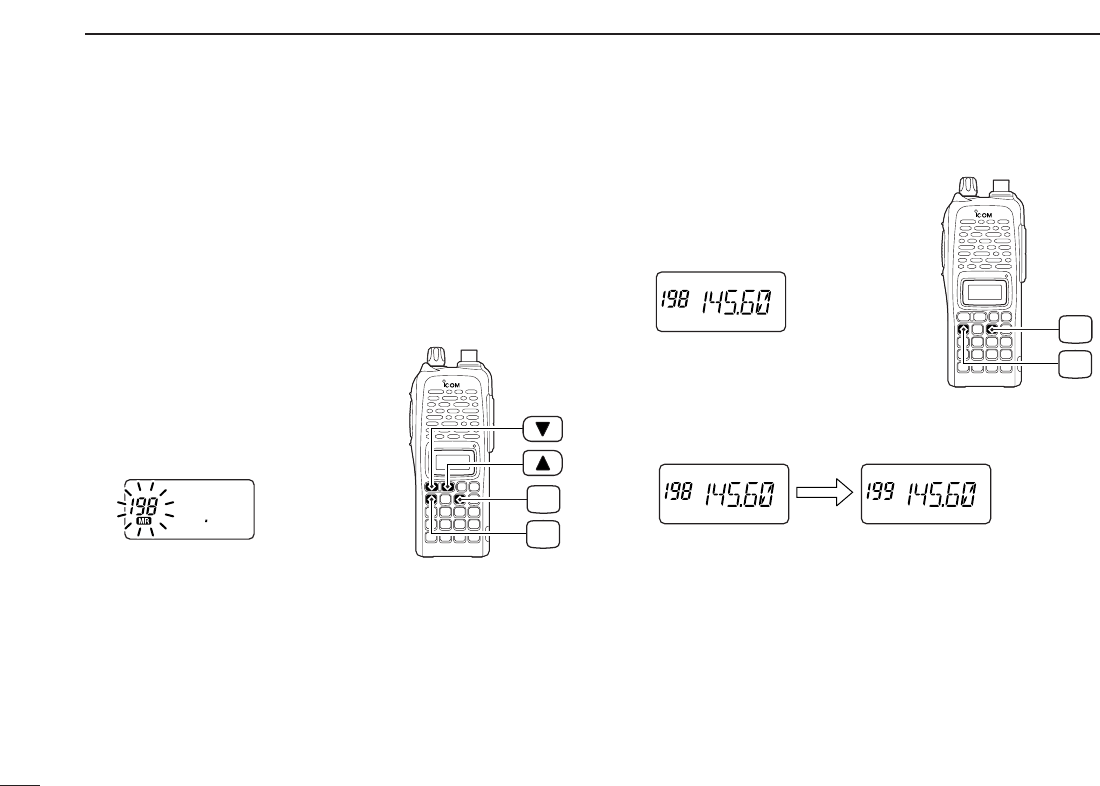

■Memory transferring .............................................................. 22

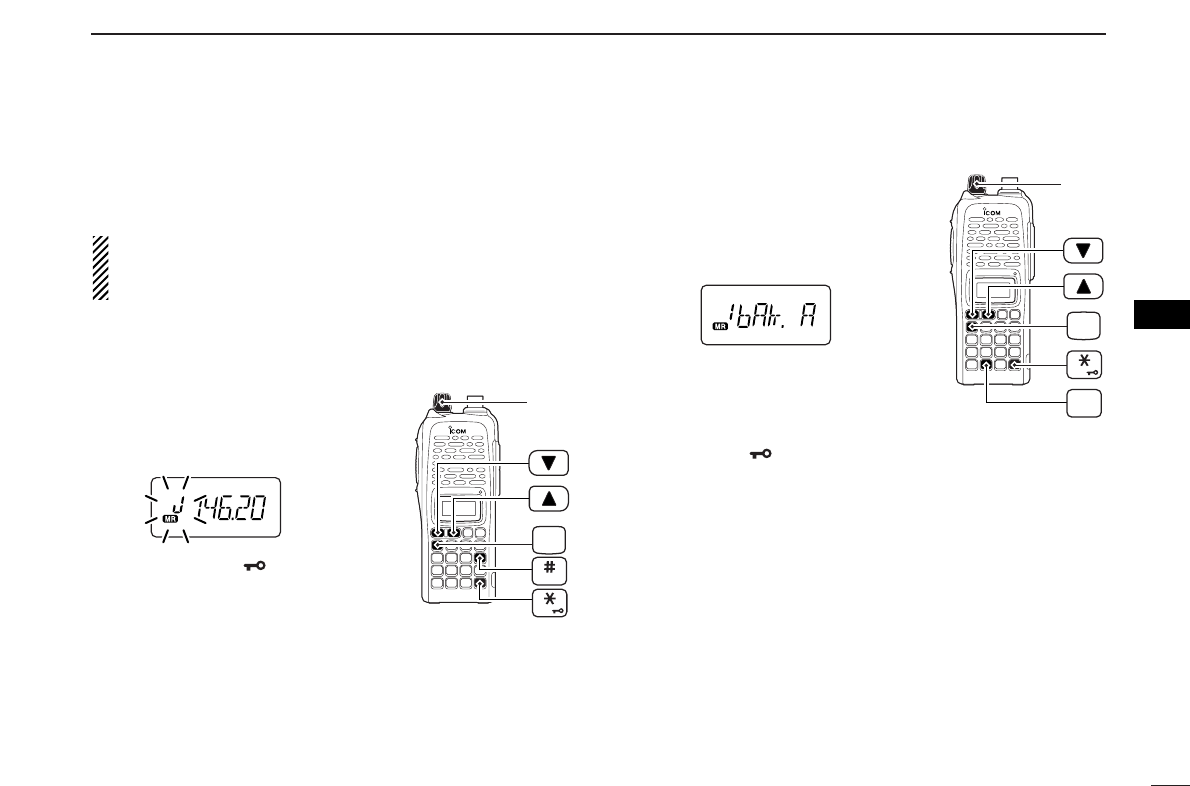

■Memory bank selection ......................................................... 24
■Memory bank setting............................................................. 24
■Transferring bank contents.................................................... 25

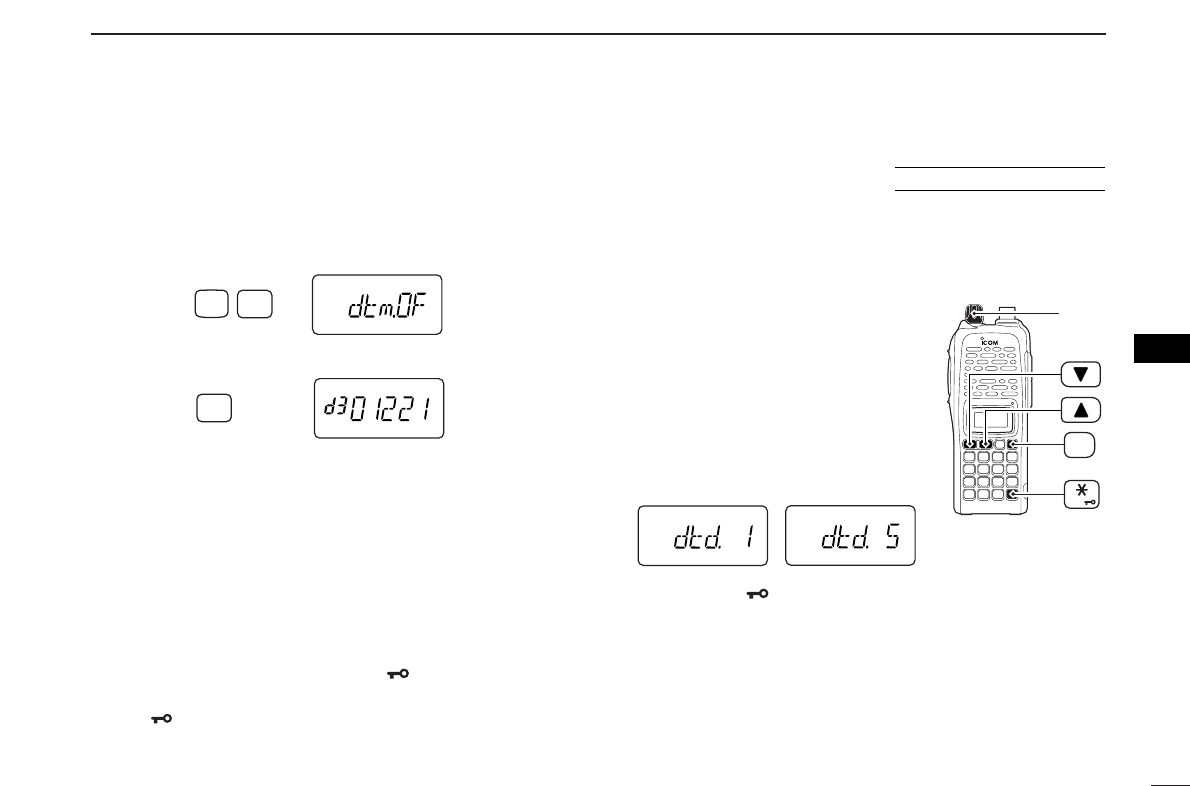

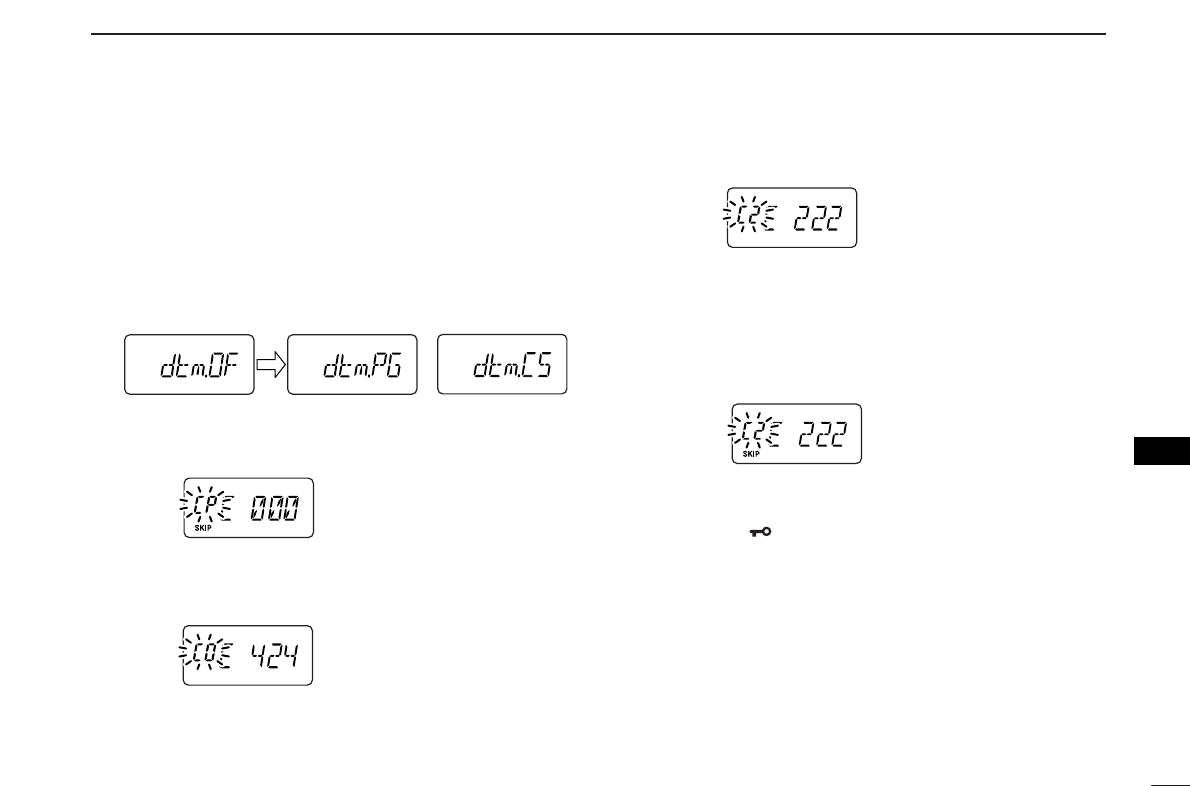

7DTMF MEMORY................................................................. 26–27

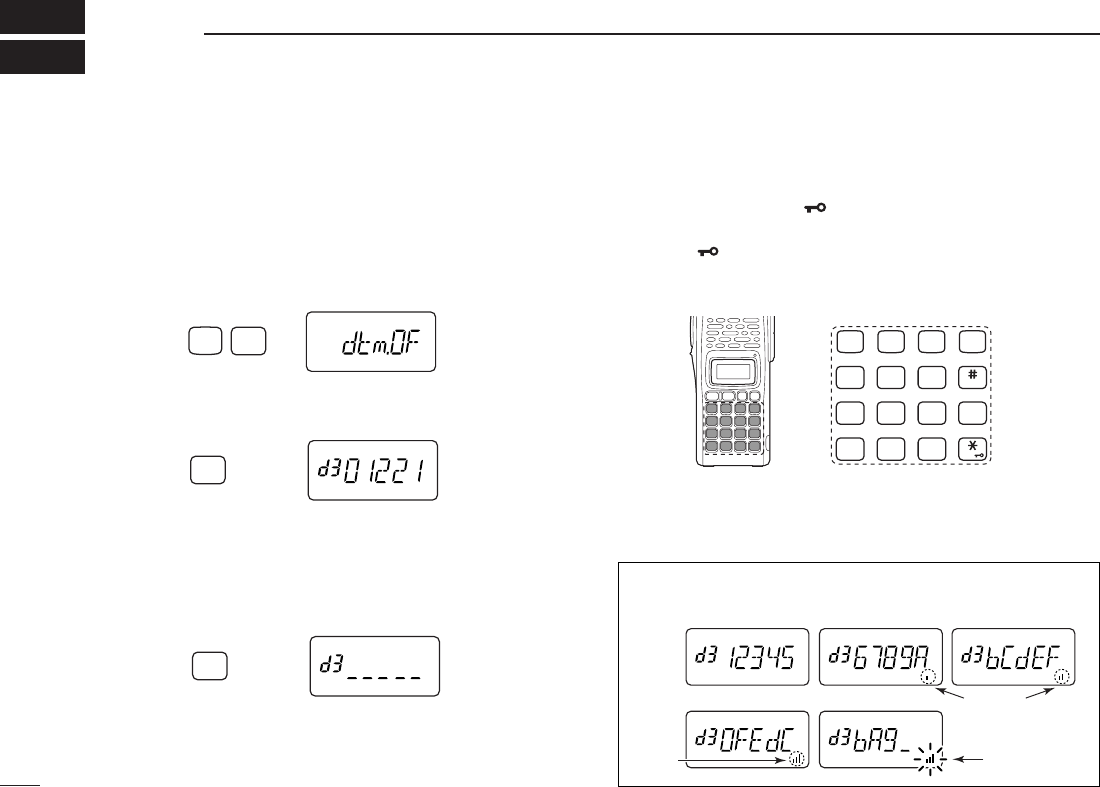

■Programming a DTMF code.................................................. 26
■Transmitting a DTMF code.................................................... 27
■DTMF transmission speed .................................................... 27
vi

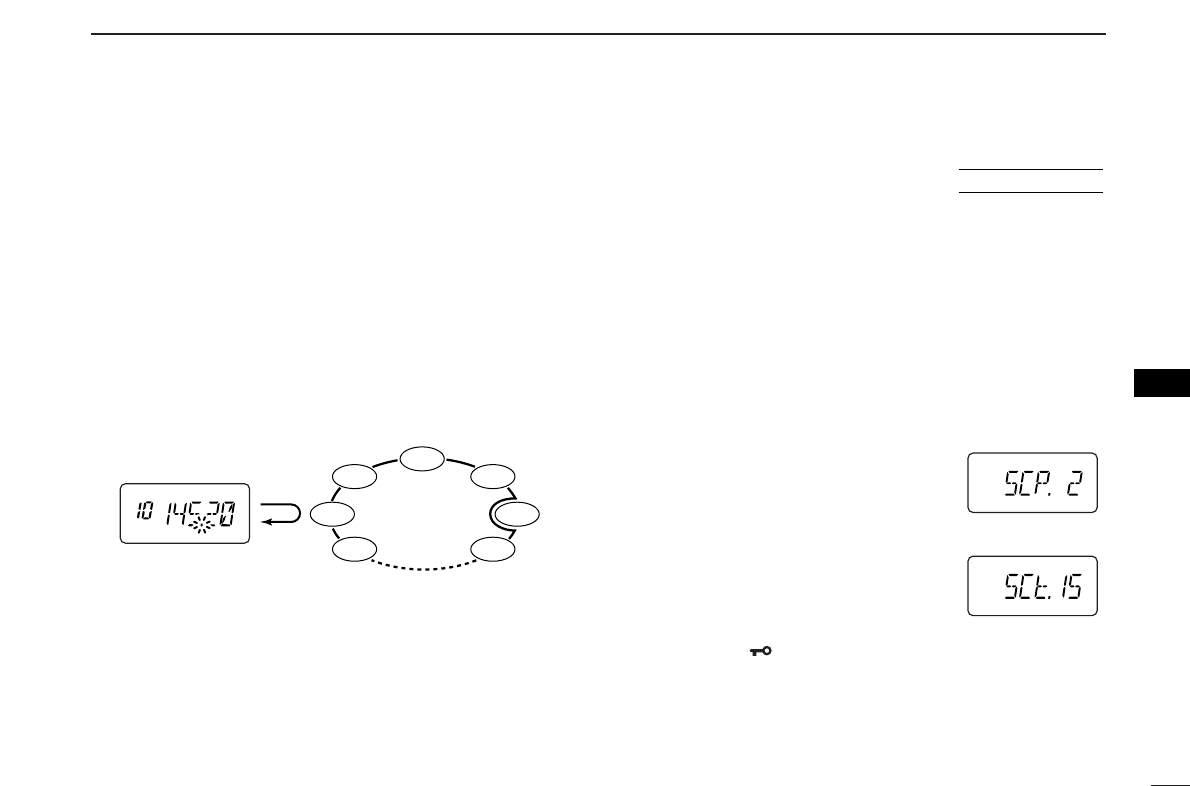

8SCAN OPERATION............................................................ 28–31
■Scan types ............................................................................ 28
■Programmed scan................................................................. 28
■Memory scan..........................................................................29
■Skip channels........................................................................ 30

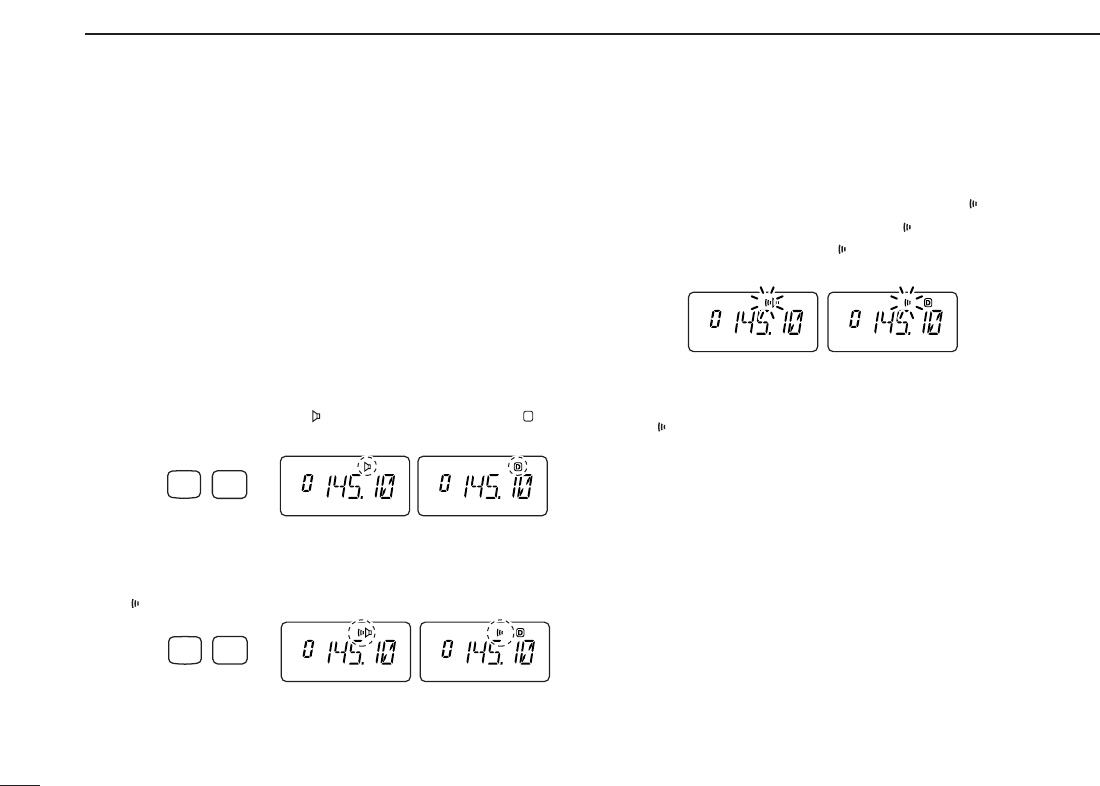

■Priority watch......................................................................... 30
■Scan resume condition.......................................................... 31

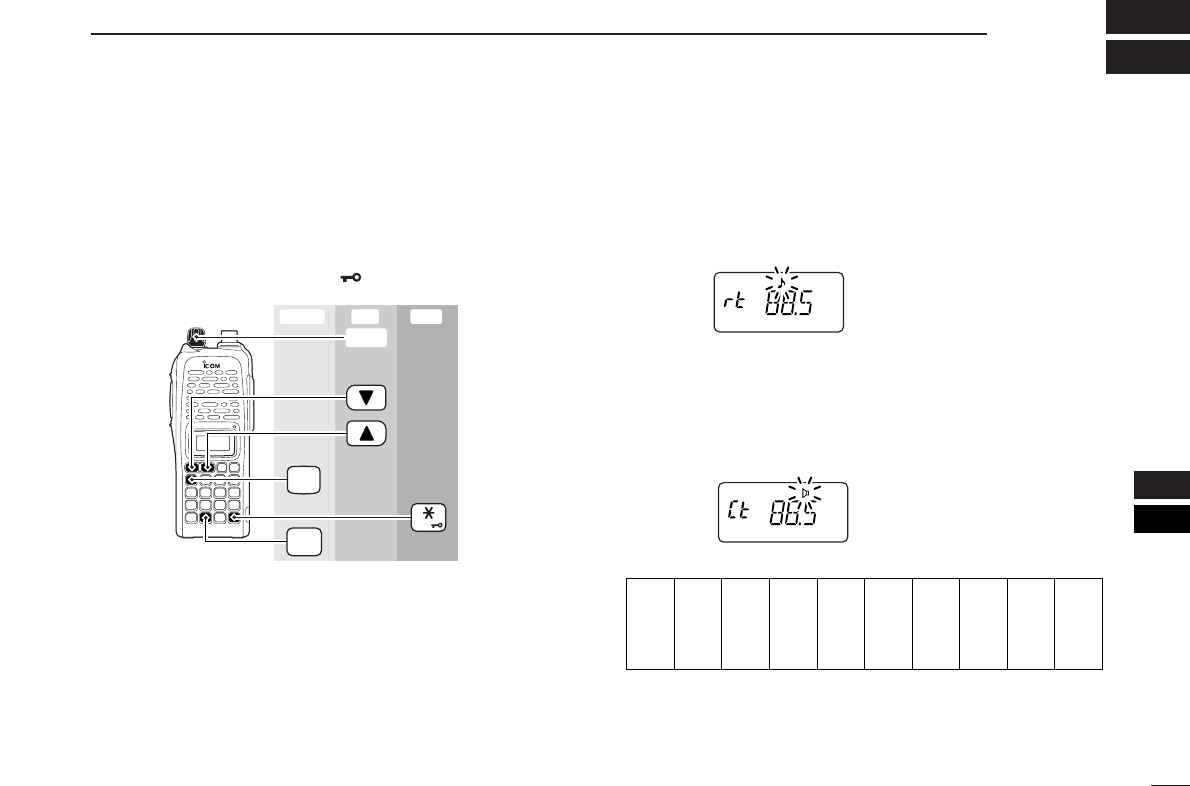

9SUBAUDIBLE TONES....................................................... 32–35
■Tone squelch ......................................................................... 32
■Pocket beep operation .......................................................... 34
■Tone scan.............................................................................. 35
10PAGER/CODE SQUELCH (Required Optional UT-108) .. 36–39
■Pager function ....................................................................... 36
■Code programming ............................................................... 36
■Pager operation..................................................................... 38
■Code squelch ........................................................................ 39

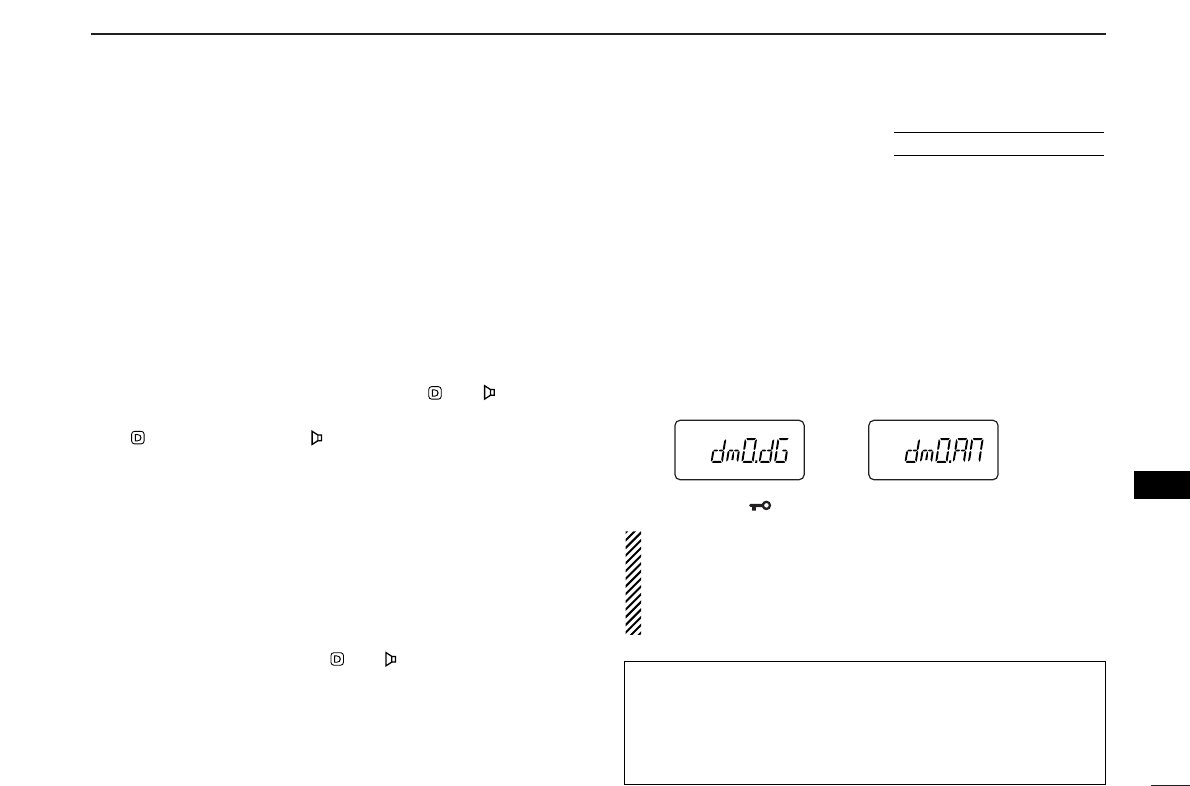

11 DIGITAL MODE OPERATION
(Required Optional UT-118)...............................................40–56

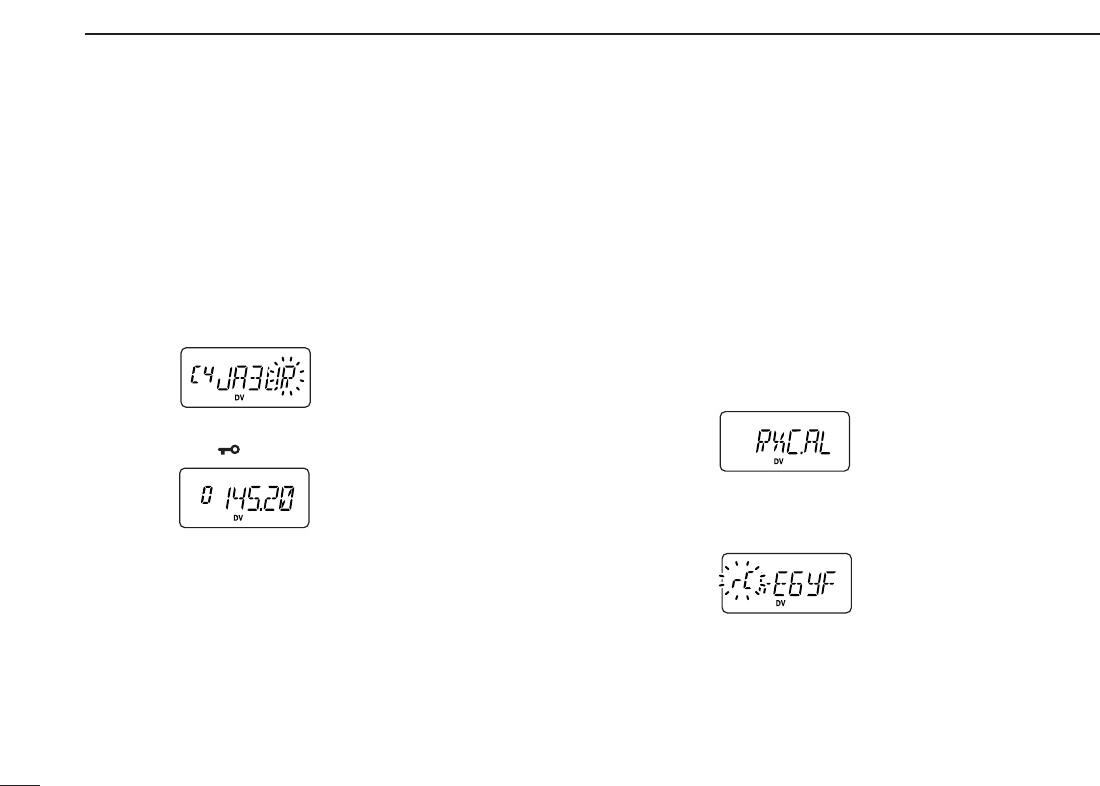

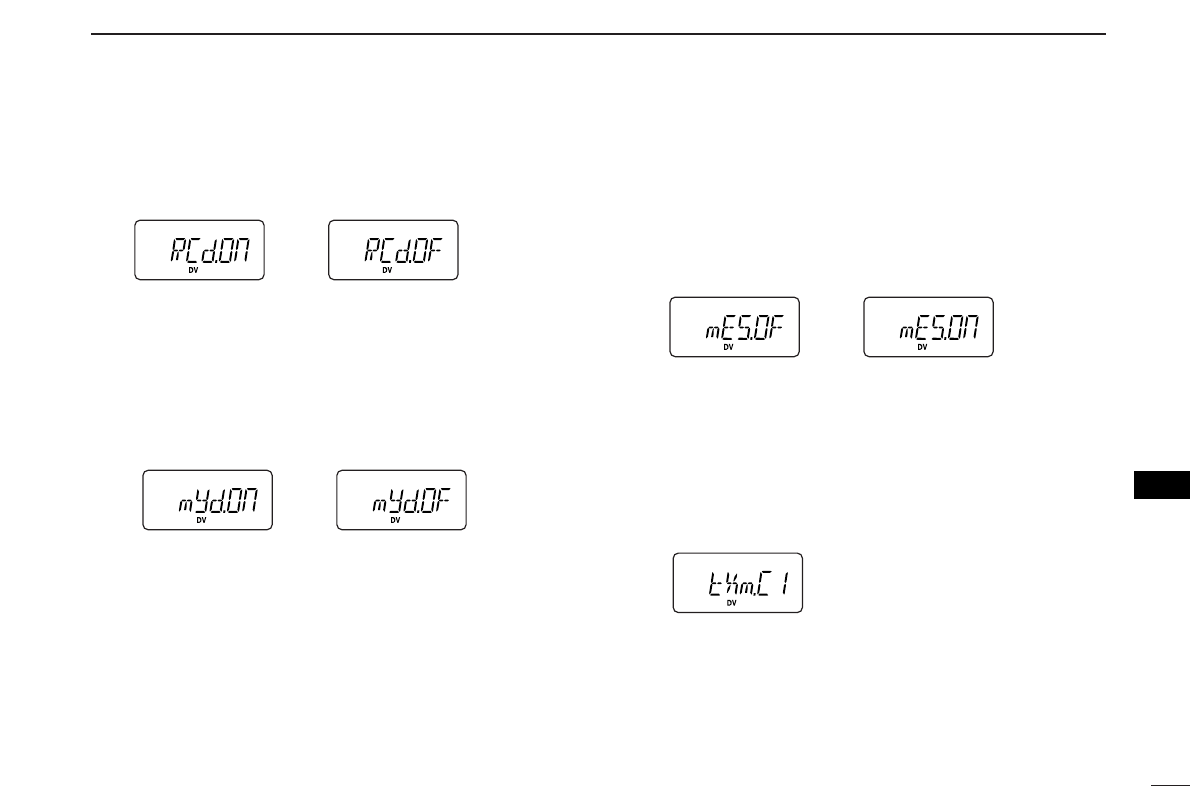

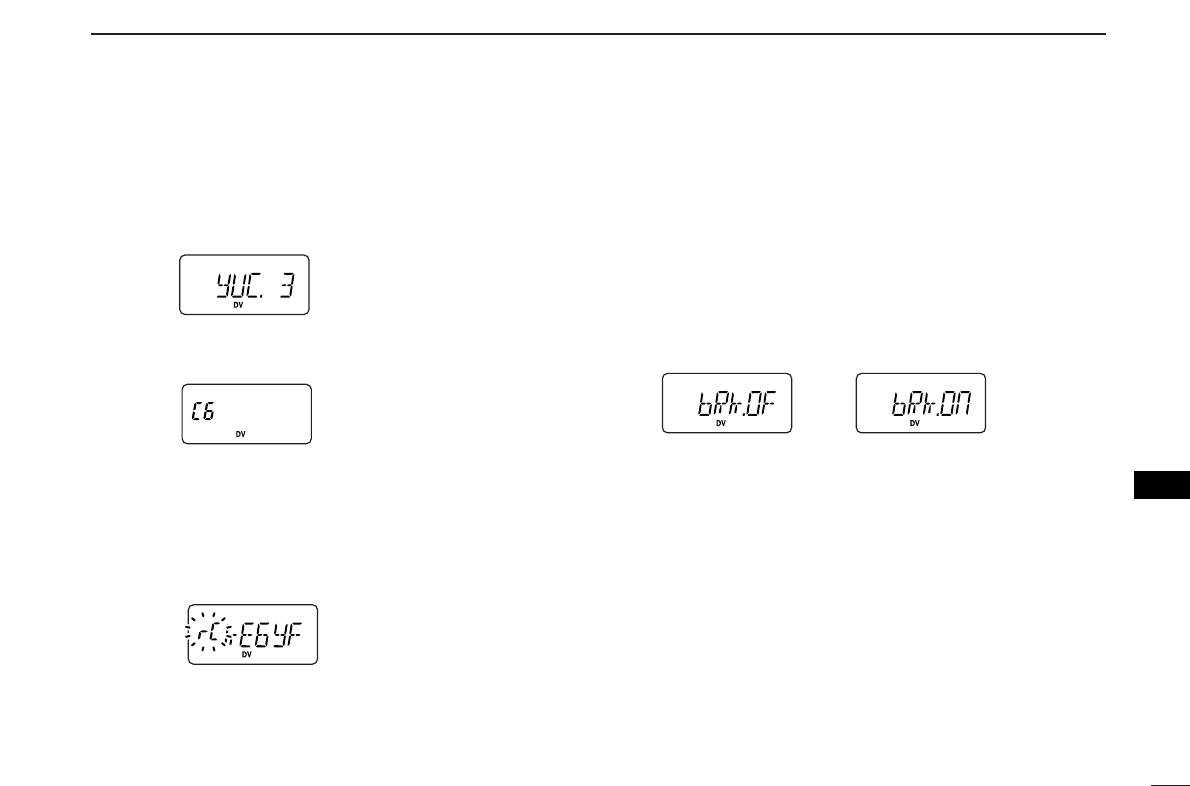

■Digital mode operation .......................................................... 40

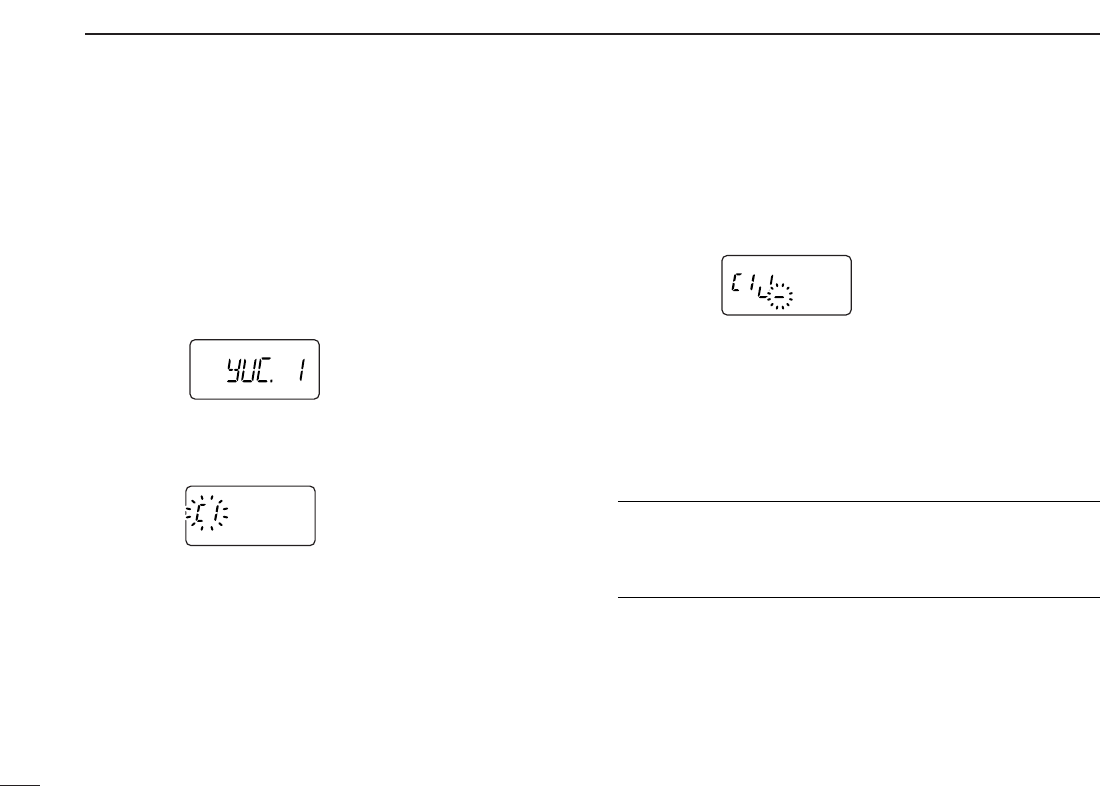

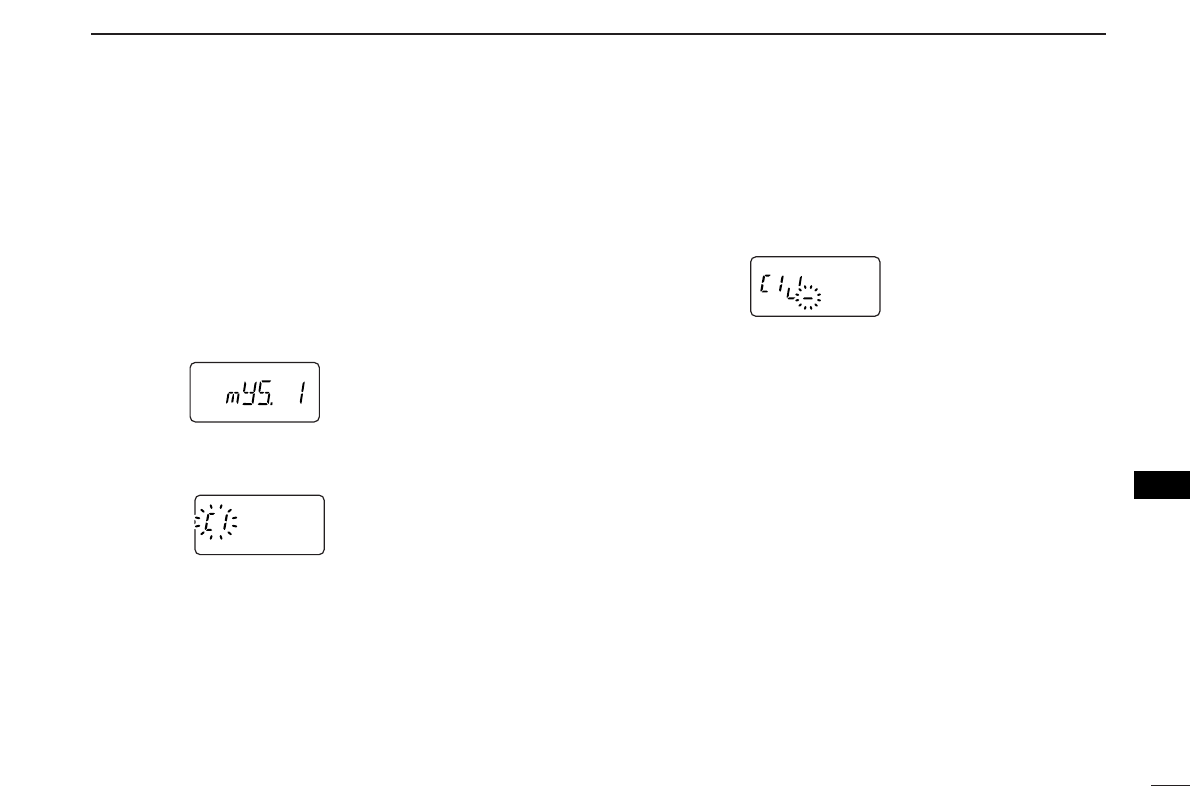

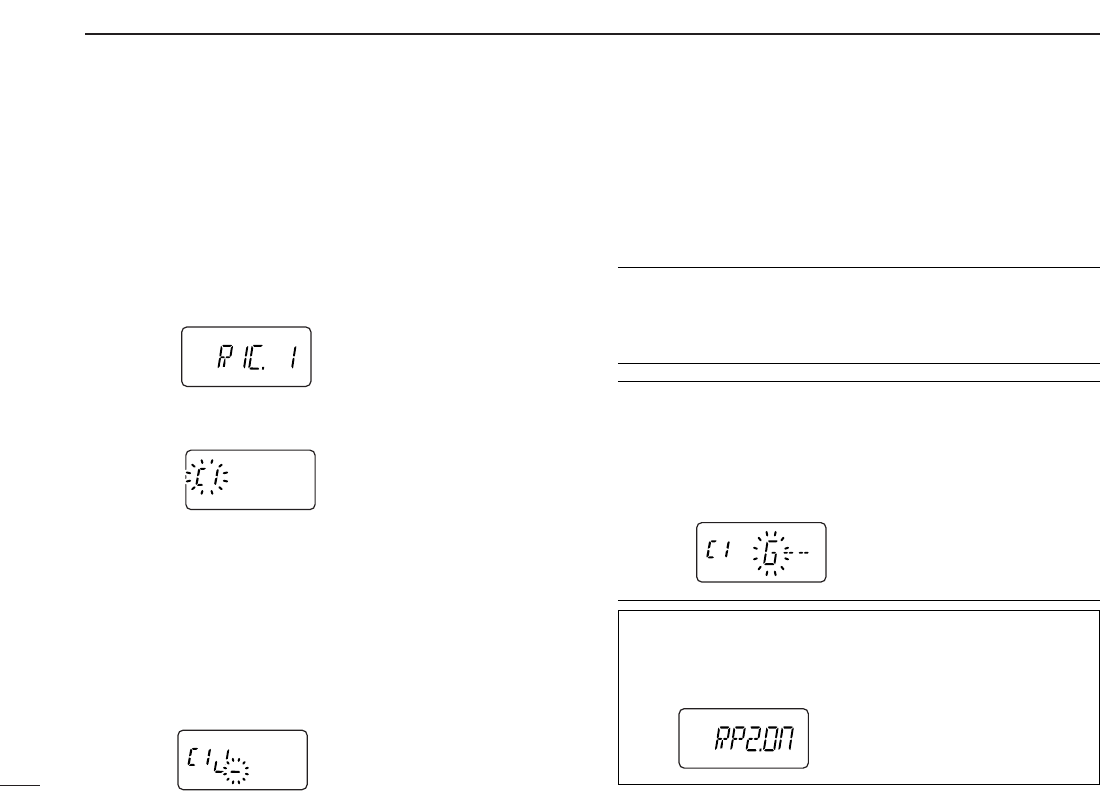

■Call sign programming .......................................................... 40
■Digital voice mode operation ................................................. 43
■When receiving a Digital call ................................................. 44

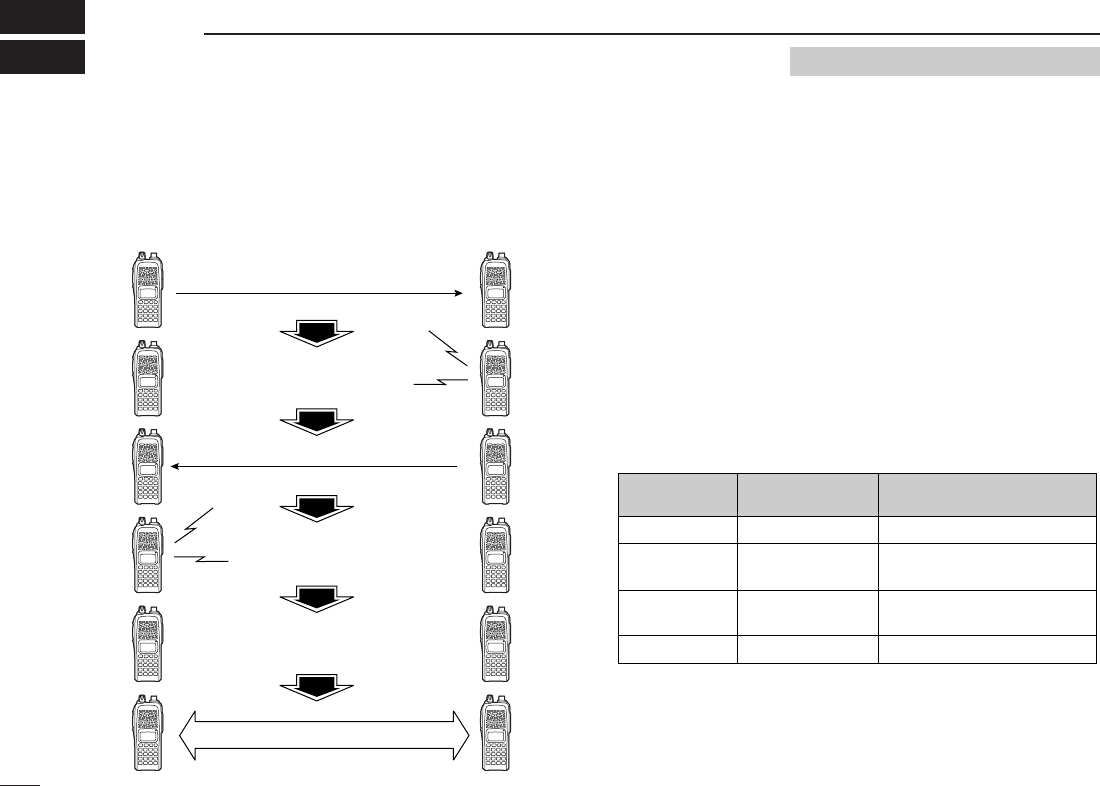

■Break-in communication ....................................................... 45

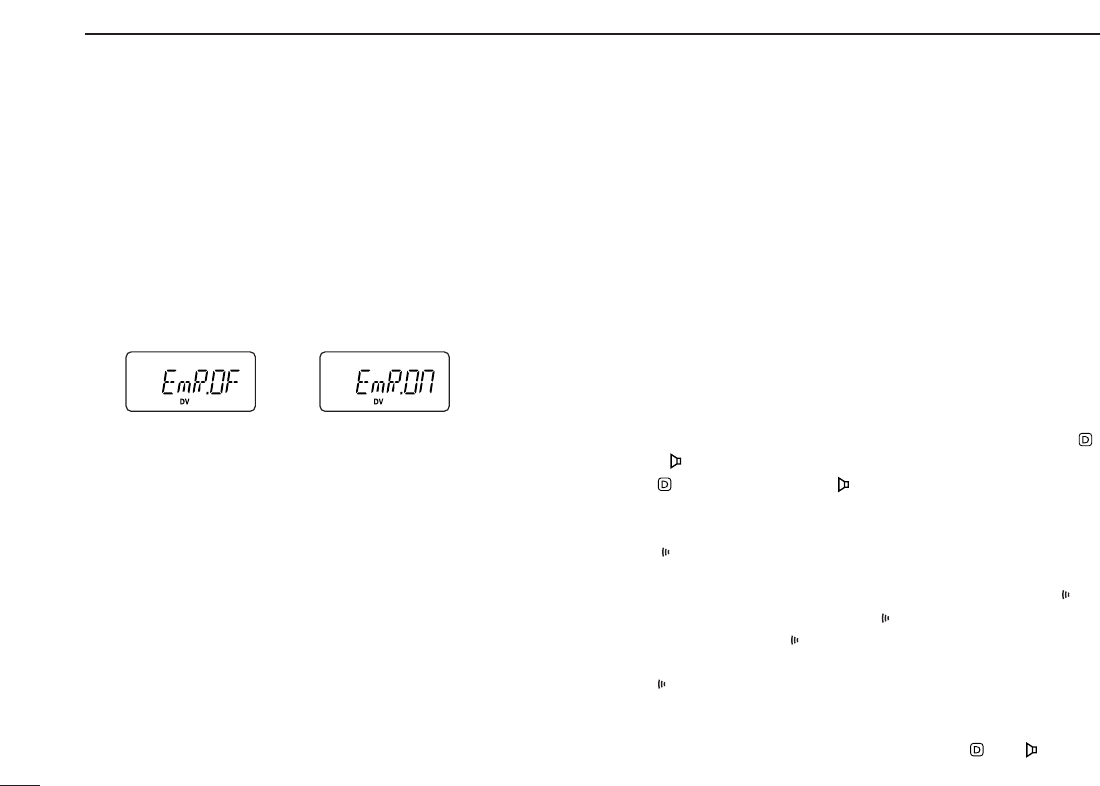

■EMR communication ............................................................. 46
■Pocket beep operation .......................................................... 46
■Digital squelch functions ....................................................... 47
■Digital monitor ....................................................................... 47
■Low-speed data communication ........................................... 48

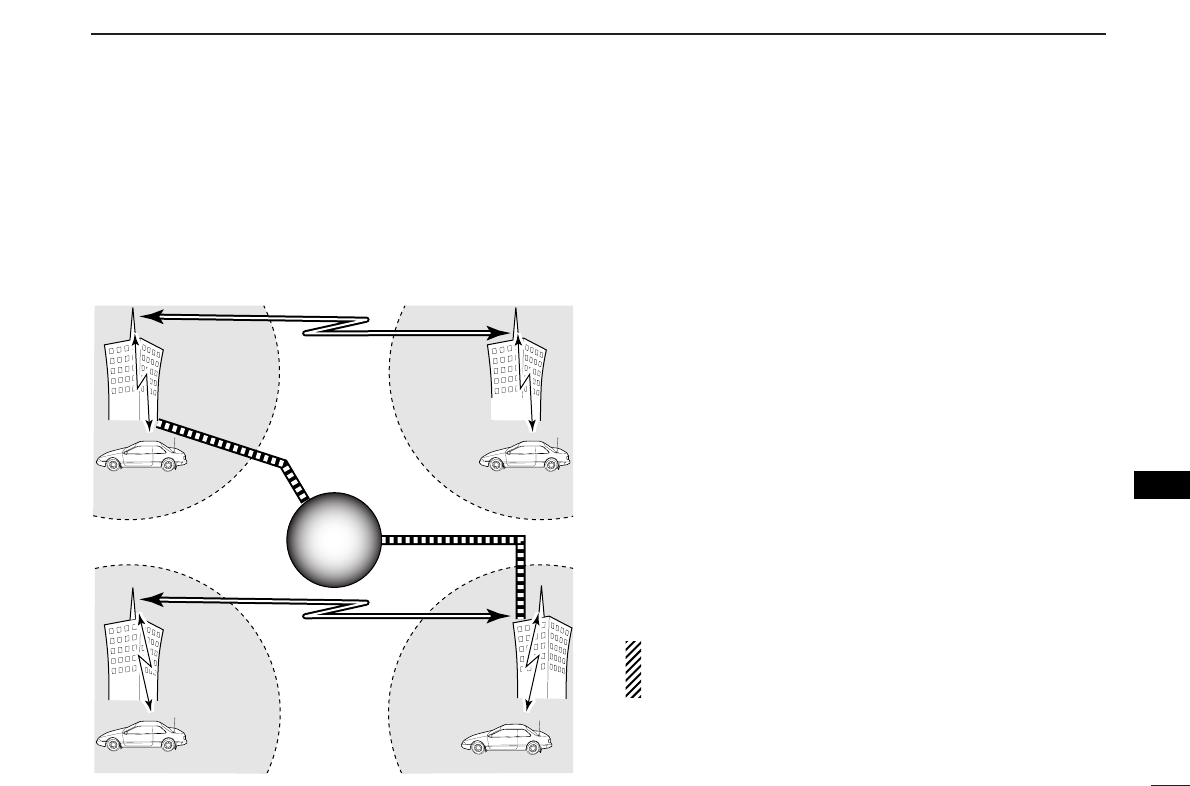

■About D-STAR system .......................................................... 49
■Repeater call sign programming ........................................... 50
■Other setting items ................................................................ 51
■GPS operation ...................................................................... 55
12OTHER FUNCTIONS ......................................................... 57–67
■SET MODE............................................................................ 57
■INITIAL SET MODE .............................................................. 61
■Weather channel operation (IC-V82 [USA] versions only) .... 66
■CPU reset.............................................................................. 67
■Partial reset ........................................................................... 67

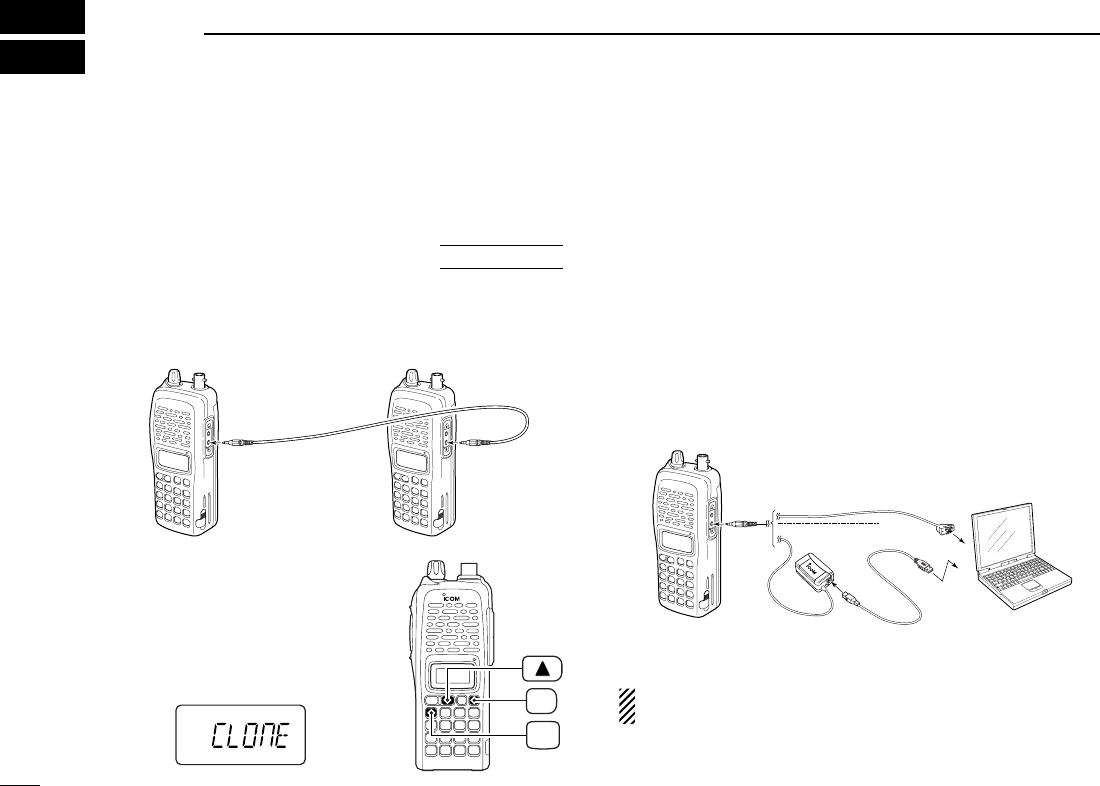

13CLONING ................................................................................. 68
14OPTIONAL UNIT................................................................ 69–70
■Optional UT-108/118 installation ........................................... 69
■Optional MB-86 installation ................................................... 69
15SPECIFICATIONS.................................................................... 71
■IC-V82 ................................................................................... 71
■IC-U82................................................................................... 72
16OPTIONS.................................................................................. 73
17CE.............................................................................................75
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
I
QUICK REFERENCE GUIDE
■Preparation

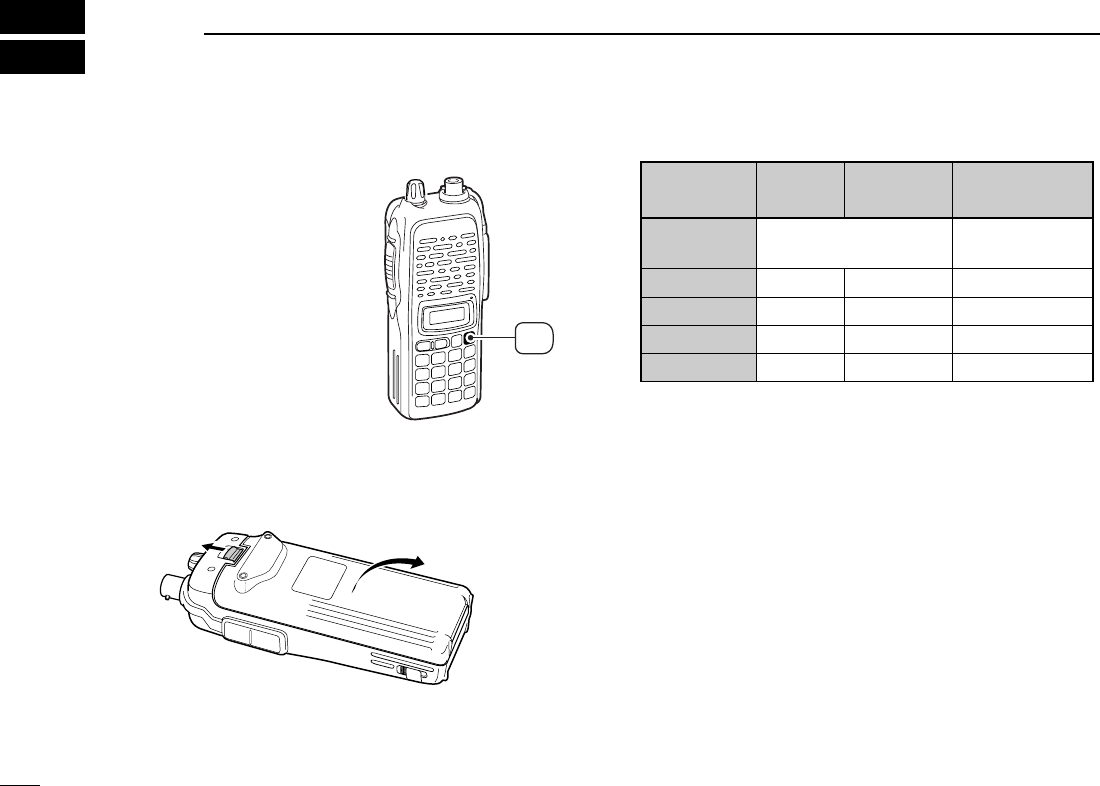

DBattery pack replacement
Before replacing the battery pack, push [PWR] for 1 sec. to
turn the power OFF.
•Slide the battery release forward, then pull the battery pack upward
with the transceiver facing away from you.

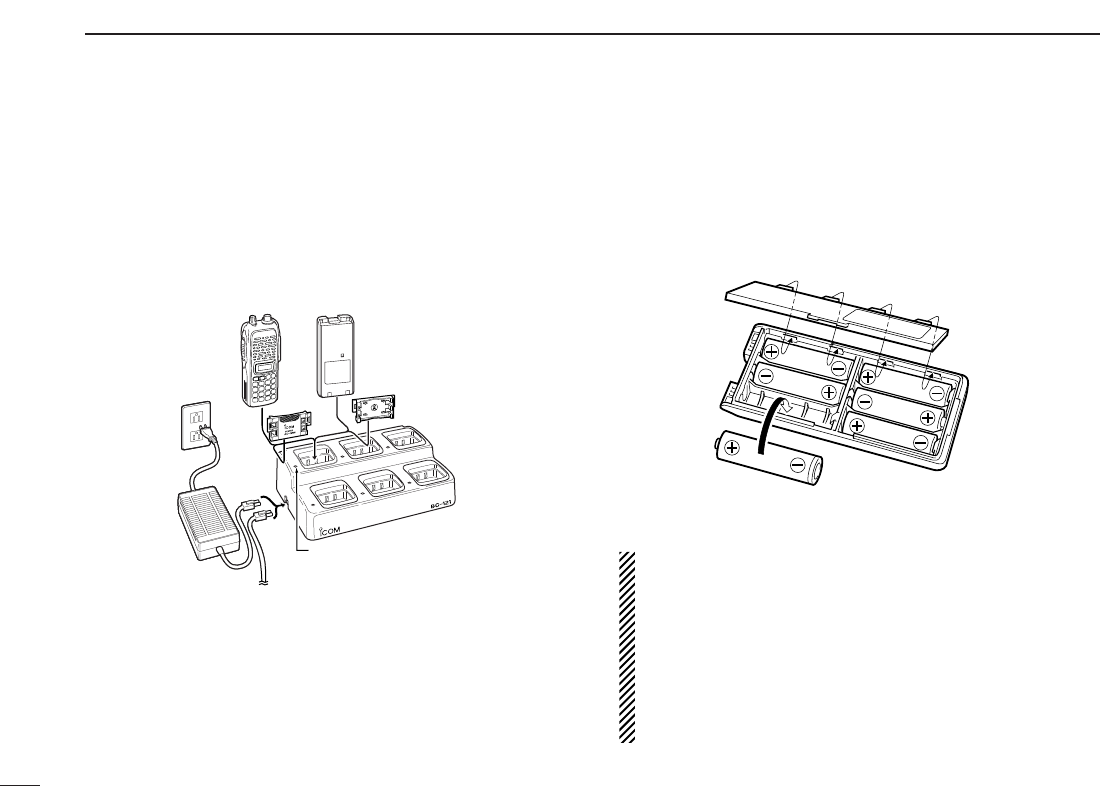

DBattery case— optional for some versions
When using a BP-208N
BATTERY CASE
attached to the trans-
ceiver, install 6 AA (LR6) size alkaline batteries as illustrated
below.

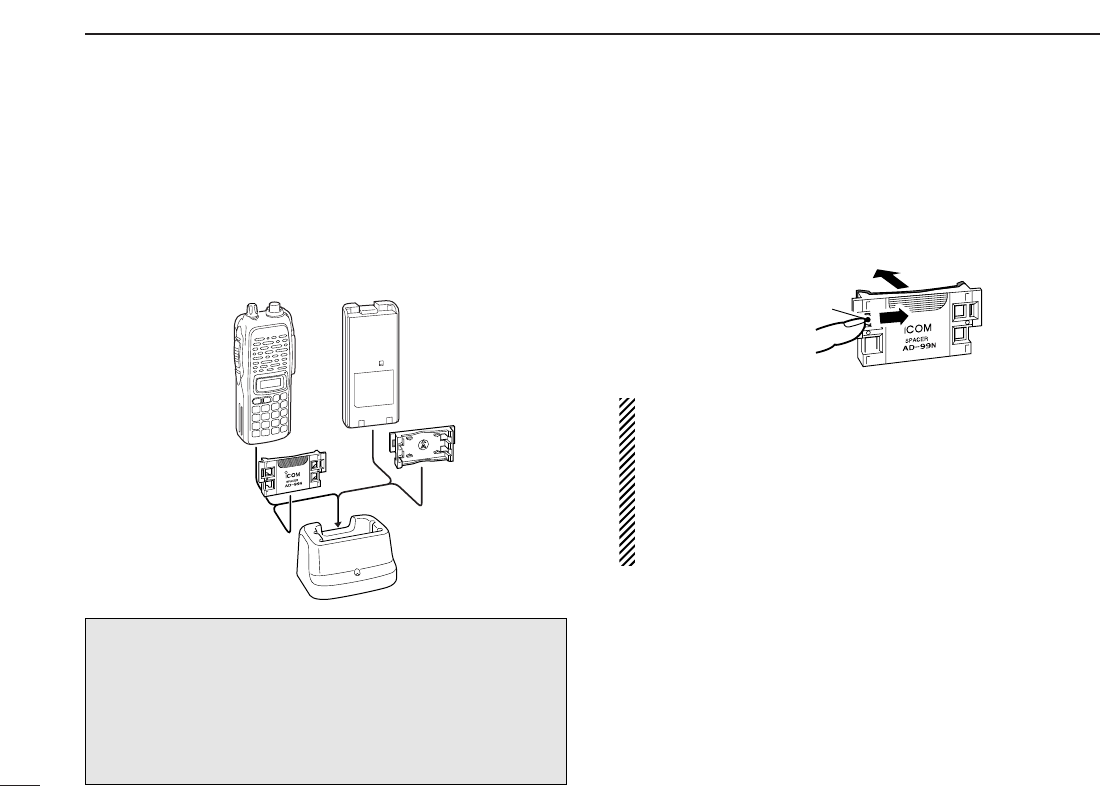

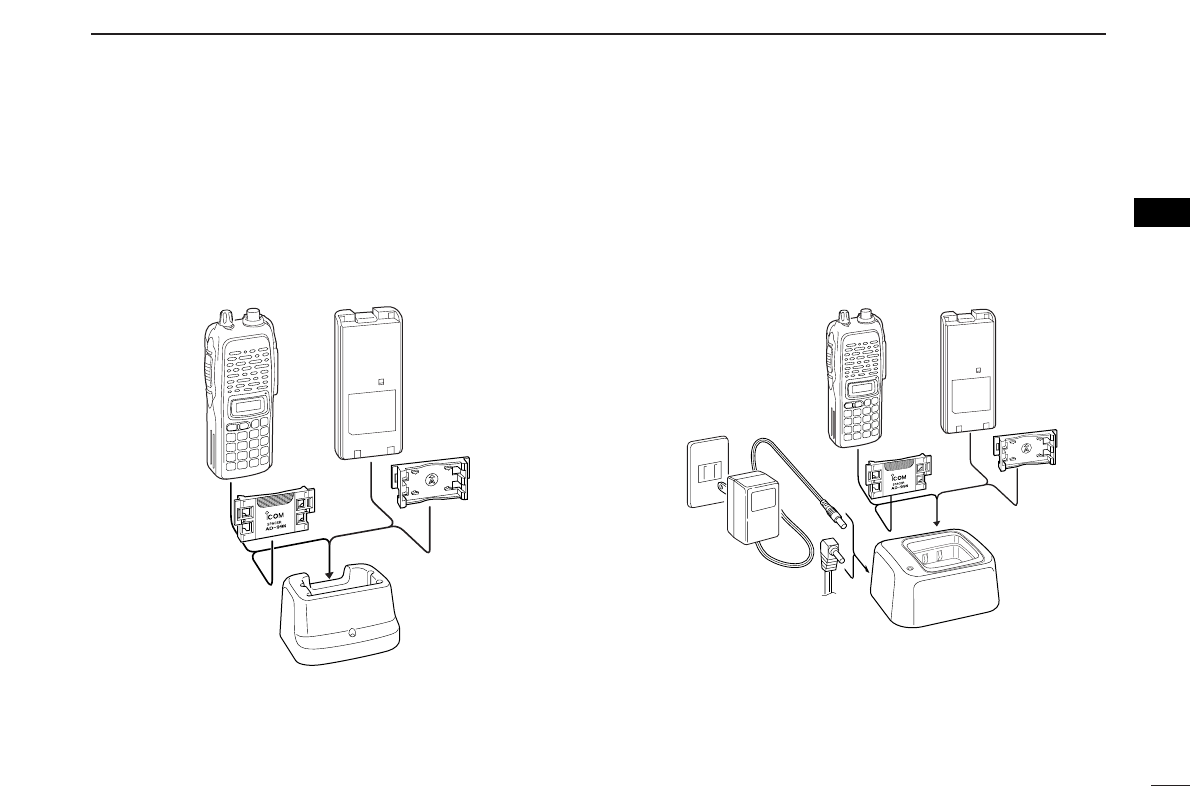

DCharging with the BC-144N/146
The optional BC-144N provides rapid charging, and the BC-
146 provides regular charging of an optional battery pack
with/without transceiver. The following is additionally required:
• An optional AC adapter. (An AD-99N is supplied with BC-144N or
BC-146.)
Check orientation
for correct charg-
ing. (Insert together
with AD-99N.)
Turn power OFF.
BC-144N/146
+AD-99N
II
QUICK REFERENCE GUIDE

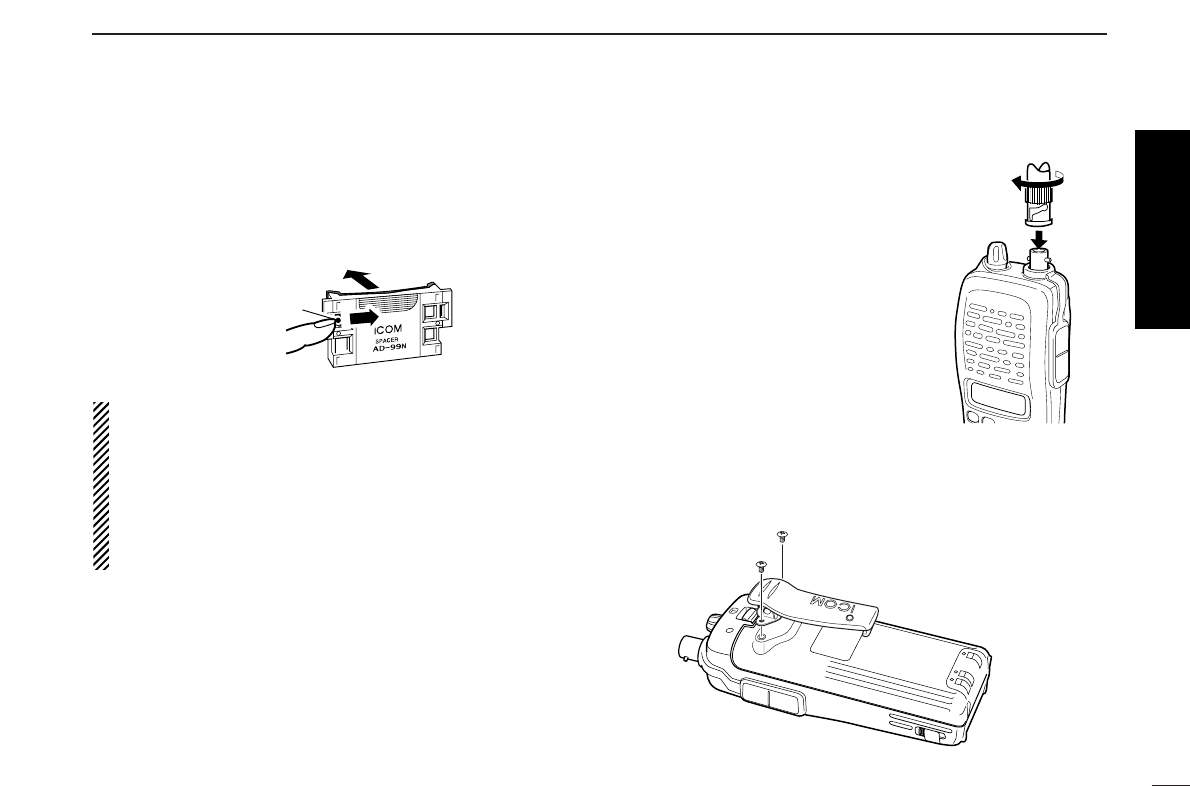

DAbout AD-99N
The adapter (Spacer A) only is required for IC-V82 series.
When removing the spacer (Spacer B/C),
push the notch care-
fully with your finger to remove the spacer (Spacer B/C) from
the adapter (Spacer A).
RCAUTION!
DO NOT push or force the notch with a screw driver, etc.,
to remove it.
DO NOT bend the notch when the adapter and spacer are
not joined together. This will cause weakening of the notch
plastic.
Both cases may break the notch and it may not be able to
be reattached.
DAntenna
Attach the antenna to the transceiver
as illustrated at right.
DBelt clip
Conveniently attaches to your belt.
Attach the belt clip with the supplied screws using a phillips
screwdriver.
To attach the belt clip
Push the notch
carefully.
Remove the spacer (Spacer B/C)
from the adapter.
Quick reference guide
III
QUICK REFERENCE GUIDE
■Your first contact
Now that you have your IC-V82/U82 ready, you are exited to
get on the air. We would like to walk you through a few basic
operational steps to make your first “On The Air” use an en-
joyable experience.
DAbout default setting
The [VOL] control function can be traded with [YY]/[ZZ]keys func-
tion in
INITIAL SET MODE
. However, in this QUICK REFERENCE,
the factory default setting ([VOL] controls audio output level) is
used for simple instructions.

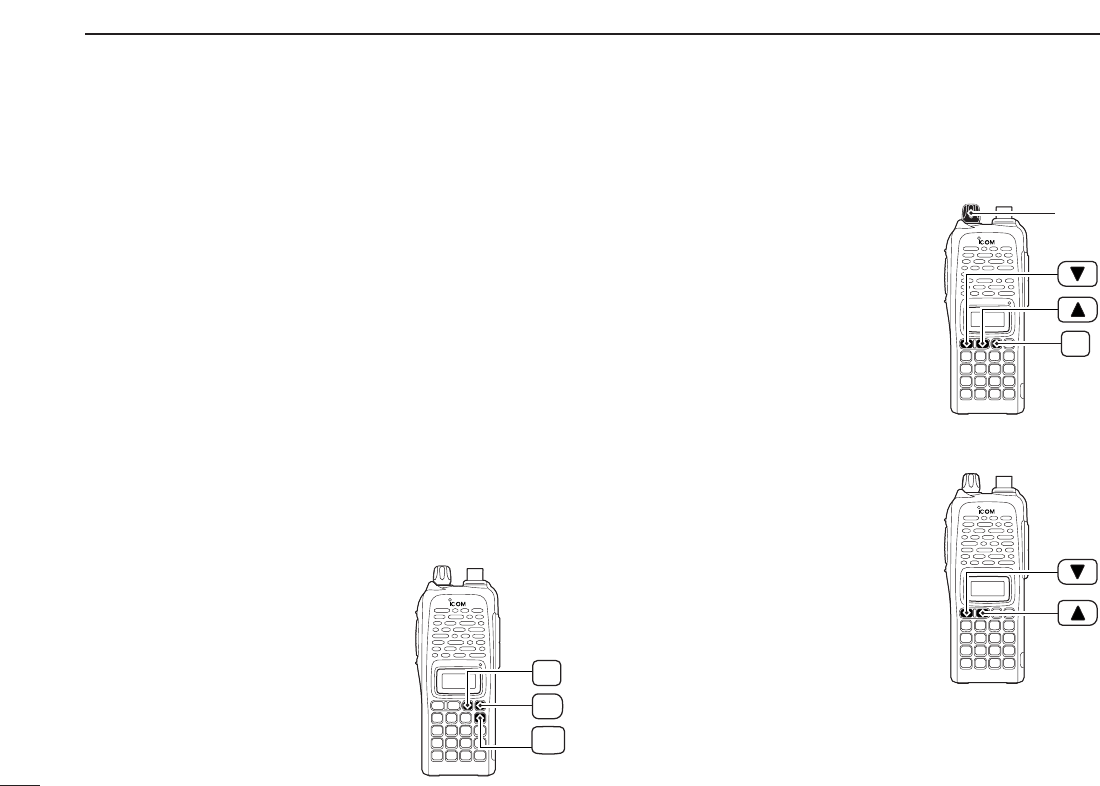

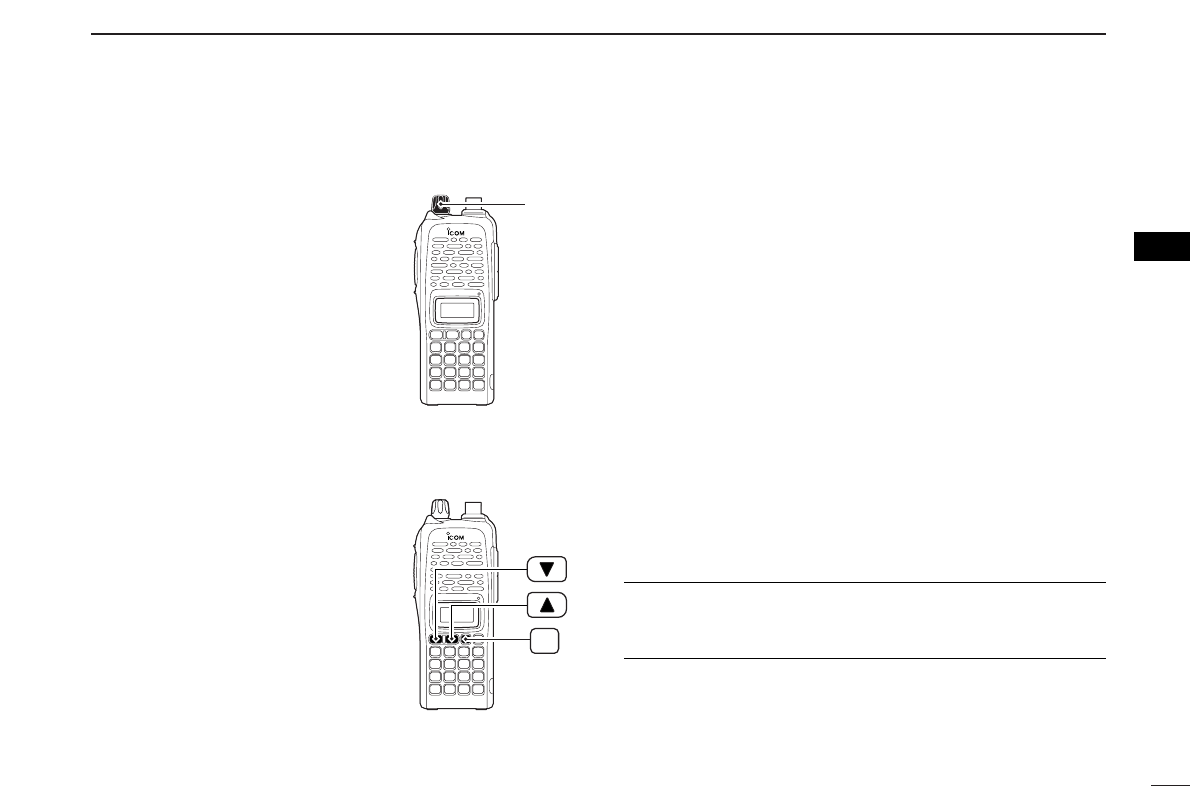

DBasic operation
1. Turning ON the transceiver
Although you have purchased a brand new transceiver, some
settings may be changed from the factory defaults because
of the QC process. Resetting the CPU is necessary to start
from factory default.
➥While pushing [MONI] and
[D•
CLR
], push [PWR] for 1 sec. to
reset the CPU and turn power ON.
2. Adjusting audio output level
➥Rotate [VOL] to set the desired
audio level.
3. Adjusting the squelch level
➥While pushing and holding
[MONI], push [YY]or [ZZ]to set the
squelch level.
4. Tune the desired frequency
The up/down keys, [YY]/[ZZ], will
allow you to tune the frequency that
you want to operate on. Page 14 will
instruct you on how to adjust the tun-
ing step.
➥
Push [YY]or [ZZ]to adjust the fre-
quency.
PWR
MONI
CLR
D
MONI
[VOL]
IV
QUICK REFERENCE GUIDE

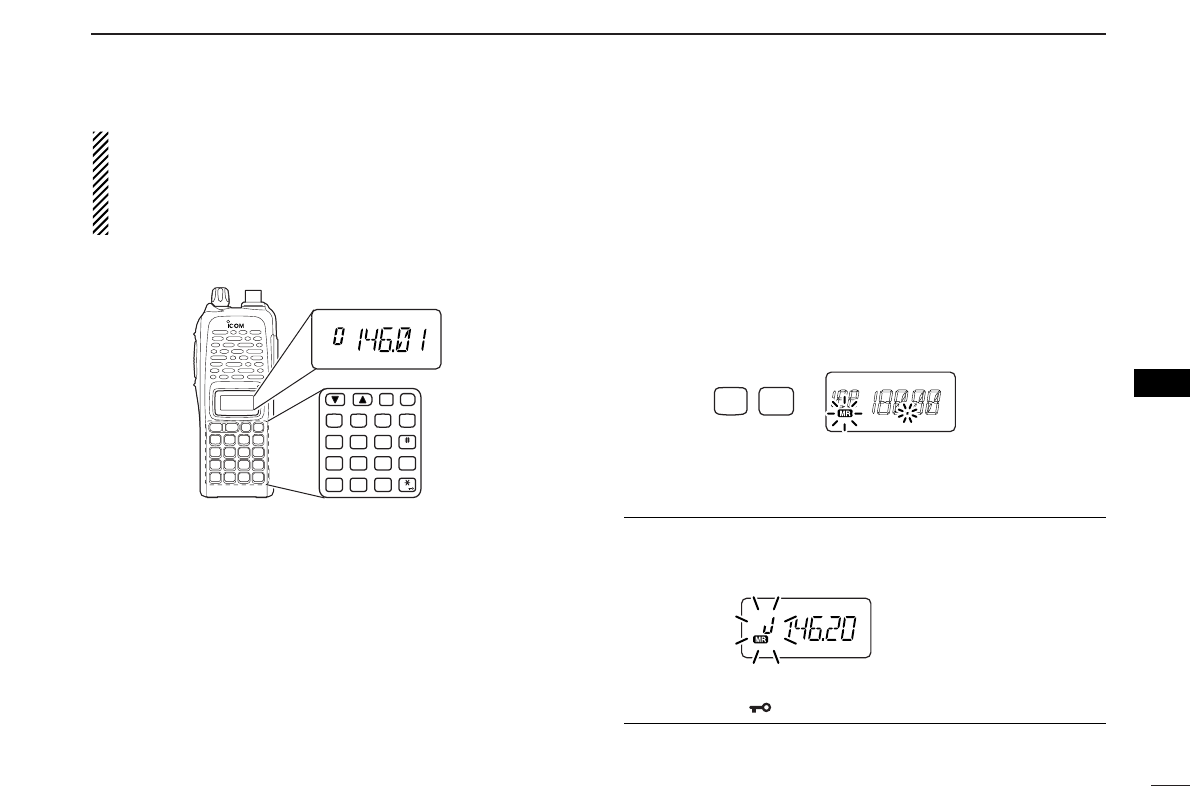

Direct frequency input from the key-
pad is also available.
➥To enter the desired frequency,
enter 6-digits starting from the
100 MHz digit.
•Enter three* to five digits then push-
ing [✱•
ENT
]is also set the fre-
quency. (*Some versions are
available from two digits.)
•When a digit is mistakenly input,
push [D.
CLR
]to abort to input.
5. Transmit and receive
➥Push and hold [PTT] to transmit, then speak into the mi-
crophone; release to receive.
■Repeater operation
1. Setting duplex
➥Push [A•
FUNC
], then [4•
DUP
]sev-
eral times to select minus duplex
or plus duplex.
•The USA version has an auto re-
peater function, therefore, setting du-
plex is not required.
2. Repeater tone
➥Push [A•
FUNC
], then [1•
TONE
]
several times until “ ” appears, if
required.
TONE
1
FUNC
A
DUP
4
FUNC
A
• Example 1— when entering 145.525 MHz
Push
• Example 2— when entering 144.800 MHz
P.BEEP
2
DUP
4
DUP
TONE
4
1
SCAN
5
SCAN
5
SCAN
5
Push
DUP
TONE
4
1
OPT
0
SET
8
ENT
CLR
D
Keypad
ENT
Quick reference guide
V
QUICK REFERENCE GUIDE
The IC-V82/U82 has a total of 207 memory channels (includ-
ing 6 scan edges and 1 call channel) for storing often used
operating frequency, repeater settings, etc.
1. Setting frequency
In VFO mode, set the desired operating frequency with other
desired settings, such as repeater and subaudible tone.

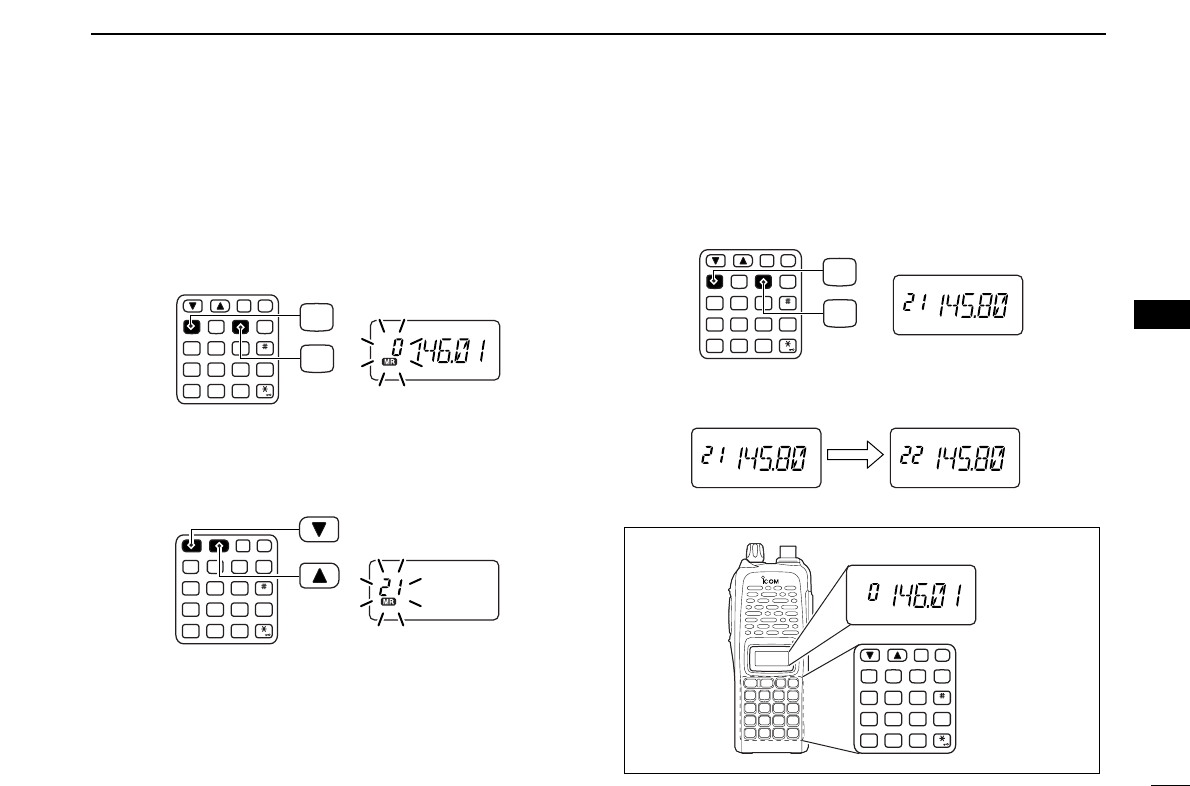

2. Selecting a memory channel
➥Push [A•
FUNC
], [C•
MR
]then push
[YY] or [ZZ]several times to select
the desired memory channel.
•“
X” indicator and memory channel
number blink.
3. Writing a memory channel
➥Push [A•
FUNC
], then push [C•
MR
]
for 1 sec. to program.
•3 beeps sound
•Continue to hold [C•
MR
]down for 1 sec. after 3 beeps are emit-
ted, to increment the displayed memory channel number.
MR
C
FUNC
A
MR
C
FUNC
A
■Programming memory channels
1
1
ACCESSORIES
1
■Accessory attachment

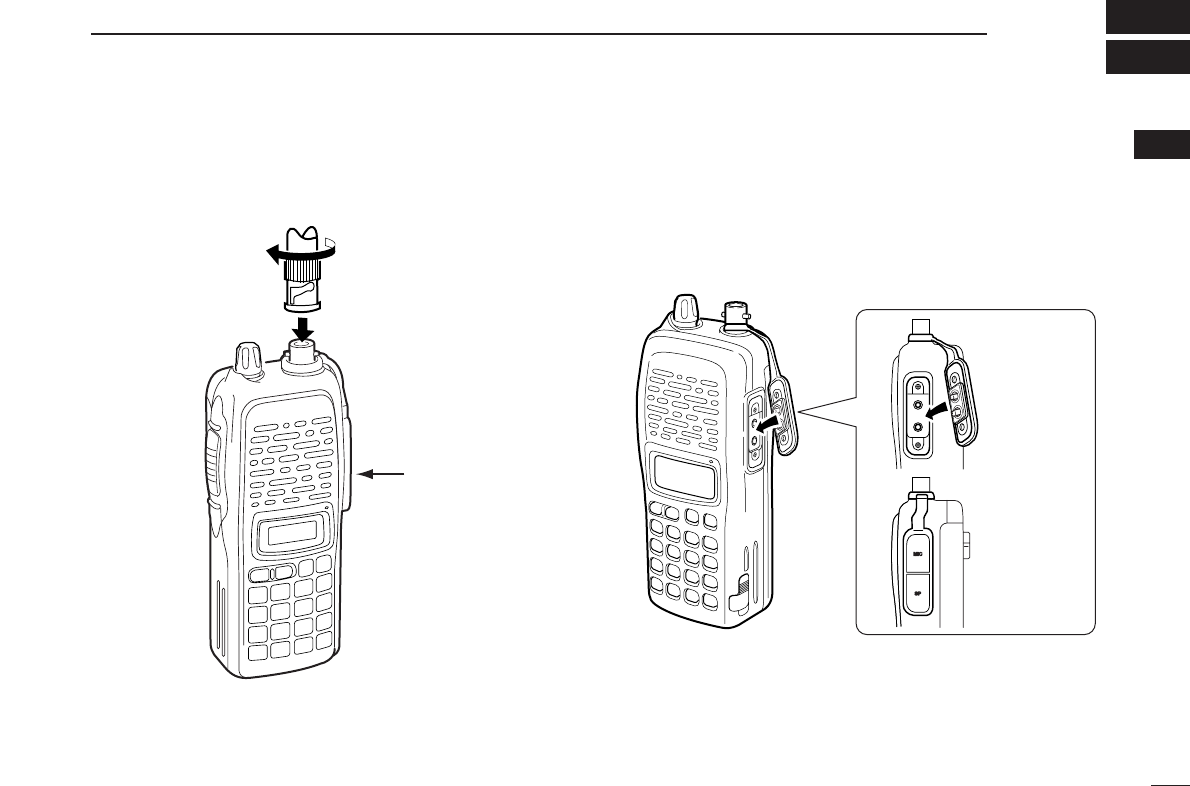

DAntenna
Attach the antenna to the transceiver as illustrated below. Keep the [SP/MIC] cap (SP/MIC jack cover) attached when
jacks are not in use to avoid bad contacts.
Attach the
[SP/MIC] cap.
[SP/MIC] cap
2
1ACCESSORIES

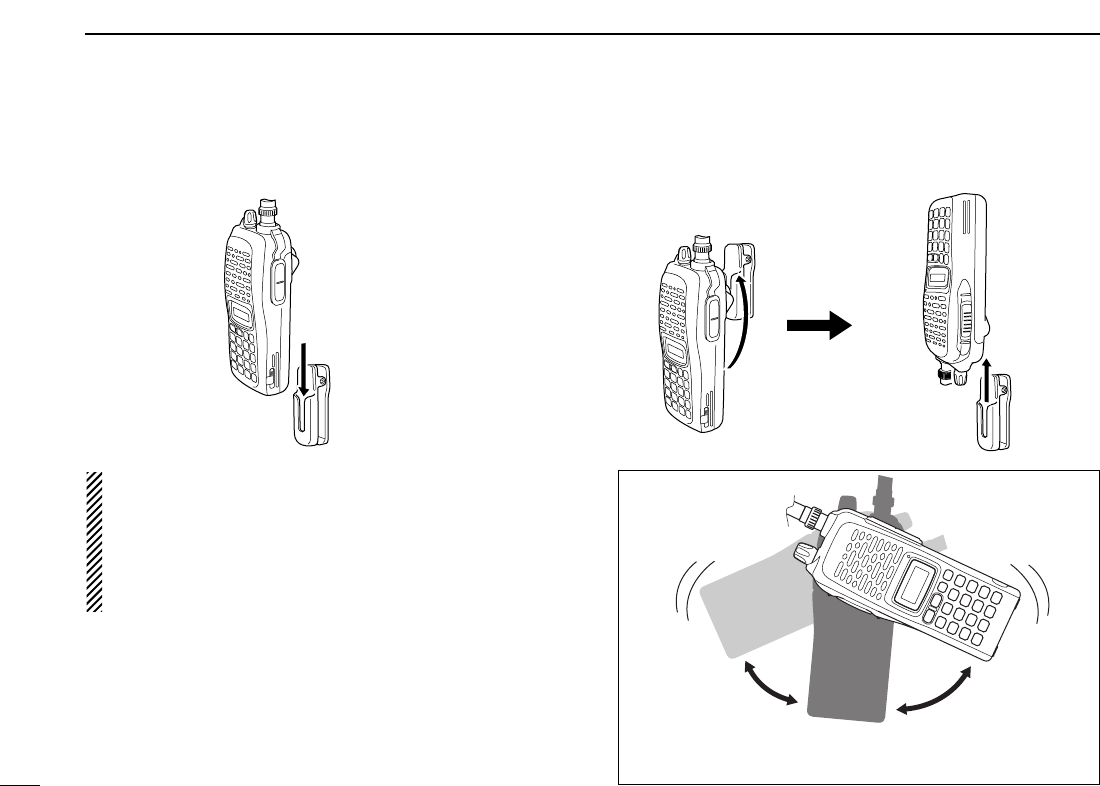

DBelt clip
Conveniently attaches to your belt.
Attach the belt clip with the supplied screws using a phillips
screwdriver.
To attach the belt clip
DHandstrap (Not supplied)
Slide the hand strap through the loop on the top of the rear
panel as illustrated below. Facilitates carrying.
3
2
PANEL DESCRIPTION
1
2
qCONTROL DIAL [VOL]
*Rotate to adjust the volume level.
wPTT SWITCH [PTT]
Push and hold to transmit; release to receive.
eUP/DOWN KEYS [YY]/[ZZ]
*Selects the operating frequency.
rKEY PAD (pgs. 4, 5)
Used to enter operating frequency, the DTMF codes, etc.
tANTENNA CONNECTOR
Connects the supplied antenna.
y[SP]/[MIC] JACK
Connect an optional speaker-microphone or headset, if de-
sired. The internal microphone and speaker will not func-
tion when either is connected.
uFUNCTION DISPLAY (pgs 6, 7)
iSQUELCH/MONITOR SWITCH [MONI]
Push and hold to force the squelch open and set the trans-
ceiver to the squelch level adjustable condition.
oPOWER SWITCH [PWR]
Push for 1 sec. to turn the power ON and OFF.
MONI
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BEEP
MR CLRFUNC
PWR
987
4
123
AB DC
560
q
w
t
Microphone
Speaker
y
!0
o
u
i
e
r
■Switches, controls, keys and connectors
*The assigned function for [VOL] and [YY]/[ZZ]can be
traded in
INITIAL SET MODE
(pgs. 14, 63).
4
2PANEL DESCRIPTION
!0 [DATA] JACK
Connect to a PC or GPS receiver via the RS232C cable (D-
sub 9 pin) for data communication in the RS-232C format.
DKey pad
[A•
FUNC
]
Access to secondary function.
[B•
CALL
]
Select the call channel. (p. 20)
[C•
MR
]
➥Selects a memory mode. (p. 20)
➥After pushing [A•
FUNC
], entering into memory
programming/editing mode. (pgs. 21–23)
➥After pushing [A•
FUNC
], programs/transfers
VFO/memory or call channel contents into
memory channel/VFO when pushed for 1 sec.
(pgs. 21–23)
[D•
CLR
]
Selects VFO mode, aborts direct frequency input,
or cancels scanning, etc. (pgs. 13, 28)
[1•
TONE
]
➥Input digit “1” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], selects the subaudible
tone function. (pgs. 17, 32)
[2•
P
.
BEEP
]
➥Input digit “2” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], turn the pocket beep
function ON and OFF. (p. 34)
P.BEEP
2
TONE
1
CLR
D
MR
C
CALL
B
FUNC
A

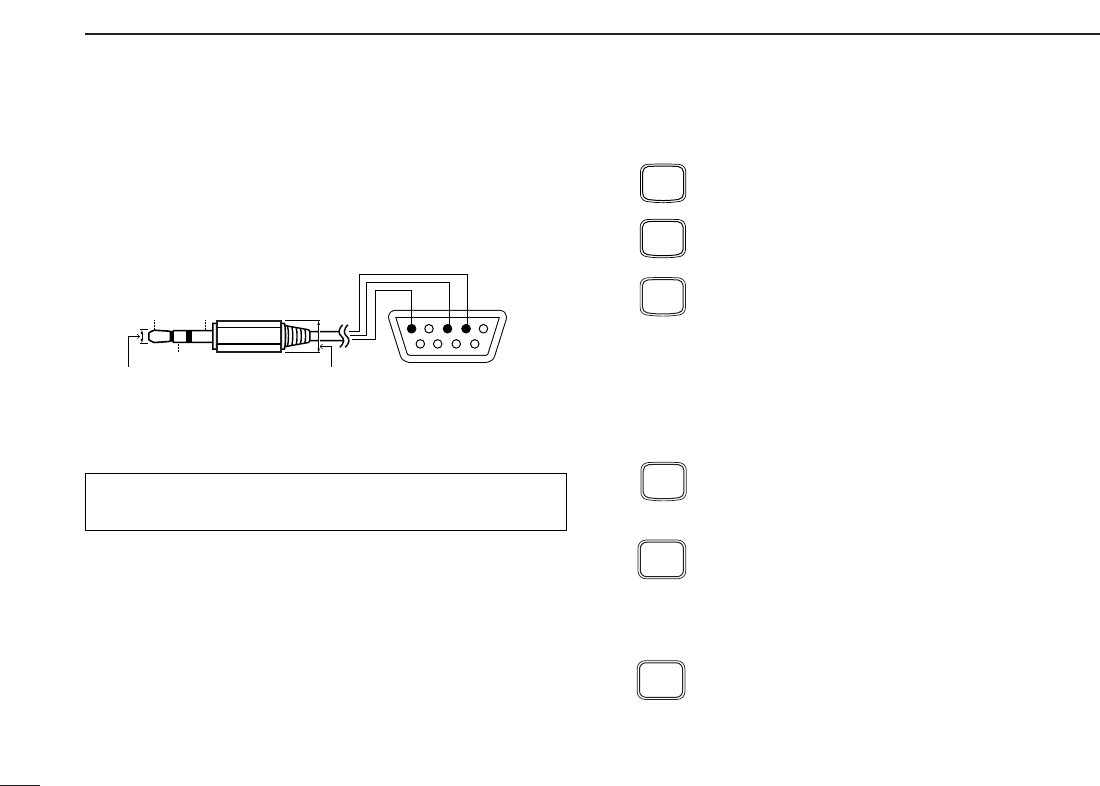

Pin 2 (RxD),
Pin 3 (TxD),
Pin 5 (GND)
to [DATA] jack
TxD
2.5(d) mm Less than
10(d) mm
GND
RxD
1
5
69
RS-232C
(DB-9 female)
Make sure the connection between transceiver and PC, oth-
erwise misreading may occur for data communication.
5
2
PANEL DESCRIPTION
2
[3•
T
.
SCAN
]
➥Input digit “3” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], starts the tone scan-
ning. (pgs. 18, 35)
[4•
DUP
]
➥Input digit “4” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], selects a duplex func-
tion (–duplex, +duplex, simplex). (p. 17)
[5•
SCAN
]
➥Input digit “5” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], starts scanning. (p. 28)
[6•
SKIP
]
➥Input digit “6” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], sets and cancels skip
setting for memory skip scan during memory
mode. (p. 30)
[7•
PRIO
]
➥Input digit “7” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], starts the priority
watch. (p. 30)
[8•
SET
]
➥Input digit “8” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], enters into
SET MODE
.
(p. 57)
[9•
H
/
M
/
L
]
➥Input digit “9” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], switches transmit
power from high, middle and low output power.
(p. 15)
[0•
OPT
]
➥Input digit “0” during frequency input, memory
channel selection, etc. (pgs. 13, 20)
➥After pushing [A•
FUNC
], selects an optional
function mode, such as pager, code squelch or
digital operation. (pgs. 38, 40)
[#•
BANK
]
After pushing [A•
FUNC
], enters a memory bank
condition. (p. 24)
[✱•
ENT
]
➥Sets the frequency even if the full 6-digits of
frequency have not been entered. (p. 13)
➥After pushing [A•
FUNC
], switches key lock func-
tion ON and OFF when pushed for 1 sec. Lock
all keys, except [PWR], [PTT], [MONI] and
audio level adjustment. (p. 16)
ENT
BANK
OPT
0
H/M/L
9
SET
8
PRIO
7
SKIP
6
SCAN
5
DUP
4
T.SCAN
3
6
2PANEL DESCRIPTION
■Function display
qFUNCTION INDICATOR
Appears while a secondary function is being accessed.
wKEY LOCK INDICATOR (p. 16)
Appears when the key lock function is ON.
eAUTO POWER OFF INDICATOR (p. 62)
Appears while the auto power OFF function is activated.
rDUPLEX INDICATOR (p. 17)
Either “–” or “+” appears during repeater operation.
tTONE INDICATOR
❍While in the analog (FM) mode operation
➥“” appears while the subaudible tone encoder is in
use. (p. 17)
➥“” appears while the tone (CTCSS) squelch func-
tion is in use. (p. 32)
➥“” appears while the tone (DTCS) squelch function
is in use. (p. 32)
➥“” appears with the “ ” or “ ” indicator while the
pocket beep function (CTCSS or DTCS) is in use.
(p. 34)
qqqwqeqrt qy
u
!5
!4
!3 !2 !1 io!0
7
2
PANEL DESCRIPTION
2
❍While in the digital (DV) mode operation with the in-
stalling an optional Digital unit UT-118.
➥“” appears while the digital code (CSQL) squelch
function is in use. (p. 47)
➥“” appears while the call sign (DSQL) squelch func-
tion is in use. (p. 47)
➥“” appears with the “ ” or “ ” indicator while the
pocket beep function (CSQL or DSQL) is in use.
(p. 46)
yTRANSMIT INDICATOR (p. 15)
Appears during transmit.
uFREQUENCY READOUT
Shows operating frequency, channel number or channel
names, depending on display type (p. 16).
iSIGNAL INDICATOR
➥Shows receiving signal strength as below.
➥Shows the output power level while transmitting.
oBUSY INDICATOR
➥Appears when a signal is being received or the squelch
is open.
➥Blinks while the monitor function is activated. (pgs.15,
47)
!0 PAGER CALL INDICATOR (p. 39)
Blinks when a pager call is received. (This indicator ap-
pears only when UT-108 is installed.)
!1 DIGITAL MODE INDICATOR (p. 43)
Appears when digital mode is selected. (This indicator ap-
pears only when UT-118 is installed.)
!2 LOW/MIDDLE POWER INDICATOR (p. 15)
➥“L” or “M” appears when the low or middle output power
is selected, respectively.
➥No indicator appears when high output power is se-
lected.
!3 SKIP CHANNEL INDICATOR (p. 30)
Appears when the selected memory channel is specified
as a skip channel.
!4MEMORY MODE INDICATOR (p. 20)
Appears while in memory mode or channel number indica-
tion mode.
!5MEMORY CHANNEL INDICATOR (p. 20)
➥Shows the selected memory channel number.
➥“C” appears when the call channel is selected.
Low Middle High
Weak ⇐ RX Signal level ⇒ Strong
■Battery pack replacement
➥Before replacing the battery
pack, push [PWR] for 1 sec.
to turn the power OFF.
➥Slide the battery release forward, then pull the battery pack
upward with the transceiver facing away from you.
DDBATTERY PACKS
*1Operating periods are calculated under the following conditions;
Tx : Rx : standby =1 : 1 : 8, power save function: auto setting is
activated
*2Operating period depends on the alkaline cells used.
Battery Voltage Capacity Battery life*1
pack
BP-208N Battery case for AA —*2
(LR6)×6 alkaline
BP-209N 7.2 V 1100 mAh 3 hrs. 20 min.
BP-210N 7.2 V 1650 mAh 6 hrs.
BP-211N 7.4 V 1800 mAh 6 hrs. 10 min.
BP-222N 7.2 V 600 mAh 2 hrs. 15 min.
Push
for 1 sec.
PWR
8
BATTERY PACKS
3
9
3
BATTERY PACKS
3
■Battery caution
RDANGER! Use/Charge the specified Icom batteries only.
Only tested and approved for use with genuine Icom bat-
teries. Fire and/or explosion may occur when a third party
battery pack or counterfeit product is used/charged.
• CAUTION! NEVER short the terminals of the battery pack
(or charging terminals of the transceiver). Also, current may
flow into nearby metal objects such as a necklace, so be
careful when placing battery packs (or the transceiver) in
handbags, etc.
Simply carrying with or placing near metal objects such as a
necklace, etc. causes shorting. This will damage not only
the battery pack, but also the transceiver.
• NEVER incinerate used battery packs. Internal battery gas
may cause an explosion.
• NEVER immerse the battery pack in water. If the battery
pack becomes wet, be sure to wipe it dry BEFORE attach-
ing it to the transceiver.
• Clean the battery terminals to avoid rust or poor contact.
• Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.
If your battery pack seems to have no capacity even after
being charged, completely discharge it by leaving the power
ON overnight. Then, fully charge the battery pack again. If the
battery pack still does not retain a charge (or only very little
charge), a new battery pack must be purchased (p. 73).
■Charging NOTE
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
• Recommended temperature range for charging:
+10°C to +40°C (; +50˚F to 140˚F)
• Use the supplied charger or optional charger (BC-119N/121N/144N
for rapid charging, BC-146 for regular charging) only. NEVER use
other manufacturers’ chargers.
The optional BP-222N, BP-209N, BP-210N or BP-211N bat-
tery packs include rechargeable batteries (Ni-Cd: BP-222N,
BP-209N, Ni-MH: BP-210N, Li-Ion: BP-211N) and can be
charged approx. 300 times. Charge the battery pack before
first operating the transceiver or when the battery pack be-
comes exhausted.
If you want to charge the battery pack more than 300 times,
the following points should be observed:
• Avoid over charging. The charging period should be less than
24 hours.
• Use the battery until it becomes almost completely exhausted
under normal conditions. We recommend battery charging after
transmitting becomes impossible.
DDBattery pack life
When the operating period becomes extremely short even
after charging the battery pack fully, a new battery pack is
needed.
10
3BATTERY PACKS
■Battery charging
DRegular charging with the BC-146
The optional BC-146 provides regular charging of an optional
NI-Cd battery pack with/without transceiver. The following is
additionally required:
• An optional AC adapter. (An AD-99N is supplied with BC-146.)
DAbout AD-99N
The adapter (Spacer A) only is required for IC-V82/U82 se-
ries. When removing the spacer (Spacer B/C),
push the notch
carefully with your finger to remove the spacer (Spacer B/C)
from the adapter (Spacer A).
RCAUTION!
DO NOT push or force the notch with a screw driver, etc.,
to remove it.
DO NOT bend the notch when the adapter and spacer are
not joined together. This will cause weakening of the notch
plastic.
Both cases may break the notch and it may not be able to
be reattached.
Push the notch
carefully.
Remove the spacer (Spacer B/C)
from the adapter.
Check orienta-
tion for correct
charging. (In-
sert together
with AD-99N.)
Turn power OFF.
BC-146 +AD-99N
• Chargeable battery
BP-209N, BP-222N
Recommendation:
Charge the BP-211N (Li-Ion) by BC-119N (or BC-121N) for
a maximum of 2 hours. Li-Ion batteries are different from Ni-
Cd batteries in that it is not necessary to completely charge
and discharge them to prolong the battery life. Therefore,
charging the battery in intervals, and not for extended peri-
ods is recommended.
11
3
BATTERY PACKS
3
DRapid charging with the BC-144N
The optional BC-144N provides rapid charging of optional
battery packs.
The following are additionally required:
• An AC adapter (may be supplied with the BC-144N depending on
version).
• Chargeable battery
BP-210N (Ni-MH battery)
BP-209N, BP-222N (Ni-Cd batteries)
DRapid charging with the BC-119N+AD-101
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
• AD-101.
• An AC adapter (may be supplied with the BC-119N depending on
version) or the DC power cable (OPC-515L/CP17L).
• Chargeable battery
BP-210N (Ni-MH battery)
BP-209N, BP-222N (Ni-Cd batteries)
BP-211N (Li-Ion battery)
DC power cable (OPC-515L)
(Connect with the DC power supply;
13.8 V/at least 2 A)
Turn power OFF.
Check orienta-
tion for correct
charging. (In-
sert together
with AD-99N.)
Turn power OFF.
BC-144N +AD-99N
12
3BATTERY PACKS
DRapid charging with the BC-121N+AD-101
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
• Six AD-101.
• An AC adapter (BC-124; may be supplied with the BC-121N de-
pending on version) or the DC power cable (OPC-656).
• Chargeable battery
BP-210N (Ni-MH battery)
BP-209N, BP-222N (Ni-Cd batteries)
BP-211N (Li-Ion battery)
■Battery case
(optional for some versions)
When using a BP-208N BATTERY CASE attached to the
transceiver, install 6 AA (LR6) size alkaline batteries as illus-
trated below.
DDCAUTION
• Use ALKALINE batteries only.
• Make sure all battery cells are the same brand, type and
capacity. Never mix old and new batteries.
Either of the above may cause a fire hazard or damage
the transceiver if ignored.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
• Never expose a detached battery case to water. If the
battery case gets wet, be sure to wipe it dry before use.
MULTI-CHARGER
AC adapter
(purchased
separately)
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
Charge indicator
(each indicator functions independently)
Turn power OFF.
13
4
BASIC OPERATION
3
4
■Power ON
➥Push [PWR] for 1 sec. to turn
power ON.
■VFO mode selection
The transceiver has 2 basic oper-
ating modes: VFO mode and
memory mode.
➥Push [D•
CLR
]to select VFO
mode.
■Setting a frequency
DVia the keypad
qPush [D•
CLR
]to select VFO mode, if necessary.
wTo enter the desired frequency, enter 6-digits starting from
the 100 MHz digit.
•Enter three* to five digits then pushing [✱•
ENT
]is also set the
frequency. (*Some versions are available from two digits.)
•When a digit is mistakenly input, push [D.
CLR
]to abort to input.
• Example 1— when entering 145.525 MHz
Push
• Example 2— when entering 144.800 MHz
P.BEEP
2
DUP
4
DUP
TONE
4
1
SCAN
5
SCAN
5
SCAN
5
Push
DUP
TONE
4
1
OPT
0
SET
8
ENT
CLR
D
Push
for 1 sec.
PWR
DBy other methods
Via the [YY]/[ZZ] keys
➥Push [YY]or [ZZ]several times to set the desired frequency.
•Each push increases/decreases the frequency by the selected
tuning step. See right content for tuning step details.
DTuning step selection
The IC-V82/U82 has 8 tuning
steps— 5, 10, 12.5, 15, 20, 25, 30
and 50 kHz. The tuning step is selec-
table in
SET MODE
.
qPush [A•
FUNC
]then [8•
SET
]to
enter
SET MODE
.
wPush [YY]or [ZZ]several times to
select the tuning step item.
eRotate [VOL] to select the desired tuning step.
rPush [✱•
ENT
]to exit
SET MODE
.
[VOL]
ENT
FUNC
A
SET
8
14
4BASIC OPERATION

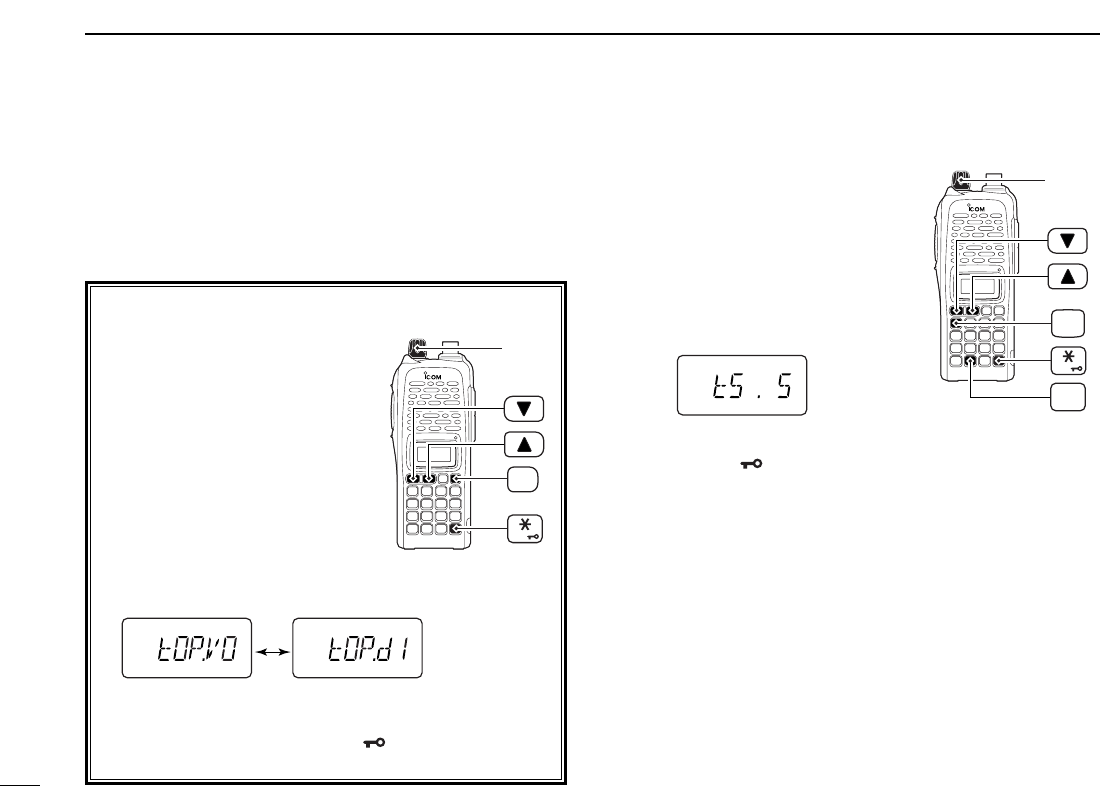

✔For your information— [VOL] function assignment
The [VOL] control can be used as
a tuning dial for frequency tuning
instead of [YY]/[ZZ]keys. However,
while [VOL] functions as tuning
dial, [YY]/[ZZ]keys functions as AF
volume control.
qWhile pushing [YY]and [ZZ], turn
power ON to enter
INITIAL SET
MODE
.
wPush [YY]or [ZZ]several times to
select the dial assignment item, “tOP.”
eRotate [VOL] to select the condition.
rTo exit
SET MODE
, push [✱•
ENT
].
[VOL] is assigned as
AF volume control. [VOL] is assigned as
tuning dial.
[VOL]
ENT
PWR
15
4
BASIC OPERATION
4
■Setting audio/squelch level
DTo set the audio level
Rotate [VOL] to set the desired
audio level while receiving a sig-
nal.
• When no signal is received, push
and hold [MONI] while setting the
audio level.
• When [VOL] is assigned as tuning
dial, push [YY]/[ZZ]to adjust the audio
output level. (pgs. 14, 63)
DTo set the squelch level
While pushing [MONI], push
[YY]/[ZZ]to set the squelch level.
• The squelch level “1” is loose
squelch, “10” is tight squelch.
• When [VOL] is assigned as tuning
dial, rotate [VOL] while [MONI] is
pushed. (pgs. 14, 63)
■Receive and transmit
qPush [PWR] for 1 sec. to turn the power ON.
wAdjust audio volume to the desired level.
eSet a frequency.
When a signal is received:
• Squelch opens and audio is emitted from the speaker.
• Signal indicator shows the relative signal strength level.
rPush [A•
FUNC
], then [9•
H
/
M
/
L
]to select output power be-
tween high, middle and low.
•“L” appears when low power is selected.
•“M” appears when middle power is selected.
•No indication appears when high power is selected.
tPush and hold [PTT] to transmit, then speak into the micro-
phone.
• “$” appears.
•Do not hold the microphone too close to your mouth or
speak too loudly. This may distort the signal.
yRelease [PTT] to receive.
✔For your information— Monitor function:
Push and hold [MONI] to listen to weak signals that do not
open the squelch.
MONI
[VOL]
16
4BASIC OPERATION

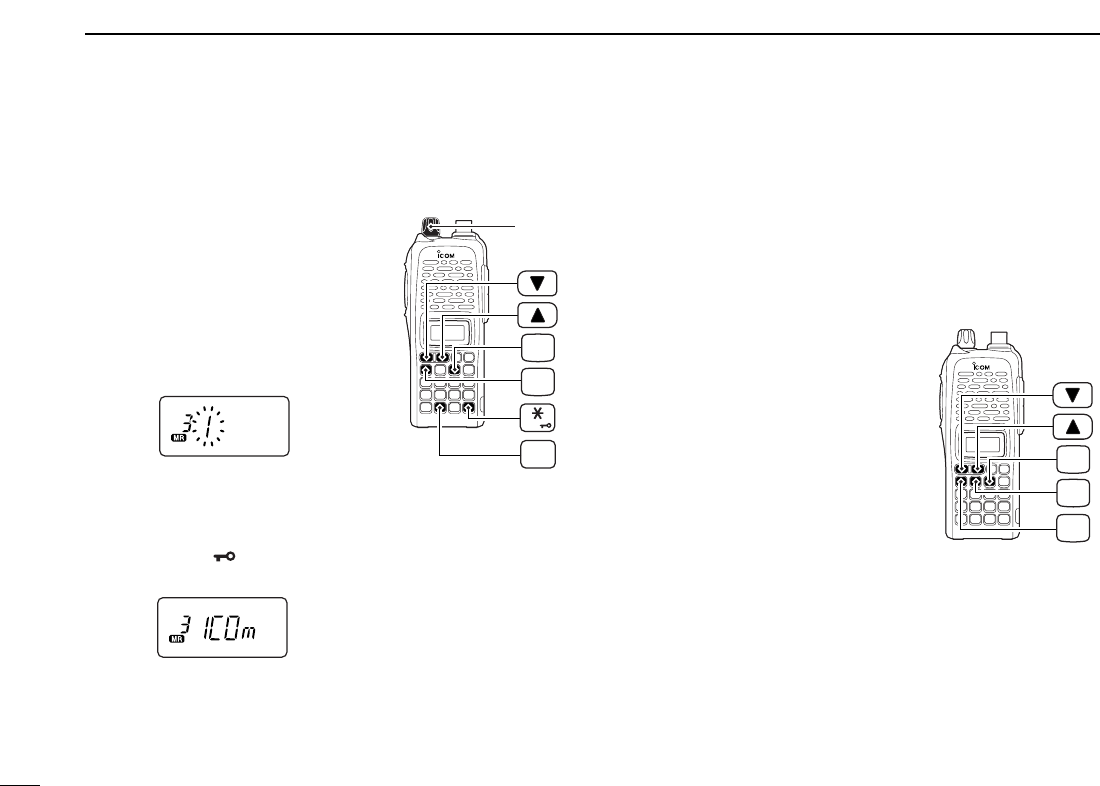

■Display type
The transceiver has 3 display types to suit your operating
style.
The display type is selected in
INITIAL SET MODE
(p. 63).
“Frequency Indication” type
Displays operating frequency.
“Channel Number Indication” type
Displays memory channel number. In this type only pre-
programmed memory channel numbers are displayed.
VFO mode cannot be selected.
• When the channel indication type is selected, only the following
functions can be performed.
- Scan function (p. 28)
- Output power setting (p. 15)
- DTMF memory function (p. 26)
- Key lock function (see right content)
- Scan pause timer setting, function key timer setting and LCD
backlight setting in
SET MODE
(p. 59)
“Channel Name Indication” type
Displays memory channel name you have assigned. In this
display pre-programmed memory channel names are dis-
played.
VFO mode is selectable.
• Programmed frequencies are indicated pre-programmed in the
selected memory channel.
• Push and hold [MONI] to display the operating frequency.

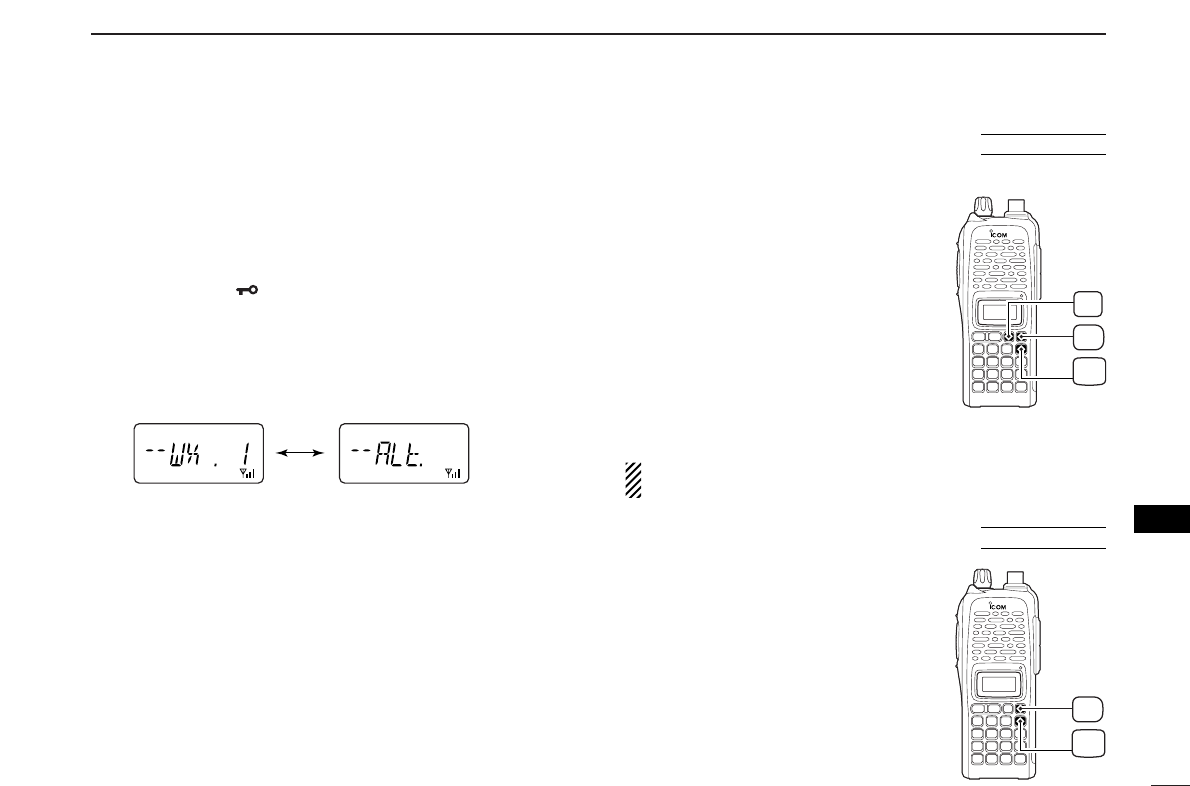

■Key lock function
The key lock function prevents accidental frequency changes
and function activation.
Push [A•
FUNC
]then push [✱•
ENT
]
for 1 sec. to toggle the function ON and
OFF.
•“ ” appears while the lock function is
activated.
•[PWR], [PTT], [VOL] and [MONI] can
be operated regardless of this setting.

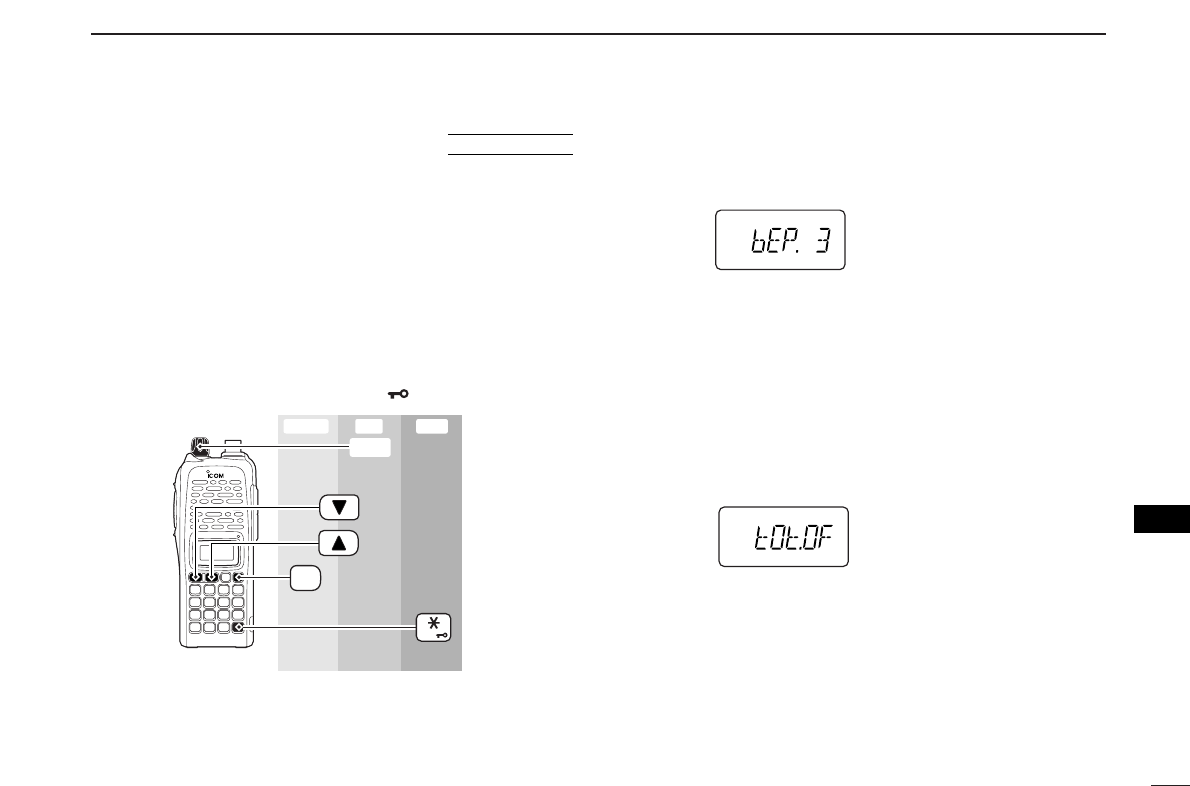

USING
INITIAL SET MODE
FUNC
A
ENT
17
5
REPEATER OPERATION
4
5
■General
When using a repeater, the transmit frequency is shifted from
the receive frequency by the offset frequency. It is convenient
to program repeater information into memory channels.
qSet the receive frequency (repeater output frequency).
wPush [A•
FUNC
]and [4•
DUP
]several times to select “–” or
“+.”
•“–” indicates the transmit frequency is shifted down; “+” indicates
the transmit frequency is shifted up.
• Blinking “–” or “+” indicates the reversed duplex mode is selected
in
SET MODE
(p. 58).
ePush [A•
FUNC
]and [1•
TONE
]several times to activate the
subaudible tone encoder, if required.
•“ ” appears.
•Select the desired subaudible tone frequency, if necessary.
(p. 18)
rPush and hold [PTT] to transmit.
•The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
•If “OFF” appears, check the offset frequency (see right content
for details) and direction.
tRelease [PTT] to receive.
yPush and hold [MONI] to check whether the other station’s
transmit signal can be directly received or not.
About reversed duplex mode
When the reversed duplex mode is selected, the receive fre-
quency shifts. (Transmit frequency shifts in normal duplex
mode.)
Each receive and transmit frequency is shown in the table
below with the following conditions;
IC-V82: Input freq.-145.30 MHz, Direction-negative, Offset frequency-0.6 MHz
IC-U82: Input freq.-439.80 MHz, Direction-negative, Offset frequency-5 MHz

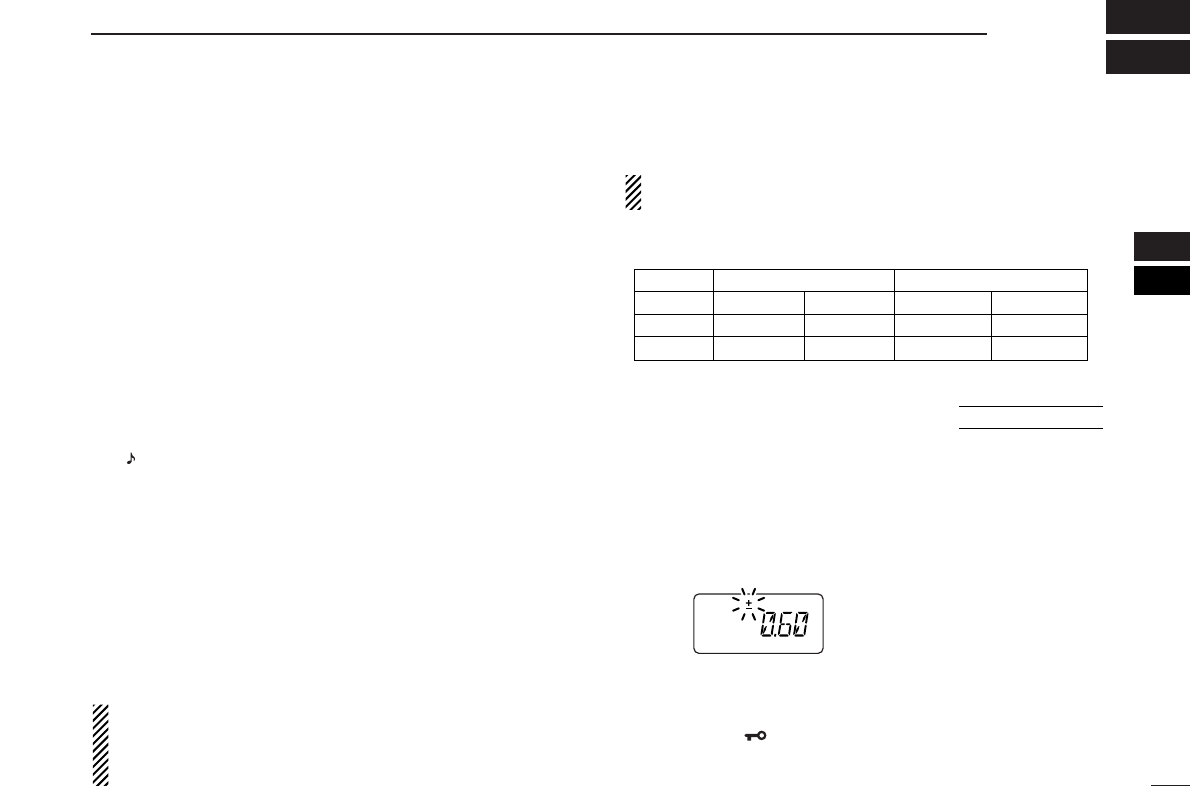

■Offset frequency
When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
qPush [A•
FUNC
], then push [8•
SET
]to enter
SET MODE
.
wPush [YY]or [ZZ]several times until “±” and offset frequency
appear.
eRotate [VOL] to select the desired offset frequency.
•Selectable steps are the same as the pre-set tuning steps.
•The unit of the displayed offset frequency is “MHz.”
rPush [✱•
ENT
](or [D•
CLR
]) to fix the offset frequency and
exit
SET MODE
.
USING
SET MODE
IC-V82 IC-U82
Reversed OFF ON OFF ON
Rx freq. 145.30 MHz 144.70 MHz 439.80 MHz 434.80 MHz
Tx freq. 144.70 MHz 145.30 MHz 434.80 MHz 439.80 MHz

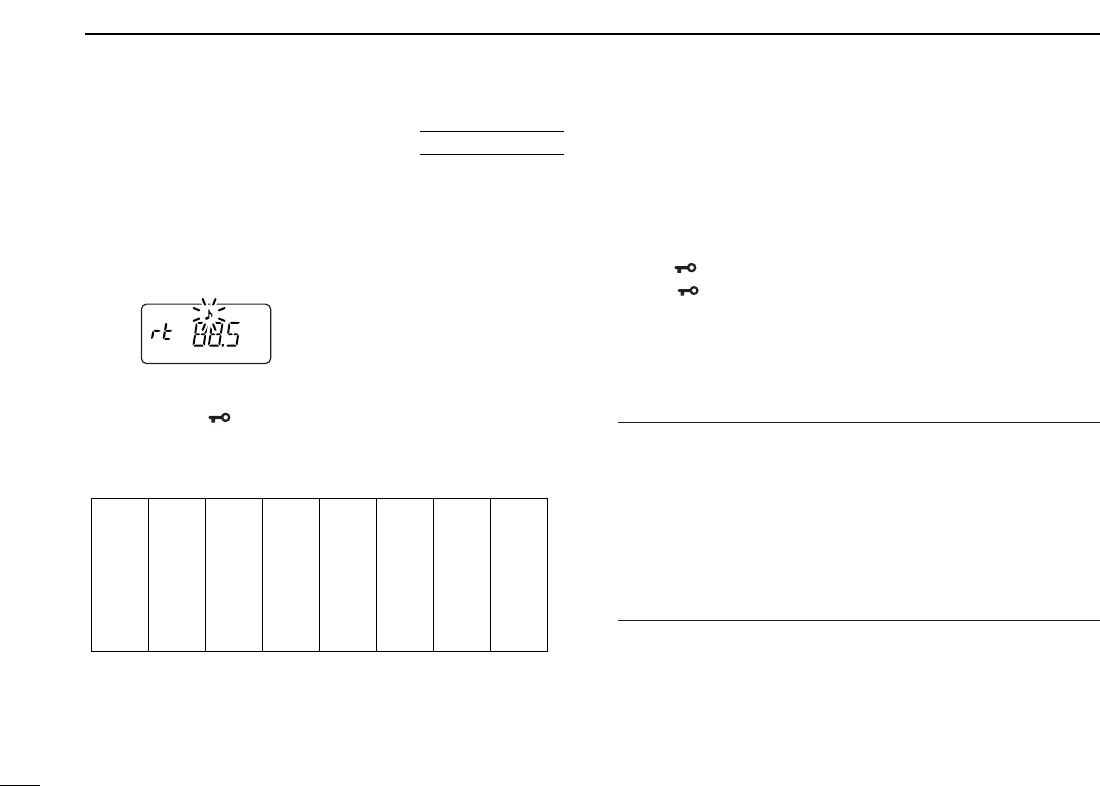

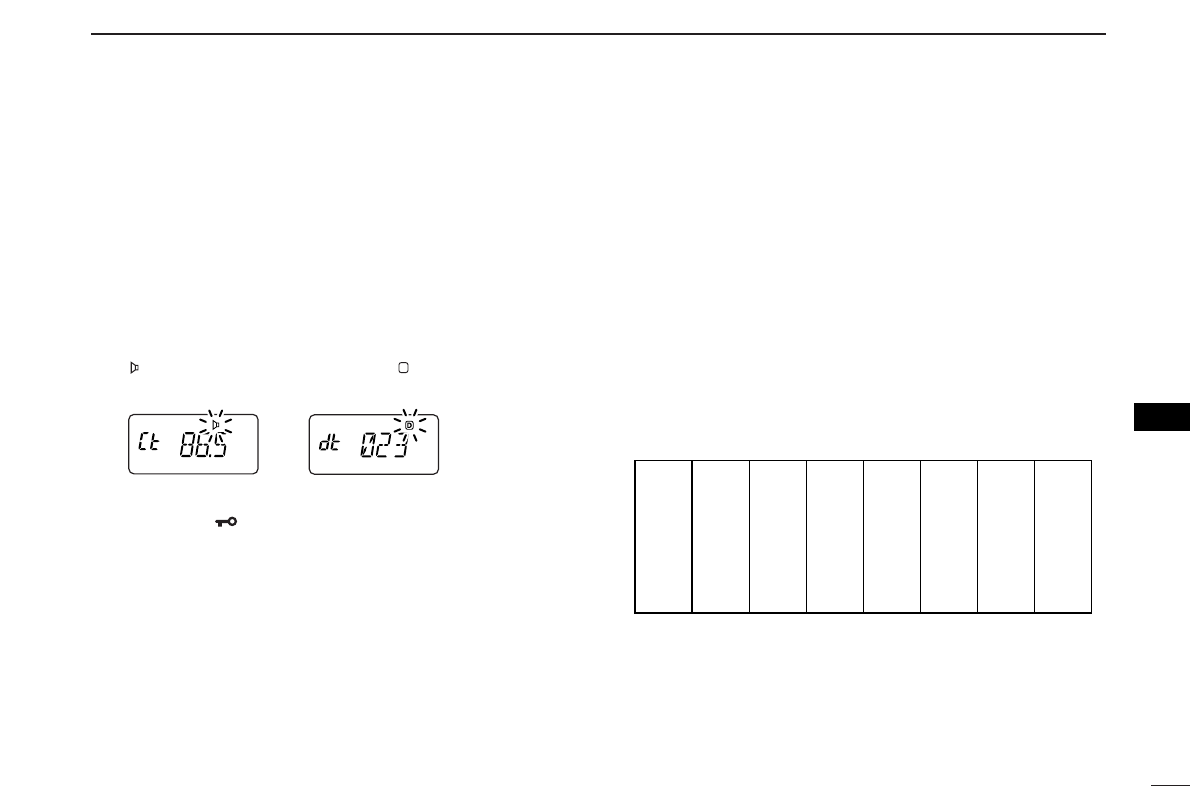

■Subaudible tones
Some repeaters require subaudible tones to be accessed.
Subaudible tones are superimposed over your normal signal
and must be set in advance.
qPush [A•
FUNC
], then push [8•
SET
]to enter
SET MODE
.
wPush [YY]or [ZZ]one or more times until “rt” appears.
eRotate [VOL] to select the desired subaudible tone.
rPush [✱•
ENT
](or [D•
CLR
]) to fix the selected tone and
exit
SET MODE
.
• Available subaudible tone frequencies (unit: Hz)
DDTone information
Some repeaters require another tone system to be accessed.
DTMF TONES
While pushing [PTT], push the desired DTMF keys (0–9,
[A•
FUNC
], [B•
CALL
], [C•
MR
], [D•
CLR
], [#•
BANK
]and
[✱•
ENT
]) to transmit DTMF tones.
•[✱•
ENT
]transmits as “E”, [#•
BANK
]transmits as “F.”
•The transceiver has 16 DTMF memory channels (p. 26).
1750 Hz TONE
While pushing [PTT], push [YY]or [ZZ]to transmit a 1750 Hz
tone signal.
✔Convenient
Tone scan function: When you don’t know the subaudible
tone used for a repeater, the tone scan is convenient for de-
tecting the tone frequency.
Push [A•
FUNC
], then push [3•
T
.
SCAN
]to start the tone scan.
• Push [D•
CLR
]to cancel the scan.
• When the required tone frequency is detected, the scan
pauses.
67.0
69.3
71.9
74.4
77.0
85.4
88.5
91.5
94.8
97.4
100.0
103.5
79.7
82.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
USING
SET MODE
18
5REPEATER OPERATION
19
5
REPEATER OPERATION

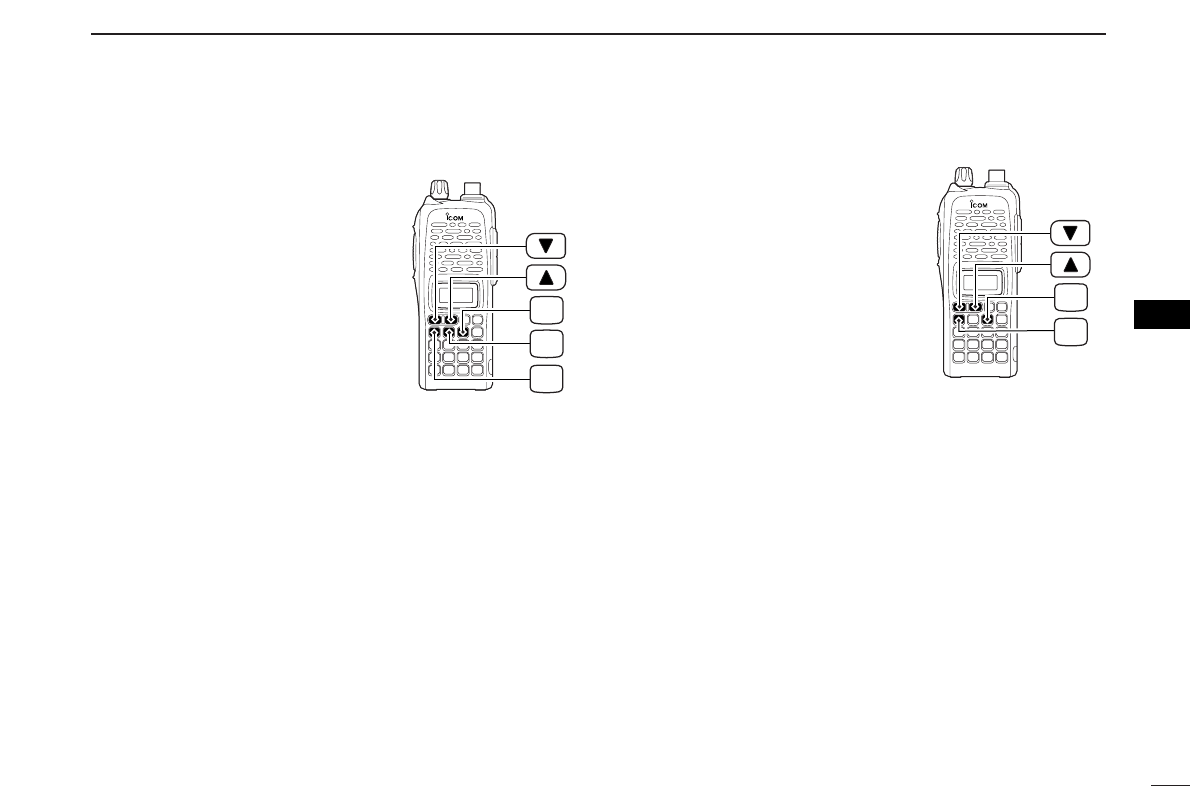

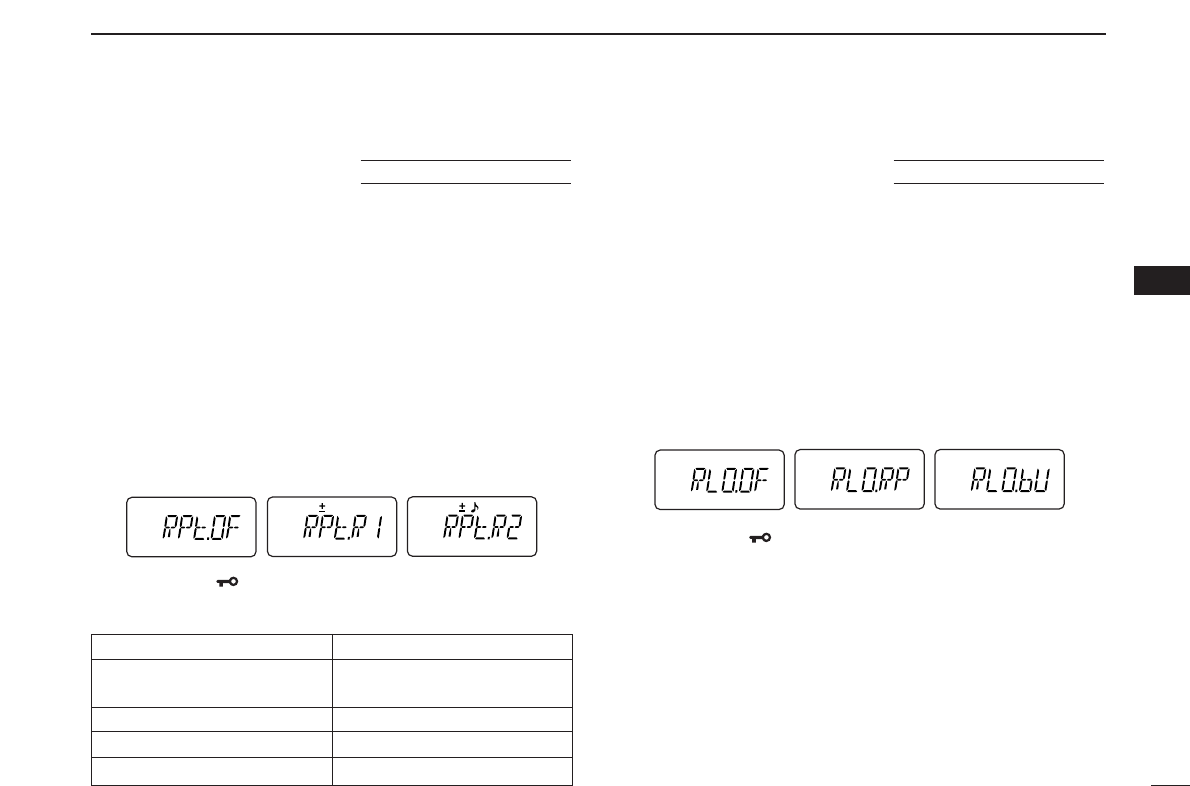

■Auto repeater function
(USA version only)
The USA version automatically activates the repeater settings
(duplex, ON/OFF, duplex direction, tone encoder ON/OFF)
when the operating frequency falls within or outside of the
general repeater output frequency range. The offset and re-
peater tone frequencies are not changed by the auto repeater
function. Reset these frequencies, if necessary.

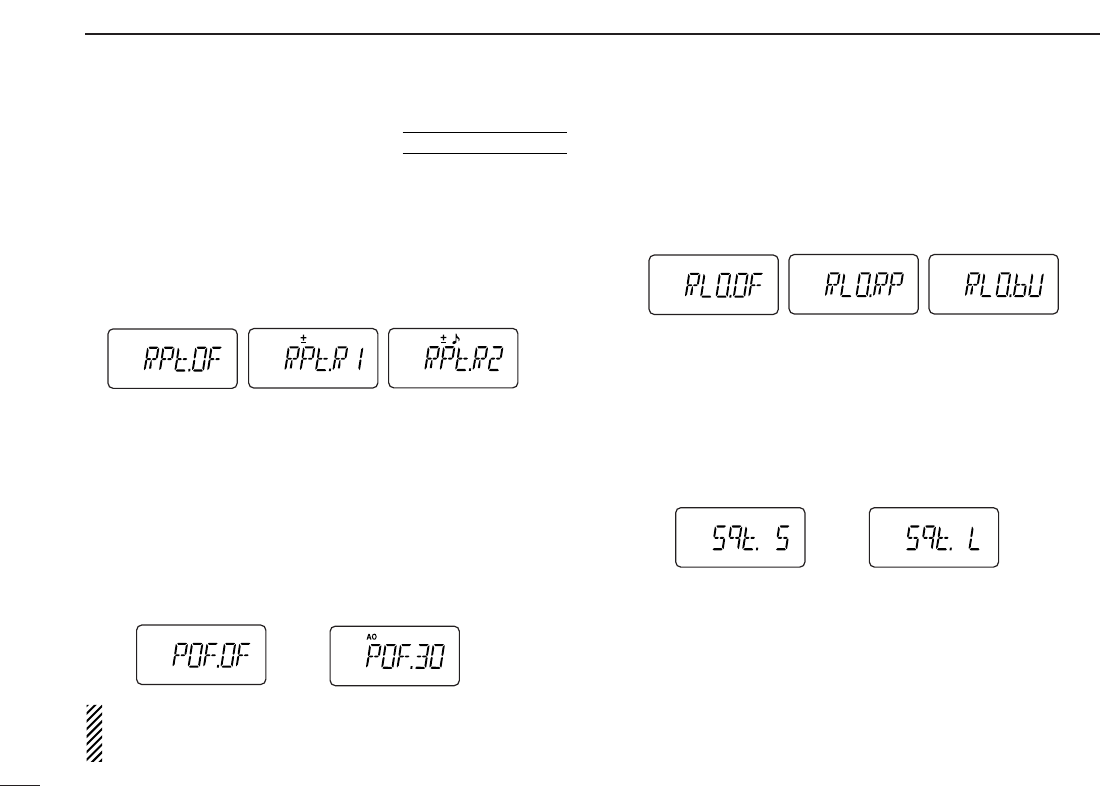

qWhile pushing [YY]and [ZZ], turn the power ON to enter
INI
-
TIAL SET MODE
.
wPush [YY]or [ZZ]several times until “RPt” appears.
eRotate [VOL] to select the desired condition.
•“OF”— the auto repeater function is turned OFF;
•“R1”— the auto repeater function activates for duplex only;
•“R2”— the auto repeater function activates for duplex and tone.
rPush [✱•
ENT
](or [D•
CLR
]) to exit
INITIAL SET MODE
.
• Frequency range and offset direction
■Repeater lockout
This function helps prevent interference to other stations by
inhibiting your transmission when a signal is received. The
transceiver has two inhibiting conditions, repeater and busy.
qWhile pushing [YY]and [ZZ], turn the power ON to enter
INI
-
TIAL SET MODE
.
wPush [YY]or [ZZ]several times until “RLO” appears.
eRotate [VOL] to turn the repeater lockout function to “RP,”
“bU” or OFF.
•“RP”: Transmit is inhibited when a signal with un-matched sub-
audible tone is received.
•“bU”: Transmit is inhibited when a signal is received.
rPush [✱•
ENT
](or [D•
CLR
]) to exit
INITIAL SET MODE
.
USING
INITIAL SET MODE
USING
INITIAL SET MODE
Frequency range Duplex direction
145.200–145.495 MHz “–” appears
146.610–146.995 MHz
147.000–147.395 MHz “+” appears
442.000–444.995 MHz “+” appears
447.000–449.995 MHz “–” appears
5
20
MEMORY/CALL OPERATION
6
■General description
The transceiver has 207 memory channels including 6 scan
edge memory channels (3 pairs), and 1 call channel. Each of
these channels can be individually programmed with operat-
ing frequency (pgs. 13, 14), duplex direction (p. 17) and offset
(p. 17), subaudible tone encoder or tone squelch and its tone
frequency (pgs. 18, 33) and skip information* (p. 30).
In addition, a total of 10 memory banks, A to J, are available
for usage by group, etc.
*except for scan edge memory channels.

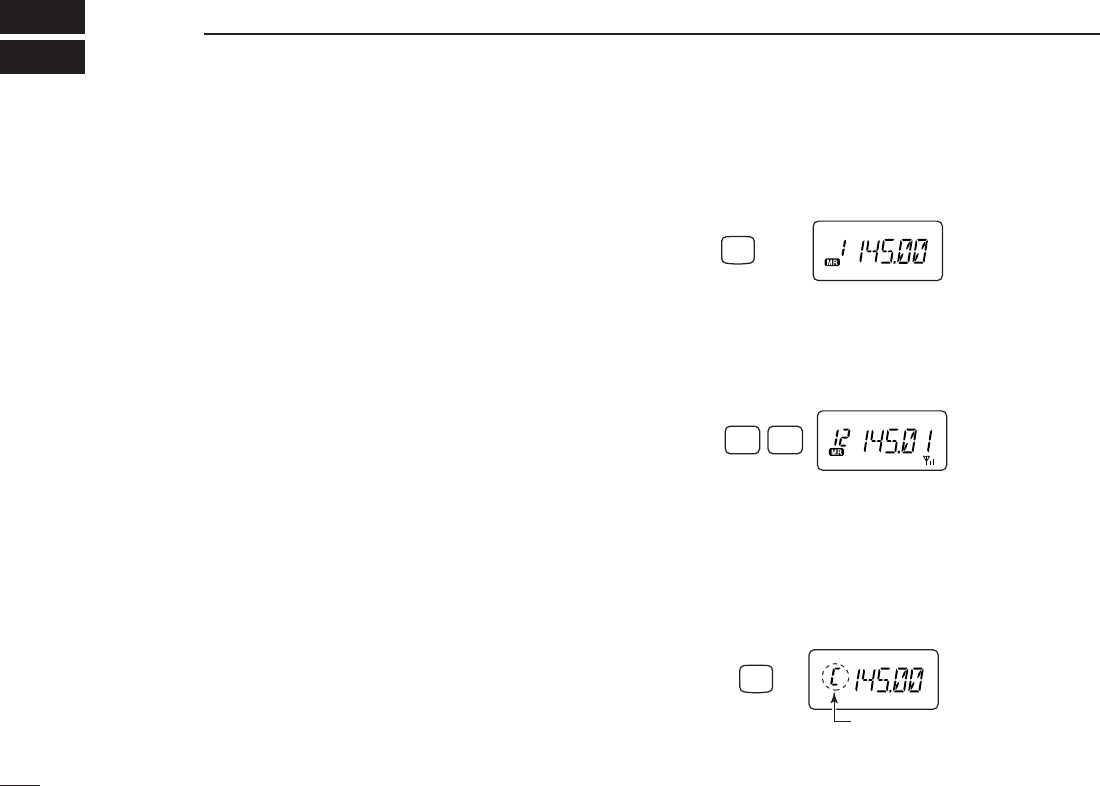

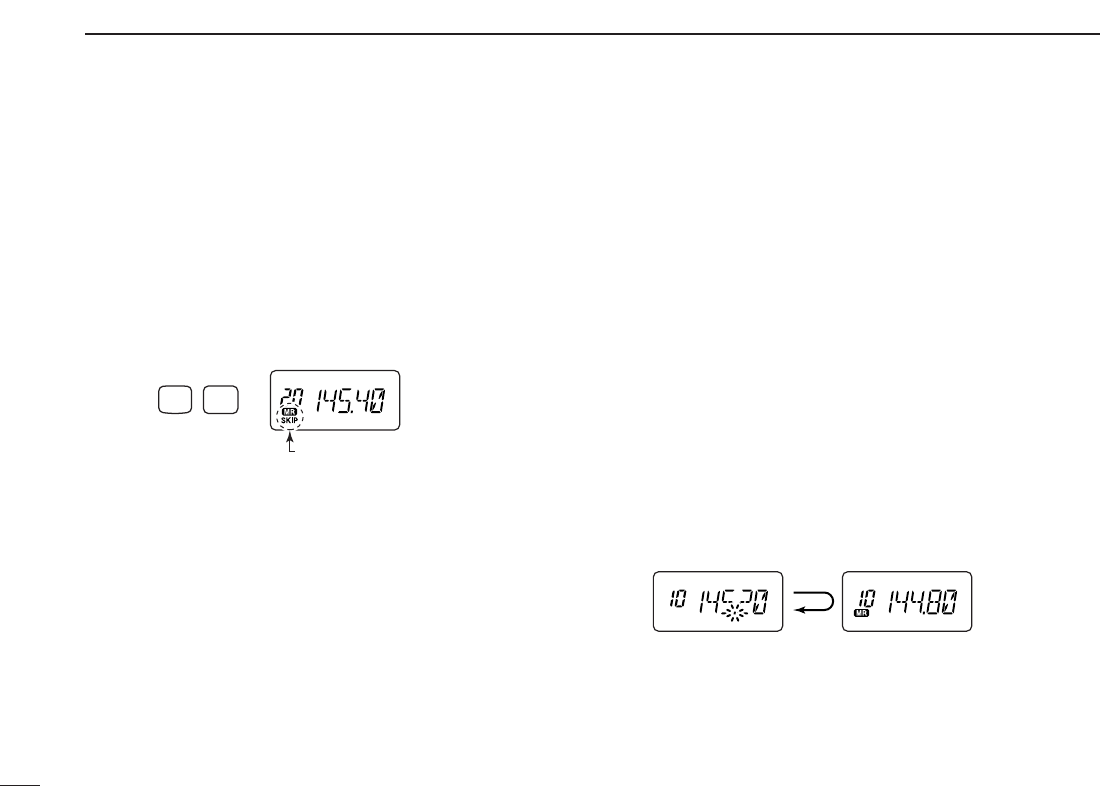

■Selecting a memory channel
qPush [C•
MR
]to select memory mode.
•“
X” appears.
wEnter 2 digits to select the desired memory channel (or
push the [YY]/[ZZ]keys).
•The memory channels 0–9 are proceeded by a “0.”
• When [VOL] is assigned as tuning dial, rotate [VOL] to select
the memory channel. (pgs. 14, 63)
■Selecting the call channel
➥Push [B•
CALL
]to select the call channel.
•“C” is displayed instead of the memory channel number.
•Push [D•
CLR
]or [C•
MR
]to select VFO or memory mode, respec-
tively.
Push
“C” appears
CALL
B
TONE
P.BEEP
12
Push
MR
C
Push
qPush [D•
CLR
]to select VFO mode, if necessary.
wSet the desired frequency.
eSet other information, such as tone, duplex, as desired.
rPush [A•
FUNC
], then [C•
MR
]momentarily.
•“
X” and memory channel number blink.
tPush [YY]or [ZZ]to select the desired memory channel.
• When programming the call channel, select “C.”
• When [VOL] is assigned as tuning dial, rotate [VOL] to select
the memory channel. (pgs. 14, 63)
yPush [A•
FUNC
], then push [C•
MR
]for 1 sec. (until 3 beeps
are emitted) to program the information into the selected
memory channel and return to VFO.
•Continue to hold [C•
MR
]down for 1 sec. after 3 beeps are emit-
ted, to increment the displayed memory channel number.
MONI
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BE EP
MR CLRFUNC
PWR
987
4
123
AB DC
560
MONI
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BEEP
MR CLRFUNC
PWR
987
4
123
AB DC
560
MR
FUNC
A
C
MONI
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BEEP
MR CLRFUNC
PWR
987
4
123
AB DC
560
MONI
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BE EP
MR CLRFUNC
PWR
987
4
123
AB DC
560
MR
FUNC
A
C
21
6
MEMORY/CALL OPERATION
6
■Programming the memory/call channels

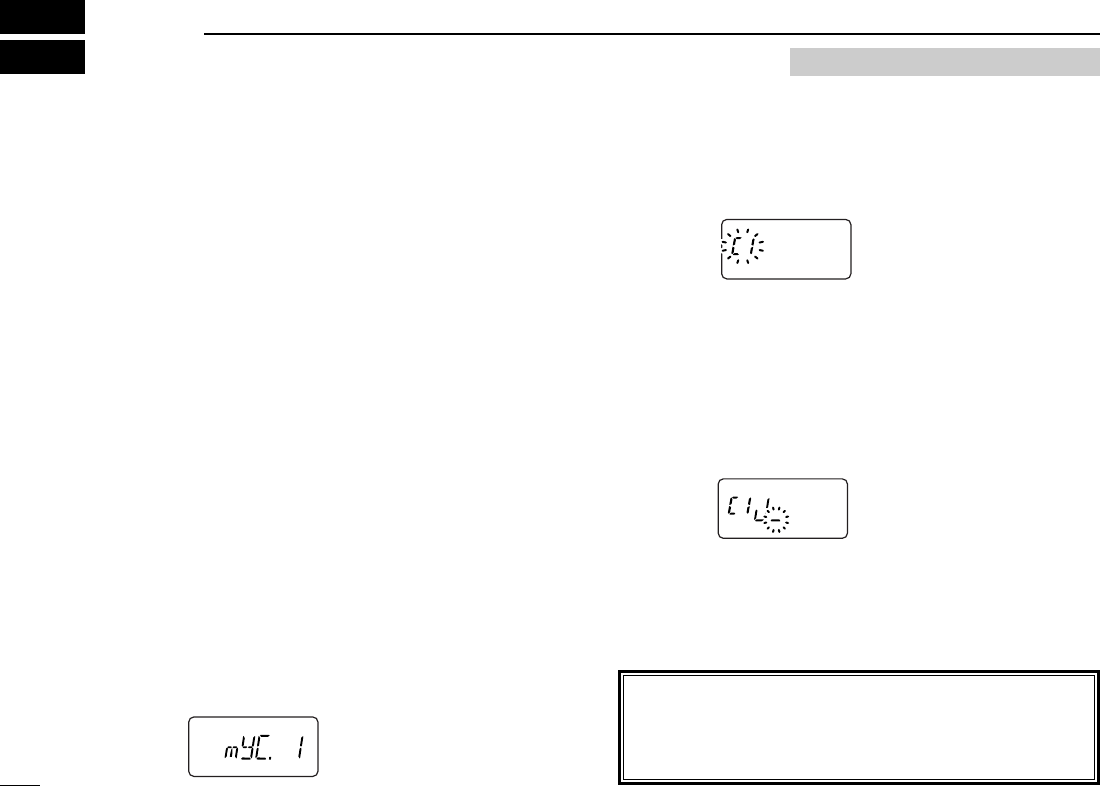

■Channel name programming
qSelect a “Channel Name Indication” type in
INITIAL SET
MODE
(p. 63).
wPush [C•
MR
]to select memory
mode, if necessary.
ePush [A•
FUNC
], then push [8•
SET
]
to enter into the channel name
programming mode.
• The character to be edited blinks.
rRotate [VOL] to select a charac-
ter.
tPush [YY]to move to the right, [ZZ]to move to the left.
• Up to 5 characters can be used for channel name.
• Usable characters are A–Z, 0–9, “space,” +, –, =, ✱, /, [, ] and :.
yPush [✱•
ENT
](or [D•
CLR
]) to fix and exit the channel
name programming mode.
■Memory transferring
This function transfers a memory channel’s contents to VFO
(or another memory/call channel). This is useful when search-
ing for signals around a memory channel frequency and for
recalling the offset frequency, subaudible tone frequency etc.
DMemory/call ➾VFO
qSelect the memory (call) channel
to be transferred:
➥Push [C•
MR
]or [B•
CALL
]to se-
lect memory (call) mode.
➥Push [YY]or [ZZ]to select the
memory channel.
• When [VOL] is assigned as tuning
dial, rotate [VOL] to select the
memory channel. (pgs. 14, 63)
wPush [A•
FUNC
], then push [C•
MR
]
for 1 sec. to transfer the selected
memory contents to the VFO.
•VFO mode is selected automatically.
22
6MEMORY/CALL OPERATION
FUNC
A
MR
C
CALL
B
FUNC
A
MR
C
SET
8
[VOL]
ENT
DMemory/call ➾call/memory
qSelect the memory (call) channel
to be transferred:
➥Push [C•
MR
]or [B•
CALL
]to se-
lect the memory (call) mode.
➥Push [YY]or [ZZ]to select the
memory channel.
• When [VOL] is assigned as tuning
dial, rotate [VOL] to select the
memory channel. (pgs. 14, 63)
wPush [A•
FUNC
], then push [C•
MR
]
momentarily.
•“--” and “X” blink.
ePush [YY]or [ZZ]to select the target memory.
• When [VOL] is assigned as tuning dial, rotate [VOL] to select
the target channel. (pgs. 14, 63)
rPush [A•
FUNC
], then push [C•
MR
]for 1 sec.
•Memory mode is selected and the contents are transferred to the
target memory.
DClearing a memory
qPush [A•
FUNC
], then push [C•
MR
]
to enter the memory transfer
mode.
•“
X” and a memory channel num-
ber blink.
wPush [YY]or [ZZ]to select the
memory channel to be cleared.
• When [VOL] is assigned as tuning
dial, rotate [VOL] to select the mem-
ory channel. (pgs. 14, 63)
•The call channel cannot be cleared.
ePerform the following operation within 1.5 sec, otherwise
the memory clearing is cancelled and the transceiver re-
turns to the memory mode.
- Push [A•
FUNC
], then push [C•
MR
]momentarily.
- Push [A•
FUNC
], then push [C•
MR
]for 1 sec.
•The contents of the selected memory are cleared.
rPush [D•
CLR
]to return to regular operation.
23
6
MEMORY/CALL OPERATION
FUNC
A
MR
C
CALL
B
FUNC
A
MR
C
6
24
6MEMORY/CALL OPERATION

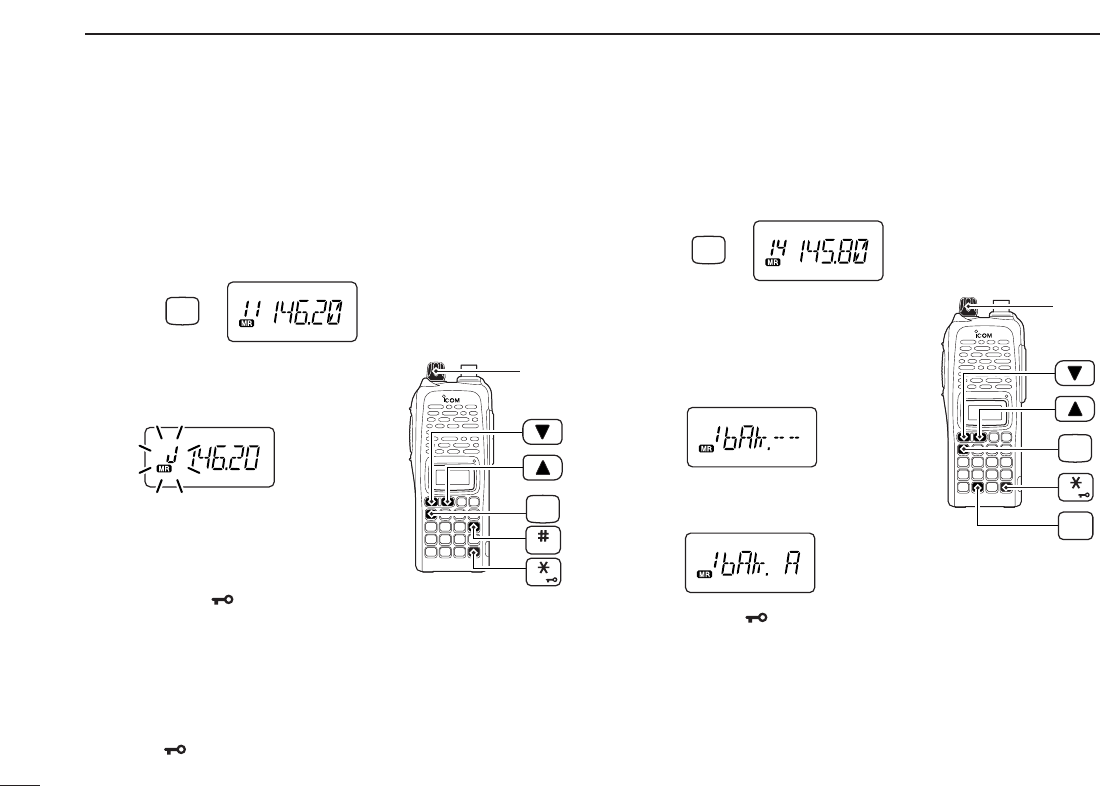

■Memory bank selection
The IC-V82/U82 has a total of 10 banks (A to J). Regular
memory channels, 0 to 199, are assigned into the desired
bank for easy memory management.
qPush [C•
MR
]to select memory mode.
wPush [A•
FUNC
]and [#•
BANK
]to se-
lect memory bank condition.
•Bank initial blinks.
eRotate [VOL] to select the desired
bank, A to J.
•Banks that have no programmed con-
tents are skipped.
rPush [✱•
ENT
](or [D•
CLR
]) to set
the bank.
•Initial stops blinking.
tPush [YY]or [ZZ]to select the contents in the bank.
•No channel numbers are displayed for memory bank operation.
yTo return to regular memory condition, push [A•
FUNC
]and
[#•
BANK
]to enter memory bank condition, then push
[✱•
ENT
](or [D•
CLR
]).

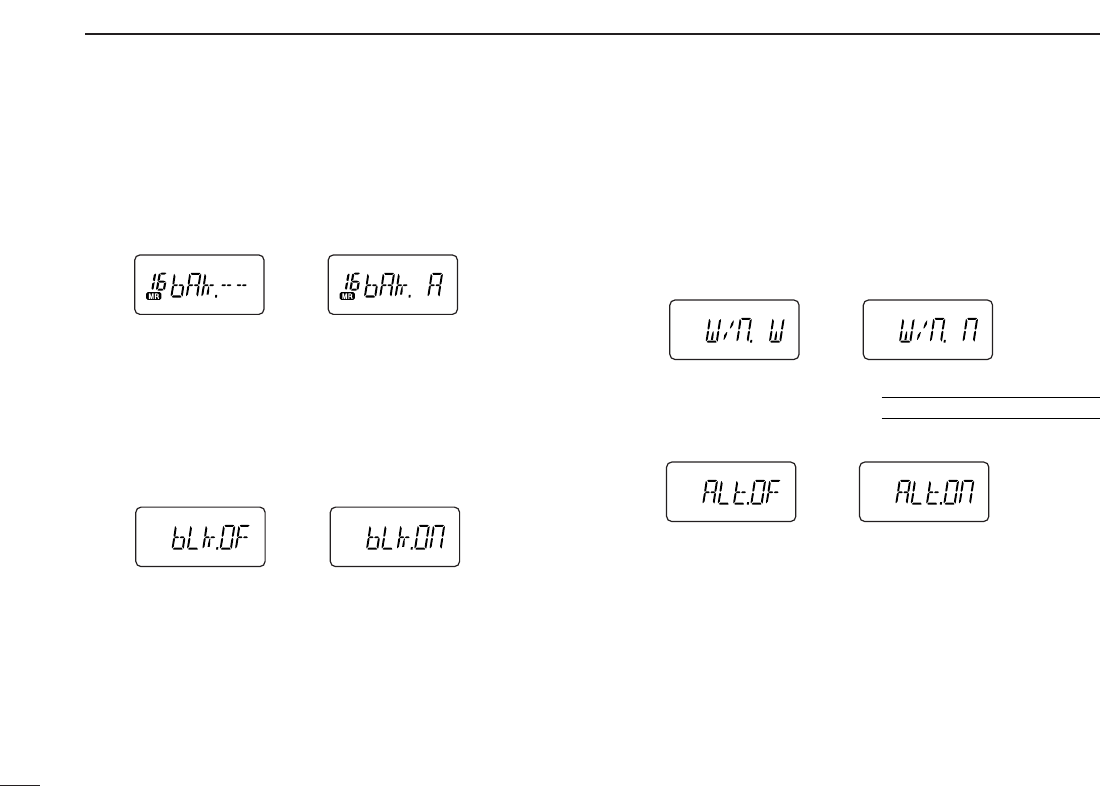

■Memory bank setting
qPush [C•
MR
]to select memory mode, then select the de-
sired memory channel via [YY]or [ZZ].
wPush [A•
FUNC
]and [8•
SET
]to enter
SET MODE
.
ePush [YY]or [ZZ]several times until
“bAk” appears.
•“– –” indication blinks as follows.
rRotate [VOL] to select the desired
bank to be set.
tPush [✱•
ENT
](or [D•
CLR
]) to set the channel into the
bank and return to regular memory condition.
yRepeat steps qto tto set another memory channel into
the same or another bank.
[VOL]
ENT
FUNC
A
SET
8
MR
C
Push
[VOL]
ENT
FUNC
A
BANK
MR
C
Push
25
6
MEMORY/CALL OPERATION
6
■Transferring bank contents
Contents of programmed memory banks can be cleared or
transferred to another bank.
INFORMATION: Even if the memory bank contents are
cleared, the memory channel contents still remain pro-
grammed.
q
Select the desired bank contents to be transferred or erased.
➥Push [C•
MR
]to select memory mode.
➥Push [A•
FUNC
]and [#•
BANK
], then
rotate [VOL] to select the desired
memory bank.
•Bank initial blinks.
➥Push [✱•
ENT
](or [D•
CLR
]) to
select the bank then push [YY]and
[ZZ]to select the desired contents.
•Bank initial stops blinking.
wPush [A•
FUNC
]and [8•
SET
]to enter
SET MODE
.
ePush [YY]or [ZZ]several times until
“bAk” appears.
•Bank initial appears.
rRotate [VOL] to select the desired
bank initial to transfer or erase.
•Select “– –” indication when erasing the
contents from the bank.
tPush [✱•
ENT
](or [D•
CLR
]) to transfer or erase, and re-
turn to regular memory condition.
yRepeat steps qto tfor transferring or erasing an an-
other banks contents.
[VOL]
ENT
FUNC
A
SET
8
[VOL]
ENT
FUNC
A
BANK
26
DTMF MEMORY
7
■Programming a DTMF code
The transceiver has 16 DTMF memory channels (d0 to dF)
for storage of often-used DTMF codes of up to 24 digits.
qPush [A•
FUNC
], then push [0•
OPT
]to enter
OPTION SET
MODE
.
•Rotate [VOL] to select “dtm.OF,” if necessary.
wPush [0•
OPT
]for 1 sec. to enter the DTMF memory.
•One of “d0” to “dF” appears.
e
Rotate [VOL] to select the desired channel.
rPush [0•
OPT
]for 1 sec. to enter the DTMF programming
mode.
•“_____” appears.
•Programmed memories can be cleared in this way.
tPush the digit keys, [A•
FUNC
], [B•
CALL
], [C•
MR
], [D•
CLR
],
[#•
BANK
]and [✱•
ENT
]to enter the desired DTMF code.
•Amaximum of 24 digits can be input.
•[✱•
ENT
]enters as “E”, [#•
BANK
]enters as “F.”
•If a digit is mistakenly input, push [MONI] or [PTT] momentarily
then repeat from step q.
yPush [MONI] or [PTT] to fix the digits and exit the DTMF
programming mode.
•Programmed DTMF codes sound when [MONI] is pushed.
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BEEP
MR CLRFUNC
987
4
123
AB DC
560
OPT
0
Push for 1 sec.
OPT
0
Push for 1 sec.
FUNC
A
OPT
0
Push
The DTMF memory consists of 5 pages that are 1st to 5th, 6th to
10th, 11th to 15th, 16th to 20th and 21st to 24th digits.
1st page indication
4th page indication 5th page indication
2nd page indication 3rd page indication
Appears
Appears Blinks
27
7
DTMF MEMORY
7
■Transmitting a DTMF code
DUsing a DTMF memory channel
qPush [A•
FUNC
], then push [0•
OPT
]to enter
OPTION SET
MODE
.
•Rotate [VOL] to select “dtm.OF,” if necessary.
wPush [0•
OPT
]for 1 sec. to enter the DTMF memory.
eRotate [VOL] to select the desired channel.
rPush [MONI] or [PTT] to exit the DTMF memory mode.
tWhile pushing [PTT], push [MONI] to transmit the selected
DTMF memory.
•After the DTMF code is transmitted, the transceiver returns to re-
ceive automatically.
DManual DTMF code transmission
While pushing [PTT], push digit keys, [A•
FUNC
], [B•
CALL
],
[C•
MR
], [D•
CLR
], [#•
BANK
]and [✱•
ENT
]to transmit a DTMF
code manually.
•[✱•
ENT
]transmits as “E”, [#•
BANK
]transmits as “F.”
■DTMF transmission speed
When slow DTMF transmission speeds are required with
DTMF memory transmission (as for some repeaters), the
transceiver’s rate of DTMF transmission can be adjusted.
qWhile pushing [YY]and [ZZ], turn the
power on to enter
INITIAL SET MODE
.
wPush [YY]or [ZZ]several times until
“dtd” appears.
eRotate [VOL] to select the desired
DTMF transmission speed.
•Four speeds are available: “1” (100
msec. intervals) is the fastest; “5” (500
msec. intervals) is the slowest.
rPush [✱•
ENT
]to exit
INITIAL SET MODE
.
[VOL]
ENT
PWR
USING
INITIAL SET MODE
OPT
0
Push for 1 sec.
FUNC
A
OPT
0
Push
28
SCAN OPERATION
8
■Programmed scan
Programmed scan repeatedly scans between two user pro-
grammed frequencies (memory channels “1A–3A” and
“1b–3b”) or scans between upper and lower band edges. This
scan is useful for checking for signals within a specific fre-
quency range such as repeater output frequencies, etc.
Scans between lower (start) and high (stop) frequency.
qPush [D•
CLR
]to select VFO mode, if necessary.
wPush [A•
FUNC
]and [5•
SCAN
]to start the scan, then a se-
lected scan edge appears as “P1,” “P2,” “P3” or “AL.”
•To change the scan edge, push [A•
FUNC
]and [8•
SET
]several
times until the desired scan edge appears.
• “AL” for full scan, “P1”, “P2” and “P3” for programmed scan be-
tween the programmed scan edge channels as “1A”–“1b,”
“2A”–“2b” and “3A”–“3b.”
•To change the scan direction, push [YY]or [ZZ].
• When [VOL] is assigned as tuning dial, rotate [VOL] to change
the scan direction. (pgs. 14, 63)
ePush [D•
CLR
]to stop the scan.
Push
SCAN
FUNC
A
5
PROGRAMMED SCAN
MEMORY (SKIP) SCAN
PRIORITY WATCH
Band
edge Band
edge
Start
1A
2A
3A
End
1b
2b
3b
Scan edges
Scan
Jump
SKIP SKIP
SKIP
Mch 1
Mch 0
Mch 2 Mch 3
Mch 3
Mch 4 Mch 5
Mch 10
Mch 199
Mch 9 Mch 8 Mch 7
Mch 6
Mch 1
Mch 2
Mch 3
Mch 4
Mch 5
Mch 199
Mch 6
VFO frequency
145.20 MHz
VFO frequency
145.20 MHz
5 sec. 50 msec.
5 sec. 50 msec.
Priority channel
Priority channel
Memory
scan
Priority memory channel watch
Priority memory channel scan
Programmed scan P1 scans between 1A and 1b, P2 scans be-
tween 2A and 2b, and P3 scans between 3A and 3b frequencies.

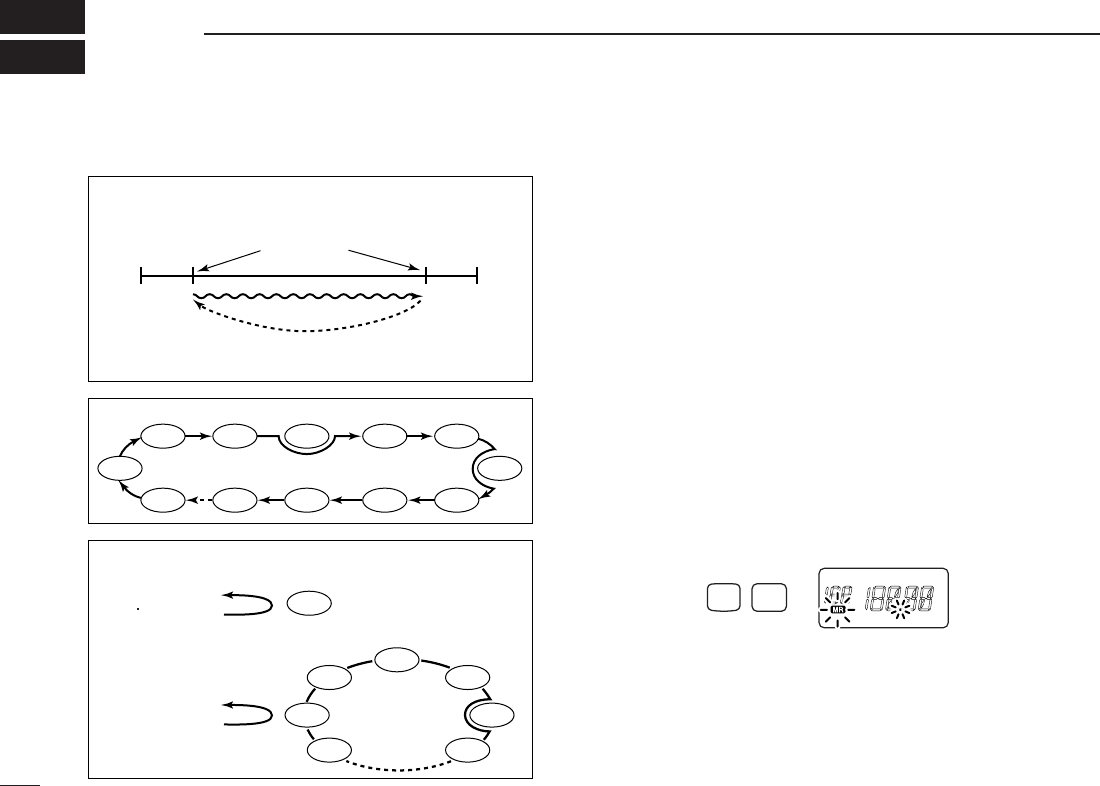

■Scan types
29
8
SCAN OPERATION
8
NOTE: Scan edges, 1A–3A/1b–3b, must be programmed
in advance. Program them in the same manner as regular
memory channels. (p. 21)
If the same frequencies are programmed into the scan
edges, programmed scan will not proceed.
■Memory scan
Memory scan repeatedly scans all programmed memory
channels, except those set as skip channels.
qPush [C•
MR
]to select memory mode, if necessary.
•“
X” appears.
wPush [A•
FUNC
]and [5•
SCAN
]to start the scan.
•To change the scan direction, push [YY]or [ZZ].
• When [VOL] is assigned as tuning dial, rotate [VOL] to change
the scan direction. (pgs. 14, 63)
ePush [D•
CLR
]to stop the scan.
• Bank scan —Select the desired bank at above step q.
qPush [A•
FUNC
]and [#•
BANK
]to select memory bank con-
dition.
wRotate [VOL] to select the desired bank, A to J.
ePush [✱•
ENT
](or [D•
CLR
]) to set the bank.
Push
SCAN
FUNC
A
5
MONI
CALL
DUP SCAN
PRIO
ENT
SET
H/M/L
OPTSKIP
BANK
TONE
T.SCANP.BEEP
MR CLRFUNC
PWR
987
4
123
AB DC
560
30
8SCAN OPERATION
■Skip channels
In order to speed up the scan interval, you can set memory
channels you don’t wish to scan as skip channels.
qPush [C•
MR
]to select memory mode, if necessary.
•“
X” appears.
wSelect a memory channel to set as a skip channel.
ePush [A•
FUNC
]and [6•
SKIP
]to toggle the skip setting ON
and OFF.
•“SKIP” appears when the channel is set as a skip channel.
■Priority watch
Priority watch checks for signals on “priority channels” while
operating on a VFO frequency.
DMemory or call channel watch
While operating on a VFO frequency, memory or call channel
watch monitors for signals in the selected memory or call
channel every 5 sec.
qSelect the desired memory channel or the call channel.
wPush [D•
CLR
]to select VFO mode.
ePush [A•
FUNC
], then push [7•
PRIO
]to start watching.
•VFO is displayed, then the decimal point “.”, on the frequency
readout blinks.
•The priority channel is monitored every 5 sec.
• When the signal is detected on the priority channel, the watching
is paused according to the setting of the scan resume condition.
rPush [D•
CLR
]to stop watching.
5 sec. 50 msec.
VFO frequency Memory channel
Push
“SKIP” appears
SKIP
FUNC
A
6
31
8
SCAN OPERATION
8
DMemory scan watch
While operating on a VFO frequency or the call channel, mem-
ory scan watch monitors for signals in each memory channel
in sequence, every 5 sec.
qPush [C•
MR
]to select memory mode, if necessary.
•“X” appears.
wPush [A•
FUNC
], then push [5•
SCAN
]to start the memory
scan.
ePush [A•
FUNC
], then push [7•
PRIO
]to start the watching.
•VFO is displayed, then the decimal point “.”, on the frequency
readout blinks.
• When the signal is detected on the priority channel, the watching
is paused according to the setting of the scan resume condition.
rPush [D•
CLR
]to stop the watching.

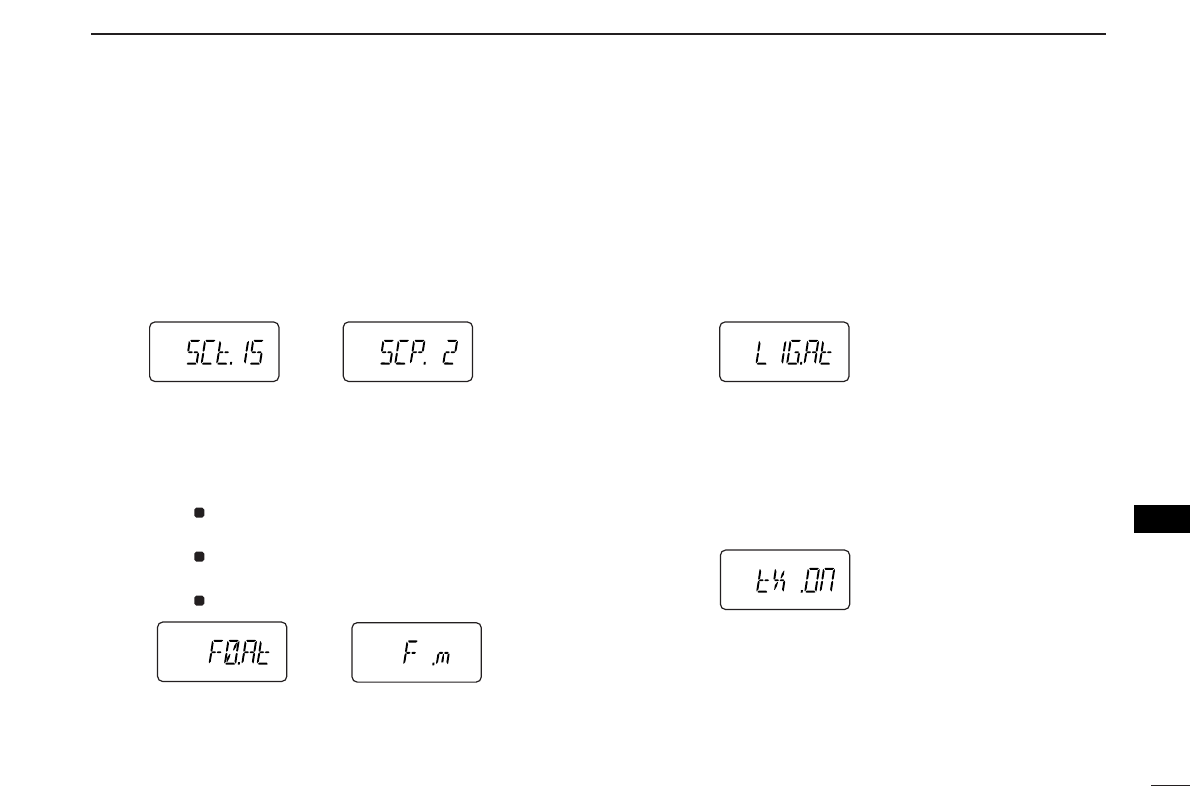

■Scan resume condition
When a signal is received during scanning, the scan resume
condition determines what action the transceiver takes. The
transceiver has 2 scan resume conditions available as
illustrated below. Use
SET MODE
to select the one which best
suits your needs.
qPush [A•
FUNC
], then push [8•
SET
]to enter
SET MODE
.
wPush [YY]or [ZZ]several times until “SCP” or “SCt” ap-
pears.
eRotate [VOL] to select the desired scan resume condition.
•Pause scan:
When receiving a signal, scan pauses on
the signal until it disappears. Resumes
2sec. after the signal disappears.
•Timer scan:
When receiving a signal, scan pauses on
the signal for 5 sec., 10 sec. or 15 sec.,
then resumes.
rPush [✱•
ENT
](or [D•
CLR
])to set and exit
SET MODE
.
Timer scan
Pause scan
USING
SET MODE
SKIP
Mch 1
Mch 2
Mch 3
Mch 4
Mch 5
Mch 199
Mch 6
Priority channel
Memory
scan
5 sec.
50 msec.
VFO frequency

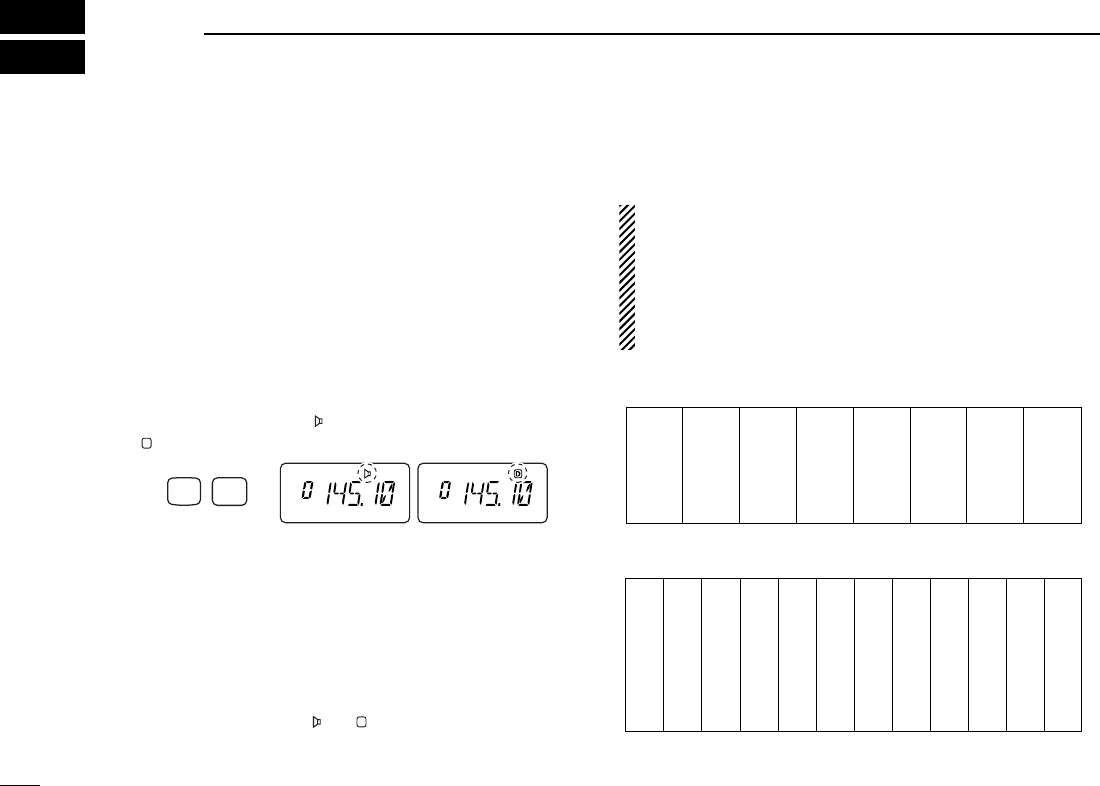

■Tone squelch
DOperation
The tone squelch opens only when receiving a signal con-
taining a matching subaudible tone. You can silently wait for
calls from group members using the same tone.
qSet the operating frequency.
•
Set the AF and squelch to the desired level as the normal opera-
tion.
wSet the desired subaudible tone in
SET MODE
.
• See page 32 for programming.
ePush [A•
FUNC
], then push [1•
TONE
].
•Repeat several times until “ ” appears when selecting CTCSS,
or “ ” appears when selecting DTCS.
rWhen the received signal includes a matching tone,
squelch opens and the signal can be heard.
• When the received signal’s tone does not match, tone squelch
does not open, however, the S-indicator shows signal strength.
• To open the squelch manually, push and hold [MONI].
tOperate the transceiver in the normal way.
yTo cancel the tone squelch, push [A•
FUNC
]and [1•
TONE
].
•Repeat several times until “ ” or “ ” disappears.
NOTE: The transceiver has 50 tone frequencies and con-
sequently their spacing is narrow compared to units having
38 tones. Therefore, some tone frequencies may receive
interference from adjacent tone frequencies.
To prevent interference from adjacent tone frequencies,
using the frequencies as in the following table, is recom-
mended.
• Recommended CTCS frequencies (Unit: Hz)
• Recommended DTCS codes
023
025
026
031
032
043
047
051
054
065
071
072
073
074
114
115
116
125
131
132
134
143
152
155
156
162
165
172
174
205
223
226
243
244
245
251
261
263
265
271
306
311
315
331
343
346
351
364
365
371
411
412
413
423
431
432
445
464
465
466
503
506
516
532
546
565
606
612
624
627
631
632
654
662
664
703
712
723
731
732
734
743
754
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
162.2
167.9
173.8
179.9
186.2
192.8
203.5
210.7
218.1
225.7
233.6
241.8
250.3
D
Push FUNC
A
TONE
1
CTCSS DTCS
D
32
SUBAUDIBLE TONES
9
33
9
SUBAUDIBLE TONES
9
Separate tone frequencies can be set for tone squelch oper-
ation rather than repeater operation (the same range of tones
is available— see right below). Like the repeater tones, these
are set in
SET MODE
.
qSelect VFO or memory channel.
wPush [A•
FUNC
], then push [8•
SET
]to enter
SET MODE
.

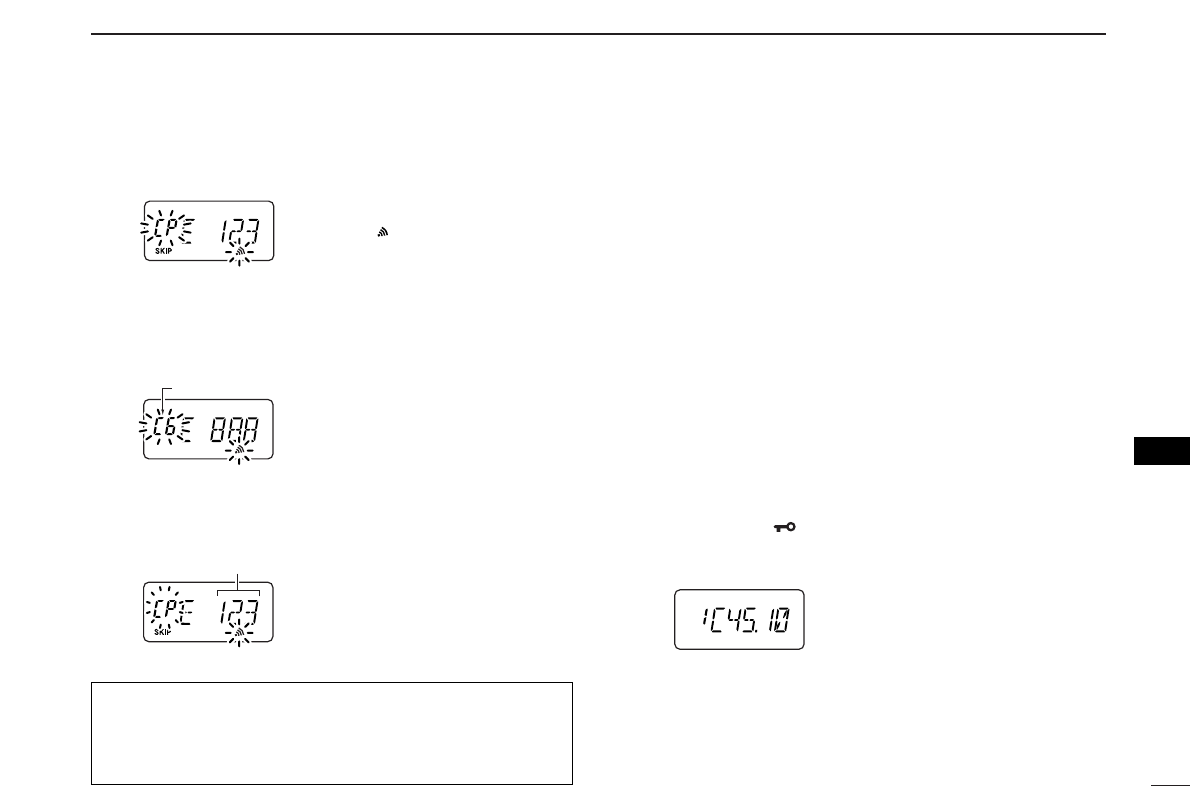

ePush [YY]or [ZZ]several times until “Ct” appears when se-
lecting CTCSS, or “dt” appears when selecting DTCS.
•“ ” blinks when selecting CTCSS, or “ ” blinks when selecting
DTCS.
rRotate [VOL] to select the desired subaudible tone.
tPush [✱•
ENT
](or [D•
CLR
]) to program the selected tone
and exit
SET MODE
.
When
SET MODE
is selected from memory mode.
yPush [A•
FUNC
], then push [C•
MR
]for 1 sec. to transfer the
contents to VFO.
•3 beeps are emitted.
•VFO mode is selected automatically.
uPush [A•
FUNC
], then push [C•
MR
]for 1 sec.
•3 beeps are emitted.
Steps yand uare necessary when overwriting the memory
contents permanently. The set tone frequency is used for
temporary operation only, therefore, these steps are not nec-
essary.
•Available CTCSS tone frequency list (unit: Hz)
67.0
69.3
71.9
74.4
77.0
85.4
88.5
91.5
94.8
97.4
100.0
103.5
79.7
82.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
D
DSetting subaudible tones for tone squelch operation
34
9SUBAUDIBLE TONES
■Pocket beep operation
This function uses subaudible tones for calling and can be
used as a “common pager” to inform you that someone has
called when you were away from the transceiver.
DWaiting for a call from a specific station
qSet the operating frequency.
wSet the desired CTCSS tone frequency or DTCS code in
SET MODE
.
• See p. 33 for programming details.
ePush [A•
FUNC
], then push [1•
TONE
].
•Repeat several times until “ ” appears when CTCSS, or “ ” ap-
pears when DTCS is selected.
rPush [A•
FUNC
], then push [2•
P
.
BEEP
]to activate the pocket
beep function.
•“” appears.
tWhen a signal with the matched tone is received, the
transceiver emits beep tones and blinks “ .”
• Beep tones sound for 30 sec. and “ ” blinks. To stop the beeps
manually, push any key. “ ” continues blinking until step yis
operated.
yPush [PTT] to answer.
• “ ” disappears and cancels the pocket beep function automati-
cally.
CTCSS DTCS
Push FUNC
A
P.BEEP
2
CTCSS DTCS
Push FUNC
A
TONE
1
CTCSS DTCS
D
35
9
SUBAUDIBLE TONES
9

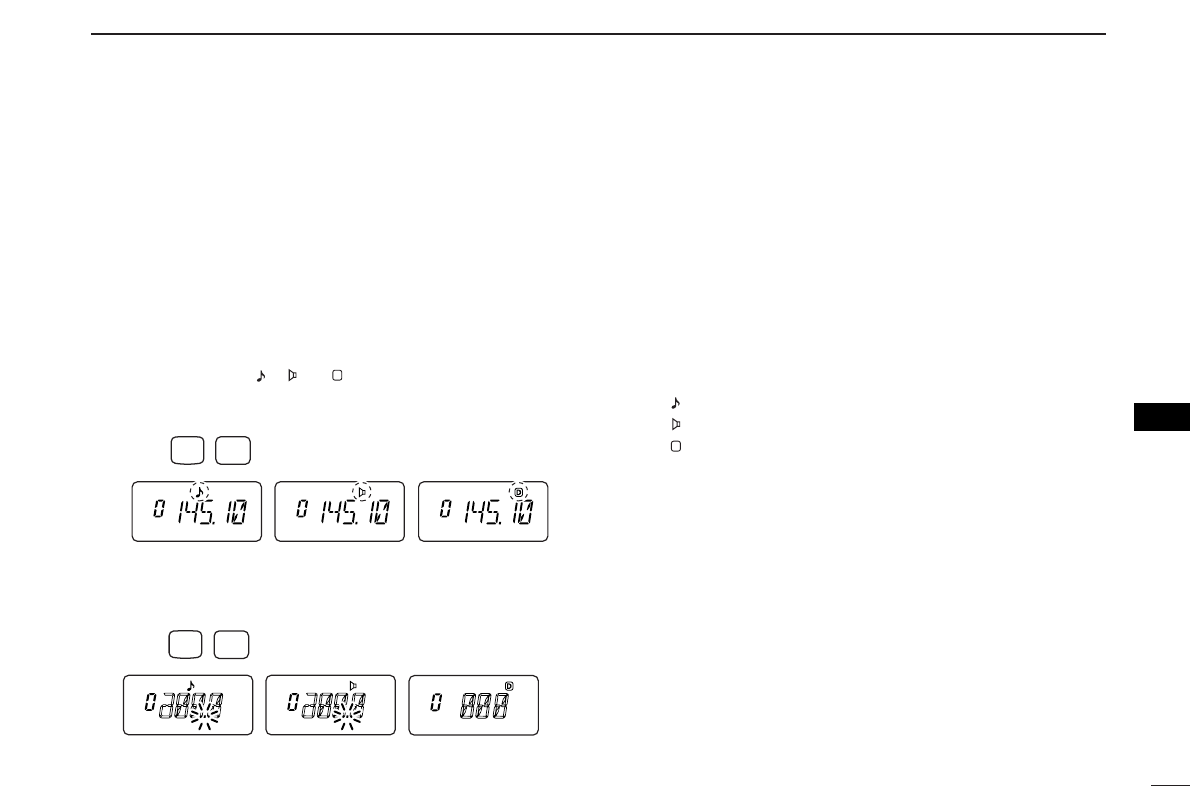

■Tone scan
By monitoring a signal that is being operated with a repeater,
pocket beep or tone squelch function, you can determine the
tone frequency necessary to access a repeater or open the
squelch.
qSet the frequency to be checked for a tone frequency or
code.
wPush [A•
FUNC
], then push [1•
TONE
].
•Repeat several times to select the tone condition or type to be
scanned. (One of “ ,” “ ” or “ ” appears)
•The tone scan can be operated even if the tone condition or type
is not selected.
ePush [A•
FUNC
], then push [3•
T
.
SCAN
]to start the tone
scan.
• To change the scanning direction, push [YY]or [ZZ].
rWhen the CTCSS tone frequency or DTCS code is
matched, the squelch opens and the tone frequency or
code is temporarily programmed into the selected mode
such as memory or call channel.
•The tone scan pauses when a CTCSS tone frequency or 3-digit
DTCS code is detected.
•The decoded CTCSS tone frequency or 3-digit DTCS code is
used for the tone encoder or tone encoder/decoder depending
on the selected tone condition or type in step w.
-No indication : Cannot be used for operation.
-“ ” : CTCSS tone encoder
-“ ” : CTCSS tone encoder/decoder
-“ ” : DTCS tone encoder/decoder
tPush [D•
CLR
]to stop the scan.
D
Push FUNC
A
T.SCAN
3
Push FUNC
A
TONE
1
D
36
PAGER/CODE SQUELCH
10
■Pager function
This function uses DTMF codes for paging and can be used
as a “message pager” to confirm you of a caller’s identification
even when you leave the transceiver temporarily unattended.
■
Code programming
DDBefore programming
The pager and code squelch functions require ID codes and a
group code. These codes are 3-digit DTMF codes and must
be written into the code channels before operation.
qDecide the ID code of each transceiver and a group code
for your group.
wDecide whether you want to return to normal operation or
code squelch operation after a connection is made.
eProgram the ID code, group code and transmit codes
(other station’s codes) as below.
DDCode channel assignment
*
Channel CP automatically memorizes an ID code when receiving a
pager call. The contents in channel CP cannot be changed manually.
Pager selective code (push [PTT])
Beep Beep
Beep
Answer back (manual)
Beep Beep
Beep
Set both transceivers to either
code squelch or non-coded operation
Communication
ID OR CODE CHANNEL “RECEIVE ACCEPT” OR
GROUP CODE NUMBER “RECEIVE INHIBIT”
Your ID code 0 “Receive accept” only
Other parties’ 1–6 “Receive inhibit” should be
ID code
programmed in each channel.
Group code One of 1–6 “Receive accept” must be
programmed.
Memory space* P “Receive inhibit” only.
Required Optional UT-108
37
10
PAGER/CODE SQUELCH
10
DDCode programming
An ID code MUST be programmed into code channel C0. Up
to 6 transmit codes are programmable into code channels, C1
to C6, if required.
qPush [A•
FUNC
], then push [0•
OPT
]to enter
OPTION SET
MODE
.
•Rotate [VOL] to select “dtm.PG” or “dtm.CS,” if “dtm.OF” ap-
pears.
wPush [0•
OPT
]for 1 sec. to enter the code selection mode.
•One of either “CP” or “C0” to “C6” blinks.
•“C0” is the ID code and “C1” to “C6” are transmit codes.
eRotate [VOL] (or push [YY]/[ZZ]) to select code channel C0.
•Adifferent ID code must be programmed into each transceiver.
rEnter the desired 3-digit ID code via the keypad.
tRotate [VOL] (or push [YY]/[ZZ]) to select a transmit code
channel from C1 to C6.
yEnter the desired 3-digit transmit code via the keypad.
uPush [A•
FUNC
], then push [6•
SKIP
]to set the channel for
“receive inhibit” or “receive accept.”
•When “receive inhibit” is set, “SKIP” appears as below.
•Code channel C0 cannot be set as “receive inhibit.”
•See the table for “receive accept” and “receive inhibit” details
(p. 36).
iRepeat steps tand yto set additional transmit code
channels, if desired.
oPush [✱•
ENT
]or [PTT] to exit
CODE SET MODE
.
•Receive accept/receive inhibit
➥“Receive accept” (“SKIP” indicator does not appear) ac-
cepts pager calls when the transceiver receives a signal
with a code the same as that in the code channel.
➥“Receive inhibit” (“SKIP” indicator appears) rejects calls
even when the transceiver receives a code the same as
that in the code channel. Transmit codes should therefore
be programmed for “receive inhibit,” otherwise the trans-
ceiver will not reject unnecessary calls.
or
38
10 PAGER/CODE SQUELCH
■Pager operation
DCalling a specific station
qProgram the desired code channel in advance (p. 37).
wSet the operating frequency.
•
Set the AF and squelch to the desired level as in normal opera-
tion.
ePush [A•
FUNC
], then push [0•
OPT
].

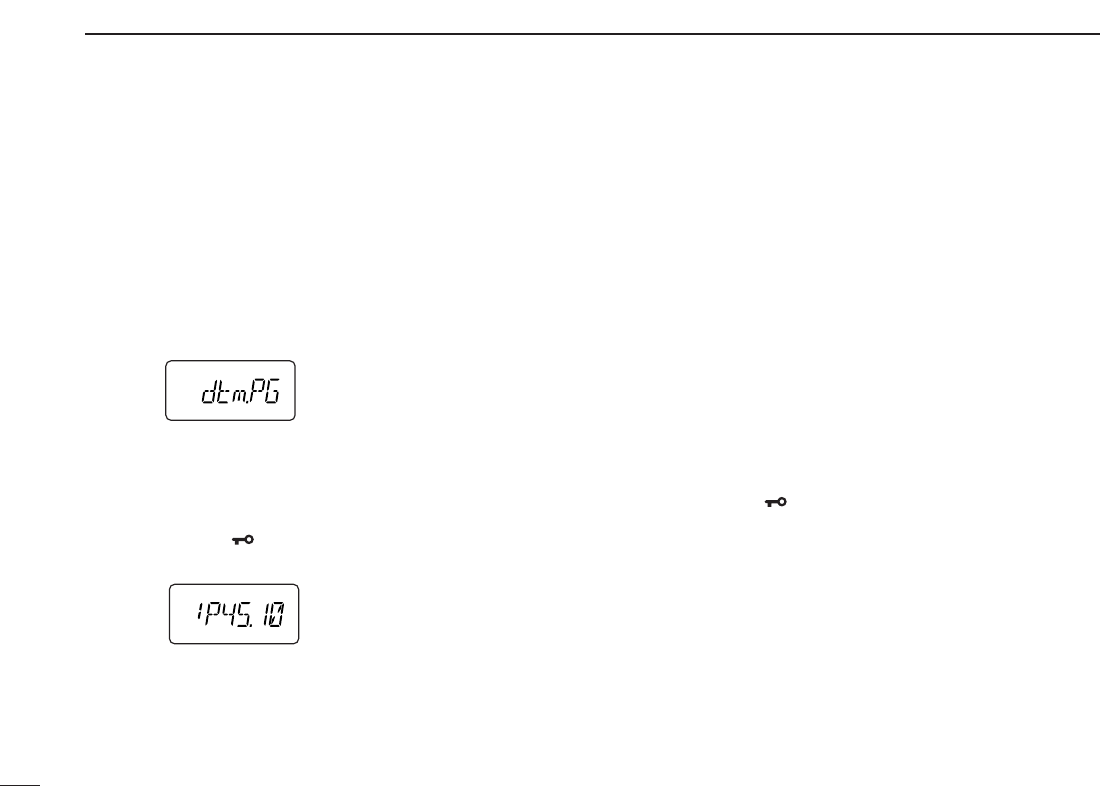

•Rotate [VOL] to select “dtm.PG,” if “dtm.CS” or “dtm.OF” ap-
pears.
rSelect the desired transmit code channel:
➥Push [0•
OPT
]for 1 sec. to enter the code selection con-
dition.
➥Rotate [VOL] to select the desired code channel.
➥Push [✱•
ENT
]to return to previous condition.
•100 MHz digit shows “P.”
tPush [PTT] to transmit the pager code.
yWait for an answer back.
•When the transceiver receives an answer back code, the func-
tion display shows the other member’s ID or group code.
uAfter confirming a connection, push [A•
FUNC
] and [0•
OPT
]
to enter
OPTION SET MODE
, then rotate [VOL] to select the
code squelch operation, or repeat the previous key
operation again to select non-selective calling system.
•DO NOT push any digit keys while code channels C0 to C6 are
displayed, or code channel contents will be changed.
iCommunicate with the other party as normal: push [PTT]
to transmit; release to receive.
DWaiting for a call from a specific station
qSet the operating frequency.
wPush [A•
FUNC
], then push [0•
OPT
].
➥Rotate [VOL] to select “dtm.PG,” if “dtm.CS” or
“dtm.OF” appears.
➥Push [✱•
ENT
]to return to previous condition.
•100 MHz digit shows “P.”
eWait for a call.
•When receiving a call, the caller’s ID or group code appears as
shown at next page.
•DO NOT push any digit keys while code channels C0 to C6 are
displayed, or code channel contents will be changed.
rPush [PTT] to send an answer back call and display the
operating frequency.
tAfter confirming a connection, push [A•
FUNC
] and [0•
OPT
]
to enter
OPTION SET MODE
, then rotate [VOL] to select the
code squelch operation, or repeat the previous key
operation again to select non-selective calling system.
39
10
PAGER/CODE SQUELCH
10
•PERSONAL CALLS
This display appears when you are called with your ID code
and the calling station’s ID code is 123.
•GROUP CALLS
This display appears when you are called with the group
code, 888, and 888 has been programmed into code channel
C6.
•ERROR INFORMATION
When the transceiver receives an incomplete signal, “E” and
previously received code appear.
■Code squelch
Code squelch provides communications with quiet standby
since you will only receive calls from stations which know
your ID or group code. Each push of [PTT] sends a 3-digit
code in order to open the receiving station’s code squelch
prior to voice transmission.
qSet the operating frequency.
• Set the AF and squelch to the desired level as in normal opera-
tion.
wPush [A•
FUNC
], then push [0•
OPT
].
• Rotate [VOL] to select “dtm.CS,” if “dtm.PG” or “dtm.OF” ap-
pears.
eSelect the desired transmit code channel:
➥Push [0•
OPT
]for 1 sec. to enter code selection condi-
tion.
➥Rotate [VOL] to select the desired code channel.
➥Push [✱•
ENT
]to exit
CODE SET MODE
and return to
previous condition.
•100 MHz digit shows “C.”
rOperate the transceiver in the normal way (push [PTT] to
transmit; release [PTT] to receive).
tTo cancel the code squelch, push [A•
FUNC
]and [0•
OPT
],
then rotate [VOL] to select “dtm.OF.”
•100 MHz digit shows “1” when the function is cancelled.
Previously received code.
Code channel
“CP” and “ ” blink.
Pager/code squelch operation during channel indication
To use these functions in channel indication, the pager/code
squelch setting must be programmed with other memory con-
tents before selecting channel number indication.
■Digital mode operation
The IC-V82/U82 with optional digital unit UT-118 can be op-
erated for digital voice mode and low-speed data operation
for both transmit and receive. Also available for connecting
GPS receiver (compatible with an RS-232C output/NMEA for-
mat/4800 bps) and transmit/receive position data.
■Call sign programming
Four kind of call sign memories are available for your own call
sign “myC,” other station call sign “yUC” and nearest repeater
call sign “R1C” and another zone’s repeater call sign “R2C.”
Each call sign memory can be stored up to 6 call signs, and
each call sign programmed up to 8 characters.
DDYour call sign programming
Your call sign must be programmed for both Digital voice and
low-speed data communications (including GPS transmis-
sion).
qPush [A•
FUNC
]and [0•
OPT
]to enter
OPTION SET MODE
, then
push [YY]or [ZZ]several times to select the call sign select
mode.
•“myC” appears.
wPush [0•
OPT
]for 1 sec. then rotate [VOL] to select the de-
sired call sign channel.
ePush [YY](or [ZZ]) to set into call sign programming condition.
•The 1st digit blinks and channel indication stops blinking.
rRotate [VOL] to set the desired character or code.
•Push [ZZ]or [YY]to move the cursor to left or right, respectively.
tPush [YY](or [ZZ]) to select 2nd digit, then rotate [VOL] to
set the desired character or code.
•2nd digit blinks (1st digit stops blinking).
•Repeat this step for programming your call sign.
yPush [0•
OPT
]to fix the call sign.
uRotate [VOL] to select an another channel from “C1” to
“C6.”
iRepeat steps wto uto program your call sign channels.
40
DIGITAL MODE OPERATION
11 Required Optional UT-118
NOTE: All digital (DV) mode operation/settings are re-
quired an optional digital unit UT-118. The transceiver with-
out UT-118 does not indicate any items for the digital (DV)
mode that described in this section.
41
11
DIGITAL MODE OPERATION
11
DDYour call sign note programming
Your call sign can be added some information such as oper-
ating radio type, place or area. Call sign note can be stored
up to 6 type, and each call sign note programmed up to 4
characters.
qPush [A•
FUNC
]and [0•
OPT
]to enter
OPTION SET MODE
, then
push [YY]or [ZZ]several times to select the call sign select
mode.
•“myS” appears.
wPush [0•
OPT
]for 1 sec. then rotate [VOL] to select the de-
sired call sign note channel.
ePush [YY](or [ZZ]) to set into call sign note programming
condition.
•The 1st digit blinks and channel indication stops blinking.
rRotate [VOL] to set the desired character or code.
•Push [ZZ]or [YY]to move the cursor to left or right, respectively.
tPush [YY](or [ZZ]) to select 2nd digit, then rotate [VOL] to
set the desired character or code.
•2nd digit blinks (1st digit stops blinking).
•Repeat this step for programming your call sign note.
yPush [0•
OPT
]to fix the call sign.
uRotate [VOL] to select an another channel from “C1” to
“C6.”
iRepeat steps wto uto program your call sign channels.
42
11 DIGITAL MODE OPERATION
DDStation call sign programming
Station call sign must be programmed for the specified sta-
tion call as well as repeater operation in both Digital voice and
low-speed data communications.
qPush [A•
FUNC
]and [0•
OPT
]to enter
OPTION SET MODE
, then
push [YY]or [ZZ]several times to select the call sign select
mode.
•“yUC” appears for station call sign.
wPush [0•
OPT
]for 1 sec then rotate [VOL] to select the de-
sired call sign channel.
ePush [YY](or [ZZ]) to set into call sign programming condi-
tion.
•The 1st digit blinks and channel indication stops blinking.
rRotate [VOL] to set the desired character or code.
•Push [ZZ]or [YY]to move the cursor to left or right, respectively.
tPush [YY](or [ZZ]) to select 2nd digit, then rotate [VOL] to
set the desired character or code.
•2nd digit blinks (1st digit stops blinking).
•Repeat this step for programming station call sign.
yPush [0•
OPT
]to fix the call sign.
uRotate [VOL] to select an another channel from “C1” to
“C6.”
iRepeat steps wto uto program another station call sign
channels.
✔
For your information:
Station and/or repeater call sign can be programmed from
Received call record when a call is received.
See page 45 for details.
43
11
DIGITAL MODE OPERATION
11

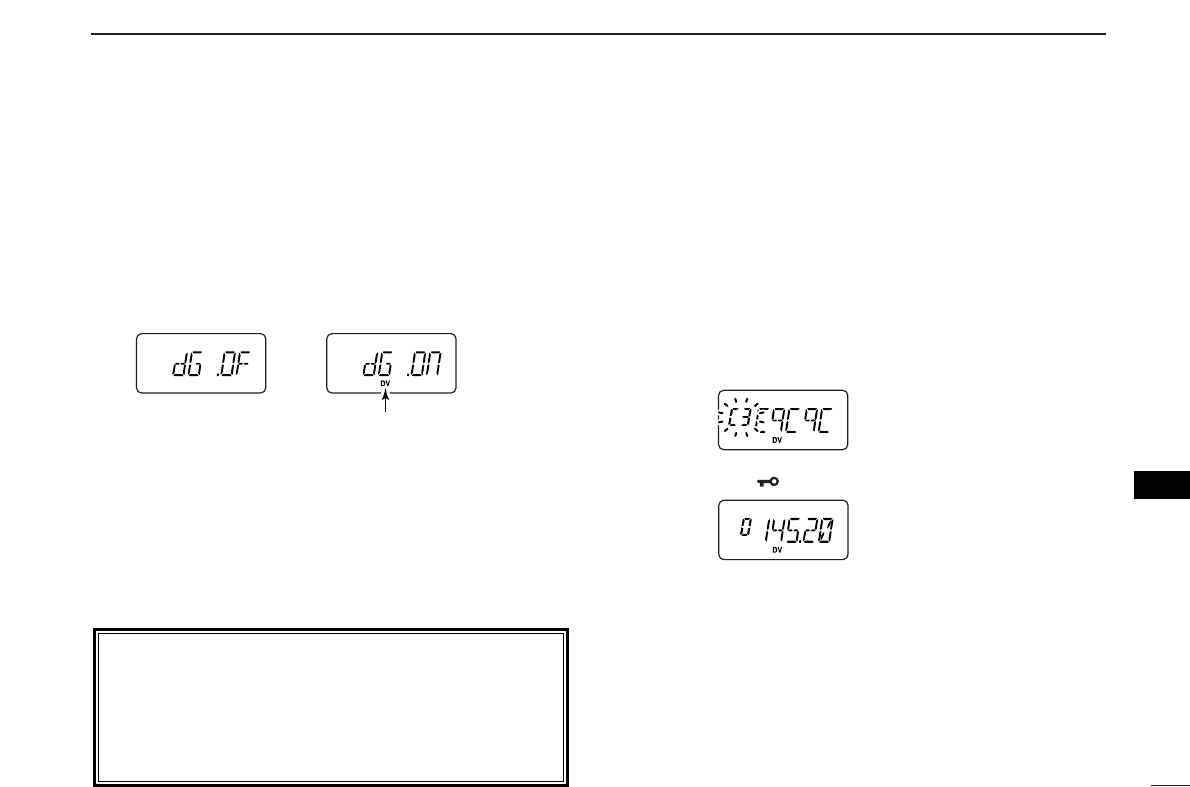

■Digital voice mode operation
qSet the desired frequency in VFO mode. (pgs. 13, 14)
•Select output power, if desired. (p. 15)
wPush [A•
FUNC
]then [0•
OPT
]for enter
OPTION SET MODE
,
then push [YY]or [ZZ]several times to select the digital se-
lect mode.
•“DG” appears.
eRotate [VOL] to turn the digital mode ON.
r
Push
[YY]
once to select the your call sign select mode.
•“myC” appears.
tPush [0•
OPT
]for 1 sec. then rotate [VOL] to select the de-
sired your call sign channel, if you have programmed sev-
eral call signs.
• After selecting the your call sign, push [0•
OPT
]to return to
OP
-
TION SET MODE
.
DDWhen sending a CQ
(continued from step t)
ySelect “CQ” as the call sign.
-Push [YY]or [ZZ]several times to select the call sign se-
lect mode.
•“yUC” appears.
-Push [0•
OPT
]for 1 sec. then rotate [VOL] to select the de-
sired channel.
-Push [0•
OPT
]for 1 sec. to set “CqCqCq.”
-Push [✱•
ENT
](or [D•
CLR
]) to exit
OPTION SET MODE
.
uPush and hold [PTT] to transmit and speak into the micro-
phone at normal voice level.
•Transmit indicator appears and the RF meter shows the output power.
iRelease [PTT] to return to receive.
•The other station call sign will be received.
•Received call signs can be stored into the received call record
automatically. See page 44 for details.
NOTE: In the digital mode operation; when “BUSY” indi-
cator appears but no sound comes out the speaker, it
may be caused by the interference of FM mode. In this
case, to prevent interference of FM mode, set the digital
monitor setting (p. 47) to “An(analog)” then listen on the
channel before transmitting by pushing [MONI].
Appears
44
11 DIGITAL MODE OPERATION
DDWhen calling the desired station
(continued from p. 43 step t)
ySelect the desired call sign.
-
Push [YY]or [ZZ]several times
to select the call sign select
mode.
•“yUC” appears.
-Push [0•opt] then rotate [VOL] to select the desired call
sign (pre-programmed), or set the desired call sign. (see
p. 38)
-Push [✱•
ENT
]to exit
OPTION SET MODE
.
uPush and hold [PTT] to transmit and speak into the micro-
phone at normal voice level.
•Transmit indicator appears and the RF meter shows the output power.
iRelease [PTT] to return to receive.
•The other station call sign will be received.
•Received call signs can be stored into the received call record
automatically. See page 42 for details.
■When receiving a Digital call
When an individual station call is received, the calling station
call sign can be stored into the received call record.
The record is cleared once turning power OFF.
DDReceived call record
qPush [A•
FUNC
]then [0•
OPT
]for enter
OPTION SET MODE
,
then push [YY]or [ZZ]several times
to select the received
call indication.
•“RXCALL,” “R1CALL,” and “R2CALL” are available for the re-
ceived station call sign, repeater 1/2 call signs, respectively.
wTo confirm the received call, push [0•
OPT
]for 1 sec. to
enter the received call sign indication mode.
45
11
DIGITAL MODE OPERATION
11
DDTo store a received call
qPush [A•
FUNC
]and [0•
OPT
]several times to select the call
sign select mode.
•“yUC” appears for station call sign.
•“R1C” or “R2C” appears for repeater call sign.
wPush [0•
OPT
]for 1 sec. to call sign indication, rotate [VOL]
to select the blank channel or erasable channel.
ePush [0•
OPT
]then, push [YY]or [ZZ]several times to select
the received call indication.
•“RXC.AL” appears for received station call sign.
•“R1C.AL” or “R2C.AL” appears for received repeater call sign.
rTo confirm the received call, push [0•
OPT
]for 1 sec. to
enter the received call sign indication mode.
tPush [0•
OPT
]for 1 sec. to store the call sign into the se-
lected station call sign channel or repeater call sign chan-
nel.
■Break-in communication
The break-in function allows you to break into an another sta-
tions communications in both Digital voice and low-speed
data operation.
qWhile receiving another station communication, push
[A•
FUNC
]then [0•
OPT
]to enter
OPTION SET MODE
.
wPush [YY]or [ZZ]several times to select the break-in set-
ting, then turns the break-in setting ON.
•“bRk” appears.
eWhen both stations are in standby, transmit to send a
break-in call.
•Programmed call sign station receives the break-in call as well
as your call sign.
rWait for the reply call from the station who receive the
break-in call.
tAfter receive the reply call, communicate normal way.
yTo cancel the break-in, push [A•
FUNC
]and [0•
OPT
], then ro-
tate [VOL] to turn OFF.
46
11 DIGITAL MODE OPERATION
■EMR communication
The EMR communication mode is available for Digital mode
operation. In the EMR call, no call sign setting is necessary.
qSet the desired frequency then push [A•
FUNC
]and [0•
OPT
]
to enter
OPTION SET MODE
.
wPush [YY]or [ZZ]several times to select the EMR setting,
then turns the EMR setting ON.
•“EmR” appears.
eOperate the transceiver normal way.
rTo cancel the EMR communication mode, push [A•
FUNC
]
and [0•
OPT
]for 1 sec., then rotate [VOL] to turn OFF.
■Pocket beep operation
This function uses a digital code/call sign for calling and can
be used as a “common pager” to inform you that someone
has called while you were away from the transceiver. The dig-
ital code or call sign squelch does not function while in a low-
speed data communication.
DDWaiting for a call from a specific station
qSet the operating frequency.
wProgram the digital code or call sign in setting mode.
•See p. 51, “Digital code setting” or p. 40 “Call sign program-
ming.”
ePush [A•
FUNC
]and [1•
TONE
]one or more times until “ ”
or “ ” appears in the function display.
•“ ” for call sign squelch; “ ” for digital code squelch operation.
rPush [A•
FUNC
], then push [2•
P
.
BEEP
]to activate the pocket
beep function.
•“ ” appears.
tWhen a signal with the matched call sign/digital code is re-
ceived, the transceiver emits beep tones and blinks “ .”
• Beep tones sound for 30 sec. and “ ” blinks. To stop the beeps man-
ually, push any key. “ ” continues blinking until step yis operated.
yPush [PTT] to answer.
• “ ” disappears and cancels the pocket beep function automati-
cally.
uTo cancel the call sign/digital code squelch, push [A•
FUNC
]
and [1•
TONE
]one or more times until or “ ” or “ ” disap-
pears.
47
11
DIGITAL MODE OPERATION
11
■Digital squelch functions
The digital code (CSQL) or call sign (DSQL) squelch opens
only when receiving a voice signal with the same pre-pro-
grammed digital code or call sign, respectively. The digital
code or call sign squelch does not function while in a low-
speed data communication.
qSet the operating frequency.
wProgram the digital code or call sign in setting mode.
•See p. 51, “Digital code setting” or p. 40 “Call sign program-
ming.”
ePush [1•
TONE
]one or more times until “ ” or “ ” appears
in the function display.
•“ ” for call sign squelch; “ ” for digital code squelch operation.
rWhen a signal with the matched call sign/digital code is re-
ceived, the squelch opens and the signal can be heard.
•When the received signal includes an unmatched call sign/digital
code, the squelch does not open. However, the S-meter shows
the received signal strength.
•To open the squelch manually, push and hold [MONI].
tOperate the transceiver in the normal way (push [PTT] to
transmit; release [PTT] to receive).
yTo cancel the call sign/digital code squelch, push [1•
TONE
]
one or more times until or “ ” or “ ” disappears.
■Digital monitor
This function is used to listen to the analog signal (FM mode
signal) without changing the operating mode while digital (DV
mode) operation.
qWhile pushing [YY]and [ZZ], turn the power ON to enter
INI
-
TIAL SET MODE
.
wPush [YY]or [ZZ]several times until “dmO” appears.
eRotate [VOL] to turn the repeater lockout function to “RP,”
“bU” or OFF.
•“An”: Activate for monitoring the analog (FM mode) signals.
(default)
•“dG”: Activate to open the call sign or digital code squelch.
rPush [✱•
ENT
](or [D•
CLR
]) to exit
INITIAL SET MODE
.
NOTE: When “digital monitor setting” is set to “An (ana-
log),” the monitor function (pushing [MONI]) works as the
analog monitor for receiving an FM signal. Then digital
monitor function is activate using the Squelch control
(pushing [MONI] and [YY]or [ZZ]).
USING
INITIAL SET MODE
✔
While scanning in digital mode:
• The call sign squelch function deactivate, then after can-
celling the scan it will activate again.
• Scan stops near channel in a 5 kHz tuning steps, and then
no sound comes out.
48
11 DIGITAL MODE OPERATION
■
Low-speed data communication
In addition to the digital voice communication, a low-speed
data communication is available (Refer p. 4 about the trans-
ceiver-PC connection details).
qSet the desired frequency.
wSet another settings, such as repeater call, transmit output
power.
ePush [A•
FUNC
]then [0•
OPT
]for enter
OPTION SET MODE
,

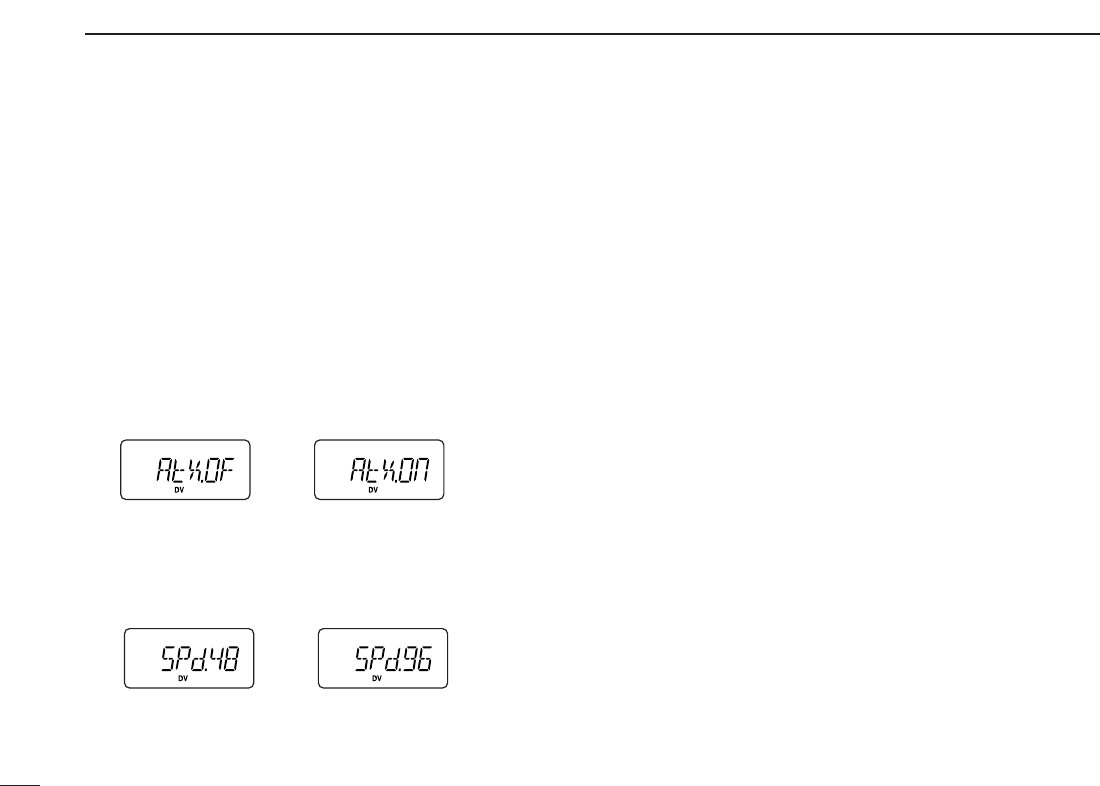

then push [YY]or [ZZ]several times to select the automatic
data transmission setting. (see p. 51)
•“AtX” appears.
•Skip this setting, if you want to transmit manually.
rPush [YY]once to select the data communication speed
setting. (see p. 52)
•“SPd” appears.
•Select suitable data speed for your PC or application.
tStart up the low-speed data communication application.
ySet the application as follows.
•Port : The same COM port number as trans-
ceiver’s
•Baud rate : 4800 bps or 9600 bps (same as step r)
•Data : 8 bit
•Parity : None
•Stop : 1 bit
•Flow control: Xon/Xoff
uTransceiver automatically transmits or receives the data
while you sending data to transceiver. Or push and hold
[PTT] to transmit, release to receive the data manually.
•Refer to the instruction of the application that how to send or re-
ceive data.
49
11
DIGITAL MODE OPERATION
11
■About D-STAR system
In the D-STAR system, repeater linking via a 10 GHz band
backbone and internet network (gateway connection) capa-
bilities are available. This system allows you to much wider
coverage range during Digital voice mode operation.
•D-STAR system outline
For current existing repeater operation, stations that are com-
municating must be in the same repeater’s operating area.
However, in the D-STAR system as in the illustration at left,
the repeaters can be linked via the system repeaters (with a
10 GHz signal). Thus stations A and B can communicate even
though they are in different repeater operating areas.
Also, the D-STAR system repeaters are connectable through
the internet network— gateway connection capability.
For example, when station B uses the gateway connection
station B can communicate with the station C!
By using the gateway connection, long distance communica-
tion like DX operation may be possible with 144 MHz/440MHz
digital voice!
In the D-STAR system, independent repeater’s operating
area is called as Area and a group that linking repeaters via a
10 GHz backbone is called as Zone.
NOTE: The digital repeater for IC-V82/U82 (144 MHz/440
MHz of amateur radio bands operation) is not available at
present of October 2004. It will be designed in the future.
Station A
Repeater A
Repeater D
440 MHz signal
Station C
Repeater C
440 MHz signal
10 GHz signal
440 MHz
signal
Station D
Station B
Repeater B
10 GHz signal
440 MHz signal
Internet
network
Internet
network
50
11 DIGITAL MODE OPERATION
■Repeater call sign programming
Repeater call sign must be programmed for the repeater op-
eration in both Digital voice and low speed data communica-
tions.
qPush [A•
FUNC
] and [0•
OPT
]to enter
OPTION SET MODE
, then
push [YY]or [ZZ]several times to select the call sign items.
•“R1C” or “R2C” appears for repeater call sign.
wPush [0•
OPT
]for 1 sec. then rotate [VOL] to select the de-
sired call sign channel.
ePush [YY](or [ZZ]) to set into call sign programming condi-
tion.
•The 1st digit blinks and channel indication stops blinking.
rRotate [VOL] to set the desired character or code.
•Push [ZZ]or [YY]to move the cursor to left or right, respectively.
tPush [YY](or [ZZ]) to select 2nd digit, then rotate [VOL] to
set the desired character or code.
•2nd digit blinks (1st digit stop blinking).
•Repeat this step for programming repeater call sign.
yPush [0•
OPT
]to fix the call sign.
uRotate [VOL] to select an another channel from “C1” to
“C6.”
iRepeat steps wto uto program another repeater call
sign channels.
✔
For your information:
Station and/or repeater call sign can be programmed from
Received call record when a call is received.
See page 45 for details.
✔
For your information:
Repeater call sign can be programmed gateway connection
capabilities at step rfor connecting to the other Area or
Zone.
•“G” appears or disappears at the 8th digit when each push-
ing [8•
SET
].
While using the repeater 2 (other Area or Zone) system, the
repeater 2 setting must be selected ON in
OPTION SET MODE
.
•“R2C” (Repeater 2 call sign) can be programmed or used when
“RP2” (Repeater 2 setting) is set to ON (default).
51
11
DIGITAL MODE OPERATION
11
■Other setting items
qPush [A•
FUNC
]and [0•
OPT
]to enter
OPTION SET MODE
, then
push [YY]or [ZZ]several times to select the desired item.
wRotate [VOL] to select the desired value or condition.

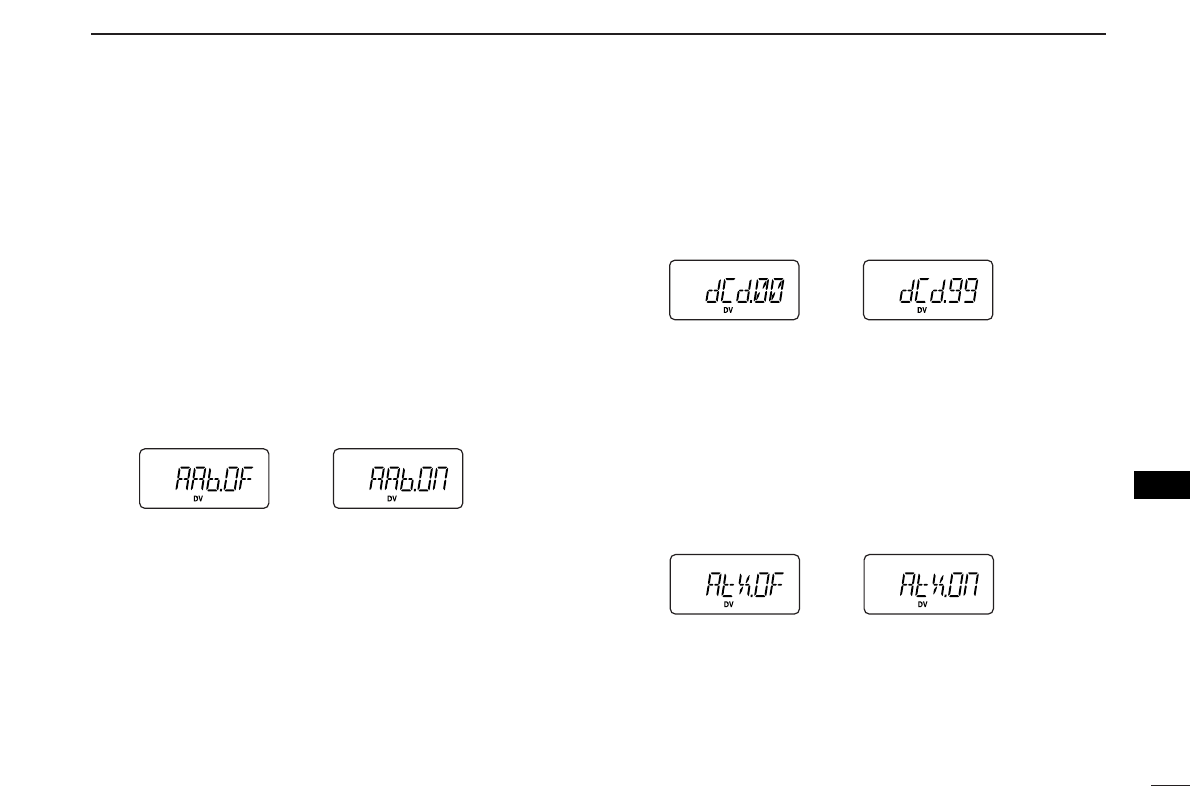

DDAuto Reply
During Digital mode operation, auto reply function is avail-
able. This function replies to an individual station call even
you are away from the transceiver. (default: OFF)
After the manual transmission (pushing [PTT]) or message
transmission, the Auto Reply setting is return to OFF auto-
matically.
DDDigital Code
Sets the desired digital code for digital code squelch opera-
tion. Total of 100 codes (00–99) are available. (default: 00)
DDAuto data Transmission
During low-speed data operation, auto data transmission
function is available. This function transmits when data are
input from PC via the [DATA] jack. (default: OFF)
After the manual transmission (pushing [PTT]), the Auto
Transmission setting is return to OFF automatically.
52
11 DIGITAL MODE OPERATION

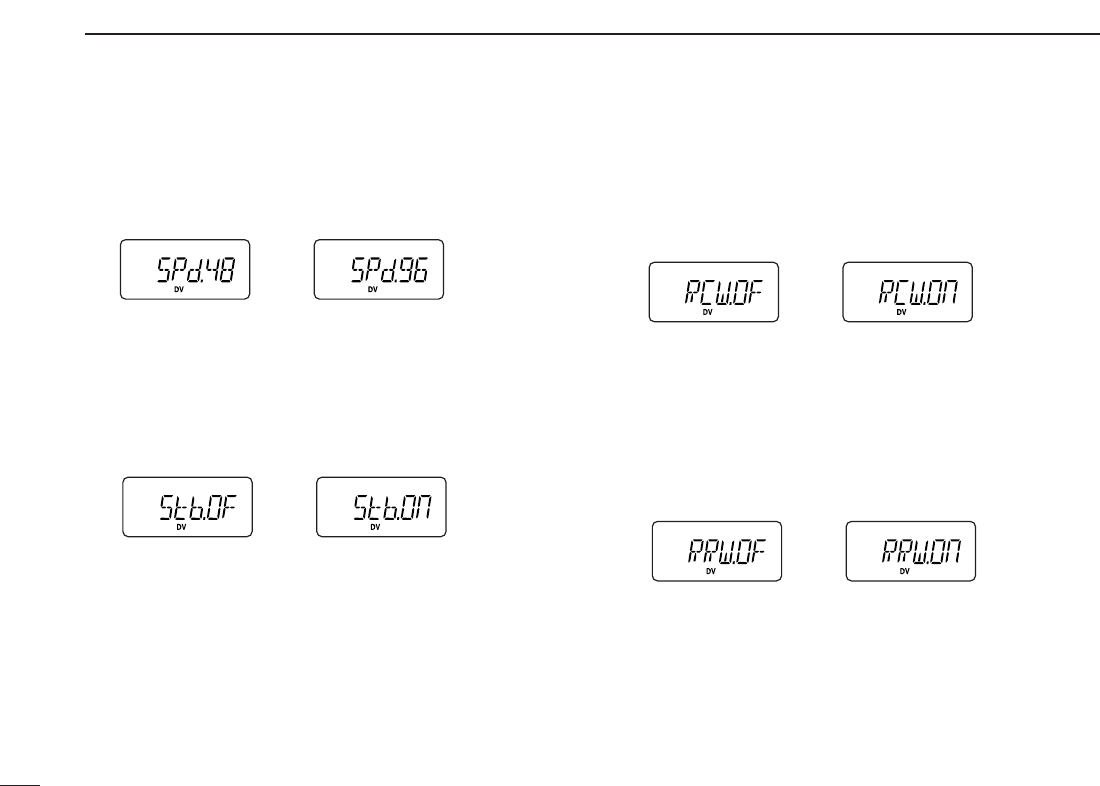

DDData Speed
Select the communication speed between the transceiver and
PC from 4800 bps or 9600 bps. (default: 9600)
DDStandby Beep
Turns the beep emission capability when the communicating
station finishes transmitting or the receive signal disappears.
(default: OFF)
DDAuto RxCall Write
When an individual station call is received, the calling station
call sign can be stored automatically. The stored call sign can
be re-called when selecting a station call sign.
(default: OFF)
DDAuto Rx RepeaterCall Write
When an individual station call via the repeater is received,
the repeater call sign can be stored automatically. The stored
repeater’s call sign can be re-called when selecting a re-
peater call sign. (default: OFF)
53
11
DIGITAL MODE OPERATION
11
DDAuto RxCall Display
When an individual station call is received, the calling station
call sign can be indicated automatically. (default: ON)
DDAuto MyCALL Display
Sets auto MyCALL display function ON and OFF. When this
setting is set to ON, the transceiver automatically indicates
your programmed call sign at turning power ON or digital
mode transmission. (default: OFF)
DDMessage Transmission
Select the Message transmission function ON and OFF.
When ON is selected, transceiver transmits a text message
(pre-programmed). (default: OFF)
After the transmission once, the Message Transmission set-
ting is return to OFF automatically.
DDTX message
TX messages are available up to 6 channels and each chan-
nel can be programmed up to 20 characters message. Avail-
able characters are 0to 9, Ato Z(capital letters only), some
symbols and space. (see the next page for details)
54
11 DIGITAL MODE OPERATION
DDTX message programming
At least one of the TX message channels must be pro-
grammed, if you want to use the GPS message. The GPS
message is transmitted from TX message channels.
qWhile
OPTION SET MODE
, push [YY](or [ZZ]) to select “tXm,”
then push [0•
OPT
]for 1 sec. to edit the message indication
then rotate [VOL] to select the message channel.
•One of either “C1” to “C6” blinks.
wPush [YY]to set into message programming condition.
•The 1st digit blinks and channel indication stops blinking.
eRotate [VOL] to set the desired character.
rPush [YY]to select 2nd digit, then rotate [VOL] to set the
desired character.
•2nd digit blinks (1st digit stop blinking).
•Repeat this step for programming.
tPush [0•
OPT
]to set the message.
yRepeat steps wto tto set another message channels.
uPush [✱•
ENT
](or [D•
CLR
])
to exit
OPTION SET MODE
.
• Available characters
(3)
(D)
(N)
(X)
(+) (4)
(E)
(O)
(Y)
(–)
(”)
(5)
(F)
(P)
(Z)
(✱)
(6)
(G)
(Q)
(/)
(7)
(H)
(R)
(,)
(8)
(I)
(S)
(space)
(9)
(T)
(0)
(A)
(U)
(1)
(B)
(V)
(2)
(C) (J) (K)
(L)
(M)
(W)
(.)
(
))((
)(’)(&)(
%
)($)(#)(!)
(<)(:) (;) (=) (>) (?)
(@)
([) (\) (]) (^)
55
11
DIGITAL MODE OPERATION
11

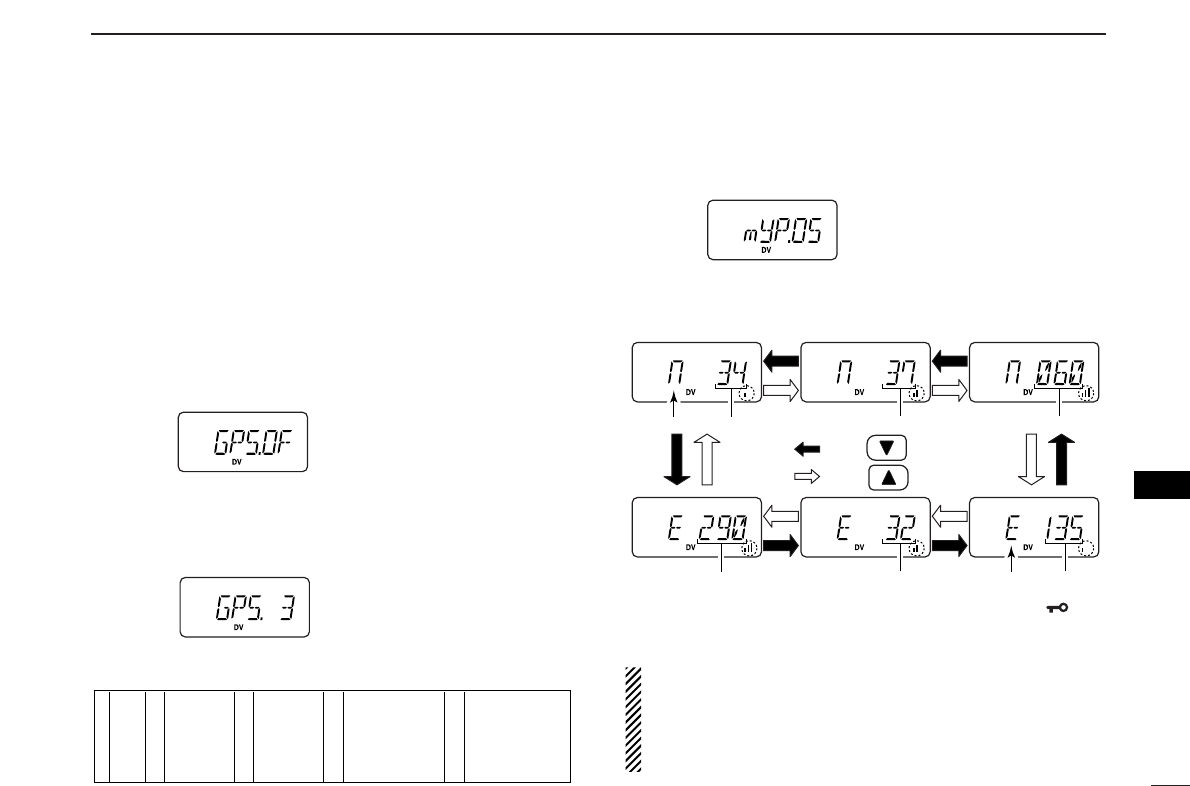

■GPS operation
The IC-V82/U82 can indicate the current position (Latitude and
Longitude) when a GPS receiver (compatible with an RS-232C
output/NMEA format/4800 bps) is connected to [DATA] jack. And
also can transmit the position data and message to other stations.
DDPosition indication
qWhile connecting a GPS receiver, push [A•
FUNC
]and
[0•
OPT
]to enter
OPTION SET MODE
.
wPush [YY]or [ZZ]several times to select the GPS setting.
•“GPS” appears.
eRotate [VOL] to set the suitable sentence formatter for the
connecting GPS receiver.
•For your position indication is necessary to select “GGA” or “RMC.”
•Sentence formatters
rPush [YY]twice to select the position indication.
tPush [0•
OPT
]for 1 sec. to enter the position indication.
•Latitude and longitude date appear in order as below.
yAfter checking the current position, push [✱•
ENT
](or
[D•
CLR
]) to return to normal operating mode.
IMPORTANT: When set the sentence formatter at step e
for connecting GPS receiver, and already programmed your
call sign, GPS automatic transmission is activate every 3
minutes. The automatic transmission can be changed inter-
val time or deactivated, if desired. (see the next page)
DegreesNorth or South Minutes Seconds
Push
Push
DegreesEast or West
MinutesSeconds
1
2
3
4
5
GLL
GGA
RMC
GSA
VTG
6
7
8
9
10
GLL, GGA
GLL, RMC
GLL, GSA
GLL, VTG
GGA, RMC
11
12
13
14
15
GGA, GSA
GGA, VTG
RMC, GSA
RMC, VTG
GSA, VTG
16
17
18
19
20
GLL, GGA, RMC
GLL, GGA, GSA
GLL, GGA, VTG
GLL, RMC, GSA
GLL, RMC, VTG
21
22
23
24
25
GLL, GSA, VTG
GGA, RMC, GSA
GGA, RMC, VTG
GGA, GSA, VTG
RMC, GSA, VTG
56
11 DIGITAL MODE OPERATION
DDGPS Automatic transmission
qWhile connecting a GPS receiver, push [A•
FUNC
]and
[0•
OPT
]to enter
OPTION SET MODE
.
wPush [YY]or [ZZ]several times to select the GPS automatic
transmission.
•“GtX” appears.
eRotate [VOL] to set the interval time for the GPS auto-
matic transmission.
•Interval time is selectable from 0.5 (30 sec.), 1, 3, 5, 10, 30 min.
rPush [YY]three times to select the transmit message se-
lection, if desired.
•GPS TX message is selectable from OFF and C1 to C6.
•TX message must be programmed in advance. (see page 50 for
setting)
tPush [✱•
ENT
](or [D•
CLR
]) to exit
OPTION SET MODE
.
IMPORTANT: GPS Automatic transmission transmits at
every setting interval even while receiving an another sta-
tions communication. To prevent interfere the another sta-
tions, set the GPS transmission together with the Repeater
lockout item “RLO” (set to “bU” busy lockout) in
INITIAL SET
MODE
. (p. 62)
DDReceiving a GPS transmission
qPush [A•
FUNC
]and [0•
OPT
]to enter
OPTION SET MODE
.
wPush [YY]or [ZZ]several times to select the received posi-
tion.
•“RXP.OS” appears.
ePush [0•
OPT
]for 1 sec. to enter the position indication.
•Latitude data and longitude date appear by every pushing [YY]
or [ZZ].
rPush [0•
OPT
]then push [YY]twice to select the received
GPS message.
tPush [0•
OPT
]for 1 sec. to enter the message.
•Received message is indicated, push [ZZ]or [YY]to move the
cursor to left or right, respectively.
yAfter checking a received position and message, push
[✱•
ENT
](or [D•
CLR
]) to return to normal operating mode.
57
12
OTHER FUNCTIONS
11
12
■SET MODE
DDEntering SET MODE
qPush [A•
FUNC
], then push [8•
SET
]to enter
SET MODE
.
wPush [YY]or [ZZ]to select the desired item.
eRotate [VOL] to select the condition/value.
•To exit
SET MODE
, push [✱•
ENT
](or [D•
CLR
]).
DDRepeater tone frequency
Selects tone encoder frequency for accessing a repeater, etc.
from one of 50 available frequencies.
•67.0–254.1 Hz (50 tones): 88.5 Hz (default)
DDTone squelch frequency
Selects frequency for tone squelch or pocket beep operation
from one of 50 available frequencies.
•67.0–254.1 Hz (50 tones): 88.5 Hz (default)
•Available subaudible tone frequencies
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
FUNC
A
SET
8
ENT
[VOL]
Enter ExitSet
58
12 OTHER FUNCTIONS

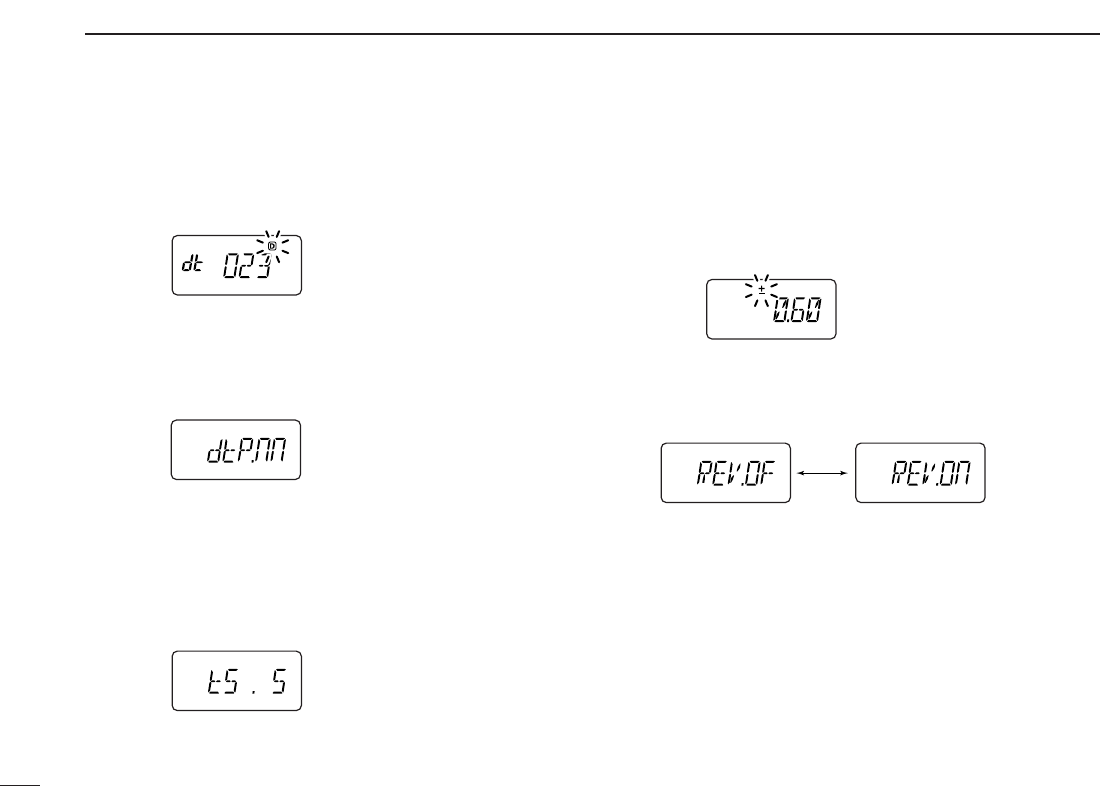

DDDTCS code
Selects DTCS (both encoder/decoder code) for DTCS
squelch operation. Total of 104 codes are available.
•023–754: 023 (default)
DDDTCS polarity
Selects DTCS polarities for transmission and reception from
“nn (default),” “nR,” “Rn” and “RR.” (n: normal/R: reverse)
DDTuning step
Selects tuning step from 5, 10, 12.5, 15, 20, 25, 30 and
50 kHz for [YY]/[ZZ]or [VOL] (When [VOL] is assigned as tuning
dial) operation. (default value may differ depending on trans-
ceiver types and versions)
DDOffset frequency
Sets the duplex offset frequency within 0 to 20 MHz range.
During duplex (repeater) operation, transmit frequency (or re-
ceive when reverse function is set to ON) shifts the set fre-
quency. (default value may differ depending on transceiver
types and versions)
DDReverse function
Turns the reverse function ON and OFF (default).
Reverse function OFF Reverse function ON
59
12
OTHER FUNCTIONS
12
DDScan pause timer
Selects the scan pause time from SCt.5, SCt.10, SCt.15 and
SCP. 2. When receiving signals, the scan pauses according
to the scan pause time.
•SCt. 5/10/15 : Scan pauses for 5/10/15 sec.
(default: SCt.15)
•SCP. 2 : Scan pauses until the signal disappears. Re-
sumes 2 sec. after the signal disappears.
DDFunction key timer
Selects [A•
FUNC
]effect timer from F0.At, F1.At, F2.At, F3.At
and F .m.
•F0.At : “ ” disappears immediately after secondary func-
tion is operated. (default)
•F1/2/3.At: “ ” disappears after 1/2/3 sec. after secondary
function is operated.
•F .m : “ ” appears until [A•
FUNC
]is pushed again.
DDLCD backlight
Selects LCD backlight lighting condition from auto, ON and
OFF.
• LIG.At : Lights when any key except [PTT] is pushed.
(default)
•LIG.ON : Lights continuously while the transceiver is pow-
ered ON.
•LIG.OF : Never lights.
DDTransmission permission
Turns transmission permission ON and OFF. This function
can be set for each memory and call channel, independently.
•tX .ON : Transmission is permitted. (default)
•tX .OF : Transmission is inhibited.
F
F
F
60
12 OTHER FUNCTIONS
DDMemory bank setting
Sets the desired memory bank (A to J and OFF) to assign the
regular memory channels.
This item appears when
SET MODE
is accessed from memory
mode only.
DDMemory bank link function
Sets the memory bank link function ON and OFF (default).
The link function provides continuous banks scan, that scans
all contents in the selected banks during bank scan.
This item appears when
SET MODE
is accessed from memory
mode only.
•Bank link setting
qRotate [VOL] to select the memory bank link function ON.
wPush [YY]or [ZZ]to select the desired bank to be linked.
•BLA: Bank A, BLB: Bank B, BLC: Bank C, BLD: Bank D,
BLE: Bank E, BLF: Bank F, BLG: Bank G, BLH: Bank H,
BLI: Bank I, BLJ: Bank J
eRotate [VOL] to select “ON” to linking the bank.
rRepeat steps wand eto set the link condition.
DDWide/Narrow setting
Selects both the transmission and reception passband width
from wide (default) and narrow.
When narrow is selected, the transmission and reception
passband width become half of the wide setting (approx.).
This setting can be set for each memory, call and VFO inde-
pendently.
DDWeather alert function
Turns weather alert function ON and OFF (default).
IC-V82 [USA] version only
61
12
OTHER FUNCTIONS
12
■INITIAL SET MODE
The
INITIAL SET MODE
is accessed at power on and allows you
to set seldom-changed settings. In this way, you can “cus-
tomize” transceiver operations to suit your preference and op-
erating style.
DDEntering INITIAL SET MODE
qWhile pushing [YY]and [ZZ], turn power ON.
wPush [YY]or [ZZ]to select the desired item.
eRotate [VOL] to select the condition or value.
•To exit
INITIAL SET MODE
, push [✱•
ENT
](or [D•
CLR
]).
DDKey-touch beep
Turns key-touch beep emission ON (Beep level 1 to 3) and
OFF. (default: 3)
DDTime-out timer
To prevent accidental prolonged transmission, etc., the trans-
ceiver has a time-out timer. This function cuts a transmission
OFF after 1–30 min. of continuous transmission. This timer
can be cancelled.
•tOt.OF : The time-out timer is turned OFF. (default)
•tOt. 1–30: The transmission is cut OFF after the set period
elapses.
[VOL]
ENT
PWR
Enter ExitSet
AT
POWER ON
62
12 OTHER FUNCTIONS
DDAuto repeater
The auto repeater function automatically turns ON or OFF the
duplex operation and tone encoder. The offset and repeater
tone is not changed by the auto repeater function. Reset
these frequencies, if necessary.
•RPt.OF : The auto repeater function is turned OFF.
•RPt.R1 : Activates for duplex only. (default)
•RPt.R2 : Activates for duplex and tone.
DDAuto power-off
The transceiver can be set to automatically turn OFF after a
specified period with a beep when no key operations are per-
formed.
•30min., 1 hour, 2 hours and OFF (default) can be specified.
The specified period is retained even when the transceiver
is turned OFF by the auto power-off function. To cancel the
function, select “
POF.OF” in this
SET MODE
.
NOTE: While an optional UT-118
DIGITAL UNIT
is installed
and GPS automatic transmit function is activated, this
function does not work.
DDRepeater lock-out
Selects lockout type from repeater, busy and OFF.
•RLO.RP : The repeater lockout is turned ON.
•RLO.bu : The busy lockout is turned ON.
•RLO.OF : No lockout is activated. (default)
DDSquelch delay
Selects squelch delay from short and long to prevent re-
peated opening and closing of the squelch during reception
of the same signal.
•Sqt. S: The squelch closes in short delay. (default)
•Sqt. L: The squelch closes in long delay.
U.S.A. version only
63
12
OTHER FUNCTIONS
12

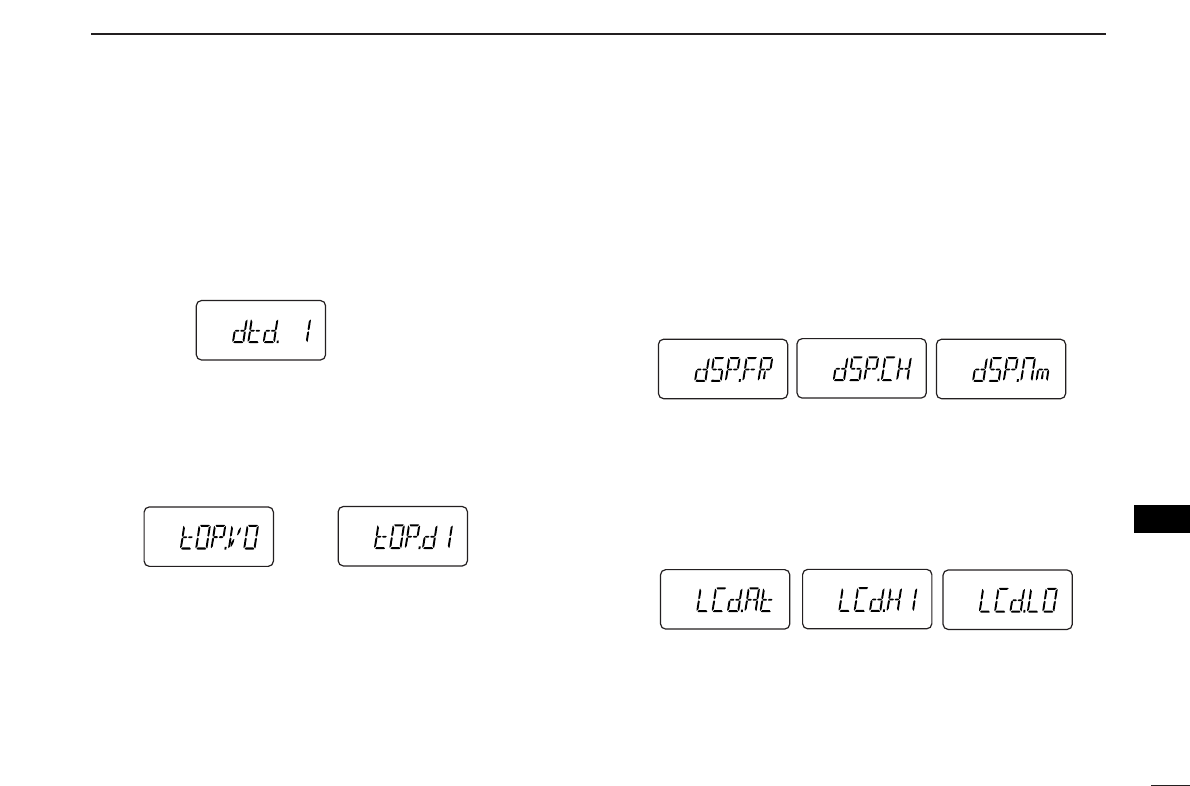

DDDTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
•1: 100 msec. interval; 5.0 cps speed (default)
•2: 200 msec. interval; 2.5 cps speed
•3: 300 msec. interval; 1.6 cps speed
•5: 500 msec. interval; 1.0 cps speed (cps=characters/sec.)
DDDial assignment
Selects [VOL] control action from AF volume and tuning dial.
•tOP.VO: AF volume (default)
•tOP.dI : Tuning dial
DDDisplay type
Selects LCD indication type from frequency, channel number
and channel names.
•dSP.FR : Shows frequency (default)
•dSP.CH : Shows channel number*
•dSP.Nm : Shows channel names†
*Only memory channels can be selected.
† Frequency indication will be displayed when the selected memory
channel has not programmed memory name.
DDLCD contrast
Selects LCD contrast from auto, high and low.
•LCd.At : Automatic (default)
•LCd.HI : High contrast
•LCd.LO : Low contrast
64
12 OTHER FUNCTIONS

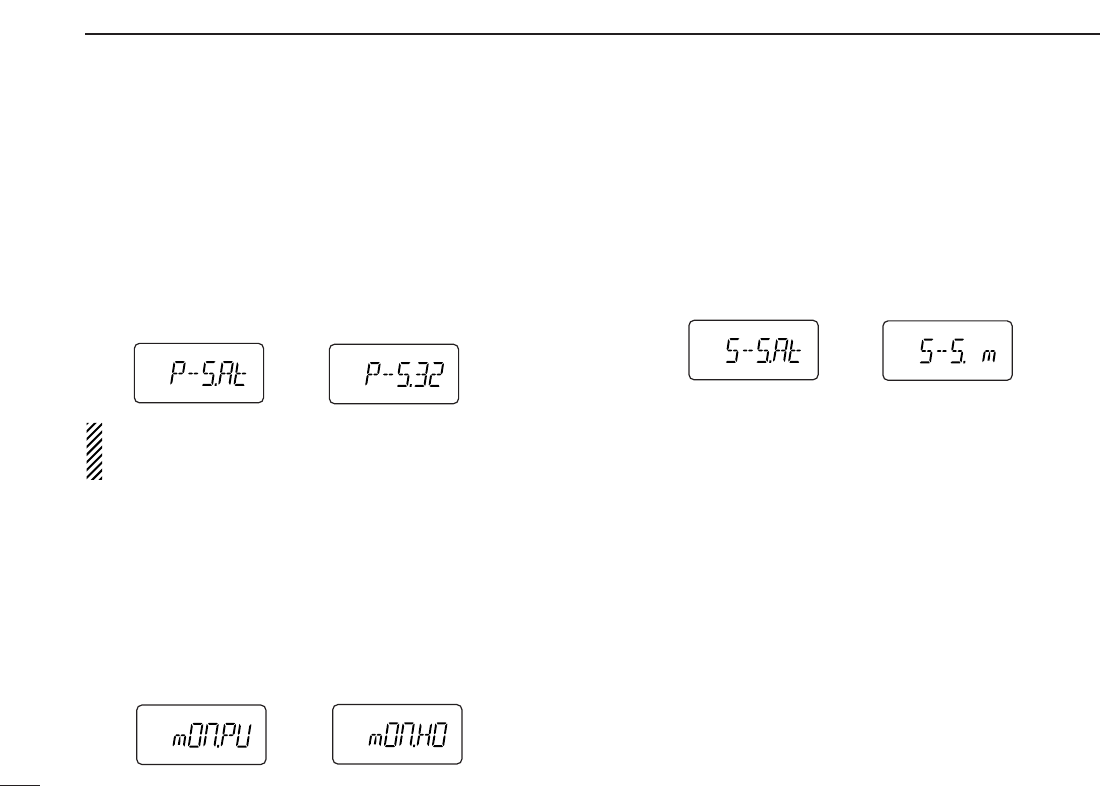

DDPower save
Selects duty cycle for power save function from auto, 1:32,
1:16, 1:8, 1:2 and OFF.
•P–S.At : Duty cycle changes automatically. (default)
•P–S.32 : 1:32 duty cycle
•P–S.16 : 1:16 duty cycle
•P–S. 8 :
1:8 duty cycle
•P–S. 2 :
1:2 duty cycle
•P–S.OF : The power save function is turned OFF.
NOTE: While DV mode operation (with UT-118), or pager/
CSQL operation (with UT-108), the active duty cycle is fixed
1:1 only (even any duty cycle setting other than OFF).
DDMonitor key action
The monitor key, [MONI], can be set as a ‘sticky’ key. When
set to the sticky condition, each push of [MONI] toggles the
monitor function ON and OFF.
•PU (Push): Pushing and holding [MONI] to monitor
the frequency. (default)
•HO (Hold) : Push [MONI] to monitor the frequency
and push again to cancel it.
DDTuning speed acceleration
The tuning speed acceleration automatically speeds up the
tuning speed when pushing and holding [YY]or [ZZ], or rotat-
ing [VOL] rapidly.*
• S–S.At: The tuning speed acceleration is activated. (de-
fault)
•S–S. m : The tuning speed acceleration is not activated.
*When tuning dial is assigned with [VOL].
65
12
OTHER FUNCTIONS
12

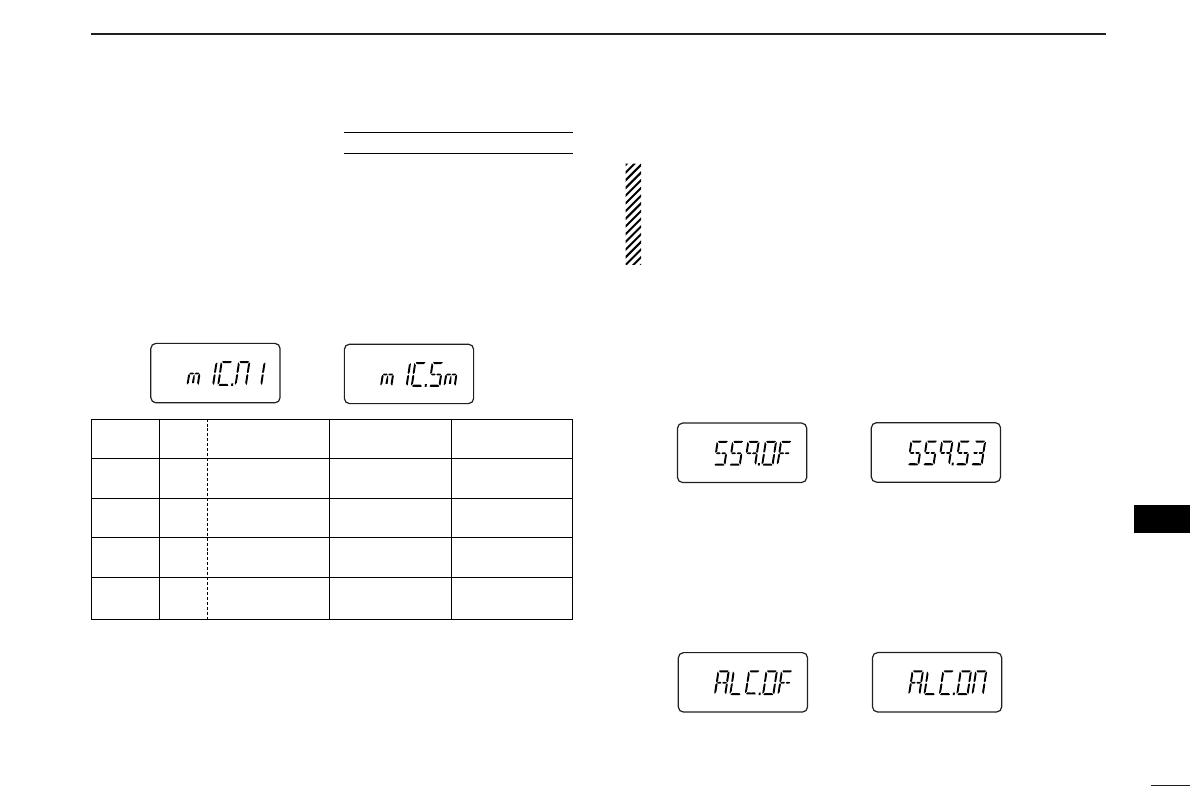

DDMic simple mode
This item turns the microphone simple mode ON and OFF.
Microphone simple mode is used to change the function as-
signments for keys in the optional HM-75A
REMOTE CONTROL
SPEAKER
-
MICROPHONE
as below. This assignment is conve-
nient for 3-channel use of simple operation.
•mIC.n1 : Normal 1 (default)
•mIC.n2 : Normal 2
•mIC.Sm: Simple mode
A1750 Hz tone can be transmitted with the HM-75A opera-
tion.
➥Push [A] while pushing [PTT].
NOTE:
Turn power OFF when connecting the HM-75A to the
transceiver.
VFO mode cannot be selected via the microphone when
SIMPLE mode is selected.
DDS-meter squelch
Sets S-meter squelch threshold level from OFF (default) and
S1–S3.
This setting allows you to set a minimum signal level needs to
open the squelch.
DDALC function
Sets the ALC (automatic Level Control) function ON and OFF
(default).
The ALC function reduces the microphone gain automatically
when the transmission audio is distorted.
Optional HM-75A required
HM-75A Mode NORMAL1 NORMAL2 SIMPLE
key
[A] Freq. [B•
CALL
][MONI] [MONI]
CH Null
[B] Freq. VFO/Memory VFO/Memory [B•
CALL
]
CH Null Null
[YY]Freq. Freq. Up Freq. Up MR-00CH
CH Memory CH Up Memory CH Up
[ZZ]Freq. Freq. Down Freq. Down MR-01CH
CH Memory CH Down Memory CH Down
66
12 OTHER FUNCTIONS

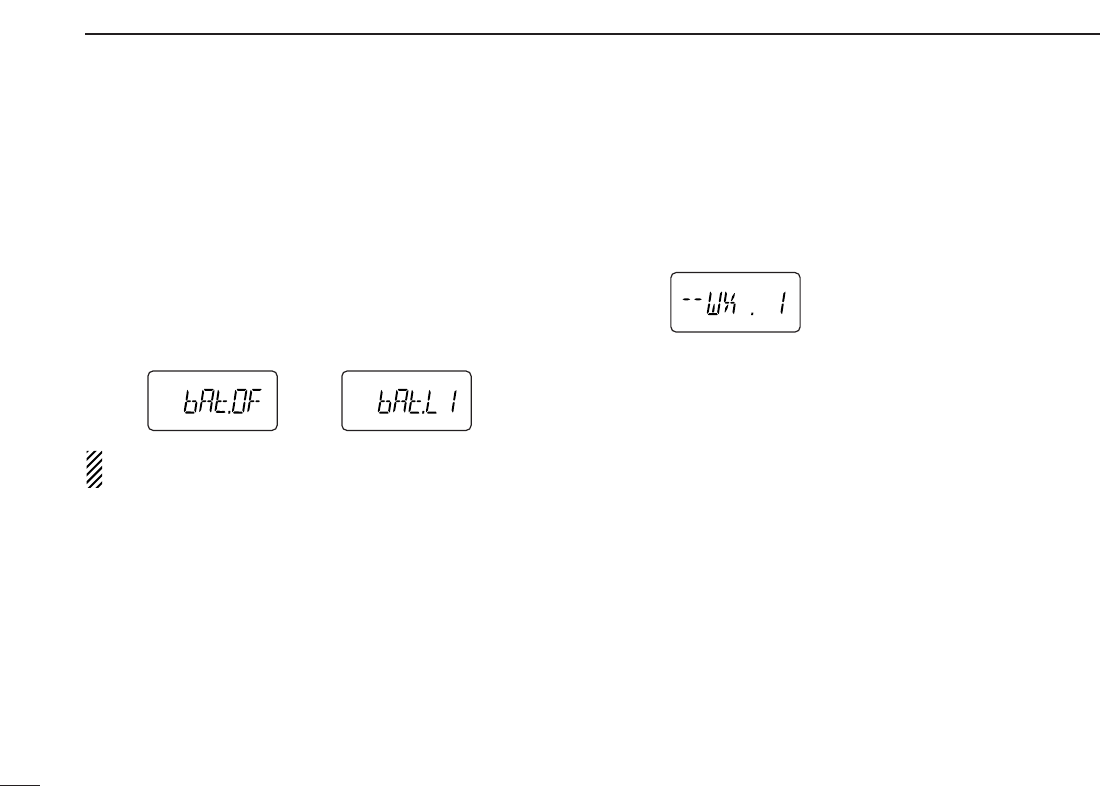

DDBattery protection function
Sets the Battery protection function for LI (Li-Ion) and OFF
(default).
LI(Li-Ion):
➥The transceiver is required pushing [PWR] for tuning
power ON with every battery detach and attach.
➥Beep sounds when the attached battery is exhaustion.
•The battery must be charged presently.
OFF : The transceiver memorizes the transceiver ON/OFF
condition at battery is detached.
NOTE: This item MUST be set “LI” (Li-Ion) when the at-
taching battery is BP-211N (Li-Ion).
■Weather channel operation
(IC-V82 [USA] version only)
DDWeather channel selection
qPush [C•
MR
]several times to select weather channel group.
wPush [YY]or [ZZ]several times to select the desired
weather channel.
ePush [C•
MR
]to select memory mode, or push [D•
CLR
]to
select VFO mode.
DDWeather alert function
NOAA broadcast stations transmit weather alert tones before
important weather announcements. When the weather alert
function is turned ON, the selected weather channel is moni-
tored each 5 sec. for the announcement. When the alert sig-
nal is detected, the “ALt” and the WX channel are displayed
alternately and sounds a beep tone until the transceiver is op-
erated. The previously selected (used) weather channel is
checked periodically during standby or while scanning.
Weather channel group indication
67
12
OTHER FUNCTIONS
12
qSelect the desired weather channel.
wTurn the weather alert function ON in set mode.
➥Push
[A•
FUNC
]and [8•
SET
]
to enter
SET MODE
.
➥Push
[YY]
or [ZZ]to select the weather alert item, then
rotate [VOL] to set ON.
➥push [✱•
ENT
](or [D•
CLR
]) to exit
SET MODE
.
eSets the desired stand-by condition.
•Selects VFO, memory or call channel.
•Scan or priority watch operation can also be selected.
rWhen the alert is detected, a beep sounds and the follow-
ing indication will be displayed.
tTurn the weather alert function OFF in
SET MODE
.
☞NOTE: While receiving a signal (on a frequency other than
the weather alert ON frequency), the receiving signal or
audio will be interrupted momentarily every 5 sec. (approx.)
in case the alert function is turned ON. This symptom is
caused by the WX alert function. To cancel these symp-
toms, set the weather alert item OFF in
SET MODE
.
■CPU reset
The function display may occasionally
display erroneous information (e.g. when
first applying power). This may be
caused externally by static electricity or
other factors.
If this problem occurs, turn power OFF.
After waiting a few seconds, turn power
ON again. If the problem persists, per-
form CPU resetting operation as follows.
• While pushing [MONI] and [D•
CLR
],
turn power ON.
CAUTION:
Resetting the CPU returns the radio to factory default settings.
■Partial reset
If you want to initialize the operating
conditions (VFO frequency, VFO set-
tings, set mode contents) without
clearing the memory contents, a par-
tial resetting function is available for
the transceiver.
• While pushing [D•
CLR
], turn the
power ON to partially reset the
transceiver.
AT
POWER ON
AT
POWER ON
Shows above indications alternately.
PWR
MONI
CLR
D
PWR
CLR
D
Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another trans-
ceiver.
DTransceiver-to-transceiver cloning
qConnect the OPC-474
CLONING CABLE
to the [SP] jack of
the master and sub-transceivers.
•The master transceiver is used to send data to the sub-trans-
ceiver.
wWhile pushing [A•
FUNC
]and [YY],
turn power ON to enter cloning
mode (master transceiver only—
power ON only for sub-transceiver).
•“CLONE” appears and the transceivers
enter the clone standby condition.
ePush [PTT] on the master transceiver.
•“CL OU” appears in the master transceiver’s display and S-meter
indicator shows that data is being transferred to the sub-trans-
ceiver.
•“CL IN” appears automatically in the sub-transceiver’s display
and S-meter indicator shows that data is being received from the
master transceiver.
rWhen cloning is finished, turn power OFF, then ON again
to exit cloning mode.
DCloning using a PC
Please refer to the HELP file that comes with CS-V82
CLONING SOFTWARE
.
NOTE: DO NOT push the [PTT] on the sub-transceiver
during cloning. This will cause a cloning error.
PC
TRANSCEIVER
to USB port
to RS-232C port
OPC-478 (RS-232C type)
OPC-478U (USB type)
PWR
FUNC
A
AT
POWER ON
68
CLONING
13
69
14
OPTIONAL UNIT
13
14
■Optional UT-108/118 installation
qRemove the optional connecter access cover.
•Unscrew two screws and remove the optional connector cover.
wAttach the optional unit. Insert
the connector tightly to avoid a
bad contact.
eReplace the optional connector
cover and two screws.
rProgram the necessary information from the transceivers
key pads or using the cloning software, before operation.
■Optional MB-86 installation
DMB-86 stopper
DMB-86 belt clip
When clipping to a part of your belt When releasing
Supplied screws
w
e
DMB-86 stopper
• When attaching
CAUTION!
HOLD THE TRANSCEIVER TIGHTLY, WHEN ATTACH-
ING OR REMOVING THE TRANSCEIVER FROM THE
BELT CLIP.
If the transceiver is accidentally dropped and the swivel
belt clip’s stopper is cracked or damaged, the swivel belt
clip may not work properly.
• When removing
Once the transceiver is locked in place,
it will swivel 360 degrees.
70
14 OPTIONAL UNIT
71
15
SPECIFICATIONS
14
15
GENERAL
•Frequency coverage : (unit: MHz)
USA Tx: 144–148/Rx: 136–174*
Europe, Taiwan, Korea Tx/Rx: 144–146
General (LM), CSA (LM) Tx/Rx: 136–174*
*Guaranteed: 144–148 MHz range only.
•Type of emission : FM
•Number of memory channels : 207 (incl. 6 scan edges and 1 call)
•Frequency resolution : 5, 10, 12.5, 15, 20, 25, 30, 50 kHz
•Operating temperature range : –10°C to +60°C; +14˚F to +140˚F
•Frequency stability : ±2.5 ppm (–10°C to +60°C)
•Power supply requirement : 7.2 V DC (6–10.3 V DC acceptable;
Icom’s battery pack only)
•Current drain (at 7.2 V DC: approx.):
Transmit at 7 W (High) 2.6 A
at 4 W (Middle) 2.0 A
at 0.5 W (Low) 1.0 A
Receive standby 80 mA
power save 30 mA
max. audio 250 mA
•Antenna connector : BNC (50 Ω)
•Dimensions (proj. not included) :54(W) ×139(H) ×36.7(D) mm
21⁄8(W)×515⁄32(H)×17⁄16(D) in
•Weight (approx.) : 390 g; 13.8 oz
(with BP-222N and Ant.)
200 g; 7.1 oz
(without battery pack and Ant.)
TRANSMITTER
•Modulation system : Variable reactance frequency mod.
•Output power (at 7.2 V) : 7 W/4 W/0.5 W (High/Mid/Low)
•Max. frequency deviation : ±5.0 kHz [Wide]/±2.5 kHz [Narrow]
•Spurious emissions : Less than –60 dBc
•Microphone connector : 3-conductor 2.5 (d) mm (1⁄8″)/2.2 kΩ
RECEIVER
•Receive system : Double-conversion superheterodyne
•Intermediate frequencies : 1st: 46.35 MHz, 2nd: 450 kHz
•Sensitivity (at 12 dB SINAD) :0.16 µV typical
•Squelch sensitivity (threshold) :0.11 µV typical
•Selectivity :
[Wide] More than 55 dB
[Narrow] More than 50 dB
•Spurious and image rejection : 80 dB typical
•Intermodulation : 65 dB typical
•
AF output power (at 7.2 V DC)
:More than 0.3 W at 10% distortion with
an 8 Ωload
•Ext. speaker connector : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω
•Ext. data connector : 3-conductor 2.5 (d) mm (1⁄8″)
All stated specifications are subject to change without notice or obligation.
■IC-V82
72
15 SPECIFICATIONS
GENERAL
•Frequency coverage : (unit: MHz)
USA Tx: 420–450*1/Rx: 400–479*1
Europe, Korea Tx/Rx: 430–440
General (LM), China Tx/Rx: 400–479*2
*1Guaranteed: 440–450 MHz range only.
*2Guaranteed: 430–440 MHz range only.
•Type of emission : FM
•Number of memory channels : 207 (incl. 6 scan edges and 1 call)
•Frequency resolution : 5, 10, 12.5, 15, 20, 25, 30, 50 kHz
•Operating temperature range : –10°C to +60°C; +14˚F to +140˚F
•Frequency stability : ±2.5 ppm (–10°C to +60°C)
•Power supply requirement : 7.2 V DC (6–10.3 V DC acceptable;
Icom’s battery pack only)
•Current drain (at 7.2 V DC: approx.):
Transmit at 5 W (High) 2.0 A
at 2 W (Middle) 1.4 A
at 0.5 W (Low) 0.9 A
Receive standby 80 mA
power save 30 mA
max. audio 250 mA
•Antenna connector : BNC (50 Ω)
•Dimensions (proj. not included) :54(W) ×139(H) ×36.7(D) mm
21⁄8(W)×515⁄32(H)×17⁄16(D) in
•Weight (approx.) : 390 g; 13.8 oz
(with BP-222N and Ant.)
200 g; 7.1 oz
(without battery pack and Ant.)
TRANSMITTER
•Modulation system : Variable reactance frequency mod.
•Output power (at 7.2 V) : 5 W/2 W/0.5 W (High/Mid/Low)
•Max. frequency deviation : ±5.0 kHz [Wide]/±2.5 kHz [Narrow]
•Spurious emissions : Less than –60 dBc
•Microphone connector : 3-conductor 2.5 (d) mm (1⁄8″)/2.2 kΩ
RECEIVER
•Receive system : Double-conversion superheterodyne
•Intermediate frequencies : 1st: 46.35 MHz, 2nd: 450 kHz
•Sensitivity (at 12 dB SINAD) :0.16 µV typical
•Squelch sensitivity (threshold) :0.11 µV typical
•Selectivity :
[Wide] More than 55 dB
[Narrow] More than 50 dB
•Spurious and image rejection : 70 dB typical
•Intermodulation : 65 dB typical
•
AF output power (at 7.2 V DC)
:More than 0.3 W at 10% distortion with
an 8 Ωload
•Ext. speaker connector : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω
•Ext. data connector : 3-conductor 2.5 (d) mm (1⁄8″)
All stated specifications are subject to change without notice or obligation.
■IC-U82
73
16
Options
15
16
DDBATTERY PACKS
*1Operating periods are calculated under the following conditions:
Tx:Rx:standby=1:1:8, power save function: auto setting, is activated
*2Operation with the LOW output power selection is recommended.
DDCHARGER
• BC-144N
DESKTOP CHARGER
+ BC-145
AC ADAPTER
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger. Charging time: 1.5 to 2 hrs.
• BC-146
BATTERY CHARGER
+ BC-147
AC ADAPTER
For regular charging of battery packs. An AC adapter is ad-
ditionally required. Charging time: 6.5 to 18.5 hrs.
• BC-119N
DESKTOP CHARGER
+ AD-101
CHARGER ADAPTER
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger. Charging time: 1.5 to 2 hrs.
•
BC-121N
MULTI
-
CHARGER
+ AD-101
CHARGER ADAPTER
(6 pcs.)
For rapid charging of up to 6 battery packs (six AD-101’s are
required) simultaneously. An AC adapter may be supplied
depending on version. Charging time: 1.5 to 2 hrs.
DDBELT CLIP
• MB-103/MB-86
BELT CLIPS
MB-103: Same as that supplied with the transceiver.
MB-86: Swivel belt clip
• MB-96F/MB-96N
LEATHER BELT HANGER
MB-96F: Fixed type belt hanger for use with MB-103.
MB-96N: Swivel belt hanger. MB-86’s base clip is required.
DDINTERNAL UNIT
• UT-108
DTMF DECODER UNIT
Provides pager and code squelch capabilities.
• UT-118
DIGITAL UNIT
Provides digital mode operation capabilities.
DDOTHER OPTIONS
• HM-75A/HM-131L
SPEAKER
-
MICROPHONES
Combination speaker-microphones that provide convenient
operation while hanging the transceiver from your belt.
HM-75A has 4 function switches for remote control capabil-
ities.
HM-131L has moisture proof construction.
• HM-128L
EARPHONE
-
MICROPHONE
You can clip the microphone with PTT switch to your lapel or
breast pocket.
• HS-85
HEADSET
Allows you hands-free operation. Includes VOX, PTT and
“one-touch” PTT with time-out timer.
Battery Voltage Capacity Battery life*1
pack
BP-208N Battery case for AA —*2
(LR6)×6 alkaline
BP-209N 7.2 V 1100 mAh 3 hrs. 20 min.
BP-210N 7.2 V 1650 mAh 6 hrs.
BP-211N 7.4 V 1800 mAh 6 hrs. 10 min.
BP-222N 7.2 V 600 mAh 2 hrs. 15 min.
74
16 Options
• VS-1L
PTT
/
VOX UNIT
+HS-94/HS-95/HS-97
HEADSET
VS-1L
PTT
/
VOX UNIT
Required when using these headsets.
HS-94
EAR
-
PIECE TYPE HEADSET
Earhook headset with flexible boom microphone.
HS-95
NECK
-
ARM TYPE HEADSET
Behind-the-head headset with flexible boom microphone.
HS-97
THROAT MICROPHONE
Throat microphone fits around your neck and picks up a
speech vibration.
• CS-V82
CLONING SOFTWARE
+OPC-478/U
CLONING CABLE
Provide quick and easy programming of memory channel,
memory name etc.
• OPC-474
CLONING CABLE
For cloning between transceivers.
• SP-13
EARPHONE
Provides clear receive audio in noisy environments.
• FA-B2E
WHIP ANTENNA
Same as that supplied with the transceiver.
Some options may not be available in some countries. Please ask your dealer for details.
75
