MEMORY PROGRAMMING
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D New GROUP programming
q Push [r] or [s] (or rotate [DIAL]) to select the desired
information, then push [ENT MW].
Selectable information:
• NAME • SKIP • LINK • DIRECT KEY
• NEXT (Edit NAME programming)
NAME (Group name)
q Push [ENT MW] (or [w]) to edit the name program-
ming.
• Push [r] or [s] to select the character group from “ABC”
(alphabetical characters; capital letters), “abc” (alphabetical
characters; lower case letters), “123” (numbers) or “!”#” (sym-
bols).
• Push [v] or [w] to move the cursor left or right, respectively.
• Push [CLR SQL] to clear the selected character.
• Available characters
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
!''#$%&'()*+,-./:;<=>?@[\]^_`{|}~ (Space)
SKIP, LINK
q Push [ENT MW] (or [w]) to edit the setting state.
w Push [r] or [s] to select the desired setting, then
push [ENT MW].
DIRECT KEY
q Push [ENT MW] (or [w]) to enter the number input.
w Edit the desired 2 digit number with keypad.
• Duplicated number can not be assigned in the same cat-
egory (including direct key for category).
w Push [s] (or rotate [DIAL]) to select “NEXT,” then push
[ENT MW] to enter the NAME programming state.
Or push and hold [ENT MW] for 1 sec. to program the
memory channel and return to the frequency indication.
• 1 short and 1 long beep sound.
New2001
52
7MEMORY PROGRAMMING
New2001

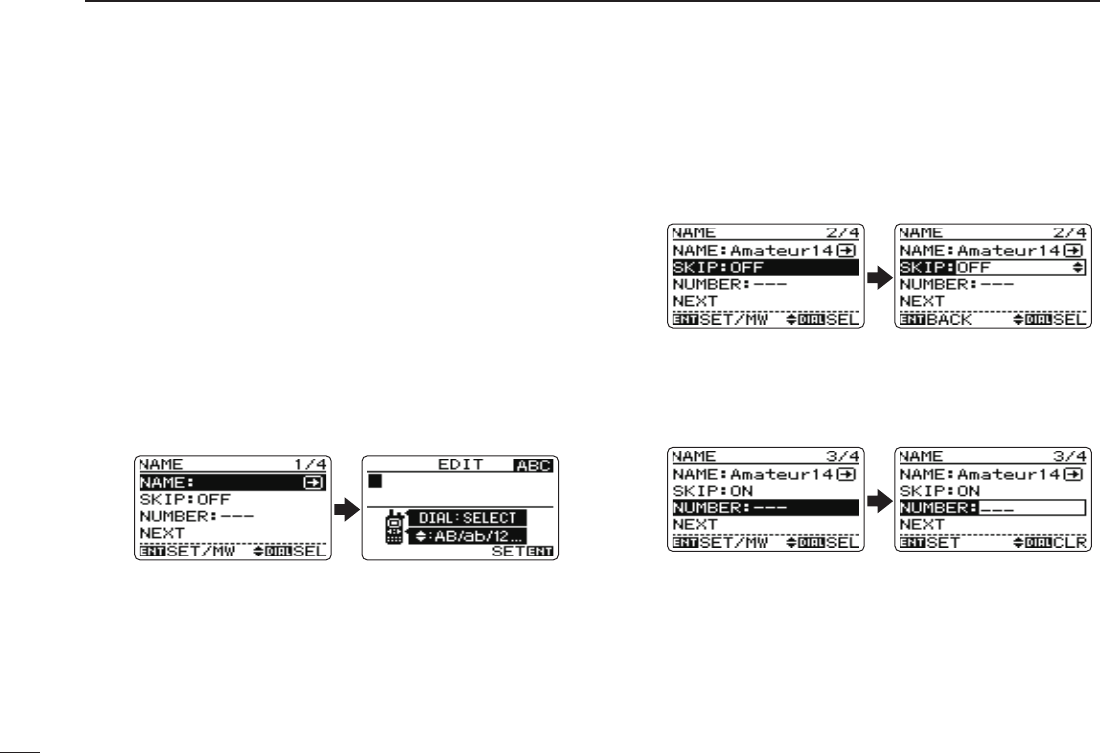

D New NAME programming
q Push [r] or [s] (or rotate [DIAL]) to select the desired
information, then push [ENT MW].
Selectable information:
• NAME • SKIP • NUMBER
• NEXT (Edit CH programming)
NAME
q Push [ENT MW] (or [w]) to edit the name program-
ming.
• Push [r] or [s] to select the character group from “ABC”
(alphabetical characters; capital letters), “abc” (alphabetical
characters; lower case letters), “123” (numbers) or “!”#” (sym-
bols). See previous page for available characters details.
• Push [v] or [w] to move the cursor left or right, respectively.
• Push [CLR SQL] to clear the selected character.
SKIP
q Push [ENT MW] (or [w]) to edit the setting state.
w Push [r] or [s] to select the desired setting, then
push [ENT MW].
NUMBER
q Push [ENT MW] (or [w]) to enter the number input.
w Edit the desired 3 digit number with keypad.
• Duplicated number can not be assigned in the same group.
w Push [s] (or rotate [DIAL]) to select “NEXT,” then push
[ENT MW] to enter the CH programming state.
Or push and hold [ENT MW] for 1 sec. to program the
memory channel and return to the frequency indication.
• 1 short and 1 long beep sound.
53
7
MEMORY PROGRAMMING
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

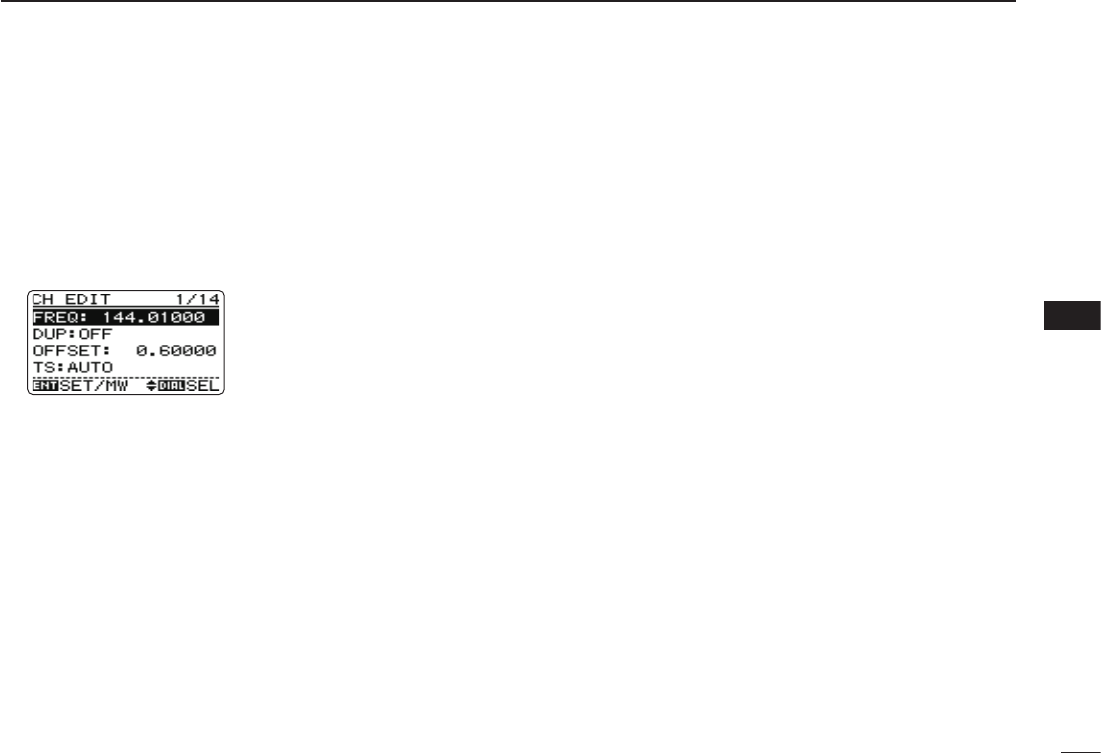

D New CH programming
q Push [r] or [s] (or rotate [DIAL]) to select the desired
information, then push [ENT MW].
Selectable information:
• FREQ • DUP • OFFSET • TS
• MODE • ATT • SKIP • PRIO
• STOP BEEP • TONE • TSQL FREQ • DTCS CODE
• DTCS P • VSC
FREQ, OFFSET
q Push [ENT MW] (or [w]) to enter the frequency input.
w Edit the desired frequency with keypad (pgs. 20, 21).
Other information
q Push [ENT MW] (or [w]) to edit the setting state.
w Push [r] or [s] to select the desired setting, then
push [ENT MW].
w Push and hold [ENT MW] for 1 sec. to program the chan-
nel and return to the frequency indication.
• 1 short and 1 long beep sound.
■
Memory channel selection
Memory channel can be selected during scan holding state.
q Push [SCAN] to start a scan, then push [HOLD V] to hold
the scan.
w Push and hold [v] or [w] for 1 sec. to select the desired
category.
e Push [v] or [w] to select the desired group in the cat-
egory.
r Push [No. DIAL] and 3 digit number (000 to 999) to call
the desired memory name in the group directly.
• If the memory number is not assigned to the memory name,
skip this step. (See p. 50 for number programming details.)
t Rotate [DIAL] to select the channel.
New2001
54
7MEMORY PROGRAMMING
New2001
■ Copying memory contents
This function copies a memory channel’s contents to VFO
(or another memory). This is useful when searching for sig-
nals around a memory channel frequency and for recalling
the offset frequency, subaudible tone frequency etc.
D Memory channel ➪VFO
q Select the memory channel to be copied.
➥ Push [SCAN] to start a scan, then push [HOLD V] to
hold the scan.
➥ Rotate [DIAL] to select the desired channel.
• Push and hold [v] or [w] for 1 sec. to change the category,
or push [v] or [w] to change the group.
w Push and hold [HOLD V] for 1 sec. to write the selected
channel contents to VFO mode.
• 1 short and 1 long beep sound.
• Returns to VFO mode automatically.
D Memory channel ➪ memory channel
q Select the desired memory channel to be copied.
➥ Push [SCAN] to start a scan, then push [HOLD V] to
hold the scan.
➥ Rotate [DIAL] to select the channel.
• Push and hold [v] or [w] for 1 sec. to change the category,
or push [v] or [w] to change the group.
w Push and hold [ENT MW] for 1 sec. to enter memory pro-
gramming state.
• 1 short and 1 long beep sound.
e Push [s] once (or rotate [DIAL]) to select “COPY,” then
push [ENT MW].
55
7
MEMORY PROGRAMMING
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

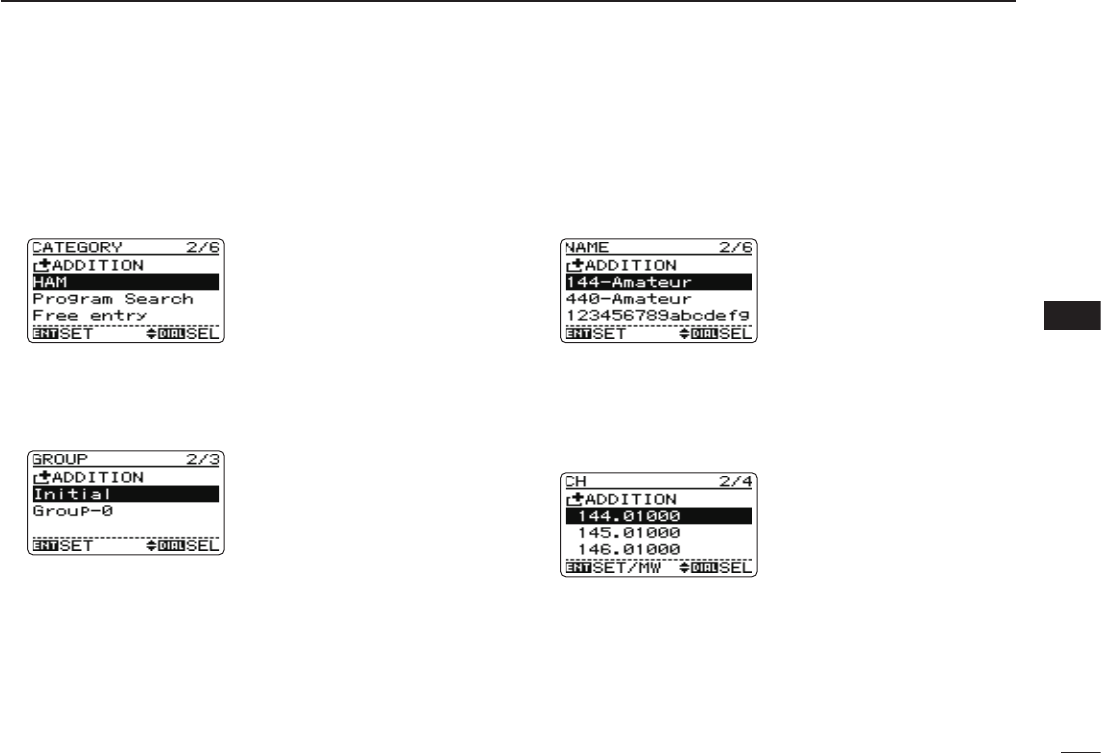

r Push [r] or [s] (or rotate [DIAL]) to select the desired
category or “ADDITION,” then push [ENT MW].
• When “ADDITION” is selected, new category can be pro-
grammed (see p. 50 for new category programming details).
t Push [r] or [s] (or rotate [DIAL]) to select the desired
group or “ADDITION,” then push [ENT MW].
• When “ADDITION” is selected, new group can be programmed
in the category (see p. 51 for new group programming details).
y Push [r] or [s] (or rotate [DIAL]) to select the desired
name or “ADDITION,” then push [ENT MW].
• When “ADDITION” is selected, new name can be programmed
in the group (see p. 52 for new name programming details).
u Push [r] or [s] (or rotate [DIAL]) to select the target
channel or “ADDITION,” then push [ENT MW].
• When “ADDITION” is selected, new channel can be pro-
grammed in the name (see p. 53 for new channel programming
details).
i Push and hold [ENT MW] for 1 sec. to copy the channel
and return to frequency display.
New2001
56
7MEMORY PROGRAMMING
New2001

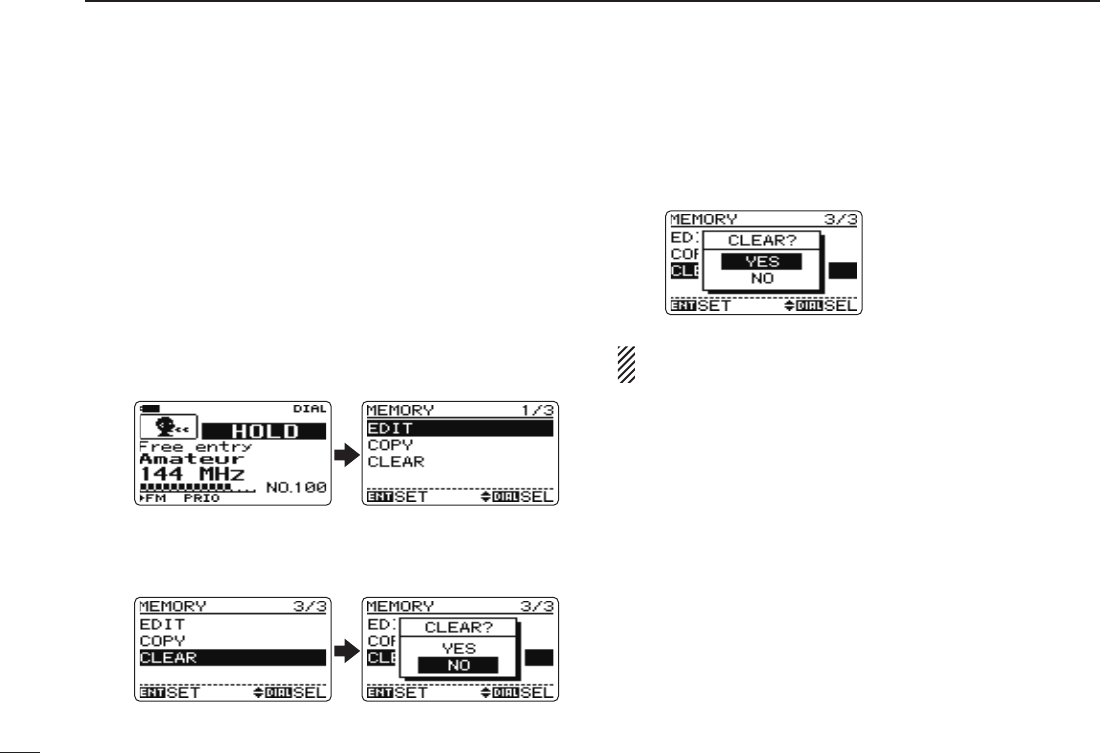

■ Memory clearing
Contents of programmed memories can be cleared (erased),
if desired.
q Select the desired memory channel to be erased.
➥ Push [SCAN] to start a scan, then push [HOLD V] to
hold the scan.
➥ Rotate [DIAL] to select the channel.
• Push and hold [v] or [w] for 1 sec. to change the category,
or push [v] or [w] to change the group.
w Push and hold [ENT MW] for 1 sec. to enter memory pro-
gramming state.
• 1 short and 1 long beep sound.
e Push [s] twice (or rotate [DIAL]) to select “CLEAR,” then
push [ENT MW].
• “CLEAR?” window appears.
r Push [r] to select “YES,” then push [ENT MW] (or [w]).
• Select “NO,” then push [ENT MW] to cancel clearing.
• Returns to scan holding state.
NOTE: Be careful!— the contents of cleared memories
CANNOT be recalled.
57
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ General
MENU screen is used for programming values or conditions
of functions.

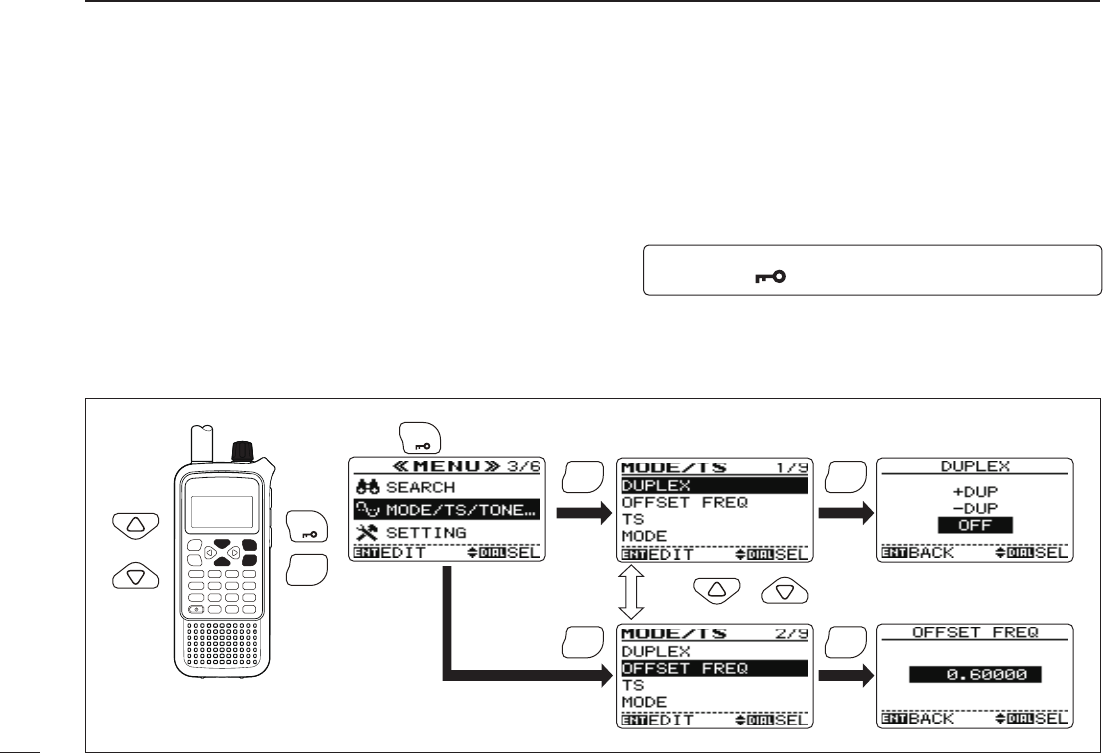

D Entering MENU screen and operation
e.g.) Set “AUTO power OFF” to 30 minutes.
q Push [MENU ] to enter MENU screen.
w Push [ ]/[ ] (or rotate [DIAL]) to select the desired menu
group, then push [ENT MW].
e Push [ ]/[ ] (or rotate [DIAL]) to select the desired item,
then push [ENT MW].
r Push [ ]/[ ] (or rotate [DIAL]) to select the desired value
or condition, then push [ENT MW] to return to the setting
item selection mode.
t Push [CLR SQL] to return to frequency indication, or re-
peat steps w to r to set another items.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
MENU
ENT
CLR
SQL
[DIAL]
New2001
58
8MENU SCREEN OPERATION
New2001
■ Menu list
SEARCH
MODE/TS/TONE...
SETTING
ALL SCAN Push [ENT MW] to start
Skip setting ON/OFF for Category, Group or Name
Push [ENT MW] to start
ON OFF
ON OFF
TSQL DTCS
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
HOLD 5SEC 4SEC 3SEC 2SEC
BELL ON OFF
OFF
+DUP −DUP OFF
0.00000
1SEC 0SEC
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
AUTO
88.5
023
NORMAL
200.0kHz 125.0 kHz 100.0kHz
AUTOFM WFM AM
DTCS-R TSQL-R TSQL TSQLSDTCS DTCSS
REVERSE
50.0 kHz
HOLD 5SEC 4SEC 3SEC 2SEC 1SEC 0SEC
ON OFF
ON OFF
ON OFF
ON OFF
Select a category, then push [ENT MW] to start
Select a category, then push [ENT MW] to start
Select a band, then push [ENT MW] to start
Push [ENT MW] to indicate the auto write channel
Select a program, then push [ENT/MW] twice to start
Select a program-link, then push [ENT/MW] twice to start
Select a group, then push [ENT MW] to start
SOUND
SCAN
DISPLAY
SEARCH
MODE/TS/TONE...
SETTING
SOUND
SCAN
DISPLAY
CATEGORY SCAN
GROUP SCAN
WEATHER SCAN
WEATHER ALERT
SKIP
PRIORITY
STOP BEEP
PAUSE
RESUME
ALL SCAN Push [ENT MW] to start
Skip setting ON/OFF for Category, Group or Name
Push [ENT MW] to start
ON OFF
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
HOLD 5SEC 4SEC 3SEC 2SEC 1SEC 0SEC
ON OFF
ON OFF
Select a category, then push [ENT MW] to start
Select a group, then push [ENT MW] to start
SCAN
CATEGORY SCAN
GROUP SCAN
WEATHER SCAN
WEATHER ALERT
SKIP
PRIORITY
STOP BEEP
PAUSE
RESUME
BASIC SEARCH
BAND SEARCH
PROGRAM SEARCH
PROGRAM LINK
AUTO WRITE CH
PROGRAM SKIP

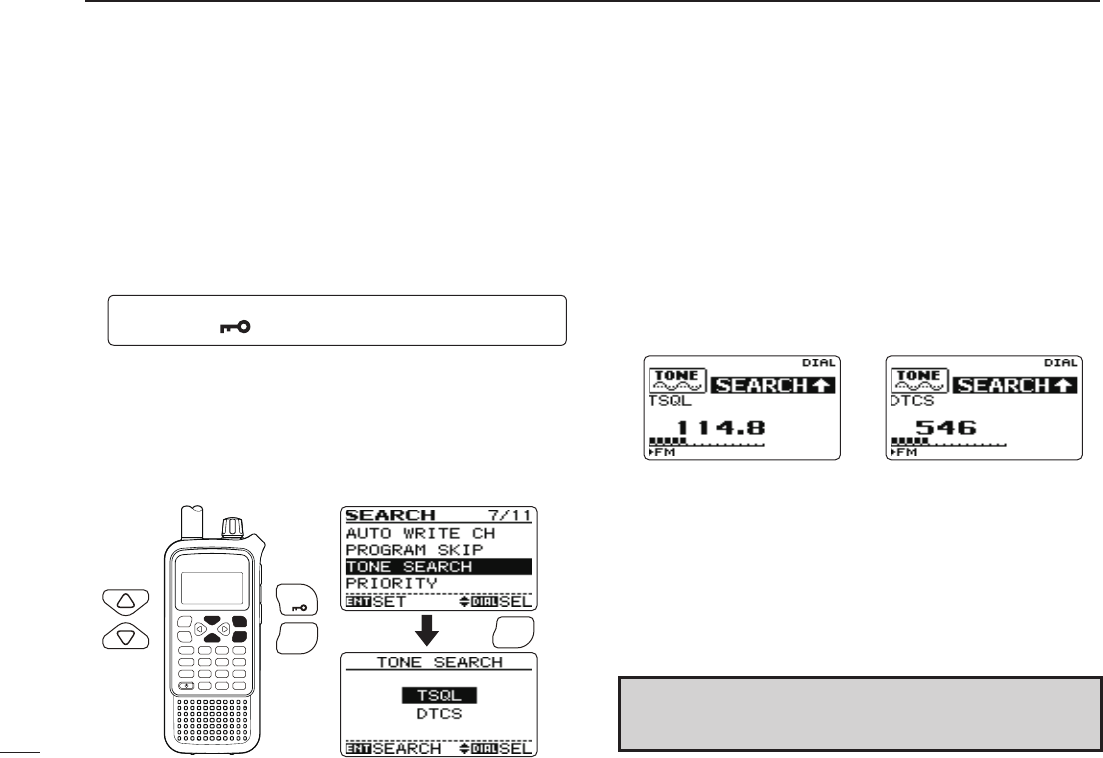

TONE SEARCH
PRIORITY
STOP BEEP
PAUSE
RESUME

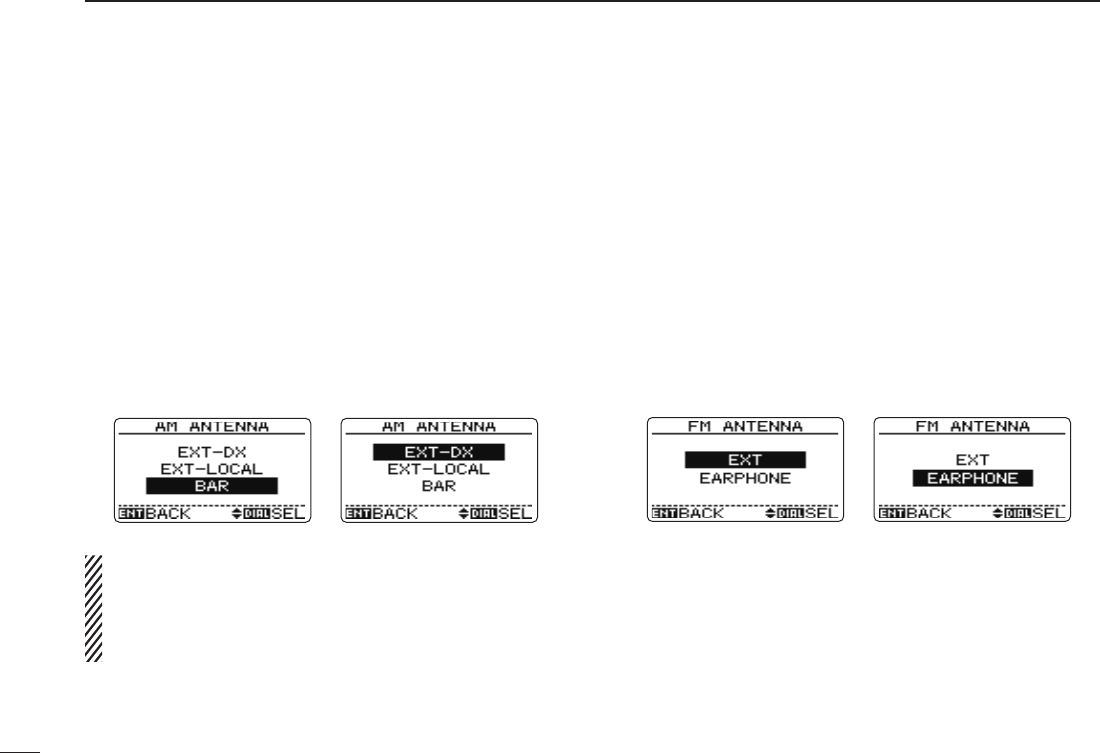

AM ANTENNA
FM ANTENNA

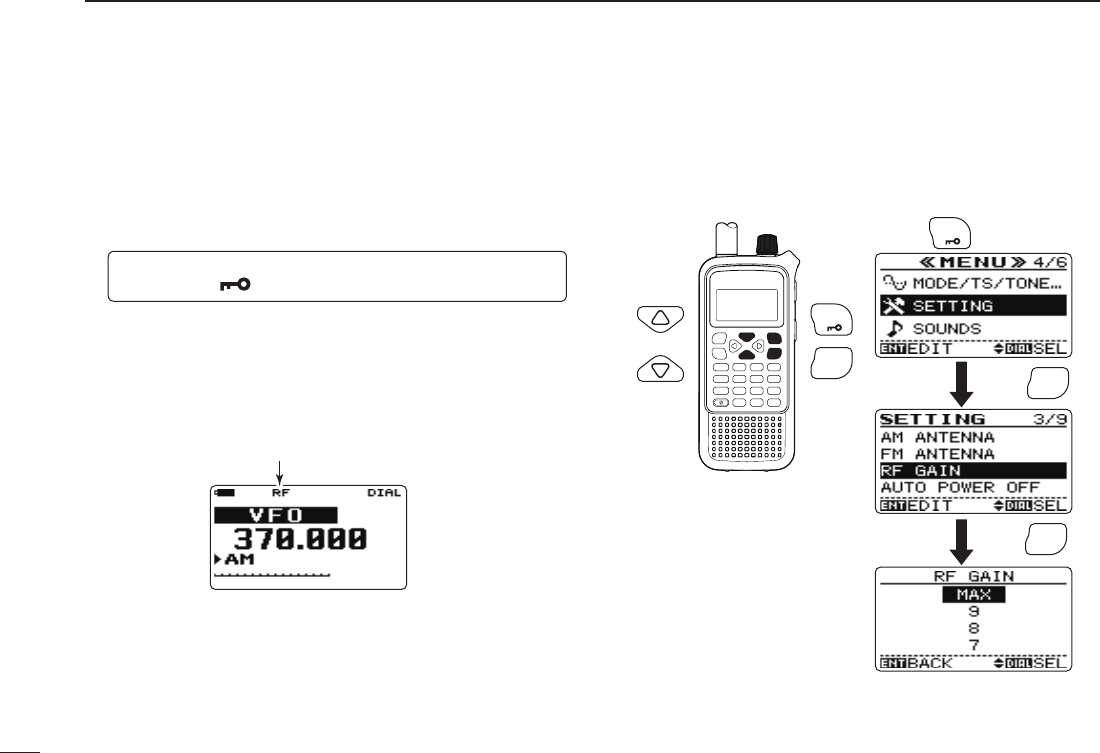

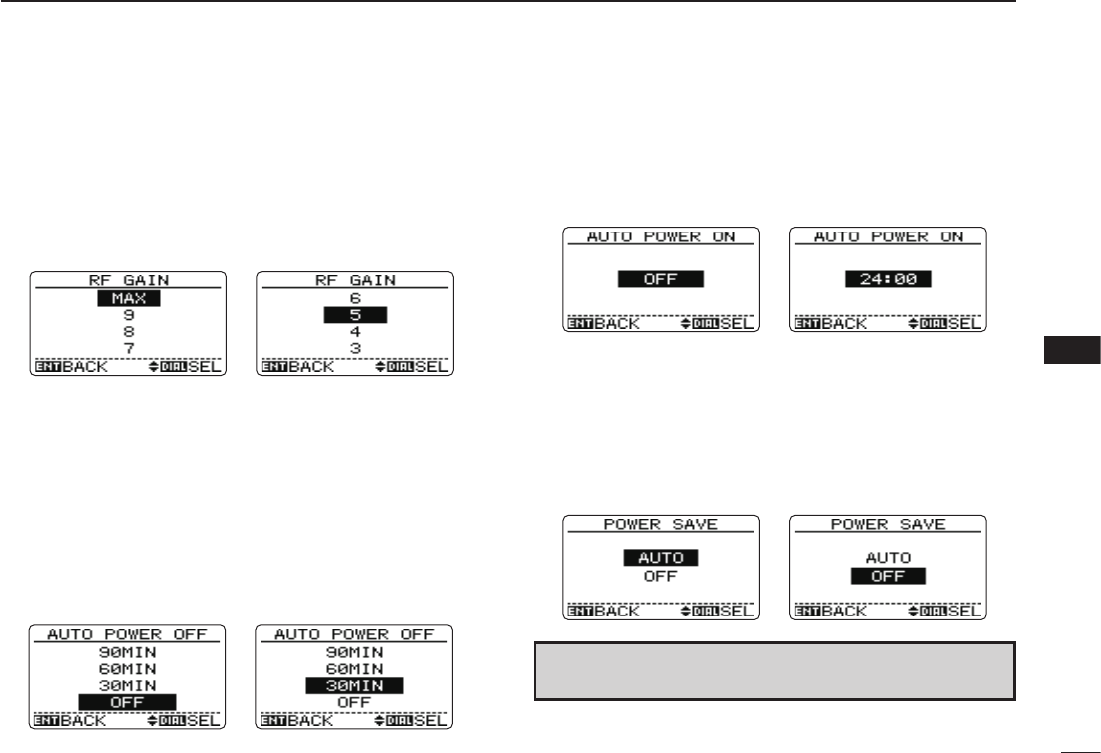

RF GAIN
AUTO POWER OFF
AUTO POWER ON
POWER SAVE

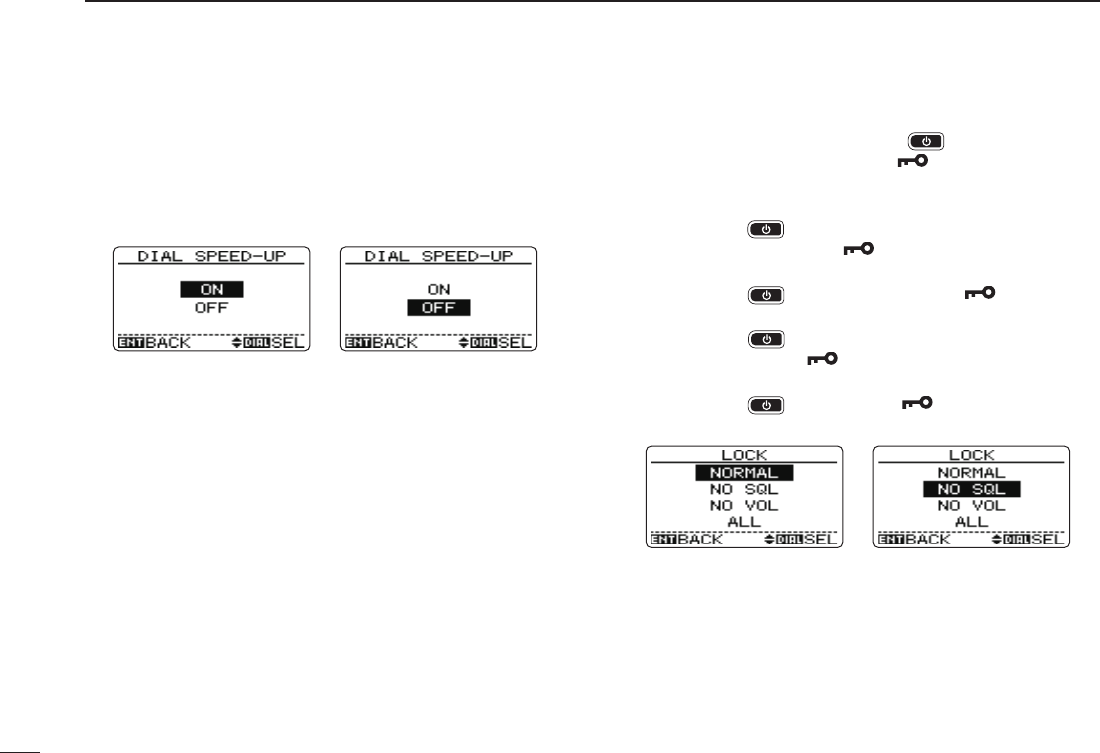

DIAL SPEED-UP
LOCK

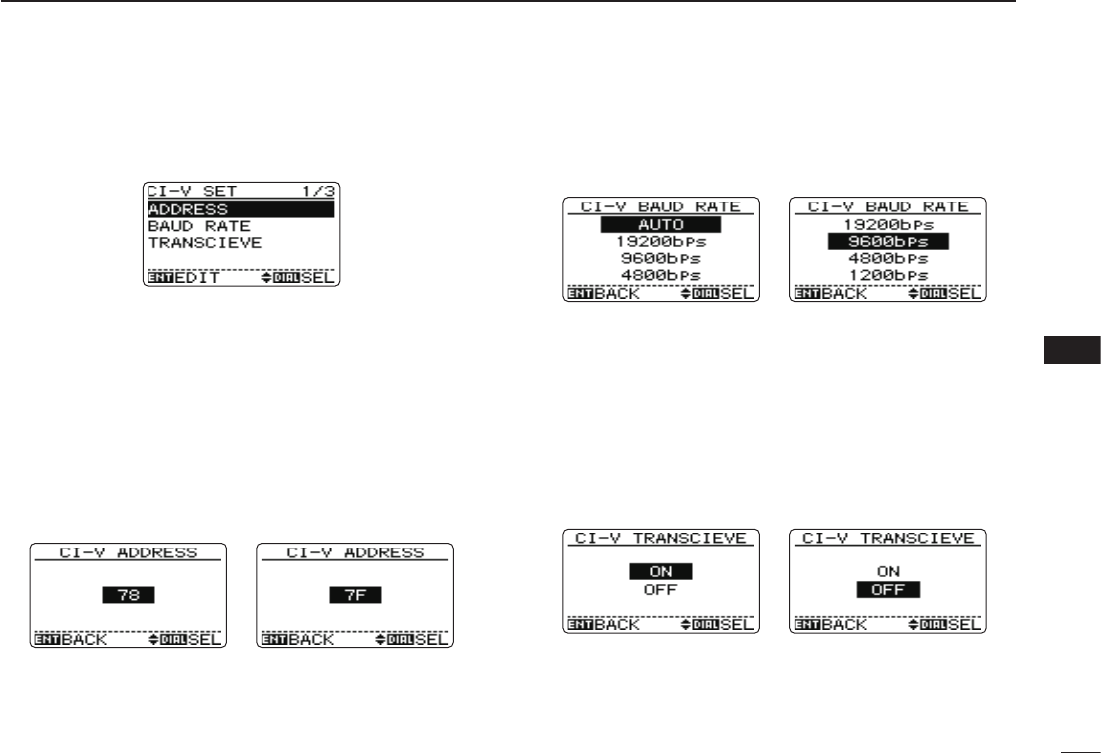

CI-V ADDRESS
BAUD RATE
BASS
TREBLE
TRANSCEIVE

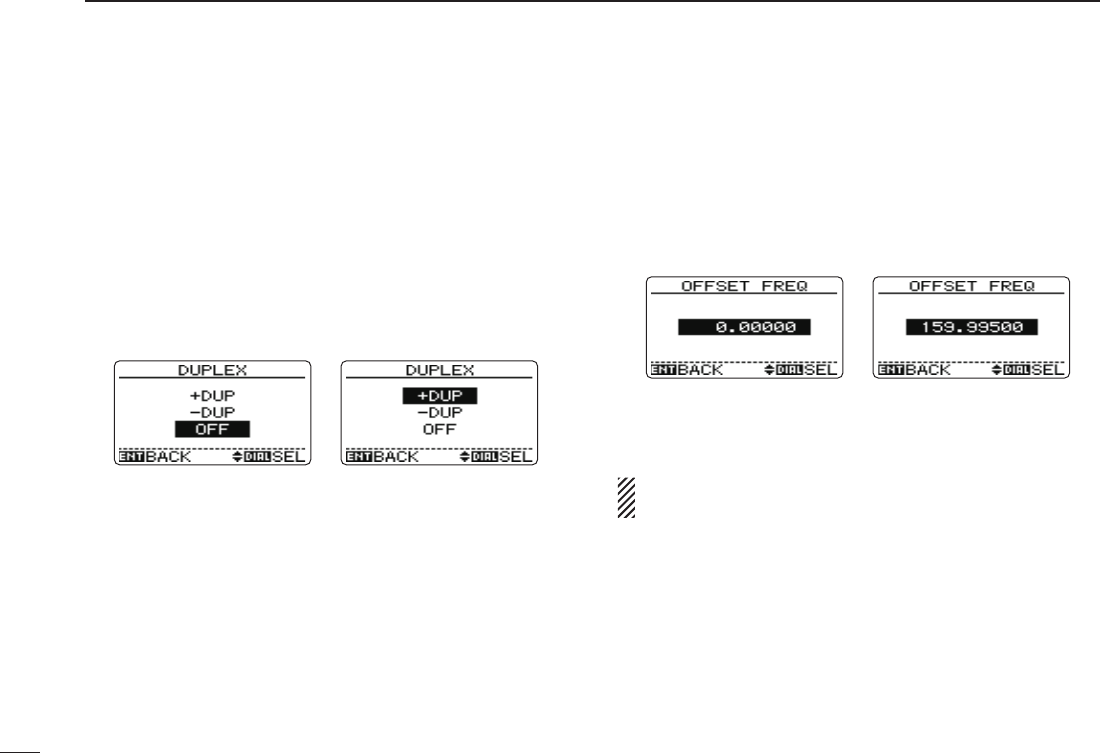

DUPLEX
OFFSET FREQ

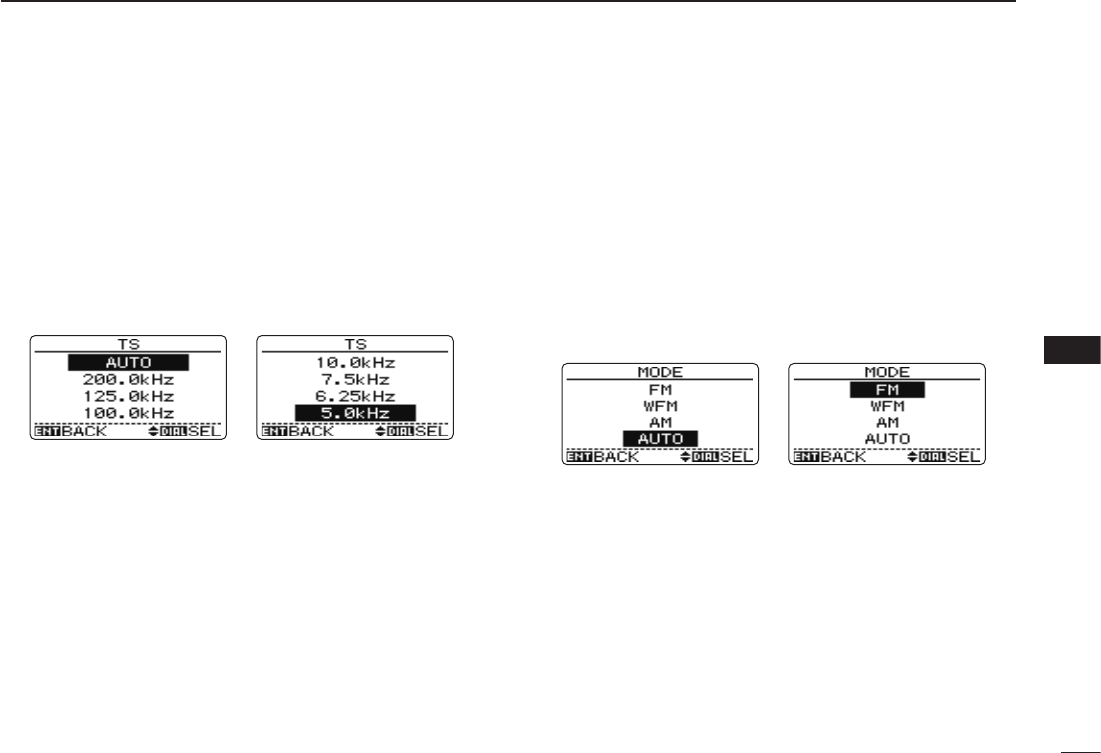

TS
MODE

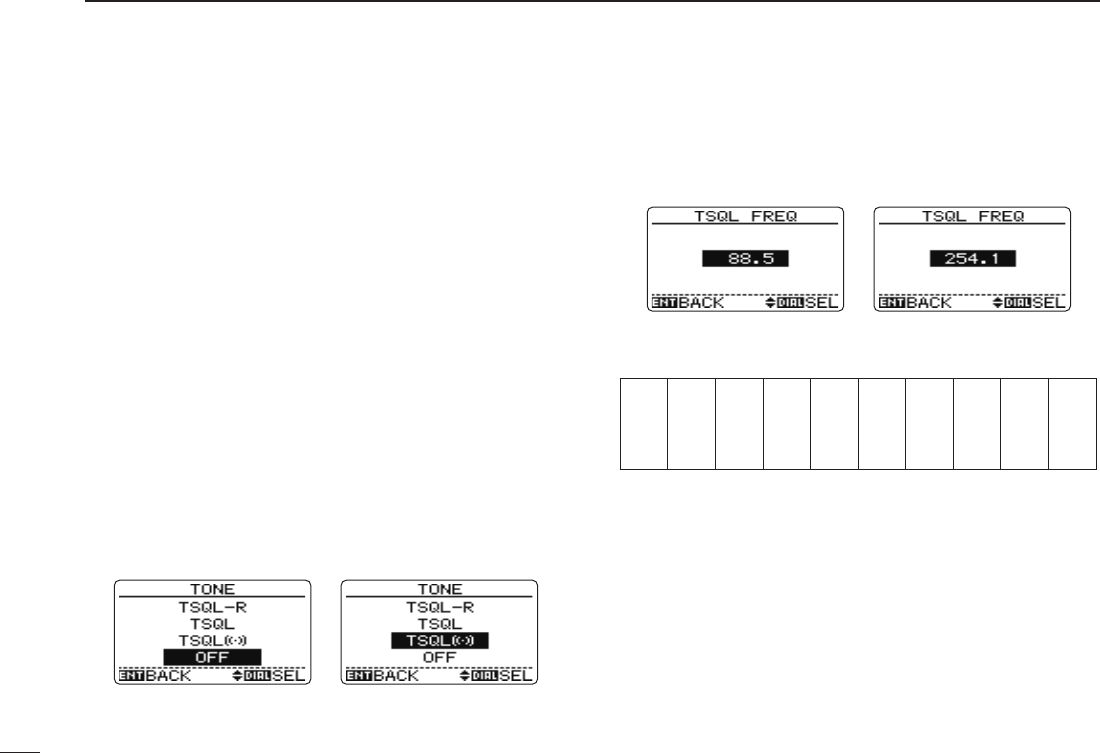

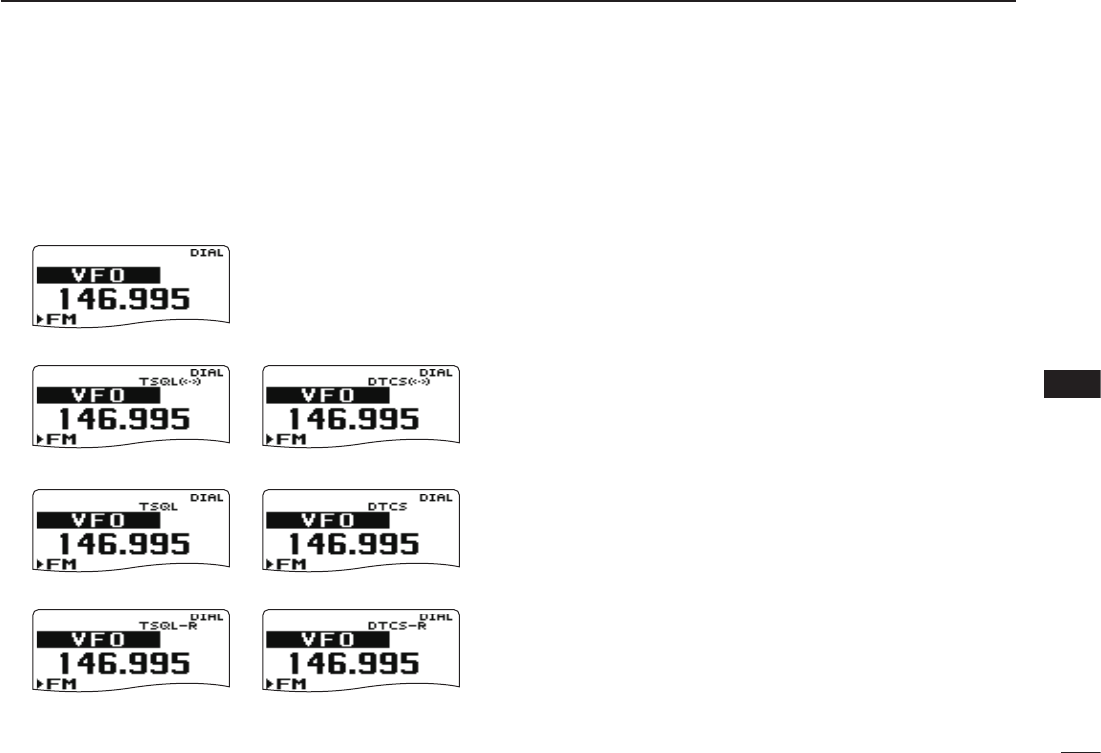

TONE

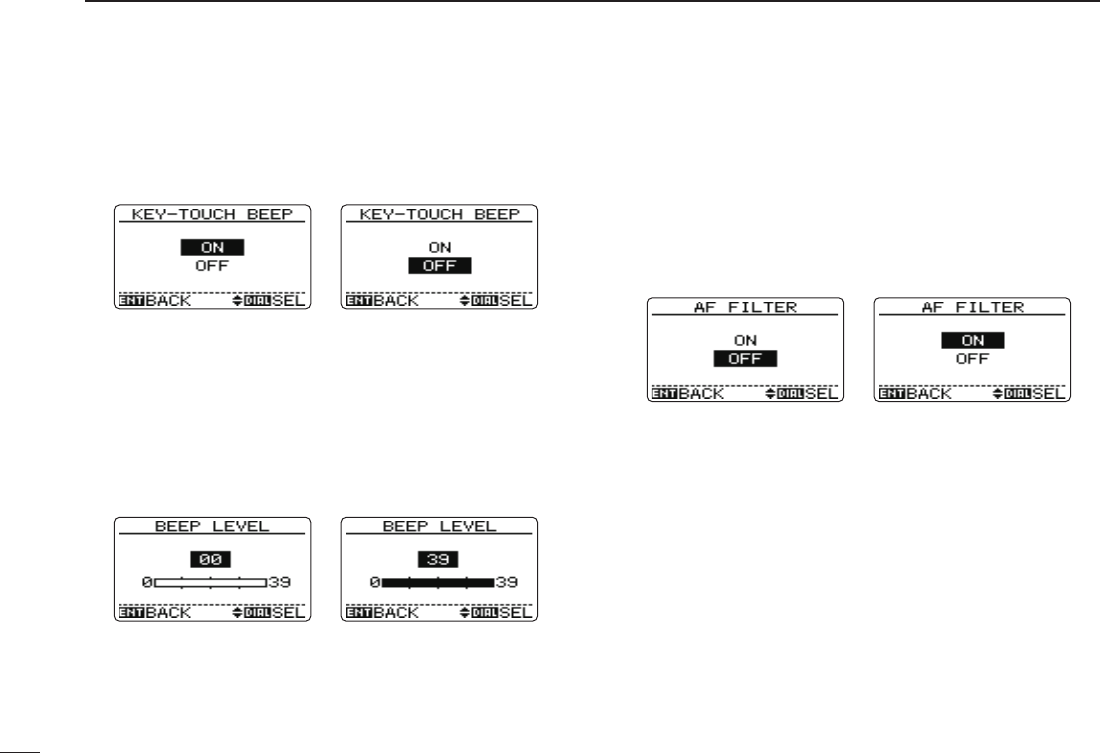

KEY-TOUCH BEEP
BEEP LEVEL
AF FILTER
TONE CONTROL
BACKLIGHT
LCD CONTRAST
OPENING LOGO
FONT SIZE
SETTING
SOUNDS
DISPLAY

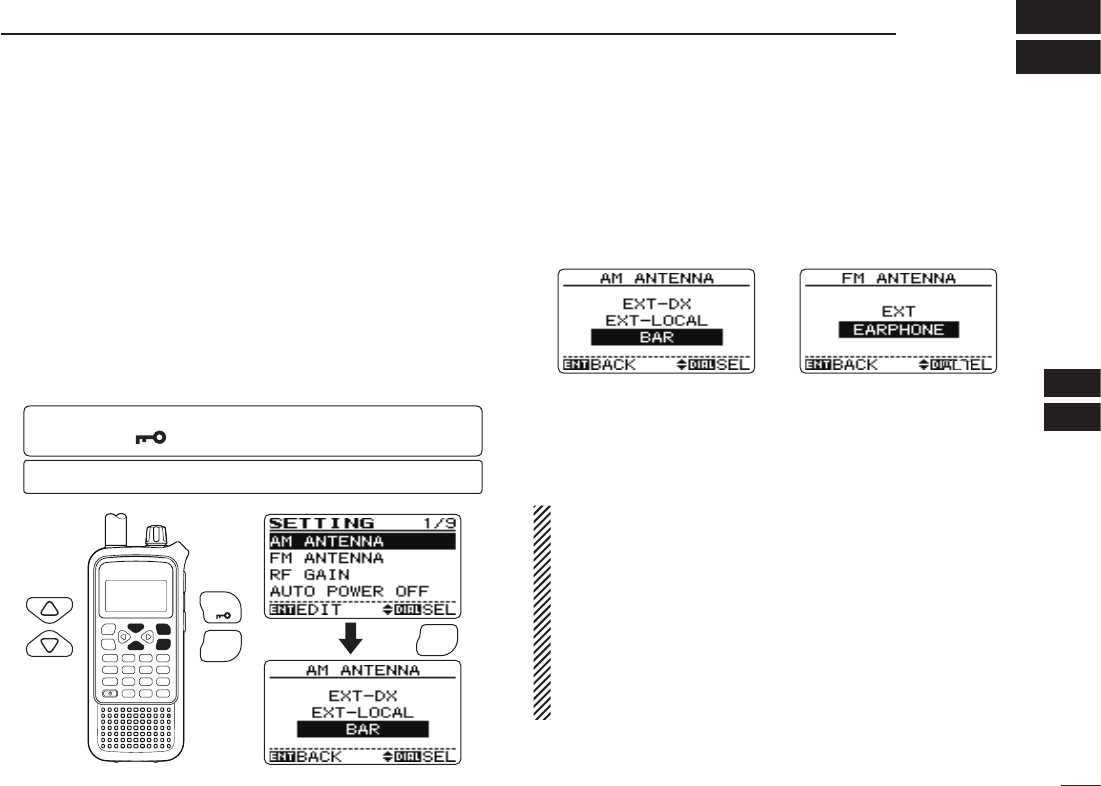

AM ANTENNA
FM ANTENNA
RF GAIN
AUTO POWER OFF
AUTO POWER ON
POWER SAVE
DIAL SPEED-UP
LOCK
CI-V ADDRESS
BAUD RATE
BASS
TREBLE
TRANSCEIVE
KEY-TOUCH BEEP
BEEP LEVEL
AF FILTER
TONE CONTROL

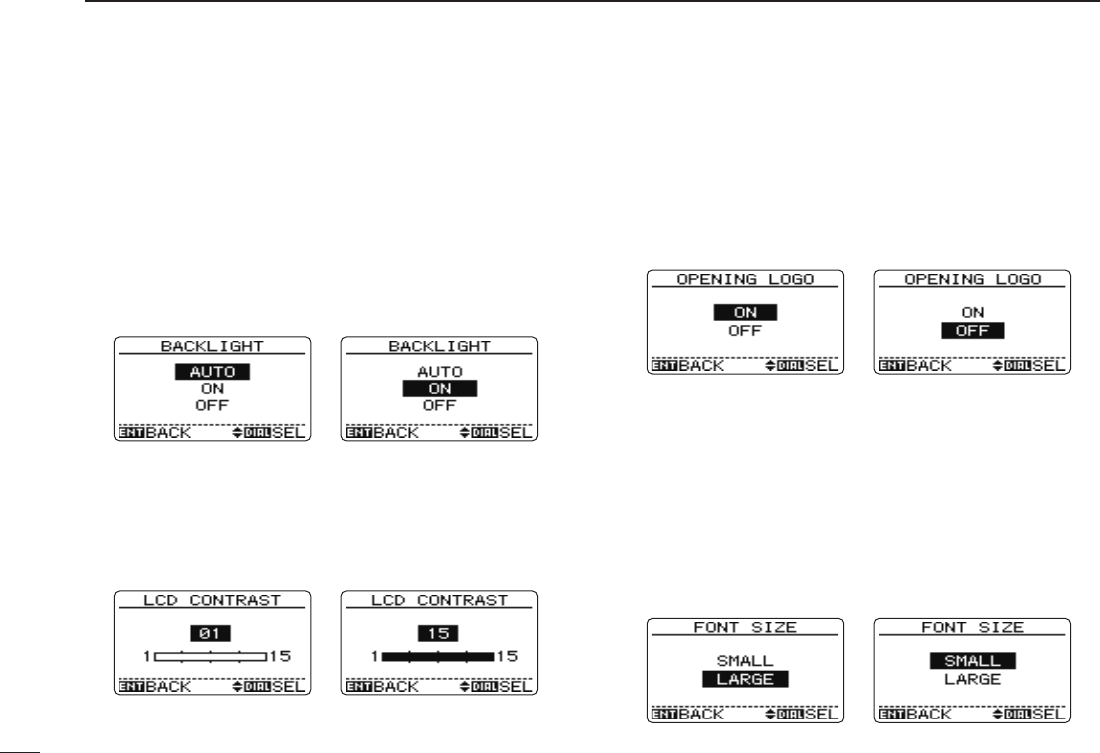

BACKLIGHT
LCD CONTRAST
OPENING LOGO
FONT SIZE

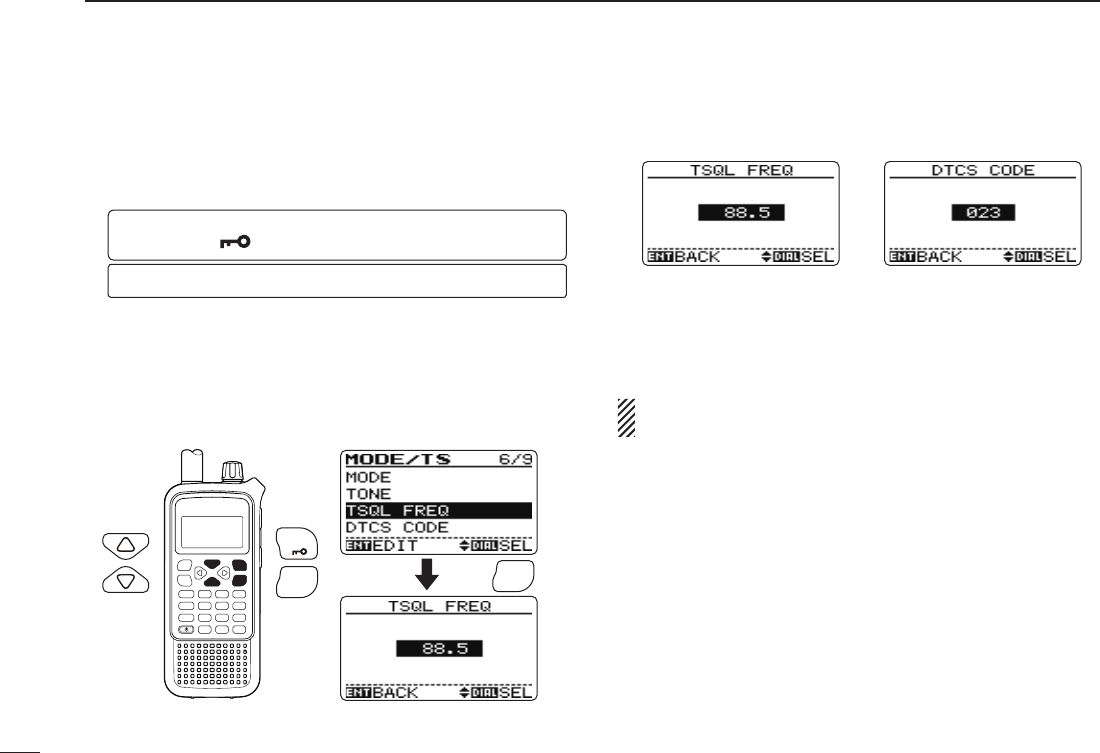

TSQL FREQ

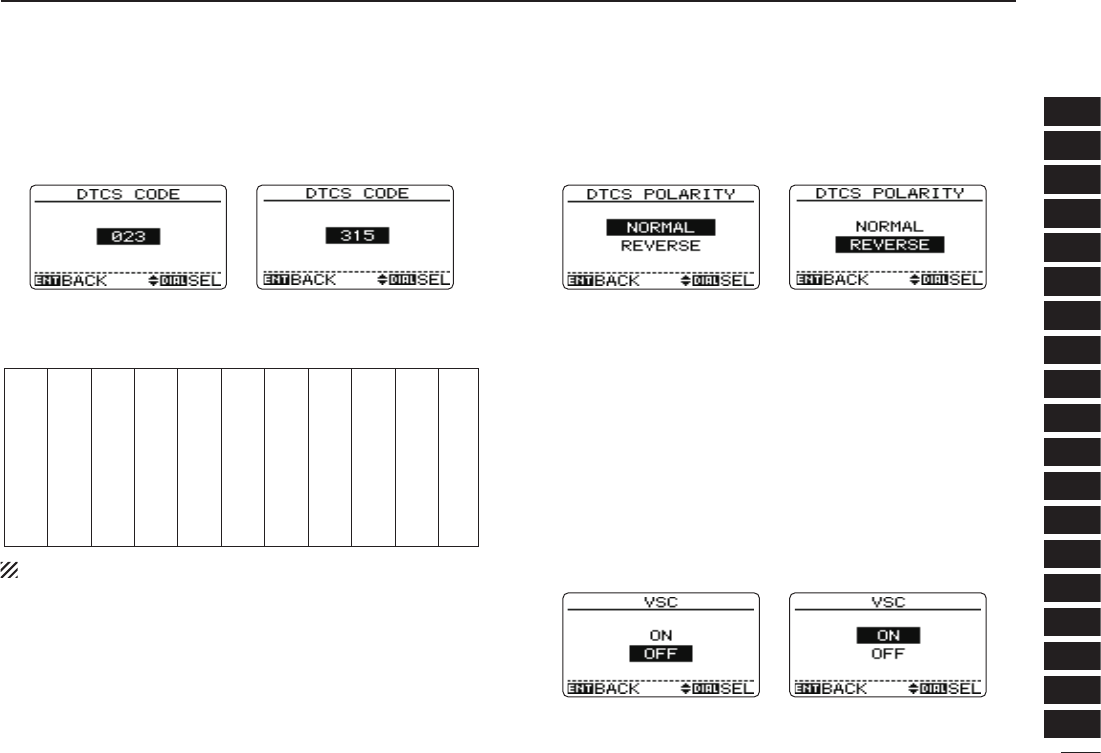

DTCS CODE
DTCS POLARITY
VSC
*“AUTO” is available for USA version only
*Appears only when FM mode is selected
ON OFF
ON
78
19
08
OFF
ON OFF
ON OFF
ON OFF
TSQL DTCS
BELL ON OFF
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
MAX 987654321MIN
HOLD 5SEC 4SEC 3SEC 2SEC 1SEC 0SEC
120MIN 90MIN 60MIN 30MIN
ON OFF
Select a category, then push [ENT MW] to start
Select a band, then push [ENT MW] to start
Push [ENT MW] to indicate the auto write channel
Select a program, then push [ENT/MW] twice to start
Select a program-link, then push [ENT/MW] twice to start
SEARCH
BASIC SEARCH
BAND SEARCH
PROGRAM SEARCH
PROGRAM LINK
AUTO WRITE CH
PROGRAM SKIP
TONE SEARCH
PRIORITY
STOP BEEP
PAUSE
RESUME
*Appears only when FM mode is selected
*Appears only when AM/WFM mode is selected
*Depending on the operating frequency
*Depending on the operating frequency
*Available for some frequency band
30.0 kHz 25.0kHz 15.0 kHz
12.5 kHz 10.0kHz 7.5 kHz9.0 kHz* 8.33 kHz* 6.25 kHz 5.0 kHz
OFF
+DUP −DUP OFF
EXT-DX EXT-LOCAL BAR
BOOST CUT
EXT EARPHONE
0.00000
AUTO
88.5
023
NORMAL
200.0kHz 125.0 kHz 100.0kHz
AUTOFM WFM AM
DTCS-R TSQL-R TSQL TSQLSDTCS DTCSS
REVERSE
LARGESMALL
NORMAL
NORMAL
BOOST CUT
NORMAL
NO SQL NO VOL ALL
AUTO 19200bps 9600bps 4800bps 1200bps 300bps
AUTO OFF
AUTO ON OFF
50.0 kHz
ON OFF
ON OFF
SOUNDS
DISPLAY
BASS
TREBLE
KEY-TOUCH BEEP
BEEP LEVEL
AF FILTER
TONE CONTROL
BACKLIGHT
LCD CONTRAST
OPENING LOGO
FONT SIZE
19
08
ON OFF
ON OFF
*Appears only when AM/WFM mode is selected
BOOST
LARGESMALL
NORMAL
BOOST NORMAL
AUTO ON OFF
ON OFF
OFF
OFF
MODE/TS/TONE...
DUPLEX
OFFSET FREQ
TS
MODE
TONE
TSQL FREQ
DTCS CODE
DTCS POLARITY
VSC
*“AUTO” is available for USA version only
Push []/[] to set the timer in 30 min. steps
*Depending on the operating frequency
*Depending on the operating frequency
*Available for some frequency band
30.0 kHz 25.0kHz 15.0 kHz
12.5 kHz 10.0kHz 7.5 kHz9.0 kHz* 8.33 kHz* 6.25 kHz 5.0 kHz
59
8
MENU SCREEN OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SEARCH
MODE/TS/TONE...
SETTING
ALL SCAN Push [ENT MW] to start
Skip setting ON/OFF for Category, Group or Name
Push [ENT MW] to start
ON OFF
ON OFF
TSQL DTCS
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
HOLD 5SEC 4SEC 3SEC 2SEC
BELL ON OFF
OFF
+DUP −DUP OFF
0.00000
1SEC 0SEC
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
AUTO
88.5
023
NORMAL
200.0kHz 125.0 kHz 100.0kHz
AUTOFM WFM AM
DTCS-R TSQL-R TSQL TSQLSDTCS DTCSS
REVERSE
50.0 kHz
HOLD 5SEC 4SEC 3SEC 2SEC 1SEC 0SEC
ON OFF
ON OFF
ON OFF
ON OFF
Select a category, then push [ENT MW] to start
Select a category, then push [ENT MW] to start
Select a band, then push [ENT MW] to start
Push [ENT MW] to indicate the auto write channel
Select a program, then push [ENT/MW] twice to start
Select a program-link, then push [ENT/MW] twice to start
Select a group, then push [ENT MW] to start
SOUND
SCAN
DISPLAY
SEARCH
MODE/TS/TONE...
SETTING
SOUND
SCAN
DISPLAY
CATEGORY SCAN
GROUP SCAN
WEATHER SCAN
WEATHER ALERT
SKIP
PRIORITY
STOP BEEP
PAUSE
RESUME
ALL SCAN Push [ENT MW] to start
Skip setting ON/OFF for Category, Group or Name
Push [ENT MW] to start
ON OFF
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
HOLD 5SEC 4SEC 3SEC 2SEC 1SEC 0SEC
ON OFF
ON OFF
Select a category, then push [ENT MW] to start
Select a group, then push [ENT MW] to start
SCAN
CATEGORY SCAN
GROUP SCAN
WEATHER SCAN
WEATHER ALERT
SKIP
PRIORITY
STOP BEEP
PAUSE
RESUME
BASIC SEARCH
BAND SEARCH
PROGRAM SEARCH
PROGRAM LINK
AUTO WRITE CH
PROGRAM SKIP
TONE SEARCH
PRIORITY
STOP BEEP
PAUSE
RESUME
AM ANTENNA
FM ANTENNA
RF GAIN
AUTO POWER OFF
AUTO POWER ON
POWER SAVE
DIAL SPEED-UP
LOCK
CI-V ADDRESS
BAUD RATE
BASS
TREBLE
TRANSCEIVE
DUPLEX
OFFSET FREQ
TS
MODE
TONE
KEY-TOUCH BEEP
BEEP LEVEL
AF FILTER
TONE CONTROL
BACKLIGHT
LCD CONTRAST
OPENING LOGO
FONT SIZE
SETTING
SOUNDS
DISPLAY
AM ANTENNA
FM ANTENNA
RF GAIN
AUTO POWER OFF
AUTO POWER ON
POWER SAVE
DIAL SPEED-UP
LOCK
CI-V ADDRESS
BAUD RATE
BASS
TREBLE
TRANSCEIVE
KEY-TOUCH BEEP
BEEP LEVEL
AF FILTER
TONE CONTROL
BACKLIGHT
LCD CONTRAST
OPENING LOGO
FONT SIZE
TSQL FREQ
DTCS CODE
DTCS POLARITY
VSC
*“AUTO” is available for USA version only
*Appears only when FM mode is selected
ON OFF
ON
78
19
08
OFF
ON OFF
ON OFF
ON OFF
TSQL DTCS
BELL ON OFF
HOLD 20SEC 18SEC 16SEC 14SEC 12SEC 10SEC 8SEC 6SEC 4SEC 2SEC
MAX 987654321MIN
HOLD 5SEC 4SEC 3SEC 2SEC 1SEC 0SEC
120MIN 90MIN 60MIN 30MIN
ON OFF
Select a category, then push [ENT MW] to start
Select a band, then push [ENT MW] to start
Push [ENT MW] to indicate the auto write channel
Select a program, then push [ENT/MW] twice to start
Select a program-link, then push [ENT/MW] twice to start
SEARCH
BASIC SEARCH
BAND SEARCH
PROGRAM SEARCH
PROGRAM LINK
AUTO WRITE CH
PROGRAM SKIP
TONE SEARCH
PRIORITY
STOP BEEP
PAUSE
RESUME
*Appears only when FM mode is selected
*Appears only when AM/WFM mode is selected
*Depending on the operating frequency
*Depending on the operating frequency
*Available for some frequency band
30.0 kHz 25.0kHz 15.0 kHz
12.5 kHz 10.0kHz 7.5 kHz9.0 kHz* 8.33 kHz* 6.25 kHz 5.0 kHz
OFF
+DUP −DUP OFF
EXT-DX EXT-LOCAL BAR
BOOST CUT
EXT EARPHONE
0.00000
AUTO
88.5
023
NORMAL
200.0kHz 125.0 kHz 100.0kHz
AUTOFM WFM AM
DTCS-R TSQL-R TSQL TSQLSDTCS DTCSS
REVERSE
LARGESMALL
NORMAL
NORMAL
BOOST CUT
NORMAL
NO SQL NO VOL ALL
AUTO 19200bps 9600bps 4800bps 1200bps 300bps
AUTO OFF
AUTO ON OFF
50.0 kHz
ON OFF
ON OFF
SOUNDS
DISPLAY
BASS
TREBLE
KEY-TOUCH BEEP
BEEP LEVEL
AF FILTER
TONE CONTROL
BACKLIGHT
LCD CONTRAST
OPENING LOGO
FONT SIZE
19
08
ON OFF
ON OFF
*Appears only when AM/WFM mode is selected
BOOST
LARGESMALL
NORMAL
BOOST NORMAL
AUTO ON OFF
ON OFF
OFF
OFF
MODE/TS/TONE...
DUPLEX
OFFSET FREQ
TS
MODE
TONE
TSQL FREQ
DTCS CODE
DTCS POLARITY
VSC
*“AUTO” is available for USA version only
Push []/[] to set the timer in 30 min. steps
*Depending on the operating frequency
*Depending on the operating frequency
*Available for some frequency band
30.0 kHz 25.0kHz 15.0 kHz
12.5 kHz 10.0kHz 7.5 kHz9.0 kHz* 8.33 kHz* 6.25 kHz 5.0 kHz
New2001
60
8MENU SCREEN OPERATION
New2001
■ MODE/TS/TONE menu items

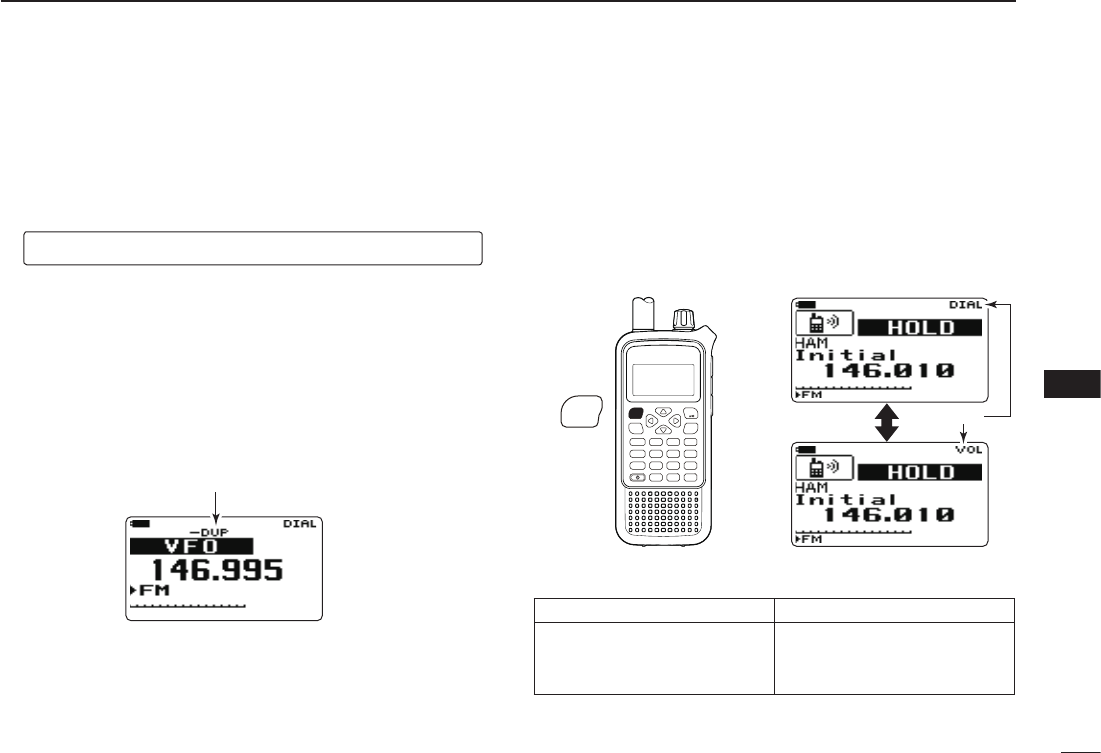

D Duplex direction (DUPLEX)
Sets the duplex direction. The displayed frequency shifts
the programmed frequency in offset frequency at right when
monitor function is in use (while pushing [CLR SQL]).
• +DUP : The displaying frequency shifts up during moni-
tor.
• –DUP : The displaying frequency shifts down during
monitor.
• OFF : Simplex operation. (default)
Simplex operation Positive duplex operation
D Offset frequency (OFFSET FREQ)
Sets the duplex offset frequency for each frequency band
independently within 0 to 159.995 MHz range. During duplex
operation (–DUP or +DUP), the monitoring frequency (while
[CLR SQL] is pushed) shifts the set frequency.
The default value may differ according to the selected fre-
quency band (before accessing menu screen) and receiver
version.
The selected tuning step at next column (right page) is
used for the offset frequency setting.
New2001
61
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D Tuning step (TS)
The tuning step can be selected for each frequency band,
however, the tuning steps, 8.33 kHz and 9 kHz, are ap-
peared when setting the tuning step for the VHF air band
and AM broadcast band, respectively. The following tuning
steps are available for the IC-RX7.
• 5.0 kHz • 6.25 kHz • 7.5 kHz • 8.33 kHz • 9.0 kHz
• 10.0 kHz • 12.5 kHz • 15.0 kHz • 20.0 kHz • 25.0 kHz
• 30.0 kHz • 50.0 kHz • 100.0 kHz • 125.0 kHz • 200.0 kHz
AUTO tuning step is available for USA version only.
Auto tuning step 5 kHz tuning step
D Receiving mode (MODE)
Receiving modes are determined by the modulation of the
radio signals. The receiver has 3 operating modes: FM, WFM
and AM modes. The mode selection is stored independently
in each band and memory channels.
Typically, AM mode is used for the AM broadcast stations
(0.495–1.620 MHz) and air band (118–135.995 MHz), and
WFM is used for FM broadcast stations (76–107.9 MHz).
AUTO mode is available for USA version only.
Auto mode FM mode
New2001
62
8MENU SCREEN OPERATION
New2001

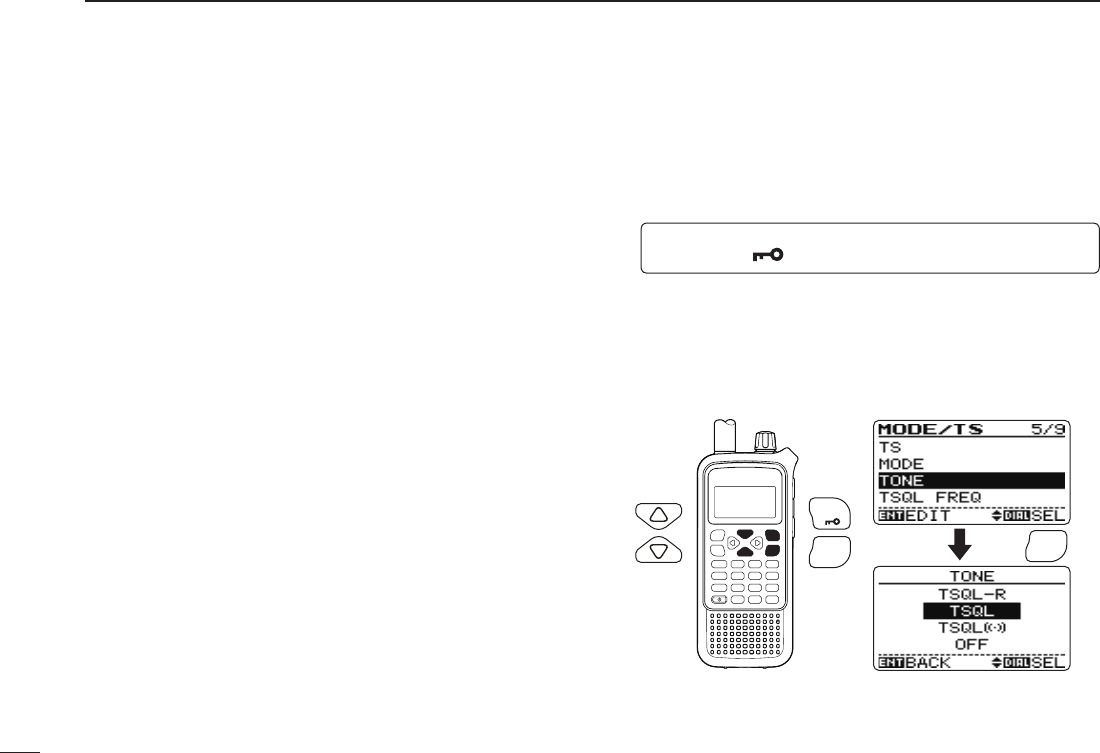

D Tone squelch/DTCS squelch setting (TONE)
Sets the tone squelch or DTCS squelch operation and
pocket beep capability, when waiting for the desired signal.
(default: OFF)
• DTCS-R : The squelch closes only when a signal with
matched DTCS code is received.
• DTCS : Using DTCS squelch. The squelch opens
only when a signal with matched DTCS
code is received.
• DTCSS : In addition to the “DTCS” setting, alert
beeps will sound when a signal with
matched DTCS code is received.
• TSQL-R : The squelch closes only when a signal with
matched subaudible tone is received.
• TSQL : Using tone squelch. The squelch opens
only when a signal with matched subaudi-
ble tone is received.
• TSQLS : In addition to the “TSQL” setting, alert
beeps will sound when a signal with
matched tone is received.
• OFF : Regular noise squelch operation
D Tone squelch frequency (TSQL FREQ)
Sets subaudible tone frequency for tone squelch operation.
Total of 50 tone frequencies (67.0–254.1 Hz) are available.
(default: 88.5 Hz)
88.5 Hz setting 254.1 Hz setting
• Available subaudible tone frequencies
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
New2001
63
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D DTCS code (DTCS CODE)
Sets DTCS code for DTCS squelch operation. Total of 104
codes (023–754) are available. (default: 023)
Code 023 setting Code 315 setting
• Available DTCS code
023
025
026
031
032
036
043
047
051
053
125
131
132
134
143
145
152
155
156
162
245
246
251
252
255
261
263
265
266
271
356
364
365
371
411
412
413
423
431
432
506
516
523
526
532
546
565
606
612
624
054
065
071
072
073
074
114
115
116
122
165
172
174
205
212
223
225
226
243
244
274
306
311
315
325
331
332
343
346
351
445
446
452
454
455
462
464
465
466
503
627
631
632
654
662
664
703
712
723
731
732
734
743
754
The polarity can also be set in “DTCS polarity” as right.
D DTCS polarity (DTCS POLARITY)
Sets DTCS polarity from normal and reverse.
(default: NORMAL)
Normal setting Reverse setting
D Voice squelch control (VSC)
This function is useful when you don’t want unmodulated
signals pausing or cancelling a search/scan. When the voice
squelch control function is activated, the receiver checks
received signals for voice components. If a received sig-
nal includes voice components, and the tone of the voice
components changes within 1 sec., search/scan pauses (or
stops). If the received signal includes no voice components
or the tone of the voice components does not change within
1 sec., search/scan resumes.
VSC is OFF VSC is ON
New2001
64
8MENU SCREEN OPERATION
New2001
■ SETTING menu items
D AM antenna selection (AM ANTENNA)
This setting is active only for the AM broadcast band, 0.495–
1.620 MHz (differ according to version) reception.
• EXT-DX : Use the antenna connected to the an-
tenna connector, and then received sig-
nals are bypass the RF filter.
• EXT-LOCAL : Use the antenna connected to the an-
tenna connector, and then received sig-
nals are filtered by the RF filter.
• BAR : Use the internal bar antenna for AM
broadcast band reception. (default)
The RF filter for EXT-LOCAL does not only reject the in-
terference, but also reduce the receive sensitivity. Thus
selecting EXT-LOCAL is effective when the desired signal
is strong enough and some interference exist near the
signal.
D FM antenna selection (FM ANTENNA)
This setting is active for all band, but it is mostly effective
only for the FM broadcast band, 76.000–107.995 MHz (differ
according to version) reception. Thus it may cause the inter-
ference for other band’s that this setting is ON and when an
earphone is connected.
• EXT : Use the antenna connected to the an-
tenna connector. (default)
• EARPHONE : Use the connected earphone’s cable as
the antenna for FM broadcast band recep-
tion.
New2001
65
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D RF gain level (RF GAIN)
The receiver gain can be reduced with the RF gain setting.
This may help to remove undesired weak signals while mon-
itoring strong signals.
The RF gain can be selected from 11 levels.
• MIN, 1 to 9 and MAX (default: MAX)
D Auto power OFF (AUTO POWER OFF)
The receiver can be set to automatically turn OFF after a
specified time period with a beep when no key operations
are performed.
30 min., 60 min., 90 min., 120 min. and OFF (default) can be
specified. The specified time period is retained even when
the transceiver is turned OFF by the auto power OFF func-
tion. To cancel the function, select “OFF” in this item.
D Auto power ON (AUTO POWER ON)
Auto power ON function turns the receiver power ON auto-
matically after passing the set time period from power OFF.
Select the desired time period within 30 minutes to 24 hours
in 30 minutes steps and OFF. (default: OFF)

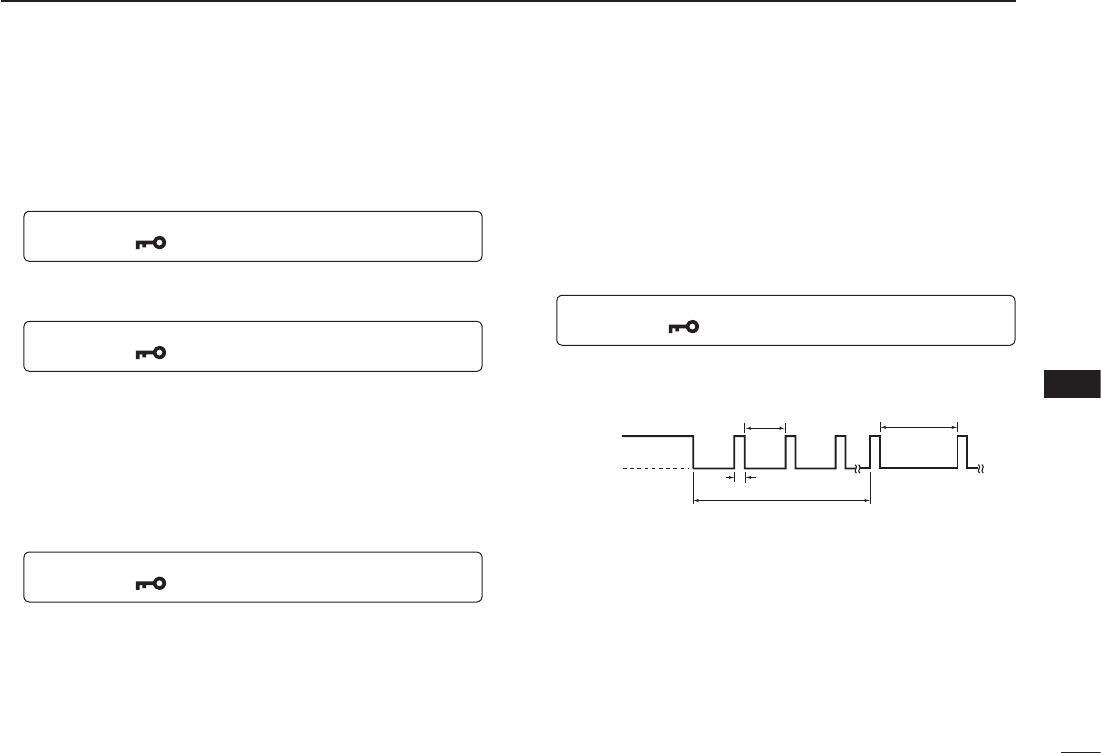

D Power save (POWER SAVE)
The power save function reduces the current drain to con-
serve battery power. This power save function can be turned
OFF, if desired.
• “AUTO” selects “1:4” duty ratio when receiving no signal for 5 sec.,
then “1:8” 15 sec. after that.
NOTE: Power save function is disable when using the ex-
ternal power supply (More than 5.1 V DC).
New2001
66
8MENU SCREEN OPERATION
New2001
D Dial acceleration (DIAL SPEED-UP)
The dial speed acceleration automatically speeds up the
tuning dial speed when rotating [DIAL] rapidly.
• OFF : The dial speed acceleration is turned OFF.
• ON : The dial speed acceleration is tuned ON.
(default)

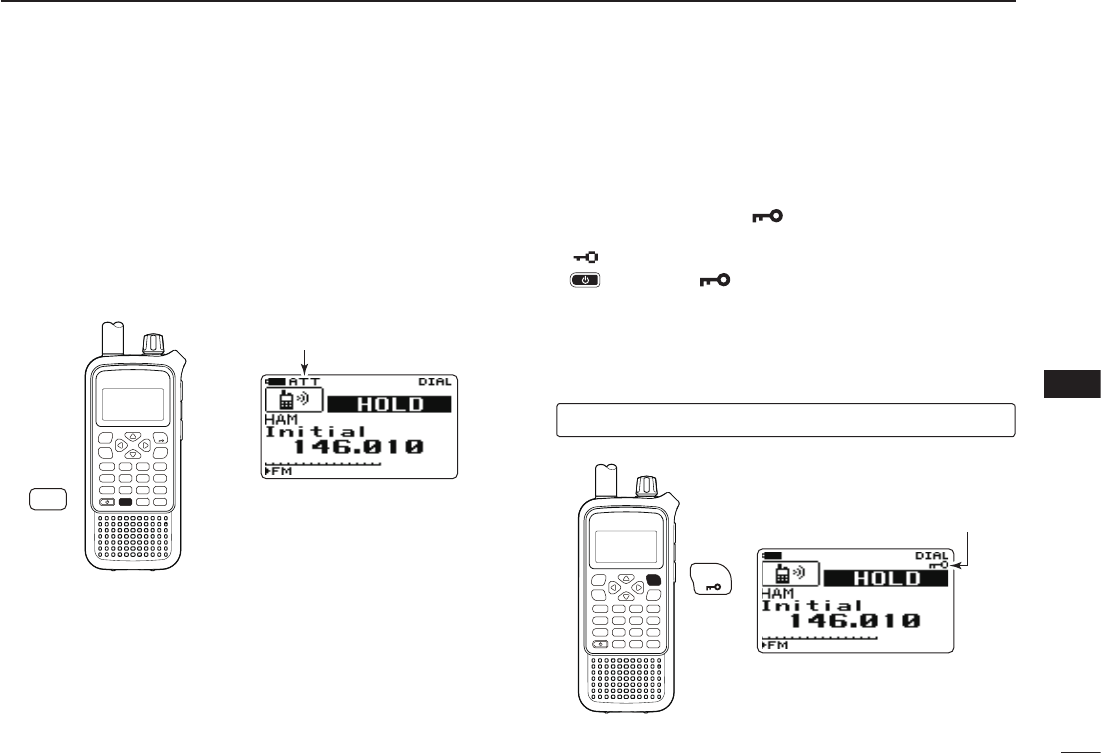

D Key lock type (LOCK)
While the key lock function is ON, [ ], [CLR SQL] (SQL
function only), [VOL] and [MENU ] (Lock function only)
can still be accessed. Accessible keys can be set to 1 of 4
groups.
• NORMAL : [ ], [CLR SQL] (SQL function only), [VOL]
and [MENU ] (Lock function only) acces-
sible. (default)
• NO SQL : [ ], [VOL] and [MENU ] (Lock func-
tion only) are accessible.
• NO VOL : [ ], [CLR SQL] (SQL function only) and
[MENU ] (Lock function only) are acces-
sible.
• ALL : [ ] and [MENU ] (Lock function only)
are accessible.
New2001
67
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D CI-V setting (CI-V SET)
This setting sets the CI-V address, CI-V baud rate and CI-V
transceive as follow.
• CI-V address (ADDRESS)
To distinguish equipment, each CI-V transceiver/receiver has
its own Icom standard address in hexadecimal code. The
IC-RX7’s address is “78.”

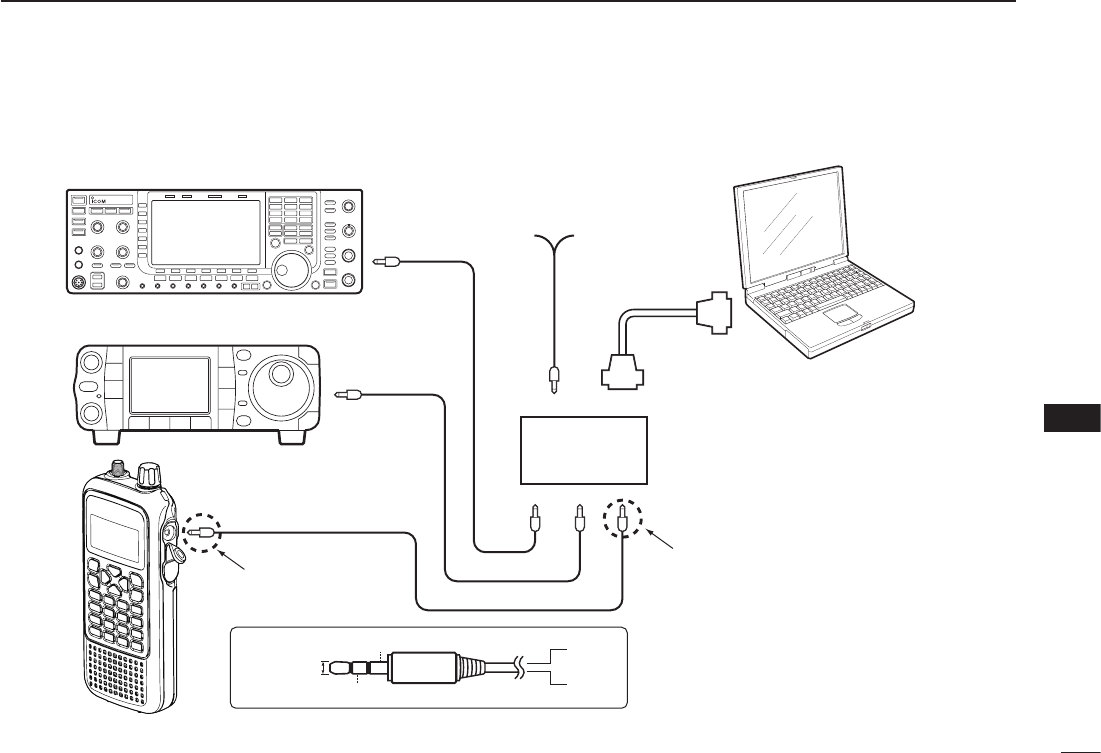

When 2 or more IC-RX7s are connected to an optional
CT-17 ci-v level convertor, set a different address for
each IC-RX7 in the range “01” to “7F.” (default: 78)
CI-V address set to 78 CI-V address set to 7F
• CI-V baud rate (BAUD RATE)
Sets the data transfer rate. When “AUTO” is selected, baud
rate is automatically set according to the connected control-
ler or other Icom CI-V radio. (default: AUTO)
“AUTO” baud rate setting 9600 bps setting
• CI-V transceive (TRANSCEIVE)
CI-V transceive operation is possible with the IC-RX7 con-
nected to an Icom CI-V radio. When “ON” is selected,
changing the frequency, operating mode, etc. on the IC-RX7
automatically changes those of connected radios and vice
versa. (default: ON)
CI-V transceive ON CI-V transceive OFF
New2001
68
8MENU SCREEN OPERATION
New2001
■ SOUNDS menu items
D Key-touch beep (KEY-TOUCH BEEP)
Turns the key-touch beep ON or OFF. (default: ON)
Key-touch beep ON Key-touch beep OFF
D Beep output level (BEEP LEVEL)
Adjusts the key-touch beep tone level to the desired level
within 40 levels (0 to 40).
The key-touch beep (following item) must be set to ON to
have a beep tone.
Minimun level (no audio) Maximum level
D AF filter (AF FILTER)
The AF filter suppresses high-pitch tone when this setting
is ON. This function can be set for each operating mode re-
spectively, but it does not appear for FM mode.
• OFF : The AF filter is deactivate. (default)
• ON : The AF filter is activate.
AF filter is OFF AF filter is ON
New2001
69
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D Tone control (TONE CONTROL)
Sets the Bass and Treble level of the receive audio tone.
• Bass level (BASS)
Selects the bass level from CUT, NORMAL (default) and
BOOST.
Normal setting Bass tone is reduced
• Treble level (TREBLE)
Selects the bass level from CUT, NORMAL (default) and
BOOST.
Normal setting Treble tone is boosted
New2001
70
8MENU SCREEN OPERATION
New2001
■ Display menu items
D Display backlighting (BACKLIGHT)
The receiver has display backlighting with a 5 sec. timer for
night time operation. The display backlighting can be turned
ON continuously or turned OFF, if desired.
• OFF : The backlight is turned OFF.
• ON : The backlight continuously lights ON.
• AUTO : Lights when an operation is performed, goes out
after 5 sec. (default)
Auto setting Continuously ON setting
D LCD contrast (LCD CONTRAST)
The contrast of the LCD can be selected from 15 levels.
• 1 (Low contrast) to 15 (High contrast) (default: 8)
Low contrast High contrast
D Opening logo (OPENING LOGO)
The opening logo indication (Icom logo and receiver name) that
is displayed at power ON can be skipped, if desired.
• OFF : Opening logo indication is skipped.
• ON : Opening logo is displayed at power ON. (default)
Opening logo is ON Opening logo is OFF
D Font size (FONT SIZE)
Displayed character size for category is selectable from
Large and Small.
• SMALL : Makes 16 characters on the line.
• LARGE : Makes 12 characters on the line (Scroll the
characters if the longer than 13 characters). (de-
fault)
Large font size Small font size
71
9
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Antenna selection
The IC-RX7 has an internal bar antenna installed for receiv-
ing AM broadcast band (0.495–1.620 MHz; differ according to
version) signals. In addition, the connected earphone’s cable
can be used as an antenna for receiving FM broadcast band
(76.000–107.995 MHz; differ according to version) signals.
D Selecting antenna
q
Enter “AM ANTENNA” or “FM ANTENNA” in SETTING
menu
for AM broadcast band or FM broadcast band, re-
spectively
.
MENU ➪ SETTING ➪ AM ANTENNA (p. 64)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
MENU ➪ SETTING ➪ FM ANTENNA (p. 64)
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push MW
ENT
w Push [r]/[s] (or rotate [DIAL]) to select “BAR” when
“AM ANTENNA” is selected for the AM broadcast band;
select “EARPHONE” when “FM ANTENNA” is selected for
the FM broadcast band.
Bar antenna selection for
0.495–1.620 MHz band Earphone cable selection for
76.000–107.995 MHz band
e Push [ENT MW] (or [v]) to return to SETTING menu, and
push [CLR SQL] to return to frequency indication.
NOTES:
• Some noise or spurious may be received when the in-
ternal bar or earphone cable is used for antenna.
• The supplied or third party’s antenna MUST BE con-
nected to the antenna connector to receive signals other
than AM or FM broadcast bands.
• When receiving an AM broadcast signal with internal bar
antenna, aim the receiver to better audio direction.
• When the internal bar or earphone cable is used for an
antenna, the attenuator function cannot be used.
72
9OTHER FUNCTIONS
New2001
■ RF gain
The receiver gain can be reduced with the RF gain setting.
This may help to remove undesired weak signals while mon-
itoring strong signals.
q
Enter “RF GAIN” in SETTING menu.
MENU ➪ SETTING ➪ RF GAIN (p. 65)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
w Push [r]/[s] (or rotate [DIAL]) to adjust the RF gain.
• Normally this setting is used with maximum level.
e Push [ENT MW] (or [v]) to return to SETTING menu, and
push [CLR SQL] to return to frequency indication.
• “RF” indicator appears when the RF gain is adjusted other than
“MAX.”
Appears
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
MENU
ENT
Push
Push
Push
MW
MENU
ENT
MW
ENT
[DIAL]
73
9
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Attenuator function
The attenuator prevents distortion of a desired signal by
very strong signals near the desired frequency or when very
strong electric fields, such as from a broadcasting station, are
present at your location. The attenuation is about 15 dB.
➥ Push and hold [• ATT] for 1 sec. to turn the attenuator
function ON and OFF.
• “ATT” appears on the function display.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
.ATT
Appears
■ Lock function
To prevent accidental frequency changes and unnecessary
function access, use the lock function.
➥ Push and hold [MENU ] for 1 sec. to turn the lock
function ON and OFF.
• “ ” appears while the lock function is activated.
• [ ] and [MENU ] is operatable while the lock function is
activated.
• The squelch control and volume control can be used while the
lock function is in use with default setting. Either or both the
squelch control and volume control can also be locked in setting
menu.
MENU ➪ SETTING ➪ LOCK (p. 66)
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MENU
Appears
74
9OTHER FUNCTIONS
New2001 New2001
■ Duplex operation
Duplex communication uses 2 different frequencies for
transmitting and receiving. Generally, duplex is used in com-
munication through a repeater, some utility communications,
etc.
During duplex operation, the transmit station frequency is
shifted from the receive station frequency by the offset fre-
quency. Repeater information (offset frequency and shift di-
rection) can be programmed into memory channels. (p. 53)
D Setting
q
Set the receive station frequency (repeater output fre-
quency) in VFO mode.
w
Enter “DUPLEX” in MODE/TS/TONE... menu.
MENU ➪ MODE/TS/TONE... ➪ DUPLEX (p. 60)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
e Push [r]/[s] (or rotate [DIAL]) to select “–DUP” or
“+DUP.”
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
MENU
ENT
Push
Push
MW
MENU
ENT
Push or
Push
MW
ENT
Push
MW
ENT
Push
MW
ENT
[DIAL]
r Push [ENT MW] (or [v]) to return to MODE/TS/TONE...
menu, and push [s] (or rotate [DIAL]) to select “OFFSET
FREQ.”
MENU ➪ MODE/TS/TONE... ➪ OFFSET FREQ (p. 60)
t Enter the desired offset frequency within 0.00000–
159.99500 MHz range via the keypad, or by pushing
[r]/[s] (or rotate [DIAL]) also can be set.
• The tuning step, selected in VFO mode, is used for setting.
• Push and hold [v] or [w] for 1 sec. then rotate [R-DIAL] to
change the frequency in 1 MHz steps.
y Push [ENT MW] (or [v]) to return to MODE/TS/TONE...
menu, and push [CLR SQL] to return to frequency indica-
tion.
Appears
u Push and hold [CLR SQL] to monitor the transmit station
frequency (repeater input frequency) directly.
■ [DIAL] function assignment
The [DIAL] control can be used as an audio volume control
instead of [r]/[s] keys to suit your preference. However,
while [DIAL] functions as an audio volume, [r]/[s] keys
function as tuning controls.
➥ Push and hold [NO. DIAL] for 1 sec. to toggle the dial
function from turning dial and audio volume.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
NO.
DIAL Toggles
• [DIAL] and [r]/[s] functions
[DIAL] [r]/[s]
Frequency, Memory channel,
Squelch level, Searching/
scanning direction
Audio volume set
New2001
75
9
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
New2001
■ Tone/DTCS squelch operation
D Tone and DTCS squelches
The tone squelch (CTCSS) or DTCS squelch opens only
when receiving a signal containing a matching subaudible
tone or DTCS code, respectively. You can silently wait for
calls from group members using the same tone or code.
D Reverse tone/DTCS squelch
The reverse tone/DTCS squelch is convenient if you want
to ignore a specific signal. The receiver mutes the squelch
when a signal with the matched tone or code is received.
“TSQL-R” / “DTCS-R” is displayed when the reverse tone/
DTCS is set.
D Pocket beep
These functions use subaudible tones or DTCS codes for
calling and can be used as a “common pager” to inform you
that someone has called while you were away from the re-
ceiver.
D Setting
q Set the desired operating frequency in FM mode.
w
Enter “TONE” in MODE/TS/TONE... menu.
MENU ➪ MODE/TS/TONE... ➪ TONE (p. 62)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
e Push [r]/[s] (or rotate [DIAL]) to select the tone or
DTCS squelch.
• Tone squelch “TSQL,” tone squelch reverse “TSQL-R,” pocket
beep “TSQLS,” DTCS squelch “DTCS,” DTCS squelch re-
verse “DTCS-R,” DTCS beep “DTCSS” and no tone opera-
tion are available.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push MW
ENT
76
9OTHER FUNCTIONS
New2001
77
9
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
r Push [ENT MW] (or [v]) to return to MODE/TS/TONE...
menu, and push [CLR SQL] to return to frequency indica-
tion.
OFF (no indication)
Tone squelch with pocket beep DTCS squelch with pocket beep
Tone squelch DTCS squelch
Tone squelch reverse DTCS squelch reverse
t Operate the receiver in the normal way.
y When the received signal includes a matching tone/code,
the squelch opens and the signal can be heard.
• When the received signal’s tone/code does not match, tone/
DTCS squelch does not open, however, the S-indicator shows
signal strength.
• To open the squelch manually, push and hold [CLR SQL] for
1sec.
D Pocket beep function
q When pocket beep function is activated and the signal
with a matching tone/code is received, the receiver emits
beep tones for 30 sec. and blinks “S.”
w Push [CLR SQL] to stop the beeps and blinking.
New2001
78
9OTHER FUNCTIONS
New2001
q
Enter “TSQL FREQ” or “DTCS CODE” in MODE/TS/
TONE... menu
for selecting tone squelch frequency or
DTCS code, respectively
.
MENU ➪ MODE/TS/TONE... ➪ TSQL FREQ (p. 62)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
MENU ➪ MODE/TS/TONE... ➪ DTCS CODE (p. 63)
w Push [r]/[s] (or rotate [DIAL]) to select the desired tone
squelch frequency or DTCS code.
• Each operating band and each memory channel have inde-
pendent settings.
• See next page for available tone frequencies or DTCS codes
for details.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push MW
ENT
Tone squelch frequency DTCS code
e Push [ENT MW] (or [v]) to return to MODE/TS/TONE…
menu, and push [CLR SQL] to return to frequency indica-
tion.
DTCS phase mode can be selected in “DTCS POLAR-
ITY” setting. (p. 79)
■ Tone squelch frequency/DTCS code setting
79
9
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
•Available tone frequencies
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
•Available DTCS code
023
025
026
031
032
036
043
047
051
053
125
131
132
134
143
145
152
155
156
162
245
246
251
252
255
261
263
265
266
271
356
364
365
371
411
412
413
423
431
432
506
516
523
526
532
546
565
606
612
624
054
065
071
072
073
074
114
115
116
122
165
172
174
205
212
223
225
226
243
244
274
306
311
315
325
331
332
343
346
351
445
446
452
454
455
462
464
465
466
503
627
631
632
654
662
664
703
712
723
731
732
734
743
754
■ DTCS polarity setting
q Enter “DTCS POLARITY” in DUP/TONE... menu.
MENU ➪ MODE/TS/TONE... ➪ DTCS POLARITY (p. 63)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
w Push [r]/[s] (or rotate [DIAL]) to select the desired
DTCS polarity.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push MW
ENT
e Push [ENT MW] (or [v]) to return to DUP/TONE… menu,
and push [CLR SQL] to return to frequency indication.
New2001
80
9OTHER FUNCTIONS
New2001
■ Tone search
By monitoring a signal that is being operated with pocket
beep, tone or DTCS squelch function, you can determine the
tone frequency or DTCS code necessary to open a squelch.
q Set the frequency to be checked for a tone frequency or
DTCS code.
w
Enter “TONE SEARCH” in SEARCH menu.
MENU ➪ SEARCH ➪ TONE SEARCH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• Search menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• Tone search screen appears.
e Push [r] or [s] to select “TSQL” or “DTCS,” then push
[ENT MW] to start the tone search.
• To change the searching direction, rotate [DIAL].
• Tone squelch or DTCS squelch function is activate automatically.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push MW
ENT
r When the tone frequency or DTCS code is decoded,
the setting menu contents are programmed with the fre-
quency or code.
• The tone search pauses for the set period in search pause
timer (p. 38) when a tone frequency or DTCS code is detected.
• The decoded tone frequency is used for the tone squelch fre-
quency (TSQL FREQ) when the tone squelch is ON.
• The decoded DTCS code is used for the DTCS code when the
DTCS squelch is ON.
Tone search for tone squelch Tone search for DTCS squelch
t Push [CLR SQL] to stop the search.
• If the search is cancelled before the receiver detects the tone or
code, the setting menu contents are not changed.
• The detected tone is used for temporary operation only. The
stored tone setting in memory channel won’t be changed.
NOTE: Tone frequency is over-written automatically when it corre-
sponds with the searching tone frequency in tone squelch mode.
However, it is not over-written in memory channel.
81
9
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Beep tones
You can select to have confirmation beeps sound at the
push of a switch. The output level can be adjusted within 39
levels with “BEEP LEVEL” in SOUNDS menu.
MENU ➪ SOUNDS ➪ BEEP LEVEL (p. 68)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
You can select silent operation by turning beep tones OFF
with “KEY-TOUCH BEEP” in SOUNDS menu.
MENU ➪ SOUNDS ➪ KEY-TOUCH BEEP (p. 68)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
■ Dial speed acceleration
The dial speed acceleration automatically speeds up the
tuning dial speed when rotating [DIAL] rapidly.
This function can be turned ON and OFF with “DIAL
SPEED-UP” in SETTING menu.
MENU ➪ SETTING ➪ DIAL SPEED-UP (p. 66)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
■ Power save
The power save function reduces the current drain to con-
serve battery power.
The power save duty cycle, the ratio of receive circuit on
to receive circuit off during standby, can be set to auto-
matic (default), 1 : 4 (150 msec. : 600msec.), 1 : 8 (150 msec. :
1200msec.), or OFF with “POWER SAVE” in SETTING menu.
MENU ➪ SETTING ➪ POWER SAVE (p. 65)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• “AUTO” selects “1:4” duty ratio when receiving no signal for 5 sec.,
then “1:8” 15 sec. after that.
150 msec.
15 sec.
600 msec. 1200 msec.
No signal
5 sec.
Circuit ON
Circuit OFF
New2001
82
9OTHER FUNCTIONS
New2001
■ Auto power OFF
The receiver can be set to automatically turn OFF after a
specified period with a beep when no switch is pushed.
120 min., 90 min., 60 min., 30 min. and OFF can be speci-
fied. The specified period is retained even when the receiver
is turned OFF by the auto power-off function. To cancel the
function, select “OFF” in the auto power-off item in setting
menu.
This can be selected with “AUTO POWER OFF” in SETTING
menu.
MENU ➪ SETTING ➪ AUTO POWER OFF (p. 65)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
■ Auto power ON
The receiver can be set to automatically turn ON after a
specified period. The timer can be selected within 30 min. to
24 hrs. in 30 min. steps.
This can be selected with “AUTO POWER ON” in setting
menu.
MENU ➪ SETTING ➪ AUTO POWER ON (p. 65)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
When operating with battery pack or case and the battery
is exhausted, auto power-on does not function.
During standby, a small current still flows in the radio.
■ Display backlighting
The receiver has display backlighting with a 5 sec. timer for
night time operation. The display backlighting can be turned
ON continuously, turned AUTO or turned OFF, if desired.
This can be selected with “BACKLIGHT” in DISPLAY menu.
MENU ➪ DISPLAY ➪ BACKLIGHT (p. 70)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
■ Font size
Displayed character size for category is selectable from
Large and Small.
This can be selected with “FONT SIZE” in DISPLAY menu.
MENU ➪ DISPLAY ➪ FONT SIZE (p. 70)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
83
9
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ LCD contrast
The contrast of the LCD can be selected from 15 levels.
This can be selected with “LCD CONTRAST” in DIAPLAY
menu. (p. 96)
MENU ➪ DISPLAY ➪ LCD CONTRAST (p. 70)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
■ Voice squelch control
This function is useful when you don’t want unmodulated
signals pausing or cancelling a search/scan. When the voice
squelch control function is activated, the receiver checks
received signals for voice components. If a received sig-
nal includes voice components, and the tone of the voice
components changes within 1 sec., search/scan pauses (or
stops). If the received signal includes no voice components
or the tone of the voice components does not change within
1 sec., scan resumes.
This can be selected with “VSC” in MODE/TS/TONE... menu.
(p. 96)
MENU ➪ MODE/TS/TONE... ➪ VSC (p. 63)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• “VSC”appears when the function is activated.
84
9OTHER FUNCTIONS
New2001
84

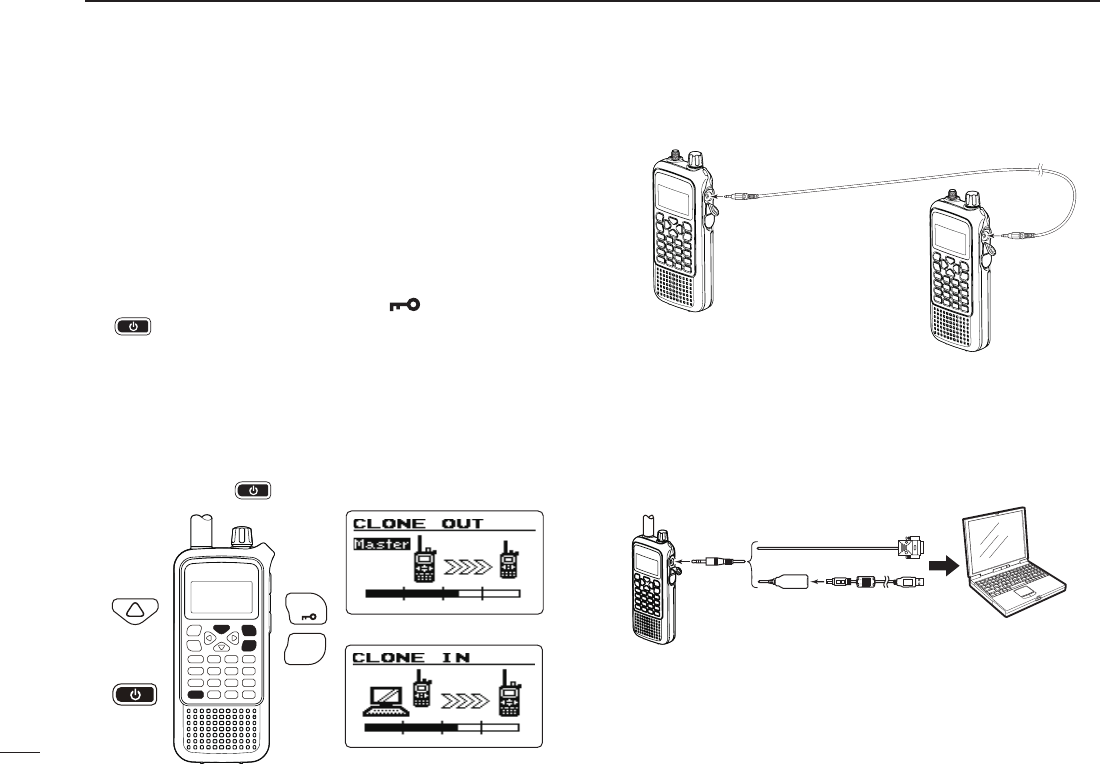

■ Cloning function
The IC-RX7 has receiver-to-receiver data cloning capability.
This function is useful when you want to copy all of the pro-
grammed contents from one IC-RX7 to another.
• An optional OPC-474 cloning cable is required.
q Turn the receiver’s power OFF, then connect an optional
OPC-474 between both [SP] jacks as shows right.
w While pushing [r] and [MENU ], push and hold
[] for 1 sec. to enter cloning mode.
• “MASTER” appears.
e Push [ENT MW] on the “master” receiver.
• “CLONE OUT” appears on the master receiver and “CLONE IN”
appears on the sub receiver and the bar meters show that clon-
ing is taking place.
• After the cloning is completed, the display returns to “CLONE
END.”
r Push and hold [ ] for 1 sec. to turn power OFF.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MENU
Master receiver
Sub receiver
MW
ENT
The optional CS-RX7 CLONING SOFTWARE is also available
to clone/edit contents with a PC (for Microsoft® Windows®
98SE/ME/2000/XP/Windows VistaTM) and using ICF format
files.
to [SP] OPC-474
to [SP]
Master receiver Sub receiver
to [SP]
PC
IC-RX7 OPC-478
(RS-232C type)
OPC-478UC
(USB type) to USB port
to RS-232C
port
New2001
■ Resetting
The display may occasionally display
erroneous information (e.g. when first
applying power). This may be caused
externally by static electricity or by
other factors.
If this problem occurs, turn power OFF.
After waiting a few seconds, turn power
ON again. If the problem persists, per-
form either or both procedures below.
• All reset
Reset the CPU before operating the
receiver for the first time, or if the in-
ternal CPU malfunctions, to clear and
return all programmed contents to their
default settings.
• Partial reset
If you want to initialize the operat-
ing conditions (VFO frequency, VFO
settings, set mode contents) without
clearing the memory contents, a partial
reset function is available for the re-
ceiver.

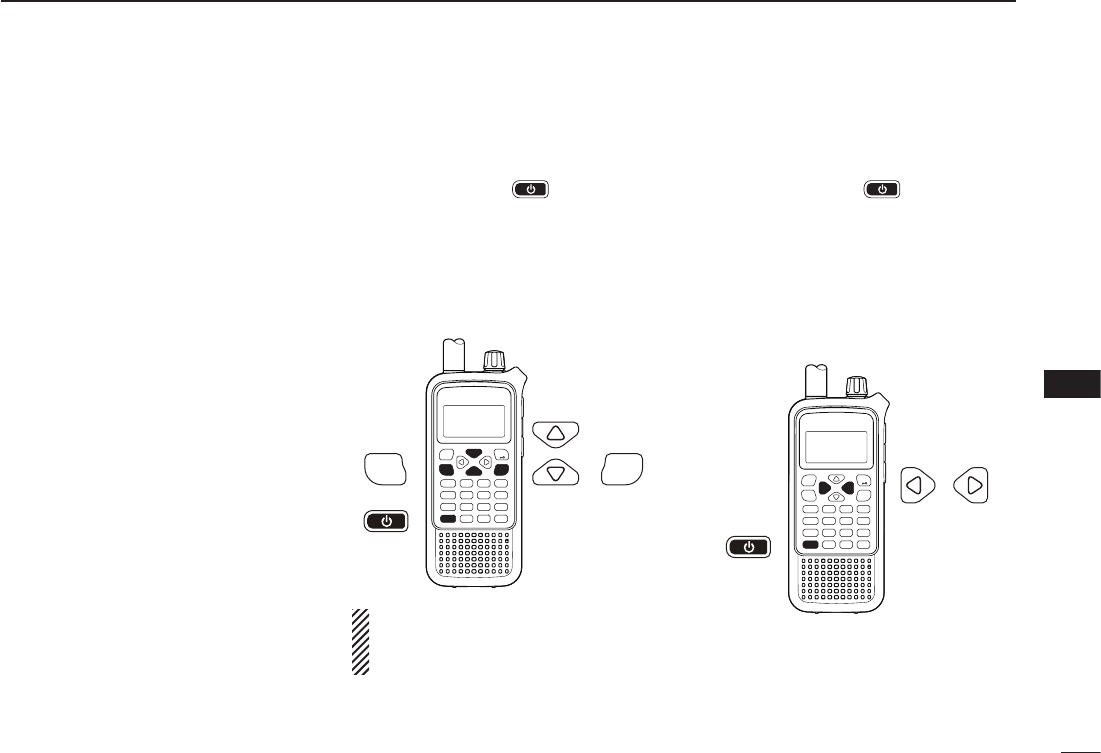

D All reset
q Push and hold [ ] for 1 sec. to
turn power OFF.
w While pushing and holding [r], [s],
[ENT MW] and [CLR SQL], then
turn power ON to reset the CPU.
• “ALL RESET” appears when resetting
the CPU (See the illustration below).
CAUTION: Resetting the CPU re-
turns all programmed contents to
their default settings.
D Partial reset
q Push and hold [ ] for 1 sec. to
turn power OFF.
w While pushing and holding [v] and
[w], then turn power ON to partially
reset the receiver.
[NOTE]: No message appears on the
display after the partial reset is done.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
CLR
SQL
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
85
9
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
86
New2001
CONTROL COMMAND
10
■ General
The IC-RX7 can be connected to a PC via the PC’s RS-
232C port using an optional CT-17 CI-V LEVEL CONVERTOR.
This allows you to control the receiver from the PC and/or
transfer data from the receiver to the PC.
Control is provided via Icom’s CI-V Communication Interface.
An appropriate application for CI-V command is not sup-
plied from Icom.
■ Data format
The CI-V system can be operated using the following data
formats. Data formats differ according to command numbers.
A data area is added for some commands.
Controller ➡ IC-RX7
IC-RX7 ➡ Controller
q Preamble code (fixed)
w Receiver’s default address
e Controller’s default address
r Command number (see table below)
t Sub command number (see table below)
y BCD code data for frequency entry
u End of message code (fixed)
■ Command table
FE FE 78 E0 Cn Sc Data area FD
q w e r t y u
FE FE E0 78 Cn Sc Data area FD
q e w r t y u
Description Cn Sc
Transfers frequency data (transceive) 00 —
Transfers mode data (transceive) 01 —
Reads display frequency 03 —
Reads display mode 04 —
Sets frequency data 05 —
Sets AM mode
06
02
Sets FM mode 05
Sets WFM mode 06
Reads squelch condition (open or closed) 15 01
Reads S-meter level 02
New2001
87
10
CONTROL COMMAND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
New2001
CT-17
Power supply
9–15VDC
RS-232C
cable
IC-RX7
to [SP]
CI-V connections example
CI-V compatible transceiver
CI-V compatible transceiver
personal
computer
3.5(d) mm
GND
I/O
GND
I/O
3-conductor 3.5(d) mm
plug must be used.
2-conductor 3.5(d) mm plug
88
New2001
TROUBLESHOOTING
11
PROBLEM
No power comes ON.
No sound comes from the
speaker.
Sensitivity is low and only
strong signals are audible.
Receive audio is distorted.
Frequency can not be set.
Scan function can not
start.
Link scan function can not
start.
The displayed frequency is
erroneous.
If your receiver seems to be malfunctioning, please check the following points before sending it to a service center.
POSSIBLE CAUSE
• The batteries are exhausted.
• Loose connection of a battery pack (case).
• The battery polarity is reversed.
• Volume level is too low.
• External speaker or Cloning cable is con-
nected to [SP] jack.
• Squelch level is set too tight.
• Different tone is selected with tone/DTCS
squelch.
• Attenuator function is activated.
• RF gain is setting too low.
•
Receiving mode is not selected correctly.
• The lock function is activated.
• The programmed memory channel is only
one.
• All category or group are set to “SKIP.”
• The CPU malfunctioned.
• External factors caused a fault.
SOLUTION
• Replace the batteries or charge the battery pack.
• Clean battery terminals.
• Check the battery polarity.
• Push [r] to suitable level.
• Check the connection of the external speaker cor-
rectly or disconnect the cloning cable.
• After pushing and holding [CLR SQL] for 1 sec., ro-
tate [DIAL] to set the squelch level.
• Turn the appropriate function OFF.
• Push and hold [• ATT] for 1 sec. to cancel the func-
tion.
• Set the RF gain to “MAX” in SETTING menu.
• Set the receiving mode correctly in MODE/TS/
TONE... menu.
•
Push [MENU ] for 1 sec. to cancel the function.
• Program more than 2 memory channels.
• Cancel “SKIP” setting in SCAN menu.
• Reset the receiver.
• Remove and re-attach the battery pack or battery
case.
REF.
pgs. 2, 3, 12
–
–
p. 14
–
p. 15
p. 76
p. 73
p. 72
p. 19
p. 73
p. 133
p. 1
p. 44
p. 85
pgs. 2, 3
New2001
D General
• Frequency coverage : (Unit: MHz)
USA 0.150–821.995, 851.000–866.995,
896.000–1300.000
Other than USA 0.150–1300.000
• Number of memory channels : 1600 channels (Memory channels)
200 channels (Auto write channels)
25 channels (Scan edge channels)
• Receive modes : FM, AM, WFM
• Frequency resolution : 5, 6.25, 7.5, *8.33,*9, 10, 12.5, 15, 20,
25, 30, 50, 100, 125, 200 kHz
*selectable depending on the operating frequency band.
• Operating temperature range : –10°C to +60˚C; +14˚F to +140˚F
• Reference frequency stability : ±6 ppm (–10˚C to +60˚C; +14˚F to +140˚F)
• Power supply requirement : BP-244 (Li-ion battery pack),
(Negative ground) BP-262 (3 AA (R6) alkaline cells) or
5.1 to 6.9 V DC (with CP-18A/E)
• Current drain (backlight OFF with BP-244 (3.7 V DC):
rated audio 150 mA typical
receive standby 100 mA typical
power saved 35 mA typical
• Antenna connector type : SMA
• Antenna impedance : 50 Ω (unbalanced)
• Dimensions (proj. not included) : 57(W) × 128(H) × 23(D) mm
21⁄4(W)×51⁄32(H)×29⁄32(D) in
• Weight (approx.) : 200 g; 7.1 oz (with the ant. and BP-244)
• AF output power (at 3.7 V DC) : More than 600 mW at 70% modulation,
10% distortion with an 8 Ω load
• Ext. speaker connector : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω
D Receiver
• Receive system : Triple-conversion superheterodyne
• Intermediate frequencies : 1st: 429.1 MHz,
2nd: 19.65 MHz (FM/AM),
20.75 MHz (WFM)
3rd: 450 kHz (FM/AM),
1.55 MHz (WFM)
• Sensitivity (except spurious points) :
FM (1 kHz/3.5 kHz Dev.; 12 dB SINAD)
1.625–4.995 MHz Less than 0.56 µV
5.000–246.995 MHz Less than 0.4 µV
247.000–832.995 MHz Less than 0.56 µV
833.000–1300.000 MHz Less than 0.79 µV (Except USA version)
851.000–866.995 MHz Less than 1.3 µV (USA version only)
896.000–1300.000 MHz Less than 0.79 µV (USA version only)
WFM (1 kHz/52.5 kHz Dev.; 12 dB SINAD)
76.000–108.000 MHz Less than 1.8 µV
175.000–221.995 MHz Less than 1.8 µV
470.000–770.000 MHz Less than 2.5 µV
AM EXT-ANT (DX) (1 kHz/30% MOD.; 10 dB S/N)
0.495–4.995 MHz Less than 2.5 µV
5.000–29.995 MHz Less than 1.8 µV
118.000–136.000 MHz Less than 1.8 µV
222.000–246.995 MHz Less than 1.8 µV
247.000–329.995 MHz Less than 1.8 µV
• Selectivity :
AM/FM More than 15 kHz/–9 dB
Less than 30 kHz/–60 dB
WFM More than 150 kHz/–6 dB
New2001
89
12
SPECIFICATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

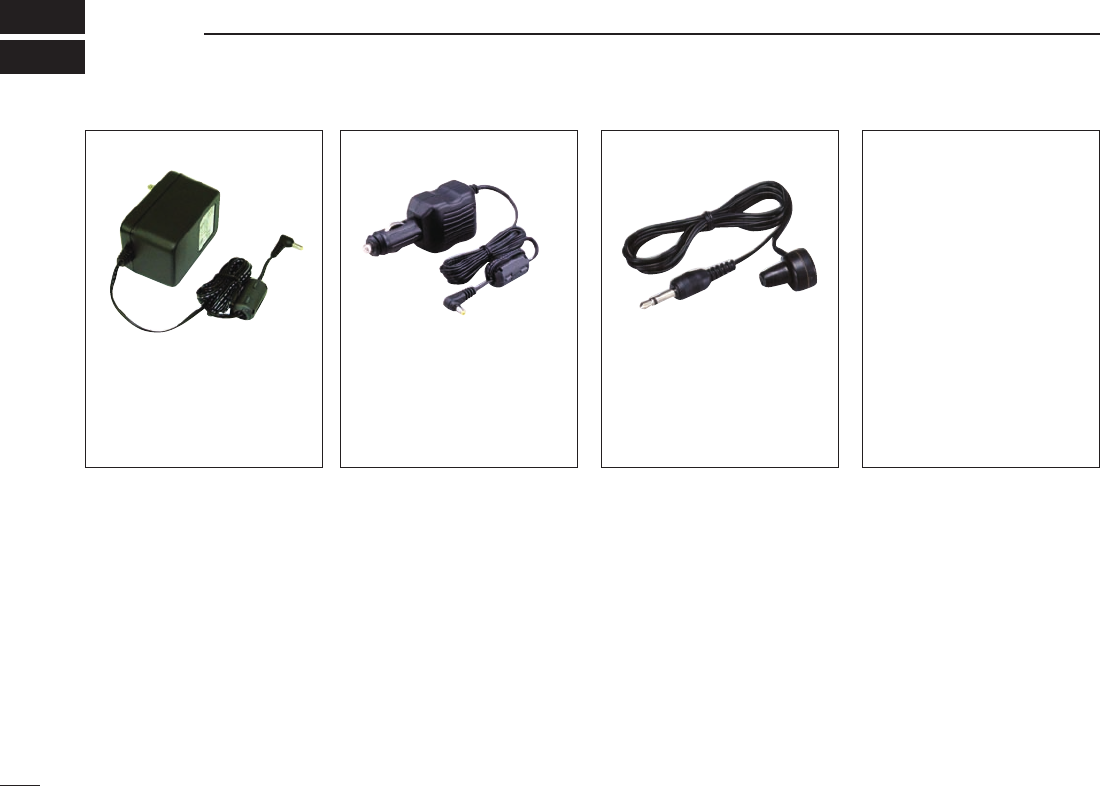

BC-149 A/D ac adaptor
For charging of the attached-
battery pack (BP-244).
6 V DC/1 A output.
Same as supplied one. (Not
supplied with some versions.)
CP-18A/E cigarette lighter
cable with dc-dc converter
Allows you to operate the re-
ceiver through a 12 V cigarette
lighter socket, and also charges
the attached battery pack
(BP-244). A built-in DC-DC con-
verter outputs 6 V DC.
SP-13 earphone
Provides clear receive audio in
noisy environments.
CS-RX7 cloning software
with OPC-478UC
cloning cable
(USB type)
Allows you to transfer data,
such as memories, and quickly
and easily edit and store data
via a PC (for Microsoft® Win-
dows® 98SE/Me/2000/XP or
Windows VistaTM) with an USB
(1.1/2.0) port. A cloning cable,
OPC-478UC, is supplied with
the software.
OPC-478/UC cloning cable
(RS-232C type)/(USB type)
OPC-474 cloning cable
Used for receiver -to-receiver
cloning
MB-112G belt clip
Helps protect the receiver from
scratches, etc.
BP-244 li-ion battery pack
3.7 V/1100 mAh Lithium Ion bat-
tery pack. Same as supplied one.
(Not supplied with some versions.)
BP-262 battery case
Battery case for LR6 (AA) × 3
alkaline batteries.
CT-17 ci-v level convertor
For receiver remote control using
a PC.
AD-92SMA
antenna connector adapter
Allows you to connect an external
antenna with a BNC connector.
LC-17 carrying case
For receiver remote control using
a PC.
HP-4
head phone
Provides clear receive audio in
noisy environments.
90
New2001
OPTIONS
13
91
14
CE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
DECLARATION
OF CONFORMITY
We Icom Inc. Japan
1-1-32, Kamiminami, Hirano-ku
Osaka 547-0003, Japan
Declare on our sole responsibility that this equipment complies with the
essential requirements of the Radio and Telecommunications Terminal
Equipment Directive, 1999/5/EC, and that any applicable Essential Test
Suite measurements have been performed.
Kind of equipment: WIDEBAND RECEIVER
Type-designation: iRX7
Version (where applicable):
This compliance is based on conformity with the following harmonised
standards, specifications or documents:
i) EN 301 489-1 V1.4.1. (August 2002)
ii) EN 301 489-15 V1.2.1. (August 2002)
iii) EN 301 783 V1.1.1. (September 2000)
iv) EN 60950-1: 2001: A11: 2004
Düsseldorf 13th Jun. 2008
Place and date of issue
Icom (Europe) GmbH
Himmelgeister straße 100
D-40225 Düsseldorf
Authorized representative name
Y. Furukawa
General Manager
Signature
92
14 CE
New2001 New2001
• List of Country codes (ISO 3166-1)
Country Codes Country Codes
1 Austria AT 18 Liechtenstein LI
2 Belgium BE 19 Lithuania LT
3 Bulgaria BG 20 Luxembourg LU
4 Croatia HR 21 Malta MT
5 Czech Republic CZ 22 Netherlands NL
6 Cyprus CY 23 Norway NO
7 Denmark DK 24 Poland PL
8 Estonia EE 25 Portugal PT
9 Finland FI 26 Romania RO
10 France FR 27 Slovakia SK
11 Germany DE 28 Slovenia SI
12 Greece GR 29 Spain EP
13 Hungary HU 30 Sweden SE
14 Iceland IS 31 Switzerland CH
15 Ireland IE 32 Turkey TR
16 Italy IT 33 United Kingdom GB
17 Latvia LV
101
MEMO
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
New2001
A-6685D-1EX
Printed in Japan
© 2008 Icom Inc.
Printed on recycled paper with soy ink.
<Intended Country of Use>
■ AT ■ BE ■ CY ■ CZ ■ DK ■ EE
■ FI ■ FR ■ DE ■ GR ■ HU ■ IE
■ IT ■ LV ■ LT ■ LU ■ MT ■ NL
■ PL ■ PT ■ SK ■ SI ■ ES ■ SE
■ GB ■ IS ■ LI ■ NO ■ CH ■ BG
■ RO ■ TR ■ HR
<Intended Country of Use>
■ AT ■ BE ■ CY ■ CZ ■ DK ■ EE
■ FI ■ FR ■ DE ■ GR ■ HU ■ IE
■ IT ■ LV ■ LT ■ LU ■ MT ■ NL
■ PL ■ PT ■ SK ■ SI ■ ES ■ SE
■ GB ■ IS ■ LI ■ NO ■ CH ■ BG
■ RO ■ TR ■ HR
#02 Europe
#03 U.K.
