User_Manual_IC-F6220D
INSTRUCTION MANUAL
VHF DIGITAL TRANSCEIVER
iF5220D
UHF DIGITAL TRANSCEIVER
iF6220D
i
IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important oper ating instructions
for the IC-F5220D VHF DIGITAL TRANSCEIVER and the
IC-F6220D UHF DIGITAL TRANSCEIVER.
See the operating guide for details of IDAS (ICOM Digital
Advanced System) system operations. Ask your dealer for
details.
EXPLICIT DEFINITIONS
WORD DEFINITION
R WARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
FCC INFORMATION
• FOR CLASS A UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio com-
munications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be re-
quired to correct the interference at his own expense.
CAUTION: Changes or modifications to this transceiver,
not expressly approved by Icom Inc., could void your au-
thority to operate this transceiver under FCC regulations.
ii
PRECAUTIONS
R WARNING! NEVER operate the transceiver during
a lightning storm. It may result in an electric shock, cause a
fire or damage the transceiver. Always disconnect the power
souce and antenna before a storm.
R WARNING! NEVER connect the transceiver to an
AC outlet. This may pose a fire hazard or result in an electric
shock.
R WARNING! NEVER connect the transceiver to a
power source of more than 16 V DC or use reverse polarity.
This could cause a fire or damage the transceiver.
R WARNING! NEVER cut the DC power cable be-
tween the DC plug and fuse holder. If an incorrect connection
is made after cutting, the transceiver might be damaged.
R WARNING! NEVER place the transceiver where
normal operation of the vehicle may be hindered or where it
could cause bodily injury.
CAUTION: NEVER allow children to touch the trans-
ceiver.
CAUTION: NEVER expose the transceiver to rain,
snow or any liquids.
DO NOT operate or place the transceiver in areas with
temperatures below –30°C (–22°F) or above +60°C (+140°F),
or in areas subject to direct sunlight, such as the dashboard.
DO NOT operate the transceiver without running the ve-
hicle’s engine. The vehicle’s battery will quickly run out when
the transceiver transmits while the vehicle’s engine is OFF.
DO NOT place the transceiver in excessively dusty envi-
ronments.
DO NOT place the transceiver against walls. This will ob-
struct heat dissipation.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the transceiver surfaces.
BE CAREFUL! The transceiver will become hot when
operating continuously for long periods of time.
USE the specified or optional microphone only. Other mi-
crophones have different pin assignments and may damage
the transceiver.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom
Incorporated (Japan) in Japan, the United States, the United King-
dom, Germany, France, Spain, Russia, Australia, New Zealand, and/
or other countries.
All other products or brands are registered trademarks or trademarks
of their respective holders.
iii
VOICE CODING TECHNOLOGY
The AMBE+2™ voice coding Technology embodied in this
product is protected by intellectual property rights including
patent rights, copyrights and trade secrets of Digital Voice Sys-
tems, Inc. This voice coding Technology is licensed solely for
use within this Communications Equipment. The user of this
Technology is explicitly prohibited from attempting to extract,
remove, decompile, reverse engineer, or disassemble the Ob-
ject Code, or in any other way convert the Object Code into a
human-readable form. U.S. Patent Nos.
#5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365,
#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,
#5,247,579, #5,226,084 and #5,195,166.
IMPORTANT .......................................................................... i
EXPLICIT DEFINITIONS .......................................................i
FCC INFORMATION ............................................................. i
PRECAUTIONS .................................................................... ii
VOICE CODING TECHNOLOGY ........................................ iii
1 PANEL DESCRIPTION ................................................1–5
■Front panel ...................................................................1
■Function display ...........................................................2
■Programmable function keys ........................................ 3
2 BASIC OPERATION .................................................... 6–8
■Turning ON the power ..................................................6
■Channel selection ........................................................6
■Receiving and transmitting ...........................................7
■User Set mode .............................................................8
■Priority A channel selection ..........................................8
3 CONNECTION AND MAINTENANCE ......................9–12
■Rear panel connection .................................................9
■Supplied Accessories .................................................10
■Mounting the transceiver ............................................10
■Antenna ......................................................................11
■Fuse replacement ......................................................11
■Cleaning ..................................................................... 11
■Options .......................................................................12
4 SAFETY TRAINING INFORMATION .......................13–16
TABLE OF CONTENTS
Icom is not responsible for the destruction or damage to the
Icom transceiver, if the malfunction is because of:
• Force majeure, including, but not limited to,
fires,earthquakes, storms, floods, lightnings, or other
naturaldisasters, disturbances, riots, war, or radioactive-
contamination.
• The use of Icom transceiver with any equipment that is
not manufactured or approved by Icom.
1
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
q w
t
SpeakerFunction display (p. 2)
r
e

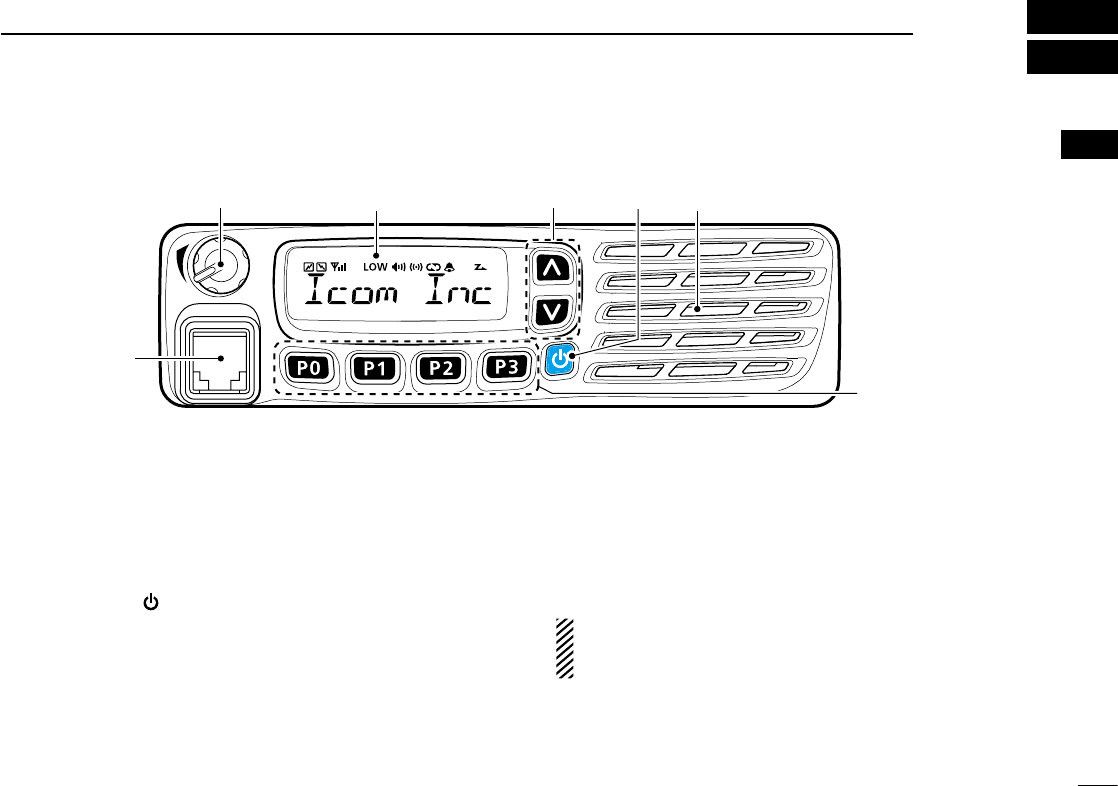

■Front panel
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the audio output level.
• Minimum audio level is preprogrammed. (p. 8)
w UP/DOWN KEYS [UP]/[DOWN]
Push to select an operating channel and so on.
* The desired function can be assigned by your dealer. (p. 3)
e POWER KEY [ ]
Push to turn the power ON or OFF.
• The following optional functions are available at power ON:
- Automatic scan start
- Password prompt
r DEALER-PROGRAMMABLE KEYS
Required functions can be independently programmed by
your dealer. (p. 3)
t MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
See page 10 for detail of the PTT switch and a hanger
hook operations.
NEVER connect non-specified microphones. The pin
assignments may be different and may damage the
transceiver.
2
1PANEL DESCRIPTION

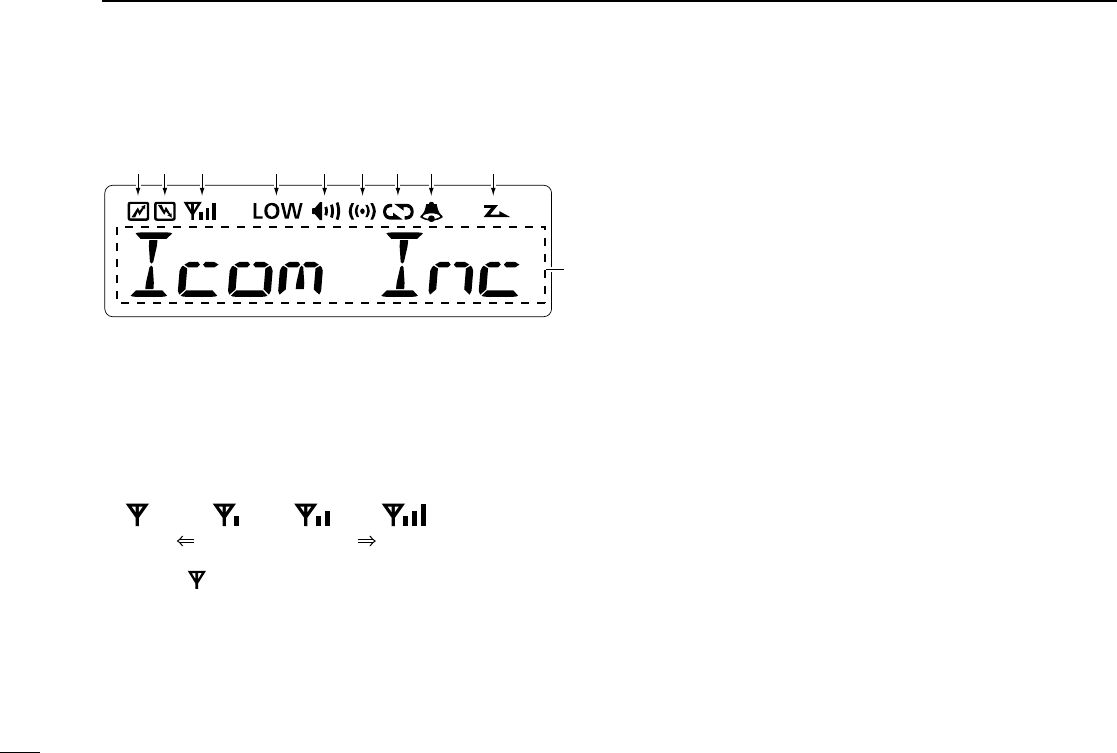

■Function display
q w e r t y u i o
!0
q TRANSMIT ICON
Appears while transmitting a signal.
w BUSY ICON
Appears while the channel is busy (receiving).
e SIGNAL STRENGTH ICON
Shows the relative receive signal strength level.
Weak Receive Signal level Strong
About “ ” icon for the Trunking mode
➥ Disappears while in the no service area.
➥ Blinks while registering to the repeater.
➥ Appears when the registration is completed.
r LOW POWER ICON
Appears when low output power is selected.
t AUDIBLE ICON
➥ In the analog mode, appears when the CTCSS (DTCS)
squelch mute is released while holding down [Monitor].
➥ In the digital mode, appears while holding down [Moni-
tor].
y GPS ICON
Appears when the GPS receiver acquires the received
GPS signal from a satellite.
u ENCRYPTION ICON
In the digital mode, appears when the encryption function
is activated.
i BELL ICON
In the digital mode, appears/blinks when a SDM (Short
Data Message), Status Call or Call Alert is received, de-
pending on the preprogramming.
o SCAN ICON
➥ Blinks during a scan.
➥ Appears when a scan channel is selected.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
User Set mode contents, and so on.
3
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Programmable function keys
The following functions can be assigned to [UP], [DOWN],
[P0], [P1], [P2] and [P3] programmable function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
NOTE: The function keys for the digital mode are described
in the operating guide.
CH UP AND DOWN
As described in the following topics, after pushing a pro-
grammed key, push [CH Up] or [CH Down] to select an op-
tion, setting, and so on.
ZONE
Push this key, then select the desired zone using [CH Up]/
[CH Down].
What is “zone”?— Certain channels are grouped togeth-
er and assigned to a zone, according to their intended to
use. For example, ‘Staff A’ and ‘Staff B’ are assigned to a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned to a
“Private” zone.
SCAN START/STOP
➥Push to start and cancel a scan.
• When a scan is started with the Power ON Scan or Automatic
scan function, push this key to cancel it. The cancelled scan re-
sumes after the preprogrammed time period.
➥ Hold down this key for 1 second to display the scan group,
then push [CH Up] or [CH Down] to select the desired
one.
SCAN ADD/DEL (TAG)
➥ Push to add the channel to, or delete it from, the current
scan group.
1. Hold down to display the scan group, then push [CH Up] or
[CH Down] to select the desired one.
2. Push to add the channel to, or delete it from, the selected scan
group.
3. Hold down for 1 second to exit the scan list selection mode.
➥ While a scan is paused on a non-priority channel, push this
key to delete the selected channel from the scan group.
Depending on the setting, the cleared channel is added
to the scan group again after the scan is cancelled.
4
1PANEL DESCRIPTION
■Programmable function keys (Continued)
PRIORITY A CHANNEL, PRIORITY B CHANNEL
Push to select the Priority A or Priority B channel.
PRIORITY A CHANNEL (REWRITE),
PRIORITY B CHANNEL (REWRITE)
➥Push to select the Priority A or Priority B channel.
➥ Hold down [Prio A (Rewrite)] or [Prio B (Rewrite)] for
1 second to assign the operating channel to Priority A or
Priority B channel, respectively.
MEMORY CHANNELS 1, 2, 3, 4
Push to directly select memory channel 1, 2, 3 or 4, if pro-
grammed.
Consult your dealer for details.
MONITOR
Push to turn the CTCSS (DTCS) squelch mute ON or OFF.
LIGHT
Push to turn ON the backlight for about 5 seconds, when the
backlight function is set to “OFF” in the User Set mode.
HIGH/LOW
Push to select the transmit output power temporarily or per-
manently, depending on the preprogramming.
• Ask your dealer for the output power level for each selection.
LOCK
➥ Hold down this key until “LOCK ON” is displayed to elec-
tronically lock all programmable keys except the following:
[Moni], [Lock], [Emergency]*, [Power OFF Emergency]*,
[Surveillance], [Siren], [Lone Worker]*, [Light] and [Shift].
* For digital operation. See the operating guide for details
➥ To turn OFF the Key Lock function, hold down this key until
“LOCK OFF” is displayed.
TALK AROUND
Push to turn the Talk Around function ON or OFF.
• The Talk Around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW
Push to toggle the IF bandwidth between wide and narrow.
SURVEILLANCE
Push to turn the surveillance function ON or OFF.
When this function is turned ON and a signal is received, the
beep is not heard and the LED does not light, even if a key
is pushed.
SIREN
Hold down for 1 second to sound the siren.
This function can be used for situations other than an emer-
gency alert, such as a security alarm for example.
• The siren can only be stopped by turning OFF the transceiver power.
5
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
HOOK SCAN
When the Hook Scan function is preprogrammed, push this
key to temporarily disable the function. Push this key again to
enable the function.
USER SET MODE
➥ Hold down for 1 second to enter the User Set mode.
• While in the User Set mode, push this key to select an item*, and
change the value or setting using [CH Up] or [CH Down].
* Selectable items may differ, depending on the preprogram-
ming.
➥ Hold down this key for 1 second again to exit the User Set
mode.
EXT. CH SEL MODE
Push to turn the Ext. CH Select function ON or OFF.
When the function is turned ON, memory channels can be
selected with only an external input.
When the function is turned OFF, memory channels can be
selected by pushing [CH Up] or [CH Down], and cannot be
externally controlled.
• This function is usable when an external unit, such as a dimmer
control is connected to the transceiver with an optional OPC-1939
or OPC-2078 cable (p. 12).
• Ask your dealer for more details on external input operation.
ANNOUNCE
Push to turn the Channel Announce function ON or OFF.
When this function is turned ON, the transceiver announces
the channel number when it is selected.
RESET
➥Push to return to the normal operating mode.
➥ While in the audible mode, push to return to the inaudible
mode.
NOTE: See the operating guide for the [Reset] key opera-
tions in the digital mode.
GPS DISPLAY
Push to switch the display mode between stand-by and GPS
position data.
SHIFT
Push to switch the Normal mode key functions and the Shift
mode key functions.
• When the Shift mode is selected, the display briefly shows “SHIFT
ON.” When the Normal mode is selected, the display briefly shows
“SHIFT OFF.”
6
2BASIC OPERATION
■Turning ON the power
qPush [ ] to turn ON the power.
w If the transceiver is programmed for a start up password,
input the digit codes that were set by your dealer.
• The keys shown below can be used for password input:
The transceiver detects numbers in the same block as identical.
Therefore “01234” and “56789” are the same.
KEY
NUMBER 0
5
4
9
3
8
2
7
1
6
e If the “PASSWORD” indication does not clear after input-
ting 6 digits, the input code number may be incorrect. Turn
OFF the power and re-enter your password.
■Channel selection
There are several ways to select channels, and they may dif-
fer, depending on your system set up.
NON-ZONE TYPE:
To select the desired operating channel:
➥Push [CH Up] or [CH Down].
➥Push one of [MR-CH 1] to [MR-CH 4].
ZONE TYPE:
To select the desired operating channel:
➥Push [Zone], then push [CH Up] or [CH Down].
VOTING OPERATION:
The transceiver automatically starts scanning when a zone,
specified for the voting operation, is selected.
The voting scan detects the S-meter of the repeater and au-
tomatically selects the strongest station.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning
ON the power, the transceiver automatically starts scanning.
Scanning stops when a signal is detected.
7
2
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Receiving and transmitting
Receiving:
qHold down [] for 1 second to turn ON the power.
w Push [CH Up] or [CH Down] to select a channel.
e When receiving a call, rotate [VOL] to adjust the audio out-
put level to a comfortable listening level.
Transmitting:
Wait for the channel to become clear to avoid interference.
q Take the microphone OFF hook.
• The ‘Audible’ mode is selected.
• A priority channel may be automatically selected.
wWait for the channel to become clear.
•
The channel is busy when the BUSY icon appears on the LCD.
e While holding down [PTT], speak into the microphone at
your normal voice level.
rRelease [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak into the microphone at a normal
voice level.
DTransmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- The channel is busy. However, depending on the preprogrammed
settings, you can transmit when the call includes an unmatching
(or matching) CTCSS (DTCS), RAN code*, or Individual or Talk-
group ID*.
* Digital operation only
- The selected channel is a ‘receive only’ channel.
• Time-out timer
If continuous transmission exceeds the preprogrammed
time-out timer limit, the transmission is cut off.
• Penalty timer
After the transmission is cut off by the time-out timer, trans-
mission is further inhibited for the preprogrammed penalty
timer period.
8
2BASIC OPERATION
■User Set mode
The User Set mode allows you to set seldom-changed set-
tings. If the transceiver has [User Set Mode] assigned to it,
you can “customize” the transceiver operation to suit your
preferences and operating style.
Entering the User Set mode:
q Hold down [User Set Mode] for 1 second to enter the User
Set mode.
w Push [User Set Mode] several times to select the appro-
priate item. Then push [CH Up] or [CH Down] to set the
desired level/condition.
• Selectable Set mode items are Backlight, Beep ON/OFF, Beep
Level, Ringer Level, SQL Level, AF Min Level, Mic Gain,
Horn, Battery Voltage, Signal Moni, Lone Worker and Sys-
tem Info.
e Hold down [User Set Mode] for 1 second again to exit the
User Set mode.
■Priority A channel selection
When one of the following operations is performed, the trans-
ceiver automatically selects the Priority A channel.
• Turning ON the power
The Priority A channel is selected each time the transceiv-
er power is turned ON.
• Auto Reset
The Priority A channel is selected when the Auto Reset
timer ends.
• OFF hook
The Priority A channel is selected when you take the mi-
crophone OFF hook.
9
3
CONNECTION AND MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
e
r
Antenna
Black
Red
12V
Battery
Solder
Crimp
NOTE: Use terminals for the cable
connections.
q ANTENNA CONNECTOR
Connect to an antenna. Ask your
dealer about antenna selection
and placement.
qw
w EXTERNAL SPEAKER JACK
Connect to a 4 to 8 ø external speaker.
e MICROPHONE HANGER
Connect the supplied micro-
phone hanger to the vehicle’s
ground for microphone ON/OFF
hook functions. (See page 1)
r
OPTIONAL OPC-1939 or OPC-2078 CABLE
t
t DC POWER RECEPTACLE
Connect to a 12 V DC battery.
Pay attention to polarities.
Optional speaker
Connect an external modem, dimmer
control, and so on.
NOTE: No Digital Modulation “IN” using
accessory cables.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
R WARNING! NEVER remove the
fuse holders from the DC power cable.

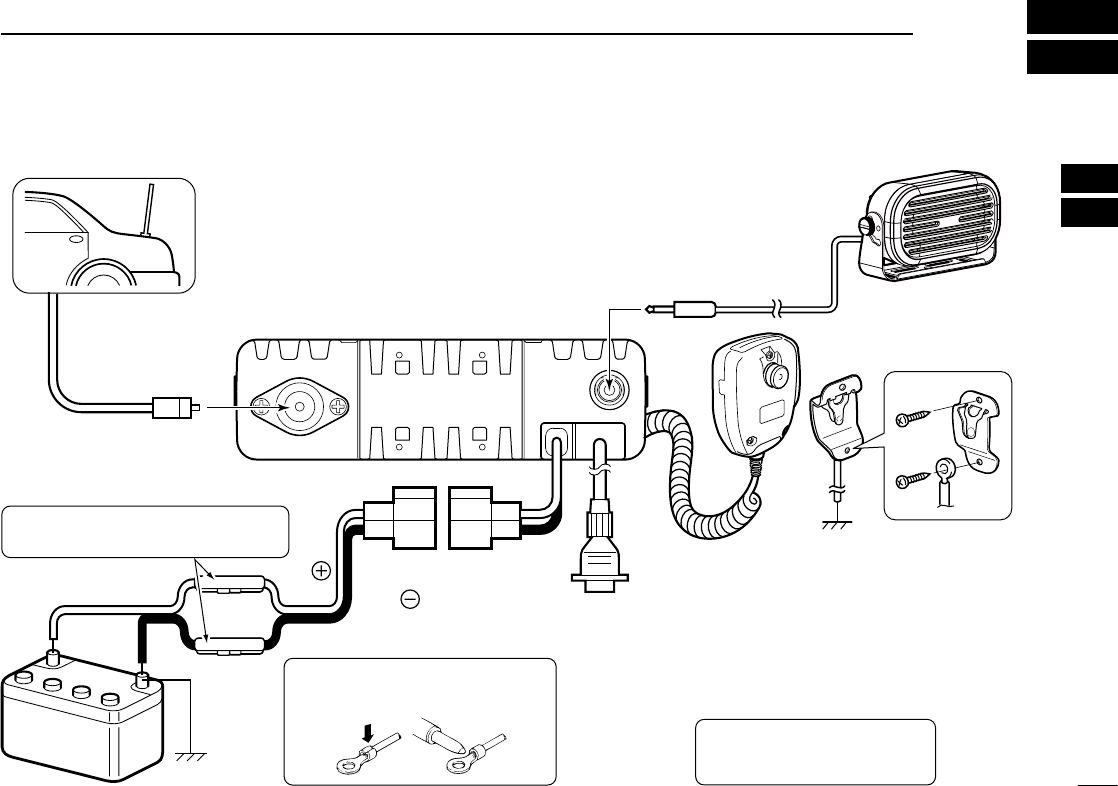

■Rear panel connection
10
3CONNECTION AND MAINTENANCE

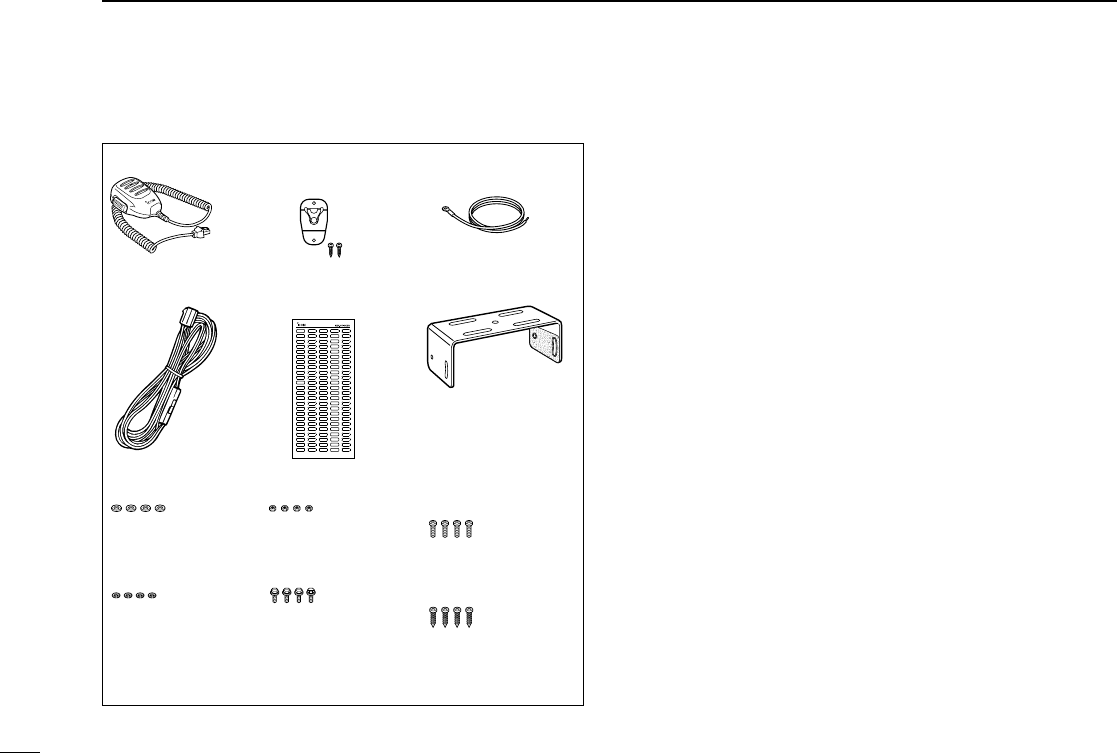

■Supplied Accessories
DMicrophone
The supplied
or optional
microphone has a PTT switch and a
hanger hook.
• The following functions are available when the microphone
is ON or OFF hook (depending on the preprogramming):
- Automatic scan starts when you put it ON hook.
- Scan is cancelled when you take it OFF hook.
- Scan is paused when you take it OFF hook.
- Automatically selects the Priority channel when you take it OFF hook.
- Sets to the ‘Inaudible’ mode (mute state) when you put it ON hook.
- Sets to the ‘Audible’ mode (unmute state) when you take it OFF
hook.
Microphone Microphone hanger
and screw set
Microphone
hanger cable
DC power cable
Flat washers
Spring washers Bracket bolts
Mounting screws
(5 × 12)
Self-tapping screws
(5 × 20)
Nuts
Function name
stickers*
Used for labelling the programmable function
keys according to their assigned functions.
*
Mounting bracket
11
3
CONNECTION AND MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Mounting the transceiver
The universal mounting bracket supplied with your transceiv-
er allows overhead mounting.
• Mount the transceiver securely with the 4 supplied screws to a thick
surface which can support more than 1.5 kg (3.3 lb).
Flat w
asher
Felt*
Spr
ing washer
When using
self-tapping screws *Felt reduces the effects of vibration.
■Antenna
A key element in the performance of any communication sys-
tems is its antenna. Contact your dealer for more information
regarding antennas and how to install them.
■Fuse replacement
A fuse is installed in each fuse holder of the supplied DC
power cable. If a fuse blows or the transceiver stops function-
ing, track down the source of the problem if possible, repair it
and then replace the damaged fuse with a new rated one.
❑ Fuse rating: 20 A
USE only the applicable fuse.
12
3CONNECTION AND MAINTENANCE
■Cleaning
If the transceiver becomes dusty or dirty, wipe it
clean with a soft, dry cloth.
DO NOT use harsh solvents such as benzine or
alcohol, as they will damage the transceiver sur-
faces.
■Options
• OPC-1132A/OPC-347 dc power cable
Two fuse holders are attached. USE only the 20 A fuse.
OPC-1132A: 3 m (9.8 ft)
OPC-347: 7 m (23 ft)
• OPC-1939/OPC-2078 acc cable
Allows you to connect to an external terminal.
OPC-1939: D-sub 15-pin, OPC-2078: D-sub 25-pin
NOTE:
No Digital Modulation “IN” using accessory cables.
• HM-152/HM-152T/HM-148G/HM-148T hand microphone
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148G : Self ground heavy duty microphone
HM-148T : Self-grounding heavy duty microphone with 10-
key pad. The 10-key pad on this microphone can
be used for the only DTMF code transmission.
• HM-211 noise cancelling microphone
• SM-26 desktop microphone
• SP-30/SP-35/SP-35L external speaker
Input impedance: 4 ø
Maximum input power: 30 W (SP-30)/7 W (SP-35)
SP-30: High input power level.
SP-35: Compact and easy-to-install.
SP-35L: 6 m (19.7 ft) cable length.
13
4
SAFETY TRAINING INFORMATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
WARNING
Your Icom radio generates RF electromagnetic en-
ergy during transmit mode. This radio is designed
for and classified as “Occupational Use Only”,
meaning it must be used only during the course of
employment by individuals aware of the hazards,
and the ways to minimize such hazards. This radio
is NOT intended for use by the “General Popula-
tion” in an uncontrolled environment.
• For compliance with FCC and IC RF Exposure Requirements, the
transmitter antenna installation shall comply with the following two
conditions:
1. The transmitter antenna gain shall not exceed 0 dBi.
2. IC-F5220D:
The antenna is required to be located outside of a vehicle and kept
at a distance of 57 centimeters or more between the transmitting
antenna of this device and any persons during operation. For small
vehicle as worst case, the antenna shall be located on the roof
top at any place on the centre line along the vehicle in order to
achieve 57 centimeters separation distance. In order to ensure this
distance is met, the installation of the antenna must be mounted at
least 57 centimeters away from the nearest edge of the vehicle in
order to protect against exposure to bystanders.
2. IC-F6220D:
The antenna is required to be located outside of a vehicle and kept
at a distance of 41 centimeters or more between the transmitting
antenna of this device and any persons during operation. For small
vehicle as worst case, the antenna shall be located on the roof
top at any place on the centre line along the vehicle in order to
achieve 41 centimeters separation distance. In order to ensure this
distance is met, the installation of the antenna must be mounted at
least 41 centimeters away from the nearest edge of the vehicle in
order to protect against exposure to bystanders.
3. IC-F5220D:
Transmit only when people outside the vehicle are at least the rec-
ommended minimum distance of 136 centimeters away from the
properly installed antenna. This separation distance will ensure
that there is sufficient distance from a properly installed external-
ly-mounted antenna to satisfy the RF exposure requirements in
the applicable RF exposure compliance standards.
3. IC-F6220D:
Transmit only when people outside the vehicle are at least the rec-
ommended minimum distance of 117 centimeters away from the
properly installed antenna. This separation distance will ensure
that there is sufficient distance from a properly installed external-
ly-mounted antenna to satisfy the RF exposure requirements in
the applicable RF exposure compliance standards.
14
4SAFETY TRAINING INFORMATION
CAUTION
To ensure that your exposure to RF electromag-
netic energy is within the FCC and IC allowable
limits for occupational use, always adhere to the
following guidelines:
• DO NOT operate the radio without a proper antenna attached, as
this may damage the radio and may also cause you to exceed FCC
and IC RF exposure limits. A proper antenna is the antenna sup-
plied with this radio by the manufacturer or an antenna specifically
authorized by the manufacturer for use with this radio.
• DO NOT transmit for more than 50% of total radio use time (“50%
duty cycle”). Transmitting more than 50% of the time can cause
FCC and IC RF exposure compliance requirements to be exceed-
ed. The radio is transmitting when the “transmit indicator” appears
on the LCD. You can cause the radio to transmit by pressing the
“PTT” switch.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that
can possibly cause interference with other devices or systems. To
avoid such interference, turn OFF the radio in areas where signs are
posted to do so. DO NOT operate the transmitter in areas that are
sensitive to electromagnetic radiation such as hospitals, aircraft, and
blasting sites.
15
4
SAFETY TRAINING INFORMATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Votre radio Icom produit une énergie électro-
magnétique de radiofréquences (RF), en mode
de transmission. Cette radio est conçue pour
un «usage professionnel seulement» et clas-
sée comme tel, ce qui signifie qu'elle doit être
utilisée uniquement dans le cadre d'un travail
par des personnes conscientes des dangers et des mesures
visant à minimiser ces dangers. Elle N'EST PAS conçue pour
une «utilisation grand public», dans un environnement non con-
trôlé.
• Afin de satisfaire aux exigences de la FCC et d'IC en matière
d'exposition aux RF, il est nécessaire que l'antenne soit installée
conformément aux deux conditions suivantes:
1. Le gain de l'antenne du radio émetteur ne doit pas dépasser
0 dBi.
2. IC-F5220D:
Il faut que l'antenne émettrice de cet appareil soit placée à
l'extérieur d'un véhicule et tenue éloignée d'au moins 57 cen-
timètres de toute personne pendant le fonctionnement. Dans le
pire des cas, pour un petit véhicule, l'antenne doit être placée sur
le toit, n'importe où dans l'axe central du véhicule, afin de respect-
er une distance de 57 cm du bord le plus rapproché du véhicule et
ainsi éviter que les personnes présentes soient exposées.
2. IC-F6220D:
Il faut que l'antenne émettrice de cet appareil soit placée à
l'extérieur d'un véhicule et tenue éloignée d'au moins 41 cen-
timètres de toute personne pendant le fonctionnement. Dans le
pire des cas, pour un petit véhicule, l'antenne doit être placée sur
le toit, n'importe où dans l'axe central du véhicule, afin de respect-
er une distance de 41 cm du bord le plus rapproché du véhicule et
ainsi éviter que les personnes présentes soient exposées.
3. IC-F5220D:
Émettre uniquement lorsque les personnes à l’extérieur du véhi-
cule se trouvent à au moins la distance minimale recommandée
de 136 cm de l’antenne correctement installée. Cette distance
de sécurité assurera que les personnes soient placées suffisam-
ment loin d’une antenne correctement fixée à l’extérieur pour
satisfaire aux exigences en matière d’exposition aux RF, en vertu
des normes de conformité applicables.
3. IC-F6220D:
Émettre uniquement lorsque les personnes à l’extérieur du véhi-
cule se trouvent à au moins la distance minimale recommandée
de 117 cm de l’antenne correctement installée. Cette distance
de sécurité assurera que les personnes soient placées suffisam-
ment loin d’une antenne correctement fixée à l’extérieur pour
satisfaire aux exigences en matière d’exposition aux RF, en vertu
des normes de conformité applicables.
AVERTISSEMENT
16
4SAFETY TRAINING INFORMATION
MISE EN GARDE
Afin de vous assurer que votre exposition à
une énergie électromagnétique de RF se situe
dans les limites permises par la FCC et d'IC
pour une utilisation grand public, veuillez en
tout temps respecter les directives suivantes:
• NE PAS faire fonctionner la radio sans qu'une antenne appro-
priée y soit fixée, car ceci risque d'endommager la radio et causer
une exposition supérieure aux limites établies par la FCC et d'IC.
L'antenne appropriée est celle qui est fournie avec cette radio par
le fabricant ou une antenne spécialement autorisée par le fabricant
pour être utilisée avec cette radio.
• NE PAS émettre pendant plus de 50% du temps total d'utilisation de
l'appareil (« 50% du facteur d'utilisation »). Émettre pendant plus de
50% du temps total d'utilisation peut causer une exposition aux RF
supérieure aux limites établies par la FCC et d'IC. La radio est en
train d’emettre lorsque le temoin du mode de transmission s’affiche
sur l’ecran ACL. La radio émettra si vous appuyez sur le bouton du
microphone.
Interférence électromagnétique et compatibilité
En mode de transmission, votre radio Icom produit de l'énergie de
RF qui peut provoquer des interférences avec d'autres appareils ou
systèmes. Pour éviter de telles interférences, mettez la radio hors
tension dans les secteurs où une signalisation l’exige. NE PAS faire
fonctionner l'émetteur dans des secteurs sensibles au rayonnement
électromagnétique tels que les hôpitaux, les aéronefs et les sites de
dynamitage.
MEMO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MEMO
MEMO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-7079H-1EX-ea
Printed in Japan
© 2013–2018 Icom Inc.
Printed on recycled paper with soy ink.
