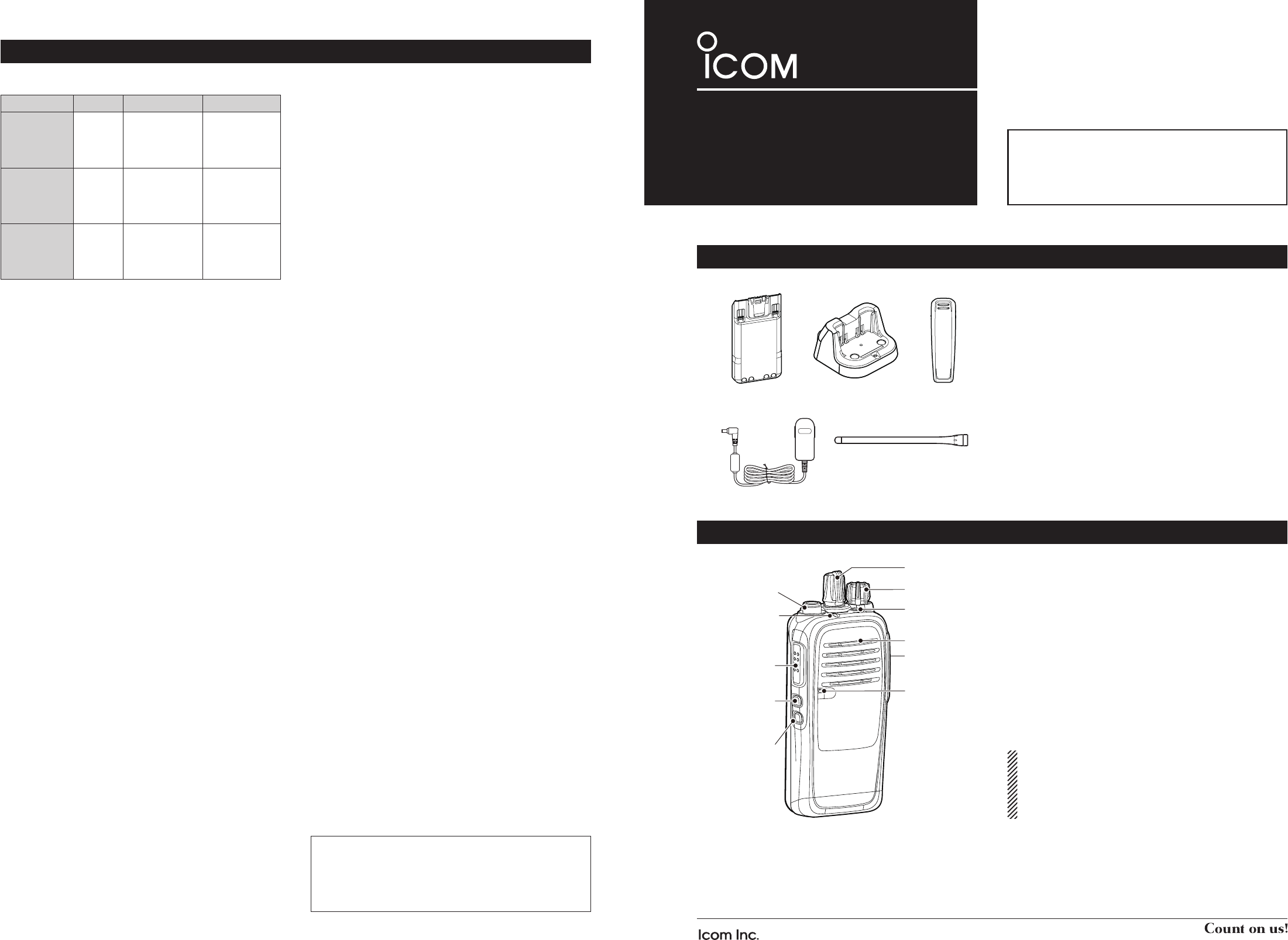

ICOM orporated 369402 UHF Transceiver User Manual IC F1000D F2000D series INSTRUCTIONS

ICOM Incorporated UHF Transceiver IC F1000D F2000D series INSTRUCTIONS

User Manual 2

About the LED Indicator D
• Lights red while transmitting.
• Lights green while receiving a signal, or when the
squelch is open.
• Lights or blinks orange when the matched 2-Tone
or 5-Tone is received, depending on the presetting.
• You should charge the battery when the indicator
slowly blinks green.
• You must charge the battery when the indicator
blinks green fast.
About the Speaker microphone jack D
CAUTION: Only when the jack cover or the
optional HM-168LWP, HM-171GPW, HS-94LWP, or
HS-95LWP is attached, the transceiver meets IP67
requirements for dust-tight and waterproof
protection.
Thank you for purchasing the IC-F1000D series
v h f d i g i t a l t r a n s c e i v e r s or IC-F2000D series u h f
d i g i t a l t r a n s c e i v e r s .
READ ALL INSTRUCTIONS carefully and
completely before using the transceiver.
INSTRUCTIONS
PANEL DESCRIPTION
A-7206H-2EX Printed in Japan
© 2015 Icom Inc.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
SUPPLIED ACCESSORIES
qwe
rt
Battery pack* q
Battery charger* (BC-213) w
Belt clip (MB-133) e
Power adapter* (for the battery charger) r
Flexible antenna* t
* Not supplied, or the shape is different, depending on the
transceiver version.
VHF DIGITAL TRANSCEIVERS
Iç-F2000D series
UHF DIGITAL TRANSCEIVERS
Iç-F1000D series
BATTERY PACKS D
BP-278/BP-279/BP-280• b a t t e r y p a c k
Battery pack Voltage Capacity Battery life*
BP-278 7.2 V
1130 mAh
(minimum)
1190 mAh
(typical)
9 hours
BP-279 7.2 V
1485 mAh
(minimum)
1570 mAh
(typical)
12 hours
BP-280 7.2 V
2280 mAh
(minimum)
2400 mhA
(typical)
18 hours
* When the power save function is turned ON, and the
operating periods are calculated under the following
conditions.
TX : RX : standby = 5 : 5 : 90
CHARGERS D
BC-213 • d e s k t o p c h a r g e r + BC-123S a c a d a p t e r
To rapid charge a single battery pack.
BC-214 • m u l t i c h a r g e r + BC-157S a c a d a p t e r
To rapid charge up to 6 battery packs.
DC CABLES D
CP-23L• c i g a r e t t e l i g h t e r c a b l e
Use when charging the battery pack from a 12 V
cigarette lighter socket. (Use with the BC-213)
OPC-656 • d c p o w e r c a b l e
Use with a 13.8 V power source instead of the power
adapter. (Use with the BC-214
)
ANTENNAS D
FA-SC25V/ FA-SC55V/FA-SC62V/FA-SC63V •
v h f a n t e n n a s
FA-SC25V: 136–150 MHz
FA-SC55V: 150–174 MHz
FA-SC62V: 150–160 MHz
FA-SC63V: 155–165 MHz
FA-SC26VS/FA-SC27VS/FA-SC56VS/FA-SC57VS •
v h f s t u b b y a n t e n n a s
FA-SC26VS: 136–144 MHz
FA-SC27VS: 142–150 MHz
FA-SC56VS: 150–162 MHz
FA-SC57VS: 160–174 MHz
FA-SC61VC • v h f c u t a n t e n n a
FA-SC61VC: 136–174 MHz
FA-SC25U/FA-SC57U/FA-SC72U/FA-SC73US •
u h f a n t e n n a s
FA-SC25U: 400–430 MHz
FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz
FA-SC73US: 450–490 MHz
FA-SC26US • u h f s t u b b y a n t e n n a
FA-SC26US: 400–450 MHz
FA-SC01U/FA-SC02U • u h f a n t e n n a
FA-SC01U: 350–400 MHz
FA-SC02U: 330–380 MHz
FA-SC61UC • u h f c u t a n t e n n a
FA-SC61UC: 380–520 MHz
OTHERS D
MB-130 • m o b i l e b r a c k e t
Mounts the BC-213 d e s k t o p c h a r g e r on a variety
of places in a vehicle.
MB-133 • b e l t c l i p
HM-158LA/HM-159LA/HM-168LWP/HM-171GPW •
s p e a k e r m i c r o p h o n e
Combination speaker-microphone that provides
convenient operation while the transceiver is
hanging on your belt.
The HM-171GPW includes high-performance GPS
receiver.
• Adjust the microphone gain before use.
HM-153LA/HM-166LA • e a r p h o n e -m i c r o p h o n e
Ideal for hands-free operation. Clip the HM-153LA
or HM-166LA (with integrated ptt s w i t c h ) to your
lapel or breast pocket.
• Adjust the microphone gain before use.
HS-94/HS-95/HS-97• h e a d s e t
+ VS-4LA p t t s w i t c h c a b l e
/OPC-2004LA a d a p t e r c a b l e
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
VS-4LA: To connect to headsets
OPC-2004LA: To connect to headsets for VOX
operation
• Adjust the both microphone and VOX gain before use.
HS-94LWP/HS-95LWP• h e a d s e t
HS-94LWP: Ear-hook type
HS-95LWP: Neck-arm type
• Adjust the both microphone and VOX gain before use.
OPTIONS
Some options may not be available in some countries. Ask
your dealer for details.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver. Icom is
not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with
equipment that is not manufactured or approved by Icom.
- 1 -
- 4 -
Icom, Icom Inc. and the Icom logo are registered trademarks
of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, and/or other
countries.
All other products or brands are registered trademarks or
trademarks of their respective holders.
[VOL]
[Emer]
Speaker
SPEAKER-
MICROPHONE
JACK
Microphone
[PTT]
LED INDICATOR
ANTENNA CONNECTOR
[Upper]
(Dealer assignable)
[Lower]
(Dealer assignable)
[ROTARY
SELECTOR]
Turning power ON D
Before using the transceiver for the rst time, the
battery pack must be fully charged for optimum life
and operation. See the instructions on page 2.
Rotate [VOL] to turn ON the power.
Receiving and Transmitting D
CAUTION:
Attach an antenna before transmitting.
Transmitting without an antenna may damage the
transceiver.
Receiving:
Rotate [ROTARY SELECTOR] to select a channel. q
Or, push one of [MR-CH 1], [MR-CH 2], [MR-CH 3], or •
[MR-CH 4], if assigned to [Upper] or [Lower].
When receiving a call, adjust the audio output level w
to a comfortable listening level.
Transmitting:
Wait until the channel is clear to avoid interference.
While holding down [PTT], speak at a normal voice q
level.
Release [PTT] to receive. w
IMPORTANT:
To maximize the readability of your signal:
1. After pushing [PTT], pause briey before you
start speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches)
from your mouth, then speak at a normal voice
level.
[VOL]
BASIC OPERATION
Rapid charging the supplied BC-213 D
The BC-213 d e s k t o p c h a r g e r rapidly charges the Li-
ion battery pack.
The BC-213 is used with a power adapter or the CP-
23L c i g a r e t t e l i g h t e r c a b l e (purchase separately).
Charging time of the BP-280•
Approximately 3.5 hours
CAUTION: STOP charging, if the charge indicator
lights orange and green alternately.
NOTE: Charge the battery within the specied
temperature range of +10°C to +40°C (+50°F to
+104°F). Otherwise, the charging time will be
longer, but the battery will not reach a full charge.
While charging, at a point after the temperature
goes out of the specied range, the charging will
automatically stop.
Rapid charging the BC-214 D
The BC-214 m u l t i c h a r g e r (purchase separately)
can simultaneously charge up to 6 Li-ion battery
packs.
The BC-214 is used with BC-157S a c a d a p t e r
(purchase separately) or the OPC-656 d c p o w e r
c a b l e (purchase separately).
For more information about Icom accessories,
please read the “OPTIONS” printed on the reverse
side of this instruction sheet.
Charging time of the BP-280•
Approximately 3.5 hours
BATTERY CHARGING
Battery pack
Transceiver
Charge indicator
• Lights orange
while charging.
• Lights green when
charging is completed.
BC-213*
* Not supplied, or the shape is different,
depending on the transceiver version.
Power adapter*
CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the power adapter.
Tu rn OFF the Power
Transceiver
OPC-656
Connect to a DC
power supply:
12 to 16 V, at least 7 A
 Red line: +
 Black line: _
BC-214
BC-157S
Tu rn OFF
the power
Battery
pack
