TS1X0A User Manual HTML Version

User Manual

Oregon Scientific™ OUTBREAKER

Sports Watch (TS1X0 series)

User Manual

TABLE OF CONTENTS

Introduction ......................................................................2

Key features .....................................................................3

OUTBREAKER watch ................................................... 3

Chest belt (TS120/ TS130 only) ....................................3

Bicycle equipment ......................................................... 3

PC Kit ............................................................................ 4

LCD display symbols ..................................................... 4

How the OUTBREAKER works .......................................6

How the altimeter, thermometer and barometer work

(TS 110 & 130 only) ....................................................... 6

A multi-system facility .................................................... 6

TOUR Mode .................................................................. 6

PC Kit ............................................................................ 6

Getting started .................................................................7

Turn on the watch (first-time use only) ..........................7

Batteries ........................................................................7

Switch between Modes .................................................. 8

Switch between Mode options ....................................... 8

Change setting values ................................................... 8

Use the HI-GLO backlight .............................................. 8

Key lock ......................................................................... 8

Handling the product ..................................................... 8

CLOCK Mode ....................................................................9

Set clock ........................................................................9

Set the alarm .................................................................9

Stopwatch .........................................................................9

Timer .................................................................................10

Temperature display (TS110 / TS130 Only) ..................10

ALTI Mode (TS110 / TS130 Only) ....................................10

Access altimeter options ................................................ 11

Set current altitude and resolution .................................11

Set altitude alert ............................................................. 12

Recall altitude data ........................................................ 12

Switch between view options ......................................... 13

Additional view options ..................................................13

BARO Mode (TS110 / TS130 Only) .................................13

Set sea-level pressure ...................................................13

View sea-level pressure ................................................ 14

Weather forecast ...........................................................14

TOUR Mode ......................................................................14

TOUR memory .............................................................. 14

Activate TOUR Mode ..................................................... 15

Record markers in TOUR Mode .................................... 15

Pause TOUR Mode .......................................................15

Deactivate TOUR Mode ................................................ 16

Clear all TOUR memories ............................................. 16

PULSE (Heart Rate) Mode (TS120 / TS130 only) ...........16

Wearing the chest belt ...................................................17

Training Zones ............................................................... 17

Set Training Zones alarm ..............................................18

Track heart rate during training ..................................... 19

BIKE Mode ........................................................................20

Set up for BIKE Mode ....................................................20

Step 1: Attach the equipment to the bicycle ..................20

Step 2: Enter wheel circumference ............................... 21

Access the BIKE Mode options .....................................22

View speed and cadence information ............................ 22

PC Kit ................................................................................22

PC Mode ............................................................................ 23

Set up for PC Mode .......................................................23

Use the software ............................................................ 23

PC Mode options ...........................................................23

Download data ............................................................... 24

Effective use and range ................................................... 24

Aquatic and outdoor activities ........................................ 24

Safety and care ................................................................25

Safety precautions .........................................................25

Care instructions ............................................................ 25

Troubleshooting guide ....................................................26

Specifications ................................................................... 27

Warnings ........................................................................... 29

Additional resources .......................................................29

INTRODUCTION

Thank you for selecting the Oregon Scientific OUTBREAKER

Sports Watch as your fitness product of choice. Your new

sports watch is designed to give you many years of reliable

service and includes the following features:

•Clock, calendar, stopwatch and timer functions

•Barometer with local and sea pressure readings (TS110 /

TS130 only)

•Weather forecast and temperature readings for up to 24

hours (TS110 / TS130 only)

•Altimeter readings up to 9,000 meters (29,700 feet) (TS110

/ TS130 only)

•Heart rate monitor that gives heart rate readings during

exercise (TS120 / TS130 only)

•Bicycle accessory kit to take readings during cycling

•PC docking station and software to download readings onto

your computer

The OUTBREAKER TS110 and TS130 sports watches com-

prise the most advanced and patented Baro-compensation

technology, distinguishing between barometric and altitude

pressure changes, and giving you more reliable readings

(weather forecasts, etc.). It is a precision device designed to

augment your daily or weekly exercise program as well as

provide you with accurate and easy to use watch functions.

This manual contains important safety and care information,

and provides step-by-step instructions for using this product.

Read the manual thoroughly, and keep it in a safe place in case

you need to later refer to it..

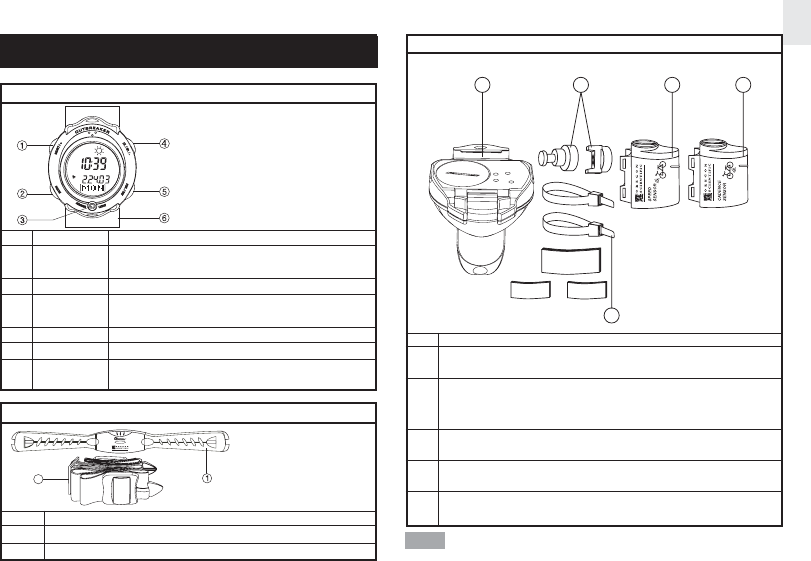

OUTBREAKER WATCH

ITEM NAME DESCRIPTION

1SELECT/+ Press to increase value, change Mode display. Press and hold

to activate the key lock function.

2MODE Press to switch between Modes.

3MARKER/LIGHT Press to activate HIGLO backlight. Press to record a marker

during TOUR Mode.

4ST/SP/- Press to start or stop the Stopwatch/Timer or decrease value.

5FUN/SET Press to enter a sub-mode or press and hold to change a value.

6LYCRA WATCH Unfasten the strap and pull to remove.

STRAP

CHEST BELT

IITEM NAME

1CHEST BELT

2STRAP

BICYCLE EQUIPMENT

ITEM NAME

1WIRELESS SPEED SENSOR

2CADENCE SENSOR (TS130-WIRELESS; TS110/TS120-WIRE-CON-

NECTED to Bike Mount)

3BIKE MOUNT

4MAGNETS/ SCREWS/ NUTS/PADS

5FIXING STRAPS

The OUTBREAKER TS130 comes with two wireless

sensors.

NOTE

4 1 2

KEY FEATURES

LCD DISPLAY SYMBOLS

SYMBOL DESCRIPTION

The current time.

YR Year setting.

MTH Month setting.

DAY Day setting.

MON Current day of the week.

(MON..SUN)

TRIP TOUR Mode is running time/date cannot be set

HR Hour setting.

MIN Minute setting.

SET Displayed when in a setting mode.

AL Shows alarm time, or event alarms

(max/min altitude/heart rate etc)

Shows alarm is deactivated.

Shows if alarm is on.

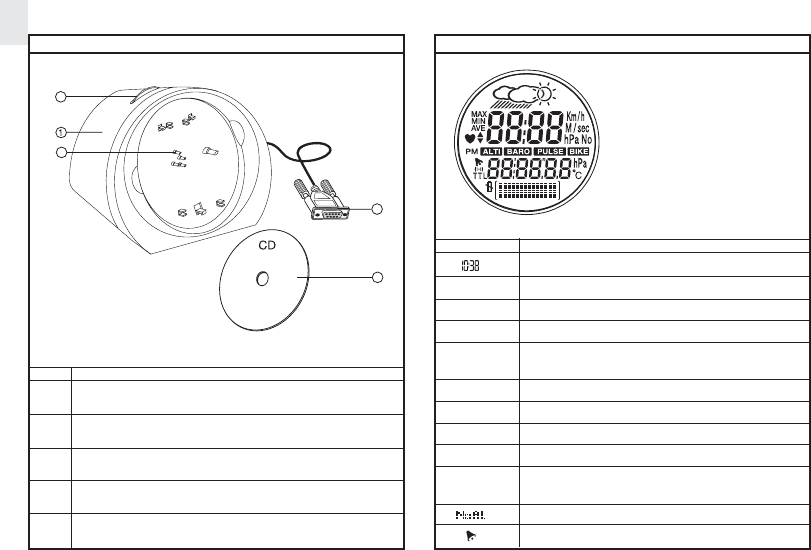

PC KIT

ITEM NAME

1DOCKING STATION

2WATCH CONNECTION POINTS

3MOUNTING CLIPS (rotate to release)

4RS-232C COMPUTER CONNECTION CABLE

5SOFTWARE CD-ROM

Weather forecast for the next 12-24 hours.

(Sunny/Slightly Cloudy/Cloudy/Rainy)

STW Stopwatch can be started/stopped/reset.

TMR Timer (countdown) can be started/stopped/reset

ALTI Altitude is displayed (top row).

MEM Memory record (current trip only).

LOC Local barometric pressure.

SEA Sea pressure (barometric).

SPD Shows vertical speed (historical or current).

Graphical display of your bicycle speed.

ttl Shows total time of activity.

Shows altitude graphically.

Heart rate (per minute) monitor activated.

Heart rate signal reception.

Status Bar Blinks Key lock activated.

Z1 (1-5) Shows which training shown is currently selected.

Shows heart beat graphically.

M1 (1..99) Shows which record you are making, or storing

(see TOUR Mode).

WØ (wheel icon) Wheel circumference setting mode.

CAD Cadence (pedal) speed (revolutions/min).

88% % of memory used in TOUR Mode.

END TOUR is finished.

CLR Ready to clear all tour memories.

donE All tour memories have been cleared.

hPa Pressure shown in Hecto-Pascal’s.

inHg Pressure shown in inches of mercury.

Low battery level (replace batteries)

REST TOUR Mode paused (off) or resumed (on)

HOW THE OUTBREAKER WORKS

The top feature of the OUTBREAKER TS series is a Bike

Computer that allows you to download information to a PC.

Select models also include a Heart Rate Monitor (TS120) or/

and Altimeter and Barometer (TS110). TS110 and TS130

feature temperature and weather forecast (with baro-

compensation technology for accuracy). The TS130 has all

these features.

HOW THE ALTIMETER, THERMOMETER, AND

BAROMETER WORK

The patented baro-compensation technology used in this watch

allows it to distinguish between barometric pressure change

and altitude pressure change. This means it can detect baro-

metric pressure (localized weather conditions) as distinct from

changes in altitude pressure, and gives more accurate read-

ings than most average devices (which frequently rely on

manual deactivation before initiating a new forecast).

A MULTI-SYSTEM FACILITY

The product is designed for use during many kinds of activity.

It can display and store a range of information of interest to the

casual and more serious sports or exercise enthusiast. The

watch includes the following Modes:

TS110 — Clock, Altimeter, Barometer, Bike & PC

TS120 — Clock, Pulse, Bike & PC

TS130 — Clock, Altimeter, barometer, Pulse, Bike and PC

It is equipped with a multi-system facility that allows you to

combine information according to your preference, such as sea

level pressure and temperature (Except TS120), Heart Rate

and Stopwatch (TS120/TS130), or bike speed and cadence for

all three models. You may also use the stopwatch or timer

(countdown) facility in combination with other functions, and

both will continue to run in the background while you use other

features of the watch.

The heart-rate monitor and altimeter features of the

OUTBREAKER watch include customized settings. For the

TS120/TS130 models, maximum and minimum heart rate

limits can be set for use during exercise, and for the TS110/

TS130, the altimeter can be set to register ascending and

descending limits. In both cases a short beep signifies either

limit has been exceeded. The watch also has a clock, calendar,

and chronometer, all of which need to be set according to the

current date and location.

TOUR MODE

The watch features a TOUR Mode in which you can record all

data from a single trip, or workout, and then download this

information onto your PC for storage and viewing. The watch

can recall 99 different single tours, trips or workouts.

The docking station and CD-ROM are supplied to

download information from TOUR Mode.

PC KIT

A docking station is provided with the watch for connecting to

a computer, along with a CD-ROM for installing the necessary

software onto your computer. You can also use the software to

change some of the watch settings.

NOTE

To load new batteries in the chest belt (TS120 and TS130

only) and bike mount:

The chest belt will stop sending signals if its battery is

low. Bad transmission from the chest belt may also be the result

of poor contact with the skin, surrounding interference, or

placing the receiver watch too far away.

To load new batteries in the bicycle sensors and bike

mount:

The sensors will stop sending signals to the watch if

their batteries are low.

Replace the batteries whenever the HIGLO backlight

dims or stops working, or when you see the low battery icon.

NOTE

GETTING STARTED

TURN ON THE WATCH (FIRST-TIME USE ONLY)

Press MODE key for 2 seconds or more to activate the

LCD Display

BATTERIES

All batteries are included and already installed. Refer to the

Specifications page for battery types (➔ 28).

To avoid the possibility of permanently damaging the

watch, we strongly recommend that you take your watch to a

local retailer or jeweler to have the watch battery replaced.

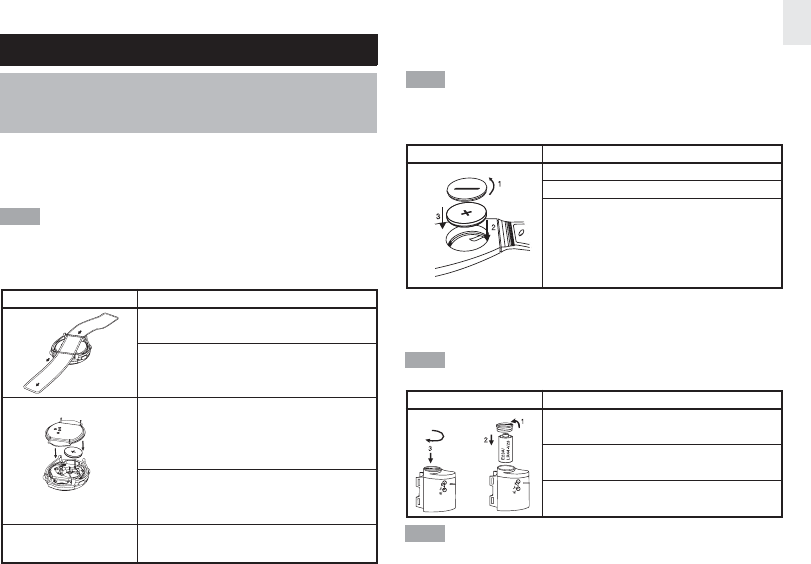

To load new batteries in the watch:

Diagram Instructions

1. Remove the Lycra strap.

2. Remove the back cover with a small Phillips

screwdriver.

3. Install the battery by matching the correct polarity.

Always use the correct battery type.

Warning: Reversing the polarity may damage the

product.

4. Replace the cover, screws, screw pin, and

watchband. (Be sure to replace the O ring

properly).

5. Check that replacement batteries are fitted properly

by pressing a button. You should hear a beep.

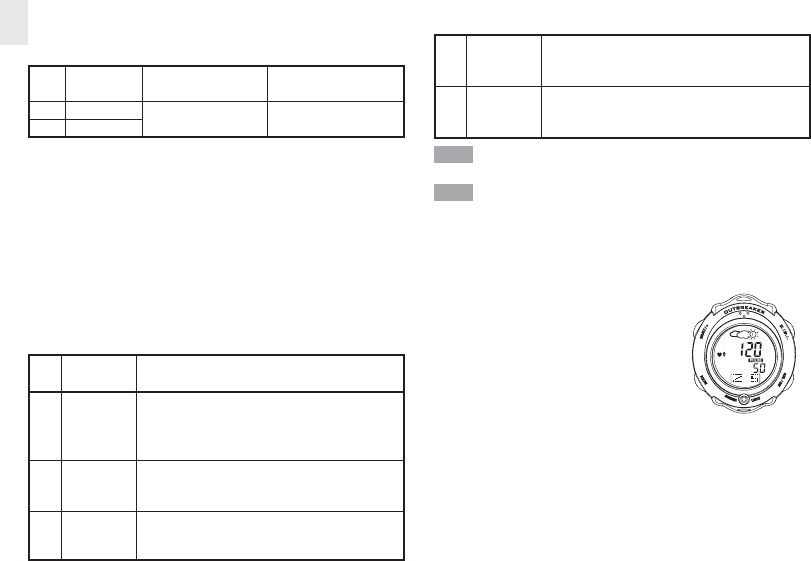

Diagram Instructions

1. Insert a coin into the grove. Turn counter-clock-

wise.

2. Insert the battery. Match the correct polarity.

3. Replace the battery compartment. Tighten into

place.

Diagram Instructions

1. Insert a coin into the grove and turn counter-

clockwise.

2. Remove the battery. Remove the battery and

insert a new one.

3. Replace thebattery holder and compartment lid.

Tighten into place.

NOTE

Change the battery whenever the sensor does not perform as

expected.

Used batteries can be harmful to the environment, and

should not be thrown out with household rubbish. Contact your

local waste disposal authority for instructions on how to dispose

of used batteries. Protect the environment by taking exhausted

batteries to authorized disposal stations.

SWITCH BETWEEN MODES

Press the MODE button to switch between the Modes:

TS110 — CLOCK, ALTIMETER, BAROMETER, BIKE, and

TS120 — CLOCK, PULSE (Heart Rate), BIKE, and PC

TS130 — CLOCK, ALTIMETER, BAROMETER, PULSE,

BIKE, and PC

A status bar the appropriate mode on the LCD display when it

is selected.

SWITCH BETWEEN MODE OPTIONS

Press SELECT/+ to switch between the options within a Mode.

CHANGE SETTING VALUES

Press and hold FUN/SET for 2 seconds to enter setting mode.

Then, press ST/SP/- or SELECT/+ to change the value. Press

FUN/SET to switch between options, and to confirm the changes

when you are done.

USE THE HI-GLO BACKLIGHT

Press MARKER/LIGHT to turn on the HI-GLO backlight on for

five seconds. Once the light is on, press any key to keep it on

for a further five seconds.

In order to save power the light will not work when the battery

is low. If this happens, change the battery as soon as possible.

KEY LOCK

The watch also has a key lock function to stop the buttons from

being accidentally pressed during an activity. To activate it

simply press and hold SELECT/+ until the status bar blinks. The

function keys are now useless. To reactivate them, press and

hold SELECT/+ again until the status bar stops blinking.

The alarm will still go off while the Key Lock is activated.

Pressing any key while in Key lock will stop the alarm.

HANDLING THE PRODUCT

The watch is designed to withstand a wide range of sports

activities, and comes complete with a strong wristband. When

riding, make sure the watch is firmly connected to the bike

mount, and connect all bicycle equipment carefully and se-

curely. See the BIKE Mode section (➔ 20) for instructions.

NOTE

CLOCK MODE

The time, date (including the day of the week) and time alarm

can be set while the watch is in CLOCK Mode. Follow the

instructions below to set or activate the time, date, alarm time,

stopwatch and timer.

SET CLOCK:

1. Press MODE to display the CLOCK Mode.

2. Press and hold FUN/SET for 2 seconds. “24h” will flash on

the display.

3. Press ST/SP/- to change from 24 hour to 12 hour time

display.

4. Press FUN/SET again. The hour will flash. Press

SELECT/+ to move the value up, or ST/SP/- to move the

value down.

Tip: Continuously press and hold a button to fast-change

the value.

5. Repeat Steps 3 – 4 to change the rest of the settings, in this

order: hours, minutes, year, month, and day.

You cannot change these settings while in TOUR

Mode. If you attempt to do so, TRIP will show on the display.

Refer to the TOUR Mode section (➔ 14).

NOTE

SET THE ALARM

1. Press MODE to display the CLOCK mode.

2. Press FUN/SET to display the Alarm screen.

3. To turn the alarm on or off, press SELECT/+.

4. To change the alarm settings, press and hold FUN/SET for

2 seconds, Then, use the SELECT/+ or ST/SP/- buttons to

change the hour. Press FUN/SET to switch to minutes, and

use SELECT/+ or ST/SP/- to change the values. Press

FUN/SET again when you are finished.

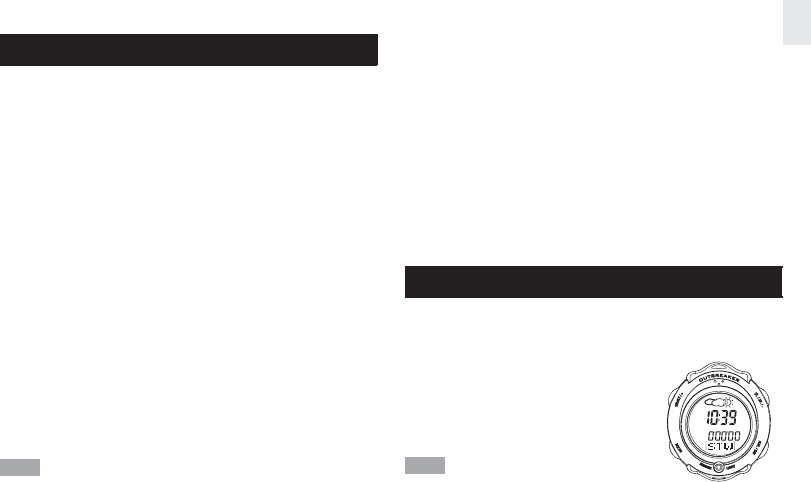

STOPWATCH

The Stopwatch works in CLOCK, ALTI, PULSE, and BIKE

Modes. From any of these Modes, press SELECT/+ to display

the stopwatch. Then,

•

Press ST/SP/- to start, pause, and

stop the stopwatch.

•

With the stopwatch stopped, press

ST/SP/- again to reset.

You can switch to other Modes

while running the stopwatch in the back-

ground.

NOTE

TIMER

The Timer works in CLOCK, ALTI,

PULSE, and BIKE Modes. From any of

these Modes, press SELECT/+ to dis-

play the stopwatch. Press ST/SP/- to

reset the Stopwatch, then:

•Press and hold FUN/SET for 2 sec-

onds. The display will change to

TMR.

•Press ST/SP/- or SELECT/+ to change a value.

•Press FUN/SET to switch between values and accept

changes.

•Press ST/SP/- to start or stop the timer.

•With the timer stopped, press ST/SP/- again to reset.

You can switch to other Modes while running the timer

in the background.

To return to STW Mode, you must reset all the timer

values to 0. The timer automatically switches to STW Mode

when it reaches 0.

NOTE

TEMPERATURE DISPLAY

(TS110 & TS130 ONLY)

The Temperature can be displayed in

CLOCK, ALTI, and BARO Modes. From

any of these Modes, press SELECT/+

to display the Temperature. The Tem-

perature shows in either Celsius or

Fahrenheit only, depending on the

watch version you purchased.

Your wrist temperature may affect the reading, particu-

larly during exercise. Take off the watch and leave it for 15

minutes to get the most accurate reading.

ALTI MODE (TS110 / TS130 ONLY)

The OUTBREAKER sports watch in-

cludes a barometer that distinguishes

between pressure caused by altitude

changes and pressure caused by

weather conditions. This technology

reduces discrepancies in readings and

makes the altimeter more accurate than

most average devices.

The watch can store and recall the following values:

•Current altitude

•Maximum / minimum altitudes attained during your a trip

SET CURRENT ALTITUDE

When you first use the watch, it is important to set the current

altitude and local sea-level pressure so your ascending and

descending altitude can be accurately measured. You can

find the current altitude by comparing your position to a

topographical map, and then entering the value in the watch.

It is necessary to reset the altitude after being in a

pressurized chamber (i.e., airplane).

For instructions on setting the sea-level pressure, refer to the

next section.

Tip: You can also set the current altitude and alarm limits with

the help of the PC software (see PC section).

•Total accumulated maximum / minimum altitudes attained

during your trip

•Maximum / minimum altitude alert (sounds an alarm when

exceeded)

•Maximum ascending, maximum descending speeds

•Current vertical speed

•Rate of altitude change

The altitude is shown it two ways, as a numeric value indicating

your current altitude, and as a bar chart indicating changes in

altitude. Both values will change as you move about.

ACCESSING THE ALTIMETER OPTIONS

Press MODE to access the ALTI Mode, then press SELECT/+

to loop through the options.

NOTE

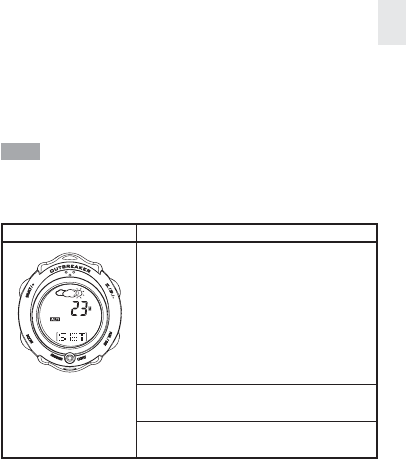

Diagram Instructions

1. Press and hold FUN/SET for 2 seconds while in

ALTI mode.

2. Use SELECT/+ or ST/SP/- to change the value.

3. Press FUN/SET to exit the setting mode.

SET ALTITUDE ALERT

The watch can be set to remember an altitude limit (either up or

down, but not both simultaneously). If the alarm is activated, a

series of beeps (at 5 second intervals) will sound, and the whole

LCD display will flash, when you breach the limit. To end the

alert, press any button.

To activate or deactivate the alert and set its direction:

To set the altitude alert value:

RECALLING ALTITUDE DATA

The OUTBREAKER allows you to track the following informa-

tion as you exercise.

•Max / min altitude attained -- shows the highest or lowest

point you have reached so far in relation to your watch’s

permanent altitude setting.

•Max / min altitude accumulated – represents the total dis-

tance you have ascended or descended; that is, every

incline is added together or ‘accumulated’, and likewise

every decline is added and ‘accumulated’, to give a total.

•Vertical speed -- how fast you are currently climbing

•Max ascending speed – fastest speed you have climbed

•Max descending speed – fastest speed you have descended

Clearing the memory allows you to start over again on

a new trip, though all the information from your current trip will

be lost.

SWITCH BETWEEN VIEW OPTIONS

While in ALTI Mode, press SELECT/+ to

switch between the view options:

Altimeter/Clock, Altimeter/Local

pressure, Altimeter/STW and Altimeter/

Temperature.

NOTE

Diagram Instructions

1. Press FUN/SET 2 times until you reach the Alarm

screen. Display reads 'AL' (off) or 'AL' (on) at the

bottom)

2. You may set the arrow at the bottom of the screen

to a

ascending

, or

descending

limit (but not both).

To change direction, press ST/SP/-.

3. Press SELECT/+ to turn the alarm on or off.

Diagram Instructions

1. Press and hold FUNC/SET for 2 seconds, then

press SELECT/+ or ST/SP/- to change the altitude

limit.

Diagram Instructions

1. While in BARO Mode, press FUN/SET until the

SEA (sea pressure) screen is shown.

2. Use SELECT/+ or ST/SP/- to change the value.

The value will change in increments of 1 hPa or

.03 inHg, depending on the watch you purchased.

3. Press FUN/SET again when finished.

ADDITIONAL VIEW OPTIONS

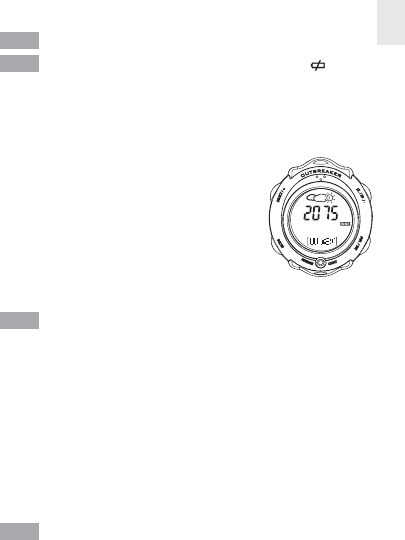

While viewing the ALTI/Clock display,

press FUN/SET to switch between ad-

ditional view options: max and TOTAL -

TTL (accumulated) ascending altitude

(press SELECT/+ to show max and

accumulated descending altitude), alti-

tude alarm, current vertical speed and

clock (use SELECT/+ to show current vertical speed and

stopwatch), and max vertical speed (press SELECT/+ for max

descending speed).

To clear a value from the memory, press and hold FUN/SET for

2 seconds.

BARO MODE (TS110/TS130 ONLY)

A unique feature of the TS110/ TS130 BARO Mode is that

it enables you to view sea level pressure history for the

past 24 hrs.

SET THE SEA-LEVEL PRESSURE

Sea level pressure can change relative to location. To achieve

accurate altitude readings, set the sea-level pressure value

before every trip. Check the newspaper, local news station,

trail marker, or weather forecast for local readings, and always

select the reading nearest to your present location.

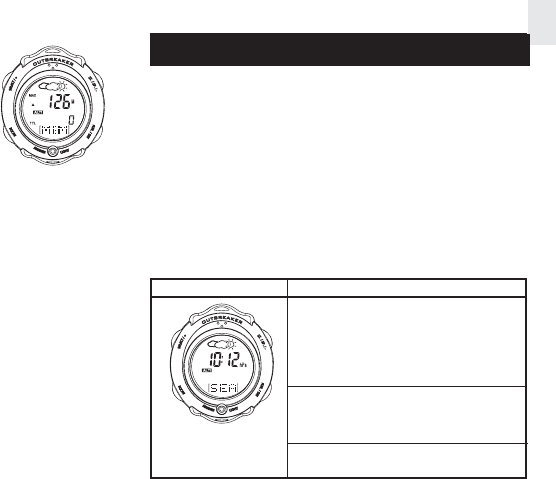

VIEW THE SEA-LEVEL PRESSURE

To view a graphical image of the sea level

pressure (for the current 14 hours), press

FUN/SET with the SEA screen shown in

BARO Mode. Press SELECT/+ to view

sea pressure history for –1h (last hour) up

to –24h, then press FUN/SET again to

view the reading.

WEATHER FORECAST

The built-in barometer helps to forecast the weather for the next

12-24 hours. This reading is based on barometric pressure

changes and has an effective range of 30 to 50 kilometers

(18 – 31 miles). The patented baro-compensation technology

in the OUTBREAKER watch allows it to differentiate between

pressure changes due to altitude, and those due to weather

changes. To avoid inaccurate forecasts, the watch will favor

altitude readings when you are

actually

ascending or descend-

ing. This means the weather icon will disappear after significant

vertical movements. To display an accurate forecast, simply

remain at any fixed altitude for roughly 5 minutes.

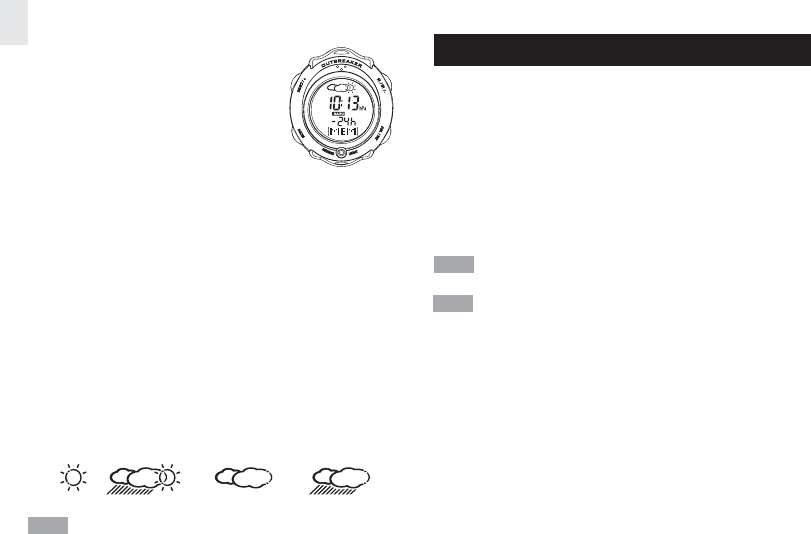

The forecast will be displayed at the top of the watch as one of

these four icons:

When functioning normally the watch automatically

updates the forecast every 15 minutes.

NOTE

TOUR MODE

There are two ways of using the memory on the OUTBREAKER.

First, the watch computer will record information as you train,

for display only. This means you can check the information

during or after your exercise, but there will be no record once

you clear the memory in preparation for your next training

event.

To record and store this information (for up to 99 different trips,

depending on the size of each record – see below) you must

activate the TOUR Mode and view the records through the PC

software.

The information from a TOUR can only be viewed

through the PC software.

You cannot change the date or time during TOUR

Mode.

TOUR MEMORY

TOUR Mode allows you to record and store data displayed on

the watch, which can then be downloaded onto your PC. Up to

99 TOURs can be recorded and stored to the PC software.

Depending on the model you purchase, the information you

choose to record (see below), and the time used by TOURs you

have already stored on the watch, the available memory length

may vary. The average memory storage capacities in real-

time, (taking a data sample every 5 seconds), assuming default

settings (see Specifications: TOUR Mode) and no TOURs have

been saved for each model are as follows:

NOTE

The watch can record and store up to 99 different trips,

providing there is enough remaining memory.

Default sampling time for readings in TOUR Mode is every 5

seconds. To increase the gap between samplings, and thus

increase the memory capacity, you can adjust this setting

through the PC software.

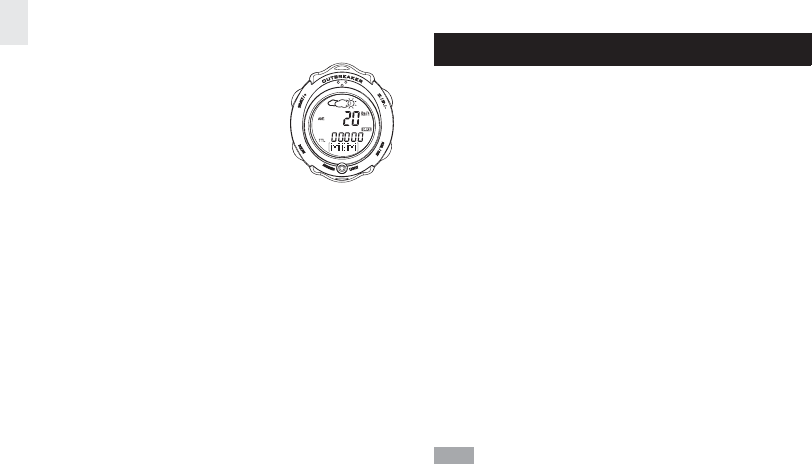

ACTIVATE TOUR MODE:

For best results, perform these steps im-

mediately before you begin your trip.

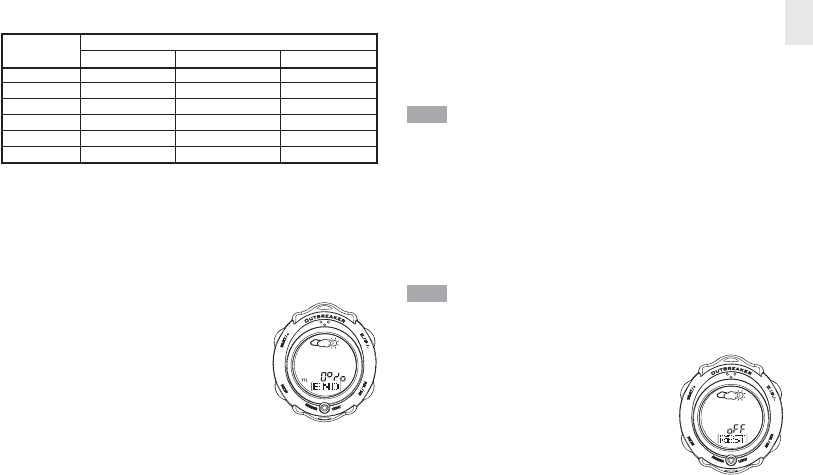

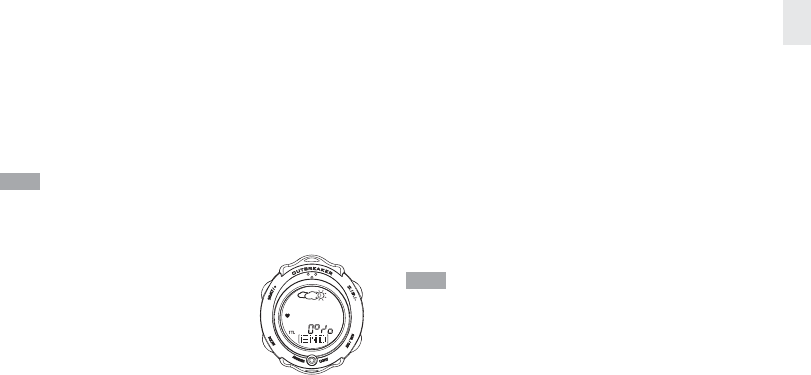

1. Simultaneously press FUN/SET and

MODE. The TOUR END screen will

display.

2. Press and hold FUN/SET for 2 sec-

onds. The TOUR number (M1, M2, etc.) will show at the

bottom of the display. You are now recording information.

The percentage (%) at the top indicates the total used

memory.

3. To stop the TOUR, press and hold FUN/SET for 2 seconds.

END will show at the bottom of the display. The Tour data will

be stopped.

4. To begin another TOUR, press and hold FUN/SET for 2

seconds. The new TOUR number (M3, etc.) will show at the

bottom of the display. You are recording information again.

5. Press MODE to return to the CLOCK display.

Used watch memory is given as a percentage. It is

recommended that you download information to your PC and

clear all TOUR memories when this figure approaches 100%.

When the used memory hits 100% it will no longer record, and

any future readings will not be recorded.

RECORD MARKERS IN TOUR MODE

The marker function is used to mark a particular position during

a TOUR. To place a marker in TOUR Mode, press and hold

MARKER/LIGHT until the watch beeps.

The marker will only be shown in the PC data, once it

has been downloaded from the watch.

PAUSE TOUR MODE:

1. If you are not already in TOUR Mode,

simultaneously press FUN/SET and

MODE. The TOUR number will dis-

play. The percentage (%) at the top

indicates the total used memory.

2. Press FUN/SET. REST shows at the

bottom of the display.

3. Press SELECT/+ or press and hold FUN/SET for 2 seconds

to turn the rest on (paused) or off (recording).

NOTE

Recording Total Memory Recording time (hours)

Interval TS130 TS120 TS110

5 sec 11 8 6

20 sec 44 34 23

40 sec 88 68 47

60 sec 132 102 70

120 sec 264 203 140

240 sec 527 406 280

DEACTIVATE TOUR MODE:

For best results, perform these steps im-

mediately after you end your trip.

1. Simultaneously press FUN/SET and

MODE. The TOUR number will dis-

play. The percentage (%) at the top

indicates the total used memory.

2. Press and hold FUN/SET for 2 seconds. This ENDS the

TOUR recording session.

3. Press MODE to return to the CLOCK display.

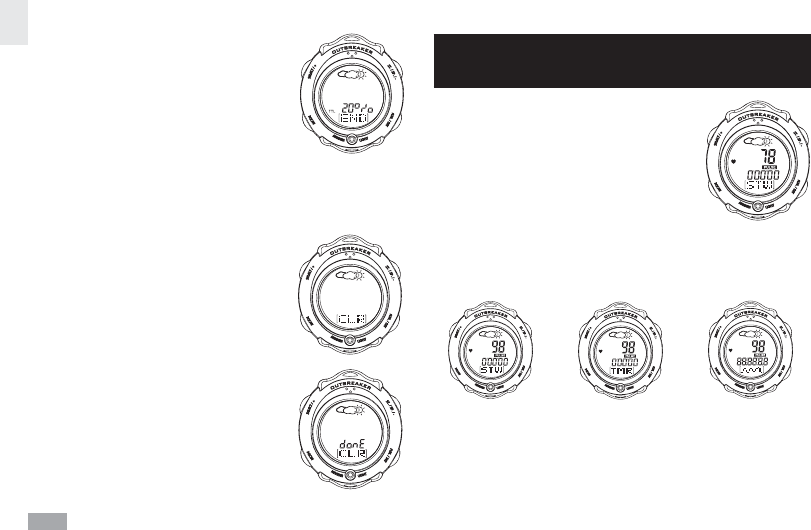

CLEAR ALL TOUR MEMORIES

For best results, perform these steps when

you no longer want to keep the data in the

watch or want to free up some memory.

Either:

1. Download the information to you PC (the

TOUR will be automatically cleared).

Or:

1. Deactivate the TOUR Mode. With the

END screen shown, press the FUN/SET.

CLR shows at the bottom of the display.

2. Press and hold FUN/SET until donE

shows at the bottom of the display.

3. Press FUN/SET again to display 0% and

confirm all data has been cleared.

4. Press MODE to return to the CLOCK display.

The maximum and minimum values for the various sub-

modes (i.e., max heart rate, or max altitude, etc) will remain

after all data has been cleared.

NOTE

PULSE (HEART RATE) MODEL

(TS 120/TS 130 ONLY)

The OUTBREAKER watch is equipped

with a PULSE Mode and heart rate chest

belt, which together allow you to measure

your heart rate (from 25-240 beats per

minute) while exercising. You can view

your heart rate with the Stopwatch, Timer

and Clock.

Press SELECT/+ to switch between the HEART RATE/CLOCK

(starting) and HEART RATE/STW (stopwatch) screens.

➔➔

WEARING THE CHEST BELT

You must wear the chest belt to measure your heart rate.

This OUTBREAKER watch is specially designed to

work with the coded chest belt with which it was sold. It is not

recommended you use any other chest belt with this watch, as

the transmission may not work.

Tips: The transmission from the belt is dependent on good

contact with the skin and proximity to the receiver watch. Make

sure the transmitting section of the belt is against the skin, not

blocked by chest hair, and close enough to the receiver watch

(approximately 76 cm/30 inches) to send a clear signal. Sweat

or gel can help to improve the signal, and remember it is not

instantaneous. If no signal is received immediately, wait for a

few seconds for the signal to get through.

An old battery may weaken the transmission and recep-

tion power. Replace the battery if the performance is progres-

sively worse.

Once you have good contact with the chest belt, will begin to

flash. This means the signal is being sent and your heart rate

will soon appear in place of the large 0. Your heart rate will be

displayed as the larger font in every screen of this Mode. If you

remove the chest belt, or the watch is moved too far away from

it, the signal will be broken.

The PULSE Mode will stop functioning after no signal is

received for 5 or more minutes.

When you are measuring your heart rate, keep the

watch away from signal generating sources, such as TVs, PCs,

and car engines, as these may impair the reading.

TRAINING ZONES (TS 120 / TS130 ONLY)

The OUTBREAKER watch is

equipped with a special Training Zone

feature that allows you to pre-select

the optimal heart rate range (25-240

beats per minute) for your activity.

For example, the amount of exertion

required for a stroll in the park is

different from the amount of exertion

required for weight lifting to build muscle mass. With the

Training Zone feature, you can set and then monitor the upper

and lower heart rate limits (Training Zone) that best support

your training activity and goals.

Diagram Instructions

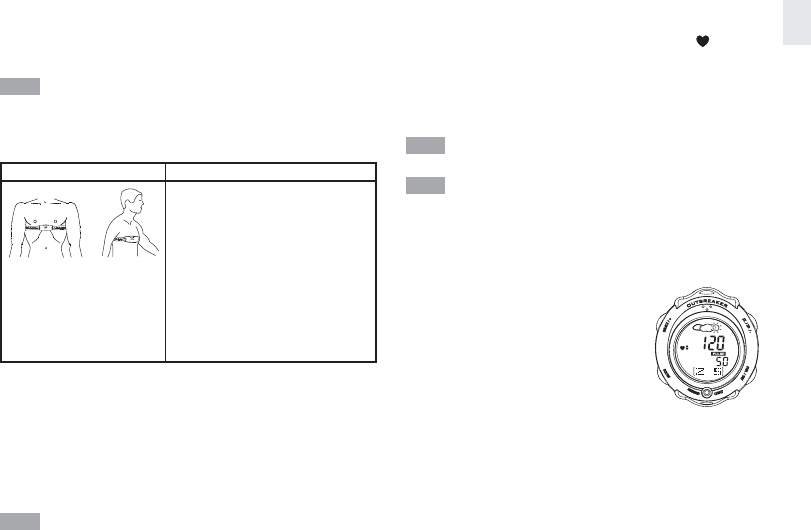

1. Wet the conductive pads on the underside

of the chest belt with few drops of water or a

conductive gel to ensure a better, solid con-

tact.

2. Put on the belt, wrapping it around the upper

chest so the heart rate monitor is in the

middle of the chest, tucked snugly under the

pectoral muscles.

3. Adjust the belt for comfort and best contact

with the skin.

NOTE

The calculation for determining your upper and lower heart rate

limits is as follows.

Once you know your maximum heart range, you can set the 5

Training Zones (described below) with the PC software (refer

to the online help). With the OUTBREAKER watch, you can

directly set your upper and lower limits for Training Zone 5, and

can set an alarm to sound whenever you exceed the limits for

the selected Training Zone.

Warning: The heart rate limits for Training Zones 1 – 4 are

based on the profile for a 20-year-old young man. If you do not

meet this profile, we HIGHLY RECOMMEND that you either set

the limits for Training Zones 1 – 4 using the PC software, or

follow the steps below to set the limits for Training Zone 5.

The recommended Training Zones are as follows:

High-altitude activities may elevate your maximum heart

rate.

You can override the zone preference by adjusting the

value through the PC (all zones), or by manually adjusting

Zone 5.

SET TRAINING ZONE ALARM

1. Press MODE to access the PULSE

(heart rate) Mode.

2. Press SELECT/+ to show the clock

sub-mode.

3. Press and hold FUN/SET for two

seconds. The zone number will flash

at the bottom of the screen. The

upper limit is shown above the line

in larger font, and the lower limit is below. (You may adjust

the value for upper and lower rate limits in Zones 1-4 by using

the PC software. Otherwise pressing ST/SP/- will simply

activate or deactivate the preset alarm).

4. Press SELECT/+ or ST/SP/- to switch to Zone 5.

5. Press FUN/SET again to display the SET screen. The upper

HR will flash.

NOTE

Zone MHR range Description

(min – max %)

150 – 60% Moderate Activity – This low-intensity zone is good for warm-

ups, cool downs, and activities such as brisk walking. It is also

good for beginners and those who want to strengthen their

cardiovascular systems.

260 – 70% Weight Management – Up to 85% of calories burned in this

zone are from fat cells. Moderate exercises such as light

jogging or swimming are good for this zone.

370 – 80% Aerobic Zone – Increases strength and endurance. It works

within the body’s oxygen intake capability, burns more calo-

ries, and can be maintained for a long period of time.

480 – 90% Anaerobic Zone – Generates speed and power. It works at

or above the body’s oxygen intake capability, builds muscle,

and cannot be maintained for a long period of time.

590 – 100% Red Line Zone – This high-intensity zone can only be

maintained in short bursts or intervals, as it pushes your

muscles and cardiovascular system beyond their capacity.

NOTE

Sex Maximum Heart Lower limit Upper limit

Range (MHR)

Men 220 – age = MHR

Women 230 – age = MHR MHR x (lower training zone %) MHR x (upper training zone %)

6. Press SELECT/+ or ST/SP/- to change the upper heart rate

limit.

7. Repeat Steps 5 – 6 to set the lower heart rate limit.

8. Press FUN/SET.

9. Press SELECT/+ or ST/SP/- to turn the alarm off or on.

10.Press FUN/SET again to exit the setting mode.

You can set the Heart Range between (upper 26-240

bpm) and (lower 25-239 bpm).

TRACK HEART RATE DURING TRAINING

To set up the OUTBREAKER watch

so that it can track your heart rate

activity during training, first do the fol-

lowing:

1. Put on the chest belt (refer to the

“Wearing the Chest belt” section).

2. Press MODE to access the PULSE

Mode and check to make sure the

watch is receiving your heart rate signals.

3. Select the Training Zone that is most appropriate for your

activity (refer to previous section).

4. Activate the Stopwatch or Timer in PULSE Mode (refer to the

Stopwatch / Timer section).

5. Set up the TOUR Mode if you want to store a long-term

record of your heart rate history that spans several training

sessions or activities (refer to the TOUR Mode section).

Once you complete these steps, you are ready to begin

exercising. After you finish, reset the Stopwatch or Timer to

zero, then press FUN/SET to have the following metrics dis-

played in 5-second intervals:

•Time and date in M1 or M2….M99 (all current data will be

stored under M1, while previous data is stored under M2 and

so on until M99).

•Average heart rate during exercise and Total exercise time

•Upper Training Zone limit and time spent above limit

•Lower Training Zone limit and time spent below limit

•Total time spent exercising within the heart rate limits

If you have more than one set (M1-M99) of training

records, press SELECT/+ or ST/SP/- to loop through the

records.

NOTE

STEP 1: ATTACH THE EQUIPMENT TO THE BICYCLE

BIKE MODE

The OUTBREAKER sports watch comes complete with a

bicycle computer (and accessories), which records and dis-

plays the following information:

•Speed: 0 – 255 km/hour or 0 – 158 mile/hour

•Average speed (Max:255km/hr or 158 mile/hr)

•Maximum speed (Max:255km/hr or 158 mile/hr)

•Cadence: 0 – 255 rpm (pedal revolutions per minute)

•Distance traveled (Max:999.9 km/999.9 mile)

•Total distance travelled (Max:99,999.9 km/99,999.9 miles)

•Total time spent cycling

The BIKE Mode for the TS130 model comprises pioneering

technology that uses two wireless sensors instead of one (other

models use one wireless and one wired sensor). The formatted

signals of the sensors eliminate possible interference between

the cadence and speed sensors, ensuring you accurate per-

formance measurements.

SET UP FOR BIKE MODE

To set up the BIKE Mode you must first do two things:

1. Attach the measuring equipment to your bicycle: speed

sensor (front wheel), cadence sensor (pedal), two magnets

(front wheel and pedal), and bike mount (handle bar). Refer

to the next section for instructions.

2. Specify your wheel circumference. See below for instruc-

tions.

align

Max 100 cm

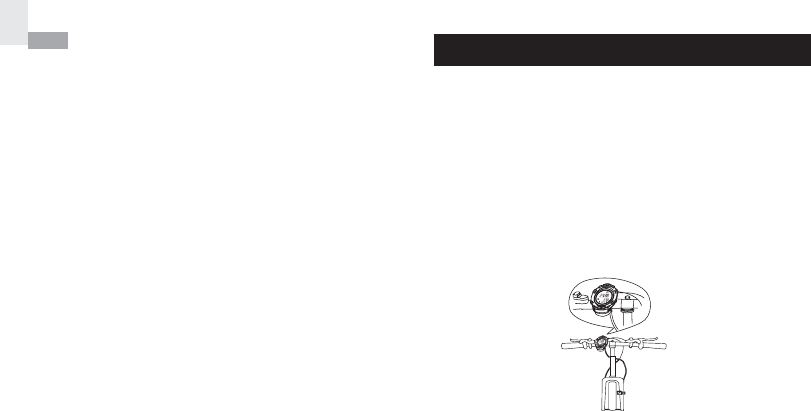

To attach the equipment:

1. Attach the bike mount to the right or left handlebar using the

nut and bolt provided. Tighten until the bike mount is fixed

into place.

2. Attach the cadence sensor to a stationary point just behind

the pedal, using the rubber grip for a firmer contact. There

should be maximum 100cm (39 inches) between the sen-

sor and the bike mount, and less than 30 degrees vertical

angle.

3. Attach the cadence magnet to a pedal so that it is directly

aligned with the sensor with less than 5mm (0.2 inches)

between.

4. Attach the speed sensor to either leg of the front forks, using

the rubber grip for a firmer contact. There should be

maximum 100cm (39 inches) between the sensor and the

bike mount, and less than 30 degrees vertical angle.

5. Attach the speed magnet on a spoke of the front wheel so

that it less than 5mm (0.2 inches) from the sensor.

6. Check and adjust as necessary, then snip the ends off the

clips so that no excess remains.

7. Remove the Lycra strap. Fit the watch into the bike mount.

8. Press MODE on the watch to switch to BIKE Mode.

9. Press FUN/SET twice, then press SELECT/+ to view the

cadence sub-mode.

10. Ride the bike a short distance to make sure signals are

being sent to the watch successfully.

11. You are now ready to begin your trip.

The watch can work with one or both sensors.

When the display shows a low battery icon or does

not perform to expectation (see ‘Battery’ section) replace the

battery.

STEP 2: ENTER WHEEL CIRCUMFERENCE

You must set the bike’s wheel circumfer-

ence on the watch so it can accurately

calculate your speed and distance. If you

do not know the bike’s wheel circumfer-

ence, you can check the manufacturer’s

specifications or measure it by marking

the wheel where it touches the ground,

and then rotating the wheel once fully along the ground.

Measure the difference between the two marks.

Most wheels have their specifications written on them.

To specify this information on the watch:

1. Press MODE to switch to the BIKE Mode.

2. Press SELECT/+.

3. Press and hold FUN/SET for 2 seconds. The wheel circum-

ference data will appear.

4. Press SELECT/+ or ST/SP/- to increase or decrease the

value.

5. Press FUN/SET to save your changes.

You can also use the PC software for this operation (see

PC section).

NOTE

PC KIT

The Oregon Scientific OUTBREAKER sports watch is equipped

with a PC Kit that includes a PC Docking Station and CD-ROM

for downloading information to a personal computer. Full in-

structions for using the software are provided in the online help

and can be viewed once you have installed the CD-ROM.

The PC Kit enables you to store and recall most of the

information that is collected by the OUTBREAKER watch. This

allows you to free up the watch memory for recording more

information, while preserving the training records that are most

important to you. For example, with the PC Kit you can specify

which information you want to record in TOUR Mode: By

limiting what is recorded, you can keep longer records. This can

be useful if you wish to monitor your performance during an

extended period such as a two-day hike, where only heart rate

and altitude are of concern, or a day of cycling, where only

speed and distance are important to you. Full details of the

watch’s memory capacity are given in the USING THE TOUR

MODE section.

You can also use the PC Hook-up Kit to set values on the watch

through the PC. A full list of options is given at the end of this

section.

The hardware/software requirements for the PC Kit are

listed at the back of this manual.

ACCESSING BIKE MODE OPTIONS

Press MODE to access the BIKE Mode,

then press SELECT/+ to loop through

the options: Bike speed/STW, Bike

speed/TTL (see TOUR Mode section),

and Bike speed/Clock.

For instructions on how to use the Stop-

watch or Timer in BIKE Mode, refer to

pp. 9 – 10.

VIEWING SPEED AND CADENCE INFORMATION

1. Press FUN/SET while in BIKE Mode to view Average speed/

Tour time. To view Maximum speed, TOUR distance, and

Total distance, press SELECT/+ repeatedly.

2. Press FUN/SET again to view Cadence/STW. To view

Cadence/Clock, press SELECT/+.

3. Press FUN/SET a third time to view Average Cadence/

TOUR time. Press SELECT/+ to view Max Cadence/Tour

time.

To clear a value from a specific memory, press and hold FUN/

SET for 2 seconds.

When finished press FUN/SET or wait 30 seconds to return to

the Speed/STW view. NOTE

PC MODE

SET UP FOR PC MODE

To use the features of the PC Mode, you will need the PC Kit

(includes PC docking station, connector cable, and the instal-

lation software CD-ROM), and a PC or laptop computer.

To set up for PC Mode:

USING THE SOFTWARE

Double-click on the Oregon Scientific icon. Once the software

opens, click on Help for information about the function you

require.

PC MODE OPTIONS

You can perform the following tasks by using the CD-ROM

software supplied.

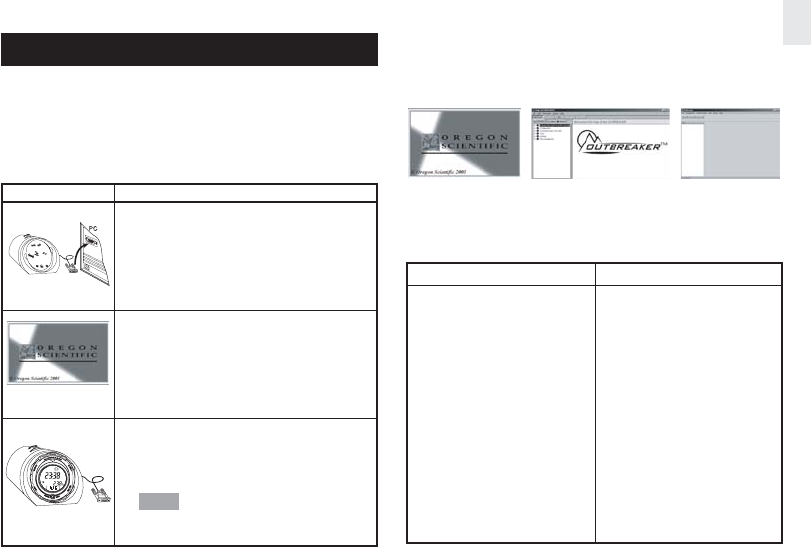

Diagram Instructions

1. Connect the PC Docking Station to your computer. For

best results, turn the computer off before you connect.

2. Install the software using the CD-ROM (first-time use

only). The process is automatic, and requires you to

respond to self-explanatory prompts.

Once the software is installed, an Oregon Scientific icon

will be placed on your desktop.

3. Remove the Lycra watch strap. Mount the watch on the

docking station, making sure the contact points on the

station and the watch are aligned. Press the MODE

button to switch to PC Mode.

The cadence, speed and heart rate functions

will be temporarily disabled when you use the watch in

PC Mode.

NOTE

Access/recall information/ on the PC

•All information recorded in TOUR

Mode, including temperature, altitude,

local pressure, heart rate, wheel

speed, cadence, trip distance, etc,

[Provided this data has been selected

in “Data should be stored” in the

“Configuration menu” (see software

help menu)].

•Back up/import and export data

•Define user data

•Display graphical chart and print table

•Give data overview with a specified

duration

Change watch settings on the PC

•Date and time (set to PC time, or a

manual setting)

•Time, and event alarm (3 event

alarms, 1 daily alarm, and select alarm

duration)

•Current sea-level pressure

•Altitude limits

•Weather icon

•Upper and lower heart rate limits for

Training Zones 1 – 5.

•Wheel circumference/diameter

•TOUR Mode data recording and

download options

•Choose a serial port (Com 1 to Com 4)

•Sampling rate (1 second and up)

To send all selected settings and preferences to the

watch select “Transfer configuration” in the “communication”

sub-menu (PC software).

DOWNLOAD DATA

Follow these procedures to download data

1. After installing the CD-ROM click the OUTBREAKER icon

on your PC.

2. In the main menu, select “Communication”.

3. Connect the docking station to your PC.

4. Press “Mode” until you reach PC Mode.

5. Fit the OUTBREAKER watch in the docking station, making

sure the pins are matched and secured.

6. Select “Connect” in the “Communication” sub-menu.

7. You will see an arrow mark on the watch, and “download in

progress” on your PC.

8. Select “Read Trip Data” in the “Communication” sub-menu,

then follow the on screen instructions.

9. Select “Format” to process the data arrangement.

10.Download is now complete. Select desired graphical report.

NOTE EFFECTIVE USE AND RANGE

The heart rate and chest belt have a maximum transmission

range of about 76 centimeters (30 inches). If the signal is weak

take the following steps:

•Shorten the distance between the heart rate chest belt and

watch

•Re-adjust the position of the heart rate chest belt

•Check the batteries. If they are low or exhausted, change the

battery immediately

You can wear the receiver watch on your wrist or strap it to a

bike or exercise machine as shown below:

AQUATIC AND OUTDOOR ACTIVITIES

The watch is water-resistant up to 30 meters. The chest belt and

other accessories (bike mount/speed and cadence sensors)

are splash-proof, but should not be worn for underwater activi-

ties, as the heart rate transmission cannot work properly under

water. Refer to the table below for guidelines.

RAIN

SPLASHES, ETC

SHOWERING

(WARM / COOL

WATER ONLY)

LIGHT SWIMMING

/ SHALLOW WATER

SHALLOW DIVING /

SURFING /

WATER SPORT

SNORKELING /

DEEP WATER

DIVING

30m / 100ft

50m / 165ft

100m / 325ft

When using the watch for outdoor sports activities, observe the

following guidelines:

•Do not press the buttons underwater or with wet fingers.

•Rinse with water and mild soap after use.

•Do not use the watch in hot water.

Tips for keeping your watch fit: Keep your watch water

resistant! Avoid chemicals (gasoline, chlorine, perfumes, alco-

hol, hair sprays, etc.). Rinse after use. Reduce exposure to

heat. Have your watch serviced by an approved service center

once yearly.

SAFETY AND CARE INSTRUCTIONS

SAFETY PRECAUTIONS

Please observe these safety precautions when using this

product.

•Do not consult the watch while moving or engaging in active

sports. Doing so may result in a collision that causes

personal injury.

•Do not subject the product to excessive force, shock, dust or

temperatures.

•Do not tamper with the product’s internal components.

•Do not mix fresh and old batteries, or batteries of different

specifications.

•Do not use this watch as a substitute for professional

measuring devices used in skydiving, hang gliding,

paragliding, gyrocopter piloting and flying small aircraft.

•Do not use this watch as a substitute for industrial precision

instruments.

•Follow the water-resistance guidelines carefully before use

in water (see Effective Use and Range section).

•Keep the product away from heat sources such as radiators,

stoves, heaters, and other heat-generating products.

CARE INSTRUCTIONS

To ensure you receive the maximum benefit from using this

product, please observe the following guidelines.

•Cleaning – Clean with a damp cloth. Do not use liquid

cleaning agents, benzene, thinner, or aerosols.

•Repair – Do not attempt to repair the product or modify the

circuitry by yourself. Contact the retailer or a qualified

repairman if the product requires servicing. Only use re-

placement parts that are recommended by the manufac-

turer.

•Do not scratch hard objects against the LCD display as this

may cause damage.

TROUBLESHOOTING GUIDE

This section includes a list of frequently asked questions for

problems you may encounter with the OUTBREAKER sports

watch. If your watch is not operating as you think it should,

check here before arranging for servicing.

Symptom

Power will not turn

on.

Keys do not respond

Date display is

wrong

Check this

Batteries are

exhausted.

Batteries are inserted

incorrectly.

Key lock in

operation.

(Key icon shown)

Date not set

Problem

No power

Date / time

is wrong

Remedy

Replace with new

batteries.

Insert the batteries

correctly (➔ 7).

Press SELECT/+ for 2

seconds (blinking icon will

disappear).

Set date correctly (➔ 9)

Cannot be changed when

TOUR Mode is operating.

Altitude

reading is

strange

No altitude

alarm

Temperature

reading is

strange

No alarm

Pressure

reading is

strange

Heart icon

not working

Time display is

wrong

Reading is less than

0 (-20, etc.)

Different height

reading at same

point after trip

Alarm does not

sound

Too high

Expected alarm

does not sound

Too high or low

Blank display

Time zone set

incorrectly

Current altitude is

below ground (watch

sea level setting)

Barometric changes

Levels not set

Watch is too close to

body

Levels not set

Alarm not activated

Is change due to

wind, pressurized

chamber, or

pressurized

environment

(airplane)?

Time out after 5

minutes of inactivity

Chest belt is too far

from watch or poor

skin contact

Reset time zone

Cannot be changed when

TOUR Mode is operating.

(TRIP shows on display)

Adjust altitude, or accept

reading

Minor pressure changes

may produce minimal

deviations in altitude

readings

Set levels (➔ 12)

Take off watch, wait 15

minutes, then try again

Set levels (➔ see relevant

MODE section)

Activate alarm (➔ see

relevant MODE section)

Reset after you have

changed locations

Press MODE to return to

PULSE Mode

Move chest belt closer or

adjust contact with skin

Symptom Check thisProblem Remedy

SPECIFICATIONS

Unit of measurement (Imperial/metric, Celsius/Farenheit,

etc.) depends on the store model purchased.

Calendar Clock

Hour format 12/24 hr

Date format DD:MM:YY (MM:DD:YY)

Auto calendar 2001-2099

Alarms 1 daily (hr:min)

3 event (hr:min DD.MM.YY)

(Must be set with PC)

Chronometer/Timer 99:59:59 (hr:min:sec)

Heart Rate Monitor (TS 120 / TS 130 only)

Heart rate range 25…240 beats per minute (bpm)

Resolution 1 bpm

Accuracy +/- 1 bpm

Training zones 5

HR alert range 26…240 bpm (upper)

25…239 bpm (lower)

Alert memory 2 heart rate alarms

TOUR memory 99 max

Thermometer (TS 110 / TS 130 only)

Range -10.0º C….60.0º C

(14.0º F….140.0º F)

Resolution 0.1º C (0.1 º F)

Accuracy +/- 1º C (+/- 2º F)

Altimeter (TS 110 / TS 130 only)

Range -400…9,000 meters

(-1,312….29,700 feet)

Resolution 1 m (3 ft)

Symptom Check thisProblem Remedy

No heart rate

alert

No heart rate

memory

No sensor

power

No memory

Expected alarm

does not sound

No heart rate data

No data

No display

No TOUR data

stored

Strange distance,

cadence or speed

reading

Weak reception or

poor transmission

Memory % does not

changed

100% of memory

used

Training Zone/Alert

limits not set

Chest belt is too far

from watch or poor

skin contact

Sensor not ready

Watch not fitted well

on Bike Mount

Disabled feature

through PC

Memory is full

Wrong wheel size set

Sensors fitted

incorrectly

Magnet not aligned

Interference

Battery low or empty

TOUR Mode not set

Memory full

Set limits (➔ 19)

Move chest belt closer or

adjust contact with skin

Check distance between

sensor and magnet

Ajust the watch

Re-select check box in PC

software

Download TOUR memory

to PC or clear memory

Measure and set wheel

circumference again

(➔ 21)

Check sensor fittings

Realign magnet

Find source and move or

switch off

Replace battery

Set TOUR Mode

Clear all memories

manually, or download to

the PC. Data manually

erased cannot be recalled

or recovered

NOTE

Accuracy +/- 10 m (+/- 30 ft)

Vertical speed 0…125 m/sec (0…415 ft/sec)

(ascending or descending)

Vertical speed resolution 1 m/sec (3 ft/sec)

Max altitude change +/- 32,787 m (+/- 99,999 ft)

Total altitude change +/- 32,787 m (+/- 99,999 ft)

Alerts 1 alarm

Barometer (TS 110 / TS 130 only)

Local pressure range 300…1100 hPa

(8.86…32.48 inHg)

Sea level pressure range 900…1100 hPa

(26.58…32.48 inHg)

Resolution 1 hPa (0.03 inHg)

Accuracy +/- 3 hPa (+/- 0.1 inHg)

Bar graph x-resolution 1 hour

Bar graph y-resolution 1 hPa (0.03 inHg)

TOUR Mode

OUTBREAKER TS 110

Record time: 350 min

5 second samplings: Altitude / Pressure / Temperature

/ Speed / Cadence / Distance

OUTBREAKER TS 120

Record time: 508 min

5 second samplings: Heart Rate / Distance / Speed

/ Cadence

OUTBREAKER TS 130

Record time: 659 min

5 second samplings: Distance / Cadence / Speed /

Heart Rate/ Altitude / Pressure /

Temperature

BIKE Computer

Wheel speed range 0…255 km/hr (158 mile/hr)

Wheel speed resolution 1 km/hr (1 mile/hr)

Cadence range 0…255 revolutions per minute

(rpm)

Cadence resolution 1 rpm

Max trip distance 999.9 km (999 miles)

Max total trip distance 99,999.9 km (99,999.9 miles)

Wheel circumference 1,000….3,000 mm

(39 in…118 in)

Circumference resolution 1 mm (0.04 in)

Environment

Operation -10º C…60º C (14º F…140º F)

Storage -20º C…70º C (-4º F…158º F)

Relative Humidity 10%…95%

Water Resistance

Watch not actuating keys to 30 m (100 ft)

Other accessories splash proof

Power

Watch 1 x CR2032 3V lithium battery

Chest belt 1 x CR2032 3V lithium battery

Bike mount 1 x CR2032 3V lithium battery

Speed sensor 1 x 23A 12V alkaline battery

Cadence sensor 1 x 23A 12V alkaline battery

(TS 130 only)

PC Requirements

• Pentium I or above with 128 KB RAM or above

• Windows 98 or above

• 50 MB free memory (hard disk)

• Printer and mouse recommended

•Do not subject the product to impact or shock.

•Check all major functions when the device is unused for a

long period of time. This is to ensure its full operation.

Maintain a regular internal testing and cleaning of your

device.

•When disposing of this product, do so in accordance with

your local waste disposal regulations.

WARNINGS

To ensure you use your product correctly and safely, read these

Warnings and the entire user manual before using the product.

The warnings given here provide important safety information

and should be observed at all times.

•Do not attempt to repair the product yourself. Contact the

retailer or our customer service department if it requires

servicing.

•Take precautions when handling all battery types. They can

cause injuries, burns, or property damage as a result of

contact with conducting materials, heat, corrosive materials

or explosives. Remove the batteries before storing the

product for long periods of time.

•The product is a precision instrument. Never attempt to take

this device apart. There is a serious danger of powerful

electric shocks.

•Do not, under any circumstances, touch the exposed elec-

tronic circuitry of the device as there is a danger of electric

shock should it become exposed.

•Take special care when handling a damaged LCD display,

as the liquid crystals can be harmful to your health.

•Do not use or store the device, including the remote sensor,

in locations that may adversely affect the product such as,

snow, desert, and magnetic fields.

•Do not use this device in aircrafts or hospitals. The use of

radio frequency products can cause malfunctions in the

control devices of other equipment.

ADDITIONAL RESOURCES

Visit our website (www.oregonscientific.com) to learn more

about your OUTBREAKER sports watch and other Oregon

Scientific™ products such as digital cameras, hand-held or-

ganizers, alarm clocks, and weather stations. The website also

includes contact information for our customer service depart-

ment, in case you need to reach us.

Outbreaker TS110/TS120/TS130

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

FCC ID: NMT – TS1X0A

This device complies with Part 15 of FCC Rules. Operation is

subject to the following two conditions: (1) this device may not

cause harmful interference and (2) this device must accept any

interference received, including interference that may cause

undesired operations.

NOTE This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

•Consult the dealer of an experienced radio/TV technician for

help.

Warning: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

IDT Technology TS1X0A Outbreaker Multi-function Watch User Manual TS1X0 M USA EN V0 P70

IDT Technology Limited Outbreaker Multi-function Watch TS1X0 M USA EN V0 P70

User Manual

Navigation menu

Namespaces

Views

Navigation
