INTELLIGENT SYSTEMS ISX Debugger and Capture User Manual IS TWL DEBUGGER Setup

INTELLIGENT SYSTEMS Co.,Ltd. Debugger and Capture IS TWL DEBUGGER Setup

user manual pt 3b

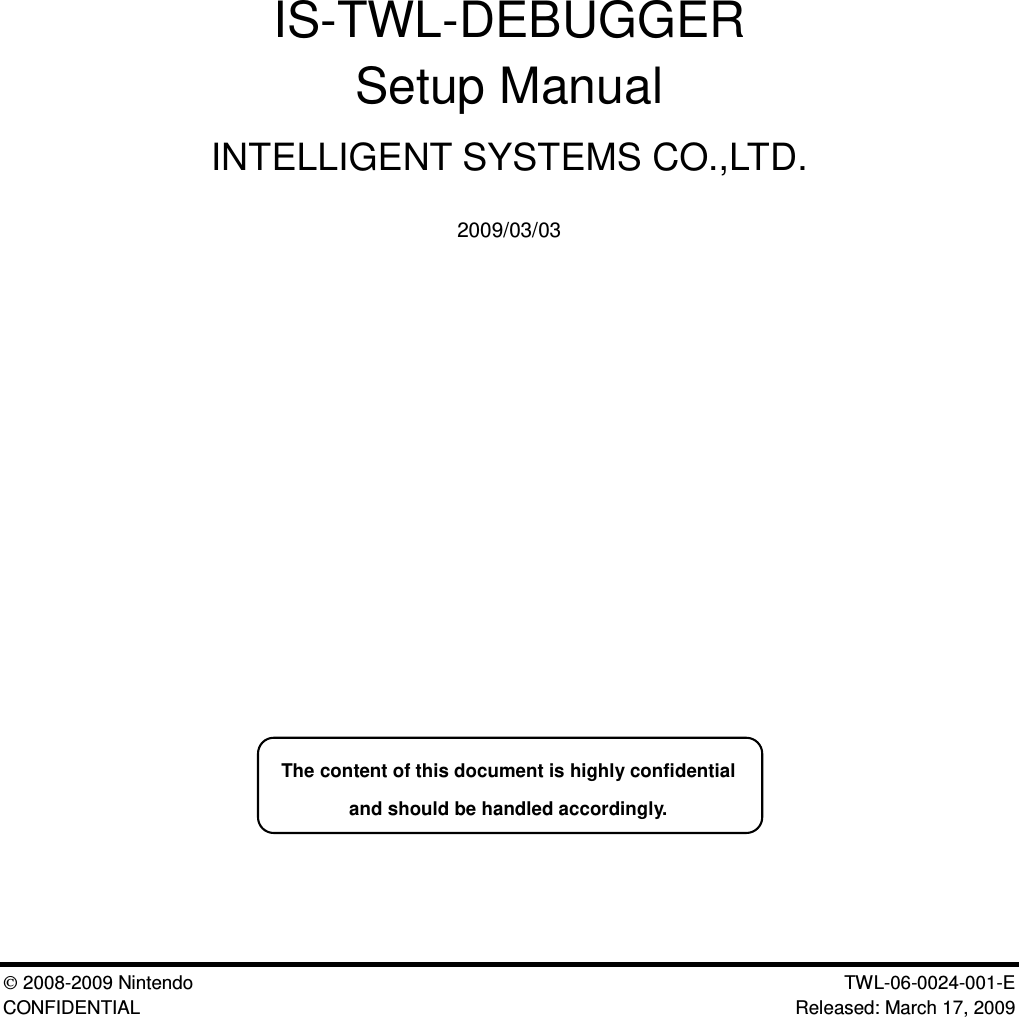

2008-2009 Nintendo TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009IS-TWL-DEBUGGERSetup ManualINTELLIGENT SYSTEMS CO.,LTD.2009/03/03The content of this document is highly confidentialand should be handled accordingly.

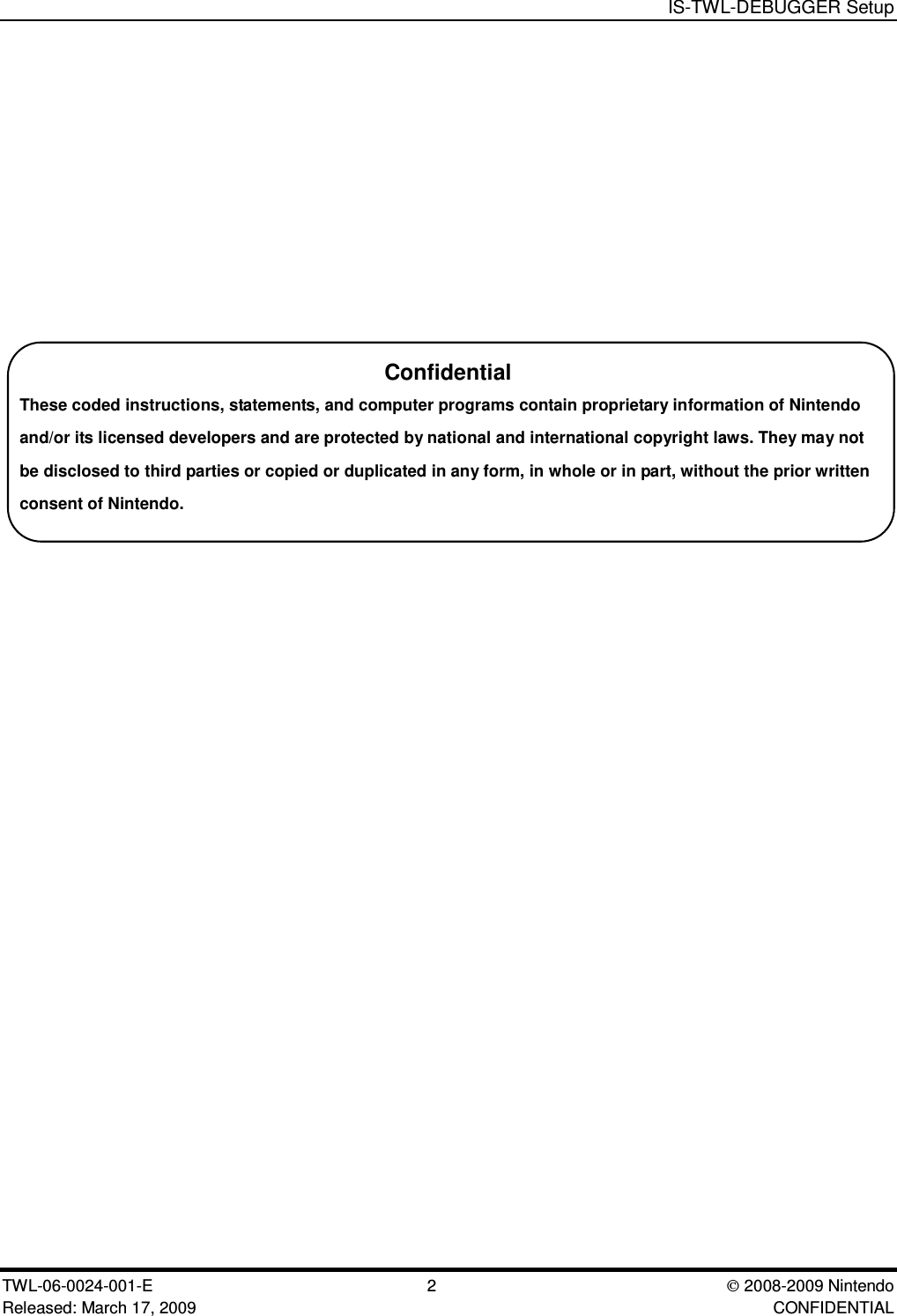

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E 2  2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALConfidentialThese coded instructions, statements, and computer programs contain proprietary information of Nintendoand/or its licensed developers and are protected by national and international copyright laws. They may notbe disclosed to third parties or copied or duplicated in any form, in whole or in part, without the prior writtenconsent of Nintendo.

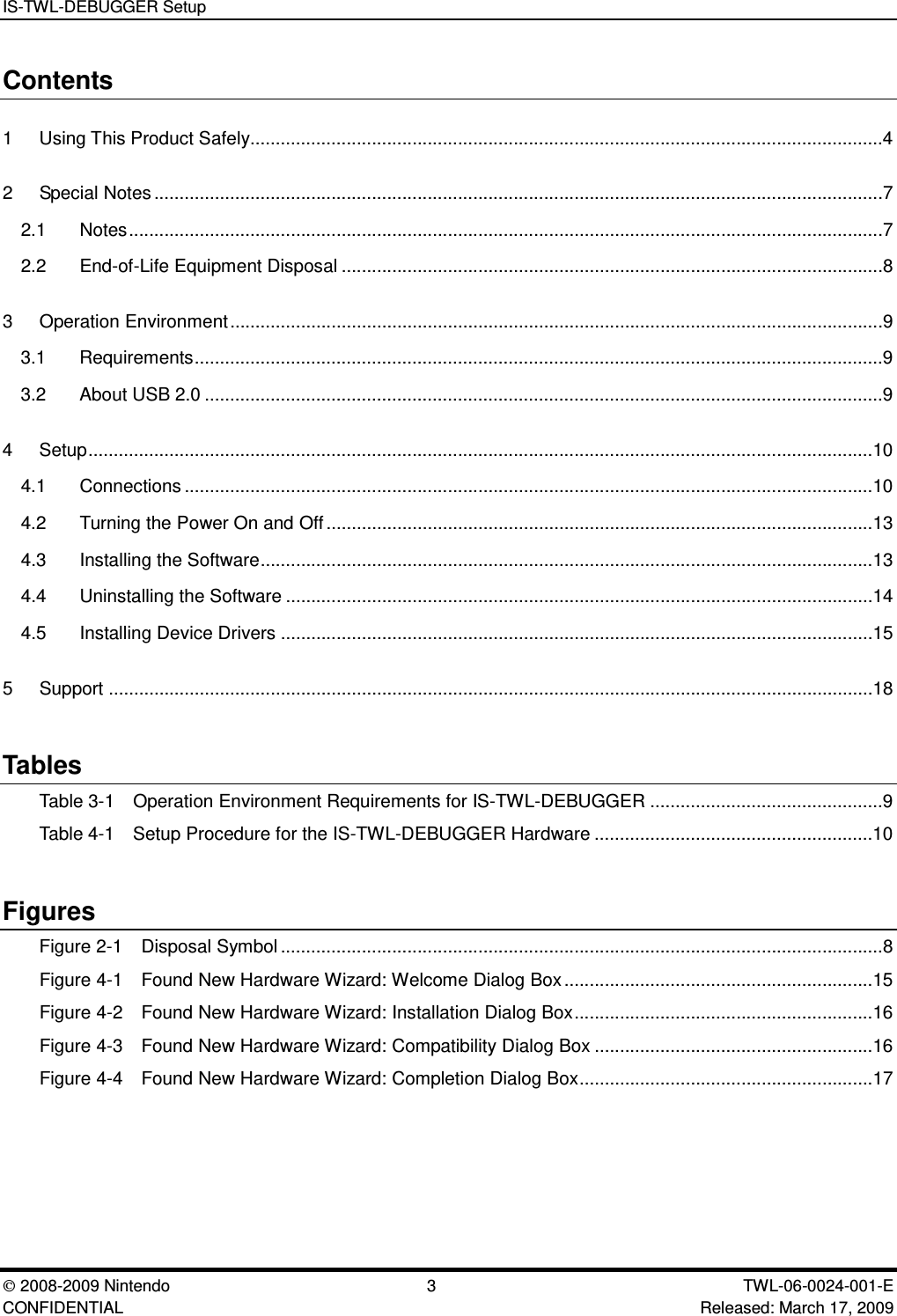

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 3 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009Contents1 Using This Product Safely.............................................................................................................................42 Special Notes................................................................................................................................................72.1 Notes.....................................................................................................................................................72.2 End-of-Life Equipment Disposal ...........................................................................................................83 Operation Environment.................................................................................................................................9 3.1 Requirements........................................................................................................................................93.2 About USB 2.0 ......................................................................................................................................94 Setup...........................................................................................................................................................104.1 Connections ........................................................................................................................................104.2 Turning the Power On and Off............................................................................................................134.3 Installing the Software.........................................................................................................................134.4 Uninstalling the Software ....................................................................................................................144.5 Installing Device Drivers .....................................................................................................................155 Support .......................................................................................................................................................18TablesTable 3-1 Operation Environment Requirements for IS-TWL-DEBUGGER ..............................................9Table 4-1 Setup Procedure for the IS-TWL-DEBUGGER Hardware .......................................................10FiguresFigure 2-1 Disposal Symbol.......................................................................................................................8Figure 4-1 Found New Hardware Wizard: Welcome Dialog Box.............................................................15Figure 4-2 Found New Hardware Wizard: Installation Dialog Box...........................................................16Figure 4-3 Found New Hardware Wizard: Compatibility Dialog Box .......................................................16Figure 4-4 Found New Hardware Wizard: Completion Dialog Box..........................................................17

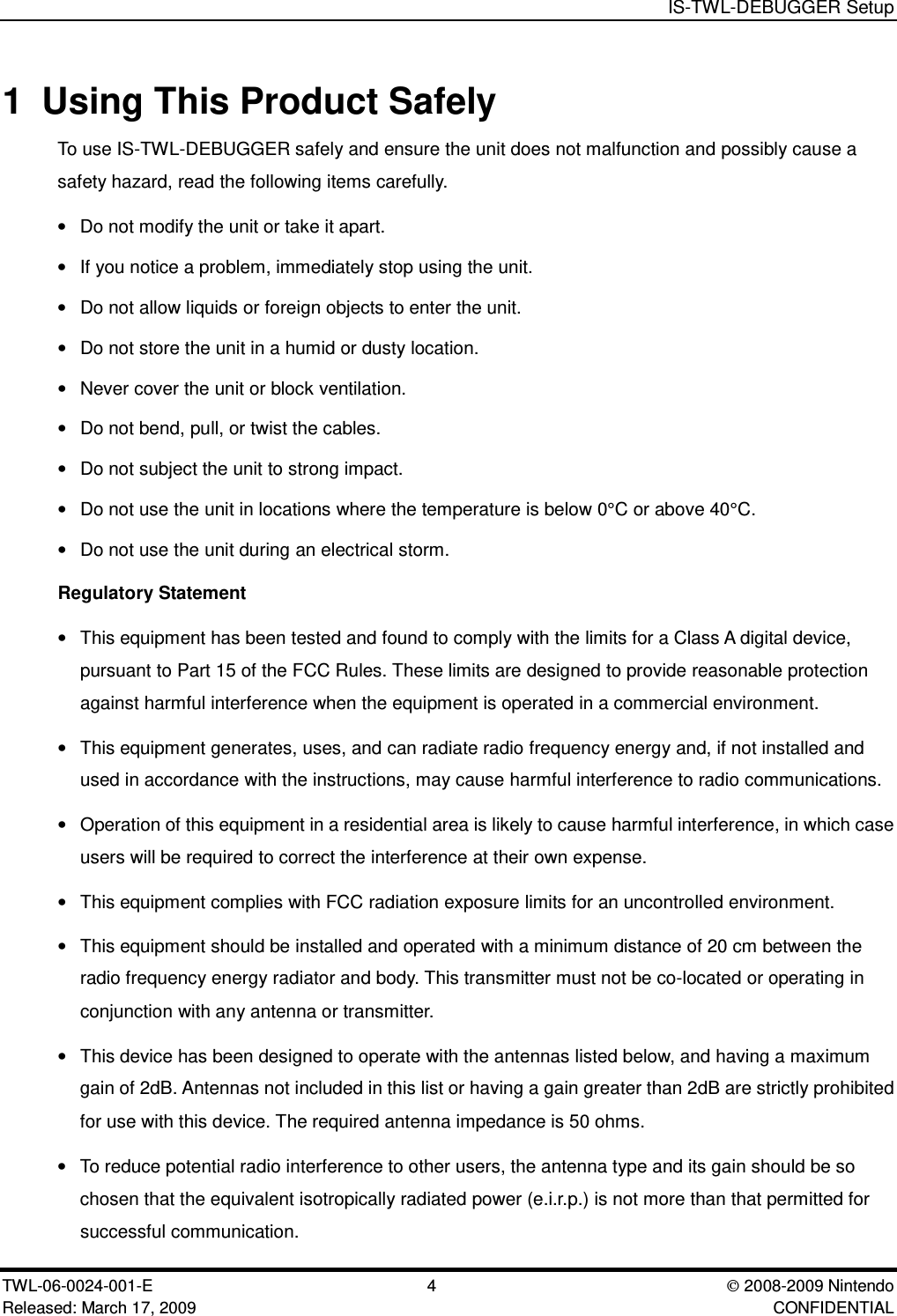

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E 4  2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL1 Using This Product SafelyTo use IS-TWL-DEBUGGER safely and ensure the unit does not malfunction and possibly cause asafety hazard, read the following items carefully.•Do not modify the unit or take it apart.•If you notice a problem, immediately stop using the unit.•Do not allow liquids or foreign objects to enter the unit.•Do not store the unit in a humid or dusty location.•Never cover the unit or block ventilation.•Do not bend, pull, or twist the cables.•Do not subject the unit to strong impact.•Do not use the unit in locations where the temperature is below 0°C or above 40°C.•Do not use the unit during an electrical storm.Regulatory Statement•This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in a commercial environment.•This equipment generates, uses, and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radio communications.•Operation of this equipment in a residential area is likely to cause harmful interference, in which caseusers will be required to correct the interference at their own expense.•This equipment complies with FCC radiation exposure limits for an uncontrolled environment.•This equipment should be installed and operated with a minimum distance of 20 cm between theradio frequency energy radiator and body. This transmitter must not be co-located or operating inconjunction with any antenna or transmitter.•This device has been designed to operate with the antennas listed below, and having a maximumgain of 2dB. Antennas not included in this list or having a gain greater than 2dB are strictly prohibitedfor use with this device. The required antenna impedance is 50 ohms.•To reduce potential radio interference to other users, the antenna type and its gain should be sochosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted forsuccessful communication.

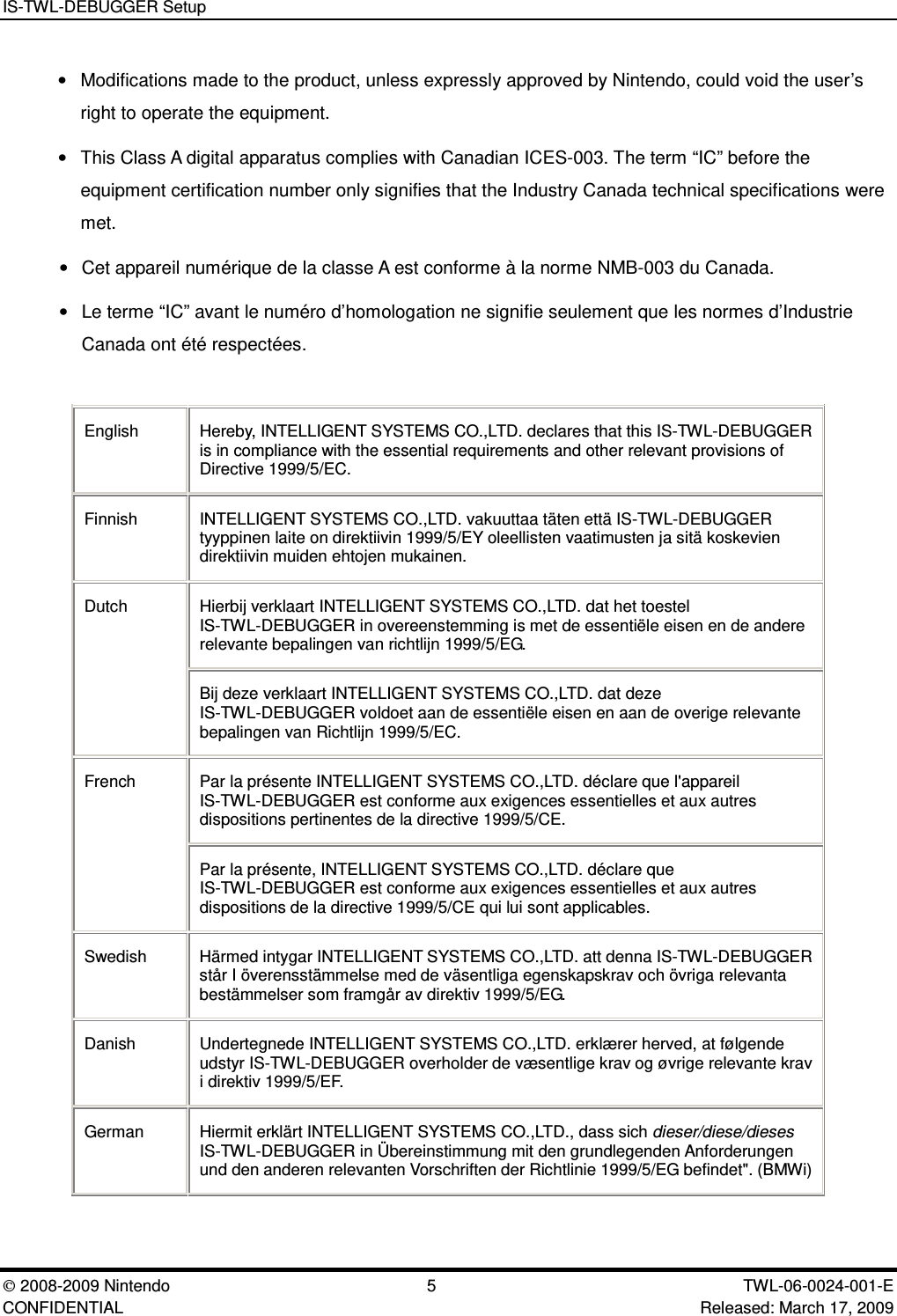

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 5 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009•Modifications made to the product, unless expressly approved by Nintendo, could void the user’sright to operate the equipment.•This Class A digital apparatus complies with Canadian ICES-003. The term “IC” before theequipment certification number only signifies that the Industry Canada technical specifications weremet.•Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.•Le terme “IC” avant le numéro d’homologation ne signifie seulement que les normes d’IndustrieCanada ont été respectées.English Hereby, INTELLIGENT SYSTEMS CO.,LTD. declares that this IS-TWL-DEBUGGERis in compliance with the essential requirements and other relevant provisions ofDirective 1999/5/EC.Finnish INTELLIGENT SYSTEMS CO.,LTD. vakuuttaa täten että IS-TWL-DEBUGGERtyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskeviendirektiivin muiden ehtojen mukainen.Hierbij verklaart INTELLIGENT SYSTEMS CO.,LTD. dat het toestelIS-TWL-DEBUGGER in overeenstemming is met de essentiële eisen en de andererelevante bepalingen van richtlijn 1999/5/EG.DutchBij deze verklaart INTELLIGENT SYSTEMS CO.,LTD. dat dezeIS-TWL-DEBUGGER voldoet aan de essentiële eisen en aan de overige relevantebepalingen van Richtlijn 1999/5/EC.Par la présente INTELLIGENT SYSTEMS CO.,LTD. déclare que l'appareilIS-TWL-DEBUGGER est conforme aux exigences essentielles et aux autresdispositions pertinentes de la directive 1999/5/CE.FrenchPar la présente, INTELLIGENT SYSTEMS CO.,LTD. déclare queIS-TWL-DEBUGGER est conforme aux exigences essentielles et aux autresdispositions de la directive 1999/5/CE qui lui sont applicables.Swedish Härmed intygar INTELLIGENT SYSTEMS CO.,LTD. att denna IS-TWL-DEBUGGERstår I överensstämmelse med de väsentliga egenskapskrav och övriga relevantabestämmelser som framgår av direktiv 1999/5/EG.Danish Undertegnede INTELLIGENT SYSTEMS CO.,LTD. erklærer herved, at følgendeudstyr IS-TWL-DEBUGGER overholder de væsentlige krav og øvrige relevante kravi direktiv 1999/5/EF.German Hiermit erklärt INTELLIGENT SYSTEMS CO.,LTD., dass sich dieser/diese/diesesIS-TWL-DEBUGGER in Übereinstimmung mit den grundlegenden Anforderungenund den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)

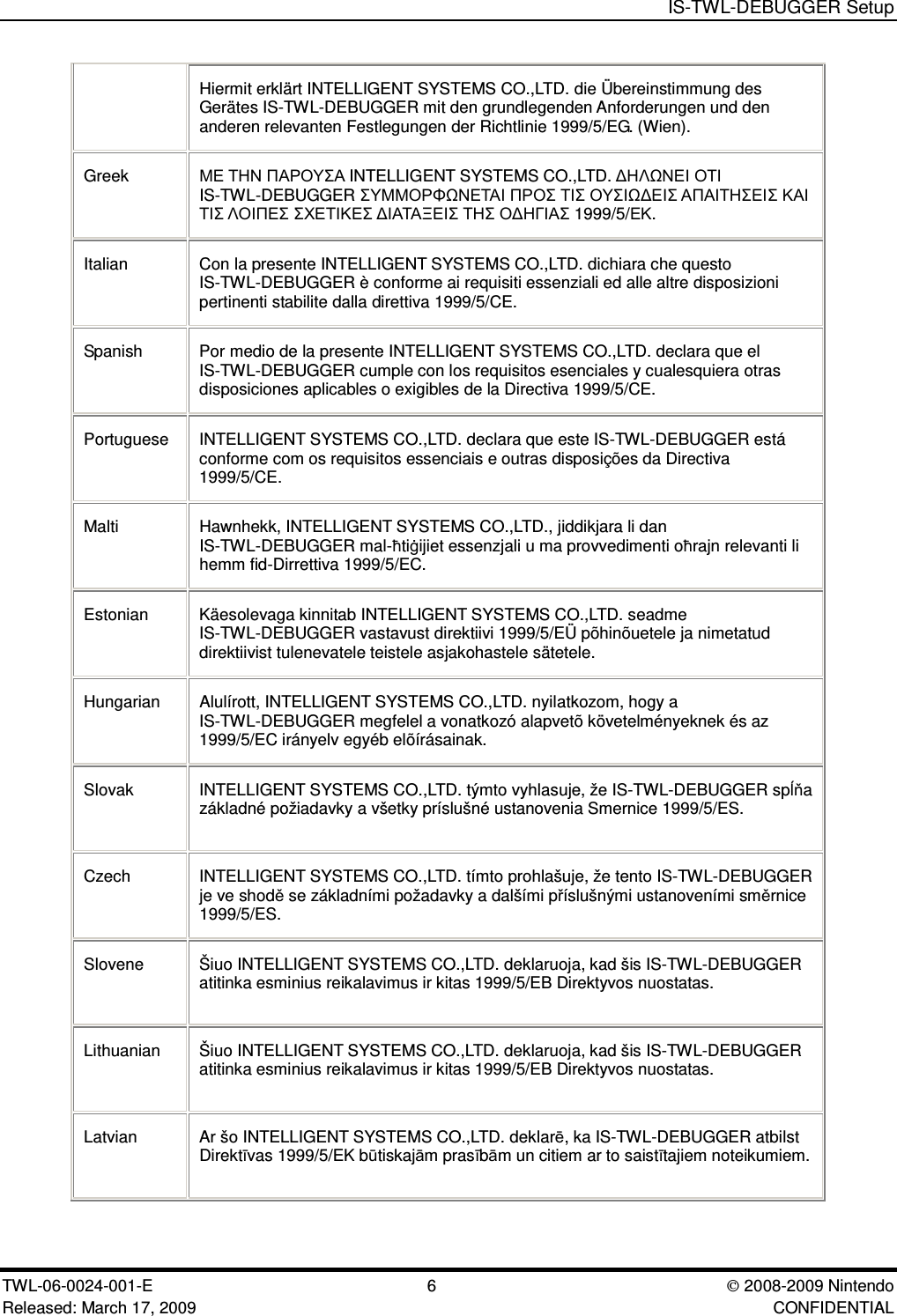

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E 6  2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALHiermit erklärt INTELLIGENT SYSTEMS CO.,LTD. die Übereinstimmung desGerätes IS-TWL-DEBUGGER mit den grundlegenden Anforderungen und denanderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien).Greek    INTELLIGENT SYSTEMS CO.,LTD.   IS-TWL-DEBUGGER             1999/5/.Italian Con la presente INTELLIGENT SYSTEMS CO.,LTD. dichiara che questoIS-TWL-DEBUGGER è conforme ai requisiti essenziali ed alle altre disposizionipertinenti stabilite dalla direttiva 1999/5/CE.Spanish Por medio de la presente INTELLIGENT SYSTEMS CO.,LTD. declara que elIS-TWL-DEBUGGER cumple con los requisitos esenciales y cualesquiera otrasdisposiciones aplicables o exigibles de la Directiva 1999/5/CE.Portuguese INTELLIGENT SYSTEMS CO.,LTD. declara que este IS-TWL-DEBUGGER estáconforme com os requisitos essenciais e outras disposições da Directiva1999/5/CE.Malti Hawnhekk, INTELLIGENT SYSTEMS CO.,LTD., jiddikjara li danIS-TWL-DEBUGGER mal-tiijiet essenzjali u ma provvedimenti orajn relevanti lihemm fid-Dirrettiva 1999/5/EC.Estonian Käesolevaga kinnitab INTELLIGENT SYSTEMS CO.,LTD. seadmeIS-TWL-DEBUGGER vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatuddirektiivist tulenevatele teistele asjakohastele sätetele.Hungarian Alulírott, INTELLIGENT SYSTEMS CO.,LTD. nyilatkozom, hogy aIS-TWL-DEBUGGER megfelel a vonatkozó alapvetõ követelményeknek és az1999/5/EC irányelv egyéb elõírásainak.Slovak INTELLIGENT SYSTEMS CO.,LTD. týmto vyhlasuje, že IS-TWL-DEBUGGER spazákladné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Czech INTELLIGENT SYSTEMS CO.,LTD. tímto prohlašuje, že tento IS-TWL-DEBUGGERje ve shodse základními požadavky a dalšími píslušnými ustanoveními smrnice1999/5/ES.Slovene Šiuo INTELLIGENT SYSTEMS CO.,LTD. deklaruoja, kad šis IS-TWL-DEBUGGERatitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Lithuanian Šiuo INTELLIGENT SYSTEMS CO.,LTD. deklaruoja, kad šis IS-TWL-DEBUGGERatitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Latvian Ar šo INTELLIGENT SYSTEMS CO.,LTD. deklar, ka IS-TWL-DEBUGGER atbilstDirektvas 1999/5/EK btiskajm prasbm un citiem ar to saisttajiem noteikumiem.

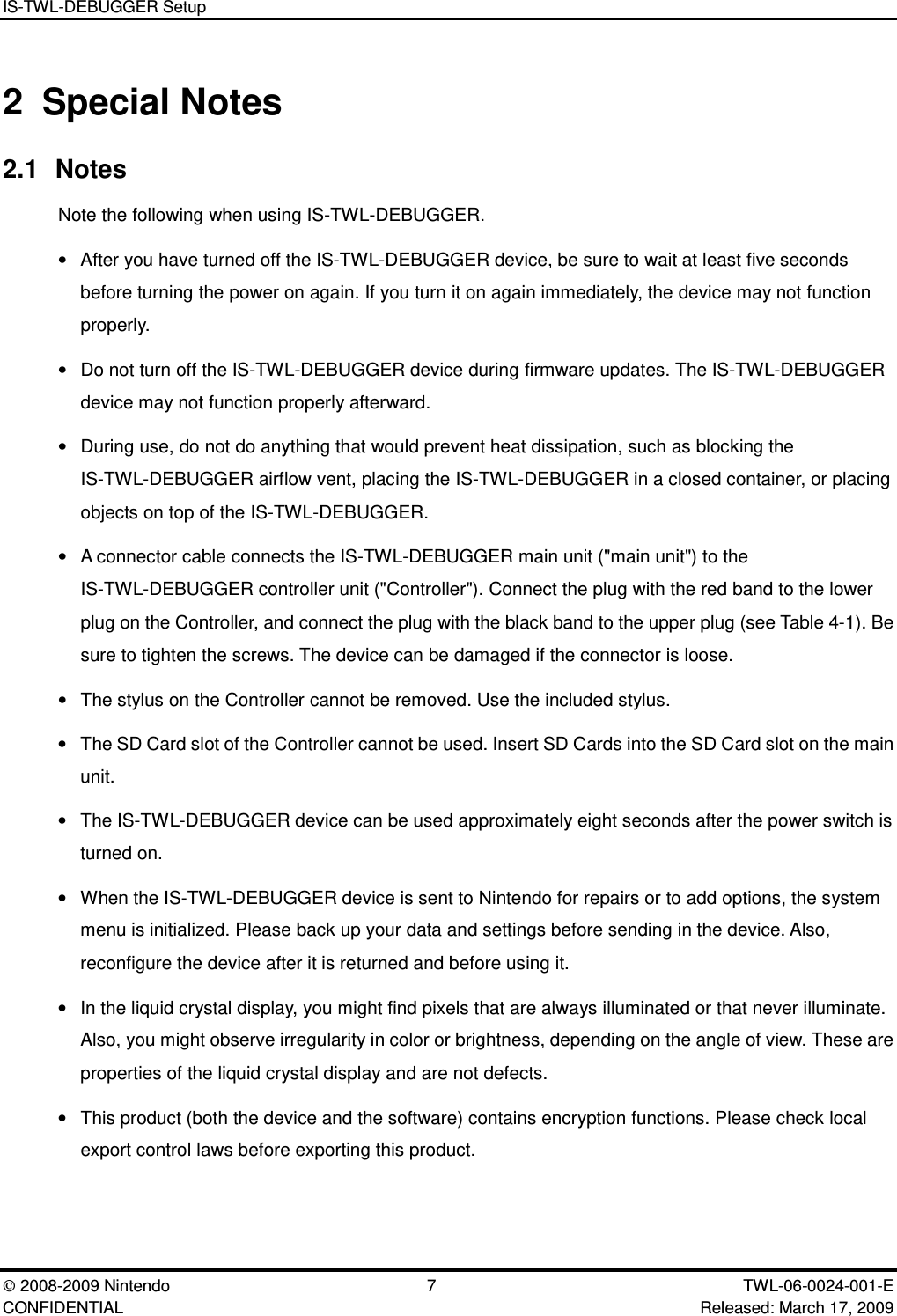

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 7 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 20092 Special Notes2.1 NotesNote the following when using IS-TWL-DEBUGGER.•After you have turned off the IS-TWL-DEBUGGER device, be sure to wait at least five secondsbefore turning the power on again. If you turn it on again immediately, the device may not functionproperly.•Do not turn off the IS-TWL-DEBUGGER device during firmware updates. The IS-TWL-DEBUGGERdevice may not function properly afterward.•During use, do not do anything that would prevent heat dissipation, such as blocking theIS-TWL-DEBUGGER airflow vent, placing the IS-TWL-DEBUGGER in a closed container, or placingobjects on top of the IS-TWL-DEBUGGER.•A connector cable connects the IS-TWL-DEBUGGER main unit ("main unit") to theIS-TWL-DEBUGGER controller unit ("Controller"). Connect the plug with the red band to the lowerplug on the Controller, and connect the plug with the black band to the upper plug (see Table 4-1). Besure to tighten the screws. The device can be damaged if the connector is loose.•The stylus on the Controller cannot be removed. Use the included stylus.•The SD Card slot of the Controller cannot be used. Insert SD Cards into the SD Card slot on the mainunit.•The IS-TWL-DEBUGGER device can be used approximately eight seconds after the power switch isturned on.•When the IS-TWL-DEBUGGER device is sent to Nintendo for repairs or to add options, the systemmenu is initialized. Please back up your data and settings before sending in the device. Also,reconfigure the device after it is returned and before using it.•In the liquid crystal display, you might find pixels that are always illuminated or that never illuminate.Also, you might observe irregularity in color or brightness, depending on the angle of view. These areproperties of the liquid crystal display and are not defects.•This product (both the device and the software) contains encryption functions. Please check localexport control laws before exporting this product.

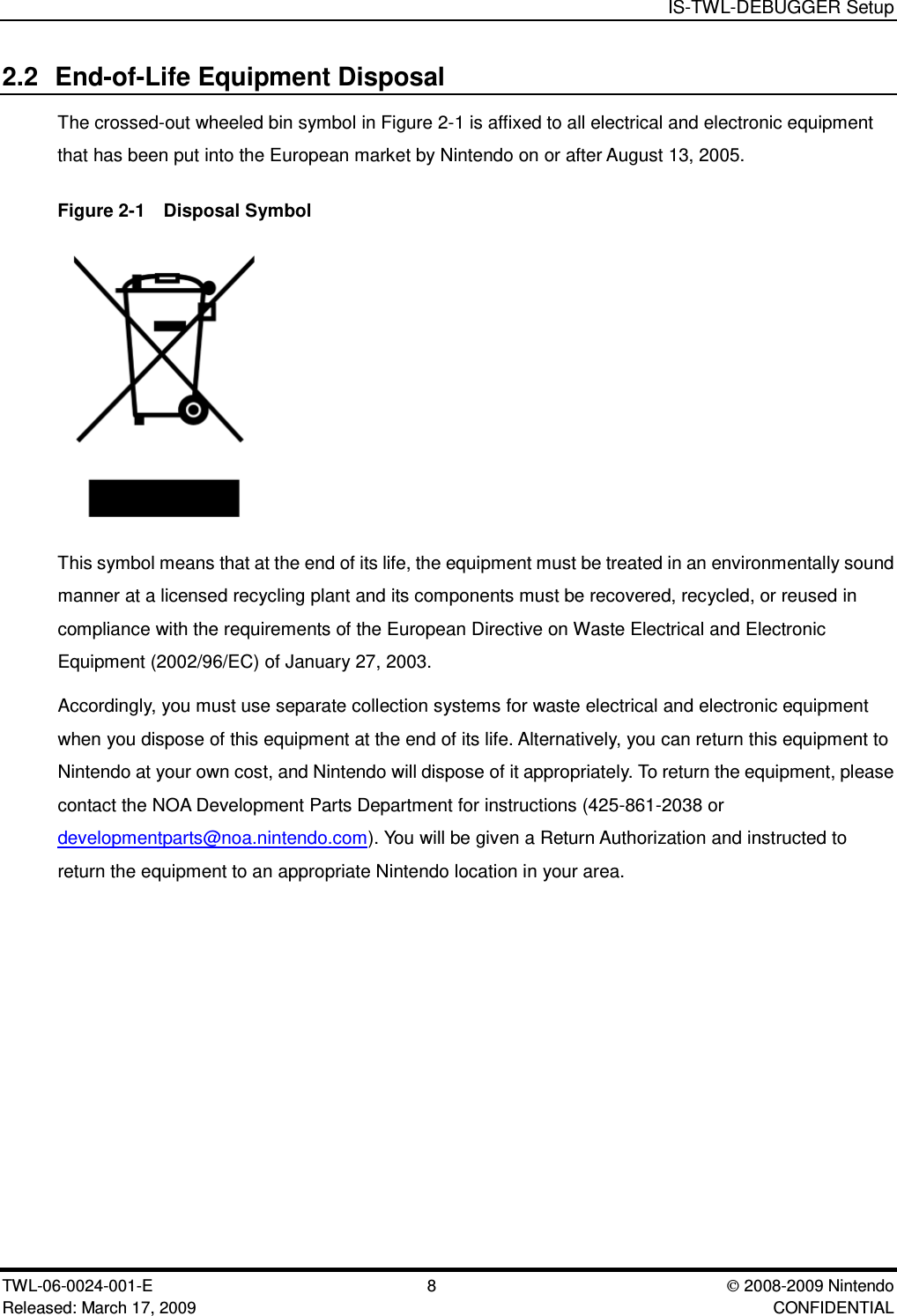

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E 8  2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL2.2 End-of-Life Equipment DisposalThe crossed-out wheeled bin symbol in Figure 2-1 is affixed to all electrical and electronic equipmentthat has been put into the European market by Nintendo on or after August 13, 2005.Figure 2-1  Disposal SymbolThis symbol means that at the end of its life, the equipment must be treated in an environmentally soundmanner at a licensed recycling plant and its components must be recovered, recycled, or reused incompliance with the requirements of the European Directive on Waste Electrical and ElectronicEquipment (2002/96/EC) of January 27, 2003.Accordingly, you must use separate collection systems for waste electrical and electronic equipmentwhen you dispose of this equipment at the end of its life. Alternatively, you can return this equipment toNintendo at your own cost, and Nintendo will dispose of it appropriately. To return the equipment, pleasecontact the NOA Development Parts Department for instructions (425-861-2038 ordevelopmentparts@noa.nintendo.com). You will be given a Return Authorization and instructed toreturn the equipment to an appropriate Nintendo location in your area.

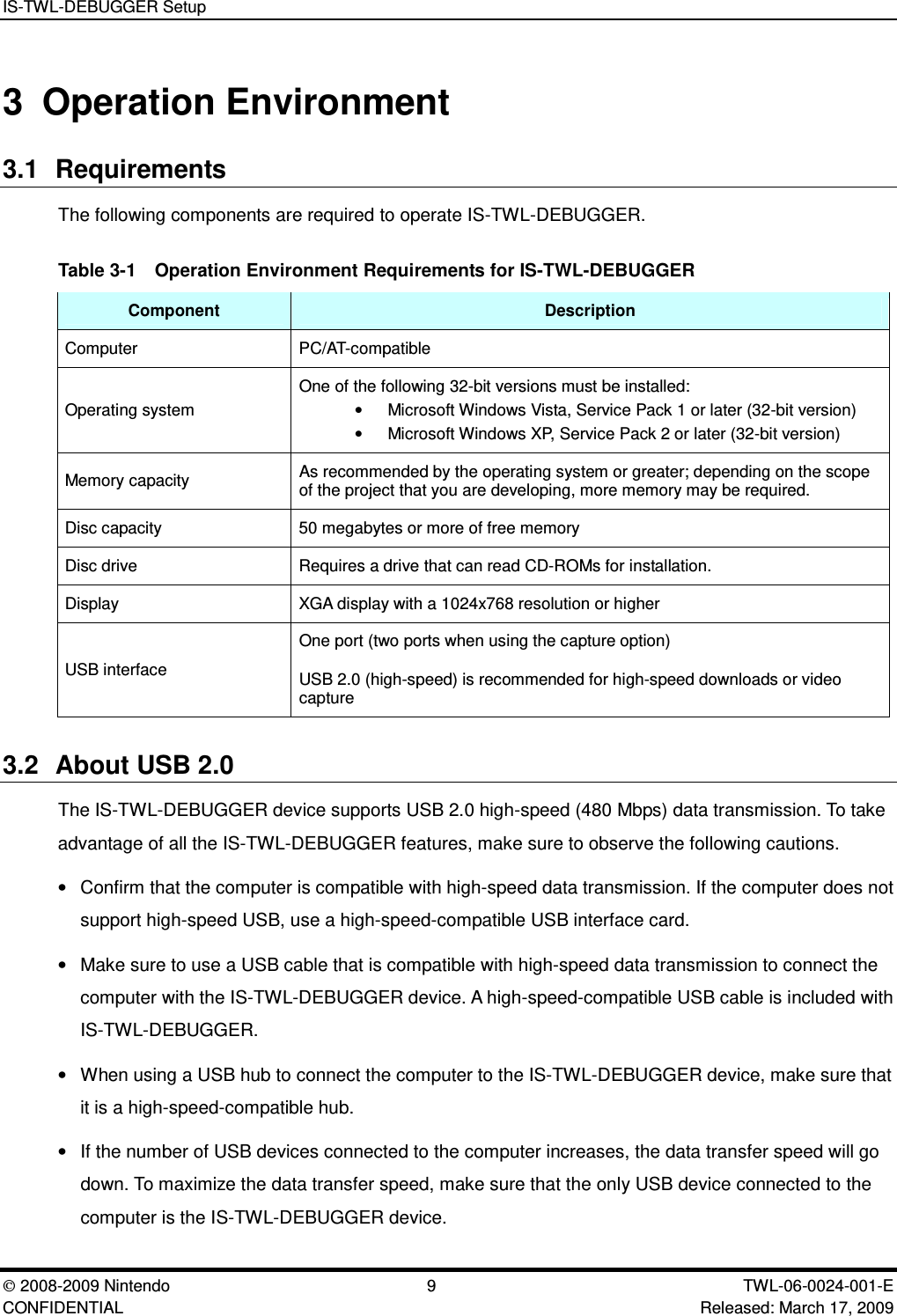

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 9 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 20093 Operation Environment3.1 RequirementsThe following components are required to operate IS-TWL-DEBUGGER.Table 3-1  Operation Environment Requirements for IS-TWL-DEBUGGERComponent DescriptionComputer PC/AT-compatibleOperating systemOne of the following 32-bit versions must be installed:•Microsoft Windows Vista, Service Pack 1 or later (32-bit version)•Microsoft Windows XP, Service Pack 2 or later (32-bit version)Memory capacity As recommended by the operating system or greater; depending on the scopeof the project that you are developing, more memory may be required.Disc capacity 50 megabytes or more of free memoryDisc drive Requires a drive that can read CD-ROMs for installation.Display XGA display with a 1024x768 resolution or higherUSB interfaceOne port (two ports when using the capture option)USB 2.0 (high-speed) is recommended for high-speed downloads or videocapture3.2 About USB 2.0The IS-TWL-DEBUGGER device supports USB 2.0 high-speed (480 Mbps) data transmission. To takeadvantage of all the IS-TWL-DEBUGGER features, make sure to observe the following cautions.•Confirm that the computer is compatible with high-speed data transmission. If the computer does notsupport high-speed USB, use a high-speed-compatible USB interface card.•Make sure to use a USB cable that is compatible with high-speed data transmission to connect thecomputer with the IS-TWL-DEBUGGER device. A high-speed-compatible USB cable is included withIS-TWL-DEBUGGER.•When using a USB hub to connect the computer to the IS-TWL-DEBUGGER device, make sure thatit is a high-speed-compatible hub.•If the number of USB devices connected to the computer increases, the data transfer speed will godown. To maximize the data transfer speed, make sure that the only USB device connected to thecomputer is the IS-TWL-DEBUGGER device.

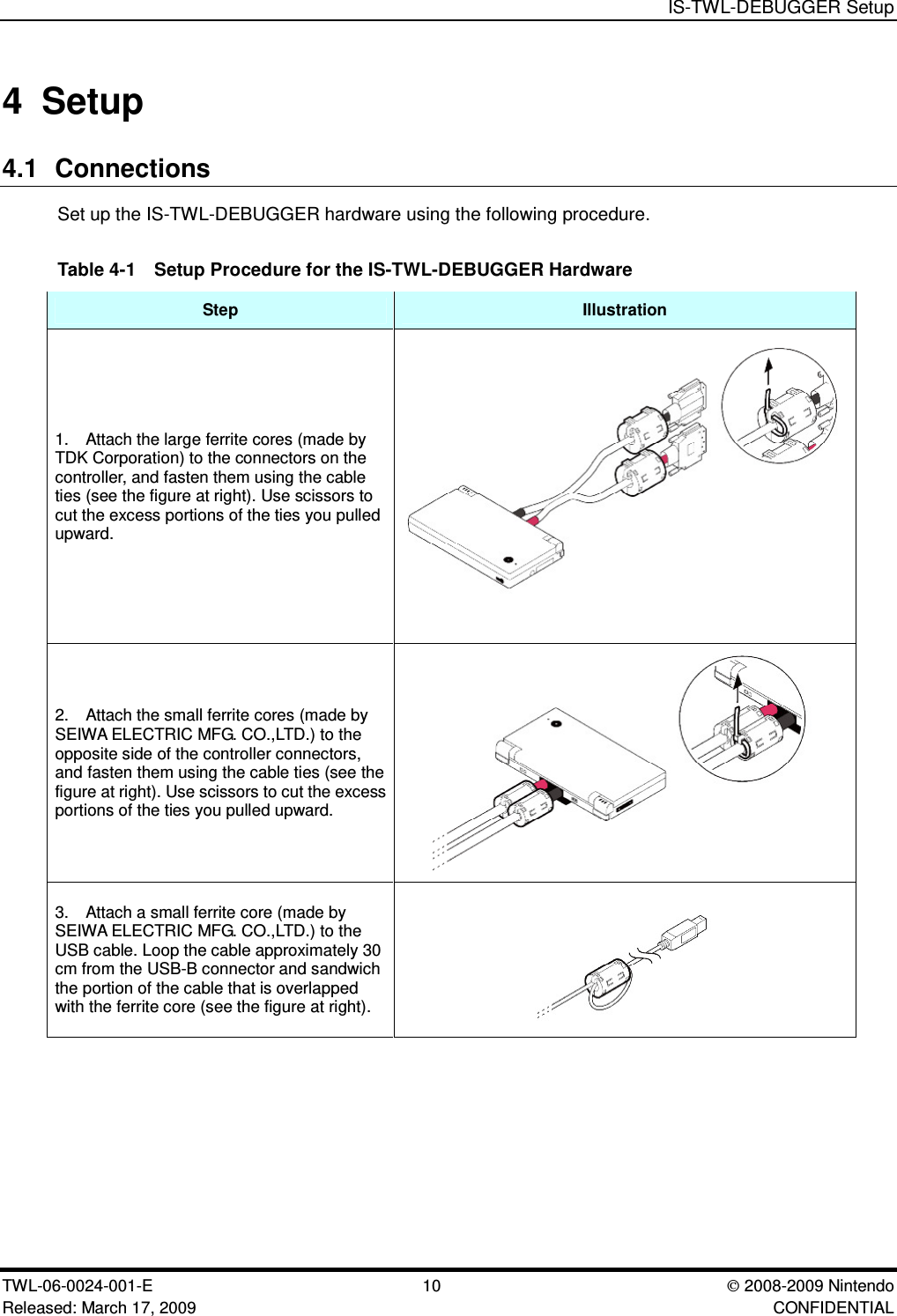

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E  10 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL4 Setup4.1 ConnectionsSet up the IS-TWL-DEBUGGER hardware using the following procedure.Table 4-1    Setup Procedure for the IS-TWL-DEBUGGER HardwareStep Illustration1. Attach the large ferrite cores (made byTDK Corporation) to the connectors on thecontroller, and fasten them using the cableties (see the figure at right). Use scissors tocut the excess portions of the ties you pulledupward.2. Attach the small ferrite cores (made bySEIWA ELECTRIC MFG. CO.,LTD.) to theopposite side of the controller connectors,and fasten them using the cable ties (see thefigure at right). Use scissors to cut the excessportions of the ties you pulled upward.3. Attach a small ferrite core (made bySEIWA ELECTRIC MFG. CO.,LTD.) to theUSB cable. Loop the cable approximately 30cm from the USB-B connector and sandwichthe portion of the cable that is overlappedwith the ferrite core (see the figure at right).

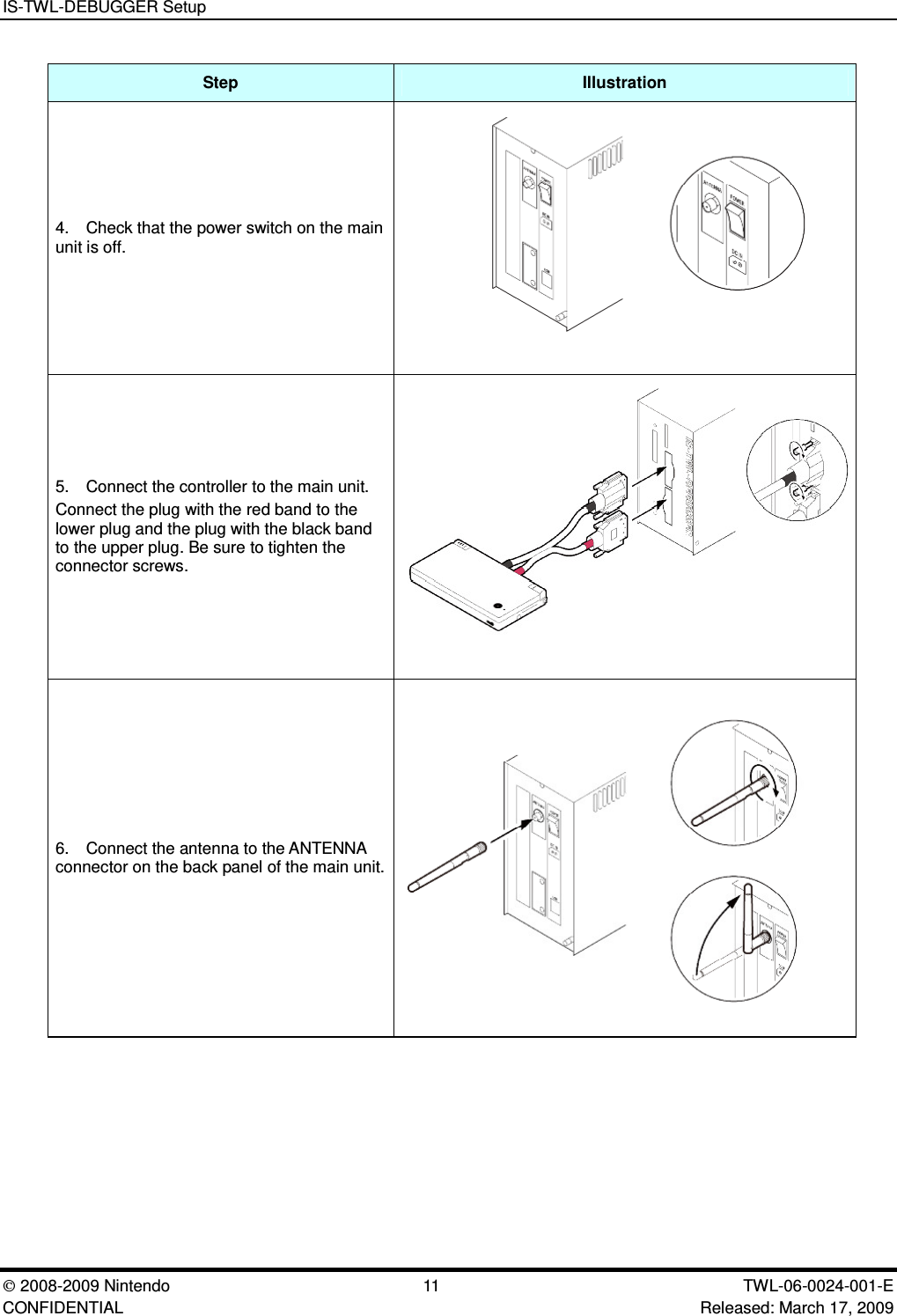

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 11 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009Step Illustration4. Check that the power switch on the mainunit is off.5. Connect the controller to the main unit.Connect the plug with the red band to thelower plug and the plug with the black bandto the upper plug. Be sure to tighten theconnector screws.6. Connect the antenna to the ANTENNAconnector on the back panel of the main unit.

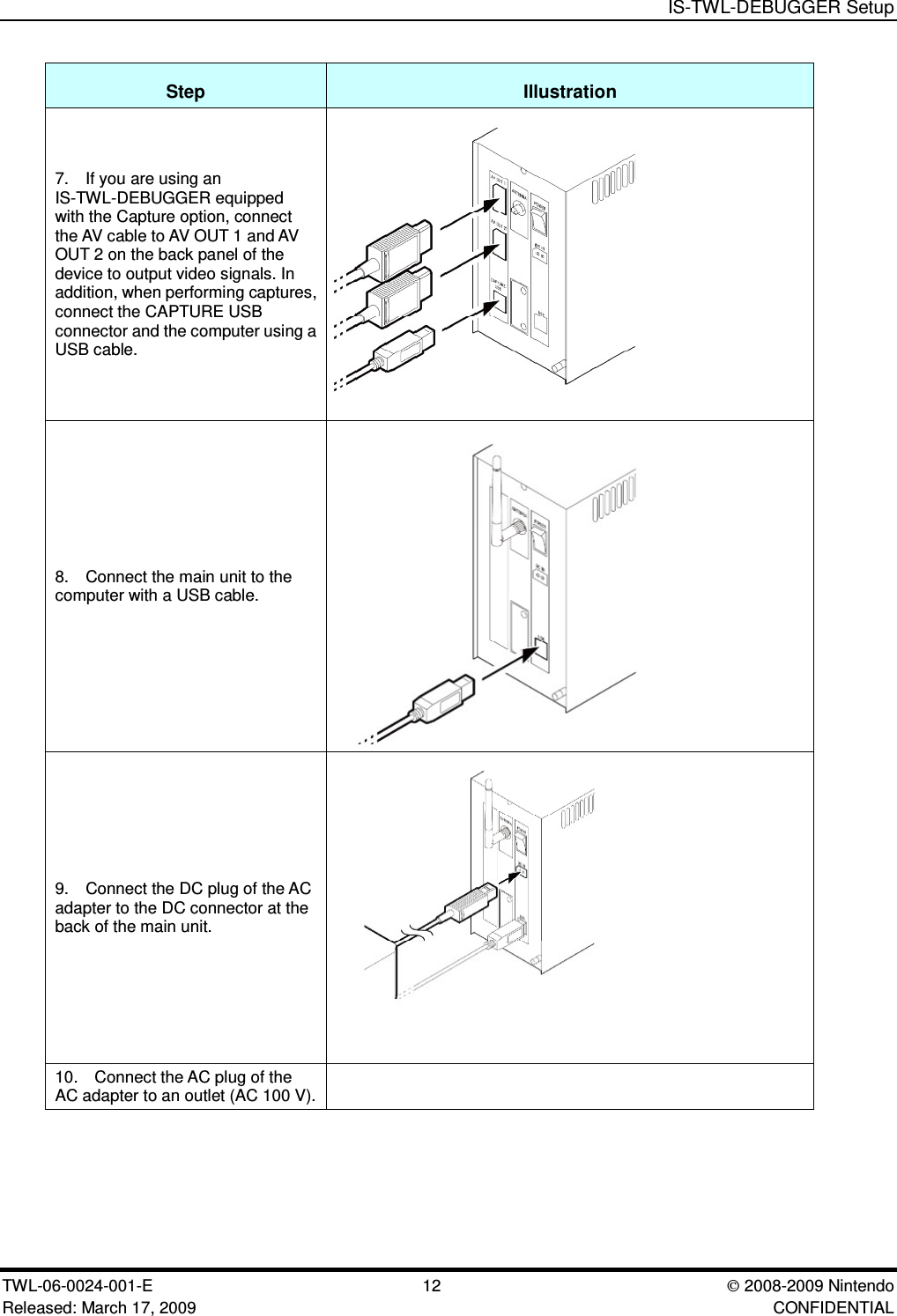

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E  12 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALStep Illustration7. If you are using anIS-TWL-DEBUGGER equippedwith the Capture option, connectthe AV cable to AV OUT 1 and AVOUT 2 on the back panel of thedevice to output video signals. Inaddition, when performing captures,connect the CAPTURE USBconnector and the computer using aUSB cable.8. Connect the main unit to thecomputer with a USB cable.9. Connect the DC plug of the ACadapter to the DC connector at theback of the main unit.10. Connect the AC plug of theAC adapter to an outlet (AC 100 V).

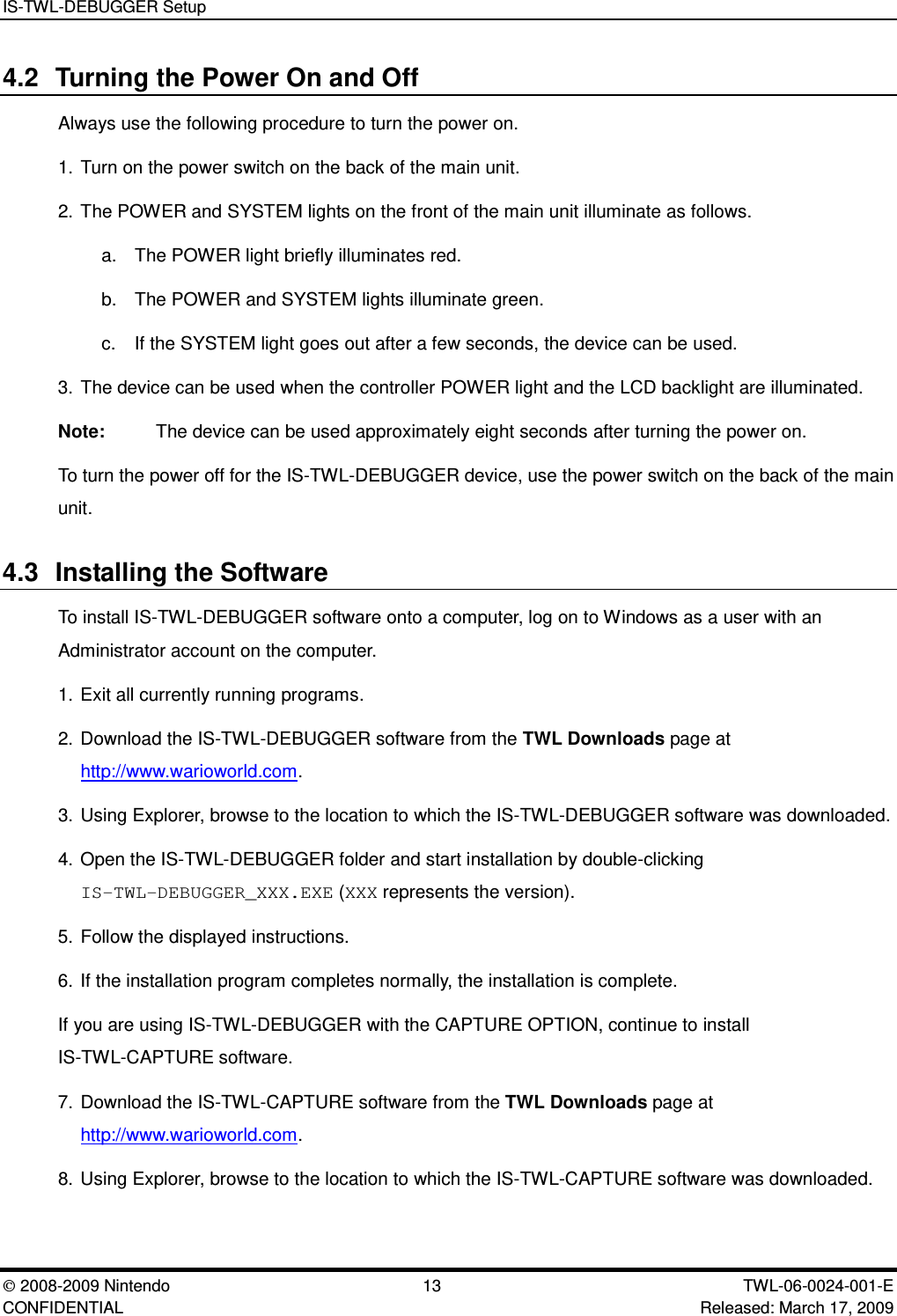

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 13 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 20094.2 Turning the Power On and OffAlways use the following procedure to turn the power on.1. Turn on the power switch on the back of the main unit.2. The POWER and SYSTEM lights on the front of the main unit illuminate as follows.a. The POWER light briefly illuminates red.b. The POWER and SYSTEM lights illuminate green.c. If the SYSTEM light goes out after a few seconds, the device can be used.3. The device can be used when the controller POWER light and the LCD backlight are illuminated.Note: The device can be used approximately eight seconds after turning the power on.To turn the power off for the IS-TWL-DEBUGGER device, use the power switch on the back of the mainunit.4.3 Installing the SoftwareTo install IS-TWL-DEBUGGER software onto a computer, log on to Windows as a user with anAdministrator account on the computer.1. Exit all currently running programs.2. Download the IS-TWL-DEBUGGER software from the TWL Downloads page athttp://www.warioworld.com.3. Using Explorer, browse to the location to which the IS-TWL-DEBUGGER software was downloaded.4. Open the IS-TWL-DEBUGGER folder and start installation by double-clickingIS-TWL-DEBUGGER_XXX.EXE (XXX represents the version).5. Follow the displayed instructions.6. If the installation program completes normally, the installation is complete.If you are using IS-TWL-DEBUGGER with the CAPTURE OPTION, continue to installIS-TWL-CAPTURE software.7. Download the IS-TWL-CAPTURE software from the TWL Downloads page athttp://www.warioworld.com.8. Using Explorer, browse to the location to which the IS-TWL-CAPTURE software was downloaded.

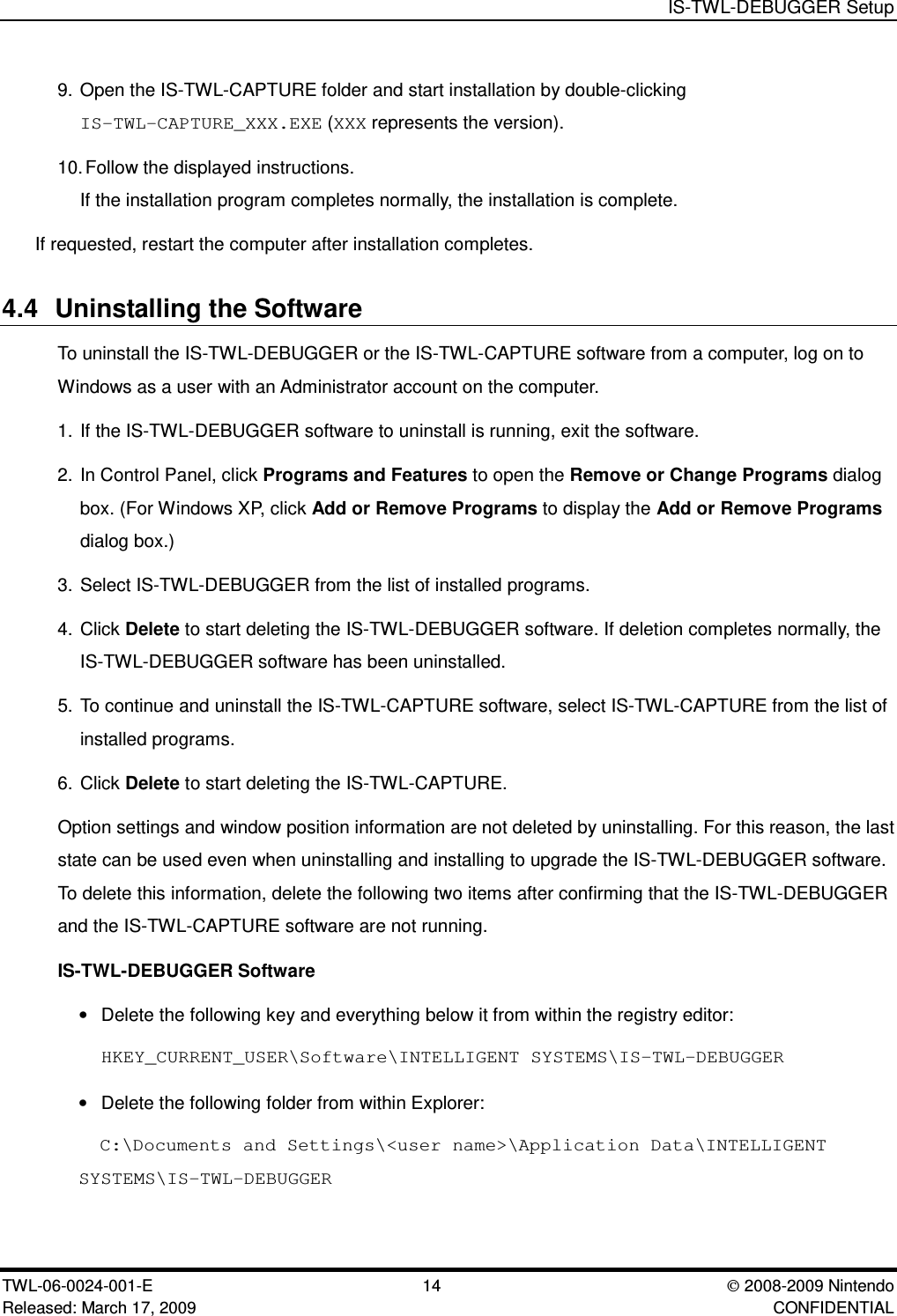

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E  14 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL9. Open the IS-TWL-CAPTURE folder and start installation by double-clickingIS-TWL-CAPTURE_XXX.EXE (XXX represents the version).10.Follow the displayed instructions.If the installation program completes normally, the installation is complete.If requested, restart the computer after installation completes.4.4 Uninstalling the SoftwareTo uninstall the IS-TWL-DEBUGGER or the IS-TWL-CAPTURE software from a computer, log on toWindows as a user with an Administrator account on the computer.1. If the IS-TWL-DEBUGGER software to uninstall is running, exit the software.2. In Control Panel, click Programs and Features to open the Remove or Change Programs dialogbox. (For Windows XP, click Add or Remove Programs to display the Add or Remove Programsdialog box.)3. Select IS-TWL-DEBUGGER from the list of installed programs.4. Click Delete to start deleting the IS-TWL-DEBUGGER software. If deletion completes normally, theIS-TWL-DEBUGGER software has been uninstalled.5. To continue and uninstall the IS-TWL-CAPTURE software, select IS-TWL-CAPTURE from the list ofinstalled programs.6. Click Delete to start deleting the IS-TWL-CAPTURE.Option settings and window position information are not deleted by uninstalling. For this reason, the laststate can be used even when uninstalling and installing to upgrade the IS-TWL-DEBUGGER software.To delete this information, delete the following two items after confirming that the IS-TWL-DEBUGGERand the IS-TWL-CAPTURE software are not running.IS-TWL-DEBUGGER Software•Delete the following key and everything below it from within the registry editor:HKEY_CURRENT_USER\Software\INTELLIGENT SYSTEMS\IS-TWL-DEBUGGER•Delete the following folder from within Explorer:C:\Documents and Settings\<user name>\Application Data\INTELLIGENTSYSTEMS\IS-TWL-DEBUGGER

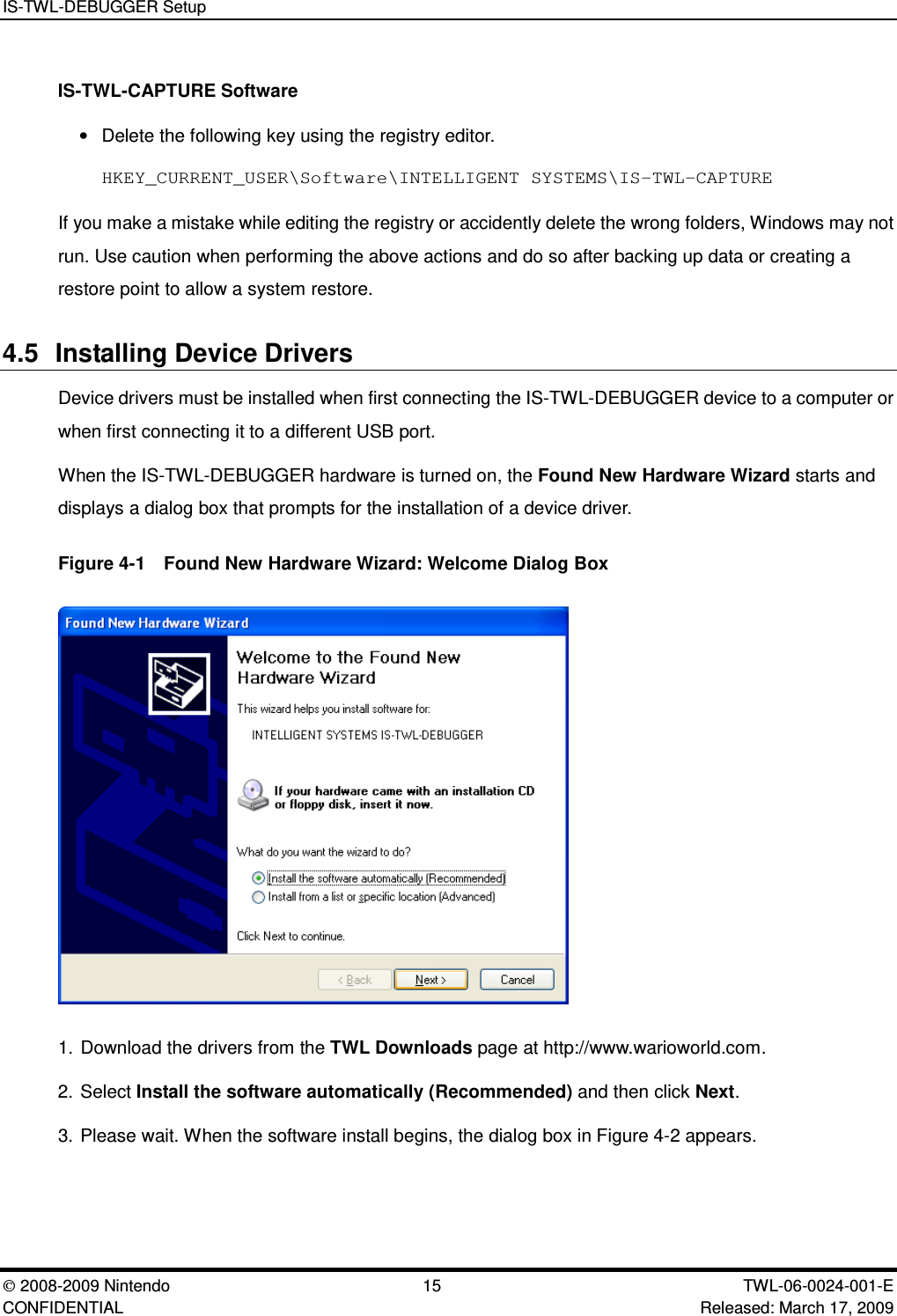

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 15 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009IS-TWL-CAPTURE Software•Delete the following key using the registry editor.HKEY_CURRENT_USER\Software\INTELLIGENT SYSTEMS\IS-TWL-CAPTUREIf you make a mistake while editing the registry or accidently delete the wrong folders, Windows may notrun. Use caution when performing the above actions and do so after backing up data or creating arestore point to allow a system restore.4.5 Installing Device DriversDevice drivers must be installed when first connecting the IS-TWL-DEBUGGER device to a computer orwhen first connecting it to a different USB port.When the IS-TWL-DEBUGGER hardware is turned on, the Found New Hardware Wizard starts anddisplays a dialog box that prompts for the installation of a device driver.Figure 4-1  Found New Hardware Wizard: Welcome Dialog Box1. Download the drivers from the TWL Downloads page at http://www.warioworld.com.2. Select Install the software automatically (Recommended) and then click Next.3. Please wait. When the software install begins, the dialog box in Figure 4-2 appears.

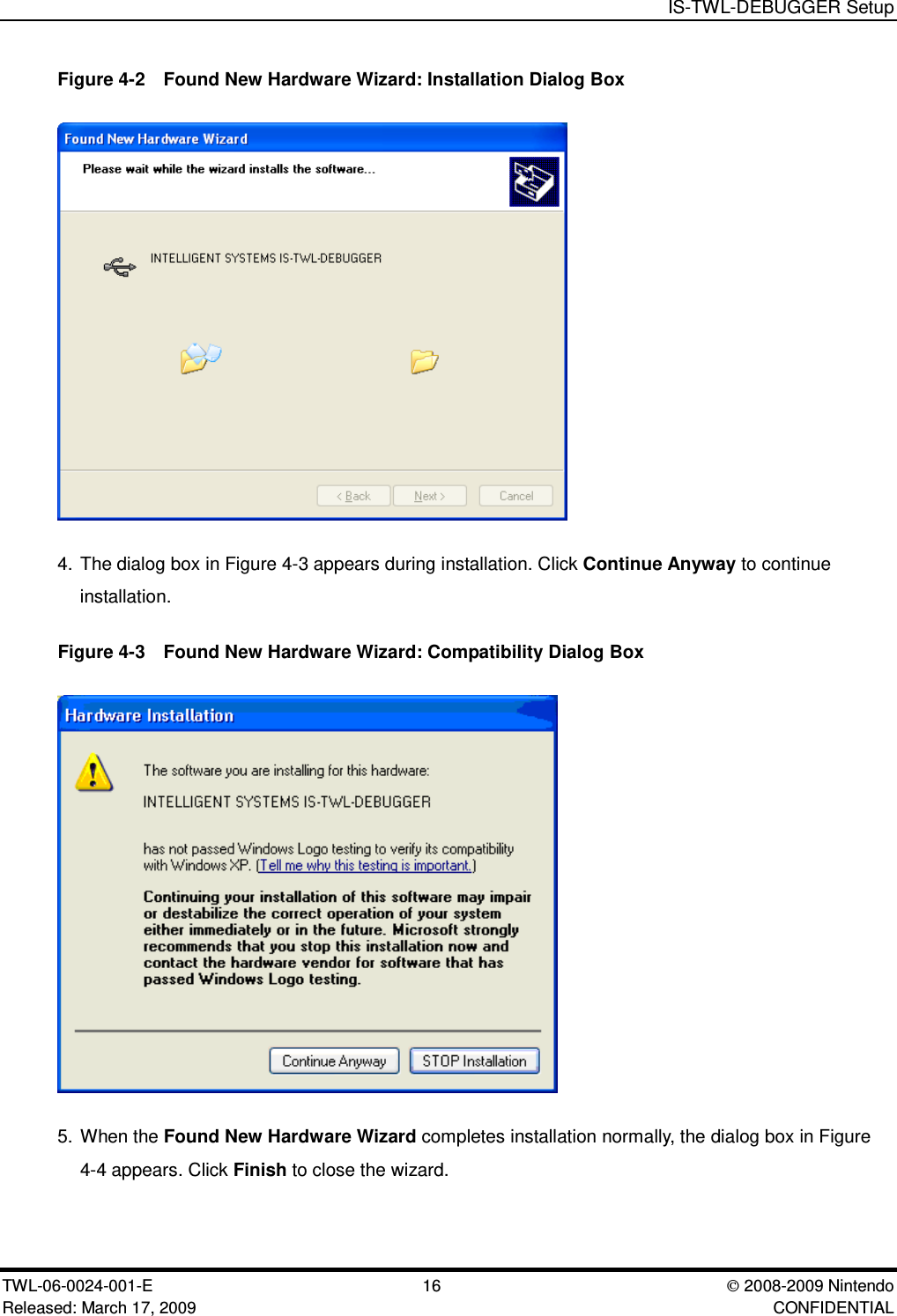

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E 16  2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALFigure 4-2  Found New Hardware Wizard: Installation Dialog Box4. The dialog box in Figure 4-3 appears during installation. Click Continue Anyway to continueinstallation.Figure 4-3  Found New Hardware Wizard: Compatibility Dialog Box5. When the Found New Hardware Wizard completes installation normally, the dialog box in Figure4-4 appears. Click Finish to close the wizard.
IS-TWL-DEBUGGER Setup2008-2009 Nintendo 17 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009Figure 4-4    Found New Hardware Wizard: Completion Dialog Box
IS-TWL-DEBUGGER SetupTWL-06-0024-001-E  18 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL5 SupportNintendo provides support for IS-TWL-DEBUGGER users on its website and by e-mail.WebsiteInformation and documents regarding IS-TWL-DEBUGGER and the latest software versions areavailable on the Nintendo Software Development Support Group (SDSG) website(http://www.warioworld.com). Only those registered in the website’s Nintendo DS group can access anddownload the latest software versions. Register online at http://www.warioworld.com.E-Mail SupportFor questions and comments about IS-TWL-DEBUGGER, please contact the Software DevelopmentSupport Group at support@noa.com.

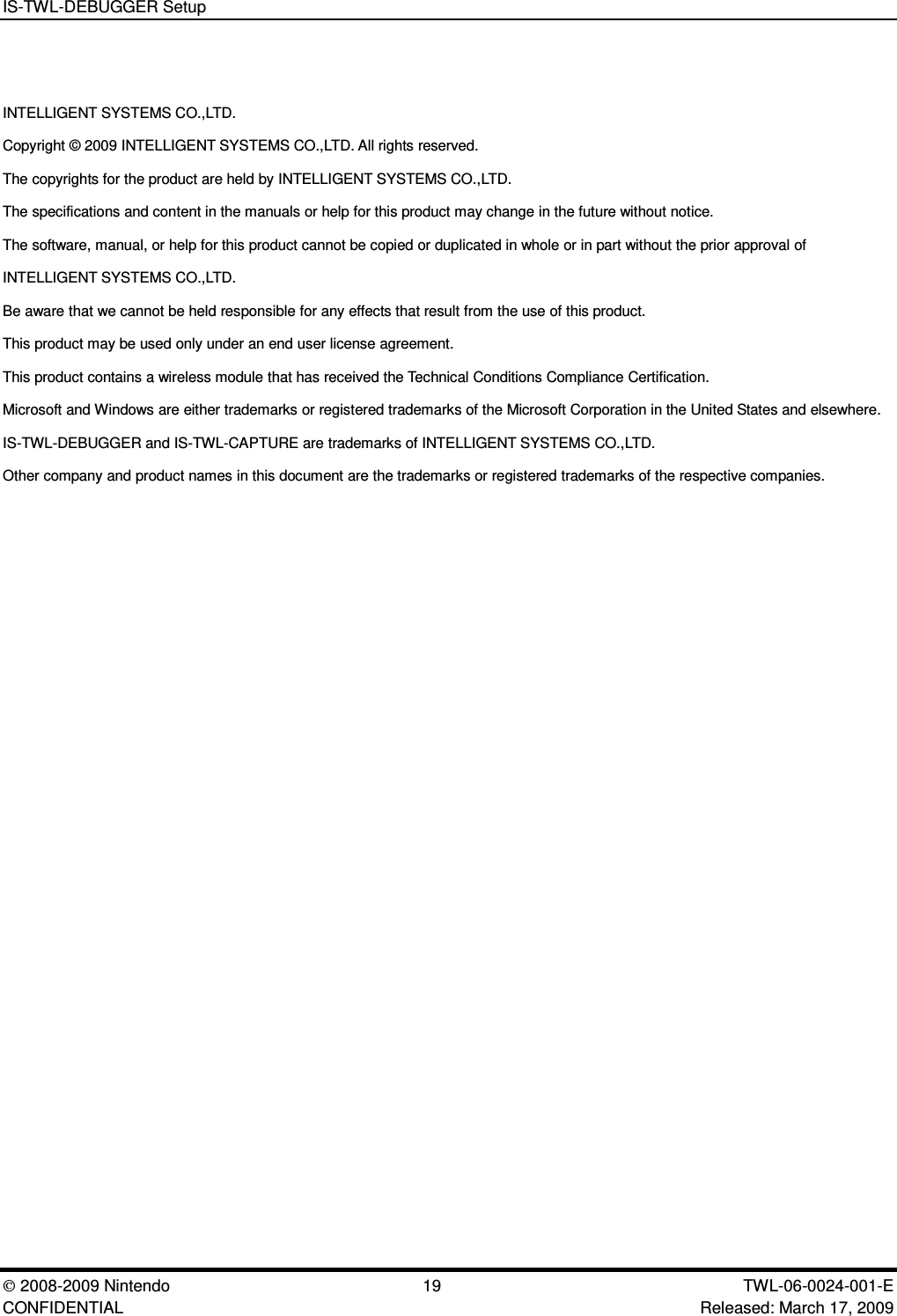

IS-TWL-DEBUGGER Setup2008-2009 Nintendo 19 TWL-06-0024-001-E CONFIDENTIAL Released: March 17, 2009INTELLIGENT SYSTEMS CO.,LTD.Copyright © 2009 INTELLIGENT SYSTEMS CO.,LTD. All rights reserved.The copyrights for the product are held by INTELLIGENT SYSTEMS CO.,LTD.The specifications and content in the manuals or help for this product may change in the future without notice.The software, manual, or help for this product cannot be copied or duplicated in whole or in part without the prior approval ofINTELLIGENT SYSTEMS CO.,LTD.Be aware that we cannot be held responsible for any effects that result from the use of this product.This product may be used only under an end user license agreement.This product contains a wireless module that has received the Technical Conditions Compliance Certification.Microsoft and Windows are either trademarks or registered trademarks of the Microsoft Corporation in the United States and elsewhere.IS-TWL-DEBUGGER and IS-TWL-CAPTURE are trademarks of INTELLIGENT SYSTEMS CO.,LTD.Other company and product names in this document are the trademarks or registered trademarks of the respective companies.

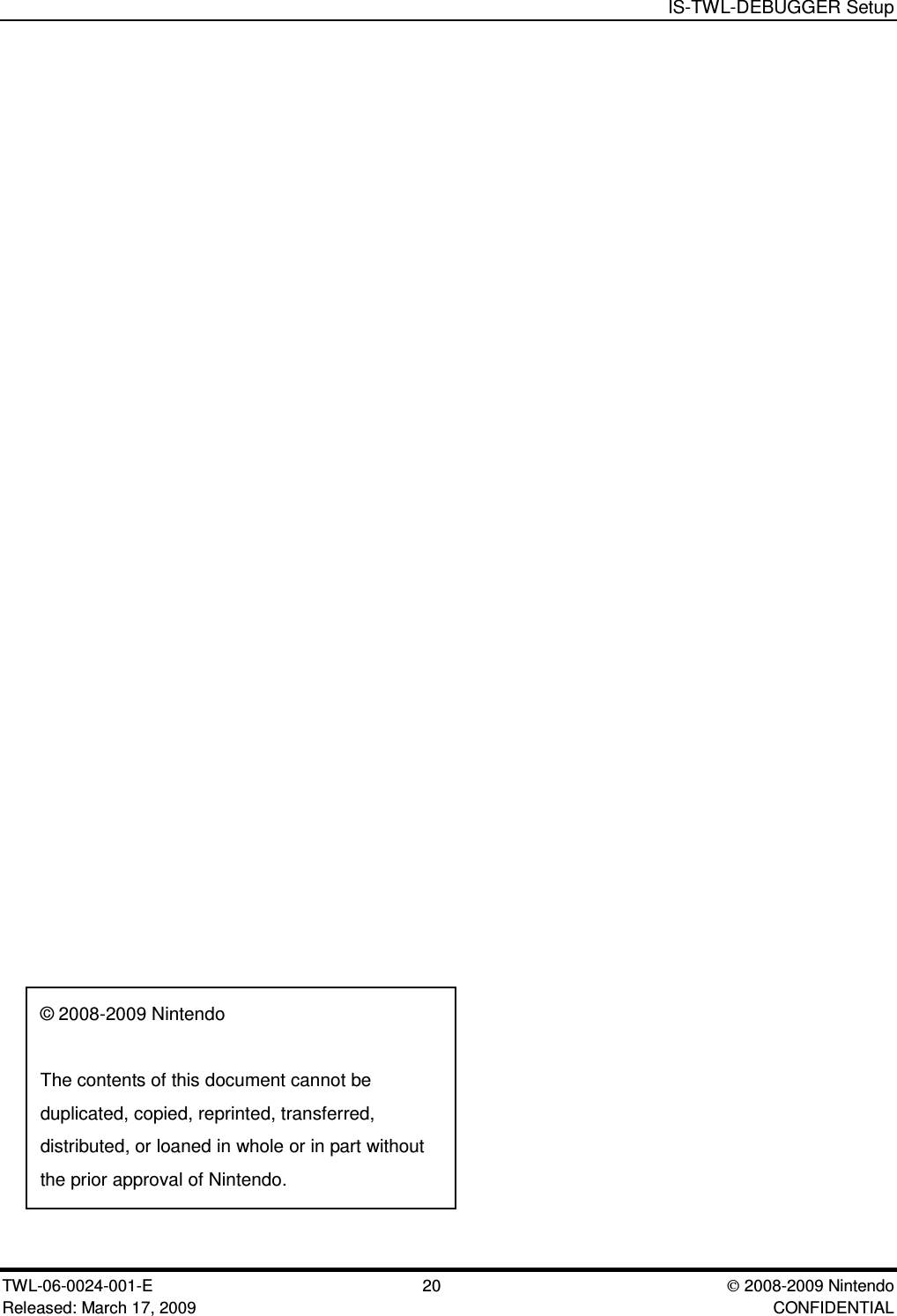

IS-TWL-DEBUGGER SetupTWL-06-0024-001-E  20 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL© 2008-2009 NintendoThe contents of this document cannot beduplicated, copied, reprinted, transferred,distributed, or loaned in whole or in part withoutthe prior approval of Nintendo.
