INTELLIGENT SYSTEMS ISX Debugger and Capture User Manual IS TWL CAPTURE Setup

INTELLIGENT SYSTEMS Co.,Ltd. Debugger and Capture IS TWL CAPTURE Setup

user manual pt 3a

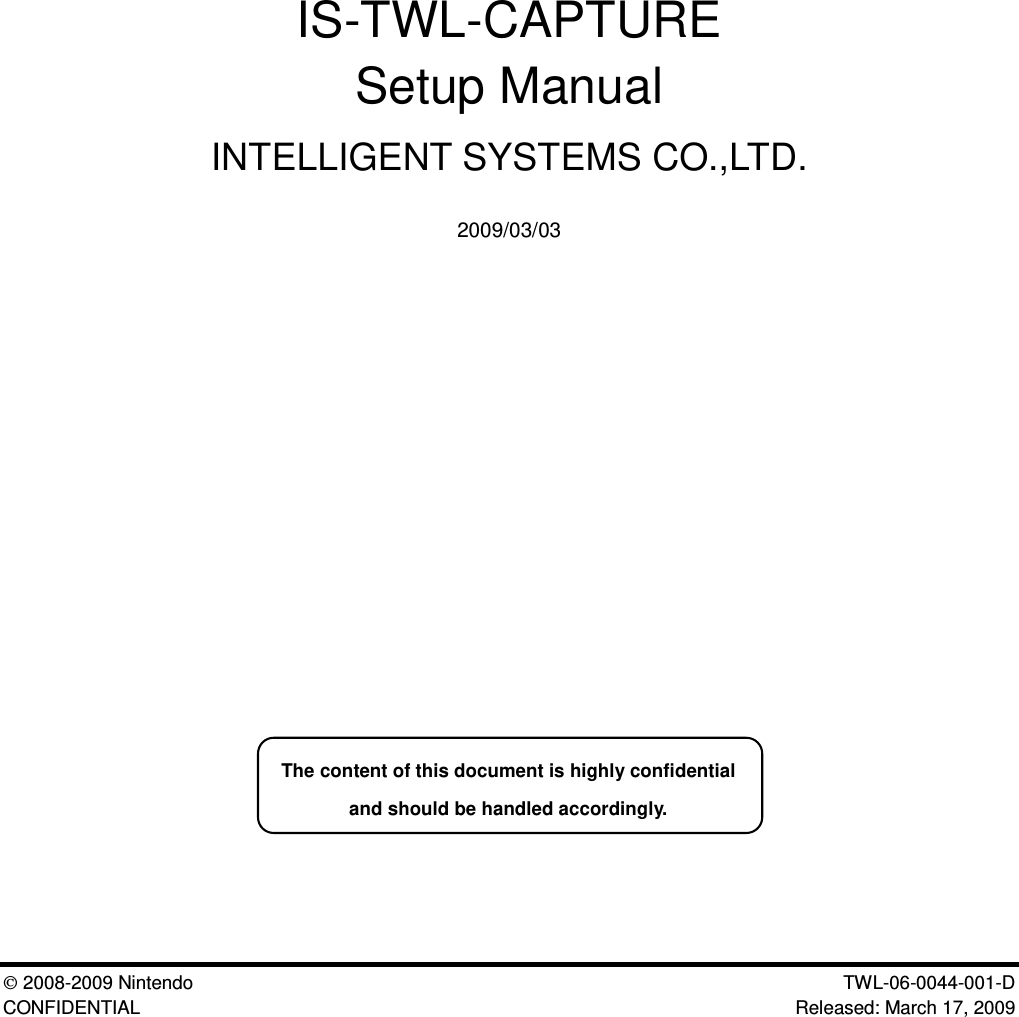

2008-2009 Nintendo TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009IS-TWL-CAPTURESetup ManualINTELLIGENT SYSTEMS CO.,LTD.2009/03/03The content of this document is highly confidentialand should be handled accordingly.

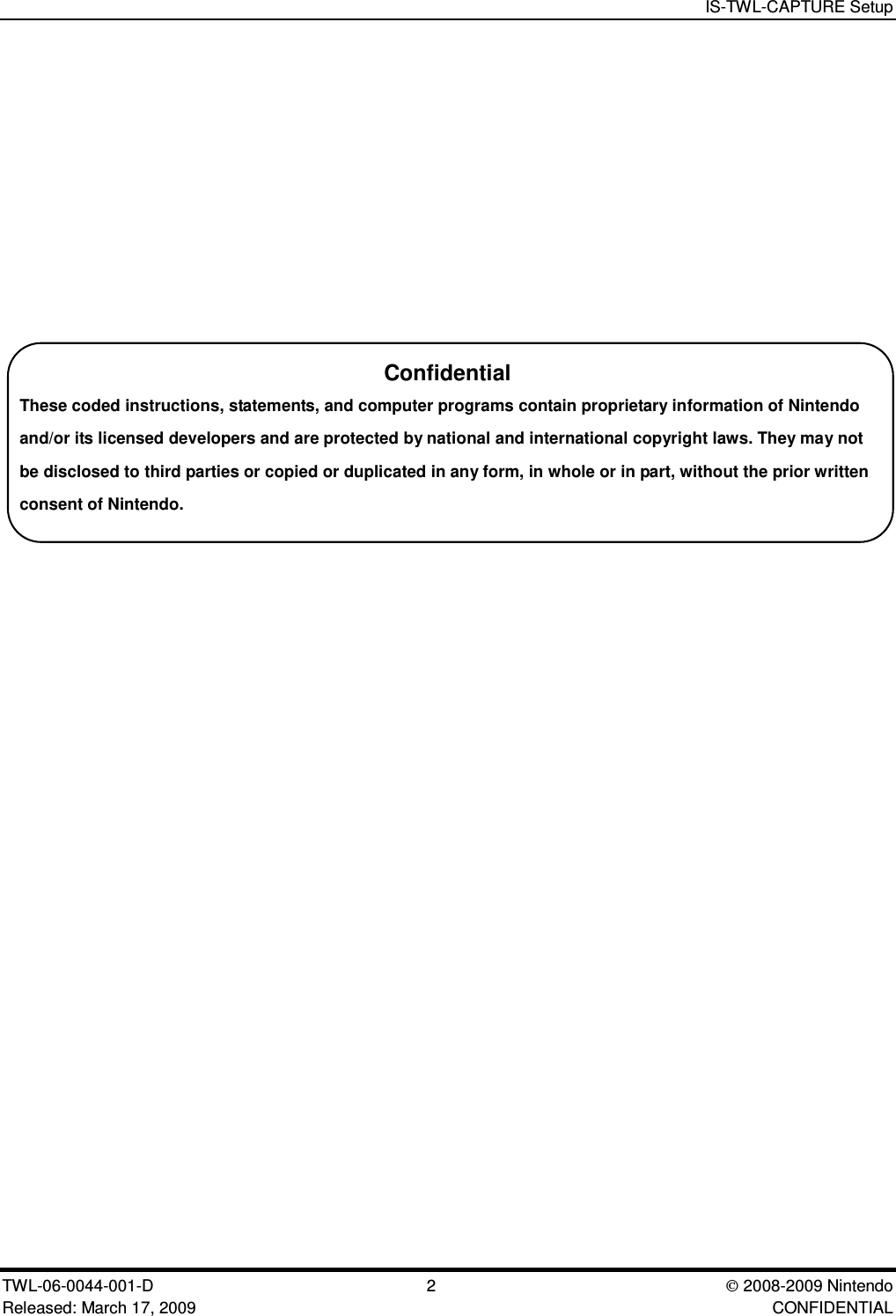

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 2 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALConfidentialThese coded instructions, statements, and computer programs contain proprietary information of Nintendoand/or its licensed developers and are protected by national and international copyright laws. They may notbe disclosed to third parties or copied or duplicated in any form, in whole or in part, without the prior writtenconsent of Nintendo.

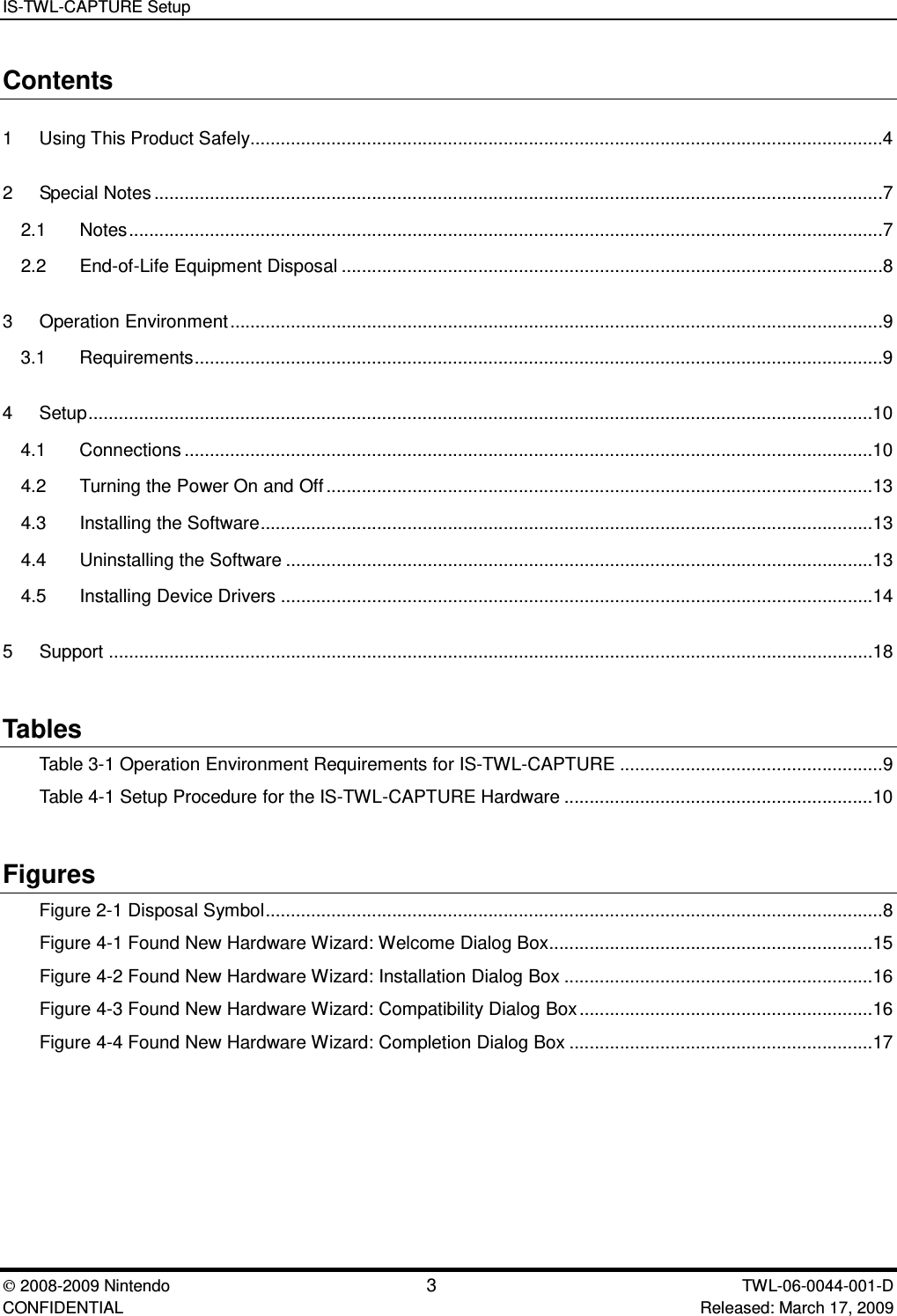

IS-TWL-CAPTURE Setup2008-2009 Nintendo 3TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009Contents1 Using This Product Safely.............................................................................................................................42 Special Notes................................................................................................................................................72.1 Notes.....................................................................................................................................................72.2 End-of-Life Equipment Disposal ...........................................................................................................83 Operation Environment.................................................................................................................................9 3.1 Requirements........................................................................................................................................94 Setup...........................................................................................................................................................104.1 Connections ........................................................................................................................................104.2 Turning the Power On and Off............................................................................................................134.3 Installing the Software.........................................................................................................................134.4 Uninstalling the Software ....................................................................................................................134.5 Installing Device Drivers .....................................................................................................................145 Support .......................................................................................................................................................18TablesTable 3-1 Operation Environment Requirements for IS-TWL-CAPTURE ....................................................9Table 4-1 Setup Procedure for the IS-TWL-CAPTURE Hardware .............................................................10FiguresFigure 2-1 Disposal Symbol..........................................................................................................................8Figure 4-1 Found New Hardware Wizard: Welcome Dialog Box................................................................15Figure 4-2 Found New Hardware Wizard: Installation Dialog Box .............................................................16Figure 4-3 Found New Hardware Wizard: Compatibility Dialog Box..........................................................16Figure 4-4 Found New Hardware Wizard: Completion Dialog Box ............................................................17

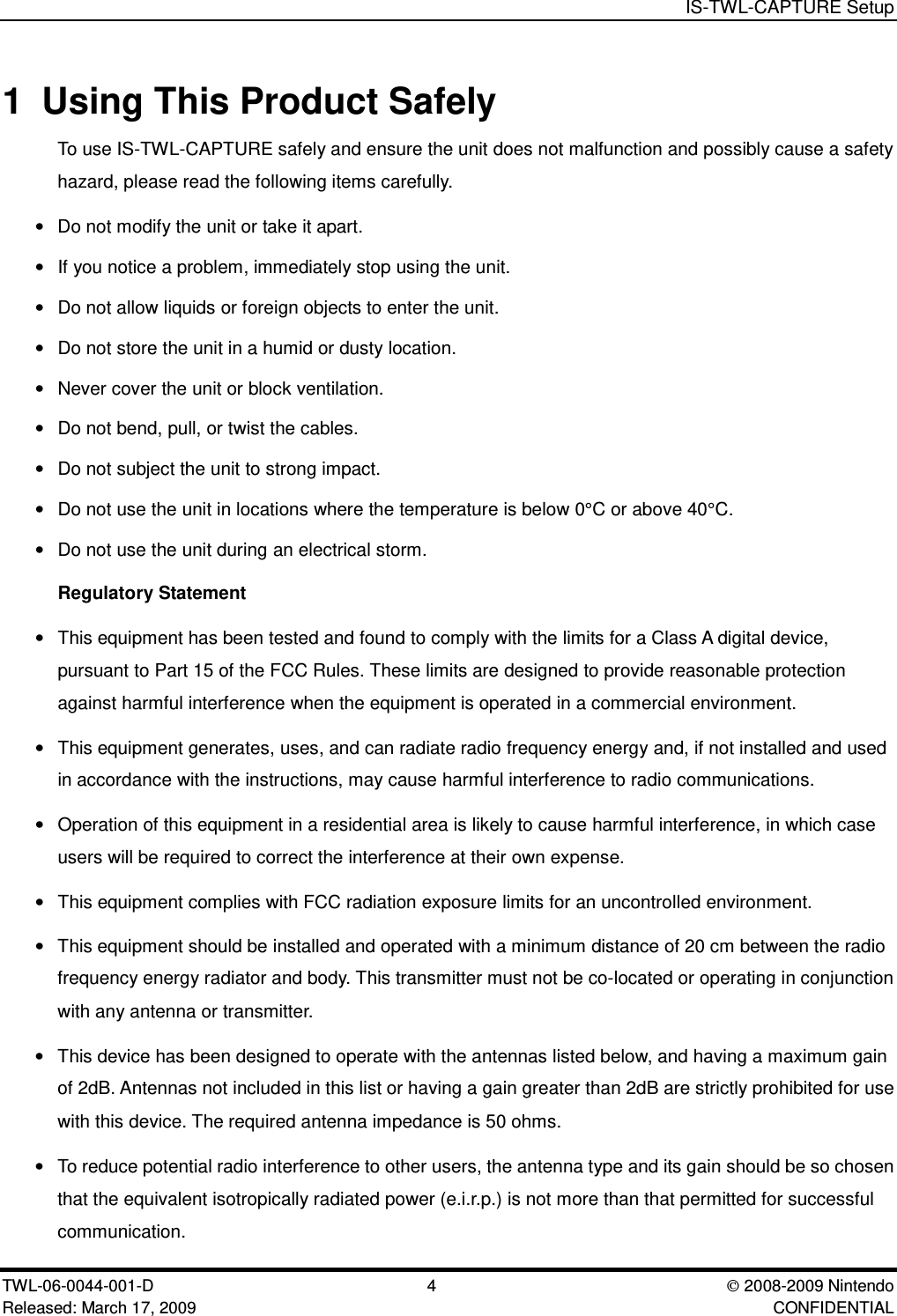

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 4 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL1 Using This Product SafelyTo use IS-TWL-CAPTURE safely and ensure the unit does not malfunction and possibly cause a safetyhazard, please read the following items carefully.•Do not modify the unit or take it apart.•If you notice a problem, immediately stop using the unit.•Do not allow liquids or foreign objects to enter the unit.•Do not store the unit in a humid or dusty location.•Never cover the unit or block ventilation.•Do not bend, pull, or twist the cables.•Do not subject the unit to strong impact.•Do not use the unit in locations where the temperature is below 0°C or above 40°C.•Do not use the unit during an electrical storm.Regulatory Statement•This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in a commercial environment.•This equipment generates, uses, and can radiate radio frequency energy and, if not installed and usedin accordance with the instructions, may cause harmful interference to radio communications.•Operation of this equipment in a residential area is likely to cause harmful interference, in which caseusers will be required to correct the interference at their own expense.•This equipment complies with FCC radiation exposure limits for an uncontrolled environment.•This equipment should be installed and operated with a minimum distance of 20 cm between the radiofrequency energy radiator and body. This transmitter must not be co-located or operating in conjunctionwith any antenna or transmitter.•This device has been designed to operate with the antennas listed below, and having a maximum gainof 2dB. Antennas not included in this list or having a gain greater than 2dB are strictly prohibited for usewith this device. The required antenna impedance is 50 ohms.•To reduce potential radio interference to other users, the antenna type and its gain should be so chosenthat the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successfulcommunication.

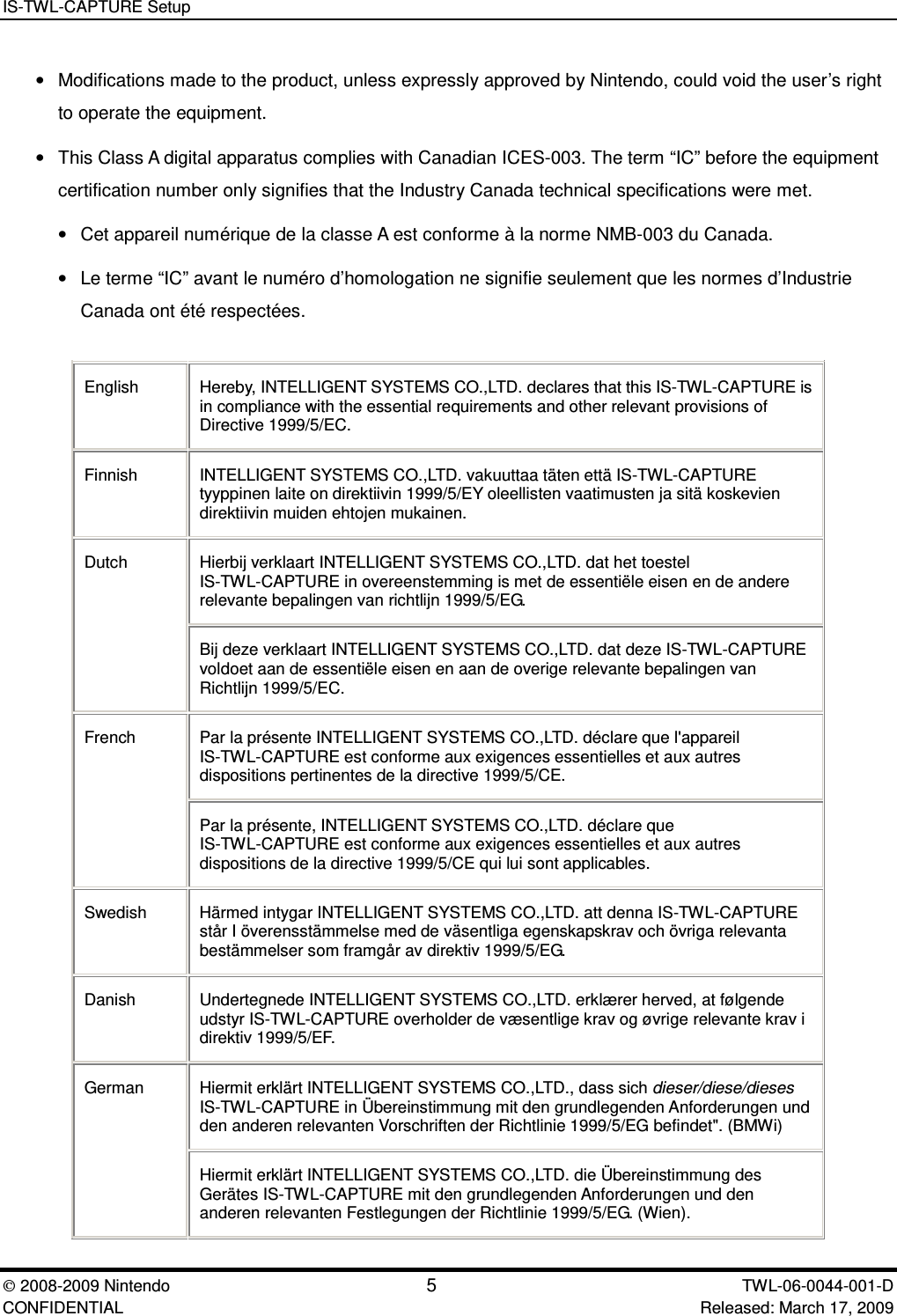

IS-TWL-CAPTURE Setup2008-2009 Nintendo 5TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009•Modifications made to the product, unless expressly approved by Nintendo, could void the user’s rightto operate the equipment.•This Class A digital apparatus complies with Canadian ICES-003. The term “IC” before the equipmentcertification number only signifies that the Industry Canada technical specifications were met.•Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.•Le terme “IC” avant le numéro d’homologation ne signifie seulement que les normes d’IndustrieCanada ont été respectées.English Hereby, INTELLIGENT SYSTEMS CO.,LTD. declares that this IS-TWL-CAPTURE isin compliance with the essential requirements and other relevant provisions ofDirective 1999/5/EC.Finnish INTELLIGENT SYSTEMS CO.,LTD. vakuuttaa täten että IS-TWL-CAPTUREtyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskeviendirektiivin muiden ehtojen mukainen.Hierbij verklaart INTELLIGENT SYSTEMS CO.,LTD. dat het toestelIS-TWL-CAPTURE in overeenstemming is met de essentiële eisen en de andererelevante bepalingen van richtlijn 1999/5/EG.DutchBij deze verklaart INTELLIGENT SYSTEMS CO.,LTD. dat deze IS-TWL-CAPTUREvoldoet aan de essentiële eisen en aan de overige relevante bepalingen vanRichtlijn 1999/5/EC.Par la présente INTELLIGENT SYSTEMS CO.,LTD. déclare que l'appareilIS-TWL-CAPTURE est conforme aux exigences essentielles et aux autresdispositions pertinentes de la directive 1999/5/CE.FrenchPar la présente, INTELLIGENT SYSTEMS CO.,LTD. déclare queIS-TWL-CAPTURE est conforme aux exigences essentielles et aux autresdispositions de la directive 1999/5/CE qui lui sont applicables.Swedish Härmed intygar INTELLIGENT SYSTEMS CO.,LTD. att denna IS-TWL-CAPTUREstår I överensstämmelse med de väsentliga egenskapskrav och övriga relevantabestämmelser som framgår av direktiv 1999/5/EG.Danish Undertegnede INTELLIGENT SYSTEMS CO.,LTD. erklærer herved, at følgendeudstyr IS-TWL-CAPTURE overholder de væsentlige krav og øvrige relevante krav idirektiv 1999/5/EF.Hiermit erklärt INTELLIGENT SYSTEMS CO.,LTD., dass sich dieser/diese/diesesIS-TWL-CAPTURE in Übereinstimmung mit den grundlegenden Anforderungen undden anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)GermanHiermit erklärt INTELLIGENT SYSTEMS CO.,LTD. die Übereinstimmung desGerätes IS-TWL-CAPTURE mit den grundlegenden Anforderungen und denanderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien).

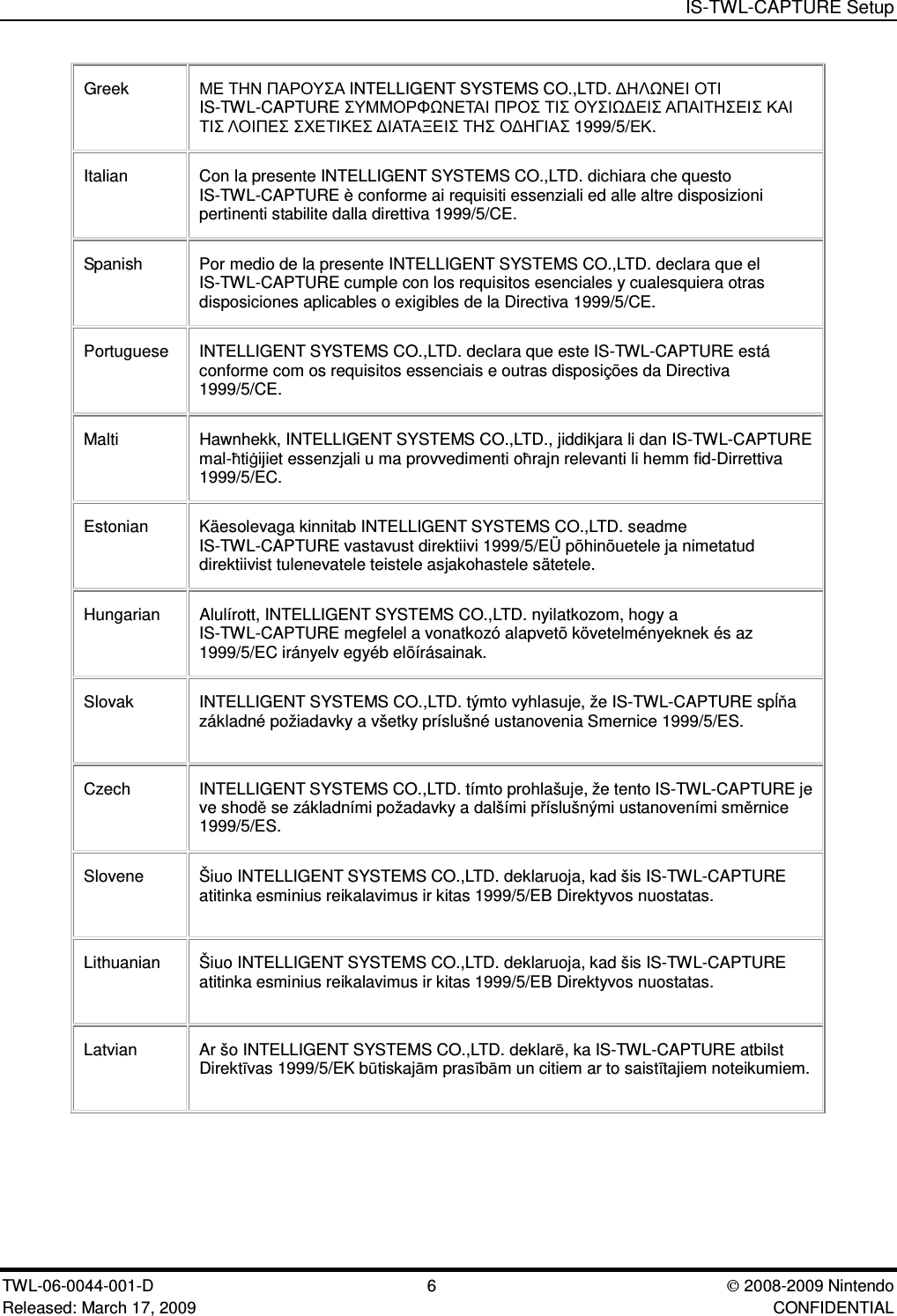

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 6 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALGreek    INTELLIGENT SYSTEMS CO.,LTD.   IS-TWL-CAPTURE             1999/5/.Italian Con la presente INTELLIGENT SYSTEMS CO.,LTD. dichiara che questoIS-TWL-CAPTURE è conforme ai requisiti essenziali ed alle altre disposizionipertinenti stabilite dalla direttiva 1999/5/CE.Spanish Por medio de la presente INTELLIGENT SYSTEMS CO.,LTD. declara que elIS-TWL-CAPTURE cumple con los requisitos esenciales y cualesquiera otrasdisposiciones aplicables o exigibles de la Directiva 1999/5/CE.Portuguese INTELLIGENT SYSTEMS CO.,LTD. declara que este IS-TWL-CAPTURE estáconforme com os requisitos essenciais e outras disposições da Directiva1999/5/CE.Malti Hawnhekk, INTELLIGENT SYSTEMS CO.,LTD., jiddikjara li dan IS-TWL-CAPTUREmal-tiijiet essenzjali u ma provvedimenti orajn relevanti li hemm fid-Dirrettiva1999/5/EC.Estonian Käesolevaga kinnitab INTELLIGENT SYSTEMS CO.,LTD. seadmeIS-TWL-CAPTURE vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatuddirektiivist tulenevatele teistele asjakohastele sätetele.Hungarian Alulírott, INTELLIGENT SYSTEMS CO.,LTD. nyilatkozom, hogy aIS-TWL-CAPTURE megfelel a vonatkozó alapvetõ követelményeknek és az1999/5/EC irányelv egyéb elõírásainak.Slovak INTELLIGENT SYSTEMS CO.,LTD. týmto vyhlasuje, že IS-TWL-CAPTURE spazákladné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Czech INTELLIGENT SYSTEMS CO.,LTD. tímto prohlašuje, že tento IS-TWL-CAPTURE jeve shodse základními požadavky a dalšími píslušnými ustanoveními smrnice1999/5/ES.Slovene Šiuo INTELLIGENT SYSTEMS CO.,LTD. deklaruoja, kad šis IS-TWL-CAPTUREatitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Lithuanian Šiuo INTELLIGENT SYSTEMS CO.,LTD. deklaruoja, kad šis IS-TWL-CAPTUREatitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Latvian Ar šo INTELLIGENT SYSTEMS CO.,LTD. deklar, ka IS-TWL-CAPTURE atbilstDirektvas 1999/5/EK btiskajm prasbm un citiem ar to saisttajiem noteikumiem.

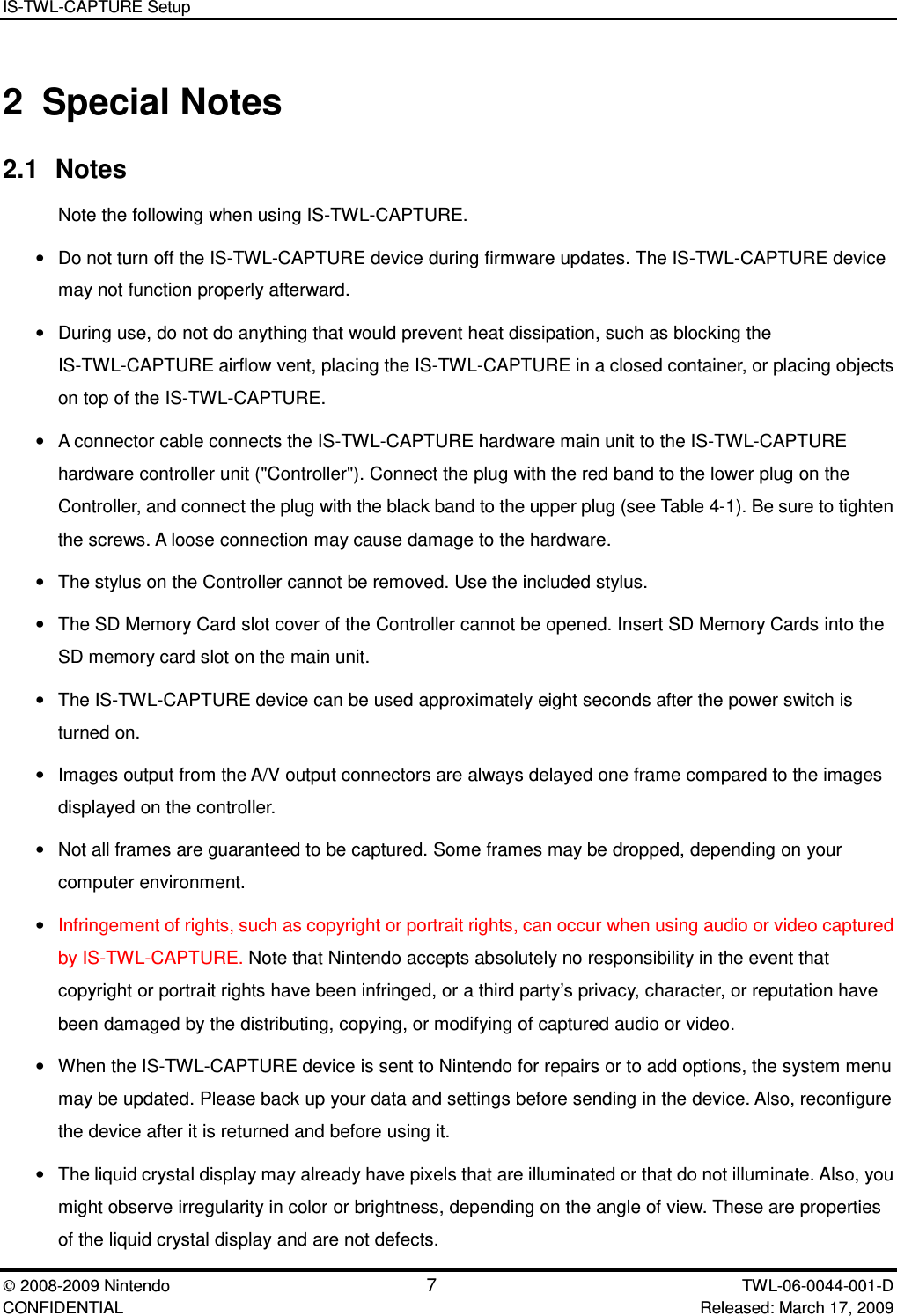

IS-TWL-CAPTURE Setup2008-2009 Nintendo 7TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 20092 Special Notes2.1 NotesNote the following when using IS-TWL-CAPTURE.•Do not turn off the IS-TWL-CAPTURE device during firmware updates. The IS-TWL-CAPTURE devicemay not function properly afterward.•During use, do not do anything that would prevent heat dissipation, such as blocking theIS-TWL-CAPTURE airflow vent, placing the IS-TWL-CAPTURE in a closed container, or placing objectson top of the IS-TWL-CAPTURE.•A connector cable connects the IS-TWL-CAPTURE hardware main unit to the IS-TWL-CAPTUREhardware controller unit ("Controller"). Connect the plug with the red band to the lower plug on theController, and connect the plug with the black band to the upper plug (see Table 4-1). Be sure to tightenthe screws. A loose connection may cause damage to the hardware.•The stylus on the Controller cannot be removed. Use the included stylus.•The SD Memory Card slot cover of the Controller cannot be opened. Insert SD Memory Cards into theSD memory card slot on the main unit.•The IS-TWL-CAPTURE device can be used approximately eight seconds after the power switch isturned on.•Images output from the A/V output connectors are always delayed one frame compared to the imagesdisplayed on the controller.•Not all frames are guaranteed to be captured. Some frames may be dropped, depending on yourcomputer environment.•Infringement of rights, such as copyright or portrait rights, can occur when using audio or video capturedby IS-TWL-CAPTURE. Note that Nintendo accepts absolutely no responsibility in the event thatcopyright or portrait rights have been infringed, or a third party’s privacy, character, or reputation havebeen damaged by the distributing, copying, or modifying of captured audio or video.•When the IS-TWL-CAPTURE device is sent to Nintendo for repairs or to add options, the system menumay be updated. Please back up your data and settings before sending in the device. Also, reconfigurethe device after it is returned and before using it.•The liquid crystal display may already have pixels that are illuminated or that do not illuminate. Also, youmight observe irregularity in color or brightness, depending on the angle of view. These are propertiesof the liquid crystal display and are not defects.

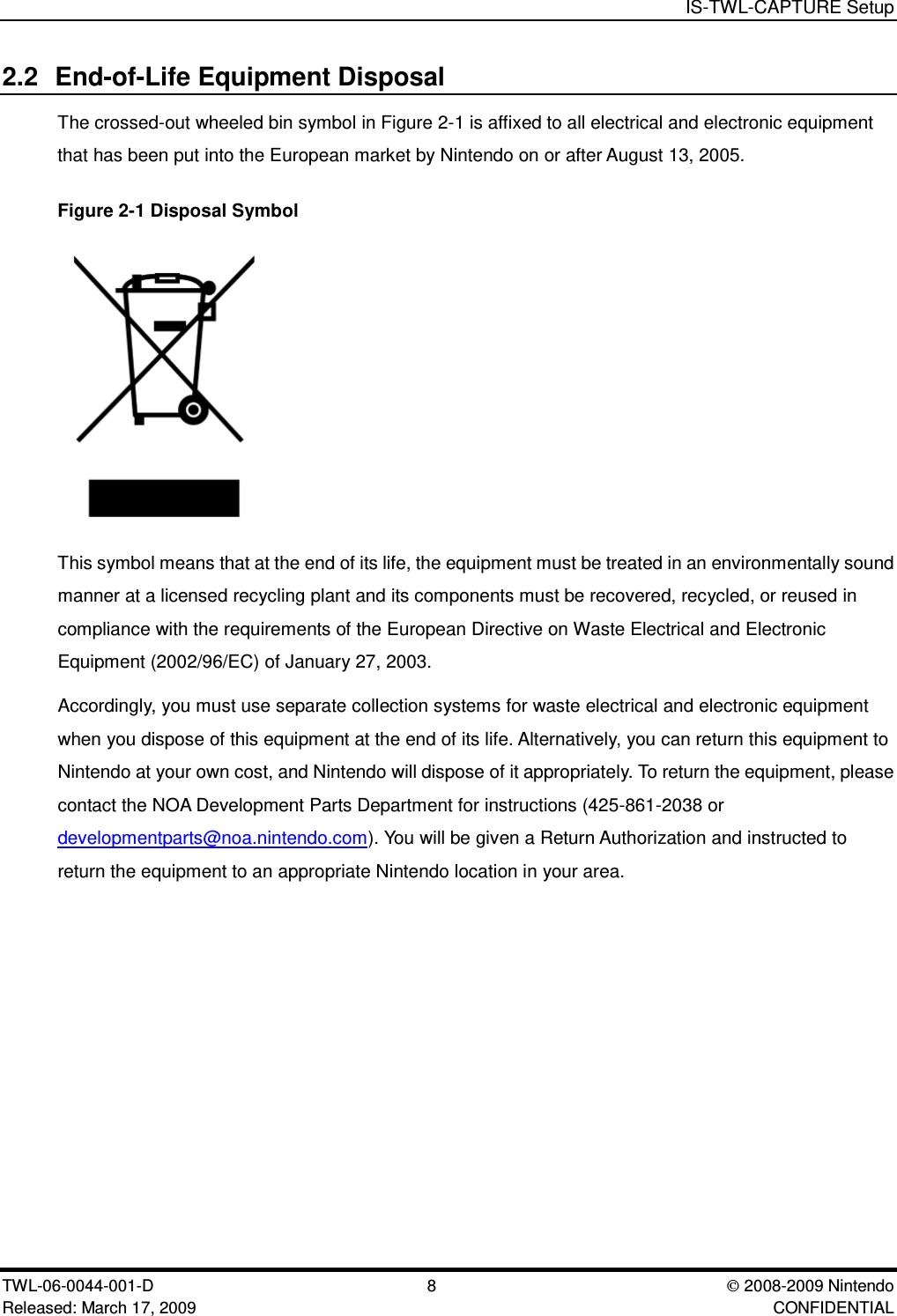

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 8 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL2.2 End-of-Life Equipment DisposalThe crossed-out wheeled bin symbol in Figure 2-1 is affixed to all electrical and electronic equipmentthat has been put into the European market by Nintendo on or after August 13, 2005.Figure 2-1 Disposal SymbolThis symbol means that at the end of its life, the equipment must be treated in an environmentally soundmanner at a licensed recycling plant and its components must be recovered, recycled, or reused incompliance with the requirements of the European Directive on Waste Electrical and ElectronicEquipment (2002/96/EC) of January 27, 2003.Accordingly, you must use separate collection systems for waste electrical and electronic equipmentwhen you dispose of this equipment at the end of its life. Alternatively, you can return this equipment toNintendo at your own cost, and Nintendo will dispose of it appropriately. To return the equipment, pleasecontact the NOA Development Parts Department for instructions (425-861-2038 ordevelopmentparts@noa.nintendo.com). You will be given a Return Authorization and instructed toreturn the equipment to an appropriate Nintendo location in your area.

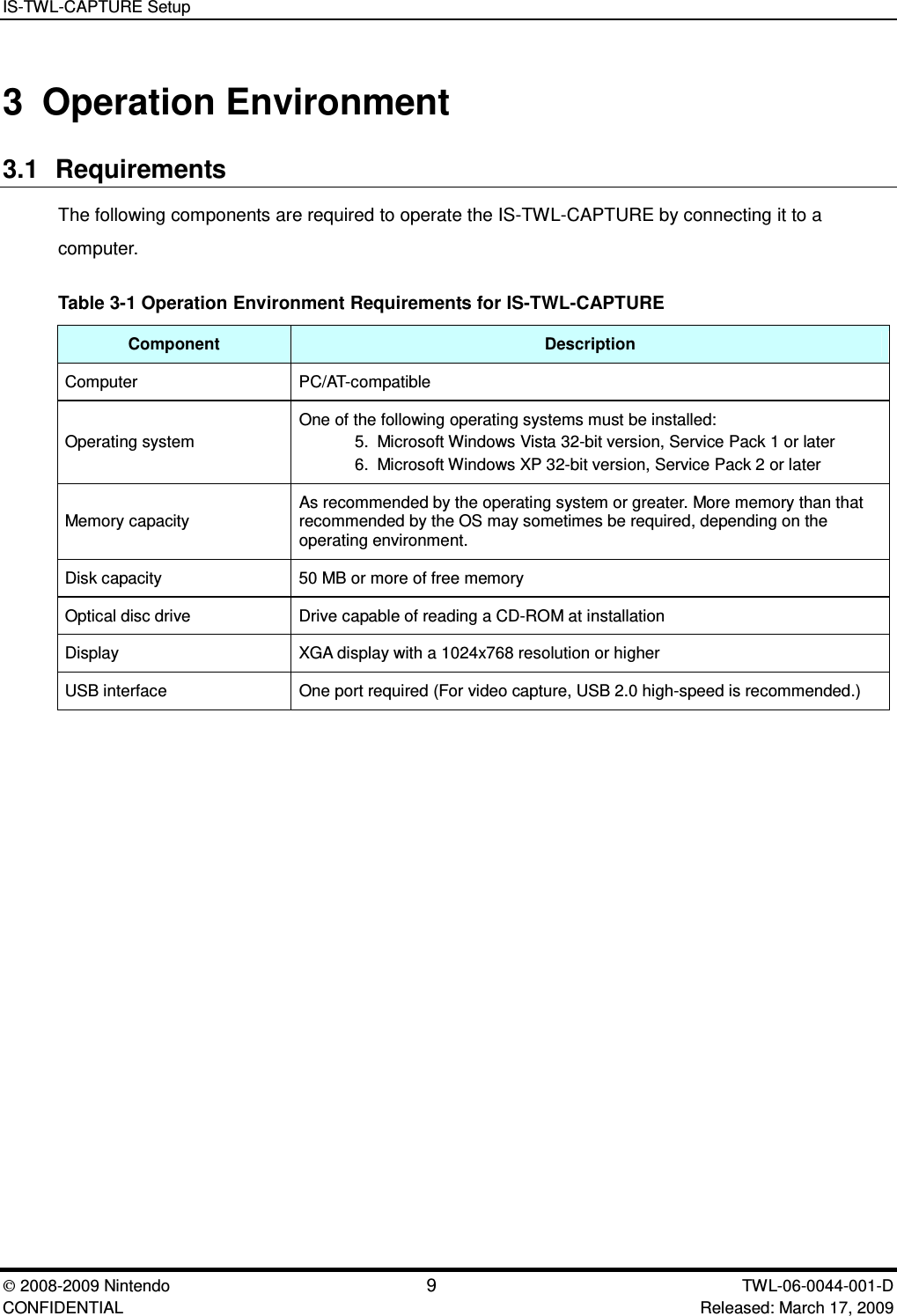

IS-TWL-CAPTURE Setup2008-2009 Nintendo 9TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 20093 Operation Environment3.1 RequirementsThe following components are required to operate the IS-TWL-CAPTURE by connecting it to acomputer.Table 3-1 Operation Environment Requirements for IS-TWL-CAPTUREComponent DescriptionComputer PC/AT-compatibleOperating systemOne of the following operating systems must be installed:5. Microsoft Windows Vista 32-bit version, Service Pack 1 or later6. Microsoft Windows XP 32-bit version, Service Pack 2 or laterMemory capacity As recommended by the operating system or greater. More memory than thatrecommended by the OS may sometimes be required, depending on theoperating environment.Disk capacity 50 MB or more of free memoryOptical disc drive Drive capable of reading a CD-ROM at installationDisplay XGA display with a 1024x768 resolution or higherUSB interface One port required (For video capture, USB 2.0 high-speed is recommended.)

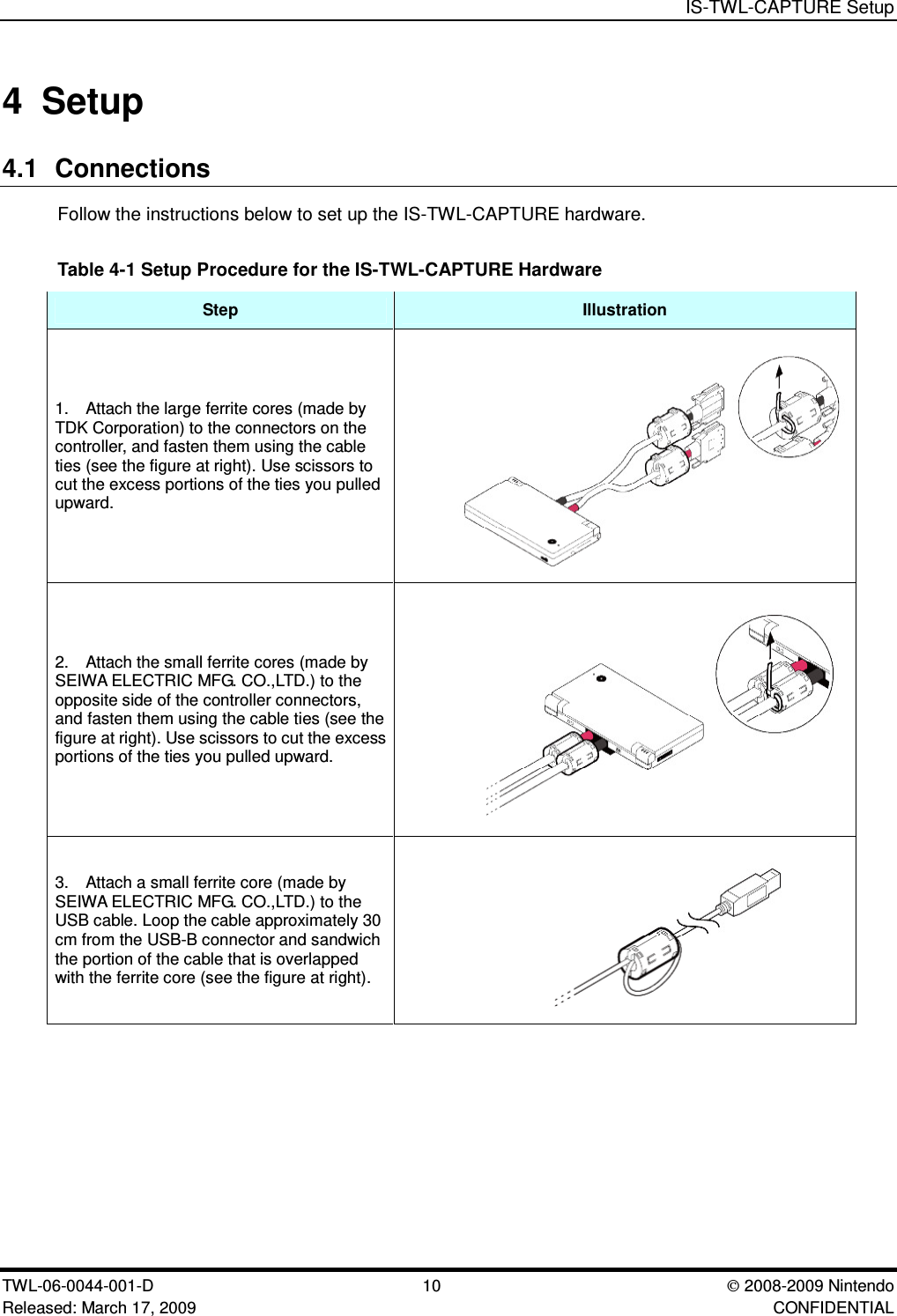

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 10 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL4 Setup4.1 ConnectionsFollow the instructions below to set up the IS-TWL-CAPTURE hardware.Table 4-1 Setup Procedure for the IS-TWL-CAPTURE HardwareStep Illustration1. Attach the large ferrite cores (made byTDK Corporation) to the connectors on thecontroller, and fasten them using the cableties (see the figure at right). Use scissors tocut the excess portions of the ties you pulledupward.2. Attach the small ferrite cores (made bySEIWA ELECTRIC MFG. CO.,LTD.) to theopposite side of the controller connectors,and fasten them using the cable ties (see thefigure at right). Use scissors to cut the excessportions of the ties you pulled upward.3. Attach a small ferrite core (made bySEIWA ELECTRIC MFG. CO.,LTD.) to theUSB cable. Loop the cable approximately 30cm from the USB-B connector and sandwichthe portion of the cable that is overlappedwith the ferrite core (see the figure at right).

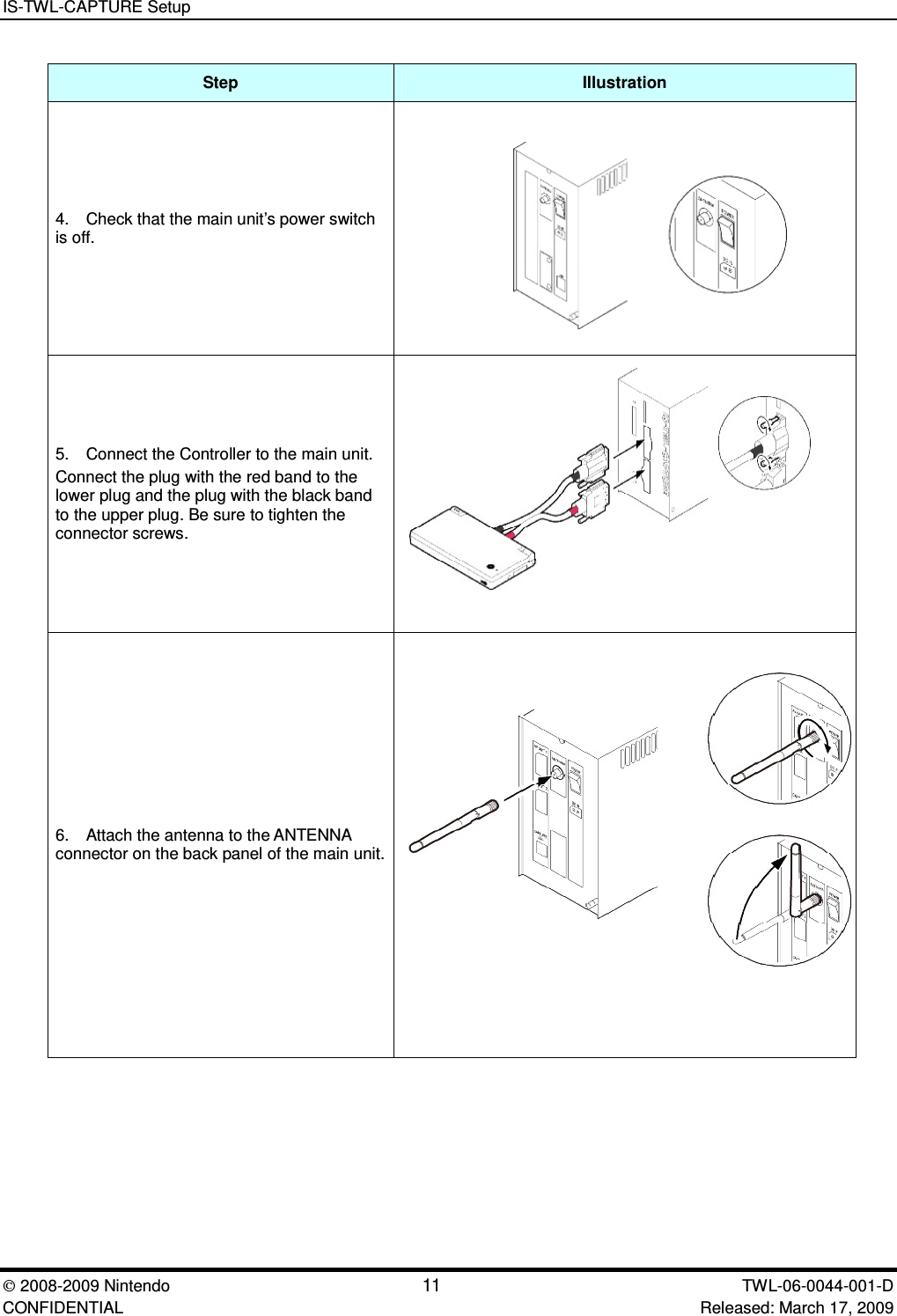

IS-TWL-CAPTURE Setup2008-2009 Nintendo 11 TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009Step Illustration4. Check that the main unit’s power switchis off.5. Connect the Controller to the main unit.Connect the plug with the red band to thelower plug and the plug with the black bandto the upper plug. Be sure to tighten theconnector screws.6. Attach the antenna to the ANTENNAconnector on the back panel of the main unit.

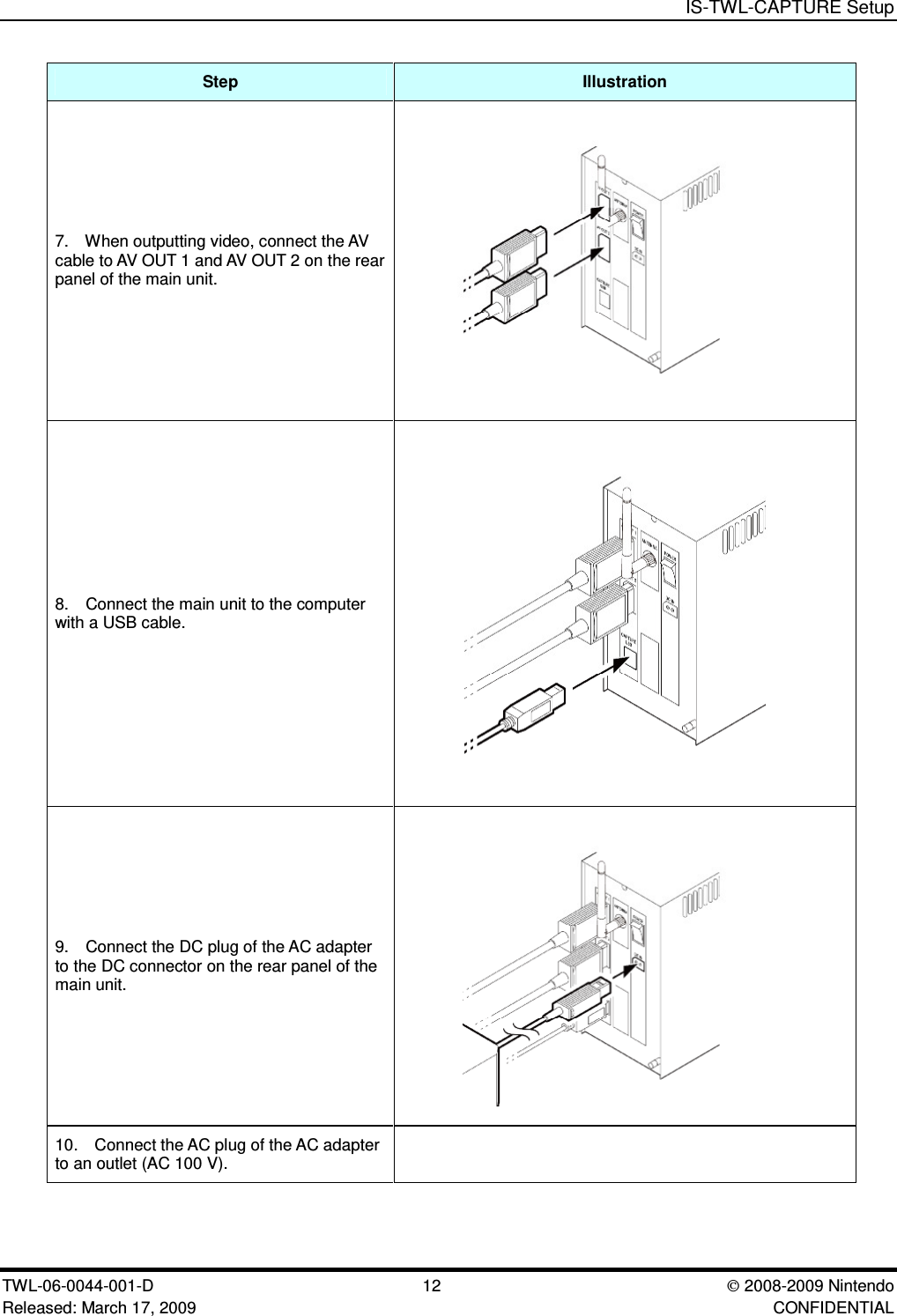

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 12 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALStep Illustration7. When outputting video, connect the AVcable to AV OUT 1 and AV OUT 2 on the rearpanel of the main unit.8. Connect the main unit to the computerwith a USB cable.9. Connect the DC plug of the AC adapterto the DC connector on the rear panel of themain unit.10. Connect the AC plug of the AC adapterto an outlet (AC 100 V).

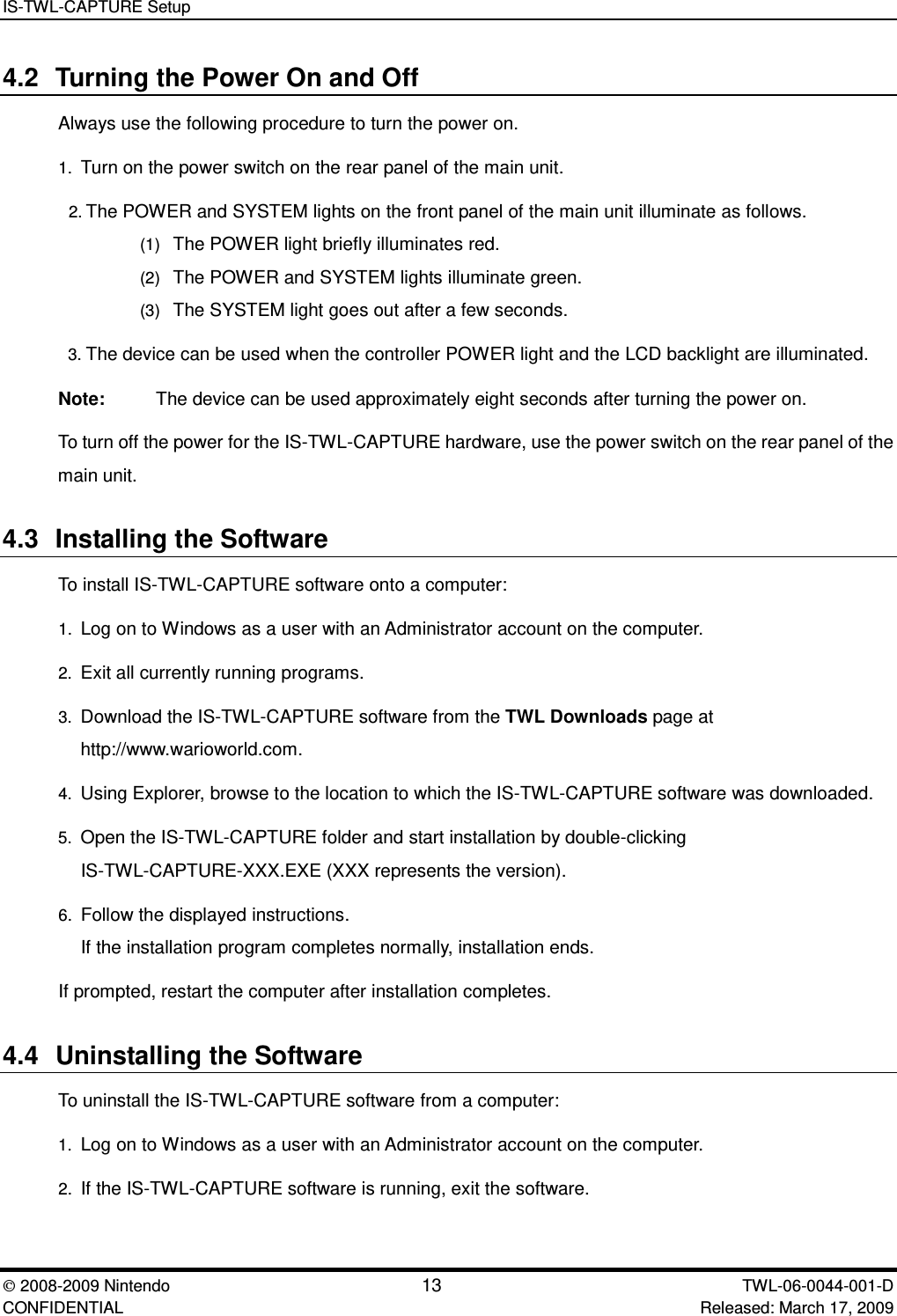

IS-TWL-CAPTURE Setup2008-2009 Nintendo 13 TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 20094.2 Turning the Power On and OffAlways use the following procedure to turn the power on.1. Turn on the power switch on the rear panel of the main unit.2. The POWER and SYSTEM lights on the front panel of the main unit illuminate as follows.(1) The POWER light briefly illuminates red.(2) The POWER and SYSTEM lights illuminate green.(3) The SYSTEM light goes out after a few seconds.3. The device can be used when the controller POWER light and the LCD backlight are illuminated.Note: The device can be used approximately eight seconds after turning the power on.To turn off the power for the IS-TWL-CAPTURE hardware, use the power switch on the rear panel of themain unit.4.3 Installing the SoftwareTo install IS-TWL-CAPTURE software onto a computer:1. Log on to Windows as a user with an Administrator account on the computer.2. Exit all currently running programs.3. Download the IS-TWL-CAPTURE software from the TWL Downloads page athttp://www.warioworld.com.4. Using Explorer, browse to the location to which the IS-TWL-CAPTURE software was downloaded.5. Open the IS-TWL-CAPTURE folder and start installation by double-clickingIS-TWL-CAPTURE-XXX.EXE (XXX represents the version).6. Follow the displayed instructions.If the installation program completes normally, installation ends.If prompted, restart the computer after installation completes.4.4 Uninstalling the SoftwareTo uninstall the IS-TWL-CAPTURE software from a computer:1. Log on to Windows as a user with an Administrator account on the computer.2. If the IS-TWL-CAPTURE software is running, exit the software.

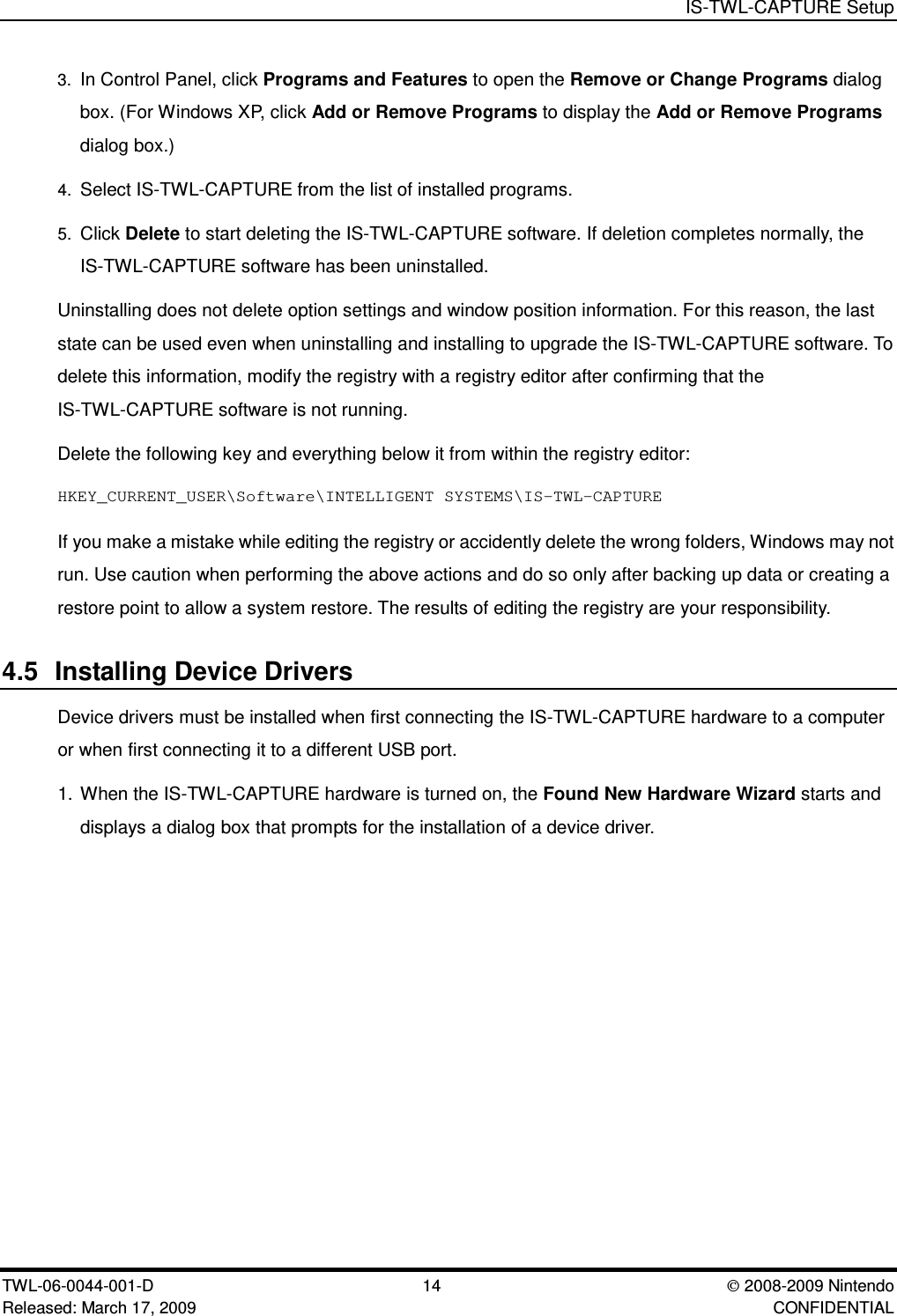

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 14 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL3. In Control Panel, click Programs and Features to open the Remove or Change Programs dialogbox. (For Windows XP, click Add or Remove Programs to display the Add or Remove Programsdialog box.)4. Select IS-TWL-CAPTURE from the list of installed programs.5. Click Delete to start deleting the IS-TWL-CAPTURE software. If deletion completes normally, theIS-TWL-CAPTURE software has been uninstalled.Uninstalling does not delete option settings and window position information. For this reason, the laststate can be used even when uninstalling and installing to upgrade the IS-TWL-CAPTURE software. Todelete this information, modify the registry with a registry editor after confirming that theIS-TWL-CAPTURE software is not running.Delete the following key and everything below it from within the registry editor:HKEY_CURRENT_USER\Software\INTELLIGENT SYSTEMS\IS-TWL-CAPTUREIf you make a mistake while editing the registry or accidently delete the wrong folders, Windows may notrun. Use caution when performing the above actions and do so only after backing up data or creating arestore point to allow a system restore. The results of editing the registry are your responsibility.4.5 Installing Device DriversDevice drivers must be installed when first connecting the IS-TWL-CAPTURE hardware to a computeror when first connecting it to a different USB port.1. When the IS-TWL-CAPTURE hardware is turned on, the Found New Hardware Wizard starts anddisplays a dialog box that prompts for the installation of a device driver.

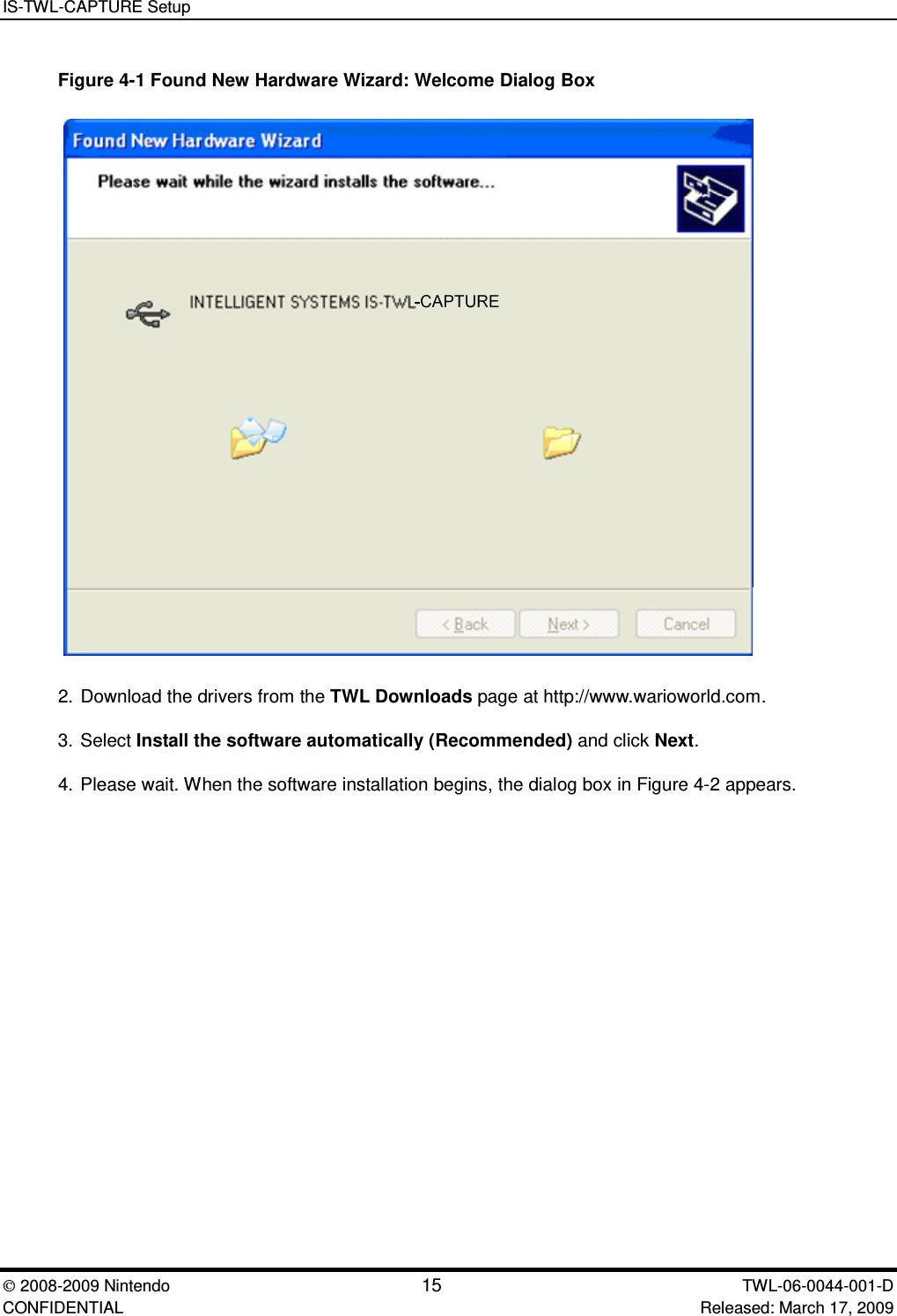

IS-TWL-CAPTURE Setup2008-2009 Nintendo 15 TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009Figure 4-1 Found New Hardware Wizard: Welcome Dialog Box2. Download the drivers from the TWL Downloads page at http://www.warioworld.com.3. Select Install the software automatically (Recommended) and click Next.4. Please wait. When the software installation begins, the dialog box in Figure 4-2 appears.

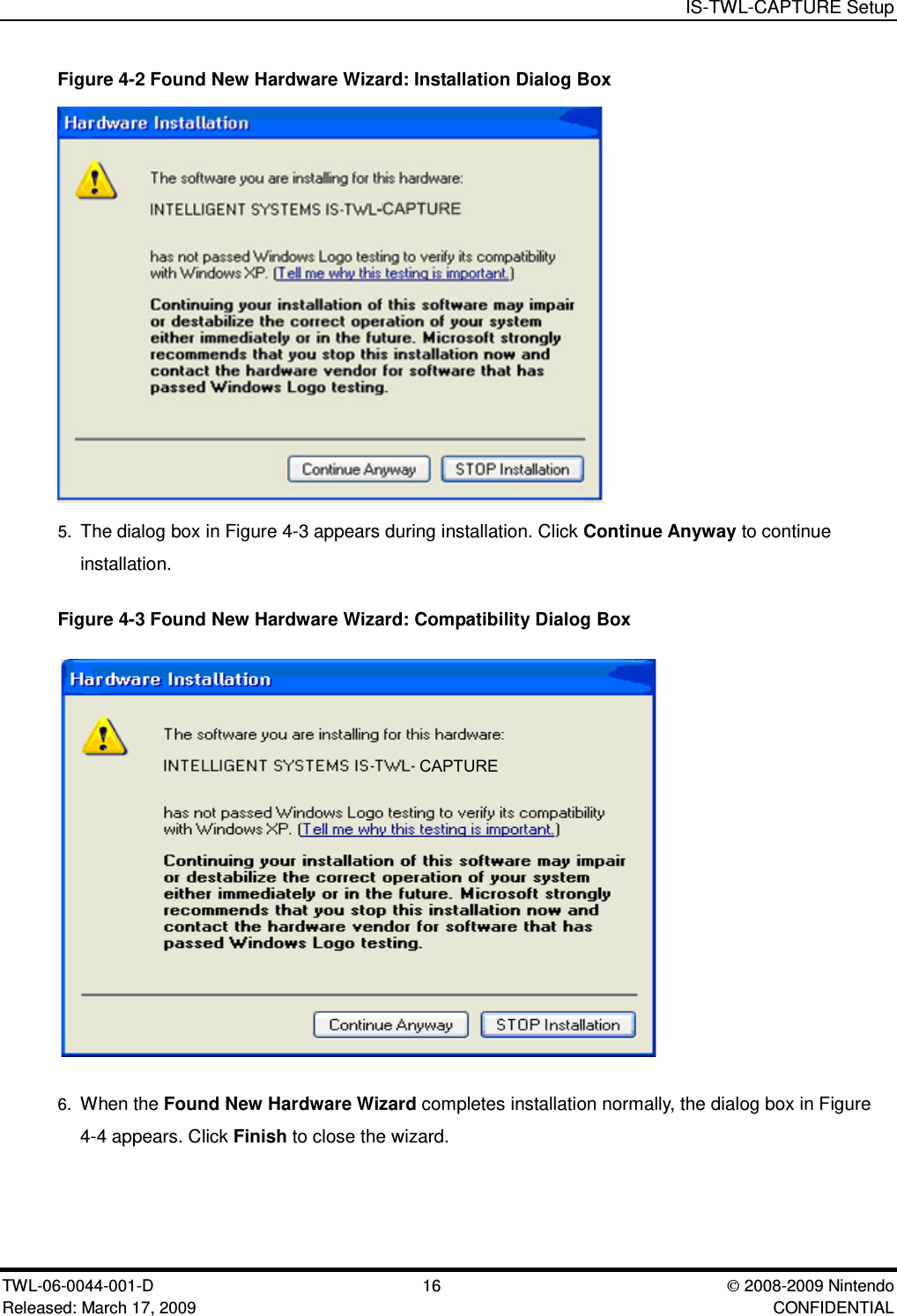

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 16 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIALFigure 4-2 Found New Hardware Wizard: Installation Dialog Box5. The dialog box in Figure 4-3 appears during installation. Click Continue Anyway to continueinstallation.Figure 4-3 Found New Hardware Wizard: Compatibility Dialog BoxCAPTURE 6. When the Found New Hardware Wizard completes installation normally, the dialog box in Figure4-4 appears. Click Finish to close the wizard.

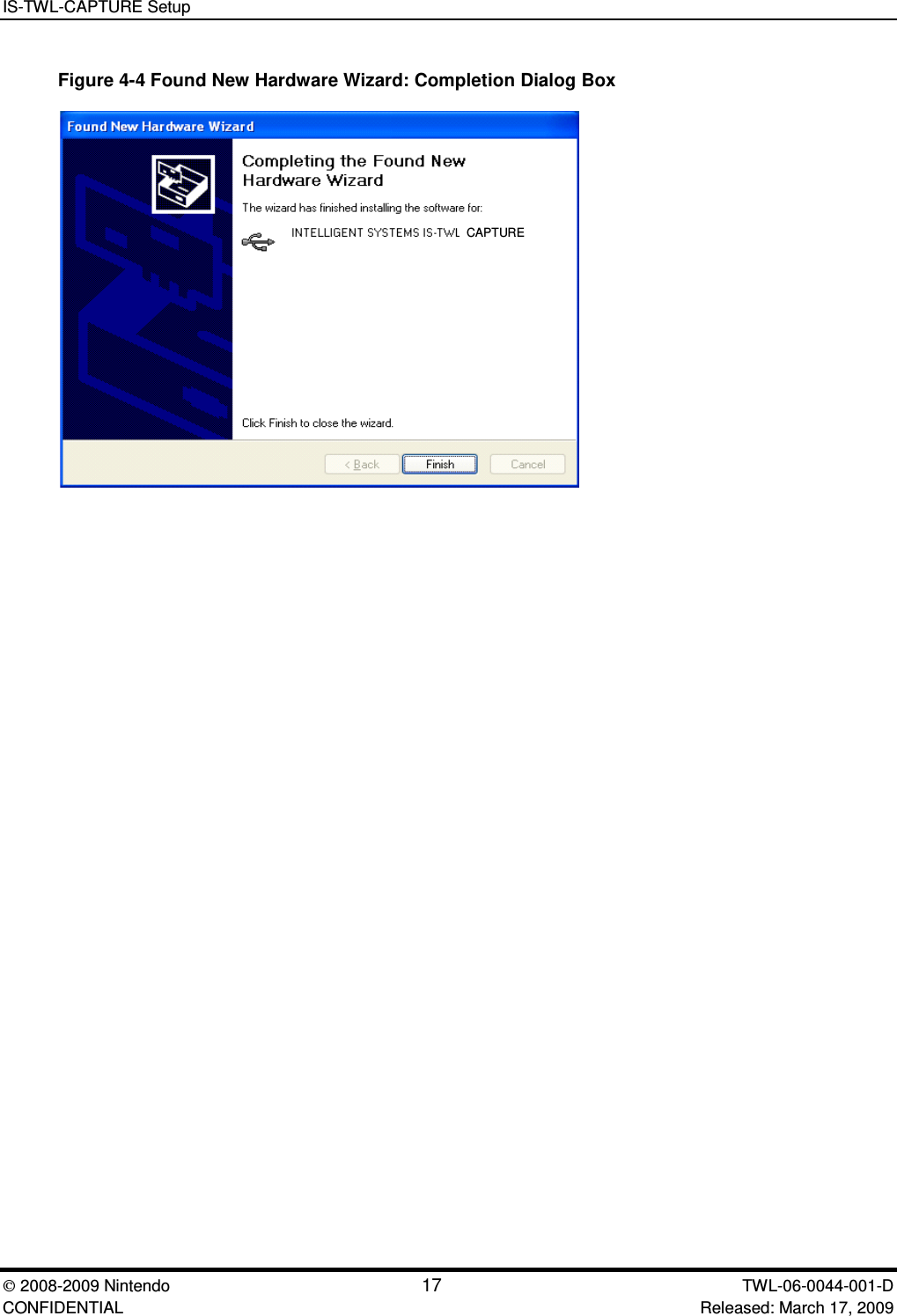

IS-TWL-CAPTURE Setup2008-2009 Nintendo 17 TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009Figure 4-4 Found New Hardware Wizard: Completion Dialog BoxCAPTURE

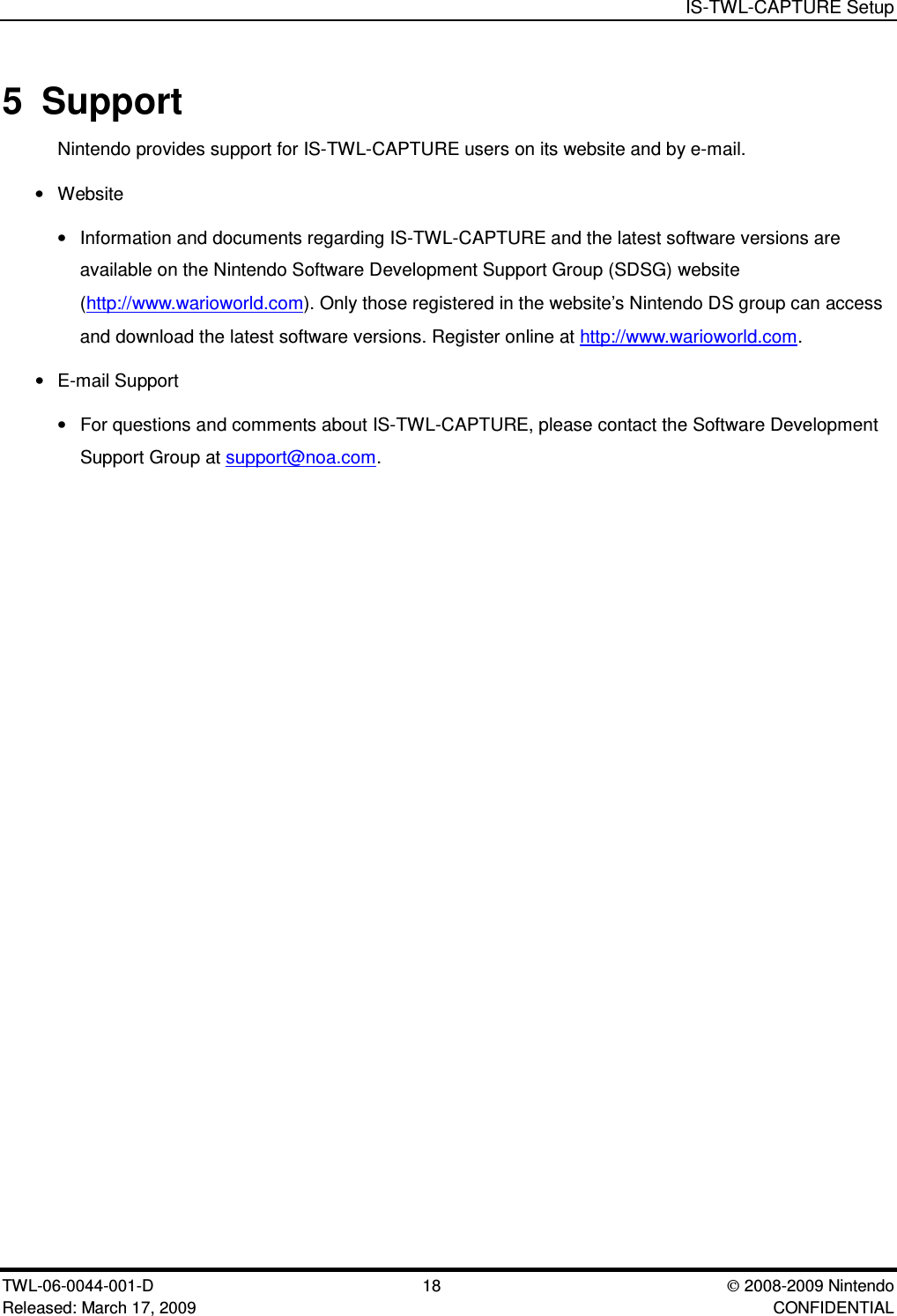

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 18 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL5 SupportNintendo provides support for IS-TWL-CAPTURE users on its website and by e-mail.•Website•Information and documents regarding IS-TWL-CAPTURE and the latest software versions areavailable on the Nintendo Software Development Support Group (SDSG) website(http://www.warioworld.com). Only those registered in the website’s Nintendo DS group can accessand download the latest software versions. Register online at http://www.warioworld.com.•E-mail Support•For questions and comments about IS-TWL-CAPTURE, please contact the Software DevelopmentSupport Group at support@noa.com.

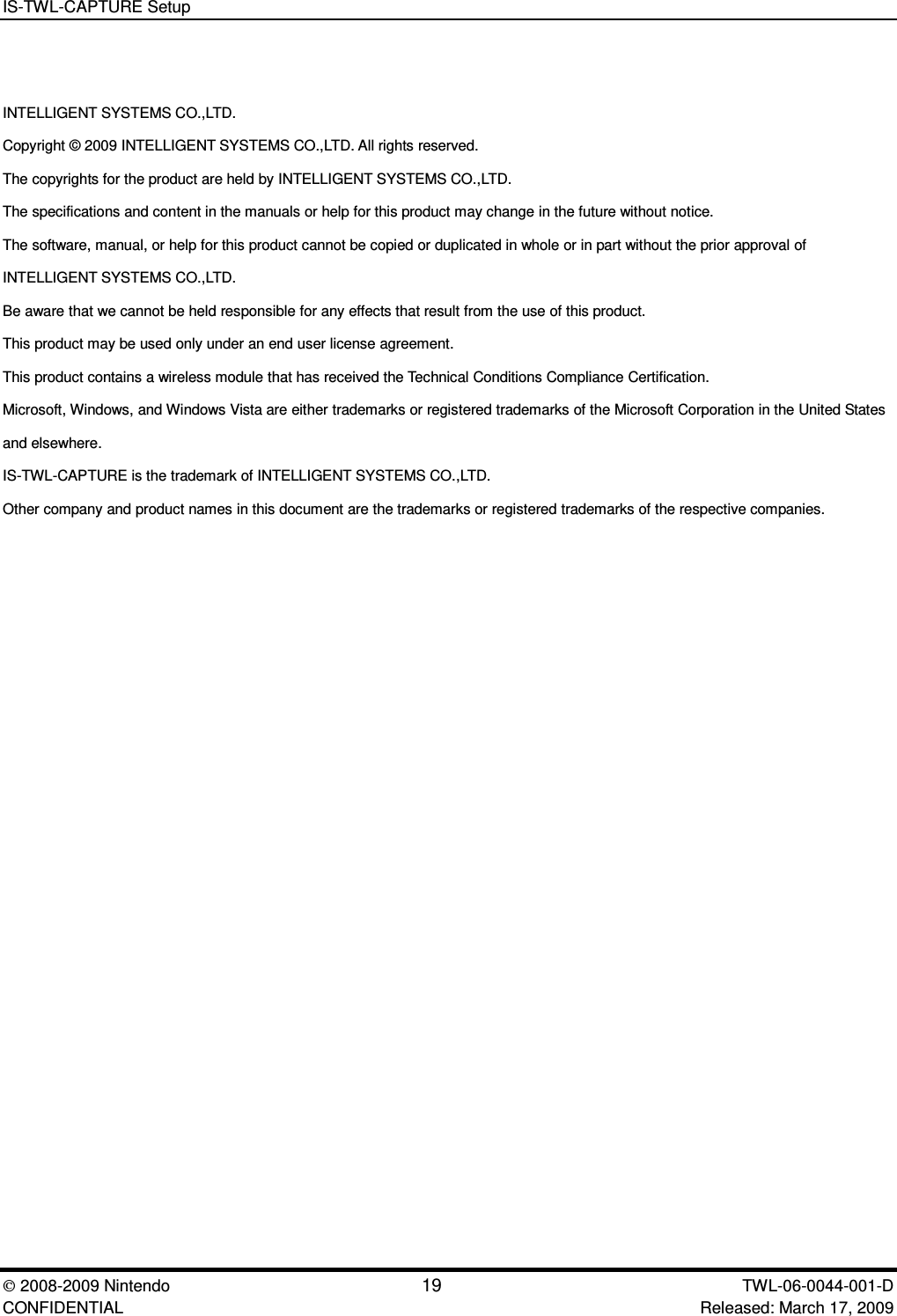

IS-TWL-CAPTURE Setup2008-2009 Nintendo 19 TWL-06-0044-001-D CONFIDENTIAL Released: March 17, 2009INTELLIGENT SYSTEMS CO.,LTD.Copyright © 2009 INTELLIGENT SYSTEMS CO.,LTD. All rights reserved.The copyrights for the product are held by INTELLIGENT SYSTEMS CO.,LTD.The specifications and content in the manuals or help for this product may change in the future without notice.The software, manual, or help for this product cannot be copied or duplicated in whole or in part without the prior approval ofINTELLIGENT SYSTEMS CO.,LTD.Be aware that we cannot be held responsible for any effects that result from the use of this product.This product may be used only under an end user license agreement.This product contains a wireless module that has received the Technical Conditions Compliance Certification.Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of the Microsoft Corporation in the United Statesand elsewhere.IS-TWL-CAPTURE is the trademark of INTELLIGENT SYSTEMS CO.,LTD.Other company and product names in this document are the trademarks or registered trademarks of the respective companies.

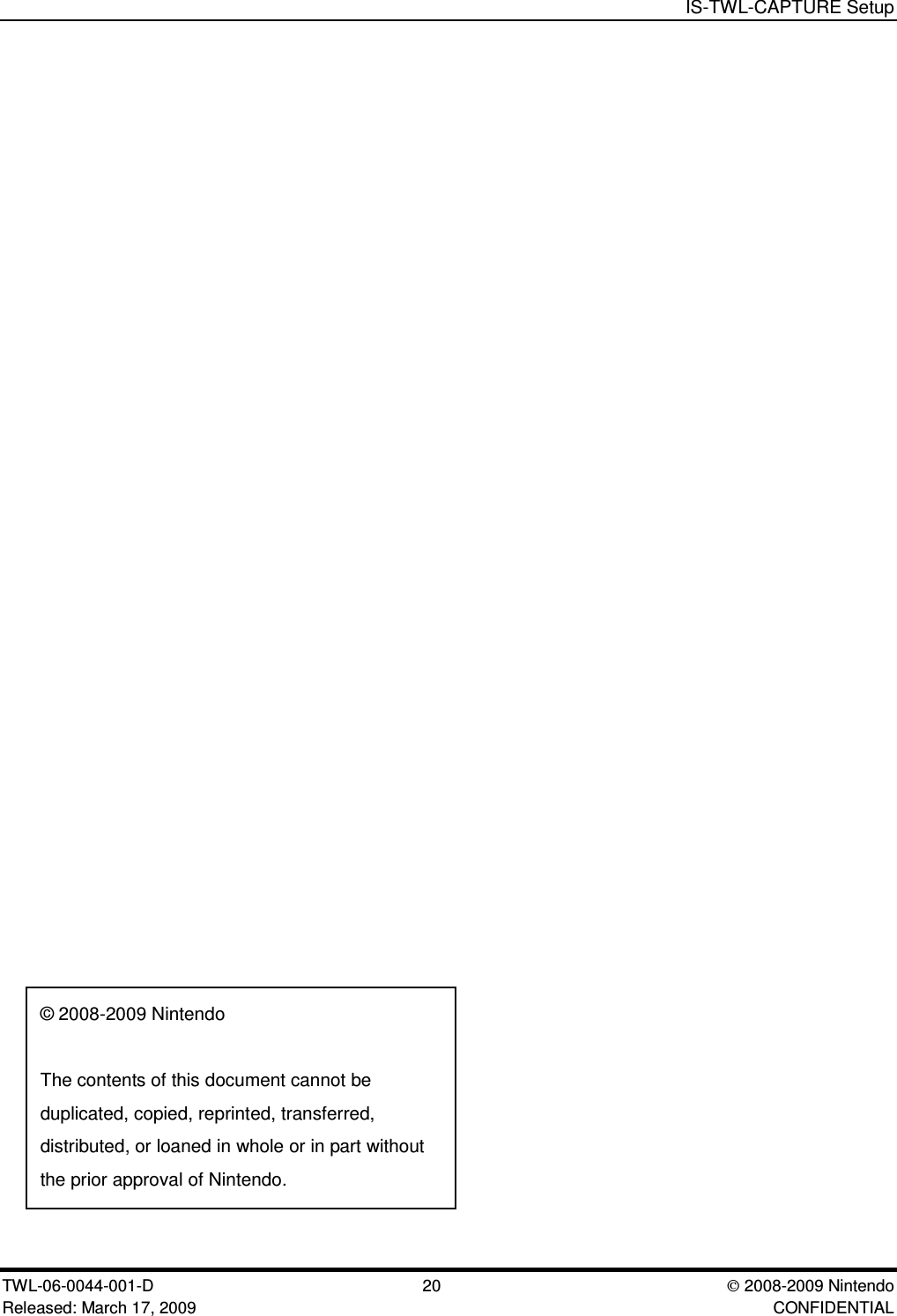

IS-TWL-CAPTURE SetupTWL-06-0044-001-D 20 2008-2009 NintendoReleased: March 17, 2009 CONFIDENTIAL© 2008-2009 NintendoThe contents of this document cannot beduplicated, copied, reprinted, transferred,distributed, or loaned in whole or in part withoutthe prior approval of Nintendo.
