FEATURES
• 85V-305V 20A
• ZigBee Pro
• 128 bit AES Security
• 13dBm RF Power
• RoHS Compliant
• Hard-Wired
• Plenum Rated

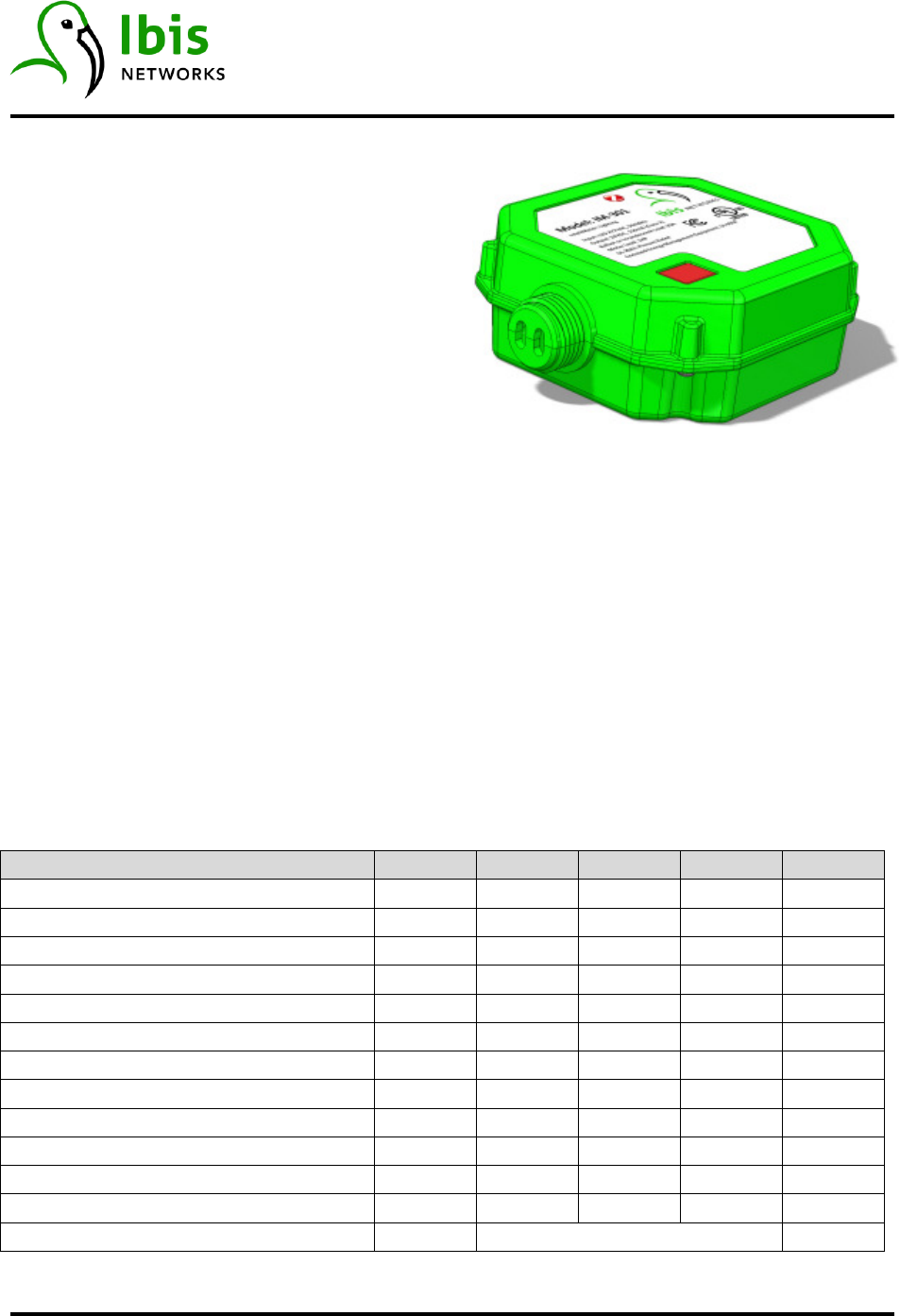

DESCRIPTION
The IM-301 Power-Pack monitors and controls energy usage for lighting or other electrical
systems. It works with InteliSockets
TM
to form a secure wireless mesh network for control and
reporting of data. Each network is anchored by an InteliGateway
TM
base station providing
connectivity to the InteliNetwork
TM
, a cloud-based data collection and analysis application. The
IM-301 provides a low voltage 24Vdc supply for motion detectors and ambient light sensors,
which can then control the operating state of the meter in either occupancy or vacancy mode
(meeting Title24 requirements). A wide input voltage range accommodates 120V, 240V, and
277V lighting systems.
PERFORMANCE
Parameter Symbol Min Typ Max Units
Input Voltage (RMS) V
IN
85 305 V
Input Frequency 47 60 63 Hz
Output Current (RMS) I
OUT
20 A
Power Consumption 1.5 W
Reporting Interval 1 15 255 s
Accuracy (Energy) 0.5 %
Accuracy (Voltage) 1 %
Accuracy (Interval) 1 ms
Resolution 1 W-s
RF Range 50 m
RF Transmit Power -4 12 dBm
ZigBee Channels 11 26
Size 3.5 x 3.5 x 1.5 inches
IM-301
InteliMeter
™
Lighting Power-Pack
Ibis Networks
∙
841 Bishop Street Suite 1601
∙
Honolulu, HI 96813
∙
www.ibisnetworks.com 2
06/21/17
COMPLIANCE
Agency File
UL916 – Energy Management Equipment E470522
ZigBee Profile (Plover) 0x114B
FCC 2AECN300
ENVIRONMENTAL
Parameter Symbol Min Typ Max Units
Operating Temperature T
O
0 25 40 C
Storage Temperature T
S
-40 100 C
Relative Humidity RH 0 95 %
PUSHBUTTON / LED
Action Result
Press (no hold) Toggle outlet state (on/off).
Pressed while plugging in Ignored.
Press and hold 3+ seconds Soft reset. Re-start socket. Similar to plugging in.
Press and hold 8+ seconds Hard reset. All conditions are set to default. Normally this sets
socket back to FACTORY channel and hive. However, if socket
has been deployed on CUSTOMER channel and hive, a hard reset
will then toggle between FACTORY and CUSTOMER settings. This
is a useful feature to correct a socket that has been accidentally
reset to FACTORY. It also provides a quick method to perform a
manual self-heal. If on FACTORY, LED will be red, CUSTOMER
green.
Color Meaning
Black Socket has no power.
Yellow Boot-up sequence in effect. Typically ½ second duration.
Flashing Red or Green Socket is attempting to join mesh network.
Red Outlet is off.
Green Outlet is on.
IM-301
InteliMeter
™
Lighting Power-Pack
Ibis Networks
∙
841 Bishop Street Suite 1601
∙
Honolulu, HI 96813
∙
www.ibisnetworks.com 3
06/21/17
USAGE
The IM-301 is a direct replacement for your existing power-packs, offering a quick low-cost
upgrade for your lighting system. You can now monitor exact power consumption for each
bank of lighting. Each InteliMeter is another wireless node on your Ibis mesh along with
InteliSockets. Set lighting schedules, or use the motion detector input to trigger control of
other sockets. The IM-301 is not limited to lighting and can be used for other purposes, such as
control of existing outlets or hard-wired devices. A wide input voltage range and 20 amp
capability opens up a world of possibilities.

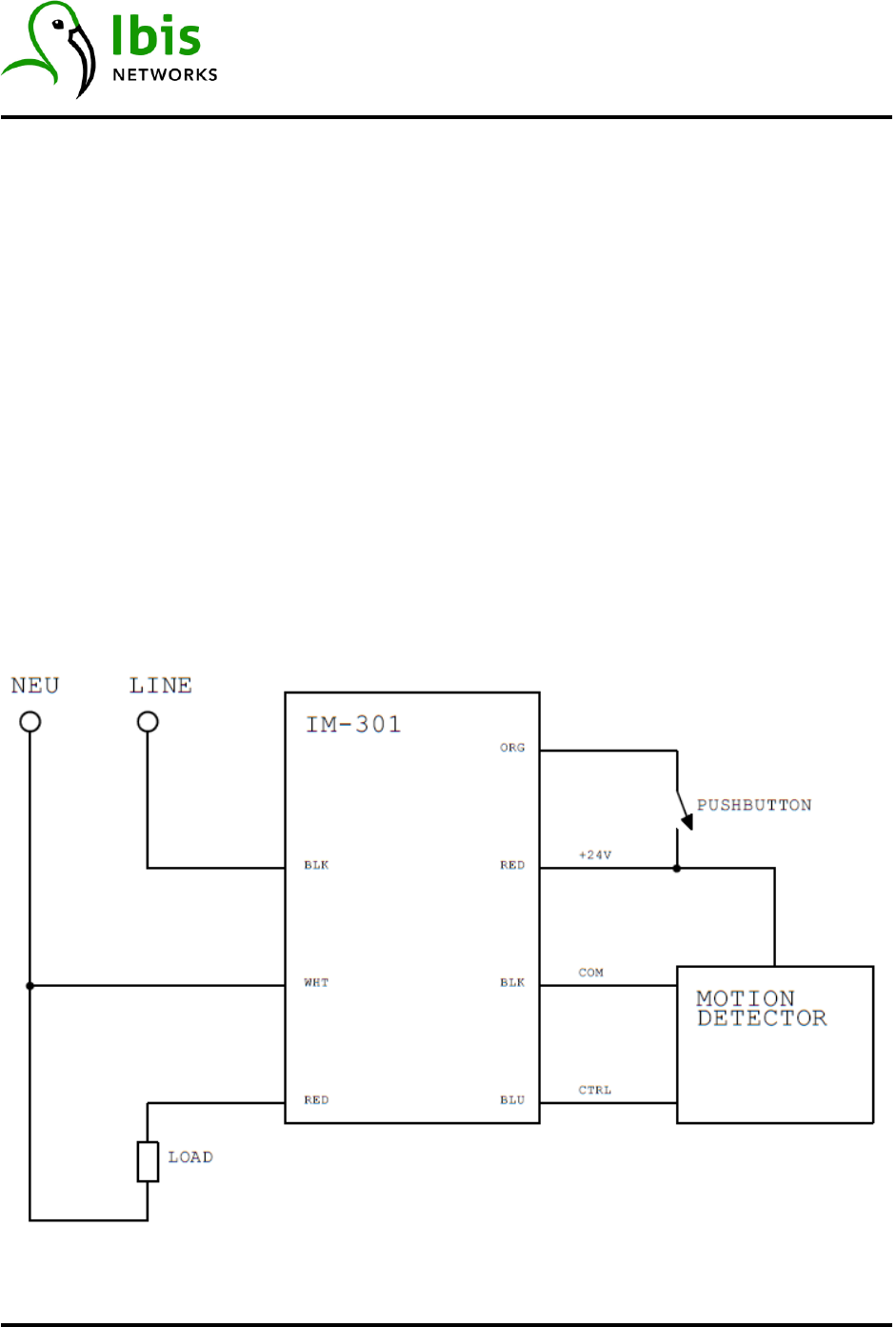

WIRING
The IM-301 is designed to install as part of your electrical wiring infrastructure. The enclosure
mounts to a standard electrical box using a feed-thru grommet, keeping “hot” wires internal.
Class 2 secondary low voltage control wires are for connecting standard motion detectors or
ambient light sensors. The external pushbutton and motion detector are both optional.
IM-301
InteliMeter
™
Lighting Power-Pack
Ibis Networks
∙
841 Bishop Street Suite 1601
∙
Honolulu, HI 96813
∙
www.ibisnetworks.com 4
06/21/17
FCC
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user’s authority to operate this equipment.
To satisfy RF exposure requirements, this device and its antenna must operate with a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
IM-303
Inline InteliMeter
™
Ibis Networks
∙
841 Bishop Street Suite 1601
∙
Honolulu, HI 96813
∙
www.ibisnetworks.com 1
06/21/17
FEATURES
• 85V-265V 30A
• ZigBee Pro
• 128 bit AES Security
• 13dBm RF Power
• Surge Protected
• Hard-Wired

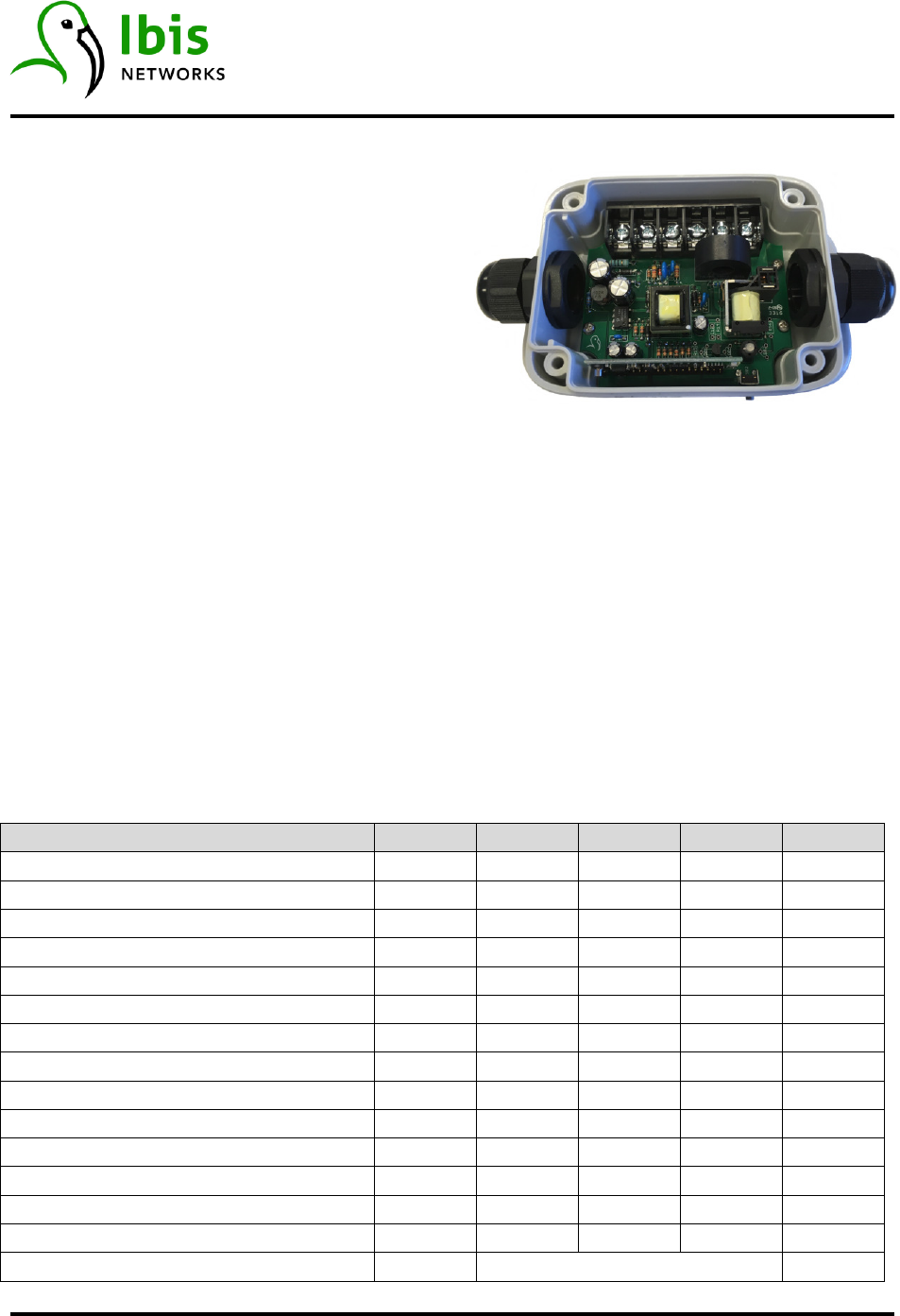

DESCRIPTION
The IM-303 InteliMeter measures and controls energy consumption. It works with other
InteliSockets
TM
and InteliMeters
TM
to form a secure wireless mesh network for control and
reporting of data. Each network has an InteliGateway
TM
base station providing connectivity to
the InteliNetwork
TM
, a cloud-based data collection and analysis application. InteliMeters can be
configured to operate on any of the 16 ZigBee channels, with channel 26 set as factory default.
In addition, the hive (PANID) has over 4000 possible settings, preventing nearby systems from
interfering with each other. The IM-303 was designed with residential hot water heaters in
mind.
PERFORMANCE
Parameter Symbol Min Typ Max Units
Input Voltage (RMS) V
IN
85 265 V
Input Frequency 47 60 63 Hz
Output Current (RMS) I
OUT
30 A
Power Consumption 1 W
Reporting Interval 1 15 255 s
Accuracy (Energy) 0.5 %
Accuracy (Voltage) 1 %
Accuracy (Interval) 1 ms
Resolution 1 W-s
RF Range 50 m
RF Transmit Power -4 12 dBm
Sockets per Network 120
ZigBee Channels 11 26
ZigBee Hive 0x3000 0x3FFF
Size 4.5 x 3.5 x 2 inches
IM-303
Inline InteliMeter
™
Ibis Networks
∙
841 Bishop Street Suite 1601
∙
Honolulu, HI 96813
∙
www.ibisnetworks.com 2
06/21/17
COMPLIANCE
Agency File
UL916 – Energy Management Equipment E470522
ZigBee Profile (Plover) 0x114B
FCC 2AECN300
ENVIRONMENTAL
Parameter Symbol Min Typ Max Units
Operating Temperature T
O
0 25 40 C
Storage Temperature T
S
-40 100 C
Relative Humidity RH 0 95 %
PUSHBUTTON / LED
Action Result
Press (no hold) Toggle outlet state (on/off).
Pressed while plugging in Ignored.
Press and hold 3+ seconds Soft reset. Re-start socket. Similar to plugging in.
Press and hold 8+ seconds Hard reset. All conditions are set to default. Normally this sets
socket back to FACTORY channel and hive. However, if socket
has been deployed on CUSTOMER channel and hive, a hard reset
will then toggle between FACTORY and CUSTOMER settings. This
is a useful feature to correct a socket that has been accidentally
reset to FACTORY. It also provides a quick method to perform a
manual self-heal. If on FACTORY, LED will be red, CUSTOMER
green.
Color Meaning
Black Socket has no power.
Yellow Boot-up sequence in effect. Typically ½ second duration.
Flashing Red or Green Socket is attempting to join mesh network.
Red Outlet is off.
Green Outlet is on.
IM-303
Inline InteliMeter
™
Ibis Networks
∙
841 Bishop Street Suite 1601
∙
Honolulu, HI 96813
∙
www.ibisnetworks.com 3
06/21/17
WIRING
The IM-303 is designed to be hard-wired between the power feed and a standard 240V 30A hot
water heater. #10 wires connect to screw terminals, designated at RED (neutral), BLACK (hot)
and bare or GREEN (earth).
FCC
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user’s authority to operate this equipment.
To satisfy RF exposure requirements, this device and its antenna must operate with a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
