1. Introduction

Thank you for choosing a payment terminal Ingenico.

We recommend to read carefully this user guide : It provides the necessary information

about safety precautions, unpacking, installation, and maintenance of your terminal.

WARRANTY / SECURITY

To benefit from the guarantee-related product, and to respect the security, we ask you to

use only accessories delivered in box with the product, or original Ingenico accessories,

entrusting maintenance operations only to an authorized person.

Failure to comply with these instructions will void the manufacturer’s responsibility.

The IPA-280 terminal concept is :

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

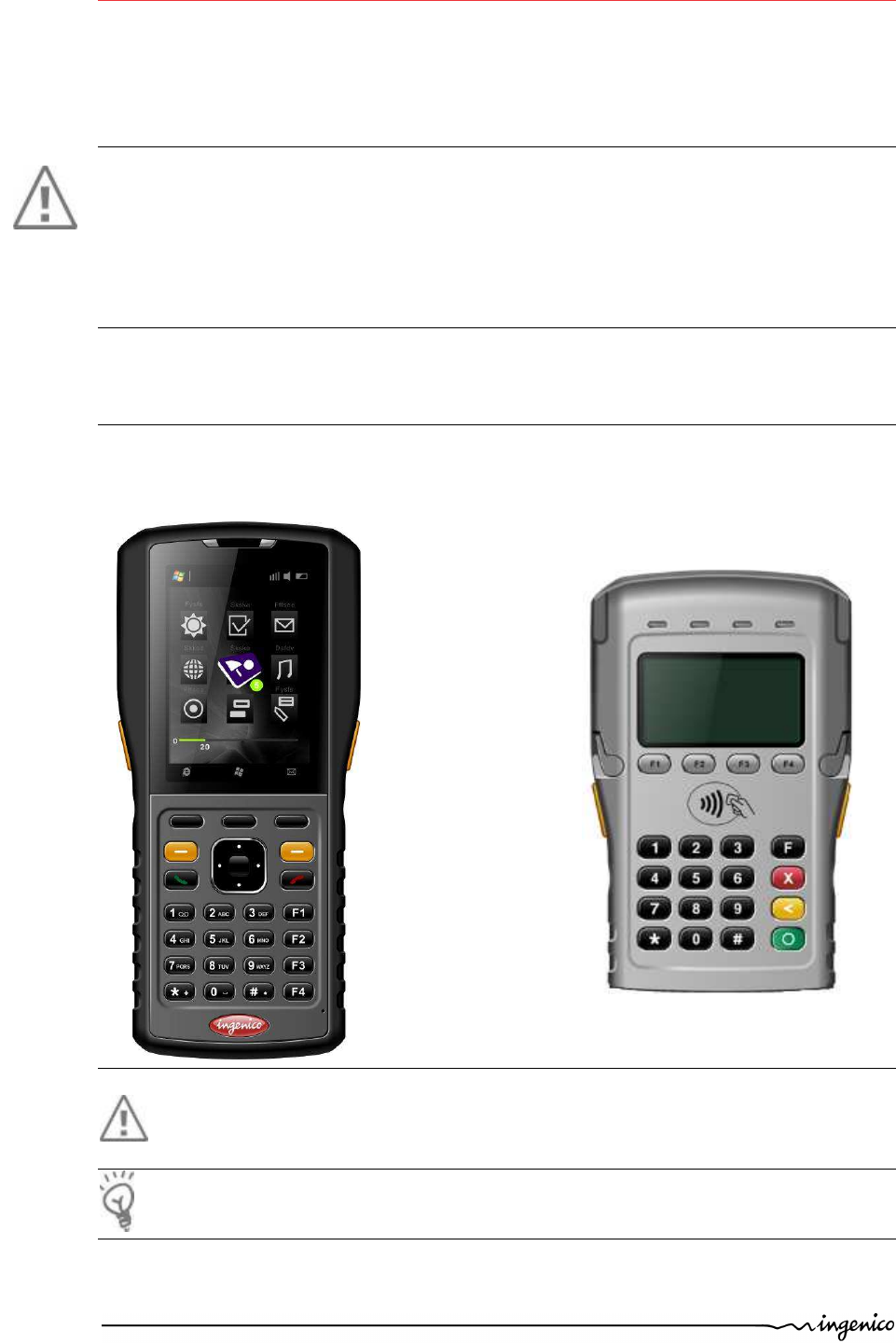

PDA

Module

SPM

Modul

e

(

Security Payment Module

)

2. Unpacking

ADVICE

Carefully preserve the packaging of the iPA280. It must be re-used whenever the terminal is

shipped.

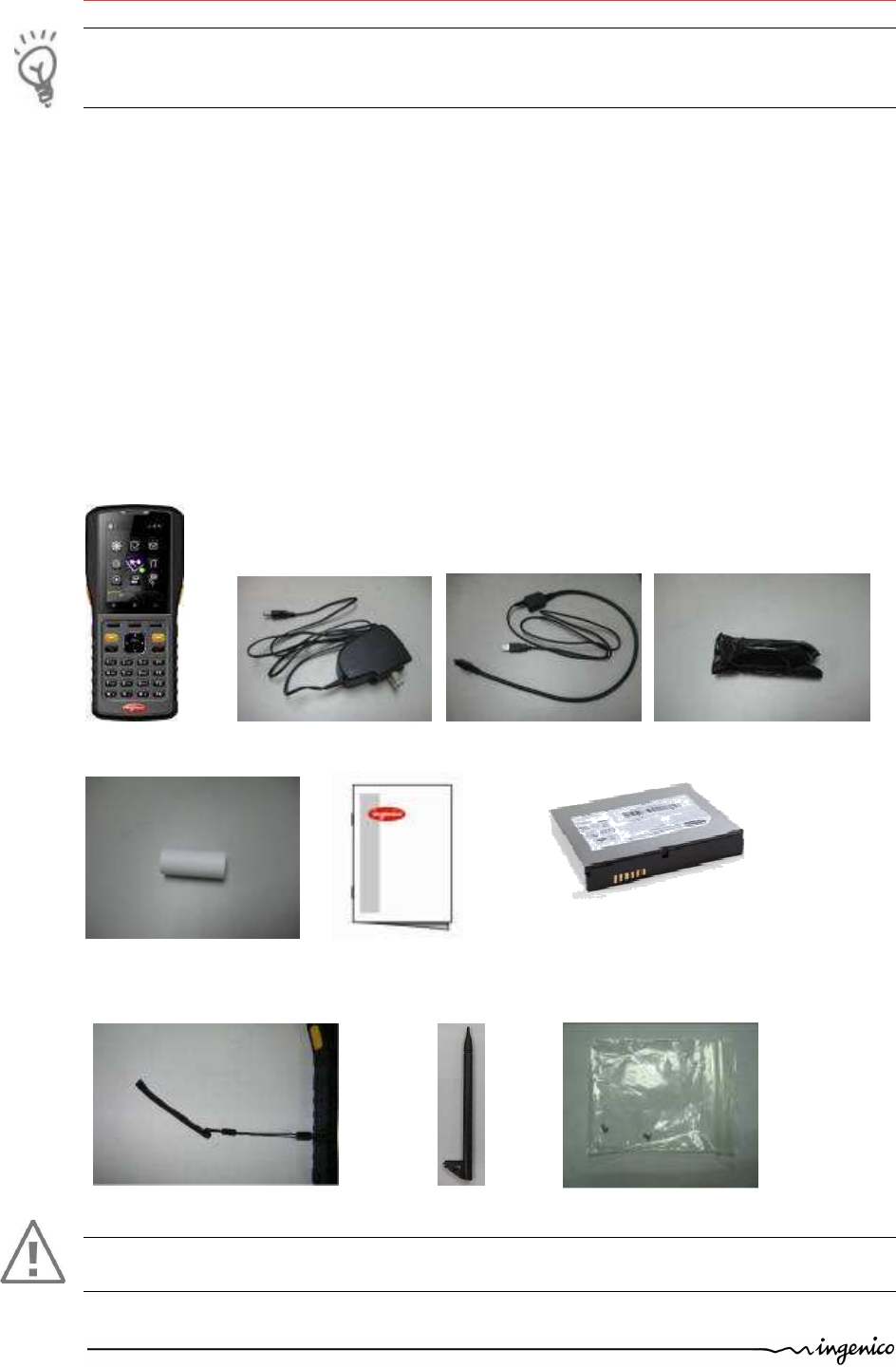

According to the model, the following items are included in the iPA280 box (including

optional accessories):

• The iPA280 terminal

• The data and power cable

• The charging unit (including region specific power plug)

• The Paper roll

• The battery pack

• The user guide

• The smart card rubber cover and chord

• Stylus

• SPM Lock pin screws x2

The power supply unit provided with your equipment is specially designed for Ingenico

iPA280 terminals. Do not use any other power supply.

Power

Adaptor

Data and power cable

Paper roll

(in bag)

Smart Card Rubber

cover and ch

ord

User guide

Paper roll

Battery

Stylus

SPM lock pin screws x2

3. Recommendations

3.1. Security

Power on/Power down

To power on or power down the iPA280 press power on/off button on top of the product.

Electrical power supply network

Provide an electrical outlet:

- Located near the equipment and easily accessible

- Which meets the standards and regulations in the country of use.

- The terminal iPA280 can be connected to a power distribution system of the IT type.

3.2. Security of your terminal

Upon receipt of your terminal you should check for signs of tampering of the equipment. It

is strongly advised that these checks are performed regularly after receipt. You should

check, for example: that there is no evidence of unusual wires that have been connected to

any ports on your terminal or associated equipment, or any other part of your terminal.

Such checks would provide warning of any unauthorised modifications to your terminal,

and other suspicious behaviour of individuals that have access to your terminal.

You are strongly advised to ensure that privileged access to your terminal is only granted to

staff that have been independently verified as being trustworthy.

3.3. EC standard compliance marking

EC standard compliance marking certifies that the product stipulated below: iPA280.

• complies with the basic requirements of European Directive 1999/5/CE, known as the

«R&TTE Directive» concerning Radio Frequency equipment and telecommunications

terminals with respect to:

– Health and safety protection of the user and all other persons

– EMC protection

• conforms to the following harmonized standards :

– IEC/EN 60950-1 : Electrical safety of data processing equipment including electrical

office equipment. Issue DEC 2001

– EN 55022 : Data processing equipment – Radio electric disturbance characteristics -

Limits and measurement methods. Issue 1998 / A1-2000/A2-2003

– EN 55024: Data processing equipment – Immunity characteristics - Limits and

measurement methods. Issue 1998 + A1- 2001 + A2- 2003

• complies with the following specification:

– EN 301511 : Harmonized stand for mobile

– EN 300328 : (BT + Wi-Fi) Electromagnetic compatibility and Radio Spectrum

– EN 300330 : NFC Electromagnetic compatibility and Radio Spectrum

3.4. FCC & IC compliance

FCC & IC has a specific naming.

The references uses for FCC & IC certifications are:

• IC: 2586D-IPA280

• FCC ID: XKBIPA280

3.4.1. FCC Statement

Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved by the part

responsible for compliance could void the user’s authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference and

2) This device must accept any interference received, including interference that may cause

undesired operation of the device.

3.4.2. RF Radiation Exposure Statement

For body worn operation, this device has been tested and meets RF exposure guidelines

when used with an accessory that contains no metal and that positions the device a

minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance

with RF exposure guidelines.

Annex

Suggested text for the notice indicating compliance with this standard:

This Class [B] digital apparatus complies with Canadian ICES-003.

3.4.3. FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

On July 10, 00, the U.S. Federal Communications Commission (FCC) Report and Order in WT

Docket 01-09 modified the exception of wireless phones under the Hearing Aid

Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with

hearing-aids. The intent of the HAC Act is to ensure reasonable access to

telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear

implants), users may detect a buzzing, humming, or whining noise. Some hearing devices

are more immune than others to this interference noise, and phones also vary in the

amount of interference they generate.

The wireless telephone industry has developed a rating system for wireless phones, to

assist hearing device users find phones that may be compatible with their hearing devices.

Not all phones have been rated. Phones that are rated have the rating on their box or a

label located on the box.

The ratings are not guarantees. Results will vary depending on the user’s hearing device

and hearing loss. If your hearing device happens to be vulnerable to interference, you may

not be able to use a rated phone successfully. Trying out the phone with your hearing

device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less

interference to hearing devices than phones that are not labeled. M4 is the better/higher of

the two ratings. iPA280 is rated M4.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health

professional may help you find this rating. Higher ratings mean that the hearing device is

relatively immune to interference noise. The hearing aid and wireless phone rating values

are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is

considered for better use. A sum of 8 is considered for best use.

CAUTION

The user is cautioned that any changes or modification not approved by INGENICO could

void user’s authority to operate the equipment.

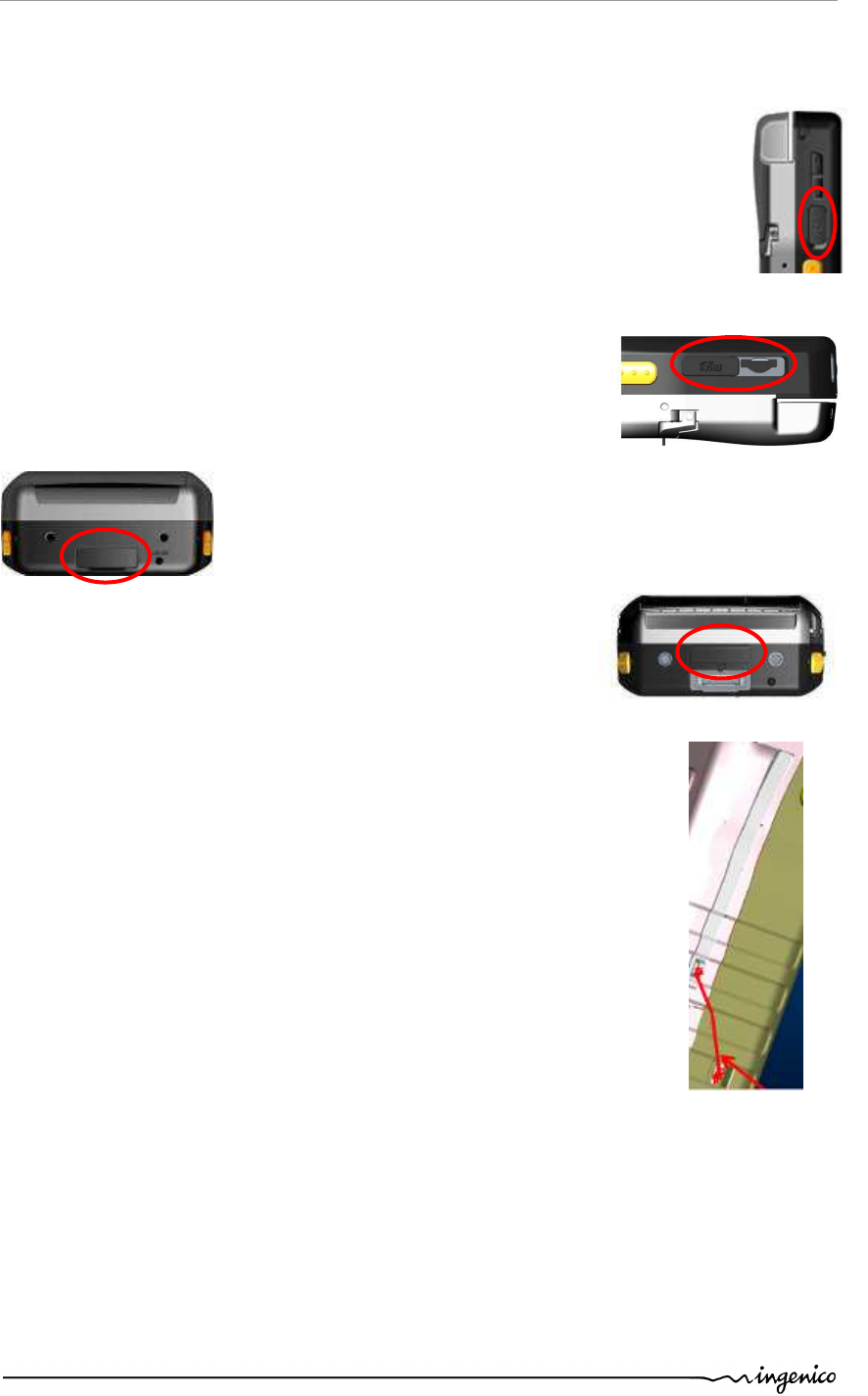

3.5. Water protection

SAM support lid

The SAM sliding lid located under the terminal (see chapter “Installation SAM”) must be in

place during normal operation of the terminal.

Headphone lid

The headphone lid is located on the side of the terminal must be in place

during normal operation of the terminal

SD Card lid

The SD card lid is located on the side of the terminal must

be in place during normal operation of the terminal

Cable lid

The cable lid is located under the terminal (see chapter “Installing

the iPA280”) must be in place during normal operation of the

terminal.

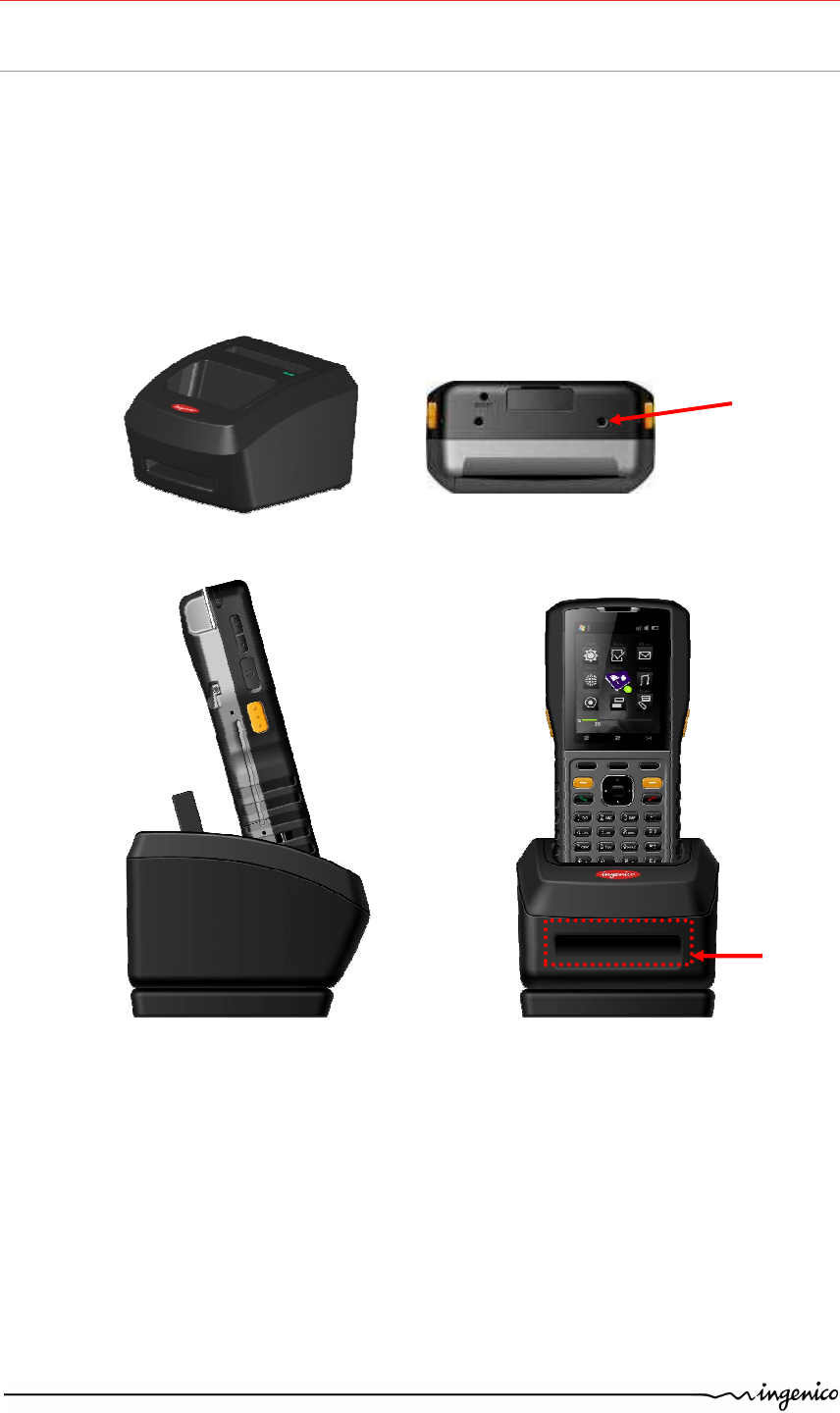

It shall be in connection configuration when the iPA280 is

connected into the cradle:

SPM Smart Card Rubber Cover

A cover for the smart card connector entrance is attached to the

side of the PDA. It must be placed on the connector when the smart

card reader is not used in order to protect against unwanted liquid or

dust.

3.6. Main Characteristics

The main technical characteristics of the terminal Ingenico iPA280 are:

Terminal

Weight about 560 g with paper roll, SPM and

battery

Size (with foot in middle position) 190 x 86(75) x 42(39) mm (l x w x h)

Micro SD slot 1

operating bands

BT:2402-2480MHz

WLAN:2412-2462MHz for US used

2412-2472MHz for EU used

WWAN:900/1800MHz for EU used

850/1900MHz for US used

SPM part

Weight 160 g

Dimensions 140 x 86x 20 mm (l x w x h)

Cable length

Power block cable approx 1,3 m

Display

Type Graphical TFT color

Display area (active zone) 3.5”

Number of pixels 480 x 640

Technology Transflective

Backlight LED

Brightness 180 cd/m²

Contrast 1:1500

Number of colors 262k

Operating conditions

Charging temperature range 0°C to 40°C

Operating temperature range -10°C to 50°C

Max relative humidity 5% to 90%, not condensing

Storage conditions

Storage temperature -20°C, +60°C

Max relative humidity 5% to 90°C

4. Installation and connection

CAUTION: Before to start, make sure you have removed the protective film battery.

4.1. Battery

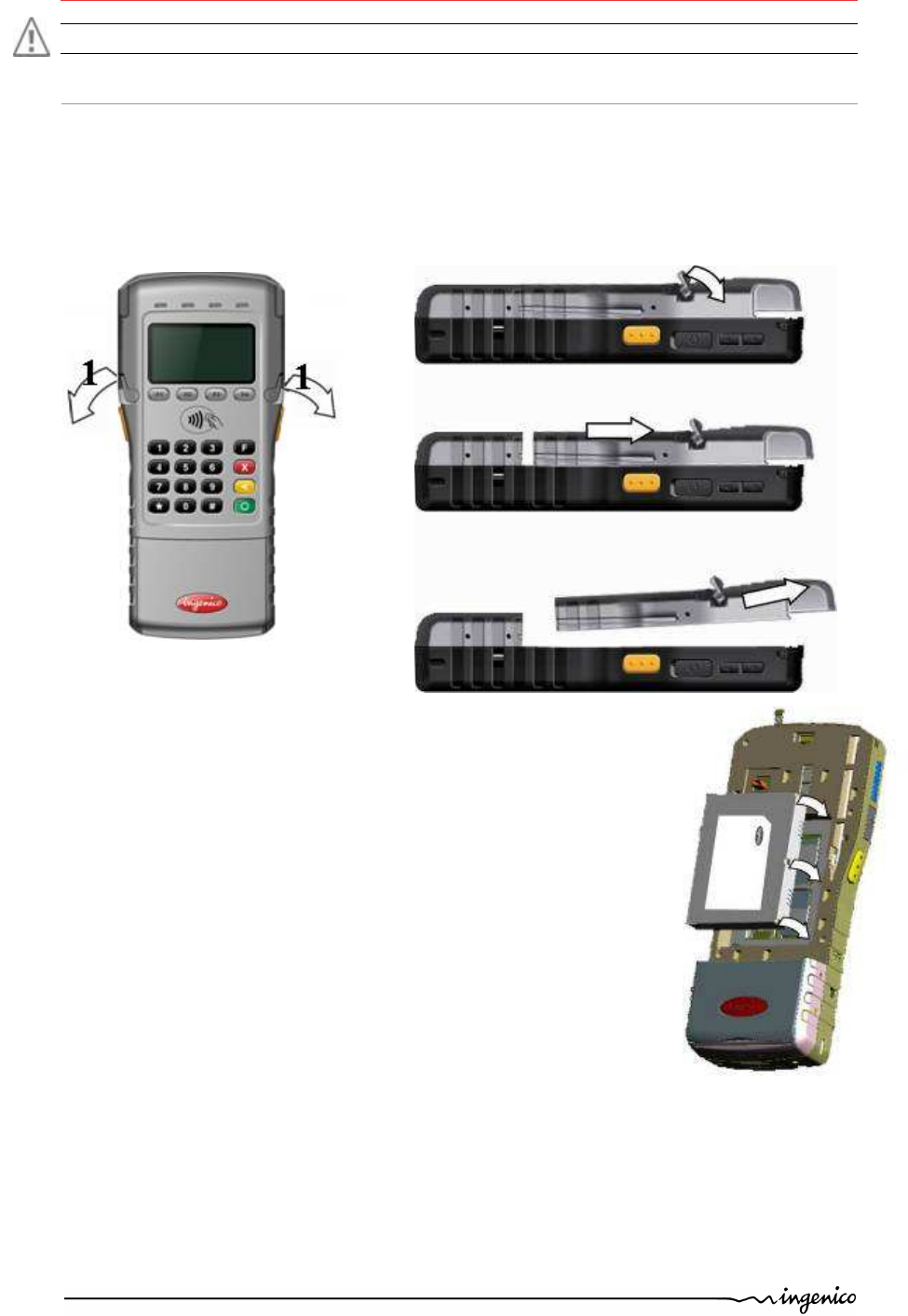

To access the battery follow the instructions below:

• Open the battery compartment using the slide levers in the direction shown

1

11

1

and

follow the procedure illustrated by arrows on illustration.

• Position the battery pack, making sure the battery contacts are

aligned with the contacts in the compartment, as shown in the

following illustration.

• Place the battery pack into the battery bay and press the battery

securely into the compartment.

• Close the device by fitting back the SPM (see section 4.2)

WARNING! There is a risk of fire and burns if the battery pack is

handled improperly.

DO NOT disassembles, crush, puncture, short external contacts, or dispose the battery pack

in fire or water.

DO NOT attempt to open or service the battery pack. Dispose of used batteries according

to local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss during exchange of

the removable battery pack.

4.2.

Installing the SPM part on the iPA280 terminal

The USB connection is located on the rear of the terminal.

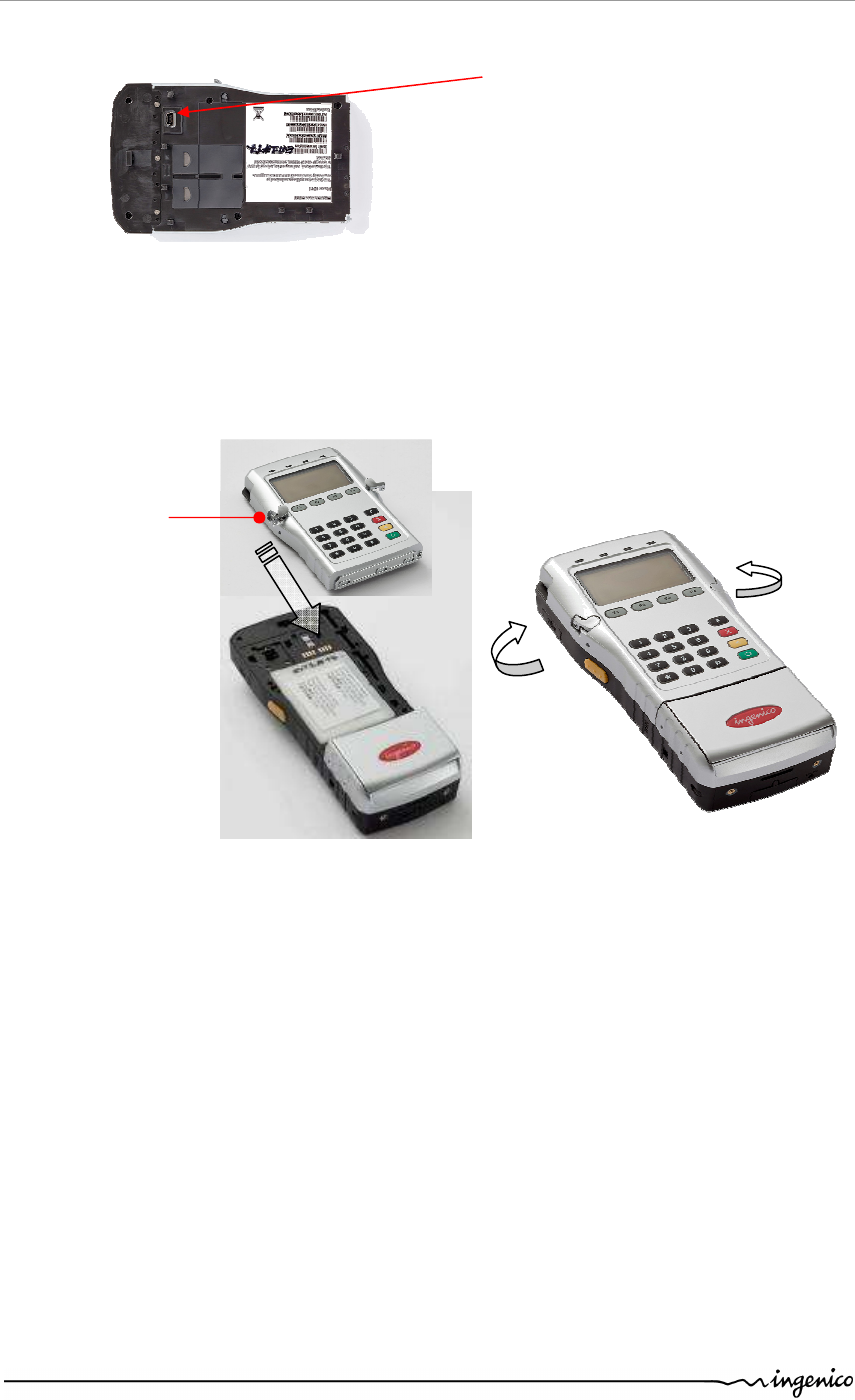

The indications below show you how to connect the SPM part to the iPA280 terminal.

• Insert the SPM part to connect the USB connector, then slide down, then lock it

using the two side levers. User can secure the SPM assembly using two standard

screws (size: M1.6xL3 delivered with the unit) as indicated in the picture.

• The screws prevent too easy access to the battery, SIM and SAMs. A tool has to be

used to remove the SPM in that case.

• The SPM is now connected to the iPA280

USB

SPM lock in

screw

hole

4.3. Installing SPM SAM

CAUTION :

Before to start, switch off the terminal.

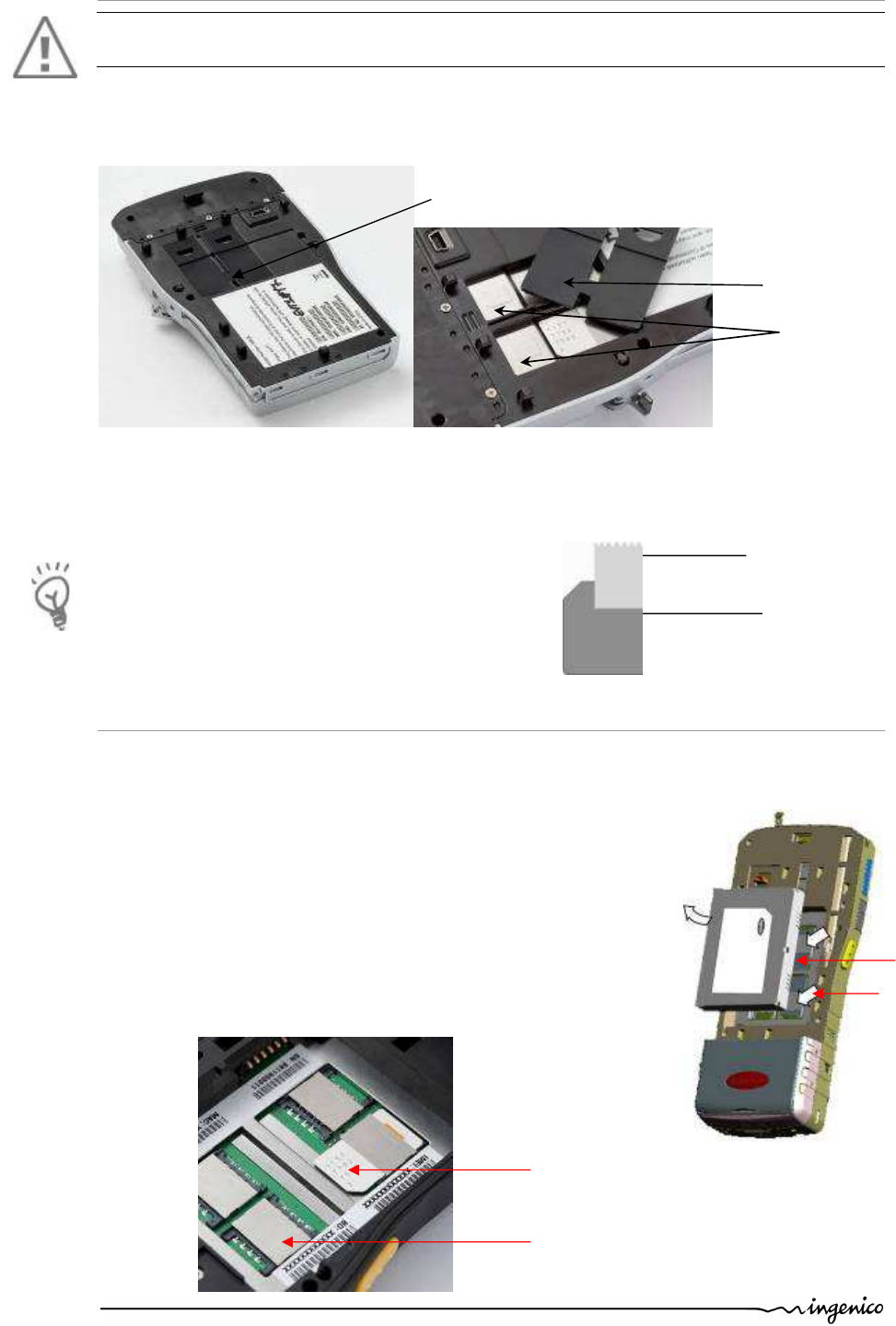

The SPM has two slots for SAM cards. They are placed in the rear of the SPM side,

(see

procedure for opening 4.1)

. (

The location of modules are engraved in compartment)

When introducing a SAM in its slot, be sure to put the cut corner as indicated on marking.

•

Lift the protective caps

1

and introduce the module in its slot to the end until you hear

a click.

To remove SAM, we suggest you to use a piece

of adhesive previously pasted on both sides of

the SAM as shown here below

4.4. Installing PDA SAM and SIM

The PDA side has two slots for SIM cards and two slots for SAM cards. They are placed

inside the battery compartment, in the rear of the terminal

(see procedure to opening 4.1)

.

• Lift the battery, as shown in the following illustration.

• Slots of module are located under the battery; insert the card

module in its slot. Make sure you put the cut corner as

indicated on marking.

• Put the battery back (see procedure 4.1

).

Terminal slots

C

ut corner

1

11

1

Adhesive

Corner cut

SAM

S

A

M Cards

S

I

M Cards

S

A

M

S

I

M

• The position of SIM and SAM slots are indicated in the following picture.

4.5. Installing Micro SD Memory

• Micro SD Memory slot is located at the right side of

the terminal.

• Insert completely the micro SD memory card in the

slot.

Be careful of the insertion direction. See the illustration below

• To remove the Micro SD Memory Card, push on it with your nails or stylus.

MicroSD Memory slot

SIM

2

Slot SIM

1

Slot

SAM

1

Slot SAM

0

Slot

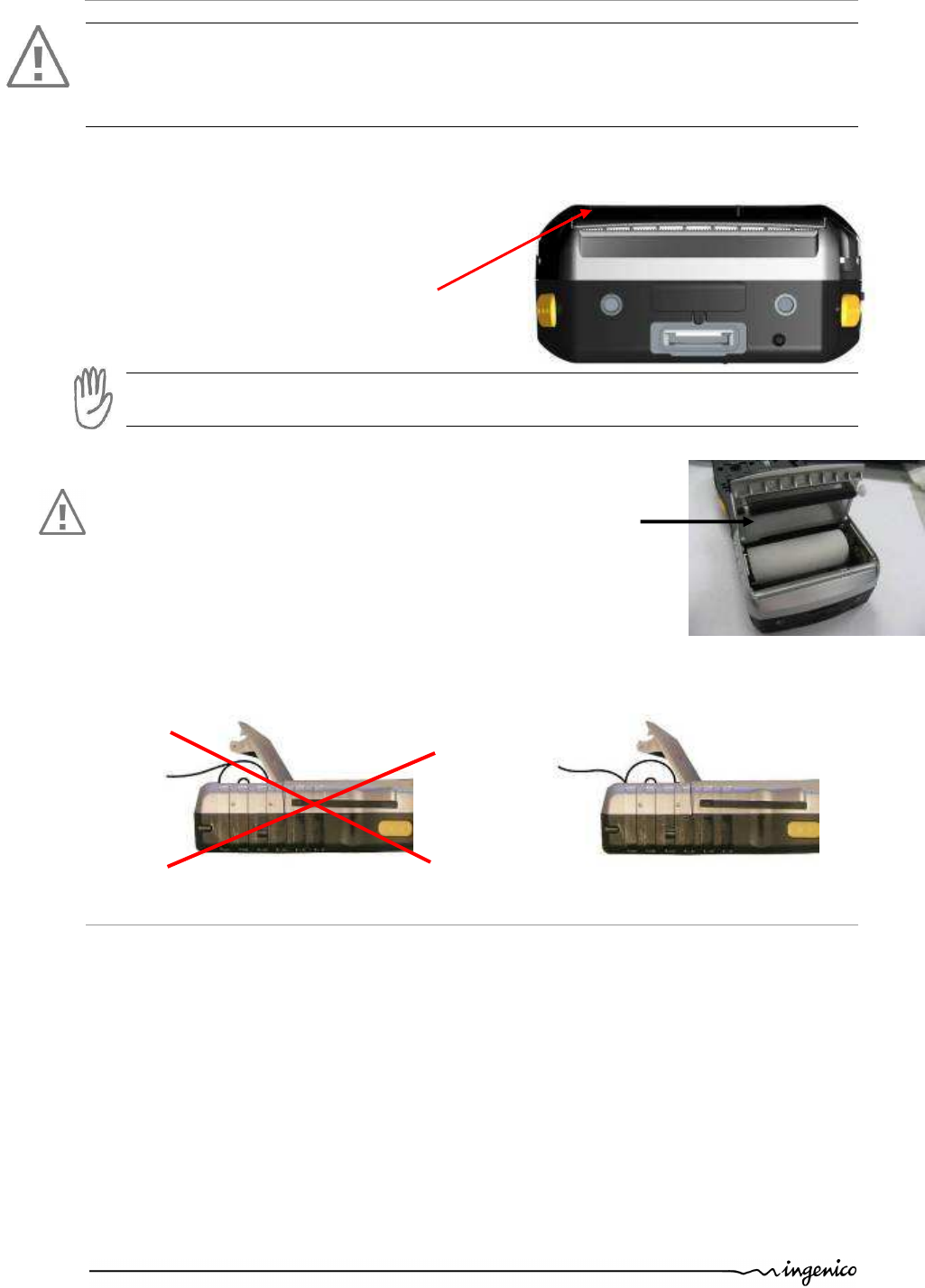

4.6. Installing paper roll

CAUTION: Use only paper approved by the manufacturer (width diameter 57 mm). Use of

unsuitable paper is likely to damage the printer of your terminal (see characteristics in

“Maintenance chapter 5.5.4”). When opening, closing and installing the paper inside the

slot, the user should be careful of the metal cutting edge.

• Open the paper compartment by lifting the cover on the front face and pull the

cover to the rear of the terminal.

ATTENTION

Do not force the cover against stop edge.

• Insert the paper roll in the compartment.

Make sure that GPRS antenna is located in its protective film.

• Unroll the paper out of the compartment and hold it in

bottom position as illustrated.

• Maintain the paper and close the cover.

• Press in the middle of the cover to close it.

4.7.

Connections

• Establishing Device-PC Connection

o Installing Microsoft ActiveSync

In order to exchange data between your computer and iPA280, Microsoft ActiveSync

must be installed on your computer. Use the data and power cable that comes with

your device to connect the device to your computer.

NOTE: If you have a previous version of the Microsoft ActiveSync installed in your

computer, uninstall it first before installing the latest version of Microsoft ActiveSync.

o Connecting the Device to Your Computer

C

over

Correct position

1. After ActiveSync has been installed, connect the plug of data and charge cable to

the universal connector at the bottom of your device.

2. Plug the other end of the USB charging cable into a USB port on your computer.

3. Turn the device on.

4. ActiveSync starts automatically and configure the USB port to work with the

iPA280. The New Partnership setup wizard will automatically start.

NOTE: If ActiveSync does not start automatically, click Start Programs Microsoft

ActiveSync.

If a message appears indicating that it is unable to detect a connection, click the

Cancel button and manually configure the communication settings.

4.8.

Positioning the terminal

Place the terminal away from any heat source and protected from dust, vibrations and

electromagnetic radiations (away from video terminals, PC, anti-shoplifting barriers ...).

5. Daily use

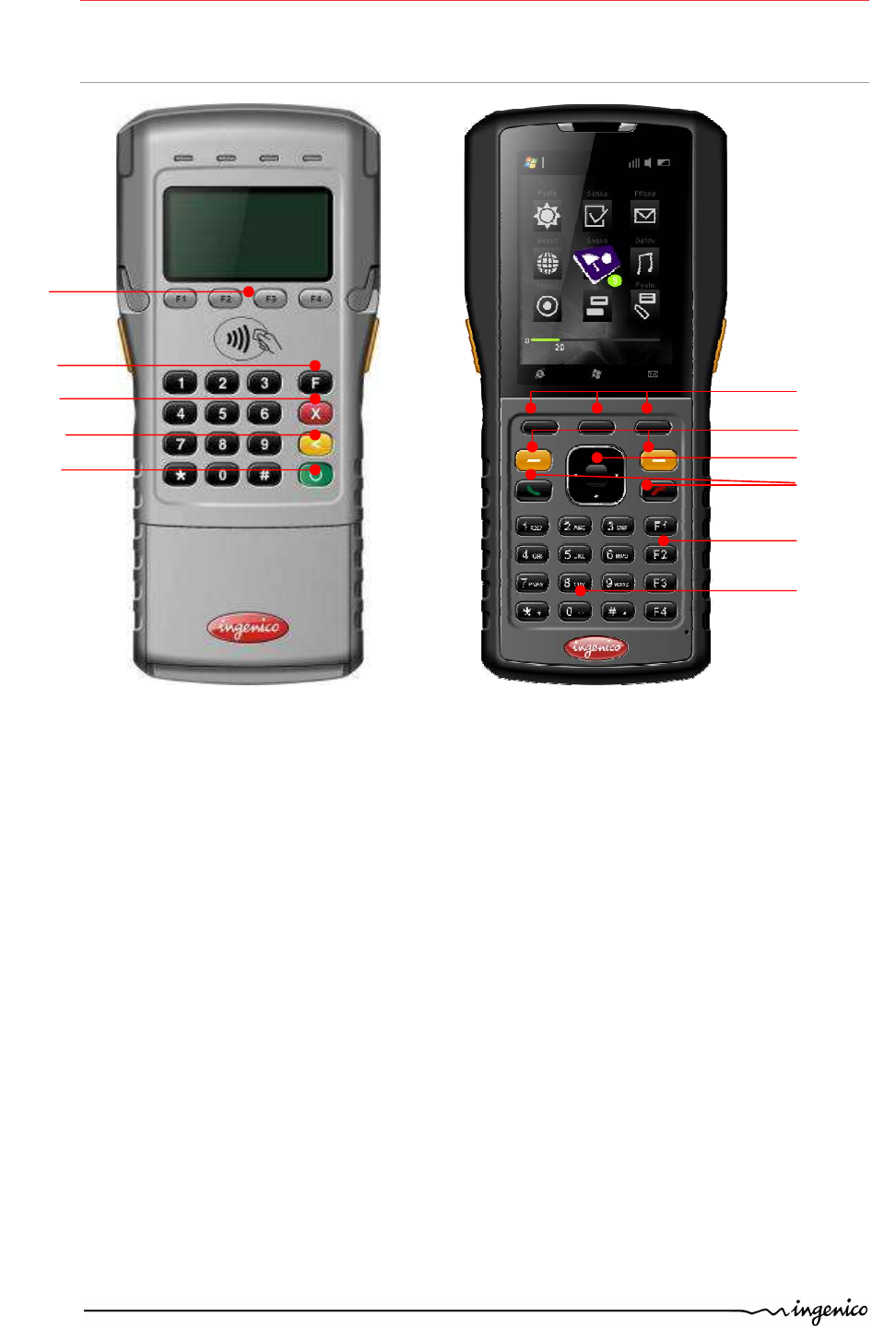

5.1.

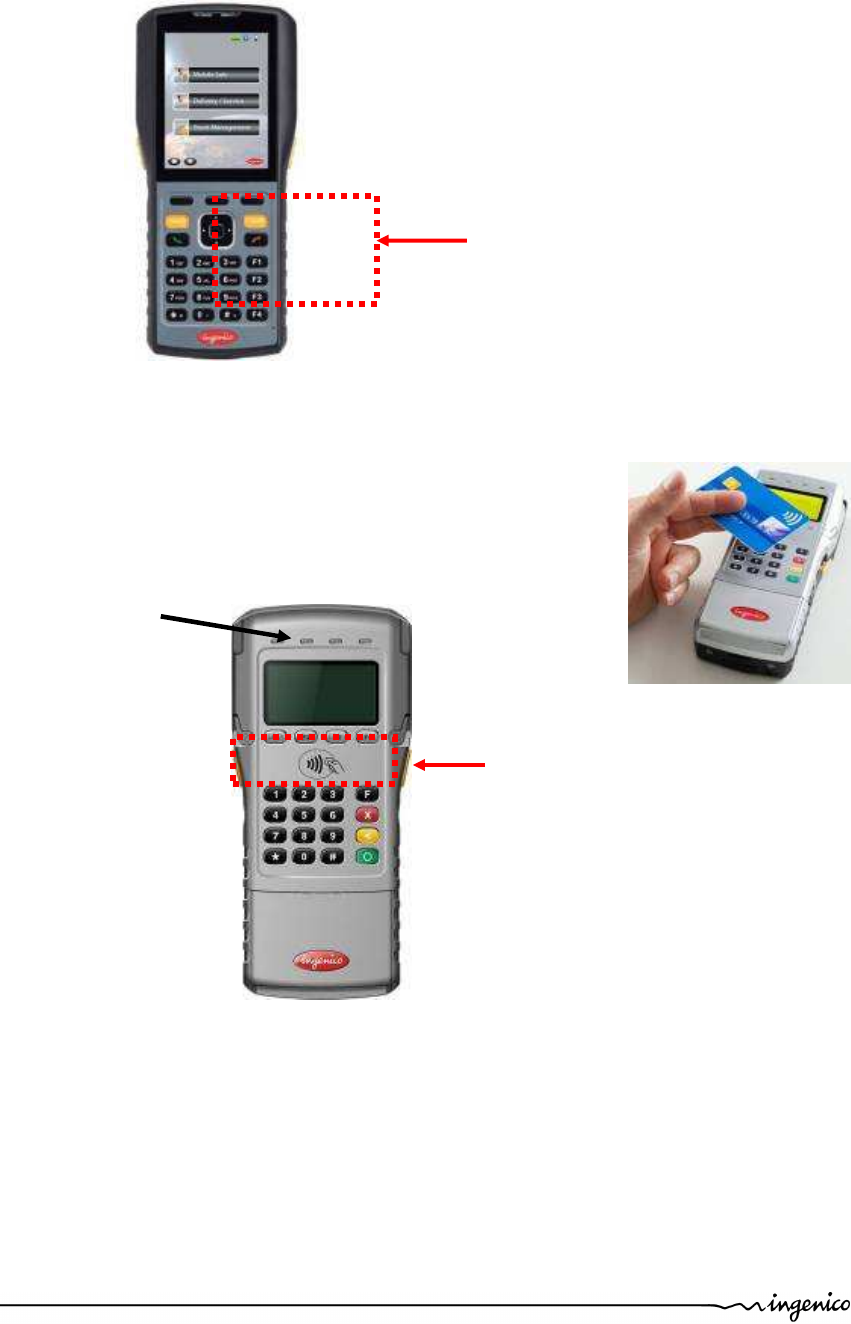

iPA Keypad functions

1

2

3

5

4

1

2

4

3

6

1

NAVIGATION keys in the menus

2

FUNCTION keys F

3

CANCEL key (red)

4

CLEAR key (yellow)

5

VALIDATION key (green)

1

Soft key :

• Left Soft key : Corresponding to left menu

• Right Soft key : Corresponding to right menu

• Center Soft key: Application specified

2

Programmable key

3

Navigation key :

• 4 Navigation directions

• 1 Select (center) / OK

4

Send/End :

• Send (green):

Select Press: opens the phone dialer application

Press (while a call is coming in): Answer the call

Press and Hold (when on a call): goes to speakerphone

• End ( red):

Press (when in a call): ends a call

Press (while a call is coming in): Ignore the call

Press and Hold: ends the data connection

The button can wake up the device during suspend mode

5

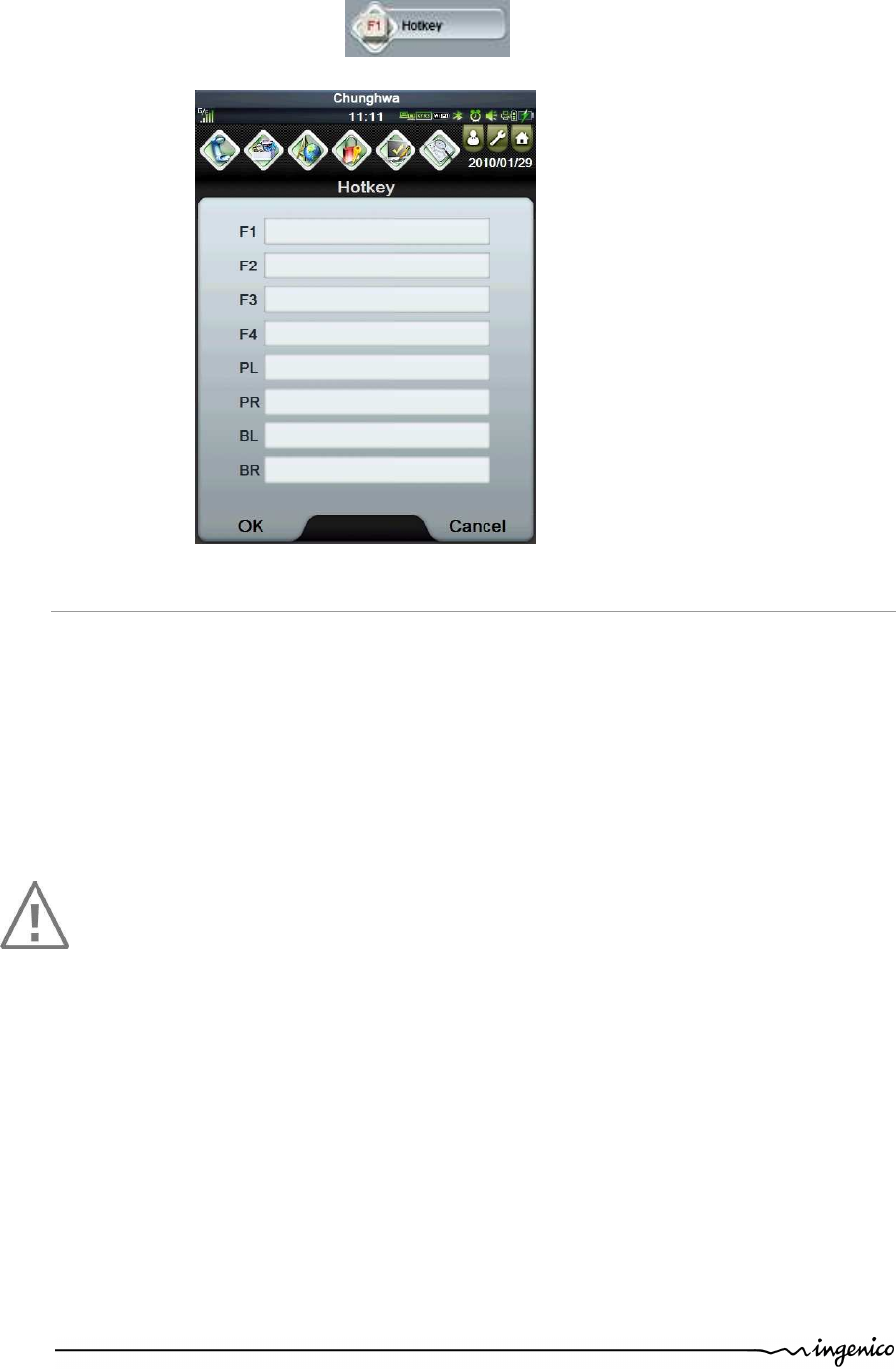

Functions key (4) : These key can be set on main system,

but cannot be launched from main system

6

Alphanumeric key (12)

5

5.2.

Touch screen stylus

• Remove the stylus from its holder.

• Hold the stylus as you hold a pencil.

• To make a choice from a menu, lightly tap the tip of the

stylus on that choice.

5.3.

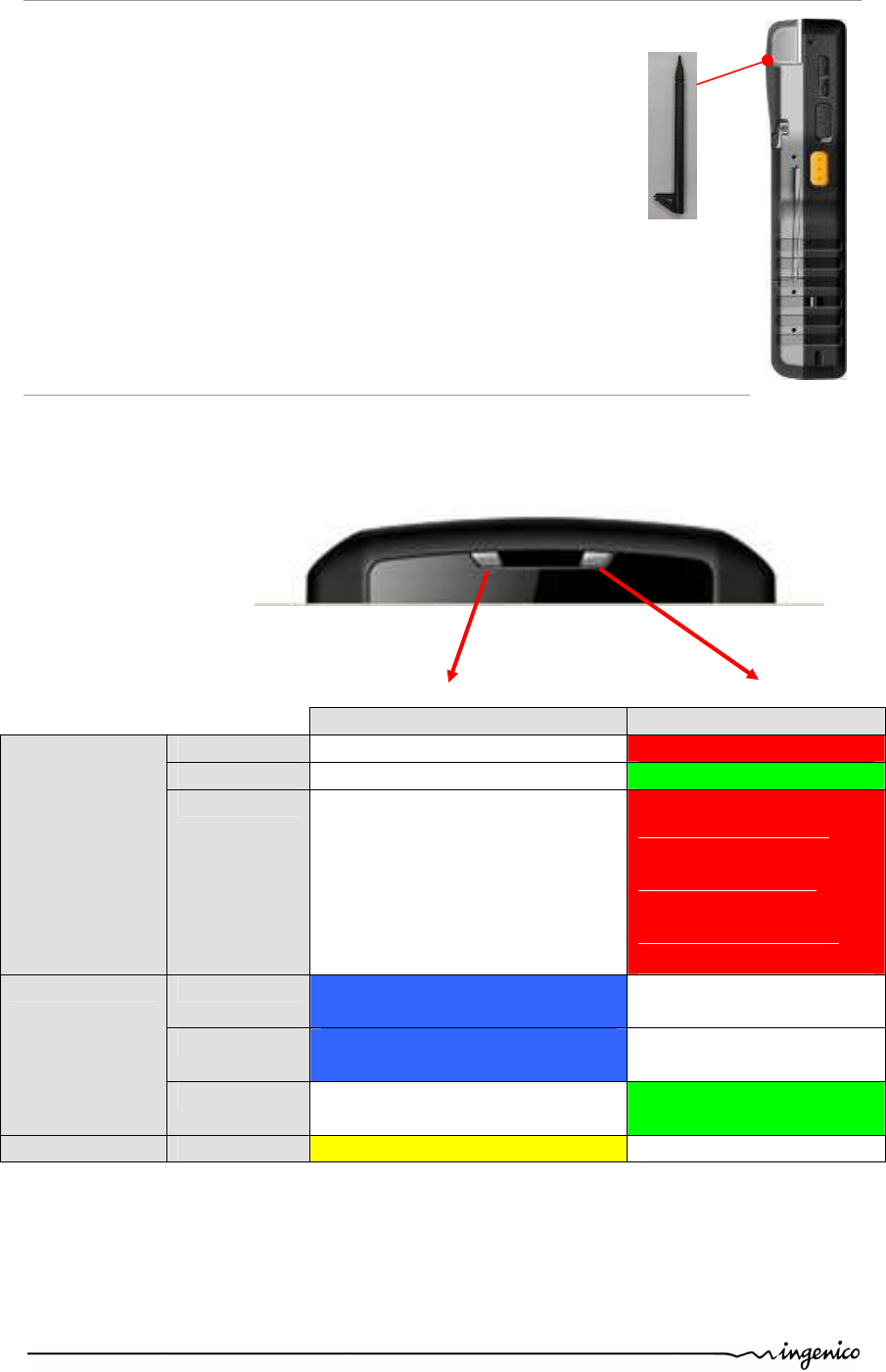

LED Display

Behaviour of LED on PDA side

2 LEDs for communications, batteries and SPM

(*) If SIM inserted and device registered, only GSM GPRS information available

Left LED Right LED

Charging RED

Charged GREEN

Battery

Low RED-Flash (*)

System power < 15% :

0.3 s on / 1.7 s off

Printer power low :

0.3 s on / 0.55 s off

Printer power cut off:

0.3 s on / 0.3 s off

Blue Tooth BLUE – Flash

On 0.5 s / Off 5 s

WiFi BLUE – Flash

On 0.5 s / Off 5 s

Communication

GSM GPRS

GREEN

–

Flash

(*)

On 2s

SPM Powered ON YELLOW

Stylus

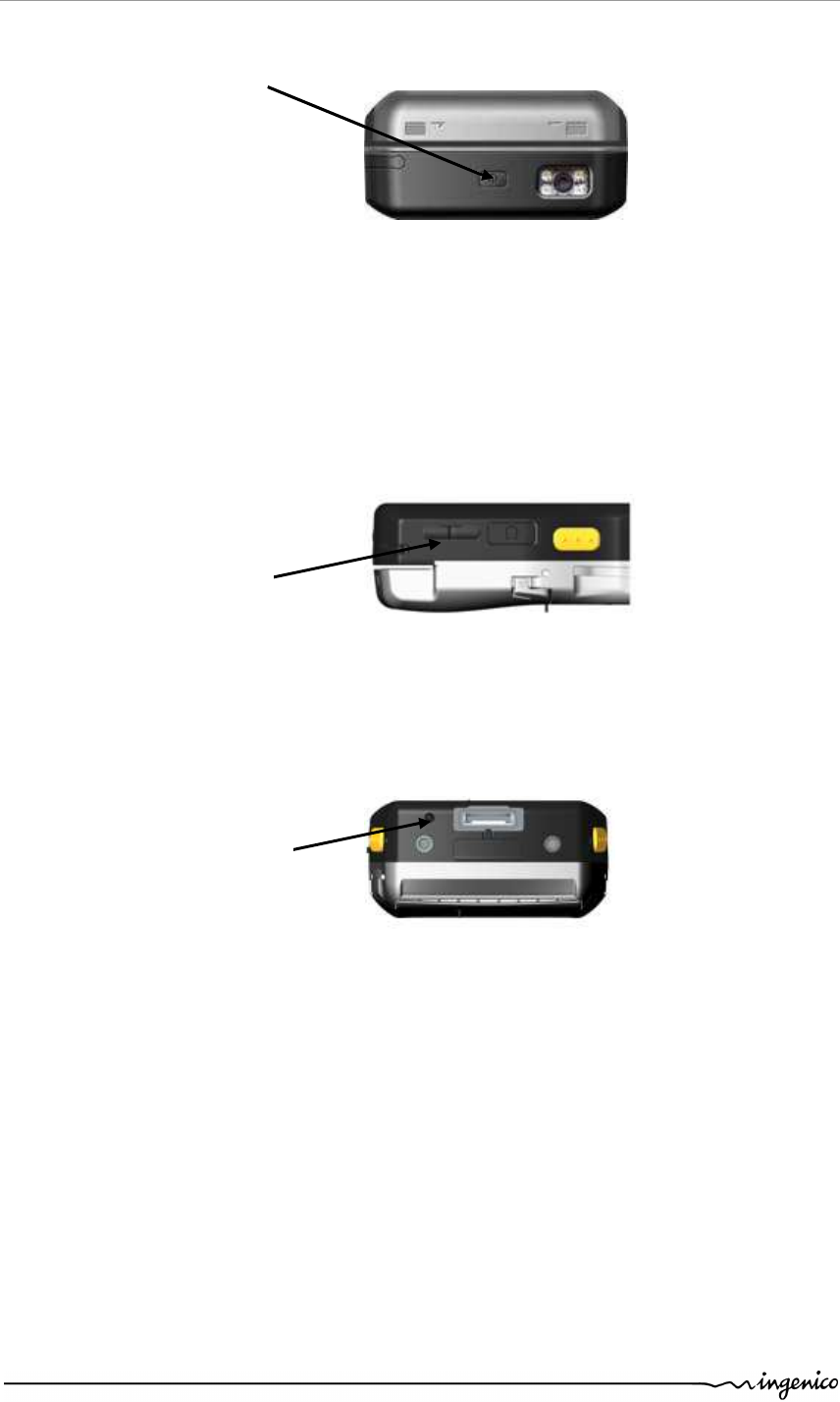

5.4.

Other keys

ON/OFF

• Press and Hold: turns the device off. Touch panel is not able to wake-up the device.

• Press and Hold when the device is in OFF mode: turns the device on with behavior

similar to soft reset.

• Short Press: suspend/resume of the device.

Volume

• When phone call is active, press to increase or decrease the phone volume.

• When phone call is not active, press to increase or decrease the PDA volume.

Reset

• You may have to perform a reset if the device freezes (i.e., device no longer

responds to the buttons or tapping on the screen).

• A soft reset allows your device to get a fresh start, similar to rebooting a computer.

This will restart your device. All records and entries are retained after a soft reset.

Unsaved data in open programs may be lost in some cases.

• Lightly press the tip of the stylus to the reset button located on the rear of the

device.

Volume

Key

Reset Key

ON/OFF Key

5.5.

Card insertion

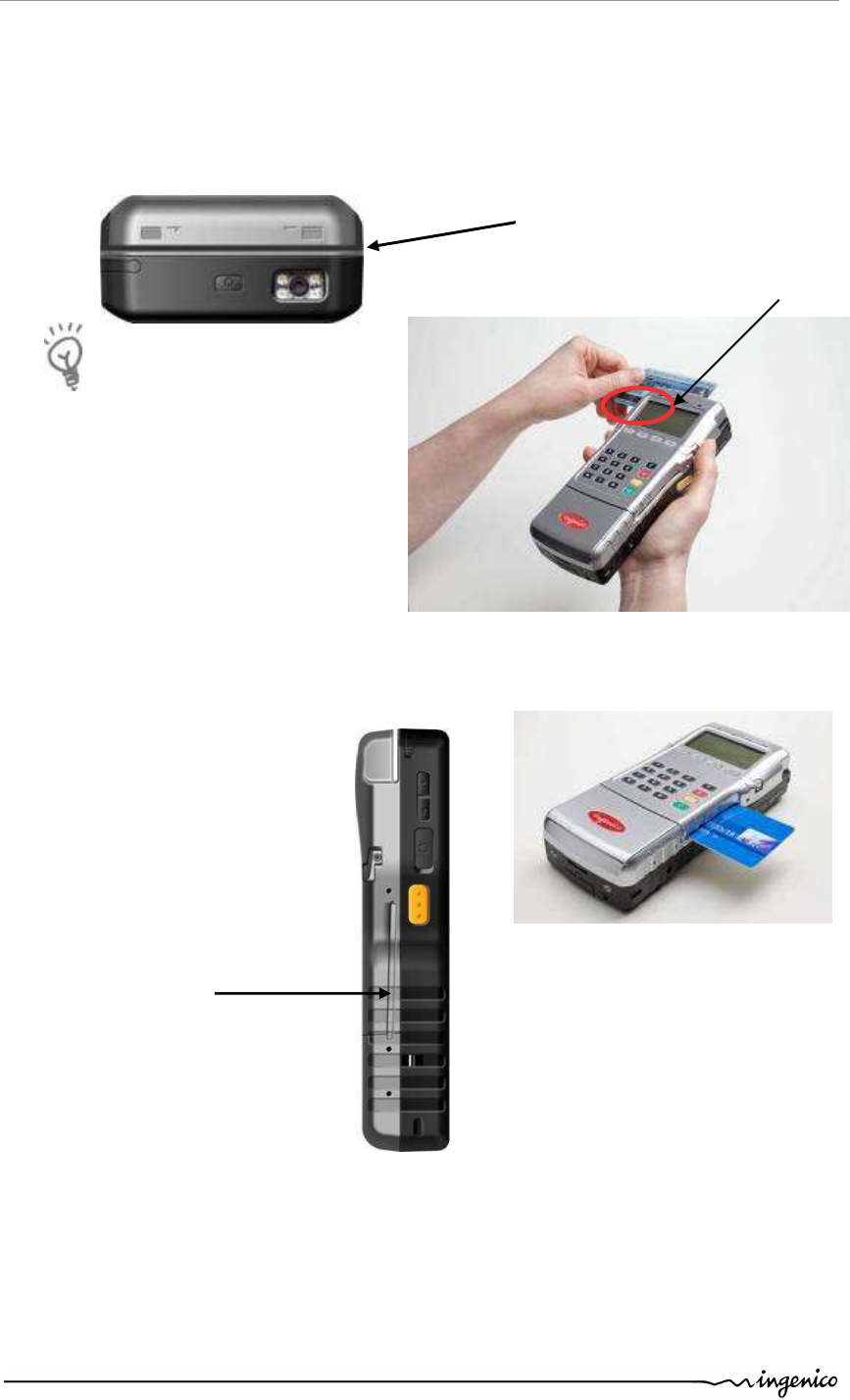

5.5.1. Reading a magnetic card

• Insert the card manually in the Magnetic stripe card slot, magstripe from right side to

left side or from left to right side.

Swipe the card with constant

speed, to maximize the reading

and avoid annoying repetitions.

5.5.2. Reading a smart card

• Turn to SPM right side, take out the smart card rubber and insert the Smart card to

the end of the slot, chip facing up, to read the card information.

Magnetic stripe card slot

Smart card

slot

Magnetic stripe

position

5.5.3. Reading Contactless Card

• PDA contactless is dedicated for user ID, transportation tickets and cards controls,

RFID labels reading, loyalty cards reading, …

It is not meant to be used for contactless payment

5.5.4. Reading Contactless Payment card

• SPM contactless is dedicated to contactless payment.

As the contactless antenna is placed around the display and keypads, the contactless card

must be presented in front of Contactless logo between the screen to perform the

transaction.

The 4 green LEDs indicate that the transaction is completed.

Contactless

card

positioning

Contactless

LEDs

Contactless payment

card positioning

5.6.

Product Setup

This section describes the way to setup the main product features using basic mode and

Main System mode

Please refer to your applications documentation for automatic enabling of features

5.6.1. Login sequence

After powering on the device (connect the power ON/OFF button on top of the device. This

sequence will also happen after inserting a charged battery) the following screens are

chained:

CAUTION

Do not press the green key until password and username are entered.

A username and a password should be introduce (hit the sensitive area)

Default username: admin

Default password: admin

Do not forget to change the password after first login.

If you are the administrator, the following screen

is displayed:

If no user name and password are entered, the product reverts into user mode.

Once a selection is done it will be entered by default on the next boot

Once the final application selected by the administrator is installed, this application is

automatically launched at device power up.

5.6.2. Main System

• When the power off device is plugged in with the power cord, the boot screen with

Ingenico logo is shown.

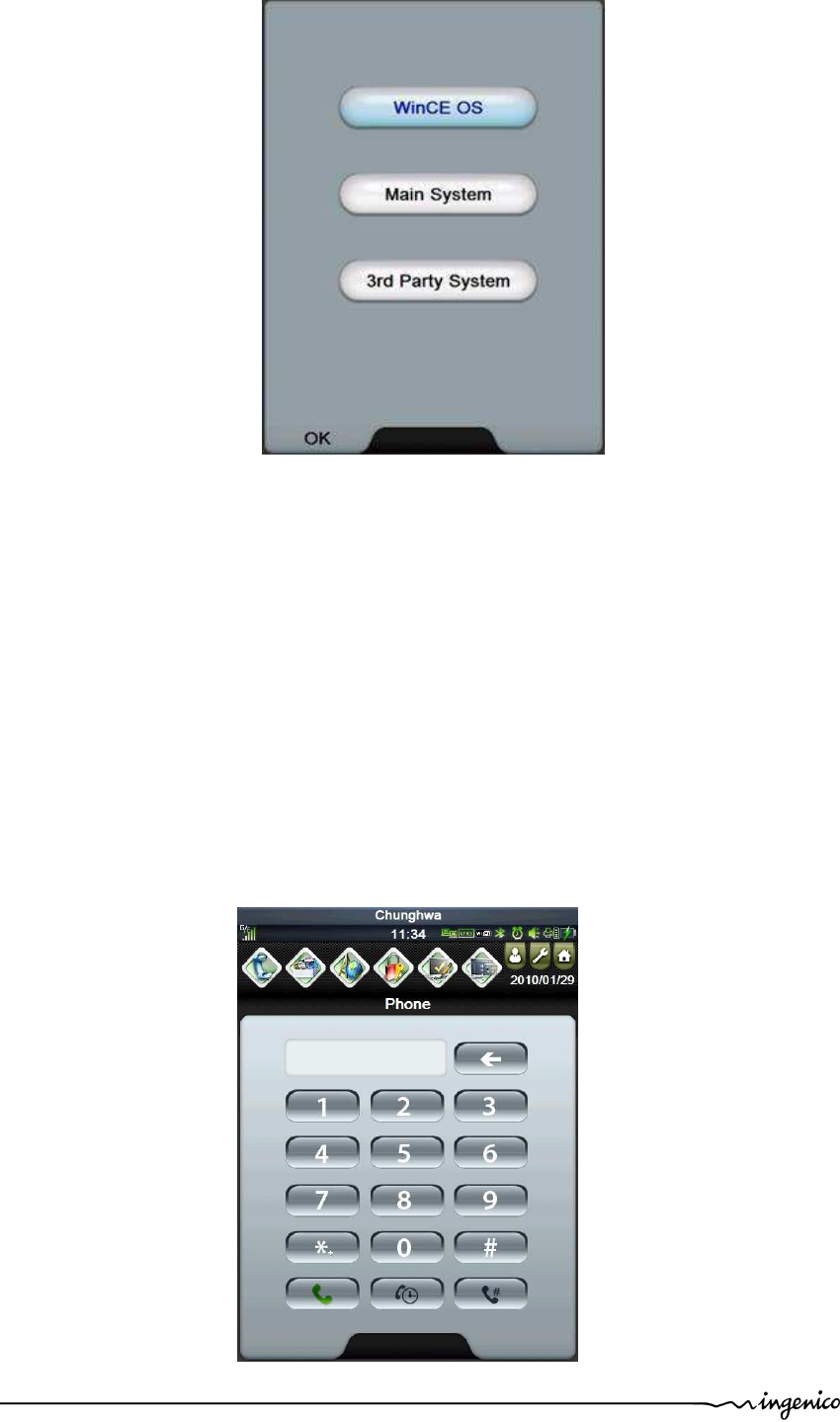

• After several seconds the next system selection screen will automatically be

displayed. The user can select one of WinCE OS, Main System or 3rd Party Systems

from here.

• After click the selection of the Main System, the Phone Dialer screen will be shown.

5.7.

Networking

5.7.1. Wireless network

You can use Connectivity menu to select the desired Wireless Networking function.

5.7.1.1. Bluetooth

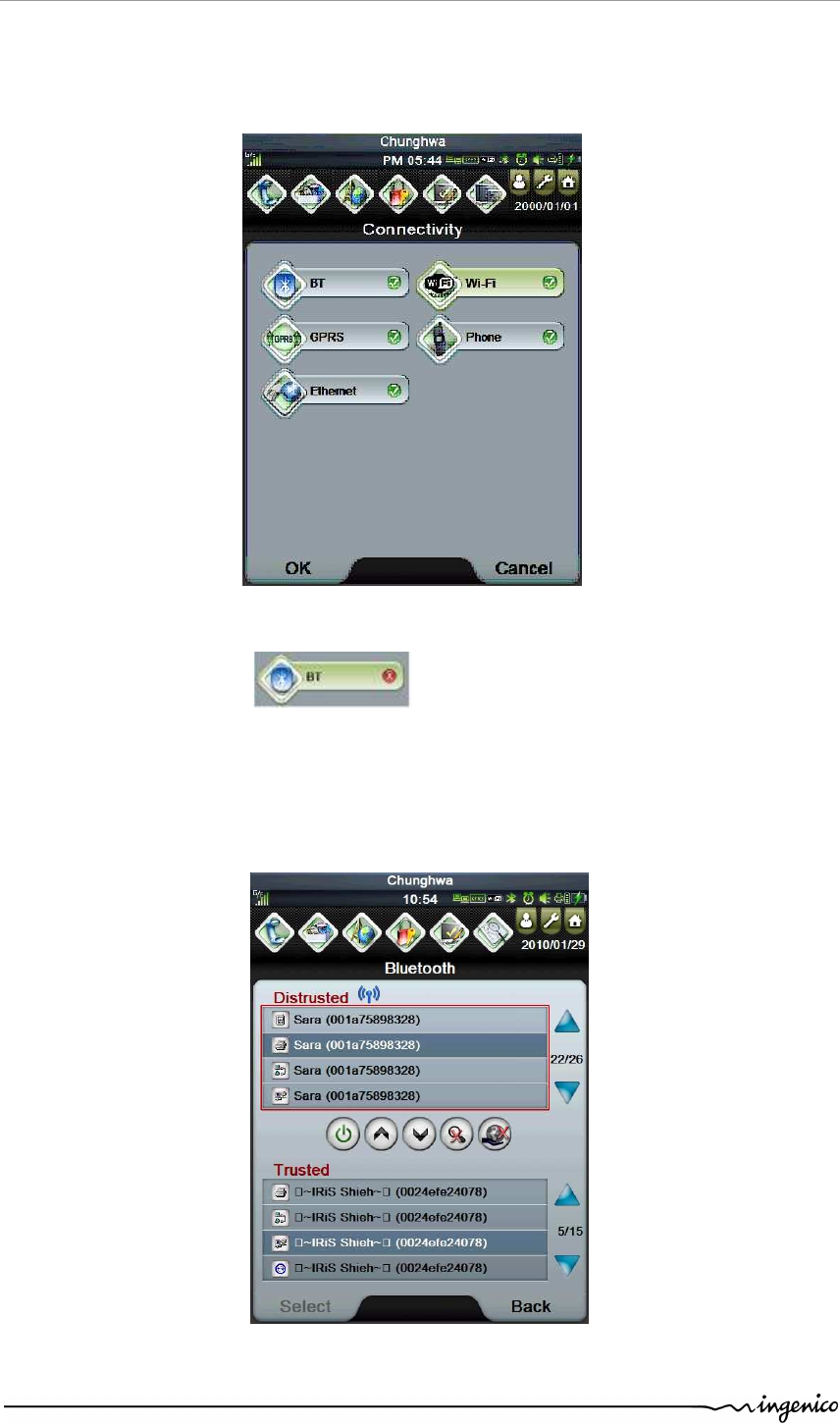

• Click the BT button in Connectivity menu to turn on/off Bluetooth

function.

• Click one of item in Untrusted or Trused list in BT menu to select the desired

Bluetooth device to be connected.

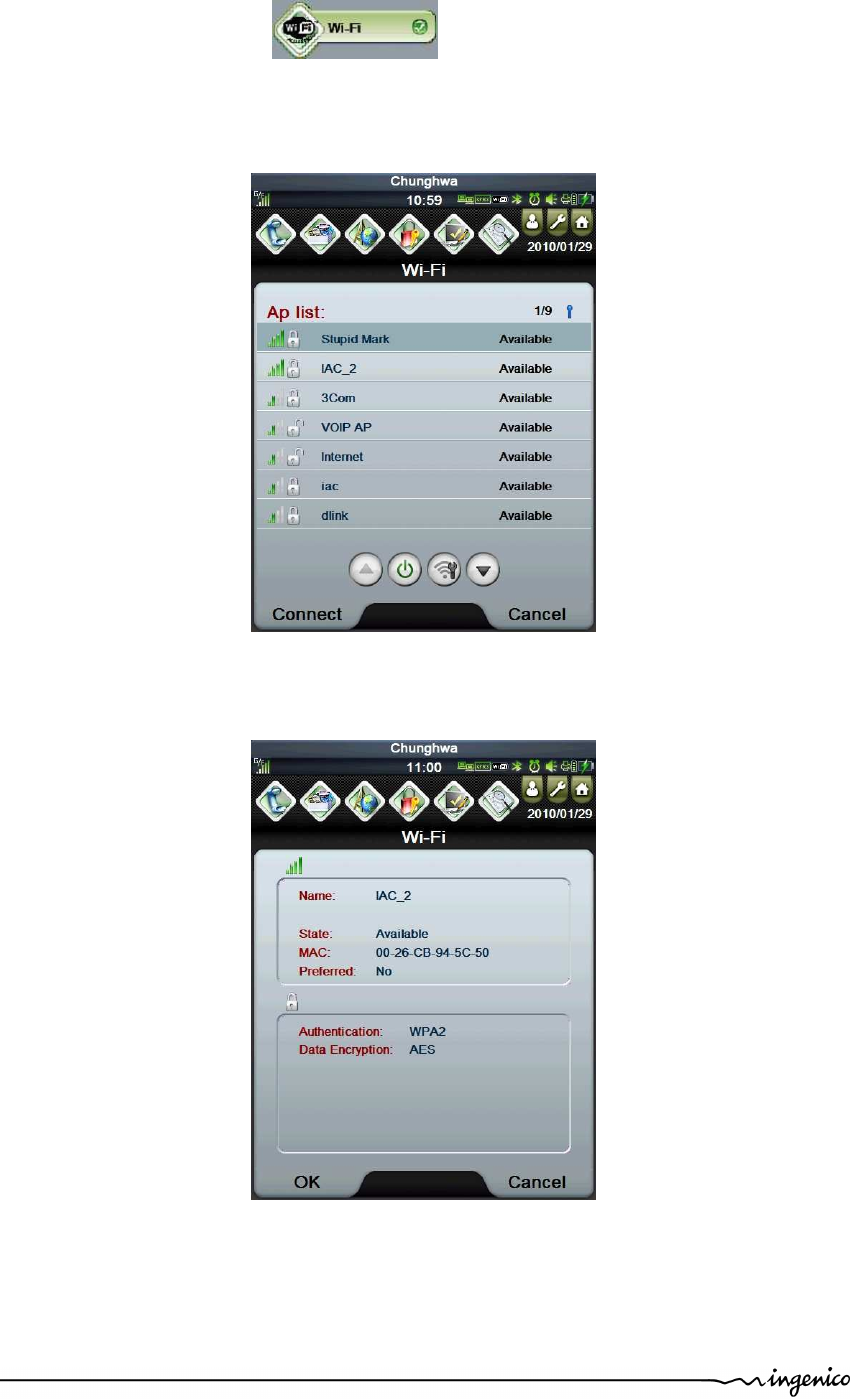

5.7.1.2. Wi-Fi

• Click the Wi-Fi button in the Connectivity menu to turn on/off Wi-

Fi function.

• Click one of item in Wi-Fi List in Wi-Fi menu to select the desired Wi-Fi device to be

connected.

• Double click the selected item in Wi-Fi List to display the Wi-Fi Information as in the

following screen.

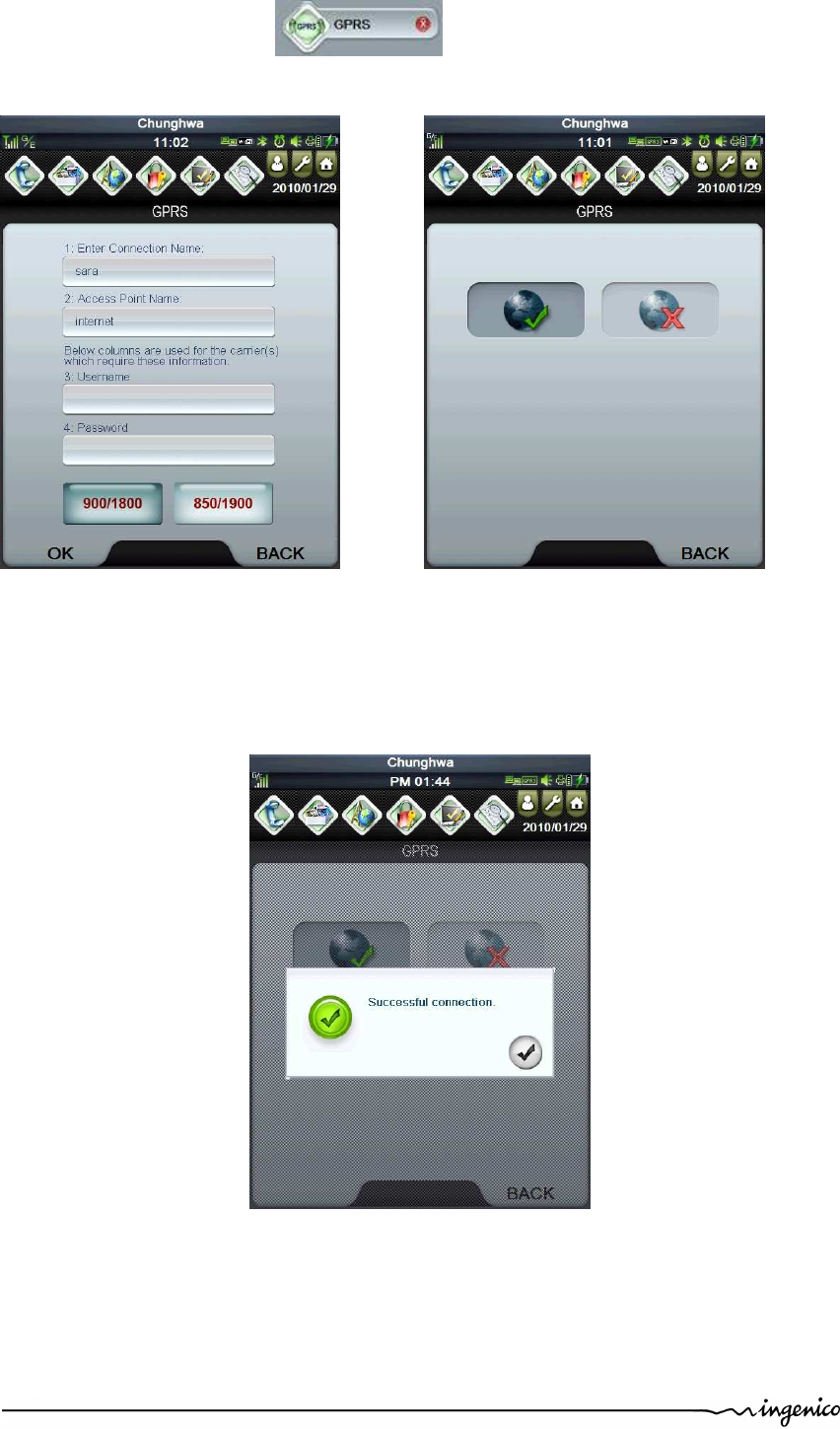

5.7.1.3. GPRS connection

• Click the GPRS button in the Connectivity menu.

• Enter the PIN number from SIM card and click OK button in the next two screens.

• Enter a random data in the ‘Enter Connection Name’ box and ‘internet’ in the

‘Access Name’ box and click OK button to enable GPRS connection function.

5.7.2. Ethernet

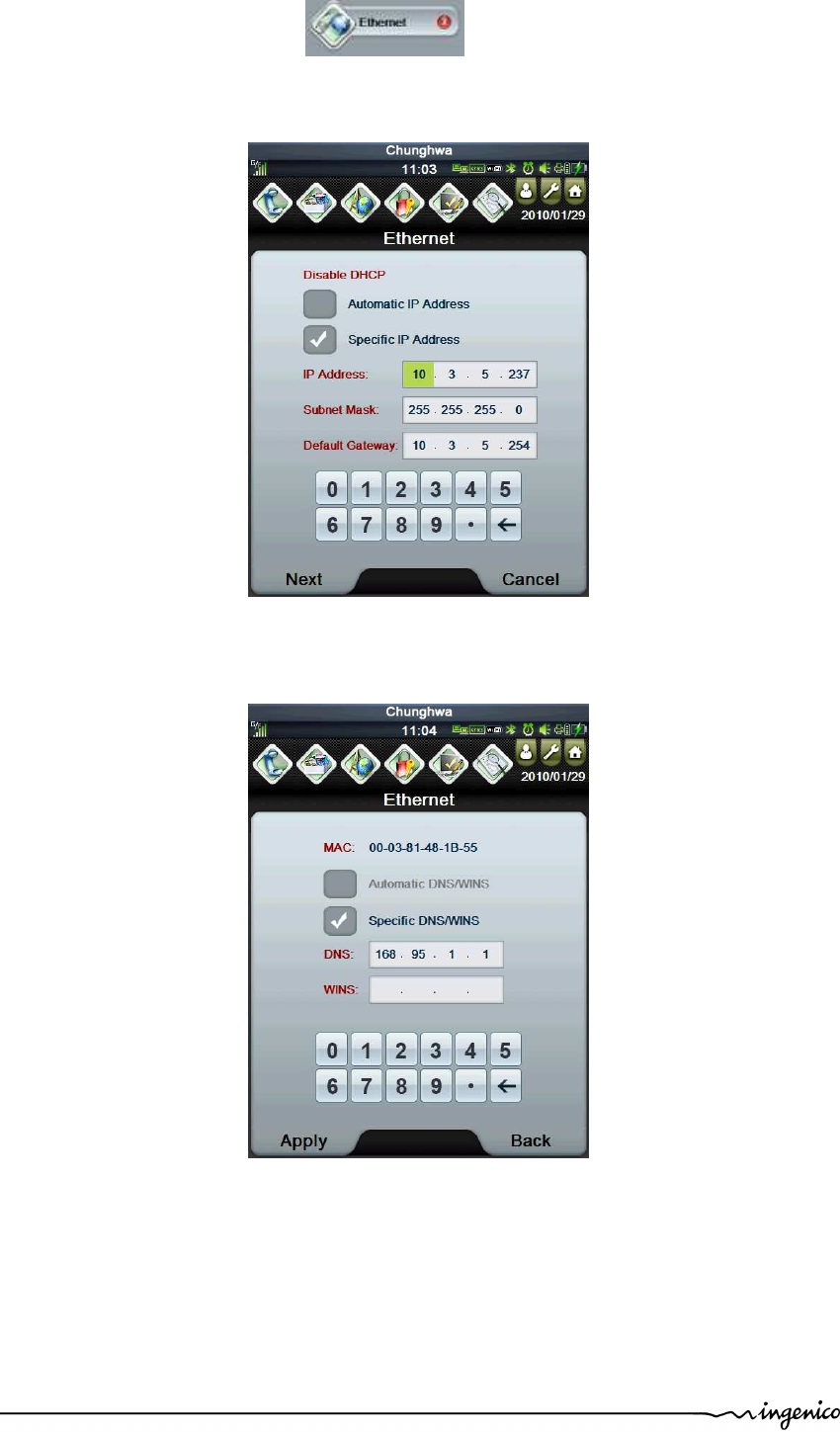

• Click the Ethernet button in the Connectivity menu.

• Enter IP Address and Default Gateway in the boxes of the dialog and click OK

button to the next screen.

• Enter DNS and WINS in the boxes of the dialog and click OK button to enable

Ethernet function.

5.7.3. Phone

The iPA280 has an integrated phone keypad, which allows you to make, receive, and

send messages via the built-in module.

NOTE: Make sure you insert the SIM card properly. To open the Phone screen, do one

of the following.

1. Tap Phone on the bottom left corner of the screen.

2. Press Talk/Send button.

Press Cancel button when you want to exit the Phone Dialer screen.

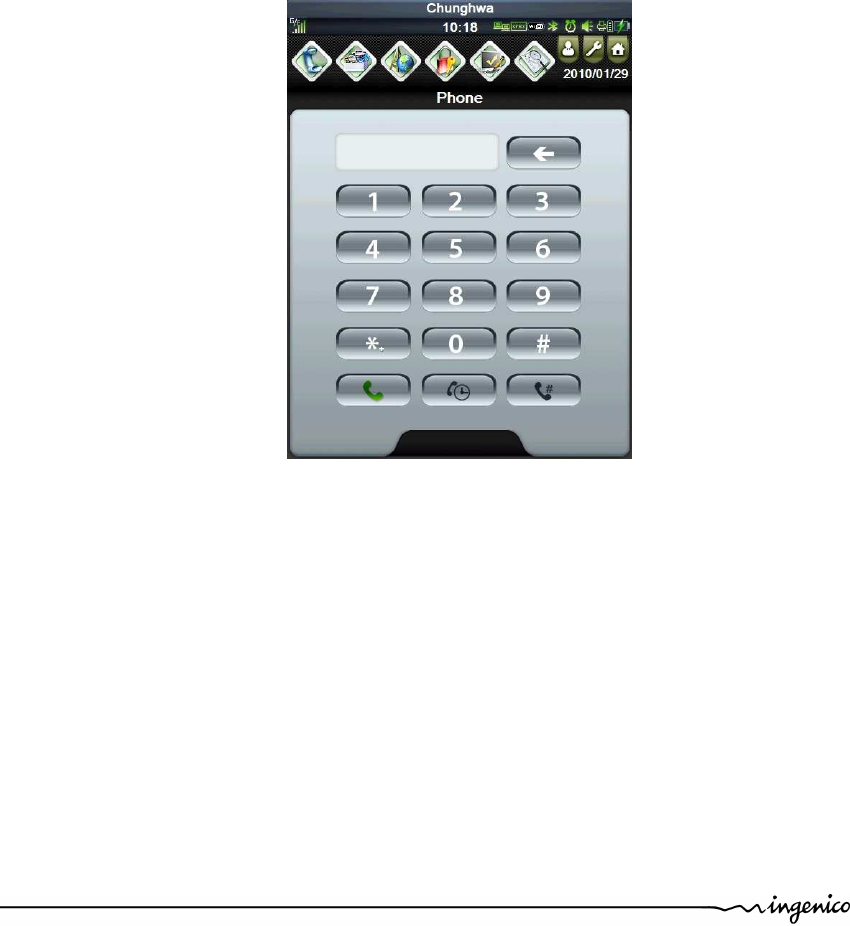

The Phone Dialer screen opens. From here you can create Speed Dials, get the Call

History and customize phone settings.

NOTE: If your SIM card is protected by a PIN code, input the password before you can

use the phone. Tap the antenna signal icon on the upper right corner of the screen. Tap

Wireless Manager and turn on phone function.

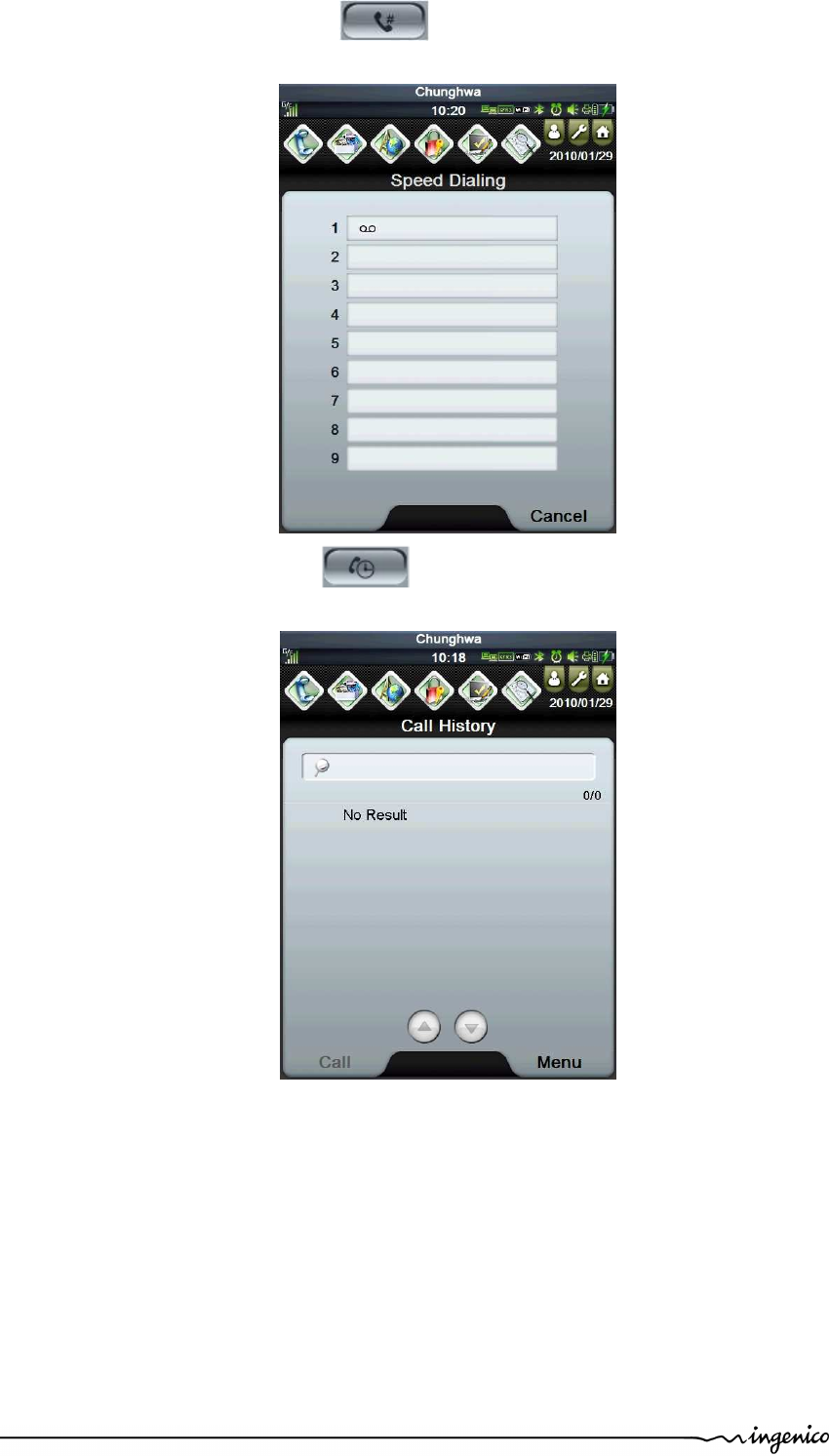

• Click the Speed Dialler button in Phone Dialler menu to go to Speed

Dialler screen.

• Click the Call History button in Phone Dialler menu to go to Call History

screen.

• Click the Dialer button in Phone Dialer menu to make the phone and to

get the dialing Phone Dialer screen.

During the dialing status, the iPA280 can still use WLAN/BT/RFID at the same time.

5.7.4. Factory Reset

o Click the button to get the Factory Reset screen. Click OK

button to have the device system back to the factory setting.

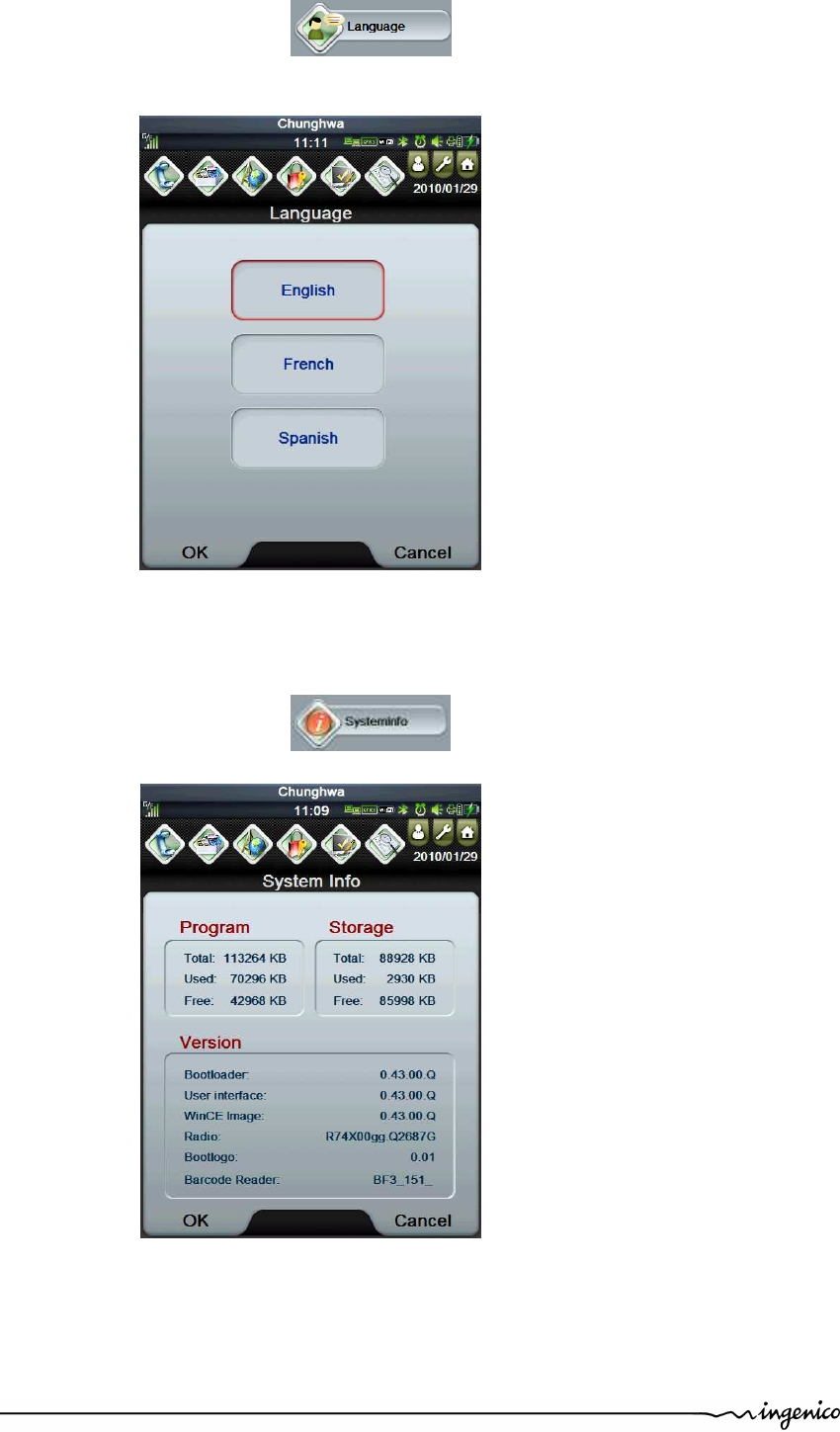

5.7.5. Language

o Click the button to get the Language screen. Select the

desired language and click OK button to change the language in the device.

5.7.6. System Info

o Click the button to get the System Info screen.

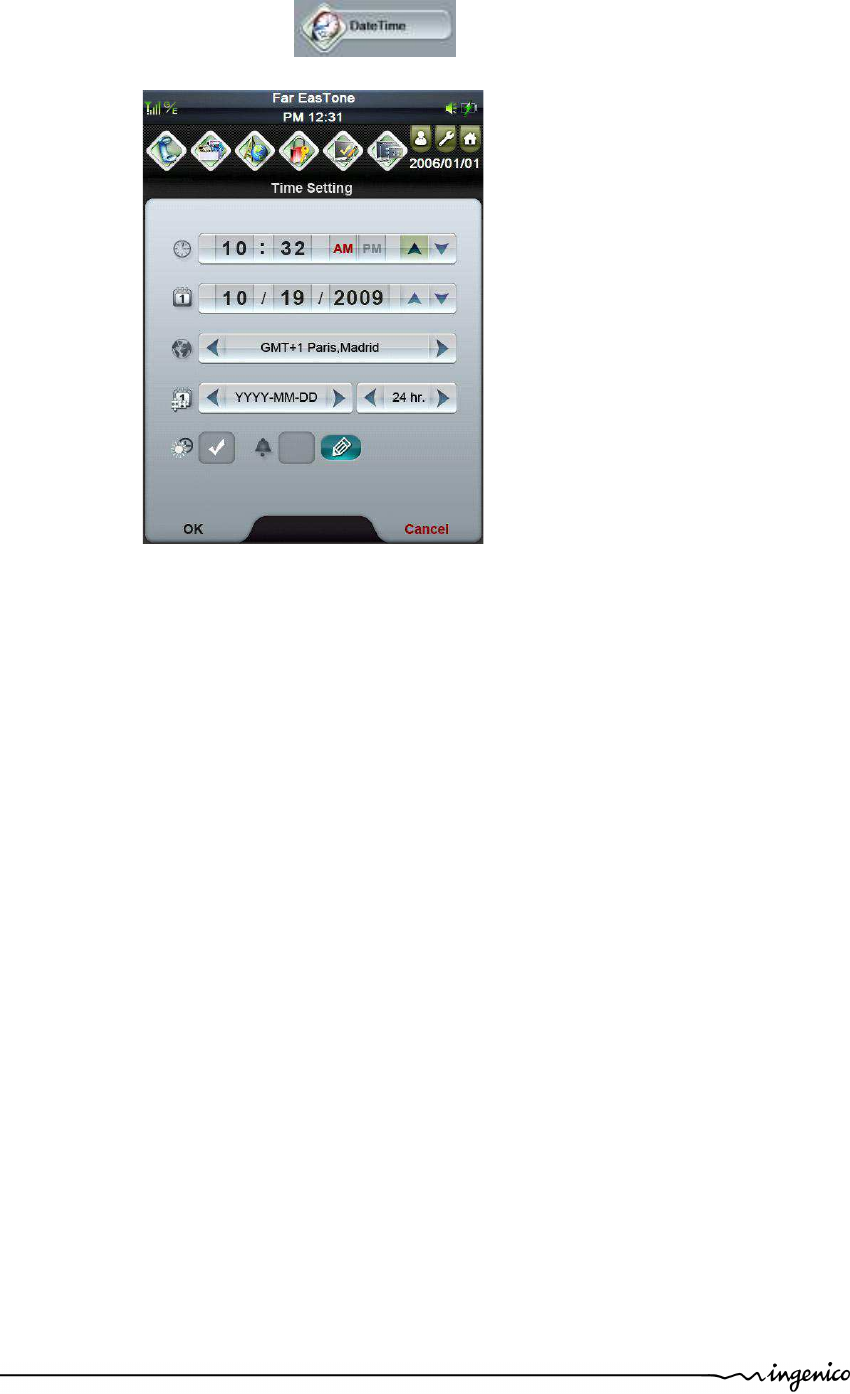

5.7.7. Date Time Setting

o Click the button to get the Time Setting screen.

5.7.8. Barcode Reader

• Press Right and Left scanner trigger buttons to activate the barcode scanner.

• LED indicates the battery charging and barcode scanning status.

o Green - Battery is fully charged, or barcode scanning process is completed

without error.

o Red - Battery is charging, barcode scanner is fired/activated.

• Barcode scanner setting :

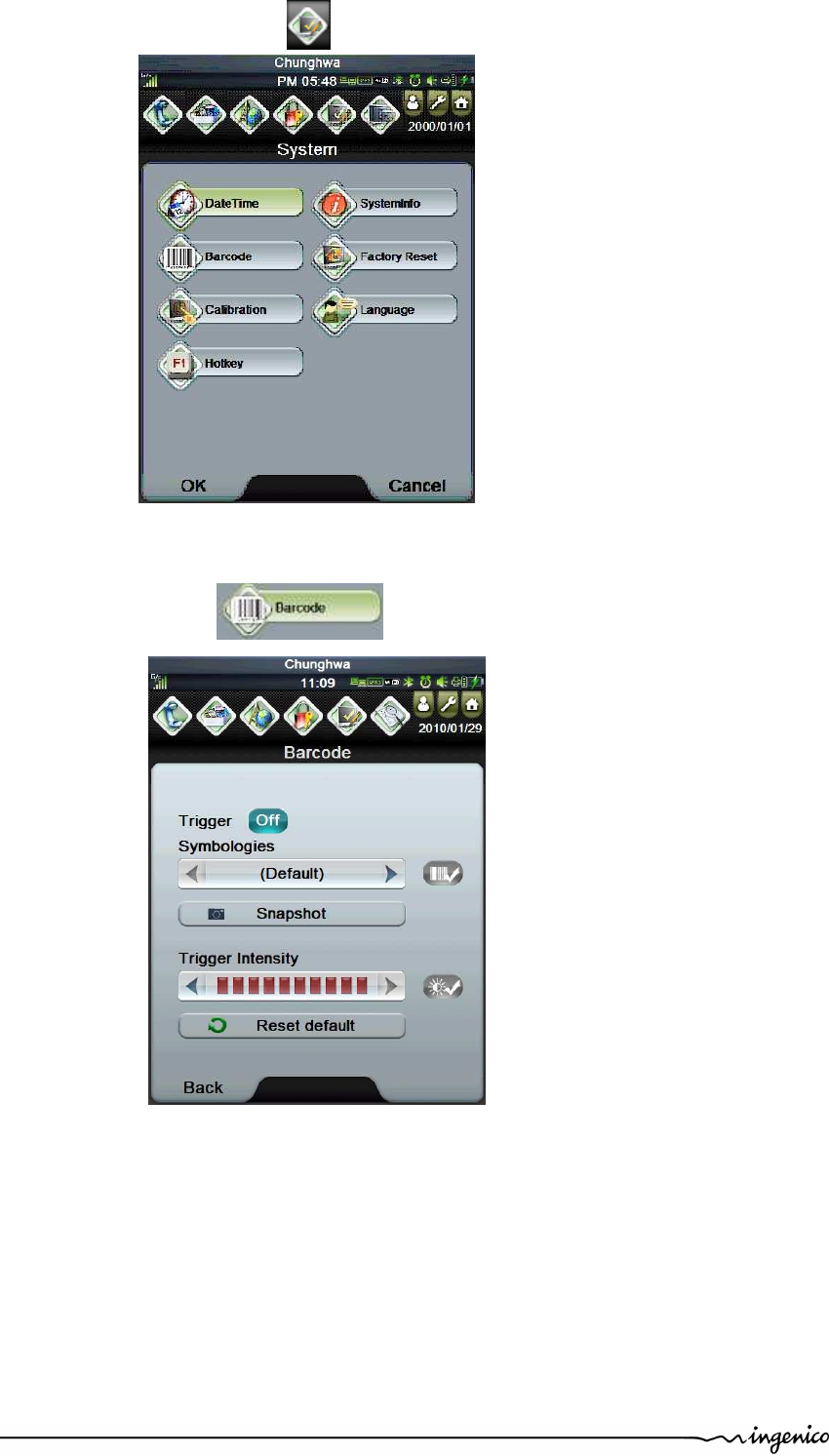

o Click the button to get the System menu.

• Click the button to get the Barcode menu.

• List the format that supported by default barcode firmware as below.

Factory default can read

1. Code39

2. Code128/GS1-128

3. DataMatrix

4. EAN/UPC

Symbology can read

1. Code39

2. Code128/GS1-128

3. DataMatrix

4. EAN/UPC

5. Aztec

6. Codabar

7. Code11

8. Code93

9. EAN add on 2

10. Interleave 2 of 5

11. Matrix 2 of 5

12. Plessey

13. GS1 DataBar

14. Standard 2 of 5

15. Telepen

16. QRCode

17. Maxicode

18. MicroPDF417

PARAF can read 19. PARAF code

TriopticNCodablock can

read

1. Code39

2. Code128/GS1-128

3. DataMatrix

4. EAN/UPC

20. Trioptic

21. Codablock F

5.7.9. Hotkey

o Click the button to get the Hotkey setting screen.

5.8. Power modes (connected and mobile)

5.8.1. Charging the battery

• Before using iPA280 for the first time, you need to charge it for about 16 hours.

• After that, you can charge the iPA280 4 hours to recharge the battery to full

capacity.

• Charge the iPA280 using the data and power cable or the docking station.

CAUTION! Operating the

iPA280 for the first time without the AC adapter, and

without fully charging the backup battery may result in loss of data stored in

RAM memory. When the main battery is removed, the backup battery retains

date and time for at least 10 minutes.

5.8.2. Normal mode

• Device is on and running. It is receiving full power from the system and is delivering

full functionality to the user.

• LCD is on. If in the talking mode LED is in fast flash mode, others LED flashs in green

every 2 seconds

5.8.3. Standby mode

• Device is partially powered, tap the screen or hit a key to wake up.

• LCD is off and LED flashes in green every 2 seconds.

5.8.4. Reduced Power modes

• Device is partially powered, with device-initiated wake up or user initiative wake up.

A device in this mode is sleeping but capable of raising the system power state on

its own. It consumes only enough power to be able to do so.

• LCD is off and LED flashes in green every 2 seconds.

5.8.5. Deep sleep

• Device has no power. A device in Deep Sleep mode should not be consuming any

significant power. Some peripheral busses require static terminations that

intrinsically use non-zero power when a device is physically connected to the bus.

• LCD is off and LED flashes in green every 2 seconds.

6. Maintenance

ATTENTION

Before making any operations of maintenance in the terminal, make sure that

the power supply is disconnected.

6.1. Paper roll

Characteristics Precisions

Type Reference: TF50-KR2 (NPI)

Colour White

Length Around 7 M (depending on paper roll type)

Width 58 mm

Diameter 24.7m/m +0.5m/m-0.5m/m

•

The thermal paper can be deteriorated by poor storage conditions, so we

recommend you to avoid:

– storage in hot wet places (near to air-conditioner, humidity higher than 85%)

– exposure to sunlight or ultraviolet for long periods

– contact with organic solvents (solvent type adhesive)

– direct contact with materials containing plasticizers (PVC transparent

folders or envelopes)

– direct contact with «diazo» papers

– direct contact with water

– Rubbing or pressing the paper too strongly

CAUTION

In order to benefit from the complete guarantee of the product, only heat

sensitized paper approved by the manufacturer can be used.

6.2. Cleaning of the terminal

First of all, unplug all the wires from the terminal.

Good rules for proper cleaning of the terminal are:

•

Use a soft cloth that is very slightly soaked with soapy water to clean the outside of

the terminal.

•

Do not clean the electrical connections.

•

Do not use in any case, solvents, detergents or abrasive products:

Those materials might damage the plastic or electrical contacts.

•

Avoid exposing the terminal to the direct rays of the sun.

•

Do not put anything into the slot of the smart card reader

6.3. Transport and storage

• Use the original packaging for any unit stored.

•

Disconnect all cables from the terminal during the transport.

6.4. Troubleshooting

The terminal does not turn on or does not connect:

• Check the power supply cable

• Check for electrical power network

The terminal fails to establish a GPRS connection

• Check Section 5.9.3

• Get support from technical

Cards are not read

• Check that the magnetic card is passed correctly (with magnetic band

directed to the exterior of the terminal)

• Swipe again the card with the magnetic stripe movement constant and rapid

• Verify that the magnetic strip is not damaged, grooved or cracked

• Make sure you have inserted correctly the smart card into the smart card reader

and remove the card only after the transaction

The ticket is not printed

• Check the presence and proper positioning of the paper roll on the iPA280

Possibly adjust the paper roll following instructions present in it’s manual

• Check the type of paper used (thermal paper must be used)

6.5. End of life

The product belongs to the family of electrical and electronic equipment. Therefore, it is

subjected to the WEEE directive, which requires the collection and the recycling at the end

of life product.

The Ingenico products present the symbol for the marking of electrical and electronic

equipment as required by the WEEE Directive.

The crossed-out wheeled bin printed on the product gives the information about

the requirement not to dispose of WEEE as unsorted municipal waste and to

collect such WEEE separately.

To assure that the product is collected and recycled with respect to the environment, you

must contact your supplier (in defect, contact the Ingenico local office or the commercial

head office in charge of your country on www.ingenico.com, « contact us » page).

The abandonment or uncontrolled disposal of waste can cause harm to environment and to

human health. So, by recycling your product in a responsible manner, you contribute to the

preservation of natural resources and to the protection of human health.

7. Extensions and accessories

7.1. Cradles

•

Charging the Battery with the cradle:

o Plug the AC adapter cable into the power jack on the cradle, then connect

the AC adapter into an electrical outlet.

o Before slide the device into cradle, remove the grommet of the terminal

(see location on illustration) in order to establish the connection with

cradle.

o The connection is secure when the bottom edge of the device is aligned

with the cradle, and the LED indicator on the device lights up red.

Grommet

Paper exit

7.2. Holster

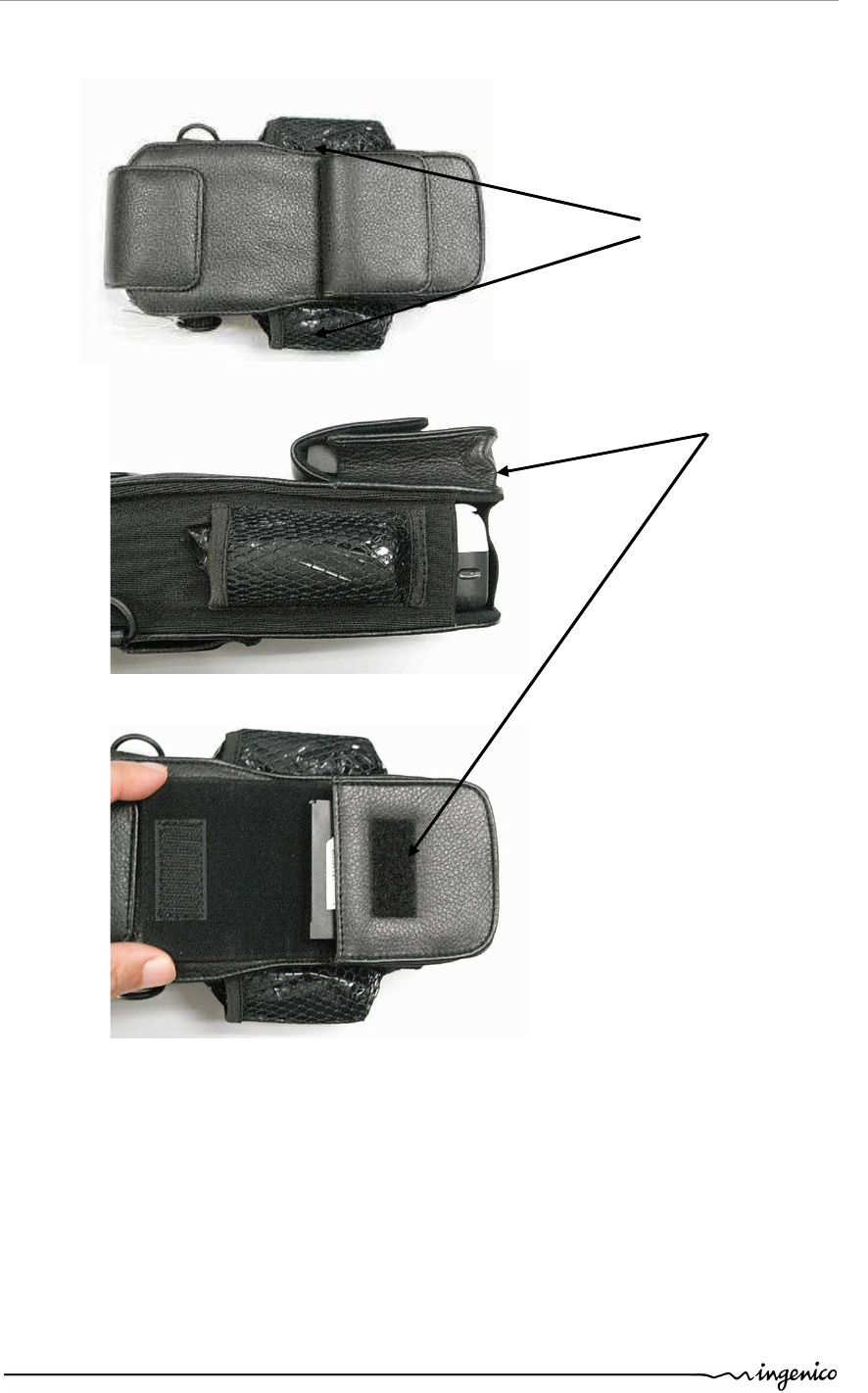

• The Holster can hold two paper rolls on both side. The front pocket can hold a

iPA280 battery.

the paper roll

the

battery

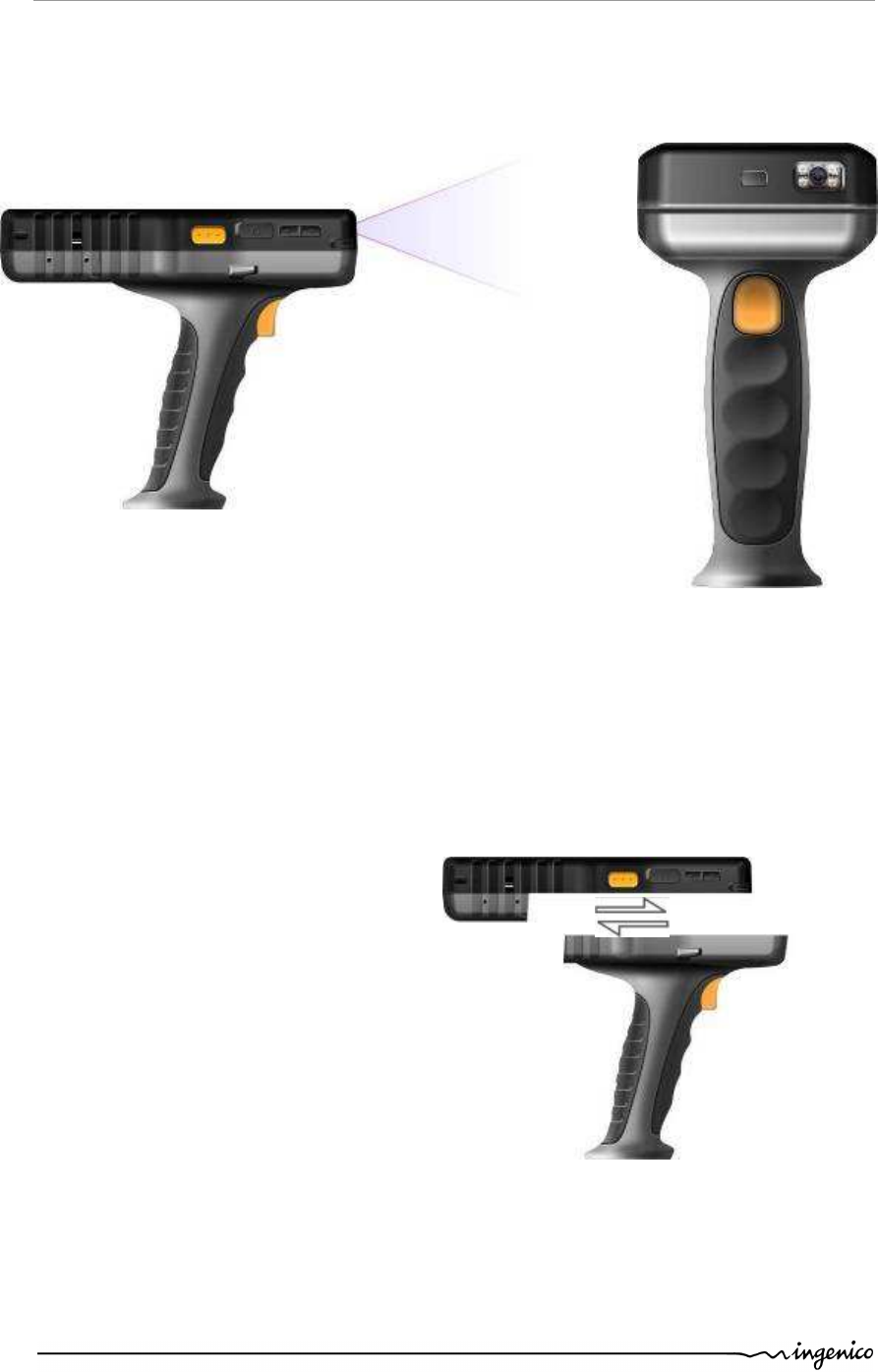

7.3. Pistol

• Pistol Grip handle (for inventory management purpose), Data capture through

trigger, Easy snap on PDA.

• To install the pistol on PDA, remove the SPM part (see section 4.1), and slide the

pistol in the PDA part, as illustrated by arrows on the illustration.

Ingenico

192 avenue Charles de Gaulle

92200 Neuilly sur Seine - France

Tél.: + 33 1 46 25 82 00 - Fax: + 33 1 47 72 56 95

www.ingenico.com

ownership, rights and protection in all material contained in this document. The recipient

can receive this document on the condition that he will keep the document confidential and

will not use its contents in any form or by any means, except as agreed beforehand,

without the prior written permission of INGENICO. Moreover, nobody is authorized to place

this document at the disposal of any third party without the prior written permission of

INGENICO. If such permission is granted, it will be subject to the condition that the recipient

ensures that any other recipient of this document, or information contained therein, is held

responsible to INGENICO for the confidentiality of that information.

Care has been taken to ensure that the content of this document is as accurate as

possible. INGENICO however declines any responsibility for inaccurate, incomplete or

outdated information. The contents of this document may change from time to time

without prior notice, and do not create, specify, modify or replace any new or prior

contractual obligations agreed upon in writing between INGENICO and the user.

INGENICO is not responsible for any use of this device, which would be non consistent with

the present document.

All trademarks used in this document remain the property of their rightful owners

Your contact

*295011136AC*

Ingenico IPA280 POS terminal User Manual manual

INGENICO POS terminal manual

Contents

manual

Navigation menu

Namespaces

Views

Navigation
