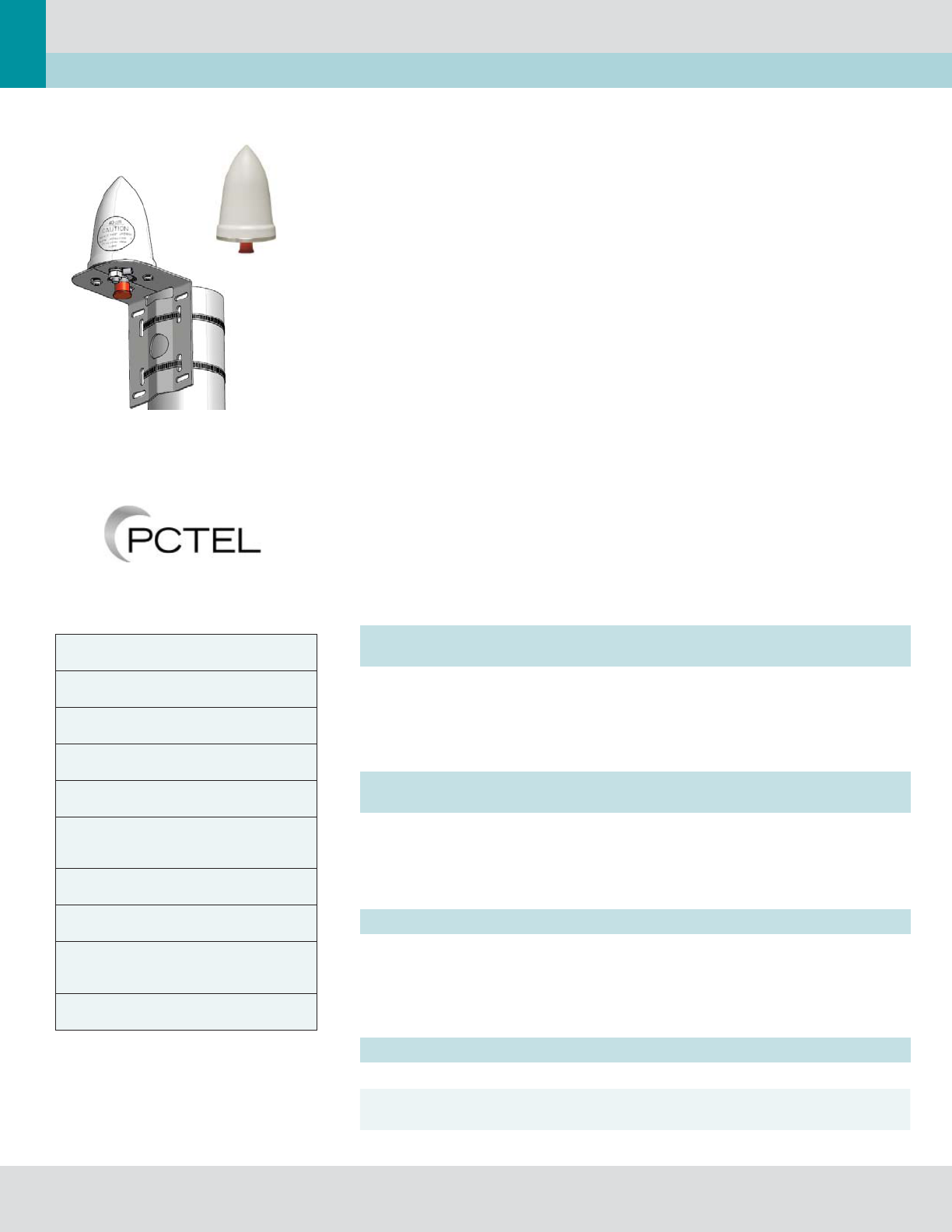

178 PCTEL, Inc. WEB: www.antenna.com
GPS/AVIATION SPECIAL PURPOSE ANTENNAS
GPS Timing Reference Antennas
GPSL1-TMG-SPI-40N, 40 dB Internal Amplifi er
with Integrated Lightning Protection
The GPSL1-TMG-SPI-40N timing reference antennas are specifi cally designed
for long-lasting, trouble-free deployments in congested cell-site applications.
The low noise, high gain amplifi er is well suited to address attenuation issues
associated with applications requiring longer cable runs.
The proprietary quadrifi liar helix design, coupled with multistage fi ltering
provides superior out-of-band rejection and lower elevation pattern
performance than traditional patch antennas.
Their unique radome shape sheds water and ice, while eliminating problems
associated with bird perching. The antenna comes with surge compliant
mounting that addresses industry grounding requirements. Custom models or
site kits options are also available.
This antenna is made of materials that fully comply with provisions stipulated
by EU directives RoHS 2002/95/EC.
The antenna provides integrated, on-board lightning protection capability that
alleviates the need for downstream, in-line surge suppressors.
The antenna also features ESD, reverse polarity protection and transit
voltage suppression.
Low Noise Amplifi er
Specifi cations
Frequency Band:
1575.42 +/-10 MHz
Amplifi er Gain:
40 dB +/- 4 dB
Nominal Impedance:
50 ohms
Output VSWR:
<2.0:1
Maximum Noise Figure:
< 2.5 dB @ +25°C including pre-selector
DC Voltage:
3.3-9.0 V (operating)
≤28.0 V (survivability)
DC Current:
< 30 mA @ 5 V
Filtering:
3 stage fi ltering including pre-selector
Out of Band Rejection:
≥ -60 dB @ +/- 50 MHz off
center frequency
Lightening Protection Compliance:
Per EN61000-4-5 Level 4
1575.42
+/- 10 MHz 3.5 dBic 50 ohms <1.5:1 Right hand
circular
N, female
(one -
bottom fed)
Antenna Element Electrical Specifi cations
Frequency
Band Antenna
Gain Nominal
Impedance VSWR Polarization Connector
7.25” H x 3.2” D
(184 x 81 mm)
7.5” L x 4.4” W x 3.8” D
(190 x 112 x 96 mm)
0.75 lbs
(0.34 kg) White
Mechanical Specifi cations
Antenna
Dimensions Shipping
Dimensions Antenna
Weight Radome
Color
-40°C to +85°C 95%
Environmental Specifi cations
Temperature Range Humidity
GPSL1-TMG-SPI-40N Does not include mounting hardware.
GPSL1-TMG-SPI-40NCB Includes heavy duty mount (GPS-TMG-MHD), a grounding
screw and lug nut
GPSL1-TMG-SPI-40N
GPSL1-TMG-SPI-40NCB
Mounting
All mounting options fi t pipes of 1”-1.45” (25 mm-37 mm) maximum diameter.
Model Options
