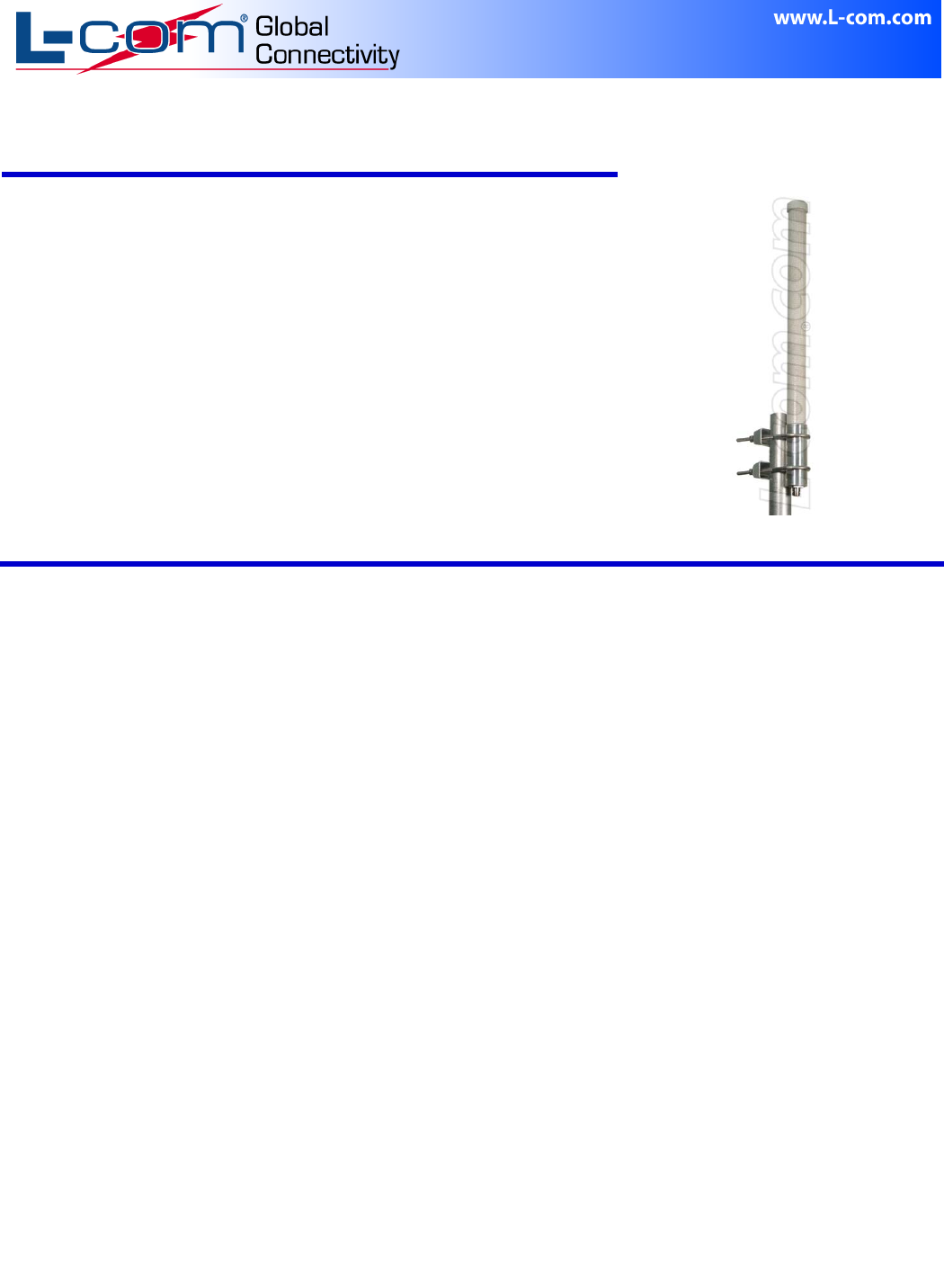

2.4 GHz 9 dBi Omni-Directional with 7° Down-Tilt Antenna
Applications and Features
Applications: y 2.4 GHz ISM Band
y ISP Base Stations
y IEEE 802.11b/g Wireless LAN
y Public Wireless Hotspot/WiFi Access Points
y Multipoint and Mesh Applications
Features: y Electrical Down Tilting Pattern for Excellent
Coverage
y Commercial Grade Radiating Elements
y Integral N-Female connector
y Durable UV-stable fiberglass radome
y Includes heavy duty pole mounting brackets
Model: HG2409UDT-PRO
Features
Professional Grade
The HyperGain® HG2409UDT-PRO is a Profession Grade Omni-Directional Down-Tilt antenna that can be used for
Commercial installations. The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz
ISM band. The pattern is electrically tilted downward to improve coverage from higher mounting elevations in difficult
sites such as apartment complexes and similar installations.
Superior Performance
The HG2409UDT-PRO antenna is specifically designed from commercial applications. Electrical down tilting assures
excellent coverage from higher mounting elevations to extend coverage over a larger area. It is ideally suited for
close-in systems, typically found in apartment complex installations, neighborhood networks, industrial complexes,
mobile home parks, marinas, truck stops and shopping centers.
Because of the unique design of the HyperGain® HG2409UDT-PRO, nulls are eliminated in many cases, and the
antenna can be used with many and varied wireless systems. The mounting hardware is industrial grade and
protected from the elements. The fiberglass radome provides weatherproof protection of the antenna elements and
electronics. The antenna base is stainless steel, providing strength and resistance to the environment. The radiating
elements of the HG2408U-PRO utilize an air dielectric for lowest loss and superior radiating efficiency. The design is
factory tuned for superior performance.
Rugged and Weatherproof
This antenna’s construction features a durable fiberglass radome for durability and aesthetics. Its mounting system
features twin heavy-duty mounting brackets and U-Bolts for superior strength. The commercial grade elements
provide long life in hostile environments.
L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845
WWW.L-COM.COM E-MAIL: SALES@L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484
© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

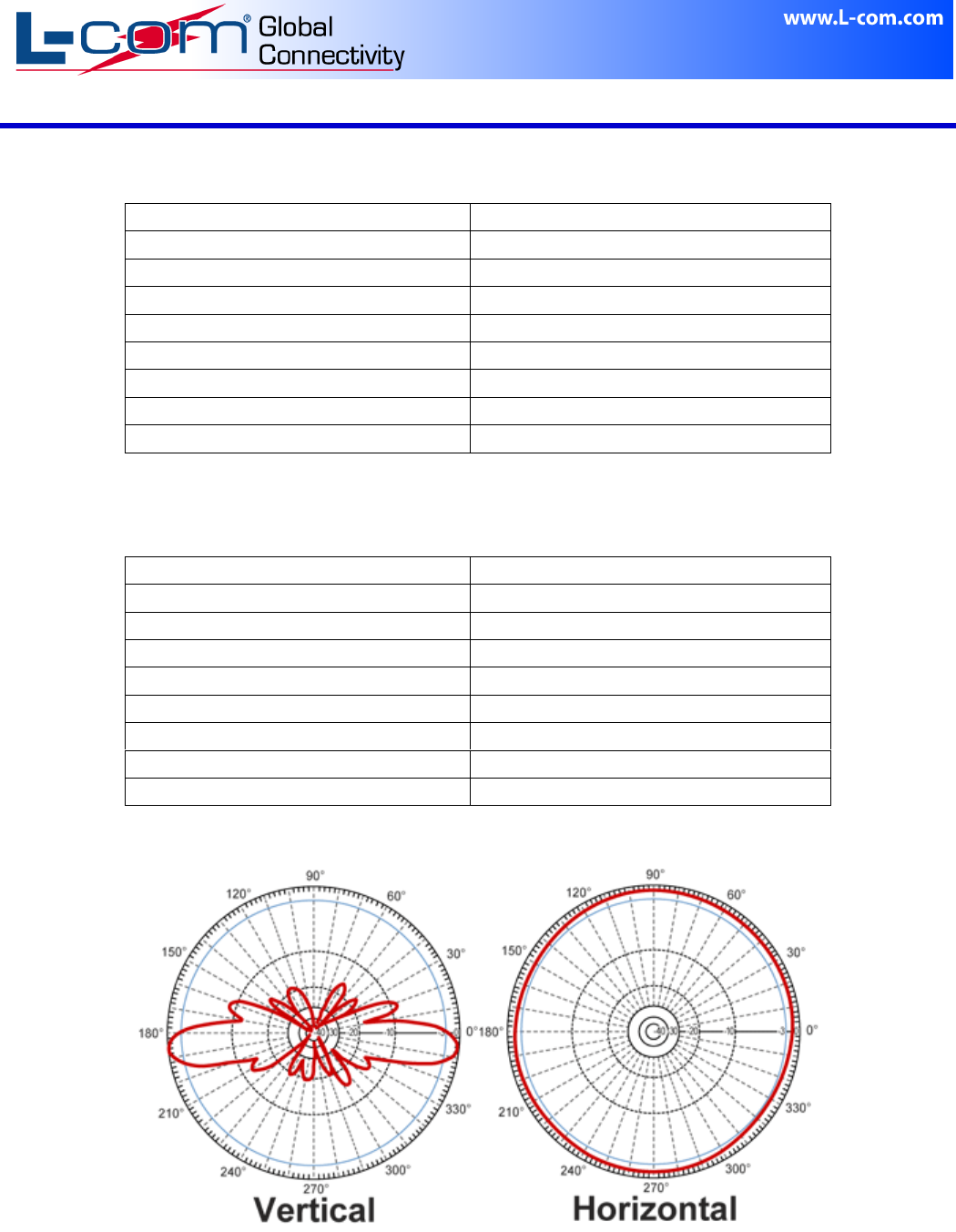

Specifications
Electrical Specifications
Frequency Range 2400-2500 MHz
VSWR ≤1.5
Gain 9 dBi
Rated power 150W
Polarization Type Vertical Polarization
Electrical Down Tilt 7 +/- 2°
Beamwidth 11°
Input Impedance 50Ω
Lightning Protection Direct Ground
Mechanical Specifications
Connector Type N-Female
Length 32 in. (0.80 m)
Weight (w/ mounting bracket) 2.8 lbs. (1.27 kg)
Radome Diameter 1.5 in. (38.1 mm)
Base Diameter 1.7 in. (43.2 mm)
Base Length 4.7 in. (119.4 mm)
Radome Material Gray Fiberglass
Rated Wind Survival >135/MPH
Pole Mounting Hardware 1.25in.-2in. (32-50 mm)
Antenna Gain Patterns
