InnoSenT GmbH Doppler Radar Module Installation Manual

Installation Manual

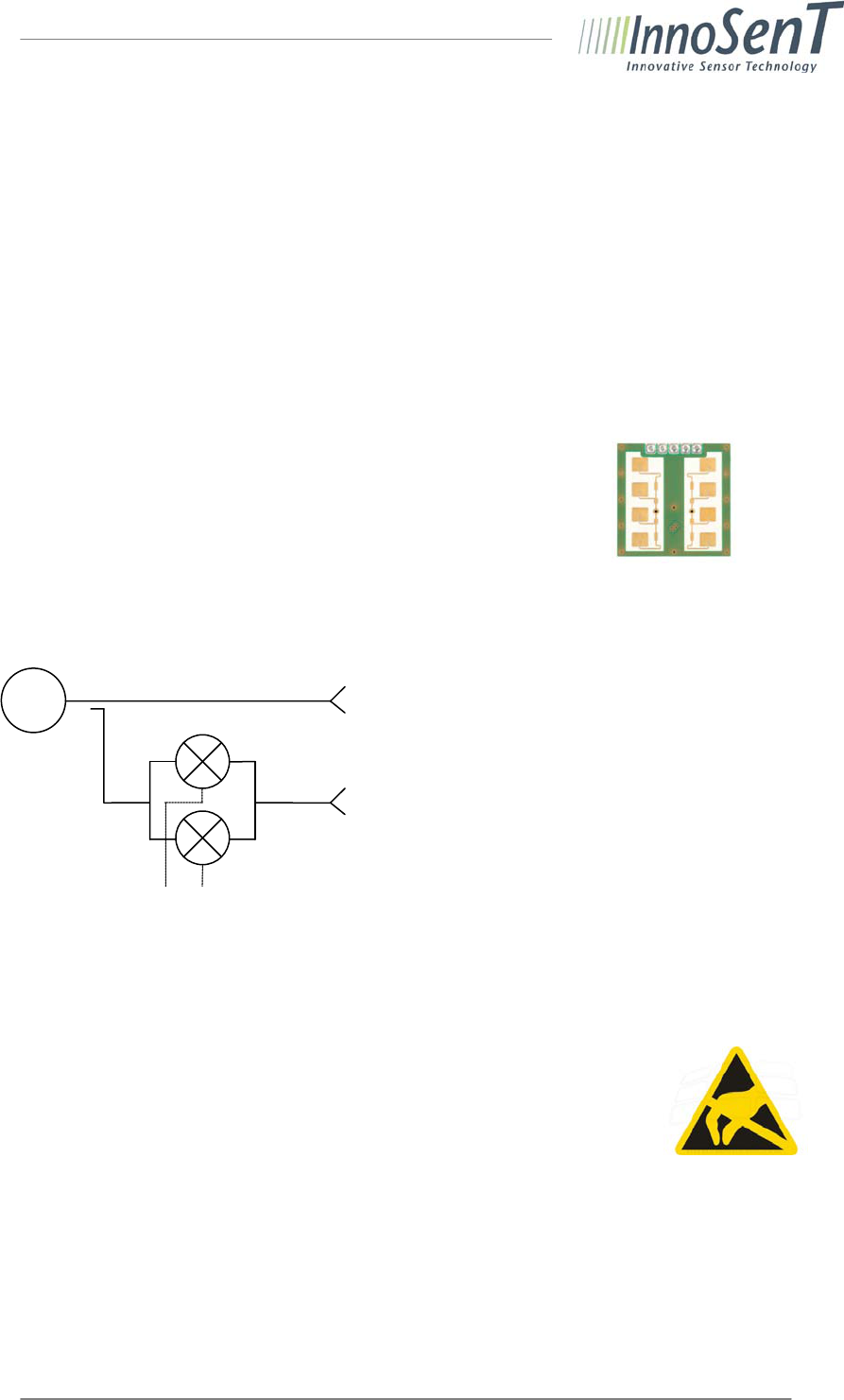

1 von 3 DATA SHEET IPS-265_F 11-01-2011
Version 0.3
_____________________________________________________________________________________________________
User Manual
Product Family: Low Cost K-Band Transceiver
Range of use: Security- / Door- applications
Module Number: IPS-265_F
_____________________________________________________________________________________________________
Description:
♦ radar-based motion detector
♦ available in different frequency ranges: Standard; _F and _UK variants
♦ advanced PHEMT-oscillator with low current consumption
♦ split transmit and receive path for maximum gain
♦ dual (stereo channel) operation
♦ very small outline dimensions
Block Diagram:
Environmental Tests and Handling Precautions:
♦ This InnoSenT sensor is sensitive to damage from ESD.
♦ Normal precautions as usually applied to CMOS devices are sufficient when handling the
device. Touching the signal output pins has to be avoided at any time before soldering or
plugging the device into a motherboard
♦ Applying multimeters e.g. for resistance measurement between any of the connector pins
may cause damage to the module.
~
Oscillator
I/Q-Mixer
Tx
Rx
S1 S2

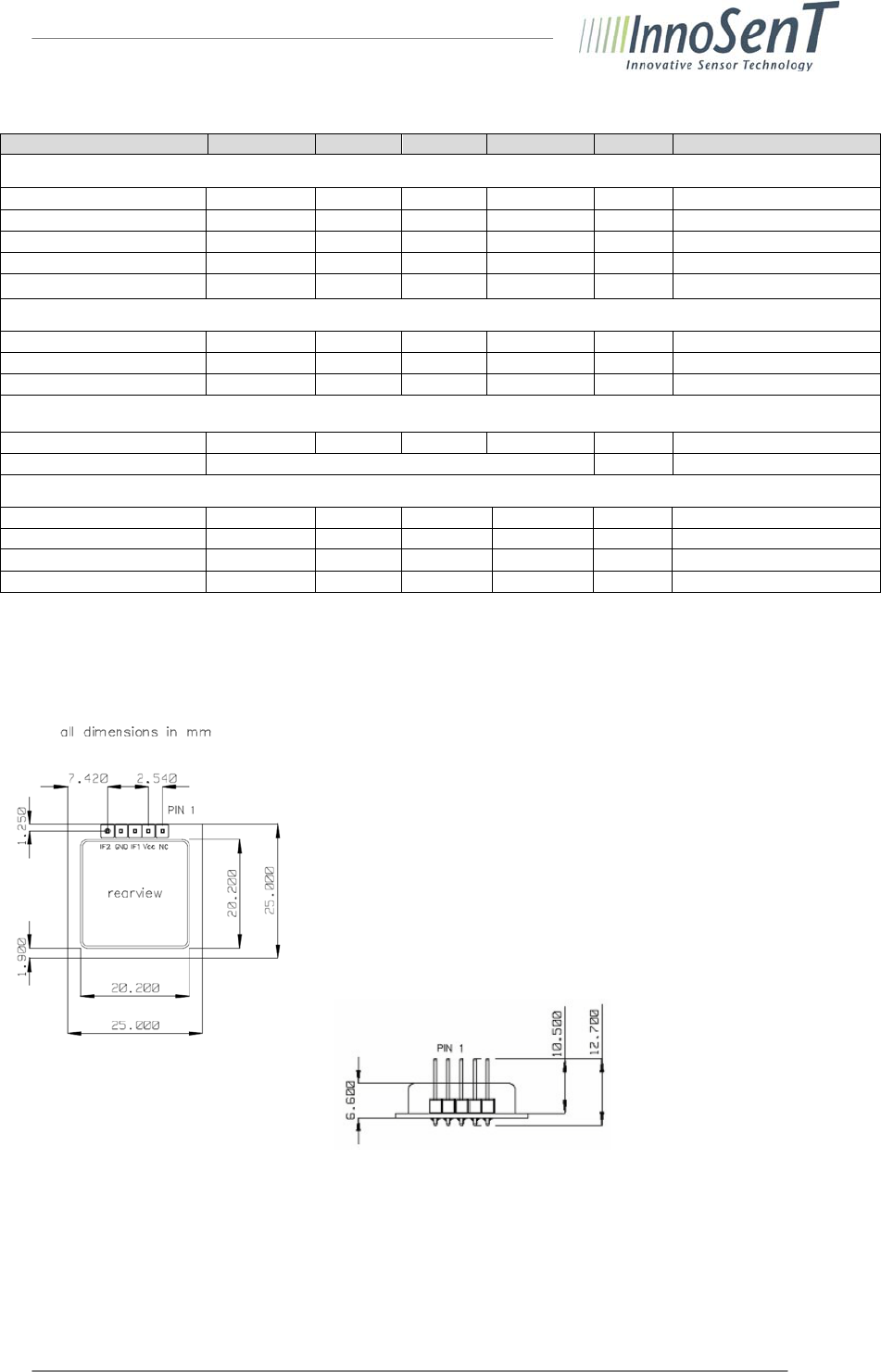

2 von 3 DATA SHEET IPS-265_F 11-01-2011
Version 0.3
Electrical Characteristics:
Parameter Symbol min. typ. max. units comment
Transmitter
transmit frequency
24.075
24.175
GHz
temperature drift frequency ∆
-1 MHz/°C
output power P
16 dBm
positive supply voltage
5
V
positive supply current Icc 30 40 mA
Receiver
I/Q-balance amplitude 6 db
phase 60 90 120 °
IF-output
-300
300
mV
Environment
operating temperature T -20
60 °C
outline dimensions
~ 25 x 25 x 7 (12.7)
mm
compare drawing
Antenna
antenna pattern (-3 dB)
80
°
azimuth
vertical 32 ° elevation
side lobe suppression
13
dB
azimuth
vertical 13 dB elevation
Mechanical Outlines:
3 von 3 DATA SHEET IPS-265_F 11-01-2011
Version 0.3
Interface:
The sensor provides a 2.54 mm grid, single row pin header (square pin 0.635 mm).
Pin Function Description
1
NC
not connected
2
VCC
supply voltage 5V
3 IF1 signal 1 output
4 GND GND
5
IF2
signal 2 output
Certification and environment protection:
InnoSenT GmbH has established and applies a quality system for:
Development, production and sales of radar sensors for commercial and industrial sensors
An audit was performed, Report No. 010350 Proof has been furnished that the requirements
according to DIN EN ISO 9001:2000 are fulfilled.
This InnoSenT product is compliant to the restriction of hazardous substances
(RoHs – European Union directive 2002/95/EG).
FCC approval
• This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
• Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the
FCC authorization to operate this equipment.
• Manufacturers of mobile or fixed devices incorporating IPS-265_F modules are authorized to use the FCC Grants and IC
Certificates of the IPS-265_F modules for their own final products according to the conditions referenced in these
documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a
second label stating "Contains FCC ID: UXS2" and "Contains IC: 5904A-UXS2".
Contact Information:
InnoSenT GmbH
Am Roedertor 30
97499 Donnersdorf
Germany
Phone: +49 (0) 9528-9518-0
Fax: +49 (0) 9528-9518-99
E-Mail: info@InnoSenT.de
Web: www.InnoSenT.de
