InnoSenT IPQ05R05 Stereo K-Band Transceiver Module User Manual IPQ 05 Rev 05
InnoSenT GmbH Stereo K-Band Transceiver Module IPQ 05 Rev 05
InnoSenT >
User Manual
Innovation in radar sensing
Making happen what others only dream of
Innovation in radar sensing
Making happen what others only dream of

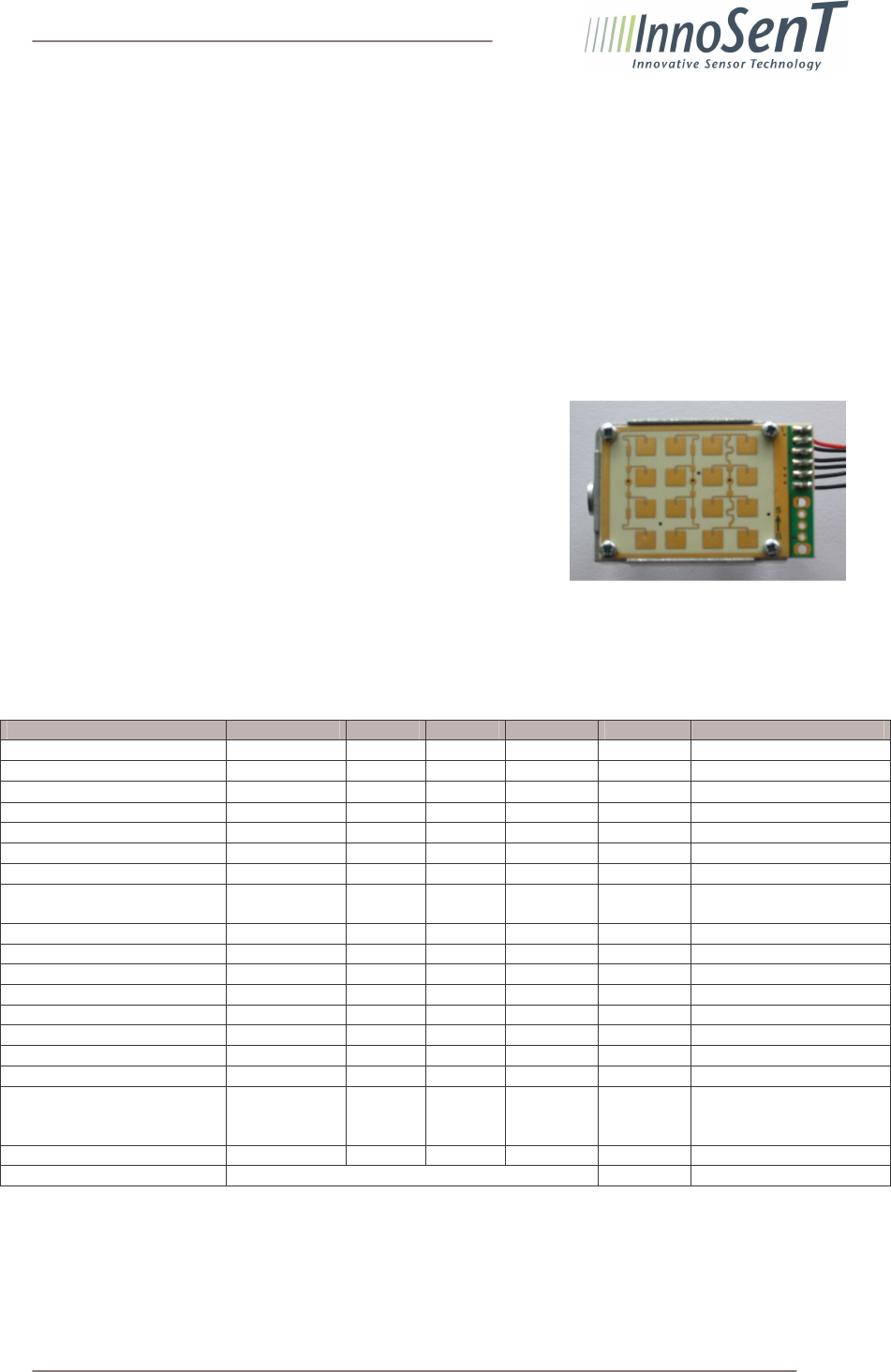

1 von 3 USER MANUAL IPQ-05_Rev.05 2008-05-19
Version 1.0
_____________________________________________________________________________________________________
USER MANUAL
Product Family: K-Band Transceiver
Range of use: advanced door applications
Module Number: IPQ-05_Rev.05
_____________________________________________________________________________________________________
Description:
Basic Features IPQ-05_Rev.05
-
radar-based motion detector centered @ 24.125 GHz
-
advanced PHEMT-oscillator with low current consumption
-
split transmit and receive path for maximum gain
-
stereo (dual channel) operation for direction of motion identification
-
integrated IF-pre-amplifier
-
enable input for oscillator shut down
-
small outline dimensions
-
two electronically selectable antenna patterns
-
EN 61508:2001 certification requires that the transceiver
is built into a housing rated
0. min. IP20 for indoor use
1. min. IP54 for outdoor use
Electrical Characteristics
Parameter Symbol min. typ. max. units comment
transmit frequency f
transmit
24.075 24.125 24.175 GHz
output power (EIRP) P
out
15 20 dBm
temperature drift ∆f - 1 MHz/°C
I/Q balance amplitude 6 dB
phase 60 90 120 °
IF-output voltage offset 1.0 4.0 V
IF-amplifier
1
gain 23 dB
bandwidth DC 220 * kHz * typical upper
frequency limit
switching voltage
2
high level 2 5.5 V narrow antenna pattern
low level GND 0.5 V broad antenna pattern
supply voltage V
CC
4.75 5.0 5.25 V
supply current I
CC
35 50 mA
threshold for enable input
3
min off V
CC
-0.2 V
max on 0.5 V
turn-on time oscillator t
on
0.5 5 µs
turn-off time oscillator t
off
1 5 µs
step response 40 mV absolute value (Delta
S1)+ absolute value
(DeltaS2)
operating temperature T
OP
- 20 + 60 °C
outline dimensions ~ 40 x 25 x 24 mm
1
Output-Impedance R
out
(IF1, IF2) = 100 Ω
2
no Pullup or Pulldown-Resistor
3
Internal Pullup-Resistor with 10kΩ
Innovation in radar sensing
Making happen what others only dream of
Innovation in radar sensing
Making happen what others only dream of

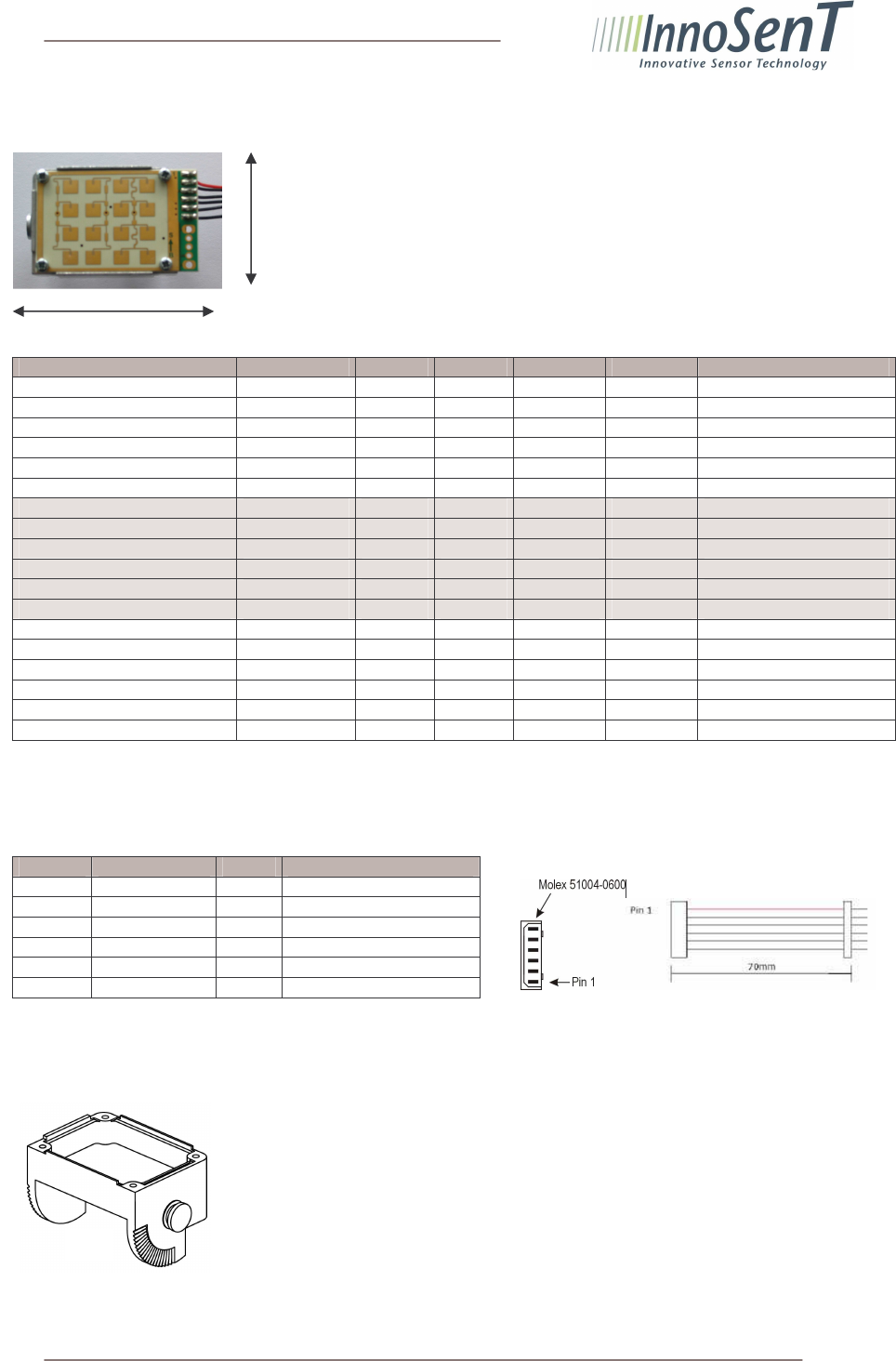

2 von 3 USER MANUAL IPQ-05_Rev.05 2008-05-19
Version 1.0
Antenna Characteristics (radiation pattern)
Rx1 Tx Rx2
Parameter Symbol min. typ. max. units comment
antenna pattern Tx (3dB) horizontal 76 ° azimuth
vertical 35 ° elevation
antenna pattern Tx (10dB) horizontal 135 ° azimuth
vertical 62 ° elevation
side lobe suppression Tx horizontal 13 dB azimuth
vertical 13 dB elevation
antenna pattern Rx1 (3dB) horizontal 76 ° azimuth
vertical 35 ° elevation
antenna pattern Rx1 (10dB) horizontal 135 ° azimuth
vertical 62 ° elevation
side lobe suppression Rx1 horizontal 13 dB azimuth
vertical 13 dB elevation
antenna pattern Rx2 (3dB) horizontal 49 ° azimuth
vertical 40 ° elevation
antenna pattern Rx2 (10dB) horizontal 89 ° azimuth
vertical 69 ° elevation
side lobe suppression Rx horizontal 13 dB azimuth
vertical 13 dB elevation
Interface
The sensor provides a 2 mm pitch 6 pin connector Molex 51004-0600.
Pin # Description In/Out Comment
1 enable input active low
2 V
CC
input supply voltage (+5 V)
3 GND input analog ground
4 IF1 output Signal I(nphase)
5 IF2 output Signal Q(uadrature)
6 switch
input
mates with: Molex P/N 53014, 53015 and 53025
Mechanical Outlines
all dimensions in mm
for details compare with
drawing 41-1190.42
vertical
horizontal
Innovation in radar sensing
Making happen what others only dream of
Innovation in radar sensing
Making happen what others only dream of

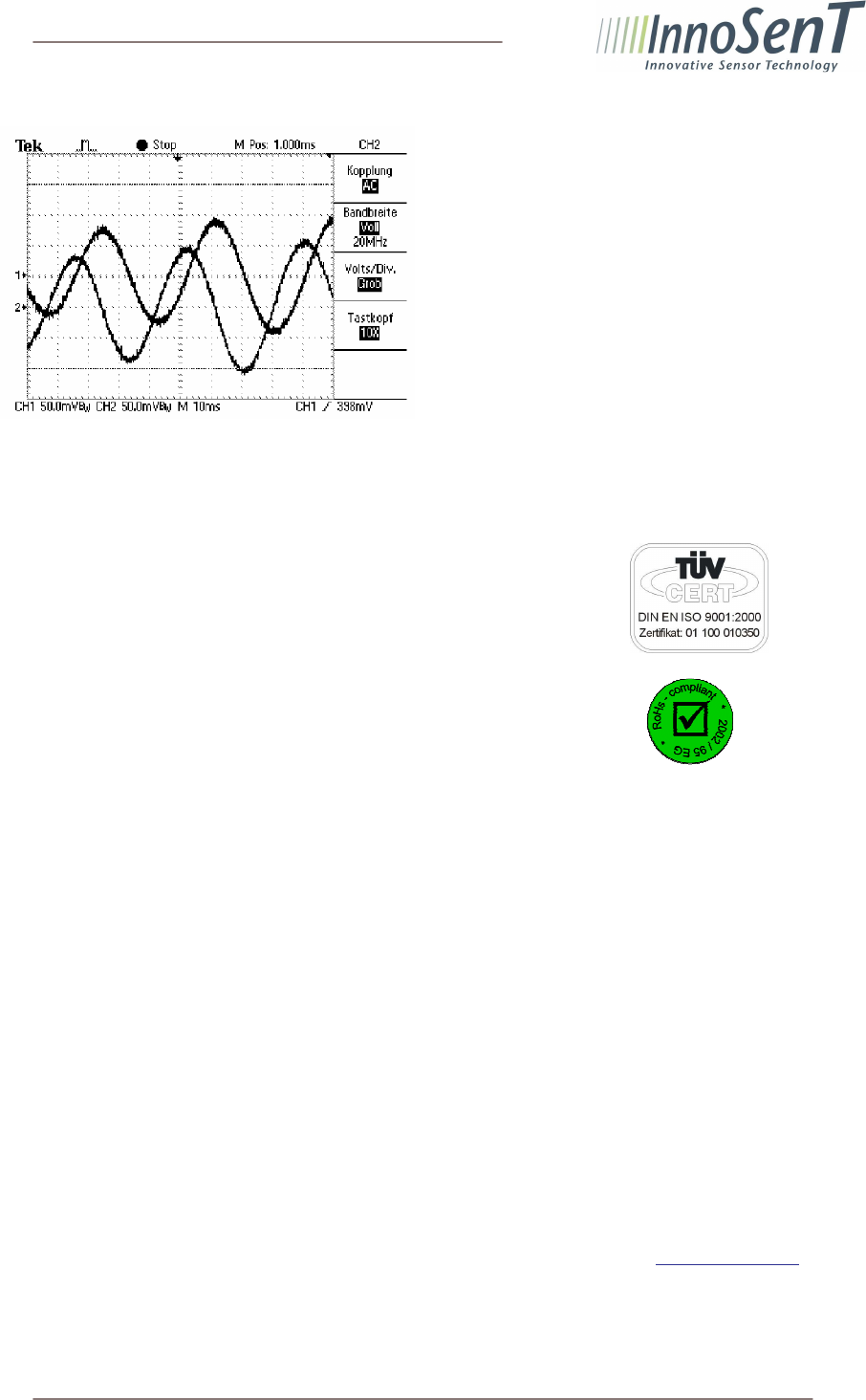

3 von 3 USER MANUAL IPQ-05_Rev.05 2008-05-19
Version 1.0
I/Q-Definition
Signal Q is leading if an object moves towards the radar transceiver.
Certification and Environment Protection
InnoSenT GmbH has established and applies a quality system for:
Development, production and sales of radar sensors for commercial and
industrial sensors
An audit was performed, Report No. 010350 Proof has been furnished that
the requirements according to DIN EN ISO 9001:2000 are fulfilled.
This InnoSenT product is compliant to the restriction of hazardous substances
(RoHs – European Union directive 2002/95/EG).
FCC-Approval
• This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
• Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may
void the FCC authorization to operate this equipment.
• Manufacturers of mobile or fixed devices incorporating IPQ-05 modules are authorized to use the FCC
Grants and IC Certificates of the IPQ-05 modules for their own final products according to the conditions
referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or
the host device shall bear a second label stating "Contains FCC ID: UXS-IPQ05R05" and "Contains IC:
6902A-IPQ05R05".
Contact Information:
InnoSenT GmbH
Am Roedertor 30
97499 Donnersdorf
Germany
Phone: +49 (0) 9528-9518-0
Fax: +49 (0) 9528-9518-99 E-Mail: info@InnoSenT.de
Web: www.InnoSenT.de
