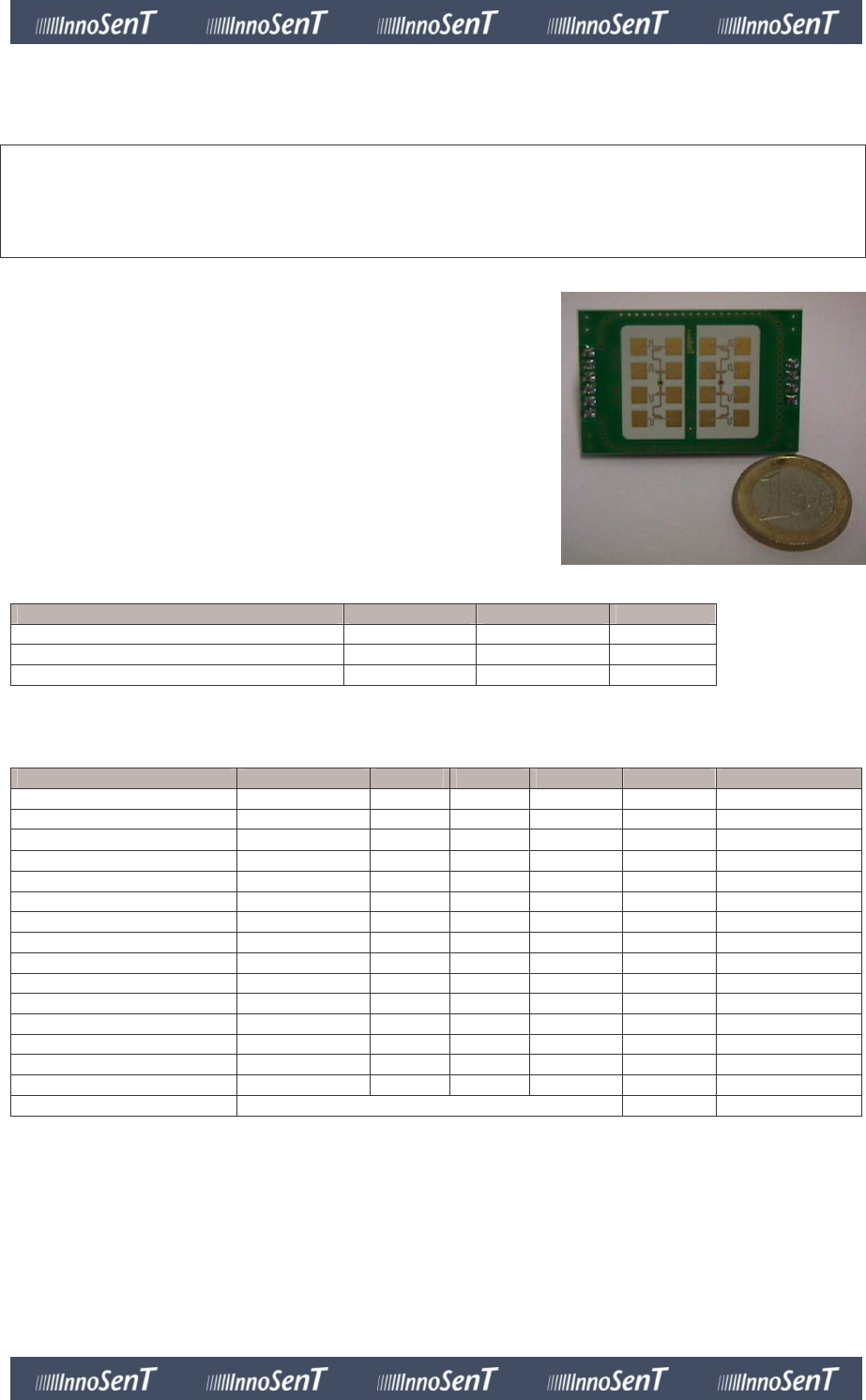

User Manual
Product Family: K-Band Transceivers
K-Band Transceiver
with two integrated patch antennas and IF-pre-amplifier
IPS-154_US
Description:
-
radar-based motion detector
-
advanced PHEMT-oscillator with low current consumption
-
split transmit and receive path for maximum gain
-
stereo (dual channel) operation for direction of motion
identification
-
IF-pre-amplifier, bandwidth limited for lowest noise
performance
-
economic flat-pack housing, extra small outline dimensions
-
enable input for oscillator shut down
Absolute Maximum Ratings:
Parameter Symbol Rating Units
supply voltage V
CC
5.5 V
operating temperature (out of spec) T
OP
- 40 / + 85 °C
storage temperature T
STG
+ 90 °C
Electrical Characteristics:
Parameter Symbol min. typ. max. units comment
f
IPS-154_US
24.075 24.125 24.175 GHz
output power (EIRP) P
out
16 20 dBm
temperature drift ∆f - 1 MHz/°C
antenna pattern horizontal 45 ° azimuth
vertical 38 ° elevation
side lobe suppression horizontal 13 dB azimuth
vertical 13 dB elevation
I/Q balance amplitude 6 dB
phase 60 90 120 °
IF output voltage offset 1.0 2.2 4.0 V
IF-amplifier gain 20 dB
bandwidth DC – 50
kHz
supply voltage V
CC
4.75 5.0 5.25 V
supply current I 35 50 mA
operating temperature T
OP
- 20 + 60 °C
outline dimensions 44 x 30 x 8.3 (19) mm compare drawing
Version 1.0 IPS-154_US page 2 of 3
2007-06-06
Interface:
The sensor provides a 2.54 mm grid, single row pin header (square pin 0.635 mm).
Pin #
Description In/Out Comment
1 NC not connected
2 enable input active low
3 V
CC
input supply voltage (+5 V)
4 GND input analog ground
5 IF1 output Signal I(nphase)
6 IF2 output Signal Q(uadrature)
7 NC not connected
8 NC not connected
9 GND input analog ground
10 NC not connected

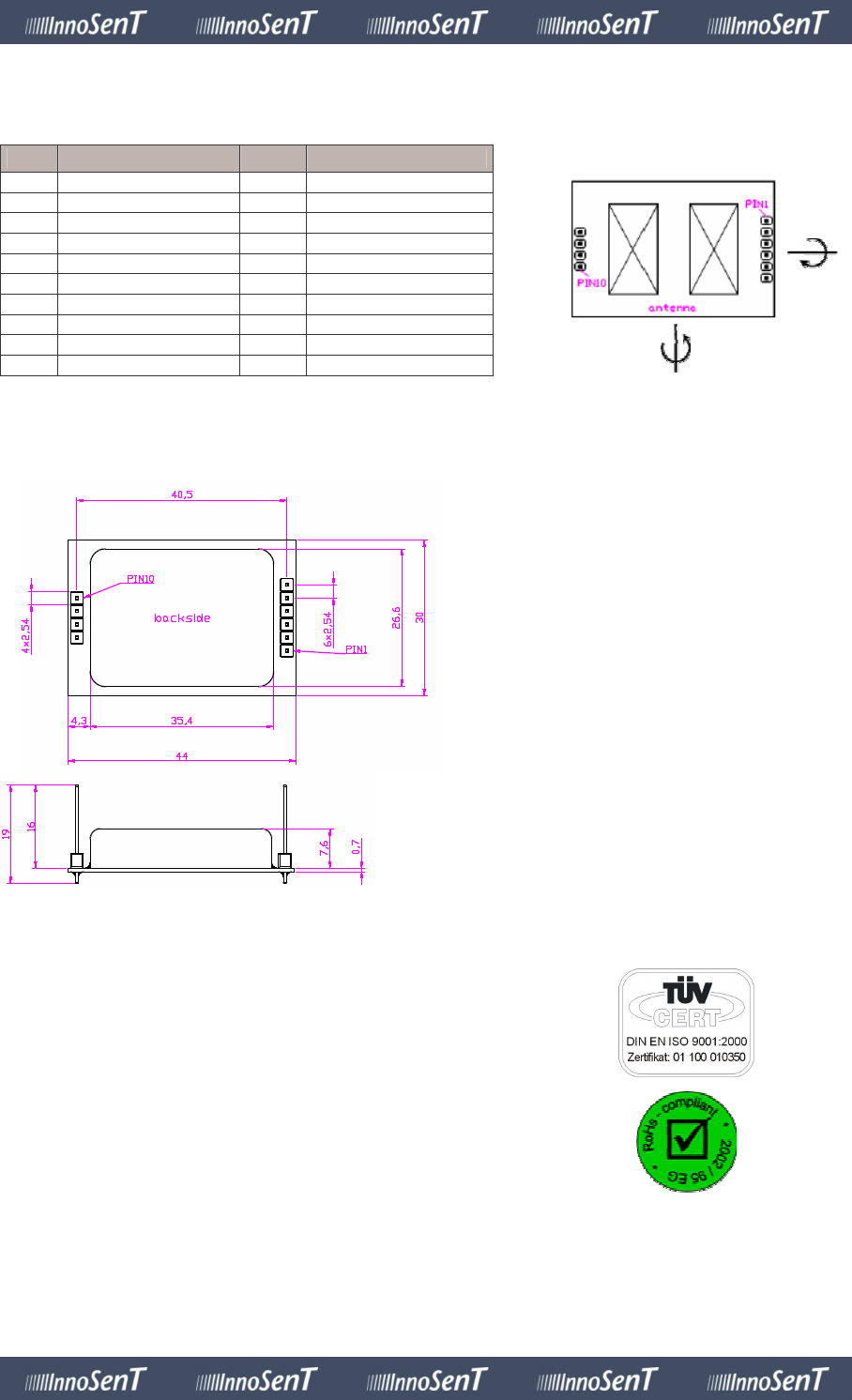

Mechanical Outlines:
(dimensions in mm)
Certification and environment protection:
InnoSenT GmbH has established and applies a quality system for:
Development, production and sales of radar sensors for commercial and
industrial sensors
An audit was performed, Report No. 010350 Proof has been furnished that
the requirements according to DIN EN ISO 9001:2000 are fulfilled.
This InnoSenT product is compliant to the restriction of hazardous substances
(RoHs – European Union directive 2002/95/EG).
azimuth
elevation
Version 1.0 IPS-154_US page 3 of 3
2007-06-06
FCC approval
• The product variant IPS-154_US device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
• Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may
void the FCC authorization to operate this equipment.
• Manufacturers of mobile or fixed devices incorporating IPS-154 modules are authorized to use the FCC
Grants and IC Certificates of the IPS-154 modules for their own final products according to the conditions
referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or
the host device shall bear a second label stating "Contains FCC ID: UXS-IPS154US".
