Dell Precision™ M4300
User’s Guide
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\title.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see "Glossary" on page 167.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft
®
Windows
®
operating systems are not applicable.
____________________
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault,
PowerApp, ExpressCharge, TravelLite, Strike Zone, Wi-Fi Catcher, XPS, and Dell OpenManage are trademarks of Dell Inc.; Intel is a registered
trademark and Core is a trademark of Intel Corporation; Microsoft, Outlook, and Windows are registered trademarks and Windows Vista and
the Windows Vista Start button are trademarks of Microsoft Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc.
and is used by Dell under license; EMC is a registered trademark of EMC Corporation; ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR
guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model PP04X
May 2007 P/N TX453 Rev. A00
Contents 1
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Contents
1 Finding Information
2 About Your Computer
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Left Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Right Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

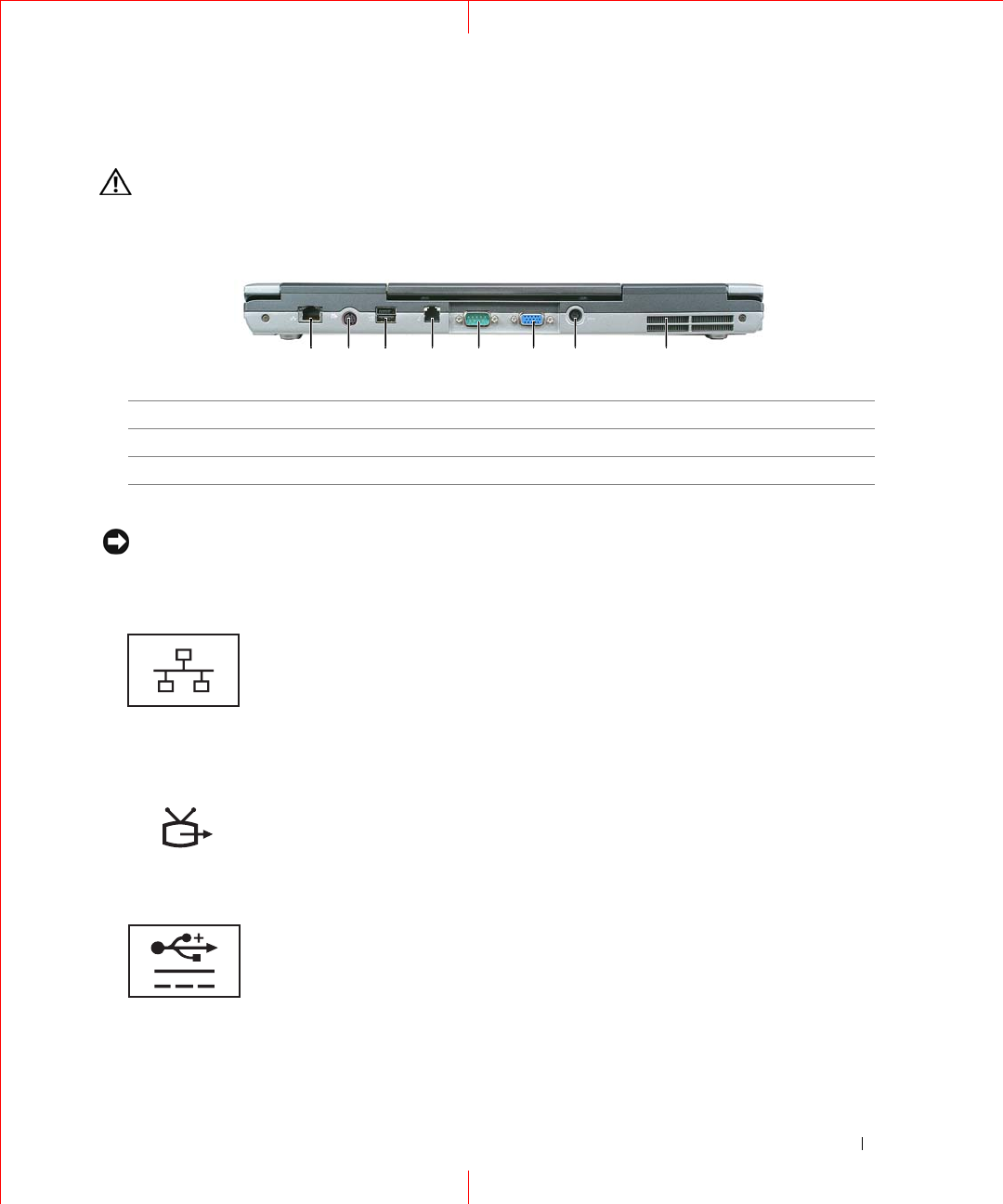

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Transferring Information to a New Computer . . . . . . . . . . . . . . . . . . 25
Running the Files and Settings Transfer Wizard With the Operating System Media
25
Running the Files and Settings Transfer Wizard Without the Operating System
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Windows Vista™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3 Using a Battery
Battery Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Checking the Battery Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dell™ QuickSet Battery Meter . . . . . . . . . . . . . . . . . . . . . . . 30
Microsoft® Windows® Power Meter . . . . . . . . . . . . . . . . . . . 30
Charge Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Low-Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power Management Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Hibernate Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Configuring Power Management Settings . . . . . . . . . . . . . . . . . . . 33
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2Contents
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Storing a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4 Using the Keyboard and Touch Pad

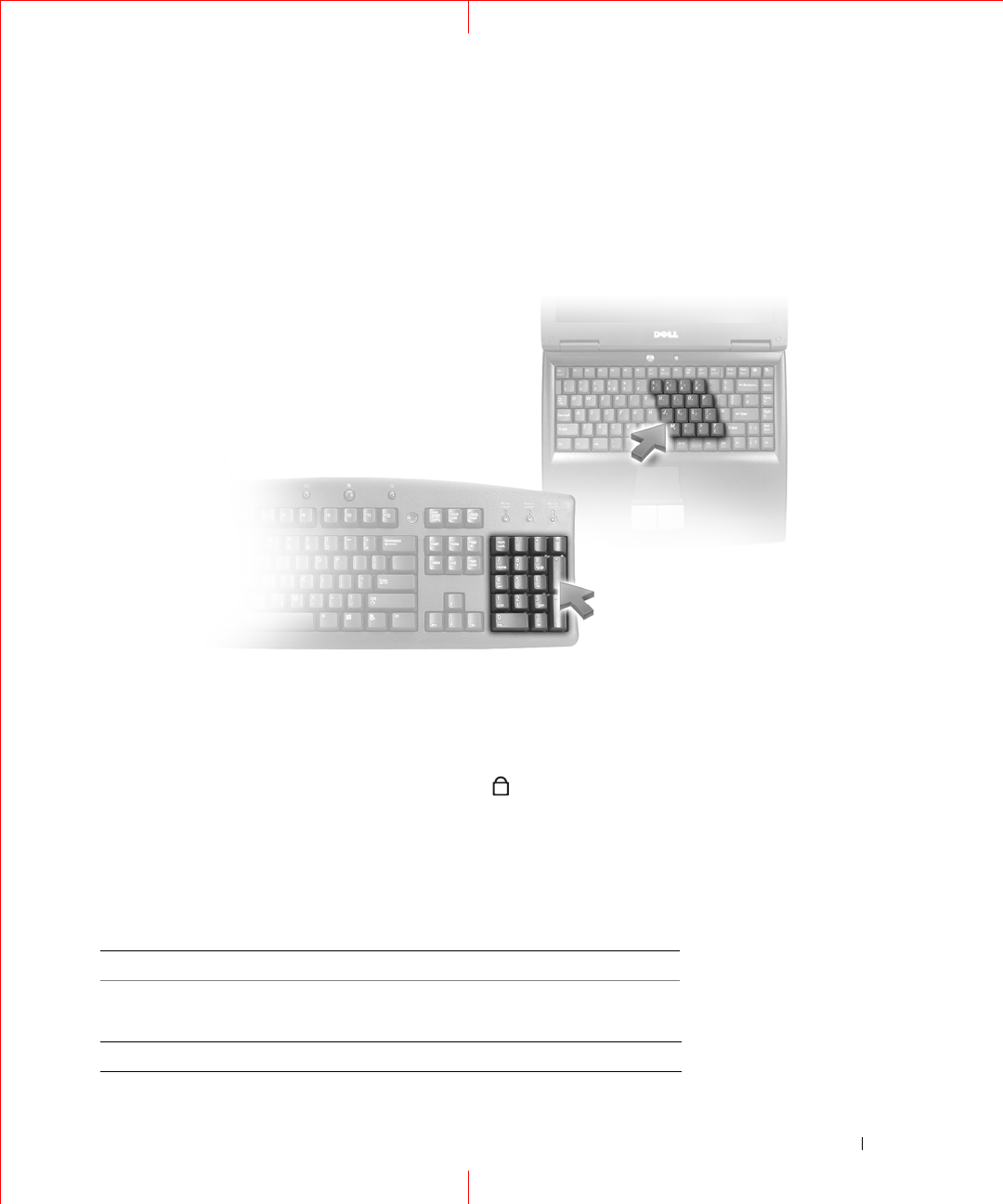

Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Key Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
System Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Microsoft® Windows® Logo Key Functions . . . . . . . . . . . . . . . . 36

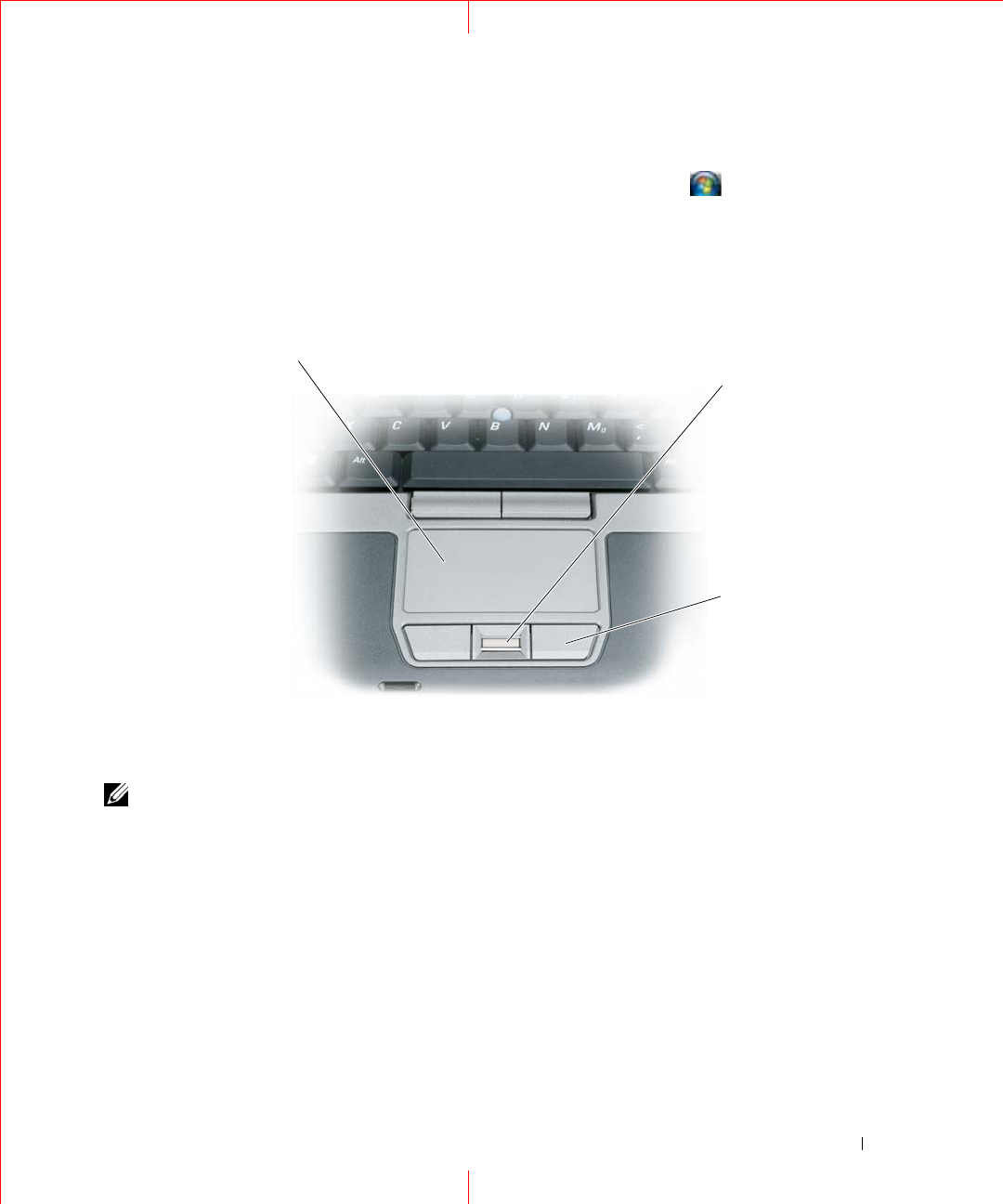

Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Customizing the Touch Pad and Track Stick . . . . . . . . . . . . . . . . 38
Changing the Track Stick Cap . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5 Using Multimedia
Playing CDs or DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Adjusting the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

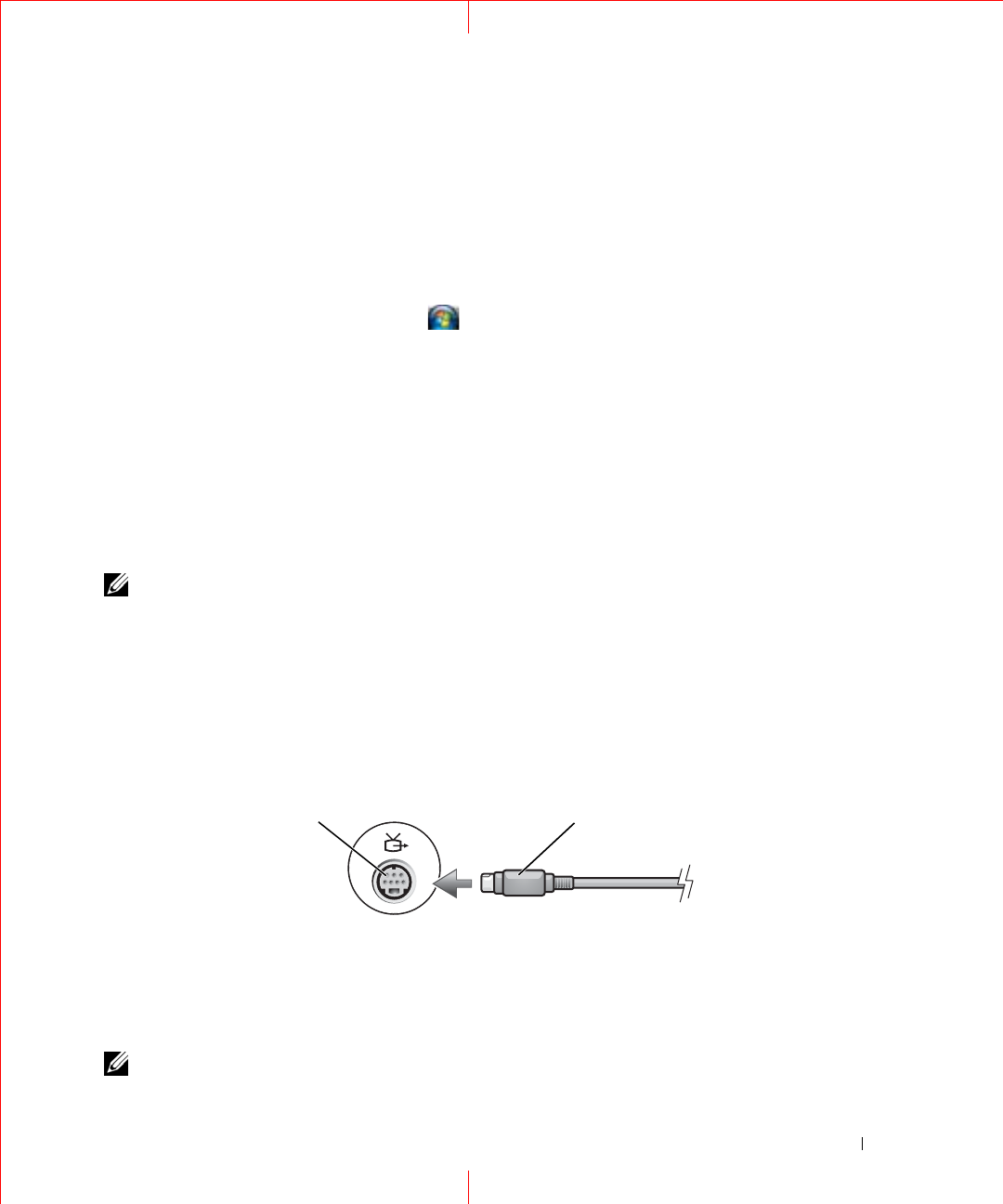

Connecting Your Computer to a TV . . . . . . . . . . . . . . . . . . . . . . . 43
Enabling the Display Settings for a TV . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6 Using the Display
Adjusting Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Switching the Video Image From Your Computer Display to a Projector. . . . 45
Making Images and Text Look Bigger or Sharper on the Screen: Setting Display
Resolution and Refresh Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Microsoft® Windows® XP . . . . . . . . . . . . . . . . . . . . . . . . . 46
Windows Vista™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Contents 3
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using an External Monitor Simultaneously as an Extension of Your Computer Display
46
Microsoft® Windows® XP . . . . . . . . . . . . . . . . . . . . . . . . . 47
Windows Vista™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Using an External Monitor as Your Primary Display: Swapping Primary and Secondary
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Microsoft® Windows® XP . . . . . . . . . . . . . . . . . . . . . . . . . 48
Windows Vista™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Using the Ambient Light Sensor . . . . . . . . . . . . . . . . . . . . . . . . . 48
7 Setting Up and Using Networks
Connecting a Network or Broadband Modem Cable . . . . . . . . . . . . . . 51
Setting Up a Network in Microsoft Windows XP . . . . . . . . . . . . . . . . 51
Setting Up a Network in Microsoft Windows Vista. . . . . . . . . . . . . . . 51
Wireless Local Area Network (WLAN) . . . . . . . . . . . . . . . . . . . . . 52
What You Need to Establish a WLAN Connection . . . . . . . . . . . . . 52
Checking Your Wireless Network Card. . . . . . . . . . . . . . . . . . . 52
Setting Up a New WLAN Using a Wireless Router and a Broadband Modem 53
Connecting to a WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Monitoring the Status of Wireless Network Connections Through Dell™ QuickSet
55
Mobile Broadband or Wireless Wide Area Network (WWAN). . . . . . . . . 55
What You Need to Establish a Mobile Broadband Network Connection . 56
Checking Your Mobile Broadband Card . . . . . . . . . . . . . . . . . . 56
Connecting to a Mobile Broadband Network . . . . . . . . . . . . . . . 56
Enabling/Disabling the Dell Mobile Broadband Network Card. . . . . . . 57
Managing Your Network Settings Through the Dell QuickSet Location Profiler 57
Dell™ Wi-Fi Catcher™ Network Locator . . . . . . . . . . . . . . . . . . . . 58
Internet Connection Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . 58
8 Using Cards
Card Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Card Blanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
4Contents
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Extended Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

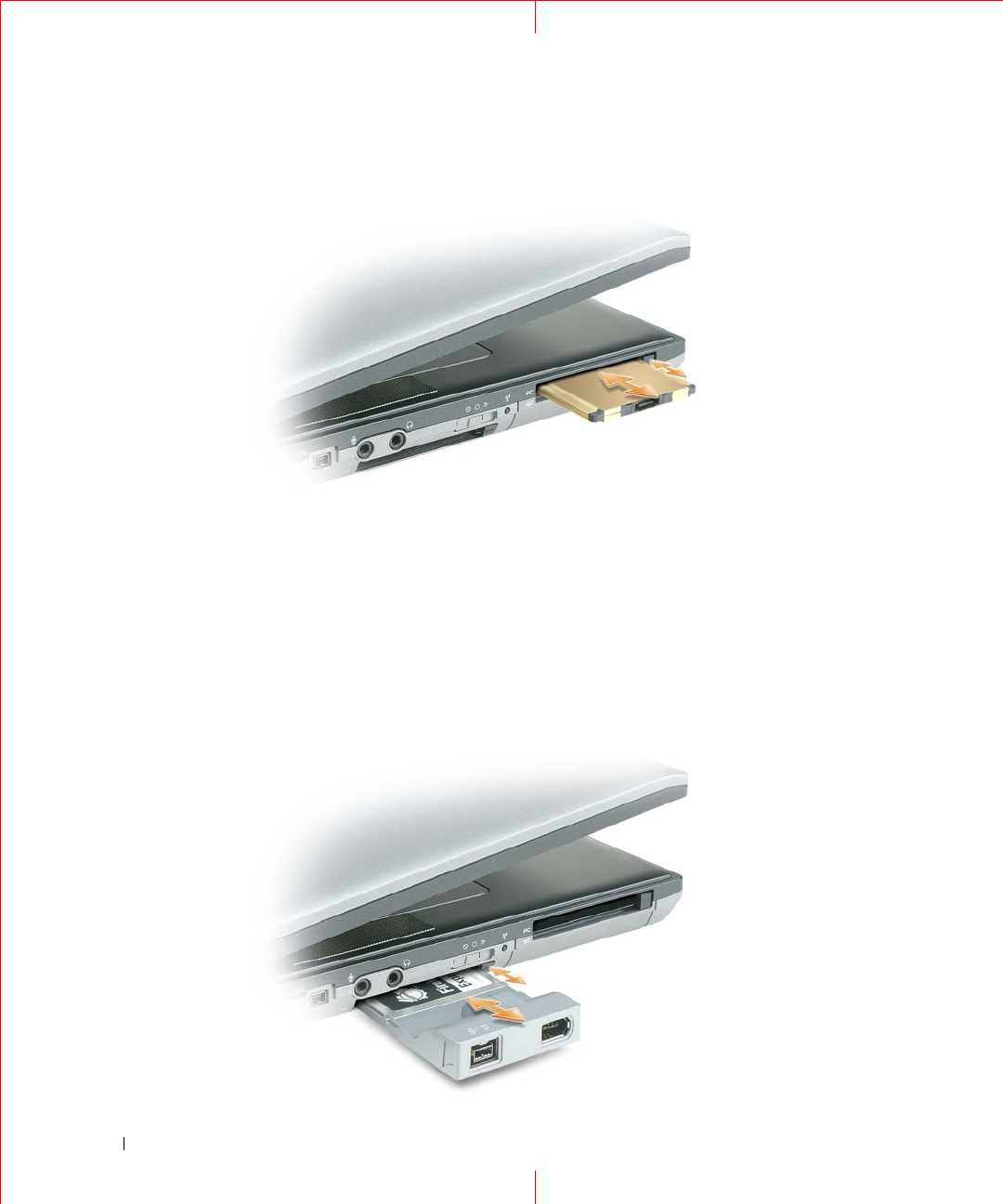

Installing a PC Card or ExpressCard. . . . . . . . . . . . . . . . . . . . . . . 59
PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
ExpressCard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Removing a Card or Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
9 Securing Your Computer

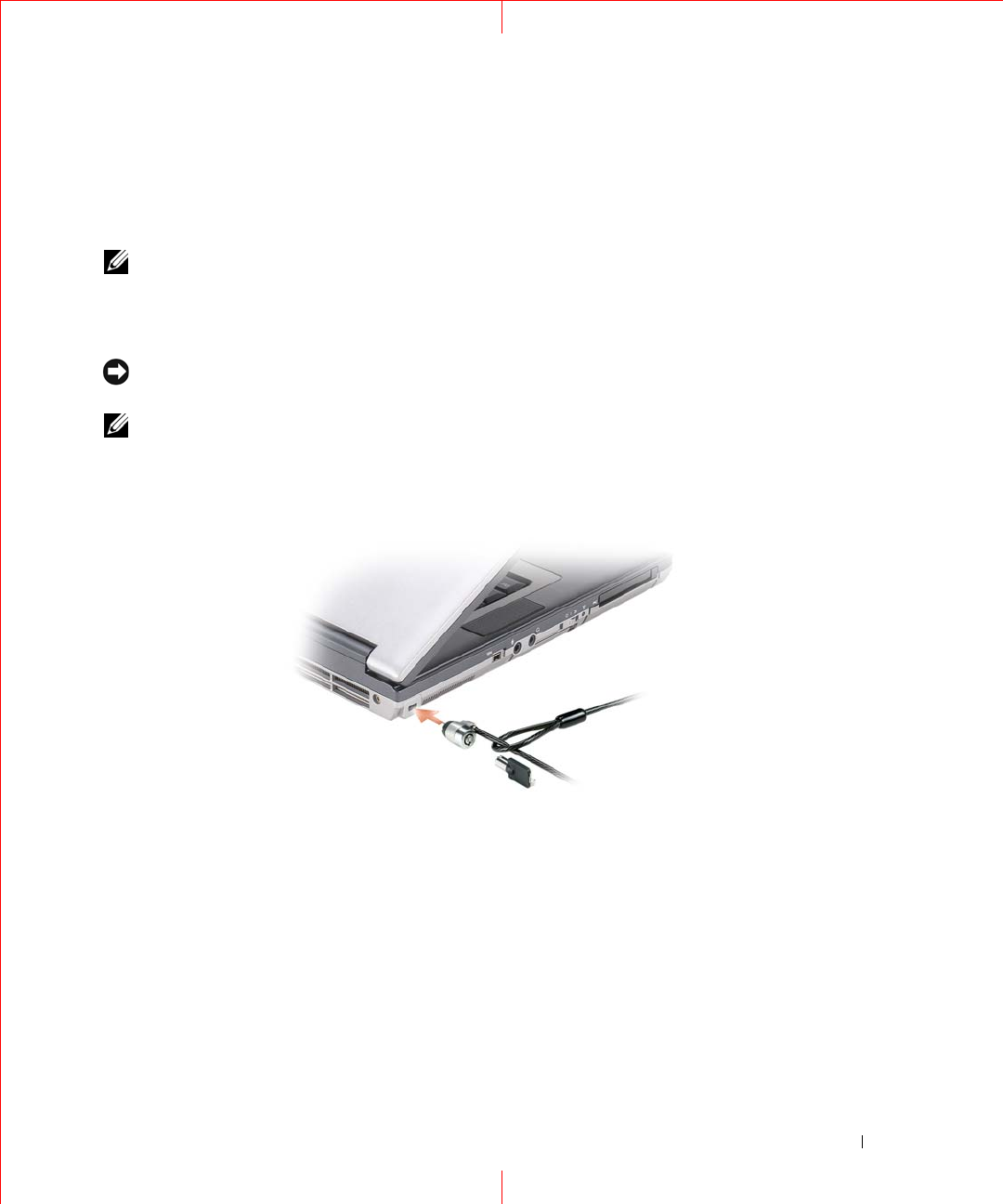

Security Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

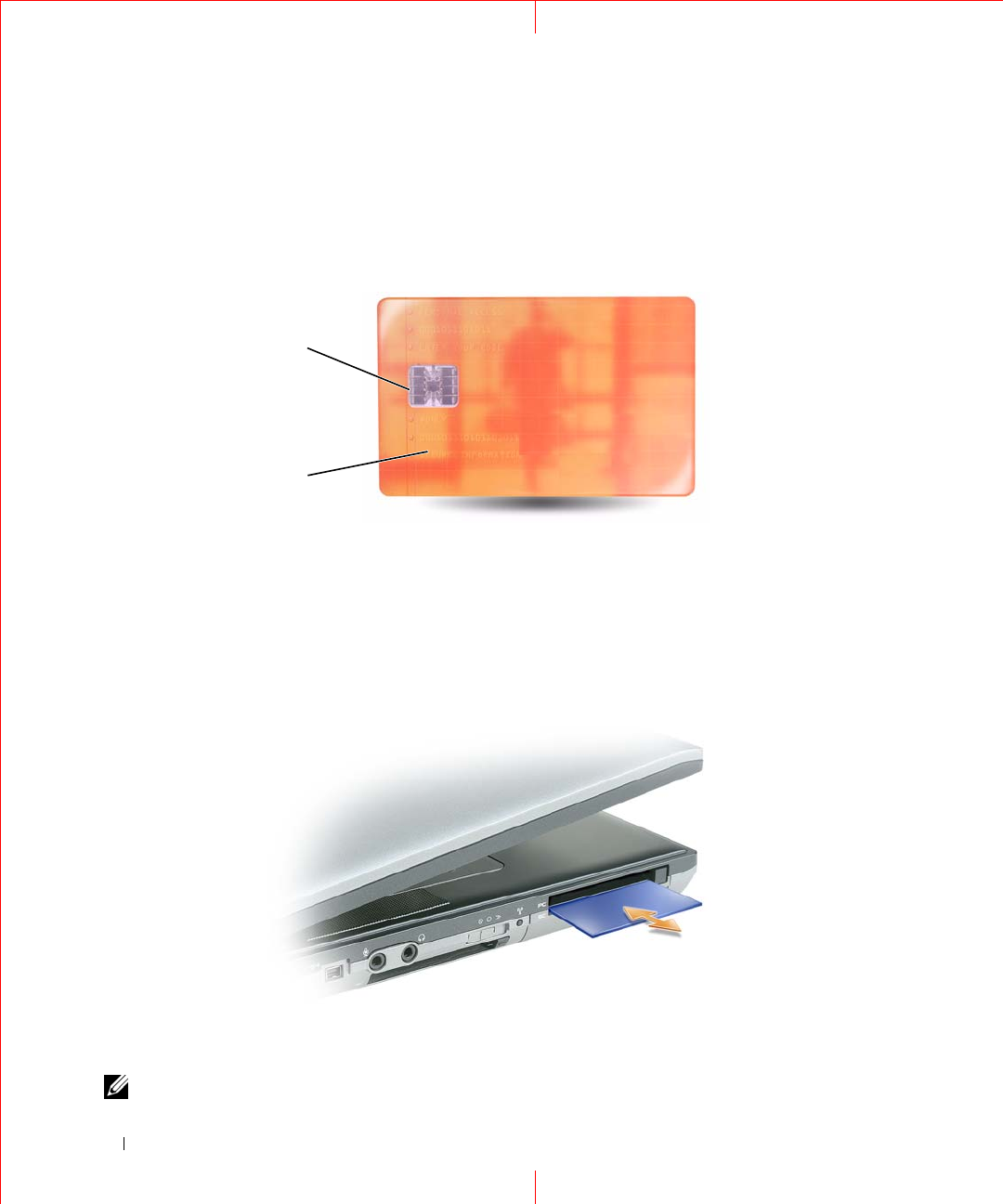

Smart Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
About Smart Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Installing a Smart Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Using a Primary/System Password . . . . . . . . . . . . . . . . . . . . . 65
Using an Administrator Password . . . . . . . . . . . . . . . . . . . . . 65
Using a Hard Drive Password . . . . . . . . . . . . . . . . . . . . . . . 66
Trusted Platform Module (TPM) . . . . . . . . . . . . . . . . . . . . . . . . . 67
Enabling the TPM Feature . . . . . . . . . . . . . . . . . . . . . . . . . 67
Security Management Software. . . . . . . . . . . . . . . . . . . . . . . . . 68
Computer Tracking Software . . . . . . . . . . . . . . . . . . . . . . . . . . 68
If Your Computer Is Lost or Stolen . . . . . . . . . . . . . . . . . . . . . . . . 68
10 Troubleshooting
Dell Technical Update Service . . . . . . . . . . . . . . . . . . . . . . . . . 69
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
When to Use the Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . 69
Starting the Dell Diagnostics From Your Hard Drive . . . . . . . . . . . . 69
Starting the Dell Diagnostics From the Drivers and Utilities Media . . . . 70
Dell Diagnostics Main Menu . . . . . . . . . . . . . . . . . . . . . . . . 70
Dell Support Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Accessing the Dell Support Utility . . . . . . . . . . . . . . . . . . . . . 72
Clicking the Dell Support Icon . . . . . . . . . . . . . . . . . . . . . . . 72
Double-Clicking the Dell Support Icon . . . . . . . . . . . . . . . . . . . 73
Contents 5
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Drive Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
CD and DVD drive problems . . . . . . . . . . . . . . . . . . . . . . . . 74
Hard drive problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
E-Mail, Modem, and Internet Problems . . . . . . . . . . . . . . . . . . . . . 75
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
IEEE 1394 Device Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Keyboard Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
External keyboard problems . . . . . . . . . . . . . . . . . . . . . . . . 80
Unexpected characters. . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Lockups and Software Problems . . . . . . . . . . . . . . . . . . . . . . . . 80
The computer does not start up . . . . . . . . . . . . . . . . . . . . . . 81
The computer stops responding . . . . . . . . . . . . . . . . . . . . . . 81
A program stops responding or crashes repeatedly . . . . . . . . . . . . 81
A program is designed for an earlier Microsoft® Windows® operating system 81
A solid blue screen appears . . . . . . . . . . . . . . . . . . . . . . . . 81
Other software problems . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Network Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
PC Card or ExpressCard Problems. . . . . . . . . . . . . . . . . . . . . . . . 83
Power Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Ensuring Sufficient Power for Your Computer . . . . . . . . . . . . . . . 84
Docking Power Considerations. . . . . . . . . . . . . . . . . . . . . . . 84
Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Scanner Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Sound and Speaker Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 86
No sound from integrated speakers . . . . . . . . . . . . . . . . . . . . 86
No sound from external speakers . . . . . . . . . . . . . . . . . . . . . 86
No sound from headphones . . . . . . . . . . . . . . . . . . . . . . . . 86
Touch Pad or Mouse Problems . . . . . . . . . . . . . . . . . . . . . . . . . 86
Video and Display Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . 87
If the display is blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
If the display is difficult to read . . . . . . . . . . . . . . . . . . . . . . . 88
6Contents
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
If only part of the display is readable . . . . . . . . . . . . . . . . . . . . 88
11 System Setup Program
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Viewing the System Setup Screens . . . . . . . . . . . . . . . . . . . . . . . 89
System Setup Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Commonly Used Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Changing the Boot Sequence. . . . . . . . . . . . . . . . . . . . . . . . 90
Changing COM Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
12 Traveling With Your Computer
Identifying Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Packing the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Travel Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Traveling by Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
13 Reinstalling Software
Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
What Is a Driver? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Identifying Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Reinstalling Drivers and Utilities . . . . . . . . . . . . . . . . . . . . . . 96
Using the Hardware Troubleshooter Tool in Microsoft Windows XP and Windows Vista
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Restoring Your Operating System . . . . . . . . . . . . . . . . . . . . . . . . 98
Using Microsoft Windows System Restore. . . . . . . . . . . . . . . . . 99
Using the Operating System Media. . . . . . . . . . . . . . . . . . . . 100
14 Adding and Replacing Parts
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Recommended Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Turning Off Your Computer . . . . . . . . . . . . . . . . . . . . . . . . 103
Contents 7
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Before Working Inside Your Computer . . . . . . . . . . . . . . . . . . 103
Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

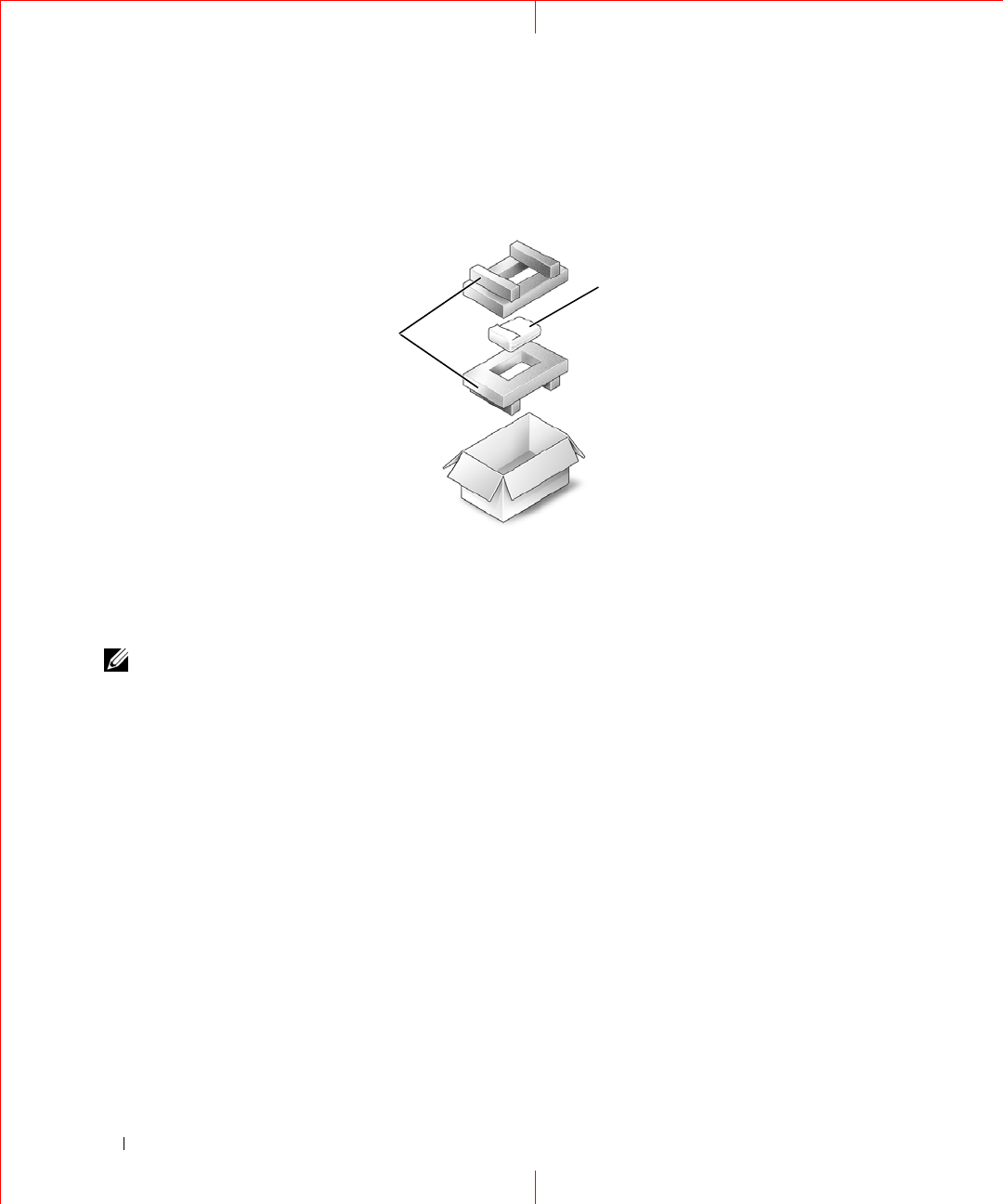

Returning a Hard Drive to Dell . . . . . . . . . . . . . . . . . . . . . . 106
Media Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

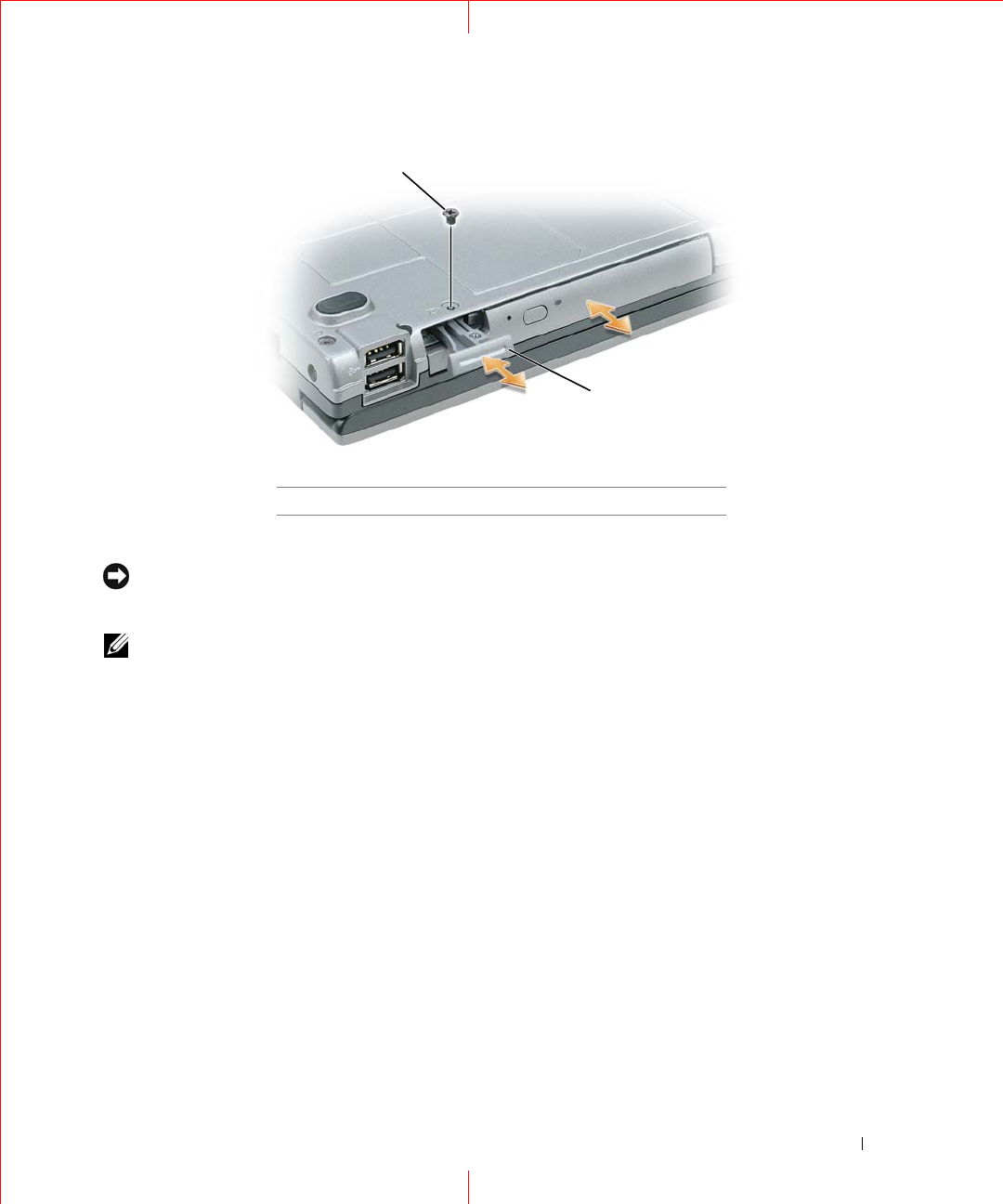

Removing the Device Security Screw . . . . . . . . . . . . . . . . . . 106
Removing and Installing Media Bay Devices. . . . . . . . . . . . . . . 107
Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Subscriber Identity Module (SIM) Card . . . . . . . . . . . . . . . . . . . . 115
Wireless Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Wireless Local Area Network (WLAN) Cards . . . . . . . . . . . . . . 116
Mobile Broadband or Wireless Wide Area Network (WWAN) Cards . . 118
FCM (Flash Cache Module) . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Internal Card With Bluetooth® Wireless Technology. . . . . . . . . . . . . 121
Coin-Cell Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
15 Dell™ QuickSet
16 Specifications
17 Getting Help
Obtaining Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Technical Support and Customer Service . . . . . . . . . . . . . . . . 135
DellConnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Online Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
AutoTech Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Automated Order-Status Service . . . . . . . . . . . . . . . . . . . . . 137
Problems With Your Order . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
8Contents
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\bookTOC.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Returning Items for Warranty Repair or Credit . . . . . . . . . . . . . . . . 137
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
18 Appendix
Cleaning Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Computer, Keyboard, and Display . . . . . . . . . . . . . . . . . . . . 163
Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Mouse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
CDs and DVDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Macrovision Product Notice. . . . . . . . . . . . . . . . . . . . . . . . . . 165
FCC Notice (U.S. Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
FCC Class B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Finding Information 9
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\findinfo.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Finding Information
NOTE: Some features or media may be optional and may not ship with your computer. Some features or media may
not be available in certain countries.
NOTE: Additional information may ship with your computer.
What Are You Looking For? Find It Here
• A diagnostic program for my computer
• Drivers for my computer
• My device documentation
• Notebook System Software (NSS)
Drivers and Utilities Media
NOTE: The Drivers and Utilities media may be optional and
may not ship with your computer.
Documentation and drivers are already installed on your
computer. You can use the media to reinstall drivers (see
"Reinstalling Drivers and Utilities" on page 96), to run the
Dell Diagnostics (see "Dell Diagnostics" on page 69), or to
access your documentation.
Readme files may be
included on your media to
provide last-minute
updates about technical
changes to your computer
or advanced technical-
reference material for
technicians or experienced
users.
NOTE: Drivers and
documentation updates
can be found at support.dell.com.
• How to set up my computer
• Basic troubleshooting information
• How to run the Dell Diagnostics
Quick Reference Guide
NOTE: This document may be optional and may not ship with
your computer.
NOTE: This document is available as a PDF at
support.dell.com.
10 Finding Information
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\findinfo.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• Warranty information
• Terms and Conditions (U.S. only)
• Safety instructions
• Regulatory information
• Ergonomics information
• End User License Agreement
Dell™ Product Information Guide
• Service Tag and Express Service Code
• Microsoft Windows License Label
Service Tag and Microsoft
®
Windows
®
License
These labels are located on your computer.
Enter the Express Service
Code to direct your call
when contacting Dell
technical support.
What Are You Looking For? Find It Here
Finding Information 11
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\findinfo.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• Solutions — Troubleshooting hints and tips, articles
from technicians, and online courses, frequently asked
questions
• Community — Online discussion with other Dell
customers
• Upgrades — Upgrade information for components, such
as memory, the hard drive, and the operating system
• Customer Care — Contact information, service call and
order status, warranty, and repair information
• Service and support — Service call status and support
history, service contract, online discussions with
technical support
• Dell Technical Update Service — Proactive e-mail
notification of software and hardware updates for your
computer
• Reference — Computer documentation, details on my
computer configuration, product specifications, and
white papers
• Downloads — Certified drivers, patches, and software
updates
• Notebook System Software (NSS)— If you reinstall the
operating system for your computer, you should also
reinstall the NSS utility. NSS provides critical updates
for your operating system and support for Dell™
3.5-inch USB floppy drives, Intel
®
processors, optical
drives, and USB devices. NSS is necessary for correct
operation of your Dell computer. The software
automatically detects your computer and operating
system and installs the updates appropriate for your
configuration.
Dell Support Website — support.dell.com
NOTE: Select your region or business segment to view the
appropriate support site.
NOTE: Corporate, government, and education customers
can also use the customized Dell Support website at
HTTP://support.us.dell.com. The website may not be
available in all regions.
To download Notebook System Software:
1
Go to
support.dell.com
, select your region or business
segment, and enter your Service Tag.
2
Select
Drivers & Downloads
and click
Go
.
3
Click your operating system and search for the keywords
Notebook System Software
.
NOTE: The support.dell.com user interface may vary
depending on your selections.
• Software upgrades and troubleshooting hints —
Frequently asked questions, hot topics, and general
health of your computing environment
Dell Support Utility
The Dell Support Utility is an automated upgrade and
notification system installed on your computer. This
support provides real-time health scans of your computing
environment, software updates, and relevant self-support
information. Access the Dell Support Utility from the
icon in the taskbar. For more information, see "Dell Support
Utility" on page 72.
What Are You Looking For? Find It Here
12 Finding Information
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\findinfo.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• How to use Windows XP and Windows Vista™
• How to work with programs and files
• How to personalize my desktop
Windows Help and Support Center
1
Click
Start
or
→
Help and Support
.
2
Type a word or phrase that describes your problem and
click the arrow icon.
3
Click the topic that describes your problem.
4
Follow the instructions on the screen.
• Information on network activity, the Power Management
Wizard, hotkeys, and other items controlled by Dell
QuickSet.
Dell QuickSet Help
To view
Dell QuickSet Help
,
right-click the Quickset
icon in the Microsoft® Windows® taskbar.
For more information on Dell QuickSet, see "Dell™
QuickSet" on page 125.
• How to reinstall my operating system

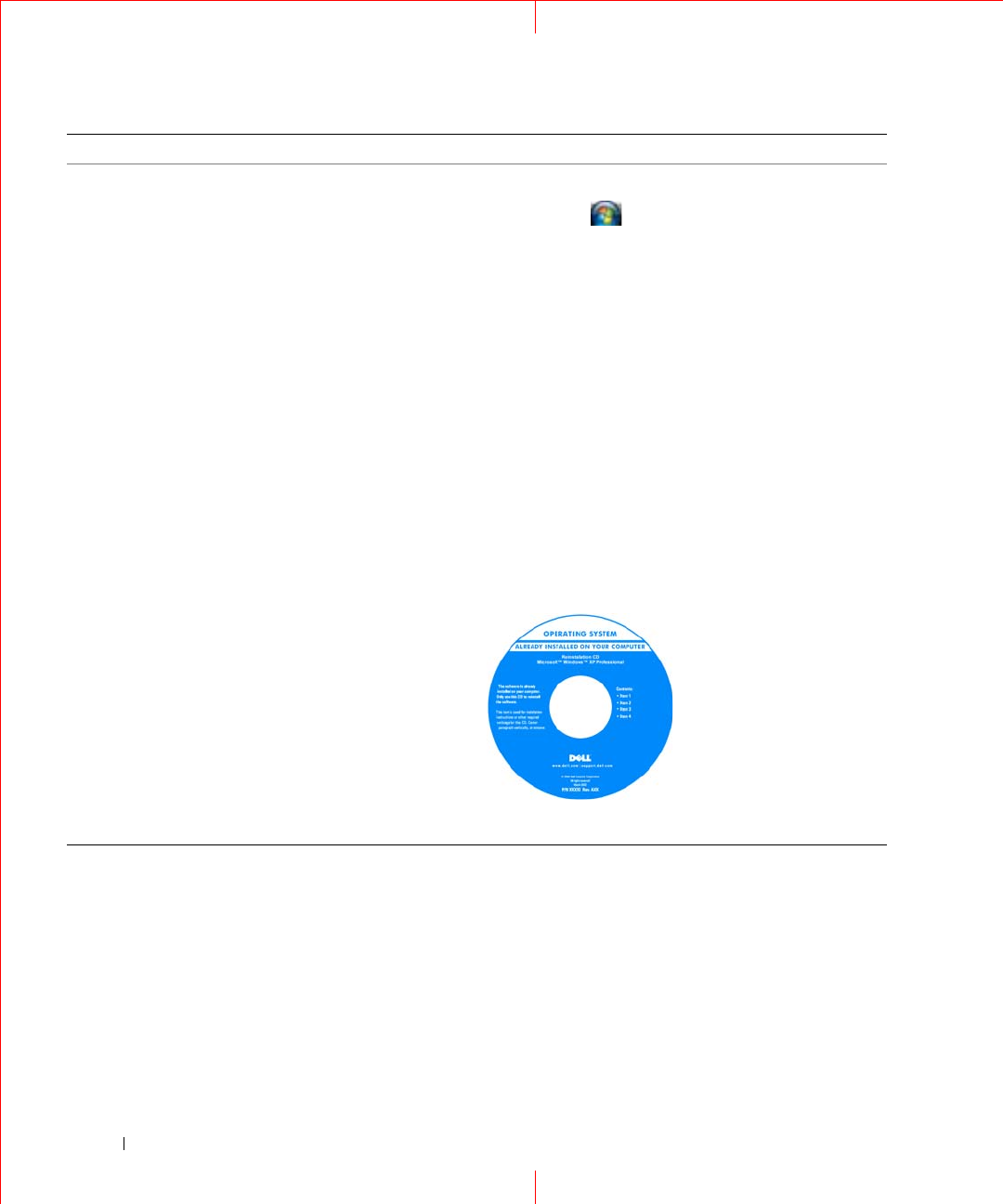

Operating System Media
NOTE: The Operating System media may be optional and
may not ship with your computer.
The operating system is already installed on your computer.
To reinstall your operating system, use the Operating
System media (see "Reinstalling Windows" on page 100).
After you reinstall your
operating system, use the
Drivers and Utilities media
to reinstall drivers for the
devices that came with
your computer.
Your operating system
product key label is located
on your computer.
NOTE: The color of your
media varies based on the operating system you ordered.
What Are You Looking For? Find It Here
About Your Computer 13
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
About Your Computer
Front View
DISPLAY LATCH —Keeps the display closed.
DISPLAY —For more information about your display, see "Using the Display" on page 45.
1
display latch
2
display
3
power button
4
device status lights
5
speakers
(2) 6
keyboard
7
touch pad
8
touch pad/track stick buttons
9
track stick
10
keyboard status lights
11
volume control buttons
12
mute button
13
ambient light sensor
1
5
2
10
7
11 4
12
3
6
8
13
9
14 About Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
POWER BUTTON —Press the power button to turn on the computer or exit a
power management mode (see "Power
Management Modes" on page 31).
NOTICE: To avoid losing data, turn off your computer by performing a Microsoft® Windows® operating system
shutdown rather than by pressing the power button.
If the computer stops responding, press and hold the power button until the computer turns off completely (which
may take several seconds).

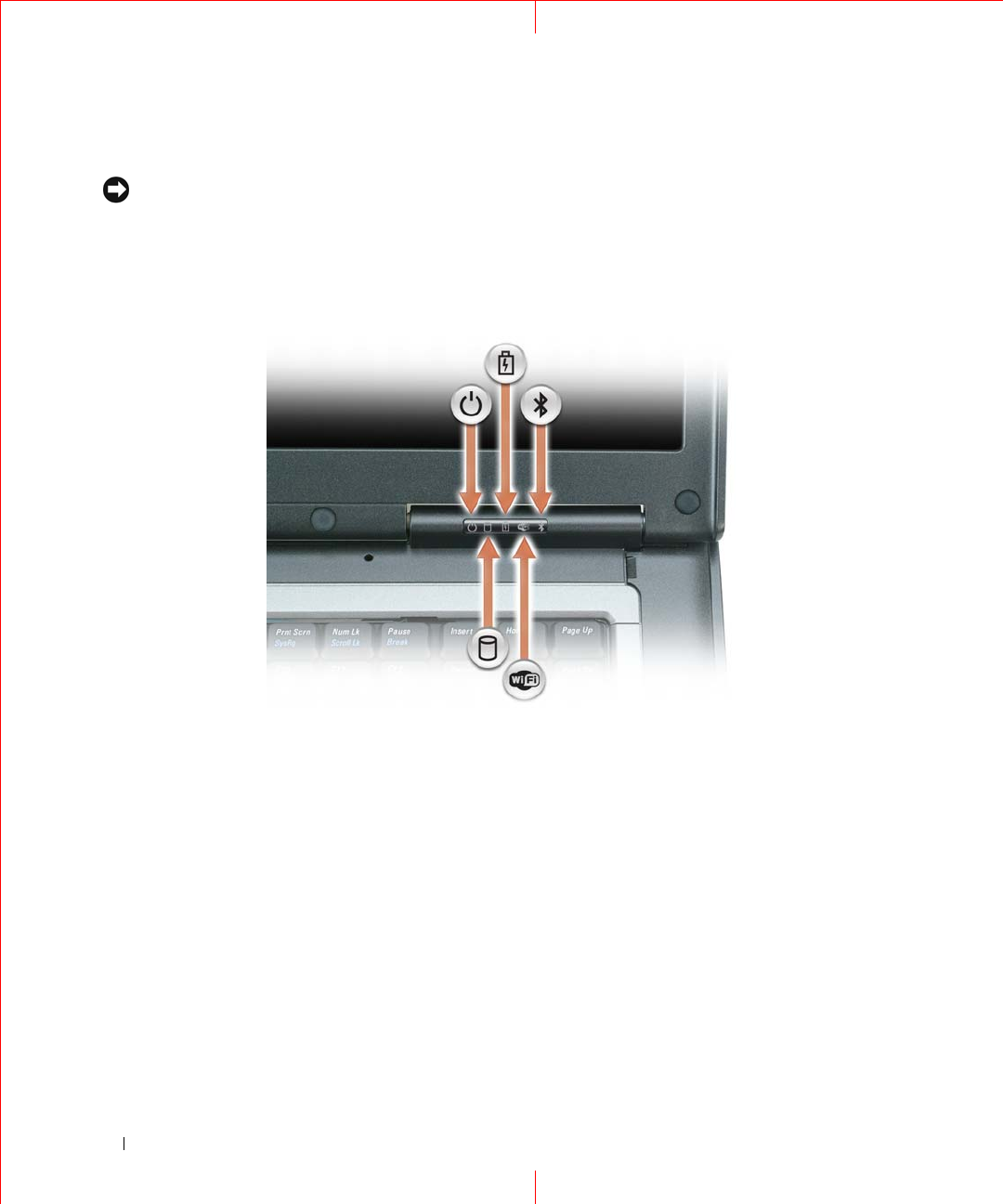

DEVICE STATUS LIGHTS
About Your Computer 15
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
If the computer is connected to an electrical outlet, the light operates as follows:
– Solid green: The battery is charging.
– Flashing green: The battery is almost fully charged.
– Off: The battery is adequately charged (or external power is not available to charge the battery).
If the computer is running on a battery, the light operates as follows:
– Off: The battery is adequately charged (or the computer is turned off).
– Flashing orange: The battery charge is low.
– Solid orange: The battery charge is critically low.
SPEAKER —To adjust the volume of the integrated speaker, press the volume control buttons or mute button.
KEYBOARD —The keyboard includes a numeric keypad as well as the Windows logo key. For information on
supported keyboard shortcuts, see "Numeric Keypad" on page 35.
TOUCH PAD —Provides the functionality of a mouse. See "Touch Pad" on page 37 for more information.
TOUCH PAD/TRACK STICK BUTTONS —Provide the functionality of a mouse. See "Touch Pad" on page 37 for more
information.
TRACK STICK —Provides the functionality of a mouse (see "Customizing the Touch Pad and Track Stick" on
page 38).
FINGERPRINT READER (OPTIONAL)—Helps to keep your Dell™ computer secure. When you slide your finger over
the reader, it uses your unique fingerprint to authenticate your user identity. For information on how to activate and
use the security management software that controls the fingerprint reader, see "Securing Your Computer" on
page 63.
Turns on when you turn on the computer and blinks when the computer is
in a power management mode.
Turns on when the computer reads or writes data.
NOTICE: To avoid loss of data, never turn off the computer while the
light is flashing.
Turns on steadily or blinks to indicate battery charge status.
Turns on when wireless devices are enabled. To enable or disable WiFi, use
the wireless switch on the left side of the computer.
Turns on when Bluetooth® wireless technology is enabled. To enable or
disable Bluetooth wireless technology, use the wireless switch on the left
side of the computer.
NOTE: Bluetooth wireless technology is an optional feature on your
computer, so the icon turns on only if you ordered Bluetooth wireless
technology with your computer. For more information, see the
documentation that came with your Bluetooth wireless technology.
16 About Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY

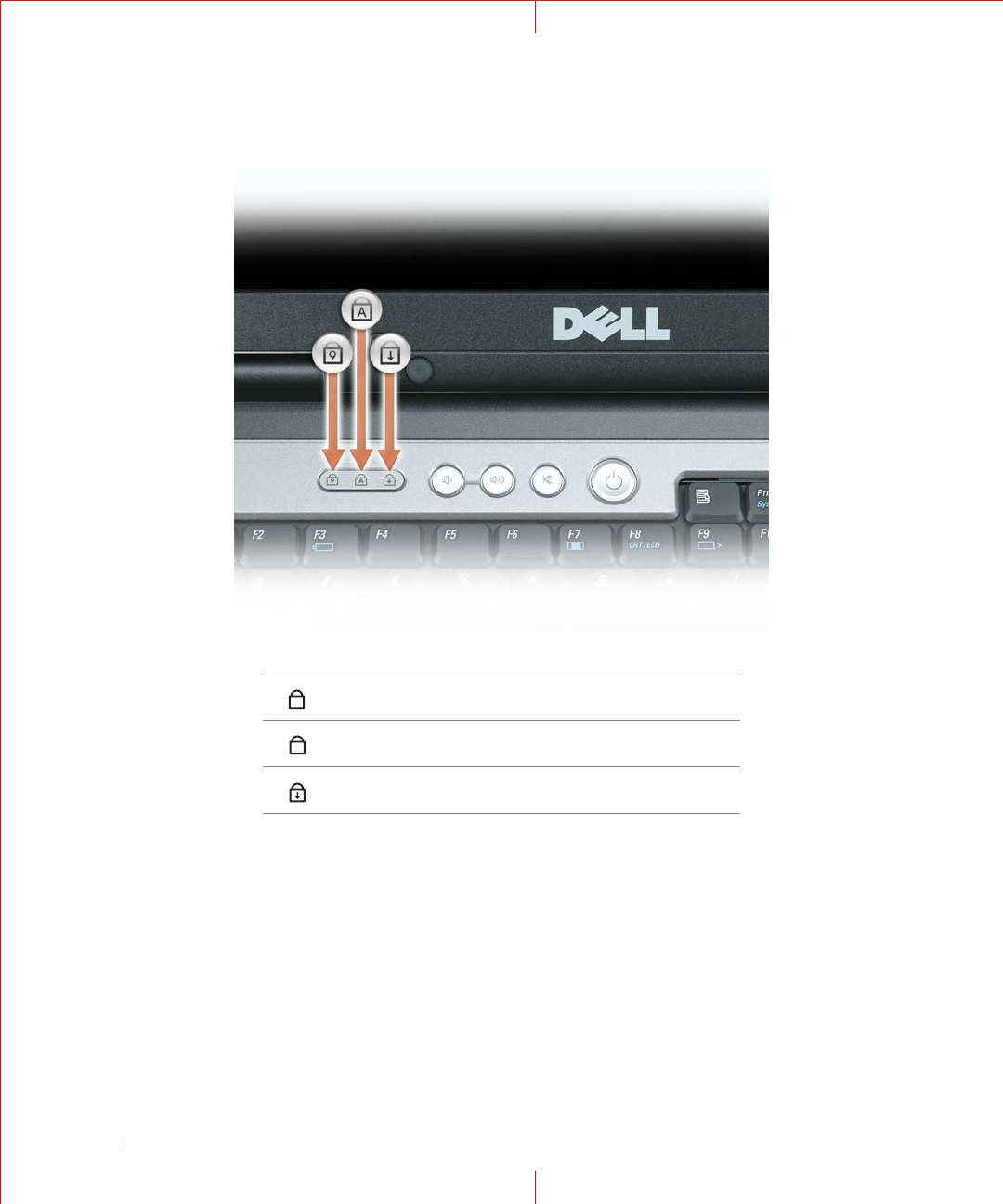

KEYBOARD STATUS LIGHTS
The green lights located above the keyboard indicate the following:
VOLUME CONTROL BUTTONS —Press these buttons to adjust the speaker volume.
MUTE BUTTON —Press this button to turn off the speakers.
AMBIENT LIGHT SENSOR —Helps to control display brightness. For more information, see "Using the Ambient
Light Sensor" on page 48.
Turns on when the numeric keypad is enabled.
Turns on when the uppercase letter function is enabled.
Turns on when the scroll lock function is enabled.
9
A
About Your Computer 17
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY

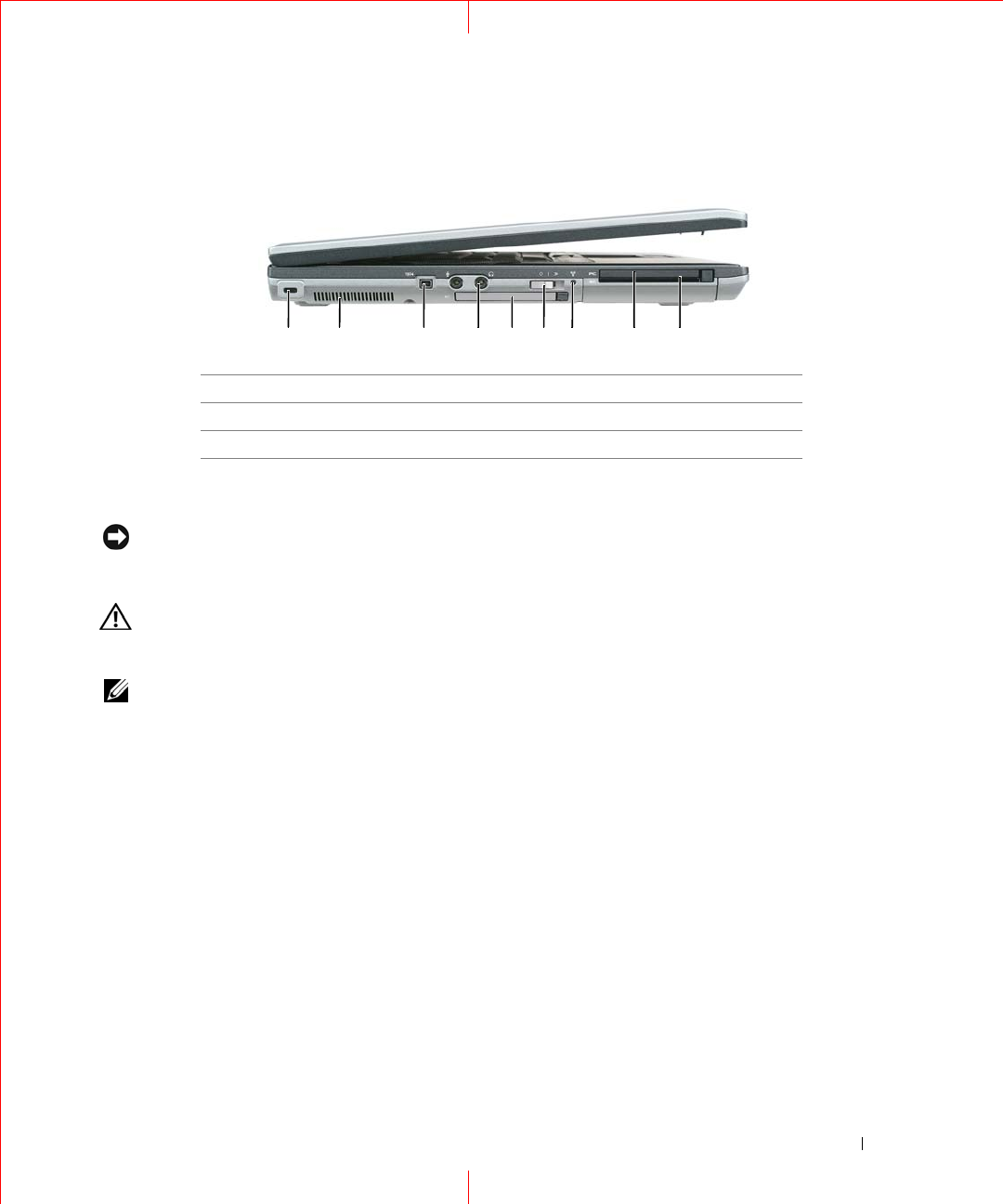

Left Side View
SECURITY CABLE SLOT —Lets you attach a commercially available antitheft device to the computer. For more
information, see "Security Cable Lock" on page 63.
NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot.
AIR VENTS —The computer uses an internal fan to create airflow through the vents, which prevents the computer
from overheating.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell™
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow
can damage the computer or cause a fire.
NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a
problem with the fan or the computer.
IEEE 1394 CONNECTOR —Connects devices supporting IEEE 1394 high-speed transfer rates, such as some digital
video cameras.
1
security cable slot
2
air vents
3
IEEE 1394 connector
4
audio connectors
5
ExpressCard slot
6
wireless switch
7
Wi-Fi Catcher
™
light
8
PC Card slot
9
smart card slot
1 2 3 4 65 7 8 9
18 About Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY

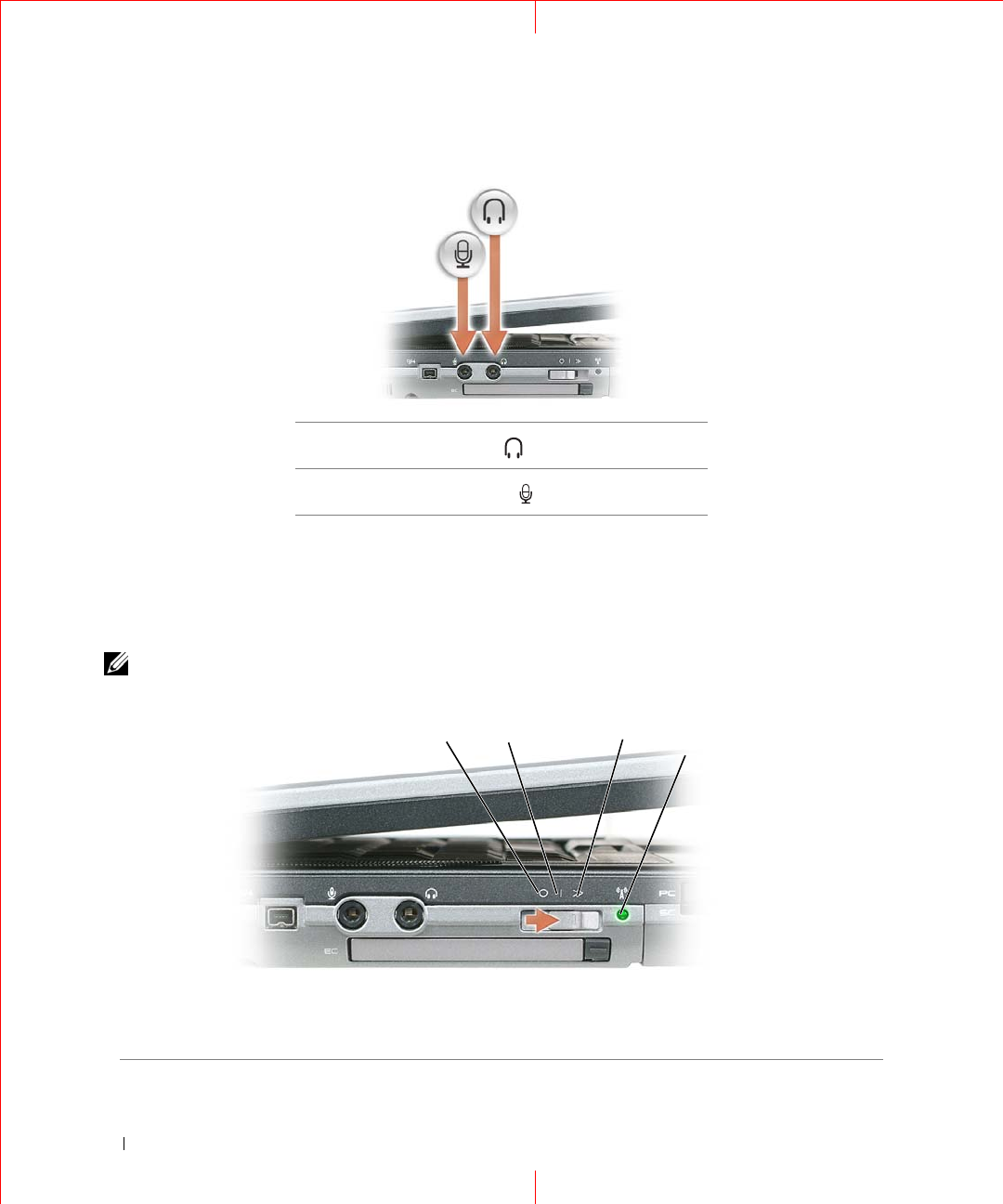

AUDIO CONNECTORS
EXPRESSCARD SLOT —Supports 34- and 54-mm PCI ExpressCards or USB-based ExpressCards (see "Using Cards"
on page 59).
WIRELESS SWITCH —Turns on/off wireless devices such as WiFi and internal cards with Bluetooth wireless
technology and scans for WiFi networks. For more information about scanning for wireless networks, see "Dell™ Wi-
Fi Catcher™ Network Locator" on page 58.
NOTE: The wireless switch does not detect Mobile Broadband networks or networks that use internal cards with
Bluetooth technology.
Attach headphones to the connector.
Attach a microphone to the connector.
1"off" position 2"on" position 3"momentary" position
4Wi-Fi Catcher light
1234
About Your Computer 19
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
WIRELESS SWITCH POSITIONS
WI-FI CATCHER™ LIGHT —The light operates as follows:
– Flashing green: Searching for networks
– Solid green: Strong network found
– Solid yellow:
Weak network found
– Flashing yellow: Error
– Off: No signal found
PC CARD SLOT —Supports one PC Card, such as a modem or network adapter. The computer ships with a blank
installed in the slot to prevent dust particles from entering the computer. For more information, see "Using Cards"
on page 59.
SMART CARD SLOT —Supports one smart card (see "Smart Cards" on page 63).

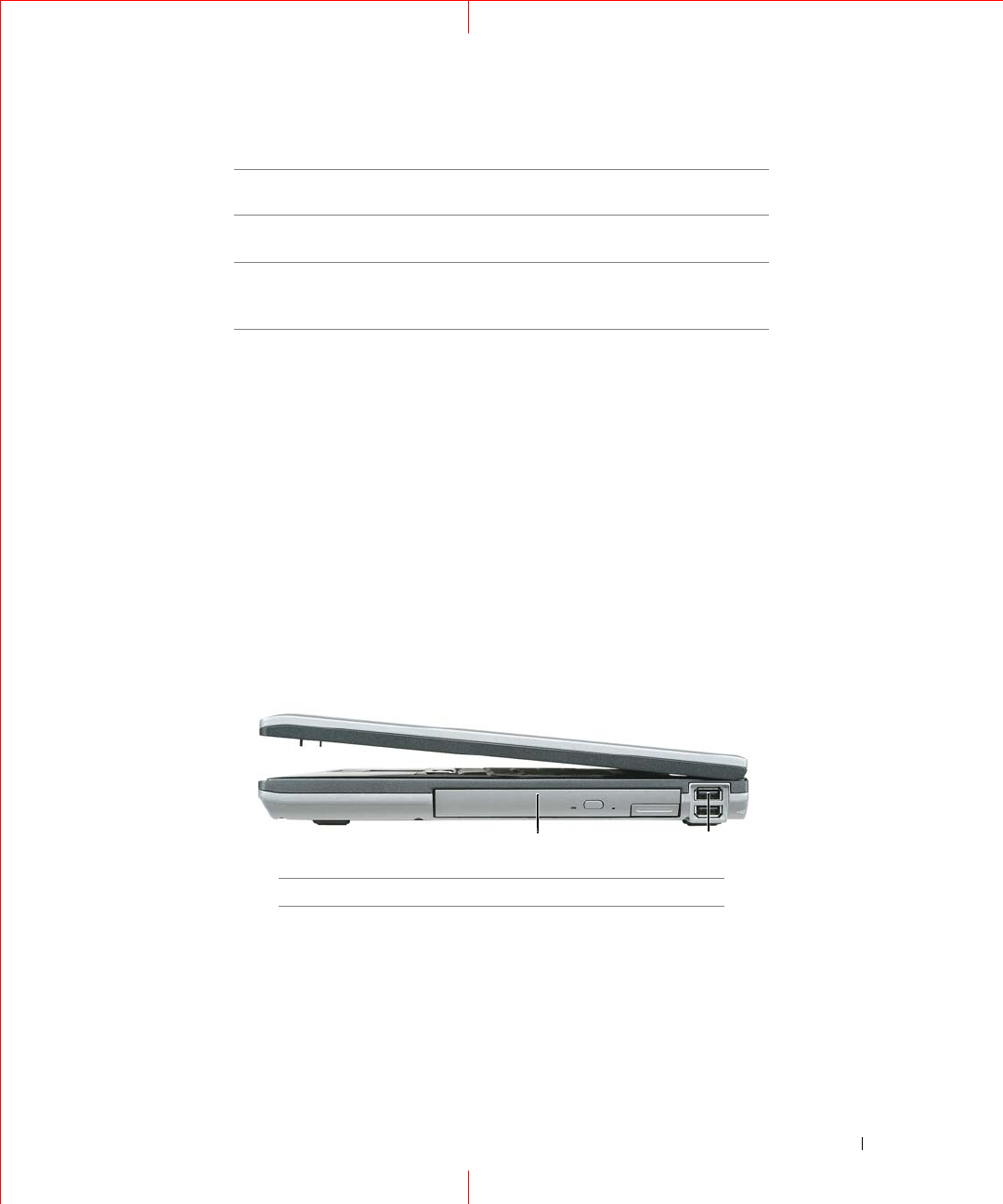

Right Side View

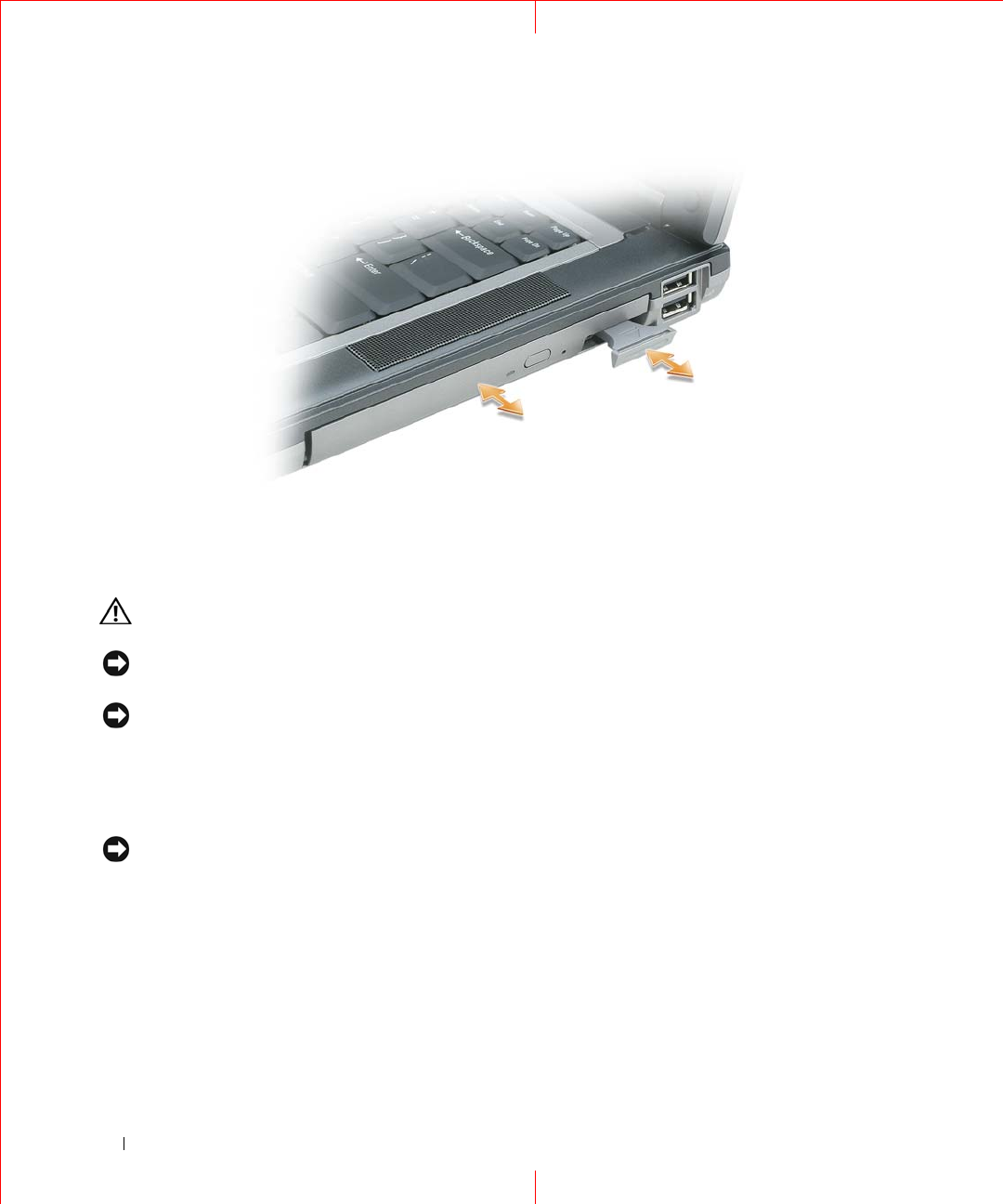

MEDIA BAY —Supports a floppy drive, optical drives, a second battery, or a second hard drive (see "Using
Multimedia" on page 41).
"off" Disables wireless devices.
"on" Enables wireless devices.
"momentary" Scans for WiFi networks. See "Dell™ Wi-Fi Catcher™
Network Locator" on page 58 for more information.
1
media bay
2
USB connectors
(2)
12
20 About Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
USB CONNECTORS
Connect USB devices, such as a mouse, keyboard, or printer.
About Your Computer 21
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Back View
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow
can damage the computer or cause a fire.
NETWORK CONNECTOR (RJ-45)
NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the computer,
do not plug a telephone line into the network connector.
S-VIDEO TV-OUT CONNECTOR
POWERED USB 2.0 CONNECTOR
1
network connector (RJ-45)
2
S-video TV-out connector
3
powered USB connector
4
modem connector (RJ-11)
5
serial connector
6
video connector
7
AC adapter connector
8
air vents
Connects the computer to a network. The two lights next to
the connector indicate status and activity for wired network
connections.
For information on using the network adapter, see the device
user’s guide supplied with your computer (see "Connecting
a Network or Broadband Modem Cable" on page 51).
Connects your computer to a TV.
Connects USB 2.0 compliant devices, such as a mouse,
keyboard, or printer. Can also be used for peripherals that
require more than 5 V of power.
1 2 63 4 75 8
22 About Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY

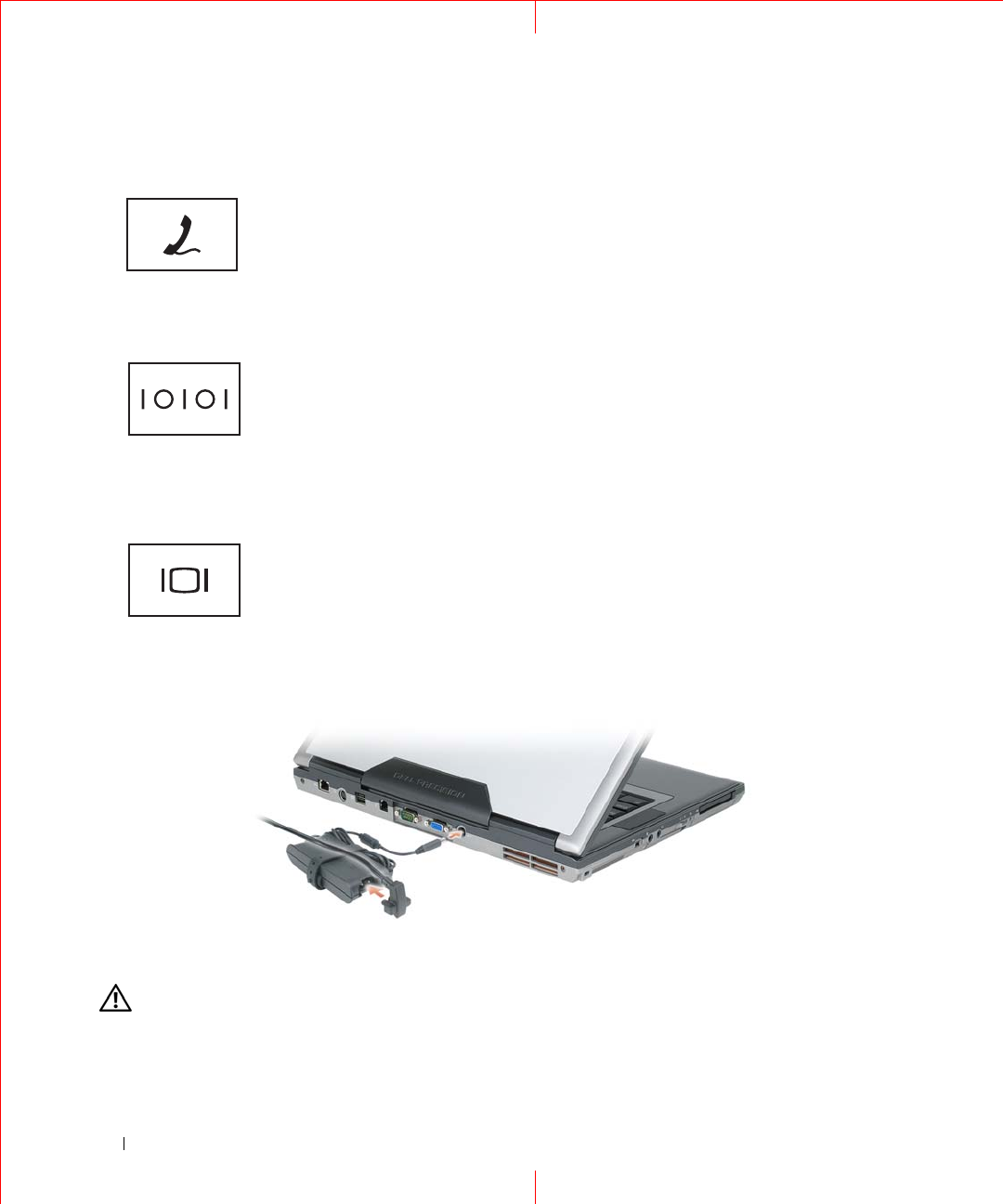

MODEM CONNECTOR (RJ-11)
SERIAL CONNECTOR
VIDEO CONNECTOR
AC ADAPTER CONNECTOR —Connects an AC adapter to the computer.
The AC adapter converts AC power to the DC power required by the computer. You can connect the AC adapter
with your computer turned either on or off.
CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power
strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip
or electrical outlet may cause fire or equipment damage.
Connects the telephone line to the modem connector (if
you ordered the optional internal modem).
For information on using the modem, see the online modem
documentation supplied with your computer (see "Finding
Information" on page 9).
Connects serial devices, such as a mouse or handheld device.
Connects video devices, such as a monitor.
About Your Computer 23
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,
and pull firmly but gently to avoid damaging the cable. When you wrap the AC adapter cable, ensure that you follow
the angle of the connector on the AC adapter to avoid damaging the cable.
AIR VENTS —The computer uses an internal fan to create airflow through the vents, which prevents the computer
from overheating.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow
can damage the computer or cause a fire.
NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a
problem with the fan or the computer.
Bottom View

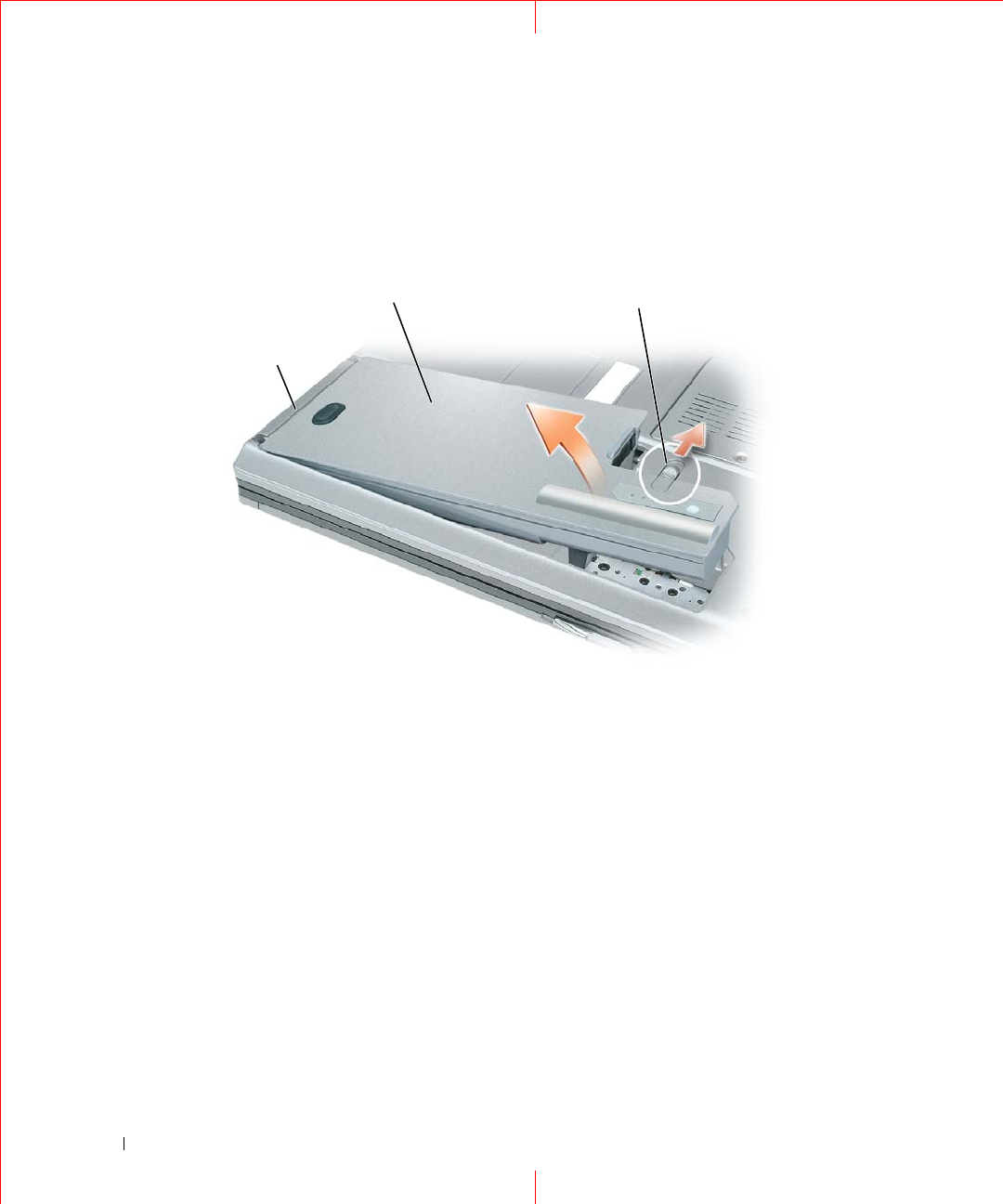

BATTERY-BAY LATCH RELEASE —Releases the battery. See "Replacing the Battery" on page 33 for instructions.
BATTERY —When a battery is installed, you can use the computer without connecting the computer to an
electrical outlet (see "Using a Battery" on page 29).
MEMORY MODULE COVER —Covers the compartment that contains the second memory module (see "Memory" on
1
battery-bay latch release
2
battery
3
memory module cover
4
docking-device connector
5
fan air vents
6
hard drive
5
4
1
3
2
6
24 About Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
page 111).
DOCKING-DEVICE CONNECTOR —Lets you attach your computer to the Media Base or other docking device. See
the Dell documentation that came with your docking device for more information.
FAN AIR VENTS —The computer uses an internal fan to create airflow through the fan air vents, which prevents the
computer from overheating.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow
can damage the computer or cause a fire.
NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a
problem with the fan or the computer.
HARD DRIVE —Stores software and data.
25
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\transfer.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Transferring Information to a New Computer
The Microsoft® Windows® operating system provides the Files and Settings Transfer Wizard to move
data from a source computer to a new computer. You can transfer data, such as:
• E-mail messages
• Toolbar settings
•Window sizes
• Internet bookmarks
You can transfer the data to the new computer over a network or serial connection, or you can store it on
a removable media, such as a writable CD, for transfer to the new computer.
NOTE: You can transfer information from the old computer to the new computer by directly connecting a serial
cable to the input/output (I/O) ports of the two computers. To transfer data over a serial connection, you must
access the Network Connections utility from the Control Panel and perform additional configuration steps, such as
setting up an advanced connection and designating the host computer and the guest computer.
For instructions on setting up a direct cable connection between two computers, see Microsoft Knowledge Base
Article #305621, titled How to Set Up a Direct Cable Connection Between Two Computers in Windows XP. This
information may not be available in some countries.
For transferring information to a new computer, you must run the Files and Settings Transfer Wizard.
You can use the optional Operating System media for this process or you can create a wizard disk with the
Files and Settings Transfer Wizard.
Running the Files and Settings Transfer Wizard With the Operating System Media
NOTE: This procedure requires the Operating System media. This media is optional and may not be included with
all computers.
To prepare the new computer for the file transfer:
1
Start the
Files and Settings Transfer Wizard.
2
When the
Files and Settings Transfer Wizard
welcome screen appears, click
Next
.
3
On the
Which computer is this?
screen, click
New Computer
and click
Next
.
4
On the
Do you have a Windows XP CD?
screen, click
I will use the wizard from the Windows XP CD
and click
Next
.
5
When the
Now go to your old computer
screen appears, go to your old or source computer. Do
not
click
Next
at this time.
To copy data from the old computer:
1
On the old computer, insert the Windows XP
Operating System
media.
2
On the
Welcome to Microsoft Windows XP
screen, click
Perform additional tasks
.
3
Under
What do you want to do?
, click
Transfer files and settings
.
26
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\transfer.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
4
On the
Files and Settings Transfer Wizard
welcome screen, click
Next
.
5
On the
Which computer is this?
screen, click
Old Computer
and click
Next
.
6
On the
Select a transfer method
screen, click the transfer method you prefer.
7
On the
What do you want to transfer?
screen, select the items you want to transfer and click
Next
.
After the information has been copied, the
Completing the Collection Phase
screen appears.
8
Click
Finish
.
To transfer data to the new computer:
1
On the
Now go to your old computer
screen on the new computer, click
Next
.
2
On the
Where are the files and settings?
screen, select the method you chose for transferring your
settings and files and click
Next
.
The wizard reads the collected files and settings and applies them to your new computer.
When all of the settings and files have been applied, the
Finished
screen appears.
3
Click
Finished
and restart the new computer.
Running the Files and Settings Transfer Wizard Without the Operating System Media
To run the Files and Settings Transfer Wizard without the Operating System media, you must create a
wizard disk that will allow you to create a backup image file to removable media.
To create a wizard disk, use your new computer with Windows XP and perform the following steps:
1
Click
Start
→
Files and Settings Transfer Wizard
.
2
When the
Files and Settings Transfer Wizard
welcome screen appears, click
Next
.
3
On the
Which computer is this?
screen, click
New Computer
→
Next
.
4
On the
Do you have a Windows XP CD?
screen, click
I want to create a Wizard Disk in the following
drive
→
Next.
5
Insert the removable media, such as a writable CD, and click
OK
.
6
When the disk creation completes and the
Now go to your old computer
message appears,
do not
click
Next
.
7
Go to the old computer.
To copy data from the old computer:
1
On the old computer, insert the wizard disk.
2
Click the
Start
→
Run
.
3
In the
Open
field on the
Run
window, browse to the path for
fastwiz
(on the appropriate removable
media) and click
OK
.
4
On the
Files and Settings Transfer Wizard
welcome screen, click
Next
.
5
On the
Which computer is this?
screen, click
Old Computer
→
Next
.
27
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\transfer.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
6
On the
Select a transfer method
screen, click the transfer method you prefer.
7
On the
What do you want to transfer?
screen, select the items you want to transfer and click
Next
.
After the information has been copied, the
Completing the Collection Phase
screen appears.
8
Click
Finish
.
To transfer data to the new computer:
1
On the
Now go to your old computer
screen on the new computer, click
Next
.
2
On the
Where are the files and settings?
screen, select the method you chose for transferring your
settings and files and click
Next
. Follow the instructions on the screen.
The wizard reads the collected files and settings and applies them to your new computer.
When all of the settings and files have been applied, the
Finished
screen appears.
3
Click
Finished
and restart the new computer.
NOTE: For more information about this procedure, search support.dell.com for document #PA1089586 (How Do I
Transfer Files From My Old Computer to My New Dell Computer Using the Microsoft® Windows® XP Operating
System?).
NOTE: Access to the Dell™ Knowledge Base document may not be available in some countries.
Windows Vista™
1
Click the Windows Vista Start button, , click
Transfer files and settings
→
Start Windows Easy
Transfer.
2
In the
User Account Control
dialog box, click
Continue
.
3
Click
Start a new transfer
or
Continue a transfer in progress
.
Follow the instructions provided on the screen by the Windows Easy Transfer wizard.
28
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\transfer.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using a Battery 29
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\battery.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using a Battery
Battery Performance
NOTE: For information about the Dell warranty for your computer, see the Product Information Guide or separate
paper warranty document that shipped with your computer.
For optimal computer performance and to help preserve BIOS settings, operate your Dell™ portable
computer with the main battery installed at all times. One battery is supplied as standard equipment in
the battery bay.
NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an
electrical outlet the first time you use the computer. For best results, operate the computer with the AC adapter
until the battery is fully charged. To view battery charge status, access the Control Panel→ Power Options, and
then click the Power Meter tab.
NOTE: Battery operating time (the time the battery can hold a charge) decreases over time. Depending on how
often the battery is used and the conditions under which it is used, you may need to purchase a new battery during
the life of your computer.
Battery operating time varies depending on operating conditions. You can install an optional second
battery in the media bay to significantly increase operating time.
Operating time is significantly reduced when you perform operations including, but not limited to, the
following:
•Using optical drives
• Using wireless communications devices, PC Cards, ExpressCards, media memory cards, or USB
devices
• Using high-brightness display settings, 3D screen savers, or other power-intensive programs such as 3D
games
• Running the computer in maximum performance mode (see "Configuring Power Management
Settings" on page 33)
NOTE: It is recommended that you connect your computer to an electrical outlet when writing to a CD or DVD.
You can check the battery charge before you insert the battery into the computer (see "Checking the
Battery Charge" on page 30). You can also set power management options to alert you when the battery
charge is low (see "Configuring Power Management Settings" on page 33).
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only
with a compatible battery purchased from Dell. The lithium ion battery is designed to work with your Dell
computer. Do not use a battery from other computers with your computer.
CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a charge, call
your local waste disposal or environmental agency for advice on disposing of a lithium-ion battery. See "Battery
Disposal" in the
Product Information Guide
.
30 Using a Battery
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\battery.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate,
disassemble, or expose the battery to temperatures above 65°C (149°F). Keep the battery away from children.
Handle damaged or leaking batteries with extreme care. Damaged batteries may leak and cause personal injury
or equipment damage.
Checking the Battery Charge
The Dell QuickSet Battery Meter, the Microsoft Windows Power Meter window and icon, the
battery charge gauge and health gauge, and the low-battery warning provide information on the battery
charge.
Dell™ QuickSet Battery Meter
If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet Battery Meter. The Battery
Meter displays status, battery health, charge level, and charge completion time for the battery in your
computer.
For more information about QuickSet, click the QuickSet icon in the Microsoft® Windows® taskbar,
and click Help.

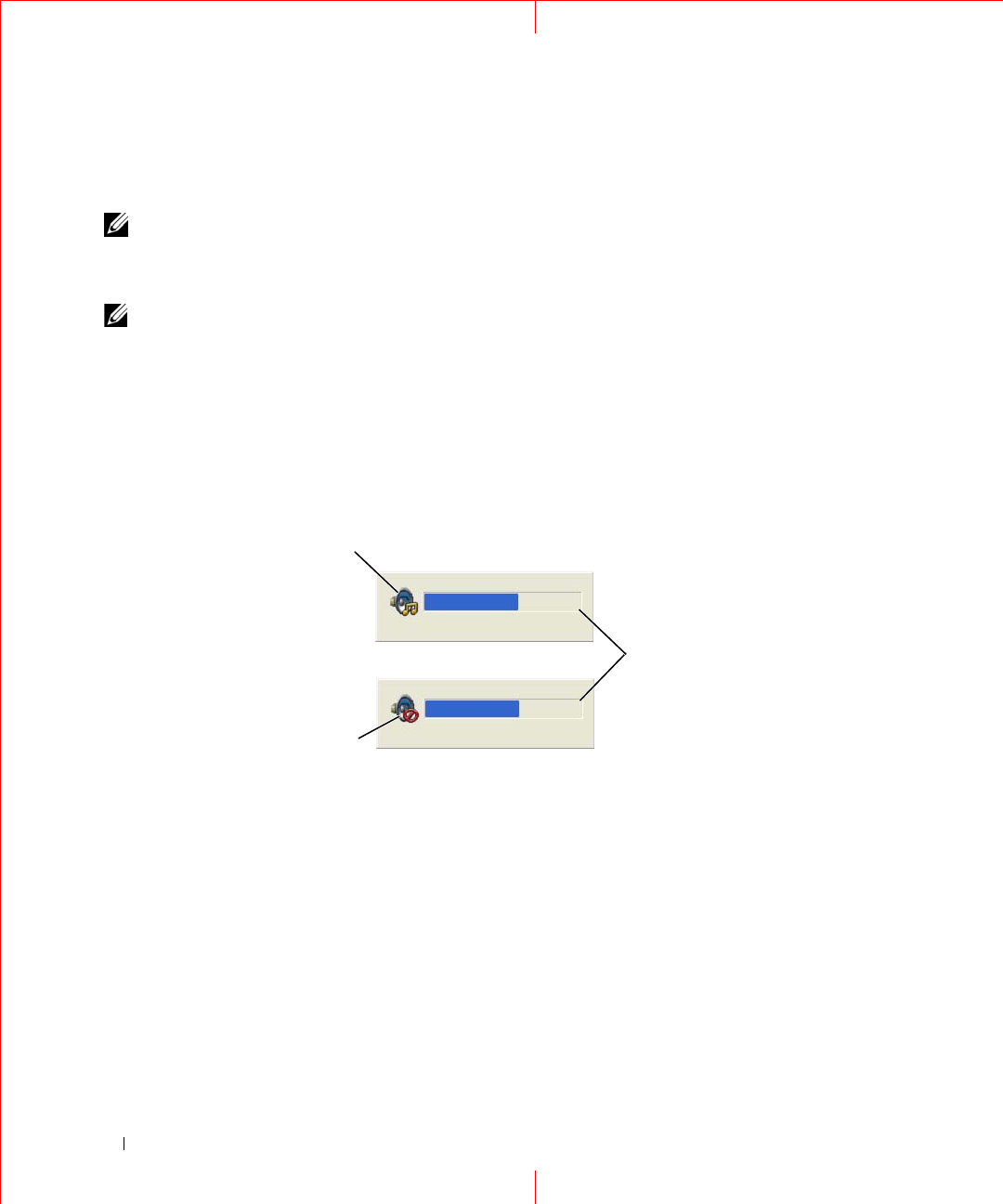

Microsoft® Windows® Power Meter
The Windows Power Meter indicates the remaining battery charge. To check the Power Meter, double-
click the icon on the taskbar.
If the computer is connected to an electrical outlet, a icon appears.
Charge Gauge
By either pressing once or pressing and holding the status button on the charge gauge on the battery, you
can check:
• Battery charge (check by pressing and
releasing
the status button)
• Battery health (check by pressing and
holding
the status button)
The battery operating time is largely determined by the number of times it is charged. After hundreds of
charge and discharge cycles, batteries lose some charge capacity—or battery health. That is, a battery can
show a status of "charged" but maintain a reduced charge capacity (health).
Check the Battery Charge
To check the battery charge, press and release the status button on the battery charge gauge to illuminate
the charge-level lights. Each light represents approximately 20 percent of the total battery charge. For
example, if the battery has 80 percent of its charge remaining, four of the lights are on. If no lights
appear, the battery has no charge.
Using a Battery 31
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\battery.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Check the Battery Health
NOTE: You can check battery health in one of two ways: by using the charge gauge on the battery as described
below and by using the Battery Meter in Dell QuickSet. For information about QuickSet, right-click the QuickSet
icon in the Microsoft® Windows® taskbar, and click Help.
To check the battery health using the charge gauge, press and hold the status button on the battery
charge gauge for at least 3 seconds. If no lights appear, the battery is in good condition, and more than 80
percent of its original charge capacity remains. Each light represents incremental degradation. If five
lights appear, less than 60 percent of the charge capacity remains, and you should consider replacing the
battery. See "Specifications" on page 127 for more information about the battery operating time.
Low-Battery Warning
NOTICE: To avoid losing or corrupting data, save your work immediately after a low-battery warning. Then
connect the computer to an electrical outlet. If the battery runs completely out of power, hibernate mode begins
automatically.
By default, a pop-up window warns you when the battery charge is approximately 90 percent depleted.
You can change the settings for the battery alarms in QuickSet or the Power Options Properties window.
See "Configuring Power Management Settings" on page 33 for information about accessing QuickSet or
the Power Options Properties window.
Conserving Battery Power
Perform the following actions to conserve battery power:
• Connect the computer to an electrical outlet when possible because battery life is largely determined
by the number of times the battery is used and recharged.
• Place the computer in standby mode or hibernate mode when you leave the computer unattended for
long periods of time (see "Power Management Modes" on page 31).
• Use the Power Management Wizard
to select options to optimize your computer’s power usage. These
options can also be set to change when you press the power button, close the display, or press
<Fn><Esc>.
NOTE: See "Power Management Modes" on page 31 for more information on conserving battery power.
Power Management Modes
Standby Mode
Standby mode conserves power by turning off the display and the hard drive after a predetermined
period of inactivity (a time-out). When the computer exits standby mode, it returns to the same
operating state it was in before entering standby mode.
NOTICE: If your computer loses AC and battery power while in standby mode, it may lose data.
To enter standby mode:
32 Using a Battery
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\battery.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
•Click
Start
→
Shut Down
→
Stand by
.
or
• Depending on how you set the power management options in the
Power Options Properties
window
or the QuickSet Power Management Wizard, use one of the following methods:
– Press the power button.
– Close the display.
– Press <Fn><Esc>.
To exit standby mode, press the power button or open the display depending on how you set the power
management options. You cannot make the computer exit standby mode by pressing a key or touching
the touch pad or track stick.
Hibernate Mode
Hibernate mode conserves power by copying system data to a reserved area on the hard drive and then
completely turning off the computer. When the computer exits hibernate mode, it returns to the same
operating state it was in before entering hibernate mode.
NOTICE: You cannot remove devices or undock your computer while your computer is in hibernate mode.
Your computer enters hibernate mode if the battery charge level becomes critically low.
To manually enter hibernate mode:
•
C
lick
Start
→
Turn off computer
, press and hold <Shift>, and then click
Hibernate
.
or
• Depending on how you set the power management options in the
Power Options Properties
window
or the QuickSet Power Management Wizard, use one of the following methods to enter hibernate
mode:
– Press the power button.
– Close the display.
– Press <Fn><Esc>.

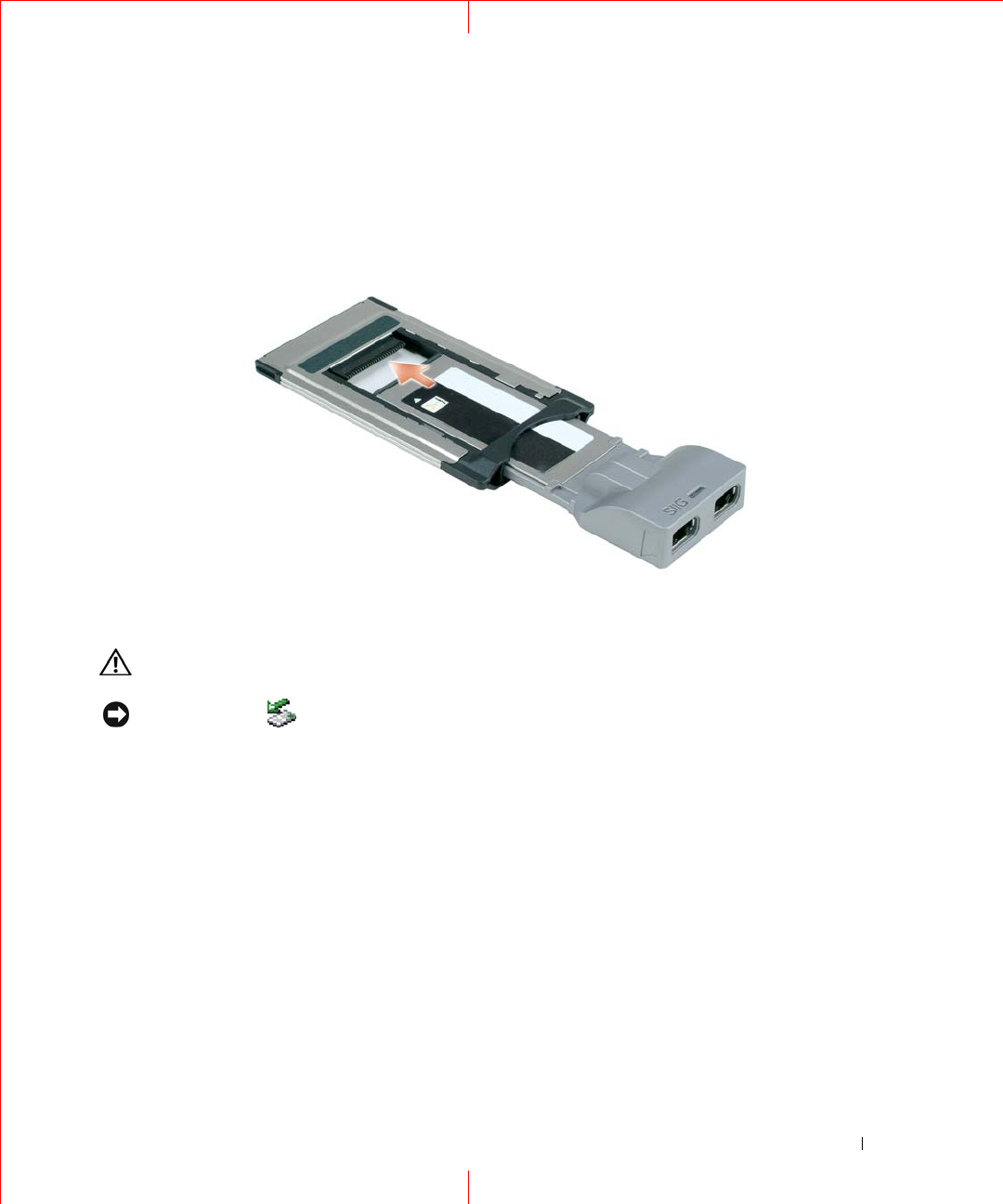

NOTE: Some PC Cards or ExpressCards may not operate correctly after the computer exits hibernate mode.
Remove and reinsert the card (see "Installing a PC Card or ExpressCard" on page 59), or simply restart (reboot) your
computer.
To exit hibernate mode, press the power button. The computer may take a short time to exit hibernate
mode. You cannot make the computer exit hibernate mode by pressing a key or touching the touch pad
or track stick. For more information on hibernate mode, see the documentation that came with your
operating system.
Using a Battery 33
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\battery.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Configuring Power Management Settings
You can use the QuickSet Power Management Wizard or Windows Power Options Properties to
configure the power management settings on your computer.
• To access the QuickSet Power Management Wizard, double-click the
QuickSet icon in the
Microsoft® Windows® taskbar
. For more information about QuickSet, click the
Help
button in the
Power Management Wizard.
•To access the
Power Options Properties
window, click
Start
→
Control Panel
→
Performance and
Maintenance
→
Power Options
. For information on any field in the
Power Options Properties
window, click the question mark icon on the title bar and then click on the area where you need
information.
Charging the Battery
NOTE: With Dell™ ExpressCharge™, when the computer is turned off, the AC adapter charges a completely
discharged battery to 80 percent in about 1 hour and to 100 percent in approximately 2 hours. Charge time is longer
with the computer turned on. You can leave the battery in the computer for as long as you like. The battery’s internal
circuitry prevents the battery from overcharging.
When you connect the computer to an electrical outlet or install a battery while the computer is
connected to an electrical outlet, the computer checks the battery charge and temperature. If necessary,
the AC adapter then charges the battery and maintains the battery charge.
If the battery is hot from being used in your computer or being in a hot environment, the battery may
not charge when you connect the computer to an electrical outlet.
The battery is too hot to start charging if the light flashes alternately green and orange. Disconnect
the computer from the electrical outlet and allow the computer and the battery to cool to room
temperature. Then connect the computer to an electrical outlet to continue charging the battery.
For more information about resolving problems with a battery, see "Power Problems" on page 83.
Replacing the Battery
CAUTION: Before performing these procedures, turn off the computer, disconnect the AC adapter from the
electrical outlet and the computer, disconnect the modem from the wall connector and computer, and remove any
other external cables from the computer.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only
with a compatible battery purchased from Dell. The battery is designed to work with your Dell™ computer. Do not
use a battery from other computers with your computer.
NOTICE: You must remove all external cables from the computer to avoid possible connector damage.
For information about replacing the second battery, which is located in the media bay, see "Using
Multimedia" on page 41.
To remove the battery:
34 Using a Battery
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\battery.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
1
If the computer is connected to a docking device (docked), undock it. See the documentation that
came with your docking device for instructions.
2
Ensure that the computer is turned off.
3
Slide the battery-bay latch release on the bottom of the computer until the release clicks.
4
Using the tab on the battery, lift the battery out of the computer.
To replace the battery, place the battery in the bay and press down until the battery-bay latch release
clicks.
Storing a Battery
Remove the battery when you store your computer for an extended period of time. A battery discharges
during prolonged storage. After a long storage period, recharge the battery fully before you use it (see
"Charging the Battery" on page 33).
1battery tab 2battery 3battery-bay latch release
23
1
Using the Keyboard and Touch Pad 35
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using the Keyboard and Touch Pad
Numeric Keypad
The numeric keypad functions like the numeric keypad on an external keyboard. Each key on the keypad
has multiple functions. The keypad numbers and symbols are marked in blue on the right of the keypad
keys. To type a number or symbol, hold down <Fn> and press the desired key.
• To enable the keypad, press <Num Lk>. The light indicates that the keypad is active.
• To disable the keypad, press <Num Lk> again.
Key Combinations
System Functions
Battery
<Ctrl><Shift><Esc> Opens the Task Mana ger window
<Fn><F3> Displays the Dell™ QuickSet Battery Meter
9
36 Using the Keyboard and Touch Pad
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Display Functions
Power Management
Microsoft® Windows® Logo Key Functions
<Fn><F7> Switches display output scaling from full-screen to
centered to standard aspect ratio scaling for non-native
resolutions on LCD or external display.
<Fn><F8> Switches the video image to the next display option. The
options include the integrated display, an external
monitor, and both displays simultaneously.
<Fn> and left-arrow
key
Activates the ambient light sensor, which controls
brightness of the display based on light level in the
current environment.
<Fn> and up-arrow key Increases brightness on the integrated display only (not
on an external monitor).
<Fn> and down-arrow
key
Decreases brightness on the integrated display only (not
on an external monitor).
<Fn><Esc> Activates a power management mode. You can
reprogram this keyboard shortcut to activate a different
power management mode using the Advanced tab in the
Power Options Properties window (see "Configuring
Power Management Settings" on page 33).
<Fn><F1> Puts the computer into hibernate mode. Dell QuickSet is
required (see "Dell™ QuickSet" on page 125).
Windows logo key and
<m>
Minimizes all open windows.
Windows logo key and
<Shift><m>
Restores all minimized windows. This key
combination functions as a toggle to restore
minimized windows following the use of the
Windows logo key and <m> key combination.
Windows logo key and <e> Runs Windows Explorer.
Windows logo key and <r> Opens the Run dialog box.
Windows logo key and <f> Opens the Search Results dialog box.
Windows logo key and
<Ctrl><f>
Opens the Search Results-Computer dialog box (if
the computer is connected to a network).
Windows logo key and
<Pause>
Opens the System Properties dialog box.
Using the Keyboard and Touch Pad 37
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
To adjust keyboard operation, such as the character repeat rate, click
→
Control Panel
→
Printers and
Other Hardware
→
Keyboard. For information about the Control Panel, see the Windows Help and
Support Center (click the Start button or the Windows Vista™ Start button
→
Help and Support
.
Touch Pad
The touch pad detects the pressure and movement of your finger to allow you to move the cursor on the
display. Use the touch pad and touch pad buttons as you would use a mouse.
NOTE: If you ordered the optional fingerprint reader with your computer, the reader is located between the touch
pad buttons.
• To move the cursor, lightly slide your finger over the touch pad.
• To select an object, lightly tap once on the surface of the touch pad or use your thumb to press the left
touch-pad button.
• To select and move (or drag) an object, position the cursor on the object and tap twice on the touch
pad. On the second tap, leave your finger on the touch pad and move the selected object by sliding
your finger over the surface.
• To double-click an object, position the cursor on the object and tap twice on the touch pad or use your
thumb to press the left touch-pad button twice.
1touch pad 2fingerprint reader (optional) 3touch pad buttons
1
2
3
38 Using the Keyboard and Touch Pad
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
You can also use the track stick to move the cursor. Press the track stick left, right, up, or down to change
the direction of the cursor on the display. Use the track stick and track stick buttons as you would use a
mouse.
Customizing the Touch Pad and Track Stick
You can use the Mouse Properties window to disable the touch pad and track stick or adjust their
settings.
1
Click
Control Panel
→
Mouse
.
For information about the Control Panel, see the Windows Help and
Support Center. Click the Start button or the Windows Vista™ Start button
→
Help and
Support
.
2
In the
Mouse Properties
window:
•Click
Device Select
to disable the touch pad and track stick.
•Click
Touch Pad
to adjust touch pad and track stick settings.
3
Click
OK
to save the settings and close the window.
Changing the Track Stick Cap
You can replace your track stick cap if it wears down from prolonged use or if you prefer a different color.
You can purchase additional caps by visiting the Dell website at www.dell.com.
1
Pull the cap off the track stick.
2
Align the new cap over the square track-stick post and gently press the cap down onto the post.
NOTICE: The track stick can damage the display if it is not properly seated on the post.
Using the Keyboard and Touch Pad 39
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
3
Test the track stick to ensure that the cap is seated properly.
40 Using the Keyboard and Touch Pad
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\media.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Template Last Updated - 7/01/2005 Using Multimedia 41
4
Using Multimedia
Playing CDs or DVDs
NOTICE: Do not press down on the CD or DVD tray when you open or close it. Keep the tray closed when you
are not using the drive.
NOTICE: Do not move the computer while playing CDs or DVDs.
1
Press the eject button on the front of the drive.
2
Pull out the tray.
3
Place the disc, label side up, in the center of the tray and snap the disc onto the spindle.
NOTE: If you use a module that shipped with another computer, you need to install the drivers and software
necessary to play DVDs or write data. For more information, see the Drivers and Utilities media (the Drivers
and Utilities media is optional and may not be available for your computer or in certain countries).
42 Using Multimedia
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\media.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
4
Push the tray back into the drive.
To format CDs for storing data, to create music CDs, or to copy CDs, see the CD software that came
with your computer.
NOTE: Ensure that you follow all copyright laws when you create CDs.
Adjusting the Volume
NOTE: When the speakers are muted, you do not hear the CD or DVD playing.
1
Open the
Volume Control
window.
2
Click and drag the bar in the
Volume Control
column and slide it up or down to increase or decrease
the volume.
For more information on volume control options, click Help in the Volume Control window.
The Volume Meter displays the current volume level, including mute, on your computer. Either click the
QuickSet icon in the taskbar and select or deselect Disable On Screen Volume Meter, or press the
volume control buttons to enable or disable the Volume Meter on the screen.
When the meter is enabled, adjust the volume with the volume control buttons or by pressing the
following keys:
• Press <Fn> <PageUp> to increase volume.
• Press <Fn> <PageDn> to decrease volume.
• Press <Fn> <End> to mute volume.
For more information about QuickSet, right-click the icon in the taskbar and click Help.
Adjusting the Picture
If an error message notifies you that the current resolution and color depth are using too much memory
and preventing DVD playback, adjust the display properties.
1volume icon 2Volume Meter 3mute icon
1
3
2
Using Multimedia 43
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\media.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Microsoft Windows XP
1
Click
Start
→
Control Panel
→
Appearance and Themes
.
2
Under
Pick a task...
, click
Change the screen resolution
.
3
Under
Screen resolution
, click and drag the bar to reduce the resolution setting.
4
In the drop-down menu under
Color quality
, click
Medium (16 bit)
and click
OK
.
Microsoft Windows Vista™ Operating System
1
Click the Windows Vista Start button
,
click
Control Panel
, and then click
Appearance and
Personalization
.
2
Under
Personalization
, click
Adjust Screen Resolution
.
The
Display Properties
window appears.
3
Under
Resolution:
click and drag the bar reduce the resolution setting.
4
In the drop-down menu under
Colors:
, click
Medium (16 bit)
.
5
Click
OK
.
Connecting Your Computer to a TV
NOTE: Video cables for connecting your computer to a TV or other device may not be included with your
computer. TV adapter cables are available for purchase from Dell.
Your computer has an S-video TV-out connector that, together with a standard S-video cable, a
composite video adapter cable, or a component video adapter cable (available from Dell), enable you to
connect the computer to a TV.
Your TV has either an S-video input connector, a composite video-input connector, or a component
video-input connector. Depending on what type of connector is available on your TV, you can use a
commercially available S-video cable, composite video cable, or component video cable to connect your
computer to your TV.
Enabling the Display Settings for a TV
NOTE: To ensure that the display options appear correctly, connect the TV to the computer before you enable the
display settings.
1S-video TV-out connector 2S-video connector
12
44 Using Multimedia
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\media.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Microsoft Windows XP
1
Click the
Start
button, point to
Settings
, and then click
Control Panel
.
2
Double-click
Display
and click the
Settings
tab.
3
Click
Advanced
.
4
Click the tab for your video card.
NOTE: To determine the type of video card installed in your computer, see the Windows Help and Support Center.
To access the Help and Support Center, click Start→ Help and Support. Under Pick a Task, click Use Tools to view
your computer information and diagnose problems. Then, under My Computer Information, select Hardware.
5
In the display devices section, select the appropriate option for using either a single display or multiple
displays, ensuring that the display settings are correct for your selection.
Microsoft Windows Vista
1
Click the Windows Vista Start button
,
click
Control Panel
, and then click
Appearance and
Personalization
.
2
Under
Personalization
, click
Adjust Screen Resolution
.
The
Display Properties
window appears.
3
Click
Advanced
.
4
Click the tab for your video card.
NOTE: To determine the type of video card installed in your computer, see the Windows Help and Support Center.
To access the Help and Support Center in Windows Vista, click the Windows Vista Start button
→
Help and
Support. Under Pick a Task, click Use Tools to view your computer information and diagnose problems. Then,
under My Computer Information, select Hardware.
5
In the display devices section, select the appropriate option for using either a single display or multiple
displays, ensuring that the display settings are correct for your selection.
Using the Display 45
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using the Display
Adjusting Brightness
When a Dell™ computer is running on battery power, you can conserve power by setting the display
brightness to the lowest comfortable setting by pressing <Fn> and the up- or down-arrow key on the
keyboard.
NOTE: Brightness key combinations only affect the display on your portable computer, not monitors or projectors
that you attach to your portable computer or docking device. If your computer is connected to an external monitor
and you try to change the brightness level, the Brightness Meter may appear, but the brightness level on the
external device does not change.
You can press the following keys to adjust display brightness:
• Press <Fn> and the up-arrow key to increase brightness on the integrated display only (not on an
external monitor).
• Press <Fn> and the down-arrow key to decrease brightness on the integrated display only (not on an
external monitor).
Switching the Video Image From Your Computer Display to a
Projector
When you start the computer with an external device (such as an external monitor or projector)
attached and turned on, the image may appear on either the computer display or the external device.
Press <Fn><F8> to switch the video image between the display only, the external device only, or the
display and the external device simultaneously.
Making Images and Text Look Bigger or Sharper on the Screen:
Setting Display Resolution and Refresh Rate
NOTE: If you change the display resolution from the current settings, the image may appear blurry or text may be
hard to read if you change the resolution to one not supported by your computer and display. Before you change
any of the display settings, make a note of the current settings so you can change back to the previous settings if
you need to.
You can enhance the legibility of text and change the appearance of images on the screen by adjusting
display resolution. As you increase resolution, items appear smaller on the screen. In contrast, lower
resolution causes text and images to appear larger and can benefit people with vision impairments. To
display a program at a specific resolution, both the video card and the display must support the program,
and the necessary video drivers must be installed.
NOTE: Use only the Dell-installed video drivers, which are designed to offer the best performance with your Dell-
installed operating system.
46 Using the Display
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
If you choose a resolution or color palette that is higher than the display supports, the settings adjust
automatically to the closest supported values.
To set the display resolution and refresh rate for your display, perform the steps in the following section
that corresponds to the operating system your computer is using.
Microsoft® Windows® XP
1
Click
Start
→
Settings
→
Control Panel
.
2
Under
Pick a category
, click
Appearance and Themes
.
3
Under
Pick a task...
, click the area you want to change, or under
or pick a Control Panel icon
, click
Display
.
4
In the
Display Properties
window, click the
Settings
tab.
5
Try different settings for
Color quality
and
Screen resolution
.
NOTE: As the resolution increases, icons and text appear smaller on the screen.
Windows Vista™
1
Click the Windows Vista Start button
→
Control Panel
.
2
Under
Appearance and Personalization
, click
Adjust screen resolution
.
3
In the
Display Settings
window, under
Resolution
, slide the slide bar to the left/right to
decrease/increase the screen resolution.
4
Click
How do I get the best display?
for further instructions.
If the video resolution setting is higher than that supported by the display, the computer enters pan
mode. In pan mode, the entire video image cannot be displayed at one time, and the taskbar that usually
appears at the bottom of the desktop may no longer be visible. To view the parts of the video image that
are not visible, you can use the touch pad or track stick to "pan" (or move) the image up, down, left, and
right.
NOTICE: You can damage an external monitor by using an unsupported refresh rate. Before adjusting the refresh
rate on an external monitor, see the user’s guide for the monitor.
Using an External Monitor Simultaneously as an Extension of Your
Computer Display
You can attach an external monitor or projector to your computer and use it as an extension of your
display (known as "dual independent display" or "extended desktop" mode). This mode allows you to use
both screens independently and drag objects from one screen to the other, effectively doubling the
amount of viewable work space.
To use extended desktop mode, perform the steps in the following section that corresponds to the
operating system your computer is using.
Using the Display 47
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Microsoft® Windows® XP
1
Connect the external monitor, TV, or projector to the computer.
2
Click
Start
→
Settings
→
Control Panel
.
3
Under
Pick a category
, click
Appearance and Themes
.
4
Under
Pick a task...
, click the area you want to change, or under
or pick a Control Panel icon
, click
Display
.
5
In the
Display Properties
window, click the
Settings
tab.
NOTE: If you choose a resolution or color palette that is higher than the display supports, the settings adjust
automatically to the closest supported values. For more information, see your operating system documentation.
6
Click the monitor 2 icon, click the
Extend my Windows desktop...
check box, and then click
Apply
.
7
Change
Screen Area
to the appropriate sizes for both displays and click
Apply
.
8
If prompted to restart the computer, click
Apply the new color setting without restarting
and click
OK
.
9
If prompted, click
OK
to resize your desktop.
10
If prompted, click
Yes
to keep the settings.
11
Click
OK
to close the
Display Properties
window.
To disable dual independent display mode:
1
Click the
Settings
tab in the
Display Properties
window.
2
Click the monitor 2 icon, uncheck the
Extend my Windows desktop onto this monitor
option, and
then click
Apply
.
If necessary, press <Fn><F8> to bring the screen image back to the computer display.
Windows Vista™
1
Click the Windows Vista Start button, , and click
Control Panel
.
2
Under
Appearance and Personalization
, click
Adjust screen resolution
.
3
In the
Display Settings
window, click the monitor 2 icon, click the
Extend the desktop onto this
monitor
check box, and then click
Apply
.
4
Click
OK
to close the
Display Settings
window.
To disable extended desktop mode:
1
In the
Display Settings
window, click the
Settings
tab.
2
Click the monitor 2 icon, uncheck the
Extend the desktop onto this monitor
option, and then click
Apply
.
48 Using the Display
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using an External Monitor as Your Primary Display: Swapping
Primary and Secondary Displays
To swap your primary and secondary display designations (for example, to use your external monitor as
your primary display after docking), perform the steps in the following section that corresponds to the
operating system your computer is using.
Microsoft® Windows® XP
1
Click the
Start
button and click
Control Panel
.
2
Under
Pick a category
, click
Appearance and Themes
.
3
Under
Pick a task...
, click the area you want to change, or under
or pick a Control Panel icon
, click
Display
.
4
Click the
Settings
tab and select the monitor
1
or monitor
2
icon, and click
Apply
.
Windows Vista™
1
Click the Windows Vista Start button, , and click
Control Panel
.
2
Under
Appearance and Personalization
, click
Adjust screen resolution
.
3
In the
Display Settings
window, click the monitor 2 icon, click the
This is my main monitor
check
box, and then click
Apply
.
4
Click
OK
to close the
Display Settings
window.
Using the Ambient Light Sensor
The ambient light sensor is located on the front of the computer display. The sensor detects available
environmental light and automatically increases or decreases the display backlighting to compensate for
low-light and high-light environments.
You can enable or disable the ambient light sensor feature by pressing the <Fn> and left-arrow key
combination.
NOTE: Do not cover the ambient light sensor with any adhesive labels. If covered up, the sensor—when
enabled—automatically sets the display brightness to the minimum level.
Using the Display 49
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
The ambient light sensor is disabled when your computer is shipped to you. If you enable the sensor and
then use any of the display brightness key combinations, the sensor is disabled and the display brightness
is increased or decreased accordingly.
Dell™ QuickSet allows you to enable or disable the ambient light sensor feature. You can also adjust
maximum and minimum brightness settings that are activated when you enable the ambient light sensor
feature. For more information about QuickSet, right-click the QuickSet icon in the taskbar, and click
Help.
NOTE: Rebooting the computer returns the ambient light sensor to the setting (either enabled or disabled) as it
was before it was adjusted.
NOTE: The ambient light sensor adjusts the display backlighting on your portable computer only. It does not
control the brightness on any external monitors or projectors.
1ambient light sensor
1
50 Using the Display
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Setting Up and Using Networks 51
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Setting Up and Using Networks
Connecting a Network or Broadband Modem Cable
Before you connect your computer to a network, the computer must have a network adapter installed
and a network cable connected to it.
1
Connect the network cable to the network adapter connector on the back of your computer.
NOTE: Insert the cable connector until it clicks into place, and then gently pull the cable to ensure that it is
securely attached.
2
Connect the other end of the network cable to a network connection device or a network wall
connector.
NOTE: Do not use a network cable with a telephone wall connector.
Setting Up a Network in Microsoft Windows XP
1
Click
Start
→
All Programs
→
Accessories
→
Communications
→
Network Setup Wizard
→
Next
→
Checklist for creating a network
.
NOTE: Selecting the connection method labeled This computer connects directly to the Internet enables the
integrated firewall provided with Windows XP Service Pack 2 (SP2).
2
Complete the checklist.
3
Return to the Network Setup Wizard and follow the instructions in the wizard.
Setting Up a Network in Microsoft Windows Vista
1
Click the Windows Vista Start button
→
Connect To
→
Set up a connection or network
.
52 Setting Up and Using Networks
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
2
Select an option under
Choose a connection option
.
3
Click
Next
, and then follow the instructions in the wizard.
Wireless Local Area Network (WLAN)
A WLAN is a series of interconnected computers that communicate with each other over the air waves
rather than through a network cable connected to each computer. In a WLAN, a radio communications
device called an access point or wireless router connects network computers and provides Internet, or
network, access. The access point or wireless router and the wireless network card in the computer
communicate by broadcasting data from their antennas over the air waves.
What You Need to Establish a WLAN Connection
Before you can set up a WLAN, you need:
• High-speed (broadband) Internet access (such as cable or DSL)
• A broadband modem that is connected and working
• A wireless router or access point
• A wireless network card for each computer that you want to connect to your WLAN
• A network cable with the network (RJ-45) connector
Checking Your Wireless Network Card
Depending on what you selected when you purchased your computer, the computer has a variety of
configurations. To confirm that your computer has a wireless network card and to determine the type of
card, use one of the following:
•The
Start
button and the
Connect To
option
• Your original computer invoice
Start Button and Connect To Option
In Microsoft Windows XP, click Start→ Connect To→ Show all connections.
In Microsoft Windows Vista, click → Connect To→ View network computers and devices.
If Wireless Network Connection does not appear under LAN or High-Speed Internet, you may not have a
wireless network card.
If Wireless Network Connection appears, you have a wireless network card. To view detailed information
about the wireless network card:
1
Right-click
Wireless Network Connection
.
2
Click
Properties
.
The
Wireless Network Connection Properties
window appears. The wireless network card’s name and
model number are listed on the
General
tab.
Setting Up and Using Networks 53
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: If your computer is set to the Classic Start menu option, you can view network connections by clicking
Start
→
Settings
→
Network Connections. If Wireless Network Connection does not appear, you may not have a
wireless network card.
The Order Confirmation for Your Computer
The order confirmation that you received when you ordered your computer lists the hardware and
software that shipped with your computer.
Setting Up a New WLAN Using a Wireless Router and a Broadband Modem
1
Contact your Internet service provider (ISP) to obtain specific information about the connection
requirements for your broadband modem.
2
Ensure that you have wired Internet access through your broadband modem before you attempt to set
up a wireless Internet connection (see "Connecting a Network or Broadband Modem Cable" on
page 51).
3
Install any software required for your wireless router. Your wireless router may have been shipped with
an installation CD. Installation CDs usually contain installation and troubleshooting information.
Install the required software according to the instructions provided by the router manufacturer.
4
Shut down your computer and any other wireless-enabled computers in the vicinity through the
Start
or
menu.
5
Disconnect your broadband modem power cable from the electrical outlet.
6
Disconnect the network cable from the computer and the modem.
7
Disconnect the AC adapter cable from your wireless router to ensure that there is no power connected
to the router.
NOTE: Wait for a minimum of 5 minutes after disconnecting your broadband modem before you continue with the
network setup.
8
Insert a network cable into the network (RJ-45) connector on the unpowered broadband modem.
9
Connect the other end of the network cable into the Internet network (RJ-45) connector on the
unpowered wireless router.
10
Ensure that no network or USB cables, other than the network cable connecting the modem and the
wireless router, are connected to the broadband modem.
NOTE: Restart your wireless equipment in the order described below to prevent a potential connection failure.
11
Tu r n o n
only
your broadband modem and wait for at least 2 minutes for the broadband modem to
stabilize. After 2 minutes, proceed to step 12.
12
Turn on your wireless router and wait for at least 2 minutes for the wireless router to stabilize. After 2
minutes, proceed to the step 13.
13
Start your computer and wait until the boot process completes.
14
See the documentation that came with your wireless router to do the following in order to set up the
wireless router:
54 Setting Up and Using Networks
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• Establish communication between your computer and your wireless router.
• Configure your wireless router to communicate with your broadband router.
• Find out your wireless router’s broadcast name. The technical term for the name of your router’s
broadcast name is Service Set Identifier (SSID) or network name.
15
If necessary, configure your wireless network card to connect to the wireless network (see "Connecting
to a WLAN" on page 54).
Connecting to a WLAN
NOTE: Before you connect to a WLAN, ensure that you have followed the instructions in "Wireless Local Area
Network (WLAN)" on page 52.
NOTE: The following networking instructions do not apply to internal cards with Bluetooth® wireless technology
or cellular products.
This section provides general procedures for connecting to a network using wireless technology. Specific
network names and configuration details vary. See "Wireless Local Area Network (WLAN)" on page 52
for more information about how to prepare for connecting your computer to a WLAN.
Your wireless network card requires specific software and drivers for connecting to a network. The
software is already installed.
NOTE: If the software is removed or corrupted, follow the instructions in the user documentation for your wireless
network card. Verify the type of wireless network card installed in your computer and then search for that name on
the Dell Support website at support.dell.com. For information on the type of wireless network card that is installed
in your computer, see "Checking Your Wireless Network Card" on page 52.
Determining the Wireless Network Device Manager
Depending on the software installed on your computer, different wireless configuration utilities may
manage your network devices:
• Your wireless network card’s client utility
• The Windows XP or Windows Vista operating system
To determine which wireless configuration utility is managing your wireless network card in Windows
XP:
1
Click
Start
→
Settings
→
Control Panel
→
Network Connections
.
2
Right-click the
Wireless Network Connection
icon, and then click
View Available Wireless Networks
.
If the Choose a wireless network window states Windows cannot configure this connection, the wireless
network card’s client utility is managing the wireless network card.
If the Choose a wireless network window states Click an item in the list below to connect to a wireless
network in range or to get more information, the Windows XP operating system is managing the
wireless network card.
To determine which wireless configuration utility is managing your wireless network card in Windows
Vista:
Setting Up and Using Networks 55
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
1
Click the Windows Vista Start button
→
Connect To→ Manage wireless networks.
2
Double-click a profile to open the wireless network properties screen.
For specific information about the wireless configuration utility installed on your computer, see your
wireless network documentation in the Windows Help and Support Center. Click the Start button or the
Windows Vista™ Start button
→
Help and Support.
Completing the Connection to the WLAN
When you turn on your computer and a network (for which your computer is not configured) is detected
in the area, a pop-up appears near the network icon in the notification area (in the lower-right corner of
the Windows desktop).
Follow the instructions provided in any utility prompts that appear on your screen.
Once you have configured your computer for the wireless network that you selected, another pop-up
notifies you that your computer is connected to that network.
Thereafter, whenever you log on to your computer within the range of the wireless network that you
selected, the same pop-up notifies you of the wireless network connection.
NOTE: If you select a secure network, you must enter a WEP or WPA key when prompted. Network security
settings are unique to your network. Dell cannot provide this information.
NOTE: Your computer can take up to 1 minute to connect to the network.
Monitoring the Status of Wireless Network Connections Through Dell™ QuickSet
The wireless activity indicator provides you with an easy way to monitor the status of your computer’s
wireless devices. To turn the wireless activity indicator on or off, click the QuickSet icon in the taskbar
and select Hotkey Popups. If Wireless Activity Indicator Off is not checked, the indicator is on. If
Wireless Activity Indicator Off is checked, the indicator is off.
The wireless activity indicator displays whether your computer’s integrated wireless devices are enabled
or disabled. When you turn the wireless networking function on or off, the wireless activity indicator
changes to display the status.
For more information about the Dell QuickSet wireless activity indicator, right-click the QuickSet icon in
the taskbar and select Help (see "Dell™ QuickSet" on page 125).
Mobile Broadband or Wireless Wide Area Network (WWAN)
Much like a WLAN, a Mobile Broadband network (also known as a WWAN) is a series of interconnected
computers that communicate with each other through wireless technology. However, a Mobile
Broadband network uses cellular technology and therefore provides Internet access in the same varied
locations from which cellular telephone service is available. Your computer can maintain the Mobile
Broadband network connection regardless of its physical location, as long as the computer remains in the
service area of your cellular service provider.
56 Setting Up and Using Networks
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: Even if you are able to make a call from your cellular phone in a specific geographical location, that
location may not necessarily be within a cellular-data coverage zone.
What You Need to Establish a Mobile Broadband Network Connection
NOTE: Depending on your computer, you can use either a Mobile Broadband ExpressCard or Mini-Card, but not
both, to establish a Mobile Broadband network connection.
To set up a Mobile Broadband network connection, you need:
• A Mobile Broadband ExpressCard or Mini-Card (depending on your computer’s configuration). For
instructions on using ExpressCards, see "Using Cards" on page 59.
• An activated Mobile Broadband ExpressCard or activated Subscriber Identity Module (SIM) for your
service provider
• The Dell Mobile Broadband Card Utility (already installed on your computer if you purchased the card
when you purchased your computer, or on the CD that accompanied your card if purchased separately
from your computer)
If the utility is corrupted or deleted from your computer, see the Dell Mobile Broadband Card Utility
user’s guide for instructions. The user’s guide is available through the Windows Help and Support
Center (or on the CD that accompanied your card if you purchased it separately from your computer).
To access the Help and Support Center, see "Windows Help and Support Center" on page 12.
Checking Your Mobile Broadband Card
Depending on what you selected when you purchased your computer, the computer has a variety of
configurations. To determine your computer configuration, see one of the following:
• Your order confirmation
• Microsoft Windows Help and Support Center
To check your Mobile Broadband card in the Windows Help and Support Center:
1
Click
Start
→
Help and Support
→
Use Tools to view your computer information and diagnose
problems
.
2
Under
Tools
, click
My Computer Information
→
Find information about the hardware installed on
this computer.
On the My Computer Information - Hardware screen, you can view the type of Mobile Broadband card
installed in your computer as well as other hardware components.
NOTE: The Mobile Broadband card is listed under Modems.
Connecting to a Mobile Broadband Network
NOTE: These instructions only apply to Mobile Broadband ExpressCards or Mini-Cards. They do not apply to
internal cards with wireless technology.
Setting Up and Using Networks 57
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: Before you connect to the Internet, you must activate Mobile Broadband service through your cellular
service provider. For instructions and for additional information about using the Dell Mobile Broadband Card Utility,
see the user's guide available through the Windows Help and Support Center. To access the Help and Support
Center, click Start or
→
Help and Support
.
The user's guide is also available on the Dell Support website at
support.dell.com and on the CD included with your Mobile Broadband card if you purchased the card separately
from your computer.
Use the Dell Mobile Broadband Card Utility to establish and manage a Mobile Broadband network
connection to the Internet:
1
Click the
Dell Mobile Broadband Card Utility icon,
, in the Windows taskbar, to run the utility.
2
Click
Connect
.
NOTE: The Connect button changes to the Disconnect button.
3
Follow the instructions on the screen to manage the network connection with the utility.
Or
1
Click
Start
→
All Programs
→
Dell Wireless
.
2
Click
Dell Wireless Broadband
and follow the instructions on the screen.
Enabling/Disabling the Dell Mobile Broadband Network Card
NOTE: If you are unable to connect to a Mobile Broadband network, ensure that you have all the components for
establishing a Mobile Broadband connection (see "What You Need to Establish a Mobile Broadband Network
Connection" on page 56), and then verify that your Mobile Broadband card is enabled by verifying the setting of the
wireless switch.
You can turn your Mobile Broadband card on and off using the wireless switch on your computer.
You can turn your computer’s wireless devices on and off with the wireless switch on the left side of the
computer (see "Left Side View" on page 17).
If the switch is in the "on" position, move the switch to the "off" position to disable the switch and the
Mobile Broadband card. If the switch is in the "off" position, move the switch to the "on" position to
enable the switch and the Dell Mobile Broadband card. For information about the wireless switch
positions, see "wireless switch" on page 18.
To monitor the status of your wireless device, see "Monitoring the Status of Wireless Network
Connections Through Dell™ QuickSet" on page 55.
Managing Your Network Settings Through the Dell QuickSet Location Profiler
The QuickSet Location Profiler helps you manage network settings that correspond to your computer’s
physical location. It includes two categories of profile settings:
• Location Profile Settings
• General Mobility Settings
58 Setting Up and Using Networks
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\network.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
You can use Location Profile Settings to create profiles for accessing the Internet with your computer in
your office, home, or other public places with Internet services. General Mobility Settings allows you to
change the way network connections are handled. The profiles consist of different network settings and
equipment that you need when using your computer in different locations.
For information about Dell QuickSet, see "Dell™ QuickSet" on page 125.
Dell™ Wi-Fi Catcher™ Network Locator
The wireless switch on your Dell computer uses the Dell Wi-Fi Catcher™ Network Locator to scan
specifically for WiFi wireless local area networks (LAN) in your vicinity.
NOTE: For more information about the wireless switch, see "wireless switch" on page 18.
To scan for WiFi wireless LAN, slide and hold the switch in the "momentary" position for a few seconds.
The Wi-Fi Catcher Network Locator functions regardless of whether your computer is turned on or off,
in hibernate mode, or in standby mode, as long as the switch is configured through QuickSet or the BIOS
(system setup program) to control WiFi network connections.
Because the Wi-Fi Catcher Network Locator is disabled and not configured for use when your computer
is shipped to you, you must first use Dell QuickSet to enable and configure the switch to control WiFi
network connections.
For more information on the Wi-Fi Catcher Network Locator and to enable the feature through
QuickSet, see the Dell QuickSet Help. To access the Help file, right-click the Quickset icon in the taskbar.
Internet Connection Firewall
The Internet Connection Firewall provides basic protection from unauthorized access to the computer
while the computer is connected to the Internet. The firewall is automatically enabled when you run the
Network Setup Wizard. When the firewall is enabled for a network connection, the firewall icon appears
with a red background in the Network Connections section of the Control Panel.
Note that enabling the Internet Connection Firewall does not reduce the need for virus-checking
software.
For more information, see the Help and Support Center for the Microsoft® Windows® XP operating
system. To access the Help and Support Center, click the Start button or the Windows Vista™ Start
button
→
Help and Support.
Using Cards 59
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\cards.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using Cards
Card Types
See "Specifications" on page 127 for information on supported card types.
NOTE: A PC Card is not a bootable device.
The PC Card slot has one connector that supports a single Type I or Type II card. The PC Card slot
supports CardBus technology and extended PC Cards. "Type" of card refers to its thickness, not its
functionality.
The ExpressCard slot has one connector that supports 54-mm cards. The slot also supports adapters for
34-mm cards.
Card Blanks
Your computer shipped with a plastic blank installed in the card slots. Blanks protect unused slots from
dust and other particles. Save the blank for use when no PC Card is installed in the slot; blanks from
other computers may not fit your computer.
To remove the blank, see "Removing a Card or Blank" on page 61.
Extended Cards
An extended card (for example, a wireless network adapter) is longer than a standard card and extends
outside the computer. Follow these precautions when using extended PC or ExpressCards:
• Protect the exposed end of an installed card. Striking the end of the card can damage the system board.
• Always remove an extended card before you pack the computer in its carrying case.
Installing a PC Card or ExpressCard
You can install a PC Card or ExpressCard in the computer while the computer is running. The computer
automatically detects the card.
Cards are generally marked with a symbol (such as a triangle or an arrow) to indicate which end to insert
into the slot. The cards are keyed to prevent incorrect insertion. If card orientation is not clear, see the
documentation that came with the card.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
PC Card
1
Hold the card with its orientation symbol pointing into the slot and the top side of the card facing up.
The latch may need to be in the "in" position before you insert the card.
60 Using Cards
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\cards.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
2
Slide the card into the slot until the card is completely seated in its connector.
If you encounter too much resistance, do not force the card. Check the card orientation and try again.
The computer recognizes most cards and automatically loads the appropriate device driver. If the
configuration program tells you to load the manufacturer's drivers, use the floppy disk or CD that came
with the PC Card.
ExpressCard
1
Hold the card with its orientation symbol pointing into the slot and the top side of the card facing up.
The latch may need to be in the "in" position before you insert the card.
2
Slide the card into the slot until the card is completely seated in its connector.
If you encounter too much resistance, do not force the card. Check the card orientation and try again.
Using Cards 61
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\cards.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
The computer recognizes most cards and automatically loads the appropriate device driver. If the
configuration program tells you to load the manufacturer's drivers, use the floppy disk or CD that came
with the card.
If you have an adapter, such as the one shown below, you can use 34-mm ExpressCards in the PC Card
slot. For information about using the PC Card slot, see "PC Card" on page 59.
Removing a Card or Blank
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Product
Information Guide
.
NOTICE: Click the icon (in the taskbar) to select a card and stop it from functioning before you remove it from
the computer. If you do not stop the card in the configuration utility, you could lose data. Do not attempt to eject a
card by pulling its cable, if one is attached.
Press the latch and remove the card or blank. For some latches, you must press the latch twice: once to
pop the latch out, and then a second time to pop the card out.
62 Using Cards
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\cards.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\security.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Template Last Updated - 7/01/2005 Securing Your Computer 63
8
Securing Your Computer
NOTE: For information on how to secure your computer while traveling, see "Traveling With Your Computer"
on page 93.
Security Cable Lock
NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot on your
computer.
NOTE: Your computer does not ship with a security cable lock.
A security cable lock is a commercially available antitheft device. To use the lock, attach it to the
security cable slot on your Dell™ computer. For more information, see the instructions included
with the device.
Smart Cards
About Smart Cards
Smart cards are portable credit-card shaped devices with internal integrated circuits. The top surface
of the smart card usually contains an embedded processor under the gold contact pad. The
combination of the small size and integrated circuits make smart cards valuable tools for security,
data storage, and special programs. Using smart cards can improve system security by combining
something a user has (the smart card) with something only the user should know (a PIN) to provide
more secure user-authentication than passwords alone.
64 Securing Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\security.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Installing a Smart Card
You can install a smart card in the computer while the computer is running. The computer automatically
detects the card.
To install a smart card:
1
Hold the card so that the gold contact pad is facing upward and pointing toward the smart card slot.
2
Slide the smart card into the smart card slot until the card is completely seated in its connector. The
smart card protrudes approximately .5 inch from the slot. The smart card slot is located below the PC
Card slot.
If you encounter too much resistance, do not force the card. Check the card orientation and try again.
Passwords
NOTE: Passwords are disabled when you receive your computer.
1gold contact pad 2smart card (top)
1
2
Securing Your Computer 65
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\security.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
A primary (or system) password, an administrator password, and a hard drive password all prevent
unauthorized access to your computer in different ways. The following table identifies types and features
of passwords available on your computer.
NOTICE: Passwords provide a high level of security for data in your computer or hard drive. However, they are not
foolproof. If you require more security, obtain and use additional forms of protection, such as smart cards, data
encryption programs, or PC Cards with encryption features.
NOTE: Some hard drives do not support hard drive passwords.
If you forget any of your passwords, contact your system administrator or contact Dell (see "Contacting
Dell" on page 139). For your protection, Dell support staff will ask you for proof of your identity to ensure
that only an authorized person can use the computer.
NOTE: Dell OpenManage™ Client Instrumentation version 7.3 or later must be installed on the computer for system
administrators to assign passwords remotely.
Using a Primary/System Password
The primary (system) password allows you to protect the computer from unauthorized access.
Access User Accounts from the Control Panel to create user accounts and add or change passwords. After
assigning a primary password, you must enter it each time you turn on your computer.
If you do not enter a password within 2 minutes, the computer returns to its previous operating state.
NOTICE: If you disable the administrator password, the primary password is also disabled.
If you have assigned an administrator password, you can use it instead of the primary password. The
computer does not specifically prompt you for the administrator password.
Using an Administrator Password
The administrator password is designed to give system administrators or service technicians access to
computers for repair or reconfiguration. The administrators or technicians can assign identical
administrator passwords to groups of computers, allowing you to assign a unique primary password.
To set or change administrator passwords, access User Accounts from the Control Panel.
Type of Password Features
Primary/System
• Protects the computer from unauthorized access
Administrator
• Gives system administrators or service technicians
access to computers for repair or reconfiguration
• Allows you to restrict access to system setup in the same
way a primary password restricts access to the computer
• Can be used instead of the primary password
Hard drive
• Helps protect the data on your hard drive or external
hard drive (if one is being used) from unauthorized
access
66 Securing Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\security.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
When you set an administrator password, the Configure Setup option becomes available in the system
setup program. The Configure Setup option allows you to restrict access to system setup in the same way
that a primary password restricts access to the computer.
The administrator password can be used instead of the primary password. Whenever you are prompted
to enter the primary password, you can enter the administrator password.
NOTICE: If you disable the administrator password, the primary password is also disabled.
NOTE: The administrator password provides access to the computer, but it does not provide access to the hard
drive when a hard drive password is assigned.
If you forget the primary password and do not have an administrator password assigned, or if you have
both a primary and an administrator password assigned but forget them both, contact your system
administrator or contact Dell (see "Contacting Dell" on page 139).
Using a Hard Drive Password
The hard drive password helps protect the data on your hard drive from unauthorized access. You can
also assign a password for an external hard drive (if one is being used) that can be the same as or different
from the password for the primary hard drive.
After assigning a hard drive password, you must enter it each time you turn on the computer and each
time you restore the computer to normal operation from standby mode.
If the hard drive password is enabled, you must enter it each time you turn on the computer: A message
appears asking for the hard drive password.
To continue, enter your password (with no more than eight characters) and press <Enter>.
If you do not enter a password within 2 minutes, the computer returns to its previous operating state.
If you enter the wrong password, a message tells you that the password is invalid. Press <Enter> to try
again.
If you do not enter the correct password in three attempts, the computer tries to start from another
bootable device if the Boot First Device option in the system setup program is set to allow start-up from
another device. If the Boot First Device option is not set to allow the computer to start from another
device, the computer returns to the operating state it was in when you turned it on.
If the hard drive password, the external hard-drive password, and the primary password are the same, the
computer prompts you only for the primary password. If the hard drive password is different from the
primary password, the computer prompts you for both. Two different passwords provide greater security.
NOTE: The administrator password provides access to the computer, but it does not provide access to the hard
drive when a hard drive password is assigned.
If the administrative password is installed when the user creates the primary hard disk password, then the
administrative password can be used in place of the primary hard disk password. This feature allows an
administrator to unlock password-protected hard disks as long as an administrative password is installed
before deploying the computers.
Securing Your Computer 67
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\security.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
There are two behaviors associated with this feature that help to preserve the integrity of the hard disk’s
password:
• The administrative password will only work to unlock a hard disk on the computer on which the hard
disk password was created. This means a password-protected hard disk can not be removed from one
computer, placed in a second computer and be unlocked using the administrative password on the
second computer.
• Installing an administrative password on a computer after the hard disk password has been created will
not enable unlocking of the hard disk using the administrative password.
Trusted Platform Module (TPM)
NOTE: The TPM feature supports encryption only if the operating system supports TPM. For more information, see
the TPM software documentation and the help files that came with the software.
TPM is a hardware-based security feature that can be used to create and manage computer-generated
encryption keys. When combined with security software, the TPM enhances existing network and
computer security by enabling features such as file protection capabilities and protected e-mail. The
TPM feature is enabled through a system setup option.
NOTICE: To secure your TPM data and encryption keys, follow the backup procedures documented in the Archive
and Restore section of the EMBASSY Security Center help file. In the event of these backups being incomplete,
lost, or damaged, Dell will be unable to assist in the recovery of encrypted data.
Enabling the TPM Feature
1
Enable the TPM software:
a
Restart the computer and press <F2> during the Power On Self Test to enter the system setup
program.
b
Select
Security
→
TPM Security
and press <Enter>.
c
Under
TPM Security
, select
On
.
d
Press <Esc> to exit the setup program.
e
If prompted, click
Save/Exit
.
2
Activate the TPM setup program:
a
Restart the computer and press <F2> during the Power On Self Test to enter the system setup
program.
b
Select
Security
→
TPM Activation
and press <Enter>.
c
Under
TPM Activation
, select
Activate
and press <Enter>.
NOTE: You only need to activate TPM once.
d
Once the process is complete, the computer either restarts automatically or prompts you to restart
your computer.
68 Securing Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\security.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Security Management Software
The security management software is designed to utilize four different features to help you secure your
computer:
• Log-in management
• Pre-boot authentication (using a fingerprint reader, smart card, or password)
•Encryption
• Private information management
For information about how to use the software and the different security features, see the Getting Started
Guide for the software:
Click Start
→
All Programs
→
Wave Systems Corp→ Getting Started Guide
.
Computer Tracking Software
Computer tracking software may enable you to locate your computer if it is lost or stolen. The software is
optional and may be purchased when you order your Dell™ computer, or you can contact your Dell sales
representative for information about this security feature.
NOTE: Computer tracking software may not be available in certain countries.
NOTE: If you have computer tracking software and your computer is lost or stolen, you must contact the company
that provides the tracking service to report the missing computer.
If Your Computer Is Lost or Stolen
• Call a law enforcement agency to report the lost or stolen computer. Include the Service Tag in your
description of the computer. Ask that a case number be assigned and write down the number, along
with the name, address, and phone number of the law enforcement agency. If possible, obtain the
name of the investigating officer.
NOTE: If you know where the computer was lost or stolen, call a law enforcement agency in that area. If you do not
know, call a law enforcement agency where you live.
• If the computer belongs to a company, notify the security office of the company.
• Contact Dell customer service to report the missing computer. Provide the computer Service Tag, the
case number, and the name, address, and phone number of the law enforcement agency to which you
reported the missing computer. If possible, give the name of the investigating officer.
The Dell customer service representative will log your report under the computer Service Tag and record
the computer as missing or stolen. If someone calls Dell for technical assistance and gives your Service
Tag, the computer is identified automatically as missing or stolen. The representative will attempt to get
the phone number and address of the caller. Dell will then contact the law enforcement agency to which
you reported the missing computer.
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Template Last Updated - 7/01/2005 Troubleshooting 69
9
Troubleshooting
Dell Technical Update Service
The Dell Technical Update service provides proactive e-mail notification of software and hardware
updates for your computer. The service is free and can be customized for content, format, and how
frequently you receive notifications.
To enroll for the Dell Technical Update service, go to support.dell.com/technicalupdate.
Dell Diagnostics
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide
.
When to Use the Dell Diagnostics
If you experience a problem with your computer, run the Dell Diagnostics before you contact Dell
for technical assistance.
It is recommended that you print these procedures before you begin.
NOTICE: The Dell Diagnostics works only on Dell™ computers.
NOTE: The Drivers and Utilities media is optional and may not ship with your computer.
Enter the system setup program, review your computer’s configuration information, and ensure that
the device you want to test displays in the system setup program and is active.
Start the Dell Diagnostics from your hard drive or from the Drivers and Utilities media.
Starting the Dell Diagnostics From Your Hard Drive
The Dell Diagnostics is located on a hidden diagnostic utility partition on your hard drive.
NOTE: If your computer cannot display a screen image, contact Dell (see "Contacting Dell" on page 139).
NOTE: If the computer is connected to a docking device (docked), undock it. See the documentation that
came with your docking device for instructions.
1
Ensure that the computer is connected to an electrical outlet that is known to be working properly.
2
Turn on (or restart) your computer.
3
Start the Dell Diagnostics in one of the following two ways:
70 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
a
When the DELL™ logo appears, press <F12> immediately. Select Diagnostics from the boot
menu and press <Enter>.
NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the
Microsoft® Windows® desktop; then, shut down your computer and try again.
NOTE: Before attempting option B, the computer must be powered down completely.
b
Press and hold the <Fn> key while powering the computer on.
NOTE: If you see a message stating that no diagnostics utility partition has been found, run the Dell
Diagnostics from the Drivers and Utilities media.
The computer runs the Pre-boot System Assessment (PSA), a series of initial tests of your system
board, keyboard, display, memory, hard drive, etc.
• During the assessment, answer any questions that appear.
• If failures are detected during the Pre-boot System Assessment, write down the error code(s) and
see "Contacting Dell" on page 139.
If the Pre-boot System Assessment completes successfully, you will receive the message, "
Booting
Dell Diagnostic Utility Partition.Press any key to continue"
.
4
Press any key to start the Dell Diagnostics from the diagnostics utility partition on your hard drive.
Starting the Dell Diagnostics From the Drivers and Utilities Media
1
Insert the
Drivers and Utilities
media.
2
Shut down and restart the computer.
When the DELL logo appears, press <F12> immediately.
NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the
Microsoft® Windows® desktop; then, shut down your computer and try again.
NOTE: The next steps change the boot sequence for one time only. On the next start-up, the computer boots
according to the devices specified in the system setup program.
3
When the boot device list appears, highlight
CD/DVD/CD-RW
and press <Enter>.
4
Select the
Boot from CD-ROM
option from the menu that appears and press <Enter>.
5
Ty p e
1
to start the CD menu and press <Enter> to proceed.
6
Select
Run the 32 Bit Dell Diagnostics
from the numbered list. If multiple versions are listed, select
the version appropriate for your computer.
7
When the Dell Diagnostics
Main Menu
screen appears, select the test you want to run.
Dell Diagnostics Main Menu
1
After the Dell Diagnostics loads and the
Main
Menu
screen appears, click the button for the option
you want.
NOTE: It is recommended that you select Test System to run a complete test on your computer.
Troubleshooting 71
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
2
After you have selected the
Test System
option from the main menu, the following menu appears.
NOTE: It is recommended that you select Extended Test from the menu below to run a more thorough
check of devices in the computer.
3
If a problem is encountered during a test, a message appears with an error code and a description of the
problem. Write down the error code and problem description and contact Dell (see "Contacting Dell"
on page 139).
NOTE: The Service Tag for your computer is located at the top of each test screen. If you contact Dell,
technical support will ask for your Service Tag.
4
If you run a test from the
Custom Test
or
Symptom Tree
option, click the applicable tab
described in the following table for more information.
Option Function
Test Memory Runs the stand-alone memory test
Test System Runs System Diagnostics
Exit Exits the Diagnostics
Option Function
Express Test Performs a quick test of devices in the
system. This typically can take 10 to 20
minutes.
Extended Test Performs a thorough check of devices in
the system. This typically can take an
hour or more.
Custom Test Use to test a specific device or
customize the tests to be run.
Symptom Tree This option allows you to select tests
based on a symptom of the problem you
are having. This option lists the most
common symptoms.
Tab Function
Results Displays the results of the test and any
error conditions encountered.
Errors Displays error conditions encountered,
error codes, and the problem
description.
72 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
5
When the tests are complete, close the test screen to return to the
Main
Menu
screen. To exit the Dell
Diagnostics and restart the computer, close the
Main
Menu
screen.
6
Remove the Dell
Drivers and Utilities
media (if applicable).
Dell Support Utility
The Dell Support Utility is installed on your computer and available from the Dell Support, , icon on
the taskbar or from the Start button. Use this support utility for self-support information, software
updates, and health scans of your computing environment.
Accessing the Dell Support Utility
Access the Dell Support Utility from the icon on the taskbar or from the Start menu.
If the Dell Support icon does not appear in your taskbar:
1
Click
Start
→
All Programs
→
Dell Support
→
Dell Support Settings
.
2
Ensure that the
Show icon on the taskbar
option is checked.
NOTE: If the Dell Support Utility is not available from the Start menu, go to support.dell.com and download the software.
The Dell Support Utility is customized for your computing environment.
The icon in the taskbar functions differently when you click, double-click, or right-click the icon.
Clicking the Dell Support Icon
Click or right-click the
icon to perform the following tasks:
Help Describes the test and may indicate
requirements for running the test.
Configuration Displays your hardware configuration
for the selected device.
The Dell Diagnostics obtains
configuration information for all
devices from system setup, memory, and
various internal tests, and it displays
the information in the device list in
the left pane of the screen. The device
list may not display the names of all
the components installed on your
computer or all devices attached to
your computer.
Parameters Allows you to customize the test by
changing the test settings.
Tab Function (continued)
Troubleshooting 73
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• Check your computing environment.
• View the Dell Support Utility settings.
• Access the help file for the Dell Support Utility.
• View frequently asked questions.
• Learn more about the Dell Support Utility.
• Turn the Dell Support Utility off.
Double-Clicking the Dell Support Icon
Double-click the icon to manually check your computing environment, view frequently asked
questions, access the help file for the Dell Support Utility, and view Dell Support settings.
For more information about the Dell Support Utility, click the question mark (?) at the top of the Dell™
Support screen.
Drive Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
Fill out the Diagnostics Checklist (see "Dell Diagnostics" on page 69) as you complete these checks.
ENSURE THAT MICROSOFT® WINDOWS® RECOGNIZES THE DRIVE —
For Windows XP:
•Click
Start
→
My Computer
.
For Windows Vista:
• Click the Windows Vista Start button
→
Computer
.
If the floppy, CD, or DVD drive, is not listed, perform a full scan with your antivirus software to check for and
remove viruses. Viruses can sometimes prevent Windows from recognizing the drive.
TEST THE DRIVE —
• Insert another floppy disk, CD, or DVD to eliminate the possibility that the original one is defective.
• Insert a bootable floppy disk and restart the computer.
CLEAN THE DRIVE OR DISK —See "Cleaning Your Computer" on page 163.
ENSURE THAT THE CD IS SNAPPED ONTO THE SPINDLE
CHECK THE CABLE CONNECTIONS
CHECK FOR HARDWARE INCOMPATIBILITIES —See "Using the Hardware Troubleshooter Tool in Microsoft
Windows XP and Windows Vista Operating Systems" on page 98.
RUN THE DELL DIAGNOSTICS —
See
"Dell Diagnostics" on page 69
.
74 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
CD and DVD drive problems
NOTE: High-speed CD or DVD drive vibration is normal and may cause noise, which does not indicate a defect in
the drive or the CD or DVD.
NOTE: Because of different regions worldwide and different disc formats, not all DVD titles work in all DVD drives.
Problems writing to a CD/DVD-RW drive
CLOSE OTHER PROGRAMS —The CD/DVD-RW drive must receive a steady stream of data when writing. If the
stream is interrupted, an error occurs. Try closing all programs before you write to the CD/DVD-RW.
TURN OFF STANDBY MODE IN WINDOWS BEFORE WRITING TO A CD/DVD-RW DISC —See "Standby Mode" on
page 31 or search for the keyword standby in the Windows Help and Support Center for information on power
management modes.
CHANGE THE WRITE SPEED TO A SLOWER RATE —See the help files for your CD or DVD creation software.
If you cannot eject the CD, CD-RW, DVD, or DVD+RW drive tray
1
Ensure that the computer is turned off.
2
Straighten a paper clip and insert one end into the eject hole at the front of the drive; push firmly until
the tray is partially ejected.
3
Gently pull out the tray until it stops.
If you hear an unfamiliar scraping or grinding sound
• Ensure that the sound is not caused by the program that is running.
• Ensure that the disk or disc is inserted properly.
Hard drive problems
ALLOW THE COMPUTER TO COOL BEFORE TURNING IT ON —A hot hard drive may prevent the operating system
from starting. Try allowing the computer to return to room temperature before turning it on.
RUN CHECK DISK —
For Windows XP:
1
Click
Start
→
My Computer
.
2
Right-click
Local Disk C:
.
3
Click
Properties
→
Tools
→
Check Now
.
4
Click
Scan for and attempt recovery of bad sectors
→
Start
.
For Windows Vista:
1
Click the Windows Vista Start button
→
Computer
.
2
Right-click
Local Disk C:
.
3
Click
Properties
→
Tools
→
Check Now
.
Troubleshooting 75
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: The User Account Control window may appear. If you are an administrator on the computer, click
Continue; otherwise, contact your administrator to continue the desired action.
4
Click
Scan for and attempt recovery of bad sectors
→
Start
.
E-Mail, Modem, and Internet Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTE: Connect the modem to an analog telephone connector only. The modem does not operate while it is
connected to a digital telephone network.
CHECK THE MICROSOFT OUTLOOK® EXPRESS SECURITY SETTINGS —If you cannot open your e-mail
attachments:
1
In Outlook Express, click
Tools
→
Options
→
Security
.
2
Click
Do not allow attachments
to remove the checkmark.
CHECK THE TELEPHONE LINE CONNECTION
CHECK THE TELEPHONE CONNECTOR
CONNECT THE MODEM DIRECTLY TO THE TELEPHONE WALL CONNECTOR
USE A DIFFERENT TELEPHONE LINE —
• Verify that the telephone line is connected to the connector on the modem. (The connector has either
a green label or a connector-shaped icon next to it.)
• Ensure that you insert the telephone line connector into the modem until it clicks.
• Disconnect the telephone line from the modem and connect it to a telephone. Listen for a dial tone.
• If you have other telephone devices sharing the line, such as an answering machine, fax machine, surge
protector, or line splitter, bypass the devices and connect the modem directly to the telephone wall
connector. If you are using a line that is 3 m (10 ft) or more in length, try a shorter one.
RUN THE MODEM HELPER DIAGNOSTICS —Click Start
→
All Programs
→
Modem Helper. Follow the instructions
on the screen to identify and resolve modem problems. (Modem Helper is not available on certain computers.)
VERIFY THAT THE MODEM IS COMMUNICATING WITH WINDOWS —
1
Click
Start
→
Control Panel
→
Printers and Other Hardware
→
Phone and Modem Options
→
Modems
.
2
Click the COM port for your modem
,
and then click
Properties
→
Diagnostics
→
Query Modem
to
verify that the modem is communicating with Windows.
If all commands receive responses, the modem is operating properly.
ENSURE THAT YOU ARE CONNECTED TO THE INTERNET —Ensure that you have subscribed to an Internet provider.
With the Outlook Express e-mail program open, click File. If Work Offline has a checkmark next to it, click the
checkmark to remove it and connect to the Internet. For help, contact your Internet service provider.
SCAN THE COMPUTER FOR SPYWARE —If you are experiencing slow computer performance, you frequently
receive pop-up advertisements, or you are having problems connecting to the Internet, your computer might be
infected with spyware. Use an anti-virus program that includes anti-spyware protection (your program may require
76 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
an upgrade) to scan the computer and remove spyware. For more information, go to support.dell.com and search for
the keyword spyware.
Error Messages
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
If the message is not listed, see the documentation for the operating system or the program that was
running when the message appeared.
AUXILIARY DEVICE FAILURE —The touch pad, track stick, or external mouse may be faulty. For an external mouse,
check the cable connection. Enable the Pointing Device option in the system setup program. If the problem persists,
contact Dell (see "Contacting Dell" on page 139).
BAD COMMAND OR FILE NAME —Ensure that you have spelled the command correctly, put spaces in the proper
place, and used the correct pathname.
CACHE DISABLED DUE TO FAILURE —The primary cache internal to the microprocessor has failed. Contact Dell
(
see "Contacting Dell" on page 139
).
CD DRIVE CONTROLLER FAILURE —The CD drive does not respond to commands from the computer (see "Dell
Support Utility" on page 72).
DATA ERROR —The hard drive cannot read the data (see "Dell Support Utility" on page 72).
DECREASING AVAILABLE MEMORY —One or more memory modules may be faulty or improperly seated. Reinstall
the memory modules and, if necessary, replace them (see "Memory" on page 111).
DISK C: FAILED INITIALIZATION —The hard drive failed initialization. Run the hard drive tests in the Dell
Diagnostics (see "Dell Diagnostics" on page 69).
DRIVE NOT READY —The operation requires a hard drive in the bay before it can continue. Install a hard drive in
the hard drive bay (see "Hard Drive" on page 104).
ERROR READING PCMCIA CARD —The computer cannot identify the PC Card. Reinsert the card or try another
PC Card (see "Using Cards" on page 59).
EXTENDED MEMORY SIZE HAS CHANGED —The amount of memory recorded in NVRAM does not match the
memory installed in the computer. Restart the computer. If the error appears again, contact Dell (see "Contacting
Dell" on page 139).
THE FILE BEING COPIED IS TOO LARGE FOR THE DESTINATION DRIVE —The file that you are trying to copy is too
large to fit on the disk, or the disk is too full. Try copying the file to a different disk or use a larger capacity disk.
A FILENAME CANNOT CONTAIN ANY OF THE FOLLOWING CHARACTERS: \ / : * ? “ < > | — Do not use these
characters in filenames.
GATE A20 FAILURE —A memory module may be loose. Reinstall the memory modules and, if necessary, replace
them (see "Memory" on page 111).
GENERAL FAILURE —The operating system is unable to carry out the command. The message is usually followed by
specific information—for example, Printer out of paper. Take the appropriate action.
Troubleshooting 77
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
HARD-DISK DRIVE CONFIGURATION ERROR —The computer cannot identify the drive type. Shut down the
computer, remove the hard drive (see "Hard Drive" on page 104), and boot the computer from a CD or DVD. Then
shut down the computer, reinstall the hard drive, and restart the computer. Run the Hard-Disk Drive tests in the Dell
Diagnostics (see "Dell Diagnostics" on page 69).
HARD-DISK DRIVE CONTROLLER FAILURE 0—The hard drive does not respond to commands from the computer.
Shut down the computer, remove the hard drive (see "Hard Drive" on page 104), and boot the computer from a CD
or DVD. Then shut down the computer, reinstall the hard drive, and restart the computer. If the problem persists, try
another drive. Run the Hard-Disk Drive tests in the Dell Diagnostics (see "Dell Diagnostics" on page 69).
HARD-DISK DRIVE FAILURE —The hard drive does not respond to commands from the computer. Shut down the
computer, remove the hard drive (see "Hard Drive" on page 104), and boot the computer from a CD or DVD. Then
shut down the computer, reinstall the hard drive, and restart the computer. If the problem persists, try another drive.
Run the Hard-Disk Drive tests in the Dell Diagnostics (see "Dell Diagnostics" on page 69).
HARD-DISK DRIVE READ FAILURE —The hard drive may be defective. Shut down the computer, remove the hard
drive (see "Hard Drive" on page 104), and boot the computer from a CD or DVD. Then shut down the computer,
reinstall the hard drive, and restart the computer. If the problem persists, try another drive. Run the Hard-Disk Drive
tests in the Dell Diagnostics (see "Dell Diagnostics" on page 69).
INSERT BOOTABLE MEDIA —The operating system is trying to boot to a nonbootable CD or DVD. Insert a
bootable CD or DVD.
INVALID CONFIGURATION INFORMATION-PLEASE RUN SYSTEM SETUP PROGRAM —The system configuration
information does not match the hardware configuration. The message is most likely to occur after a memory module
is installed. Correct the appropriate options in the system setup program (see "System Setup Program" on page 89).
KEYBOARD CLOCK LINE FAILURE —For external keyboards, check the cable connection. Run the Keyboard
Controller test in the Dell Diagnostics (see "Dell Diagnostics" on page 69).
KEYBOARD CONTROLLER FAILURE —For external keyboards, check the cable connection. Restart the computer, and
avoid touching the keyboard or the mouse during the boot routine. Run the Keyboard Controller test in the Dell
Diagnostics (see "Dell Diagnostics" on page 69).
KEYBOARD DATA LINE FAILURE —For external keyboards, check the cable connection. Run the Keyboard
Controller test in the Dell Diagnostics (see "Dell Diagnostics" on page 69).
KEYBOARD STUCK KEY FAILURE —For external keyboards or keypads, check the cable connection. Restart the
computer, and avoid touching the keyboard or keys during the boot routine. Run the Stuck Key test in the Dell
Diagnostics (see "Dell Diagnostics" on page 69).
MEMORY ADDRESS LINE FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be
faulty or improperly seated. Reinstall the memory modules and, if necessary, replace them (see "Memory" on
page 111).
MEMORY ALLOCATION ERROR —The software you are attempting to run is conflicting with the operating system,
another program, or a utility. Shut down the computer, wait 30 seconds, and then restart it. Try to run the program
again. If the error message still appears, see the software documentation.
MEMORY DATA LINE FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be faulty
or improperly seated. Reinstall the memory modules (see "Memory" on page 111) and, if necessary, replace them.
MEMORY DOUBLE WORD LOGIC FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may
be faulty or improperly seated. Reinstall the memory modules (see "Memory" on page 111) and, if necessary, replace
them.
78 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
MEMORY ODD/EVEN LOGIC FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be
faulty or improperly seated. Reinstall the memory modules (see "Memory" on page 111) and, if necessary, replace
them.
MEMORY WRITE/READ FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be
faulty or improperly seated. Reinstall the memory modules (see "Memory" on page 111) and, if necessary, replace
them.
NO BOOT DEVICE AVAILABLE —The computer cannot find the hard drive. If the hard drive is your boot device,
ensure that the drive is installed, properly seated, and partitioned as a boot device.
NO BOOT SECTOR ON HARD DRIVE —The operating system may be corrupted. Contact Dell (see "Contacting Dell"
on page 139).
NO TIMER TICK INTERRUPT —A chip on the system board may be malfunctioning. Run the System Set tests in the
Dell Diagnostics (see "Dell Diagnostics" on page 69).
NOT ENOUGH MEMORY OR RESOURCES. EXIT SOME PROGRAMS AND TRY AGAIN —You have too many programs
open. Close all windows and open the program that you want to use.
OPERATING SYSTEM NOT FOUND —Reinstall the hard drive (see "Hard Drive" on page 104). If the problem
persists, contact Dell (see "Contacting Dell" on page 139).
OPTIONAL ROM BAD CHECKSUM —The optional ROM apparently failed. Contact Dell (see "Contacting Dell" on
page 139).
A REQUIRED .DLL FILE WAS NOT FOUND —The program that you are trying to open is missing an essential file.
Remove and then reinstall the program.
1
Click
Start
→
Control Panel
→
Add or Remove Programs
.
2
Select the program you want to remove.
3
Click
Remove
or
Change/Remove
and follow the prompts on the screen.
4
See the program documentation for installation instructions.
SECTOR NOT FOUND —The operating system cannot locate a sector on the hard drive. You may have a defective
sector or corrupted FAT on the hard drive. Run the Windows error-checking utility to check the file structure on the
hard drive. See the Microsoft Windows Help and Support Center for instructions. Click the Start button or the
Windows Vista™ Start button → Help and Support. If a large number of sectors are defective, back up the data
(if possible), and then reformat the hard drive.
SEEK ERROR —The operating system cannot find a specific track on the hard drive.
SHUTDOWN FAILURE —A chip on the system board may be malfunctioning. Run the System Set tests in the Dell
Diagnostics (see "Dell Diagnostics" on page 69).
TIME-OF-DAY CLOCK LOST POWER —System configuration settings are corrupted. Connect your computer to an
electrical outlet to charge the battery. If the problem persists, try to restore the data by entering the system setup
program (see "System Setup Program" on page 89). Then immediately exit the program. If the message reappears,
contact Dell (see "Contacting Dell" on page 139).
TIME-OF-DAY CLOCK STOPPED —The reserve battery that supports the system configuration settings may require
recharging. Connect your computer to an electrical outlet to charge the battery. If the problem persists, contact Dell
(see "Contacting Dell" on page 139).
TIME-OF-DAY NOT SET-PLEASE RUN THE SYSTEM SETUP PROGRAM —The time or date stored in the system
Troubleshooting 79
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
setup program does not match the system clock. Correct the settings for the Date and Time options (see "System
Setup Program" on page 89).
TIMER CHIP COUNTER 2 FAILED —A chip on the system board may be malfunctioning. Run the System Set tests in
the Dell Diagnostics (see "Dell Diagnostics" on page 69).
UNEXPECTED INTERRUPT IN PROTECTED MODE —The keyboard controller may be malfunctioning, or a memory
module may be loose. Run the System Memory tests and the Keyboard Controller test in the Dell Diagnostics (see
"Dell Diagnostics" on page 69).
X:\ IS NOT ACCESSIBLE. THE DEVICE IS NOT READY —Insert a disk into the drive and try again.
WARNING: BATTERY IS CRITICALLY LOW —The battery is running out of charge. Replace the battery, or connect
the computer to an electrical outlet. Otherwise, activate hibernate mode or shut down the computer.
IEEE 1394 Device Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
ENSURE THAT THE IEEE 1394 DEVICE IS RECOGNIZED BY WINDOWS —
For Windows XP:
1
Click
Start
→
Control Panel
.
2
Under
Pick a Category
, click
Performance and Maintenance
.
3
Click
System
.
4
In the
System Properties
window, click the
Hardware
tab.
5
Click
Device Manager
.
For Windows Vista:
1
Click the Windows Vista Start button
→
Control Panel
→
System and Maintenance
→
Device
Manager
.
NOTE: The User Account Control window may appear. If you are an administrator on the computer, click
Continue; otherwise, contact your administrator to continue the desired action.
If your IEEE 1394 device is listed, Windows recognizes the device.
IF YOU HAVE PROBLEMS WITH AN IEEE 1394 DEVICE —If the device was provided by Dell, contact Dell (
see
"Contacting Dell" on page 139
). If the device was provided by a different manufacturer, contact that
manufacturer.
ENSURE THAT THE IEEE 1394 DEVICE IS PROPERLY INSERTED INTO THE CONNECTOR
Keyboard Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
80 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you perform the various
checks.
NOTE: Use the integrated keyboard when running the Dell Diagnostics or the system setup program. When you
attach an external keyboard, the integrated keyboard remains fully functional.
External keyboard problems
NOTE: When you attach an external keyboard, the integrated keyboard remains fully functional.
CHECK THE KEYBOARD CABLE —Shut down the computer. Disconnect the keyboard cable and check it for
damage, and firmly reconnect the cable.
If you are using a keyboard extension cable, disconnect it and connect the keyboard directly to the
computer.
CHECK THE EXTERNAL KEYBOARD —
1
Shut down the computer, wait 1 minute, and turn it on again.
2
Verify that the numbers, capitals, and scroll lock lights on the keyboard blink during the boot routine.
3
From the Windows desktop, click
Start
→
All Programs
→
Accessories
→
Notepad
.
4
Type some characters on the external keyboard and verify that they appear on the display.
If you cannot verify these steps, you may have a defective external keyboard.
TO VERIFY THAT THE PROBLEM IS WITH THE EXTERNAL KEYBOARD, CHECK THE INTEGRATED KEYBOARD —
1
Shut down the computer.
2
Disconnect the external keyboard.
3
Turn on the computer.
4
From the Windows desktop, click
Start
→
All Programs
→
Accessories
→
Notepad
.
5
Type some characters on the internal keyboard and verify that they appear on the display.
If the characters appear now but did not with the external keyboard, you may have a defective external
keyboard. Contact Dell (see "Contacting Dell" on page 139).
RUN THE KEYBOARD DIAGNOSTICS TESTS —Run the PC-AT Compatible Keyboards tests in the Dell Diagnostics
(see "Dell Diagnostics" on page 69). If the tests indicate a defective external keyboard, contact Dell (see
"Contacting
Dell" on page 139
).
Unexpected characters
DISABLE THE NUMERIC KEYPAD —Press <Num Lk> to disable the numeric keypad if numbers are displayed
instead of letters. Verify that the numbers lock light is not lit.
Lockups and Software Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
Troubleshooting 81
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
The computer does not start up
ENSURE THAT THE AC ADAPTER IS FIRMLY CONNECTED TO THE COMPUTER AND TO THE ELECTRICAL OUTLET.
The computer stops responding
NOTICE: You might lose data if you are unable to perform an operating system shutdown.
TURN THE COMPUTER OFF —If you are unable to get a response by pressing a key on your keyboard or moving your
mouse, press and hold the power button for at least 8 to 10 seconds until the computer turns off. Then restart your
computer.
A program stops responding or crashes repeatedly
NOTE: Software usually includes installation instructions in its documentation or on a floppy disk, CD, or DVD.
END THE PROGRAM —
1
Press <Ctrl><Shift><Esc> simultaneously.
2
Click
Task Ma n a ger
→
click
Applications
.
3
Click the program that is no longer responding.
4
Click
End Task
.
CHECK THE SOFTWARE DOCUMENTATION —If necessary, uninstall and then reinstall the program.
A program is designed for an earlier Microsoft® Windows® operating system
RUN THE PROGRAM COMPATIBILITY WIZARD —The Program Compatibility Wizard configures a program so it
runs in an environment similar to non-Windows XP operating system environments.
1
Click
Start
→
All Programs
→
Accessories
→
Program Compatibility Wizard
→
Next
.
2
Follow the instructions on the screen.
A solid blue screen appears
TURN THE COMPUTER OFF —If you are unable to get a response by pressing a key on your keyboard or moving your
mouse, press and hold the power button for at least 8 to 10 seconds until the computer turns off. Then restart your
computer.
Other software problems
CHECK THE SOFTWARE DOCUMENTATION OR CONTACT THE SOFTWARE MANUFACTURER FOR TROUBLESHOOTING
INFORMATION —
• Ensure that the program is compatible with the operating system installed on your computer.
• Ensure that your computer meets the minimum hardware requirements needed to run the software.
See the software documentation for information.
• Ensure that the program is installed and configured properly.
• Verify that the device drivers do not conflict with the program.
82 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• If necessary, uninstall and then reinstall the program.
BACK UP YOUR FILES IMMEDIATELY
USE A VIRUS-SCANNING PROGRAM TO CHECK THE HARD DRIVE, FLOPPY DISKS, OR CDS
SAVE AND CLOSE ANY OPEN FILES OR PROGRAMS AND SHUT DOWN YOUR COMPUTER THROUGH THE Start MENU
SCAN THE COMPUTER FOR SPYWARE —If you are experiencing slow computer performance, you frequently receive
pop-up advertisements, or you are having problems connecting to the Internet, your computer might be infected
with spyware. Use an anti-virus program that includes anti-spyware protection (your program may require an
upgrade) to scan the computer and remove spyware. For more information, go to support.dell.com and search for
the keyword spyware.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 69. If all tests run successfully, the error condition
is related to a software problem.
Memory Problems
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
IF YOU RECEIVE AN INSUFFICIENT MEMORY MESSAGE —
• Save and close any open files and exit any open programs you are not using to see if that resolves the
problem.
• See the software documentation for minimum memory requirements. If necessary, install additional
memory (
see "Memory" on page 111).
• Reseat the memory modules to ensure that your computer is successfully communicating with the
memory (
see "Memory" on page 111).
• Run the
Dell Diagnostics (see "Dell Diagnostics" on page 69).
IF YOU EXPERIENCE OTHER MEMORY PROBLEMS —
• Reseat the memory modules (see "Memory" on page 111) to ensure that your computer is successfully
communicating with the memory.
• Ensure that you are following the memory installation guidelines (
see "Memory" on page 111).
• Run the
Dell Diagnostics (see "Dell Diagnostics" on page 69).
Network Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
General
CHECK THE NETWORK CABLE CONNECTOR —Ensure that the network cable is firmly inserted into both the
Troubleshooting 83
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
network connector on the back of the computer and the network connector.
CHECK THE NETWORK LIGHTS ON THE NETWORK CONNECTOR —No light indicates that no network
communication exists. Replace the network cable.
PLUG THE A/C POWER ADAPTER INTO THE COMPUTER —If batter power only, the QuickSet utility can disable the
onboard network card to save battery life. For more information on the QuickSet utility, see "Dell™ QuickSet" on
page 125.
CHECK YOUR NETWORK SETTINGS —Contact your network administrator or the person who set up your network
to verify that your network settings are correct and that the tnetwork is functioning.
For more information on the different types of networks, see "Setting Up and Using Networks" on
page 51.
PC Card or ExpressCard Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
CHECK THE CARD —Ensure that the card is properly inserted into the connector.
ENSURE THAT THE CARD IS RECOGNIZED BY WINDOWS —Double-click the Safely Remove Hardware icon in the
Windows taskbar. Ensure that the card is listed.
IF YOU HAVE PROBLEMS WITH A DELL-PROVIDED CARD —
Contact Dell (see
"Contacting Dell" on page 139
).
IF YOU HAVE PROBLEMS WITH A CARD NOT PROVIDED BY DELL —Contact the PC Card manufacturer.
Power Problems
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
CHECK THE POWER LIGHT —When the power light is lit or blinking, the computer has power. If the power light is
blinking, the computer is in standby mode—press the power button to exit standby mode. If the light is off, press the
power button to turn on the computer.
CHARGE THE BATTERY —The battery charge may be depleted.
1
Reinstall the battery.
2
Use the AC adapter to connect the computer to an electrical outlet.
3
Turn on the computer.
NOTE: Battery operating time (the time the battery can hold a charge) decreases over time. Depending on how
often the battery is used and the conditions under which it is used, you may need to purchase a new battery during
the life of your computer.
CHECK THE BATTERY STATUS LIGHT —If the battery status light flashes orange or is a steady orange the battery
charge is low or depleted. Connect the computer to an electrical outlet.
84 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
If the battery status light flashes green and orange, the battery is too hot to charge. Shut down the
computer, disconnect the computer from the electrical outlet, and then let the battery and computer
cool to room temperature.
If the battery status light rapidly flashes orange, the battery may be defective.
Contact Dell (see
"Contacting Dell" on page 139
).
CHECK THE BATTERY TEMPERATURE —If the battery temperature is below 0° C (32° F), the computer will not start
up.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another device, such
as a lamp.
CHECK THE AC ADAPTER —Check the AC adapter cable connections. If the AC adapter has a light, ensure that
the light is on.
CONNECT THE COMPUTER DIRECTLY TO AN ELECTRICAL OUTLET —Bypass power protection devices, power strips,
and the extension cable to verify that the computer turns on.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, halogen lamps, or other
appliances.
ADJUST THE POWER PROPERTIES —See "Configuring Power Management Settings" on page 33.
RESEAT THE MEMORY MODULES —If the computer power light turns on but the display remains blank, reinstall
the memory modules
(
see "Memory" on page 111).
Ensuring Sufficient Power for Your Computer
Your computer is designed to use a 65-W or 90-W AC adapter. However, for optimum system
performance, you should always use a 90-W adapter.
Using less-powerful AC adapters, including the 65-W AC adapter, will cause you to receive a WARNING
message.
Docking Power Considerations
Due to the extra power consumption when a computer is docked to the Dell D/Dock, normal computer
operation is not possible on battery power alone. Ensure that the AC adapter is connected to your
computer when the computer is docked to the Dell D/Dock.
Docking While the Computer Is Running
If a computer is connected to the Dell D/Dock or Dell D/Port while the computer is running, presence of
the docking device is ignored until the AC adapter is connected to the computer.
AC Power Loss While the Computer Is Docked
If a computer loses AC power while docked to the Dell D/Dock or Dell D/Port, the computer
immediately goes into low-performance mode.
Troubleshooting 85
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Printer Problems
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTE: If you need technical assistance for your printer, contact the printer’s manufacturer.
ENSURE THAT THE PRINTER IS TURNED ON
CHECK THE PRINTER CABLE CONNECTIONS —
• See the printer documentation for cable connection information.
• Ensure that the printer cables are securely connected to the printer and the computer.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another device, such
as a lamp.
VERIFY THAT THE PRINTER IS RECOGNIZED BY WINDOWS —
1
Click
Start
→
Control Panel
→
Printers and Other Hardware
→
View installed printers or fax printers
.
2
If the printer is listed, right-click the printer icon.
3
Click
Properties
→
Ports
. For a parallel printer, ensure that the
Print to the following port(s):
setting is
LPT1 (Printer Port)
. For a USB printer, ensure that the
Print to the following port(s):
setting is
USB
.
REINSTALL THE PRINTER DRIVER —See the printer documentation for instructions.
Scanner Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTE: If you need technical assistance for your scanner, contact the scanner’s manufacturer.
CHECK THE SCANNER DOCUMENTATION —See the scanner documentation for setup and troubleshooting
information.
UNLOCK THE SCANNER —Ensure that your scanner is unlocked if it has a locking tab or button.
RESTART THE COMPUTER AND TRY THE SCANNER AGAIN
CHECK THE CABLE CONNECTIONS —
• See the scanner documentation for cable connection information.
• Ensure that the scanner cables are securely connected to the scanner and the computer.
VERIFY THAT THE SCANNER IS RECOGNIZED BY MICROSOFT WINDOWS —
Click Start→ Control Panel→ Printers and Other Hardware→ Scanners and Cameras.
If your scanner is listed, Windows recognizes the scanner.
REINSTALL THE SCANNER DRIVER —See the scanner documentation for instructions.
86 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Sound and Speaker Problems
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
No sound from integrated speakers
ADJUST THE WINDOWS VOLUME CONTROL —Double-click the speaker icon in the lower-right corner of your
screen. Ensure that the volume is turned up and that the sound is not muted. Adjust the volume, bass, or treble
controls to eliminate distortion.
REINSTALL THE SOUND (AUDIO) DRIVER —See "Reinstalling Drivers and Utilities" on page 96.
No sound from external speakers
ENSURE THAT THE SUBWOOFER AND THE SPEAKERS ARE TURNED ON —See the setup diagram supplied with the
speakers. If your speakers have volume controls, adjust the volume, bass, or treble to eliminate distortion.
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon in the lower-right corner of
your screen. Ensure that the volume is turned up and that the sound is not muted.
DISCONNECT HEADPHONES FROM THE HEADPHONE CONNECTOR —Sound from the speakers is automatically
disabled when headphones are connected to the computer’s front-panel headphone connector.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another device, such
as a lamp.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, or halogen lamps to check for
interference.
REINSTALL THE AUDIO DRIVER —
See
"Reinstalling Drivers and Utilities" on page 96.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 69.
NOTE: The volume control in some MP3 players overrides the Windows volume setting. If you have been listening
to MP3 songs, ensure that you did not turn the player volume down or off.
No sound from headphones
CHECK THE HEADPHONE CABLE CONNECTION —Ensure that the headphone cable is securely inserted into the
headphone connector.
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon in the lower-right corner of
your screen. Ensure that the volume is turned up and that the sound is not muted.
Touch Pad or Mouse Problems
CHECK THE TOUCH PAD SETTINGS —
1
Click
Start
→
Control Panel
→
Printers and Other Hardware
→
Mouse
.
2
Try adjusting the settings.
Troubleshooting 87
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
CHECK THE MOUSE CABLE —Shut down the computer. Disconnect the mouse cable, check it for damage, and
firmly reconnect the cable.
If you are using a mouse extension cable, disconnect it and connect the mouse directly to the computer.
TO VERIFY THAT THE PROBLEM IS WITH THE MOUSE, CHECK THE TOUCH PAD —
1
Shut down the computer.
2
Disconnect the mouse.
3
Turn on the computer.
4
At the Windows
desktop, use the touch pad to move the cursor around, select an icon, and open it.
If the touch pad operates correctly, the mouse may be defective.
CHECK THE SYSTEM SETUP PROGRAM SETTINGS —Verify that the system setup program lists the correct device
for the pointing device option. (The computer automatically recognizes a USB mouse without making any setting
adjustments.) For more information on using the system setup program, see "System Setup Program" on page 89.
TEST THE MOUSE CONTROLLER —To test the mouse controller (which affects pointer movement) and the
operation of the touch pad or mouse buttons, run the Mouse test in the Pointing Devices test group in the Dell
Diagnostics (see "Dell Diagnostics" on page 69).
REINSTALL THE TOUCH PAD DRIVER —See "Reinstalling Drivers and Utilities" on page 96.
Video and Display Problems
Fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139) as you complete these
checks.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
If the display is blank
NOTE: If you are using a program that requires a higher resolution than your computer supports, it is
recommended that you attach an external monitor to your computer.
CHECK THE BATTERY —If you are using a battery to power your computer, the battery charge may be depleted.
Connect the computer to an electrical outlet using the AC adapter, and turn on the computer.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another device, such
as a lamp.
CHECK THE AC ADAPTER —Check the AC adapter cable connections. If the AC adapter has a light, ensure that
the light is on.
CONNECT THE COMPUTER DIRECTLY TO AN ELECTRICAL OUTLET —Bypass power protection devices, power strips,
and the extension cable to verify that the computer turns on.
ADJUST THE POWER PROPERTIES —Search for the keyword standby in the Windows Help and Support Center.
Click Start or
→
Help and Support.
SWITCH THE VIDEO IMAGE —If your computer is attached to an external monitor, press <Fn><F8> to switch
the video image to the display.
88 Troubleshooting
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
If the display is difficult to read
ADJUST THE BRIGHTNESS —Press <Fn> and the up- or down-arrow key.
MOVE THE EXTERNAL SUBWOOFER AWAY FROM THE COMPUTER OR MONITOR —If your external speaker system
includes a subwoofer, ensure that the subwoofer is at least 60 cm (2 ft) away from the computer or external monitor.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, halogen lamps, or other
appliances.
ROTATE THE COMPUTER TO FACE A DIFFERENT DIRECTION —Eliminate sunlight glare, which can cause poor
picture quality.
ADJUST THE WINDOWS DISPLAY SETTINGS —
1
Click
Start
→
Control Panel
→
Appearance and Themes
.
2
Click the area you want to change or click the
Display
icon.
3
Try different settings for
Color quality
and
Screen resolution
.
RUN THE VIDEO DIAGNOSTICS TESTS —If no error message appears and you still have a display problem, but the
display is not completely blank, run the Video device group in the Dell Diagnostics (see "Dell Diagnostics" on
page 69). Then
contact Dell (see
"Contacting Dell" on page 139
).
SEE "ERROR MESSAGES"—If an error message appears, see "Error Messages" on page 76.
If only part of the display is readable
CONNECT AN EXTERNAL MONITOR —
1
Shut down your computer and connect an external monitor to the computer.
2
Turn on the computer and the monitor and adjust the monitor brightness and contrast controls.
If the external monitor works, the computer display or video controller may be defective.
Contact Dell
(see
"Contacting Dell" on page 139
).
System Setup Program 89
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\setup.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
System Setup Program
Overview
NOTE: Your operating system may automatically configure most of the options available in the system setup
program, thus overriding options that you set through the system setup program. (An exception is the External Hot
Key option, which you can disable or enable only through the system setup program.) For more information on
configuring features for your operating system, access the Help and Support Center (click Start or
→
Help
and Support).
You can use the system setup program as follows to:
• Set or change user-selectable features—for example, your computer password
• Verify information about the computer's current configuration, such as the amount of system memory
After you set up the computer, run the system setup program to familiarize yourself with your system
configuration information and optional settings. You may want to write down the information for future
reference.
The system setup screens display the current setup information and settings for your computer, such as:
• System configuration
• Boot order
• Boot (start-up) configuration and docking-device configuration settings
• Basic device-configuration settings
• System security and hard-drive password settings
NOTICE: Unless you are an expert computer user or are directed to do so by Dell technical support, do not change
the system setup settings. Certain changes might make your computer work incorrectly.
Viewing the System Setup Screens
1
Turn on (or restart) your computer.
2
When the DELL™ logo appears, press <F2> immediately. If you wait too long and the Windows logo
appears, continue to wait until you see the Windows desktop. Then shut down your computer and try
again.
System Setup Screens
NOTE: For information about a specific item on a system setup screen, highlight the item and see the Help area on
the screen.
90 System Setup Program
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\setup.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
In the system setup program, primary categories of settings are listed on the left. To view the types of
settings in a category, highlight the category and press <Enter>. When you highlight a setting type, the
right side of the screen displays the value for that setting type. You can change settings that appear as
white type on the screen. Values that you cannot change (because they are determined by the computer)
appear less bright.
System-setup key functions are listed across the bottom of the screen.
Commonly Used Settings
Certain settings require that you reboot the computer for new settings to take effect.
Changing the Boot Sequence
The boot sequence tells the computer where to look to find the software needed to start the operating
system. You can control the boot sequence and enable/disable devices using the Boot Sequence page,
which is located in the System category.
NOTE: To change the boot sequence on a one-time-only basis, see "Performing a One-Time Boot" on page 90.
The Boot Sequence page displays a general list of the bootable devices that may be installed in your
computer, including but not limited to the following:
•Diskette Drive
•Modular bay HDD
• Internal HDD
•CD/DVD/CD-RW drive
During the boot routine, the computer starts at the top of the list and scans each enabled device for the
operating system start-up files. When the computer finds the files, it stops searching and starts the
operating system.
To control the boot devices, select (highlight) a device by pressing the down-arrow or up-arrow key, and
then enable or disable the device or change its order in the list.
• To enable or disable a device, highlight the item and press the space bar. Enabled items appear as white
and display a small triangle to the left; disabled items appear blue or dimmed without a triangle.
• To reorder a device in the list, highlight the device and then press <u> or <d> (not case-sensitive) to
move the highlighted device up or down.
Boot sequence changes take effect as soon as you save the changes and exit the system setup program.
Performing a One-Time Boot
You can set a one-time-only boot sequence without entering the system setup program. (You can also use
this procedure to boot the Dell Diagnostics on the diagnostics utility partition on your hard drive.)
1
Shut down the computer through the
Start
menu.
System Setup Program 91
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\setup.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
2
If the computer is connected to a docking device (docked), undock it. See the documentation that
came with your docking device for instructions.
3
Connect the computer to an electrical outlet.
4
Turn on the computer. When the DELL logo appears, press <F12> immediately. If you wait too long
and the Windows logo appears, continue to wait until you see the Windows desktop. Then shut down
your computer and try again.
5
When the boot device list appears, highlight the device from which you want to boot and press
<Enter>.
The computer boots to the selected device.
The next time you reboot the computer, the previous boot order is restored.
Changing COM Ports
Serial Port, which is located in the Onboard Devices category, allows you to map the serial port COM
address or disable the serial port and its address, which frees computer resources for another device to
use.
92 System Setup Program
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\setup.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Traveling With Your Computer 93
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\travel.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Traveling With Your Computer
Identifying Your Computer
• Attach a name tag or business card to the computer.
• Write down your Service Tag and store it in a safe place away from the computer or carrying case. Use
the Service Tag if you need to report a loss or theft to law enforcement officials and to Dell.
• Create a file on the Microsoft
®
Windows
®
desktop called
if_found
. Place information such as your
name, address, and phone number in this file.
• Contact your credit card company and ask if it offers coded identification tags.
Packing the Computer
• Remove any external devices attached to the computer and store them in a safe place. Remove any
cables attached to installed PC Cards, and remove any extended PC Cards (see "Removing a Card or
Blank" on page 61).
• To make the computer as light as possible, replace any devices installed in the module bay with the
Dell TravelLite™ module.
• Fully charge the main battery and any spare batteries that you plan to carry with you.
• Shut down the computer.
• Disconnect the AC adapter.
NOTICE: When the display is closed, extraneous items on the keyboard or palm rest could damage the display.
• Remove any extraneous items, such as paper clips, pens, and paper, from the keyboard and palm rest
and close the display.
• Use the optional Dell™ carrying case to pack the computer and its accessories together safely.
• Avoid packing the computer with items such as shaving cream, colognes, perfumes, or food.
NOTICE: If the computer has been exposed to extreme temperatures, allow it to acclimate to room temperature for
1 hour before turning it on.
• Protect the computer, the batteries, and the hard drive from hazards such as extreme temperatures and
overexposure to sunlight, dirt, dust, or liquids.
• Pack the computer so that it does not slide around in the trunk of your car or in an overhead storage
compartment.
Travel Tips
NOTICE: Do not move the computer while using the optical drive to prevent loss of data.
NOTICE: Do not check the computer as baggage.
94 Traveling With Your Computer
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\travel.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• Consider changing your power management options to maximize battery operating time (see
"Configuring Power Management Settings" on page 33).
• If you are traveling internationally, carry proof of ownership—or of your right to use the computer if it
is company-owned—to speed your passage through customs. Investigate the customs regulations of
the countries you plan to visit, and consider acquiring an international carnet (also known as a
merchandise passport
) from your government.
• Find out what type of electrical outlets are used in the countries you will visit, and have appropriate
power adapters.
• Check with your credit card company for information about the kinds of emergency travel assistance it
offers to users of portable computers.
Traveling by Air
NOTICE: Do not walk the computer through a metal detector. Send the computer through an X-ray machine or
have it hand-inspected.
• Ensure that you have a charged battery available in case you are asked to turn on the computer.
• Prior to entering the airplane, verify that using a computer is permitted. Some airlines forbid the use of
electronic devices during flight. All airlines forbid the use of electronic devices during takeoff and
landing.
Reinstalling Software 95
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Reinstalling Software
Drivers
What Is a Driver?
A driver is a program that controls a device such as a printer, mouse, or keyboard. All devices require a
driver program.
A driver acts like a translator between the device and any other programs that use the device. Each device
has its own set of specialized commands that only its driver recognizes.
Dell ships your computer to you with required drivers already installed—no further installation or
configuration is needed.
NOTICE: The Drivers and Utilities media may contain drivers for operating systems that are not on your computer.
Ensure that you are installing software appropriate for your operating system.
Many drivers, such as the keyboard driver, come with your Microsoft® Windows® operating system. You
may need to install drivers if you:
• Upgrade your operating system.
• Reinstall your operating system.
• Connect or install a new device.
Identifying Drivers
If you experience a problem with any device, identify whether the driver is the source of your problem
and, if necessary, update the driver.
Microsoft Windows XP
1
Click
Start
→
Control Panel
.
2
Under
Pick a Category
, click
Performance and Maintenance
.
3
Click
System
.
4
In the
System Properties
window, click the
Hardware
tab.
5
Click
Device Manager
.
Microsoft Windows Vista™
1
Click the Windows Vista Start button, , and right-click
Computer
.
2
Click
Properties
→
Device Manager
NOTE: The User Account Control window may appear. If you are an administrator on the computer, click
Continue; otherwise, contact your administrator to continue the desired action.
96 Reinstalling Software
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Scroll down the list to see if any device has an exclamation point (a yellow circle with a [!]) on the device
icon.
If an exclamation point is next to the device name, you may need to try "Reinstalling Drivers and Utilities"
on page 96.
Reinstalling Drivers and Utilities
NOTICE: The Dell Support website at support.dell.com and your Drivers and Utilities media provide approved
drivers for Dell™ computers. If you install drivers obtained from other sources, your computer might not work
correctly.
Using Windows Device Driver Rollback
If a problem occurs on your computer after you install or update a driver, use Windows Device Driver
Rollback to replace the driver with the previously installed version.
For Windows XP:
1
Click
Start
and right-click
My Computer
.
2
Click
Properties
→
Hardware
→
Device Manager.
3
Right-click the device for which the new driver was installed and click
Properties
.
4
Click
Drivers
→
Roll Back Driver
.
For Windows Vista:
1
Click the Windows Vista Start button, , and right-click
Computer
.
2
Click
Properties
→
Device Manager
.
NOTE: The User Account Control window may appear. If you are an administrator on the computer, click
Continue; otherwise, contact your administrator to enter the Device Manager.
3
Right-click the device for which the new driver was installed and click
Properties
.
4
Click
Drivers
→
Roll Back Driver
.
If Device Driver Rollback does not resolve the problem, use "Using Microsoft Windows System Restore"
on page 99 to return your computer to the operating state that existed before you installed the new
driver.
Using the Drivers and Utilities
Media
If using Device Driver Rollback or System Restore does not resolve the problem, then reinstall the driver
from the Drivers and Utilities media.
1
Save and close any open files, and exit any open programs.
2
Insert the
Drivers and Utilities
media.
In most cases, the media starts running automatically. If it does not, start Windows Explorer, click your
CD or DVD drive directory to display the media contents, and then double-click the
autorcd.exe
file.
Reinstalling Software 97
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
The first time that you run the CD or DVD, it might prompt you to install setup files. Click
OK
, and
follow the instructions on the screen to continue.
3
From the
Language
drop-down menu in the toolbar, select your preferred language for the driver or
utility (if available). A welcome screen appears.
4
Click
Next
.
The media automatically scans your hardware to detect drivers and utilities used by your computer.
5
After the media completes the hardware scan, you can also detect other drivers and utilities. Under
Search Criteria
, select the appropriate categories from the
System Model
,
Operating System
, and
Topic
drop-down menus.
A link or links appear(s) for the specific drivers and utilities used by your computer.
6
Click the link of a specific driver or utility to display information about the driver or utility that you
want to install.
7
Click the
Install
button (if present) to begin installing the driver or utility. At the welcome screen,
follow the screen prompts to complete the installation.
If no
Install
button is present, automatic installation is not an option. For installation instructions,
either see the appropriate instructions in the following subsections, or click
Extract
, follow the
extracting instructions, and then read the readme file.
If instructed to navigate to the driver files, click the CD or DVD directory on the driver information
window to display the files associated with that driver.
Manually Reinstalling Drivers
After extracting the driver files to your hard drive as described in the previous section:
For Windows XP:
1
Click
Start
and right-click
My Computer
.
2
Click
Properties
→
Hardware
→
Device Manager.
3
Double-click the type of device for which you are installing the driver (for example,
Audio
or
Video
).
4
Double-click the name of the device for which you are installing the driver.
5
Click
Driver
→
Update Driver
→
Install from a list or specific location (Advanced)
→
Next
.
6
Click
Browse
and browse to the location to which you previously copied the driver files.
7
When the name of the appropriate driver appears, click
Next
.
8
Click
Finish
and restart your computer.
For Windows Vista:
1
Click the Windows Vista Start button, , and right-click
Computer
.
2
Click
Properties
→
Device Manager
.
98 Reinstalling Software
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: The User Account Control window may appear. If you are an administrator on the computer, click
Continue; otherwise, contact your administrator to enter the Device Manager.
3
Double-click the type of device for which you are installing the driver (for example,
Audio
or
Video
).
4
Double-click the name of the device for which you are installing the driver.
5
Click
Driver
→
Update Driver
→
Browse my computer for driver software
.
6
Click
Browse
and browse to the location to which you previously copied the driver files.
7
When the name of the appropriate driver appears, click the name of the driver and then click
OK
→
Next
.
8
Click
Finish
and restart your computer.
Using the Hardware Troubleshooter Tool in Microsoft Windows XP
and Windows Vista Operating Systems
If a device is either not detected during the operating system setup or is detected but incorrectly
configured, you can use the Hardware Troubleshooter to resolve the incompatibility.
For Windows XP:
1
Click
Start
→
Help and Support
.
2
Ty p e
hardware troubleshooter
in the search field and press <Enter> to start the search.
3
In the
Fix a Problem
section, click
Hardware Troubleshooter
.
4
In the
Hardware Troubleshooter
list, select the option that best describes the problem and click
Next
to follow the remaining troubleshooting steps.
For Windows Vista:
1
Click the Windows Vista Start button
→
Help and Support.
2
Ty p e
hardware troubleshooter
in the search field and press <Enter> to start the search.
3
In the search results for
hardware troubleshooter
, select the option that best describes the problem and
follow the remaining troubleshooting steps.
Restoring Your Operating System
You can restore your operating system in the following ways:
•Microsoft
®
Windows
®
XP and Windows Vista
™
System Restore returns your computer to an earlier
operating state without affecting data files. Use System Restore as the first solution for restoring your
operating system and preserving data files.
•If you received an
Operating System
media with your computer, you can use it to restore your operating
system. However, using the
Operating System
media also deletes all data on the hard drive. Use the
media
only
if System Restore did not resolve your operating system problem.
Reinstalling Software 99
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Using Microsoft Windows System Restore
The Microsoft Windows operating systems provides a System Restore option which allows you to return
your computer to an earlier operating state (without affecting data files); if changes to the hardware,
software, or other system settings have left the computer in an undesirable operating state. Any changes
that System Restore makes to your computer are completely reversible.
NOTICE: Make regular backups of your data files. System Restore does not monitor your data files or recover
them.
NOTE: The procedures in this document were written for the Windows default view, so they may not apply if you
set your Dell™ computer to the Windows Classic view.
Starting System Restore
For Windows XP:
NOTICE: Before you restore the computer to an earlier operating state, save and close any open files and exit any
open programs. Do not alter, open, or delete any files or programs until the system restoration is complete.
1
Click
Start
→
All Programs
→
Accessories
→
System Tools
→
System Restore
.
2
Click either
Restore my computer to an earlier time
or
Create a restore point
.
3
Click
Next
. Follow the remaining onscreen prompts.
For Windows Vista:
1
Click the Windows Vista Start button
→
Help and Support
.
2
In the search box type
System Restore
and press <Enter>.
NOTE: The User Account Control window may appear. If you are an administrator on the computer, click
Continue; otherwise, contact your administrator to continue the desired action.
3
Click
Next
. Follow the remaining onscreen prompts.
In the event System Restore did not resolve the issue, you may undo the last system restore. To undo the
last system restore, see "Undoing the Last System Restore" on page 99.
Undoing the Last System Restore
NOTICE: Before you undo the last system restore, save and close all open files and exit any open programs. Do not
alter, open, or delete any files or programs until the system restoration is complete.
For Windows XP:
1
Click
Start
→
All Programs
→
Accessories
→
System Tools
→
System Restore
.
2
Click
Undo my last restoration
→
Next
.
For Windows Vista:
1
Click the Windows Vista Start button
→
Help and Support
.
2
In the search box type
System Restore
and press <Enter>.
3
Click
Undo my last restoration
→
Next
.
100 Reinstalling Software
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Enabling System Restore
NOTE: Windows Vista does not disable System Restore, regardless of available disk space. Therefore, the
following steps apply to Windows XP only.
If you reinstall Windows XP with less than 200 MB of free hard-disk space available, System Restore is
automatically disabled. To see if System Restore is enabled:
1
Click
Start
→
Control
Panel
→
Performance and Maintenance
→
System
→
System Restore
.
2
Ensure that
Turn off System Restore
is unchecked.
Using the Operating System Media
Before You Begin
If you are considering reinstalling the Windows operating system to correct a problem with a newly
installed driver, first try using Windows Device Driver Rollback. See "Using Windows Device Driver
Rollback" on page 96. If Device Driver Rollback does not resolve the problem, then use
System Restore
to
return your operating system to the operating state it was in before you installed the new device driver.
See "Using Microsoft Windows System Restore" on page 99.
NOTICE: Before performing the installation, back up all data files on your primary hard drive. For conventional
hard drive configurations, the primary hard drive is the first drive detected by the computer.
To reinstall Windows, you need the following items:
•Dell™
Operating System
media
•Dell
Drivers and Utilities
media
NOTE: The Dell Drivers and Utilities media contains drivers that were installed during assembly of the computer.
Use the Dell Drivers and Utilities media to load any required drivers. Depending on the region from where you
ordered your computer, or whether you requested the media, the Dell Drivers and Utilities media and Operating
System media may not ship with your computer.
Reinstalling Windows
The reinstallation process can take 1 to 2 hours to complete. After you reinstall the operating system, you
must also reinstall the device drivers, virus protection program, and other software.
NOTICE: The Operating System media provides options for reinstalling Windows. The options can overwrite files
and possibly affect programs installed on your hard drive. Therefore, do not reinstall Windows unless a Dell
technical support representative instructs you to do so.
1
Save and close any open files and exit any open programs.
2
Insert the
Operating System
media. Click
Exit
if the
Install Windows
message appears.
3
Restart the computer.
When the DELL logo appears, press <F12> immediately.
NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the
Microsoft® Windows® desktop; then, shut down your computer and try again.
Reinstalling Software 101
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: The next steps change the boot sequence for one time only. On the next start-up, the computer boots
according to the devices specified in the system setup program.
4
When the boot device list appears, highlight
CD/DVD/CD-RW Drive
and press <Enter>.
5
Press any key to select
Boot from CD-ROM
.
6
Follow the instructions on the screen to complete the installation.
Reinstalling Device Drivers
If you need to reinstall or update your system’s device drivers, Microsoft Windows does not require that
they are installed in a specific order. However, Dell recommends the following installation order:
1 Notebook System Software (NSS) A compilation of critical operating system updates.
2 Chipset Helps the operating system control system board
components and controllers.
3 Video Controller Enhances video performance.
4 Network Interface Card (NIC) Enables and enhances the network controller.
5 Sound Device Enables and enhances the audio controller.
6 Modem Enables and enhances the modem.
7 Wireless Network Card Enables and enhances the wireless network
controller.
8 BlueTooth® Module Enables and enhances the Bluetooth controller.
9 PC Card/ExpressCard Controller Enables and enhances the PC Card or ExpressCard
controller.
10 Touch Pad Enhances the pointing device features.
11 Other Other devices and peripherals such as handheld
computers, scanners, printers, MP3 Players, and
digital cameras that are connected to the computer.
102 Reinstalling Software
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\software.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Template Last Updated - 7/01/2005 Adding and Replacing Parts 103
13
Adding and Replacing Parts
Before You Begin
This chapter provides procedures for removing and installing the components in your computer.
Unless otherwise noted, each procedure assumes that the following conditions exist:
• You have performed the steps in "Turning Off Your Computer" on page 103 and "Before Working
Inside Your Computer" on page 103.
• You have read the safety information in your Dell™
Product Information Guide.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
• Phillips screwdriver
• Small plastic scribe
• Flash BIOS update program (see the Dell Support website at
support.dell.com
)
Turning Off Your Computer
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off
your computer.
1
Shut down the operating system:
a
Save and close any open files, exit any open programs, and click
Start
→
Shut Down
.
b
Select
Shut down
→
OK
.
The computer turns off after the operating system shutdown process finishes.
2
Ensure that the computer and any attached devices are turned off. If your computer and attached
devices did not automatically turn off when you shut down your operating system, turn them off
now by pressing and holding the power button for 4 seconds.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to
help ensure your own personal safety.
104 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card
by its edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing
that is not authorized by Dell is not covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables
have a connector with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before
you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector
pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
1
Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.
2
Turn off your computer (see "Turning Off Your Computer" on page 103).
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the
network wall connector.
3
Disconnect any telephone or network cables from the computer.
4
Disconnect your computer and all attached devices from their electrical outlets.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the
computer.
5
Remove the battery (see "Replacing the Battery" on page 33).
6
Press the power button to ground the system board.
7
Remove any installed ExpressCards or PC Cards (see "Removing a Card or Blank" on page 61).
Hard Drive
CAUTION: If you remove the hard drive from the computer when the drive is hot,
do not touch
the metal housing
of the hard drive.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTICE: To prevent data loss, turn off your computer before removing the hard drive. Do not remove the hard drive
while the computer is turned on, in standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system,
drivers, and utilities on the new hard drive.
1
Follow the procedures in "Before You Begin" on page 103.
Adding and Replacing Parts 105
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
2
Turn the computer upside-down, and remove the two screws that secure the hard drive carrier to the
chassis.
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting
Against Electrostatic Discharge" in the Product Information Guide.
3
Slide the hard drive carrier out of the computer.
4
Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the
connector.
5
Slide the new hard drive into the bay and into the connector until it is fully seated.
6
Replace the screws.
7
Install the operating system for your computer (see "Restoring Your Operating System" on page 98).
8
Install the drivers and utilities for your computer (see "Reinstalling Drivers and Utilities" on page 96).

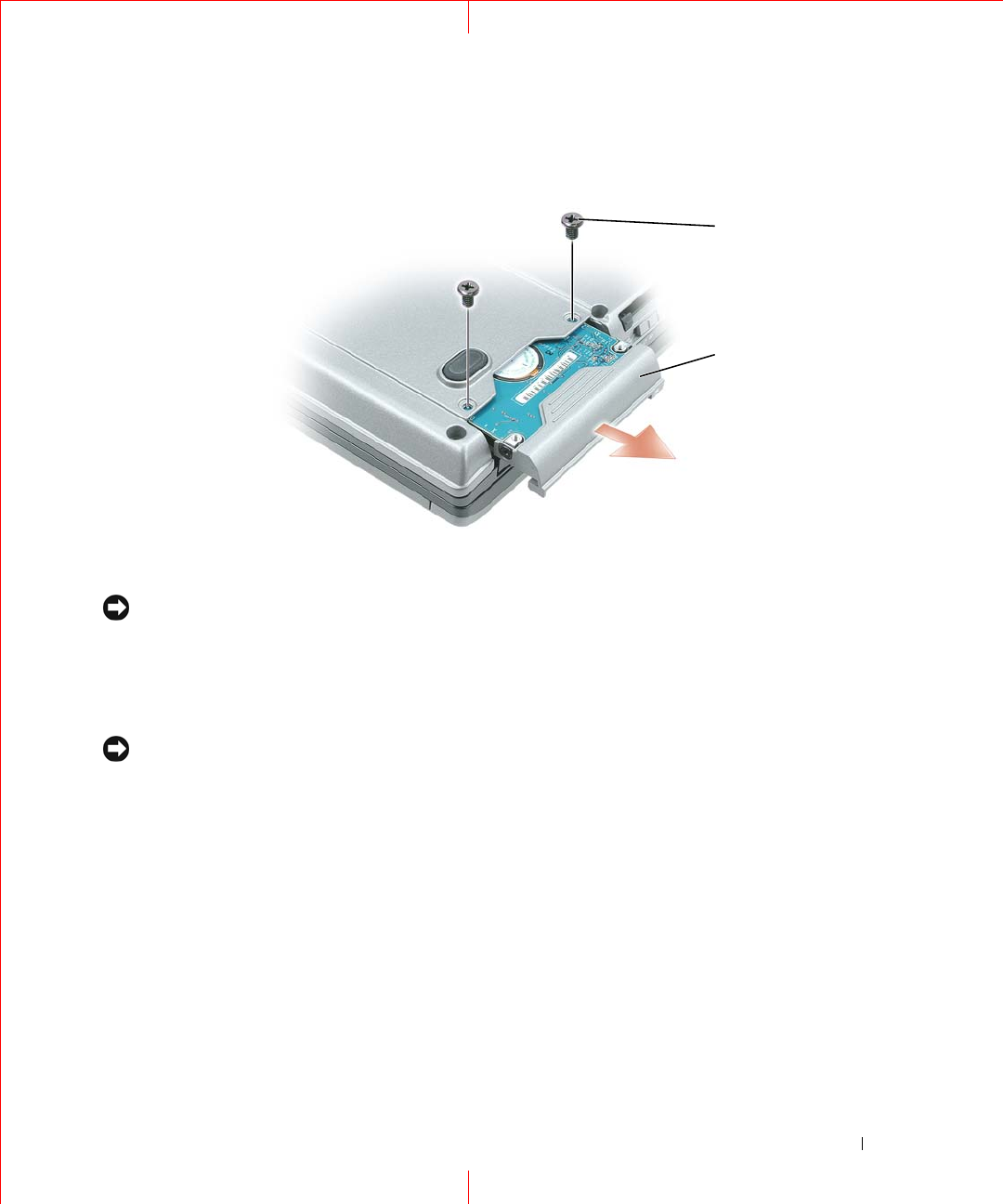

1screws (2) 2 hard drive
2
1
106 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Returning a Hard Drive to Dell
Return your old hard drive to Dell in its original or comparable foam packaging. Otherwise, the hard
drive may be damaged in transit.
Media Bay
NOTE: If the device security screw is not present, you can remove and install devices while the computer is
running and connected to a docking device (docked).
Removing the Device Security Screw
If present, you must remove the device security screw before you remove the device:
1
Save and close any open files, exit any open programs, and shut down the computer.
2
If the computer is connected to a docking device (docked), undock it. See the documentation that
came with your docking device for instructions.
3
Close the display and turn the computer upside-down.
4
Use a #1 Phillips screwdriver to remove the device security screw from the bottom of the computer.
1foam packaging 2hard drive
2
1
Adding and Replacing Parts 107
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Removing and Installing Media Bay Devices
NOTICE: To prevent damage to devices, store them in a safe, dry place when they are not installed in the
computer. Avoid pressing down on them or placing heavy objects on top of them.
NOTE: If the device security screw is not installed, you can remove and install devices while the computer is
running and connected to a docking device (docked).
1
If present, remove the device security screw from the bottom of the computer (see "Removing the
Device Security Screw" on page 106).
2
If the computer is running, double-click the
Safely Remove Hardware
icon on the taskbar, click the
device you want to eject, and click
Stop
.
3
Press the device latch release.
4
Pull the device out of the media bay.
1device security screw 2 device latch release
1
2
108 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
5
Push the new device into the bay until it clicks.
Hinge Cover
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
NOTICE: The hinge cover is fragile and can be damaged if extreme force is used. Be careful when removing the
hinge cover.
1
Follow the procedures in "Before You Begin" on page 103.
2
Turn the computer top-side up, and then open the display all the way (180 degrees) so that it rests on
your work surface.
NOTICE: To avoid damaging the hinge cover, do not lift the cover on both sides simultaneously.
3
Insert a scribe in the indent to carefully pry up the hinge cover on the right side.
Adding and Replacing Parts 109
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
4
Ease the hinge cover up, moving from right to left, and remove it.
5
To replace the hinge cover, insert the left edge of the cover into the hinge cover slot, and press from left
to right until the cover snaps into place.
Keyboard
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
To remove the keyboard:
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
3
Remove the three screws at the top of the keyboard.
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful
when removing and handling the keyboard.
4
Rotate the keyboard forward and lay it on the palm rest to allow access to the keyboard connector on
the system board.
1hinge cover 2indent
1
2
110 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
5
Pull up on the pull-tab to disconnect the keyboard cable connector from the keyboard connector on
the system board.
NOTICE: To avoid scratching the palm rest when replacing the keyboard, hook the tabs along the front edge of the
keyboard into the palm rest, and then secure the keyboard in place.
To replace the keyboard:
1
Connect the keyboard connector to the system board.
2
Place the tabs along the front edge of the keyboard into the palm rest and lay the keyboard down on
the palmrest.
3
Replace the three screws at the top of the keyboard.
4
Replace the hinge cover.
1keyboard 2keyboard screws 3cable connector
4keyboard connector
2
1
3
4
Adding and Replacing Parts 111
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Memory
You can increase your computer memory by installing memory modules on the system board. See
"Specifications" on page 127 for information on the memory supported by your computer. Install only
memory modules that are intended for your computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
NOTE: Memory modules purchased from Dell are covered under your computer warranty.
The computer has two memory slots, DIMM A and DIMM B. DIMM A is located on top of the
computer under the keyboard, and DIMM B is located on the bottom of the computer under the
memory module cover. DIMM A holds the basic memory module as configured from the factory. If you
did not order additional memory, DIMM B is empty. Generally, if you add memory, you use DIMM B. If
you are upgrading memory, you may need to install memory in DIMM A and DIMM B, depending on the
extent of the upgrade.
To install a memory module in the DIMM A connector:
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
3
Remove the keyboard (see "Keyboard" on page 109).
4
Ground yourself by touching one of the metal connectors on the back of the computer.
NOTICE: If you leave the area, ground yourself again when you return to the computer.
5
If you are replacing a memory module, remove the existing module:
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module
securing clips.
a
Use your fingertips to carefully spread apart the securing clips on each end of the memory module
connector until the module pops up.
b
Remove the module from the connector.
112 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTICE: Insert memory modules at a 45-degree angle to avoid damaging the connector.
NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message
indicates this failure.
6
Ground yourself and install the new memory module:
a
Align the notch in the module edge connector with the tab in the connector slot.
b
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it
clicks into place. If you do not feel the click, remove the module and reinstall it.
7
Replace the keyboard (see "Keyboard" on page 109).
8
Replace the hinge cover (see "Hinge Cover" on page 108).
9
Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical
outlet.
10
Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system
configuration information.
To confirm the amount of memory installed in the computer, click Start or
→
Help and Support
→
Computer Information.
To install a memory module in the DIMM B connector:
1
Follow the procedures in "Before You Begin" on page 103.

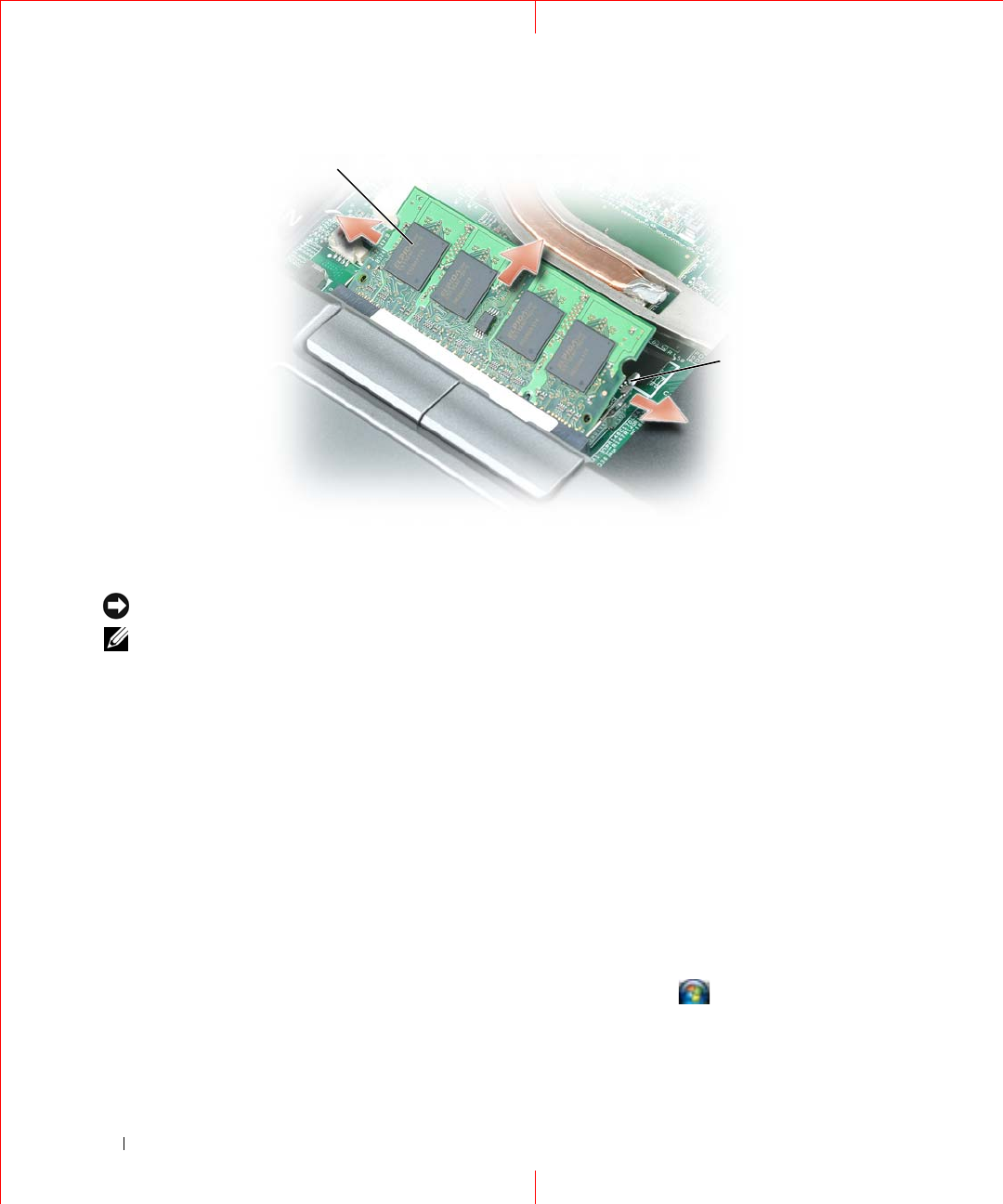

1memory module 2securing clips (2)
1
2
Adding and Replacing Parts 113
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
2
Turn the computer upside-down, loosen the captive screw on the memory module cover, and then
remove the cover.
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module
securing clips.
3
If you are replacing a memory module, remove the existing module:
a
Use your fingertips to carefully spread apart the securing clips on each end of the memory module
connector until the module pops up.
b
Remove the module from the connector.

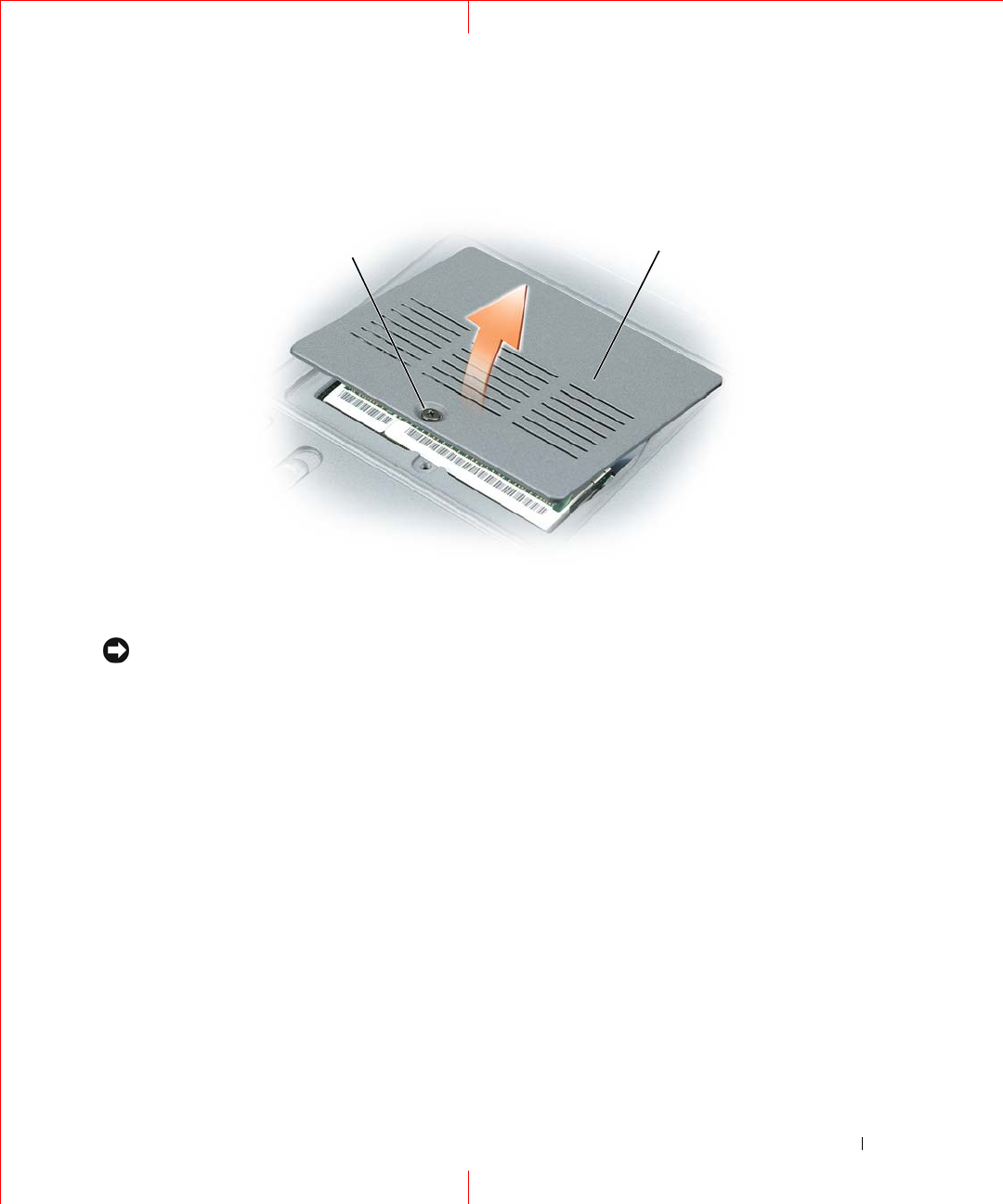

1 captive screw 2 memory module cover
12
114 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTICE: If you need to install memory modules in two connectors, install a memory module in the connector
labeled “DIMM A” before you install a module in the connector labeled “DIMM B.” Insert memory modules at a
45-degree angle to avoid damaging the connector.
NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message
indicates this failure.
4
Ground yourself and install the new memory module:
a
Align the notch in the module edge connector with the tab in the connector slot.
b
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it
clicks into place. If you do not feel the click, remove the module and reinstall it.
5
Replace the memory module cover and tighten the screw.
NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may
damage your computer.
6
Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical
outlet.
7
Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system
configuration information.

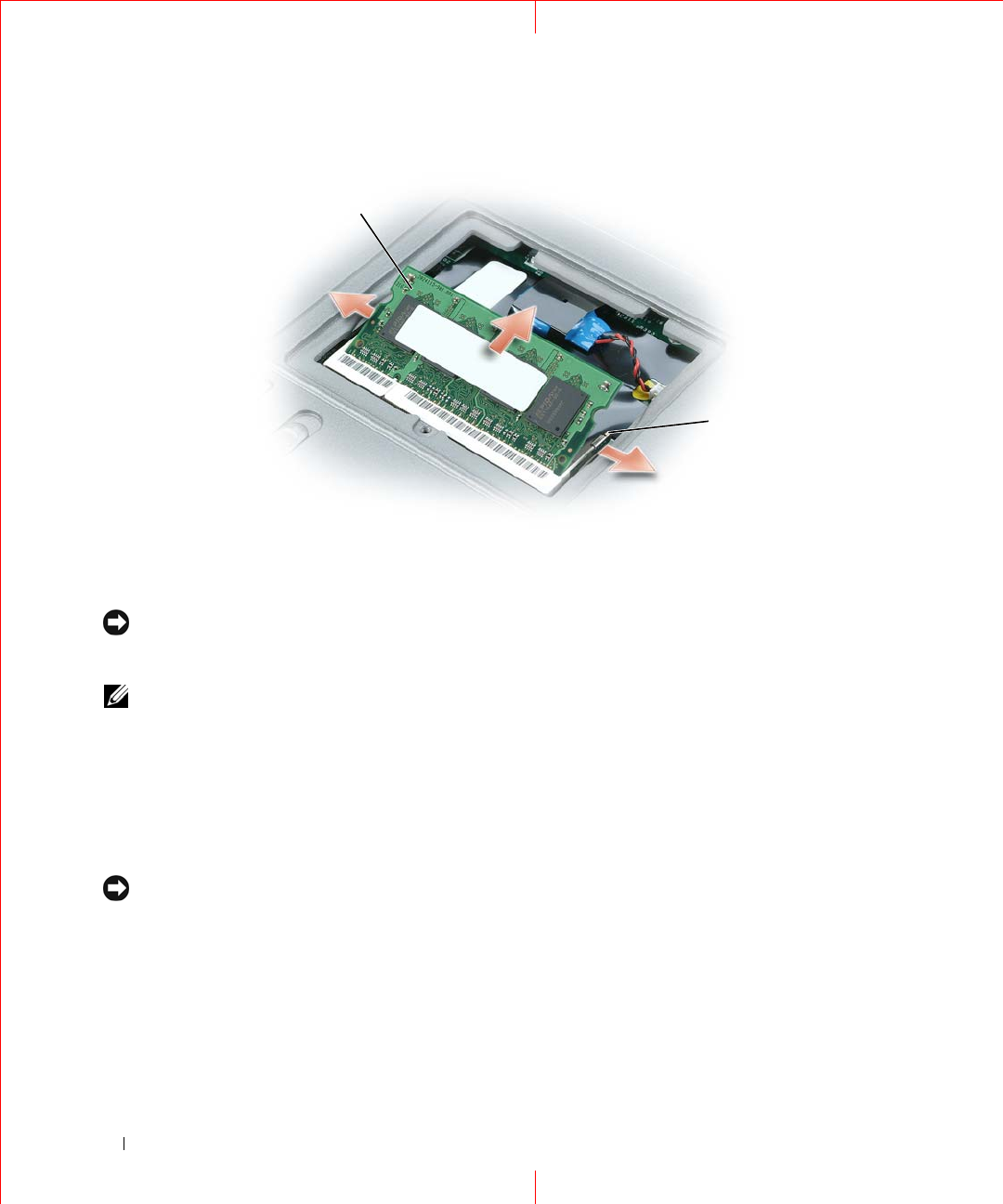

1memory module 2securing clips (2)
1
2
Adding and Replacing Parts 115
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
To confirm the amount of memory installed in the computer, click Start or
→
Help and Support
→
Computer Information.
Subscriber Identity Module (SIM) Card
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the battery (see "Replacing the Battery" on page 33).
3
Slide the SIM card into the compartment with the cut-off corner of the card facing away from the
compartment.
Wireless Cards
If you ordered a wireless LAN or WAN card with your computer, the card is already installed.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.

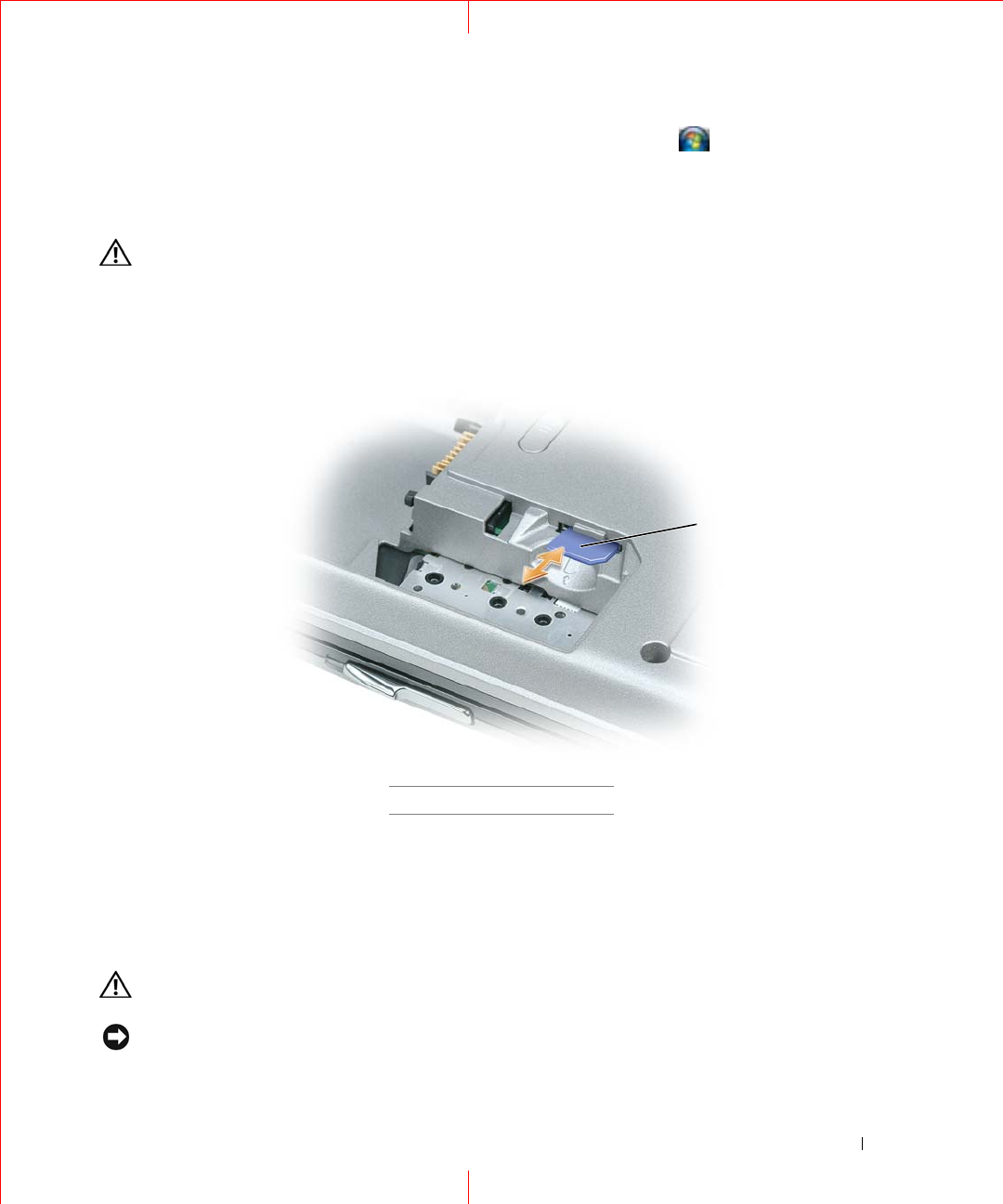

1SIM card
1
116 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Wireless Local Area Network (WLAN) Cards
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
3
Remove the keyboard (see "Keyboard" on page 109).
4
Ground yourself by touching one of the metal connectors on the back of the computer.
NOTE: If you leave the area, ground yourself again when you return to the computer.
5
If a card is not already installed, go to step 6. If you are replacing a card, remove the existing card:
a
Disconnect the antenna cables from the card.
b
Release the card by pushing the metal securing bracket away from the card until the card pops up
slightly.
1antenna cables
1
Adding and Replacing Parts 117
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
c
Lift the card out of its connector.
NOTICE: The card connector is keyed to ensure correct insertion. If you feel resistance, reinstall the card to
realign it in the connector.
NOTE: Do not insert a WWAN card into the WLAN card connector.
NOTE: The WLAN card may have two or three antenna connectors, depending on the type of card you ordered.
6
Install the card:
NOTICE: To avoid damaging the WLAN card, never place cables on top of or under the card.
a
Move any antenna cables out of the way to make space for the WLAN card.
b
Align the card with the connector at a 45-degree angle, and press the card into the connector until
it clicks.
NOTE: Your WLAN card may have two or three antenna connectors, depending on the type of card you ordered.
Most antenna connectors have color-coded markings that correspond to the color of the cable.
NOTE: For more specific information about which cable to connect to which connector, see the documentation
that came with your WLAN card.
7
Connect the antenna cables to the WLAN card, ensuring that you route the cables correctly.

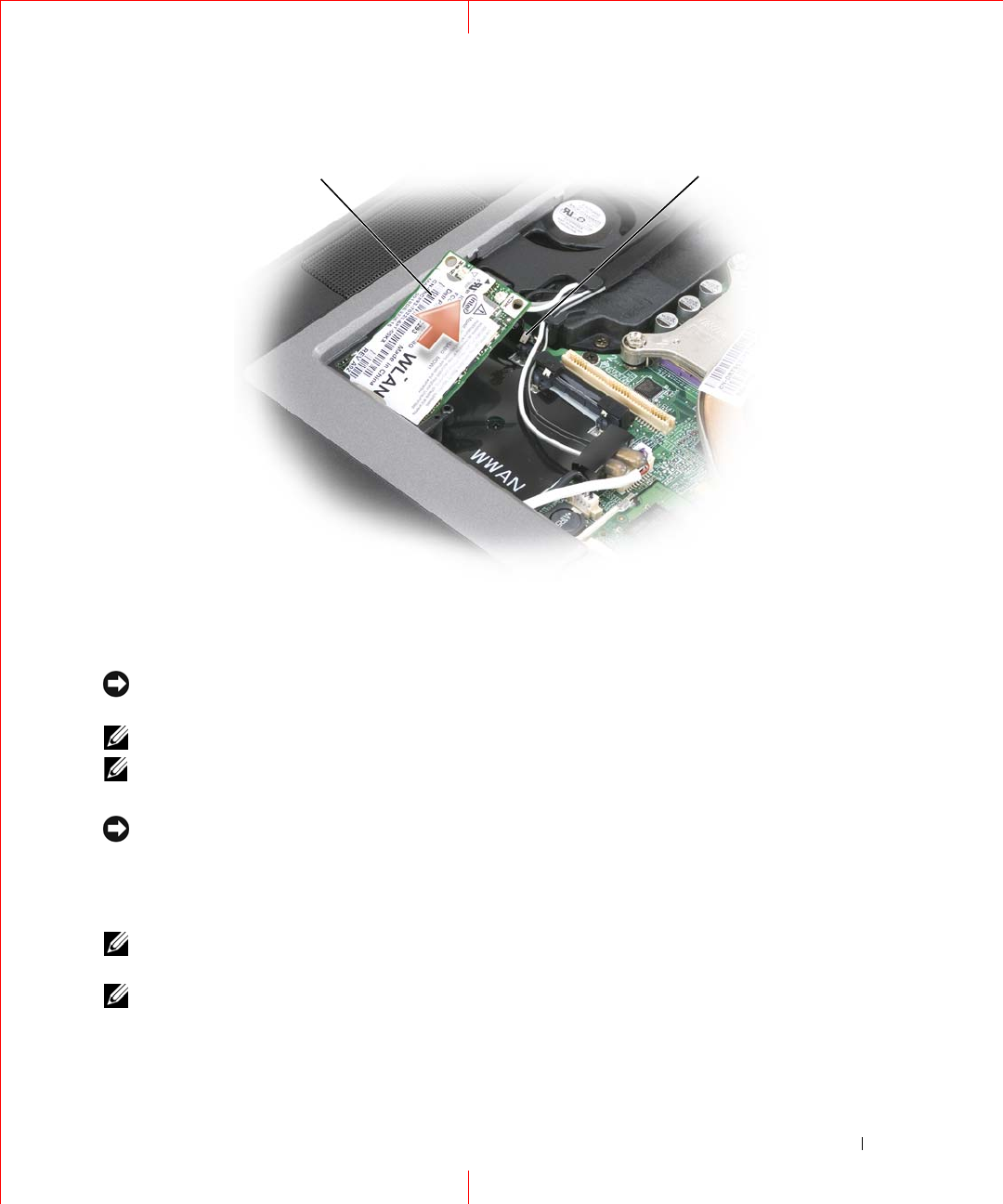

1WLAN card 2metal securing bracket
12
118 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Mobile Broadband or Wireless Wide Area Network (WWAN) Cards
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
3
Remove the keyboard (see "Keyboard" on page 109).
4
Ground yourself by touching one of the metal connectors on the back of the computer.
NOTE: If you leave the area, ground yourself again when you return to the computer.
5
If a card is not already installed
, go to step 6.
If you are replacing a card
, remove the existing card:
a
Disconnect the antenna cables from the card.
b
Release the card by pushing the metal securing bracket away from the card until the card pops up
slightly.
1antenna cables
1
Adding and Replacing Parts 119
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
c
Lift the card out of its connector.
NOTICE: The card connector is keyed to ensure correct insertion. If you feel resistance, reinstall the card to
realign it in the connector.
6
Install the card.
NOTICE: To avoid damaging the WWAN card, never place cables on top of or under the card.
a
Align the card with the connector at a 45-degree angle, and press the card into the connector until
it clicks.
NOTE: Most antenna connectors have color-coded markings that correspond to the color of the cable. For more
specific information about which cable to connect to which connector, see the documentation that came with your
WWAN card.
b
Connect the antenna cables to the
WWAN card,
ensuring that you route the cables correctly.
FCM (Flash Cache Module)
The FCM, or Flash Cache Module, is an internal flash drive that helps improve the performance of your
computer.
NOTE: This card is only compatible with the Microsoft Windows Vista™ operating system.

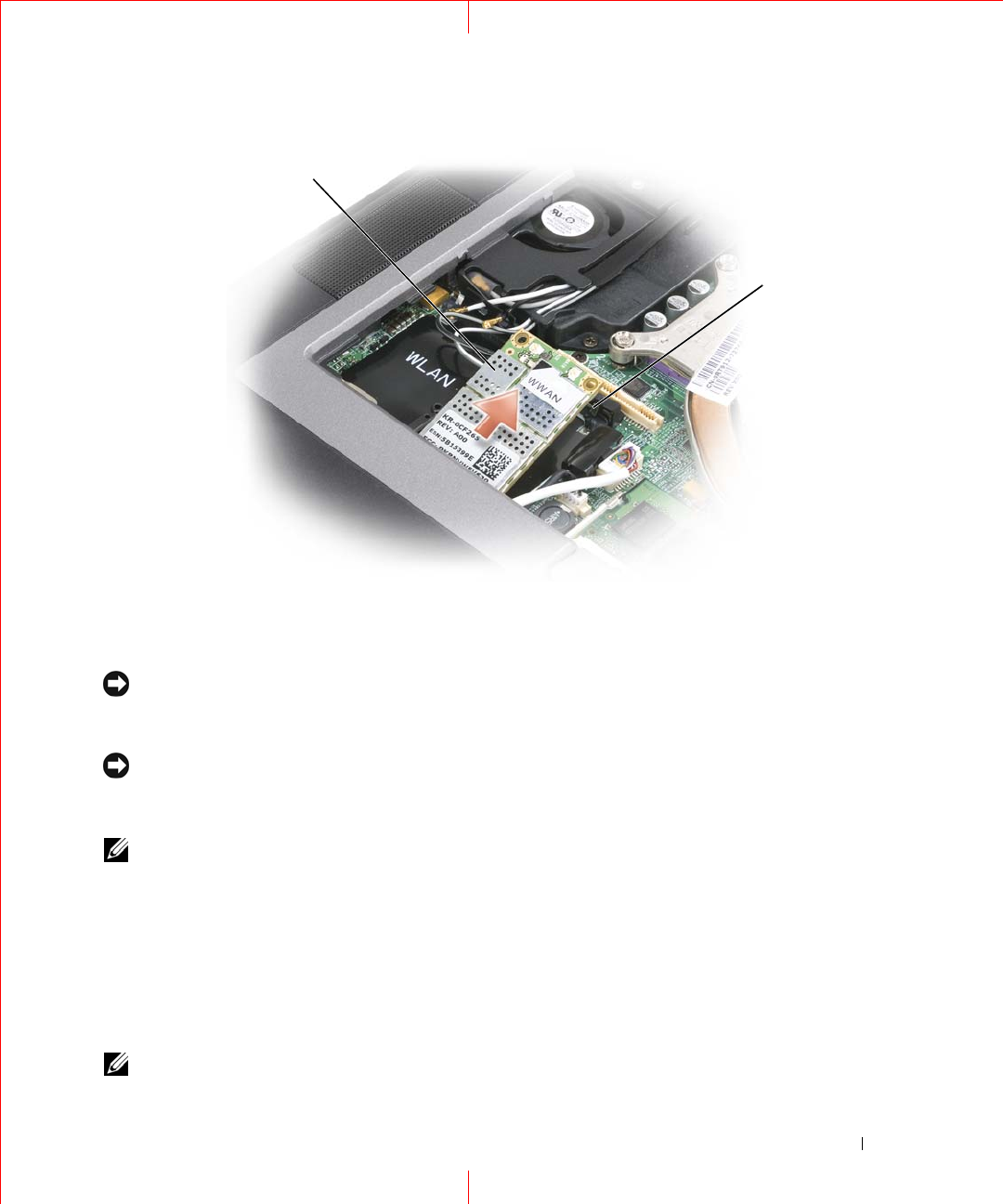

1WWAN card 2metal securing bracket
1
2
120 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTE: If you ordered an FCM card with your computer, the card is already installed.
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
3
Remove the keyboard (see "Keyboard" on page 109).
4
Ground yourself by touching one of the metal connectors on the back of the computer.
NOTE: If you leave the area, ground yourself again when you return to the computer.
5
Slide the antenna cables out of the protective sleeve and away from the top of the FCM card.
6
Release the card by pushing the metal securing brackets away from the card until the card pops up
slightly.
7
Lift the card out of its connector.
1FCM card 2 antennae cables (2) 3 metal securing brackets (2)
1
3
2
Adding and Replacing Parts 121
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTICE: When installing this card, ensure that the two antenna cables are not under the card. The antenna
cables are designed to lie across the top of the FCM card and into the protective sleeve. Installing the card on top
of these antenna cables may cause damage to your computer. Also, do not install the FCM card in the WLAN card
connector. The FCM card is designed to work in the WWAN card connector. Installing the card in the wrong
connector may cause damage to your computer.
Internal Card With Bluetooth® Wireless Technology
CAUTION: Before performing the following procedures, read the safety instructions in your
Product Information
Guide
.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching a connector on the back panel of the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
If you ordered an internal card with Bluetooth wireless technology with your computer, it is already
installed.
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
1FCM card
1
122 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
NOTICE: Be careful when removing the card to avoid damaging the card, card cable, or surrounding components.
3
Remove the card from its compartment in the computer.
a
With the front of the computer facing you, slide the card to the right.
b
Rotate the card toward the front of the computer.
c
Lift the card out of the computer.
4
Disconnect the card from the cable connector.

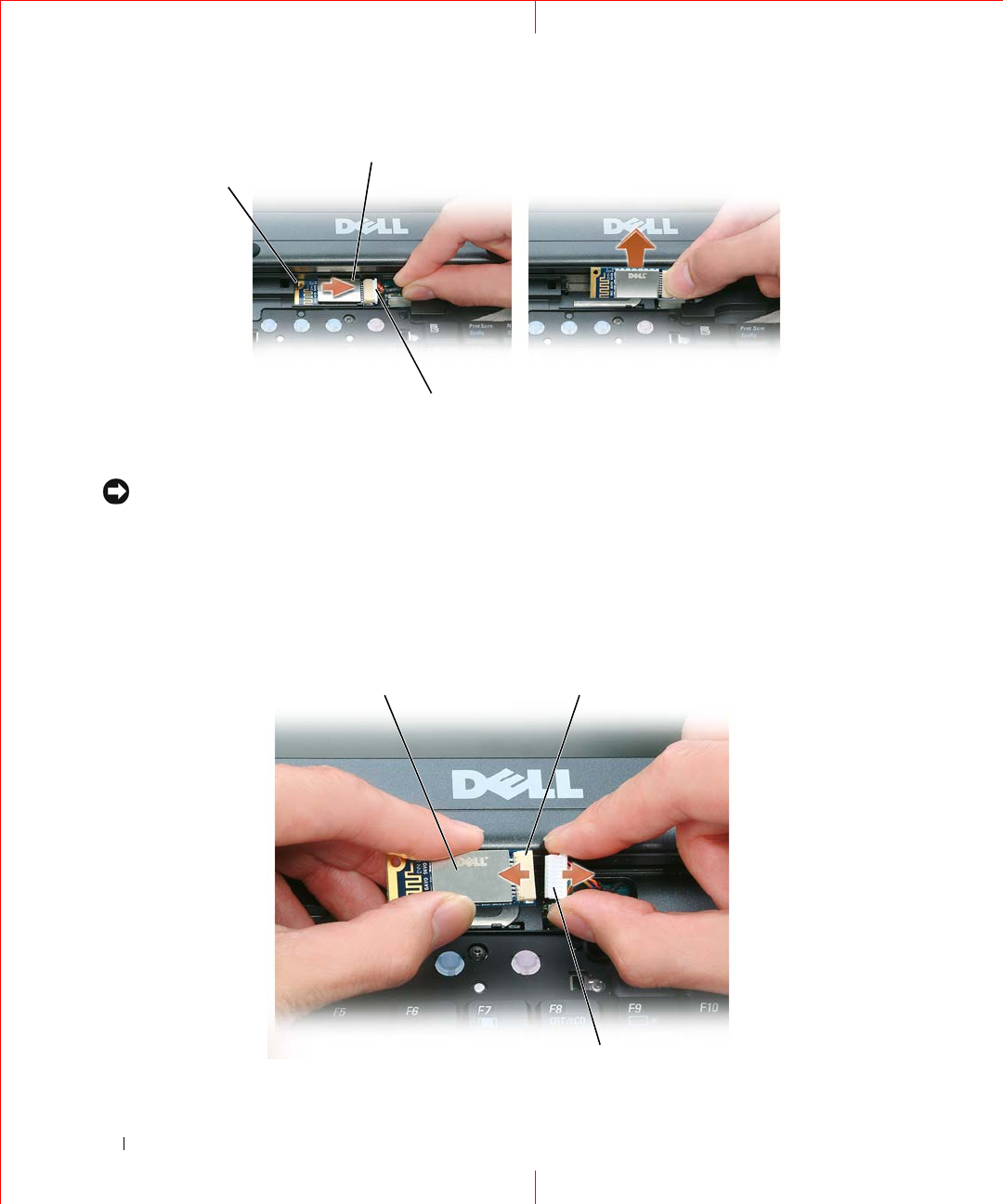

1metal tab 2card 3cable connector
3
2
1
3
21
Adding and Replacing Parts 123
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Coin-Cell Battery
CAUTION: Before performing the following procedures, follow the safety instructions in your
Product
Information Guide
.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching a connector on the back panel of the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
1
Follow the procedures in "Before You Begin" on page 103.
2
Remove the hinge cover (see "Hinge Cover" on page 108).
3
Remove the keyboard (see "Keyboard" on page 109).
4
Remove the battery cable connector from the connector on the system board.
5
Being careful not to break the plastic, slightly raise the corner of the mylar above the battery.
6
While holding the mylar, grasp the battery and pull it out of the battery compartment.
1card 2card connector 3cable connector

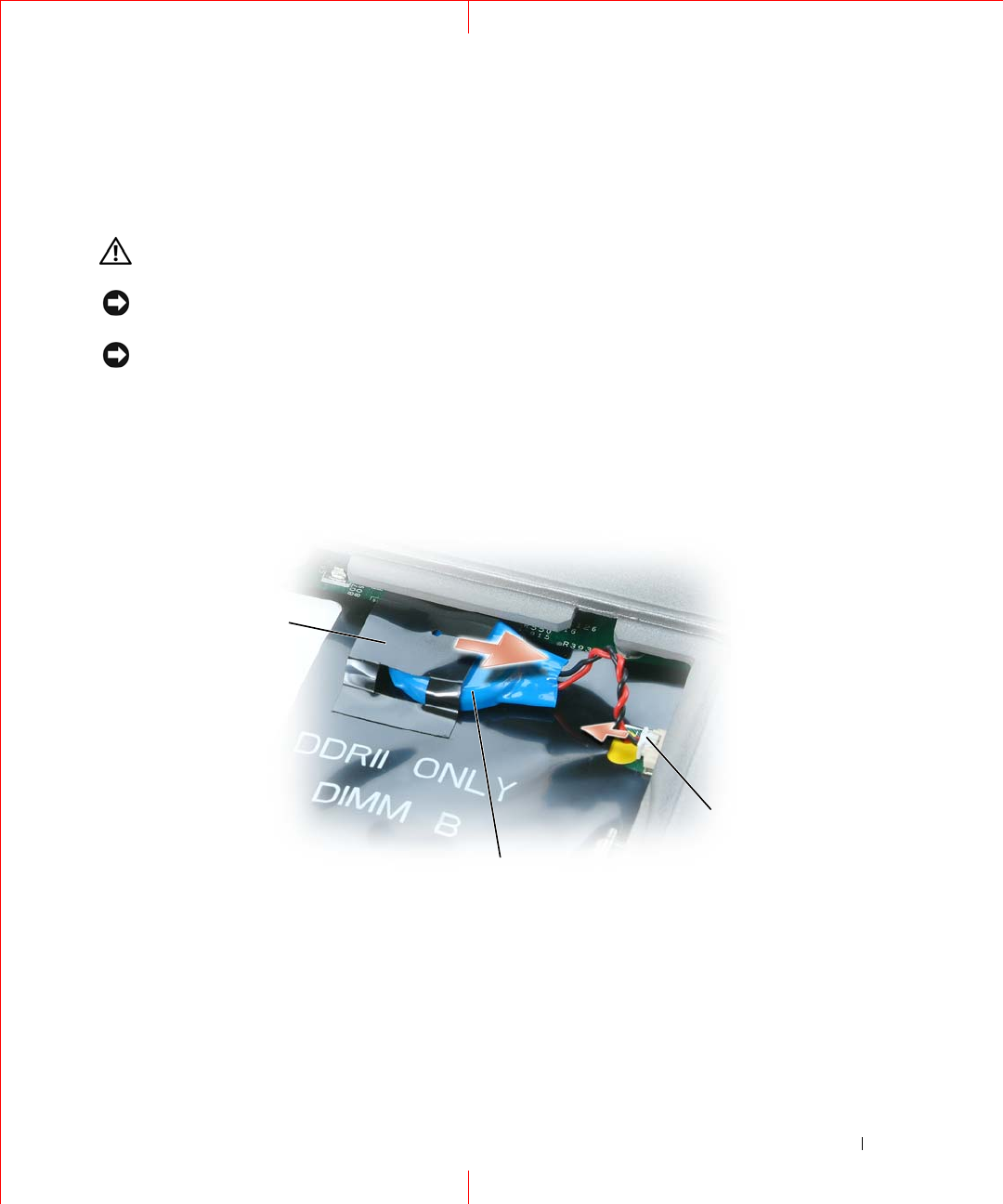

1mylar 2 coin-cell battery 3 battery cable connector
3
1
2
124 Adding and Replacing Parts
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Dell™ QuickSet 125
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\quickset.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Dell™ QuickSet
Dell™ QuickSet provides you with easy access to configure or view the following types of settings:
• Network connectivity
• Power management
•Display
• System information
Depending on what you want to do in Dell™ QuickSet, you can start it by either clicking, double-clicking,
or right-clicking the QuickSet icon in the Microsoft® Windows® taskbar. The taskbar is located in the
lower-right corner of your screen.
For more information about QuickSet, right-click the QuickSet icon and select Help.
126 Dell™ QuickSet
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\quickset.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Template Last Updated - 7/01/2005 Specifications 127
15
Specifications
Processor
Processor type Intel® Core™ Solo and Intel Core Duo
processors
L1 cache 64 KB (internal)
L2 cache Intel Core Solo: 2 MB (on die)
Intel Core Duo: 4 MB (on die)
External bus frequency 800 MHz
System Information
System chipset Intel 965PM
Data bus width 64 bits
DRAM bus width 64 bits
Processor address bus width 36 bits
Graphics bus internal
PC Card
CardBus controller OZ711
PC Card connector one (supports one Type I or Type II card)
Cards supported 3.3 V and 5 V
PC Card connector size 80 pins
Data width (maximum) PCMCIA 16 bits
CardBus 32 bits
Smart Card
Read/write capabilities reads and writes to all ISO 7816 1/2/3/4
microprocessor cards (T=0, T=1)
Cards supported 3 V and 5 V
Program technology supported Java cards
Interface speed 9600–115,200 BPS
128 Specifications
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
EMV level level 1 certified
WHQL certification PC/SC
Compatibility compatible within a PKI environment
Insert/eject cycles certified for up to 100,000 cycles
Memory
Memory module connector two user-accessible SODIMM sockets
Memory module capacities 512 MB, 1 GB, and 2 GB
Memory type 533/667 DDRII SDRAM
Minimum memory 512 MB
Maximum memory 4 GB
Ports and Connectors
Serial 9-pin connector; 16550C-compatible,
16-byte buffer connector
Video 15-hole connector
Audio microphone miniconnector; stereo
headphones/speakers miniconnector
USB three 4-pin USB 2.0-compliant connectors
IEEE 1394 4-pin serial connector
S-video TV-out 7-pin mini-DIN connector (optional S-video
to composite video adapter cable)
Modem RJ-11 support
Network adapter RJ-45 port
D-Dock standard D-dock connector for devices such
as D-Docks advanced port replicators and
expansion stations
Communications
Modem:
Ty p e
v.92 56K MDC
Controller
softmodem
Interface
Intel HDA bus
Network adapter 1-GB Ethernet LAN on system board
Smart Card
(continued)
Specifications 129
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Wireless internal WLAN, WWAN, and Bluetooth®
wireless support (if optional cards are
purchased)
Video
Video type discrete graphics on system board
Video controller nVIDIA Quadro FX 360 140M
Video memory nVIDIA Quadro FX 360 140M — 256 MB of
video memory (dedicated) at <512 MB of
system memory, or 512 MB of video memory
(dedicated plus shared) >= 1 GB of system
memory
LCD interface LVDS
TV support NTSC or PAL in S-video and composite
modes
Audio
Audio type High Definition Audio (Soft Audio)
Audio controller SigmaTel STAC9205
Stereo conversion 24-bit (stereo digital-to-analog);
24-bit (stereo analog-to-digital)
Interfaces:
Internal
PCI bus/HDA
External
microphone miniconnector; stereo
headphones/speakers miniconnector
Speaker two 4-ohm speakers
Internal speaker amplifier 2-W channel into 4 ohms
Volume controls keyboard shortcuts or program menus
Display
Type (active-matrix TFT) WXGA, WSXGA+, or WUXGA
Dimensions:
Height
207.0 mm max (8.15 inches)
Width
331.2 mm (12.94 inches)
Diagonal
390.57 mm (15.4 inches)
Communications
(continued)
130 Specifications
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Operating angle 0° (closed) to 180°
Viewing angles:
WXGA horizontal
40/40°
WXGA vertical
10/30°
WSXGA+ horizontal
65/65°
WSXGA+ vertical
50/50°
WUXGA horizontal
65/65°
WUXGA vertical
50/50°
Pixel pitch:
WXGA
0.2588 (15.4-inch display)
WSXGA+
0.1971 (15.4-inch display)
WUXGA
0.1725 (15.4-inch display)
Power consumption (
panel with
backlight) (typical):
WXGA
5.0 W (maximum)
WSXGA+
5.5 W (maximum)
WUXGA
6.0 W (maximum)
Controls brightness can be controlled through
keyboard shortcuts
Keyboard
Number of keys 87 (U.S. and Canada); 88 (Europe); 91
(Japan)
Key travel 2.7 mm ± 0.3 mm (0.11 inch ± 0.016 inch)
Key spacing 19.05 mm ± 0.3 mm (0.75 inch ± 0.012
inch)
Layout QWERTY/AZERTY/Kanji
Touch Pad
X/Y position resolution
(graphics table mode) 240 cpi
Size:
Width
64.88-mm (2.55-inch) sensor-active area
Height
48.88-mm (1.92-inch) rectangle
Display
(continued)
Specifications 131
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Track Stick
X/Y position resolution
(graphics table mode) 250 count/sec @ 100 gf
Size protrudes 0.5 mm higher than surrounding
keycaps
Battery
Ty p e :
9-cell lithium-ion battery
85 WHr
6-cell lithium-ion battery
56 WHr
Dimensions:
Depth
77.2 mm (3.08 inches)
Height
20.0 mm (0.80 inch)
Width
187.03 mm (7.48 inches)
Weight:
9-cell lithium-ion battery
0.485 kg (1.07 lb) (typical)
6-cell lithium-ion battery
0.355 kg (0.783 lb) (typical)
Voltage 11.1 VDC
Operating time varies depending on operating conditions
and can be significantly reduced under
certain power-intensive conditions (see
"Battery Performance" on page 29 for more
information)
Life span (approximate) 500 discharge/charge cycles
Temperature range:
Operating
0° to 35°C (32° to 95°F)
Storage
–40° to 65°C (–40° to 149°F)
AC Adapter
Input voltage 100–240 VAC
Input current (maximum) 1.5 A
Input frequency 50–60 Hz
Output current 4.62 A
Output power 90 W
Rated output voltage 19.5 VDC
132 Specifications
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Dimensions:
Height
27.94 mm (1.1 inches)
Width
58.42 mm (2.3 inches)
Depth
133.85 mm (5.25 inches)
Weight (with cables) 0.4 kg (0.9 lb)
Temperature range:
Operating
0° to 35°C (32° to 95°F)
Storage
–40° to 65°C (–40° to 149°F)
Physical
Height 35.7 mm (1.4 inches)
Width 361 mm (14.2 inches)
Depth 262.6 mm (10.3 inches)
Weight approximately 6.5 lb, depending on
configuration
Environmental
Temperature range:
Operating
0° to 35°C (32° to 95°F)
Storage
–40° to 65°C (–40° to 149°F)
Relative humidity (maximum):
Operating
10% to 90% (noncondensing)
Storage
5% to 95% (noncondensing)
Maximum vibration (using a
random-vibration spectrum that
simulates user environment):
Operating
0.66 GRMS
Storage
1.30 GRMS
Maximum shock (measured with
hard drive in head-parked position
and a 2-ms half-sine pulse):
Operating
122 G
Storage
163 G
Altitude (maximum):
AC Adapter
(continued)
Specifications 133
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Operating
–15.2 to 3048 m (–50 to 10,000 ft)
Storage
–15.2 to 10,668 m (–50 to 35,000 ft)
Environmental
(continued)
134 Specifications
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\specs.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Getting Help 135
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Getting Help
Obtaining Assistance
CAUTION: If you need to remove the computer covers, first disconnect the computer power and modem cables
from all electrical outlets.
If you experience a problem with your computer, you can complete the following steps to diagnose and
troubleshoot the problem:
1
See "Troubleshooting" on page 69 for information and procedures that pertain to the problem your
computer is experiencing.
2
See "Dell Diagnostics" on page 69 for procedures on how to run Dell Diagnostics.
3
Fill out the "Diagnostics Checklist" on page 139.
4
Use Dell's extensive suite of online services available at Dell Support (
support.dell.com
) for help with
installation and troubleshooting procedures. See "Online Services" on page 136 for a more extensive
list of Dell Support online.
5
If the preceding steps have not resolved the problem, see "Contacting Dell" on page 139.
NOTE: Call Dell Support from a telephone near or at the computer so that the support staff can assist you with any
necessary procedures.
NOTE: Dell's Express Service Code system may not be available in all countries.
When prompted by Dell's automated telephone system, enter your Express Service Code to route the call
directly to the proper support personnel. If you do not have an Express Service Code, open the
Dell
Accessories
folder, double-click the
Express Service Code
icon, and follow the directions.
For instructions on using the Dell Support, see "Technical Support and Customer Service" on page 135.
NOTE: Some of the following services are not always available in all locations outside the continental U.S. Call
your local Dell representative for information on availability.
Technical Support and Customer Service
Dell's support service is available to answer your questions about Dell™ hardware. Our support staff uses
computer-based diagnostics to provide fast, accurate answers.
To contact Dell's support service, see "Before You Call" on page 138, and then see the contact information
for your region or go to
support.dell.com
.
DellConnect
DellConnect is a simple online access tool that allows a Dell service and support associate to access your
computer through a broadband connection, diagnose your problem and repair it all under your supervision.
For more information, go to
support.dell.com
and click DellConnect.
136 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Online Services
You can learn about Dell products and services on the following websites:
www.dell.com
www.dell.com/ap
(Asian/Pacific countries only)
www.dell.com/jp
(Japan only)
www.euro.dell.com
(Europe only)
www.dell.com/la
(Latin American and Caribbean countries)
www.dell.ca
(Canada only)
You can access Dell Support through the following websites and e-mail addresses:
• Dell Support websites
support.dell.com
support.jp.dell.com
(Japan only)
support.euro.dell.com
(Europe only)
• Dell Support e-mail addresses
mobile_support@us.dell.com
support@us.dell.com
la-techsupport@dell.com (Latin America and Caribbean countries only)
apsupport@dell.com
(Asian/Pacific countries only)
• Dell Marketing and Sales e-mail addresses
apmarketing@dell.com
(Asian/Pacific countries only)
sales_canada@dell.com (Canada only)
• Anonymous file transfer protocol (FTP)
ftp.dell.com
Log in as user:
anonymous
, and use your e-mail address as your password.
AutoTech Service
Dell's automated support service—AutoTech—provides recorded answers to the questions most frequently
asked by Dell customers about their portable and desktop computers.
When you call AutoTech, use your touch-tone telephone to select the subjects that correspond to your
questions. For the telephone number to call for your region, see "Contacting Dell" on page 139.
Getting Help 137
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Automated Order-Status Service
To check on the status of any Dell products that you have ordered, you can go to
support.dell.com
,
or you
can call the automated order-status service. A recording prompts you for the information needed to locate
and report on your order. For the telephone number to call for your region, see "Contacting Dell" on
page 139.
Problems With Your Order
If you have a problem with your order, such as missing parts, wrong parts, or incorrect billing, contact Dell
for customer assistance. Have your invoice or packing slip handy when you call. For the telephone number to
call for your region, see "Contacting Dell" on page 139.
Product Information
If you need information about additional products available from Dell, or if you would like to place an order,
visit the Dell website at
www.dell.com
. For the telephone number to call for your region or to speak to a sales
specialist, see "Contacting Dell" on page 139.
Returning Items for Warranty Repair or Credit
Prepare all items being returned, whether for repair or credit, as follows:
1
Call Dell to obtain a Return Material Authorization Number, and write it clearly and prominently on
the outside of the box.
For the telephone number to call for your region, see "Contacting Dell" on page 139.
2
Include a copy of the invoice and a letter describing the reason for the return.
3
Include a copy of the Diagnostics Checklist (see "Diagnostics Checklist" on page 139), indicating the
tests that you have run and any error messages reported by the Dell Diagnostics (see "Dell Diagnostics"
on page 69.
4
Include any accessories that belong with the item(s) being returned (power cables, software floppy
disks, guides, and so on) if the return is for credit.
5
Pack the equipment to be returned in the original (or equivalent) packing materials.
You are responsible for paying shipping expenses. You are also responsible for insuring any product returned,
and you assume the risk of loss during shipment to Dell. Collect On Delivery (C.O.D.) packages are not
accepted.
Returns that are missing any of the preceding requirements will be refused at Dell’s receiving dock and
returned to you.
138 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Before You Call
NOTE: Have your Express Service Code ready when you call. The code helps Dell’s automated-support telephone
system direct your call more efficiently. You may also be asked for your Service Tag (located on the back or bottom
of your computer).
Remember to fill out the Diagnostics Checklist (see "Diagnostics Checklist" on page 139). If possible, turn
on your computer before you call Dell for assistance and call from a telephone at or near the computer. You
may be asked to type some commands at the keyboard, relay detailed information during operations, or try
other troubleshooting steps possible only at the computer itself. Ensure that the computer documentation
is available.
CAUTION: Before working inside your computer, follow the safety instructions in your
Product Information
Guide
.
Getting Help 139
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Contacting Dell
You can contact Dell through the Internet and by phone:
• For support through the web, go to
support.dell.com
.
Diagnostics Checklist
Name:
Date:
Address:
Phone number:
Service Tag (bar code on the back or bottom of the computer):
Express Service Code:
Return Material Authorization Number (if provided by Dell support technician):
Operating system and version:
Devices:
Expansion cards:
Are you connected to a network? Yes No
Network, version, and network adapter:
Programs and versions:
See your operating system documentation to determine the contents of the system’s start-up
files. If the computer is connected to a printer, print each file. Otherwise, record the contents
of each file before calling Dell.
Error message, beep code, or diagnostic code:
Description of problem and troubleshooting procedures you performed:
140 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
• For worldwide support through the web, use the
Choose A Country/Region
menu near the bottom of
the page, or see the web addresses listed in the following table.
• For support by e-mail, see the e-mail addresses listed in the following table.
NOTE: Toll-free numbers are for use within the country for which they are listed.
• For support by phone, use the phone numbers and codes provided in the following table. If you need
assistance in determining which codes to use, contact a local or an international operator.
NOTE: The contact information provided was deemed correct at the time that this document went to print and is
subject to change.
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Anguilla Online Support www.dell.com/ai
E-mail Address la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 800-335-0031
Antigua and Barbuda Online Support
www.dell.com.ag
la-techsupport@dell.com
Technical Support, Customer Service, Sales
1-800-805-5924
Aomen
Country Code: 853
Technical Support
toll-free: 0800-105
Customer Service (Xiamen, China)
34 160 910
Transaction Sales (Xiamen, China)
29 693 115
Argentina (Buenos Aires)
International Access Code: 00
Country Code: 54
City Code: 11
Online Support www.dell.com.ar
E-mail for Desktops and Portables la-techsupport@dell.com
E-mail for Servers and EMC
®
Storage
Products
la_enterprise@dell.com
Customer Service
toll-free: 0-800-444-0730
Technical Support – Dell PowerApp™, Dell
PowerEdge™, Dell PowerConnect™, and
Dell PowerVault™
toll-free: 0-800-222-0154
Technical Support Services
toll-free: 0-800-444-0724
Sales
0-810-444-3355
Aruba Online Support www.dell.com.aw
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 800-1578
Getting Help 141
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Australia (Sydney)
International Access Code: 0011
Country Code: 61
City Code: 2
Online Support support.ap.dell.com
support.ap.dell.com/contactus
Technical Support
Home and Home Office
toll-free: 1300-655-533
Medium and Large Business
toll-free: 1800-633-559
Small Business, Education, Local
Government
toll-free: 1800-060-889
Customer Service
toll-free: 1300-662-196
Austria (Vienna)
International Access Code: 900
Country Code: 43
City Code: 1
Online Support support.euro.dell.com
tech_support_central_europe@dell.co
m
Home/Small Business Sales
08 20 24 05 30 00
Home/Small Business Fax
08 20 24 05 30 49
Home/Small Business Customer Service
08 20 24 05 30 14
Home/Small Business Support
08 20 24 05 30 17
Preferred Accounts/Corporate Customer
Service
08 20 24 05 30 16
Preferred Accounts/Corporate Support
08 20 24 05 30 17
Switchboard
08 20 24 05 30 00
Bahamas Online Support www.dell.com/bs
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-874-3038
Barbados Online Support www.dell.com/bb
la-techsupport@dell.com
Technical Support, Customer Service, Sales
1-800-534-3142
Belgium (Brussels)
International Access Code: 00
Country Code: 32
City Code: 2
Online Support support.euro.dell.com
General Support
024819288
General Support Fax
024819295
Customer Service
027131565
Corporate Sales
024819100
Fax
024819299
Switchboard
024819100
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
142 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Bermuda Online Support www.dell.com/bm
la-techsupport@dell.com
Technical Support, Customer Service, Sales
1-877-890-0751
Bolivia Online Support www.dell.com/bo
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 800-10-0238
Brazil
International Access Code: 00
Country Code: 55
City Code: 51
Online Support www.dell.com/br
BR_TechSupport@dell.com
Customer Service and Tech Support
0800 970 3355
Technical Support Fax
51 2104 5470
Customer Service Fax
51 2104 5480
Sales
0800 970 3390
British Virgin Islands Technical Support, Customer Service, Sales
toll-free: 1-866-278-6820
Brunei
Country Code: 673
Technical Support (Penang, Malaysia)
604 633 4966
Customer Service (Penang, Malaysia)
604 633 3101
or toll-free: 801 1012
Transaction Sales (Penang, Malaysia)
604 633 3101
or toll-free: 801 1012
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 143
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Canada (North York, Ontario)
International Access Code: 011
Online Order Status www.dell.ca/ostatus
Online Support support.ca.dell.com
AutoTech (automated Hardware and
Warranty Support)
toll-free: 1-800-247-9362
Customer Service
Home/Home Office
toll-free: 1-800-847-4096
Small Business
toll-free: 1-800-906-3355
Medium/Large Business, Government,
Education
toll-free: 1-800-387-5757
Hardware Warranty Phone Support
Computers for Home/Home Office
toll-free: 1-800-847-4096
Computers for Small/Medium/Large
Business, Government
toll-free: 1-800-387-5757
Printers, Projectors, Televisions, Handheld,
Digital Jukebox, and Wireless
1-877-335-5767
Sales
Home and Home Office Sales
toll-free: 1-800-999-3355
Small Business
toll-free: 1-800-387-5752
Medium/Large Business, Government
toll-free: 1-800-387-5755
Spare Parts and Extended Service
1 866 440 3355
Cayman Islands Online Support la-techsupport@dell.com
Technical Support, Customer Service, Sales
1-877-262-5415
Chile (Santiago)
Country Code: 56
City Code: 2
Online Support
www.dell.com/cl
la-techsupport@dell.com
Sales and Customer Support
toll-free: 1230-020-3397
or 800-20-1385
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
144 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
China (Xiamen)
Country Code: 86
City Code: 592
Online Support support.dell.com.cn
Technical Support E-mail
support.dell.com.cn/email
Customer Service E-mail customer_cn@dell.com
Technical Support Fax
592 818 1350
Technical Support – Dell™ Dimension™
and Dell Inspiron™
toll-free: 800 858 2969
Technical Support – Dell OptiPlex™, Dell
Latitude™, and Dell Precision™
toll-free: 800 858 0950
Technical Support – Servers and Storage
toll-free: 800 858 0960
Technical Support – Projectors, PDAs,
Switches, Routers, etc.
toll-free: 800 858 2920
Technical Support – Printers
toll-free: 800 858 2311
Customer Service
toll-free: 800 858 2060
Customer Service Fax
592 818 1308
Home and Small Business
toll-free: 800 858 2222
Preferred Accounts Division
toll-free: 800 858 2557
Large Corporate Accounts GCP
toll-free: 800 858 2055
Large Corporate Accounts Key Accounts
toll-free: 800 858 2628
Large Corporate Accounts North
toll-free: 800 858 2999
Large Corporate Accounts North
Government and Education
toll-free: 800 858 2955
Large Corporate Accounts East
toll-free: 800 858 2020
Large Corporate Accounts East
Government and Education
toll-free: 800 858 2669
Large Corporate Accounts Queue Team
toll-free: 800 858 2572
Large Corporate Accounts South
toll-free: 800 858 2355
Large Corporate Accounts West
toll-free: 800 858 2811
Large Corporate Accounts Spare Parts
toll-free: 800 858 2621
Colombia Online Support www.dell.com/co
la-techsupport@dell.com
Technical Support, Customer Service, Sales
01-800-915-4755
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 145
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Costa Rica Online Support www.dell.com/cr
la-techsupport@dell.com
Technical Support, Customer Service, Sales
0800-012-0231
Czech Republic (Prague)
International Access Code: 00
Country Code: 420
Online Support support.euro.dell.com
czech_dell@dell.com
Technical Support
22537 2727
Customer Service
22537 2707
Fax
22537 2714
Technical Fax
22537 2728
Switchboard
22537 2711
Denmark (Copenhagen)
International Access Code: 00
Country Code: 45
Online Support support.euro.dell.com
Technical Support
7023 0182
Customer Service – Relational
7023 0184
Home/Small Business Customer Service
3287 5505
Switchboard – Relational
3287 1200
Switchboard Fax – Relational
3287 1201
Switchboard – Home/Small Business
3287 5000
Switchboard Fax – Home/Small Business
3287 5001
Dominica Online Support www.dell.com/dm
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-278-6821
Dominican Republic Online Support www.dell.com/do
la-techsupport@dell.com
Technical Support, Customer Service, Sales
1-800-156-1588
Ecuador Online Support www.dell.com/ec
la-techsupport@dell.com
Technical Support, Customer Service, Sales
(calling from Quito)
toll-free: 999-119-877-655-3355
Technical Support, Customer Service, Sales
(calling from Guayaquil)
toll-free: 1800-999-119-877-655-3355
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
146 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
El Salvador Online Support www.dell.com/sv
la-techsupport@dell.com
Technical Support, Customer Service, Sales
800-6132
Finland (Helsinki)
International Access Code: 990
Country Code: 358
City Code: 9
Online Support support.euro.dell.com
fi_support@dell.com
Technical Support
0207 533 555
Customer Service
0207 533 538
Switchboard
0207 533 533
Fax
0207 533 530
Sales under 500 employees
0207 533 540
Sales over 500 employees
0207 533 533
France (Paris) (Montpellier)
International Access Code: 00
Country Code: 33
City Codes: (1) (4)
Online Support support.euro.dell.com
Home and Small Business
Technical Support
0825 387 270
Customer Service
0825 823 833
Switchboard
0825 004 700
Switchboard (calls from outside of France)
04 99 75 40 00
Sales
0825 004 700
Fax
0825 004 701
Fax (calls from outside of France)
04 99 75 40 01
Corporate
Technical Support
0825 004 719
Customer Service
0825 338 339
Switchboard
01 55 94 71 00
Sales
01 55 94 71 00
Fax
01 55 94 71 01
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 147
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Germany (Frankfurt)
International Access Code: 00
Country Code: 49
City Code: 69
Online Support support.euro.dell.com
tech_support_central_europe@dell.co
m
Technical Support
069 9792-7200
Home/Small Business Customer Service
0180-5-224400
Global Segment Customer Service
069 9792-7320
Preferred Accounts Customer Service
069 9792-7320
Large Accounts Customer Service
069 9792-7320
Public Accounts Customer Service
069 9792-7320
Switchboard
069 9792-7000
Greece
International Access Code: 00
Country Code: 30
Online Support support.euro.dell.com
Technical Support
00800-44 14 95 18
Gold Service Technical Support
00800-44 14 00 83
Switchboard
2108129810
Gold Service Switchboard
2108129811
Sales
2108129800
Fax
2108129812
Grenada Online Support www.dell.com/gd
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-540-3355
Guatemala Online Support www.dell.com/gt
la-techsupport@dell.com
Technical Support, Customer Service, Sales
1-800-999-0136
Guyana Online Support la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-877-270-4609
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
148 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Hong Kong
International Access Code: 001
Country Code: 852
Online Support support.ap.dell.com
support.dell.com.cn/email
Technical Support – Dimension and
Inspiron
00852-2969 3188
Technical Support – OptiPlex, Latitude,
and Dell Precision
00852-2969 3191
Technical Support – Servers and Storage
00852-2969 3196
Technical Support – Projectors, PDAs,
Switches, Routers, etc.
00852-3416 0906
Customer Service
00852-3416 0910
Large Corporate Accounts
00852-3416 0907
Global Customer Programs
00852-3416 0908
Medium Business Division
00852-3416 0912
Home and Small Business Division
00852-2969 3105
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 149
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
India Online Support
support.ap.dell.com
Portable and Desktop Support
Desktop Support E-mail india_support_desktop@dell.com
Portable Support E-mail india_support_notebook@dell.com
Phone Numbers
080-25068032 or 080-25068034
or your city STD code + 60003355
or toll-free: 1-800-425-8045
Server Support
E-mail india_support_Server@dell.com
Phone Numbers
080-25068032 or 080-25068034
or your city STD code + 60003355
or toll-free: 1800 425 8045
Gold Support Only
E-mail
eec_ap@dell.com
Phone Numbers
080-25068033
or your city STD code + 60003355
or toll-free: 1-800-425-9045
Customer Service
Home and Small Business
India_care_HSB@dell.com
toll-free: 1800-4254051
Large Corporate Accounts
India_care_REL@dell.com
toll-free: 1800-4252067
Sales
Large Corporate Accounts
1600 33 8044
Home and Small Business
1600 33 8046
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
150 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Ireland (Cherrywood)
International Access Code: 00
Country Code: 353
City Code: 1
Online Support support.euro.dell.com
dell_direct_support@dell.com
Technical Support
Business computers
1850 543 543
Home computers
1850 543 543
At Home Support
1850 200 889
Sales
Home
1850 333 200
Small Business
1850 664 656
Medium Business
1850 200 646
Large Business
1850 200 646
Sales E-mail
Dell_IRL_Outlet@dell.com
Customer Service
Home and Small Business
01 204 4014
Business (greater than 200 employees)
1850 200 982
General
Fax/Sales Fax
01 204 0103
Switchboard
01 204 4444
U.K. Customer Service (dial within U.K.
only)
0870 906 0010
Corporate Customer Service (dial within
U.K. only)
0870 907 4499
U.K. Sales (dial within U.K. only)
0870 907 4000
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 151
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Italy (Milan)
International Access Code: 00
Country Code: 39
City Code: 02
Online Support support.euro.dell.com
Home and Small Business
Technical Support
02 577 826 90
Customer Service
02 696 821 14
Fax
02 696 821 13
Switchboard
02 696 821 12
Corporate
Technical Support
02 577 826 90
Customer Service
02 577 825 55
Fax
02 575 035 30
Switchboard
02 577 821
Jamaica Online Support la-techsupport@dell.com
Technical Support, Customer Service, Sales
(dial from within Jamaica only)
1-800-440-9205
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
152 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Japan (Kawasaki)
International Access Code: 001
Country Code: 81
City Code: 44
Online Support support.jp.dell.com
Technical Support – Dimension and
Inspiron
toll-free: 0120-198-226
Technical Support outside of Japan –
Dimension and Inspiron
81-44-520-1435
Technical Support – Dell Precision,
OptiPlex, and Latitude
toll-free: 0120-198-433
Technical Support outside of Japan – Dell
Precision, OptiPlex, and Latitude
81-44-556-3894
Technical Support – Dell PowerApp, Dell
PowerEdge, Dell PowerConnect, and Dell
PowerVault
toll-free: 0120-198-498
Technical Support outside of Japan –
PowerApp, PowerEdge, PowerConnect, and
PowerVault
81-44-556-4162
Technical Support – Projectors, PDAs,
Printers, Routers
toll-free: 0120-981-690
Technical Support outside of Japan –
Projectors, PDAs, Printers, Routers
81-44-556-3468
Faxbox Service
044-556-3490
24-Hour Automated Order Status Service
044-556-3801
Customer Service
044-556-4240
Business Sales Division – up to 400
employees
044-556-1465
Preferred Accounts Division Sales – over
400 employees
044-556-3433
Public Sales – government agencies,
educational institutions, and medical
institutions
044-556-5963
Global Segment Japan
044-556-3469
Individual User
044-556-1657
Individual User Online Sales
044-556-2203
Individual User Real Site Sales
044-556-4649
Switchboard
044-556-4300
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 153
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Korea (Seoul)
International Access Code: 001
Country Code: 82
City Code: 2
Online Support support.ap.dell.com
Technical Support, Customer Service
toll-free: 080-200-3800
Technical Support – Dimension, PDA,
Electronics, and Accessories
toll-free: 080-200-3801
Sales
toll-free: 080-200-3600
Fax
2194-6202
Switchboard
2194-6000
Latin America Customer Technical Support (Austin,
Texas, U.S.A.)
512 728-4093
Customer Service (Austin, Texas, U.S.A.)
512 728-3619
Fax (Technical Support and Customer
Service) (Austin, Texas, U.S.A.)
512 728-3883
Sales (Austin, Texas, U.S.A.)
512 728-4397
Sales Fax (Austin, Texas, U.S.A.)
512 728-4600
or 512 728-3772
Luxembourg
International Access Code: 00
Country Code: 352
Online Support support.euro.dell.com
Support
3420808075
Home/Small Business Sales
+32 (0)2 713 15 96
Corporate Sales
26 25 77 81
Customer Service
+32 (0)2 481 91 19
Fax
26 25 77 82
Malaysia (Penang)
International Access Code: 00
Country Code: 60
City Code: 4
Online Support support.ap.dell.com
Technical Support – Dell Precision,
OptiPlex, and Latitude
toll-free: 1 800 880 193
Technical Support – Dimension, Inspiron,
and Electronics and Accessories
toll-free: 1 800 881 306
Technical Support – PowerApp, PowerEdge,
PowerConnect, and PowerVault
toll-free: 1800 881 386
Customer Service
toll-free:
1800 881 306 (option 6)
Tran sact ion S ales
toll-free: 1 800 888 202
Corporate Sales
toll-free: 1 800 888 213
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
154 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Mexico
International Access Code: 00
Country Code: 52
Online Support www.dell.com/mx
la-techsupport@dell.com
Technical Support
001-866-563-4425
Sales
50-81-8800
or 001-800-888-3355
Customer Service
001-877-384-8979
or 001-877-269-3383
Main
50-81-8800
or 001-800-888-3355
or 001-866-851-1754
Montserrat Online Support la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-278-6822
Netherlands Antilles Online Support la-techsupport@dell.com
Technical Support, Customer Service, Sales
001-800-882-1519
Netherlands (Amsterdam)
International Access Code: 00
Country Code: 31
City Code: 20
Online Support support.euro.dell.com
Technical Support
020 674 45 00
Technical Support Fax
020 674 47 66
Home/Small Business Customer Service
020 674 42 00
Relational Customer Service
020 674 4325
Home/Small Business Sales
020 674 55 00
Relational Sales
020 674 50 00
Home/Small Business Sales Fax
020 674 47 75
Relational Sales Fax
020 674 47 50
Switchboard
020 674 50 00
Switchboard Fax
020 674 47 50
New Zealand
International Access Code: 00
Country Code: 64
Online Support support.ap.dell.com
support.ap.dell.com/contactus
Technical Support, Customer Service, Sales
0800 441 567
Nicaragua Online Support
www.dell.com/ni
la-techsupport@dell.com
Technical Support, Customer Service, Sales
001-800-220-1377
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 155
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Norway (Lysaker)
International Access Code: 00
Country Code: 47
Online Support support.euro.dell.com
Technical Support
671 16882
Relational Customer Service
671 17575
Home/Small Business Customer Service
23162298
Switchboard
671 16800
Fax Switchboard
671 16865
Panama Online Support
www.dell.com/pa
la-techsupport@dell.com
Technical Support, Customer Service, Sales
011-800-507-1264
Peru Online Support
www.dell.com/pe
la-techsupport@dell.com
Technical Support, Customer Service, Sales
0800-50-669
Poland (Warsaw)
International Access Code: 011
Country Code: 48
City Code: 22
Online Support support.euro.dell.com
pl_support_tech@dell.com
Customer Service Phone
57 95 700
Customer Service
57 95 999
Sales
57 95 999
Customer Service Fax
57 95 806
Reception Desk Fax
57 95 998
Switchboard
57 95 999
Portugal
International Access Code: 00
Country Code: 351
Online Support support.euro.dell.com
Technical Support
707200149
Customer Service
800 300 413
Sales
800 300 410 or 800 300 411 or
800 300 412 or 21 422 07 10
Fax
214240112
Puerto Rico Online Support
www.dell.com/pr
la-techsupport@dell.com
Technical Support
toll-free: 1-866-390-4695
or 1-866-851-1760
Customer Service and Sales
1-877-537-3355
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
156 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
St. Kitts and Nevis Online Support www.dell.com/kn
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-540-3355
St. Lucia Online Support www.dell.com/lc
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-464-4352
St. Vincent and the Grenadines Online Support www.dell.com/vc
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-866-464-4353
Singapore (Singapore)
International Access Code: 005
Country Code: 65
NOTE: The phone numbers in this section
should be called from within Singapore or
Malaysia only.
Online Support support.ap.dell.com
Technical Support – Dimension, Inspiron,
and Electronics and Accessories
toll-free: 1 800 394 7430
Technical Support – OptiPlex, Latitude,
and Dell Precision
toll-free: 1 800 394 7488
Technical Support – PowerApp, PowerEdge,
PowerConnect, and PowerVault
toll-free: 1 800 394 7478
Customer Service
toll-free:
1 800 394 7430 (option 6)
Tran sact ion S ales
toll-free: 1 800 394 7412
Corporate Sales
toll-free: 1 800 394 7419
Slovakia (Prague)
International Access Code: 00
Country Code: 421
Online Support support.euro.dell.com
czech_dell@dell.com
Technical Support
02 5441 5727
Customer Service
420 22537 2707
Fax
02 5441 8328
Tech Fax
02 5441 8328
Switchboard (Sales)
02 5441 7585
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 157
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
South Africa (Johannesburg)
International Access Code:
09/091
Country Code: 27
City Code: 11
Online Support support.euro.dell.com
dell_za_support@dell.com
Gold Queue
011 709 7713
Technical Support
011 709 7710
Customer Service
011 709 7707
Sales
011 709 7700
Fax
011 706 0495
Switchboard
011 709 7700
Southeast Asian and Pacific
Countries
Technical Support, Customer Service, and
Sales (Penang, Malaysia)
604 633 4810
Spain (Madrid)
International Access Code: 00
Country Code: 34
City Code: 91
Online Support support.euro.dell.com
Home and Small Business
Technical Support
902 100 130
Customer Service
902 118 540
Sales
902 118 541
Switchboard
902 118 541
Fax
902 118 539
Corporate
Technical Support
902 100 130
Customer Service
902 115 236
Switchboard
917229200
Fax
917229583
Sweden (Upplands Vasby)
International Access Code: 00
Country Code: 46
City Code: 8
Online Support support.euro.dell.com
Technical Support
0859005199
Relational Customer Service
0859005642
Home/Small Business Customer Service
0858770527
Employee Purchase Program (EPP) Support
020 140 14 44
Technical Support Fax
0859005594
Sales
08 587 705 81
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
158 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Switzerland (Geneva)
International Access Code: 00
Country Code: 41
City Code: 22
Online Support support.euro.dell.com
Tech_support_central_Europe@dell.co
m
Technical Support – Home and Small
Business
0844 811 411
Technical Support – Corporate
0844 822 844
Customer Service – Home and Small
Business
0848 802 202
Customer Service – Corporate
0848 821 721
Main
0848 335 599
Fax
022 799 01 90
Sales
022 799 01 01
Taiw a n
International Access Code: 002
Country Code: 886
Online Support support.ap.dell.com
support.dell.com.cn/email
Technical Support – OptiPlex, Latitude,
Inspiron, Dimension, and Electronics and
Accessories
toll-free: 0080 186 1011
Technical Support – Servers and Storage
toll-free: 0080 160 1256
Customer Service
toll-free:
0080 160 1250
(option 5)
Tran sact ion S ales
toll-free: 0080 165 1228
Corporate Sales
toll-free: 0080 165 1227
Thailand
International Access Code: 001
Country Code: 66
Online Support support.ap.dell.com
Technical Support (OptiPlex, Latitude, and
Dell Precision)
toll-free: 1800 0060 07
Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)
toll-free: 1800 0600 09
Customer Service
toll-free:
1800 006 007
(option 7)
Corporate Sales
toll-free: 1800 006 009
Tran sact ion S ales
toll-free: 1800 006 006
Trinidad/Tobago Online Support www.dell.com/tt
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-888-799-5908
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 159
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Turks and Caicos Islands Online Support www.dell.com/tc
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-877-441-4735
U.K. (Bracknell)
International Access Code: 00
Country Code: 44
City Code: 1344
Online Support support.euro.dell.com
dell_direct_support@dell.com
Customer Service Online support.euro.dell.com/uk/en/ECare/form/home.asp
Sales
Home and Small Business Sales
0870 907 4000
Corporate/Public Sector Sales
01344 860 456
Customer Service
Home and Small Business
0870 906 0010
Corporate
01344 373 185
Preferred Accounts (500–5000 employees)
0870 906 0010
Global Accounts
01344 373 186
Central Government
01344 373 193
Local Government & Education
01344 373 199
Health
01344 373 194
Technical Support
Corporate/Preferred Accounts/PCA (1000+
employees)
0870 908 0500
Other Dell Products
0870 353 0800
General
Home and Small Business Fax
0870 907 4006
Uruguay Online Support www.dell.com/uy
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 000-413-598-2521
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
160 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
U.S.A. (Austin, Texas)
International Access Code: 011
Country Code: 1
Dell Services for the Deaf, Hard-of-Hearing,
or Speech-Impaired
toll-free: 1-877-DELLTTY
(1-877-335-5889)
Fax
toll-free: 1-800-727-8320
Technical Support
support.dell.com
Home and Home Office
toll-free: 1-800-624-9896
Portable and Desktop AutoTech
toll-free: 1-800-247-9362
Small Business
toll-free: 1-800-456-3355
Medium and Large Business
toll-free: 1-877-671-3355
State and Local Government
toll-free: 1-800-981-3355
Federal Government
toll-free: 1-800-727-1100
Healthcare
toll-free: 1-800-274-1550
K-12 Education
toll-free: 1-888-977-3355
Higher Education
toll-free: 1-800-274-7799
Printers, Projectors, PDAs, and MP3 Players
toll-free: 1-877-459-7298
Customer Service
toll-free: 1-800-624-9897
Automated Order Status
toll-free: 1-800-433-9014
Small Business
toll-free: 1-800-456-3355
Medium and Large Business
toll-free: 1-877-671-3355
State and Local Government
toll-free: 1-800-981-3355
Federal Government
toll-free: 1-800-727-1100
Healthcare
toll-free: 1-800-274-1550
K-12 Education
toll-free: 1-888-977-3355
Higher Education
toll-free: 1-800-274-7799
Employee Purchase Program (EPP)
toll-free: 1-800-695-8133
Financial Services www.dellfinancialservices.com
Leases and Loans
toll-free: 1-877-577-3355
Dell Preferred Accounts (DPA)
toll-free: 1-800-283-2210
Sales
1-800-289-3355 or 1-800-879-3355
Dell Outlet Store
toll-free: 1-888-798-7561
Software and Peripherals Sales
toll-free: 1-800-671-3355
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
Getting Help 161
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
U.S. Virgin Islands Online Support
www.dell.com/vi
la-techsupport@dell.com
Technical Support, Customer Service, Sales
toll-free: 1-877-702-4360
Venezuela Online Support www.dell.com/ve
la-techsupport@dell.com
Technical Support, Customer Service, Sales
0800-100-4752
Country (City)
International Access Code
Country Code
City Code
Service Type Area Codes,
Local Numbers, and
Toll-Free Numbers
Web and E-mail Address
162 Getting Help
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\help.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Appendix 163
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\appendix.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Appendix
Cleaning Your Computer
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product
Information Guide
.
Computer, Keyboard, and Display
CAUTION: Before you clean your computer, disconnect the computer from the electrical outlet and remove any
installed batteries. Clean your computer with a soft cloth dampened with water. Do not use liquid or aerosol
cleaners, which may contain flammable substances.
• Use a can of compressed air to remove dust from between the keys on the keyboard.
NOTICE: To avoid damaging the computer or display, do not spray cleaning solution directly onto the display. Only
use products specifically designed for cleaning displays, and follow the instructions that are included with the
product.
• Moisten a soft, lint-free cloth with either water or a display cleaner, and wipe the display until it is
clean.
NOTICE: To prevent damage to the antiglare coating, do not wipe the display with soap or alcohol.
• Moisten a soft, lint-free cloth with water and wipe the computer and keyboard. Do not allow water
from the cloth to seep between the touch pad and the surrounding palm rest.
• To clean your monitor screen, lightly dampen a soft, clean cloth with water. You can also use a special
screen-cleaning tissue or solution suitable for the monitor’s antistatic coating.
• Wipe the keyboard, computer, and monitor plastics with a soft cleaning cloth moistened with a
solution of three parts water and one part dishwashing detergent.
Do not soak the cloth or let water drip inside your computer or keyboard.
Touch Pad
1
Shut down your computer.
2
Disconnect any attached devices from the computer and from their electrical outlets.
3
Remove any installed batteries (see "Replacing the Battery" on page 33).
4
Moisten a soft, lint-free cloth with water, and wipe it gently across the surface of the touch pad. Do not
allow water from the cloth to seep between the touch pad and the surrounding palm rest.
Mouse
NOTICE: Disconnect the mouse from the computer before cleaning the mouse
If your screen cursor skips or moves abnormally, clean the mouse.
164 Appendix
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\appendix.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Cleaning a Non-Optical Mouse
1
Clean the outside casing of the mouse with a cloth moistened with a mild cleaning solution.
2
Turn the retainer ring on the underside of your mouse counterclockwise, and then remove the ball.
3
Wipe the ball with a clean, lint-free cloth.
4
Blow carefully into the ball cage or use a can of compressed air to dislodge dust and lint.
5
If the rollers inside the ball cage are dirty, clean the rollers with a cotton swab moistened lightly with
isopropyl alcohol.
6
Recenter the rollers in their channels if they are misaligned. Ensure that fluff from the swab is not left
on the rollers.
7
Replace the ball and retainer ring, and turn the retainer ring clockwise until it clicks into place.
Cleaning an Optical Mouse
Clean the outside casing of the mouse with a cloth moistened with a mild cleaning solution.
Floppy Drive
NOTICE: Do not attempt to clean drive heads with a swab. You might accidentally misalign the heads which
prevents the drive from operating.
Clean your floppy drive using a commercially available cleaning kit. These kits contain pretreated
floppies to remove contaminants that accumulate during normal operation.
CDs and DVDs
NOTICE: Always use compressed air to clean the lens in the CD/DVD drive, and follow the instructions that come
with the compressed-air product. Never touch the lens in the drive.
If you notice problems, such as skipping, with the playback quality of your CDs or DVDs, try cleaning
the discs.
1
Hold the disc by its outer edge. You can also touch the inside edge of the center hole.
NOTICE: To avoid damaging the surface, do not wipe in a circular motion around the disc.
2
With a soft, lint-free cloth, gently wipe the bottom of the disc (the unlabeled side) in a straight line
from the center to the outer edge of the disc.
For stubborn dirt, try using water or a diluted solution of water and mild soap. You can also purchase
commercial products that clean discs and provide some protection from dust, fingerprints, and
scratches. Cleaning products for CDs are also safe to use on DVDs.
Appendix 165
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\appendix.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Macrovision Product Notice
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
FCC Notice (U.S. Only)
FCC Class B
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the manufacturer’s instruction manual, may cause interference with radio and television
reception. This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1
This device may not cause harmful interference.
2
This device must accept any interference received, including interference that may cause undesired
operation.
NOTICE: The FCC regulations provide that changes or modifications not expressly approved by Dell Inc. could void
your authority to operate this equipment.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference with radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct the interference by
one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the system with respect to the receiver.
• Move the system away from the receiver.
• Plug the system into a different outlet so that the system and the receiver are on different branch
circuits.
If necessary, consult a representative of Dell Inc. or an experienced radio/television technician for
additional suggestions.
The following information is provided on the device or devices covered in this document in compliance
with the FCC regulations:
Product name: Dell Precision™ M4300
Model number: PP04X
166 Appendix
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\appendix.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Company name: Dell Inc.
Worldwide Regulatory Compliance & Environmental
Affairs
One Dell Way
Round Rock, TX 78682 USA
512-338-4400
Template Last Updated - 7/01/2005 Glossary 167
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
Glossary
Terms in this Glossary are provided for
informational purposes only and may or may not
describe features included with your particular
computer.
A
AC — alternating current — The form of electricity that
powers your computer when you plug the AC adapter
power cable in to an electrical outlet.
ACPI — advanced configuration and power interface —
A power management specification that enables
Microsoft® Windows® operating systems to put a
computer in standby or hibernate mode to conserve the
amount of electrical power allocated to each device
attached to the computer.
AGP — accelerated graphics port — A dedicated graphics
port that allows system memory to be used for video-
related tasks. AGP delivers a smooth, true-color video
image because of the faster interface between the video
circuitry and the computer memory.
AHCI — Advanced Host Controller Interface — An
interface for a SATA hard drive Host Controller which
allows the storage driver to enable technologies such as
Native Command Queuing (NCQ) and hot plug.
ALS — ambient light sensor — A feature that helps to
control display brightness.
antivirus software — A program designed to identify,
quarantine, and/or delete viruses from your computer.
ASF — alert standards format — A standard to define a
mechanism for reporting hardware and software alerts to a
management console. ASF is designed to be platform- and
operating system-independent.
B
battery life span — The length of time (years) during
which a portable computer battery is able to be depleted
and recharged.
battery operating time — The length of time (minutes or
hours) that a portable computer battery powers the
computer.
BIOS — basic input/output system — A program (or
utility) that serves as an interface between the computer
hardware and the operating system. Unless you
understand what effect these settings have on the
computer, do not change them. Also referred to as system
setup.
bit — The smallest unit of data interpreted by your
computer.
Bluetooth® wireless technology — A wireless technology
standard for short-range (9 m [29 feet]) networking
devices that allows for enabled devices to automatically
recognize each other.
boot sequence — Specifies the order of the devices from
which the computer attempts to boot.
bootable media — A CD, DVD, or floppy disk that you
can use to start your computer. In case your hard drive is
damaged or your computer has a virus, ensure that you
always have a bootable CD, DVD, or floppy disk available.
Yo u r Drivers and Utilities media (or ResourceCD) is a
bootable CD or DVD.
bootable disk — A disk that you can use to start your
computer. In case your hard drive is damaged or your
computer has a virus, ensure that you always have a
bootable CD, DVD, or floppy disk available.
bps — bits per second — The standard unit for measuring
data transmission speed.
BTU — British thermal unit — A measurement of heat
output.
bus — A communication pathway between the
components in your computer.
bus speed — The speed, given in MHz, that indicates how
fast a bus can transfer information.
168 Glossary
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
byte — The basic data unit used by your computer. A byte
is usually equal to 8 bits.
C
C — Celsius — A temperature measurement scale where
0° is the freezing point and 100° is the boiling point of
water.
cache — A special high-speed storage mechanism which
can be either a reserved section of main memory or an
independent high-speed storage device. The cache
enhances the efficiency of many processor operations.
L1 cache — Primary cache stored inside the processor.
L2 cache — Secondary cache which can either be external
to the processor or incorporated into the processor
architecture.
carnet — An international customs document that
facilitates temporary imports into foreign countries. Also
known as a merchandise passport.
CD-R — CD recordable — A recordable version of a CD.
Data can be recorded only once onto a CD-R. Once
recorded, the data cannot be erased or written over.
CD-RW — CD rewritable — A rewritable version of a
CD. Data can be written to a CD-RW disc, and then
erased and written over (rewritten).
CD-RW drive — A drive that can read CDs and write to
CD-RW (rewritable CDs) and CD-R (recordable CDs)
discs. You can write to CD-RW discs multiple times, but
you can write to CD-R discs only once.
CD-RW/DVD drive — A drive, sometimes referred to as a
combo drive, that can read CDs and DVDs and write to
CD-RW (rewritable CDs) and CD-R (recordable CDs)
discs. You can write to CD-RW discs multiple times, but
you can write to CD-R discs only once.
clock speed — The speed, given in MHz, that indicates
how fast computer components that are connected to the
system bus operate.
CMOS — A type of electronic circuit. Computers use a
small amount of battery-powered CMOS memory to hold
date, time, and system setup options.
COA — Certificate of Authenticity — The Windows
alpha-numeric code located on a sticker on your
computer. Also referred to as the Product Key or
Product ID.
Control Panel — A Windows utility that allows you to
modify operating system and hardware settings, such as
display settings.
controller — A chip that controls the transfer of data
between the processor and memory or between the
processor and devices.
CRIMM — continuity rambus in-line memory module
— A special module that has no memory chips and is used
to fill unused RIMM slots.
cursor — The marker on a display or screen that shows
where the next keyboard, touch pad, or mouse action will
occur. It often is a blinking solid line, an underline
character, or a small arrow.
D
DDR SDRAM — double-data-rate SDRAM — A type of
SDRAM that doubles the data burst cycle, improving
system performance.
DDR2 SDRAM — double-data-rate 2 SDRAM — A type
of DDR SDRAM that uses a 4-bit prefetch and other
architectural changes to boost memory speed to over 400
MHz.
device — Hardware such as a disk drive, printer, or
keyboard that is installed in or connected to your
computer.
device driver — See driver.
DIMM — dual in-line memory module — A circuit board
with memory chips that connects to a memory module on
the system board.
DIN connector — A round, six-pin connector that
conforms to DIN (Deutsche Industrie-Norm) standards;
it is typically used to connect PS/2 keyboard or mouse
cable connectors.
disk striping — A technique for spreading data over
multiple disk drives. Disk striping can speed up operations
that retrieve data from disk storage. Computers that use
disk striping generally allow the user to select the data
Template Last Updated - 7/01/2005 Glossary 169
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
unit size or stripe width.
DMA — direct memory access — A channel that allows
certain types of data transfer between RAM and a device
to bypass the processor.
docking device — See APR.
DMTF — Distributed Management Task Force — A
consortium of hardware and software companies who
develop management standards for distributed desktop,
network, enterprise, and Internet environments.
domain — A group of computers, programs, and devices
on a network that are administered as a unit with common
rules and procedures for use by a specific group of users. A
user logs on to the domain to gain access to the resources.
DRAM — dynamic random-access memory — Memory
that stores information in integrated circuits containing
capacitors.
driver — Software that allows the operating system to
control a device such as a printer. Many devices do not
work properly if the correct driver is not installed in the
computer.
DSL — Digital Subscriber Line — A technology that
provides a constant, high-speed Internet connection
through an analog telephone line.
dual-core — An Intel® technology in which two physical
computational units exist inside a single processor
package, thereby increasing computing efficiency and
multi-tasking ability.
dual display mode — A display setting that allows you to
use a second monitor as an extension of your display. Also
referred to as extended display mode.
DVD-R — DVD recordable — A recordable version of a
DVD. Data can be recorded only once onto a DVD-R.
Once recorded, the data cannot be erased or written over.
DVD+RW — DVD rewritable — A rewritable version of
a DVD. Data can be written to a DVD+RW disc, and
then erased and written over (rewritten). (DVD+RW
technology is different from DVD-RW technology.)
DVD+RW drive — drive that can read DVDs and most
CD media and write to DVD+RW (rewritable DVDs)
discs.
DVI — digital video interface — A standard for digital
transmission between a computer and a digital video
display.
E
ECC — error checking and correction — A type of
memory that includes special circuitry for testing the
accuracy of data as it passes in and out of memory.
ECP — extended capabilities port — A parallel connector
design that provides improved bidirectional data
transmission. Similar to EPP, ECP uses direct memory
access to transfer data and often improves performance.
EIDE — enhanced integrated device electronics — An
improved version of the IDE interface for hard drives and
optical drives.
EMI — electromagnetic interference — Electrical
interference caused by electromagnetic radiation.
ENERGY STAR® — Environmental Protection Agency
requirements that decrease the overall consumption of
electricity.
EPP — enhanced parallel port — A parallel connector
design that provides bidirectional data transmission.
ESD — electrostatic discharge — A rapid discharge of
static electricity. ESD can damage integrated circuits
found in computer and communications equipment.
expansion card — A circuit board that installs in an
expansion slot on the system board in some computers,
expanding the capabilities of the computer. Examples
include video, modem, and sound cards.
expansion slot — A connector on the system board (in
some computers) where you insert an expansion card,
connecting it to the system bus.
ExpressCard — A removable I/O card adhering to the
PCMCIA standard. Modems and network adapters are
common types of ExpressCards. ExpressCards support
both the PCI Express and USB 2.0 standard.
Express Service Code — A numeric code located on a
sticker on your Dell™ computer. Use the Express Service
Code when contacting Dell for assistance. Express Service
Code service may not be available in some countries.
extended display mode — A display setting that allows
170 Glossary
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
you to use a second monitor as an extension of your
display. Also referred to as dual display mode.
extended PC Card — A PC Card that extends beyond the
edge of the PC Card slot when installed.
F
Fahrenheit — A temperature measurement scale where
32° is the freezing point and 212° is the boiling point of
water.
FBD — fully-buffered DIMM — A DIMM with DDR2
DRAM chips and an Advanced Memory Buffer (AMB)
that speeds communication between the DDR2 SDRAM
chips and the system.
FCC — Federal Communications Commission — A U.S.
agency responsible for enforcing communications-related
regulations that state how much radiation computers and
other electronic equipment can emit.
fingerprint reader — A strip sensor that uses your unique
fingerprint to authenticate your user identity to help
secure your computer.
folder — A term used to describe space on a disk or drive
where files are organized and grouped. Files in a folder can
be viewed and ordered in various ways, such as
alphabetically, by date, and by size.
format — The process that prepares a drive or disk for file
storage. When a drive or disk is formatted, the existing
information on it is lost.
FSB — front side bus — The data path and physical
interface between the processor and RAM.
FTP — file transfer protocol — A standard Internet
protocol used to exchange files between computers
connected to the Internet.
G
G — gravity — A measurement of weight and force.
GB — gigabyte — A measurement of data storage that
equals 1024 MB (1,073,741,824 bytes). When used to
refer to hard drive storage, the term is often rounded to
1,000,000,000 bytes.
GHz — gigahertz — A measurement of frequency that
equals one thousand million Hz, or one thousand MHz.
The speeds for computer processors, buses, and interfaces
are often measured in GHz.
graphics mode — A video mode that can be defined as x
horizontal pixels by y vertical pixels by z colors. Graphics
modes can display an unlimited variety of shapes and
fonts.
GUI — graphical user interface — Software that interacts
with the user by means of menus, windows, and icons.
Most programs that operate on the Windows operating
systems are GUIs.
H
hard drive — A drive that reads and writes data on a hard
disk. The terms hard drive and hard disk are often used
interchangeably.
heat sink — A metal plate on some processors that helps
dissipate heat.
hibernate mode — A power management mode that saves
everything in memory to a reserved space on the hard
drive and then turns off the computer. When you restart
the computer, the memory information that was saved to
the hard drive is automatically restored.
HTTP — hypertext transfer protocol — A protocol for
exchanging files between computers connected to the
Internet.
Hyper-Threading — Hyper-Threading is an Intel
technology that can enhance overall computer
performance by allowing one physical processor to
function as two logical processors, capable of performing
certain tasks simultaneously.
Hz — hertz — A unit of frequency measurement that
equals 1 cycle per second. Computers and electronic
devices are often measured in kilohertz (kHz), megahertz
(MHz), gigahertz (GHz), or terahertz (THz).
I
IC — integrated circuit — A semiconductor wafer, or
chip, on which thousands or millions of tiny electronic
Template Last Updated - 7/01/2005 Glossary 171
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
components are fabricated for use in computer, audio, and
video equipment.
IDE — integrated device electronics — An interface for
mass storage devices in which the controller is integrated
into the hard drive or optical drive.
IEEE 1394 — Institute of Electrical and Electronics
Engineers, Inc. — A high-performance serial bus used to
connect IEEE 1394-compatible devices, such as digital
cameras and DVD players, to the computer.
infrared sensor — A port that allows you to transfer data
between the computer and infrared-compatible devices
without using a cable connection.
integrated — Usually refers to components that are
physically located on the computer’s system board. Also
referred to as built-in.
I/O — input/output — An operation or device that enters
and extracts data from your computer. Keyboards and
printers are I/O devices.
I/O address — An address in RAM that is associated with
a specific device (such as a serial connector, parallel
connector, or expansion slot) and allows the processor to
communicate with that device.
IrDA — Infrared Data Association — The organization
that creates international standards for infrared
communications.
IRQ — interrupt request — An electronic pathway
assigned to a specific device so that the device can
communicate with the processor. Each device connection
must be assigned an IRQ. Although two devices can share
the same IRQ assignment, you cannot operate both
devices simultaneously.
ISP — Internet service provider — A company that allows
you to access its host server to connect directly to the
Internet, send and receive e-mail, and access websites.
The ISP typically provides you with a software package,
user name, and access phone numbers for a fee.
K
Kb — kilobit — A unit of data that equals 1024 bits. A
measurement of the capacity of memory integrated
circuits.
KB — kilobyte — A unit of data that equals 1024 bytes
but is often referred to as 1000 bytes.
key combination — A command requiring you to press
multiple keys at the same time.
kHz — kilohertz — A measurement of frequency that
equals 1000 Hz.
L
LAN — local area network — A computer network
covering a small area. A LAN usually is confined to a
building or a few nearby buildings. A LAN can be
connected to another LAN over any distance through
telephone lines and radio waves to form a wide area
network (WAN).
LCD — liquid crystal display — The technology used by
portable computer and flat-panel displays.
LED — light-emitting diode — An electronic component
that emits light to indicate the status of the computer.
local bus — A data bus that provides a fast throughput for
devices to the processor.
LPT — line print terminal — The designation for a
parallel connection to a printer or other parallel device.
M
Mb — megabit — A measurement of memory chip
capacity that equals 1024 Kb.
Mbps — megabits per second — One million bits per
second. This measurement is typically used for
transmission speeds for networks and modems.
MB — megabyte — A measurement of data storage that
equals 1,048,576 bytes. 1 MB equals 1024 KB. When used
to refer to hard drive storage, the term is often rounded to
1,000,000 bytes.
MB/sec — megabytes per second — One million bytes
per second. This measurement is typically used for data
transfer ratings.
media bay — A bay that supports devices such as optical
drives, a second battery, or a Dell TravelLite™ module.
memory — A temporary data storage area inside your
172 Glossary
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
computer. Because the data in memory is not permanent,
it is recommended that you frequently save your files
while you are working on them, and always save your files
before you shut down the computer. Your computer can
contain several different forms of memory, such as RAM,
ROM, and video memory. Frequently, the word memory is
used as a synonym for RAM.
memory address — A specific location where data is
temporarily stored in RAM.
memory mapping — The process by which the computer
assigns memory addresses to physical locations at start-up.
Devices and software can then identify information that
the processor can access.
memory module — A small circuit board containing
memory chips, which connects to the system board.
MHz — megahertz — A measure of frequency that equals
1 million cycles per second. The speeds for computer
processors, buses, and interfaces are often measured in
MHz.
Mini PCI — A standard for integrated peripheral devices
with an emphasis on communications such as modems
and NICs. A Mini PCI card is a small external card that is
functionally equivalent to a standard PCI expansion card.
Mini-Card — A small card designed for integrated
peripherals, such as communication NICs. The Mini-
Card is functionally equivalent to a standard PCI
expansion card.
modem — A device that allows your computer to
communicate with other computers over analog
telephone lines. Three types of modems include: external,
PC Card, and internal. You typically use your modem to
connect to the Internet and exchange e-mail.
module bay — See media bay.
MP — megapixel — A measure of image resolution used
for digital cameras.
ms — millisecond — A measure of time that equals one
thousandth of a second. Access times of storage devices
are often measured in ms.
N
network adapter — A chip that provides network
capabilities. A computer may include a network adapter
on its system board, or it may contain a PC Card with an
adapter on it. A network adapter is also referred to as a
NIC (network interface controller).
NIC — See network adapter.
notification area — The section of the Windows taskbar
that contains icons for providing quick access to programs
and computer functions, such as the clock, volume
control, and print status. Also referred to as system tray.
ns — nanosecond — A measure of time that equals one
billionth of a second.
NVRAM — nonvolatile random access memory — A type
of memory that stores data when the computer is turned
off or loses its external power source. NVRAM is used for
maintaining computer configuration information such as
date, time, and other system setup options that you can
set.
O
optical drive — A drive that uses optical technology to
read or write data from CDs, DVDs, or DVD+RWs.
Example of optical drives include CD drives, DVD drives,
CD-RW drives, and CD-RW/DVD combo drives.
P
parallel connector — An I/O port often used to connect a
parallel printer to your computer. Also referred to as an
LPT port.
partition — A physical storage area on a hard drive that is
assigned to one or more logical storage areas known as
logical drives. Each partition can contain multiple logical
drives.
PC Card — A removable I/O card adhering to the
PCMCIA standard. Modems and network adapters are
common types of PC Cards.
PCI — peripheral component interconnect — PCI is a
local bus that supports 32-and 64-bit data paths,
Template Last Updated - 7/01/2005 Glossary 173
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
providing a high-speed data path between the processor
and devices such as video, drives, and networks.
PCI Express — A modification to the PCI interface that
boosts the data transfer rate between the processor and
the devices attached to it. PCI Express can transfer data at
speeds from 250 MB/sec to 4 GB/sec. If the PCI Express
chip set and the device are capable of different speeds,
they will operate at the slower speed.
PCMCIA — Personal Computer Memory Card
International Association — The organization that
establishes standards for PC Cards.
PIO — programmed input/output — A method of
transferring data between two devices through the
processor as part of the data path.
pixel — A single point on a display screen. Pixels are
arranged in rows and columns to create an image. A video
resolution, such as 800 x 600, is expressed as the number
of pixels across by the number of pixels up and down.
Plug-and-Play — The ability of the computer to
automatically configure devices. Plug and Play provides
automatic installation, configuration, and compatibility
with existing hardware if the BIOS, operating system, and
all devices are Plug and Play compliant.
POST — power-on self-test — Diagnostics programs,
loaded automatically by the BIOS, that perform basic
tests on the major computer components, such as
memory, hard drives, and video. If no problems are
detected during POST, the computer continues the start-
up.
processor — A computer chip that interprets and executes
program instructions. Sometimes the processor is referred
to as the CPU (central processing unit).
PS/2 — personal system/2 — A type of connector for
attaching a PS/2-compatible keyboard, mouse, or keypad.
PXE — pre-boot execution environment — A WfM
(Wired for Management) standard that allows networked
computers that do not have an operating system to be
configured and started remotely.
R
RAID — redundant array of independent disks — A
method of providing data redundancy. Some common
implementations of RAID include RAID 0, RAID 1,
RAID 5, RAID 10, and RAID 50.
RAM — random-access memory — The primary
temporary storage area for program instructions and data.
Any information stored in RAM is lost when you shut
down your computer.
readme file — A text file included with a software package
or hardware product. Typically, readme files provide
installation information and describe new product
enhancements or corrections that have not yet been
documented.
read-only — Data and/or files you can view but cannot
edit or delete. A file can have read-only status if:
• It resides on a physically write-protected floppy disk,
CD, or DVD.
• It is located on a network in a directory and the
system administrator has assigned rights only to
specific individuals.
refresh rate — The frequency, measured in Hz, at which
your screen's horizontal lines are recharged (sometimes
also referred to as its vertical frequency). The higher the
refresh rate, the less video flicker can be seen by the
human eye.
resolution — The sharpness and clarity of an image
produced by a printer or displayed on a monitor. The
higher the resolution, the sharper the image.
RFI — radio frequency interference — Interference that
is generated at typical radio frequencies, in the range of 10
kHz to 100,000 MHz. Radio frequencies are at the lower
end of the electromagnetic frequency spectrum and are
more likely to have interference than the higher frequency
radiations, such as infrared and light.
ROM — read-only memory — Memory that stores data
and programs that cannot be deleted or written to by the
computer. ROM, unlike RAM, retains its contents after
you shut down your computer. Some programs essential to
the operation of your computer reside in ROM.
RPM — revolutions per minute — The number of
rotations that occur per minute. Hard drive speed is often
measured in rpm.
RTC — real time clock — Battery-powered clock on the
174 Glossary
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
system board that keeps the date and time after you shut
down the computer.
RTCRST — real-time clock reset — A jumper on the
system board of some computers that can often be used
for troubleshooting problems.
S
SAS — serial attached SCSI — A faster, serial version of
the SCSI interface (as opposed to the original SCSI
parallel architecture).
SATA — serial ATA — A faster, serial version of the ATA
(IDE) interface.
ScanDisk — A Microsoft utility that checks files, folders,
and the hard disk’s surface for errors. ScanDisk often runs
when you restart the computer after it has stopped
responding.
SCSI — small computer system interface — A high-speed
interface used to connect devices to a computer, such as
hard drives, optical drives, printers, and scanners. The
SCSI can connect many devices using a single controller.
Each device is accessed by an individual identification
number on the SCSI controller bus.
SDRAM — synchronous dynamic random-access memory
— A type of DRAM that is synchronized with the optimal
clock speed of the processor.
serial connector — An I/O port often used to connect
devices such as a handheld digital device or digital camera
to your computer.
Service Tag — A bar code label on your computer that
identifies your computer when you access Dell Support at
support.dell.com or when you call Dell for customer
service or technical support.
setup program — A program that is used to install and
configure hardware and software. The setup.exe or
install.exe program comes with most Windows software
packages. Setup program differs from system setup.
shortcut — An icon that provides quick access to
frequently used programs, files, folders, and drives. When
you place a shortcut on your Windows desktop and
double-click the icon, you can open its corresponding
folder or file without having to find it first. Shortcut icons
do not change the location of files. If you delete a
shortcut, the original file is not affected. Also, you can
rename a shortcut icon.
SIM — Subscriber Identity Module — A SIM card
contains a microchip that encrypts voice and data
transmissions. SIM cards can be used in phones or
portable computers.
smart card — A card that is embedded with a processor
and a memory chip. Smart cards can be used to
authenticate a user on computers equipped for smart
cards.
S/PDIF — Sony/Philips Digital Interface — An audio
transfer file format that allows the transfer of audio from
one file to another without converting it to and from an
analog format, which could degrade the quality of the file.
standby mode — A power management mode that shuts
down all unnecessary computer operations to save energy.
Strike Zone™ — Reinforced area of the platform base
that protects the hard drive by acting as a dampening
device when a computer experiences resonating shock or
is dropped (whether the computer is on or off).
surge protectors — Prevent voltage spikes, such as those
that may occur during an electrical storm, from entering
the computer through the electrical outlet. Surge
protectors do not protect against lightning strikes or
against brownouts, which occur when the voltage drops
more than 20 percent below the normal AC-line voltage
level.
Network connections cannot be protected by surge
protectors. Always disconnect the network cable from the
network connector during electrical storms.
SVGA — super-video graphics array — A video standard
for video cards and controllers. Typical SVGA resolutions
are 800 x 600 and 1024 x 768.
The number of colors and resolution that a program
displays depends on the capabilities of the monitor, the
video controller and its drivers, and the amount of video
memory installed in the computer.
S-video TV-out — A connector used to attach a TV or
digital audio device to the computer.
SXGA — super-extended graphics array — A video
standard for video cards and controllers that supports
Template Last Updated - 7/01/2005 Glossary 175
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
resolutions up to 1280 x 1024.
SXGA+ — super-extended graphics array plus — A video
standard for video cards and controllers that supports
resolutions up to 1400 x 1050.
system board — The main circuit board in your computer.
Also known as the motherboard.
system setup — A utility that serves as an interface
between the computer hardware and the operating
system. System setup allows you to configure user-
selectable options in the BIOS, such as date and time or
system password. Unless you understand what effect the
settings have on the computer, do not change the settings
for this program.
T
TAPI — telephony application programming interface —
Enables Windows programs to operate with a wide variety
of telephony devices, including voice, data, fax, and video.
text editor — A program used to create and edit files that
contain only text; for example, Windows Notepad uses a
text editor. Text editors do not usually provide word wrap
or formatting functionality (the option to underline,
change fonts, and so on).
TPM — trusted platform module — A hardware-based
security feature that when combined with security
software enhances network and computer security by
enabling features such as file and e-mail protection.
travel module — A plastic device designed to fit inside
the module bay of a portable computer to reduce the
weight of the computer.
U
UAC — user account control— Microsoft Windows®
Vista™ security feature that, when enabled, provides an
added layer of security between user accounts and access
to operating system settings.
UMA — unified memory allocation — System memory
dynamically allocated to video.
UPS — uninterruptible power supply — A backup power
source used when the electrical power fails or drops to an
unacceptable voltage level. A UPS keeps a computer
running for a limited amount of time when there is no
electrical power. UPS systems typically provide surge
suppression and may also provide voltage regulation.
Small UPS systems provide battery power for a few
minutes to enable you to shut down your computer.
USB — universal serial bus — A hardware interface for a
low-speed device such as a USB-compatible keyboard,
mouse, joystick, scanner, set of speakers, printer,
broadband devices (DSL and cable modems), imaging
devices, or storage devices. Devices are plugged directly in
to a 4-pin socket on your computer or in to a multi-port
hub that plugs in to your computer. USB devices can be
connected and disconnected while the computer is turned
on, and they can also be daisy-chained together.
UTP — unshielded twisted pair — Describes a type of
cable used in most telephone networks and some
computer networks. Pairs of unshielded wires are twisted
to protect against electromagnetic interference, rather
than relying on a metal sheath around each pair of wires to
protect against interference.
UXGA — ultra extended graphics array — A video
standard for video cards and controllers that supports
resolutions up to 1600 x 1200.
V
video controller — The circuitry on a video card or on the
system board (in computers with an integrated video
controller) that provides the video capabilities—in
combination with the monitor—for your computer.
video memory — Memory that consists of memory chips
dedicated to video functions. Video memory is usually
faster than system memory. The amount of video memory
installed primarily influences the number of colors that a
program can display.
video mode — A mode that describes how text and
graphics are displayed on a monitor. Graphics-based
software, such as Windows operating systems, displays in
video modes that can be defined as x horizontal pixels by y
vertical pixels by z colors. Character-based software, such
as text editors, displays in video modes that can be
defined as x columns by y rows of characters.
176 Glossary
FILE LOCATION: S:\systems\Dawson_Fila\Fila\UG\A00\Webworks\source\glossary.fm
DELL CONFIDENTIAL – PRELIMINARY 1/25/07 – FOR PROOF ONLY
video resolution — See resolution.
virus — A program that is designed to inconvenience you
or to destroy data stored on your computer. A virus
program moves from one computer to another through an
infected disk, software downloaded from the Internet, or
e-mail attachments. When an infected program starts, its
embedded virus also starts.
A common type of virus is a boot virus, which is stored in
the boot sectors of a floppy disk. If the floppy disk is left in
the drive when the computer is shut down and then
turned on, the computer is infected when it reads the
boot sectors of the floppy disk expecting to find the
operating system. If the computer is infected, the boot
virus may replicate itself onto all the floppy disks that are
read or written in that computer until the virus is
eradicated.
V — volt — The measurement of electric potential or
electromotive force. One V appears across a resistance of 1
ohm when a current of 1 ampere flows through that
resistance.
W
W — watt — The measurement of electrical power. One
W is 1 ampere of current flowing at 1 volt.
WHr — watt-hour — A unit of measure commonly used
to indicate the approximate capacity of a battery. For
example, a 66-WHr battery can supply 66 W of power for
1 hour or 33 W for 2 hours.
wallpaper — The background pattern or picture on the
Windows desktop. Change your wallpaper through the
Windows Control Panel. You can also scan in your favorite
picture and make it wallpaper.
WLAN — wireless local area network. A series of
interconnected computers that communicate with each
other over the air waves using access points or wireless
routers to provide Internet access.
write-protected — Files or media that cannot be changed.
Use write-protection when you want to protect data from
being changed or destroyed. To write-protect a 3.5-inch
floppy disk, slide its write-protect tab to the open
position.
WWAN — wireless wide area network. A wireless high-
speed data network using cellular technology and covering
a much larger geographic area than WLAN.
WXGA — wide-aspect extended graphics array — A video
standard for video cards and controllers that supports
resolutions up to 1280 x 800."
X
XGA — extended graphics array — A video standard for
video cards and controllers that supports resolutions up to
1024 x 768.
Z
ZIF — zero insertion force — A type of socket or
connector that allows a computer chip to be installed or
removed with no stress applied to either the chip or its
socket.
Zip — A popular data compression format. Files that have
been compressed with the Zip format are called Zip files
and usually have a filename extension of.zip. A special
kind of zipped file is a self-extracting file, which has a
filename extension of .exe. You can unzip a self-extracting
file by double-clicking it.
Zip drive — A high-capacity floppy drive developed by
Iomega Corporation that uses 3.5-inch removable disks
called Zip disks. Zip disks are slightly larger than regular
floppy disks, about twice as thick, and hold up to 100 MB
of data.
