Contents

Manual 1

Mic
Environmental
friendly
LD 77A
LCD Display for Cigarette Plug
andVisortypeCarKitFor
User Manual
1
Table of Contents
1. BT70RD profile and its functions..........................................3
1.1. Profile..................................................................................3
2. How to mount the BT70PD in the car....................................5
3 . LCD Display status ..............................................................5
3 .1. On / Off and Pairing..............................................................5
3 .2. Calling in.............................................................................7
3.3. Calling out..........................................................................8
3.4 On Line................................................................................9
4. Federal Communication Commission Interference Statement...11.12
2
Note: LD 77A is a standard feature for BT 70PD and BT70RD.
3
4

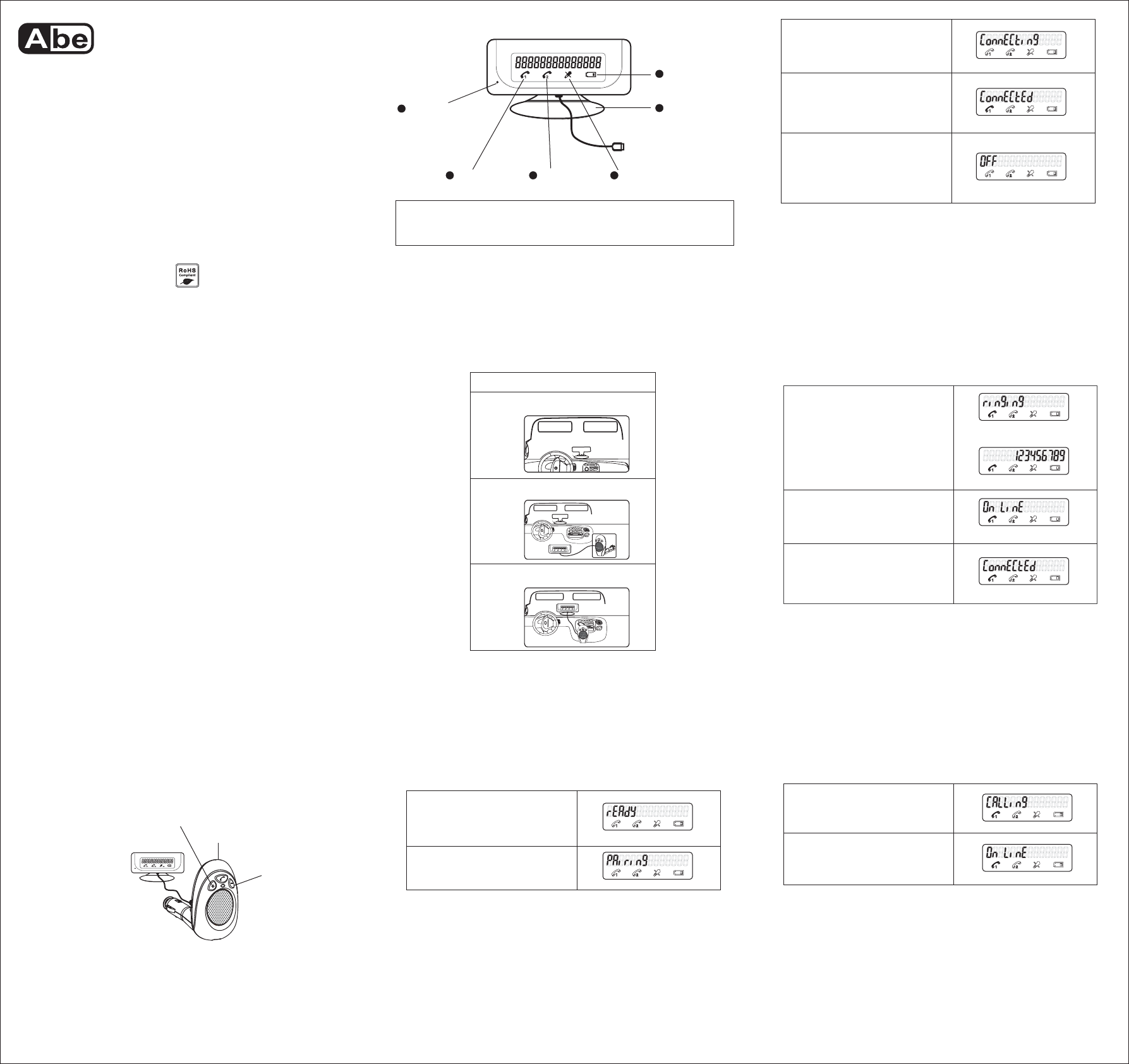

1. profile and its functionsBT70PD
1.1. Profile(Fig.1)
2Phone 1 icon Phone 2 icon
3Mute icon
4
Battery icon
7
1Built-in Microphone
(for BT70PD and
BT70RD only)
6Metal Stand
with 2-side tape
Fig. 1
5
2.How to mount the BT70PD in the car
Use the Alcohol Pad to clean the surface of a desired position on the top of the
dashboard.
●
●
●
●
Use the 2-side tape to attach the metal stand on the cleaned area.
Put the BT70PD into an appropriate position(Refer to Fig.4)
Slide the LCD to the metal stand. 6
BT70PD
1.Attach the metal stand to the desired
position.
2.Put the BT70PD/BT70RD into the Cigarette
Socket.
3.Slide the LCD77A LCD display into the
metal stand.
7
3. LCD Display status
When the LCD Display unit is properly connected to a Car Kit,it will provide you
with the status of the Car Kit’s operations. For detailed operations, please
refer to the appropriate user manuals.
.1.On/OffandPairing
Car Kit
3
After the car kit has been powered
on, it will stay on idle. Before it is
connected to the mobile phone,the
LCD screen displays “READY”.
When the Car Kit is in pairing mode,
the LCD screen displays “PAIRING”
S1 S3 S3
S4
S1 S3 S3
S4
8
While the car kit is connecting to the
mobile phone, the LCD screen disp-
lays “CONNECTING .”
After the car kit has connected to the
mobile phone successfully, the LCD
screen displays “CONNECTED”.
If you press the ON / OFF key for about
5 seconds to turn off the car kit,the LCD
screen displays“OFF for a few seconds
before it is completely off.
”
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
LCD Display for Cigarette Plug and Visor types of Car Kits
Thank you for using LD 77A LCD Display unit. This LCD Display unit is designed to
be an optional accessory to BT 77AD Visor type car kit and a standard feature of
BT 70PD and BT70RD Cigarette Plug type car kits. It provides useful information
of the car kits including Caller ID of incoming calls and other operational status.
CS8110Y2R
Mic
Fig. 4
The backlight will be on automatically for 10 seconds when there is an incoming call or
when any key operations are performed directly from the car kit.
key operations are performed from the mobile phones.
Note that the backlight
will not be turned on when
TM
CS8110Y2R (BT70PD)
Abe / CS8110Y2R (BT70PD)
Phone
Volume Down
Volume up
3.3. Calling out
When there is an outgoing call from the
mobile phone, the LCD screen displays
“CALLING”.
When the call is made successfully, the
LCD screen displays “ON LINE”.
S1 S3 S3
S4
S1 S3 S3
S4
3.2. Calling in
When there is an incoming call, the LCD
screen displays “RINGING”, or its caller
ID, if it is received.
Note: Some mobile phones may not
display Caller ID via this LCD Display
unit.
When the call is answered, the LCD
screen displays“ON LINE”.
If the call is rejected, it will go back to
idle state and the LCD screen displays
“CONNECTED”.
Or Caller ID
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
CS8110Y2R / Abe
10
11

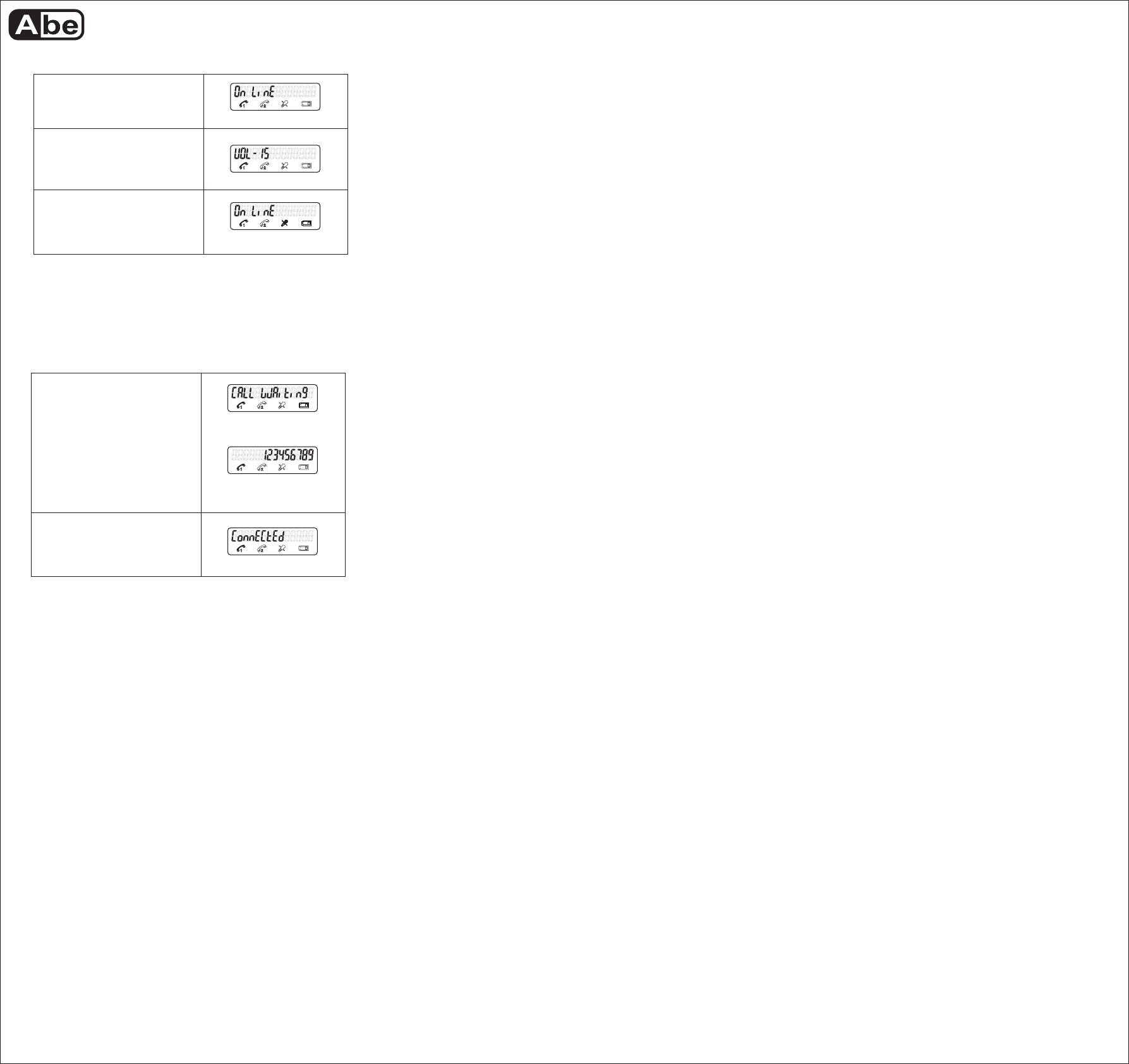

When you are talking on line, the LCD
screen displays “ON LINE”.
Whenever the Volume Up key or Volume
Down key is pressed, the LCD screen
displays “ VOL ” and the current volume
setting for 2 seconds.
3.4 On Line
S1 S3 S3
S4
S1 S3 S3
S4
If you mute the microphone, the mute
icon will be turned on. And it stays on
until you cancel it.
S1 S3 S3
S4
129
When the call is ended, it will go back to
the idle state. The LCD screen displays
“CONNECTED”.
When there is another call incoming
while you are on line, the LCD screen
will show“CALL WAITING”or its Caller
ID,ifitisreceived.
Note: Some mobile phones may not
display “CALL WAITING” or Caller ID
via this LCD Display unit.
Or Caller ID
S1 S3 S3
S4
S1 S3 S3
S4
S1 S3 S3
S4
TM
Abe / CS8110Y2R (BT70PD)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
To which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance20cmbetween the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
