Intel® WiFi Adapter Information Guide
This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. However, note
that newer features provided in this software release are generally not supported for older, legacy adapters.
The following adapters are supported on this release for Windows* 10:
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 8260 (64-bit only)
Intel® Dual Band Wireless-AC 8265
Intel® Wireless-AC 9260
Intel® Wireless-AC 9560
Intel® Wireless Gigabit 11000
Intel® Tri-Band Wireless-AC 18265
The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers
from Intel®:
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6230
The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®:
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 3168
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®:
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
![](/img.php?id=3480745&img=bg2.png)
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®:
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 3168
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
Intel® Tri-Band Wireless-AC 17265
Intel® Tri-Band Wireless-AC 18260
Intel® Wireless Gigabit 11000
With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet
connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network
solution is designed for both home and business use. Additional users and features can be added as your networking
needs grow and change.
This guide contains basic information about Intel adapters. It includes information about several adapter properties
that you can set to control and enhance the performance of your adapter with your particular wireless network and
environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs.
Adapter Settings
Regulatory Information
Specifications
Important Information
Support
Warranty
Glossary
Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and
802.11n (draft 2.0) wireless standards. Operating at 5GHz or 2.4GHz frequency at data rates of up to 450 Mbps, you
can now connect your computer to existing high-speed networks that use multiple access points within large or small
environments. Your WiFi adapter maintains automatic data rate control according to the access point location and
signal strength to achieve the fastest possible connection. All of your wireless network connections are easily
managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced
security measures with 802.1X network authentication.
Information in this document is subject to change without notice.
© 2004–2014 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway,
Hillsboro, OR 97124-6497 USA
The copying or reproducing of any material in this document in any manner whatsoever without the written
permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel
Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be
used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims
any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered
trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
*Other names and brands may be claimed as the property of others.
![](/img.php?id=3480745&img=bg3.png)
Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any
commitment to update the information contained herein.
IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS:
Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all
necessary local and governmental regulatory agency requirements for the regions that they are designated and/or
marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars,
satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and
limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove
regional and local compliance to regional and governmental regulations before certification or approval to use the
product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control
parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include,
without limitation, RF power, spectrum usage, channel scanning, and human exposure.
For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format
with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or
code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches,
utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be
solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any
theory of liability for any issues associated with the modified products, including without limitation, claims under the
warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist
in providing support to any third parties for such modified products.
Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-
level regulatory approval upon receipt and review of test data documenting that the antennas and system
configuration do not cause the EMC and radio operation to be non-compliant.
March 27, 2017
![](/img.php?id=3480745&img=bg4.png)
Back to Contents
Adapter Settings
The Advanced tab displays the device properties for the WiFi adapter installed on your computer.
How to Access
At the Intel® PROSet/Wireless WiFi Connection Utility, Advanced Menu click Adapter Settings. Select the
Advanced tab.
WiFi Adapter Settings Description
Name Description
802.11ac Mode
(5GHz)
The 802.11ac standard builds on 802.11n standard. 802.11ac Mode delivers up to 867Mbps
(theoretical) by increasing channel bandwidth to 80MHz and adding higher density
modulation (256 QAM). Select Enabled or Disabled to set the 802.11ac mode of the WiFi
adapter. Enabled is the default setting. This setting applies to 802.11ac capable adapters
only.
802.11n
Channel Width
(2.4 GHz)
Set high throughput channel width to maximize performance. Set the channel width to
Auto or 20MHz. Use 20MHz if 802.11n channels are restricted. This setting applies to
802.11n capable adapters only.
NOTE: This setting does not apply to the Intel® Wireless WiFi Link 4965AGN (uses 20 MHz
channel width only).
802.11n
Channel Width
(5.2 GHz)
Set high throughput channel width to maximize performance. Set the channel width to
Auto or 20MHz. Use 20MHz if 802.11n channels are restricted. This setting applies to
802.11n capable adapters only.
NOTE: This setting does not apply to the following adapters:
Intel® WiFi Link 1000
Intel® Wireless WiFi Link 4965AGN
802.11n Mode The 802.11n standard builds on previous 802.11 standards by adding multiple-input
multiple-output (MIMO). MIMO increases data throughput to improve transfer rate. Select
Enabled or Disabled to set the 802.11n mode of the WiFi adapter. Enabled is the default
setting. This setting applies to 802.11n capable adapters only.
NOTE: To achieve transfer rates greater than 54 Mbps on 802.11n connections, WPA2*-
AES security must be selected. No security (None) can be selected to enable network setup
and troubleshooting.
An administrator can enable or disable support for high throughput mode to reduce power-
consumption or conflicts with other bands or compatibility issues.
Ad Hoc
Channel
802.11b/g
Select Enabled or Disabled.
Ad Hoc QoS
Mode Quality of Service (QoS) control in ad hoc networks. QoS provides prioritization of traffic
from the access point over a wireless LAN based on traffic classification. WMM (Wi-Fi
Multimedia) is the QoS certification of the Wi-Fi Alliance (WFA). When WMM is enabled, the
WiFi adapter uses WMM to support priority tagging and queuing capabilities for Wi-Fi
networks.
WMM Enabled
WMM Disabled (Default)
![](/img.php?id=3480745&img=bg5.png)
Bluetooth®
AMP Enable or disable Bluetooth® AMP. AMP stands for alternate MAC/PHY and uses the 802.11
(Wi-Fi) as the high-speed transport. If disabled, Bluetooth HS is turned off.
HT Mode/VHT
Mode/Disabled This settings lets you select HT Mode (High Throughput mode), VHT Mode (Very High
Throughput Mode) or to disable both modes. HT Mode supports 802.11n compatibility,
whereas VHT Mode supports 802.11ac compatibility.
Fat Channel
Intolerant This setting communicates to access points that this WiFi adapter does not prefer 40MHz
channels in the 2.4GHz band. The default setting is for this to be turned off (disabled), so
that the adapter does not send this notification. If the access point continues to use 40MHz
channels, the WiFi adapter will also use 40MHz channels if the 802.11n Channel Width
(2.4GHz) setting is AUTO.
NOTE: This setting does not apply to the following adapters:
Intel® Wireless WiFi Link 4965AG_
Intel® PRO/Wireless 3945ABG Network Connection
Mixed mode
protection Use to avoid data collisions in a mixed 802.11b and 802.11g environment. Request to
Send/Clear to Send (RTS/CTS) should be used in an environment where clients may not
hear each other. CTS-to-self can be used to gain more throughput in an environment where
clients are in close proximity and can hear each other.
Preferred Band In an environment with other radiating devices nearby (such as microwave ovens, cordless
telephones, access points, or client devices), in order to reduce interference you may prefer
the 5GHz band over the 2.4GHz band, or vice-versa. Your choices are:
No Preference
Prefer 2.4GHz band
Prefer 5GHz band
Here are the various Wi-Fi bands:
802.11 legacy - 2.4GHz
802.11a - 5GHz
802.11b - 2.4GHz
802.11g - 2.4GHz
802.11n - 2.4GHz and 5GHz
802.11ac - 5GHz
802.11ad - 60GHz
Roaming
Aggressiveness This setting lets you define how aggressively your wireless client roams to improve
connection to an access point. There are five available settings.
3. Medium: This is the default. A balanced setting between not roaming and
performance.
1. Lowest: Your wireless client will not roam. Only significant link quality
degradation causes it to roam to another access point.
5. Highest: Your wireless client continuously tracks the link quality. If any
degradation occurs, it tries to find and roam to a better access point.
Transmit
Power Default Setting: Highest power setting.
Lowest: Minimum Coverage: Set the adapter to the lowest transmit power. Enables you
to expand the number of coverage areas or confine a coverage area. Reduces the coverage
area in high traffic areas to improve overall transmission quality and avoids congestion and
interference with other devices.
Highest: Maximum Coverage: Set the adapter to a maximum transmit power level.
Select for maximum performance and range in environments with limited additional WiFi
radio devices.
NOTE: The optimal setting is for a user to always set the transmit power at the lowest
![](/img.php?id=3480745&img=bg6.png)
possible level that is still compatible with the quality of their communication. This allows the
maximum number of wireless devices to operate in dense areas and reduce interference
with other devices that it shares the same radio spectrum with.
NOTE: This setting takes effect when either Network (Infrastructure) or Device to Device
(ad hoc) mode is used.
Wake on Magic
Packet This setting, enabled, wakes the computer from a sleep state when it receives a "magic
packet" from a sending computer. The magic packet contains the MAC address of the
intended destination computer.
Enabling turns on Wake on Magic Packet. Disabling turns off Wake on Magic Packet.
Disabling this only disables the magic packet feature, not Wake on Wireless LAN.
Wake on
Pattern Match This feature wakes the computer from a sleep state when a particular wake pattern is
received at the adapter. This feature is supported by the Window* 7 and Windows 8. Such
patterns typically are:
Wake on new incoming TCP connection for IPv4 and IPv6 (TCP SYN IPv4 and TCP SYN
IPv6).
Wake on 802.1x re-authentication packets.
Disabling this only disables the pattern match feature, not Wake on Wireless LAN.
Wireless Mode Select which mode to use for connection to a wireless network:
802.11a only: Connect the wireless WiFi adapter to 802.11a networks only. Not
applicable for all adapters.
802.11b only: Connect the wireless WiFi adapter to 802.11b networks only. Not
applicable for all adapters.
802.11g only: Connect the wireless WiFi adapter to 802.11g networks only.
802.11a and 802.11g: Connect the WiFi adapter to 802.11a and 802.11g networks
only. Not applicable for all adapters.
802.11b and 802.11g: Connect the WiFi adapter to 802.11b and 802.11g networks
only. Not applicable for all adapters.
802.11a, 802.11b, and 802.11g: (Default) - Connect to either 802.11a, 802.11b
or 802.11g wireless networks. Not applicable for all adapters.
OK Saves settings and returns to the previous page.
Cancel Closes and cancels any changes.
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=3480745&img=bg7.png)
Back to Contents
Regulatory Information
This section provides regulatory information for the following wireless adapters:
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 3168
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
Intel® Dual Band Wireless-AC 8265
Intel® Wireless-AC 9260
Intel® Wireless-AC 9560
Intel® Tri-Band Wireless-AC 17265
Intel® Tri-Band Wireless-AC 18260
Intel® Tri-Band Wireless-AC 18265
Intel® Wireless Gigabit Sink W13100
Intel® Wireless Gigabit 11000
NOTE: Due to the evolving state of regulations and standards in the wireless LAN field (IEEE 802.11 and
similar standards), the information provided herein is subject to change. Intel Corporation assumes no
responsibility for errors or omissions in this document.
Intel WiFi/WiMAX Wireless Adapters
Information in this section supports the following wireless adapters:
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N + WiMAX 6250
See Specifications for complete wireless adapter specifications.
NOTE: In this section, all references to the "wireless adapter" refer to all adapters listed above.
The following information is provided:
Information for the User
Regulatory Information
Regulatory ID
![](/img.php?id=3480745&img=bg8.png)
Information for OEMs and Host Integrators
INFORMATION FOR THE USER
Safety Notices
USA FCC Radio Frequency Exposure
The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure
requirements found in FCC Part 2, 15C, 15E along with guidance from KDB 447498, KDB 248227 and KDB 616217.
Proper operation of this radio according to the instructions found in this manual will result in exposure substantially
below the FCC’s recommended limits.
The following safety precautions should be observed:
Do not touch or move antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very close or touching any exposed
parts of the body, especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause
damage to the radio.
Use in specific environments:
The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety
directors of such environments.
The use of electronic devices equipped with wireless adapters on airplanes is governed by rules for each
commercial airline operator.
The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital.
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps
or in an explosive environment unless the transmitter has been modified to be qualified for such use.
Antenna Warnings
Warning: The wireless adapter is not designed for use with high-gain directional antennas.
Use On Aircraft Caution
Caution: Regulations of commercial airline operators may prohibit airborne operation of certain electronic
devices equipped with radio-frequency wireless devices (wireless adapters) because their signals could interfere with
critical aircraft instruments.
Caution: 60 GHz/802.11ad equipment is not permitted on aircraft per FCC §15.255. OEM and host integrators
should consider this FCC rule in host devices.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network: See the documentation supplied with wireless
adapters or other devices in the wireless network.
Local Restrictions on 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, 802.11ac, and 802.16e Radio Usage
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, 802.11ac,
and 802.16e wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11d, 802.11g,
802.11n, 802.11ac, and 802.16e products are designed for use only in specific countries, and are not allowed to be
operated in countries other than those of designated use. As a user of these products, you are responsible for
![](/img.php?id=3480745&img=bg9.png)
ensuring that the products are used only in the countries for which they were intended and for verifying that they are
configured with the correct selection of frequency and channel for the country of use. The device transmit power
control (TPC) interface is part of the Intel® PROSet/Wireless WiFi Connection Utility Software. Operational
restrictions for Equivalent Isotropic Radiated Power (EIRP) are provided by the system manufacturer. Any deviation
from the permissible power and frequency settings for the country of use is an infringement of national law and may
be punished as such.
Wireless Interoperability
The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct
sequence spread spectrum (DSSS) radio technology and to comply with the following standards:
IEEE Std. 802.11b compliant Standard on Wireless LAN
IEEE Std. 802.11g compliant Standard on Wireless LAN
IEEE Std. 802.11a compliant Standard on Wireless LAN
IEEE Std. 802.11n draft 2.0 compliant on Wireless LAN
IEEE 802.16e-2005 Wave 2 compliant
Wireless Fidelity certification, as defined by the Wi-Fi Alliance
WiMAX certification as defined by the WiMAX Forum
The Wireless Adapter and Your Health
The wireless adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by the wireless adapter, however, is less than the electromagnetic energy emitted by other wireless devices
such as mobile phones. The wireless adapter operates within the guidelines found in radio frequency safety standards
and recommendations. These standards and recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who continually review and interpret the extensive
research literature. In some situations or environments, the use of the wireless adapter may be restricted by the
proprietor of the building or responsible representatives of the applicable organization. Examples of such situations
may include:
Using the wireless adapter on board airplanes, or
Using the wireless adapter in any other environment where the risk of interference with other devices or
services is perceived or identified as being harmful.
If you are uncertain of the policy that applies to the use of wireless adapters in a specific organization or
environment (an airport, for example), you are encouraged to ask for authorization to use the adapter before you
turn it on.
REGULATORY INFORMATION
USA - Federal Communications Commission (FCC)
This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 and 5.470 to 5.75GHz
frequency ranges. No configuration controls are provided for Intel® wireless adapters allowing any change in the
frequency of operations outside the FCC grant of authorization for U.S. operation according to Part 15.407 of the FCC
rules.
Intel® wireless adapters are intended for OEM integrators only.
Intel® wireless adapters cannot be co-located with any other transmitter unless approved by the FCC.
This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may cause undesired operation.
Class B Device Interference Statement
This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to
![](/img.php?id=3480745&img=bga.png)
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the wireless
adapter is not installed and used in accordance with the instructions, the wireless adapter may cause harmful
interference to radio communications. There is no guarantee, however, that such interference will not occur in a
particular installation. If this wireless adapter does cause harmful interference to radio or television reception (which
can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by
taking one or more of the following measures:
Reorient or relocate the receiving antenna of the equipment experiencing the interference.
Increase the distance between the wireless adapter and the equipment experiencing the interference.
Connect the computer with the wireless adapter to an outlet on a circuit different from that to which the
equipment experiencing the interference is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTE: The adapter must be installed and used in strict accordance with the manufacturer's instructions
as described in the user documentation that comes with the product. Any other installation or use will
violate FCC Part 15 regulations.
Safety Approval Considerations
This device has been safety approved as a component and is for use only in complete equipment where the
acceptability of the combination is determined by the appropriate safety agencies. When installed, consideration
must be given to the following:
It must be installed into a compliant host device meeting the requirement of UL/EN/IEC 60950-1 2nd edition
including the general provisions of enclosure design 1.6.2 and specifically paragraph 1.2.6.2 (Fire Enclosure).
The device shall be supplied by a SELV source when installed in the end-use equipment.
A heating test shall be considered in the end-use product for meeting the requirement of UL/EN/IEC 60950-1
2nd edition.
Low Halogen
Applies only to brominated and chlorinated flame retardants (BFRs/CFRs) and PVC in the final product. Intel
components as well as purchased components on the finished assembly meet JS-709 requirements, and the PCB /
substrate meet IEC 61249-2-21 requirements. The replacement of halogenated flame retardants and/or PVC may not
be better for the environment.
Japan
5GHz 帯は室内でのみ使用のこと
Korea
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음.
해당 무선 설비는 5150-5250MHz 대역에서 실내에서만 사용할 수 있음.
Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo
no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
Taiwan
![](/img.php?id=3480745&img=bgb.png)
第十二條
經型式認識合格之低功率射頻電機. 非經許可 公司、 商號或使用者均不得擅自變更頻率‵ 加大功率或變更原設計之特性及功能.
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信 經發現有干擾現象時 應立即停用 並改善至無干擾時方得繼續使用。
前項合法通信, 指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備 限於室內使用。
Radio Approvals
To determine whether you are allowed to use your wireless network device in a specific country, please check to see
if the radio type number that is printed on the identification label of your device is listed in the manufacturer's OEM
Regulatory Guidance document.

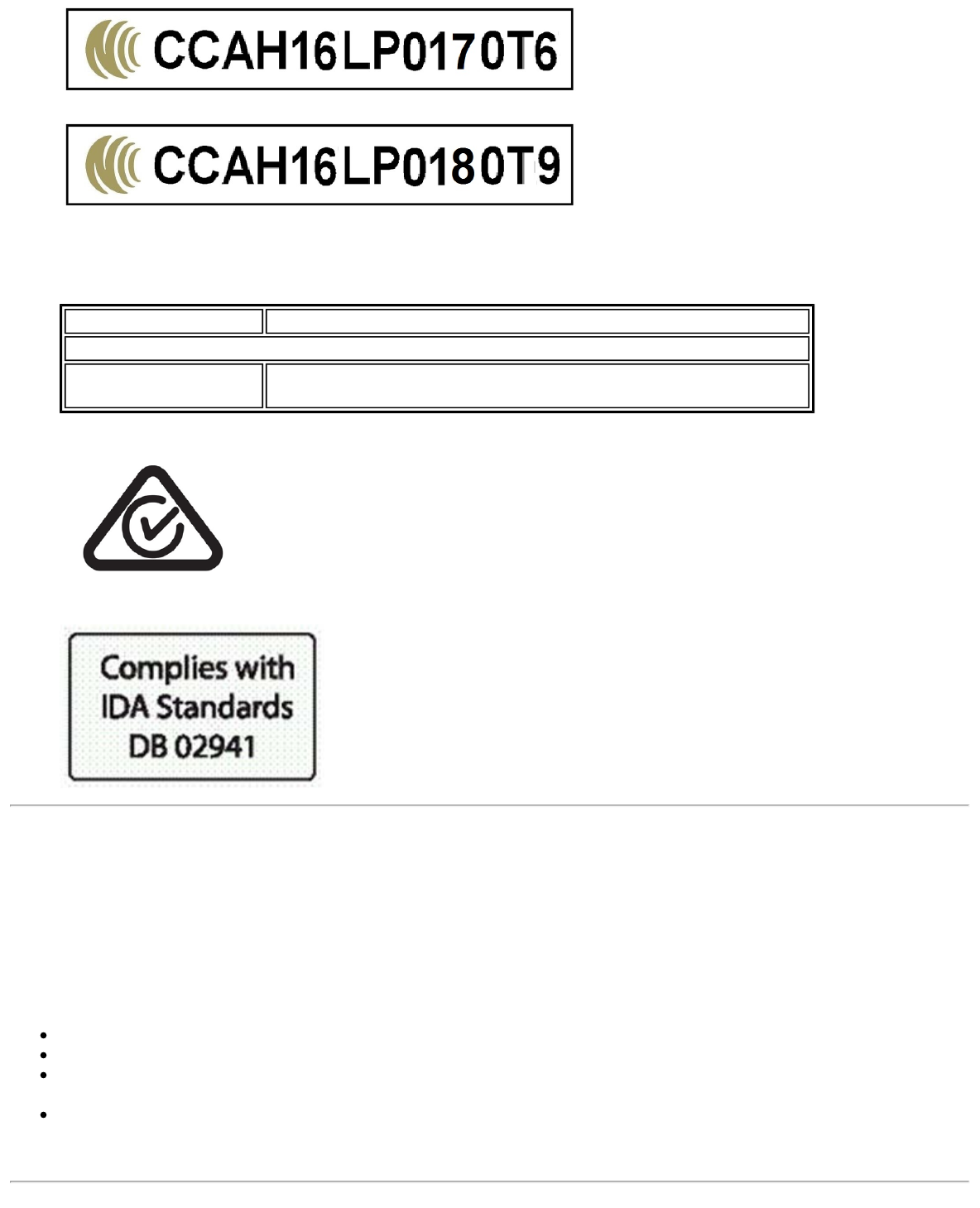

Modular Regulatory Certification Country Markings
A list of countries requiring regulatory markings is available. Note that the lists include only countries requiring
marking but not all certified countries. To find the regulatory country marking information for your adapter, perform
these steps:
1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-
networking/000007443.html
2. Click on the link for your adapter.
3. Click on Regulatory Marking Document for your adapter.
INFORMATION FOR OEMs and HOST INTEGRATORS
The guidelines described within this document are provided to OEM integrators installing Intel® wireless adapters in
notebook and tablet PC host platforms. Adherence to these requirements is necessary to meet the conditions of
compliance with FCC rules, including RF exposure. When all antenna type and placement guidelines described herein
are fulfilled the Intel® wireless adapters may be incorporated into notebook and tablet PC host platforms with no
further restrictions. If any of the guidelines described herein are not satisfied it may be necessary for the OEM or
integrator to perform additional testing and/or obtain additional approval. The OEM or integrator is responsible to
determine the required host regulatory testing and/or obtaining the required host approvals for compliance.
Intel® wireless adapters are intended for OEMs and host integrators only.
The Intel® wireless adapter FCC Grant of Authorization describes any limited conditions of modular approval.
The Intel® wireless adapters must be operated with an access point that has been approved for the country of
operation.
Changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties is not
permitted. Any changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties
will void authorization to operate the adapter.
Antenna Type and Gains
Only antennas of the same type and with equal or less gains as shown below may be used with the Intel® wireless
adapters. Other types of antennas and/or higher gain antennas may require additional authorization for operation.
Antenna
Type Antenna
Location
(Main/Aux)
2.4GHz
Peak Gain
in dBi*
2.6GHz
Peak Gain
in dBi*
5.2GHz
Peak Gain
in dBi*
5.5GHz
Peak Gain
in dBi*
5.7GHz
Peak Gain
in dBi*
PIFA Main
![](/img.php?id=3480745&img=bgc.png)
Aux 3.24 3.47 3.73 4.77 4.77
MIMO
*All antenna gains include cable loss.
Antenna Placement Within the Host Platform
To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be installed in
notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all operating
modes and orientations of the host platform, with strict adherence to the table below. The antenna separation
distance applies to both horizontal and vertical orientation of the antenna when installed in the host system.
Intel® Wireless Adapter Minimum required antenna-to-user separation distance
Intel® Centrino® Wireless-N + WiMAX 6150 18 mm
Intel® Centrino® Wireless-N + WiMAX 6350 17 mm
Simultaneous Transmission of Intel® Wireless Adapters with Other Integrated or
Plug-In Transmitters
Based upon FCC Knowledge Database publication number 616217 when there are multiple transmitting devices
installed in a host device, an RF exposure transmitting assessment shall be performed to determine the necessary
application and test requirements. OEM integrators must identify all possible combinations of simultaneous
transmission configurations for all transmitters and antennas installed in the host system. This includes transmitters
installed in the host as mobile devices (>20 cm separation from user) and portable devices (<20 cm separation from
user). OEM integrators should consult the actual FCC KDB 616217 document for all details in making this assessment
to determine if any additional requirements for testing or FCC approval is necessary.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to the end user of the
product or system incorporating the Intel® wireless adapter, in compliance with local regulations. Host system must
be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label.
The Intel® wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the product. Intel Corporation is not responsible for any radio
or television interference caused by unauthorized modification of the devices included with the wireless adapter kit or
the substitution or attachment of connecting cables and equipment other than that specified by Intel Corporation.
The correction of interference caused by such unauthorized modification, substitution or attachment is the
responsibility of the user. Intel Corporation and authorized resellers or distributors are not liable for any damage or
violation of government regulations that may arise from the user failing to comply with these guidelines.
Local Restriction of 802.11a, 802.11b, 802.11g, 802.11n, and 802.11e Radio Usage
The following statement on local restrictions must be published as part of the compliance documentation for all
802.11a, 802.11b, 802.11g and 802.11n products.
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, 802.11n, and 802.16e
wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g, 802.11n, and 802.16e
products are designed for use only in specific countries, and are not allowed to be operated in countries other than
those of designated use. As a user of these products, you are responsible for ensuring that the products are used
only in the countries for which they were intended and for verifying that they are configured with the correct
selection of frequency and channel for the country of use. Any deviation from the permissible power and frequency
settings for the country of use is an infringement of national law and may be punished as such.
![](/img.php?id=3480745&img=bgd.png)
Intel WiFi Adapters, 802.11n and 802.11ac Compliant
The information in this section applies to the following products:
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 3168
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
Intel® Dual Band Wireless-AC 8265
Intel® Wireless-AC 9260
Intel® Wireless-AC 9560
Intel® Tri-Band Wireless-AC 17265
Intel® Tri-Band Wireless-AC 18260
Intel® Tri-Band Wireless-AC 18265
Intel® Wireless Gigabit Sink W13100
Intel® Wireless Gigabit 11000
See Specifications for complete wireless adapter specifications.
NOTE: In this section, all references to the "wireless adapter" refer to all adapters listed above.
The following information is provided:
Information for the User
Regulatory Information
Regulatory ID
Information for OEMs and Host Integrators
Statements of European Compliance
INFORMATION FOR THE USER
Safety Notices
USA FCC Radio Frequency Exposure
The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure
requirements found in FCC Part 2, 15C, 15E along with guidance from KDB 447498, KDB 248227 and KDB 616217.
Proper operation of this radio according to the instructions found in this manual will result in exposure substantially
below the FCC’s recommended limits.
![](/img.php?id=3480745&img=bge.png)
The following safety precautions should be observed:
Do not touch or move antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very close or touching any exposed
parts of the body, especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause
damage to the radio.
Use in specific environments:
The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety
directors of such environments.
The use of wireless adapters on airplanes is governed by the Federal Aviation Administration (FAA).
The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital.
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps
or in an explosive environment unless the transmitter has been modified to be qualified for such use.
Antenna Warnings
Warning: The wireless adapter is not designed for use with high-gain directional antennas.
Use On Aircraft Caution
Caution: Regulations of commercial airline operators may prohibit airborne operation of certain electronic
devices equipped with radio-frequency wireless devices (wireless adapters) because their signals could interfere with
critical aircraft instruments.
Caution: 60 GHz/802.11ad equipment is not permitted on aircraft per FCC §15.255. OEM and host integrators
should consider this FCC rule in host devices.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network: See the documentation supplied with wireless
adapters or other devices in the wireless network.
Local Restrictions on 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, and 802.11ac Radio Usage
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, and
802.11ac wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11d, 802.11g,
802.11n, and 802.11ac products are designed for use only in specific countries, and are not allowed to be operated
in countries other than those of designated use. As a user of these products, you are responsible for ensuring that
the products are used only in the countries for which they were intended and for verifying that they are configured
with the correct selection of frequency and channel for the country of use. The device transmit power control (TPC)
interface is part of the Intel® PROSet/Wireless WiFi Connection Utility Software. Operational restrictions for
Equivalent Isotropic Radiated Power (EIRP) are provided by the system manufacturer. Any deviation from the
permissible power and frequency settings for the country of use is an infringement of national law and may be
punished as such.
Wireless Interoperability
The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct
sequence spread spectrum (DSSS) radio technology and to comply with the following standards:
IEEE Std. 802.11b compliant Standard on Wireless LAN
IEEE Std. 802.11g compliant Standard on Wireless LAN
IEEE Std. 802.11a compliant Standard on Wireless LAN
IEEE Std. 802.11n compliant Standard on Wireless LAN
![](/img.php?id=3480745&img=bgf.png)
IEEE Std. 802.11ac draft compliant on Wireless LAN
Wireless Fidelity certification, as defined by the Wi-Fi Alliance
The Wireless Adapter and Your Health
The wireless adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by the wireless adapter, however, is less than the electromagnetic energy emitted by other wireless devices
such as mobile phones. The wireless adapter operates within the guidelines found in radio frequency safety standards
and recommendations. These standards and recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who continually review and interpret the extensive
research literature. In some situations or environments, the use of the wireless adapter may be restricted by the
proprietor of the building or responsible representatives of the applicable organization. Examples of such situations
may include:
Using the wireless adapter on board airplanes, or
Using the wireless adapter in any other environment where the risk of interference with other devices or
services is perceived or identified as being harmful.
If you are uncertain of the policy that applies to the use of wireless adapters in a specific organization or
environment (an airport, for example), you are encouraged to ask for authorization to use the adapter before you
turn it on.
REGULATORY INFORMATION
USA - Federal Communications Commission (FCC)
This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 and 5.470 to 5.75GHz
frequency ranges. No configuration controls are provided for Intel® wireless adapters allowing any change in the
frequency of operations outside the FCC grant of authorization for U.S. operation according to Part 15.407 of the FCC
rules.
Intel® wireless adapters are intended for OEM integrators only.
Intel® wireless adapters cannot be co-located with any other transmitter unless approved by the FCC.
This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may cause undesired operation.
NOTE: The radiated output power of the adapter is far below the FCC radio frequency exposure limits.
Nevertheless, the adapter should be used in such a manner that the potential for human contact during
normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure
limits, you should keep a distance of at least 20cm between you (or any other person in the vicinity), or
the minimum separation distance as specified by the FCC grant conditions, and the antenna that is built
into the computer. Details of the authorized configurations can be found at http://www.fcc.gov/oet/ea/
by entering the FCC ID number on the device.
Class B Device Interference Statement
This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the wireless
adapter is not installed and used in accordance with the instructions, the wireless adapter may cause harmful
interference to radio communications. There is no guarantee, however, that such interference will not occur in a
particular installation. If this wireless adapter does cause harmful interference to radio or television reception (which
can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by
taking one or more of the following measures:
Reorient or relocate the receiving antenna of the equipment experiencing the interference.
![](/img.php?id=3480745&img=bg10.png)
Increase the distance between the wireless adapter and the equipment experiencing the interference.
Connect the computer with the wireless adapter to an outlet on a circuit different from that to which the
equipment experiencing the interference is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTE: The adapter must be installed and used in strict accordance with the manufacturer's instructions
as described in the user documentation that comes with the product. Any other installation or use will
violate FCC Part 15 regulations.
Safety Approval Considerations
This device has been safety approved as a component and is for use only in complete equipment where the
acceptability of the combination is determined by the appropriate safety agencies. When installed, consideration
must be given to the following:
It must be installed into a compliant host device meeting the requirement of UL/EN/IEC 60950-1 2nd edition
including the general provisions of enclosure design 1.6.2 and specifically paragraph 1.2.6.2 (Fire Enclosure).
The device shall be supplied by a SELV source when installed in the end-use equipment.
A heating test shall be considered in the end-use product for meeting the requirement of UL/EN/IEC 60950-1
2nd edition.
Low Halogen
Applies only to brominated and chlorinated flame retardants (BFRs/CFRs) and PVC in the final product. Intel
components as well as purchased components on the finished assembly meet JS-709 requirements, and the PCB /
substrate meet IEC 61249-2-21 requirements. The replacement of halogenated flame retardants and/or PVC may not
be better for the environment.
Canada – Industry Canada (IC)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil se conforme aux normes Canada d'Industrie de RSS permis-exempt. L'utilisation est assujetti aux deux
conditions suivantes: (1) cet appareil ne peut pas causer d'interférences, et (2) cet appareil doit accepter des
interférences , y compris des interférences qui peuvent causer desopérations non désirées de l'appareil.
Caution: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the
5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency
range of 5.15GHz to 5.25GHz to reduce the potential for harmful interference to co-channel mobile satellite systems.
High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar
stations can cause interference with and/or damage to this device. The maximum allowed antenna gain for use with
this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85GHz frequency
range in point-to-point operation. To comply with RF exposure requirements all antennas should be located at a
minimum distance of 20cm, or the minimum separation distance allowed by the module approval, from the body of
all persons.
Attention: l'utilisation d'un réseau sans fil IEEE802.11a est restreinte à une utilisation en intérieur à cause du
fonctionnement dans la bande de fréquence 5.15-5.25 GHz. Industry Canada requiert que ce produit soit utilisé à
l'intérieur des bâtiments pour la bande de fréquence 5.15-5.25 GHz afin de réduire les possibilités d'interférences
nuisibles aux canaux co-existants des systèmes de transmission satellites. Les radars de puissances ont fait l'objet
d'une allocation primaire de fréquences dans les bandes 5.25-5.35 GHz et 5.65-5.85 GHz. Ces stations radar peuvent
créer des interférences avec ce produit et/ou lui être nuisible. Le gain d'antenne maximum permissible pour une
utilisation avec ce produit est de 6 dBi afin d'être conforme aux limites de puissance isotropique rayonnée
équivalente (P.I.R.E.) applicable dans les bandes 5.25-5.35 GHz et 5.725-5.85 GHz en fonctionnement point-à-point.
Pour se conformer aux conditions d'exposition de RF toutes les antennes devraient être localisées à une distance
minimum de 20 cm, ou la distance de séparation minimum permise par l'approbation du module, du corps de toutes
![](/img.php?id=3480745&img=bg11.png)
les personnes.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Selon les règlements de Canada d'Industrie, cet émetteur de radio peut seulement fonctionner en utilisant une
antenne du type et de gain maximum (ou moindre) que le gain approuvé pour l'émetteur par Canada d'Industrie.
Pour réduire lesinterférences radio potentielles avec les autres utilisateurs, le type d'antenne et son gain devraient
être choisis de façon à ce que la puissance isotrope rayonnée équivalente(P.I.R.E.) ne soit pas supérieure à celle qui
est nécessaire pour une communication réussie.
European Union
The low band 5.15 - 5.35GHz is for indoor use only.
This equipment complies with the essential requirements of the European Union directive 2014/53/EU. See
Statements of European Union Compliance.
European Union Declarations of Conformity
To view the European Union Declaration of Conformity for your adapter, perform these steps.
1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-
networking/000007443.html
2. Click on "User Guide."
3. Scroll to your adapter.
To view additional regulatory information for your adapter, perform these steps:
1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-
networking/000007443.html
2. Click on the link for your adapter.
3. Click on Regulatory Marking Document for your adapter.
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances Directive (RoHS) Compliant
![](/img.php?id=3480745&img=bg12.png)
All products described herein are compliant with the European Union's RoHS Directive.
For CE Mark-Related Questions related to the wireless adapter, contact:
Intel Corporation Attn: Corporate Quality 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA
Japan
5GHz 帯は室内でのみ使用のこと
Korea
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음.
해당 무선 설비는 5150-5250MHz 대역에서 실내에서만 사용할 수 있음.
Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo
no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
Morocco
The operation of this product in the radio channel 2 (2417 MHz) is not authorized in the following cities: Agadir,
Assa-Zag, Cabo Negro, Chaouen, Goulmima, Oujda, Tan Tan, Taourirt, Taroudant and Taza.
The operation of this product in the radio channels 4, 5, 6 et 7 (2425 - 2442 MHz) is not authorized in the following
cities: Aéroport Mohamed V, Agadir, Aguelmous, Anza, Benslimane, Béni Hafida, Cabo Negro, Casablanca, Fès,
Lakbab, Marrakech, Merchich, Mohammédia, Rabat, Salé, Tanger, Tan Tan, Taounate, Tit Mellil, Zag.
Pakistan
"PTA APPROVED MODEL"
Taiwan
第十二條
經型式認識合格之低功率射頻電機. 非經許可 公司、 商號或使用者均不得擅自變更頻率‵ 加大功率或變更原設計之特性及功能.
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信 經發現有干擾現象時 應立即停用 並改善至無干擾時方得繼續使用。
前項合法通信, 指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備 限於室內使用。
Singapore
![](/img.php?id=3480745&img=bg13.png)
Radio Approvals
To determine whether you are allowed to use your wireless network device in a specific country, please check to see
if the radio type number that is printed on the identification label of your device is listed in the manufacturer's OEM
Regulatory Guidance document.
Modular Regulatory Certification Country Markings
A list of countries requiring regulatory markings is available. Note that the lists include only countries requiring
marking but not all certified countries. To find the regulatory country marking information for your adapter, perform
these steps:
1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-
networking/000007443.html
2. Click on the link for your adapter.
3. Click on Regulatory Marking Document for your adapter.
Regulatory ID
Europe: Models 3160HMW, 3160NGW, 3160SDW, 3165NGW, 7260SDW, 7260NGW, 7260HMW, 7265D2W,
7265NGW, 8260D2W, 8260NGW, 8260NGWH, 18260NGW
Software Version Intel® PROSet/Wireless WiFi Software 19.x and previous versions
(WiFi/BT)
Intel® Wireless Dock Manager 3.x and previous versions (WiGig)
Maximum Power Output
(2400 - 2483.5 MHz)
IEEE802.11 b/g/n mode 20dBm EIRP max (100mW)
(2400 - 2483.5 MHz)
BLE / Bluetooth 10dBm EIRP max (10mW)
(5150 - 5725 MHz)
IEEE802.11 a/n/ac
mode
23dBm EIRP max (200mW)
The low band 5.15 - 5.35 GHz is for indoor use only
(5725 - 5875 MHz)
IEEE802.11 a/n/ac
mode
13.98 dBm EIRP Max (25mW)
(57 - 64 GHz)
IEEE802.11 ad mode 25 dBm EIRP max
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.
![](/img.php?id=3480745&img=bg14.png)
Intel® Dual Band Wireless-AC 3165
Due to the very small size of the 3165D2W/3165NGW (12x16), the marking has been placed in this user manual
because the product label on the device is considered too small to be readable.
USA: Model 3165D2W, FCC ID: PD93165D2
Canada: Model 3165D2W, IC: 1000M-3165D2
Japan: Model 3165D2W:
Korea: Model 3165D2W, MSIP-CRM-INT-7265D2W
Taiwan: Model 3165D2W,
China: Model 3165D2W, CMIIT ID: 2015AJ3466 (M)
Europe: Model 3165D2W
Software Version Intel® PROSet/Wireless WiFi Software 19.x and previous
versions
Maximum Power Output
(2400 - 2483.5 MHz)
IEEE802.11 b/g/n mode 20dBm EIRP max (100mW)
(2400 - 2483.5 MHz)
Bluetooth/BLE 10dBm EIRP max (10mW)
(5150 - 5725 MHz)
IEEE802.11 a/n/ac
mode
23dBm EIRP max (200mW)
The low band 5.15 - 5.35 GHz is for indoor use only
(5725 - 5875 MHz)
IEEE802.11 a/n/ac
mode
13.98 dBm EIRP Max (25mW)
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.
![](/img.php?id=3480745&img=bg15.png)
Australia: Model 3165D2W
Singapore: Model 3165D2W
Argentina:
Model 3165D2W,
Model 3165NGW,
Intel® Dual Band Wireless-AC 3168
Due to the very small size of the 3168NGW, the marking has been placed in this user manual because the product
label on the device is considered too small to be readable.
Europe: Model 3168NGW
Software Version Intel® PROSet/Wireless WiFi Software 19.x and previous
versions
Maximum Power Output
(2400 - 2483.5 MHz)
IEEE802.11 b/g/n mode 20dBm EIRP max (100mW)
![](/img.php?id=3480745&img=bg16.png)
(2400 - 2483.5 MHz)
Bluetooth/BLE
10dBm EIRP max (10mW)
(5150 - 5725 MHz)
IEEE802.11 a/n/ac
mode
23dBm EIRP max (200mW)
The low band 5.15 - 5.35 GHz is for indoor use only
(5725 - 5875 MHz)
IEEE802.11 a/n/ac
mode
13.98 dBm EIRP Max (25mW)
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

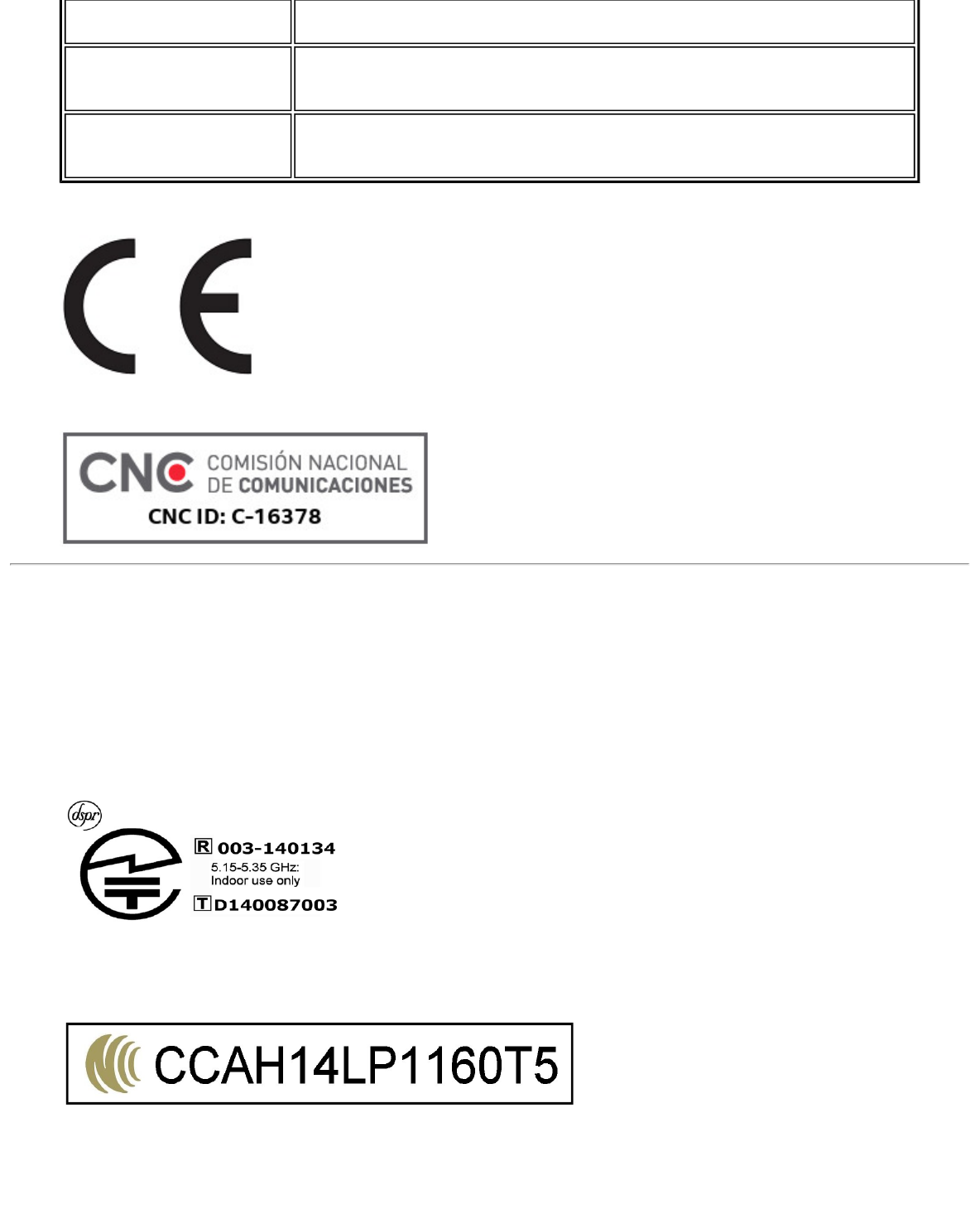

Argentina: Model 3168NGW,
Intel® Dual Band Wireless-AC 7265
Due to the very small size of the 7265D2W (12x16), the marking has been placed in this user manual because the
product label on the device is considered too small to be readable.
USA: Model 7265D2W, FCC ID: PD97265D2
Canada: Model 7265D2W, IC: 1000M-7265D2
Japan: Model 7265D2W:
Korea: Model 7265D2W, MSIP-CRM-INT-7265D2W
Taiwan: Model 7265D2W,
China: Model 7265D2W, CMIIT ID: 2014AJ3467 (M)
Australia: Model 7265D2W,
![](/img.php?id=3480745&img=bg17.png)
Argentina: Model 7265D2W,
Intel® Wireless Gigabit Sink W13100
Due to the very small size of the 13100NGW, the marking has been placed in this user manual because the product
label on the device is considered too small to be readable.
Europe: Model 13100NGW
Software Version Intel® Wireless Dock Manager 3.x and previous versions
Maximum Power Output
(57 - 64 GHz)
IEEE802.11 ad mode 25 dBm EIRP max
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.
Singapore: Model 13100NGW
Intel® Tri-Band Wireless-AC 17265
Due to the very small size of the 17265NGW, the marking has been placed in this user manual because the product
label on the device is considered too small to be readable.
Europe: Model 17265NGW
Software Version Intel® PROSet/Wireless WiFi Software 19.x and previous versions
(WiFi/BT)
![](/img.php?id=3480745&img=bg18.png)
Intel® Wireless Dock Manager 3.x and previous versions (WiGig)
Maximum Power Output
(2400 - 2483.5 MHz)
IEEE802.11 b/g/n
mode
Bluetooth
20dBm EIRP max (100mW)
(2400 - 2483.5 MHz)
BLE 10dBm EIRP max (10mW)
(5150 - 5725 MHz)
IEEE802.11 a/n/ac
mode
23dBm EIRP max (200mW)
The low band 5.15 - 5.35 GHz is for indoor use only
(5725 - 5875 MHz)
IEEE802.11 a/n/ac
mode
13.98 dBm EIRP Max (25mW)
(57 - 64 GHz)
IEEE802.11 ad mode 25 dBm EIRP max
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.
Singapore: Model 17265NGW
Intel® Dual Band Wireless-AC 8260
Due to the very small size of the 8260D2W (12x16), the marking has been placed in this user manual because the
product label on the device is considered too small to be readable.
USA: Model 8260D2W, FCC ID: PD98260D2 (FCC ID without suffix "U" denotes factory installation only);
FCC ID: PD98260D2U (FCC ID with suffix “U” denotes user installation or replacement permitted and
supported by bios locking feature)
Canada: Model 8260D2W, IC: 1000M-8260D2
Japan: Model 8260D2W:
![](/img.php?id=3480745&img=bg19.png)
Korea: Model 8260D2W, MSIP-CRM-INT-8260D2W
Taiwan: Model 8260D2W,
China: Model 8260D2W, CMIIT ID: 2014AJ3467 (M)
Australia: Model 8260D2W,
Argentina: Model 8260D2W,
Due to the very small size of the 8260NGWH/8260NGW, the marking has been placed in this user manual because
the product label on the device is considered too small to be readable.
Argentina: Model 8260NGWH,
Argentina: Model 8260NGW,
Intel® Dual Band Wireless-AC 8265
![](/img.php?id=3480745&img=bg1a.png)
Due to the very small size of the 8265NGW (22mm x 30mm x 2.4mm), the marking has been placed in this user
manual because the product label on the device is considered too small to be readable.
USA: Model 8265NGW
FCC ID: PD98265NG (FCC ID without suffix "U" denotes factory installation only)
FCC ID: PD98265NGU (FCC ID with suffix “U” denotes user installation or replacement permitted
and supported by BIOS locking feature)
Canada: Model 8265NGW, IC: 1000M-8265NG

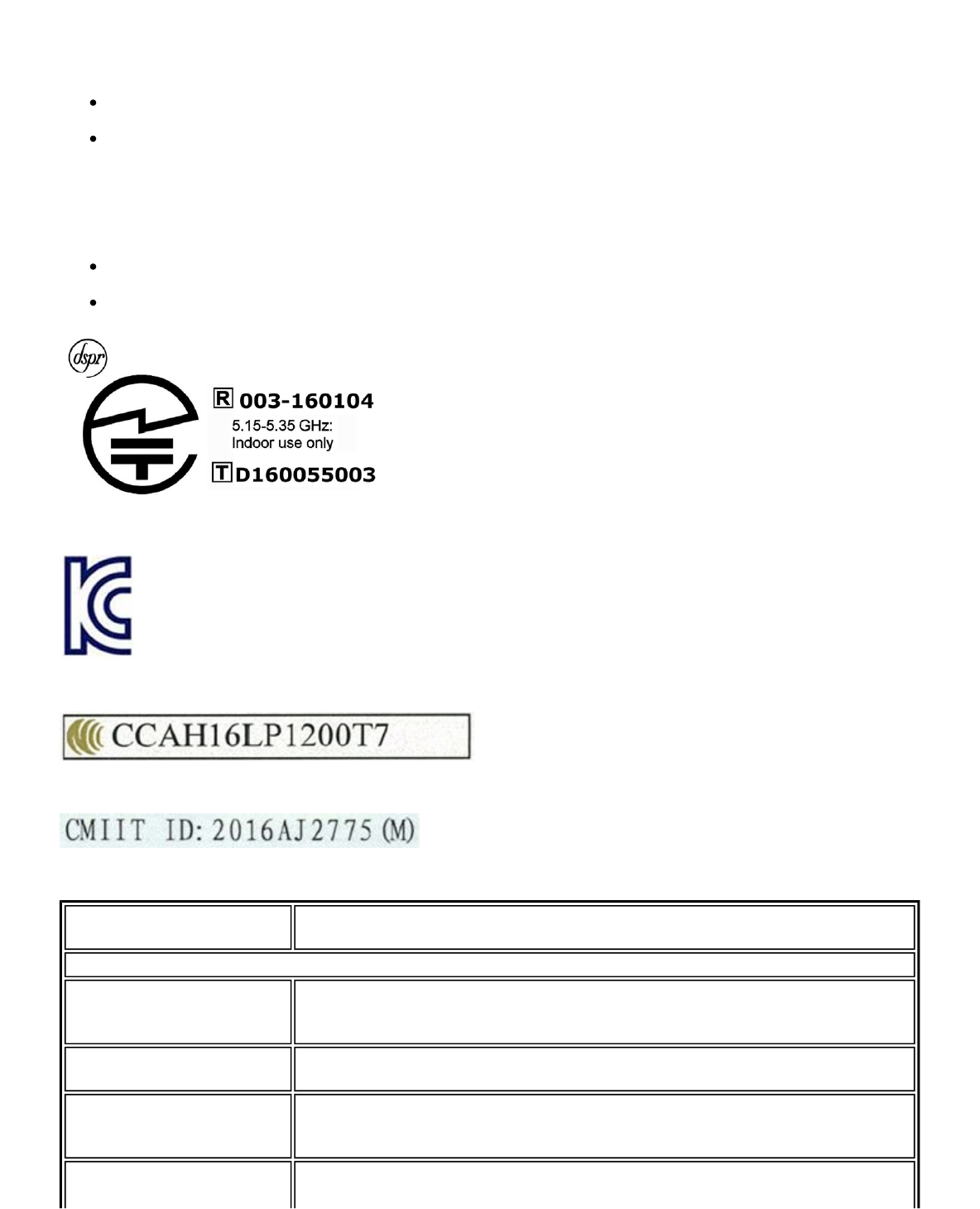

Japan: Model 8265NGW:
RF 003-160104
TEL D160055003
Korea: Model 8265NGW, MSIP-CRM-INT-8265NGW,
Taiwan: Model 8265NGW
China: Model 8265NGW
Europe: Models 8265NGW, 8265D2W
Software Version Intel® PROSet/Wireless WiFi Software 19.x and previous
versions
Maximum Power Output
(2400 - 2483.5 MHz)
IEEE802.11 b/g/n mode
Bluetooth
20dBm EIRP max (100mW)
(2400 - 2483.5 MHz)
BLE 10dBm EIRP max (10mW)
(5150 - 5725 MHz)
IEEE802.11 a/n/ac
mode
23dBm EIRP max (200mW)
The low band 5.15 - 5.35 GHz is for indoor use only
(5725 - 5875 MHz)
IEEE802.11 a/n/ac 13.98 dBm EIRP Max (25mW)
![](/img.php?id=3480745&img=bg1b.png)
mode
(57 - 64 GHz)
IEEE802.11 ad mode 25 dBm EIRP max
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.
Australia: Model 8265NGW,
Brazil: Model 8265NGW: ANATEL: XXXXXXXXXX,
Argentina: Model 8265NGW,
Singapore: Model 8265NGW:
Pakistan: Model 8265NGW
"PTA APPROVED MODEL"
Due to the very small size of the 8265D2W (12mm x 16mm x 1.8mm), the marking has been placed in this user
manual because the product label on the device is considered too small to be readable.
USA: Model 8265D2W, FCC ID: PD98265D2
Canada: Model 8265D2W, IC: 1000M-8265D2
Japan: Model 8265D2W:
RF 003-160129
TEL D160076003
![](/img.php?id=3480745&img=bg1c.png)
Korea: Model 8265D2W, MSIP-CRM-INT-8265D2W,
Taiwan: Model 8265D2W
China: Model 8265D2W
Australia: Model 8265D2W,
Brazil: Model 8265D2W: ANATEL: XXXXXXXXXX,
Argentina: Model 8265D2W,
Singapore: Model 8265D2W:
Pakistan: Model 8265D2W
"PTA APPROVED MODEL"
![](/img.php?id=3480745&img=bg1d.png)
Intel® Tri-band Wireless AC 18265
Due to the very small size of the 18265NGW module, the regulatory marking has been placed in this user manual
because the product label on the device is considered too small to be readable
USA: Model 18265NGW, FCC ID: PD918265NG (This module is for factory installation only)
Canada: Model 18265NGW, IC : 1000M-18265NG
Japan: Model 18265NGW
Korea: Model 18265NGW, MSIP-CRM-INT-18265NGW
Taiwan: Model 18265NGW
China: Model 18265NGW, CMIIT ID: 2016AJ7066 (M)
Europe: Model 18265NGW,
Software Version Intel® PROSet/Wireless WiFi Software 19.x and previous versions
(WiFi/BT)
Intel® Wireless Dock Manager 3.x and previous versions (WiGig)
Maximum Power Output
(2400 - 2483.5 MHz)
IEEE802.11 b/g/n
mode
Bluetooth
20dBm EIRP max (100mW)
(2400 - 2483.5 MHz)
BLE 10dBm EIRP max (10mW)
(5150 - 5725 MHz)
IEEE802.11 a/n/ac
mode
23dBm EIRP max (200mW)
The low band 5.15 - 5.35 GHz is for indoor use only
(5725 - 5875 MHz)
IEEE802.11 a/n/ac
mode
13.98 dBm EIRP Max (25mW)
(57 - 64 GHz) 25 dBm EIRP max
![](/img.php?id=3480745&img=bg1e.png)
IEEE802.11 ad mode
This equipment complies with the essential requirements of the European Union directive 2014/53/EU.
Australia: Model 18265NGW,
Brazil: Model 18265NGW, ANATEL: XXXXXXXXXXXXX
Singapore: Model 18265NGW,
Intel® Wireless Gigabit 11000
Due to the very small size of the 11000D2W/11000D2W LC, the marking has been placed in this user manual
because the product label on the device is considered too small to be readable.
USA: Model 11000D2W and 11000D2W LC, FCC ID: PD911000D2
Canada: Model 11000D2W, IC: 1000M-11000D2
Japan: Model 11000D2W:
Korea: Model 11000D2W, MSIP-CRM-INT-11000D2W
Taiwan: Model 11000D2W and 11000D2W LC,
![](/img.php?id=3480745&img=bg1f.png)
China: Model 11000D2W, CMIIT ID: 2016DJ0267 (M); Model 11000D2W LC, CMIIT ID: 2016DJ0268 (M)
Europe: Model 11000D2W
Software Version Intel® Wireless Dock Manager 3.x and previous versions
Maximum Power Output
(57 - 64 GHz)
IEEE802.11 ad mode 25 dBm EIRP max
Australia: Model 11000D2W,
Singapore: Model 11000D2W/11000D2W LC:
INFORMATION FOR OEMS and HOST INTEGRATORS
The guidelines described within this document are provided to OEM integrators installing Intel® wireless adapters in
notebook and tablet PC host platforms. Adherence to these requirements is necessary to meet the conditions of
compliance with FCC rules, including RF exposure. When all antenna type and placement guidelines described herein
are fulfilled the Intel® wireless adapters may be incorporated into notebook and tablet PC host platforms with no
further restrictions. If any of the guidelines described herein are not satisfied it may be necessary for the OEM or
integrator to perform additional testing and/or obtain additional approval. The OEM or integrator is responsible to
determine the required host regulatory testing and/or obtaining the required host approvals for compliance.
Intel® wireless adapters are intended for OEMs and host integrators only.
The Intel® wireless adapter FCC Grant of Authorization describes any limited conditions of modular approval.
The Intel® wireless adapters must be operated with an access point that has been approved for the country of
operation.
Changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties is not
permitted. Any changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties
will void authorization to operate the adapter.
![](/img.php?id=3480745&img=bg20.png)
Antenna Type and Gains
Only antennas of the same type and with equal or less gains as shown below may be used with the Intel® wireless
adapters. Other types of antennas and/or higher gain antennas may require additional authorization for operation.
Antenna
Type Antenna
Location
(Main/Aux)
2.4GHz
Peak Gain
in dBi*
2.6GHz
Peak Gain
in dBi*
5.2GHz
Peak Gain
in dBi*
5.5GHz
Peak Gain
in dBi*
5.7GHz
Peak Gain
in dBi*
PIFA Main
Aux 3.24 3.47 3.73 4.77 4.77
MIMO
*All antenna gains include cable loss.
Antenna Placement Within the Host Platform
To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be installed in
notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all operating
modes and orientations of the host platform, with strict adherence to the table below. The antenna separation
distance applies to both horizontal and vertical orientation of the antenna when installed in the host system.
Wireless Adapter Minimum required antenna-to-user separation distance
Intel® Centrino® Wireless-N 100 9 mm
Intel® Centrino® Wireless-N 105 9 mm
Intel® Centrino® Wireless-N 130 8 mm
Intel® Centrino® Wireless-N 135 9 mm
Intel® Centrino® Wireless-N 1000* 20 mm
Intel® Centrino® Wireless-N 1030 8 mm
Intel® Centrino® Wireless-N 2200 9 mm
Intel® Centrino® Wireless-N 2230 6 mm
Intel® Centrino® Advanced-N 6200* 20 mm
Intel® Centrino® Advanced-N 6205 12 mm
Intel® Centrino® Advanced-N 6230 12 mm
Intel® Centrino® Advanced-N 6235 8 mm
Intel® Centrino® Ultimate-N 6300 13 mm
Intel® Dual Band Wireless-AC 7260 8 mm
Intel® Dual Band Wireless-N 7260 8 mm
Intel® Wireless-N 7260 8 mm
Intel® Dual Band Wireless-AC 3160 8 mm
Intel® Dual Band Wireless-AC 3165 8 mm
Intel® Dual Band Wireless-AC 7265 8 mm
Intel® Dual Band Wireless-N 7265 8 mm
Intel® Wireless-N 7265 8 mm
Intel® Dual Band Wireless-AC 8260 8 mm
Intel® Dual Band Wireless-AC 8265 8 mm
Intel® Wireless-AC 9260 8 mm
Intel® Wireless-AC 9560 8 mm
Intel® Tri-Band Wireless-AC 17265 8 mm
![](/img.php?id=3480745&img=bg21.png)
Intel® Tri-Band Wireless-AC 18260 8 mm
Intel® Tri-Band Wireless-AC 18265 8 mm
Intel® Wireless Gigabit Sink W13100 8 mm
Intel® Wireless Gigabit 11000 8 mm
* This wireless adapter may be installed in mobile devices only (requires > 20 cm antenna separation from the
body of user).
For WiFi/Bluetooth combination adapters it is recommended that a 5 cm separation distance between transmitting
antennas be provided within the host system to maintain an adequate separation ratio for simultaneous WiFi and
Bluetooth transmission. For less than 5 cm separation the separation ratio must be verified according to FCC
publication KDB 447498 for the specific adapter.
Additional regulatory authorization process may be required if wishing to place the 60 GHz/802.11ad RFEM (antenna
array) closer than 20 cm to the user.
Simultaneous Transmission of Intel® Wireless Adapters with Other Integrated or
Plug-In Transmitters
Based upon FCC Knowledge Database publication number 616217, when there are multiple transmitting devices
installed in a host device, an RF exposure transmitting assessment shall be performed to determine the necessary
application and test requirements. OEM integrators must identify all possible combinations of simultaneous
transmission configurations for all transmitters and antennas installed in the host system. This includes transmitters
installed in the host as mobile devices (>20 cm separation from user) and portable devices (<20 cm separation from
user). OEM integrators should consult the actual FCC KDB 616217 document for all details in making this assessment
to determine if any additional requirements for testing or FCC approval is necessary.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to the end user of the
product or system incorporating the Intel® wireless adapter, in compliance with local regulations. Host system must
be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label.
The wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the product. For country-specific approvals, see Radio
Approvals. Intel Corporation is not responsible for any radio or television interference caused by unauthorized
modification of the devices included with the wireless adapter kit or the substitution or attachment of connecting
cables and equipment other than that specified by Intel Corporation. The correction of interference caused by such
unauthorized modification, substitution or attachment is the responsibility of the user. Intel Corporation and
authorized resellers or distributors are not liable for any damage or violation of government regulations that may
arise from the user failing to comply with these guidelines.
Local Restriction of 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad Radio Usage
The following statement on local restrictions must be published as part of the compliance documentation for all
802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad products.
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad
wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g and 802.11n products
are designed for use only in specific countries, and are not allowed to be operated in countries other than those of
designated use. As a user of these products, you are responsible for ensuring that the products are used only in the
countries for which they were intended and for verifying that they are configured with the correct selection of
frequency and channel for the country of use. Any deviation from permissible settings and restrictions in the country
of use could be an infringement of national law and may be punished as such.
![](/img.php?id=3480745&img=bg22.png)
Statements of European Compliance
Each of the adapters listed below comply with the essential requirements of the European Union directive
2014/53/EU.
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
Intel® Dual Band Wireless-AC 8265
Intel® Wireless-AC 9260
Intel® Wireless-AC 9560
Intel® Tri-Band Wireless-AC 17265
Intel® Tri-Band Wireless-AC 18260
Intel® Tri-Band Wireless-AC 18265
Intel® Wireless Gigabit Sink W13100
Intel® Wireless Gigabit 11000
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=3480745&img=bg23.png)
Back to Contents
Specifications
This section provides specification information for the family of Intel® wireless adapters. The following list may not
be all inclusive.
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 3168
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
Intel® Dual Band Wireless-AC 8265
Intel® Wireless-AC 9260
Intel® Wireless-AC 9560
Intel® Tri-Band Wireless-AC 17265
Intel® Tri-Band Wireless-AC 18260
Intel® Tri-Band Wireless-AC 18265
Intel® Wireless Gigabit Sink W13100
Intel® Wireless Gigabit 11000
Intel® Centrino® Wireless-N 100, Intel® Centrino® Wireless-N 105,
Intel® Centrino® Wireless-N 130 and Intel® Centrino® Wireless-N 135
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x
4.5 mm)
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
![](/img.php?id=3480745&img=bg24.png)
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency
Modulation 2.4 GHz (802.11b/g/n)
Frequency band 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates MIMO Configuration: 1X1
Tx/Rx: 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3,
30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth
Support Intel® Centrino® Wireless-N 100: None
Intel® Centrino® Wireless-N 105: None
Intel® Centrino® Wireless-N 130: Bluetooth 2.1, 2.1 + EDR, 3.0, 3.0+HS
Intel® Centrino® Wireless-N 135: Bluetooth 4.0 (Bluetooth Low-Energy and
Bluetooth 3.0 +HS)
General
Operating
Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit
and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise, WPA2-
Personal, WPA2-Enterprise, WMM, WPS
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
IEEE Feature Sets IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11d, 802.11h
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS,
EAP-AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Wireless-N 1000
Form Factor PCI Express* Mini Card and Half-Mini Card
SKUs Intel® Centrino® Wireless-N 1000 - 1X2 MC/HMC
Dimensions Mini Card: Width 2.0 in x Length 1.18 in x Height 0.18 in (50.80 mm x 30 mm x 4.5
mm)
Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30
mm x 4.5 mm)
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
Connector Interface 52-pin Mini Card edge connector
![](/img.php?id=3480745&img=bg25.png)
Voltage 3.3 V
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency Modulation 2.4 GHz (802.11b/g/n)
Frequency band 2.41-2.474 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, CCK, DQPSK, DBPSK
Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n Data
Rates 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2,
65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
General
Operating Systems Microsoft Windows* XP (32 and 64 bit) and Windows Vista* (32 and 64 bit), Ubuntu
Linux*
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise,
WPA2-Personal, WPA2-Enterprise, WMM, WPS
Cisco Compatible
Extensions certification Cisco Compatible Extensions, v4.0
WLAN Standard IEEE 802.11g, 802.11b, 802.11n, 802.11d, 802.11e, 802.11i,
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, 802.1X: EAP-SIM,
LEAP, PEAP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Encryption AES-CCMP 128-bit, WEP 128-bit and 64-bit, CKIP, TKIP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Wireless-N 2200 and Intel® Centrino® Wireless-N
2230
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x
4.5 mm)
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency
Modulation 2.4 GHz (802.11b/g/n)
![](/img.php?id=3480745&img=bg26.png)
Frequency band 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates MIMO Configuration: 2X2
Tx/Rx: 300, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45,
43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth
Support Intel® Centrino® Wireless-N 2200: None
Intel® Centrino® Wireless-N 2230: Bluetooth 4.0 (Bluetooth Low-Energy and
Bluetooth 3.0 +HS)
General
Operating
Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit
and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise, WPA2-
Personal, WPA2-Enterprise, WMM, WPS
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
IEEE Feature Sets IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11d, 802.11h
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS,
EAP-AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Wireless-N 1030 and Intel® Centrino® Advanced-N
6230
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5
mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Network
Standards 802.11a/b/g/n (varies by adapter) and Bluetooth 3.0 + HS
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
![](/img.php?id=3480745&img=bg27.png)
WiFi Network
Standards
Intel® Centrino® Wireless-N 1030: 802.11b/g/n
Intel® Centrino® Advanced-N 6230: 802.11a/g/n
Frequency
Modulation 5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)
Frequency
band 5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Intel® Centrino® Advanced-N 6230:
Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
Intel® Centrino® Wireless-N 1030:
Rx (Mbps): 300, 270, 243, 240, 180
Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3,
30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth Bluetooth Version 3.0 + HS
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Wi-Fi
Alliance*
certification
Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WPS, WMM, WMM Power Save, EAP-SIM, LEAP,
PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA, P2P
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
WLAN
Standard IEEE 802.11g, 802.11b, 802.11a, 802.11n
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-
AKA
Product
Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Advanced-N 6235
![](/img.php?id=3480745&img=bg28.png)
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5
mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Network
Standards 802.11a/b/g/n and Bluetooth 4.0
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)
Frequency
band 5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth Bluetooth Version 4.0 (3.0 +HS )
General
Operating
Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and
64-bit)
Wi-Fi
Alliance*
certification
Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WPS, WMM, WMM Power Save, EAP-SIM, LEAP,
PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA, P2P
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
WLAN
Standard IEEE 802.11g, 802.11b, 802.11a, 802.11n
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-
AKA
Product
Safety
UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=3480745&img=bg29.png)
Intel® Centrino® Advanced-N + WiMAX 6250 and Intel® Centrino®
Wireless-N + WiMAX 6150
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5
mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency
Modulation Intel® Centrino® Advanced-N + WiMAX
6250
2.4 GHz (802.11b/g/n), 5 GHz (802.11a/n)
Intel® Centrino® Wireless-N + WiMAX 6150
2.4 GHz (802.11b/g/n)
Frequency
band 5.15 GHz - 5.85 GHz (dependent on
country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Intel® Centrino® Wireless-N + WiMAX 6150
MIMO Configuration: 1X2
Rx: 300, 270, 243, 240, 180 Mbps
Rx/Tx: 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30,
28.9, 21.7, 15, 14.4, 7.2 Mbps
Intel® Centrino® Advanced-N + WiMAX 6250
MIMO Configuration: 2X2
Tx/Rx: 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65,
60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
![](/img.php?id=3480745&img=bg2a.png)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP,
TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
IEEE Feature
Sets Intel® Centrino® Wireless-N + WiMAX 6150:
IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11h, 802.11d
Intel® Centrino® Advanced-N + WiMAX 6250:
802.11a, IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11h, 802.11d
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-
AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
WiMAX General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Standard
Compliance 802.16e-2005 Corrigenda 2 (D4)
WiMAX
System Profile
Feature set
Intel® Centrino® Wireless-N + WiMAX 6150:
Mobile WiMAX release 1, Wave II. Supports 3A and 1A/B profiles
Intel® Centrino® Advanced-N + WiMAX 6250:
Mobile WiMAX release 1, Wave II. Supports 3A, 5A/C, 1A/B, and 5BL profiles
Security Key Management Protocol (PKMv2)
Encryption 128-bit CCMP (Counter-Mode/CBC-MAC) based on AES encryption
WiMAX
Frequency
band Intel® Centrino® Wireless-N + WiMAX 6150: 2.3-2.4 GHz / 2.496-2.690 GHz
Intel® Centrino® Advanced-N + WiMAX 6250: 2.3-2.4 GHz / 2.496-2.690 GHz / 3.4-3.8 GHz
Modulation UL - QPSK, 16 QAM
DL - QPSK, 16 QAM, 64 QAM
Wireless
Medium Duplex mode: TDD operations Scalable OFDMA (SOFDMA): 512 and 1024
FFT
sub-carrier permutation: PUSC Intel® Centrino® Wireless-N + WiMAX 6150:
Channel bandwidths: 5 and 10 MHz
Intel® Centrino® Advanced-N + WiMAX
6250:
Channel bandwidths: 5, 7, 8.75 and 10 MHz
WiMAX
Network
Release
Feature set
SPWG/NWG Release 1.5
![](/img.php?id=3480745&img=bg2b.png)
Rate
Performance
Intel® Centrino® Wireless-N + WiMAX 6150:
Up to 10 Mbps DL and 4 Mbps UL @ peak rate
(OTA performance, 10MHz channel)
Intel® Centrino® Advanced-N + WiMAX 6250:
Up to 20 Mbps DL and 6 Mbps UL @ peak rate
(OTA performance, 10MHz channel)
RF
Transmitter
Output Power
Compliance with Power class 2
Intel® Centrino® Advanced-N 6200, Intel® Centrino® Advanced-N
6205 and Intel® Centrino® Ultimate-N 6300
Form Factor Intel® Centrino® Advanced-N 6200, Intel® Centrino® Ultimate-N 6300:
PCI Express* Full-Mini Card and Half-Mini Card.
Intel® Centrino® Advanced-N 6205: PCI Express* Half-Mini Card.
Dimensions Full-Mini Card: Width 2.00 in x Length 1.18 in x Height 0.18 in (50.95 mm x 30 mm x 4.5
mm)
Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5
mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)
Frequency
band 5.15 GHz - 5.85 GHz (dependent on
country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Intel® Centrino® Ultimate-N 6300:
Tx/Rx: 450, 405, 360, 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
Intel® Centrino® Advanced-N 6200, Intel® Centrino® Advanced-N 6205:
Tx/Rx: 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65,
60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g 54, 48, 36, 24, 18, 12, 9, 6 Mbps
![](/img.php?id=3480745&img=bg2c.png)
Data Rates
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP,
TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
WLAN
Standard IEEE 802.11g, 802.11b, 802.11a, 802.11n
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-
AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 7260
Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
Intel® Dual Band Wireless-AC 7260
Model 7260HMW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, HMC
Model 7260NGW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 7260: 2 X 2
Data Rates All data rates are theoretical maximums.
![](/img.php?id=3480745&img=bg2d.png)
IEEE 802.11ac Data
Rates
Intel® Dual Band Wireless-AC 7260: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the
following adapters
Model 7260HMW
Model 7260NGW
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-
bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Form Factors Half-Mini Card, M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe, USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11 Networking
Standards Intel® Dual Band Wireless-N 7260
Model 7260HMW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, HMC
Model 7260NGW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Model 7260HMW NB - 802.11agn, 2x2, PCIe, USB, HMC
Model 7260NGW NB - 802.11agn, 2x2, PCIe, USB, M.2
Intel® Wireless-N 7260
![](/img.php?id=3480745&img=bg2e.png)
Model 7260HMW BN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Model 7260NGW BN - 802.11bgn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency Modulation
(See above, not all
bands supported by all
adapters)
5GHz (802.11a/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
802.11n spatial streams All adapters: 2 X 2 spatial streams
Data Rates All data rates are theoretical maximums.
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130,
120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4,
7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the
following adapters
Model 7260HMW AN
Model 7260NGW AN
Model 7260HMW BN
Model 7260NGW BN
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-
bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS
2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device
connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions certification Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-
AKA
Authentication Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct* Encryption WPA2, AES-CCMP
![](/img.php?id=3480745&img=bg2f.png)
and Authentication
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 3160
Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
Intel® Dual Band Wireless-AC 3160
Model 3160HMW - 802.11agn, ac, 1x1, Bluetooth 4.0, PCIe, USB, HMC
Model 3160NGW - 802.11agn, ac, 1x1, Bluetooth 4.0, PCIe, USB, M.2
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 3160: 1 X 1
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 3160: Up to 433 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8,
45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the
following adapters
Model 3160HMW
Model 3160NGW
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible Cisco Compatible Extensions, v4.0
![](/img.php?id=3480745&img=bg30.png)
Extensions
certification
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 3165 (Model 3165NGW)
Form Factors M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 3165: 1 X 1
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 3165: Up to 433 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8,
45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-
bit)
![](/img.php?id=3480745&img=bg31.png)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 3168
Form Factors M.2 2230 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 3168: 1 X 1
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 3168: Up to 433 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8,
45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates
11, 5.5, 2, 1 Mbps
![](/img.php?id=3480745&img=bg32.png)
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.2 (BLE)
General
Operating Systems Linux, Windows* 8.1 (64-bit), Windows* 10 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 7265 (Model 7265NGW)
Form Factors M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
Intel® Dual Band Wireless-AC 7265
Model 7265NGW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 7265: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 7265: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
![](/img.php?id=3480745&img=bg33.png)
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the
following adapters
Model 7265NGW
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-
bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-N 7265 (Models 7265NGW AN and 7265NGW
NB)
Intel® Wireless-N 7265 (Model 7265NGW BN)
Form Factors M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe, USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11 Networking
Standards Intel® Dual Band Wireless-N 7265
Model 7265NGW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Model 7265NGW NB - 802.11agn, 2x2, PCIe, USB, M.2
Intel® Wireless-N 7265
Model 7265NGW BN - 802.11bgn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency Modulation
(See above, not all
bands supported by all
5GHz (802.11a/n) 2.4GHz (802.11b/g/n)
![](/img.php?id=3480745&img=bg34.png)
adapters)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
802.11n spatial streams All adapters: 2 X 2 spatial streams
Data Rates All data rates are theoretical maximums.
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130,
120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4,
7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the
following adapters
Model 7265NGW AN
Model 7265NGW NB
Model 7265NGW BN
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-
bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS
2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device
connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions certification Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-
AKA
Authentication Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct* Encryption
and Authentication WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 8260
Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
![](/img.php?id=3480745&img=bg35.png)
IEEE 802.11
Networking
Standards
Intel® Dual Band Wireless-AC 8260
Model 8260NGW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 8260: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 8260: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the
following adapters
Model 8260NGW
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-
bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=3480745&img=bg36.png)
Intel® Dual Band Wireless-AC 8265 (Models
8265NGWH/8265NGW/8265D2W)
General
Dimensions (H x W
x D) M.2 2230: 22 mm x 30 mm x 2.4 mm
M.2 1216: 12 mm x 16 mm x 1.8 mm
Weight M.2 2230: 2.6g
M.2 1216: 0.6g
Antenna Diversity Supported
Radio ON/OFF
Control Supported
Connector Interface M.2: PCIe, USB, or UART (M.2 1216 only)
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1*, Microsoft Windows 10*, Linux* (limited
feature support), Android
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected
Management Frames, Wi-Fi Direct* for peer to peer device connections, Wi-Fi Miracast*
as Source.
IEEE WLAN
Standard IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,
802.11k, 802.11v pending OS support; Fine Timing Measurement based on
802.11REVmc
Roaming Supports seamless roaming between access points
Bluetooth Dual Mode Bluetooth* 4.2, BLE
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA,
EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP
Wi-Fi Direct*
Encryption and
Authentication
WPA2-PSK, AES-CCMP
Compliance
Product Safety UL, C-UL, CB (IEC 60950-1)
Model Numbers
Models Model 8265NGWH 802.11ac, 2x2, Bluetooth* 4.2, PCIe, USB, LTE
Coexistence, eFEM, M.2 2230 HE
Model 8265NGW 802.11ac, 2x2, Bluetooth* 4.2, PCIe, USB, M.2
2230 MS
Model 8265D2W 802.11ac, 2x2, Bluetooth* 4.2, PCIe, LTE
Coexistence, M.2 1216 SD
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on country)
![](/img.php?id=3480745&img=bg37.png)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256
QAM
CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 8265: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 8265: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Intel® Wireless-AC 9260 (Model 9260NGW)
General
Dimensions (H x W x
D) M.2 2230: 22 mm x 30 mm x 2.4 mm
Weight M.2 2230: 2.6g
Antenna Diversity Supported
Radio ON/OFF
Control Supported
Connector Interface M.2: PCIe, USB
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Operating Systems Microsoft Windows 10*, Linux* (limited feature support), Chrome*
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*,
WPS2*, Protected Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct*.
IEEE WLAN Standard IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,
802.11k, 802.11v pending OS support; Fine Timing Measurement based on
802.11REVmc
Roaming Supports seamless roaming between access points
Bluetooth Bluetooth* 5
Security
Authentication WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-AKA)
Authentication
Protocols PAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2*
Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP
Wi-Fi Direct*
Encryption and
Authentication
WPA2-PSK, AES-CCMP
Compliance
![](/img.php?id=3480745&img=bg38.png)
US Government FIPS, FISMA
Product Safety UL, C-UL, CB (IEC 60950-1)
Model Numbers
Model 9260NGW 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,
USB, M.2 2230
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency
Division Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency
Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Wireless-AC 9260: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates 1.73 Gbps when using 160MHz channels
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Intel® Wireless-AC 9560 (Models 9560NGW/9560D2W)
General
Dimensions (H x
W x D) M.2 2230: 22 mm x 30 mm x 2.4 mm
M.2 1216: 12 mm x 16 mm x 1.8 mm
Weight M.2 2230: 2.6g
M.2 1216: 0.6g
Antenna Diversity Supported
Radio ON/OFF
Control Supported
Connector
Interface M.2: CNVio
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Operating
Systems Microsoft Windows 10*, Linux* (limited feature support), Chrome*
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*,
WPS2*, Protected Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct* (For
Microsoft Windows* only).
IEEE WLAN
Standard
IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k,
802.11v pending OS support; Fine Timing Measurement based on 802.11-2016
![](/img.php?id=3480745&img=bg39.png)
Roaming Supports seamless roaming between access points
Bluetooth Bluetooth* 5
Security
Authentication WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-AKA)
Authentication
Protocols PAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2*
Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP
Wi-Fi Direct*
Encryption and
Authentication
WPA2-PSK, AES-CCMP
Compliance
US Government FIPS, FISMA
Product Safety UL, C-UL, CB (IEC 60950-1)
Model Numbers
Models 9560NGW 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,
USB, M.2 2230
9560D2W 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,
USB, M.2 1216
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on
country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Wireless-AC 9560: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac
Data Rates 1.73 Gbps when using 160MHz channels
IEEE 802.11n
Data Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Intel® Tri-Band Wireless-AC 17265 (17265NGW/17265NGW LC)
Form Factors M.2 Type 3030
Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041
Module using X-FL, and one dedicated for Bluetooth
Antenna Interface
Connector X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11 802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,
![](/img.php?id=3480745&img=bg3a.png)
Networking
Standards
802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 60GHz
(802.11ad) 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 57GHz - 64GHz
(dependent on
country)
5.15GHz - 5.85GHz
(dependent on country) 2.400 - 2.4835GHz (dependent
on country)
Modulation DPSK, BPSK,
QPSK, 16 QAM, BPSK, QPSK, 16 QAM, 64
QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium DMG control PHY,
DMG SC PHY 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal
Frequency Division Multiplexing
(OFDM)
Channels 1, 2 and 3,
subject to country
rules
All channels as defined by the relevant specification and country
rules.
Spatial streams N/A Intel® Tri-Band Wireless-AC 17265
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Tri-Band Wireless-AC 17265: Up to 867 Mbps
IEEE 802.11ad Data
Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-CGMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=3480745&img=bg3b.png)
Intel® Tri-Band Wireless-AC 17265 (17265NGW/17265NGW LC)
Form Factors M.2 Type 3030
Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041
Module using X-FL, and one dedicated for Bluetooth
Antenna Interface
Connector X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,
802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 60GHz
(802.11ad) 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 57GHz - 64GHz
(dependent on
country)
5.15GHz - 5.85GHz
(dependent on country) 2.400 - 2.4835GHz (dependent
on country)
Modulation DPSK, BPSK,
QPSK, 16 QAM, BPSK, QPSK, 16 QAM, 64
QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium DMG control PHY,
DMG SC PHY 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal
Frequency Division Multiplexing
(OFDM)
Channels 1, 2 and 3,
subject to country
rules
All channels as defined by the relevant specification and country
rules.
Spatial streams N/A Intel® Tri-Band Wireless-AC 17265
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Tri-Band Wireless-AC 17265: Up to 867 Mbps
IEEE 802.11ad Data
Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions Cisco Compatible Extensions, v4.0
![](/img.php?id=3480745&img=bg3c.png)
certification
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-CGMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Tri-Band Wireless-AC 18260 (18260NGW)
Form Factors M.2 Type 2230
Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041
or M10042 Module using X-FL (single coax cable to carry power, IF and control)
Dimensions 22 mm x 30 mm x S3 [1.5mm Max (Top Side)/ 0.1mm max (bottom side)]
Antenna Interface
Connector X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
IEEE 802.11abgn, 802.11ac, 802.11ad, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 60GHz
(802.11ad) 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 57GHz - 64GHz
(dependent on
country)
5.15GHz - 5.85GHz
(dependent on country) 2.400 - 2.4835GHz (dependent
on country)
Modulation DPSK, BPSK,
QPSK, 16 QAM, BPSK, QPSK, 16 QAM, 64
QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium DMG control PHY,
DMG SC PHY 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal
Frequency Division Multiplexing
(OFDM)
Channels 1, 2 and 3,
subject to country
rules
All channels as defined by the relevant specification and country
rules.
Spatial streams N/A Intel® Tri-Band Wireless-AC 18260
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Tri-Band Wireless-AC 18260: Up to 867 Mbps
IEEE 802.11ad Data
Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
![](/img.php?id=3480745&img=bg3d.png)
IEEE 802.11g Data
Rates
54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), 4.1
General
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-CGMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Tri-Band Wireless-AC 18265 (18265NGW)
General
Dimensions (H x W
x D) M.2 2230: 22 mm x 30 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom
Side)]
Weight M.2 2230: 2.4g
Antenna Diversity Supported
Radio ON/OFF
Control Supported
Connector interface M.2: PCIe, USB Interface to Intel® Wireless Gigabit-Antenna M10101 Module using X-FL
(single coax cable to carry power, IF and control)
Operating
Temperature
(Adapter Shield)
0 to +80 ºC
Humidity Non-
Operating 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1*, Microsoft Windows 10, Linux* (limited
feature support), Android
Wi-Fi Alliance Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS*, WPA*, WPA2*, WPS2, Protected
Management Frames, Wi-Fi Direct* for peer to peer device connections, Wi-Fi Miracast
as Source
IEEE WLAN
Standard IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,
802.11k, 802.11v pending OS support; Fine Timing Measurement based on
802.11REVmc
Roaming Supports seamless roaming between respective access points
Bluetooth Dual Mode Bluetooth* 4.2, BLE
![](/img.php?id=3480745&img=bg3e.png)
Frequency
Modulation
60GHz
(802.11ad)
5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 57GHz - 64GHz
(dependent on
country)
5.15GHz - 5.85GHz
(dependent on country) 2.400 - 2.4835GHz (dependent
on country)
Modulation DPSK, BPSK,
QPSK, 16 QAM, BPSK, QPSK, 16 QAM, 64
QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium DMG control PHY,
DMG SC PHY 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal
Frequency Division Multiplexing
(OFDM)
Channels 1, 2 and 3,
subject to country
rules
All channels as defined by the relevant specification and country
rules.
Spatial streams N/A Intel® Tri-Band Wireless-AC 18265
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Up to 867 Mbps
IEEE 802.11ad Data
Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP
Wi-Fi Direct*
Encryption and
Authentication
WPA2-PSK, AES-CCMP
Compliance
Product Safety UL, C-UL, CB (IEC 60950-1)
Intel® Wireless Gigabit Sink W13100
Form Factors M.2 Type 3030
Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna
M10041 Module using X-FL, and one dedicated for Bluetooth
Antenna Interface
Connector X.FL
Antenna Diversity On-board diversity
IEEE 802.11 Networking
Standards 802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,
802.11w
Operating Temperature 0 to +80 degrees Celsius
![](/img.php?id=3480745&img=bg3f.png)
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency Modulation 60GHz (802.11ad)
Frequency band 57GHz - 64GHz (dependent on country)
Modulation DPSK, BPSK, QPSK, 16 QAM,
Wireless Medium DMG control PHY, DMG SC PHY
Channels 1, 2 and 3, subject to country rules
Spatial streams Intel® Wireless Gigabit Sink W13100
Data Rates All data rates are theoretical maximums.
IEEE 802.11ad Data
Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
General
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions certification Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-
AKA
Authentication Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-CGMP, TKIP
Wi-Fi Direct* Encryption
and Authentication WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Wireless Gigabit 11000
Dimensions 20.5 mm x 14.2 mm x 1.8 mm (shield included)
Weight 2 grams
Electrical
interfaces Soldered module has a proprietary land plan. Interface to Intel® Wireless Gigabit
Antenna-M 10042R using X-FL (single coax cable to carry power, IF and control)
Antenna Interface
Connector X.FL
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
802.11ad
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 60GHz (802.11ad)
Frequency band 57GHz - 64GHz (dependent on country)
Modulation DPSK, BPSK, QPSK, 16 QAM,
Channels 1, 2 and 3, subject to country rules
Data Rates All data rates are theoretical maximums.
IEEE 802.11ad
Data Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
![](/img.php?id=3480745&img=bg41.png)
Back to Contents
Important Information
Safety Information
Third Party Software Notices
Safety Information
It is important that you read the safety information regarding your WiFi adapter. Please see the User's Guide for
safety and regulatory notices.
Third Party Software Notices
Portions of Intel® PROSet/Wireless WiFi Connection Utility include software under the following terms:
OpenSSL License
Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products
derived from this software without prior written permission. For written permission, please contact openssl-
core@openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names
without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes
software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
![](/img.php?id=3480745&img=bg42.png)
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written
so as to conform with Netscape's SSL.
This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The
following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just
the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except
that the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package
is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be
in the form of a textual message at program startup or in documentation (online or textual) provided with the
package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"
The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic
related.
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code)
you must include an acknowledgement: "This product includes software written by Tim Hudson
(tjh@cryptsoft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS:' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The license and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e.
this code cannot simply be copied and put under another distribution license [including the GNU Public License.]
zlib.h -- interface of the 'zlib' general purpose compression library, version 1.2.3, July
18th, 2005
Copyright (C) 1995-2005 Jean-loup Gailly and Mark Adler
This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable
for any damages arising from the use of this software. Permission is granted to anyone to use this software for any
purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following
restrictions:
1. The origin of this software must not be misrepresented; you must not claim that you wrote the original
software. If you use this software in a product, an acknowledgment in the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original
software.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly jloup@gzip.org
Mark Adler madler@alumni.caltech.edu
![](/img.php?id=3480745&img=bg43.png)
Adapter Driver
Portions of the driver include software under the following terms:
WPA Supplicant
Copyright (c) 2003-2007, Jouni Malinen <jkmaline@cc.hut.fi> and contributors. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of Jouni Malinen nor the names of its contributors may be used to endorse or promote
products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
__________
Copyright (c) 2001, Dr Brian Gladman <brg@gladman.me.uk>, Worcester, UK.
All rights reserved.
LICENSE TERMS
The free distribution and use of this software in both source and binary form is allowed (with or without changes)
provided that:
1. Distributions of this source code include the above copyright notice, this list of conditions and the following
disclaimer;
2. distributions in binary form include the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other associated materials;
3. the copyright holder's name is not used to endorse products built using this software without specific written
permission.
DISCLAIMER
This software is provided 'as is' with no explicit or implied warranties in respect of its properties, including, but not
limited to, correctness and fitness for purpose.
Issue Date: 29/07/2002
This file contains the definitions required to use AES (Rijndael) in C.
Portions Licensed from Devicescape Software, Inc.
Intel® PROSet/Wireless WiFi Connection Utility contains software licensed from Devicescape Software, Inc. Copyright
(c) 2004 - 2008 Devicescape Software, Inc. All rights reserved.
"Odd Button" Artistic License
![](/img.php?id=3480745&img=bg45.png)
Back to Contents
Customer Support
Intel support is available online or by telephone. Available services include the most up-to-date product information,
installation instructions about specific products, and troubleshooting tips.
Online Support
Technical Support: http://www.intel.com/support
Network Product Support: http://www.intel.com/network
Corporate Web Site: http://www.intel.com
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=3480745&img=bg46.png)
Back to Contents
Warranty Information
One-Year Limited Hardware Warranty
Limited Warranty
In this warranty statement, the term "Product" applies to the wireless adapters listed in Specifications.
Intel warrants to the purchaser of the Product that the Product, if properly used and installed, will be free from
defects in material and workmanship and will substantially conform to Intel’s publicly available specifications for the
Product for a period of one (1) year beginning on the date the Product was purchased in its original sealed
packaging.
SOFTWARE OF ANY KIND DELIVERED WITH OR AS PART OF THE PRODUCT IS EXPRESSLY PROVIDED "AS IS",
SPECIFICALLY EXCLUDING ALL OTHER WARRANTIES, EXPRESS, IMPLIED (INCLUDING WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE), provided
however, that Intel warrants that the media on which the software is furnished will be free from defects for a period
of ninety (90) days from the date of delivery. If such a defect appears within the warranty period, you may return
the defective media to Intel for replacement or alternative delivery of the software at Intel's discretion and without
charge. Intel does not warrant or assume responsibility for the accuracy or completeness of any information, text,
graphics, links or other items contained within the software.
If the Product which is the subject of this Limited Warranty fails during the warranty period for reasons covered by
this Limited Warranty, Intel, at its option, will:
REPAIR the Product by means of hardware and/or software; OR
REPLACE the Product with another product, OR, if Intel is unable to repair or replace the Product,
REFUND the then-current Intel price for the Product at the time a claim for warranty service is made to Intel
under this Limited Warranty.
THIS LIMITED WARRANTY, AND ANY IMPLIED WARRANTIES THAT MAY EXIST UNDER APPLICABLE STATE,
NATIONAL, PROVINCIAL OR LOCAL LAW, APPLY ONLY TO YOU AS THE ORIGINAL PURCHASER OF THE PRODUCT.
Extent of Limited Warranty
Intel does not warrant that the Product, whether purchased stand-alone or integrated with other products, including
without limitation, semi-conductor components, will be free from design defects or errors known as "errata." Current
characterized errata are available upon request. Further, this Limited Warranty does NOT cover: (i) any costs
associated with the replacement or repair of the Product, including labor, installation or other costs incurred by you,
and in particular, any costs relating to the removal or replacement of any Product soldered or otherwise permanently
affixed to any printed circuit board or integrated with other products; (ii) damage to the Product due to external
causes, including accident, problems with electrical power, abnormal, mechanical or environmental conditions, usage
not in accordance with product instructions, misuse, neglect, accident, abuse, alteration, repair, improper or
unauthorized installation or improper testing, or (iii) any Product which has been modified or operated outside of
Intel’s publicly available specifications or where the original product identification markings (trademark or serial
number) have been removed, altered or obliterated from the Product; or (iv) issues resulting from modification
(other than by Intel) of software products provided or included in the Product, (v) incorporation of software products,
other than those software products provided or included in the Product by Intel, or (vi) failure to apply Intel-supplied
modifications or corrections to any software provided with or included in the Product.
How to Obtain Warranty Service
To obtain warranty service for the Product, you may contact your original place of purchase in accordance with its
instructions or you may contact Intel. To request warranty service from Intel, you must contact the Intel Customer
Support ("ICS") center in your region (http://www.intel.com/support/wireless/) within the warranty period during
normal business hours (local time), excluding holidays and return the Product to the designated ICS center. Please
be prepared to provide: (1) your name, mailing address, email address, telephone numbers and, in the USA, valid
![](/img.php?id=3480745&img=bg47.png)
credit card information; (2) proof of purchase; (3) model name and product identification number found on the
Product; and (4) an explanation of the problem. The Customer Service Representative may need additional
information from you depending on the nature of the problem. Upon ICS's verification that the Product is eligible for
warranty service, you will be issued a Return Material Authorization ("RMA") number and provided with instructions
for returning the Product to the designated ICS center. When you return the Product to the ICS center, you must
include the RMA number on the outside of the package. Intel will not accept any returned Product without an RMA
number, or that has an invalid RMA number, on the package. You must deliver the returned Product to the
designated ICS center in the original or equivalent packaging, with shipping charges pre-paid (within the USA), and
assume the risk of damage or loss during shipment. Intel may elect to repair or replace the Product with either a new
or reconditioned Product or components, as Intel deems appropriate. The repaired or replaced product will be
shipped to you at the expense of Intel within a reasonable period of time after receipt of the returned Product by
ICS. The returned Product shall become Intel’s property on receipt by ICS. The replacement product is warranted
under this written warranty and is subject to the same limitations of liability and exclusions for ninety (90) days or
the remainder of the original warranty period, whichever is longer. If Intel replaces the Product, the Limited
Warranty period for the replacement Product is not extended.
WARRANTY LIMITATIONS AND EXCLUSIONS
THIS WARRANTY REPLACES ALL OTHER WARRANTIES FOR THE PRODUCT AND INTEL DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, COURSE OF DEALING AND USAGE
OF TRADE. Some states (or jurisdictions) do not allow the exclusion of implied warranties so this
limitation may not apply to you. ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIMITED WARRANTY PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD. Some states (or jurisdictions) do
not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.
LIMITATIONS OF LIABILITY
INTEL’S RESPONSIBILITY UNDER THIS OR ANY OTHER WARRANTY, IMPLIED OR EXPRESS, IS LIMITED TO REPAIR,
REPLACEMENT OR REFUND, AS SET FORTH ABOVE. THESE REMEDIES ARE THE SOLE AND EXCLUSIVE REMEDIES
FOR ANY BREACH OF WARRANTY. TO THE MAXIMUM EXTENT PERMITTED BY LAW, INTEL IS NOT RESPONSIBLE FOR
ANY DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY
OR UNDER ANY OTHER LEGAL THEORY (INCLUDING WITHOUT LIMITATION, LOST PROFITS, DOWNTIME, LOSS OF
GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT AND PROPERTY, AND ANY COSTS OF RECOVERING,
REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH A SYSTEM CONTAINING
THE PRODUCT), EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states (or
jurisdictions) do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR JURISDICTION. ANY AND ALL
DISPUTES ARISING UNDER OR RELATED TO THIS LIMITED WARRANTY SHALL BE ADJUDICATED IN THE FOLLOWING
FORUMS AND GOVERNED BY THE FOLLOWING LAWS: FOR THE UNITED STATES OF AMERICA, CANADA, NORTH
AMERICA AND SOUTH AMERICA, THE FORUM SHALL BE SANTA CLARA, CALIFORNIA, USA AND THE APPLICABLE LAW
SHALL BE THAT OF THE STATE OF DELAWARE. FOR THE ASIA PACIFIC REGION (EXCEPT FOR MAINLAND CHINA),
THE FORUM SHALL BE SINGAPORE AND THE APPLICABLE LAW SHALL BE THAT OF SINGAPORE. FOR EUROPE AND
THE REST OF THE WORLD, THE FORUM SHALL BE LONDON AND THE APPLICABLE LAW SHALL BE THAT OF ENGLAND
AND WALES IN THE EVENT OF ANY CONFLICT BETWEEN THE ENGLISH LANGUAGE VERSION AND ANY OTHER
TRANSLATED VERSION(S)OF THIS LIMITED WARRANTY (WITH THE EXCEPTION OF THE SIMPLIFIED CHINESE
VERSION), THE ENGLISH LANGUAGE VERSION SHALL CONTROL.
IMPORTANT! UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS SOLD HEREUNDER ARE
NOT DESIGNED, OR INTENDED FOR USE IN ANY MEDICAL, LIFE SAVING OR LIFE SUSTAINING SYSTEMS,
TRANSPORTATION SYSTEMS, NUCLEAR SYSTEMS, OR FOR ANY OTHER MISSION CRITICAL APPLICATION IN WHICH
THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY
OCCUR.
WEEE
![](/img.php?id=3480745&img=bg49.png)
Back to Contents
Glossary
Term Definition
802.11 The 802.11 standard refers to a family of specifications developed by the IEEE for wireless
LAN technology. The 802.11 specifies an over-the-air interface between a wireless client and
a base station or between two wireless clients and provides 1 or 2 Mbps transmission in the
2.4 GHz band using either frequency hopping spread spectrum (FHSS) or direct sequence
spread spectrum (DSSS).
802.11a The 802.11a standard specifies a maximum data transfer rate of 54 Mbps and an operating
frequency of 5 GHz. The 802.11a standard uses the Orthogonal Frequency Division
Multiplexing (OFDM) transmission method. Additionally, the 802.11a standard supports
802.11 features such as WEP encryption for security.
802.11b 802.11b is an extension to 802.11 that applies to wireless networks and provides 11 Mbps
transmission (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4 GHz band. 802.11b uses only
DSSS. Throughput data rate 5+ Mbps in the 2.4 GHz band.
802.11g The 802.11g standard specifies a maximum data transfer rate of 54 Mbps, an operating
frequency of 2.4GHz, and WEP encryption for security. 802.11g networks are also referred to
as Wi-Fi* networks.
802.11n A task group of the IEEE 802.11 committee has defined a new draft specification that
provides for increased throughput speeds of up to 540 Mbps. The specification provides for
Multiple-Input-Multiple-Output (MIMO) technology, or using multiple receivers and multiple
transmitters in both the client and access point, to achieve improved performance.
802.1X 802.1X is the IEEE Standard for Port-Based Network Access Control. This is used in
conjunction with EAP methods to provide access control to wired and wireless networks.
AAA Server Authentication, Authorization and Accounting Server. A system to control access to computer
resources and track user activity.
Access Point
(AP) A device that connects wireless devices to another network. For example, a wireless LAN,
Internet modem or others.
Ad Hoc Network A communication configuration in which every computer has the same capabilities, and any
computer can initiate a communication session. Also known as a peer-to-peer network, a
device to device network or a computer-to-computer network.
AES-CCMP Advanced Encryption Standard - Counter CBC-MAC Protocol is the new method for privacy
protection of wireless transmissions specified in the IEEE 802.11i standard. AES-CCMP
provides a stronger encryption method than TKIP. The AES algorithm is capable of using
cryptographic keys of 128, 192, and 256 bits to encrypt and decrypt data in 128-bit blocks.
AES-CCMP uses the AES block cipher, but restricts the key length to 128 bits. AES-CCMP
incorporates two sophisticated cryptographic techniques (counter mode and CBC-MAC) to
provide improved security between the mobile client and the access point.
Authentication Verifies the identity of a user logging onto a network. Passwords, digital certificates, smart
cards and biometrics are used to prove the identity of the client to the network. Passwords
and digital certificates are also used to identify the network to the client.
Available
network One of the networks listed under Available networks on the Wireless Networks tab of the
Wireless Network Connection Properties (Windows* XP environment). Any wireless network
that is broadcasting and is within receiving range of the WiFi adapter appears on the list.
BER Bit Error Rate. The ratio of errors to the total number of bits being sent in a data
transmission from one location to another.
Bit Rate The total number of bits (ones and zeros) per second that a network connection can support.
Note that this bit rate will vary, under software control, with different signal path conditions.
Broadcast SSID Used to allow an access point to respond to clients on a wireless network by sending probes.
BSSID A unique identifier for each wireless client on a wireless network. The Basic Service Set
Identifier (BSSID) is the Ethernet MAC address of each adapter on the network.
![](/img.php?id=3480745&img=bg4a.png)
CA (Certificate
Authority) A corporate certification authority implemented on a server. In addition, Internet Explorer's
certificate can import a certificate from a file. A trusted CA certificate is stored in the root
store.
CCX (Cisco
Compatible
eXtension)
Cisco Compatible Extensions Program ensures that devices used on Cisco wireless LAN
infrastructure meet the security, management and roaming requirements.
Certificate Used for client authentication. A certificate is registered on the authentication server (for
example, RADIUS server) and used by the authenticator.
CKIP Cisco Key Integrity Protocol (CKIP) is a Cisco proprietary security protocol for encryption in
802.11 media. CKIP uses a key message integrity check and message sequence number to
improve 802.11 security in infrastructure mode. CKIP is Cisco's version of TKIP.
Client computer The computer that gets its Internet connection by sharing either the host computer's
connection or the access point's connection.
DSSS Direct Sequence Spread Spectrum. Technology used in radio transmission. Incompatible with
FHSS.
EAP Short for Extensible Authentication Protocol, EAP sits inside of Point-to-Point Protocol's (PPP)
authentication protocol and provides a generalized framework for several different
authentication methods. EAP is supposed to head off proprietary authentication systems and
let everything from passwords to challenge-response tokens and public-key infrastructure
certificates all work smoothly.
EAP-AKA EAP-AKA (Extensible Authentication Protocol Method for UMTS Authentication and Key
Agreement) is an EAP mechanism for authentication and session key distribution, using the
Universal Mobile Telecommunications System (UMTS) Subscriber Identity Module (USIM).
The USIM card is a special smart card used with cellular networks to validate a given user
with the network.
EAP-FAST EAP-FAST, like EAP-TTLS and PEAP, uses tunneling to protect traffic. The main difference is
that EAP-FAST does not use certificates to authenticate.
Provisioning in EAP-FAST is negotiated solely by the client as the first communication
exchange when EAP-FAST is requested from the server. If the client does not have a pre-
shared secret Protected Access Credential (PAC), it can request to initiate a provisioning
EAP-FAST exchange to dynamically obtain one from the server.
EAP-FAST documents two methods to deliver the PAC: manual delivery through an out-of-
band secure mechanism, and automatic provisioning.
Manual delivery mechanisms can be any delivery mechanism that the administrator of
the network feels is sufficiently secure for their network.
Automatic provisioning establishes an encrypted tunnel to protect the authentication of
the client and the delivery of the PAC to the client. This mechanism, while not as
secure as a manual method may be, is more secure than the authentication method
used in LEAP.
The EAP-FAST method can be divided into two parts: provisioning, and authentication. The
provisioning phase involves the initial delivery of the PAC to the client. This phase only needs
to be performed once per client and user.
EAP-GTC The EAP-GTC (Generic Token Card) is similar to the EAP-OTP except with hardware token
cards. The request contains a displayable message, and the response contains the string
read from the hardware token card.
EAP-OTP EAP-OTP (One-Time Password) is similar to MD5, except it uses the OTP as the response.
The request contains a displayable message. The OTP method is defined in RFC 2289.
EAP-SIM Extensible Authentication Protocol-Subscriber Identity Module (EAP-SIM) authentication can
be used with:
Network Authentication types: Open, Shared, and WPA*-Enterprise, WPA2*-
Enterprise.
![](/img.php?id=3480745&img=bg4b.png)
Data Encryption types: None, WEP and CKIP.
A SIM card is a special smart card that is used by Global System for Mobile Communications
(GSM) based digital cellular networks. The SIM card is used to validate your credentials with
the network
EAP-TLS A type of authentication method that uses EAP and a security protocol called the Transport
Layer Security (TLS). EAP-TLS uses certificates that use passwords. EAP-TLS authentication
supports dynamic WEP key management.
EAP-TTLS A type of authentication method that uses EAP and Tunneled Transport Layer Security
(TTLS). EAP-TTLS uses a combination of certificates and another security method such as
passwords.
Encryption Scrambling data so that only the authorized recipient can read it. Usually a key is needed to
interpret the data.
FHSS Frequency-Hop Spread Spectrum. Technology used in radio transmission. Incompatible with
DSSS.
File and printer
sharing A capability that allows a number of people to view, modify, and print the same file(s) from
different computers.
Fragmentation
threshold The threshold at which the wireless adapter breaks the packet into multiple frames. This
determines the packet size and affects the throughput of the transmission.
GHz
(Gigahertz) A unit of frequency equal to 1,000,000,000 cycles per second.
Host computer The computer that is directly connected to the Internet via a modem or network adapter.
Infrastructure
network A wireless network centered around an access point. In this environment, the access point
not only provides communication with the wired network, but also mediates wireless network
traffic in the immediate neighborhood.
IEEE Institute of Electrical and Electronics Engineers (IEEE) is an organization involved in defining
computing and communications standards.
Internet
Protocol (IP)
address
The address of a computer that is attached to a network. Part of the address designates
which network the computer is on, and the other part represents the host identification.
LAN (Local Area
Network) A high-speed, low-error data network covering a relatively small geographic area.
LEAP (Light
Extensible
Authentication
Protocol)
A version of Extensible Authentication Protocol (EAP). LEAP is a proprietary extensible
authentication protocol developed by Cisco that provides a challenge-response
authentication mechanism and dynamic key assignment.
MAC (Media
Access Control)
Address
A hardwired address applied at the factory. It uniquely identifies network hardware, such as
a wireless adapter, on a LAN or WAN.
Mbps
(Megabits-per-
second)
Transmission speed of 1,000,000 bits per second.
MHz
(Megahertz) A unit of frequency equal to 1,000,000 cycles per second.
MIC (Michael) Message Integrity Check (commonly called Michael).
MS-CHAP An EAP mechanism used by the client. Microsoft Challenge Authentication Protocol (MS-
CHAP) Version 2, is used over an encrypted channel to enable server validation. The
challenge and response packets are sent over a non-exposed TLS encrypted channel.
ns(Nanosecond) 1 billionth (1/1,000,000,000) of a second.
OFDM Orthogonal Frequency Division Multiplexing.
Open
authentication Allows any device network access. If encryption is not enabled on the network, any device
that knows the Service Set Identifier (SSID) of the access point can gain access to the
network.
![](/img.php?id=3480745&img=bg4c.png)
PEAP Protected Extensible Authentication Protocol (PEAP) is an Internet Engineering Task Force
(IETF) draft protocol sponsored by Microsoft, Cisco, and RSA Security. PEAP creates an
encrypted tunnel similar to the tunnel used in secure web pages (SSL). Inside the encrypted
tunnel, a number of other EAP authentication methods can be used to perform client
authentication. PEAP requires a TLS certificate on the RADIUS server, but unlike EAP-TLS
there is no requirement to have a certificate on the client. PEAP has not been ratified by the
IETF. The IETF is currently comparing PEAP and TTLS (Tunneled TLS) to determine an
authentication standard for 802.1X authentication in 802.11 wireless systems. PEAP is an
authentication type designed to take advantage of server-side EAP-Transport Layer Security
(EAP-TLS) and to support various authentication methods, including user passwords and
one-time passwords, and Generic Token Cards.
Peer-to-Peer
mode A wireless network structure that allows wireless clients to communicate directly with each
other without using an access point.
Power save
mode The state in which the radio is periodically powered down to conserve power. When the
portable computer is in Power Save mode, received packets are stored in the access point
until the wireless adapter wakes up.
Preferred
network One of the networks that has been configured. Such networks are listed under Preferred
networks on the Wireless Networks tab of the Wireless Network Connection Properties
(Windows* XP environment).
RADIUS
(Remote
Authentication
Dial-In User
Service)
RADIUS is an authentication and accounting system that verifies user's credentials and
grants access to requested resources.
RF (Radio
Frequency) The international unit for measuring frequency is Hertz (Hz), which is equivalent to the older
unit of cycles per second. One MegaHertz (MHz) is one million Hertz. One GigaHertz (GHz) is
one billion Hertz. For reference: the standard US electrical power frequency is 60 Hz, the AM
broadcast radio frequency band is 0.55 -1.6 MHz, the FM broadcast radio frequency band is
88-108 MHz, and microwave ovens typically operate at 2.45 GHz.
Roaming Movement of a wireless node between two micro cells. Roaming usually occurs in
infrastructure networks built around multiple access points. Current wireless network
roaming is only supported in the same subnet of a network.
RTS threshold The number of frames in the data packet at or above which an RTS/CTS (request to
send/clear to send) handshake is turned on before the packet is sent. The default value is
2347.
Shared key An encryption key known only to the receiver and sender of data. This is also referred to as
a pre-shared key.
SIM (Subscriber
Identity
Module)
A SIM card is used to validate credentials with the network. A SIM card is a special smart
card used by GSM-based digital cellular networks.
Silent mode Silent Mode Access Points or Wireless Routers have been configured to not broadcast the
SSID for the wireless network. This makes it necessary to know the SSID in order to
configure the wireless profile to connect to the access point or wireless router.
Single Sign On Single Sign On feature set allows the 802.1X credentials to match your Windows log on user
name and password credentials for wireless network connections.
SSID (Service
Set Identifier) SSID or network name is a value that controls access to a wireless network. The SSID for
your wireless network card must match the SSID for any access point that you want to
connect with. If the value does not match, you are not granted access to the network. Each
SSID may be up to 32 alphanumeric characters long and is case-sensitive.
stealth A stealth access point is one that has the capability and is configured to not broadcast its
SSID. This is the WiFi network name that appears when a DMU (Device Management Utility,
such as Intel® PROSet/Wireless WiFi Connection Utility) scans for available wireless
networks. Although this can enhance wireless network security, it is commonly considered a
weak security feature. To connect to a stealth access point, a user must specifically know the
SSID and configure their DMU accordingly. The feature is not a part of the 802.11
![](/img.php?id=3480745&img=bg4d.png)
specification, and is known by differing names by various vendors: closed mode, private
network, SSID broadcasting.
TKIP (Temporal
Key Integrity
Protocol)
Temporal Key Integrity protocol improves data encryption. Wi-Fi Protected Access* uses its
TKIP. TKIP provides important data encryption enhancements including a re-keying method.
TKIP is part of the IEEE 802.11i encryption standard for wireless networks. TKIP is the next
generation of WEP, the Wired Equivalency Protocol, which is used to secure 802.11 wireless
networks. TKIP provides per packet key mixing, a message integrity check and a re-keying
mechanism, thus fixing the flaws of WEP.
TLS (Transport
Layer Security) A type of authentication method using the Extensible Authentication Protocol (EAP) and a
security protocol called the Transport Layer Security (TLS). EAP-TLS uses certificates which
use passwords. EAP-TLS authentication supports dynamic WEP key management. The TLS
protocol is intended to secure and authenticate communications across a public network
through data encryption. The TLS Handshake Protocol allows the server and client to provide
mutual authentication and to negotiate an encryption algorithm and cryptographic keys
before data is transmitted.
TTLS (Tunneled
Transport Layer
Security)
These settings define the protocol and the credentials used to authenticate a user. In TTLS,
the client uses EAP-TLS to validate the server and create a TLS-encrypted channel between
the client and server. The client can use another authentication protocol. Typically password-
based protocols challenge over this encrypted channel to enable server validation. The
challenge and response packets are sent over a non-exposed TLS encrypted channel. TTLS
implementations today support all methods defined by EAP, as well as several older methods
(CHAP, PAP, MS-CHAP and MS-CHAP-V2). TTLS can easily be extended to work with new
protocols by defining new attributes to support new protocols.
WEP (Wired
Equivalent
Privacy)
Wired Equivalent Privacy, 64- and 128-bit (64-bit is sometimes referred to as 40-bit). This is
a low-level encryption technique designed to give the user about the same amount of
privacy that he would expect from a LAN. WEP is a security protocol for wireless local area
networks (WLANs) defined in the 802.11b standard. WEP is designed to provide the same
level of security as that of a wired LAN. WEP aims to provide security by data over radio
waves so that it is protected as it is transmitted from one end point to another.
WEP Key Either a pass phrase or hexadecimal key.
The pass phrase must be 5 ASCII characters for 64-bit WEP or 13 ASCII characters for 128-
bit WEP. For pass phrases, 0-9, a-z, A-Z, and ~!@#$%^&*()_+|`-={}|[]\:";'<>?,./ are all
valid characters.
The hex key must be 10 hexadecimal characters (0-9, A-F) for 64-bit WEP or 26
hexadecimal characters (0-9, A-F) for 128-bit WEP.
Wi-Fi*
(Wireless
Fidelity)
Is meant to be used generically when referring of any type to 802.11 network, whether
802.11b, 802.11a, or dual-band.
WiMAX WiMAX, the Worldwide Interoperability for Microwave Access, is a telecommunications
technology aimed at providing wireless data over long distances in a variety of ways, from
point-to-point links to full mobile cellular type access. It is based on the IEEE 802.16
standard. The name WiMAX was created by the WiMAX Forum, which was formed in June
2001 to promote conformance and interoperability of the standard. The forum describes
WiMAX as "a standards-based technology enabling the delivery of last mile wireless
broadband access as an alternative to cable and DSL."
Wireless router A stand-alone wireless hub that allows any computer that has a wireless network adapter to
communicate with another computer within the same network and to connect to the
Internet.
WLAN (Wireless
Local-Area
Network)
A type of local-area network that uses high-frequency radio waves rather than wires to
communicate between nodes.
WPA* (Wi-Fi
Protected
Access)
This is a security enhancement that strongly increases the level of data protection and
access control to a wireless network. WPA is an interim standard that will be replaced with
the IEEE's 802.11i standard upon its completion. WPA consists of RC4 and TKIP and provides
support for BSS (Infrastructure) mode only. WPA and WPA2 are compatible.
WPA2* (Wi-Fi This is the second generation of WPA that complies with the IEEE TGi specification. WPA2
![](/img.php?id=3480745&img=bg4e.png)
Protected
Access 2)
consists of AES encryption, pre-authentication and PMKID caching. It provides support for
BSS (Infrastructure) mode and IBSS (ad hoc) mode. WPA and WPA2 are compatible.
WPA-Enterprise Wi-Fi Protected Access-Enterprise applies to corporate users. A new standards-based,
interoperable security technology for wireless LAN (subset of IEEE 802.11i draft standard)
that encrypts data sent over radio waves. WPA is a Wi-Fi standard that was designed to
improve upon the security features of WEP as follows:
Improved data encryption through the temporal key integrity protocol (TKIP). TKIP
uses a hashing algorithm to scramble the encryption keys and adds an integrity-
checking feature to ensure that the keys have not been tampered with.
User authentication, which is generally missing in WEP, through the extensible
authentication protocol (EAP). WEP regulates access to a wireless network based on a
computer's hardware-specific MAC address, which is relatively simple to be sniffed out
and stolen. EAP is built on a more secure public-key encryption system to ensure that
only authorized network users can access the network.
WPA is an interim standard that will be replaced with the IEEE's 802.11i standard upon its
completion.
WPA-Personal Wi-Fi Protected Access-Personal provides a level of security in the small network or home
environment.
WPA-PSK (Wi-Fi
Protected-
Access Pre-
Shared Key)
WPA-PSK mode does not use an authentication server. It can be used with the data
encryption types WEP or TKIP. WPA-PSK requires configuration of a pre-shared key (PSK).
You must enter a pass phrase or 64 hex characters for a pre-shared key of length 256-bits.
The data encryption key is derived from the PSK.
Back to Top
Back to Contents
Trademarks and Disclaimers
