Introduction
This document details the features and functions of the Itron Mobile Radio and provides
information relating to its use and maintenance.
The Itron Mobile Radio is equipped with the following features.
•Radio button. For information about the radio button, see Button Functions on page 9.

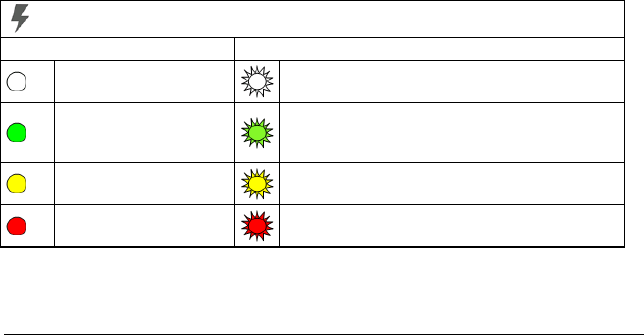

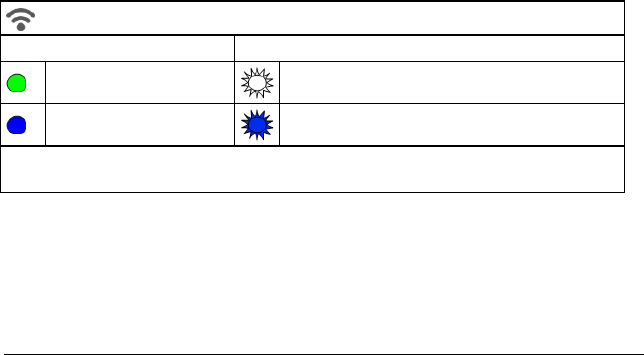

•LED status indicators. For information about the LED indicators, see LED Status
Indicators on page 9.
•USB communication port. For information about the USB communication port, see USB
Communication Port on page 13.
Related Documents
•Itron Mobile User Guide The Itron Mobile Radio is designed for use with handheld and
laptop computers running Itron Mobile software application.
•Itron Mobile Radio Quick Reference Guide
•Itron Mobile Radio Compliance Statement
Documentation Conventions
This guide uses the following documentation conventions:
Convention
Example
Hypertext links appear in blue text. See Copyright for identification information.
Warning This type of note is used to warn of potential physical harm to the
user or hardware. It is critical that you pay strict attention to Warning notes, read
the information carefully, and heed the advice and/or instructions.
Caution This type of note advises users that failure to take or avoid a specified
action could result in a loss of data.
Note Indicates neutral or positive information that stresses or supplements important
points of the main text. A note supplies information that may apply only in special
cases.
2
Unpacking Your Itron Mobile Radio
The Itron Mobile Radio comes with the following items.
Item
Description

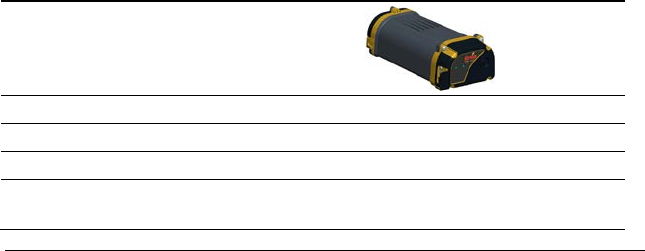

• Itron Mobile Radio with
built-in antenna
• AC power adapter
AC wall plug with USB type A port.
• Communication cable
USB cable.
• Battery kit
Battery, battery compartment cover, screws, gasket
• Documentation
Itron Mobile Radio Quick Reference Guide
Itron Mobile Radio Compliance Statement
3
An optional Radio Carrying Kit is available for order separately. The Radio Carrying Kit contains
a belt clip and a shoulder harness.
When you unpack your radio, make sure you have all of the components listed here. If any are
missing, contact Itron Support Services immediately.
After you install the battery, charge the radio to 100 percent capacity before using it. Complete
charging takes about six hours.
For more information about the battery, see Battery Basics.
4
To install and charge the battery

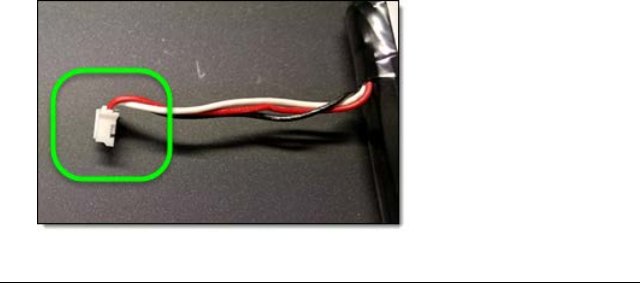

1. Plug the connector into the socket in the battery compartment.
You will have to bend the wires at the connector at a 90 degree angle.
5

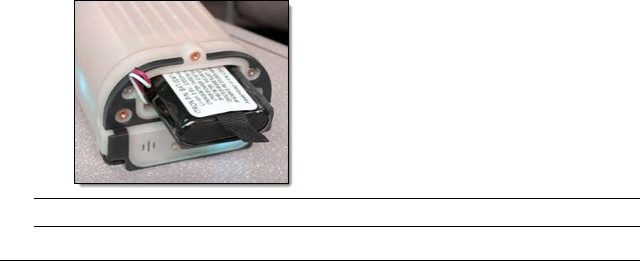

2. Insert the battery into the compartment.
• Make sure the battery label is facing the ridges on the radio case.
• Make sure the wires are along the same side as the connector.
• Make sure the removal tab is facing out.
Caution Do not pinch the battery wires when replacing the battery compartment cover.
6
3. Replace the battery compartment cover making sure the gasket is properly aligned for water
tightness.
4. Fasten the battery compartment cover in place with the provided screws.
Tighten the screws to ensure water tightness.
5. Plug the USB cable into the Itron Mobile Radio.
6. Plug the USB cable into a PC, an AC wall adapter, or a 12V AC car adapter.
7. Allow the Itron Mobile Radio to charge for at least six hours.
7
Daily Operation
• Inspect the radio for broken, loose, or missing parts and fasteners, taking corrective action as
required.
• Make sure the radio is operated and stored within the recommended temperature range.
Operating temperature: -4° F to 140° F (-20° C to 60° C)
Storage temperature: -40° F to 158° F (-40° C to 70° C)
• Cold temperature extremes may result in reduced available energy from the battery
pack. This energy is recoverable as the battery pack warms to 68° F (20° C).
• Do not subject the radio to extreme temperatures, such as leaving it in a vehicle in
bright sunlight. Extended exposure to warm temperature extremes can result in
permanent reduction in available energy from the battery pack.
• Exit all external applications at the end of each work day. This ensures that all applications
communicating with the radio have terminated their Bluetooth links.
• Charge the battery nightly.
8
Turning the Radio On or Off
To turn the radio on (battery power)
• Press and hold the button for three seconds (until the Power LED turns green) to turn the
radio on.
To turn the radio off (battery power)
• Press and hold the button for three seconds (until the Power LED turns white) to to turn the
radio off.
To turn the radio on (AC adapter)
• The radio is always on when using the AC adapter.
When the radio is using external power (connected to an energy source with the USB cable)
pressing the button turns the power LED green until the button is released, but it does not
turn the radio off.
9
LED Status Indicators
Two multi-color LED status indicators are located on the top of the radio. These indicators are
labeled with a power icon and a communication icon . The color and illumination of the
LED lights provide feedback about the Itron Mobile Radio's status.
The LED lights have two patterns for displaying different states.
• Solid. Continuous without interruption or alteration
• Flash. Alternating periods of colored illumination followed by periods of non-illumination
of the indicator. The color remains consistent during all illumination periods.
10
The following tables describes the LED colors and patterns for the most common radio conditions.
Solid
Flash
• Error: Battery
• Turning on
Error: General
• Initializing
• Button pressed
• Charged
Battery more than 50%
N/A
Battery more than 20%
Charging
Battery less than 20%
11
Solid
Flash
USB connected
Error
Bluetooth® connected
Bluetooth low energy connected
Note The application connected to the radio may assign a display pattern to the LEDs that is
not described in these tables.
12
USB Communication Port
The Itron Mobile Radio has one USB communication port under a protective rubber flap on the
side of the radio near the top.
In addition, the radio is equipped with an internal port for wireless Bluetooth® communications. If
communication is in place through Bluetooth, attaching the USB cable only provides power.
Communication may occur through Bluetooth while charging with the USB.
Note
When you connect the Itron Mobile Radio to a PC using Windows 7 or Windows
8, you may see a prompt to install an updated Texas Instruments driver for the device.
Install the necessary driver.
13
Carrying the Itron Mobile Radio
The Itron Mobile Radio’s shoulder harness and belt clip provide convenient, hands-free ways to
carry the radio while installing, reading, and maintaining meters and endpoints. The shoulder
harness and belt clip let you wear the radio comfortably while walking or driving.
As a safety feature, the clips are designed to break away if the radio snags or becomes caught,
releasing the wearer and reducing the likelihood of injury.
The radio may also be carried in a pocket, backpack, or bag.
The radio is water resistant.
Note If you are
carrying the radio, make sure the side with the ridges is facing away
from your body, conductive materials, or anything else which may shield the radio
signal.
14
Maintaining Your Itron Mobile Radio
Your Itron Mobile Radio is rugged and water-resistant. However, you should take the following
precautions to ensure that it gives you many years of reliable service.
• Do not subject the radio to extreme temperatures, such as leaving it in a vehicle in bright
sunlight. For more information, see Battery Best Practices.
• Do not leave it in damp or dusty places.
• Do not drop your radio or subject it to severe impacts.
• Do not use products containing DEET near the Itron Mobile Radio. DEET will degrade the
radio's casing.
• When installing or replacing the battery, make sure to follow the provided instructions to
maintain water tightness.
• Use the rubber flap to protect the radio’s USB port in dusty conditions.
15
To clean the Itron Mobile Radio case
1. Wipe the radio’s case with a damp cloth.
2. Use a soft-bristle brush to remove stubborn deposits.
3. Blow any water out of the connector and then leave the radio to drain and air-dry.
Warning Never use solvents of any kind on the case. Do not expose it to
temperatures above 140° F (60° C).
16
Storing Your Itron Mobile Radio
Your Itron Mobile Radio can be safely stored for two weeks or less with simple preparation.
Follow the steps below to prepare your radio for short-term storage.
To store your Itron Mobile Radio
• Connect the Itron Mobile Radio to external power and allow the battery pack to fully charge.
For information about charging status, see LED Status Indicators on page 9.
If you are storing the Itron Mobile Radio for an extended period of time, you should let it
remain charging or remove its battery.
Note Remove the Itron Mobile Radio’s battery before storing the device for periods
longer than two weeks.
17
Battery Basics
The Itron Mobile Radio uses a rechargeable lithium-ion (Li-Ion) battery pack as its main power
source whenever it is not receiving power through its USB cable.
Caution Do not use any power source other than the Itron-recommended
battery. Using another power source could damage the radio.
Warning Risk of Explosion! There is a risk of explosion if the battery is
replaced by an incorrect battery type. Dispose of used batteries in
accordance with local regulatory guidelines.
Attention Il y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du même type ou d’un
type equivalent recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du fabricant.
Charge the radio's battery to 100 percent capacity before using it. Complete charging takes about
six hours. Charge the battery pack through the USB cable, which can draw power from a
computer, an AC wall outlet, or a 12V DC car adapter.
18
Battery Best Practices
Itron recommends the following practices to ensure long battery life.
• Charge the radio at the end of each work day.
• Check the charge status at the beginning of each work day.
• Charge the radio at room temperature (68° F/20° C).
• Charging is disabled below 32° F (0° C) and above 104° F (40° C) to protect the lithium-ion
batteries.
• In cold weather, keep the radio inside your outer clothing. A cold battery will not last
all day even with full charge. Metalized fabrics should not be worn over the radio as
they may severely reduce reading success.
• In hot weather, keep the radio out of direct sunlight. A hot battery's capacity is
degraded over time and eventually the battery will not last all day even with a full
charge.
19
• Shallow or partial discharge and charge cycles are preferred, rather than allowing the battery
pack to drain completely before recharging it.
• Charging after a shallow or partial discharge does not degrade battery pack life or
performance.
20
Safety
Your Itron Mobile Radio is ergonomically designed for safe, comfortable use. However, as with
all equipment, you should follow good working practices while using it.
Minimize risk by following these guidelines.
• Maintain good posture while using the radio. Keep your fingers and body relaxed whenever
possible.
• Avoid keeping your muscles tense for long periods. Change tasks often to avoid prolonged
muscle strain. Support the radio while using it.
• Take frequent short breaks. Use these breaks to exercise the muscles in your hands, arms,
shoulders, neck, and back.
21
AC Power Adapter
Follow these instructions to help ensure your safety and extend the life of the adapter.
• Use the adapter indoors only.
• Avoid spilling liquid on the adapter.
Do not connect it if it is damp.
• Make sure ventilation around the adapter is not restricted while it is in use.
• Use only the AC adapter supplied with your Itron Mobile Radio.
Do not substitute an alternative or unapproved adapter; this may damage the Itron Mobile
Radio and void the warranty.
• Inspect the AC adapter before use.
Do not use it if there are any signs of damage or deterioration.
22
• Make sure the connector is firmly connected.
• Avoid mechanical strain to cables and connectors.
• In the event of overloading, the AC adapter is designed to be fail-safe and may stop
functioning.
• Do not try to use the AC adapter to power any other equipment.
• Avoid use in dusty, damp, or contaminated environments.
Usage in Hazardous Locations
This device is suitable for use in Class 1, Division 2, Groups A, B, C, D locations. It should only
be used with computer systems approved for use in hazardous locations.
Warning—Explosion Hazard Do not replace the battery unless power has been
switched off or the area is known to be non-hazardous.
Avertissement—Risque d’Explosion Couper le courant ou s’assurer que
l’emplacement est designe non dangereux avant de replacer le composants.
23
Warning—Explosion Hazard Do not disconnect equipment unless power has
been switched off or the area is known to be non-hazardous.
Avertissement—Risque d’Explosion Avant de deconnecter l’equipement, couper
le courant ou s’assurer qu l’emplacement is designe non dangereux.
Warning—Explosion Hazard Substitution of components may impair suitability
for Class 1, Division 2 locations.
Avertissement—Risque d’Explosion La substitution de composants peut rendre
ce materiel inacceptable pour les emplacements de classe 1, division 2.
24
Troubleshooting
If you have a problem with your Itron Mobile Radio, review the appropriate troubleshooting steps
listed below. If the problem remains unresolved, contact an Itron customer service representative
(e-mail: support@itron.com; phone: 1.877.487.6602).
Problem
Possible Solutions
Battery does not charge
•If charging from a PC through the USB cable, try a different
USB port on the PC. The port may be bad or incapable of
providing sufficient current for charging.
•Try a different AC outlet.
•Make sure the USB port is clean and free of dirt or other
contaminants.
•If the previous troubleshooting suggestions do not solve the
issue, replace the battery.
25
Problem
Possible Solutions
Battery power drains
quickly
• Make sure the battery indicates a full charge following an
overnight charge (see LED Status Indicators on page 9).
• If the previous troubleshooting suggestions do not solve the
issue, replace the battery.
USB connection
problems
• Install Texas Instruments drivers.
• Inspect the USB port for damage, dirt, or other contaminants.
Bluetooth connection
problems
• See your application’s user guide for setup information.
Radio will not turn off
Radio will not turn on
Disconnect the radio from external power sources and press the button
firmly for six seconds. This will force the radio to reset its firmware.
26
Optimizing Bluetooth® Performance
Bluetooth communication works best when the communicating devices have an unobstructed view
from one device to the other. When possible, remove or reduce obstacles between the Itron Mobile
Radio and the mobile device during Bluetooth communication.
Tips for Radio Readings
The Itron Mobile Radio is used to receive the radio signals from ERT-equipped meters. To
maximize the radio capabilities, consider the following factors when collecting data.
• Absorption. Conductive material such as steel, metallic pipe and siding, and tree leaves and
branches absorb more of a radio signal than concrete, bricks, sheetrock, plastic, and wood.
Due to absorption, you may have shorter readability distances in industrial or business areas
than in residential areas.
27
• Shielding. When conductive materials are close together, as in metal partitions or narrow-
mesh fencing, they act as a shield and absorb the entire radio signal. Move a short distance
away from conductive material so the ERT signal is not shielded. Keep moving to assist in
receiving signals that may be shielded. Metalized fabrics should not be worn over the radio as
they may severely reduce reading success.
• Reflection. Radio signals can be reflected by some of the same types of conductive material
that absorb them. Move a short distance away from the reflective material to find the direct
ERT signal or a strong reflected signal. Keep moving to assist in receiving signals that may
be reflected.
28
Itron Mobile Radio Capabilities and Limitations
Equipment Description
Itron Mobile Radio
Model: IMR
FCC ID: EO9IMR
IC: 864A-IMR
Itron Mobile Radio
Transmitter Information
Transmit frequency MAS, FCC: 952 MHz–960 MHz
Transmit frequency MAS, ISED: 952 MHz–953 MHz
Transmit frequency ISM: 908 MHz–923.8 MHz
Antenna type: Directional antenna with maximum gain perpendicular to the front face of the IMR
unit.
Receiver Information
Frequency ISM: 908–923.8 MHz
29
Bluetooth
Manufacturer: Panasonic
Model: PAN1326B
FCC ID: T7V1316
IC: 216Q-1316
Transmitter class: Class 1
Transmit/receive frequency: 2402 MHz–2480 MHz
Maximum transmitter power: 10.5 dBm
Antenna type: integral, chip
30

Navigation menu
