Setup Instructions

Setting Up a Wireless Network

for the M-Turbo® or S Series™ Ultrasound System

Introduction

ToarchivewirelesslyfromtheM‐Turbo®orSSeries™ultrasoundsystem,SonoSitesupportsthenetworksetup

describedinthisdocument.Usethesetupinstructionsfromtheroutermanufacturerforgeneralinformationonly.

Afterconnectingtheultrasoundsystem,youneedtoconfigurealocationthroughtheConnectivitysetuppageon

theultrasoundsystemandtoconnectthewirelessUSBdongle.Forinstructionstoconfigurealocation,seeoneof

thefollowing:

•DICOMforM‐TurboorSSeriesUltrasoundSystemUserGuide

•SiteLink™ImageManager4.1.0UserGuideandSupplementP08168‐01

Formoreinformationabouttheultrasoundsystem,seetheultrasoundsystemuserguide.

AdditionalcopiesofthesedocumentsareavailableonSonoSite’sWebsiteatwww.sonosite.com.

System and hardware requirements

•M‐TurboorSSeriesultrasoundsystem(1.2orlater)

•SparkLANWireless802.11gUSBDongle

AdditionalhardwarerequirementsforSiteLink™ImageManager:

• LinkSysWRT54GSWireless‐GBroadbandRouter

•WebbrowseronthePC(forexample,InternetExplorer)

Connecting the ultrasound system

Toarchivewirelessly,youcanconnecttheultrasoundsysteminoneoftwoways:

•Toanexistingwirelessnetwork

•Totherouter,whichisconnectedtothePC

WARNING: The wireless USB dongle is a radio transmitter designed for use as a

mobile device as defined by the Federal Communications Commission

(FCC). Do not place the transmitter on a patient’s or user’s body. Ensure

that the transmitter is located at least 20 cm (8 in) from a patient’s or

user’s body. Locating the transmitter closer than 20 cm (8 in) to a

person’s body voids the user’s FCC authority to operate the equipment.

Caution: Operating the wireless USB dongle without a regulatory label or the

correct country stamp is illegal. See the documentation from the

manufacturer of the wireless USB dongle.

To avoid damage to the wireless USB dongle when using the MDSm or

MDS Lite II, remove or insert the USB dongle only when the system is in

the stand.

For environmental operating and storage specifications, see the

operating instructions from the router manufacturer.

Ifconnectingtoanexistingwirelessnetwork(thetypicalsetupforDICOMusers),youdonotneedthe

router.DICOMsetuprequiresawirelessaccesspointonanexistingwirelessnetworkwithaDICOMserver.

Seeyournetworkadministrator.

To connect and configure the router

Figure 1 The ultrasound system connects to the router, which is connected to the PC

Note: Notetheinformationenteredwhenconfiguringtherouter.Youneedthesameinformationtoconfigurethe

ultrasoundsystem.

1TurnoffthePCandtheultrasoundsystem.

2Removethestickerfromthebackoftherouter,andconnecttheEthernetcabletoport1,2,3,or4(See

Figure 2)andtoanEthernetportonthePC.(DonotconnecttheEthernetcabletotheInternetporton

therouter.)

3ConnectthepoweradaptertothePowerportonthebackoftherouter,andconnecttoanoutlet.

ThepowerLCDandtheEthernetLCDonthefrontoftherouterlightup.

Figure 2 Router Ethernet ports and Power port

4TurnonthePC,andstartaWebbrowser(forexample,InternetExplorer).

5Intheaddressboxatthetopofthebrowser,type http://192.168.1.1 andthenpresstheENTER

key.

6Inthedialogboxthatappears,type admin inthePasswordfield.(TheUsernamefieldisempty.)

7ClickOK.TheLinksyssetupwizardstarts.

Ethernet

Router

M-Turbo

Wireless

USB

dongle

Reset

Internet 1234 Power

Power

adapter

Ethernet

cable

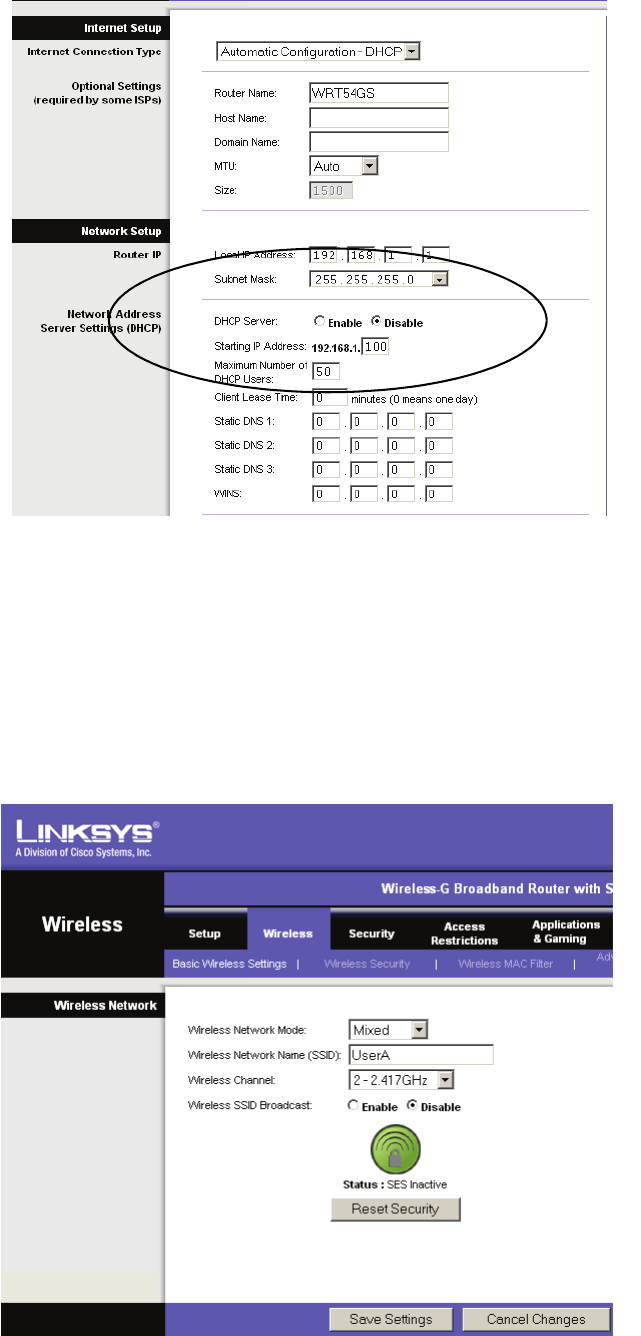

8IntheNetwork Setup section,selectDisableforDHCP Server.SeeFigure 3.

Figure 3 Network setup for the router

9MakesurethattheTime Zone settingiscorrect.

10 ClickSave Settings.

11 Click Continue

12 ClicktheWirelesstab.

TheWirelesspageappears.SeeFigure 4.

Figure 4 Wireless Network Mode and Name (SSID)

13 IntheWireless Network Modelist,selectMixed.

14 ForWireless Network Name (SSID),typeauniquenameofupto32characters.

Thisfieldiscase‐sensitiveandallowsnumbers.Youwillneedthisnamelaterwhenconfiguringthe

ultrasoundsystem.

15 SelectasettingfromtheWireless Channellist.

16 ClickSave Settings.

17 ClickContinue.

18 ClickWireless Security.

19 Setupthesecuritypolicy.Forexample:

aForSecurity Mode,selecttheWPA Personal.SeeFigure 5.

bForWPA Algorithms,selectTKIP.

cEnteraWPAsharedkey.(TheWi‐FiProtectedAccessencryptedkeyprotectsagainstunauthorized

networkaccess.Youwillneedthiskeylaterwhenconfiguringtheultrasoundsystem.)

dTypeavalueforGroup Key Renewal (orkeepthedefaultsetting).

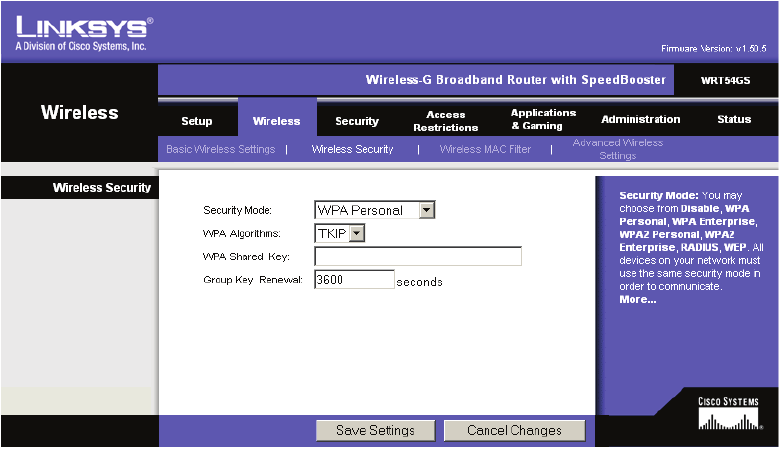

Figure 5 Set up the security policy

20 ClickSave Settings.

Thesetupiscomplete.Youcannowimportclientcertificatesandconfigurealocationontheultrasound

system.SeetheSiteLinkImageManager4.1.0UserGuideandSupplementP08168‐01.

Forsecurity,changetherouterpassword(ontheAdministrationtab)afterconfiguringtheultrasound

system.

Client certificates

Althoughyoucanconnectwithoutclientcertificates,theyhelptoensurenetworksecurity.

To import or delete wireless certificates

ThesystemsupportsBase64andDERencodedformatandthefollowingfiletypes:CER,PFX,andPVK.

1OntheConnectivitysetuppage,selectWireless Certificates.

Alistofcertificatesonthesystemappears.

2Dooneofthefollowing:

•Importcertificates:InserttheUSBstoragedevicethatcontainsthecertificates.Verifythatthe

certificatesonthesystemplusthoseontheUSBstoragedevicedonotexceed20certificatesor200K

ofmemory.Deletecertificatesifnecessary.ThenselectImporton‐screen.

• Deletecertificates:Selectthecertificatestodelete,andselectDelete.

Note: Youcanobtaincertificatesfromyournetworkadministrator.

3SelectBackon‐screen.

4SelectDoneon‐screen.

5Restartthesystem.

Connecting the wireless USB dongle

Afteryouconnectandconfiguretherouter(ifapplicable)andconfigurealocationontheultrasound

system,connectthewirelessUSBdongle,whichtransmitsthesignalfromtheultrasoundsystemtothe

network.

To connect the wireless USB dongle

InsertthewirelessUSBdongleintothefollowingUSBport:

•(SSeries)TheUSBportonthesideoftheultrasoundsystem.

•(M‐Turbo)AnyUSBportontheultrasoundsystem.

Thesystemautomaticallydetectsthedevice.(Driversarealreadyinstalled.)

Troubleshooting

Ifyouhavetroubleconnectingtheultrasoundsystemtothewirelessnetwork,seeTable 1,

“Troubleshooting”onpage 6forsuggestions.Ifthetroublecontinues,contactSonoSite:

SonoSite Technical Support

Phone (US or

Canada):

877-657-8118

Phone (Outside

US and Canada):

425-951-1330

Or call your local representative.

Fax: 425-951-6700

E-mail: service@sonosite.com

Web site: www.sonosite.com (Click Resources > Support & Service)

Europe Service Center

Phone: +44-(0)1462-444-800

E-mail: uk.service@sonosite.com

Table 1: Troubleshooting

Symptom Solution

Theultrasoundsystem

doesnotconnect.

Doanyofthefollowingforinformationaboutthenetwork:

• Makesurethatthefollowingiconsappearinthesystemstatusarea

ontheultrasoundsystemscreen:

•Wireless

•Ultrasound‐connected

•Ontheultrasoundsystem,displaytheNetworkStatussetuppage.

Thepagedisplaysthreelinesofgeneralinformationaboutthe

connectionandfiveadditionallinesaboutthewirelessconnection(if

present).

Theultrasoundsystem

doesnotauthenticate,

andthewirelessicon

doesnotappearon‐

screen.

Doanyofthefollowing

• Makesurethatthesystemiscommunicatingwithyouraccesspoint:

Makesurethatthenetworknameonthesystemisthesameasthe

networkname(SSID)oftheaccesspoint.Thedefaultnetworkname

isSONOSITE.Thenetworknameiscasesensitive.

•IfyouuseWEPorWPA‐PSK,makesurethatyourWEPkeysorWPA

Pre‐Sharedkeymatchbetweentheaccesspointandultrasound

system.Thesekeysarecasesensitive.

TheNetworkStatussetuppagemayshowthatyouassociated

successfully,butyouareunabletogetaDHCPaddressbecausethe

WEPkeyissetincorrectly.

•Ifyouselectthe802.1xRADIUSsecurityoption,makesurethatthe

accesspointisturnedonandproperlyconfiguredwith802.1x

enabledandthattheSharedSecretkeybetweentheaccesspointand

authenticationservermatch.

UsethePINGutilityfromtheservertomakesurethatthe

authenticationserverisactiveandcancommunicatewiththeaccess

point.

Thesystemdoesnot

displaythewirelessicon

afteryouselectavalid

location.

1RemovethewirelessUSBdongle.

2Verifythefollowing:

•Allwirelesssettingsfortheselectedlocationarevalid.

•TheselectedwirelesscertificateisinBase64format.

•Thesystemdateandtimearecorrect.

3InsertthewirelessUSBdongle,andrestartthesystem.

Thesystemdisplaysthe

wirelessiconbutdoes

notcommunicatewith

DICOM.

MakesurethattheDICOMsetupiscorrect.SeeDICOMforM‐Turboand

S SeriesUserGuide.

Youcannotimport

wirelesscertificates.

MakesurethattheUSBstoragedevicecontainswirelesscertificatesby

viewingitscontentsonaPC.

M-Turbo, S Series, SiteLink, SonoSite, and the SonoSite logo are either trademarks or registered trademarks of SonoSite, Inc.

DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital

communications of medical information.

The SonoSite product(s) referenced in this document may be covered by one or more of the following U.S. patents: 5722412, 5817024, 5893363,

6135961, 6203498, 6364839, 6371918, 6383139, 6416475, 6447451, 6471651, 6569101, 6648826, 6575908, 6604630, 6817982, 6835177,

6962566, 7169108, 7449640, D456509, D461895, D509900, D538432, D544962, D558351, D559390, and by the following counterpart foreign

patents: AU727381, AU730822, CA2373065, CN98106133.8, CN98108973.9, DE60021552.0, DE60029777.2, DE60034670.6, DE69730563.5,

DE6980539.6, DE69831698.3, FR0875203, FR0881492, FR0815793, FR1180970, FR1175713, GB0875203, GB0881492, GB0815793, GB1180970,

GB1180971, GB1175713, IT0881492, IT0815793, IT1175713, KR532359, KR528102, NO326202, NZ542968, RCD000897368-0001, SP0881492,

SP0815793. Patents pending.

P12062-02

*P12062-02*

Caution: Federal (United States) law restricts this

device to sale by or on the order of a

physician.

SonoSite, Inc.

21919 30th Drive SE

Bothell, WA 98021 USA

T: 1-888-482-9449 or

1-425-951-1200

F: 1-425-951-1201

SonoSite Ltd

Alexander House

40A Wilbury Way

Hitchin, Herts

SG4 0AP UK

T: +44-1462-444800

F: +44-1462-444801

01/2009

SonoSite, Inc.
