DAP Technologies 3-1Connecting Your M9020
CHAPTER 3
You can extend the capabilities of your M9020 by connecting other peripheral
devices. When using a device, be sure to read the instructions accompanying
the device together with the relevant section in this chapter.
This chapter gives guidelines on installing and using the following devices:
• USB
• VGA
• Audio
• Serial
Connecting Your M9020
3-2 DAP Technologies Connecting Your M9020

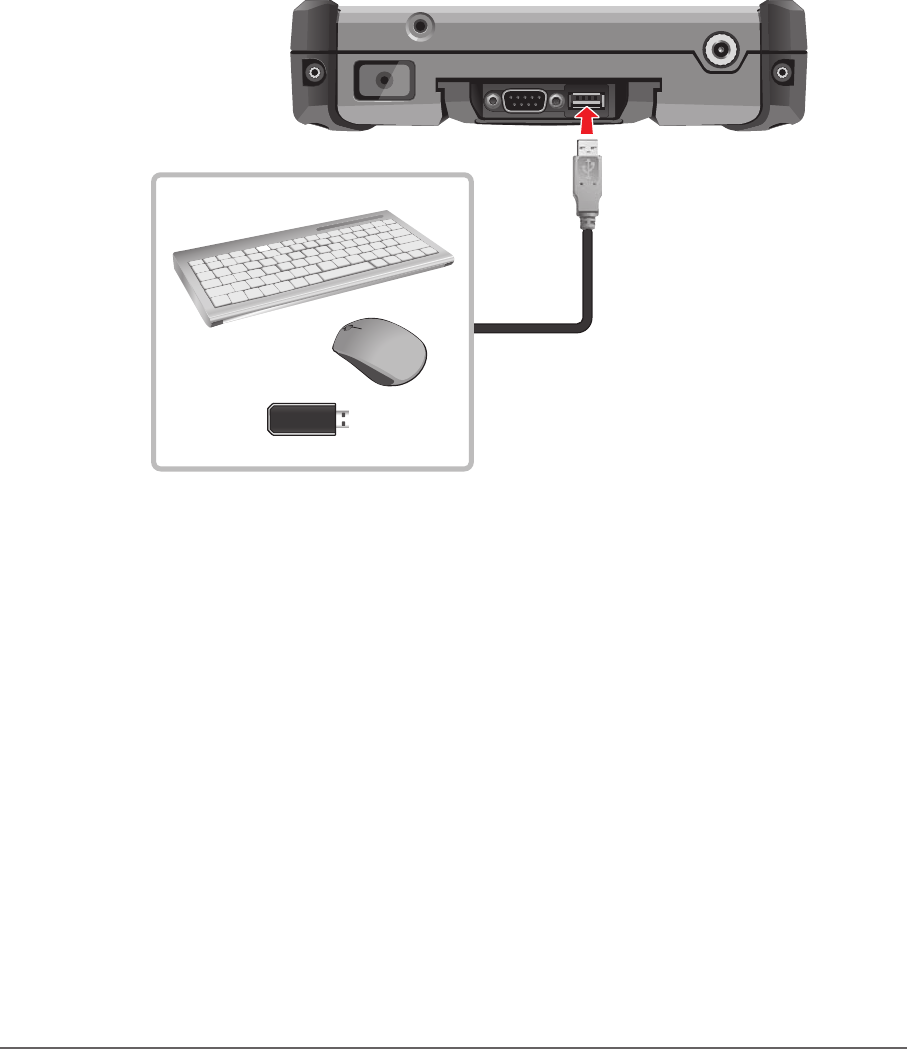

Connecting USB Devices
Your M9020 has one USB port available on the top of the compartment cover.
USB Port Connection
Use the USB port to connect USB devices, such as a ash disk drive, scanner,
printer, keyboard, and mouse.
To connect a USB device, simply plug the device cable into the USB port of
your M9020.
DAP Technologies 3-3Connecting Your M9020

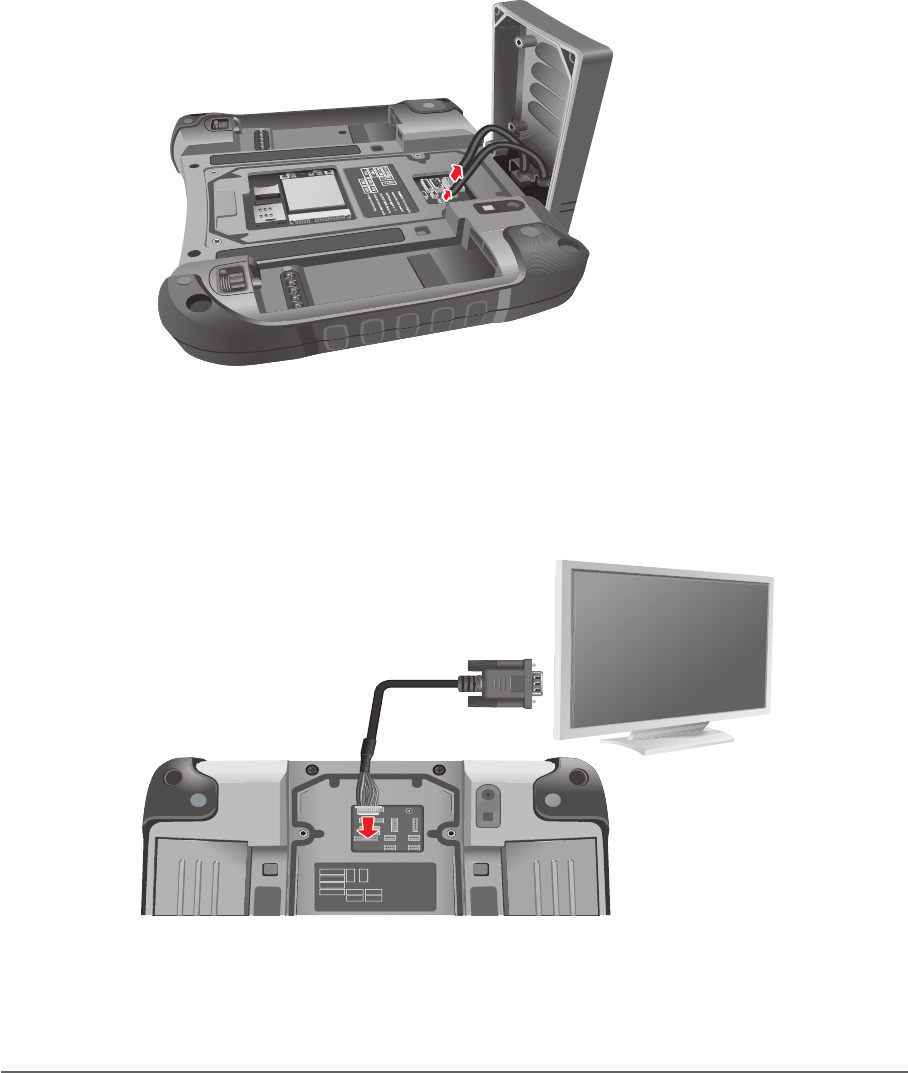

Connecting VGA Devices
Your M9020 has one VGA port for connecting VGA devices, such as an external
monitor.
Perform the following, to connect a VGA device:
1. Release the compartment cover. See “Releasing the Compartment Cover”
on page 1-12.
2. Gently disconnect the RS-232 and USB cables from the connectors on
motherboard.
3. Remove the compartment cover.
4. Connect the VGA cable to the VGA connector of the M9020.
5. Connect the VGA cable to the VGA device.
Full COM
Full COM
PWR
VGA USB
TxRx
TxRx
USB
USBUSB
WARNING: Prior to using the
connection points, contact
DAP Technologies at: +1
(855) DAP-TECH. Failure to
follow this instruction could
void product warranty.
3-4 DAP Technologies Connecting Your M9020

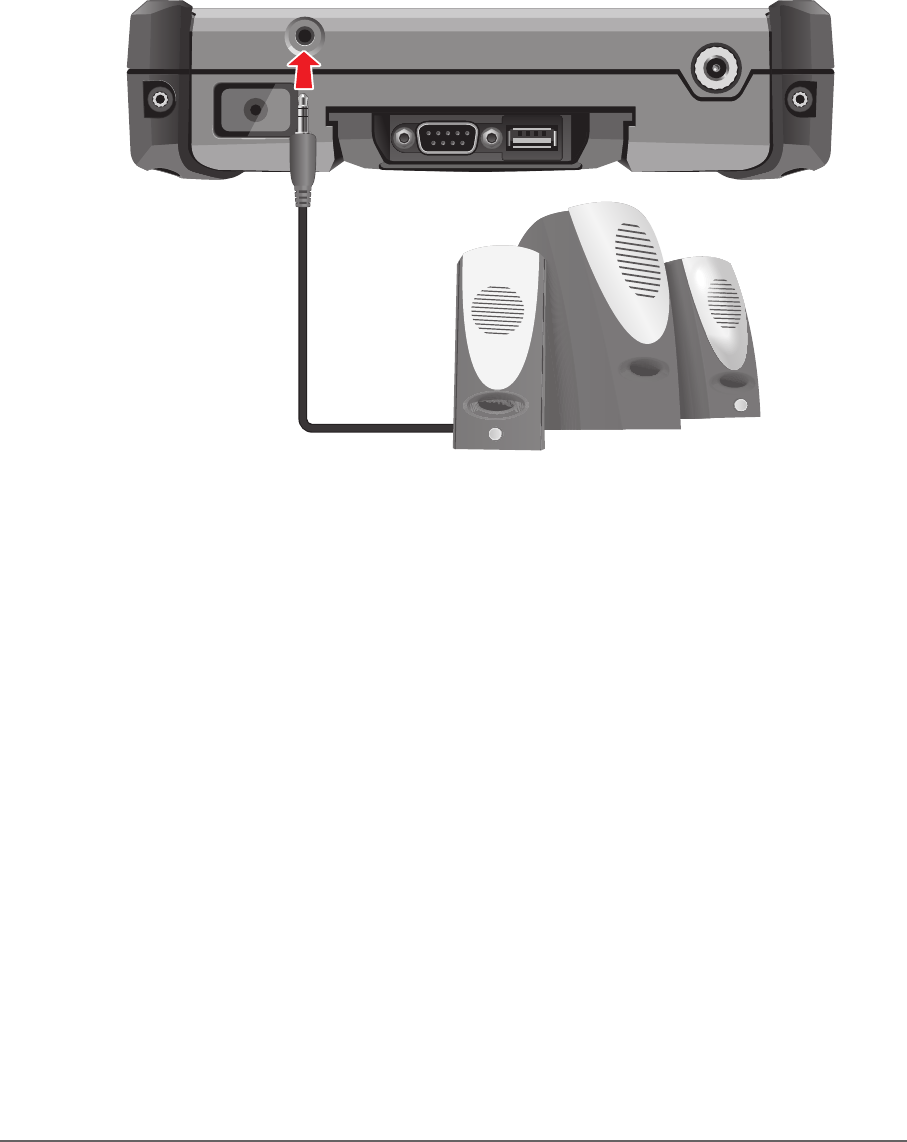

Connecting Audio Devices
Your M9020 has one combo audio connector that supports both audio in
and audio out devices. You can connect speakers, headphones, or a stereo
headset.
To connect an audio device, simply plug the device cable into the audio
connector of your M9020.
DAP Technologies 3-5Connecting Your M9020

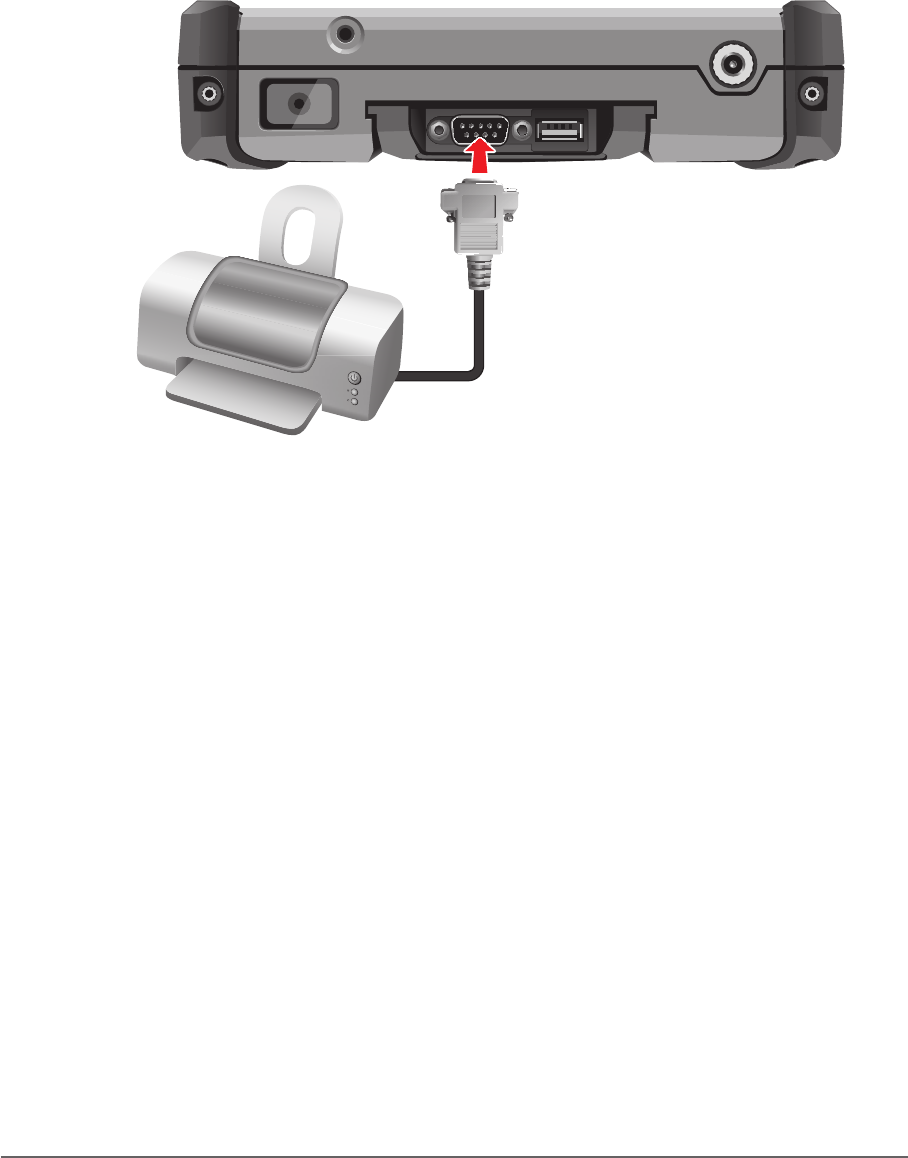

Connecting Serial Devices
Your M9020 has one RS-232 port for connecting serial devices, such as
barcode scanners, printers, among others.
To connect a serial device, simply plug the device cable into the RS-232 port of
your M9020. Attach the screws to secure the connection.
DAP Technologies 4-1Managing Power
CHAPTER 4
Your M9020 operates either on external AC power or on battery power.
This chapter tells you how you can effectively manage power. To maintain
optimal battery performance, it is important that you use the battery in the
proper way.
The topics in this chapter include:
• How to charge the battery pack
• How to check the battery level
• What happens when the battery is low and what actions to take
• What is Power Management
• How to save power
Managing Power
4-2 DAP Technologies Managing Power
Battery Pack
The operating time of a fully charged battery pack depends on how you use the
device.
When you use applications that often access peripherals, or when you stay
connected to a wireless network, the operating time of the battery may be
shortened.
WARNING:
• Do not disassemble the battery pack. There are no user-serviceable parts inside. Doing so
may present risk of exposure to harmful chemicals, explosion or re.
• Contact your local waste disposal service provider regarding the disposal or recycling of used
battery packs.

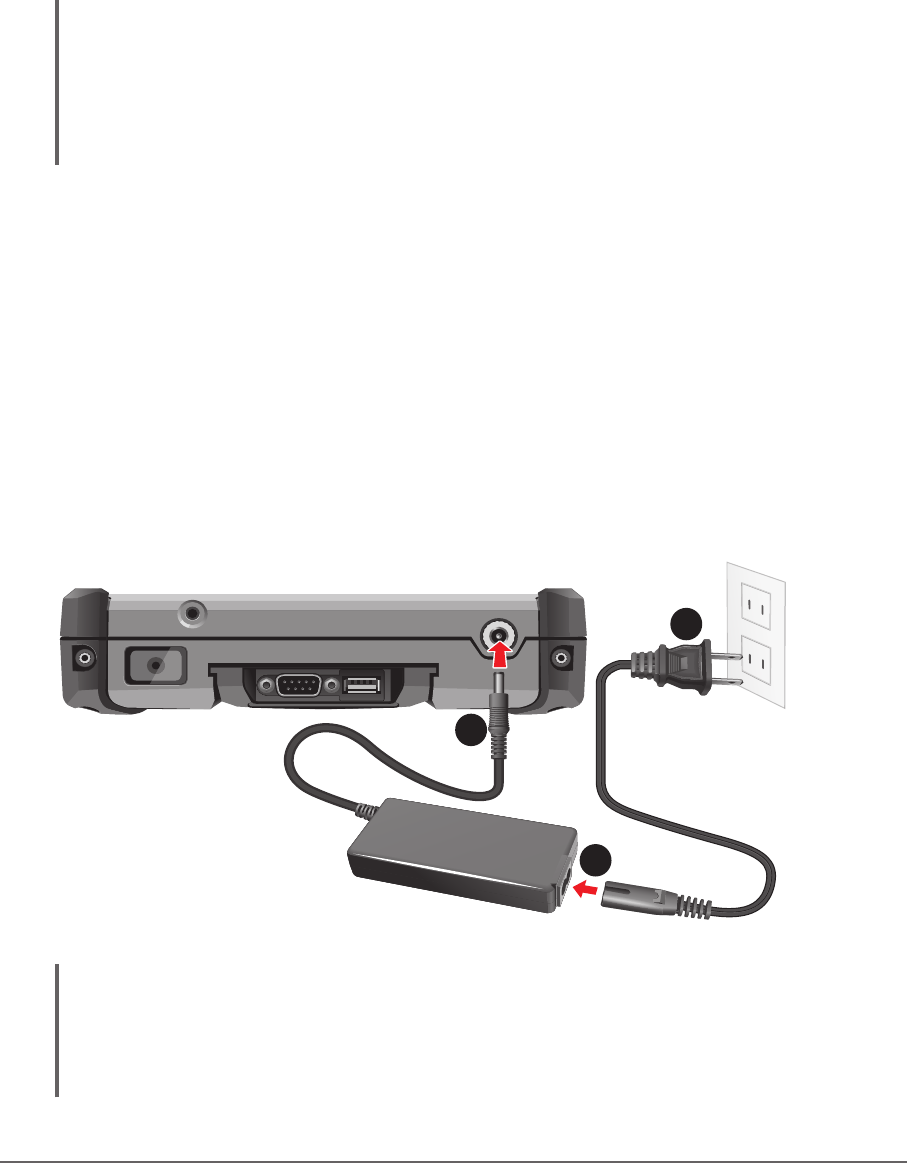

Charging the Battery Pack
Perform one of the following, to charge the battery pack(s):
Via M9020
1. With the battery pack(s) installed, plug the DC cord of the AC adapter into
the power connector of M9020.
2. Plug the female end of the AC power cord into the AC adapter.
3. Then plug the male end of the AC power cord into an electrical outlet.
1
2
3
CAUTION:
• When you disconnect the AC adapter, disconnect from the electrical outlet rst and then from
M9020. A reverse procedure may damage the AC adapter or M9020.
• When unplugging the connector, always hold the plug head. Never pull on the cord.
DAP Technologies 4-3Managing Power
Via Charger (Optional)
1. From the top side of the battery pack, align and place the battery into the
battery charger.
2. Press down on the battery pack.
3. Repeat the above steps to install the second battery pack if necessary.
4. Plug the DC cord of the AC adapter into the power connector of the battery
charger.
5. Plug the female end of the AC power cord into the AC adapter.
6. Then plug the male end of the AC power cord into an electrical outlet.
6
5
4
7. Wait until the LED indicator on the battery charger lights from “red” to
“green”, indicating charging is nished.
NOTE:
• The additional battery pack is optional.
• The battery pack(s) are hot-swappable.
4-4 DAP Technologies Managing Power

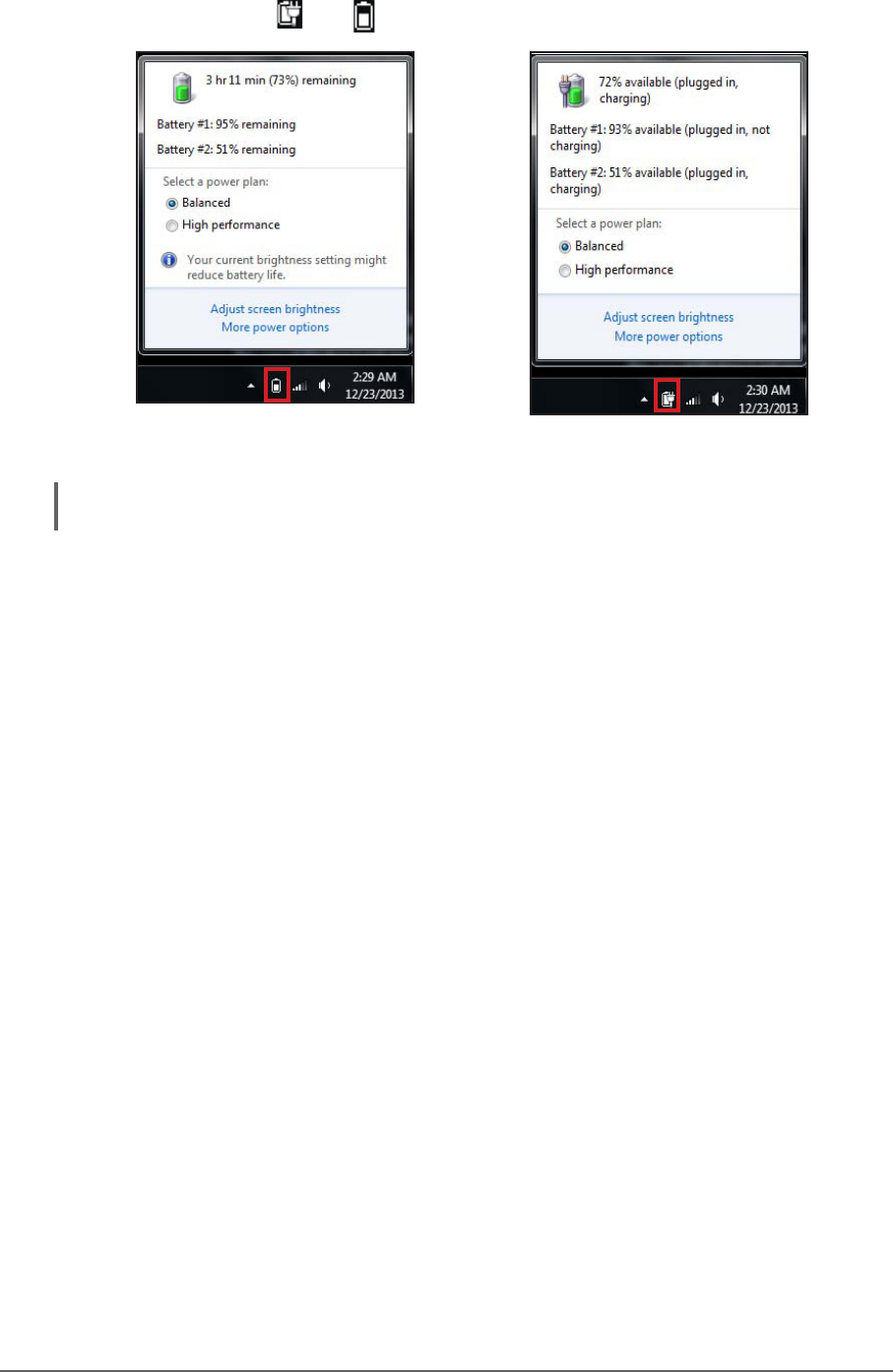

Checking the Battery Level
Tap the battery icon ( ) or ( ) on the taskbar. The window below appears.
On battery power While charging the battery
Or
NOTE: The battery capacity indicator shows only an approximate battery level status.
DAP Technologies 4-5Managing Power

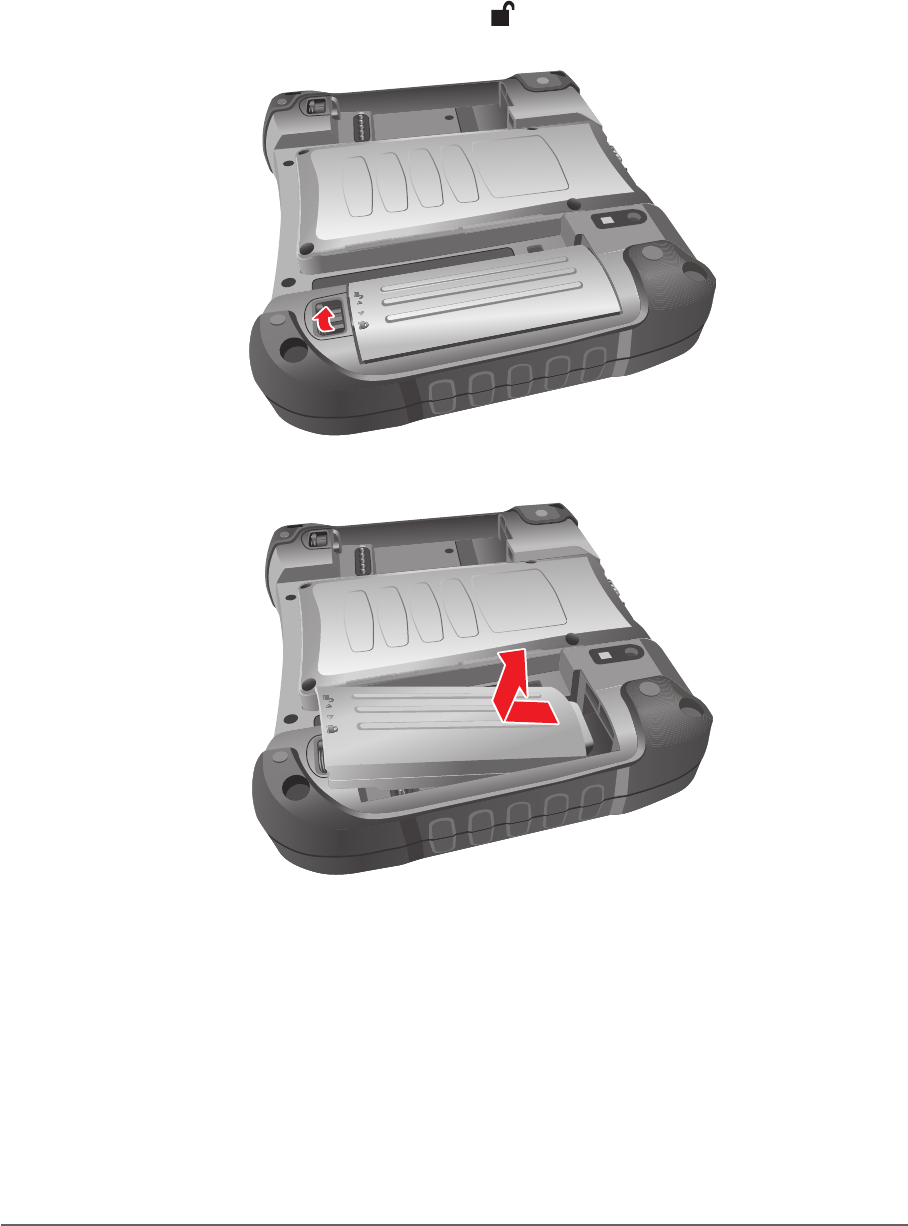

Replacing the Battery Pack
If you rely on battery power for a long period of time, consider purchasing
additional batteries to allow a continuous use of the device.
To replace the battery pack, perform the following:
1. Place M9020 face down on a at even surface.
2. Rotate the lock latch to the unlock ( ) direction, until the battery pack is
released from the socket.
3. Release the battery pack from the bay and remove.
4. Install the replacement battery pack (see “Installing the Battery Pack” on
page 1-17).
4-6 DAP Technologies Managing Power
Power Management
The power management feature helps reduce power consumption which
extends battery life.
Your M9020 supports ACPI (Advanced Conguration and Power Interface) for
power management. Power supply to different components is controlled on an
as-needed basis. This allows maximum power conservation and performance at
the same time.
Windows comes with pre-dened Power Options (Balanced, Power Saver,
and High Performance) for you to select. You can access Power Options by
tapping Start > Control Panel > Power Options. By default, your M9020 is in
Balanced Mode.
For detailed information on power management, see Windows Help.
Power Saving Tips
Here are some practical suggestions that you can do to maximize the operating
time of the battery:
• Enable Power Management. Choose a power plan that saves power. A
power plan is a collection of hardware and system settings that control how
your M9020 manages power.
• Decrease the LCD brightness to the lowest comfortable level.
• Shorten the length of time before Windows turns off the display.
• Many USB devices use power just by being connected. If you use a USB
ash drive, unplug it when you are not using it.
• Deactivate the Wireless LAN function if you are not using it.
• Deactivate Bluetooth wireless feature if you are not using it.
• Turn off M9020 when you are not using it.
DAP Technologies 5-1Expanding Your M9020
CHAPTER 5
You can optimize the capabilities of your M9020 by using a docking station.
This chapter gives guidelines on installing and using the Vehicle Dock.
Expanding Your M9020
5-2 DAP Technologies Expanding Your M9020
Connecting the Docking Station
The Vehicle Dock, a docking station designed for use with your M9020, is
available as an optional accessory.

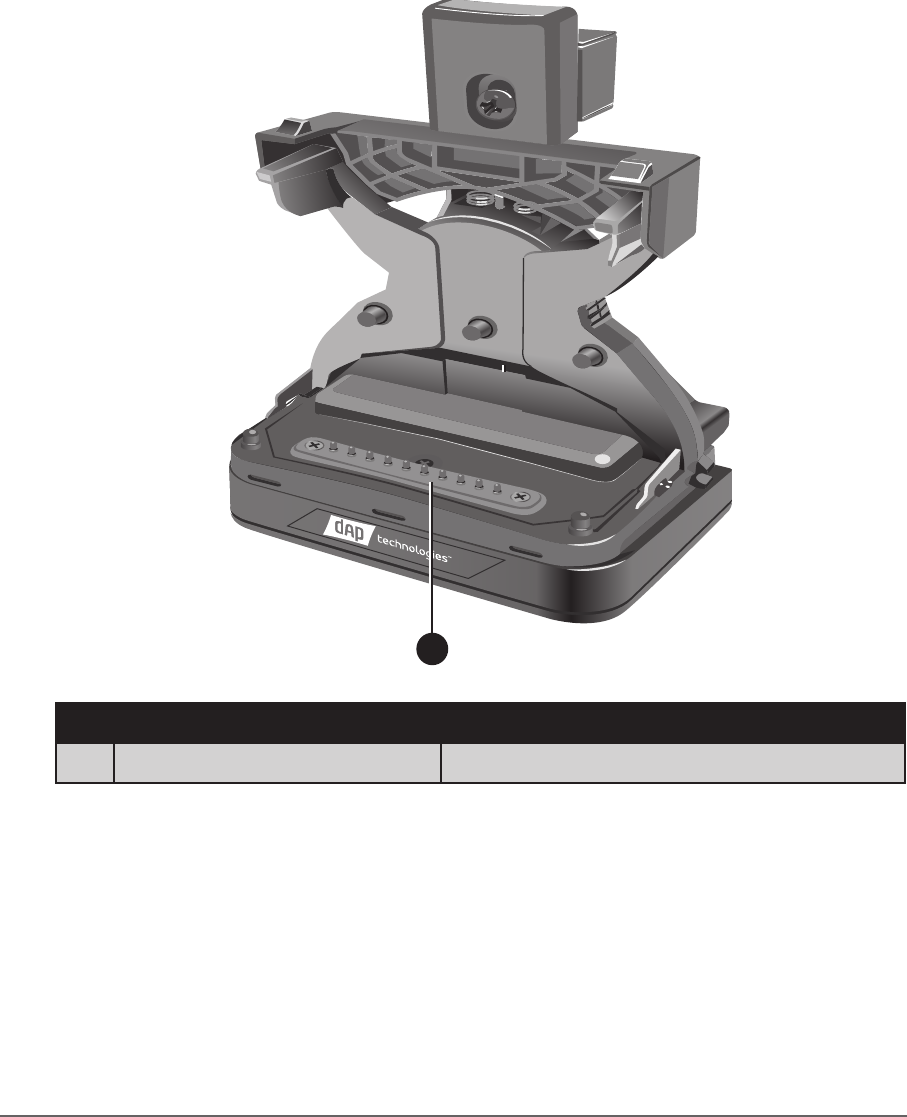

Overview of the Vehicle Docking Station
Front View
1
No. Item Description
1 Docking Station Connector For connection with the M9020.
DAP Technologies 5-3Expanding Your M9020

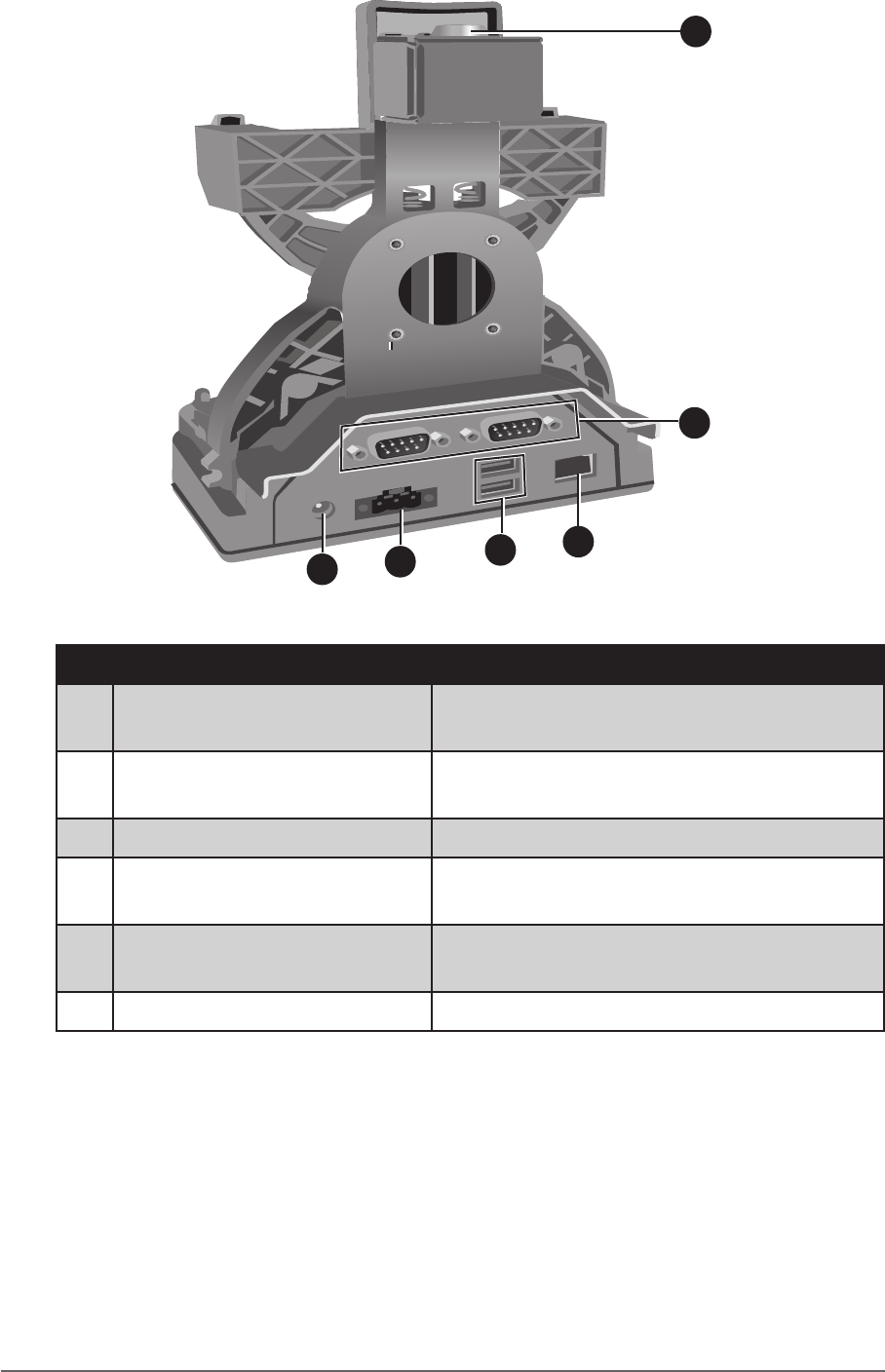

Rear View
2
6543
1
No. Item Description
1 Lock Locking system to avoid the device being
taken from the dock.
2 RS-232 Connectors Connection for serial devices, for
example, a scanner or a printer.
3 RJ-45 Connector Provides connection to a LAN.
4USB Ports Connection for 2 x USB 2.0 compatible
devices, for example, USB ash drives.
5 Bare leads DC connector Connection for DC power supply with
bare leads.
6 Power Connector Connects to the AC adapter.
5-4 DAP Technologies Expanding Your M9020

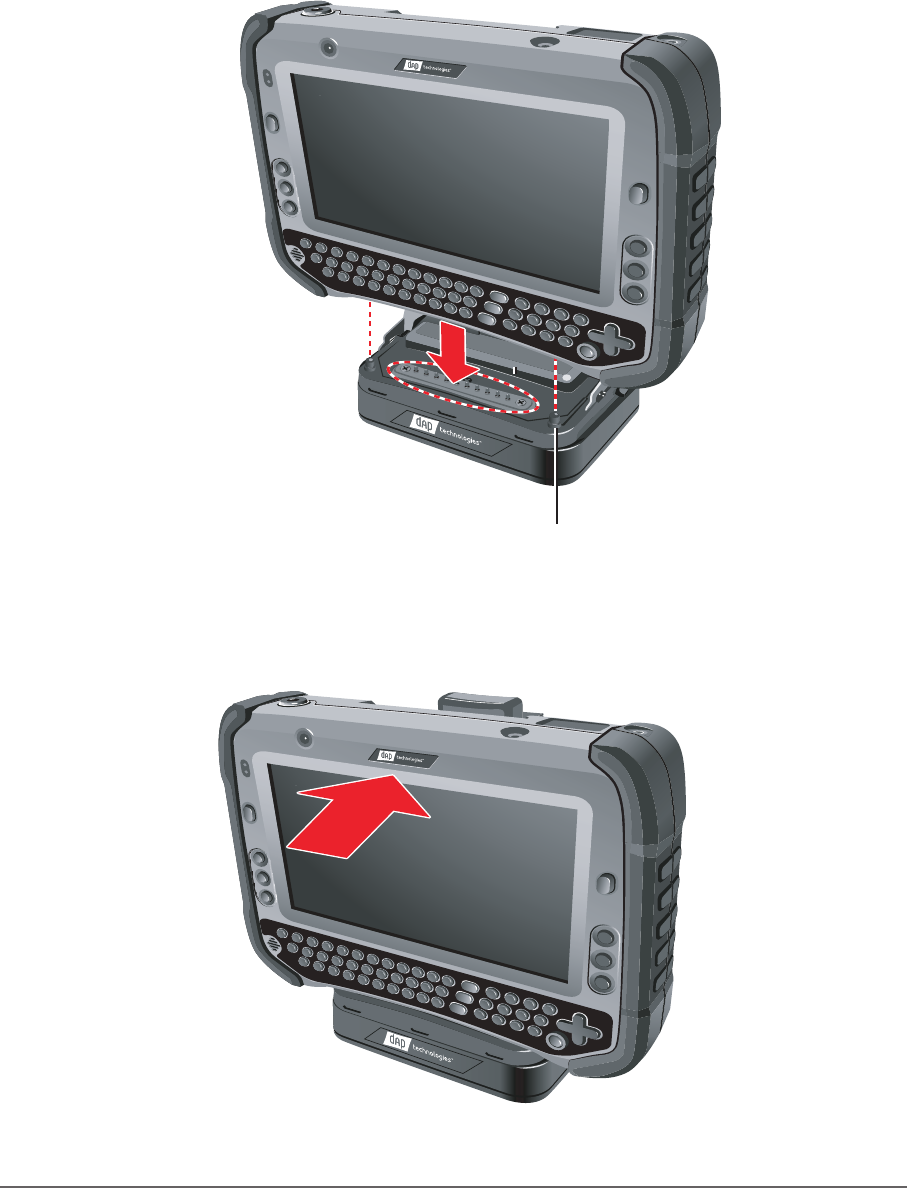

Docking the M9020
Perform the following to dock the M9020:
1. Align the golden connector and guide pin holes on your M9020 with the
golden connector and guide pins on the docking station.
2. Insert M9020 into the guide pin holes on the docking station.
Guide pin
3. Slightly push the upper part of M9020 towards the docking station, until
you hear the “click” sound, indicating that the device is xed to the docking
station.
DAP Technologies 5-5Expanding Your M9020
Un-docking the M9020
Perform the following to un-dock the M9020:
While holding the M9020, press the release latch on the docking station and
then lift the device to un-dock it.
Release latch
5-6 DAP Technologies Expanding Your M9020

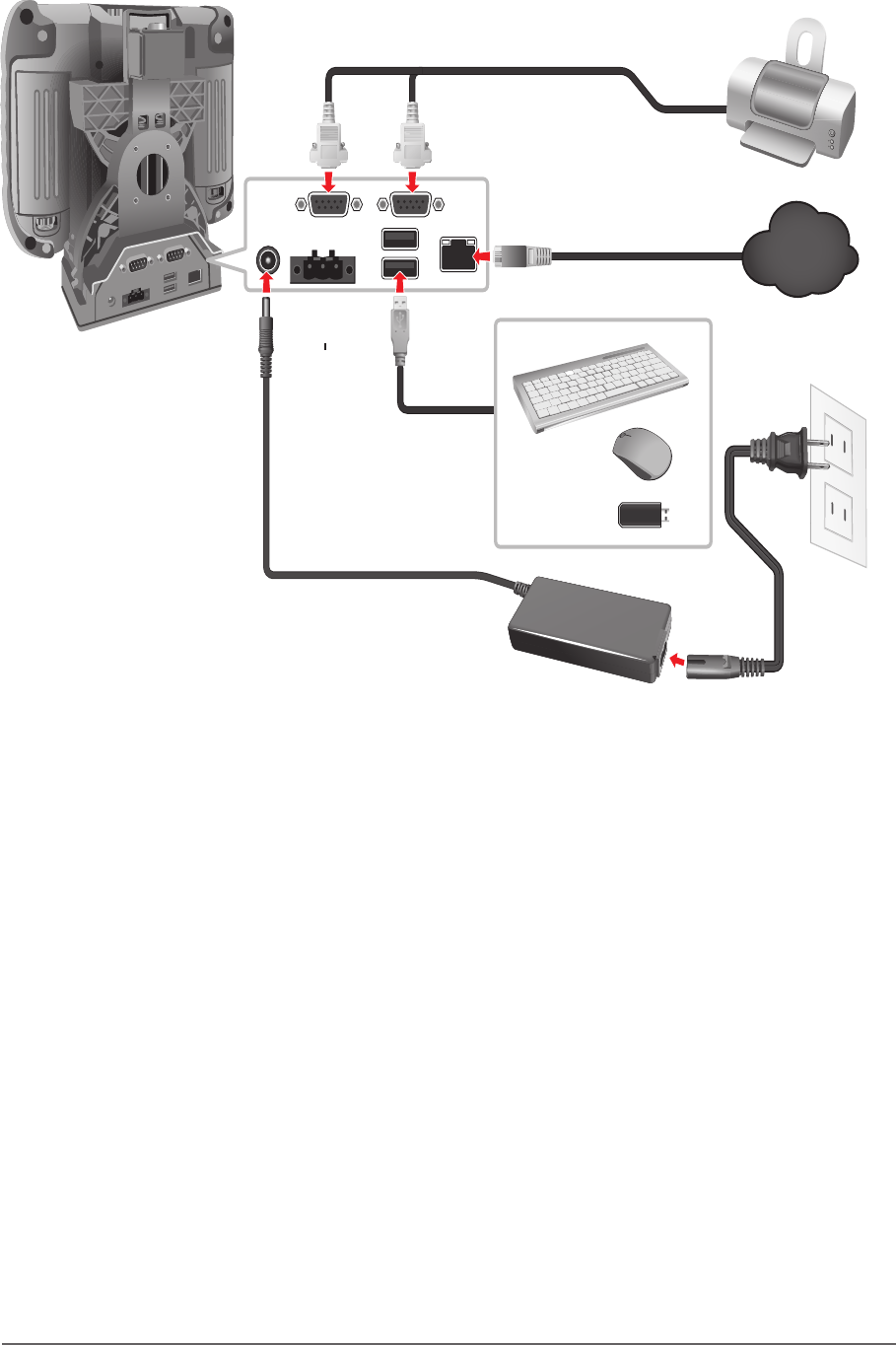

Connecting the Docking Station
Network
Connecting to the
power source.
Connecting
USB devices.
Connecting to the
network.
Connecting serial
devices.
DAP Technologies A-1Maintenance, Troubleshooting and Specications
APPENDIX A
This chapter covers the following topics:
• How to care for your M9020
• Troubleshoot your M9020
• M9020 Specications
Maintenance, Troubleshooting
and Specications
A-2 DAP Technologies Maintenance, Troubleshooting and Specications
Taking Care of Your M9020
Location Guidelines
• Keep the M9020 at least 13 cm (5 inches) away from electrical appliances
that can generate a strong magnetic eld such as a TV, refrigerator, motor,
or a large audio speaker.
General Guidelines
• Do not place heavy objects on top of the device as this may damage the
display.
• To maximize the life of the backlight in the display, allow the backlight to
automatically turn off as a result of power management. Avoid using a
screen saver or other software that prevents the power management from
working.
Cleaning Guidelines
• Use a soft cloth moistened with water or a non-alkaline detergent to wipe
the exterior of the M9020.
• Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or
detergent on the display.
Touchscreen Guidelines
• Use your nger or the included stylus on the display. Using a sharp or
metallic object may cause scratches and damage the display, thereby
causing errors.
• Use a soft cloth to remove dirt on the display. The touchscreen surface has
a special protective coating that prevents dirt from sticking to it. Not using
a soft cloth may cause damage to the special protective coating on the
touchscreen surface. To clean off hard to remove dirt, blow some steam on
the particular area and gently wipe away using a soft cloth.
• Do not use excessive force on the display. Avoid placing objects on top of
the display as this may cause the glass to break.
When there is a noticeable discrepancy in the operation of the touchscreen
function (stylus touch does not correlate to the proper location on the screen),
recalibrate the touchscreen display (see “Calibrating the Screen” on page
2-3).
DAP Technologies A-3Maintenance, Troubleshooting and Specications
Troubleshooting
If you encounter problems when using the M9020, try the following
troubleshooting tips rst to detect and solve the problem. If the problem persists,
contact customer support.
Problem Solution
The battery is not
charging.
• Make sure the AC adapter is properly
connected.
Nothing appears on the
screen.
• The device may be in sleep mode. Press the
power button to wake up the display.
• The brightness level may be too low. Increase
brightness (see “Special Function Keys” on page
2-5).
The screen suddenly
turns blank and the
power indicator goes off.
• Make sure the AC adapter is properly
connected.
• If using a battery pack, the battery pack may be
depleted, replace or charge the battery.
I cannot use the wireless
LAN feature.
• Make sure that wireless LAN feature is turned
on.
Wireless LAN signal
quality is poor.
• The M9020 may be out of range. Move the
device closer to the access point or another
wireless LAN device associated with it.
• Check if your surroundings have interferences,
such as microwave ovens or cordless phones.
Move the device away from objects causing
interference.
I cannot connect to
another wireless LAN
device.
• Make sure that the wireless LAN feature is
turned on.
• Make sure that the SSID setting is the same for
every wireless LAN device in the network.
• Restart the M9020.
• Make sure the IP address or subnet mask
setting is correct.
I cannot connect to
another device with
Bluetooth.
• Make sure that both devices have Bluetooth
turned on.
• Make sure that the distance between the two
devices is within 10 meters and there are no
walls or large obstructions between the devices.
• Make sure that both devices are turned on and
are congured to be discoverable.
• Make sure that both devices are compatible.
A-4 DAP Technologies Maintenance, Troubleshooting and Specications
Problem Solution
The GPS application
cannot nd my location.
• Make sure that GPS is turned on.
• Make sure that the GPS receiver and the
location sensor are enabled in Control Panel.
• The device may be out of coverage area. Move
your M9020 outdoors or closer to a window.
• The device may be out of coverage area. Move
your M9020 outdoors or closer to a window.
No sound is produced. • Make sure the volume is not muted.
• If using an external audio device, make sure that
the cable is properly connected.
I cannot project the
M9020 display to another
monitor.
• Make sure the VGA cable is connected correctly.
• Make sure the output setting selected is correct.
Devices connected
through the Vehicle Dock
are not working.
• Make sure the Vehicle Dock is connected to an
electrical outlet.
• Make sure the cables are properly connected.
DAP Technologies A-5Maintenance, Troubleshooting and Specications
M9020 Specications
Technical Specications
Operating System • Windows® 7 Professional
• (optional Windows® Embedded Standard 7
Processor Intel® N2600 Dual Core 1.6 GHz
Memory 4GB DDR3
Display
• Sunlight-viewable
• Glass-on-glass resistive touchscreen
• Landscape or portrait orientation
• Passive stylus or nger operation
• 7-inch (1024 × 600)
Camera • 5.0 MP rear camera with auto-focus and ash
• 2.0 MP front camera
Storage 64 to 256 GB solid state drive
Connectivity
• WLAN: Summit 802.11 a/b/g/n
• WWAN: GobiTM 5000 4G LTE
• GPS:
»u-blox 6 position hybrid GSP/SBAS engine
(WASS, EGNOS, MSAS)
»A-GPS: AssistNow online and AssistNow
ofine services, OMA SUPL compliant
• Bluetooth® V4.0+EDR
• RFID antenna: Integrated, linearly polarized
• RFID standards supported:
»UHF - EPCglobal Gen 2 with DRM
»AEI - eGo, SeGo, ATA, Allegro/Title-21,
Gen2
• RFID frequency range:
»UHF - EU: 865-868MHz; US: 902-928MHz
»AEI - 865-868MHz, 902-928MHz
LED Status Indicator Battery Full / Charging / Low / Power On
Keypad & Buttons
• Qwerty keypad
• 5 programmable function keys
• Dedicated scanner and camera buttons
Input/Output
Physical:
• Power jack
• 1× USB 2.0
• 1× RS-232
Via dock connector:
• 1× USB 2.0
• 1× Ethernet 10/100
• 1× power 10-24v DC
A-6 DAP Technologies Maintenance, Troubleshooting and Specications
Technical Specications
Expansion Slot
• Micro SD card slot (up to 32 GB)
• 4 × USB 2.0
• 1 × power output 5V 2A
• 1 × SVGA
• 4 × RS-232
Barcode Scanning / Data
Capture
• Short range barcode: 1D/2D barcode scanner
• Camera:
»5.0 MP rear camera with auto-focus and
ash
»2.0 MP front camera
Audio
• Intel® HD Audio
• Speaker 1.3 watt
• Stereo headset jack
Battery
2x External batteries:
• Li-ion battery pack, 7.4 V, 3100 mAh (hot-
swappable)
Input:
• 10-20 VDC, 2A
AC Adapter AC 100 ~ 240V, 50 ~ 60Hz, DC 12V input
Regulatory
• FCC Class B
• CE
• RoHS
• WEEE
• ANSI/ISA 12.12.01, Nonincendive Electrical
Equipment for use in Class I and II, Division
2 and Class III, Divisions 1 and 2 Hazardous
(Classied) Locations; CAN/CSA C22.2
No. 213-M1987, Non-incendive Electrical
Equipment for Use in Class I, Division 2
Hazardous Locations
• Lacer safety:
»A21CFR1040.10
»IEC/EN 60825-1
Physical Specications
Dimensions • 9.0 (L) × 7.3 (W) × 2.0 (H) inches
• 230 (L) × 185 (W) × 51 (H) mm
Weight • 2.5 lb.
• 1334 g
DAP Technologies A-7Maintenance, Troubleshooting and Specications
Environmental Specications
Operating Temperature -22 to +122 °F [-30 to +50 °C]
Charging Temperature 14 to +122 °F [-10 to +50 °C]
Storage Temperature -22 to +158 °F [-30 to +70 °C]
Drop Multiple 6-foot (1.8-meter) drops to concrete
ESD 15 kV air discharge, 8 kV direct discharge
Sealing IP67 certied
Humidity 5%-95%, non-condensing
Vibration MIL-STD-810F
NOTE: Specications are subject to change without notice.
DAP Technologies B-1Regulatory Information
APPENDIX B
This appendix provides regulatory statements and safety notices about your
M9020.
NOTE: Marking labels located on the exterior of your M9020 indicate the regulations that your
model complies with. Check the marking labels and refer to the corresponding statements in
this appendix. Some notices apply to specic models only.
Regulatory Information
B-2 DAP Technologies Regulatory Information
Important Information
ATTENTION: Pour réduire le risque d’incendie ou de choc électrique ne pas
exposer l’appareil à la pluie ou à l’humidité. VERIFIER que le cordon électrique
est la prise murale pour un delai d’inactivite prolongé. Pour arrêter complètement
l’alimentation de l’appareil, débranchez le cordon d’alimentation de la prise AC.
N’enlever ni le capot arrière ni les pièces internes de l’appareil. Contactez un
personnel qualié si nécessaire.
SA1965
AVERTISSEMENT ÉLECTRIQUE
Utilisé pour les instructions destinés à alerter l’utilisateur d’un
CHOC ÉLECTRIQUE mortel ou de blessure grave en cas
d’utilisation incorrecte de l’unité.
SA1966
AVERTISSEMENT
Utilisé pour les instructions destinés à alerter l’utilisateur d’un
risque mortel ou de blessure grave en cas d’utilisation incorrecte
de l’unité.
ATTENTION: Pour réduire le risque d’incendie ou de choc electrique ne pas
exposer l’appareil à la pluie ou à l’humidité FAIRE le cordon électrique est
DÉBRANCHÉ DE LA PRISE MURALE DANS UN DELAI DE PROLONGER
INACTIVITÉ. De se désengager totalement LE POUVOIR DE L’UNITE, S’IL
VOUS PLAÎT DEBRANCHER LE CORDON D’ALIMENTATION DE LA PRISE
AC. NE PAS Romove le capot arrière, pas de PIÈCES À L’INTÉRIEUR.
Contactez un personnel qualié S’il faut le réparer.
SA1965
ELECTRIQUE AVERTISSEMENT
Sert aux instructions destin es alerter l’utilisateur d’un CHOC
ÉLECTRIQUE mortel ou de blessure grave en cas d’utilisation
incorrecte de l’unit.
SA1966
AVERTISSEMENT
Sert aux instructions destin es alerter l’utilisateur d’un risque
mortel ou de blessure grave en cas d’utilisation incorrecte de
l’unit .
DAP Technologies B-3Regulatory Information
Safety Information (EN)
Follow and adhere to all warnings and instructions on the screen. For your
safety, please read all safety and operating instructions before using the M9020.
Keep this manual for future reference.
1. Carefully read all recommendations and precautions for use before using
this product.
2. Retain all recommendations and precautions for future reference as
necessary.
3. Read and be sure to understand all warnings listed in the precautions.
4. Follow all operating precautions when using this product.
5. Use only a dry cloth to clean this product.
6. Do not place the product near any heat sources such as radiators, warm
air intakes, stoves or other heat-generating devices (including ampliers or
other heat producing equipment).
7. Do not disregard the safety that a polarized or grounded connection can
provide. A polarized connection consists of two plugs, one of which is
larger than the other. A grounded connection has two blades and a third
one that is grounded. If the main plug provided cannot be inserted into
your outlet, consult an electrician to replace your obsolete outlet.
8. Protect the power cord from being crushed or pinched, particularly in the
area of the plugs, any receptacles used, and the point of exit from the
apparatus. Do not break off the ground pin of the power cord.
9. Use only accessories specied by the manufacturer.
10. Use only with accessories specied by the manufacturer or sold
with the product.
11. Unplug this apparatus during lightning storms or when it is not being used
for long periods.
12. Refer all servicing to qualied service personnel. A technical intervention
is required when the apparatus has been damaged in any way or does not
operate normally.
B-4 DAP Technologies Regulatory Information
Informations de sécurité (FR)
Suivez et respectez tous les avertissements et instructions gurant sur l’écran.
Pour votre sécurité, s’il vous plaît lire toutes les consignes de sécurité et de
fonctionnement avant d’utiliser le M9020. Gardez ce manuel pour référence
future.
1. Lire avec attention toutes les recommandations et precautions d’emploi
avant d’utiliser ce produit.
2. Veuillez conserver ces recommandations et précautions pour référence
future.
3. Lire et comprendre tous les avertissements énumérés dans les
précautions d’emploi.
4. Suivre toutes les précautions d’emploi pour utiliser ce produit.
5. Utiliser exclusivement un chiffon sec pour nettoyer ce produit.
6. Ne pas placer le produit près de toute source de chaeur telle que
radiateurs, arrivées d’air chaud, fourneaux ou autres appareils générant
de la chaleur (incluant les amplicateurs producteurs de chaleur) .
7. Ne pas négliger la sécurité que procure un branchement polarisé ou avec
raccordement à la terre, Un branchement polarisé comprend deux ches
dont l’une est plus large que l’autre. Un branchement à la terre comprend
deux ches plus une troisième reliée à la terre. Si la che secteur fournie
ne s’insert pas dans votre prise de courant. consulter un ‘électricien an
de remplacer votre prise obsolète.
8. Protéger le cordon d’alimentation de tout écrasement ou pincement,
particulièrement au niveau des ches, des réceptacles utilisés et à
l’endroit de sortie de l’appareil. Ne pas casser la che de terre du cordon
d’alimentation.
9. Utiliser uniquement les accessoires spéciés par le constructeur.
10. Utilisez seulement des accessoires spéciés par le
manufacturier ou vendus avec le produit.
11. Débrancher cet appareil lors d’orages ou s’il n’est pas utilize
pendant une longue période.
12. Faire exécuter le service par du personnel qualié. Une intervention
technique est requise lorsque l’appareil a été endommagé ou n’opère pas
normalement.
DAP Technologies B-5Regulatory Information
About the Batteries
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION!
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions. (English)
ATTENTION!
Il y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du mêre type ou d’un type équivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées
conformément aux instructions du fabricant. (French)
About the Adapter
• Use only the supplied AC adapter (Rating: Input DC 15V, 2.4A). Use of
another type of AC adapter will result in malfunction and/or danger.
• Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
• Allow adequate ventilation around the adapter when using it to operate the
device or charge the battery. Do not cover the AC adapter with paper or
other objects that will reduce cooling. Do not use the AC adapter while it is
inside a carrying case.
• Connect the adapter to a proper power source. The voltage requirements
are found on the product case and/or packaging.
• Do not use the adapter if the cord becomes damaged.
• Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
B-6 DAP Technologies Regulatory Information
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
Operation on the 5.15-5.25GHz frequency band is restricted to indoor use only.
The FCC requires indoor use for the 5.15-5.25GHz band to reduce the potential
for harmful interference to co-channel Mobile Satellite Systems. Therefore, it
will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725 –5.850 GHz
band when associated with an access point (AP).
DAP Technologies B-7Regulatory Information
ANSI/ISA 12.12.01-2013
Nonincendive Electrical Equipment for use in Class I and II, Division 2 and
Class III, Divisions 1 and 2 Hazardous (Classied) Locations.
CAN/CSA C22.2 No. 213-M1987
Non-incendive Electrical Equipment for Use in Class I, Division 2 Hazardous
Locations.
CE Notice (European Union)
This device has been tested and found to conform with the limits set for a Class
B product.
• EN 55022 — “Limits and Methods of Measurement of Radio Interference
Characteristics of Information Technology Equipment”
• EN 55024 — “Information technology equipment - Immunity characteristics -
Limits and methods of measurement”
• EN 61000-3-2 — “Electromagnetic compatibility (EMC) - Part 3: Limits -
Section 2”
• EN 61000-3-3 — “Electromagnetic compatibility (EMC) - Part 3: Limits -
Section 3”
• EN 60950 — “Safety of Information Technology Equipment.”
• EN 55022 Emissions requirements
B-8 DAP Technologies Regulatory Information
RF Exposure Information (SAR)
This device is compliance with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance
with the measurement methods and procedures specied in OET Bulletin 65
Supplement C.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device was tested for operations with the device
contacted directly to the human body to the back side of the EUT. To maintain
compliance with FCC RF exposure compliance requirements, avoid direct
contact to the transmitted antenna during transmitting.
IC Regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.”
DAP Technologies B-9Regulatory Information
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
The device could automatically discontinue transmission in case of absence of
information to transmit, or operational failure. Note that this is not intended to
prohibit transmission of control or signaling information or the use of repetitive
codes where required by the technology.
The device for the band 5150-5250 MHz is only for indoor usage to reduce
potential for harmful interference to co-channel mobile satellite systems; the
maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and
5470-5725 MHz) to comply with the e.i.r.p. limit; and The maximum antenna
gain permitted (for devices in the band 5725-5850 MHz) to comply with the
e.i.r.p. limits specied for point-to-point and non point-to-point operation as
appropriate, as stated in section A9.2(3). In addition, High-power radars are
allocated as primary users (meaning they have priority) of the band 5250-5350
MHz and this radar could cause interference and/or damage to LE-LAN devices.
The County Code Selection feature is disabled for products marketed in the US/
Canada. For product available in the USA/ Canada markets, only channel 1~11
can be operated. Selection of other channels is not possible.
Important Note
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specied in IEEE 1528.
PN: XXXX-XXXXXXX • March 2014
United States
8945 South Harl Avenue, Suite 112
Tempe, Arizona, 85283 USA
Phone: +1 (855) DAP-TECH
2915 Premiere Parkway, Suite 300
Duluth, Georgia 30097, USA
Phone: +1 (855) DAP-TECH
Canada
4535 Wilfrid Hamel Blvd., Suite 100
Quebec City, QC Canada G1P 2J7
Toll Free: +1 (800) 363-1993
Phone: +1 (418) 681-9394
Fax: +1 (418) 681-0799
Europe, Middle East, Africa
9 The Chambers, Vineyard
Abingdon UK OX14 3PX
Phone: +44 (0) 1235 462130
Fax: +44 (0) 1235 462131
Toll Free : +1 (855) DAP-TECH (327-8324)
www.daptech.com
