JLG 1001147542 Wireless Analyzer Module User Manual 3121600

JLG Industries Inc (An Oshkosh Company) Wireless Analyzer Module 3121600

User Manual

Setup and Operation Manual ANSI®Wireless Analyzer Module (WAM)P/N - 3121600April X, 2015Preliminary Review Copy Only4-08-2015
NOTES:
FOREWORD FOREWORDNOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour-aged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes / modifications not approved by the JLG Industries Inc., could void the user’s authority to operate this equipment.
FOREWORDNOTES:
TABLE OF CONTENTS3121600 – JLG Lift – iSECTION - PARAGRAPH, SUBJECT PAGE SECTION - PARAGRAPH, SUBJECT PAGESECTION - 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS1.1 PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11.2 WIRELESS SETUP (PHONE, TABLET) . . . . . . . . . . . . . . . . . . . . . . .1-11.3 APPLICATION - STARTUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-31.4 CONNECTING THE APPLICATION TO THE WAM. . . . . . . . . . . .1-41.5 APPLICATION - SETUP SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 Language Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5Check for Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7Advanced Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7Name - Set/Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8Password - Set/Change. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8Application Setup Screen - Dpad (Tablets Only) . . . . . . . . .1-8SECTION - 2 - WIRELESS ANALYZER MODULE - SETUP AND TROUBLESHOOTING2.1 FIRST TIME -SET-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1Setting Wi-Fi Name (SSID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2Setting Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-22.2 TROUBLESHOOTING THE JLG WIRELESSANALYZER MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-32.3 FACTORY DEFAULT - RESET. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4LIST OF FIGURES1-1. Wi-Fi Networks Configuration Screen Example . . . . . . . .1-21-2. Analyzer Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-31-3. Analyzer Home Screen - Connected. . . . . . . . . . . . . . . . . . .1-41-4. Change Language Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-61-5. Language Update Sequence - Apple® . . . . . . . . . . . . . . . . .1-61-6. Language Update Sequence - Android . . . . . . . . . . . . . . . .1-61-7. Wireless Settings Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-72-1. Wireless Analyzer Module (WAM) . . . . . . . . . . . . . . . . . . . . .2-1LIST OF TABLES2-1 Default Wireless Analyzer Module Settings . . . . . . . . . . . 2-12-2 WAM LED Status Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
REVISON LOGii – JLG Lift – 3121600REVISION LOGOriginal Issue of Manual. . . . . . . . . . . . . . . . . . . . . April 24, 2013Manual Revised . . . . . . . . . . . . . . . . . . . . . . . . . . . . . April X, 2015

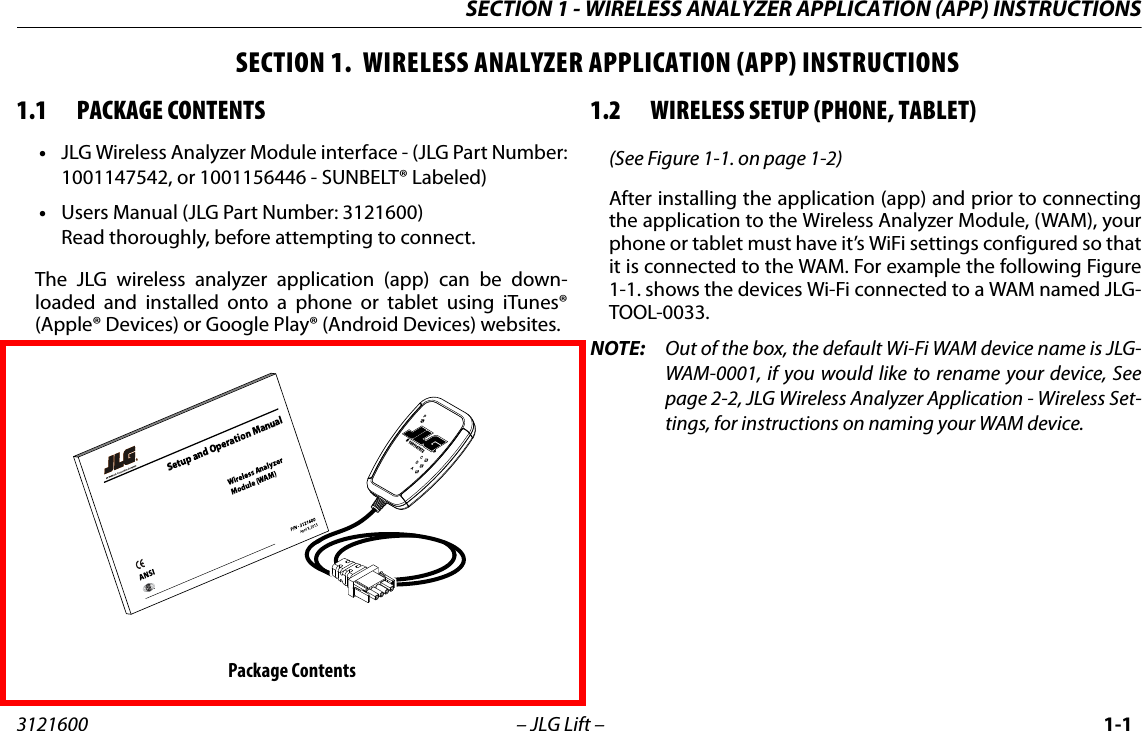

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS3121600 – JLG Lift – 1-1SECTION 1. WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS1.1 PACKAGE CONTENTS•JLG Wireless Analyzer Module interface - (JLG Part Number:1001147542, or 1001156446 - SUNBELT® Labeled) •Users Manual (JLG Part Number: 3121600)Read thoroughly, before attempting to connect.The JLG wireless analyzer application (app) can be down-loaded and installed onto a phone or tablet using iTunes®(Apple® Devices) or Google Play® (Android Devices) websites.1.2 WIRELESS SETUP (PHONE, TABLET)(See Figure 1-1. on page 1-2)After installing the application (app) and prior to connectingthe application to the Wireless Analyzer Module, (WAM), yourphone or tablet must have it’s WiFi settings configured so thatit is connected to the WAM. For example the following Figure1-1. shows the devices Wi-Fi connected to a WAM named JLG-TOOL-0033.NOTE: Out of the box, the default Wi-Fi WAM device name is JLG-WAM-0001, if you would like to rename your device, Seepage 2-2, JLG Wireless Analyzer Application - Wireless Set-tings, for instructions on naming your WAM device.Package Contents# 1001147572CDAPS

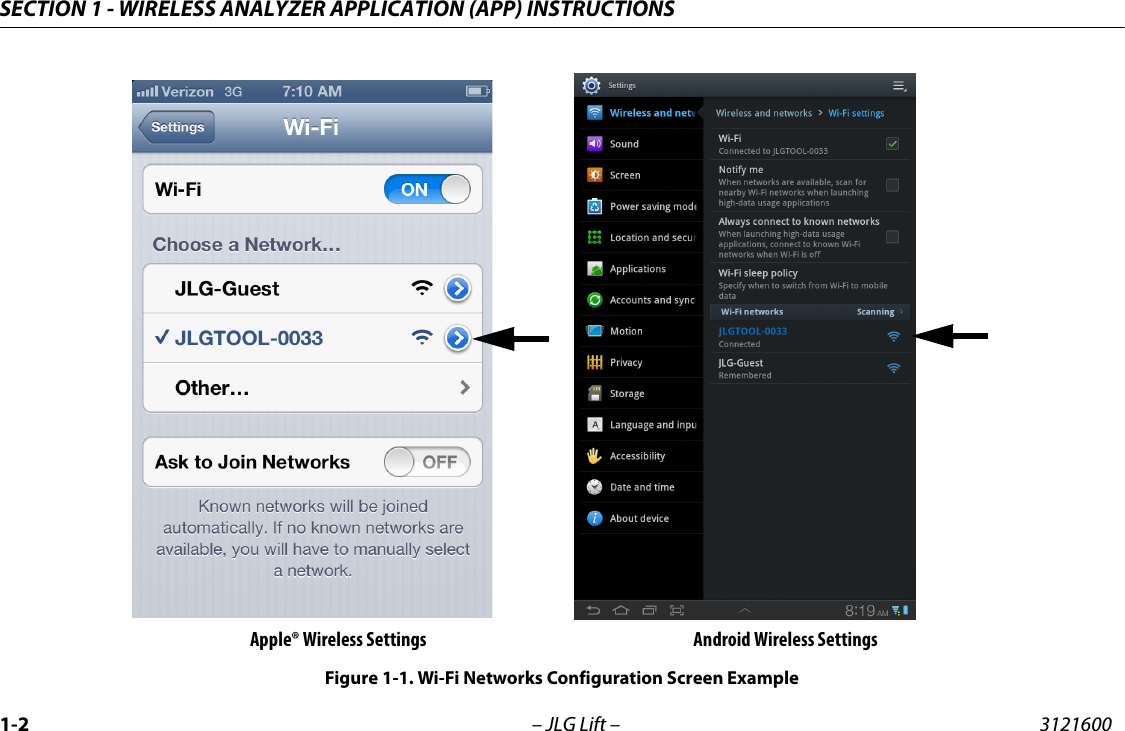

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS1-2 – JLG Lift – 3121600Apple® Wireless Settings Android Wireless SettingsFigure 1-1. Wi-Fi Networks Configuration Screen Example

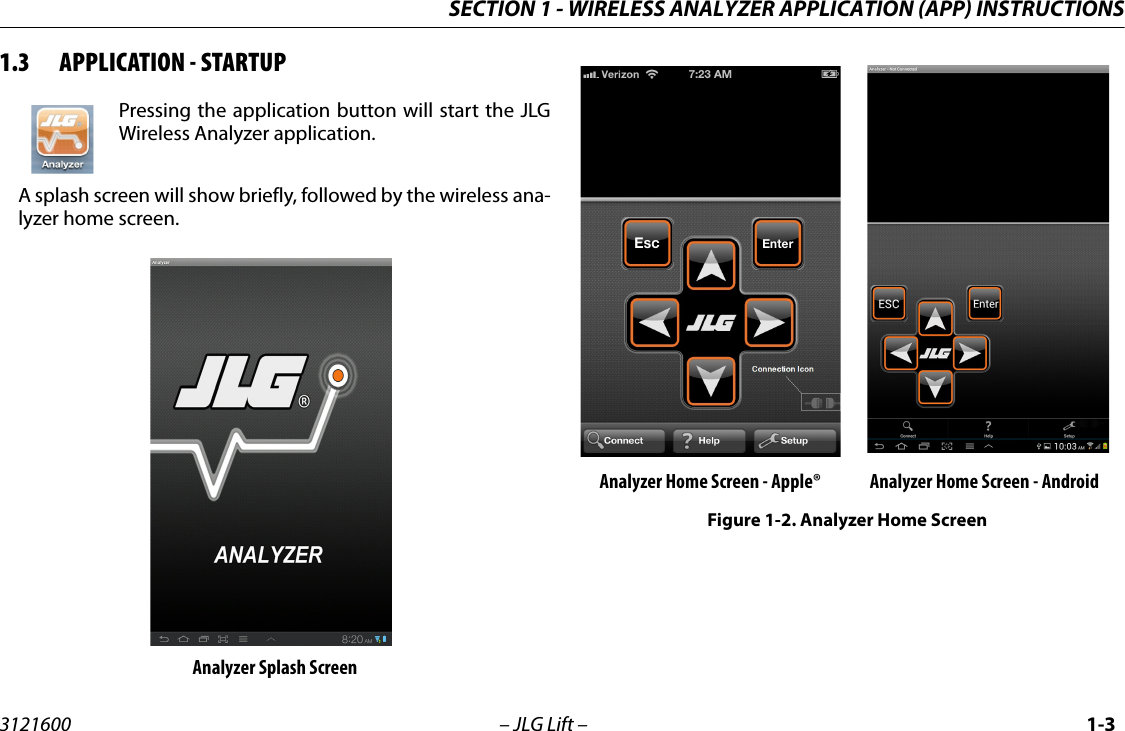

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS3121600 – JLG Lift – 1-31.3 APPLICATION - STARTUPPressing the application button will start the JLGWireless Analyzer application.A splash screen will show briefly, followed by the wireless ana-lyzer home screen. Analyzer Splash ScreenAnalyzer Home Screen - Apple® Analyzer Home Screen - AndroidFigure 1-2. Analyzer Home Screen

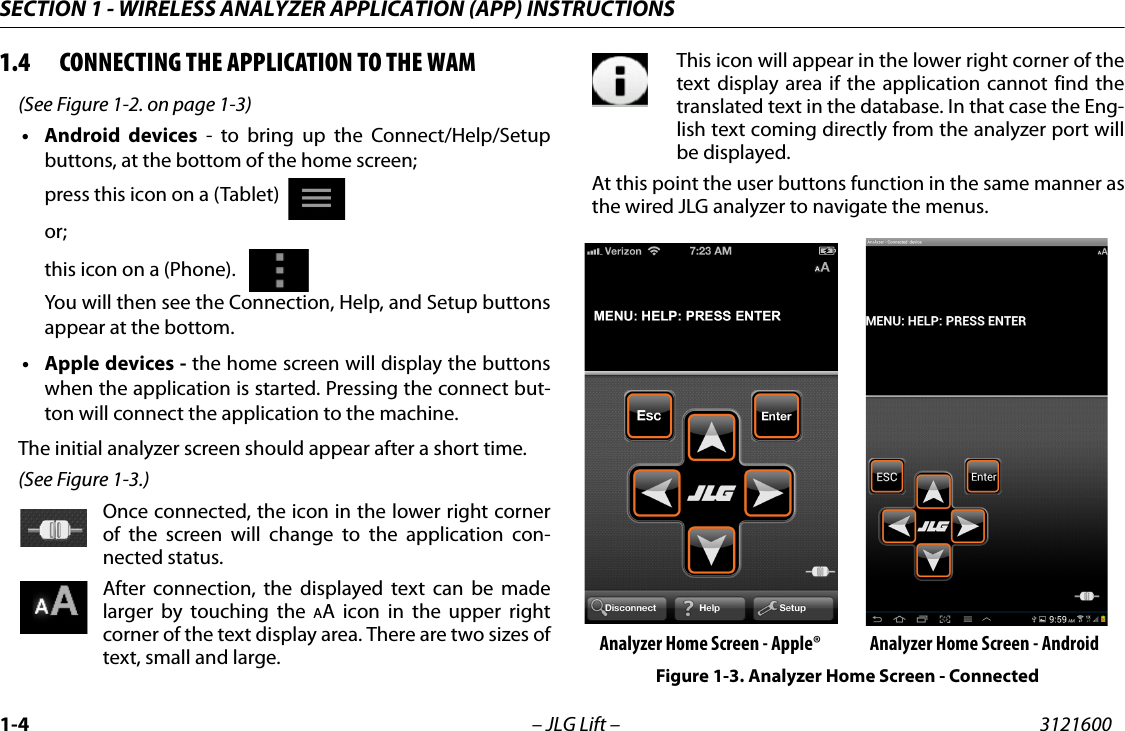

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS1-4 – JLG Lift – 31216001.4 CONNECTING THE APPLICATION TO THE WAM(See Figure 1-2. on page 1-3)•Android devices - to bring up the Connect/Help/Setupbuttons, at the bottom of the home screen;press this icon on a (Tablet) or;this icon on a (Phone). You will then see the Connection, Help, and Setup buttonsappear at the bottom.• Apple devices - the home screen will display the buttonswhen the application is started. Pressing the connect but-ton will connect the application to the machine.The initial analyzer screen should appear after a short time.(See Figure 1-3.)Once connected, the icon in the lower right cornerof the screen will change to the application con-nected status.After connection, the displayed text can be madelarger by touching the AA icon in the upper rightcorner of the text display area. There are two sizes oftext, small and large.This icon will appear in the lower right corner of thetext display area if the application cannot find thetranslated text in the database. In that case the Eng-lish text coming directly from the analyzer port willbe displayed.At this point the user buttons function in the same manner asthe wired JLG analyzer to navigate the menus. Analyzer Home Screen - Apple® Analyzer Home Screen - AndroidFigure 1-3. Analyzer Home Screen - Connected

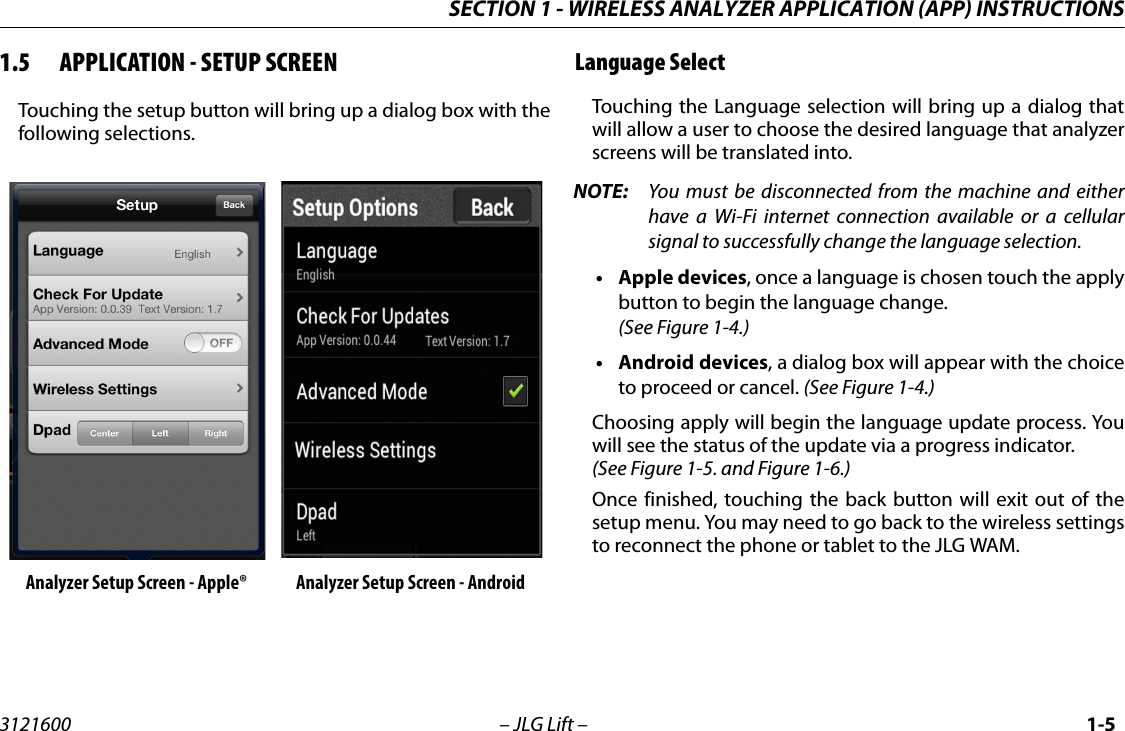

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS3121600 – JLG Lift – 1-51.5 APPLICATION - SETUP SCREENTouching the setup button will bring up a dialog box with thefollowing selections.Language SelectTouching the Language selection will bring up a dialog thatwill allow a user to choose the desired language that analyzerscreens will be translated into.NOTE: You must be disconnected from the machine and eitherhave a Wi-Fi internet connection available or a cellularsignal to successfully change the language selection.•Apple devices, once a language is chosen touch the applybutton to begin the language change.(See Figure 1-4.)•Android devices, a dialog box will appear with the choiceto proceed or cancel. (See Figure 1-4.)Choosing apply will begin the language update process. Youwill see the status of the update via a progress indicator.(See Figure 1-5. and Figure 1-6.)Once finished, touching the back button will exit out of thesetup menu. You may need to go back to the wireless settingsto reconnect the phone or tablet to the JLG WAM.Analyzer Setup Screen - Apple® Analyzer Setup Screen - Android

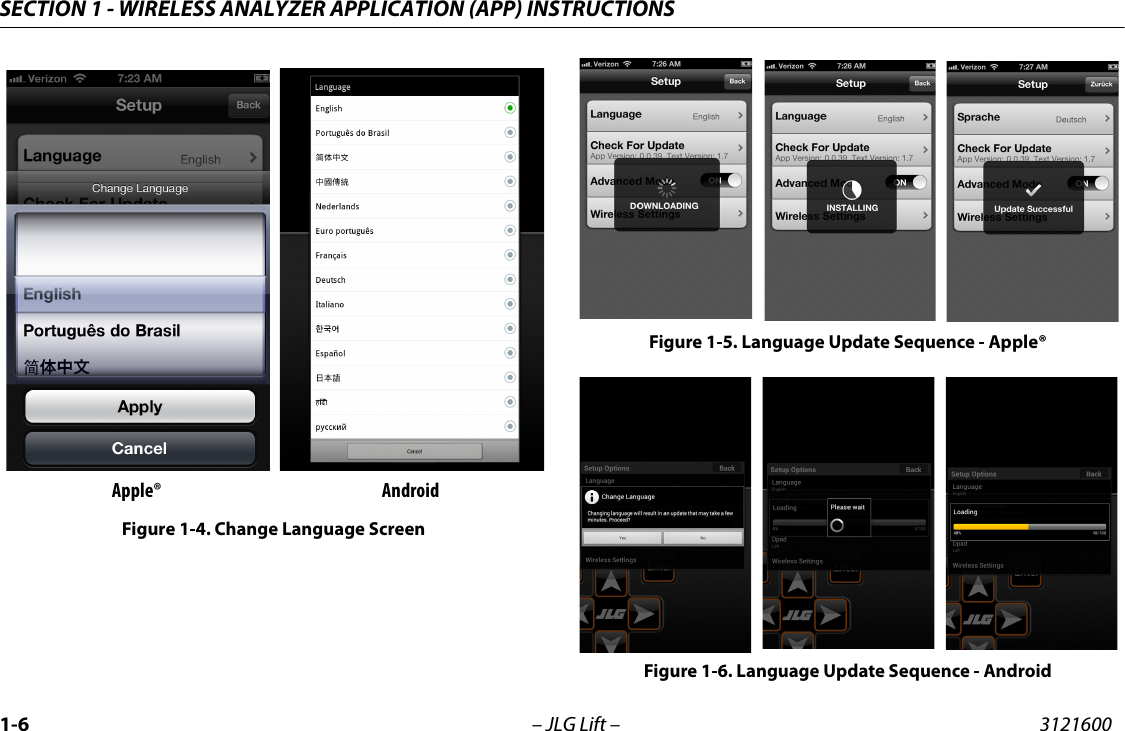

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS1-6 – JLG Lift – 3121600Apple® AndroidFigure 1-4. Change Language ScreenFigure 1-5. Language Update Sequence - Apple®Figure 1-6. Language Update Sequence - Android

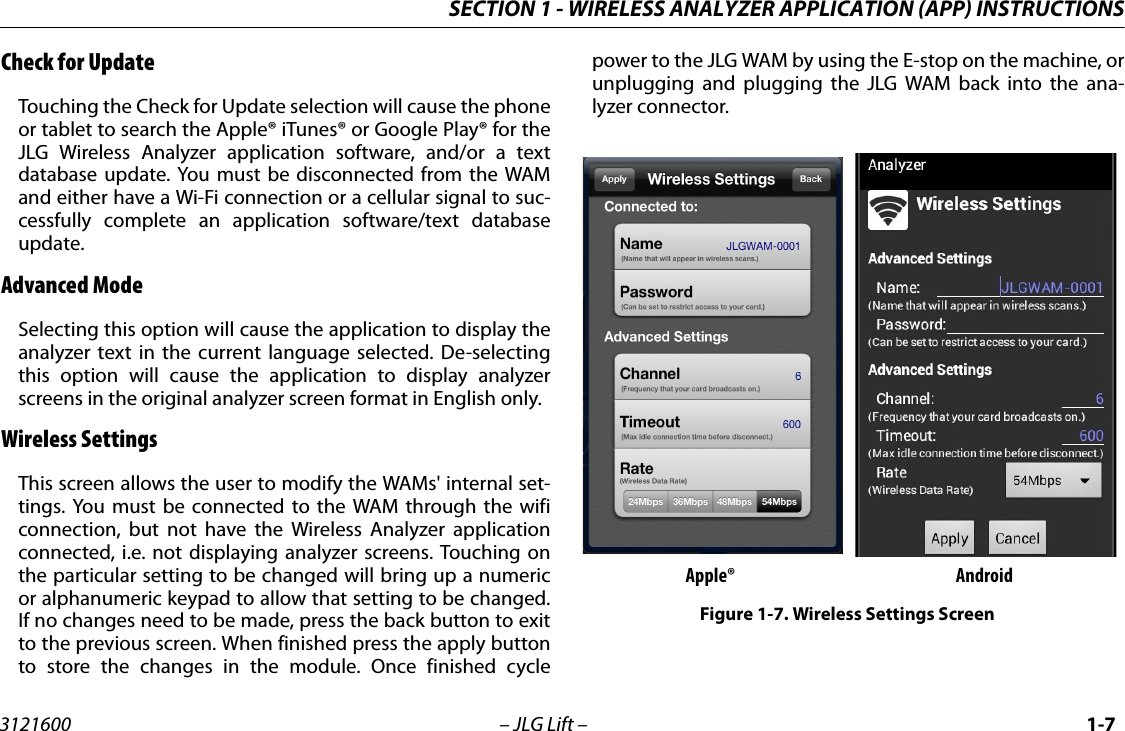

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS3121600 – JLG Lift – 1-7Check for UpdateTouching the Check for Update selection will cause the phoneor tablet to search the Apple® iTunes® or Google Play® for theJLG Wireless Analyzer application software, and/or a textdatabase update. You must be disconnected from the WAMand either have a Wi-Fi connection or a cellular signal to suc-cessfully complete an application software/text databaseupdate.Advanced ModeSelecting this option will cause the application to display theanalyzer text in the current language selected. De-selectingthis option will cause the application to display analyzerscreens in the original analyzer screen format in English only.Wireless SettingsThis screen allows the user to modify the WAMs' internal set-tings. You must be connected to the WAM through the wificonnection, but not have the Wireless Analyzer applicationconnected, i.e. not displaying analyzer screens. Touching onthe particular setting to be changed will bring up a numericor alphanumeric keypad to allow that setting to be changed.If no changes need to be made, press the back button to exitto the previous screen. When finished press the apply buttonto store the changes in the module. Once finished cyclepower to the JLG WAM by using the E-stop on the machine, orunplugging and plugging the JLG WAM back into the ana-lyzer connector.Apple® AndroidFigure 1-7. Wireless Settings Screen

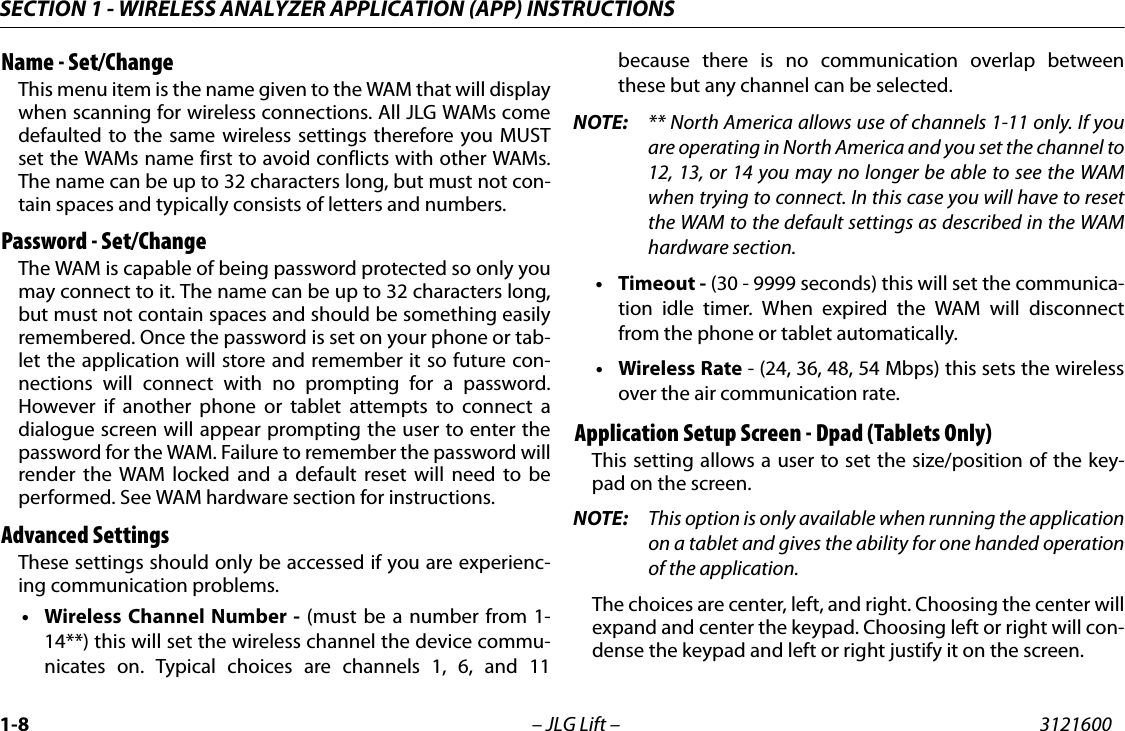

SECTION 1 - WIRELESS ANALYZER APPLICATION (APP) INSTRUCTIONS1-8 – JLG Lift – 3121600Name - Set/ChangeThis menu item is the name given to the WAM that will displaywhen scanning for wireless connections. All JLG WAMs comedefaulted to the same wireless settings therefore you MUSTset the WAMs name first to avoid conflicts with other WAMs.The name can be up to 32 characters long, but must not con-tain spaces and typically consists of letters and numbers.Password - Set/ChangeThe WAM is capable of being password protected so only youmay connect to it. The name can be up to 32 characters long,but must not contain spaces and should be something easilyremembered. Once the password is set on your phone or tab-let the application will store and remember it so future con-nections will connect with no prompting for a password.However if another phone or tablet attempts to connect adialogue screen will appear prompting the user to enter thepassword for the WAM. Failure to remember the password willrender the WAM locked and a default reset will need to beperformed. See WAM hardware section for instructions.Advanced SettingsThese settings should only be accessed if you are experienc-ing communication problems.• Wireless Channel Number - (must be a number from 1-14**) this will set the wireless channel the device commu-nicates on. Typical choices are channels 1, 6, and 11because there is no communication overlap betweenthese but any channel can be selected. NOTE: ** North America allows use of channels 1-11 only. If youare operating in North America and you set the channel to12, 13, or 14 you may no longer be able to see the WAMwhen trying to connect. In this case you will have to resetthe WAM to the default settings as described in the WAMhardware section.•Timeout - (30 - 9999 seconds) this will set the communica-tion idle timer. When expired the WAM will disconnectfrom the phone or tablet automatically.• Wireless Rate - (24, 36, 48, 54 Mbps) this sets the wirelessover the air communication rate. Application Setup Screen - Dpad (Tablets Only)This setting allows a user to set the size/position of the key-pad on the screen.NOTE: This option is only available when running the applicationon a tablet and gives the ability for one handed operationof the application. The choices are center, left, and right. Choosing the center willexpand and center the keypad. Choosing left or right will con-dense the keypad and left or right justify it on the screen.

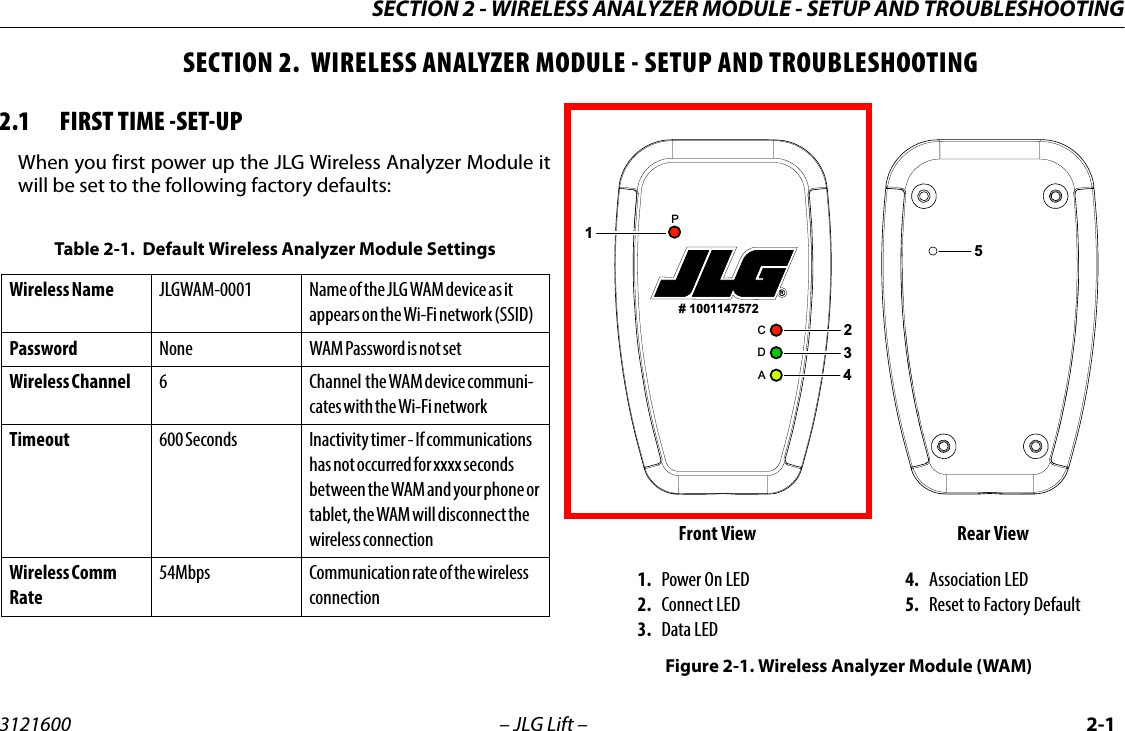

SECTION 2 - WIRELESS ANALYZER MODULE - SETUP AND TROUBLESHOOTING3121600 – JLG Lift – 2-1SECTION 2. WIRELESS ANALYZER MODULE - SETUP AND TROUBLESHOOTING2.1 FIRST TIME -SET-UPWhen you first power up the JLG Wireless Analyzer Module itwill be set to the following factory defaults:Table 2-1. Default Wireless Analyzer Module SettingsWireless Name JLGWAM-0001 Name of the JLG WAM device as it appears on the Wi-Fi network (SSID)Password None WAM Password is not setWireless Channel 6 Channel the WAM device communi-cates with the Wi-Fi networkTimeout 600 Seconds Inactivity timer - If communications has not occurred for xxxx seconds between the WAM and your phone or tablet, the WAM will disconnect the wireless connectionWireless Comm Rate54Mbps Communication rate of the wireless connectionFront View Rear View1. Power On LED2. Connect LED3. Data LED4. Association LED5. Reset to Factory DefaultFigure 2-1. Wireless Analyzer Module (WAM) # 1001147572CDAP12345

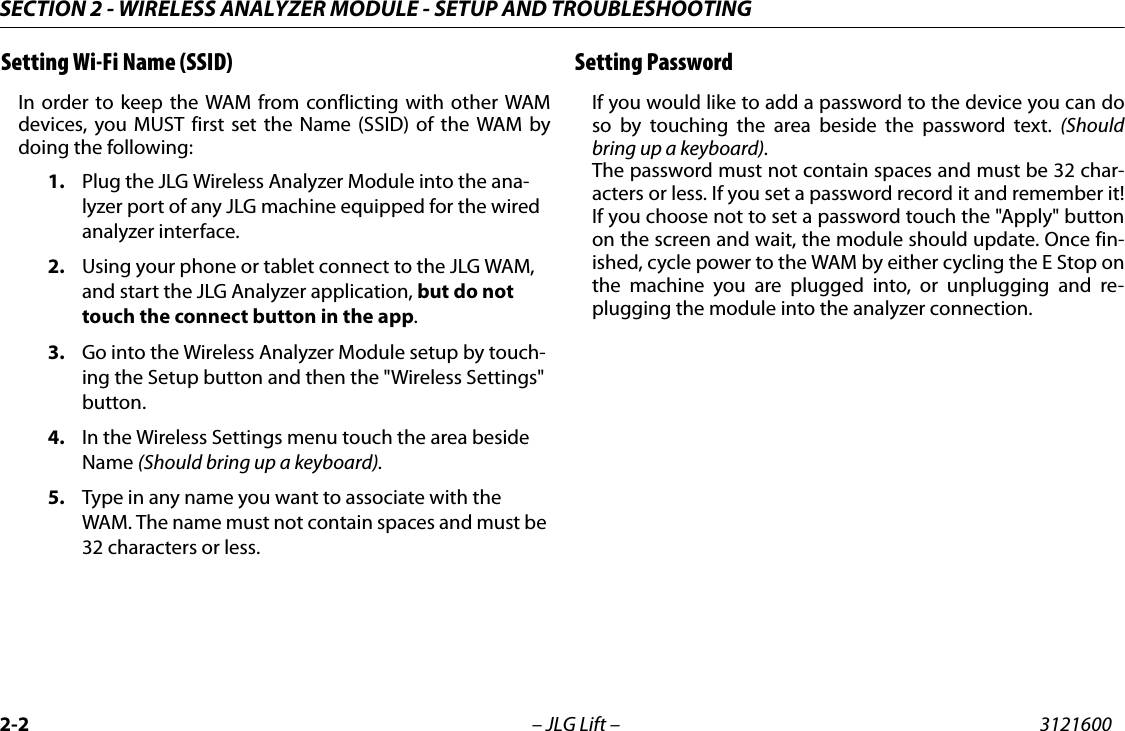

SECTION 2 - WIRELESS ANALYZER MODULE - SETUP AND TROUBLESHOOTING2-2 – JLG Lift – 3121600Setting Wi-Fi Name (SSID)In order to keep the WAM from conflicting with other WAMdevices, you MUST first set the Name (SSID) of the WAM bydoing the following:1. Plug the JLG Wireless Analyzer Module into the ana-lyzer port of any JLG machine equipped for the wired analyzer interface. 2. Using your phone or tablet connect to the JLG WAM, and start the JLG Analyzer application, but do not touch the connect button in the app.3. Go into the Wireless Analyzer Module setup by touch-ing the Setup button and then the "Wireless Settings" button.4. In the Wireless Settings menu touch the area beside Name (Should bring up a keyboard).5. Type in any name you want to associate with the WAM. The name must not contain spaces and must be 32 characters or less.Setting PasswordIf you would like to add a password to the device you can doso by touching the area beside the password text. (Shouldbring up a keyboard).The password must not contain spaces and must be 32 char-acters or less. If you set a password record it and remember it!If you choose not to set a password touch the "Apply" buttonon the screen and wait, the module should update. Once fin-ished, cycle power to the WAM by either cycling the E Stop onthe machine you are plugged into, or unplugging and re-plugging the module into the analyzer connection.

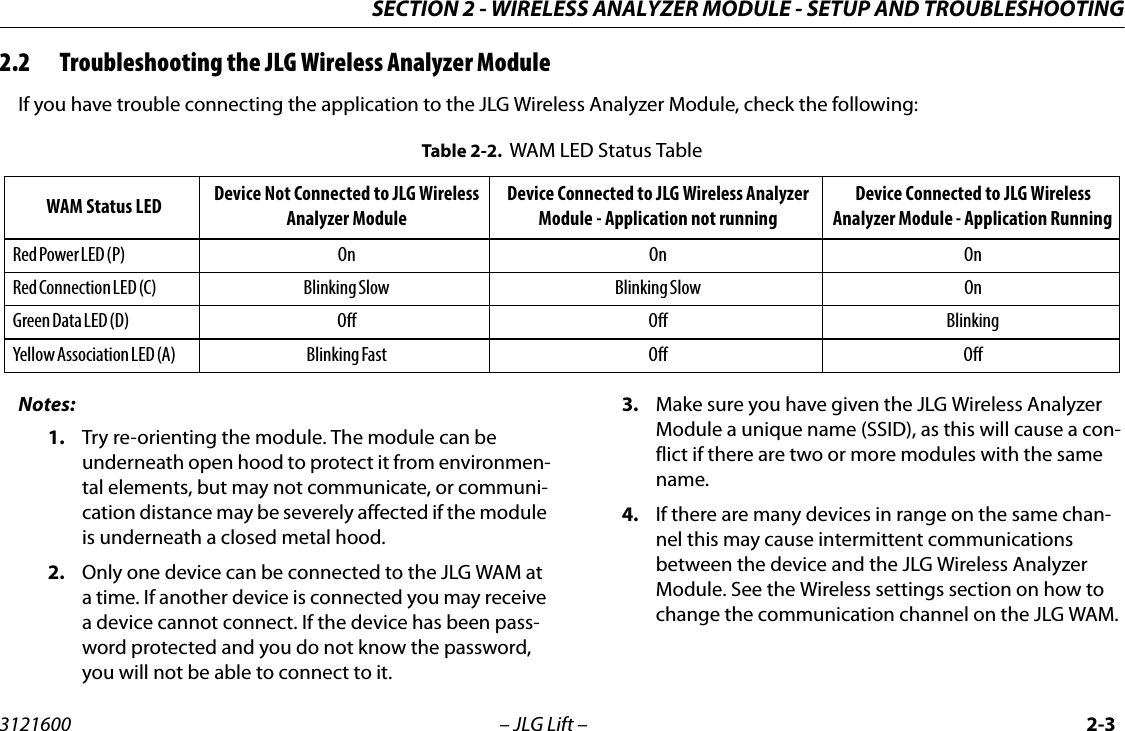

SECTION 2 - WIRELESS ANALYZER MODULE - SETUP AND TROUBLESHOOTING3121600 – JLG Lift – 2-32.2 Troubleshooting the JLG Wireless Analyzer ModuleIf you have trouble connecting the application to the JLG Wireless Analyzer Module, check the following:Notes:1. Try re-orienting the module. The module can be underneath open hood to protect it from environmen-tal elements, but may not communicate, or communi-cation distance may be severely affected if the module is underneath a closed metal hood.2. Only one device can be connected to the JLG WAM at a time. If another device is connected you may receive a device cannot connect. If the device has been pass-word protected and you do not know the password, you will not be able to connect to it.3. Make sure you have given the JLG Wireless Analyzer Module a unique name (SSID), as this will cause a con-flict if there are two or more modules with the same name.4. If there are many devices in range on the same chan-nel this may cause intermittent communications between the device and the JLG Wireless Analyzer Module. See the Wireless settings section on how to change the communication channel on the JLG WAM. Table 2-2. WAM LED Status TableWAM Status LED Device Not Connected to JLG WirelessAnalyzer ModuleDevice Connected to JLG Wireless Analyzer Module - Application not running Device Connected to JLG Wireless Analyzer Module - Application Running Red Power LED (P) On On OnRed Connection LED (C) Blinking Slow Blinking Slow OnGreen Data LED (D) Off Off BlinkingYellow Association LED (A) Blinking Fast Off Off

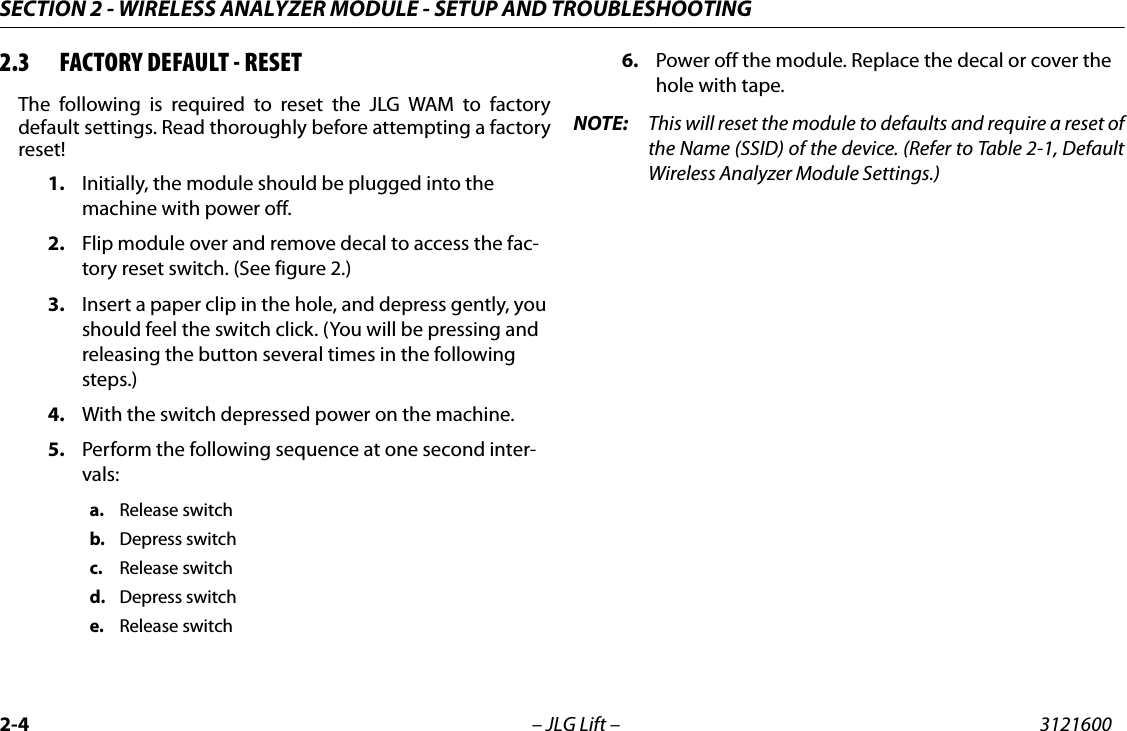

SECTION 2 - WIRELESS ANALYZER MODULE - SETUP AND TROUBLESHOOTING2-4 – JLG Lift – 31216002.3 FACTORY DEFAULT - RESETThe following is required to reset the JLG WAM to factorydefault settings. Read thoroughly before attempting a factoryreset!1. Initially, the module should be plugged into the machine with power off.2. Flip module over and remove decal to access the fac-tory reset switch. (See figure 2.)3. Insert a paper clip in the hole, and depress gently, you should feel the switch click. (You will be pressing and releasing the button several times in the following steps.)4. With the switch depressed power on the machine.5. Perform the following sequence at one second inter-vals:a. Release switchb. Depress switchc. Release switchd. Depress switche. Release switch6. Power off the module. Replace the decal or cover the hole with tape.NOTE: This will reset the module to defaults and require a reset ofthe Name (SSID) of the device. (Refer to Table 2-1, DefaultWireless Analyzer Module Settings.)
