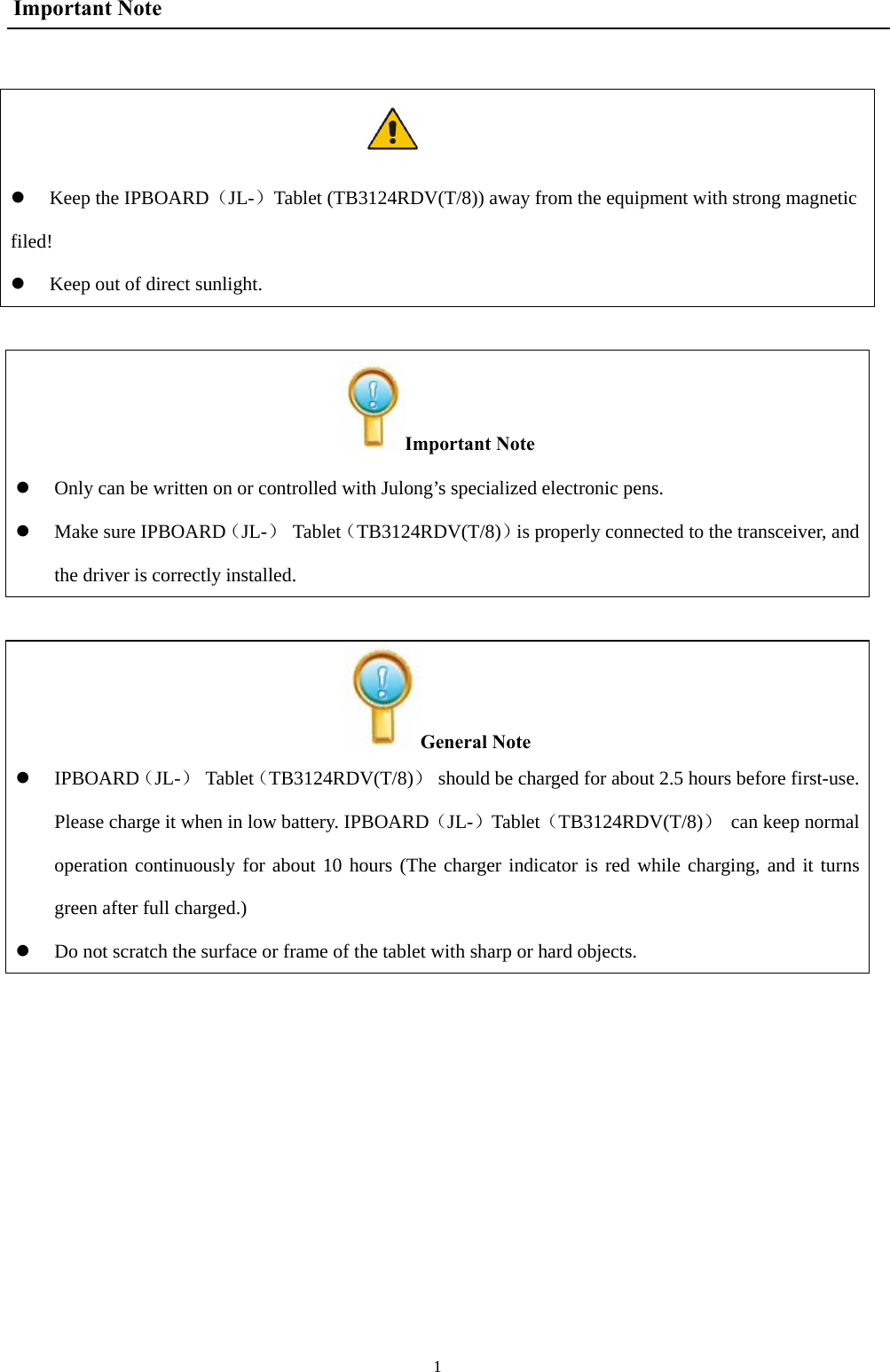

1Important Note z Keep the IPBOARD（JL-）Tablet (TB3124RDV(T/8)) away from the equipment with strong magnetic filed! z Keep out of direct sunlight. Important Note z Only can be written on or controlled with Julong’s specialized electronic pens. z Make sure IPBOARD（JL-） Tablet（TB3124RDV(T/8)）is properly connected to the transceiver, and the driver is correctly installed. General Note z IPBOARD（JL-） Tablet（TB3124RDV(T/8)） should be charged for about 2.5 hours before first-use. Please charge it when in low battery. IPBOARD（JL-）Tablet（TB3124RDV(T/8)） can keep normaloperation continuously for about 10 hours (The charger indicator is red while charging, and it turns green after full charged.) z Do not scratch the surface or frame of the tablet with sharp or hard objects.

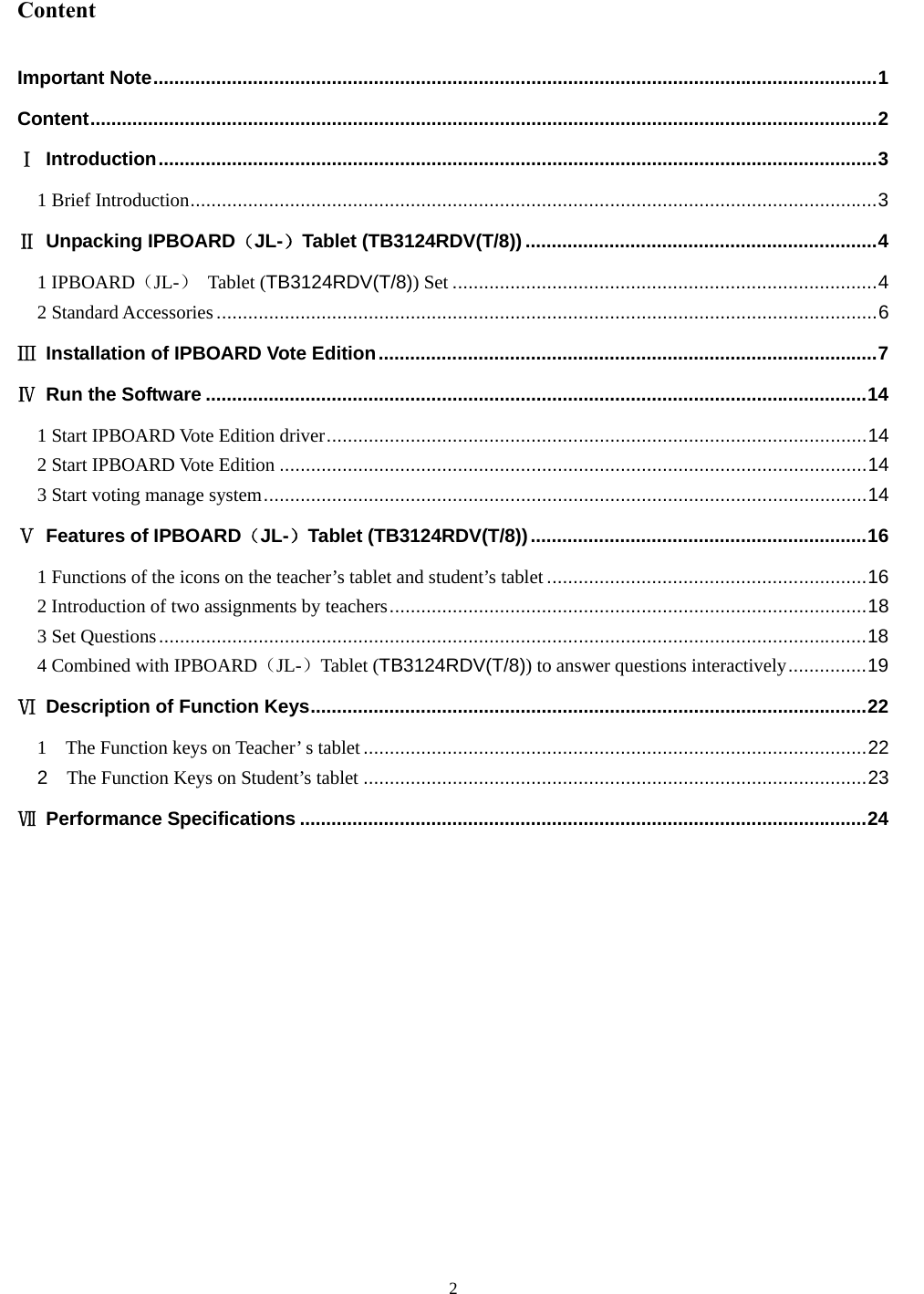

2 Content Important Note..........................................................................................................................................1Content......................................................................................................................................................2Ⅰ Introduction.........................................................................................................................................31 Brief Introduction...................................................................................................................................3Ⅱ Unpacking IPBOARD（JL-）Tablet (TB3124RDV(T/8)) ...................................................................41 IPBOARD（JL-） Tablet (TB3124RDV(T/8)) Set .................................................................................42 Standard Accessories..............................................................................................................................6Ⅲ Installation of IPBOARD Vote Edition...............................................................................................7Ⅳ Run the Software ..............................................................................................................................141 Start IPBOARD Vote Edition driver.......................................................................................................142 Start IPBOARD Vote Edition ................................................................................................................143 Start voting manage system...................................................................................................................14Ⅴ Features of IPBOARD（JL-）Tablet (TB3124RDV(T/8))................................................................161 Functions of the icons on the teacher’s tablet and student’s tablet .............................................................162 Introduction of two assignments by teachers...........................................................................................183 Set Questions.......................................................................................................................................184 Combined with IPBOARD（JL-）Tablet (TB3124RDV(T/8)) to answer questions interactively...............19Ⅵ Description of Function Keys..........................................................................................................221 The Function keys on Teacher’ s tablet................................................................................................222 The Function Keys on Student’s tablet ................................................................................................23Ⅶ Performance Specifications ............................................................................................................24

3 Ⅰ Introduction 1 Brief Introduction IPBOARD（JL-）Tablet (TB3124RDV(T/8)) enables students to participate more actively in class than ever before, and it is the smart way to provide in-class immediate assessment for users. It is bringing a revolution to the education filed. One-to-multi wireless tablet (JL- TB3124RDV(T/8)) support has been added to IPBOARD Vote Edition. Using the related software or buttons, teachers can designate a student to write on the tablet, as well as conducting application of the software or restricting student’s writing permission. It allows students to answer questions in the form of full sentences, numbers, symbols, etc.; in addition, teachers can conduct test with the buttons on the tablet in the course of answering, such as switching questions, checking the correct answer, tracking students’ performance and viewing answer statistic, etc. Each student has the chance to express opinions through student terminal, moreover, teachers can get the feedback of students’ in-class performance timely by using the tablet.

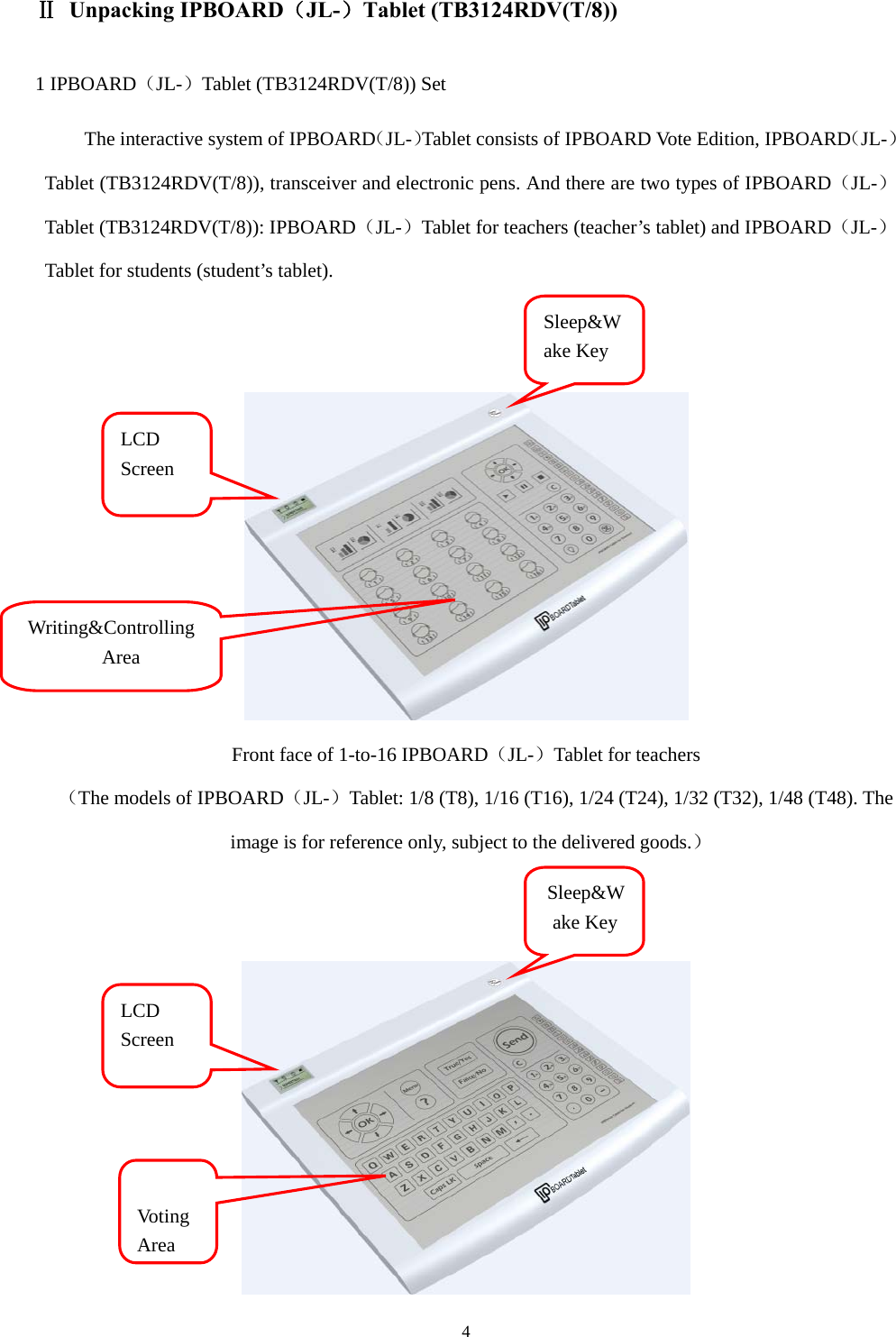

4 Ⅱ Unpacking IPBOARD（JL-）Tablet (TB3124RDV(T/8)) 1 IPBOARD（JL-）Tablet (TB3124RDV(T/8)) Set The interactive system of IPBOARD（JL-）Tablet consists of IPBOARD Vote Edition, IPBOARD（JL-）Tablet (TB3124RDV(T/8)), transceiver and electronic pens. And there are two types of IPBOARD（JL-）Tablet (TB3124RDV(T/8)): IPBOARD（JL-）Tablet for teachers (teacher’s tablet) and IPBOARD（JL-）Tablet for students (student’s tablet). Front face of 1-to-16 IPBOARD（JL-）Tablet for teachers （The models of IPBOARD（JL-）Tablet: 1/8 (T8), 1/16 (T16), 1/24 (T24), 1/32 (T32), 1/48 (T48). The image is for reference only, subject to the delivered goods.） Sleep&Wake Key LCD Screen Writing&Controlling Area LCD Screen Sleep&Wake Key Voting Area

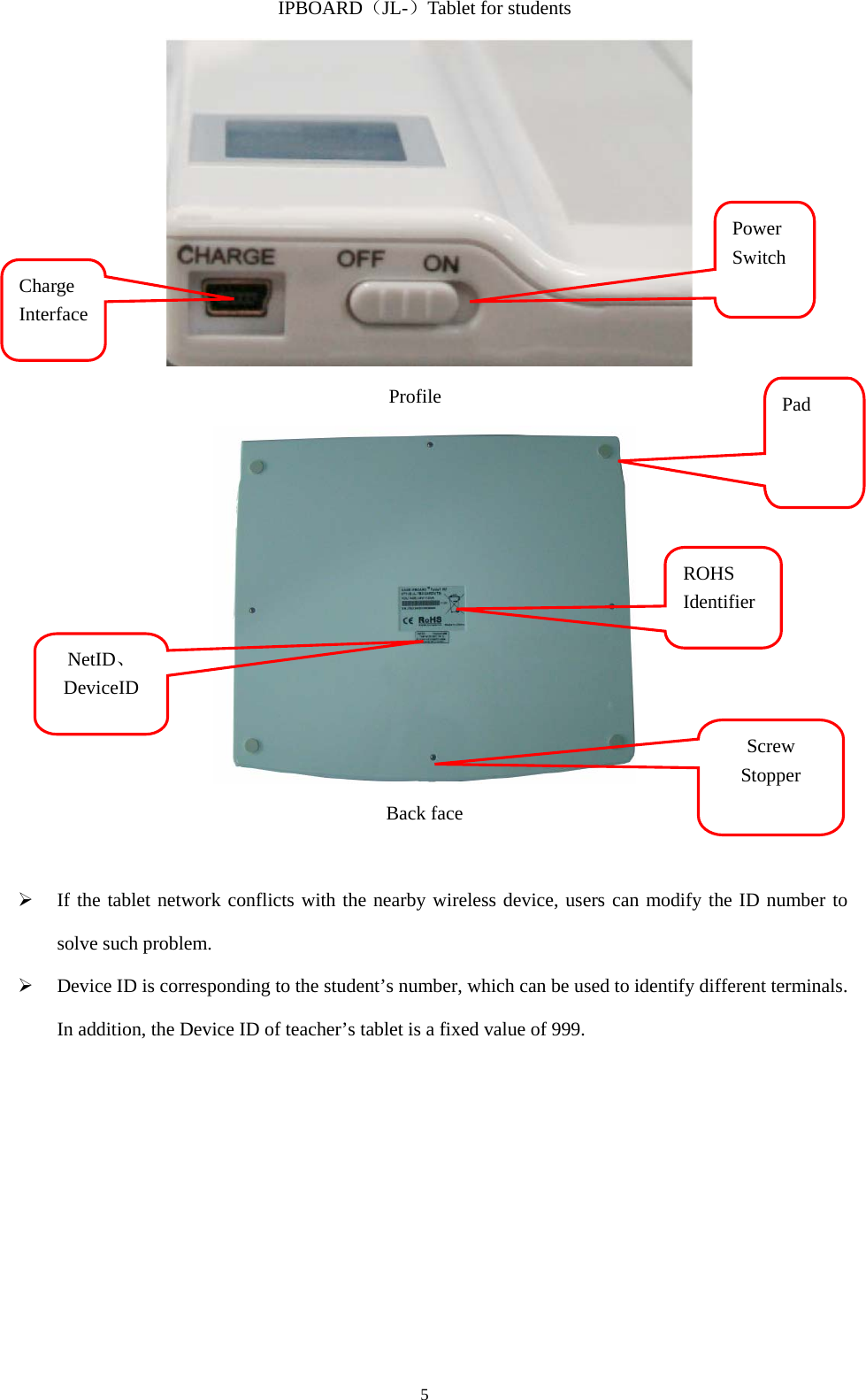

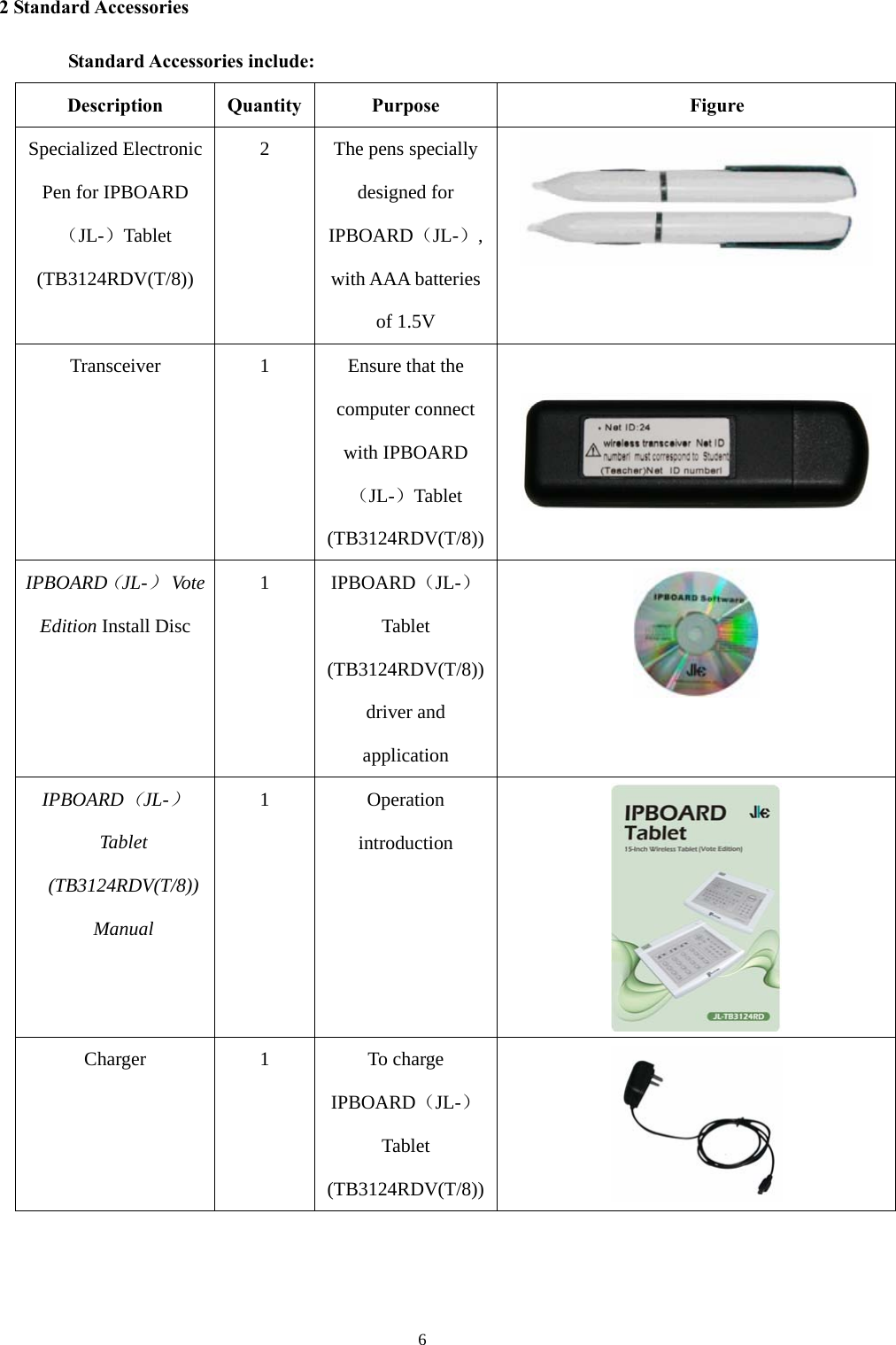

6 2 Standard Accessories Standard Accessories include: Description Quantity Purpose Figure Specialized Electronic Pen for IPBOARD（JL-）Tablet (TB3124RDV(T/8)) 2 The pens specially designed for IPBOARD（JL-）, with AAA batteries of 1.5V Transceiver 1 Ensure that the computer connect with IPBOARD（JL-）Tablet (TB3124RDV(T/8)) IPBOARD（JL-） Vote Edition Install Disc 1 IPBOARD（JL-） Tablet (TB3124RDV(T/8)) driver and application IPBOARD（JL-） Tablet (TB3124RDV(T/8)) Manual 1 Operation introduction Charger 1 To charge IPBOARD（JL-） Tablet (TB3124RDV(T/8))

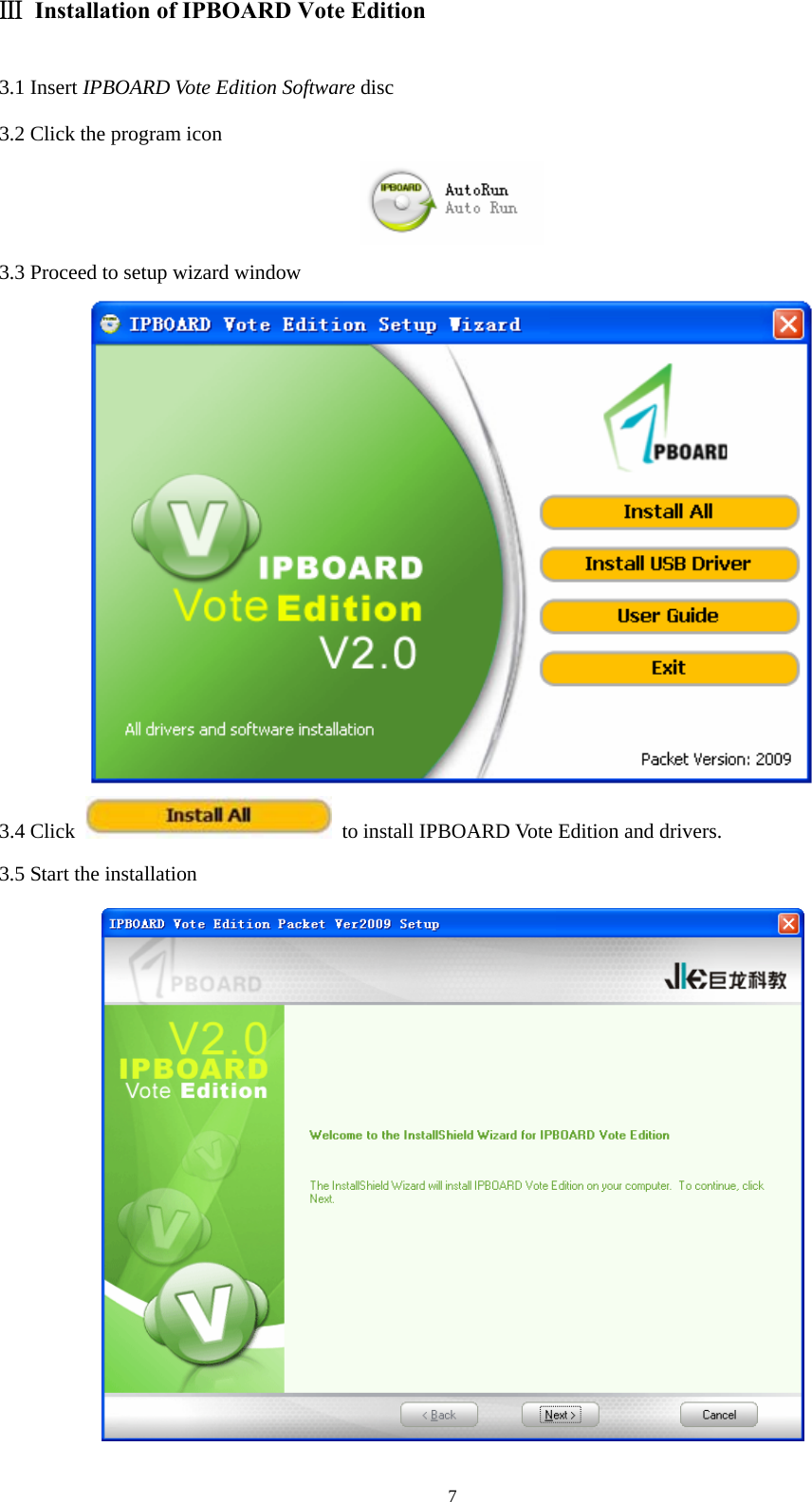

7Ⅲ Installation of IPBOARD Vote Edition 3.1 Insert IPBOARD Vote Edition Software disc 3.2 Click the program icon 3.3 Proceed to setup wizard window 3.4 Click to install IPBOARD Vote Edition and drivers. 3.5 Start the installation

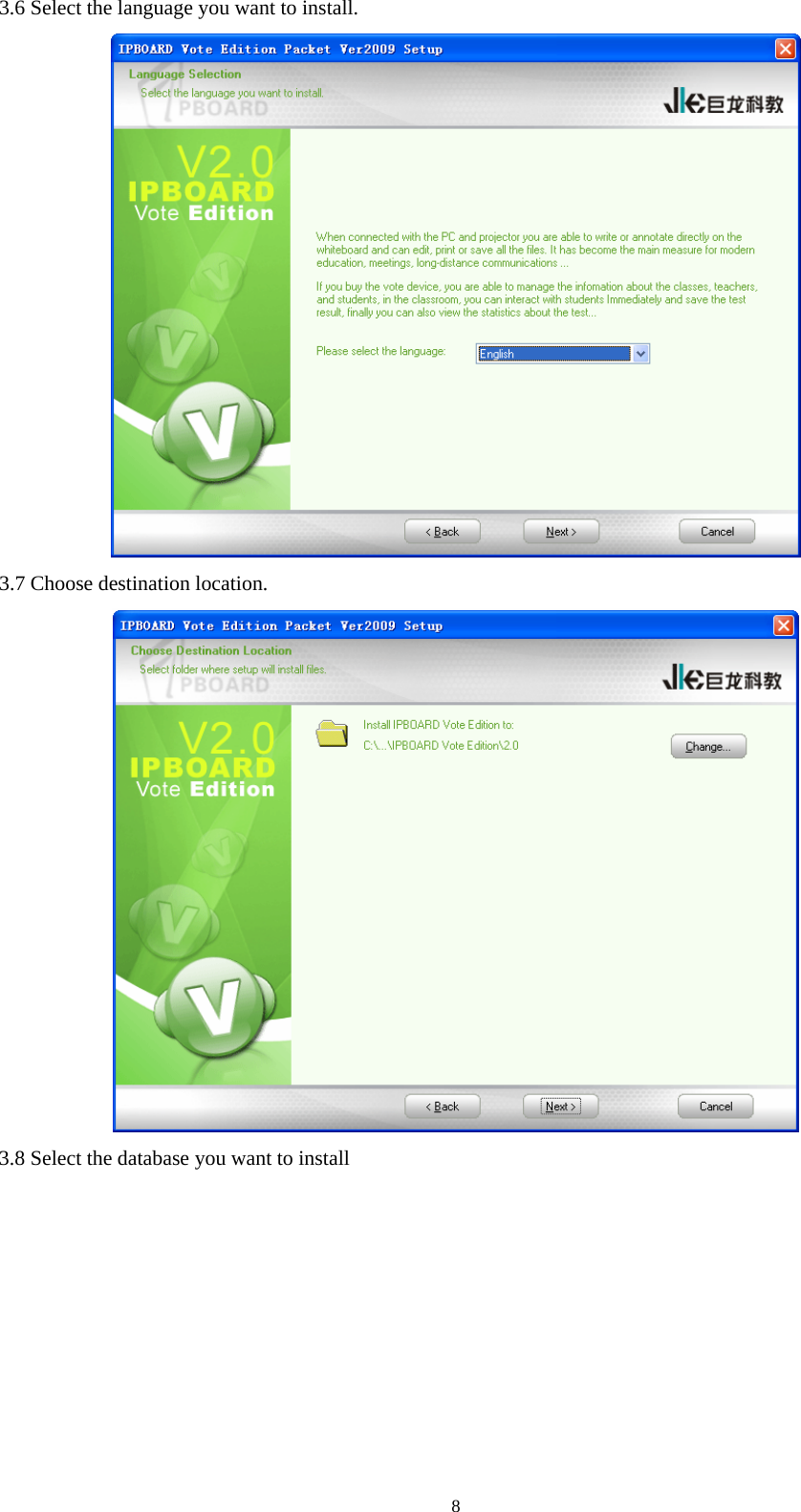

83.6 Select the language you want to install. 3.7 Choose destination location. 3.8 Select the database you want to install

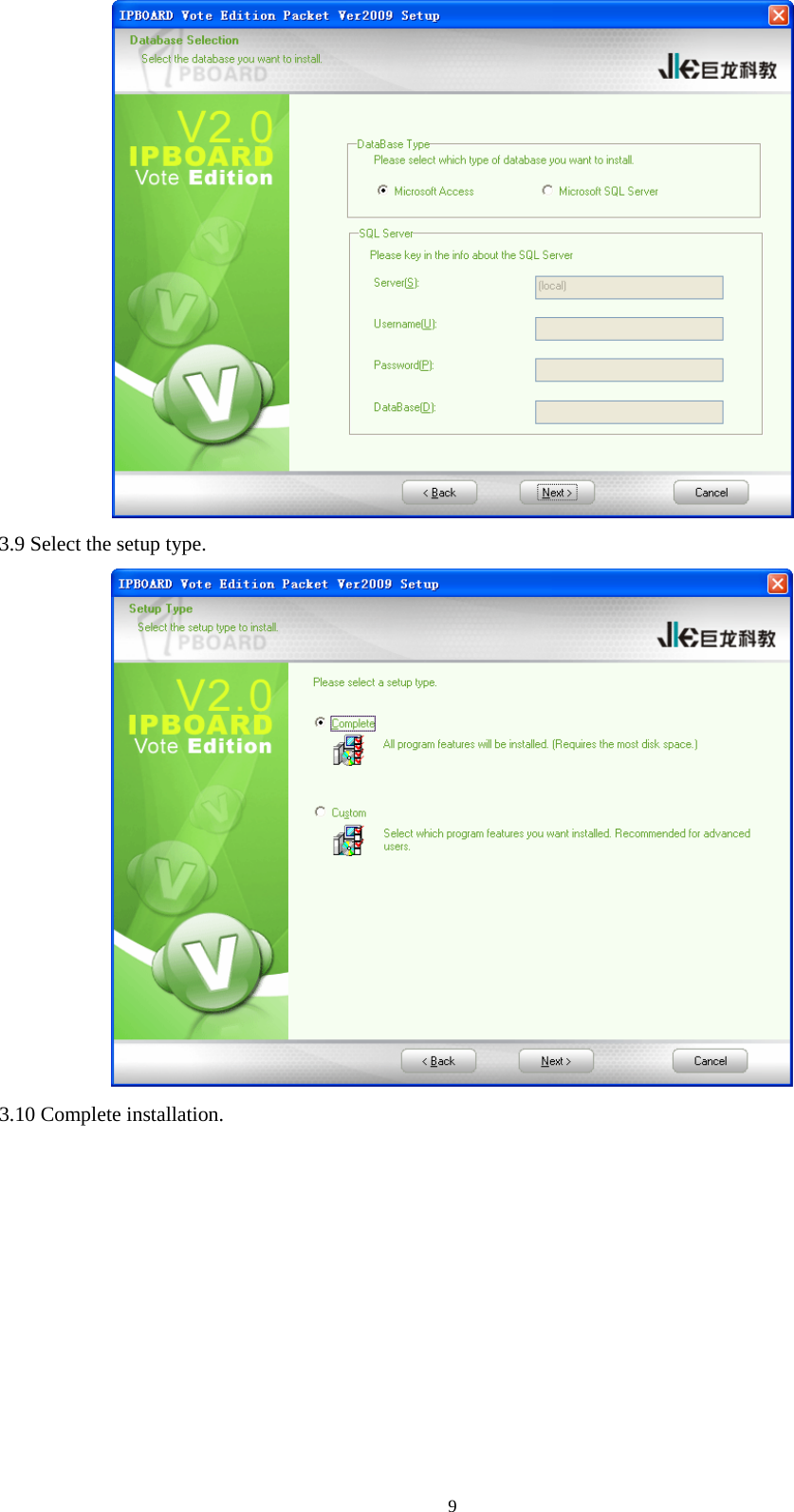

9 3.9 Select the setup type. 3.10 Complete installation.

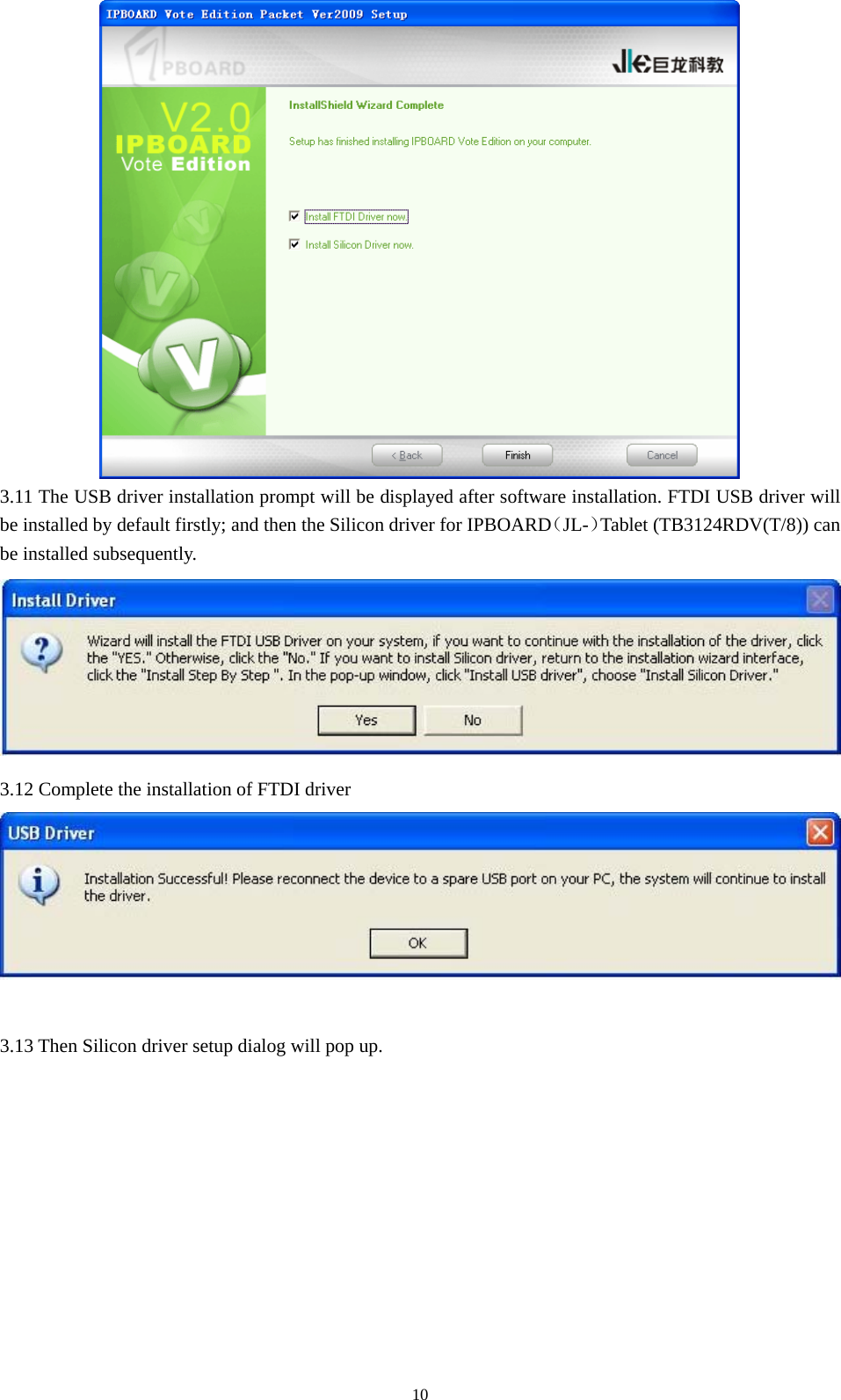

10 3.11 The USB driver installation prompt will be displayed after software installation. FTDI USB driver will be installed by default firstly; and then the Silicon driver for IPBOARD（JL-）Tablet (TB3124RDV(T/8)) can be installed subsequently. 3.12 Complete the installation of FTDI driver 3.13 Then Silicon driver setup dialog will pop up.

11 3.14 Choose destination location.

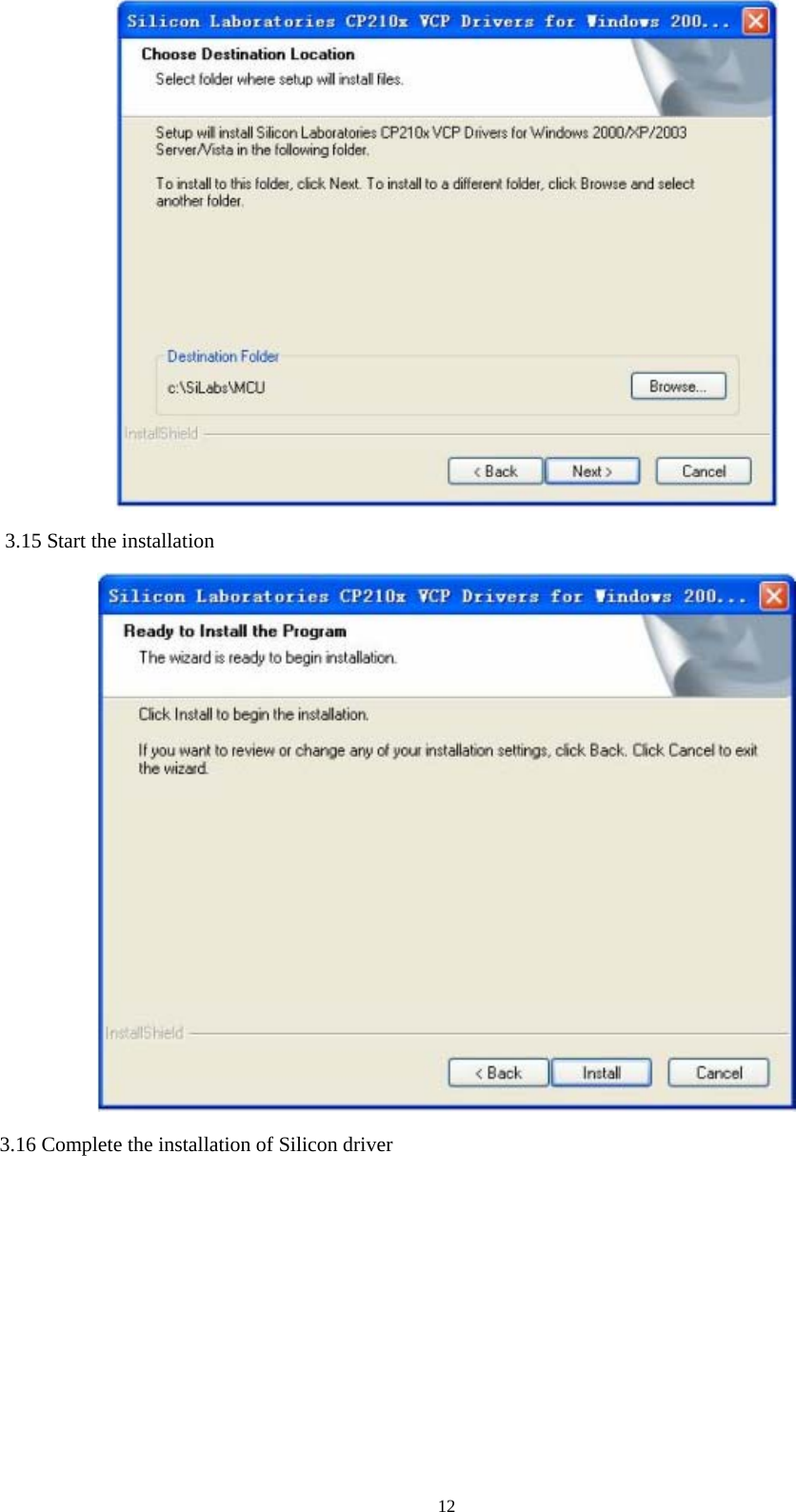

12 3.15 Start the installation 3.16 Complete the installation of Silicon driver

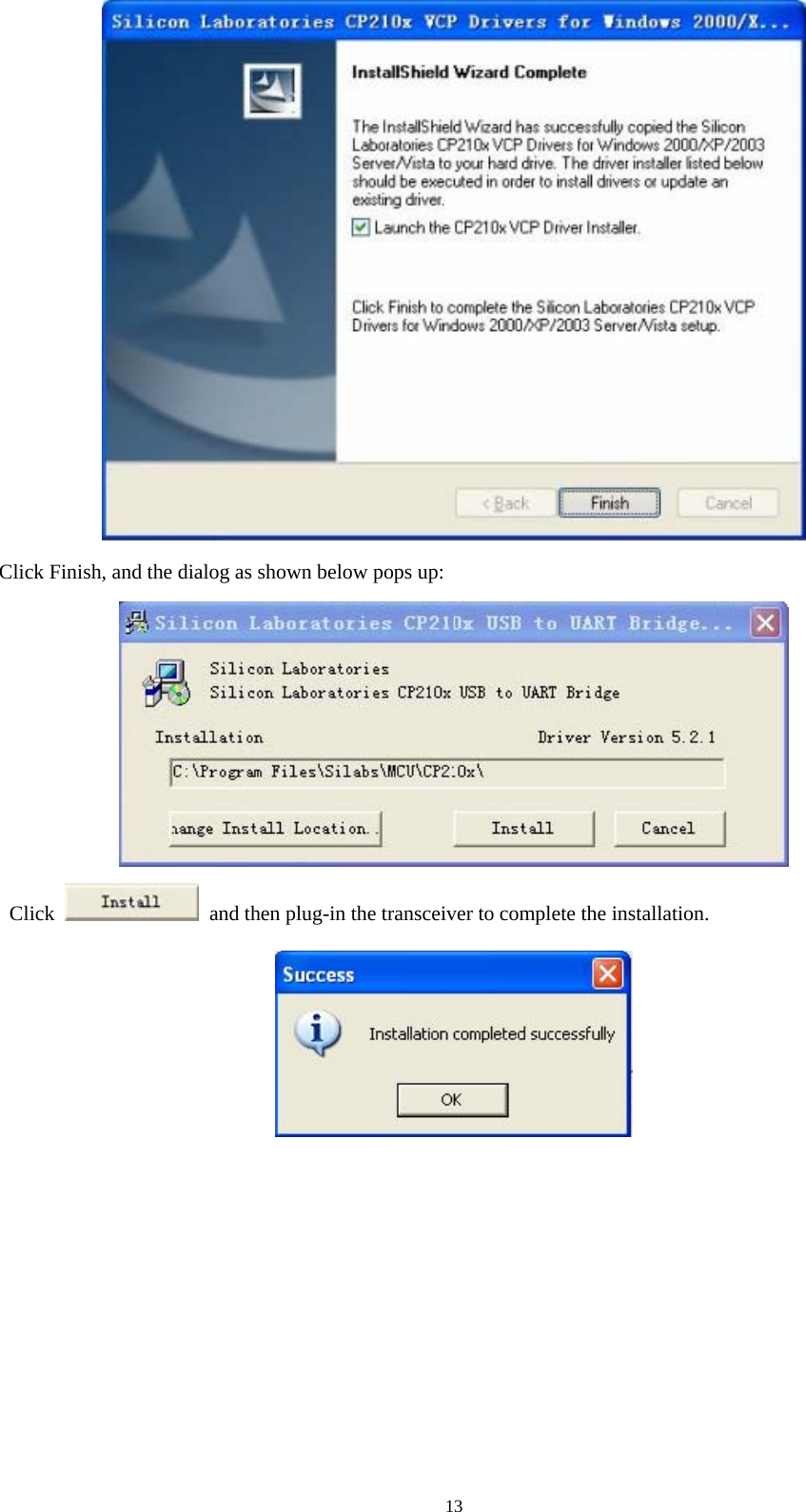

13 Click Finish, and the dialog as shown below pops up: Click and then plug-in the transceiver to complete the installation.

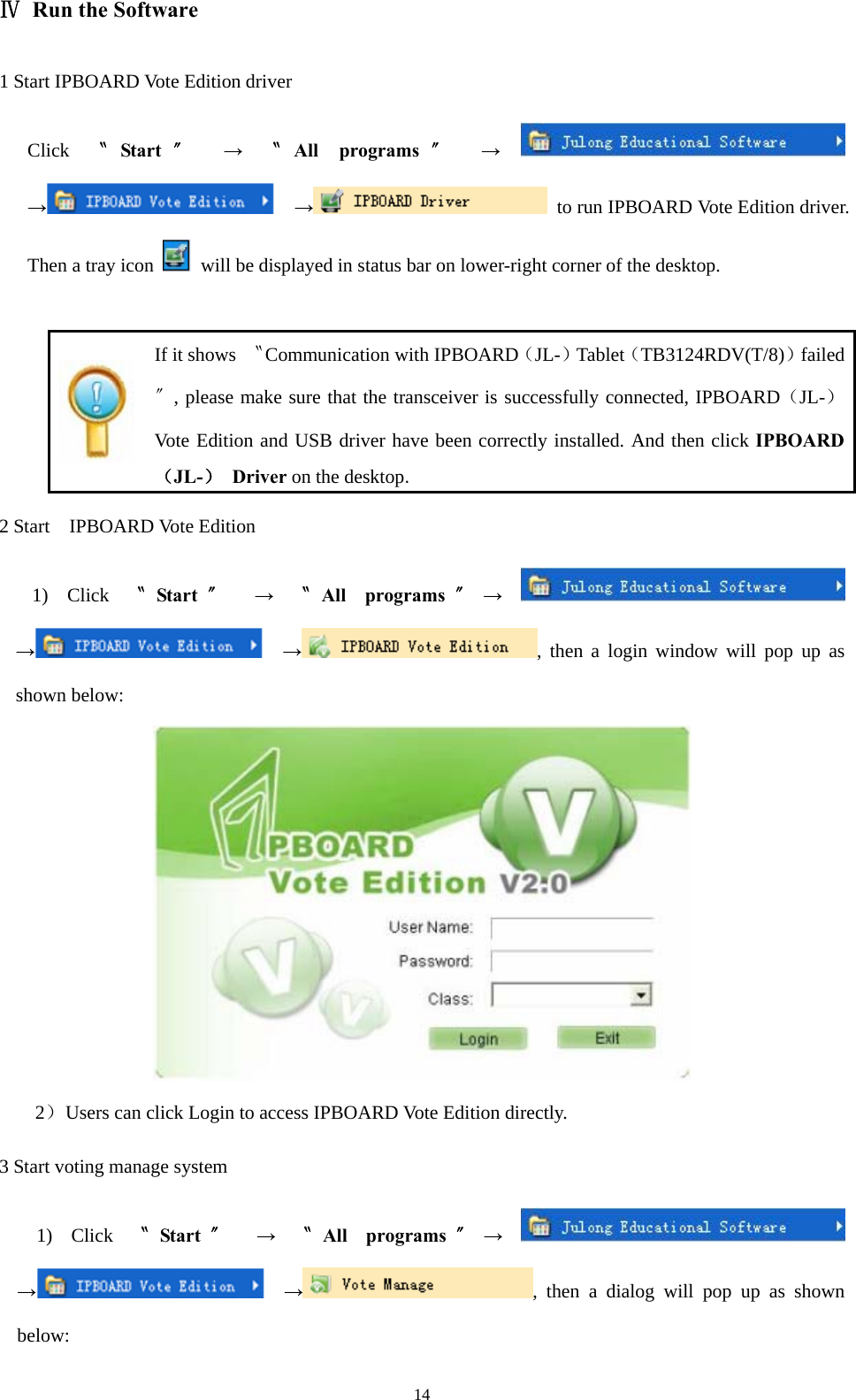

14Ⅳ Run the Software 1 Start IPBOARD Vote Edition driver Click 〝Start 〞 → 〝All programs 〞 → → → to run IPBOARD Vote Edition driver. Then a tray icon will be displayed in status bar on lower-right corner of the desktop. If it shows 〝Communication with IPBOARD（JL-）Tablet（TB3124RDV(T/8)）failed〞, please make sure that the transceiver is successfully connected, IPBOARD（JL-）Vote Edition and USB driver have been correctly installed. And then click IPBOARD（JL-） Driver on the desktop. 2 Start IPBOARD Vote Edition 1) Click 〝Start 〞 → 〝All programs 〞→ → →, then a login window will pop up as shown below: 2） Users can click Login to access IPBOARD Vote Edition directly. 3 Start voting manage system 1) Click 〝Start 〞 → 〝All programs 〞→ → →, then a dialog will pop up as shown below:

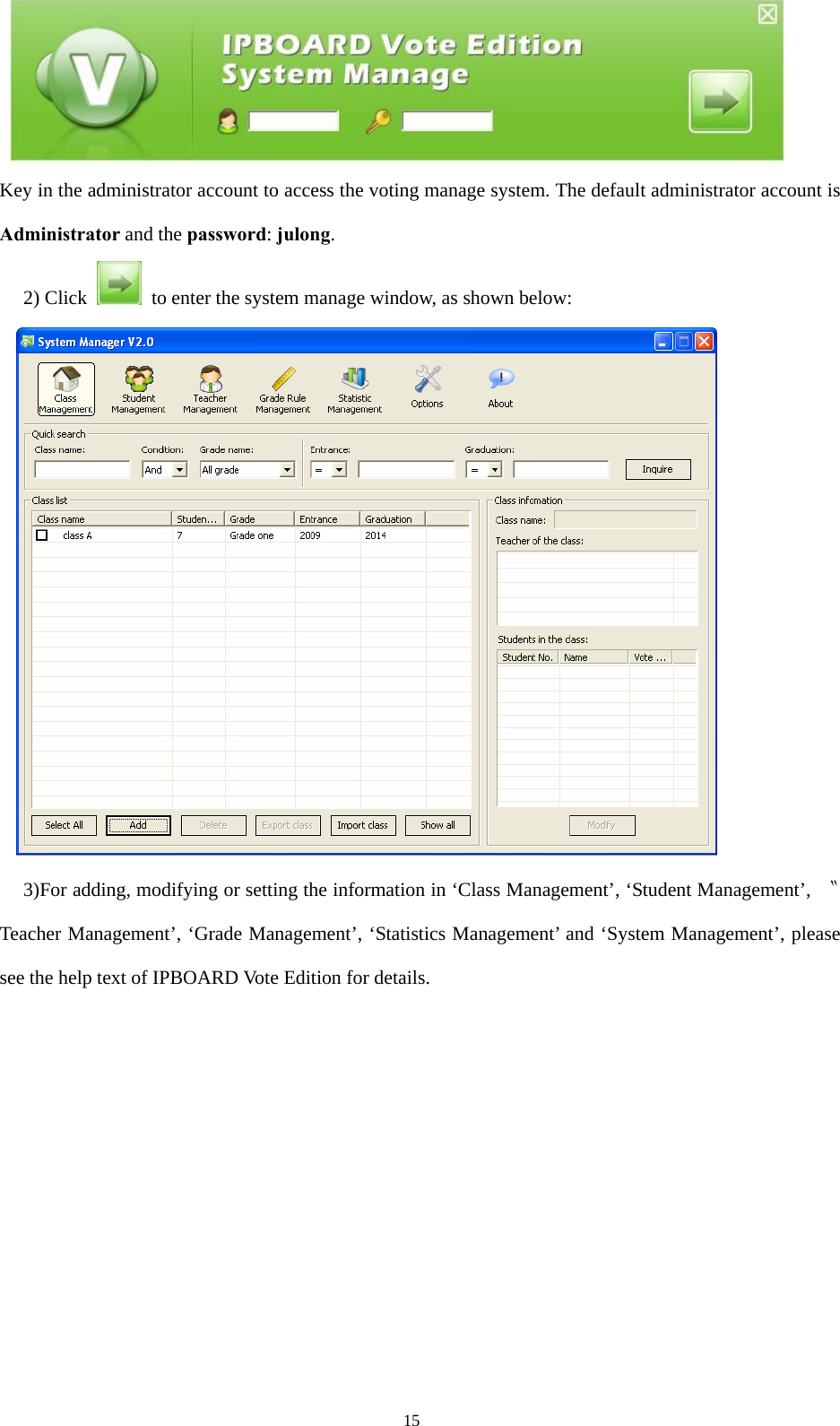

15 Key in the administrator account to access the voting manage system. The default administrator account is Administrator and the password: julong. 2) Click to enter the system manage window, as shown below: 3)For adding, modifying or setting the information in ‘Class Management’, ‘Student Management’, 〝Teacher Management’, ‘Grade Management’, ‘Statistics Management’ and ‘System Management’, please see the help text of IPBOARD Vote Edition for details.

16Ⅴ Features of IPBOARD（JL-）Tablet (TB3124RDV(T/8)) Please see the help text of IPBOARD Vote Edition for more details about the introduction of each voting tool.  IPBOARD（JL-）Tablet (TB3124RDV(T/8)) should be charged for about 2.5 hours before first-use. The charger indicator is red while charging, and it turns green after full charged.  Sleep button: it is used for reducing power consumption, so as to extend the operation hours. IPBOARD（JL-）Tablet（TB3124RDV(T/8)） will access to sleep mode after 9 minutes suspension of operation. And users can press the button to wake up IPBOARD（JL-）Tablet. The LCD screen will turn grey in sleep mode. 1 Functions of the icons on the teacher’s tablet and student’s tablet 1.1 Icons on the IPBOARD（JL-）Tablet for Teachers 1-to-16 IPBOARD（JL-）Tablet for teachers (The image is for references only, subject to the delivered goods.) IPBOARD（JL-）Tablet for Teachers consists of five zones: Zone ①: It is the students’ seating area; each student icon is corresponding to a specified student, which allows teachers to guide the operation of an appointed student easily.

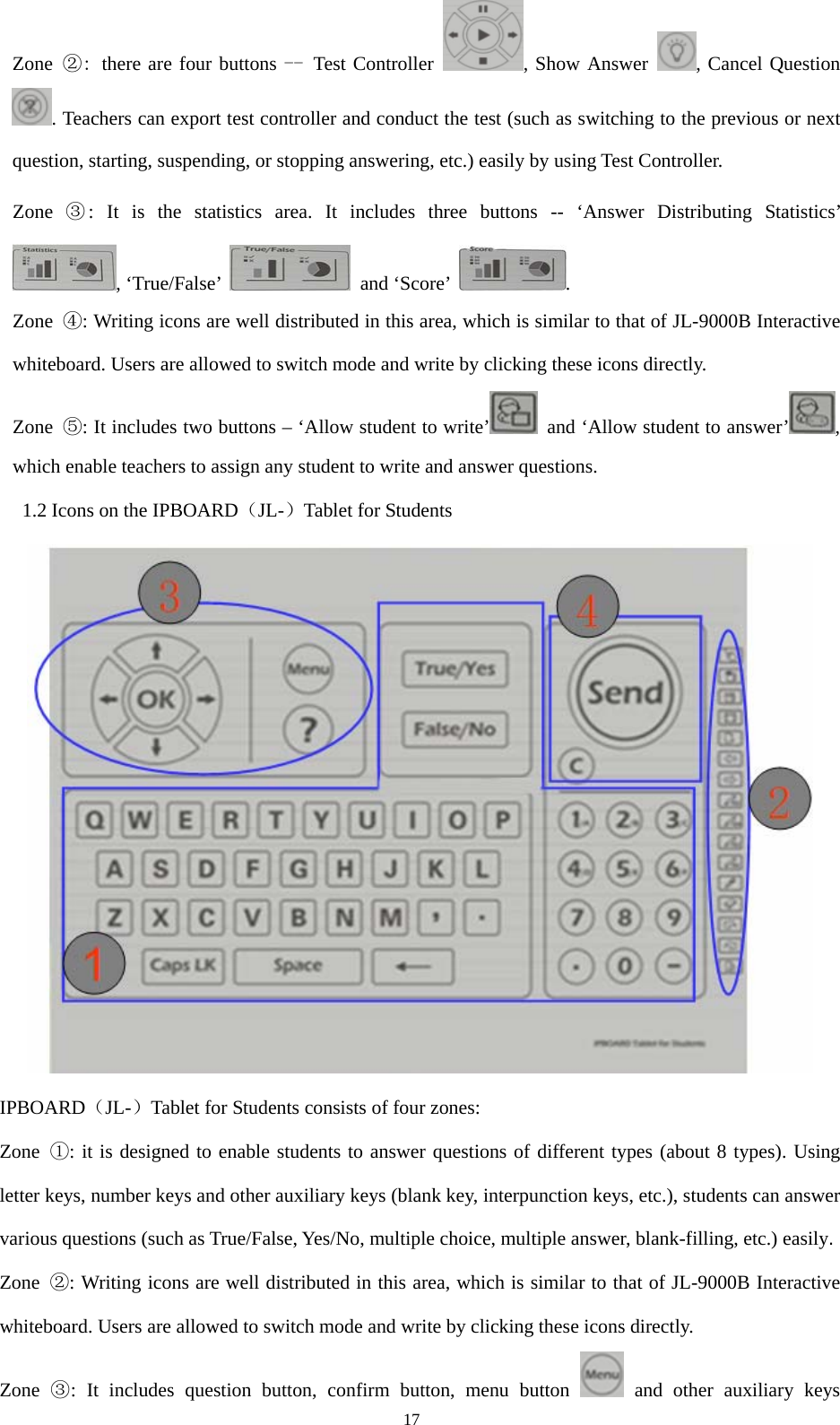

17Zone ②: there are four buttons -- Test Controller , Show Answer , Cancel Question . Teachers can export test controller and conduct the test (such as switching to the previous or next question, starting, suspending, or stopping answering, etc.) easily by using Test Controller. Zone ③: It is the statistics area. It includes three buttons -- ‘Answer Distributing Statistics’ , ‘True/False’ and ‘Score’ . Zone ④: Writing icons are well distributed in this area, which is similar to that of JL-9000B Interactive whiteboard. Users are allowed to switch mode and write by clicking these icons directly. Zone ⑤: It includes two buttons – ‘Allow student to write’ and ‘Allow student to answer’ , which enable teachers to assign any student to write and answer questions. 1.2 Icons on the IPBOARD（JL-）Tablet for Students IPBOARD（JL-）Tablet for Students consists of four zones: Zone ①: it is designed to enable students to answer questions of different types (about 8 types). Using letter keys, number keys and other auxiliary keys (blank key, interpunction keys, etc.), students can answer various questions (such as True/False, Yes/No, multiple choice, multiple answer, blank-filling, etc.) easily. Zone ②: Writing icons are well distributed in this area, which is similar to that of JL-9000B Interactive whiteboard. Users are allowed to switch mode and write by clicking these icons directly. Zone ③: It includes question button, confirm button, menu button and other auxiliary keys

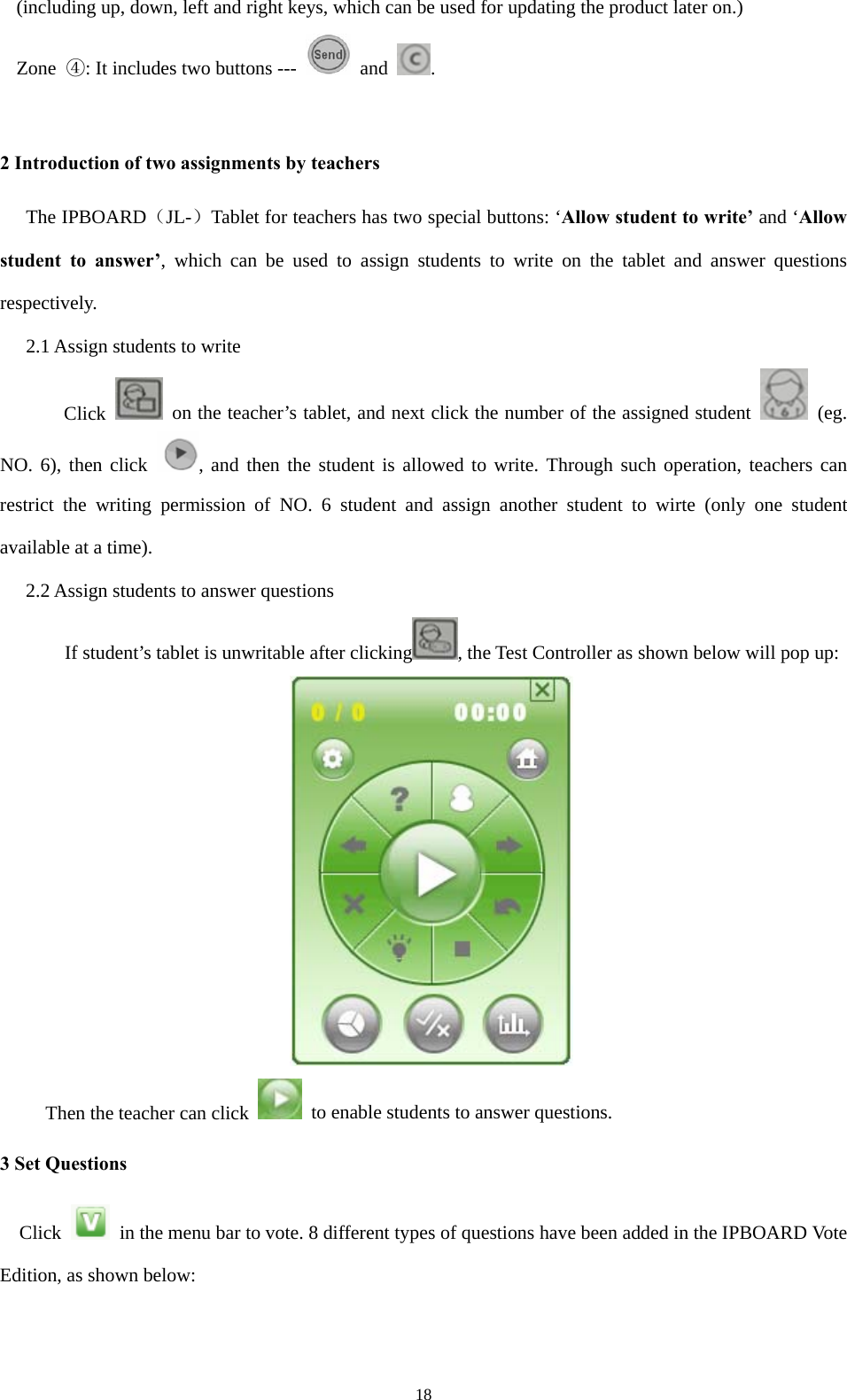

18(including up, down, left and right keys, which can be used for updating the product later on.) Zone ④: It includes two buttons --- and . 2 Introduction of two assignments by teachers The IPBOARD（JL-）Tablet for teachers has two special buttons: ‘Allow student to write’ and ‘Allow student to answer’, which can be used to assign students to write on the tablet and answer questions respectively. 2.1 Assign students to write Click on the teacher’s tablet, and next click the number of the assigned student (eg. NO. 6), then click , and then the student is allowed to write. Through such operation, teachers can restrict the writing permission of NO. 6 student and assign another student to wirte (only one student available at a time). 2.2 Assign students to answer questions If student’s tablet is unwritable after clicking , the Test Controller as shown below will pop up: Then the teacher can click to enable students to answer questions. 3 Set Questions Click in the menu bar to vote. 8 different types of questions have been added in the IPBOARD Vote Edition, as shown below:

19 4 Combined with IPBOARD（JL-）Tab le t ( TB3124RDV(T/8)) to answer questions interactively Blank-filling (Eight types of questions are available, and here take blank-filling as an example.) 4.1 Switch on IPBOARD（JL-）Tablet (TB3124RDV(T/8)) for teachers and students respectively, and then click on right side of the teacher’s tablet, the dialog as shown below pops up:

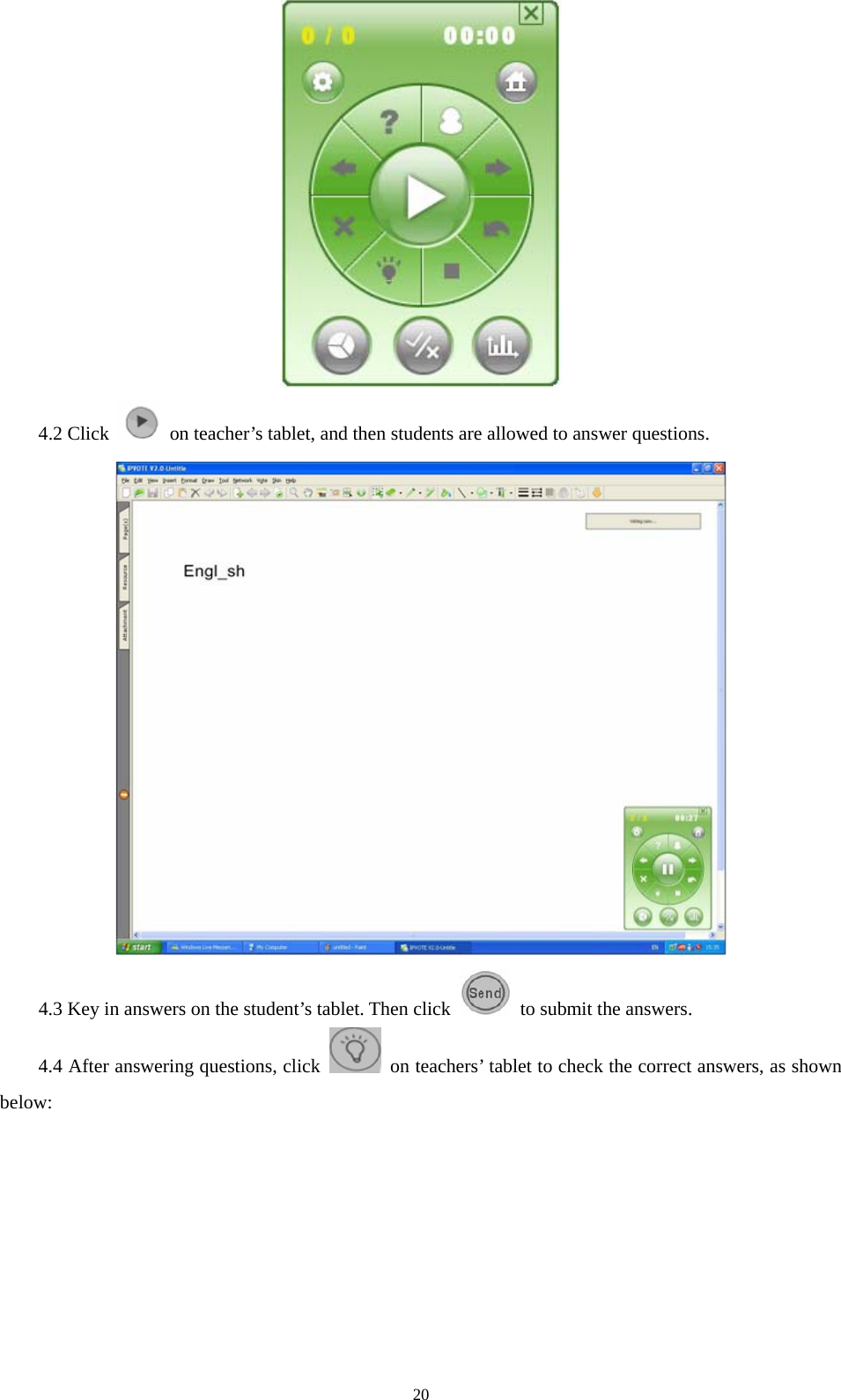

20 4.2 Click on teacher’s tablet, and then students are allowed to answer questions. 4.3 Key in answers on the student’s tablet. Then click to submit the answers. 4.4 After answering questions, click on teachers’ tablet to check the correct answers, as shown below:

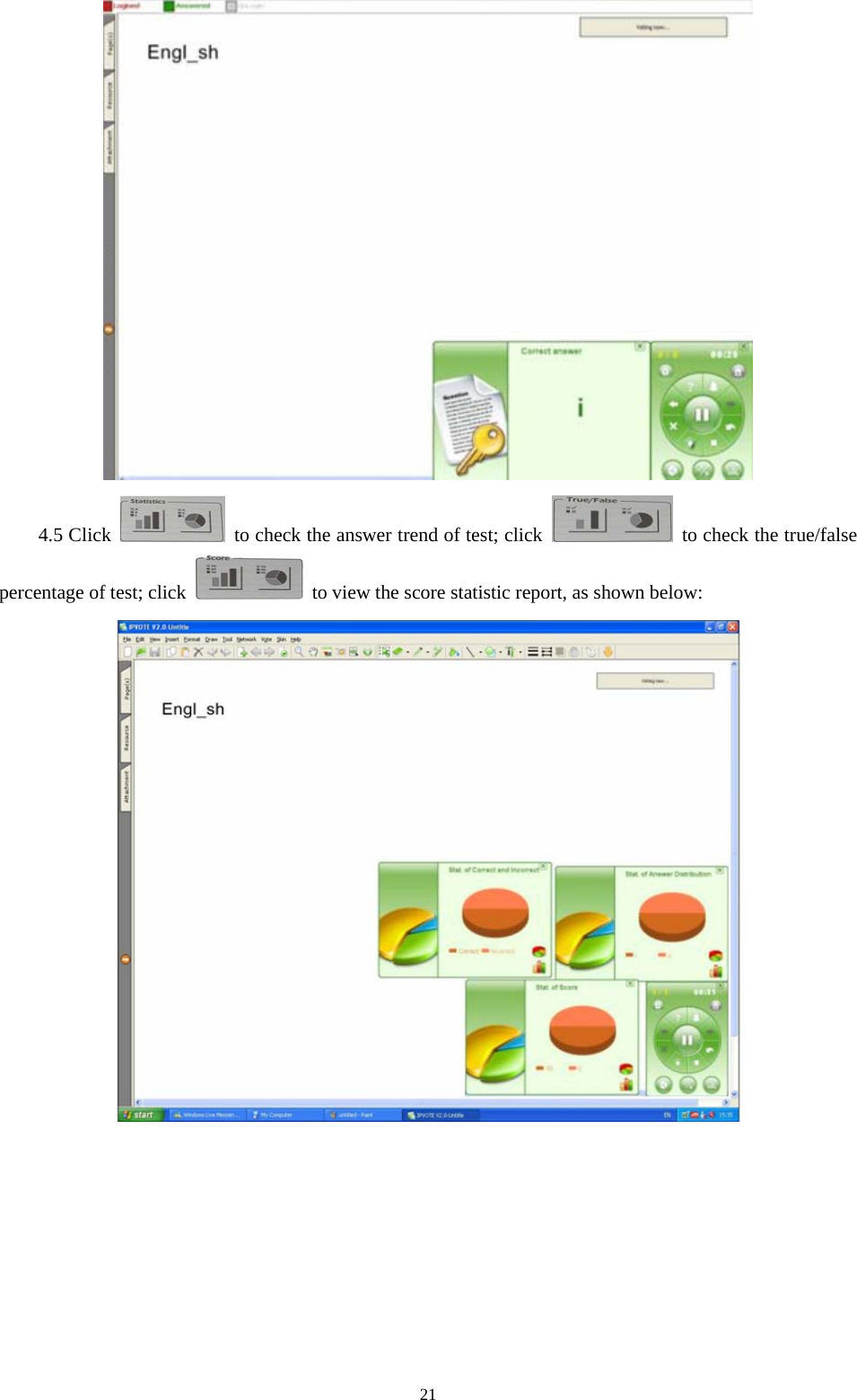

21 4.5 Click to check the answer trend of test; click to check the true/false percentage of test; click to view the score statistic report, as shown below:

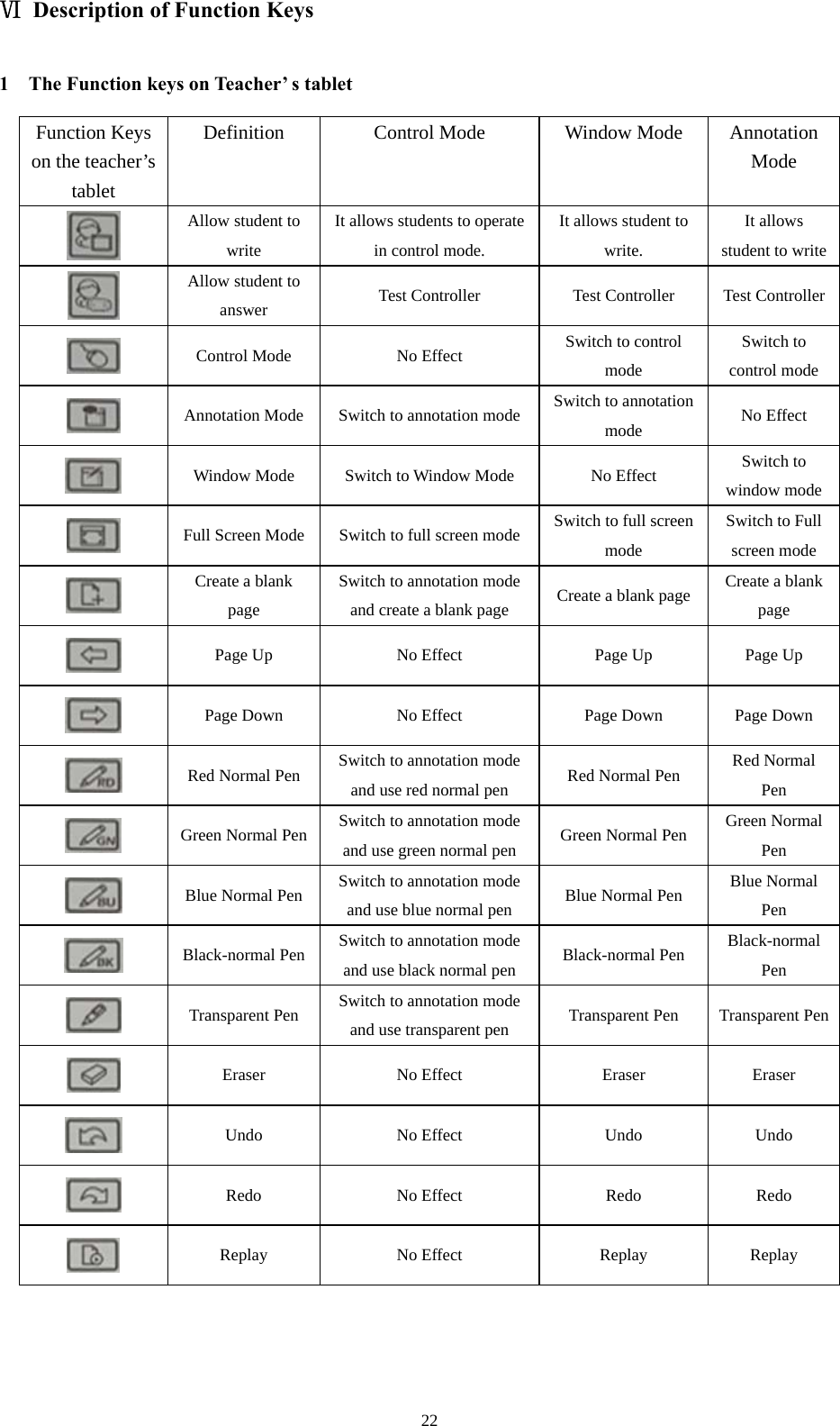

22Ⅵ Description of Function Keys 1 The Function keys on Teacher’ s tablet Function Keys on the teacher’s tablet Definition Control Mode Window Mode Annotation Mode Allow student to write It allows students to operate in control mode. It allows student to write. It allows student to write Allow student to answer Test Controller Test Controller Test Controller Control Mode No Effect Switch to control mode Switch to control mode Annotation Mode Switch to annotation mode Switch to annotation mode No Effect Window Mode Switch to Window Mode No Effect Switch to window mode Full Screen Mode Switch to full screen mode Switch to full screen mode Switch to Full screen mode Create a blank page Switch to annotation mode and create a blank page Create a blank page Create a blank page Page Up No Effect Page Up Page Up Page Down No Effect Page Down Page Down Red Normal Pen Switch to annotation mode and use red normal pen Red Normal Pen Red Normal Pen Green Normal Pen Switch to annotation mode and use green normal pen Green Normal Pen Green Normal Pen Blue Normal Pen Switch to annotation mode and use blue normal pen Blue Normal Pen Blue Normal Pen Black-normal Pen Switch to annotation mode and use black normal pen Black-normal Pen Black-normal Pen Transparent Pen Switch to annotation mode and use transparent pen Transparent Pen Transparent Pen Eraser No Effect Eraser Eraser Undo No Effect Undo Undo Redo No Effect Redo Redo Replay No Effect Replay Replay

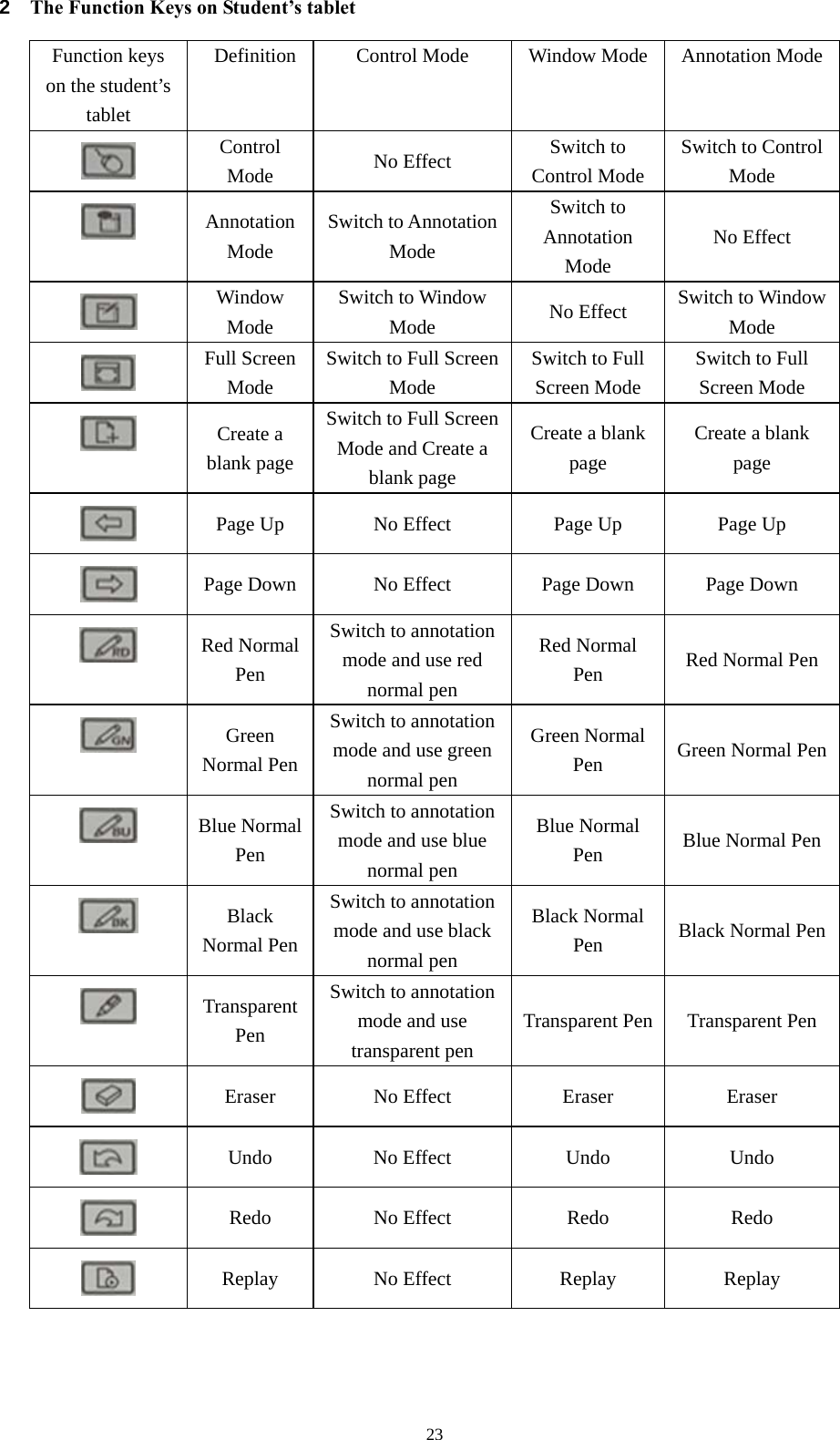

232 The Function Keys on Student’s tablet Function keys on the student’s tablet Definition Control Mode Window Mode Annotation Mode Control Mode No Effect Switch to Control Mode Switch to Control Mode Annotation Mode Switch to Annotation Mode Switch to Annotation Mode No Effect Window Mode Switch to Window Mode No Effect Switch to Window Mode Full Screen Mode Switch to Full Screen Mode Switch to Full Screen Mode Switch to Full Screen Mode Create a blank page Switch to Full Screen Mode and Create a blank page Create a blank page Create a blank page Page Up No Effect Page Up Page Up Page Down No Effect Page Down Page Down Red Normal Pen Switch to annotation mode and use red normal pen Red Normal Pen Red Normal Pen Green Normal Pen Switch to annotation mode and use green normal pen Green Normal Pen Green Normal Pen Blue Normal Pen Switch to annotation mode and use blue normal pen Blue Normal Pen Blue Normal Pen Black Normal Pen Switch to annotation mode and use black normal pen Black Normal Pen Black Normal Pen Transparent Pen Switch to annotation mode and use transparent pen Transparent Pen Transparent Pen Eraser No Effect Eraser Eraser Undo No Effect Undo Undo Redo No Effect Redo Redo Replay No Effect Replay Replay

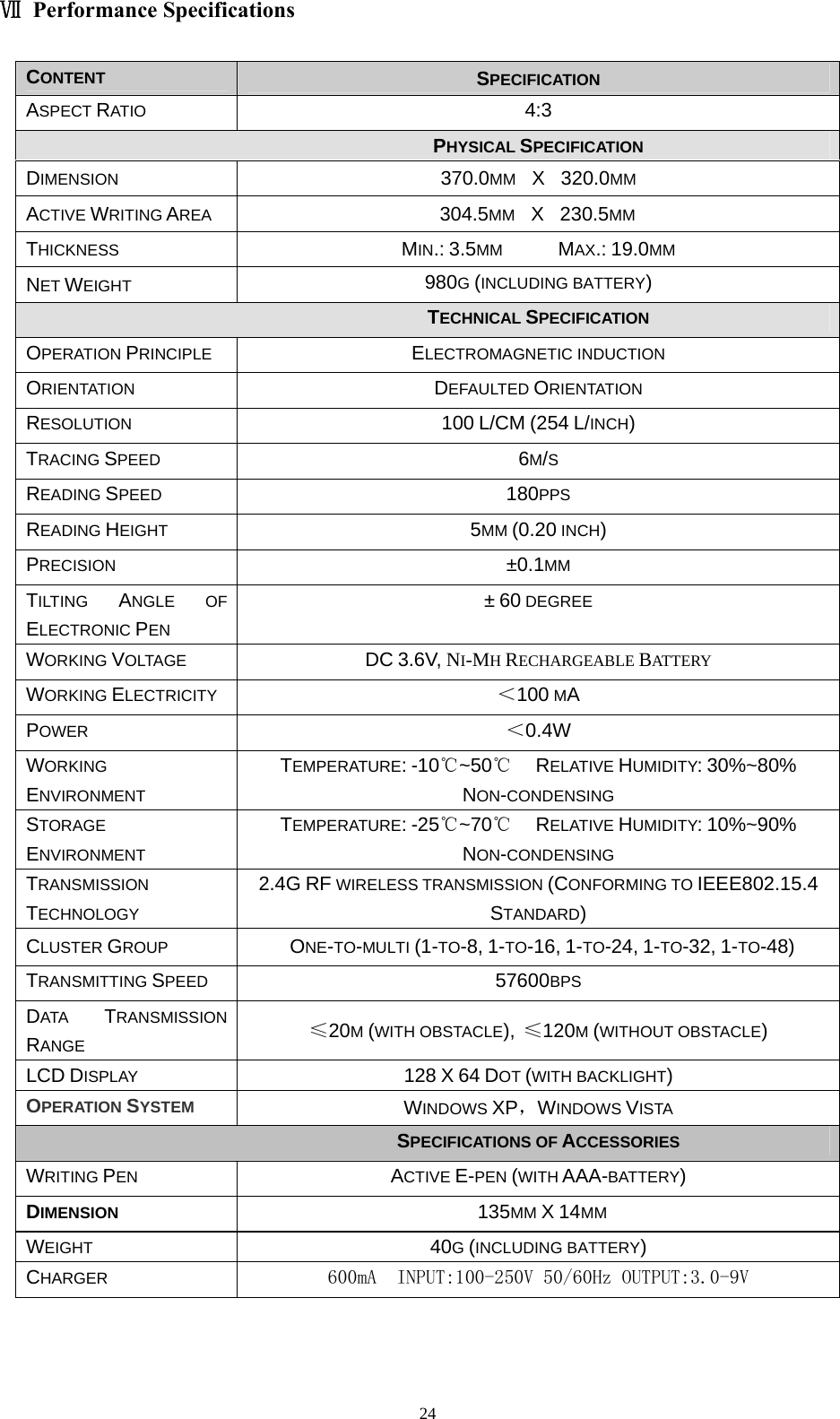

24Ⅶ Performance Specifications CONTENT SPECIFICATION ASPECT RATIO 4:3 PHYSICAL SPECIFICATION DIMENSION 370.0MM X 320.0MM ACTIVE WRITING AREA 304.5MM X 230.5MM THICKNESS MIN.: 3.5MM MAX.: 19.0MM NET WEIGHT 980G (INCLUDING BATTERY) TECHNICAL SPECIFICATION OPERATION PRINCIPLE ELECTROMAGNETIC INDUCTION ORIENTATION DEFAULTED ORIENTATION RESOLUTION 100 L/CM (254 L/INCH) TRACING SPEED 6M/S READING SPEED 180PPS READING HEIGHT 5MM (0.20 INCH) PRECISION ±0.1MM TILTING ANGLE OF ELECTRONIC PEN ± 60 DEGREE WORKING VOLTAGE DC 3.6V, NI-MH RECHARGEABLE BATTERY WORKING ELECTRICITY ＜100 MA POWER ＜0.4W WORKING ENVIRONMENT TEMPERATURE: -10℃~50℃ RELATIVE HUMIDITY: 30%~80% NON-CONDENSING STORAGE ENVIRONMENT TEMPERATURE: -25℃~70℃ RELATIVE HUMIDITY: 10%~90% NON-CONDENSING TRANSMISSION TECHNOLOGY 2.4G RF WIRELESS TRANSMISSION (CONFORMING TO IEEE802.15.4 STANDARD) CLUSTER GROUP ONE-TO-MULTI (1-TO-8, 1-TO-16, 1-TO-24, 1-TO-32, 1-TO-48) TRANSMITTING SPEED 57600BPS DATA TRANSMISSION RANGE ≤20M (WITH OBSTACLE), ≤120M (WITHOUT OBSTACLE) LCD DISPLAY 128 X 64 DOT (WITH BACKLIGHT) OPERATION SYSTEM WINDOWS XP，WINDOWS VISTA SPECIFICATIONS OF ACCESSORIES WRITING PEN ACTIVE E-PEN (WITH AAA-BATTERY) DIMENSION 135MM X 14MM WEIGHT 40G (INCLUDING BATTERY) CHARGER 600mA INPUT:100-250V 50/60Hz OUTPUT:3.0-9V

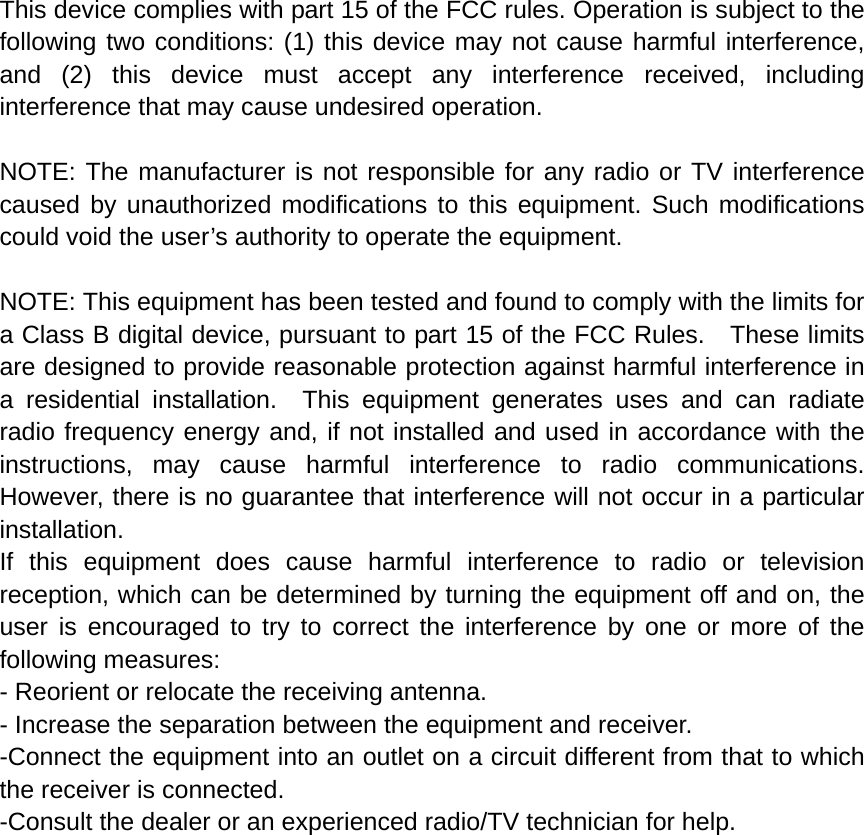

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
