1.Field Maintenance Mode
1.1 Turning On the power for Field Maintenance mode
JHS-180 can operate “Field Maintenance Mode” for installation and maintenance.
To operate “Field Maintenance Mode”, JHS-180 needs special operation in turning the power on.
The special operation is;
When turn the power on, pressing and holding [PWR] and [MENU] until starting display
“AIS CONTROLLER NOW LOADING ---” appears.
In “Field Maintenance Mode” operation,
- The transponder doesn’t operate automatically TDMA transmission.
- Two menu item are added to the “Main Menu”.

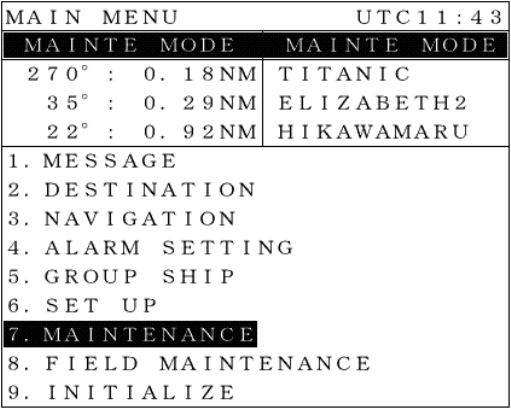

“Main Menu” in Field Maintenance Mode operation

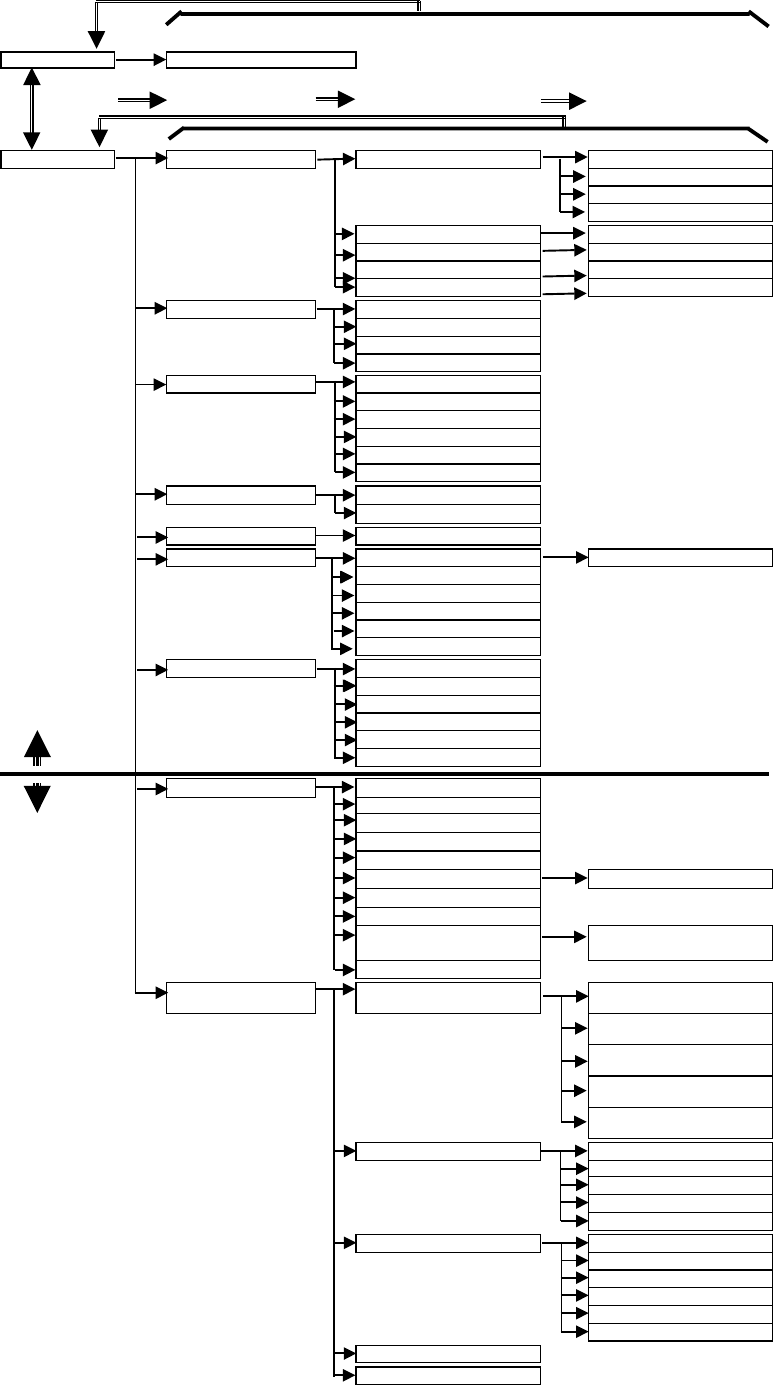

1.2 Menu Tree of Field Maintenance mode (Power On:[MENU]+[PWR])
Select(1) key
(
Power On
)
[▲]/[▼],[ENT]
Other Ships List
[0]-[9] or [▲]/[▼],[ENT] [0]-[9] or [▲]/[▼],[ENT] [0]-[9] or [▲]/[▼],[ENT]
[MENU]
[MENU]key
3.MAIN MENU 1.MESSAGE 1.EDIT AND TX Destination address
Message type
Message editing
Transmission
2.TX TRAY Transmitted Message reading
3.RX TRAY Received Message reading
4.INTERROGATION Address,Req.Info., Tx and Ack
5.LONG RANGE Received Long Range Message
2.DESTINATION 1.DESTINATION
2.WAYPOINT TEXT
3.ETA
4.WAYPOINT
3.NAVIGATION 1.NAVIGATIONAL STATUS
2.PERSONS ON-BOARD
3.TYPE OF SHIP
4.CARGO TYPE
5.DRAUGHT
6.HEIGHT OVER KEEL
4.ALARM SETTING 1.RANGE
2.LOST TARGET
5.GROUP SHIP Registration, Deletion
6.SET UP 1.PASSWORD Password changing
2.CH MANAGEMENT
3.OWN SHIP DATA
4.LONG RANGE RESPONSE
5.CONTRAST
6.NUMBER OF RETRIES
7.MAINTENANCE 1.TRX CONDITION
2.AIS ALARM
3.SENSOR STATUS
User Menu 4.POWER ON/OFF LOG
5.TX ON/OFF LOG
6.SOFTWARE VERSION
8.FIELD MAINTENANCE 1.SELF TEST
2.COMM STATUS
Field Maintenance Menu 3.REPORTING RATE
4.SELF TEST LOG
5.RANGE ALARM LOG
6.PORT LOG Each port sentence log
7.PORT OPTION
8.TRX ADJUST
9.SOFTWARE VERSION UP Transponder version up, Controller version up
0.CONTROLLER INITIALIZE
9.INITIALIZE 1.SENSOR SETTING 1.SENSOR1 (Sentence Select, Baudrate,Parity bit)
2.SENSOR2 (Sentence Select, Baudrate,Parity bit)
3.SENSOR3 (Sentence Select, Baudrate,Parity bit)
4.SENSOR4 (Sentence Select, Baudrate,Parity bit)
5.SENSOR5 (Sentence Select, Baudrate,Parity bit)
2.INTERNAL GPS SETTING 1.INT. GPS POSITION
2.ANTENNA HEIGHT
3.ROUGHLY POSITION
4.UTC
5.TIME DIFFERENCE
3.SHIP STATIC DATA SETTING 1.SHIP NAME
2.MMSI NUMBER
3.IMO NUMBER
4.CALL SIGN
5.GPS ANT. POSITION
6.SENSOR TYPE
4.TRANSPONDER INITIALIZE
5.ANTENNA SELECTION
Other Ship's detail Information
5
2. FIELD MAINTENANCE
“FIELD MAINTENANCE” menu is displayed by pressing 8 key in the “Main Menu”.

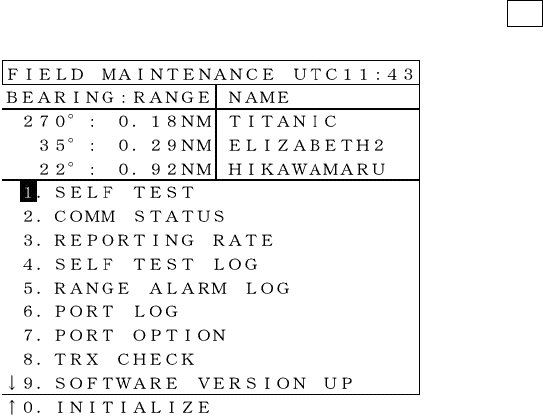

Display of “FIELD MAINTENACE”
6
2.1 SELF TEST
“SELF TEST” menu is displayed by pressing 1 key in the “FIELD MAINTENANCE” menu.

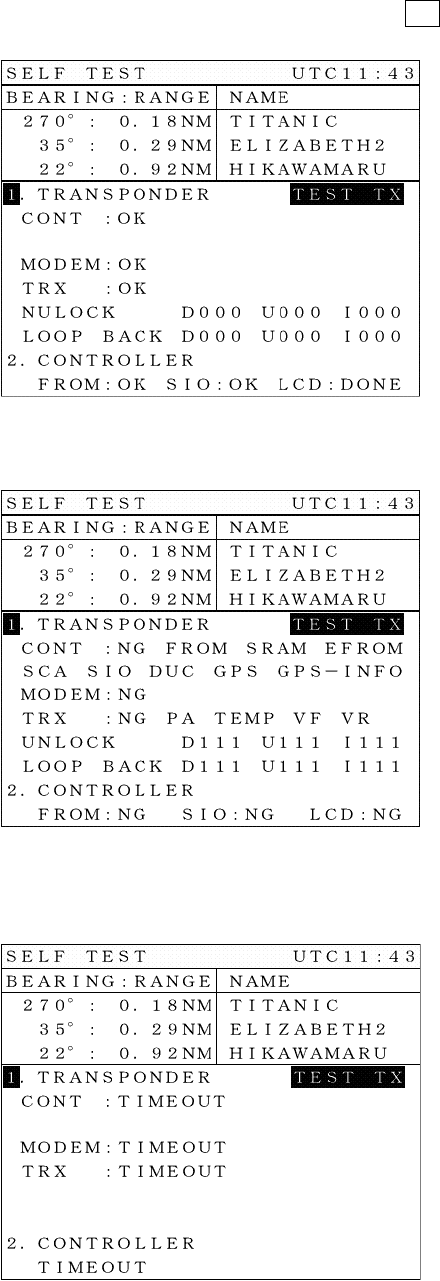

Display of “SELF TEST” (All result is OK)
Display of “SELF TEST” (All result is fault)
Display of “SELF TEST” (Time out)
7
Indication of failures in NTE-180 AIS Transponder
Control unit Indication TRX unit Indication
CPU(FLASH ROM) FROM PA PA
CPU(SRAM) SRAM Temperature TEMP
Ext. FLASH ROM EFROM Forward power VF
Serial
Communication
Access
SCA Reverse power VR
Serial I/O SIO
Digital Up Converter DUC
GPS receiver GPS
GPS Information GPS-INFO
8
2.2 COMM STATUS
“COMM STATUS” menu is displayed by pressing 2 key in the “FIELD MAINTENANCE” menu.

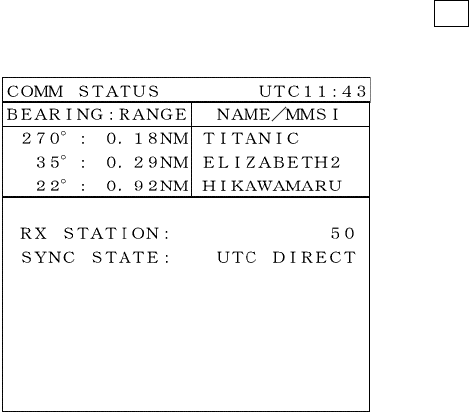

Display of “COMM STAUS”
9
2.3 REPORTING RATE
“REPORTING RATE” menu is displayed by pressing 3 key in the “FIELD MAINTENANCE” menu.

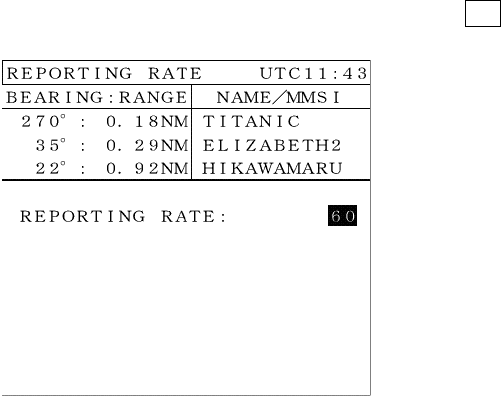

Display of “REPORTING RATE”
10
2.4 SELF TEST LOG
“SELF TEST LOG” menu is displayed by pressing 4 key in the “FIELD MAINTENANCE” menu.

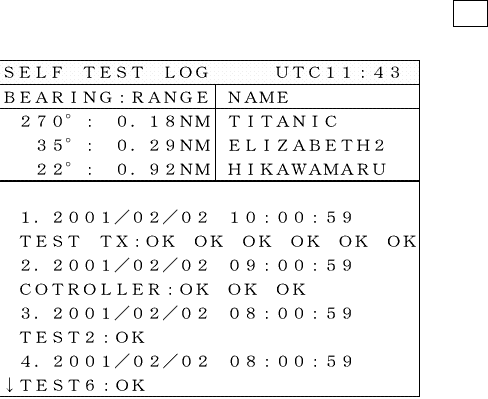

Display of “SELF TEST LOG”
11
2.5 RANGE ALARM LOG

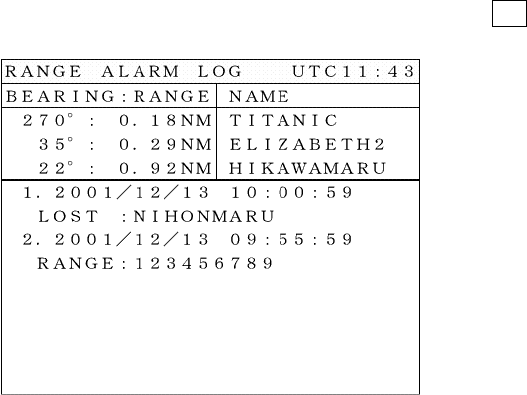

“RANGE ALARM LOG” menu is displayed by pressing 5 key in the “FIELD MAINTENANCE” menu.
Display of “RANGE ALARM LOG”
12
2.6 PORT LOG
“PORT LOG” menu is displayed by pressing 6 key in the “FIELD MAINTENANCE” menu.

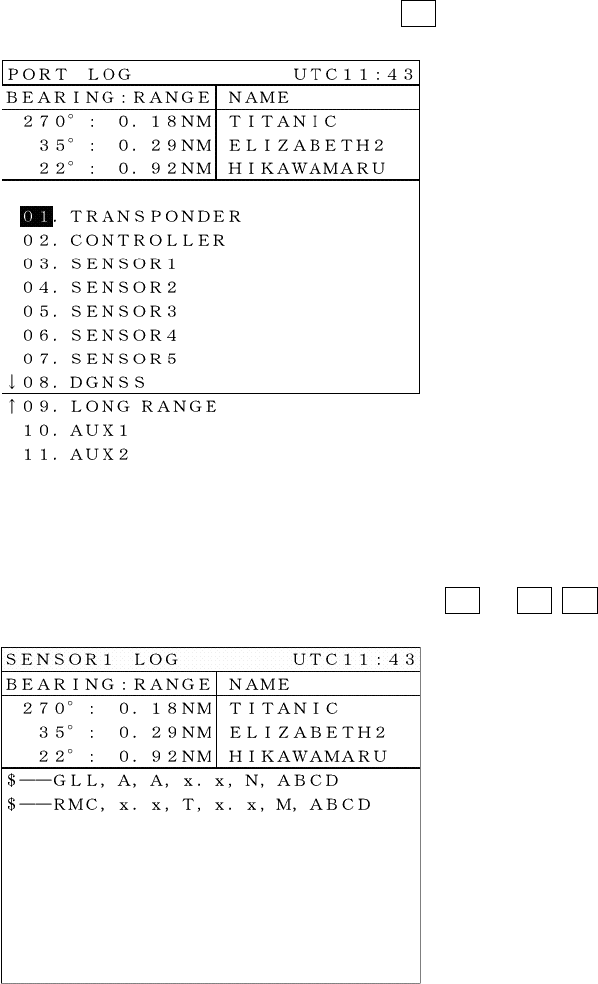

Display of “PORT LOG”
Details of each port is displayed by pressing from 1 to 1 1 key in the “PORT LOG” menu.
Display of “SENSOR1 LOG”
13
2.7 PORT OPTION

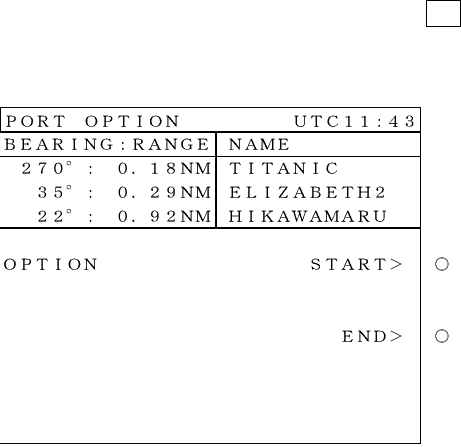

“PORT OPTION” menu is displayed by pressing 7 key in the “FIELD MAINTENANCE” menu.
Display of “PORT OPTION”
14
2.8 TRX CHECK

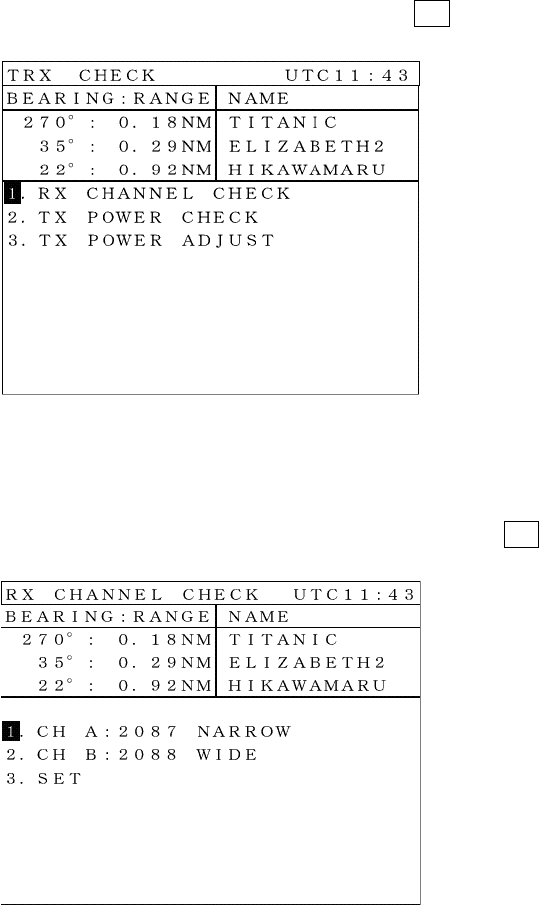

“TRX CHECK” menu is displayed by pressing 8 key in the “FIELD MAINTENANCE” menu.
Display of “TRX CHECK”
“RX CHANNEL CHECK” menu is displayed by pressing 1 key in the “TRX CHECK” menu.
Display of “RX CHANNEL CHECK”
15
“TX POWER CHECK” menu is displayed by pressing 2 key in the “TRX CHECK” menu.

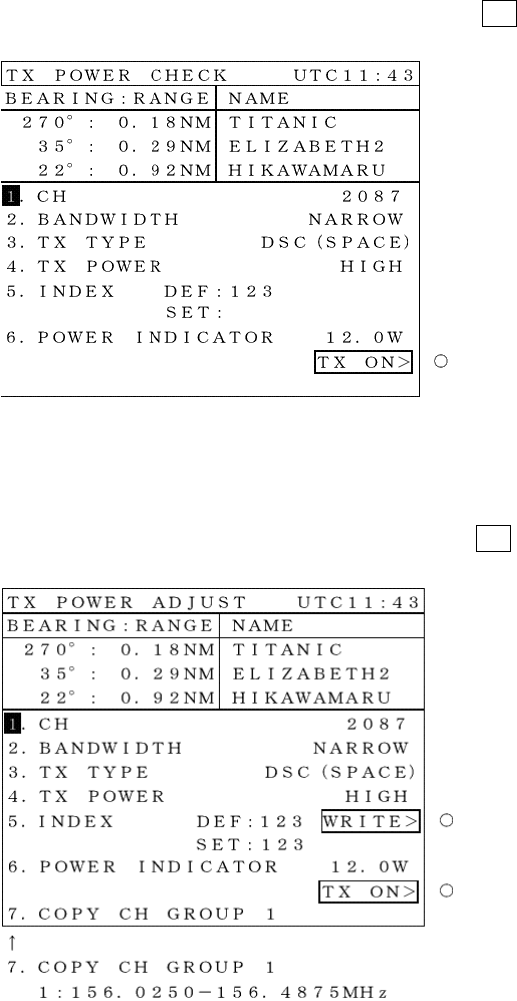

Display of “TX POWER CHECK”
“TX POWER ADJUS” menu is displayed by pressing 3 key in the “TRX CHECK” menu.
Display of “TX POWER ADJUST”
16
2.9 SOFTWARE VER UP
“SOFWARE VER UP” menu is displayed by pressing 9 key in the “FIELD MAINTENANCE” menu.

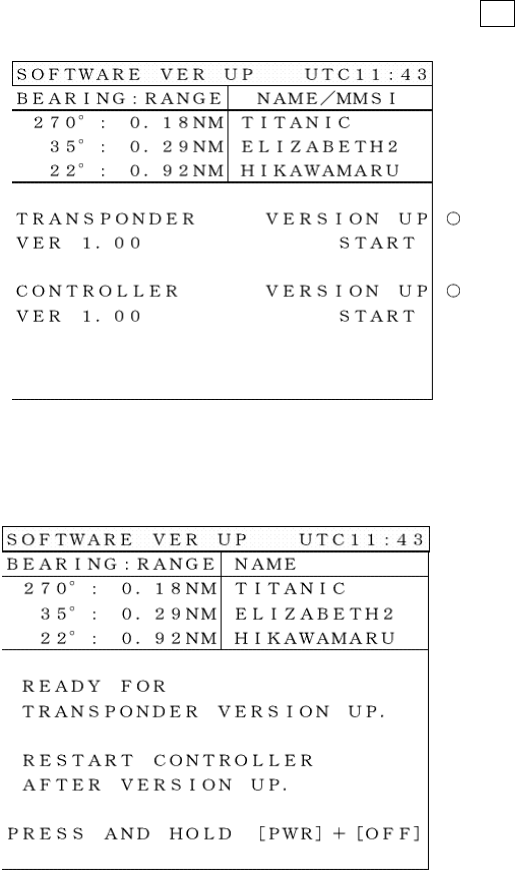

Display of “SOFTWARE VER UP”
Display of transponder version up in “SOFTWARE VERSION UP”
17

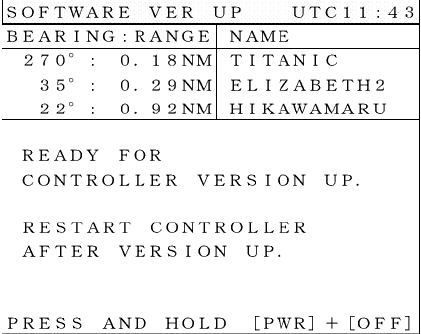

Display of controller version up in “SOFTWARE VERSION UP”
18
2.10 STATE INITIALIZE
“STATE INITIALIZE” is displayed by pressing 0 key in the “FIELD MAINTENANCE” menu.

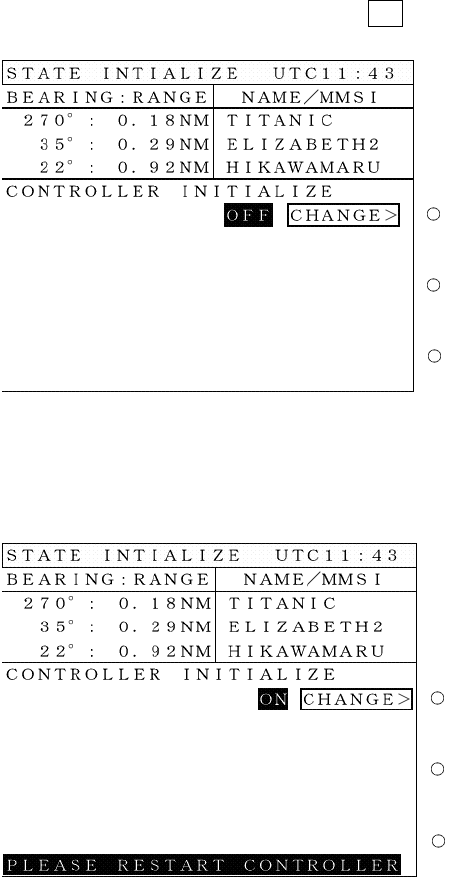

Display of “STATE INITIALIZE”(OFF)
Display of “STATE INITIALIZE”(ON)
19
3. INITIALIZE

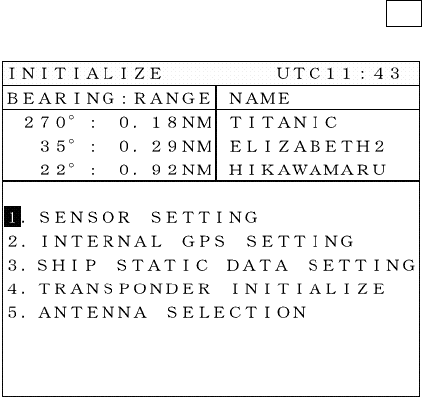

“INITIALIZE” menu is displayed by pressing 9 key in the “Main Menu”.
Display of “INITIALIZE”
20
3.1 SENSOR SETTING
“SENSOR SETTING” menu is displayed by pressing 1 key in the “INITIALIZE” menu.

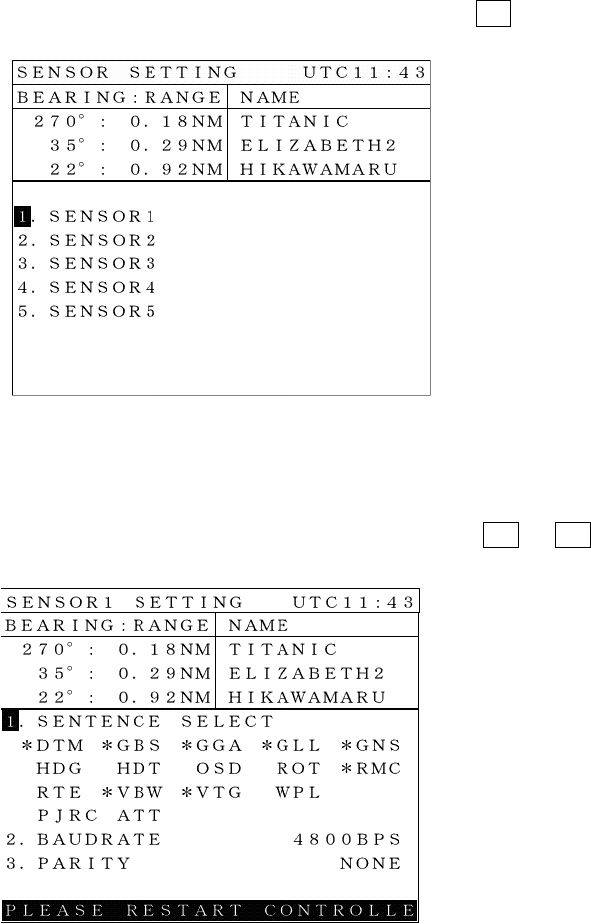

Display of “SENSOR SETTING”
Each sensor filter menu is displayed by pressing from 1 to 5 key in the “SENSOR SETTING” menu.
Display of each sensor filter setting in “SENSOR SETTING”
21
3.2 INT. GPS SETTING
“INT. GPS SETTING” menu is displayed by pressing 2 key in the “INITIALIZE” menu.

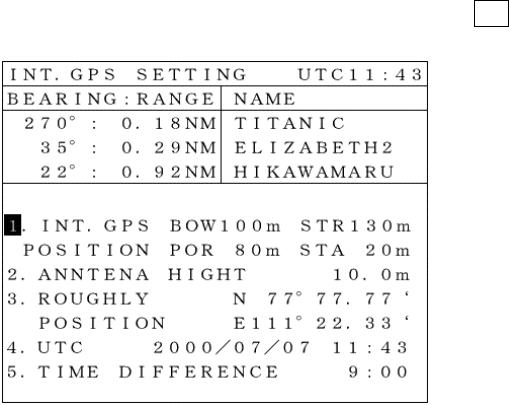

Display of “INT. GPS SETTING”
22
3.3 SHIP STATIC DATA
“SHIP STATIC DATA” menu is displayed by pressing 3 key in the “INITIALIZE” menu.

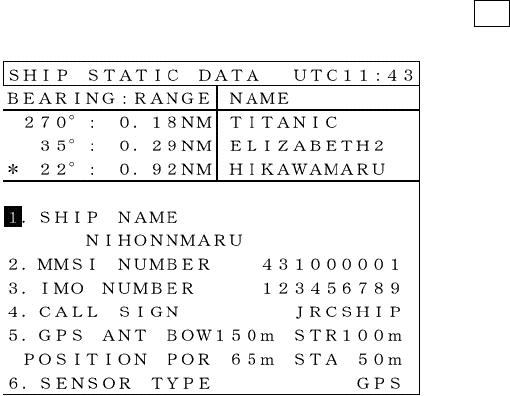

Display of “SHIP STATIC DATA”
23
3.4 TRANSPONDER INIT

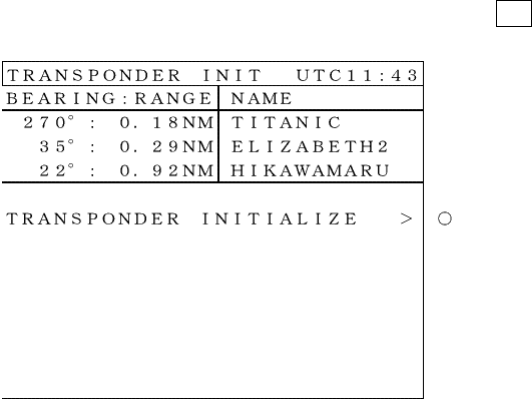

“TRANSPONDER INIT” menu is displayed by pressing 4 key in the “INITIALIZE” menu.
Display of “TRANSPONDER INIT”
24
3.5 ANTENNA SELECTION
“ANTENNA SELECTION” menu is displayed by pressing 5 key in the “INITIALIZE” menu.

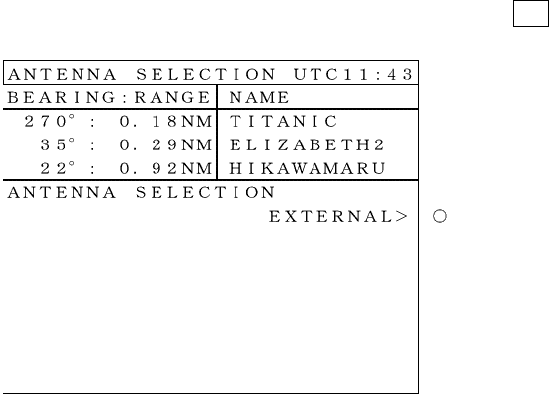

Dispaly of “ANTENNA SELECTION”
