JiangSu HuiTong Group HTMD004A TL8269 Light Module User Manual

JiangSu HuiTong Group Co.,Ltd TL8269 Light Module

User Manual

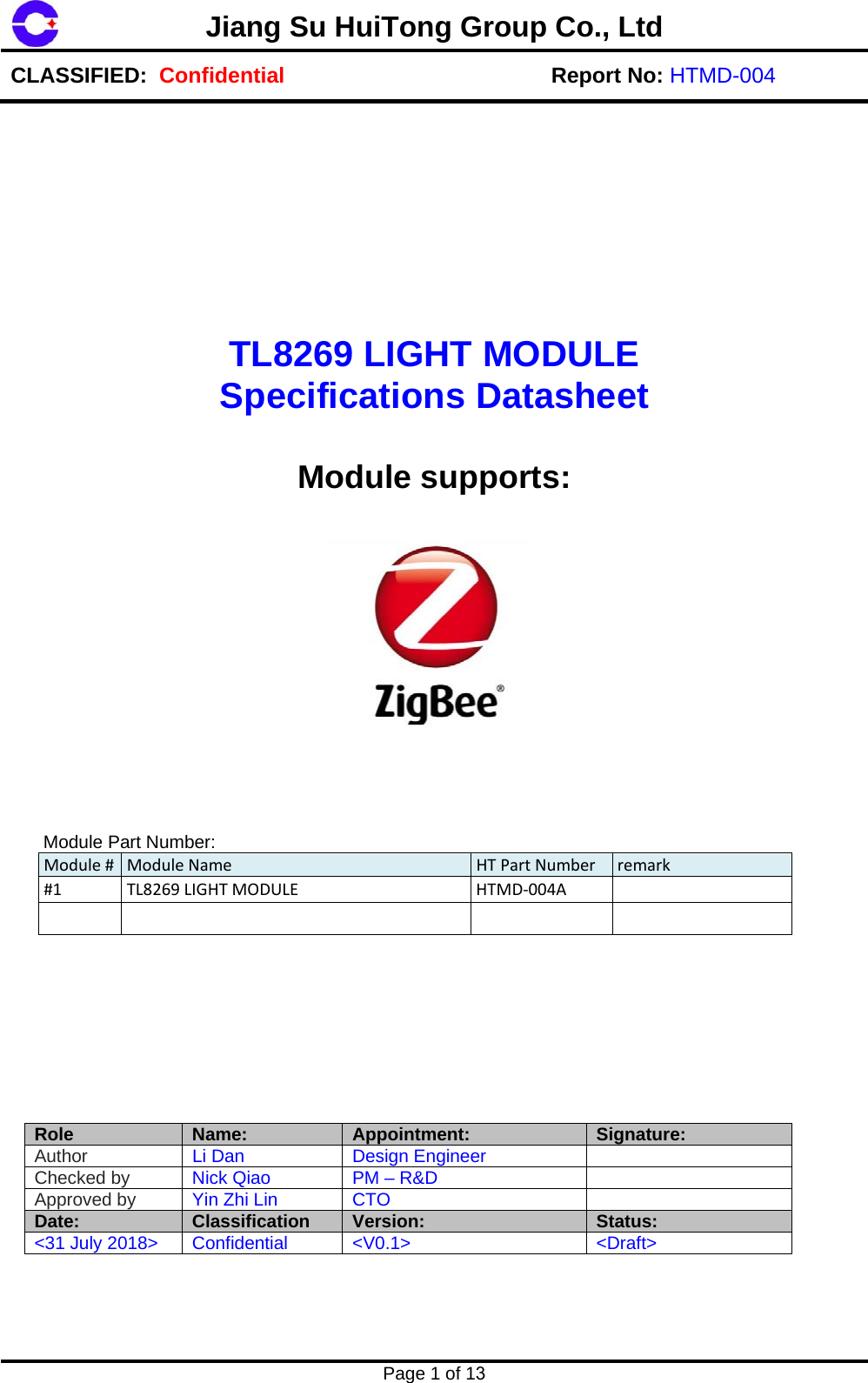

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 1 of 13 TL8269 LIGHT MODULE Specifications Datasheet Module supports:  Module Part Number: Module#ModuleName HTPartNumber remark#1TL8269LIGHTMODULEHTMD‐004ARole  Name: Appointment:  Signature: Author  Li Dan  Design Engineer Checked by Nick Qiao  PM – R&D Approved by  Yin Zhi Lin  CTO Date:  Classification  Version:  Status: <31 July 2018>  Confidential <V0.1>  <Draft>

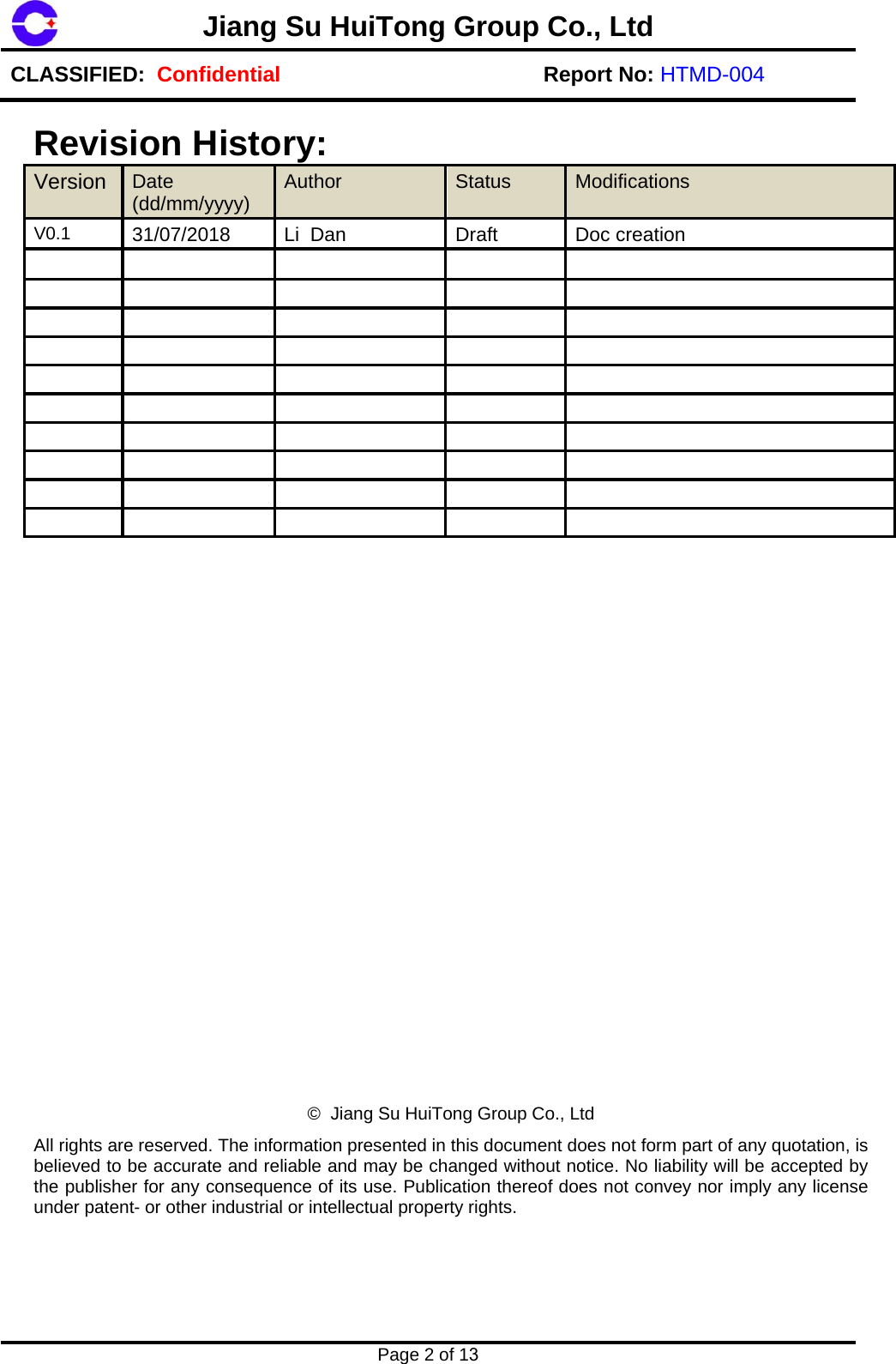

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 2 of 13 Revision History: Version  Date (dd/mm/yyyy)  Author  Status  Modifications V0.1  31/07/2018  Li  Dan  Draft  Doc creation ©  Jiang Su HuiTong Group Co., Ltd All rights are reserved. The information presented in this document does not form part of any quotation, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.
Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 3 of 13 1 Introduction 1.1 Scope Module#ModuleName HTP/NSOCStandardSupportedBluetoothStandardSupportedRFFrequencyBandInterfacetoHostModuleSize#1TL8269LIGHTMODULEHTMD‐004AZigbee3.0 2.4G(2.4~2.5GHz) UART22mm(L)x15mm(W)x3.5mm(H)Note:  1.2 Product Features TLSR8269F512AT32
Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 4 of 13

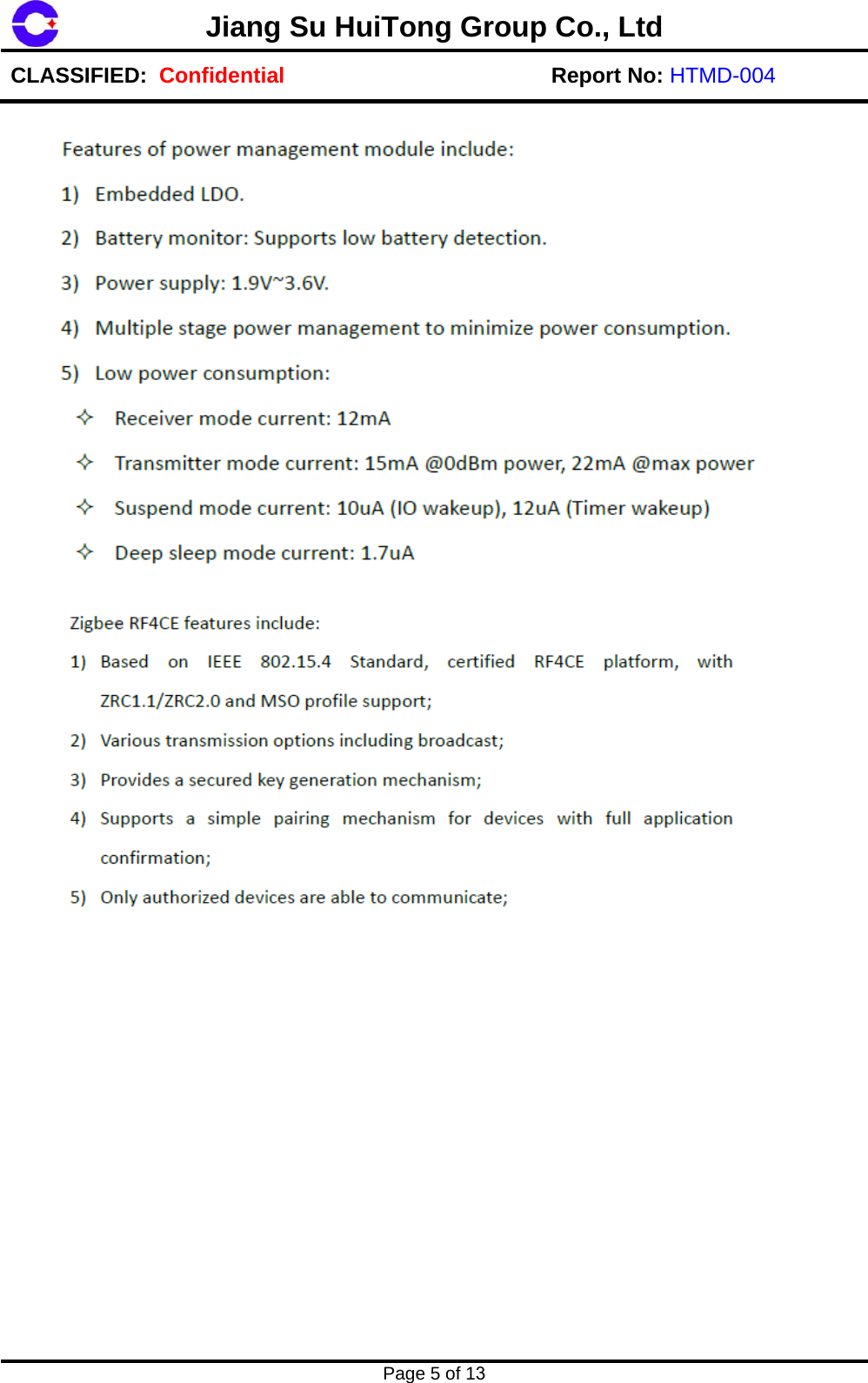

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 5 of 13
Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 6 of 13 Ambient Conditions: Operation Temperature: -10℃ ~ +120℃Storage Temperature: -40℃ ~ +85℃Operation Humidity: 10 ~ 90% RHStorage Humidity: 5 ~ 95% RHEnvironmental compliance: RoHS compliantREACH compliantApprobation:  EU/ Russia:  LATAM:TBC

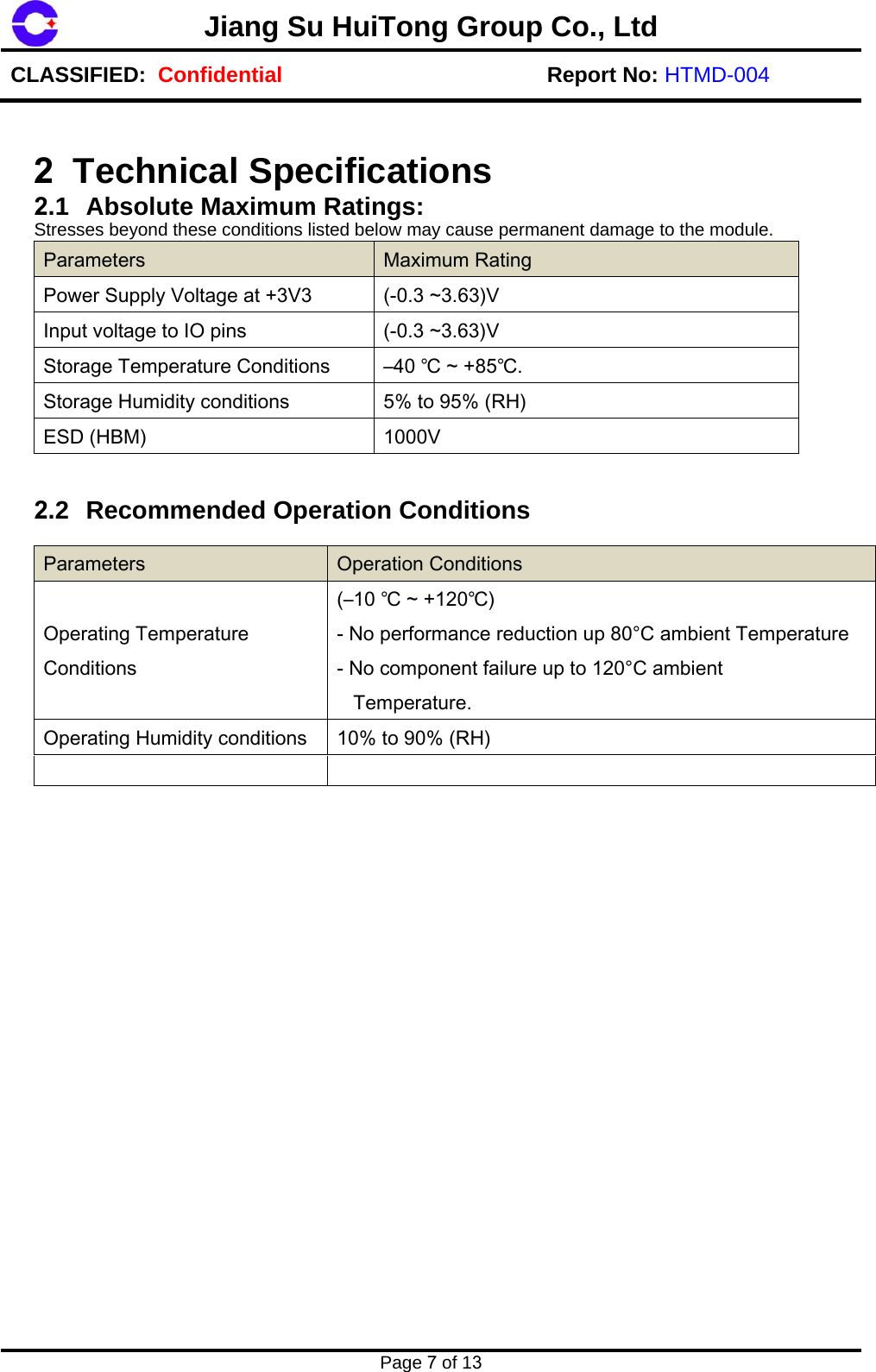

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 7 of 132 Technical Specifications  2.1 Absolute Maximum Ratings:  Stresses beyond these conditions listed below may cause permanent damage to the module. Parameters  Maximum Rating Power Supply Voltage at +3V3  (-0.3 ~3.63)V Input voltage to IO pins  (-0.3 ~3.63)V Storage Temperature Conditions  –40 ℃ ~ +85℃.Storage Humidity conditions  5% to 95% (RH) ESD (HBM)  1000V 2.2 Recommended Operation Conditions Parameters  Operation Conditions Operating Temperature Conditions (–10 ℃ ~ +120℃) - No performance reduction up 80°C ambient Temperature - No component failure up to 120°C ambient    Temperature. Operating Humidity conditions  10% to 90% (RH)

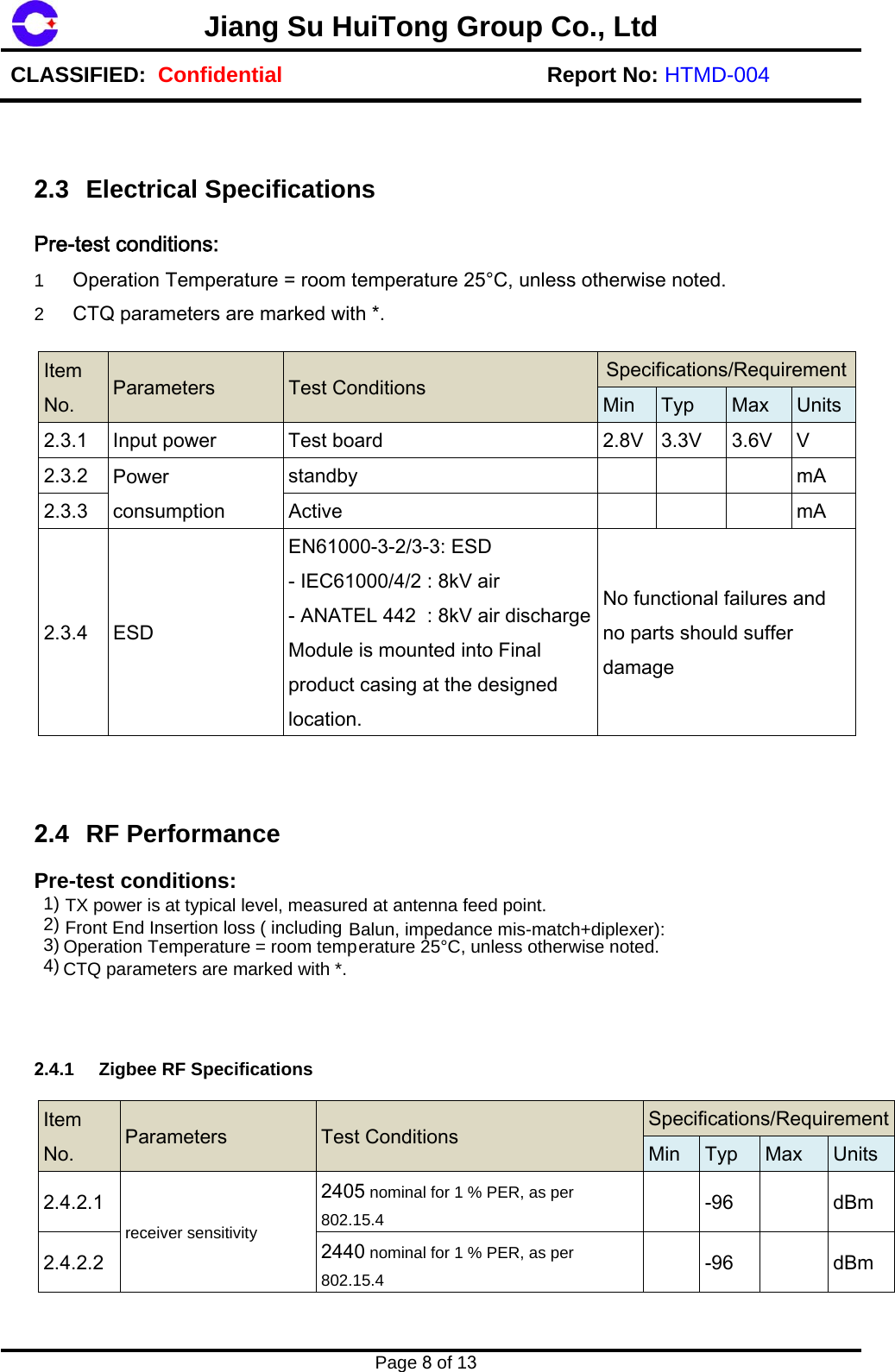

CTQ parameters are marked with *.   Operation Temperature = room temp4)   Front End Insertion loss ( including 3)   TX power is at typical level, measured at antenna feed point. 2) 1)  Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 8 of 13 2.3 Electrical Specifications Pre-test conditions: 1  Operation Temperature = room temperature 25°C, unless otherwise noted. 2  CTQ parameters are marked with *. Item No.  Parameters  Test Conditions  Specifications/RequirementMin  Typ  Max  Units2.3.1  Input power  Test board  2.8V  3.3V  3.6V  V 2.3.2  Power consumption standby  mA 2.3.3  Active  mA 2.3.4  ESD EN61000-3-2/3-3: ESD - IEC61000/4/2 : 8kV air - ANATEL 442  : 8kV air discharge Module is mounted into Final product casing at the designed location. No functional failures and no parts should suffer damage 2.4 RF Performance  Pre-test conditions: erature 25°C, unless otherwise noted. 2.4.1 Zigbee RF Specifications Item No.  Parameters  Test Conditions  Specifications/RequirementMin  Typ  Max  Units2.4.2.1 receiver sensitivity2405 nominal for 1 % PER, as per802.15.4 -96  dBm 2.4.2.2  2440 nominal for 1 % PER, as per802.15.4 -96  dBm Balun, impedance mis-match+diplexer):
Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 9 of 13 2.4.2.3  2480 nominal for 1 % PER, as per802.15.4 -96  dBm 2.4.2.4 Power 2405  6.95 dBm 2.4.2.5  2440 6.60 dBm 2.4.2.6  2480  3.72 dBm 2.5 Quality, Environmental and Reliability S/N  Electrical Test Requirement  TEST CONDITION  Requirement2.5.1  Dry heat Test  Temp. :  +70℃ Test time : 96 hrs  4 days 2.5.2  Low Temperature storage Temp. :  -25℃ Test time : 96 hrs  4 days 2.5.3  Temperature Shock Temp. : -20℃ ~ +85℃, Duration : 30 min Ramp-up & Ramp-down for 5 min, Cycle : 1,000cycle.  35 days 2.5.4  Humidity Load Test Leave samples in 40℃±5℃, 90 ~ 95% RH for  21days,   and in standard test condition for 30 minutes 21 days 2.5.5  Vibration test  10-55-10Hz / amplitude 0.35mm / sweep rate 1 octave per min.  1 day 2.5.6  Cold Test  Operational/start up after min 4hrs at -10℃  1 day 2.5.7  Damp heat cyclic Humidity 93%RH, 6h:temp from 25 ℃ to 40 ℃, 6hrs temp 40 ℃ to 25 ℃, 6hrs at 25 ℃, operational last hour only  for 21 days. 21 days 2.5.8  Temperature step stress test  Operational up to a temperature of 60 ℃ for 16 days  16 days 2.5.9  Operation  Temp. : 60℃, 90% RH, MTBF 50,000 hrs  10 days

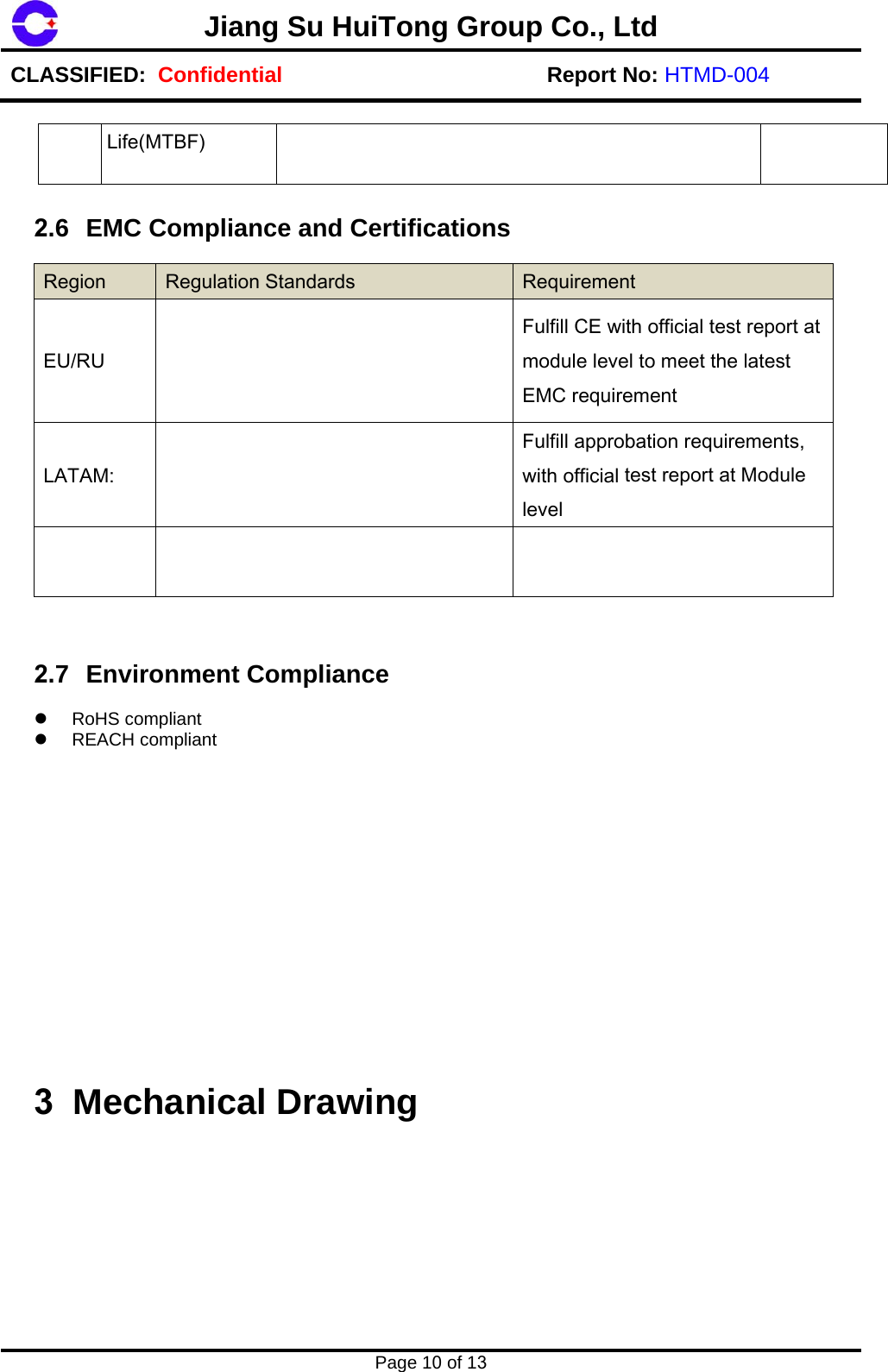

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 10 of 13 Life(MTBF) 2.6 EMC Compliance and Certifications Region  Regulation Standards  Requirement EU/RU Fulfill CE with official test report at module level to meet the latest EMC requirement LATAM: Fulfill approbation requirements, with official test report at Module level 2.7 Environment Compliance RoHS compliantREACH compliant3 Mechanical Drawing

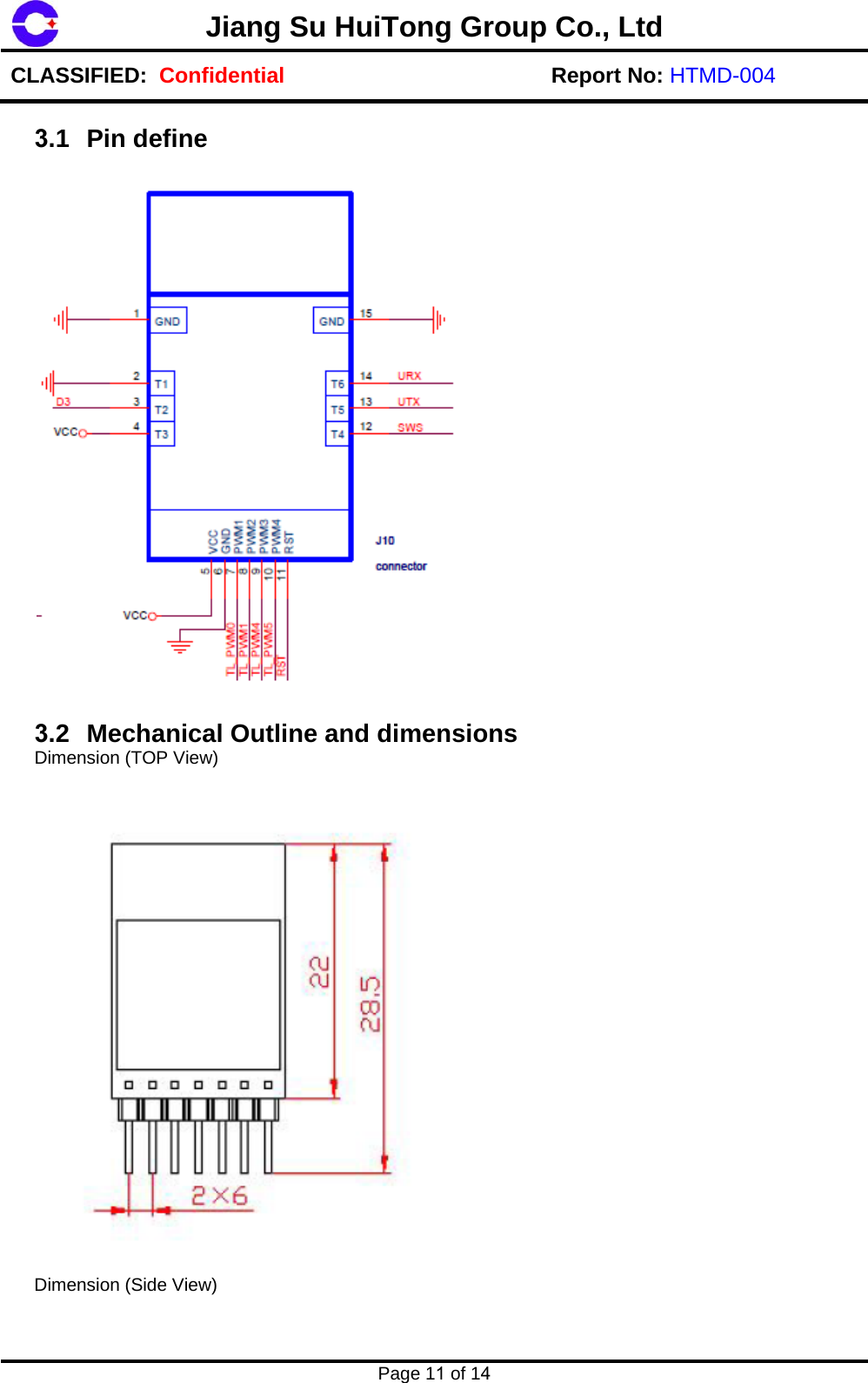

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 11 of 14 3.1 Pin define 3.2 Mechanical Outline and dimensions Dimension (TOP View) Dimension (Side View)

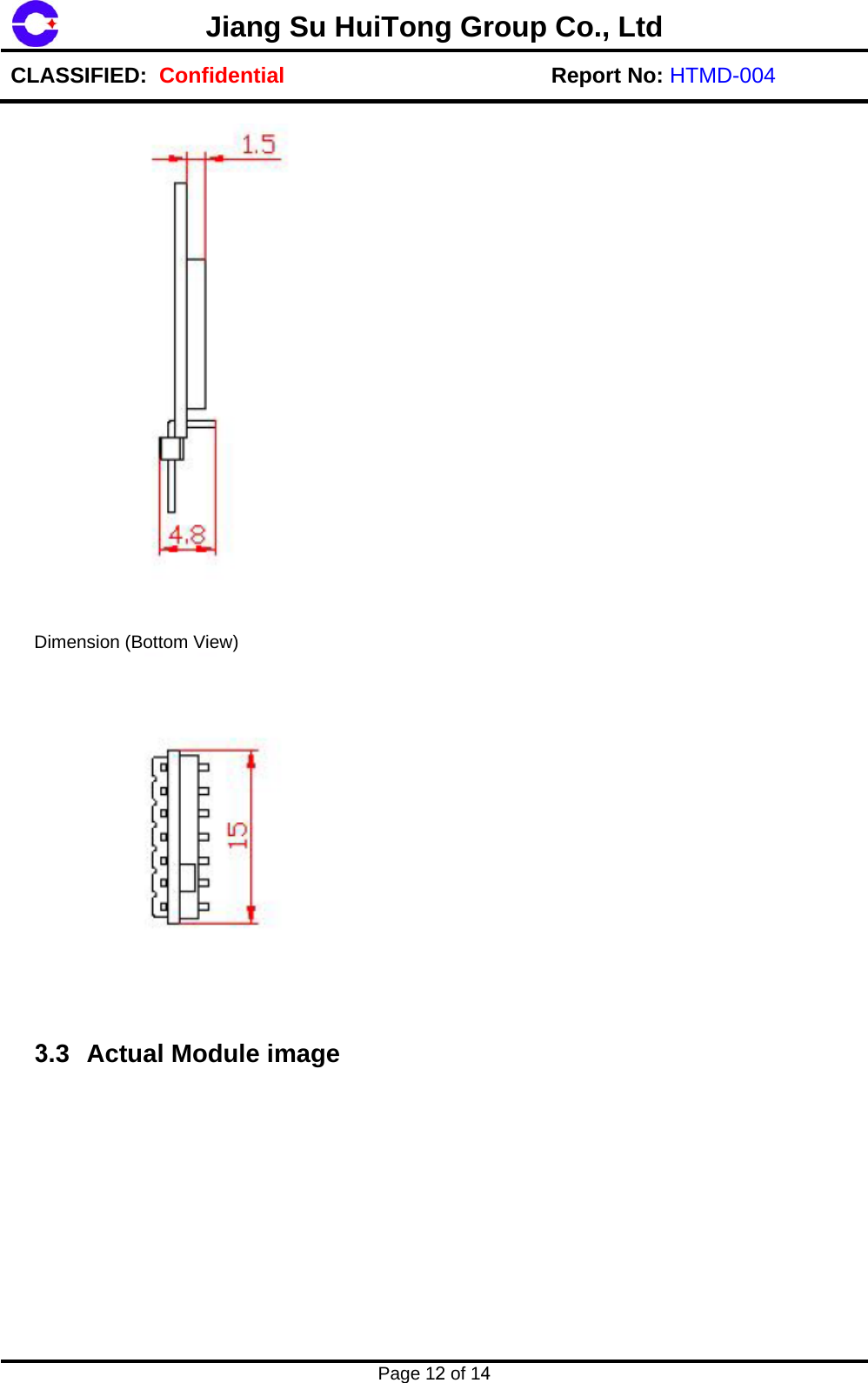

Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004 Page 12 of 14 Dimension (Bottom View) 3.3 Actual Module image

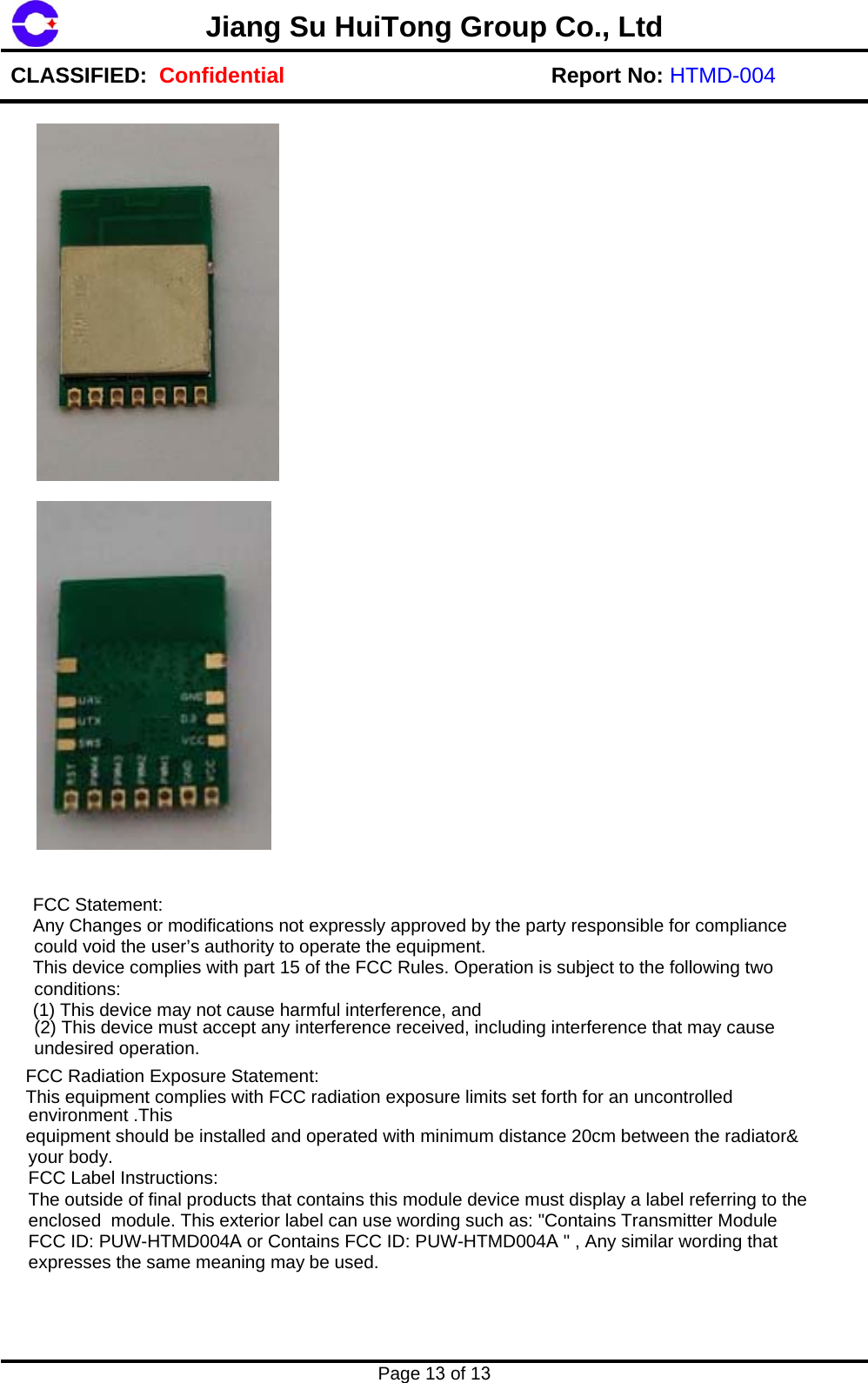

Page 13 of 13 Jiang Su HuiTong Group Co., LtdCLASSIFIED:  Confidential Report No: HTMD-004  FCC Statement:   Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.   This device complies with part 15 of the FCC Rules. Operation is subject to the following two  conditions:   (1) This device may not cause harmful interference, and  (2) This device must accept any interference received, including interference that may cause undesired operation.   FCC Radiation Exposure Statement:   This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This   equipment should be installed and operated with minimum distance 20cm between the radiator& your body.  FCC Label Instructions:  The outside of final products that contains this module device must display a label referring to the enclosed  module. Thi s exterior label can use wording such as: "Contains Transmitter Module FCC ID: PUW-HTMD00 4A or Contains FCC ID: PUW-HTMD004A " , Any similar wording that expresses the same meaning may  be used.
