JiangSu HuiTong Group HTMD004A TL8269 Light Module User Manual

JiangSu HuiTong Group Co.,Ltd TL8269 Light Module

User Manual

Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 1 of 13
TL8269 LIGHT MODULE
Specifications Datasheet
Module supports:
Module Part Number:
Module#ModuleName HTPartNumber remark
#1TL8269LIGHTMODULEHTMD‐004A
Role Name: Appointment: Signature:
Author Li Dan Design Engineer
Checked by Nick Qiao PM – R&D
Approved by Yin Zhi Lin CTO
Date: Classification Version: Status:
<31 July 2018> Confidential <V0.1> <Draft>
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 2 of 13
Revision History:
Version Date
(dd/mm/yyyy) Author Status Modifications
V0.1 31/07/2018 Li Dan Draft Doc creation
© Jiang Su HuiTong Group Co., Ltd
All rights are reserved. The information presented in this document does not form part of any quotation, is
believed to be accurate and reliable and may be changed without notice. No liability will be accepted by
the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 3 of 13
1 Introduction
1.1 Scope
Module
#ModuleName HTP/NSOCStandard
Supported
Bluetooth
Standard
Supported
RFFrequency
Band
Interfaceto
Host
Module
Size
#1TL8269LIGHT
MODULEHTMD‐004AZigbee3.0 2.4G(2.4~
2.5GHz) UART
22mm(L)x
15mm(W)
x
3.5mm(H)
Note:

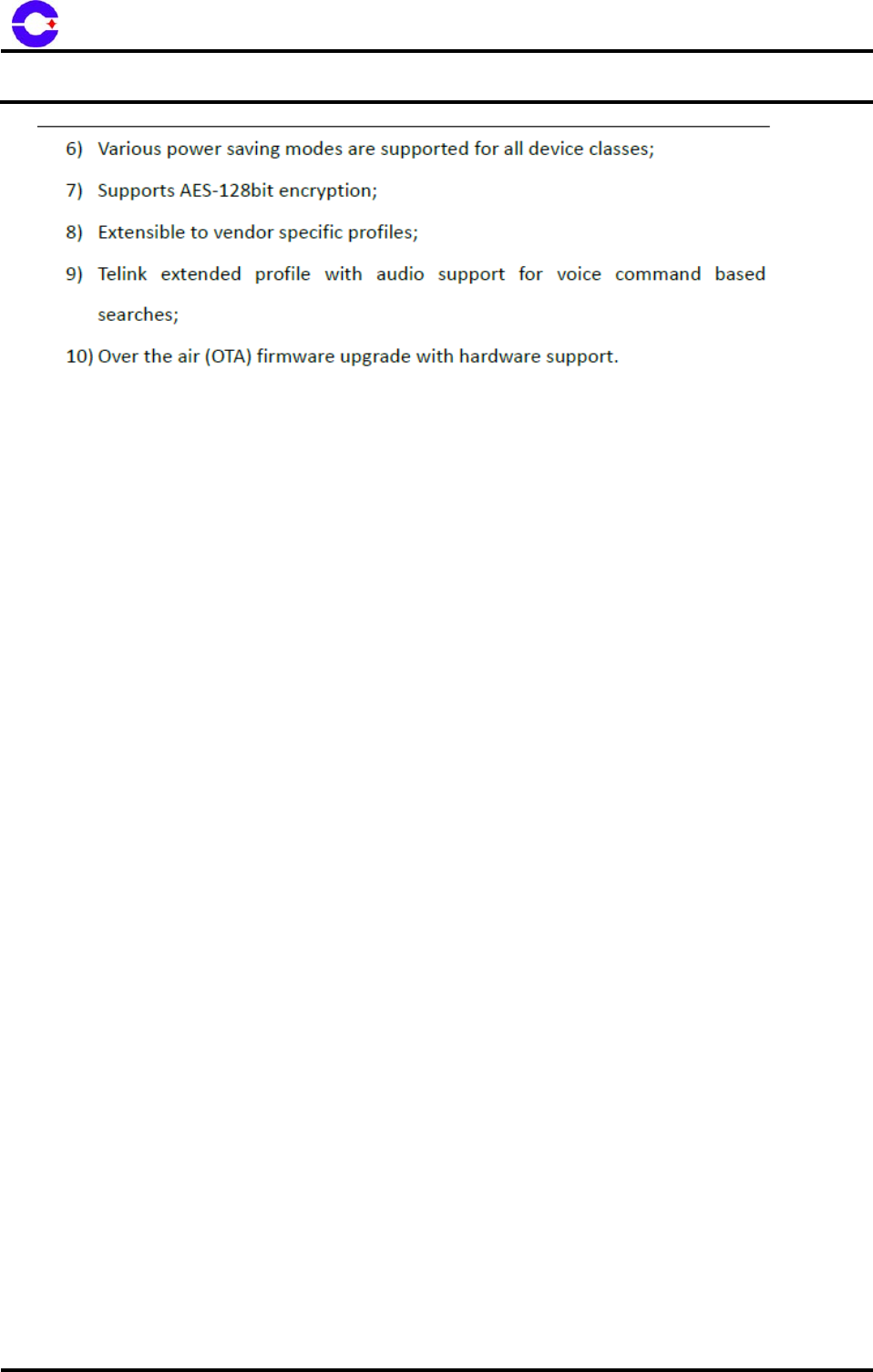

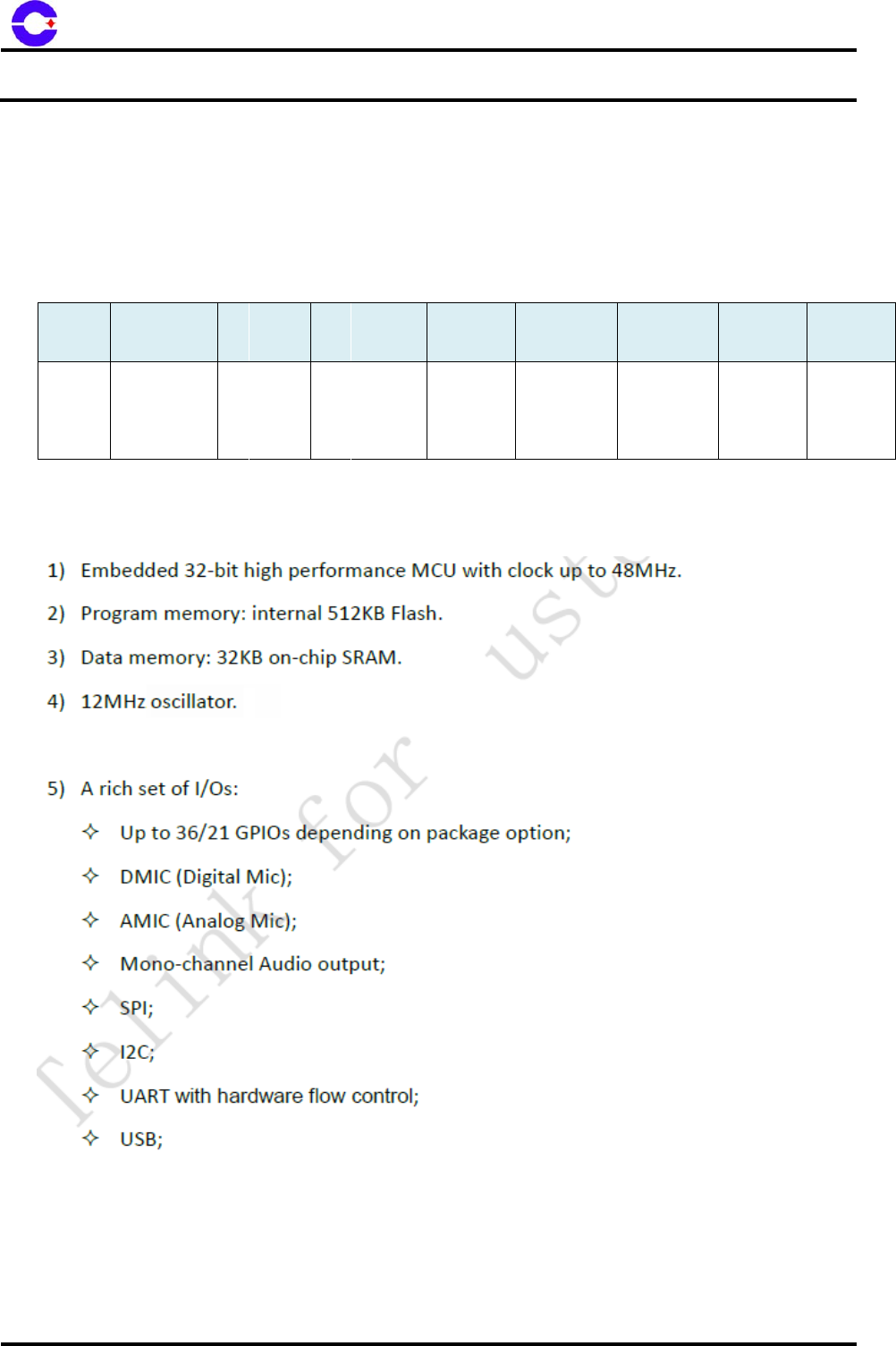

1.2 Product
Features
TLSR8269F512AT32

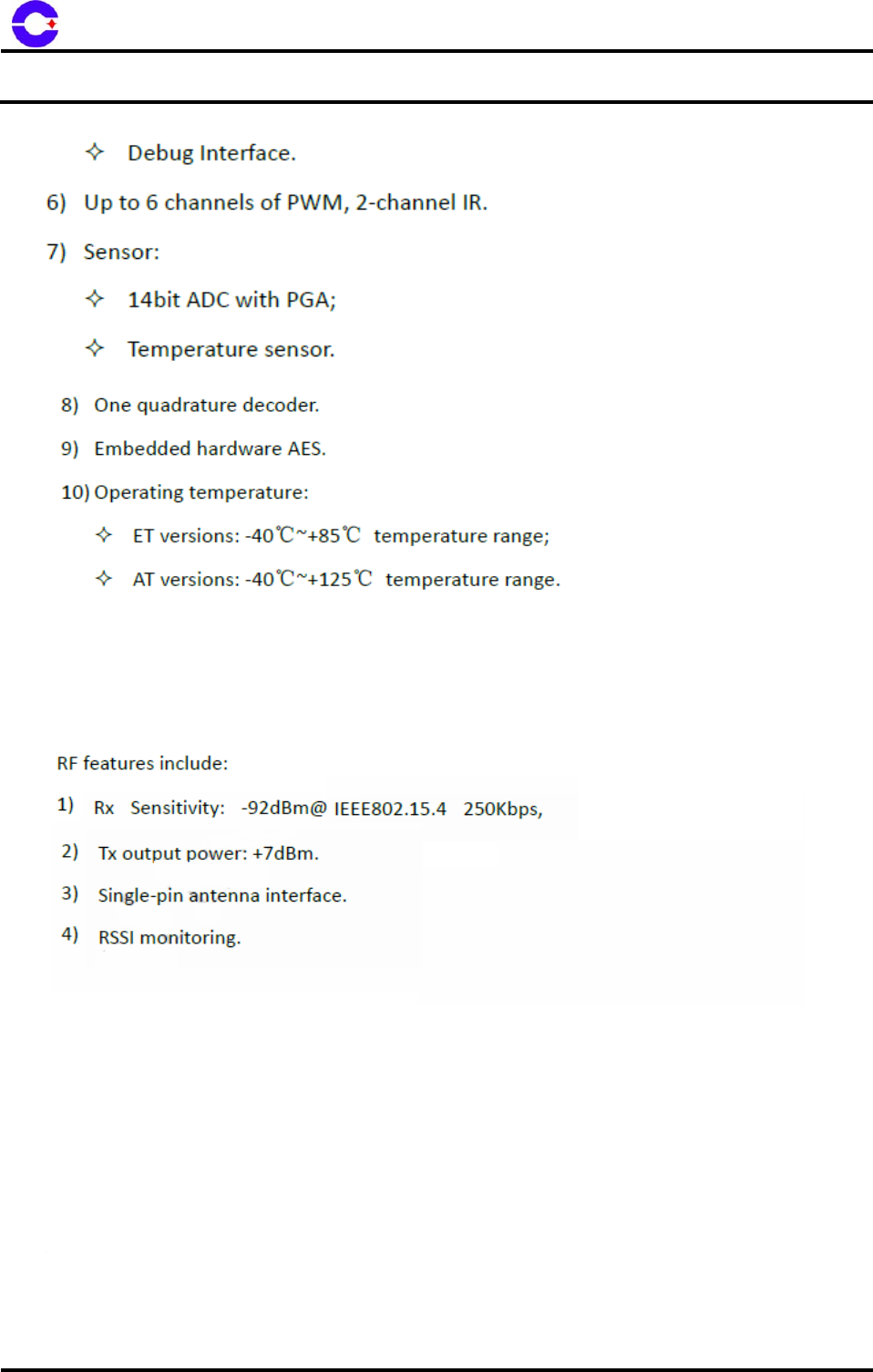

Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 4 of 13

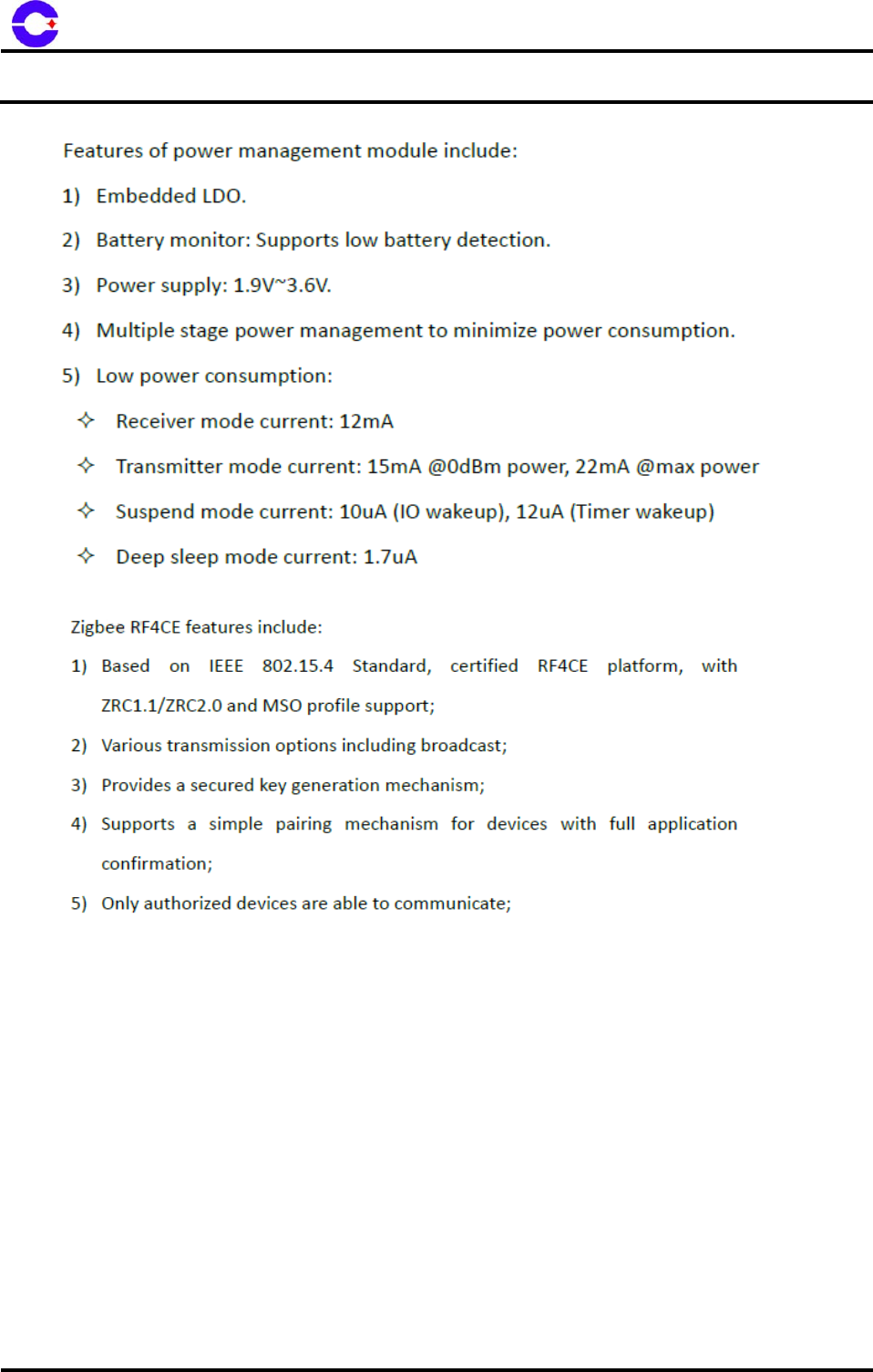

Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 5 of 13
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 6 of 13
Ambient Conditions:
Operation Temperature: -10℃ ~ +120℃
Storage Temperature: -40℃ ~ +85℃
Operation Humidity: 10 ~ 90% RH
Storage Humidity: 5 ~ 95% RH
Environmental compliance:
RoHS compliant
REACH compliant
Approbation:
EU/ Russia:
LATAM:
TBC
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 7 of 13
2 Technical Specifications
2.1 Absolute Maximum Ratings:
Stresses beyond these conditions listed below may cause permanent damage to the module.
Parameters Maximum Rating
Power Supply Voltage at +3V3 (-0.3 ~3.63)V
Input voltage to IO pins (-0.3 ~3.63)V
Storage Temperature Conditions –40 ℃ ~ +85℃.
Storage Humidity conditions 5% to 95% (RH)
ESD (HBM) 1000V
2.2 Recommended Operation Conditions
Parameters Operation Conditions
Operating Temperature
Conditions
(–10 ℃ ~ +120℃)
- No performance reduction up 80°C ambient Temperature
- No component failure up to 120°C ambient
Temperature.
Operating Humidity conditions 10% to 90% (RH)
CTQ parameters are marked with *.
Operation Temperature = room temp
4)
Front End Insertion loss ( including
3)
TX power is at typical level, measured at antenna feed point.
2)
1)
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 8 of 13
2.3 Electrical Specifications
Pre-test conditions:
1 Operation Temperature = room temperature 25°C, unless otherwise noted.
2 CTQ parameters are marked with *.
Item
No. Parameters Test Conditions Specifications/Requirement
Min Typ Max Units
2.3.1 Input power Test board 2.8V 3.3V 3.6V V
2.3.2 Power
consumption
standby mA
2.3.3 Active mA
2.3.4 ESD
EN61000-3-2/3-3: ESD
- IEC61000/4/2 : 8kV air
- ANATEL 442 : 8kV air discharge
Module is mounted into Final
product casing at the designed
location.
No functional failures and
no parts should suffer
damage
2.4 RF Performance
Pre-test conditions:
erature 25°C, unless otherwise noted.
2.4.1 Zigbee RF Specifications
Item
No. Parameters Test Conditions Specifications/Requirement
Min Typ Max Units
2.4.2.1
receiver sensitivity
2405 nominal for 1 % PER, as per
802.15.4 -96 dBm
2.4.2.2 2440 nominal for 1 % PER, as per
802.15.4 -96 dBm
Balun, impedance mis-match+diplexer):
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 9 of 13
2.4.2.3 2480 nominal for 1 % PER, as per
802.15.4 -96 dBm
2.4.2.4
Power
2405 6.95 dBm
2.4.2.5 2440 6.60 dBm
2.4.2.6 2480 3.72 dBm
2.5 Quality, Environmental and Reliability
S/N Electrical Test
Requirement TEST CONDITION Requirement
2.5.1 Dry heat Test Temp. : +70℃
Test time : 96 hrs 4 days
2.5.2 Low Temperature
storage
Temp. : -25℃
Test time : 96 hrs 4 days
2.5.3 Temperature
Shock
Temp. : -20℃ ~ +85℃, Duration : 30 min
Ramp-up & Ramp-down for 5 min, Cycle : 1,000cycle. 35 days
2.5.4 Humidity
Load Test
Leave samples in 40℃±5℃, 90 ~ 95% RH for
21days,
and in standard test condition for 30 minutes
21 days
2.5.5 Vibration test 10-55-10Hz / amplitude 0.35mm / sweep rate 1
octave per min. 1 day
2.5.6 Cold Test Operational/start up after min 4hrs at -10℃ 1 day
2.5.7 Damp heat cyclic
Humidity 93%RH, 6h:temp from 25 ℃ to 40 ℃, 6hrs
temp 40 ℃ to 25 ℃, 6hrs at 25 ℃, operational last
hour only for 21 days.
21 days
2.5.8 Temperature step
stress test Operational up to a temperature of 60 ℃ for 16 days 16 days
2.5.9 Operation Temp. : 60℃, 90% RH, MTBF 50,000 hrs 10 days
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 10 of 13
Life(MTBF)
2.6 EMC Compliance and Certifications
Region Regulation Standards Requirement
EU/RU
Fulfill CE with official test report at
module level to meet the latest
EMC requirement
LATAM:
Fulfill approbation requirements,
with official test report at Module
level
2.7 Environment Compliance
RoHS compliant
REACH compliant
3 Mechanical Drawing
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 11 of 14
3.1 Pin define

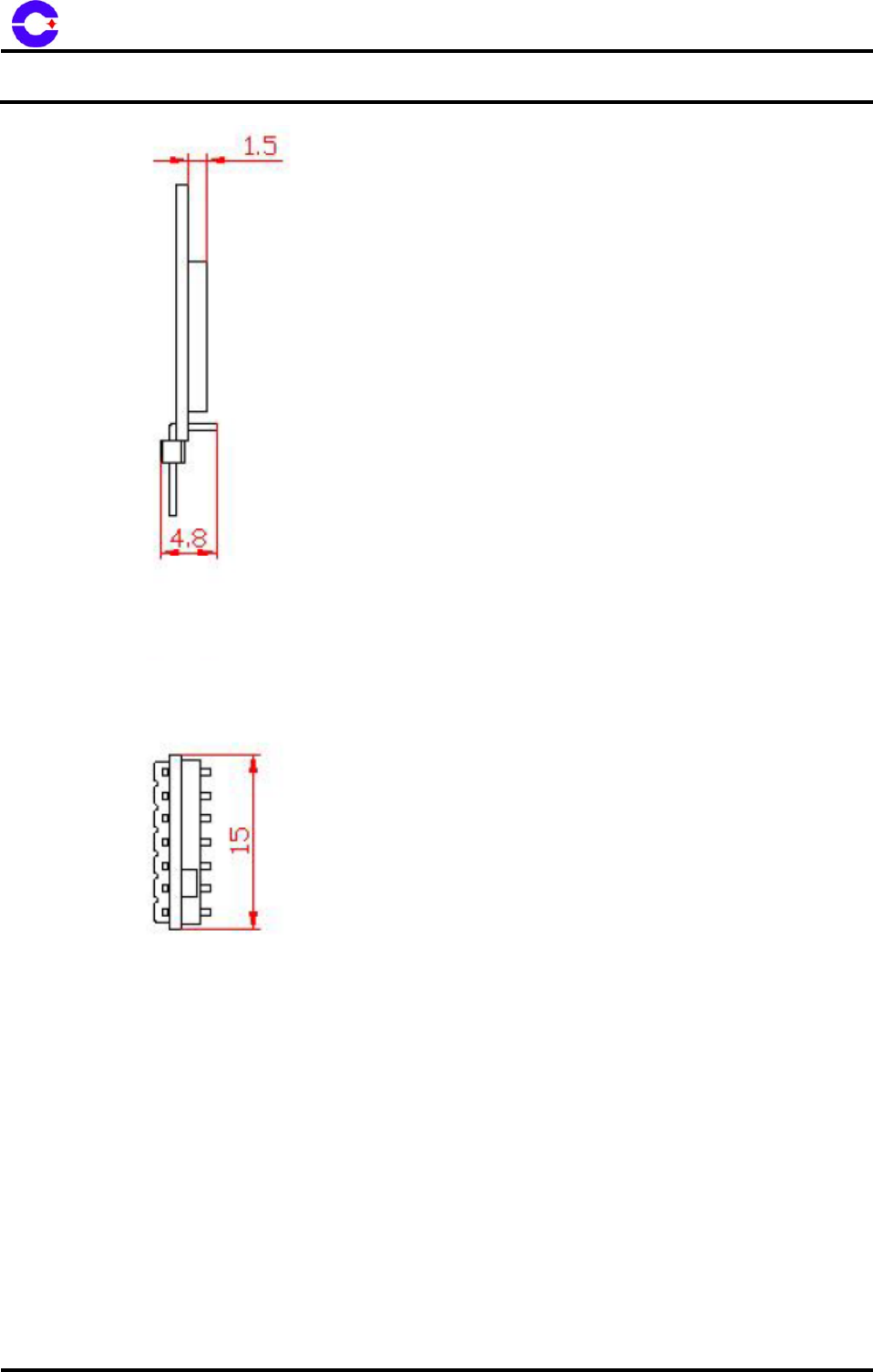

3.2 Mechanical Outline and dimensions
Dimension (TOP View)
Dimension (Side View)
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
Page 12 of 14
Dimension (Bottom View)

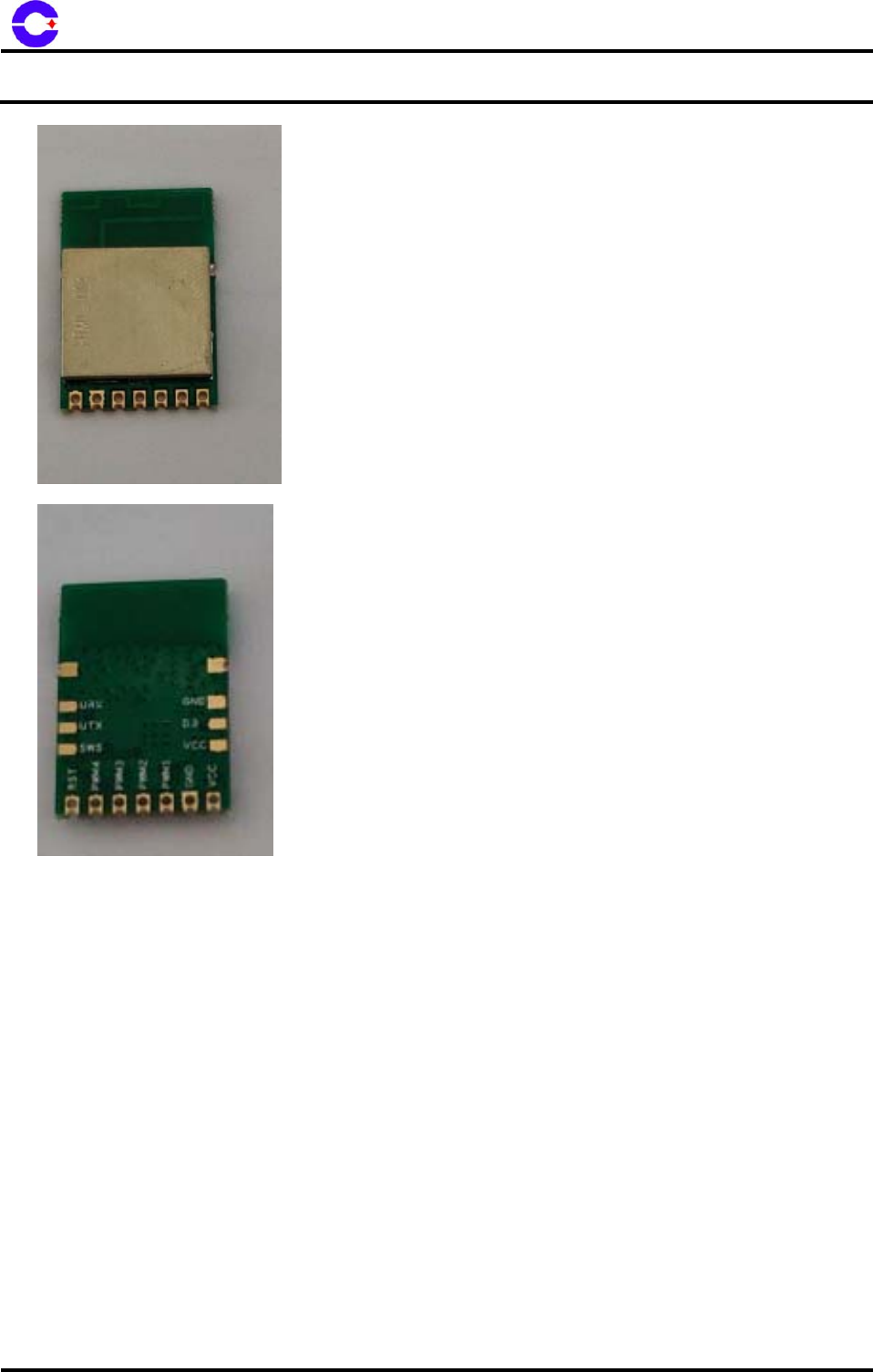

3.3 Actual Module image
Page 13 of 13
Jiang Su HuiTong Group Co., Ltd
CLASSIFIED: Confidential Report No: HTMD-004
FCC Statement:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator&
your body.
FCC Label Instructions:
The outside of final products that contains this module device must display a label referring to the
enclosed module. Thi s exterior label can use wording such as: "Contains Transmitter Module
FCC ID: PUW-HTMD00 4A or Contains FCC ID: PUW-HTMD004A " , Any similar wording that
expresses the same meaning may be used.
