JiangSu HuiTong Group HTMD005A NXP5169 Module User Manual

JiangSu HuiTong Group Co.,Ltd NXP5169 Module

User Manual

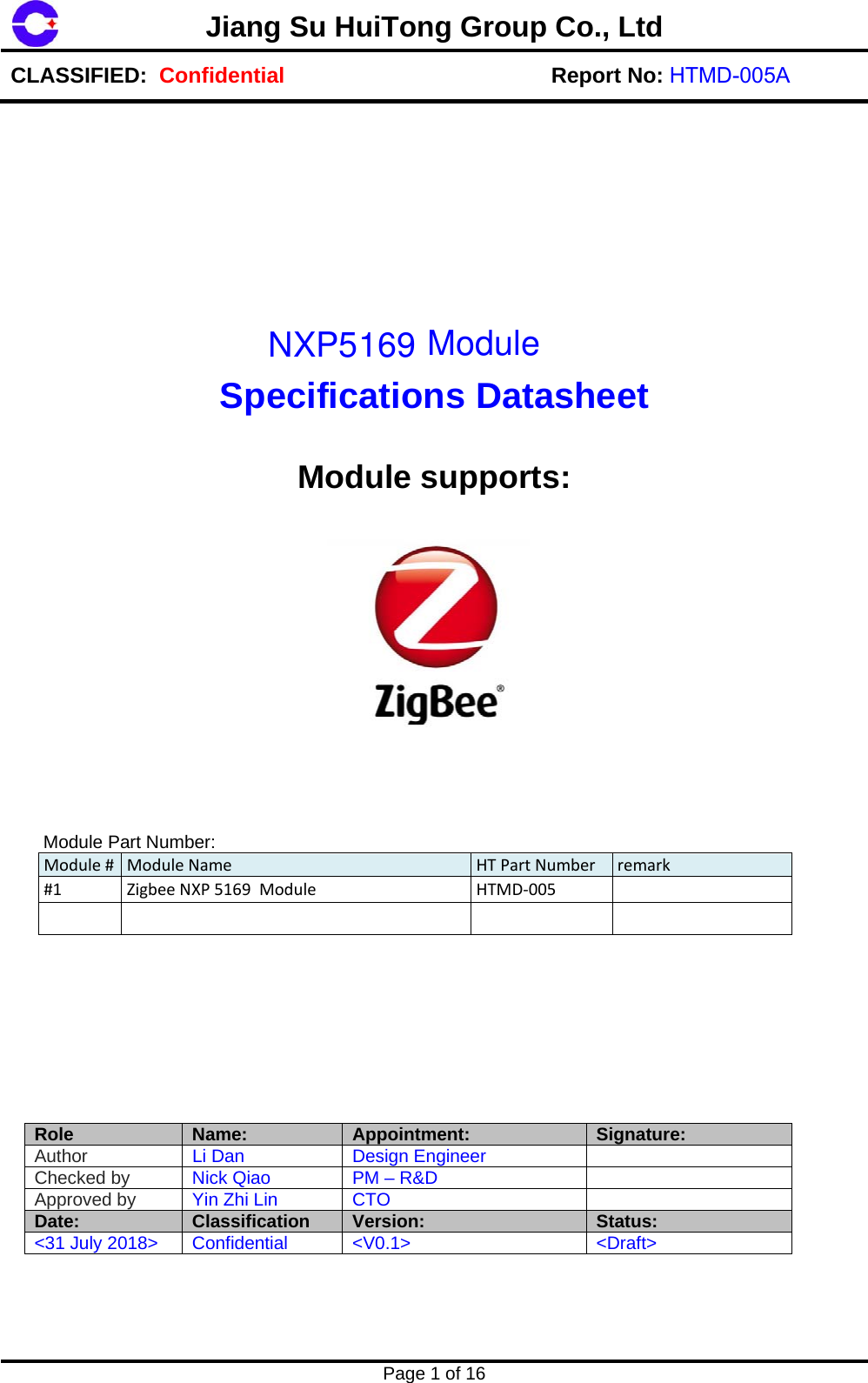

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 1 of 16 Specifications Datasheet Module supports: Module Part Number: Module#ModuleName HTPartNumber remark#1ZigbeeNXP5169ModuleHTMD‐005Role Name: Appointment: Signature: Author Li Dan Design Engineer Checked by Nick Qiao PM – R&D Approved by Yin Zhi Lin CTO Date: Classification Version: Status: <31 July 2018> Confidential <V0.1> <Draft> NXP5169 Module

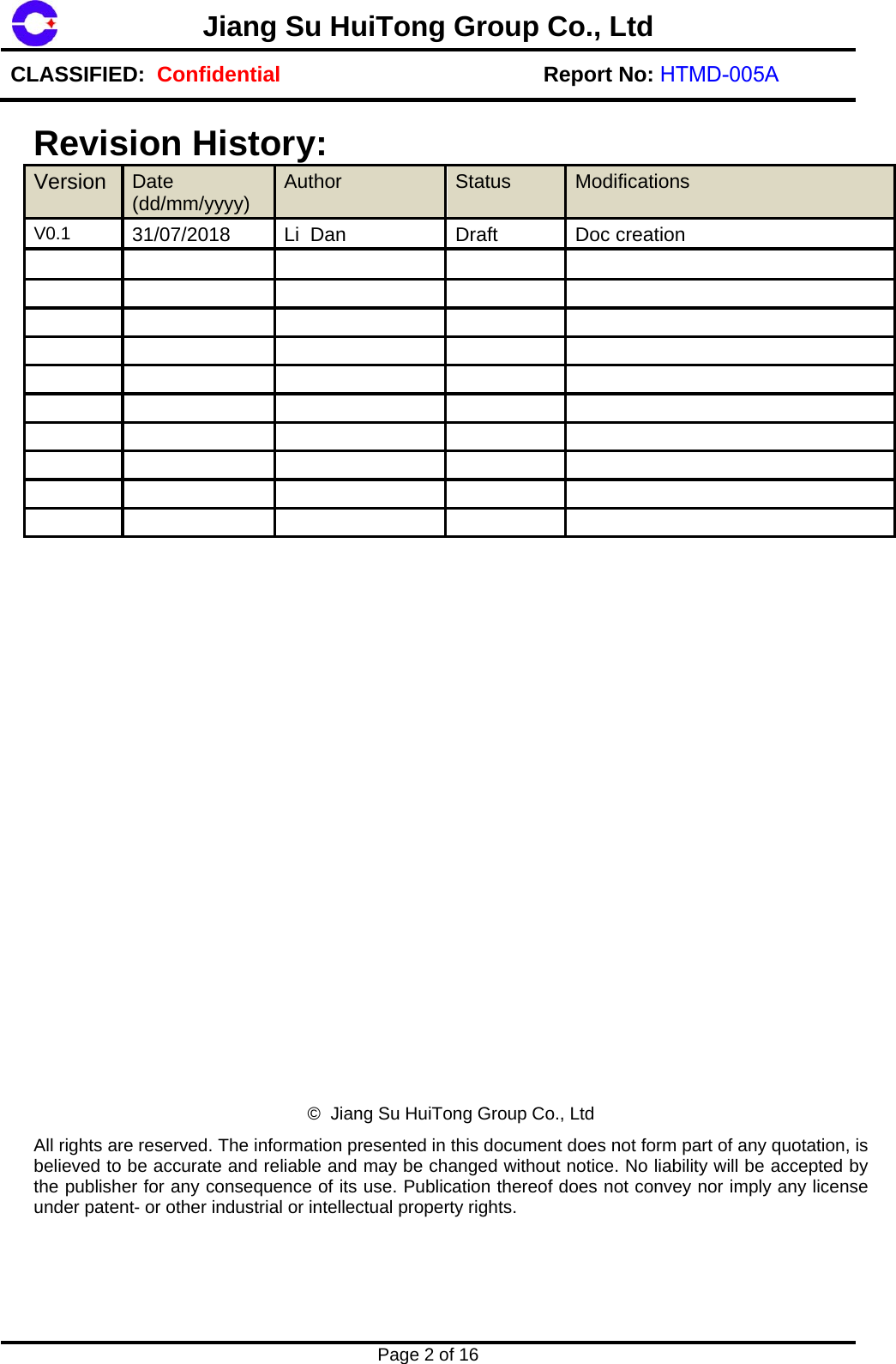

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 2 of 16 Revision History: Version Date (dd/mm/yyyy) Author Status Modifications V0.1 31/07/2018 Li Dan Draft Doc creation © Jiang Su HuiTong Group Co., Ltd All rights are reserved. The information presented in this document does not form part of any quotation, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

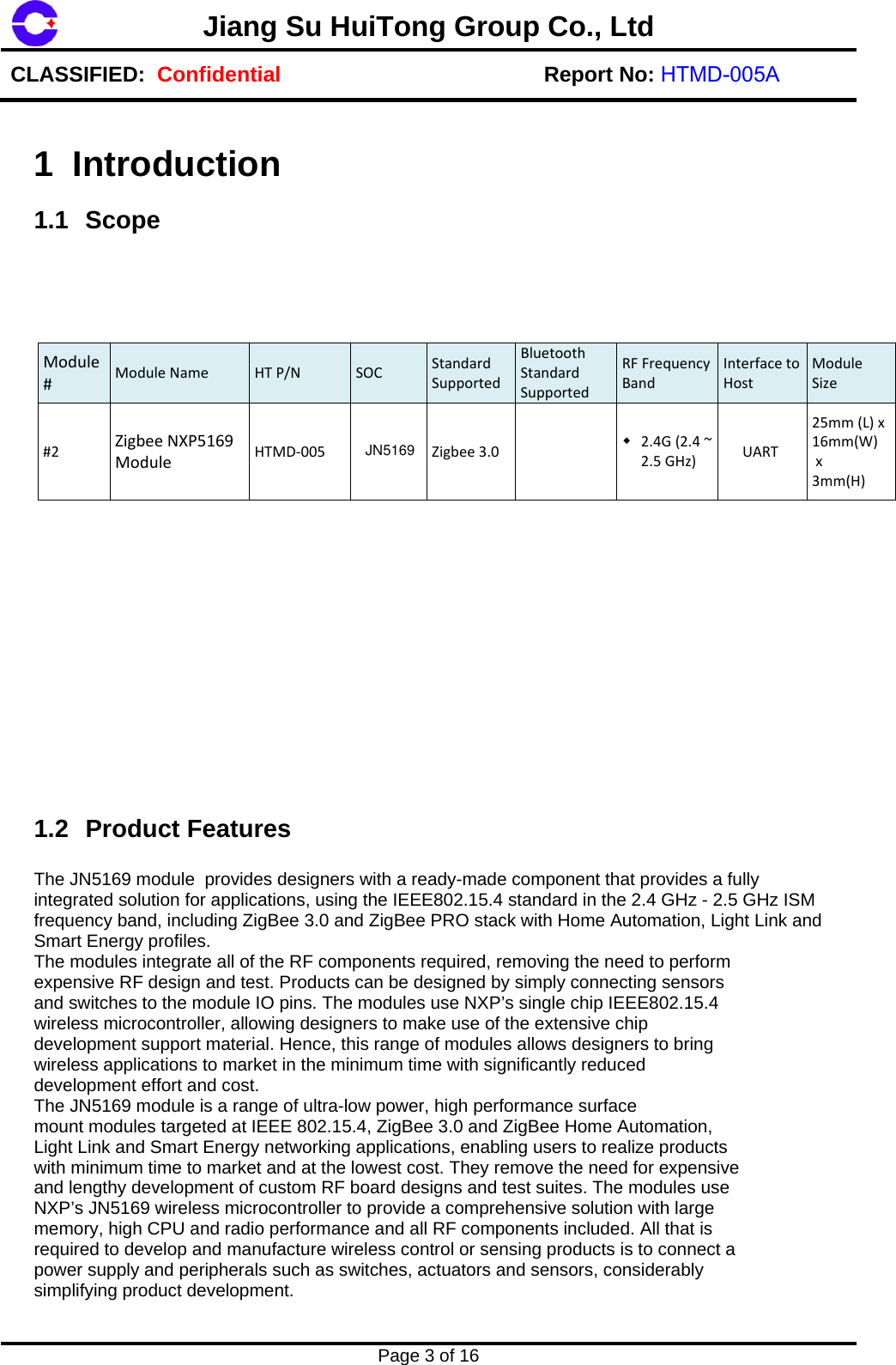

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 3 of 16 1 Introduction 1.1 Scope Module#ModuleName HTP/NSOCStandardSupportedBluetoothStandardSupportedRFFrequencyBandInterfacetoHostModuleSize#2ZigbeeNXP5169ModuleHTMD‐005Zigbee3.0 2.4G(2.4~2.5GHz) UART25mm(L)x16mm(W)x3mm(H)1.2 Product Features The JN5169 module provides designers with a ready-made component that provides a fully integrated solution for applications, using the IEEE802.15.4 standard in the 2.4 GHz - 2.5 GHz ISM frequency band, including ZigBee 3.0 and ZigBee PRO stack with Home Automation, Light Link and Smart Energy profiles. The modules integrate all of the RF components required, removing the need to perform expensive RF design and test. Products can be designed by simply connecting sensors and switches to the module IO pins. The modules use NXP’s single chip IEEE802.15.4 wireless microcontroller, allowing designers to make use of the extensive chip development support material. Hence, this range of modules allows designers to bring wireless applications to market in the minimum time with significantly reduced development effort and cost. The JN5169 module is a range of ultra-low power, high performance surface mount modules targeted at IEEE 802.15.4, ZigBee 3.0 and ZigBee Home Automation, Light Link and Smart Energy networking applications, enabling users to realize products with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules use NXP’s JN5169 wireless microcontroller to provide a comprehensive solution with large memory, high CPU and radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. JN5169

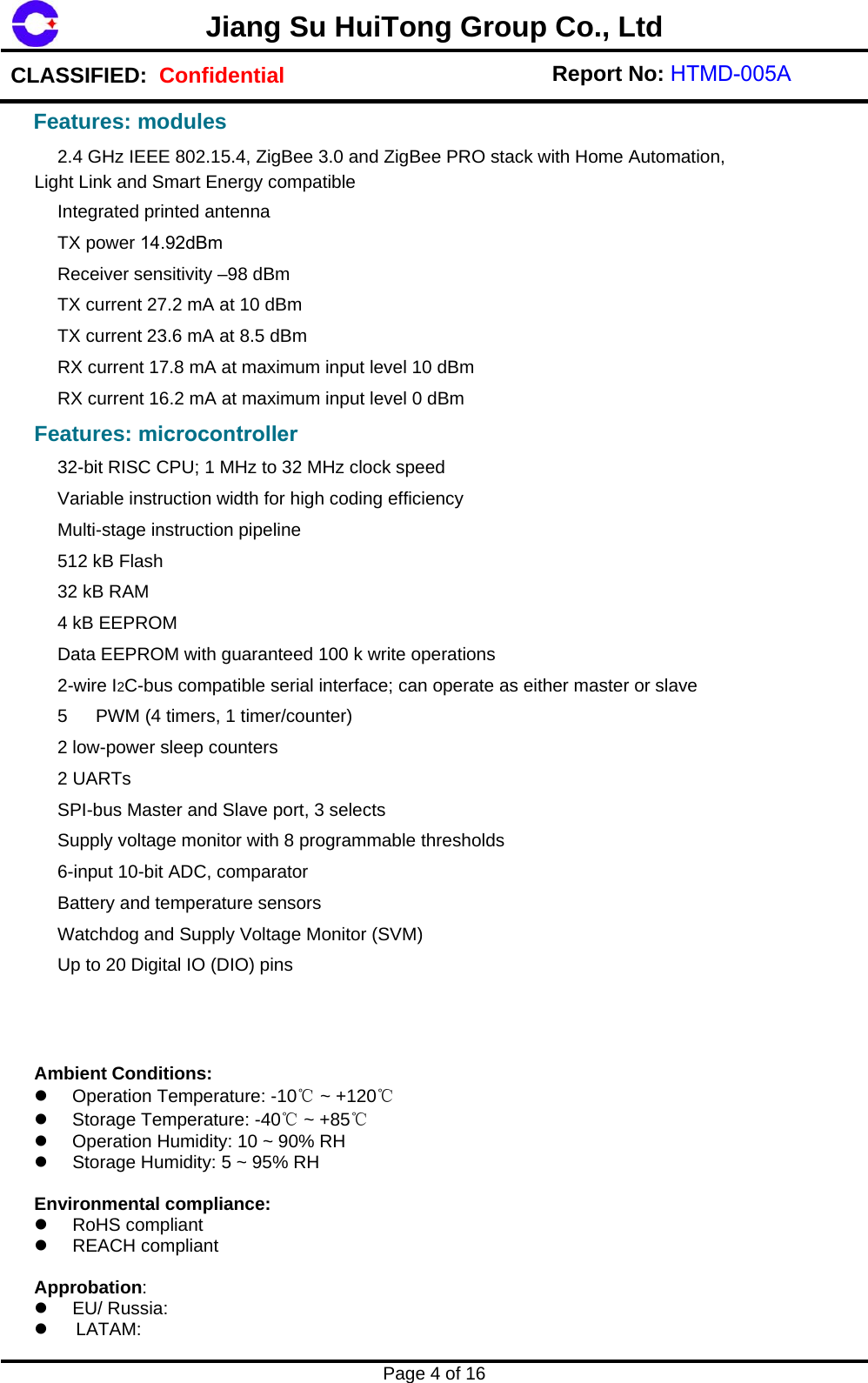

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 4 of 16 　 2.4 GHz IEEE 802.15.4, ZigBee 3.0 and ZigBee PRO stack with Home Automation, Light Link and Smart Energy compatible 　 Integrated printed antenna 　 TX power 14.92dBm　 Receiver sensitivity –98 dBm 　 TX current 27.2 mA at 10 dBm 　 TX current 23.6 mA at 8.5 dBm 　 RX current 17.8 mA at maximum input level 10 dBm 　 RX current 16.2 mA at maximum input level 0 dBm Features: microcontroller　 32-bit RISC CPU; 1 MHz to 32 MHz clock speed 　 Variable instruction width for high coding efficiency 　 Multi-stage instruction pipeline 　 512 kB Flash 　 32 kB RAM 　 4 kB EEPROM 　 Data EEPROM with guaranteed 100 k write operations 　 2-wire I2C-bus compatible serial interface; can operate as either master or slave 　 5 　 PWM (4 timers, 1 timer/counter) 　 2 low-power sleep counters 　 2 UARTs 　 SPI-bus Master and Slave port, 3 selects 　 Supply voltage monitor with 8 programmable thresholds 　 6-input 10-bit ADC, comparator 　 Battery and temperature sensors 　 Watchdog and Supply Voltage Monitor (SVM) 　 Up to 20 Digital IO (DIO) pins Ambient Conditions: Operation Temperature: -10℃ ~ +120℃Storage Temperature: -40℃ ~ +85℃Operation Humidity: 10 ~ 90% RHStorage Humidity: 5 ~ 95% RHEnvironmental compliance: RoHS compliantREACH compliantApprobation: EU/ Russia:LATAM:Features: modules

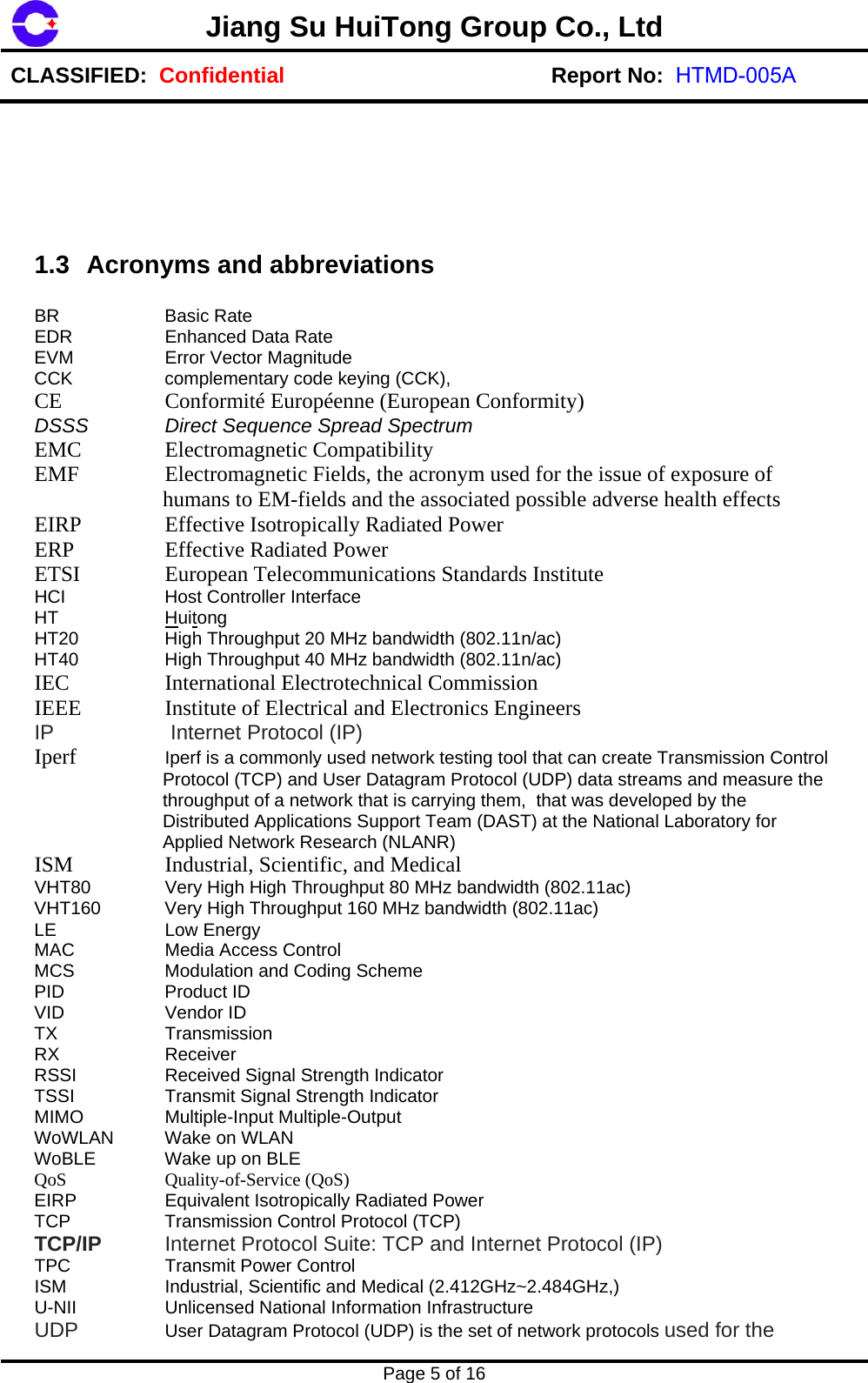

U-NII Unlicensed National Information Infrastructure l (2.412GHz~2.484GHz,) Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005APage 5 of 16 1.3 Acronyms and abbreviations BR Basic Rate EDR Enhanced Data Rate EVM Error Vector Magnitude CCK complementary code keying (CCK), CE Conformité Européenne (European Conformity) DSSS Direct Sequence Spread Spectrum EMC Electromagnetic Compatibility EMF Electromagnetic Fields, the acronym used for the issue of exposure of humans to EM-fields and the associated possible adverse health effects EIRP Effective Isotropically Radiated Power ERP Effective Radiated Power ETSI European Telecommunications Standards Institute HCI Host Controller Interface HT Huitong HT20 High Throughput 20 MHz bandwidth (802.11n/ac) HT40 High Throughput 40 MHz bandwidth (802.11n/ac) IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IP Internet Protocol (IP) Iperf Iperf is a commonly used network testing tool that can create Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) data streams and measure the throughput of a network that is carrying them, that was developed by the Distributed Applications Support Team (DAST) at the National Laboratory for Applied Network Research (NLANR) ISM Industrial, Scientific, and Medical VHT80 Very High High Throughput 80 MHz bandwidth (802.11ac) VHT160 Very High Throughput 160 MHz bandwidth (802.11ac) LE Low Energy MAC Media Access Control MCS Modulation and Coding Scheme PID Product ID VID Vendor ID TX Transmission RX Receiver RSSI Received Signal Strength Indicator TSSI Transmit Signal Strength Indicator MIMO Multiple-Input Multiple-Output WoWLAN Wake on WLAN WoBLE Wake up on BLE QoS Quality-of-Service (QoS) EIRP Equivalent Isotropically Radiated Power TCP Transmission Control Protocol (TCP) TCP/IP Internet Protocol Suite: TCP and Internet Protocol (IP) TPC Transmit Power Control ISM Industrial, Scientific and MedicaUDP User Datagram Protocol (UDP) is the set of network protocols used for the
Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005APage 6 of 16 Internet. VSWR Voltage Standing Wave Ratio WiFi Wireless Fidelity 1.4 REFERENCES 1. NXP5169_Data_sheetV1.01.pdf

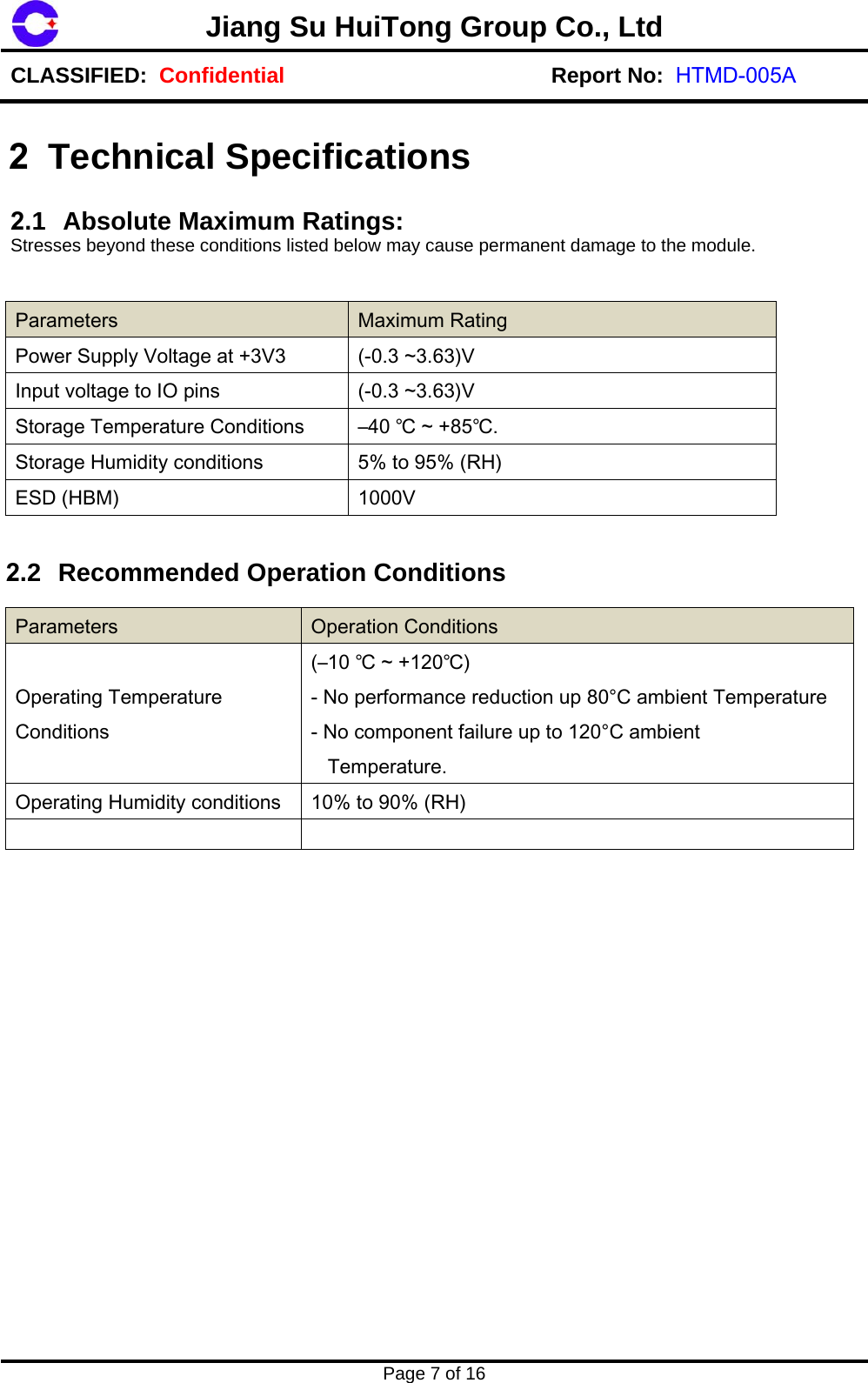

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005APage 7 of 16 2 Technical Specifications 2.1 Absolute Maximum Ratings: Stresses beyond these conditions listed below may cause permanent damage to the module. Parameters Maximum Rating Power Supply Voltage at +3V3 (-0.3 ~3.63)V Input voltage to IO pins (-0.3 ~3.63)V Storage Temperature Conditions –40 ℃ ~ +85℃.Storage Humidity conditions 5% to 95% (RH) ESD (HBM) 1000V 2.2 Recommended Operation Conditions Parameters Operation Conditions Operating Temperature Conditions (–10 ℃ ~ +120℃) - No performance reduction up 80°C ambient Temperature - No component failure up to 120°C ambient Temperature. Operating Humidity conditions 10% to 90% (RH)
CTQ parameters are marked with *.4)Operation Temperature = room tempFront End Insertion loss ( including 3) TX power is at typical level, measured at antenna feed point. 2) 1) Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 8 of 16 2.3 Electrical Specifications Pre-test conditions: 1 Operation Temperature = room temperature 25°C, unless otherwise noted. 2 CTQ parameters are marked with *. Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units3.3.1 Input power Test board 2.8V 3.3V 3.6V V 3.3.2 Power consumption standby mA 3.3.3 Active mA 3.3.4 ESD EN61000-3-2/3-3: ESD - IEC61000/4/2 : 8kV air - ANATEL 442 : 8kV air discharge Module is mounted into Final product casing at the designed location. No functional failures and no parts should suffer damage 2.4 RF Performance Pre-test conditions: Balun, impedance mis-match+diplexer): erature 25°C, unless otherwise noted. 2.4.1 Zigbee RF Specifications Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units2.4.2.1 receiver sensitivity2405 nominal for 1 % PER, as per802.15.4 -96 dBm 2.4.2.2 2440 nominal for 1 % PER, as per802.15.4 -96 dBm 2.4.2.3 2480 nominal for 1 % PER, as per802.15.4 -96 dBm
Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: Page 9 of 16 2.4.2.4 Power 2405 14.76 dBm 2.4.2.5 2440 14.92 dBm 2.4.2.6 2480 -2.31 dBm 2.5 Quality, Environmental and Reliability S/N Electrical Test Requirement TEST CONDITION Requirement2.5.1 Dry heat Test Temp. : +70℃ Test time : 96 hrs 4 days 2.5.2 Low Temperature storage Temp. : -25℃ Test time : 96 hrs 4 days 2.5.3 Temperature Shock Temp. : -20℃ ~ +85℃, Duration : 30 min Ramp-up & Ramp-down for 5 min, Cycle : 1,000cycle. 35 days 2.5.4 Humidity Load Test Leave samples in 40℃±5℃, 90 ~ 95% RH for 21days, and in standard test condition for 30 minutes 21 days 2.5.5 Vibration test 10-55-10Hz / amplitude 0.35mm / sweep rate 1 octave per min. 1 day 2.5.6 Cold Test Operational/start up after min 4hrs at -10℃ 1 day 2.5.7 Damp heat cyclic Humidity 93%RH, 6h:temp from 25 ℃ to 40 ℃, 6hrs temp 40 ℃ to 25 ℃, 6hrs at 25 ℃, operational last hour only for 21 days. 21 days 2.5.8 Temperature step stress test Operational up to a temperature of 60 ℃ for 16 days 16 days 2.5.9 Operation Life(MTBF) Temp. : 60℃, 90% RH, MTBF 50,000 hrs 10 days 3.6 EMC Compliance and Certifications

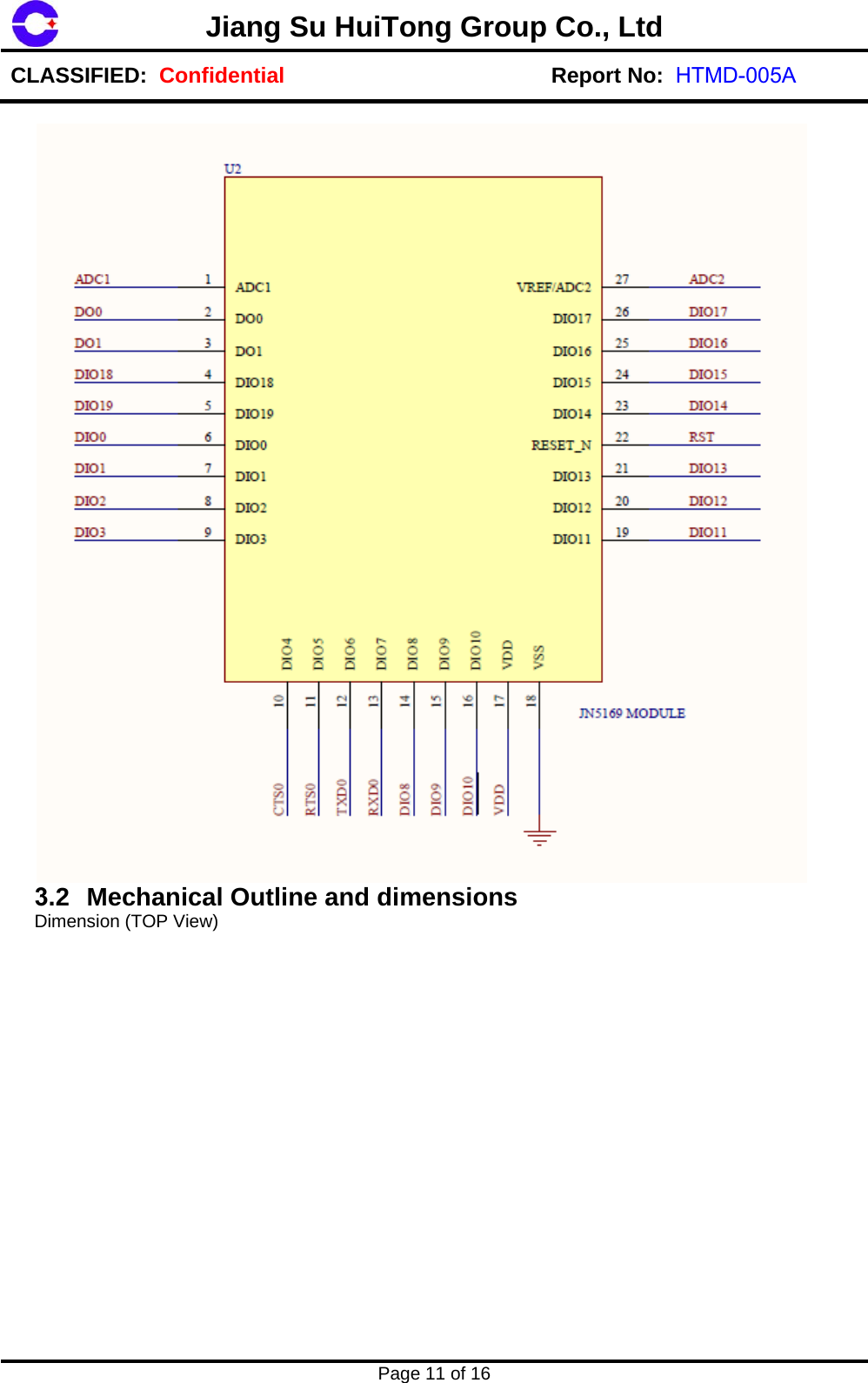

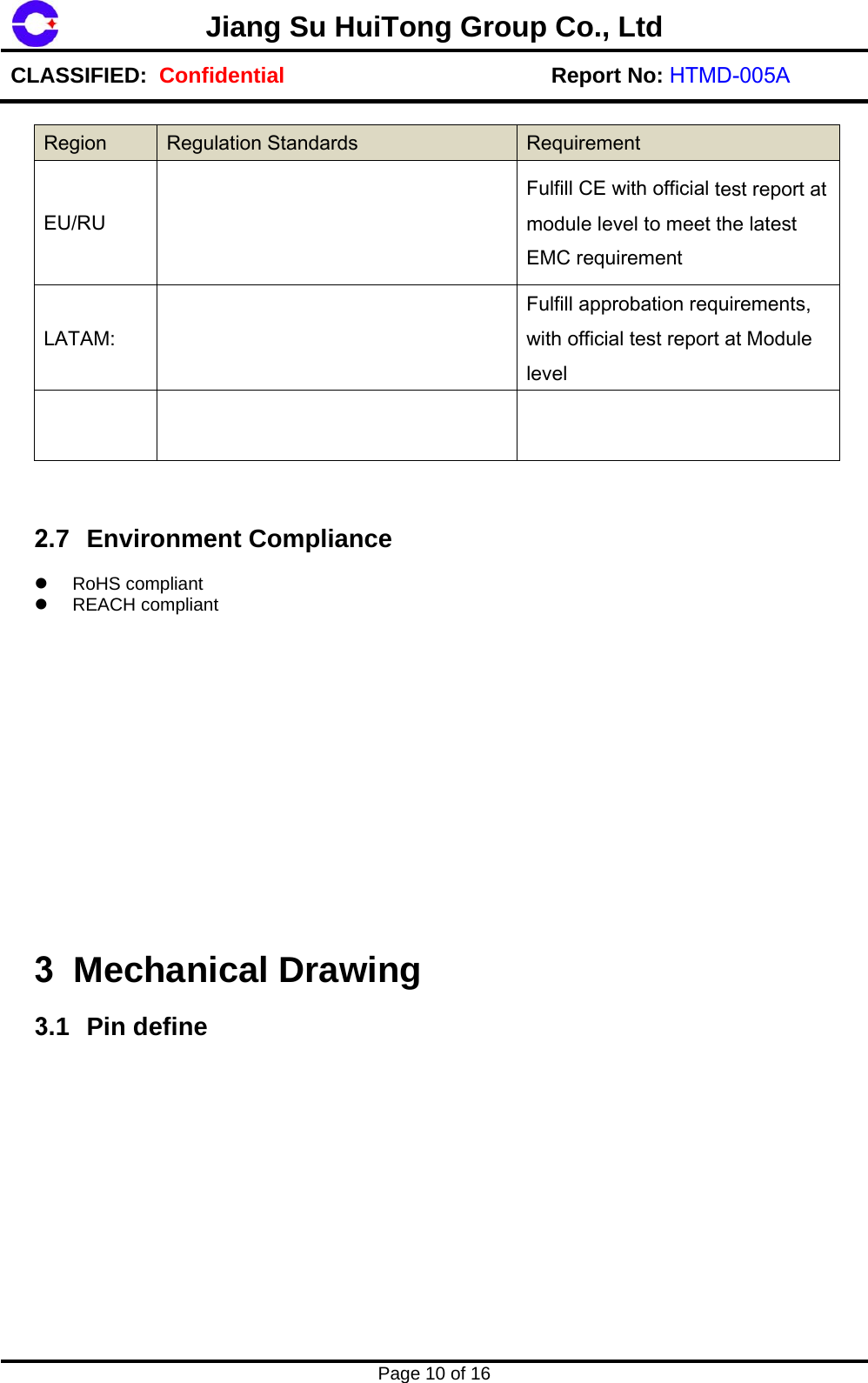

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 10 of 16 Region Regulation Standards Requirement EU/RU Fulfill CE with official test report at module level to meet the latest EMC requirement LATAM: Fulfill approbation requirements, with official test report at Module level 2.7 Environment Compliance RoHS compliantREACH compliant3 Mechanical Drawing 3.1 Pin define

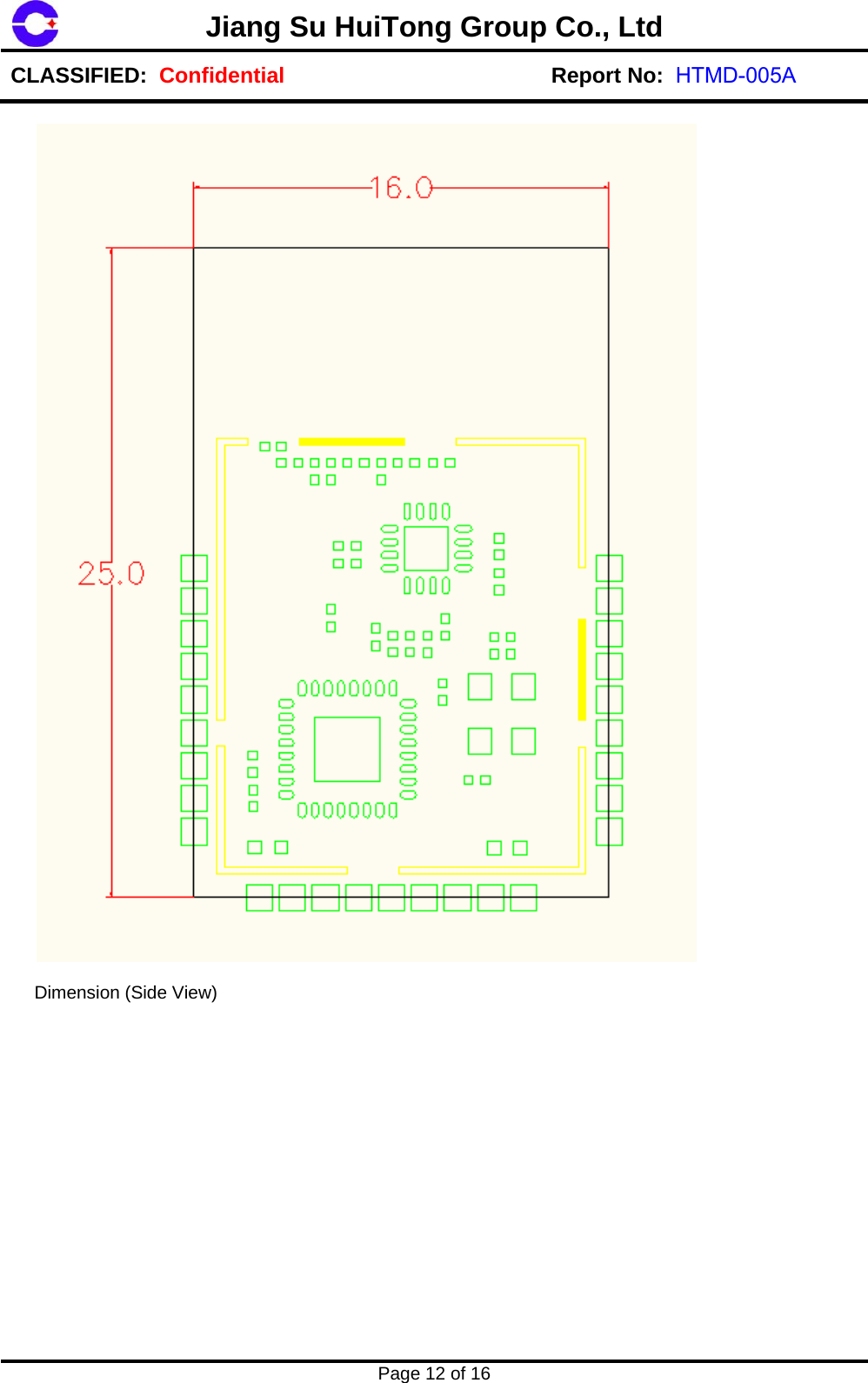

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005APage 11 of 16 3.2 Mechanical Outline and dimensions Dimension (TOP View)
Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005APage 12 of 16 Dimension (Side View)

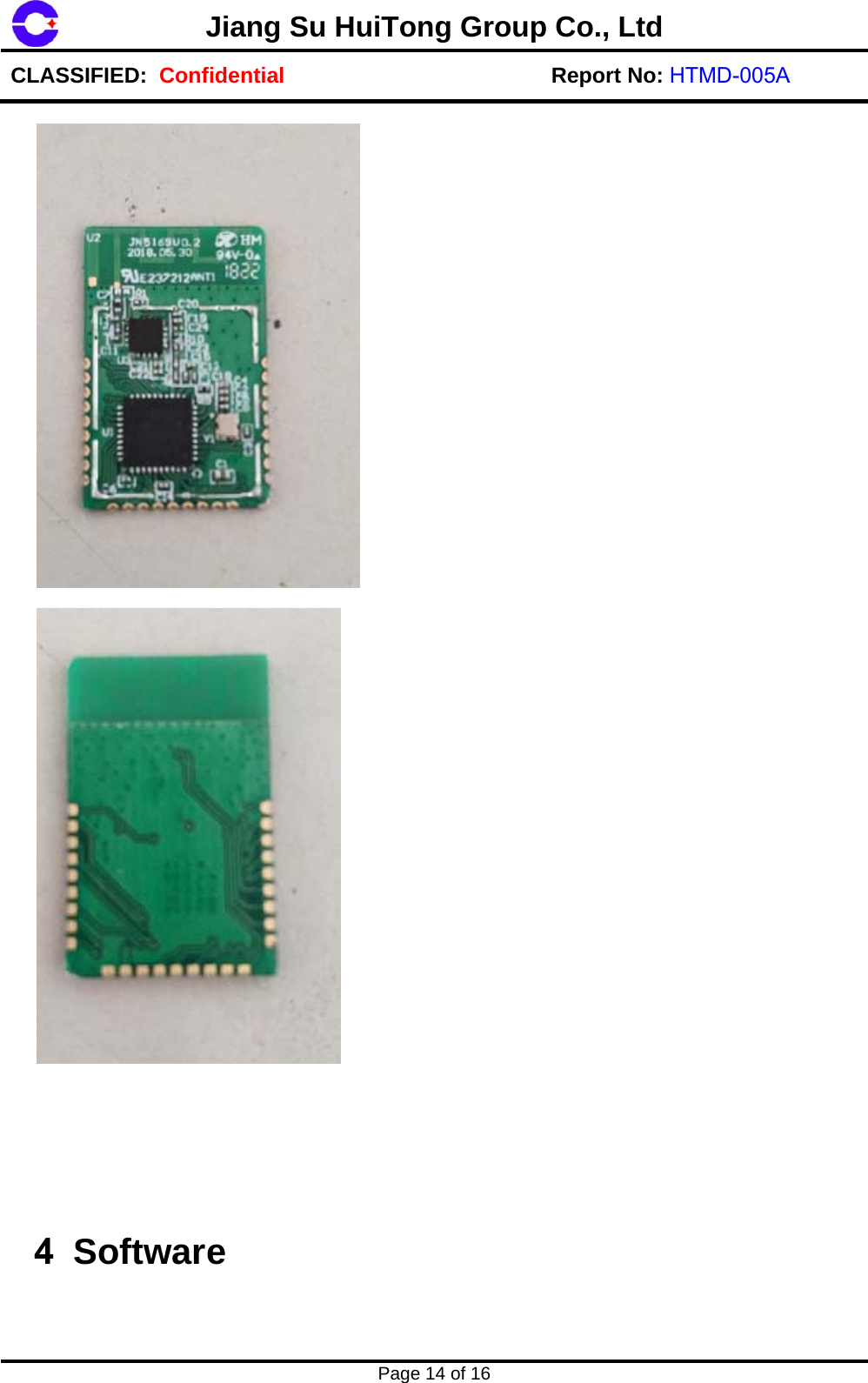

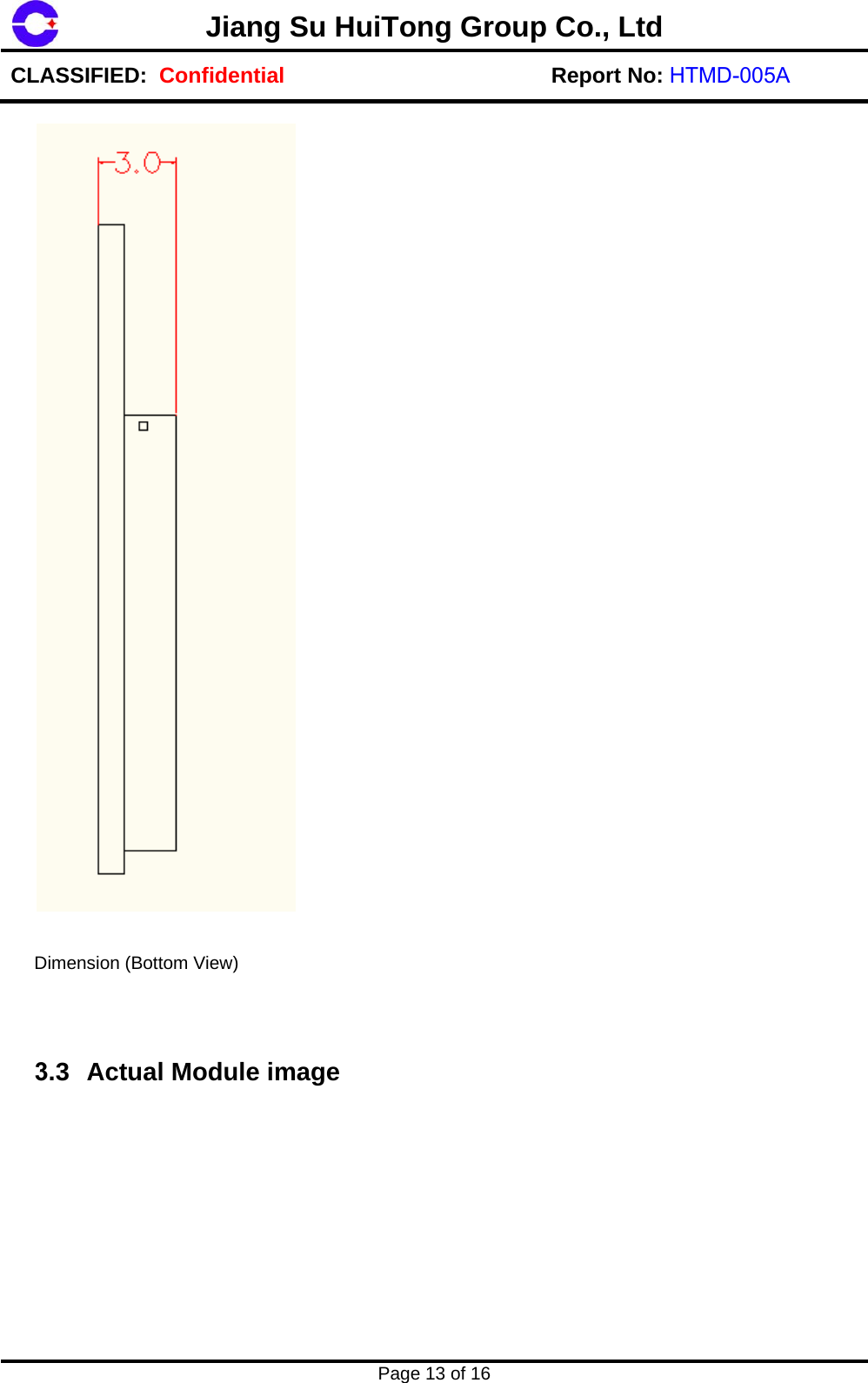

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 13 of 16 Dimension (Bottom View) 3.3 Actual Module image
Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 14 of 16 4 Software

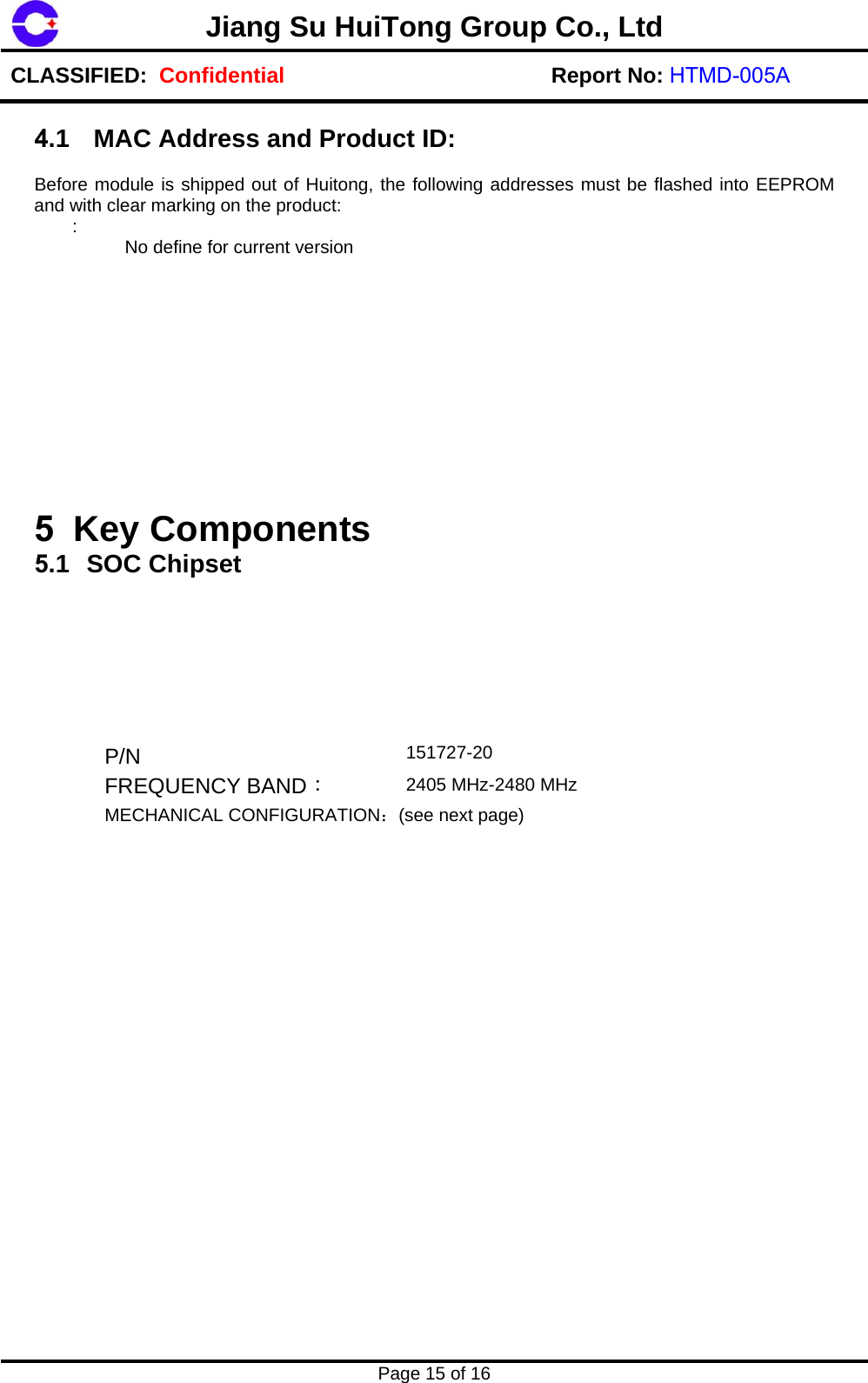

2405 MHz-2480 MHzJiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005A Page 15 of 16 4.1 MAC Address and Product ID: Before module is shipped out of Huitong, the following addresses must be flashed into EEPROM and with clear marking on the product: : No define for current version 5 Key Components 5.1 SOC Chipset P/N 151727-20 FREQUENCY BAND： MECHANICAL CONFIGURATION：(see next page)

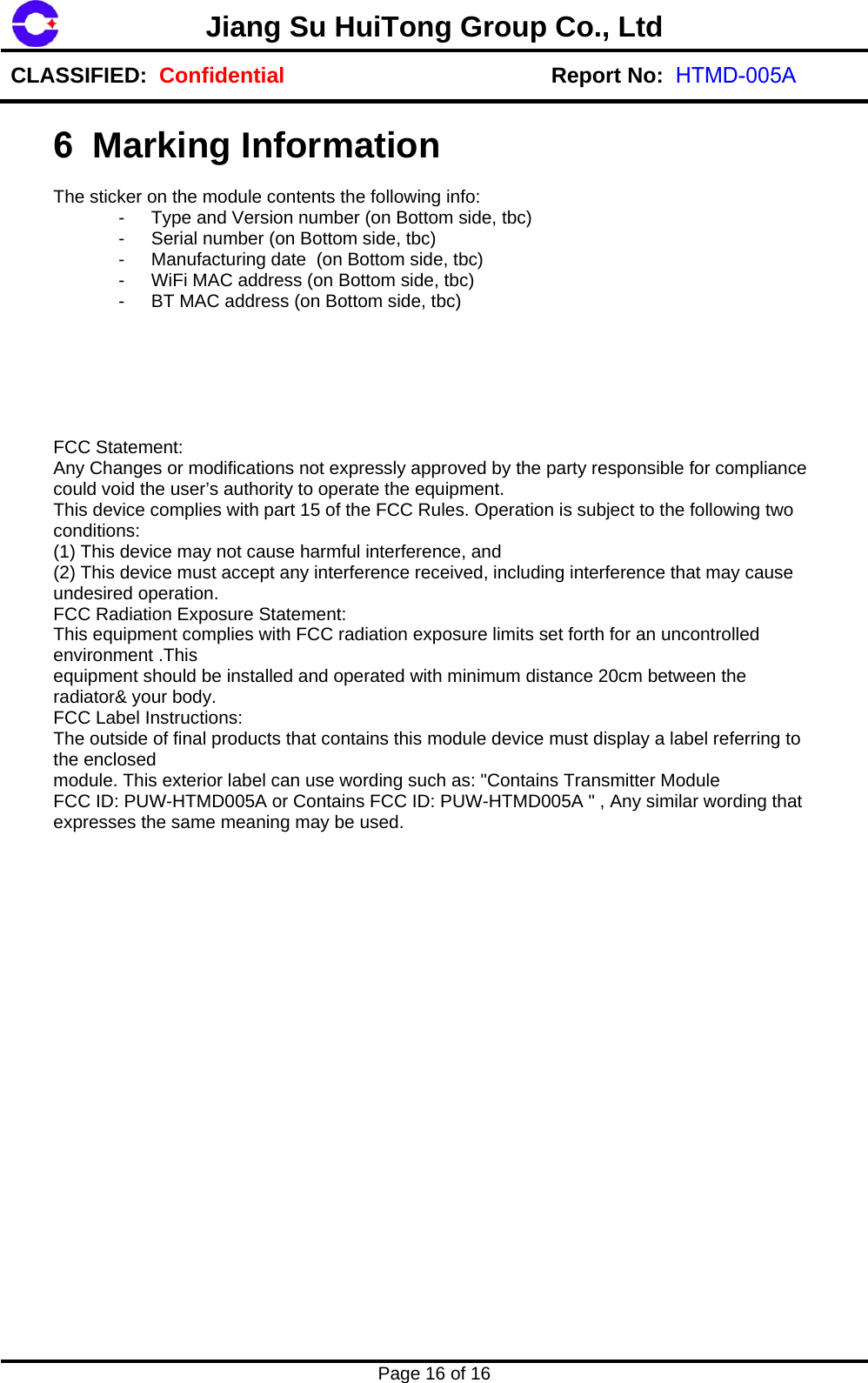

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-005APage 16 of 16 6 Marking Information The sticker on the module contents the following info: - Type and Version number (on Bottom side, tbc) - Serial number (on Bottom side, tbc) - Manufacturing date (on Bottom side, tbc) - WiFi MAC address (on Bottom side, tbc) - BT MAC address (on Bottom side, tbc) FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. FCC Label Instructions: The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as: "Contains Transmitter Module FCC ID: PUW-HTMD005A or Contains FCC ID: PUW-HTMD005A " , Any similar wording that expresses the same meaning may be used.
